DAS-190

< REMOVAL AND INSTALLATION >

[BSW]

AIR PUMP

AIR PUMP

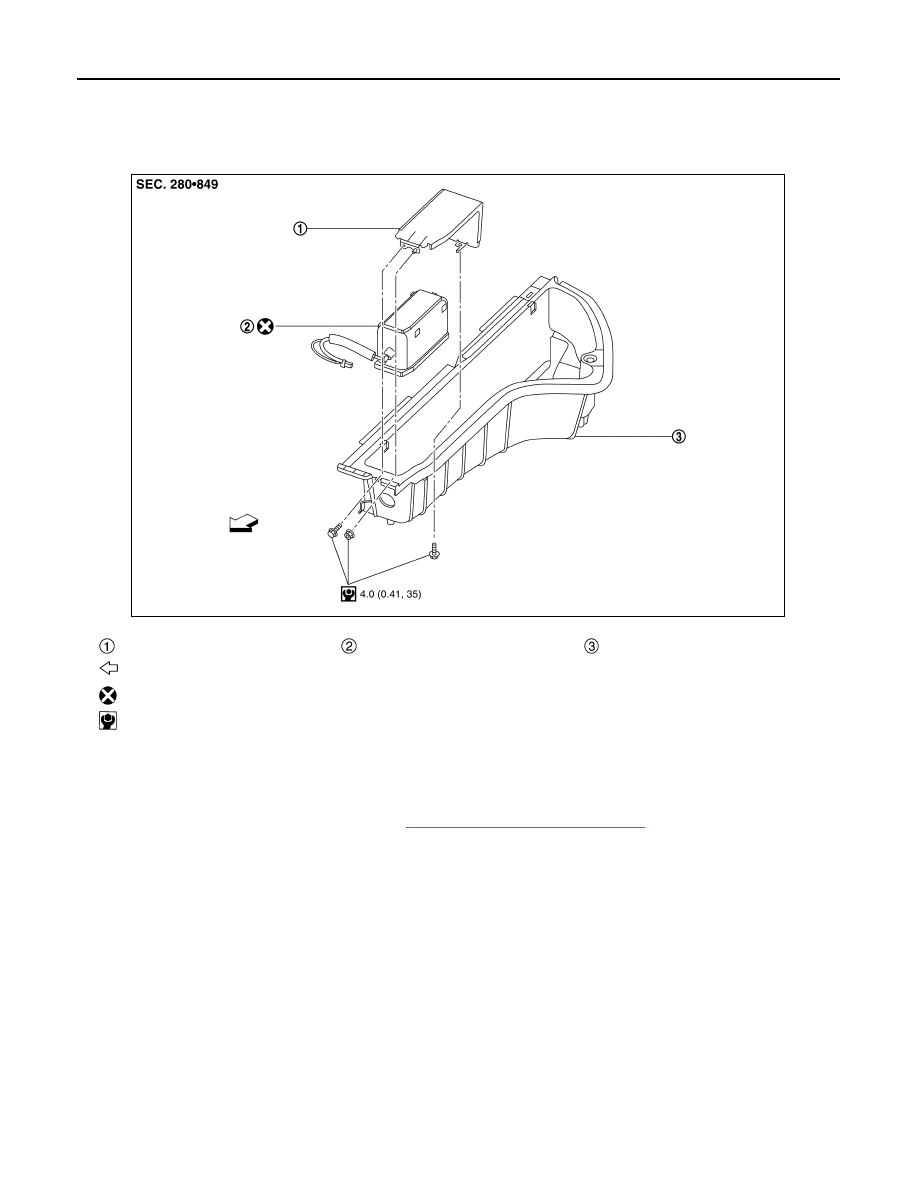

Exploded View

INFOID:0000000009723401

Removal and Installation

INFOID:0000000009723402

REMOVAL

1.

Remove luggage floor spacer LH. Refer to

INT-35, "Removal and Installation"

.

2.

Disconnect air tube and air pump harness connector.

3.

Remove air pump cover bolts and nut and remove air pump cover.

4.

Remove air pump from luggage floor spacer LH.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

Remove double-sided tape remaining on luggage floor spacer LH with a double-sided tape remover,
after removing air pump.

Air pump cover

Air pump

Luggage floor spacer LH

: Vehicle front

: Always replace after every disassembly.

: N·m (kg-m, in-lb)

JSOIA0662ZZ

DAS

WASHER SWITCHING SOLENOID VALVE

DAS-191

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

WASHER SWITCHING SOLENOID VALVE

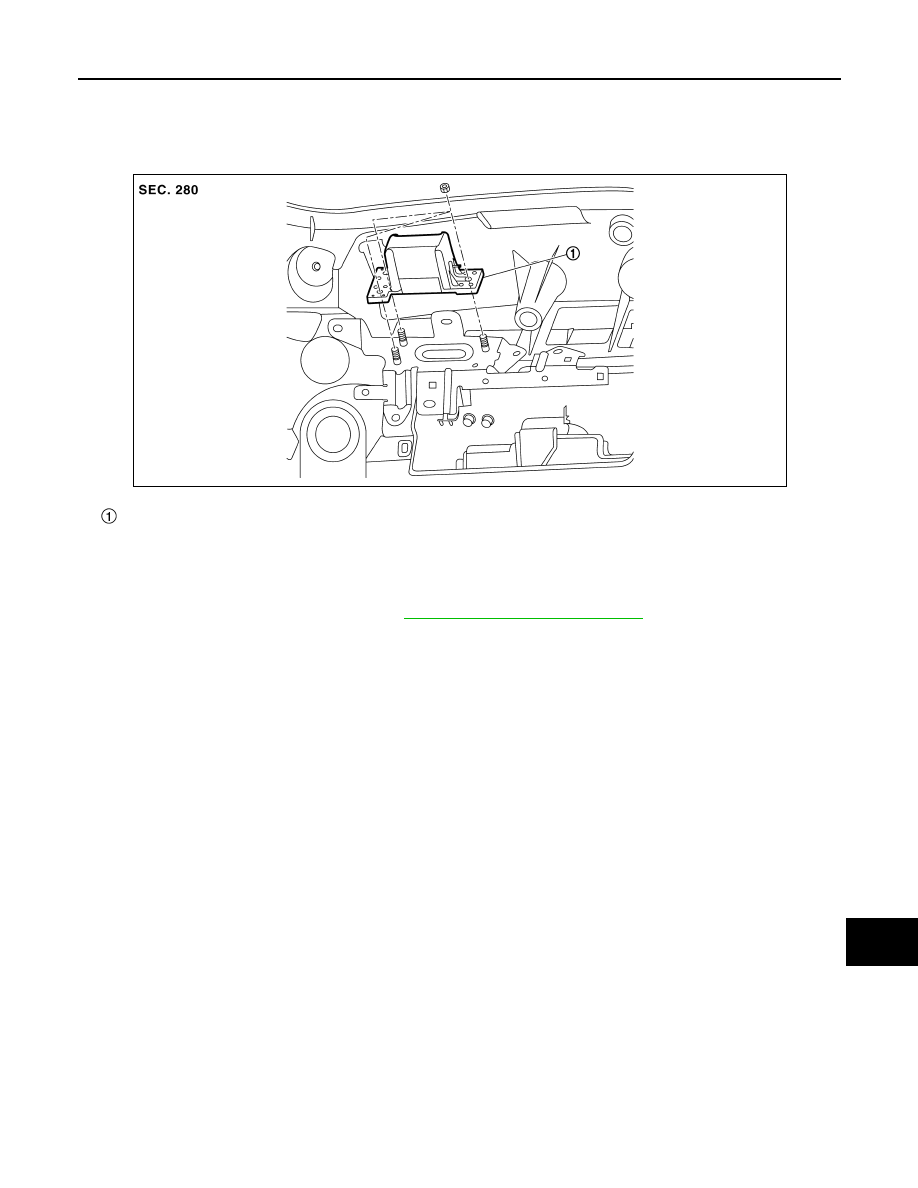

Exploded View

INFOID:0000000009723403

Removal and Installation

INFOID:0000000009723404

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove the nuts.

3.

Remove washer switching solenoid valve.

INSTALLATION

Install in the reverse order of removal.

Washer switching solenoid valve

JSOIA0663ZZ

DAS-192

< REMOVAL AND INSTALLATION >

[BSW]

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

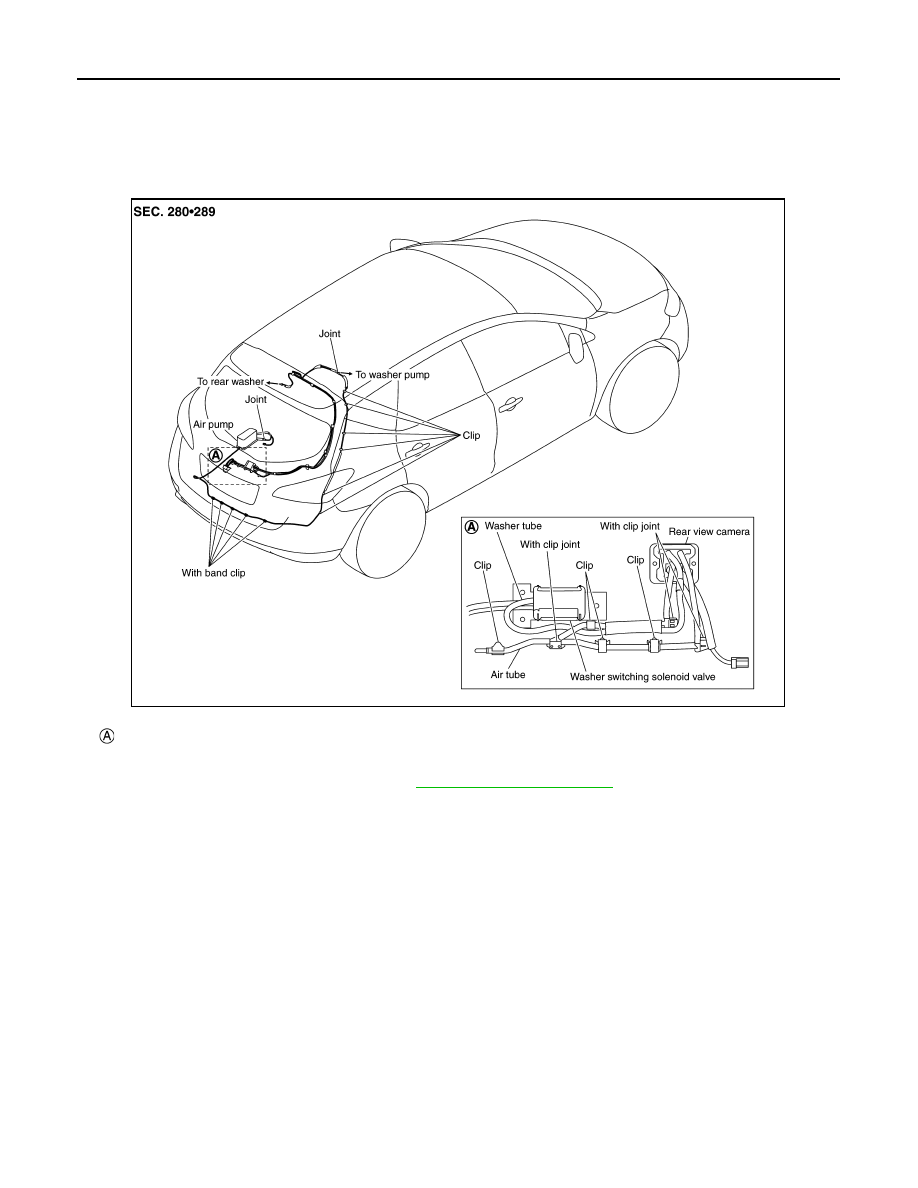

Exploded View

INFOID:0000000009723405

REAR VIEW CAMERA WASHER / AIR NOZZLE & TUBE

NOTE:
For washer pump and rear washer path, refer to

WW-145, "Hydraulic Layout"

.

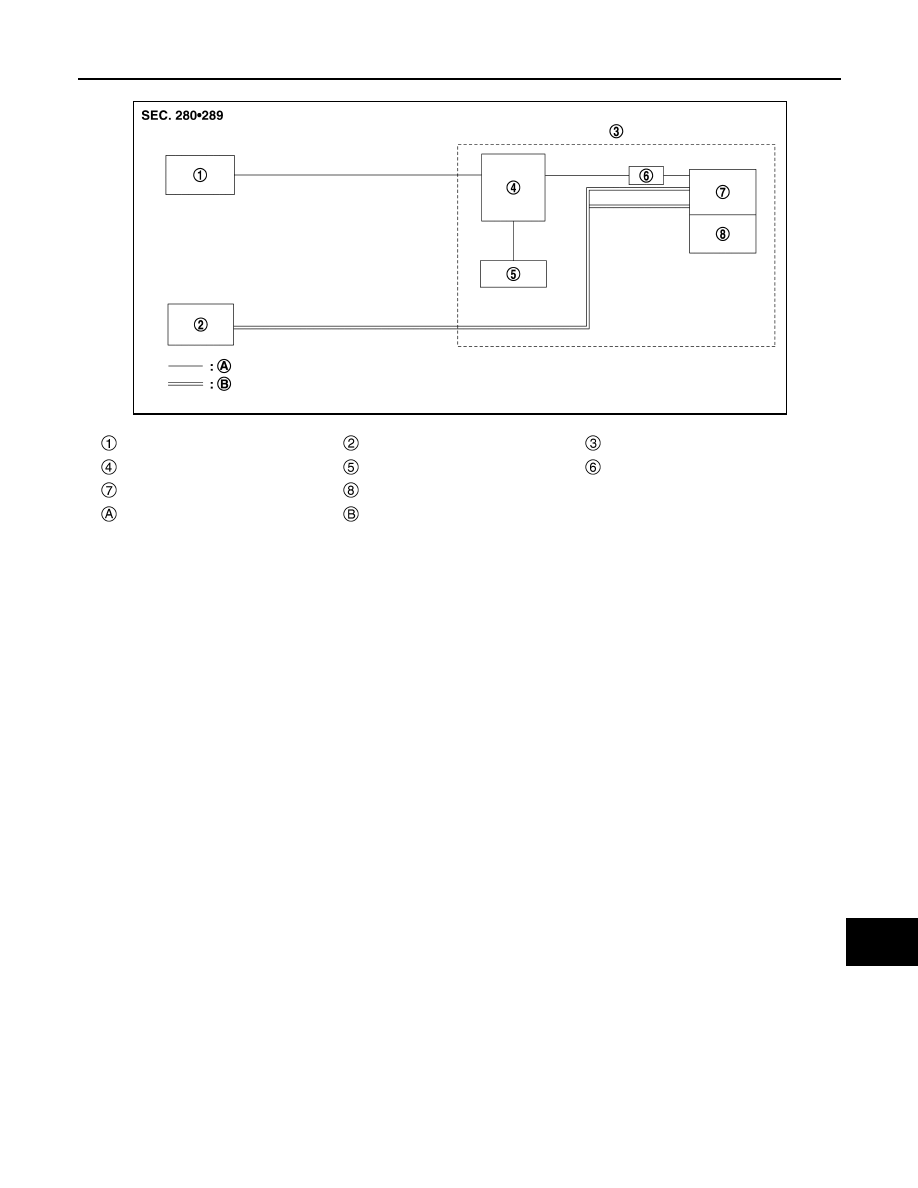

HYDRAULIC LAYOUT

Details

JSOIA0664GB

DAS

REAR VIEW CAMERA WASHER/AIR NOZZLE & TUBE

DAS-193

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Washer pump

Air pump

Back door

Washer switching solenoid valve

Rear washer nozzle

Check valve

Air/washer nozzle

Rear view camera

Washer tube

Air tube

JSOIA0669ZZ
