Nissan Murano. Manual - part 324





DAS-186

< REMOVAL AND INSTALLATION >

[BSW]

BSW INDICATOR

REMOVAL AND INSTALLATION

BSW INDICATOR

Removal and Installation

INFOID:0000000009723394

REMOVAL AND INSTALLATION

Removal

1.

Remove the door mirror corner cover. Refer to

MIR-72, "DOOR MIRROR ASSEMBLY : Removal and

Installation"

.

2.

Remove the BSW indicator mounting screw.

3.

Remove the BSW indicator from door mirror corner cover.

Installation

Install in the reverse order of removal.

DAS

CAMERA CONTROL UNIT

DAS-187

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

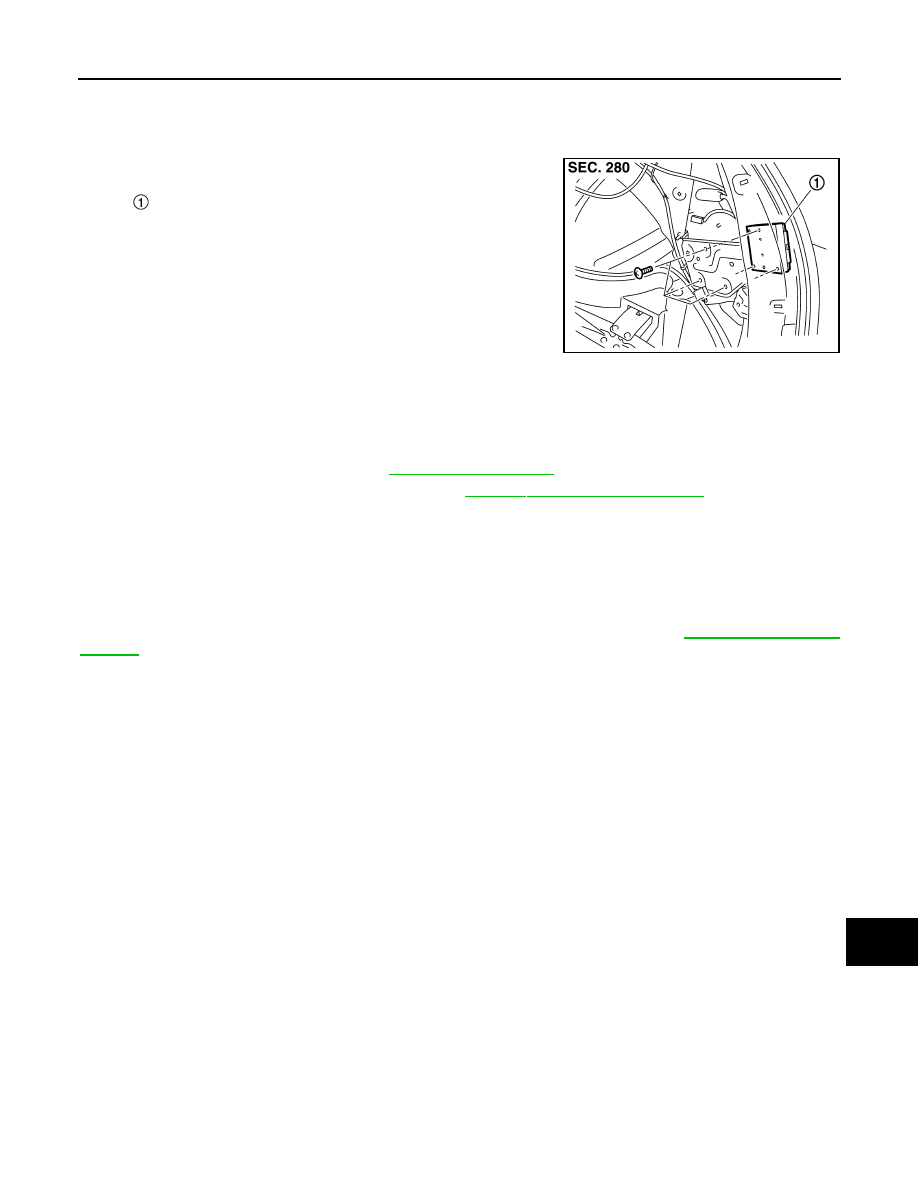

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000009723395

Removal and Installation

INFOID:0000000009723396

REMOVAL

CAUTION:

Before replacing camera control unit, perform “Read/Write Configuration” to save or print current
vehicle specification. For details, refer to

DAS-52, "Description"

.

1.

Remove luggage side finisher lower (RH). Refer to

INT-35, "Removal and Installation"

.

2.

Disengage air tube clip from camera control unit bracket.

3.

Remove camera control unit screws, disconnect camera control unit connector and remove the camera
control unit.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Must be perform additional service when replacing camera control unit. Refer to

DAS-146, "Work Pro-

cedure"

.

Camera control unit

JPNIA0796ZZ

DAS-188

< REMOVAL AND INSTALLATION >

[BSW]

REAR VIEW CAMERA

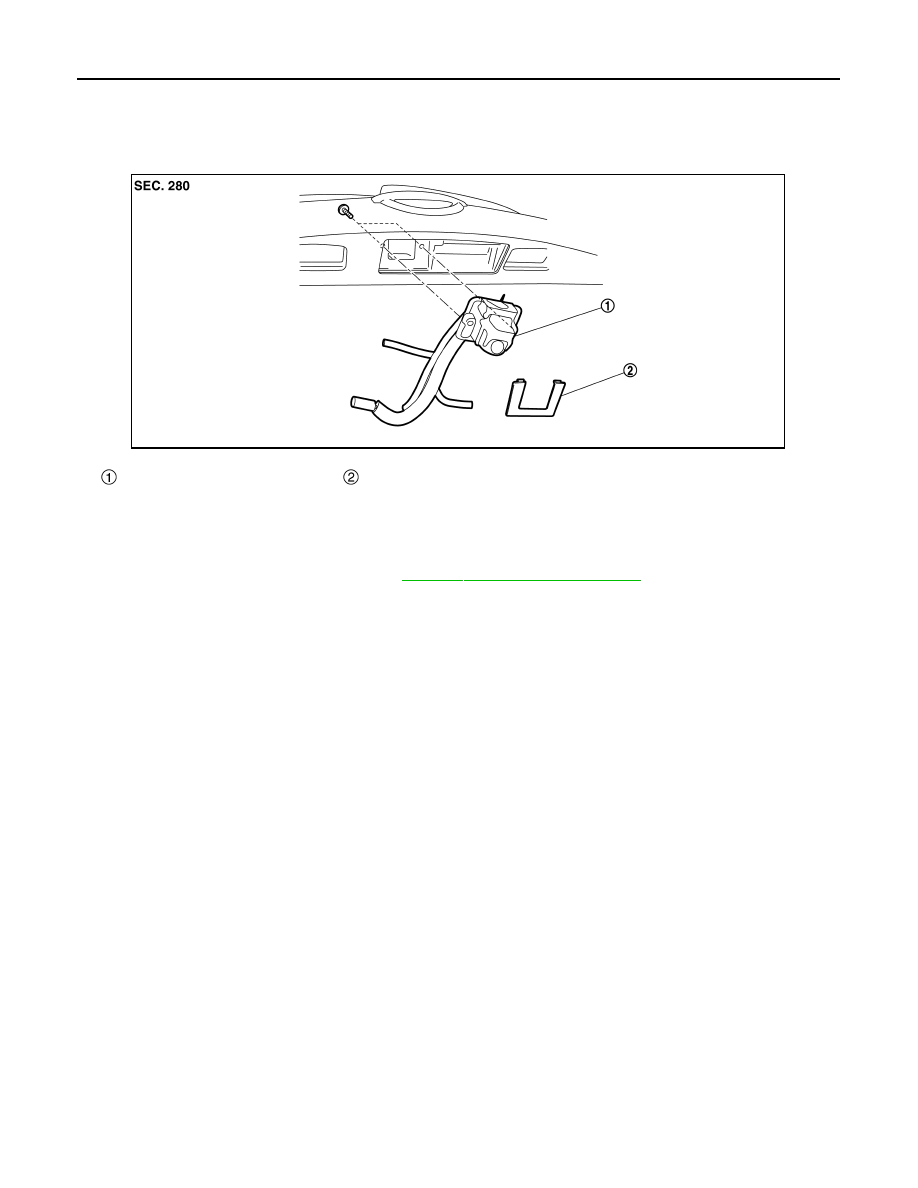

REAR VIEW CAMERA

Exploded View

INFOID:0000000009723397

Removal and Installation

INFOID:0000000009723398

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove finisher.

3.

Disconnect air tube and washer tube from rear view camera.

4.

Remove rear view camera mounting screws, disconnect rear view camera connector and remove rear
view camera from back door assembly.

CAUTION:

To prevent a malfunction resulting from a short circuit, never allow washer fluid to drip from tube
to rear view camera and connector.

INSTALLATION

Install in the reverse order of removal.

Rear view camera

Finisher

JSOIA0656ZZ

DAS

PUMP CONTROL UNIT

DAS-189

< REMOVAL AND INSTALLATION >

[BSW]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

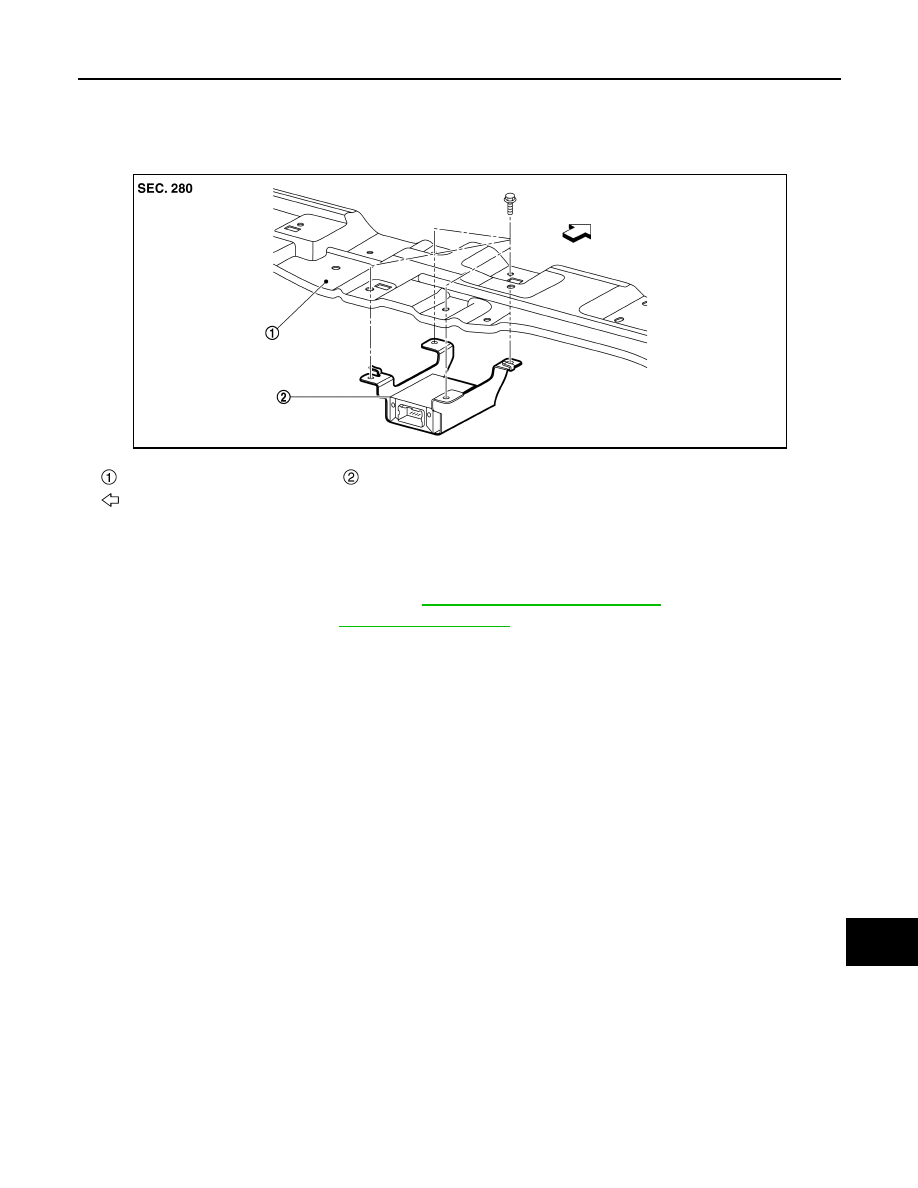

PUMP CONTROL UNIT

Exploded View

INFOID:0000000009723399

Removal and Installation

INFOID:0000000009723400

REMOVAL

1.

Remove luggage floor front finisher. Refer to

INT-35, "Removal and Installation"

.

2.

Remove luggage mask. Refer to

INT-34, "Exploded View"

.

3.

Remove pump control unit mounting screws, disconnect pump control unit harness connector and remove
pump control unit.

INSTALLATION

Install in the reverse order of removal.

Luggage trim bracket

Pomp control unit

: Vehicle front

JSOIA0661ZZ
