USB CONNECTOR

USB CONNECTOR

Removal and Installation

INFOID:0000000009721690

REMOVAL

1.

Remove console finisher assembly. Refer to

IP-22, "Exploded View"

.

2.

Press the pawl from the back of lower console assembly to remove USB connector.

INSTALLATION

Install in the reverse order of removal.

AV

REAR VIEW CAMERA

AV-159

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

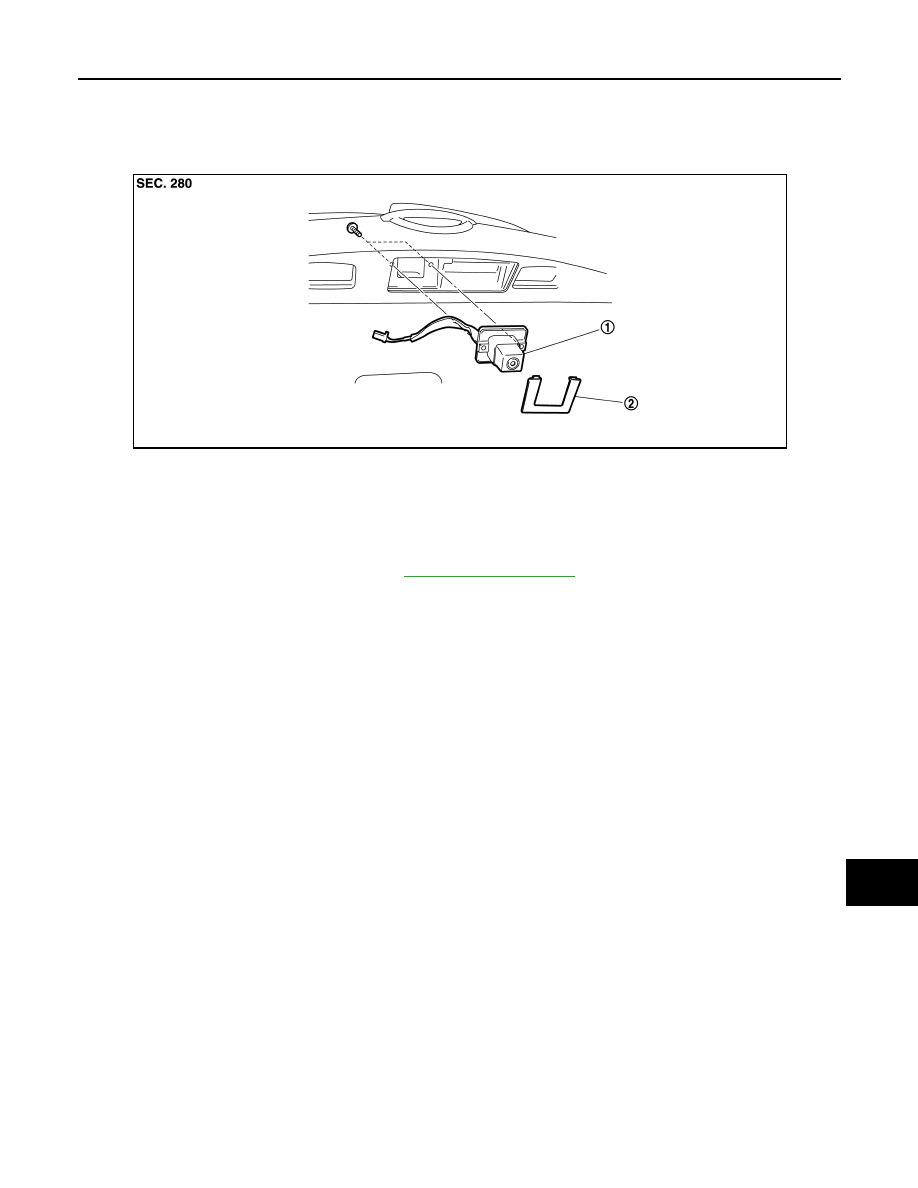

Exploded View

INFOID:0000000009721691

Removal and Installation

INFOID:0000000009721692

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove finisher.

3.

Remove rear view camera screws, disconnect rear view camera connector and remove rear view camera
from back door assembly.

INSTALLATION

Install in the reverse order of removal.

Adjustment

INFOID:0000000009721693

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.

1.

Rear view camera

2.

Finisher

JPNIA0797ZZ

AV-160

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

REAR VIEW CAMERA

1.

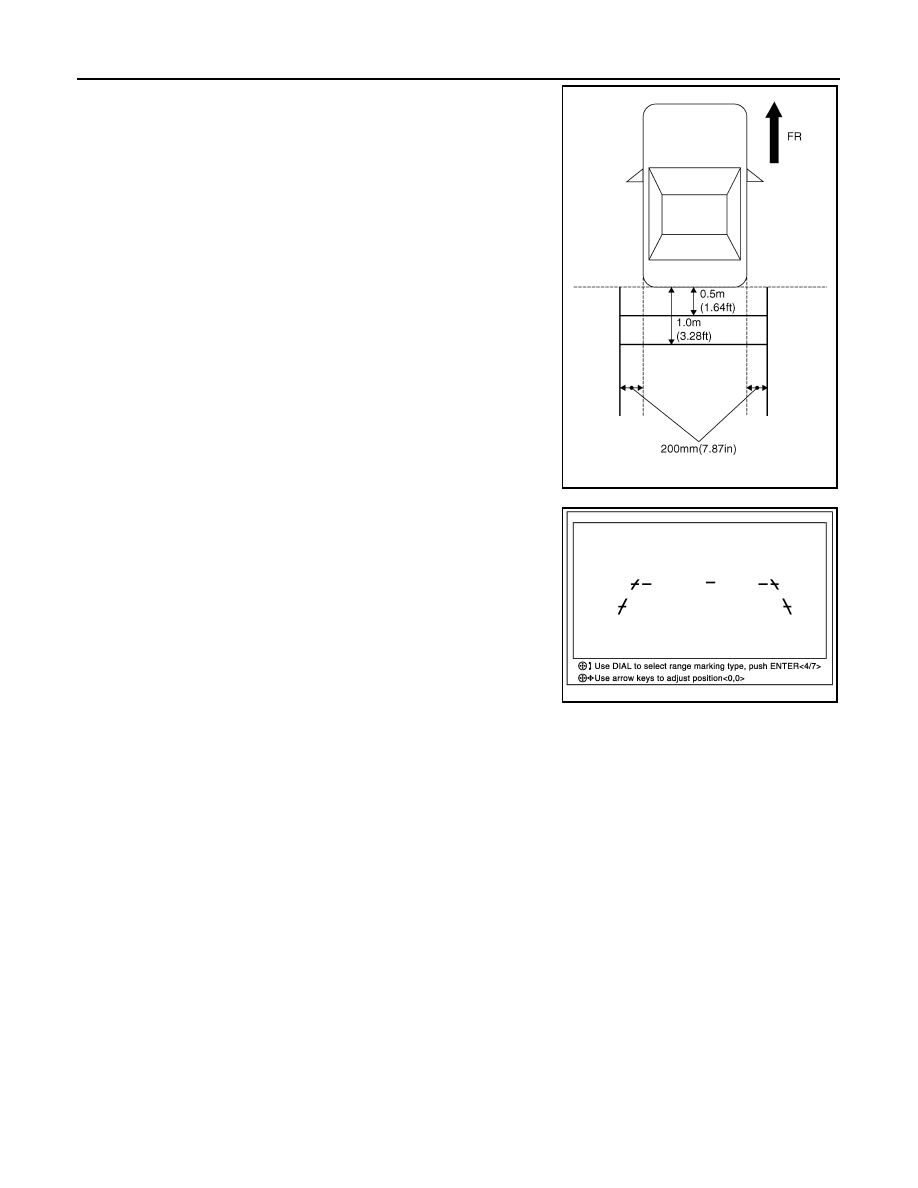

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust Guide Lines” mode of “Confirmation/Adjust-
ment” mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “OK” switch and record the
adjusted guiding line position to the AV control unit.

CAUTION:

Never operate other function such as pressing BACK while writing index data.

SKIB3691E

Selected pattern

: 7

Up/Down adjustment range

: 20

°

 to 20

°

Left/Right adjustment range

: 20

°

 to 20

°

JSNIA2231ZZ

AV

STEERING ANGLE SENSOR

AV-161

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING ANGLE SENSOR

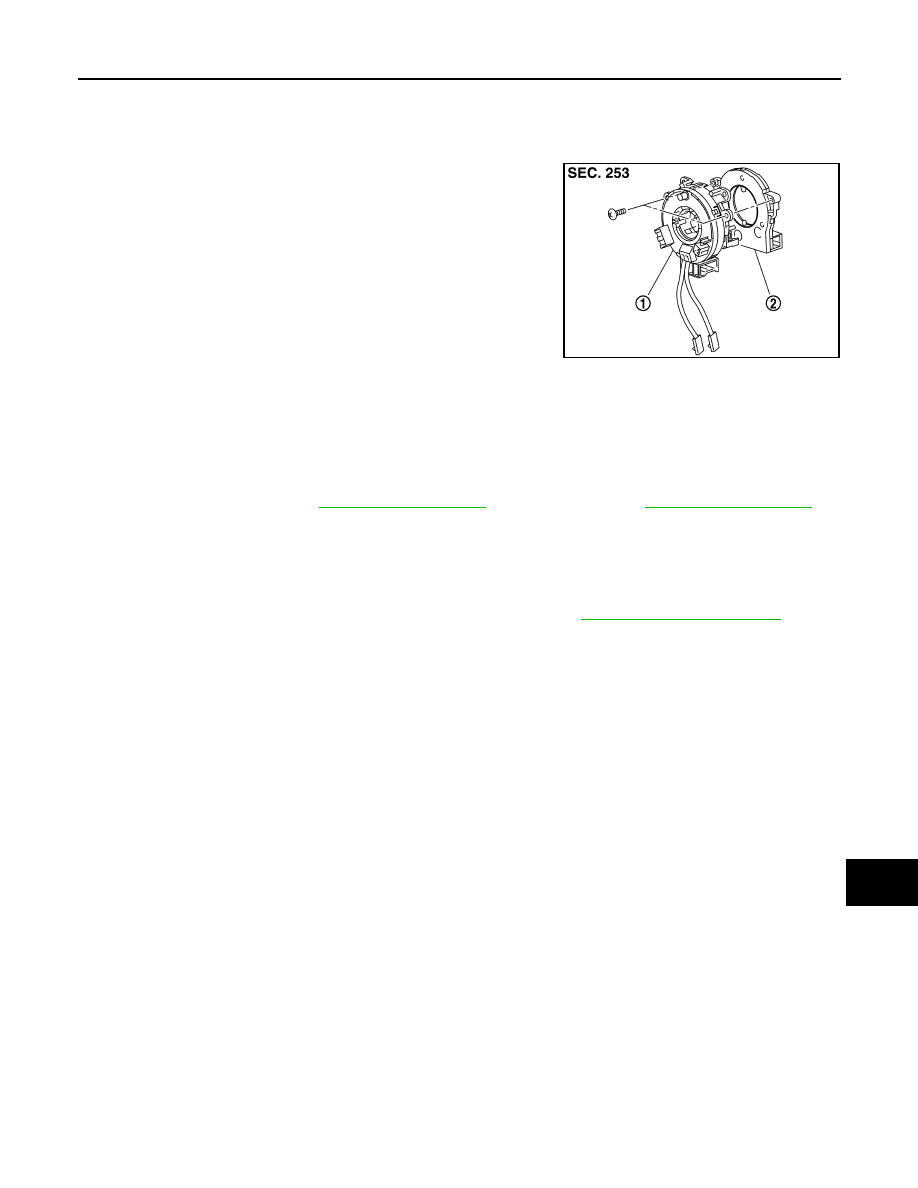

Exploded View

INFOID:0000000009721694

DISASSEMBLY

Removal and Installation

INFOID:0000000009721695

REMOVAL

1.

Remove spiral cable. Refer to

SR-15, "Exploded View"

 (except for Mexico) or

SR-42, "Exploded View"

 (for

Mexico).

2.

Remove steering angle sensor from spiral cable.

INSTALLATION

1.

Install in the reverse order of removal.

2.

Perform steering angle sensor neutral position adjustment. Refer to

AV-65, "CONSULT Function"

.

JSNIA0135ZZ

1.

Spiral cable

2.

Steering angle sensor
