Nissan Murano. Manual - part 94

AV-154

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

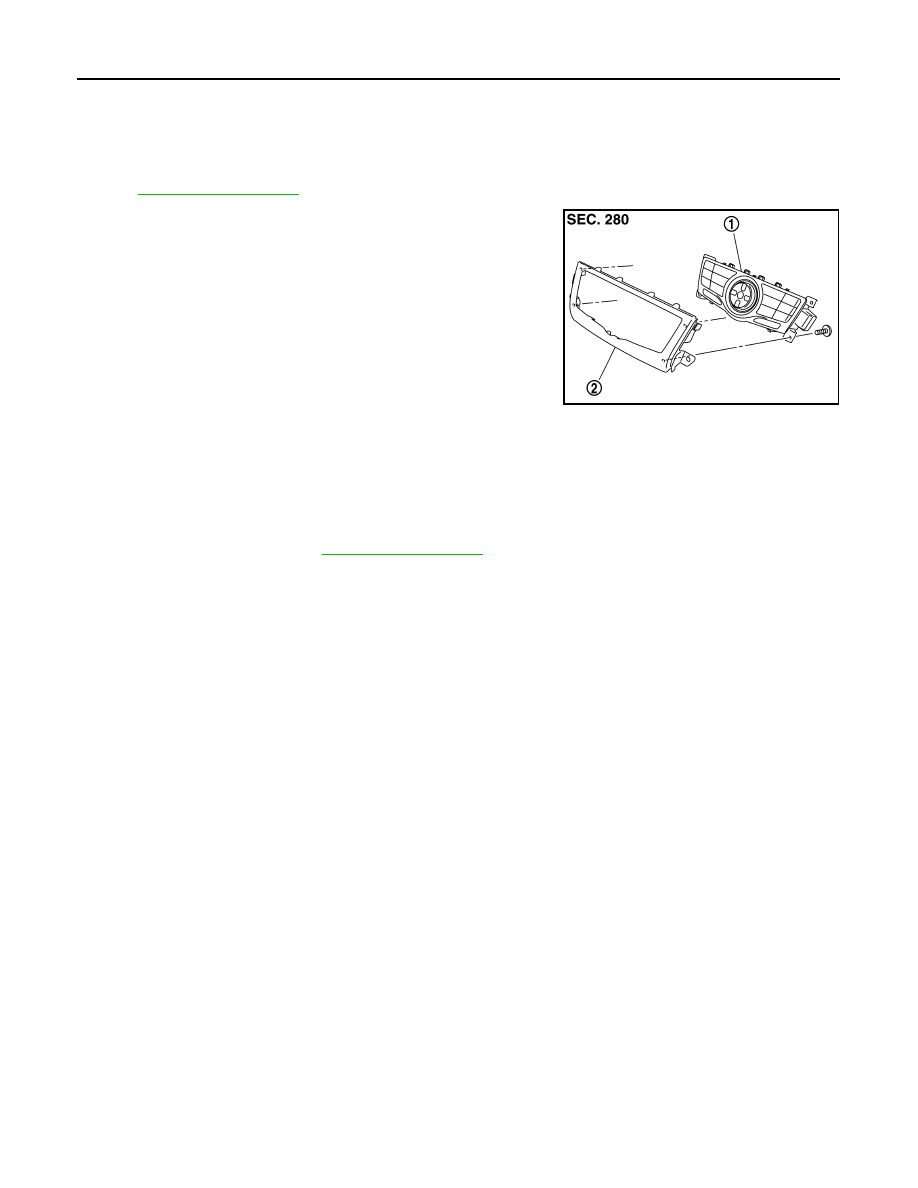

MULTIFUNCTION SWITCH

MULTIFUNCTION SWITCH

Exploded View

INFOID:0000000009721683

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721684

REMOVAL

1.

Remove cluster lid D. Refer to

IP-14, "Exploded View"

.

2.

Remove multifunction switch with center ventilator grille as a single unit.

3.

Remove multifunction switch screws, remove multifunction switch from cluster lid D.

INSTALLATION

Install in the reverse order of removal.

JPNIA0800ZZ

1.

Multifunction switch

2.

Cluster lid D

AV

PRESET SWITCH

AV-155

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

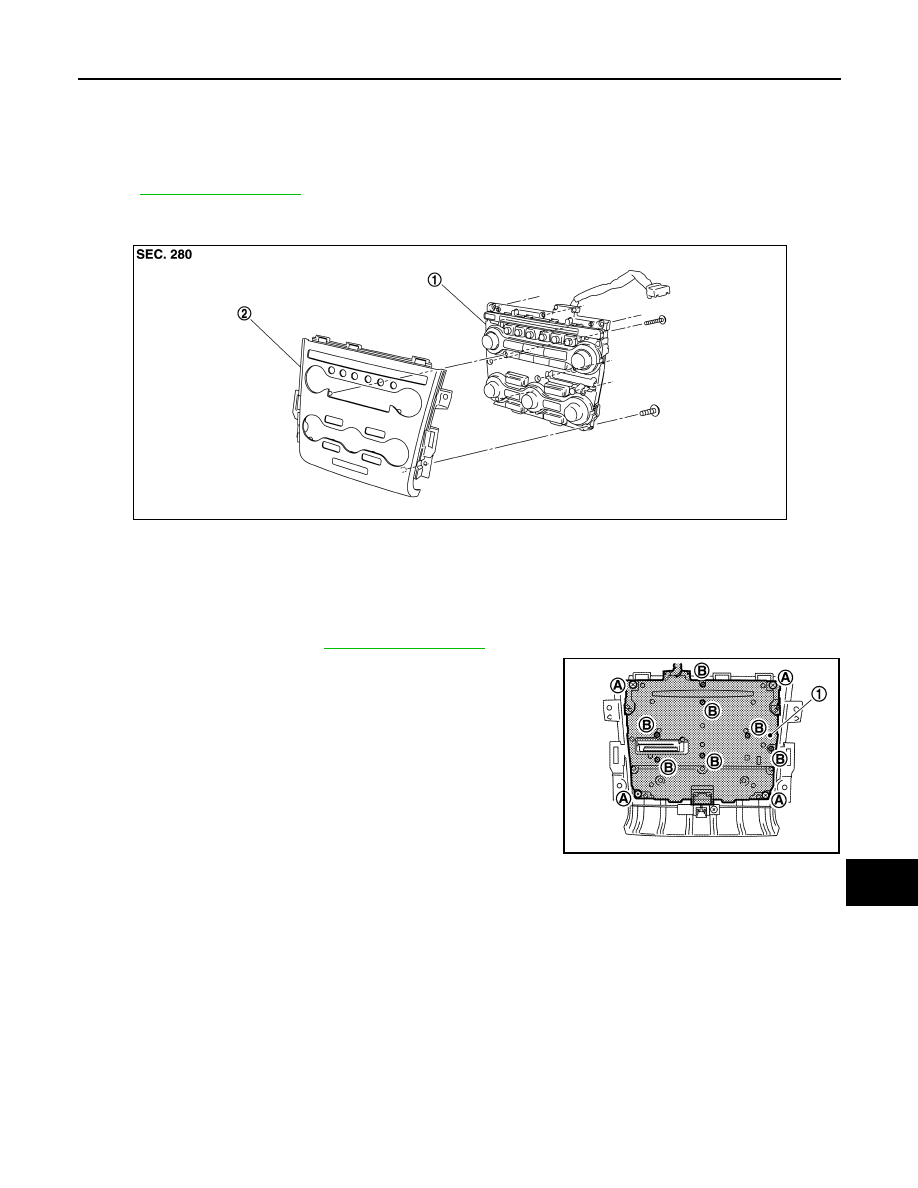

PRESET SWITCH

Exploded View

INFOID:0000000009721685

REMOVAL

Refer to

IP-14, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000009721686

REMOVAL

1.

Remove cluster lid C. Refer to

IP-14, "Exploded View"

.

2.

Remove preset switch screws (A) (B), remove preset switch (1)
from cluster lid C.

INSTALLATION

Install in the reverse order of removal.

1.

Preset switch

2.

Cluster lid C

JPNIA0790ZZ

1.

Preset switch

A.

Screw

B.

Screw

JPNIA0802ZZ

AV-156

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000009721687

Refer to

ST-36, "Exploded View"

.

Removal and Installation

INFOID:0000000009721688

REMOVAL

Refer to

ST-36, "Removal and Installation"

.

INSTALLATION

Install in the reverse order of removal.

AV

AUXILIARY INPUT JACKS

AV-157

< REMOVAL AND INSTALLATION >

[BASE AUDIO WITH COLOR DISPLAY]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009721689

REMOVAL

1.

Remove center console assembly. Refer to

IP-22, "Exploded View"

.

2.

Remove auxiliary input jacks mounting screws.

3.

Disconnect connector to remove auxiliary input jacks from lower console assembly.

INSTALLATION

Install in the reverse order of removal.
