POWER SUPPLY AND GROUND CIRCUIT

POWER SUPPLY AND GROUND CIRCUIT

COMBINATION METER

COMBINATION METER : Diagnosis Procedure

INFOID:0000000010329985

1.

CHECK FUSE

Check for blown fuses.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Be sure to eliminate cause of malfunction before installing new fuse.

2.

CHECK POWER SUPPLY CIRCUIT

Check voltage between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Check harness between combination meter and fuse.

3.

CHECK GROUND CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector.

3.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Terminal No.

Signal name

Fuses No.

45

Battery power supply

21

46

Ignition signal

3

Terminals

Ignition switch position

(+)

(

−

)

Combination meter

OFF

ON

Connector

Terminal

M52

45

Ground

Battery voltage

Battery voltage

46

Approx. 0 V

Battery voltage

Combination meter

Ground

Continuity

Connector

Terminal

M52

1 - 52

Existed

MWI

PARKING BRAKE SWITCH SIGNAL CIRCUIT

MWI-67

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

PARKING BRAKE SWITCH SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000010435893

Regarding Wiring Diagram information, refer to EHS-PKB

PB-33, "Wiring Diagram"

.

1.

With CONSULT perform the self diagnosis of ELECTRIC PARKING BRAKE CONTROL UNIT. Refer to

PB-19, "CONSULT Function"

.

2.

Check the DTC of the parking brake switch. Refer to

PB-30, "DTC Index"

.

MWI-68

< DTC/CIRCUIT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Component Function Check

INFOID:0000000010329986

1.

PERFORM COMPONENT FUNCTION CHECK (1)

1.

Turn ignition switch OFF.

2.

Disconnect fuel level sensor unit and fuel pump (fuel level sensor) connector.

3.

Connect variable resistor between harness connector terminals located on the vehicle side of the fuel
level sensor unit and fuel pump (fuel level sensor).

*1: with gasoline engine

*2: with diesel engine

4.

Set variable resistor according to the resistance value shown in the following table and turn ignition switch
ON.

*: Reference resistance values used when the combination meter judges the indication position of the fuel
gauge.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Refer to

MWI-68, "Diagnosis Procedure"

.

2.

PERFORM COMPONENT FUNCTION CHECK (2)

Check the fuel level sensor unit and fuel pump (fuel level sensor) and/or fuel level sensor unit (sub). Refer to

MWI-70, "Component Inspection"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace the fuel level sensor unit and fuel pump (fuel level sensor) and/or fuel level sensor unit

(sub). Refer to

FL-7, "Removal and Installation"

 (HRA2DDT models),

FL-32, "Removal and Instal-

lation"

 (MR20DD models),

FL-48, "Removal and Installation"

 (K9K models),

FL-61, "2WD :

Removal and Installation"

 (2WD with R9M models),

FL-19, "Removal and Installation"

(MR16DDT) or

FL-65, "4WD : Removal and Installation"

 (4WD with R9M models).

Diagnosis Procedure

INFOID:0000000010329987

FOR DIESEL ENGINE MODELS

1.

CHECK FUEL PUMP CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel pump control module connector.

Fuel level sensor unit and fuel pump (fuel level sensor)

Connector

Terminals

B72

*1

2

5

B94

*2

5

6

Resistance (

Ω

)

*

(Approx.)

Fuel gauge indication position

(Approx.)

93

Full

140

3/4

186

1/2

232

1/4

255

1/8

243,5

TURN OFF

255

TURN ON

280.0

Empty

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-69

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

3.

Check continuity between combination meter harness connector and fuel pump control module harness
connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK FUEL PUMP CONTROL NMODULE GROUND CIRCUIT

Check continuity between fuel pump control module harness connector and combination meter harness con-
nector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect  fuel level sensor unit and fuel pump (fuel level sensor) connector and fuel pump controle
module connector.

3.

Check continuity between fuel level sensor unit and fuel pump (fuel level sensor) harness connector and
fuel pump control module harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair harness or connector.

4.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) GROUND CIRCUIT

Check continuity between fuel level sensor unit and fuel pump (fuel level sensor) connector connector and fuel
pump control module harness connector.

Combination meter

Fuel pump controle module

Continuity

Connector

Terminal

Connector

Terminal

M52

51

B77

11

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M52

51

Not existed

Fuel pump control module

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

B77

12

M52

44

Existed

Fuel level sensor unit and fuel

pump (fuel level sensor)

Fuel pump control module

Continuity

Connector

Terminal

Connector

Terminal

B94

5

B77

2

Existed

Fuel level sensor unit and fuel

pump (fuel level sensor)t

Ground

Continuity

Connector

Terminal

B94

5

Not existed

MWI-70

< DTC/CIRCUIT DIAGNOSIS >

FUEL LEVEL SENSOR SIGNAL CIRCUIT

Is the inspection result normal?

YES

>> Replace the fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-32, "Removal and

Installation"

 (MR20DD),

FL-48, "Removal and Installation"

 (K9K engine models) or

FL-61, "2WD :

Removal and Installation"

 (2WD with R9M engine models),

FL-19, "Removal and Installation"

(MR16DDT) or

FL-65, "4WD : Removal and Installation"

 (4WD with R9M engine models)

NO

>> Repair harness or connector.

FOR GASOLINE ENGINE MODELS

1.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and fuel level sensor unit and fuel pump (fuel level sensor) con-
nector.

3.

Check continuity between combination meter harness connector and fuel level sensor unit and fuel pump
(fuel level sensor) harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR) GROUND CIRCUIT

Check continuity between fuel level sensor unit and fuel pump (fuel level sensor) harness connector and com-
bination meter harness connector.

Is the inspection result normal?

YES

>> Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-7, "Removal and

Installation"

.

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000010329988

2WD MODELS

1.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)

1.

Remove the fuel level sensor unit and fuel pump (fuel level sensor).

-

 Refer to

FL-10, "Inspection"

 (HRA2DDT engine models)

Fuel pump controle module

Fuel level sensor unit and fuel

pump (fuel level sensor)

Continuity

Connector

Terminal

Connector

Terminal

B77

1

B94

6

Existed

Combination meter

Fuel level sensor unit and fuel

pump (fuel level sensor)

Continuity

Connector

Terminal

Connector

Terminal

M52

51

B72

2

Existed

Combination meter

Ground

Continuity

Connector

Terminal

M52

51

Not existed

Fuel level sensor unit and fuel

pump (fuel level sensor)

Combination meter

Continuity

Connector

Terminal

Connector

Terminal

B72

5

M52

44

Existed

MWI

FUEL LEVEL SENSOR SIGNAL CIRCUIT

MWI-71

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

-

 Refer to

FL-51, "Inspection"

 (K9K engine models)

-

 , Refer to

FL-64, "2WD : Inspection"

 (R9M engine models)

-

 Refer to

FL-38, "Inspection"

 (MR20DD engine models)

-

 Refer to

FL-22, "Inspection"

 (MR16DDT engine models)

2.

Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor).

*: When float rod is contact with stopper.

Is inspection result OK?

YES

>> INSPECTION END

NO

>> Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-7, "Removal and

Installation"

 (HRA2DDT engine models) or

FL-48, "Removal and Installation"

 (K9K engine mod-

els) or

FL-61, "2WD : Removal and Installation"

 (R9M engine models),

FL-19, "Removal and

Installation"

 (MR16DDT engine models) or

FL-32, "Removal and Installation"

 (MR20DD engine

models).

4WD MODELS

1.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)

1.

Remove the fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-71, "4WD : Inspection"

.

2.

Check the resistance between fuel level sensor unit and fuel pump (fuel level sensor).

*: When float rod is contact with stopper.

Is inspection result OK?

YES

>> INSPECTION END.

NO

>> Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-65, "4WD : Removal

and Installation"

.

Fuel level sensor unit and fuel pump

(fuel level sensor) connector

Terminals

Condition

Resistance (

Ω

)

(Approx.)

Height [mm (in)]

B72 (HRA2DDT engine models)

2

5

Full

*

5

178.4 (7.02)

Empty

*

81.5

36.2 (1.425)

B94 (R9M and K9K engine models)

5

6

Full

*

5

178.4 (7.02)

Empty

*

81.5

36.2 (1.425)

Terminals

Condition

Resistance (

Ω

)

(Approx.)

Height [mm (in)]

Fuel level sensor unit

and fuel pump (fuel

level sensor)

5

6

Full

*

93

186.3 (7.33)

Empty

*

280

36.3 (1.429)

MWI-72

< DTC/CIRCUIT DIAGNOSIS >

OIL LEVEL SENSOR SIGNAL CIRCUIT

OIL LEVEL SENSOR SIGNAL CIRCUIT

Component Function Check

INFOID:0000000010329989

1.

CHECK COMBINATION METER INPUT SIGNAL

Select the “Data Monitor” for the “METER/M&A” and check the “OIL W/L” monitor value.

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010329990

1.

CHECK OIL LEVEL SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and oil level sensor connector.

3.

Check continuity between combination meter connector and oil level sensor harness connector.

*1: K9K engine models

*2: R9M engine models

*3: MR16DDT engine models

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000010329991

1.

CHECK OIL LEVEL SENSOR

Check continuity between oil level sensor and ground.

Is the inspection result normal?

“OIL W/L”

Ignition switch ON

: On

Engine running

: Off

Terminals

Continuity

(+)

(

−

)

Combination meter

Oil level sensor

Connector

Terminal

Connector

Terminal

M52

49

F141

*1

F142

*2

F216

*3

1

Existed

Terminals

Continuity

(+)

(

−

)

Combination meter

Ground

Connector

Terminal

M52

49

Not existed

Condition

Continuity

Engine stopped

Existed

Engine running

Not existed

MWI

OIL LEVEL SENSOR SIGNAL CIRCUIT

MWI-73

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

YES

>> INSPECTION END

NO

>> Replace oil level sensor.

MWI-74

< DTC/CIRCUIT DIAGNOSIS >

AMBIENT SENSOR SIGNAL CIRCUIT

AMBIENT SENSOR SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000010329992

1.

CHECK AMBIENT SENSOR CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter connector and ouotside temperature sender connector.

3.

Check continuity between combination meter harness connector and ambient sensor harness connector.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AMBIENT SENSOR GROUND CIRCUIT

Check continuity between combination meter harness connector and ambient sensor harness connector.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Repair harness or connector.

Component Inspection

INFOID:0000000010329993

Refer to

HAC-130, "Removal and Installation"

.

Terminals

Continuity

(+)

(

−

)

Combination meter

Ambient sensor

Connector

Terminal

Connector

Terminal

M51

15

E12

1

Existed

Terminals

Continuity

(+)

(

−

)

Combination meter

Ground

Connector

Terminal

M51

1

Not existed

Terminals

Continuity

(+)

(

−

)

Combination meter

Ambient sensor sender

Connector

Terminal

Connector

Terminal

M51

20

E12

2

Existed

MWI

METER CONTROL SWITCH SIGNAL CIRCUIT

MWI-75

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH SIGNAL CIRCUIT

Diagnosis Procedure

INFOID:0000000010435886

Regarding Wiring Diagram information, refer to

MWI-42, "Wiring Diagram"

.

1.

CHECK METER CONTROL SWITCH SIGNAL

1.

Turn ignition switch ON.

2.

Check voltage between the following terminals of the meter control switch harness connector M53.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> GO TO 2.

2.

CHECK METER CONTROL SWITCH HARNESS

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector M51 and meter control switch harness connector M53.

3.

Check continuity between combination meter harness connector M51 and meter control switch harness
connector M53.

4.

Check continuity between combination meter harness connector and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

Meter control switch

Condition

Voltage

(Approx.)

Connector

Terminals

(+)

(

−

)

M53

7

4

When illumination control switch (

−

) is pressed

0 V

Other than the above

5 V

5

When trip reset switch is pressed

0 V

Other than the above

5 V

6

When illumination control switch (+) is pressed

0 V

Other than the above

5 V

Combination meter

Meter control switch

Continuity

Connector

Terminal

Connector

Terminal

M51

18

M53

5

Yes

37

7

36

6

17

4

Combination meter

Ground

Continuity

Connector

Terminal

M51

18

No

37

36

17

MWI-76

< DTC/CIRCUIT DIAGNOSIS >

METER CONTROL SWITCH SIGNAL CIRCUIT

Component Inspection

INFOID:0000000010435887

1.

CHECK METER CONTROL SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect meter control switch connector.

3.

Check meter control switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace meter control switch. Refer to

MWI-87, "Removal and Installation"

.

Meter control switch

Condition

Continuity

Terminals

7

4

When illumination control switch (

−

) is pressed

Yes

Other than the above

No

5

When trip reset switch is pressed

Yes

Other than the above

No

6

When illumination control switch (+) is pressed

Yes

Other than the above

No

MWI

STEERING SWITCH

MWI-77

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

STEERING SWITCH

Description

INFOID:0000000010435888

When one of the steering switches is pushed, the resistance in the steering switch changes the signal to
identify which button is controlling the information display.

Diagnosis Procedure

INFOID:0000000010435889

Regarding Wiring Diagram information, refer to

MWI-42, "Wiring Diagram"

.

1.

CHECK STEERING SWITCH CIRCUIT

1.

Turn ignition switch OFF.

2.

Disconnect combination meter harness connector M51 and spiral cable harness connector M303.

3.

Check continuity between combination meter harness connector M51 and spiral cable harness connector
M303.

4.

Check continuity between combination meter harness connector M51 and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connector.

Component Inspection

INFOID:0000000010435890

1.

CHECK STEERING SWITCH RESISTANCE

Check resistance between the following steering switch terminals.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace steering wheel switch. Refer to

ST-8, "Exploded View"

.

Combination meter

Spiral cable

Continuity

Connector

Terminal

Connector

Terminal

M51

21

M303

4

Yes

22

5

23

10

Combination meter

Ground

Continuity

Connector

Terminal

M51

21

No

22

23

Terminal

Signal name

Condition

Resistance (

Ω

)

(Approx.)

10

4

Display

Depress DISP switch.

2023

Back

Depress

switch.

723

5

Enter

Depress ENTER switch.

2023

Menu Up

Depress

switch.

121

Menu Down

Depress

switch.

321

MWI-78

< DTC/CIRCUIT DIAGNOSIS >

STEERING SWITCH

2.

CHECK SPIRAL CABLE

Check continuity between the following spiral cable terminals.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace spiral cable. Refer to

SR-17, "Removal and Installation"

.

Terminals

Continuity

24

10

Yes

29

5

23

4

MWI

THE FUEL GAUGE DOES NOT MOVE

MWI-79

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYMPTOM DIAGNOSIS

THE FUEL GAUGE DOES NOT MOVE

Description

INFOID:0000000010329995

Fuel gauge does not move from a certain position.

Diagnosis Procedure

INFOID:0000000010329996

1.

CONDUCTING THE COMBINATION METER SELF-DIAGNOSIS MODE

Perform the self-diagnosis mode of combination meter, and then check that the fuel gauge operates normally.
Refer to

MWI-30, "CONSULT Function (METER/M&A)"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace combination meter. Refer to

MWI-86, "Removal and Installation"

.

2.

CHECK FLOAT INTERFERENCE

Check that the float arm interferes with or binds to other components in the fuel tank.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace malfunctioning part.

3.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to

MWI-68, "Component Function Check"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-44, "Intermittent Incident"

.

NO

>> Repair or replace malfunctioning parts.

MWI-80

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000010330004

REMOVAL

1.

Disconnect the negative battery terminal. refer to

PG-154, "Exploded View"

.

2.

Remove the cluster lid A. Refer to

IP-12, "Exploded View"

.

3.

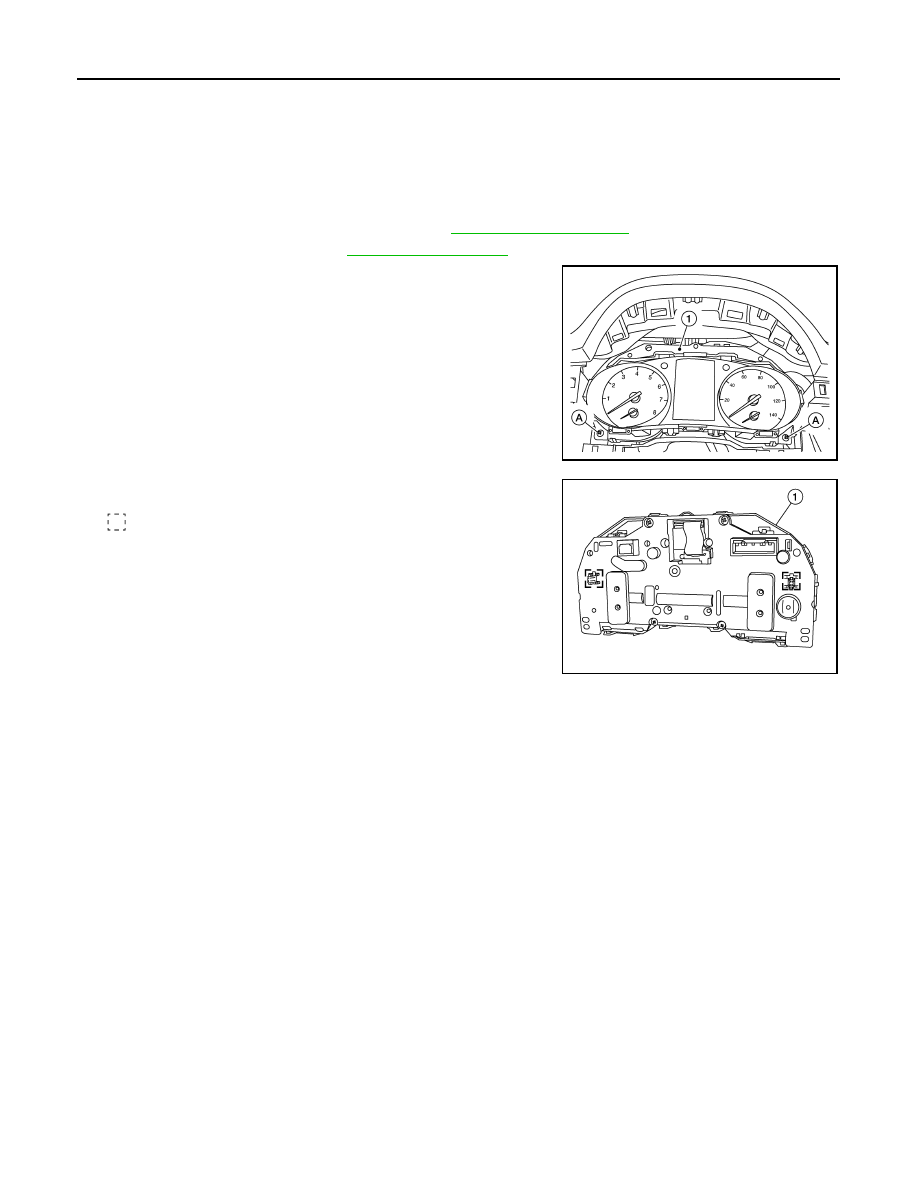

Remove screws (A), from the combination meter (1).

4.

Release the clips and remove the combination meter (1) from
the instrument panel.

: Clips

5.

Disconnect the harness connectors from the combination meter
and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1607ZZ

ALNIA1608ZZ

MWI

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

MWI-81

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE AMBIENT TEMPERATURE DISPLAY IS INCORRECT

Description

INFOID:0000000010330001

• The ambient air temperature display flashes and the ambient air temperature is not displayed.
• The displayed air ambient temperature is higher than the actual temperature.
• The displayed air ambient temperature is lower than the actual temperature.

Diagnosis Procedure

INFOID:0000000010330002

1.

CHECK AMBIENT SENSOR SIGNAL CIRCUIT

Check the ambient sensor signal circuit. Refer to

MWI-74, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair harness or connector.

2.

CHECK AMBIENT SENSOR

Perform a unit check for the ambient sensor. Refer to

MWI-74, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter.

NO

>> Replace ambient sensor. Refer to

HAC-130, "Removal and Installation"

.
