COMBINATION METER

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

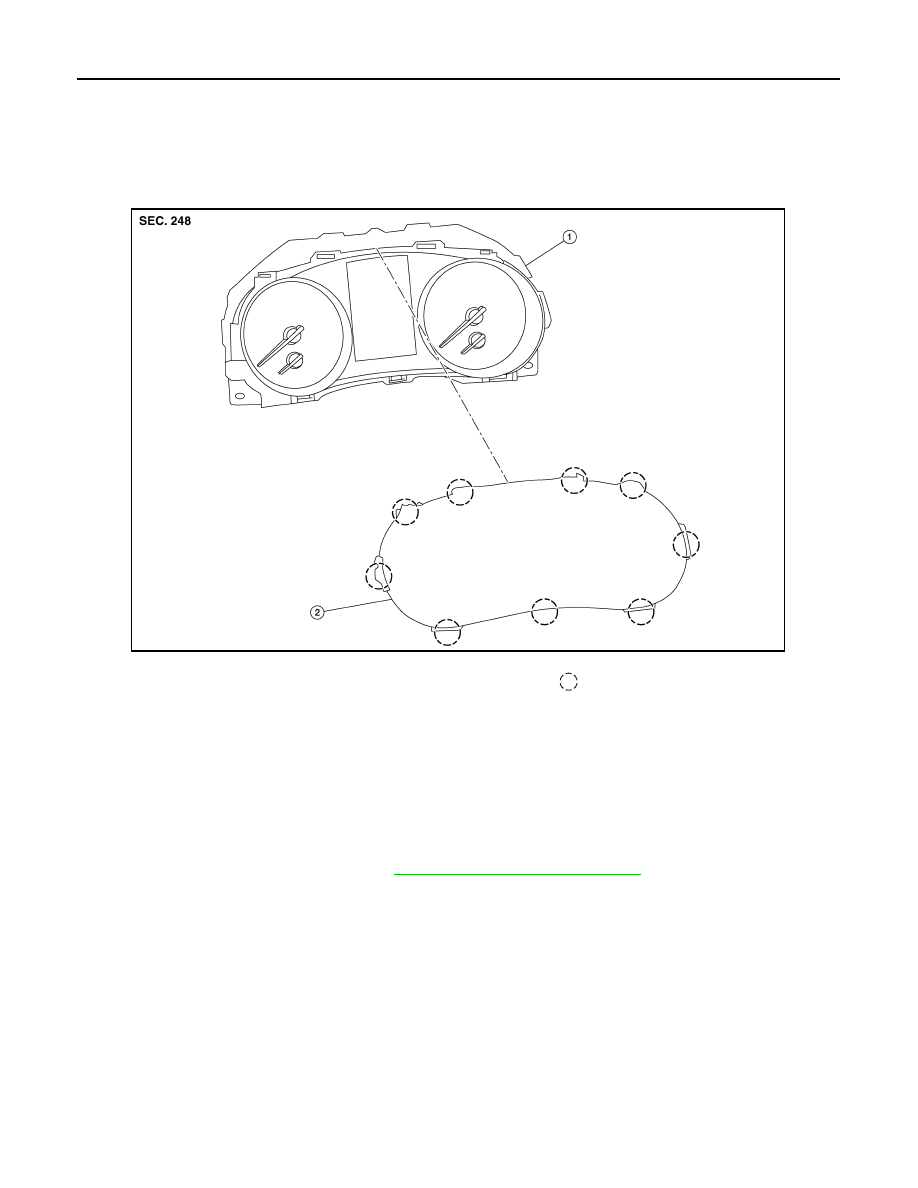

Exploded View

INFOID:0000000010330006

Disassembly and Assembly

INFOID:0000000010330007

CAUTION:

• Do not touch the display, pointer, inside of combination meter or the printed area of the dial during

disassembly or assembly.

• Keep away from magnetic sources.
• Do not damage the combination meter lens.

DISASSEMBLY

1.

Remove the combination meter. Refer to

MWI-80, "Removal and Installation"

.

2.

Release pawls and remove the combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Combination meter

2.

Combination meter lens

Pawl

ALNIA1609ZZ

MWI

THE METER CONTROL SWITCH IS INOPERATIVE

MWI-83

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

THE METER CONTROL SWITCH IS INOPERATIVE

Description

INFOID:0000000010435901

The meter control switches are inoperative when pressed.

Diagnosis Procedure

INFOID:0000000010435902

1.

CHECK METER CONTROL SWITCH SIGNAL

Check the meter control switch signal. Refer to

MWI-75, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connector.

2.

CHECK METER CONTROL SWITCH

Check the meter control switch. Refer to

MWI-76, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-86, "Removal and Installation"

.

NO

>> Replace meter control switch. Refer to

MWI-87, "Removal and Installation"

.

MWI-84

< SYMPTOM DIAGNOSIS >

THE STEERING SWITCHES ARE INOPERATIVE

THE STEERING SWITCHES ARE INOPERATIVE

Description

INFOID:0000000010435903

One or more of the steering switches to control the information display are inoperative.

Diagnosis Procedure

INFOID:0000000010435904

1.

CHECK STEERING SWITCH CIRCUIT

Check steering switch circuit. Refer to

MWI-84, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace harness or connector.

2.

CHECK STEERING SWITCH RESISTANCE

Check steering switch resistance. Refer to

MWI-84, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace steering switch. Refer to

ST-8, "Exploded View"

.

3.

CHECK SPIRAL CABLE

Check spiral cable for continuity. Refer to

MWI-84, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-86, "Removal and Installation"

.

NO

>> Replace spiral cable. Refer to

ST-8, "Exploded View"

.

MWI

NORMAL OPERATING CONDITION

MWI-85

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

NORMAL OPERATING CONDITION

INFORMATION DISPLAY

INFORMATION DISPLAY : Description

INFOID:0000000010330003

OIL LEVEL

Oil level is not displayed after installation/removal of battery or combination meter. To display the oil level
again, follow the steps below.
1.

More than 5 minutes after turning key switch OFF, open the driver's door.

2.

Turn key switch ON.

AMBIENT AIR TEMPERATURE

The displayed ambient air temperature on the information display may differ from the actual temperature
because it is a corrected value calculated from the ambient sensor signal by the combination meter. Refer to

MWI-18, "INFORMATION DISPLAY : System Description"

 for details on the correction process.

POSSIBLE DRIVING DISTANCE

The calculated possible driving distance may differ from the actual distance to empty if the refueling amount is
approximately 15   or less. This is because the refuel control (moves the fuel gauge segment quicker than
normal judging that the driver is refueling the vehicle) is not performed in such a case.

MWI-86

< REMOVAL AND INSTALLATION >

COMBINATION METER

REMOVAL AND INSTALLATION

COMBINATION METER

Removal and Installation

INFOID:0000000010330004

REMOVAL

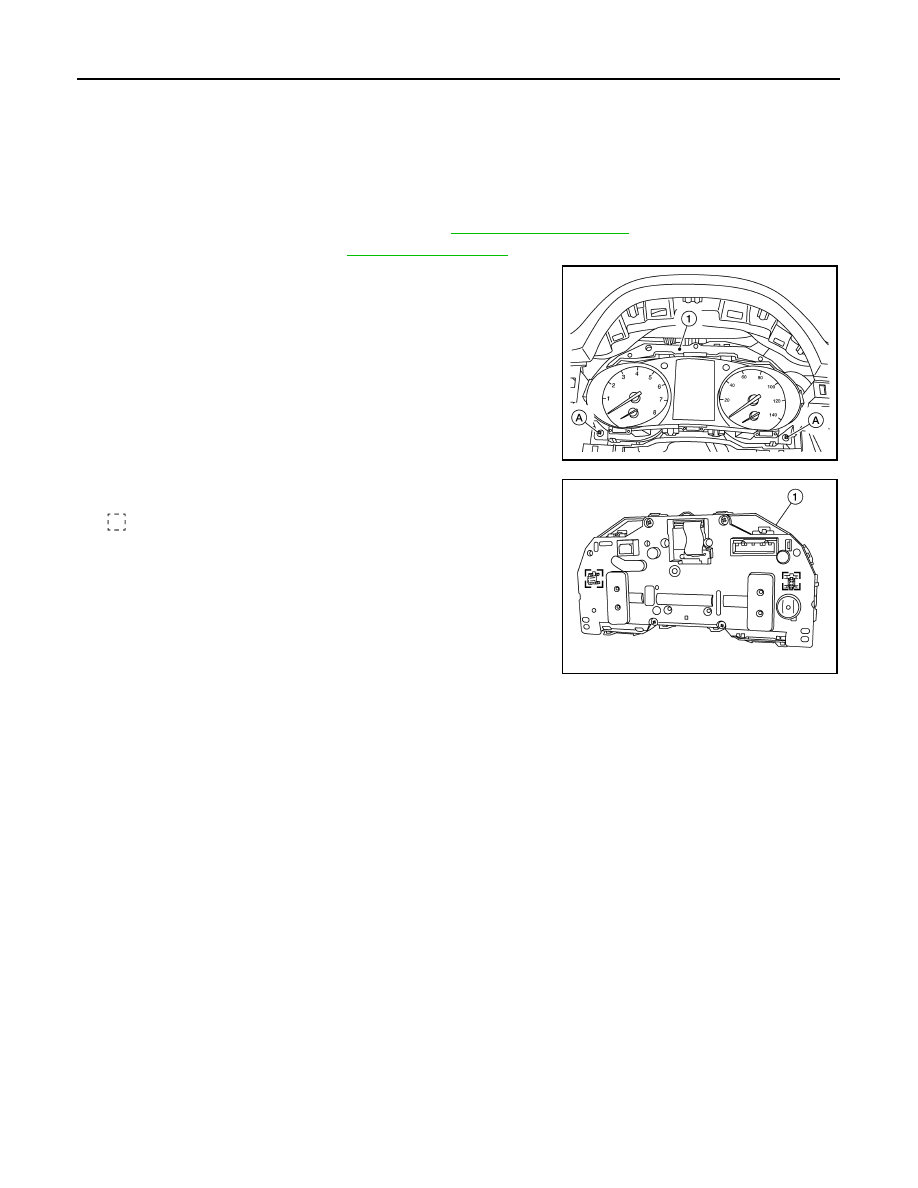

1.

Disconnect the negative battery terminal. refer to

PG-154, "Exploded View"

.

2.

Remove the cluster lid A. Refer to

IP-12, "Exploded View"

.

3.

Remove screws (A), from the combination meter (1).

4.

Release the clips and remove the combination meter (1) from
the instrument panel.

: Clips

5.

Disconnect the harness connectors from the combination meter
and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1607ZZ

ALNIA1608ZZ

MWI

METER CONTROL SWITCH

MWI-87

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

METER CONTROL SWITCH

Removal and Installation

INFOID:0000000010330005

REMOVAL

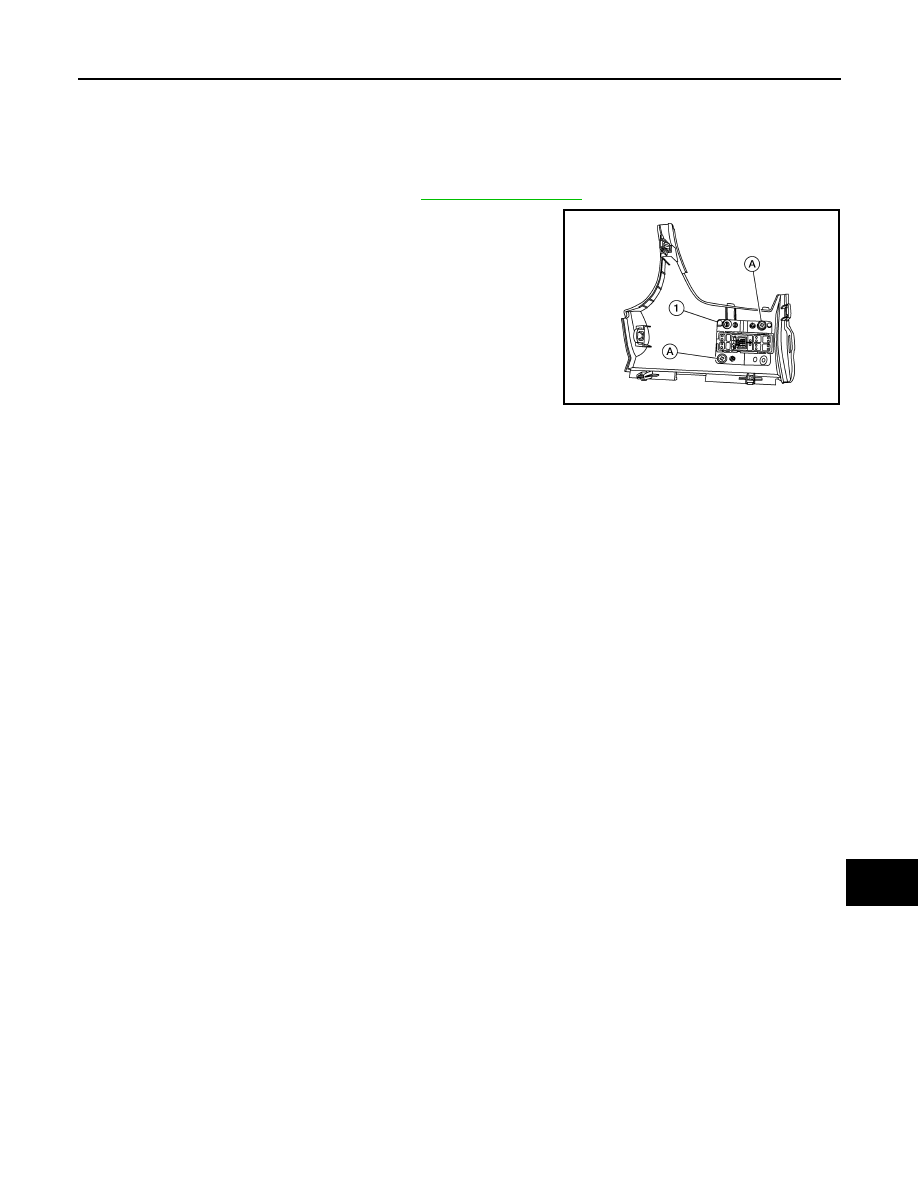

1.

Remove the instrument finisher (A). Refer to

IP-12, "Exploded View"

.

2.

Remove the screws (A) and the meter control switch (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1585ZZ

MWI-88

< UNIT DISASSEMBLY AND ASSEMBLY >

COMBINATION METER

UNIT DISASSEMBLY AND ASSEMBLY

COMBINATION METER

Exploded View

INFOID:0000000010330006

Disassembly and Assembly

INFOID:0000000010330007

CAUTION:

• Do not touch the display, pointer, inside of combination meter or the printed area of the dial during

disassembly or assembly.

• Keep away from magnetic sources.
• Do not damage the combination meter lens.

DISASSEMBLY

1.

Remove the combination meter. Refer to

MWI-86, "Removal and Installation"

.

2.

Release pawls and remove the combination meter lens.

ASSEMBLY

Assembly is in the reverse order of disassembly.

1.

Combination meter

2.

Combination meter lens

Pawl

ALNIA1609ZZ
