Qashqai J11. Meter warning lamp & indicator - part 3





MWI-34

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

RR FOG IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

LIGHT IND

Ignition switch
ON

Position lamp indicator lamp ON

On

Position lamp indicator lamp OFF

Off

OIL W/L

Ignition switch
ON

engine oil pressure warning lamp ON

On

engine oil pressure warning lamp OFF

Off

MIL

Ignition switch
ON

Malfunction indicator (Yellow) ON

On

Malfunction indicator (Yellow) OFF

Off

GLOW IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

C-ENG2 W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CRUISE IND

Ignition switch
ON

Cruise indicator ON

On

Cruise indicator OFF

Off

SET IND

Ignition switch
ON

SET indicator ON

On

SET indicator OFF

Off

O/D OFF IND

Ignition switch
ON

OD OFF indicator lamp ON

On

OD OFF indicator lamp OFF

Off

ATC/T-AMT W/L

Ignition switch
ON

A/T CHECK indicator lamp ON

On

A/T CHECK indicator lamp OFF

Off

ATF TEMP W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

CVT IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

4WD W/L

Ignition switch
ON

AWD warning lamp ON

On

AWD warning lamp OFF

Off

4WD LOCK IND

Ignition switch
ON

AWD LOCK indicator lamp ON

On

AWD LOCK indicator lamp OFF

Off

FUEL W/L

Ignition switch
ON

During low fuel warning indication

On

Other than the above

Off

AIR PRES W/L

Ignition switch
ON

Low tire pressure warning lamp ON

On

Other than the above

Off

KEY G/Y W/L

Ignition switch
ON

Intelligent Key system malfunction ON

On

Intelligent Key system malfunction OFF

Off

KEY R W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

KEY KNOB W/L

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

EPS W/L

Ignition switch
ON

EPS warning lamp ON

On

EPS warning lamp OFF

Off

Monitor Item

Condition

Value/Status

MWI

COMBINATION METER

MWI-35

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DPF W/L

Engine running

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

TRAILER IND

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

SHIFT IND

Ignition switch
ON

During the indication of “P” by shift position
indicator

P

During the indication of “R” by shift position
indicator

R

During the indication of “N” by shift position
indicator

N

During the indication of “D” by shift position
indicator

D

During the indication of “L” by shift position
indicator

L

During the indication of “M1” by shift posi-
tion indicator

M1

During the indication of “M2” by shift posi-
tion indicator

M2

During the indication of “M3” by shift posi-
tion indicator

M3

During the indication of “M4” by shift posi-
tion indicator

M4

During the indication of “M5” by shift posi-
tion indicator

M5

During the indication of “M6” by shift posi-
tion indicator

M6

M RANGE SW

Ignition switch
ON

Selector lever in manual mode position

On

Other than the above

Off

NM RANGE SW

Ignition switch
ON

Selector lever in manual mode position

Off

Other than the above

On

AT SFT UP SW

Ignition switch
ON

Selector lever in + position

On

Other than the above

Off

AT SFT DWN SW

Ignition switch
ON

Selector lever in – position

On

Other than the above

Off

A/C LOW TEMP

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

COMP F/B SIG

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

PKB SW

Ignition switch
ON

Parking brake switch ON

On

Parking brake switch OFF

Off

BUCKLE SW

Ignition switch
ON

Driver seat belt not fastened

On

Driver seat belt fastened

Off

BRAKE OIL SW

Ignition switch
ON

Brake fluid level switch ON

On

Brake fluid level switch OFF

Off

AMB POWER

Ignition switch
ON

Other than the following

On

Receives A/C auto amp. connection recog-
nition signal

Off

Monitor Item

Condition

Value/Status

MWI-36

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

NOTE:
Some items are not available according to vehicle specification.

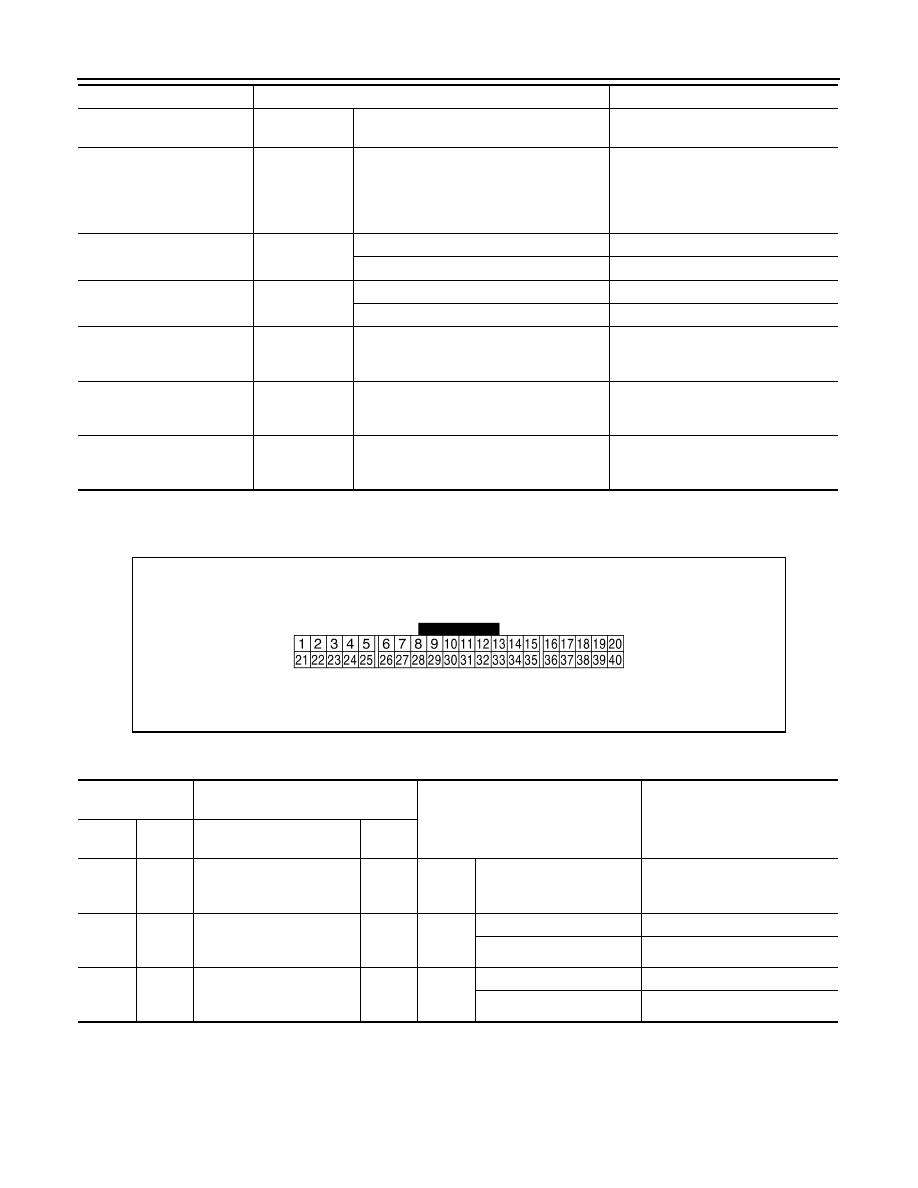

TERMINAL LAYOUT

PHYSICAL VALUES

DISTANCE
[km]

Ignition switch
ON

—

Distance to empty calculated by com-
bination meter

OUTSIDE TEMP
[

°

C or

°

F]

Ignition switch
ON

—

Input value of ambient sensor signal
(CAN communication signal)
NOTE:
This may not match the indicated value
on the information display.

FUEL LOW SIG

Ignition switch
ON

Low fuel warning displayed

On

Low fuel warning not displayed

Off

BUZZER

Ignition switch
ON

Buzzer ON

On

Buzzer OFF

Off

ASCD SPD BLNK

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ASCD STATUS

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

ASCD REQ SPD
[km/h or Off]

Ignition switch
ON

NOTE:
This item is displayed, but cannot be moni-
tored.

Off

Monitor Item

Condition

Value/Status

JSNIA0457ZZ

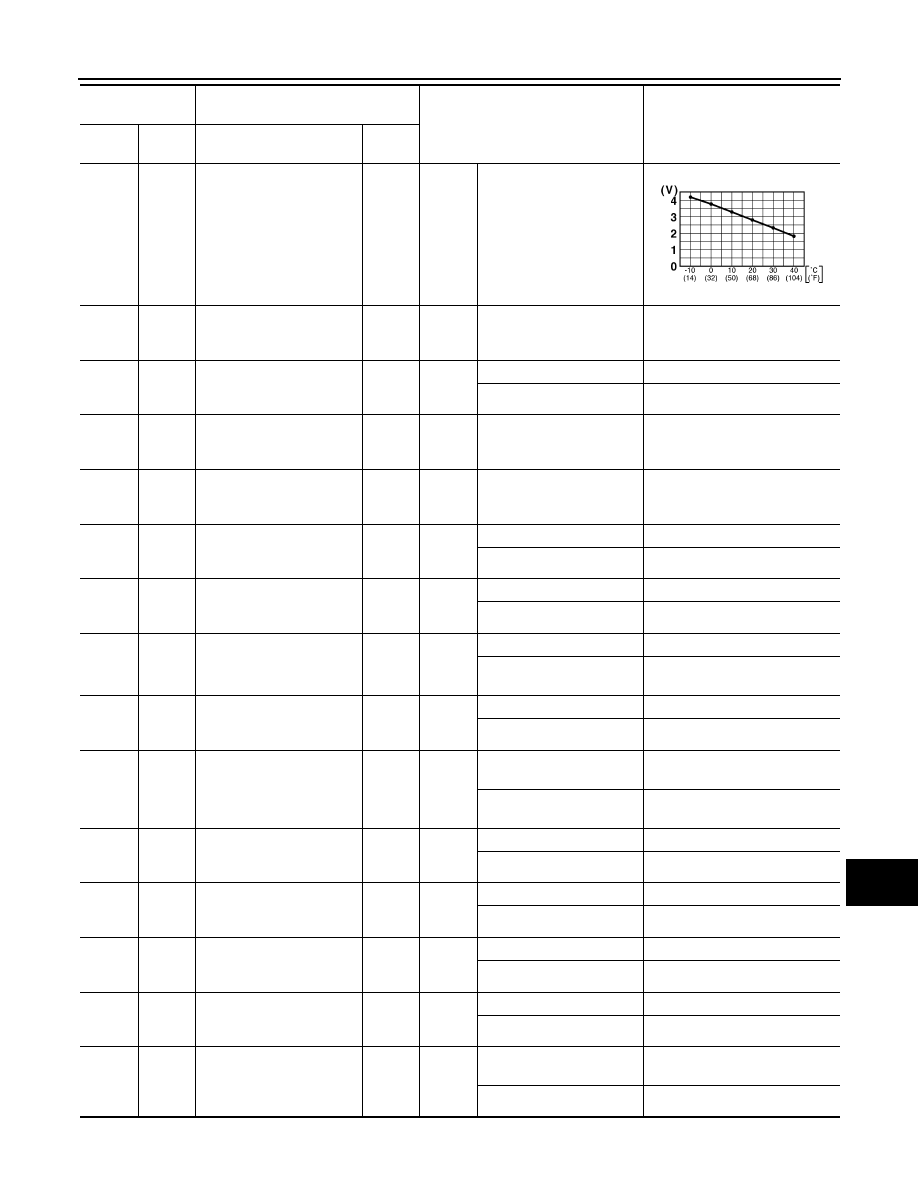

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

1

(B)

Ground

Ground 1

—

Ignition
switch
ON

—

0  V

7

(L)

Ground

Security signal

Input

Ignition
switch
OFF

Security warning lamp ON

0 V

Security warning lamp OFF

12 V

9

(P)

Ground

ECO MODE switch signal

Input

Ignition
switch
OFF

ECO MODE switch ON

0 V

ECO MODE switch OFF

12 V

MWI

COMBINATION METER

MWI-37

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

15

(BG)

Ground

Ambient sensor signal

Input

Ignition
switch
ON

—

17

(BG)

Ground

Satellite switch ground

—

Ignition
switch
ON

—

0  V

18

(SB)

Ground

TRIP RESET SWITCH

Input

Ignition
switch
OFF

TRIP RESET switch ON

12 V

TRIP RESET switch OFF

0 V

20

(R)

Ground

Ambient sensor ground

—

Ignition
switch
ON

—

0  V

21

(L)

Ground

Steering switch (trip com-
puter) ground

Input

Ignition
switch
ON

—

0  V

22

(LG)

Ground

Steering switch (trip com-
puter) input A signal

Input

Ignition
switch
ON

Press the steering switch

0 V

Other than above

5 V

23

(GR)

Ground

Steering switch  (trip com-
puter) input B signal

Input

Ignition
switch
ON

Press the steering switch

0 V

Other than above

5 V

25

(Y)

Ground

Brake fluid level switch sig-
nal

Input

Ignition
switch
ON

Brake fluid level is normal

5 V

Brake fluid level is less than
low level

0 V

27

(W)

Ground

LDW OFF switch signal

Input

Ignition
switch
OFF

LDW OFF switch ON

0 V

LDW OFF switch OFF

12 V

28

(W)

Ground

Seat belt buckle switch sig-
nal (driver side)

Input

Ignition
switch
ON

When driver seat belt is fas-
tened

12 V

When driver seat belt is not
fastened

0 V

30

(Y)

Ground

M RANGE

Input

Ignition
switch
ON

Manual mode

0 V

Other than the above

12 V

31

(G)

Ground

Not M RANGE

Input

Ignition
switch
ON

Manual mode

12 V

Other than the above

0 V

32

(R)

Ground

A/T shift up signal

Input

Ignition
switch
ON

Selector lever (+) position

0 V

Other than the above

12 V

33

(W)

Ground

A/T shift down signal

Input

Ignition
switch
ON

Selector lever (–) position

0 V

Other than the above

12 V

36

(BR)

Ground

Illumination control switch
signal (+)

Input

Ignition
switch
OFF or
ON

When illumination switch

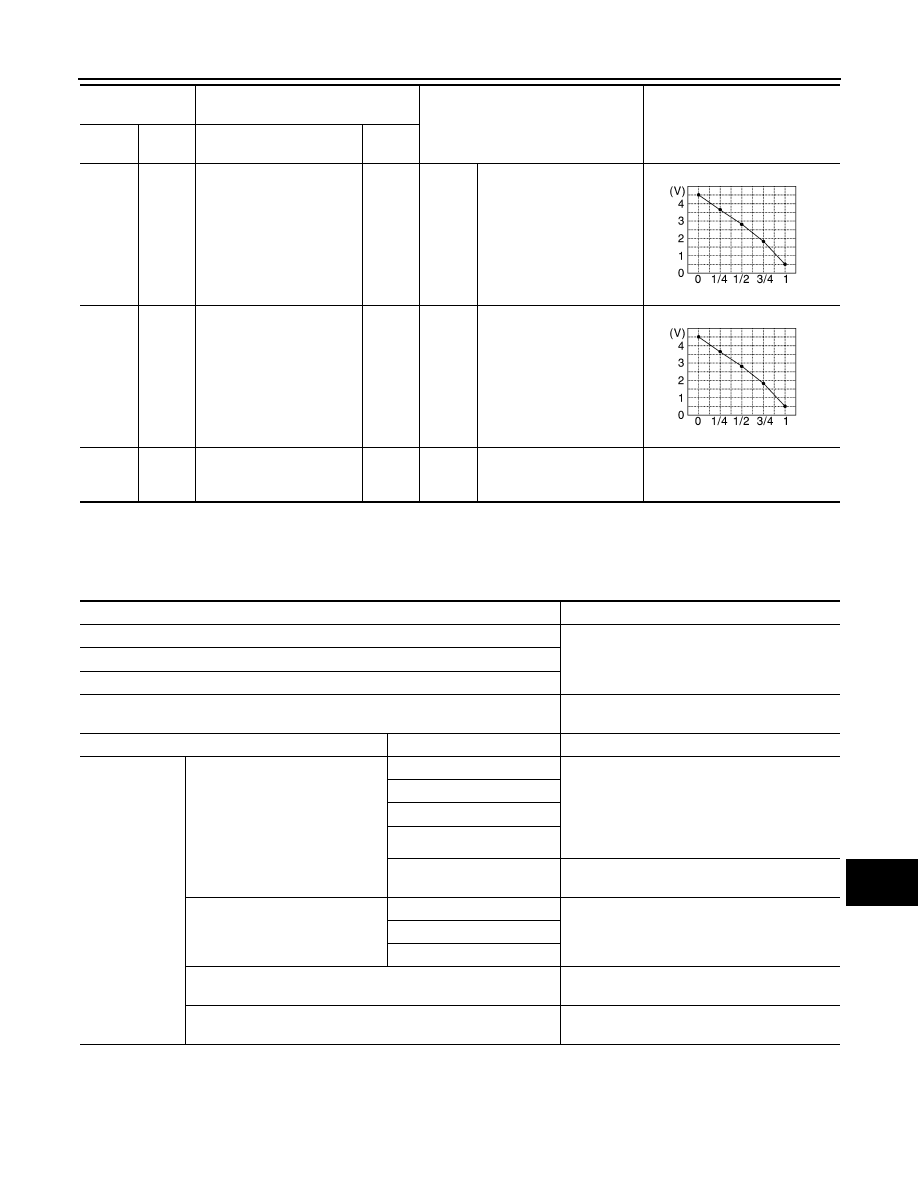

(+) is pressed

0 V

Other than above

5 V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0014GB

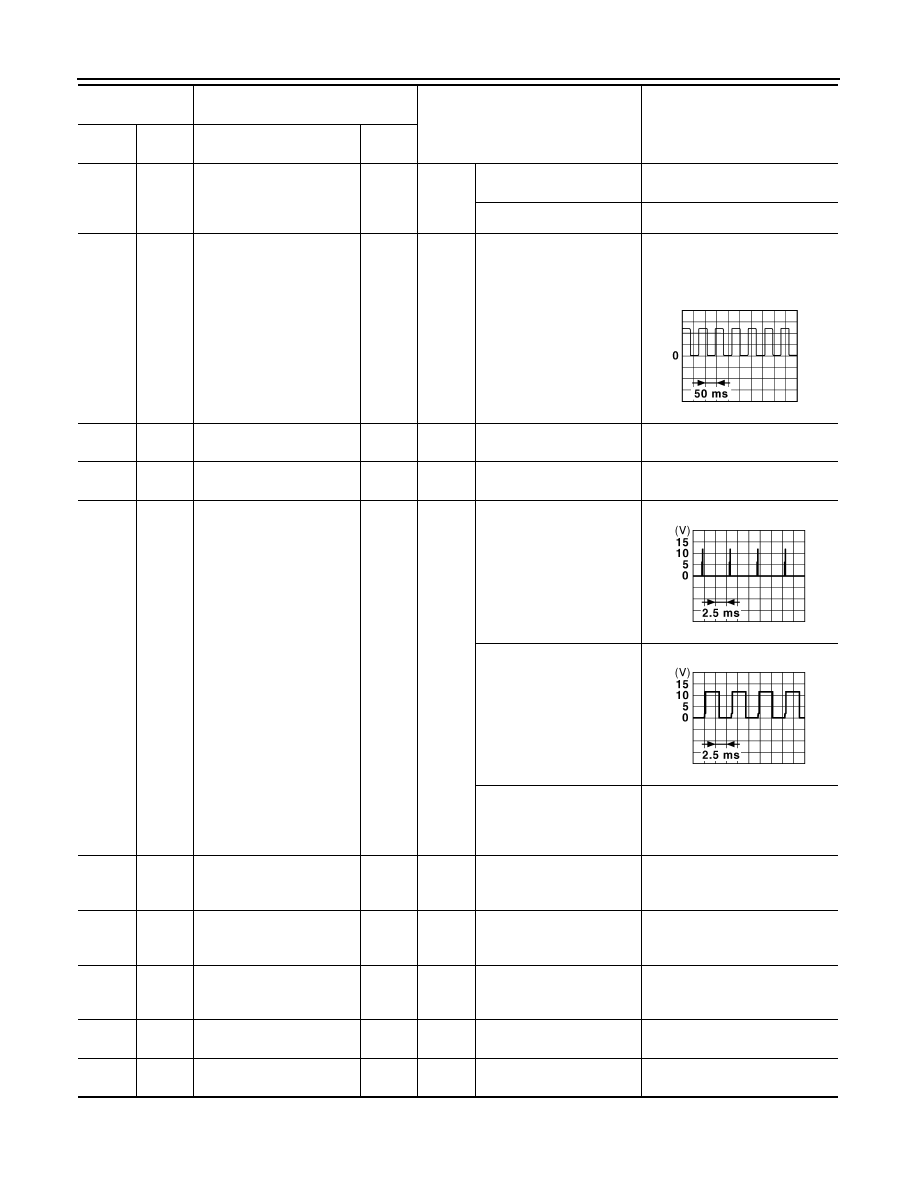

MWI-38

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

37

(V)

Ground

Illumination control switch
signal (-)

Input

Ignition
switch
OFF or
ON

When illumination switch (-)
is pressed

0 V

Other than above

5 V

38

(P)

Ground

Vehicle speed signal
(8-pulse)

Output

Ignition
switch
ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
The maximum voltage varies de-
pending on the specification
(destination unit).

41

(L)

—

CAN-H

—

—

—

—

42

(P)

—

CAN-L

—

—

—

—

43

(R)

Ground

Illumination control signal

Output

Ignition
switch
ON

• Lighting switch 1ST posi-

tion

• When meter illumination

is maximum

• Lighting switch 1ST posi-

tion

• When meter illumination

is step 11

• Lighting switch 1ST posi-

tion

• When meter illumination

is minimum

12 V

44

(B)

Ground

Fuel level sensor signal
ground

—

Ignition
switch
ON

—

0  V

45

(W)

Ground

Battery power supply

Input

Ignition
switch
OFF

—

Battery voltage

46

(BG)

Ground

Ignition signal

Input

Ignition
switch
ON

—

Battery voltage

47

(SB

—

M-CAN-H

—

—

—

—

48

(LG)

—

M-CAN-L

—

—

—

—

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA0015GB

JPNIA1687GB

JPNIA1686GB

MWI

COMBINATION METER

MWI-39

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Fail-safe

INFOID:0000000010329962

The combination meter activates the fail-safe control if the CAN communication lines between each unit are
malfunctioning.

49

(V)

50

(P)

Oil level sensor signal

Input

Ignition
switch
ON

—

51

(G)

44

(B)

Fuel level sensor signal

Input

Ignition
switch
ON

—

52

(B)

Ground

Ground 2

—

Ignition
switch
ON

—

0  V

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

–

Signal name

Input/

Output

JSNIA3463ZZ

JSNIA3463ZZ

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Engine coolant temperature gauge

Meter illumination control

When suspending communication, changes to
nighttime mode.

Buzzer

Turned off by suspending communication.

Information dis-
play

Trip computer

Current fuel consumption

• When reception time of an abnormal signal is

2 seconds or less, the last received datum is
used for calculation to indicate the result.

• When reception time of an abnormal signal is

more than 2 seconds, the last result calculat-
ed during normal condition is indicated.

Average fuel consumption

Average vehicle speed

Range (Distance to empty)

Driving distance

An indicated value is maintained at communica-
tions blackout.

Interrupt indication

Door open warning

The indicator turns OFF by suspending commu-
nication.

Low tire pressure warning

Fuel filler cap warning

Odo/trip meter

An indicated value is maintained at communica-
tions blackout.

Shift position indicator

The indicator turns OFF by suspending commu-
nication.

MWI-40

< ECU DIAGNOSIS INFORMATION >

COMBINATION METER

DTC Index

INFOID:0000000010329963

Warning lamp/
indicator lamp

ABS warning lamp

Turned on by suspending communication.

Brake warning lamp

EPS warning lamp

VDC warning lamp

AWD warning lamp

Malfunction indicator lamp

VDC OFF indicator lamp

Turned off by suspending communication.

SPORT mode indicator lamp

AWD LOCK indicator lamp

Engine oil pressure warning lamp

High beam indicator lamp

Turn signal indicator lamp

Position lamp indicator lamp

A/T CHECK indicator lamp

Low tire pressure warning lamp

After blinking for 1 minute, the lamp remains
ON.

Function

Specifications

Display contents of CONSULT

Time

Diagnostic item is detected when...

Refer to

CAN COMM CIRCUIT
[U1000]

CRNT, 1 - 39

Combination meter is not transmitting or receiving CAN
communication signal for 2 seconds or more.

MWI-58, "DTC Log-

ic"

CONTROL UNIT (CAN)
[U1010]

CRNT, 1 - 39

Detecting error during the initial diagnosis of CAN control-
ler of combination meter.

MWI-59, "DTC Log-

ic"

VEHICLE SPEED
[B2205]

CRNT, 1 - 39

The abnormal vehicle speed signal is input from ABS ac-
tuator and electric unit (control unit) for 2 seconds or more.

MWI-60, "DTC Log-

ic"

ENGINE SPEED
[B2267]

CRNT, 1 - 39

ECM continuously transmits abnormal engine speed sig-
nals for 2 seconds or more.

MWI-61, "DTC Log-

ic"

WATER TEMP
[B2268]

CRNT, 1 - 39

ECM continuously transmits abnormal engine coolant tem-
perature signals for 60 seconds or more.

MWI-62, "DTC Log-

ic"

OIL LEV SEN SHORT
[B2321, B2322]

CRNT, 1 - 39

ECM continuously transmits abnormal engine oil level sig-
nals for 60 seconds or more.

MWI-63, "DTC De-

scription"

ILLUMINATION OUTPUT CIR-
CUIT
[B2323]

CRNT, 1 - 39

ECM continuously transmits abnormal illumination control
signals for 60 seconds or more.

MWI-65, "DTC De-

scription"

MWI

IPDM E/R

MWI-41

< ECU DIAGNOSIS INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

IPDM E/R

List of ECU Reference

INFOID:0000000010329964

ECU

Reference

IPDM E/R

PCS-21, "Reference Value"

PCS-33, "Fail-safe"

PCS-37, "DTC Index"

MWI-42

< WIRING DIAGRAM >

METER SYSTEM

WIRING DIAGRAM

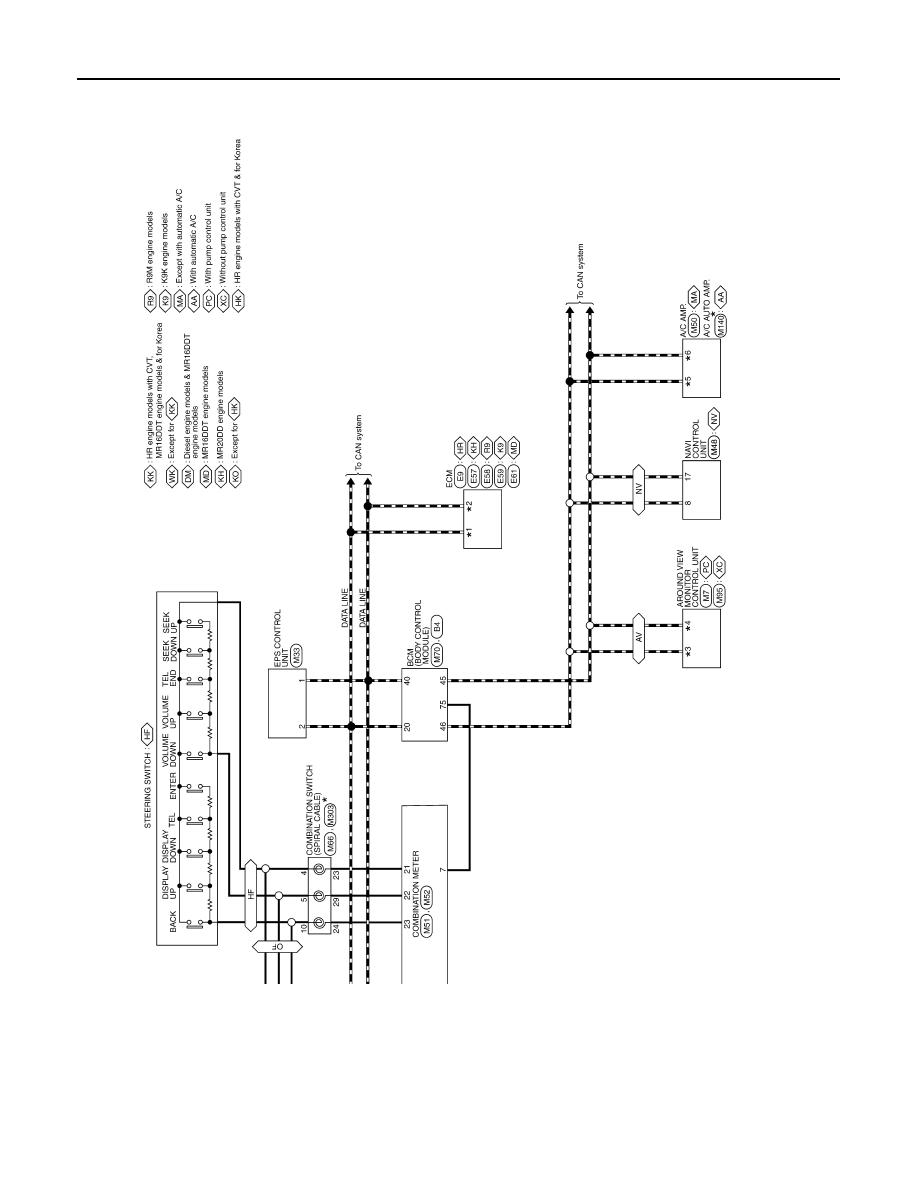

METER SYSTEM

Wiring Diagram

INFOID:0000000010329965

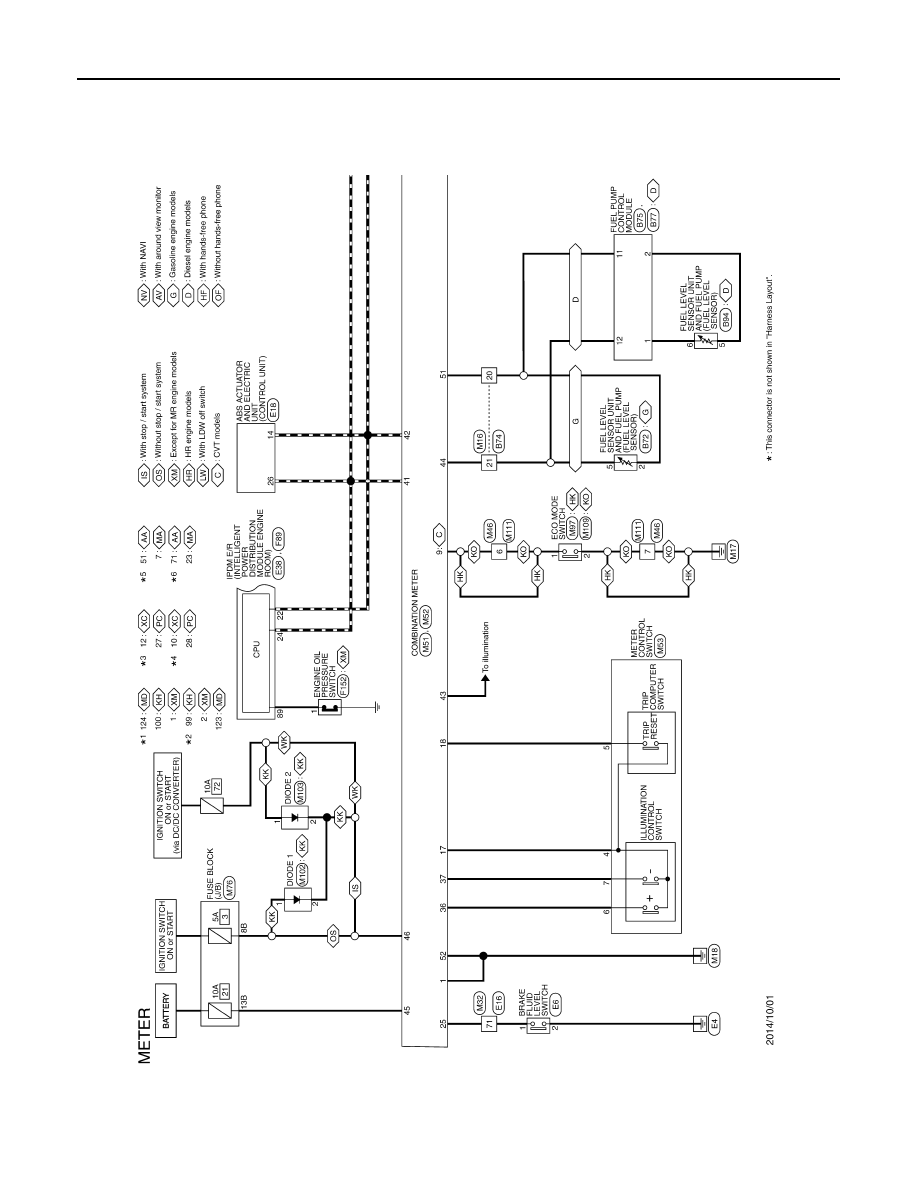

JRNWE0815GB

MWI

METER SYSTEM

MWI-43

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

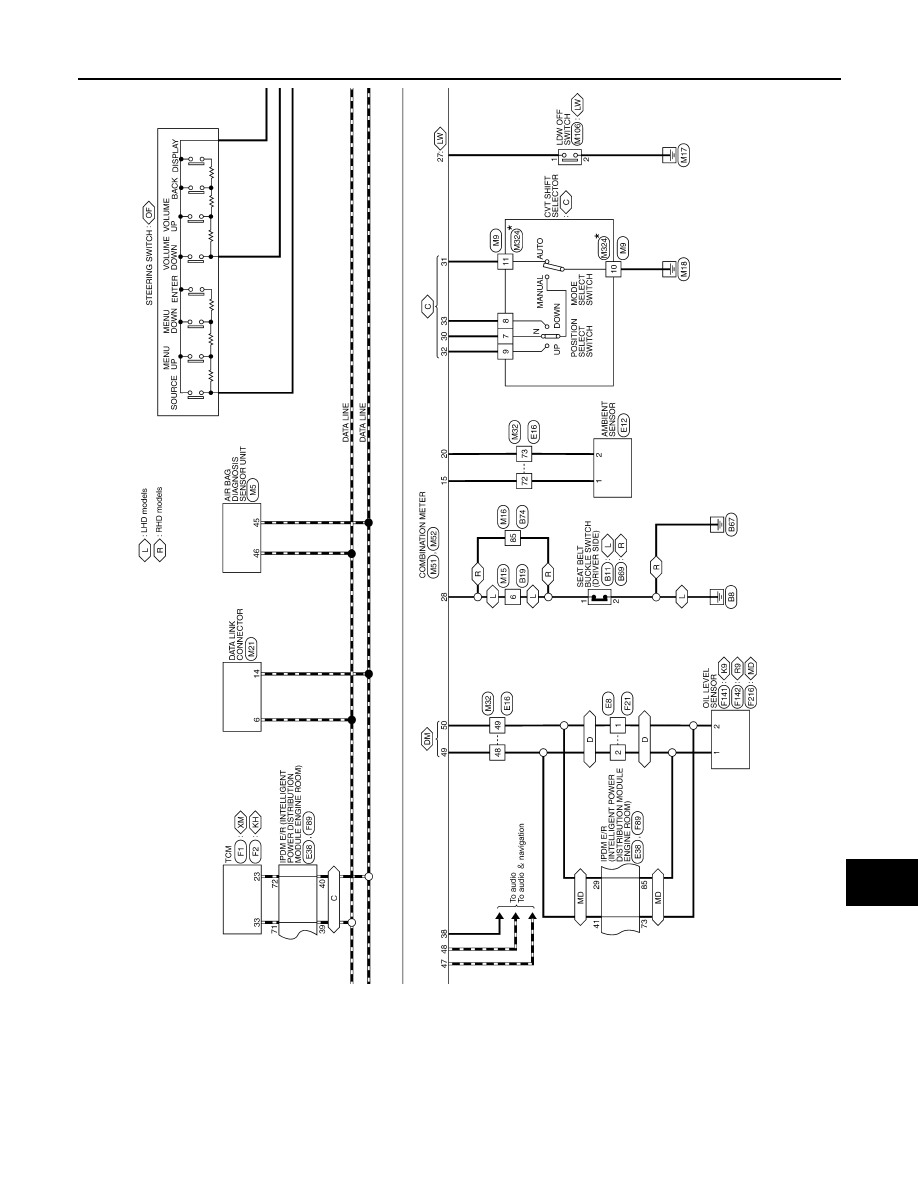

JRNWE0816GB

MWI-44

< WIRING DIAGRAM >

METER SYSTEM

JRNWE0817GB

MWI

METER SYSTEM

MWI-45

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

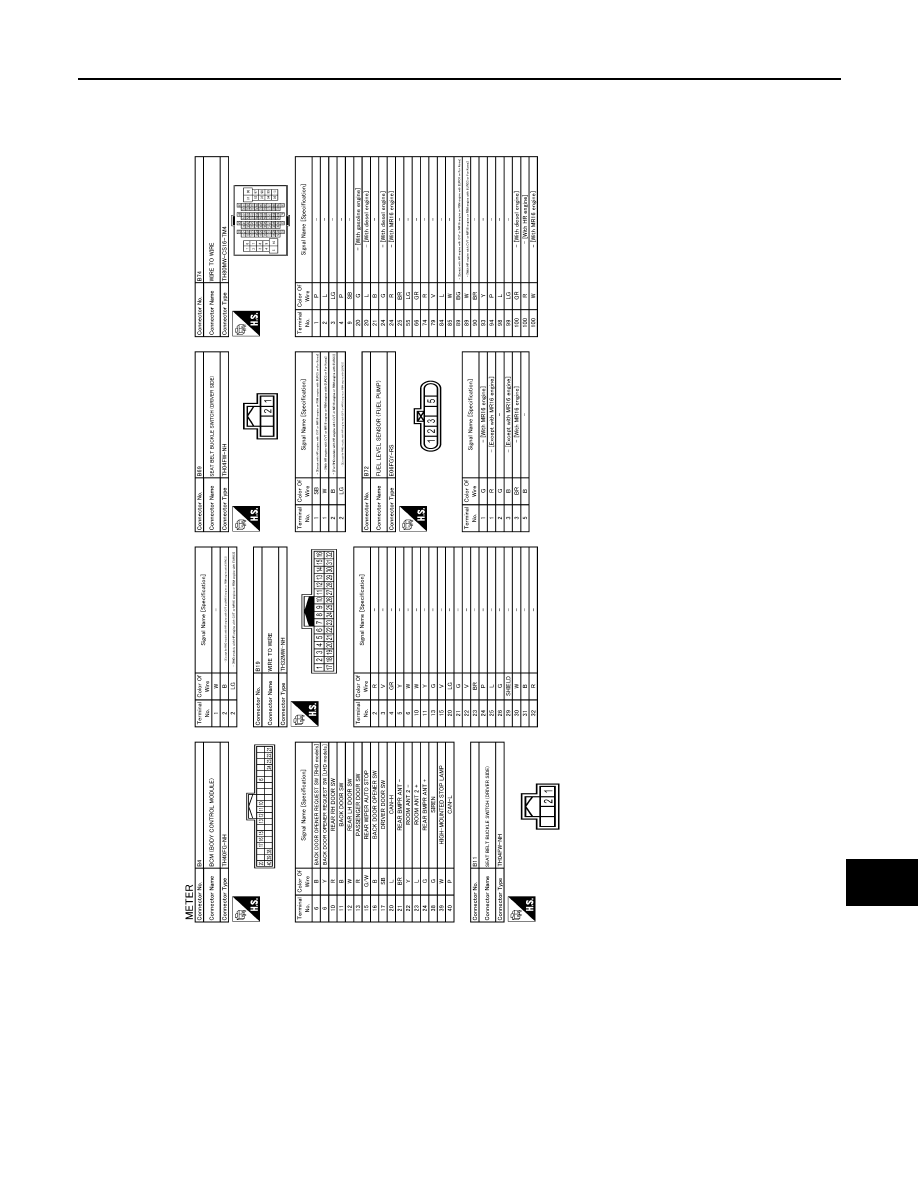

JRNWE0818GB

MWI-46

< WIRING DIAGRAM >

METER SYSTEM

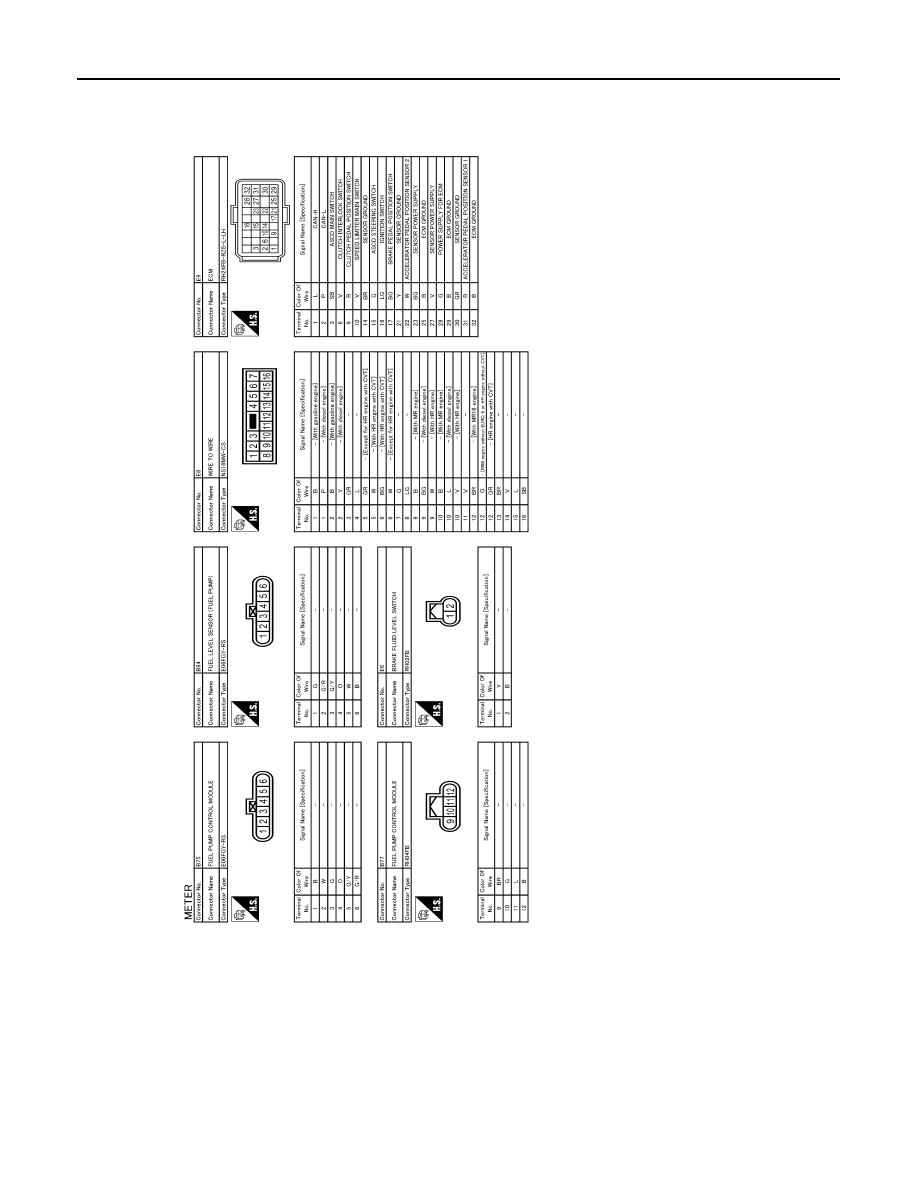

JRNWE0819GB

MWI

METER SYSTEM

MWI-47

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

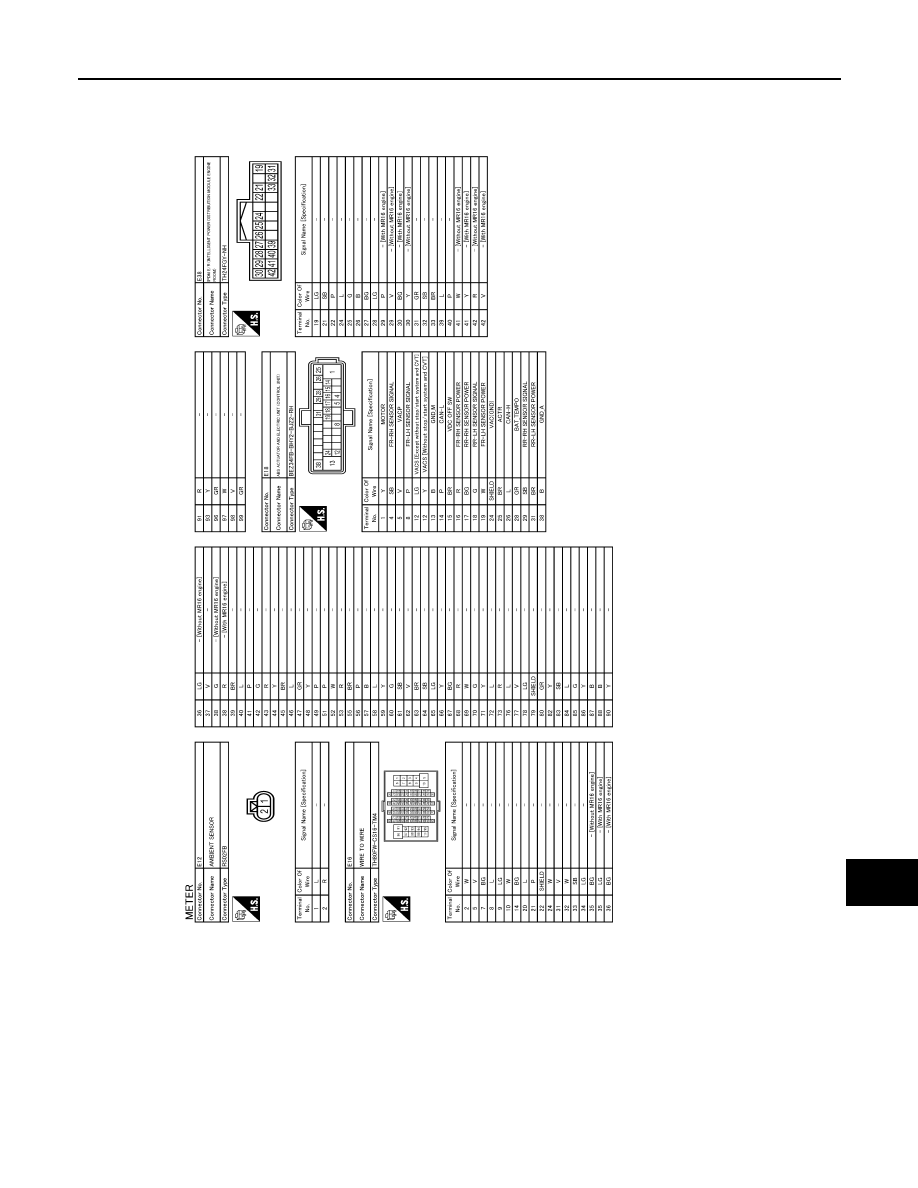

JRNWE0820GB

MWI-48

< WIRING DIAGRAM >

METER SYSTEM

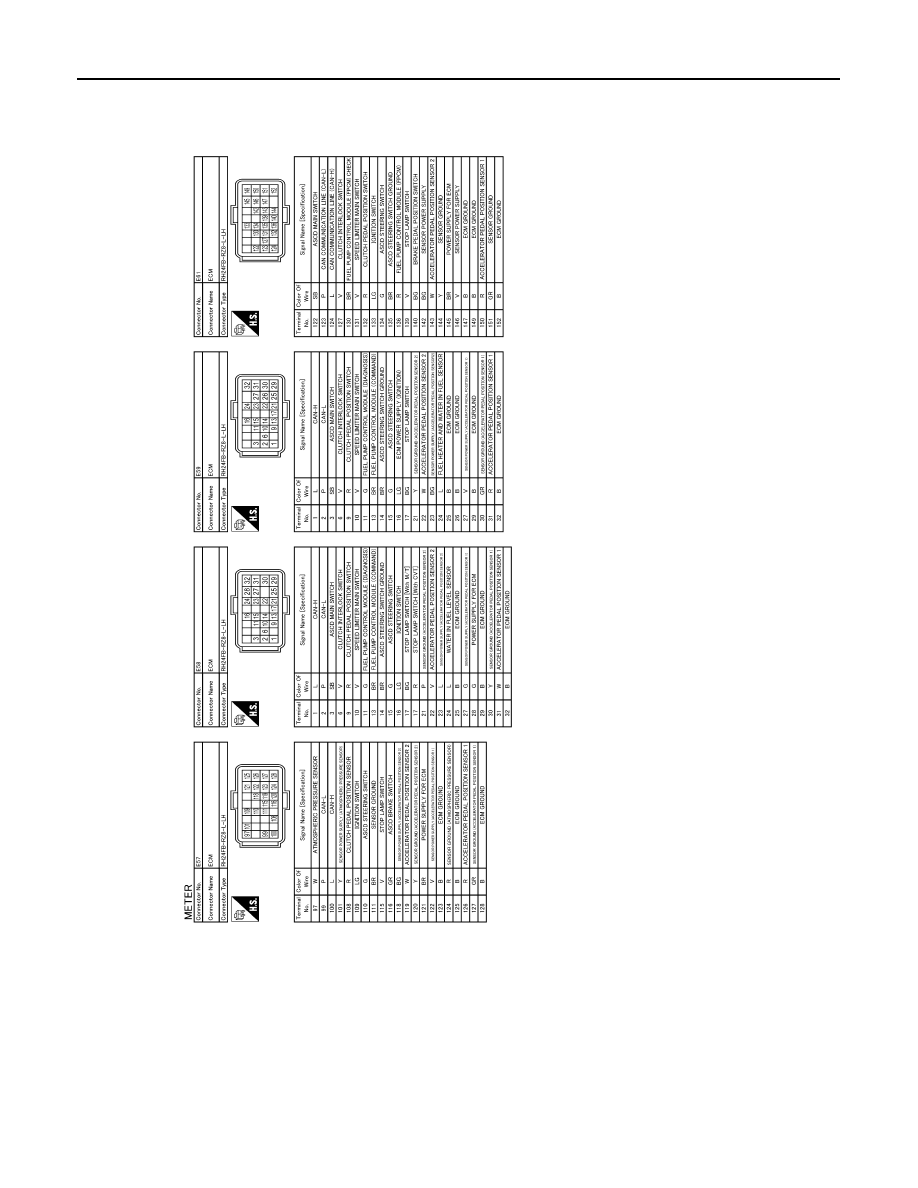

JRNWE0821GB

MWI

METER SYSTEM

MWI-49

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

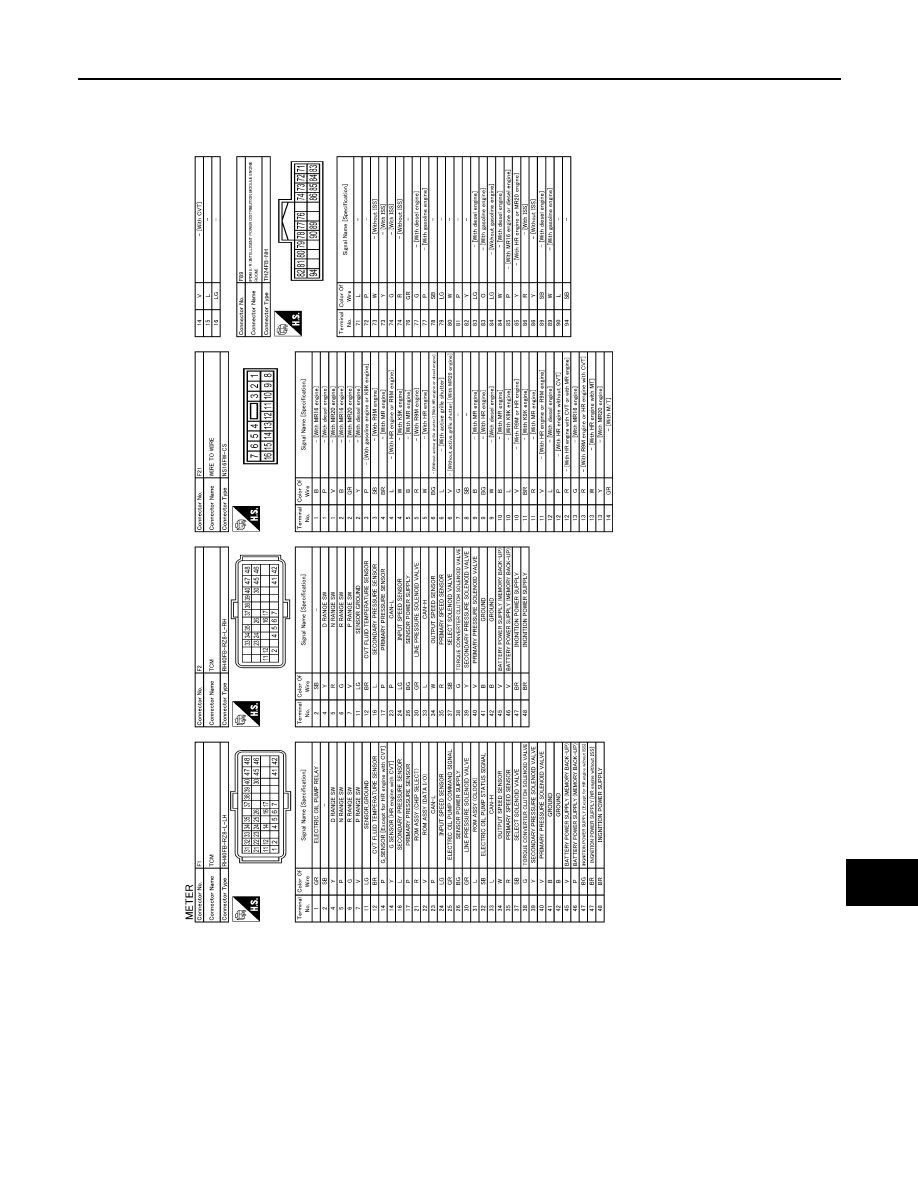

JRNWE0822GB















Content      ..     1      2      3      4      ..
