Qashqai J11. Transaxle & Transmission - part 18

TM-274

< WIRING DIAGRAM >

[CVT: RE0F10D]

CVT SHIFT LOCK SYSTEM

CVT SHIFT LOCK SYSTEM

Wiring Diagram

INFOID:0000000010589256

JRDWC2165GB

CVT SHIFT LOCK SYSTEM

TM-275

< WIRING DIAGRAM >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

JRDWC2211GB

TM-276

< WIRING DIAGRAM >

[CVT: RE0F10D]

CVT SHIFT LOCK SYSTEM

JRDWC2212GB

DIAGNOSIS AND REPAIR WORK FLOW

TM-277

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010589257

NOTE:
“DTC” includes DTC at the 1st trip.

1.

OBTAIN INFORMATION ABOUT SYMPTOM

Refer to

TM-278, "Diagnostic Work Sheet"

 and interview the customer to obtain the malfunction information

(conditions and environment when the malfunction occurred) as much as possible when the customer brings
in the vehicle.

>> GO TO 2.

2.

CHECK DTC

1.

Before checking the malfunction, check whether any DTC exists.

2.

If DTC exists, perform the following operations.

-

Records the DTCs. (Print out using CONSULT and affix to the Work Order Sheet.)

-

Erase DTCs.

-

Check the relation between the cause found by DTC and the malfunction information from customer.

TM-

373, "Symptom Table"

 can be used effectively.

3.

Check the relevant information including STI, etc.

Do malfunction information and DTC exists?

Malfunction information and DTC exists.>>GO TO 3.
Malfunction information exists but no DTC.>>GO TO 4.
No malfunction information, but DTC exists.>>GO TO 5.

3.

REPRODUCE MALFUCTION SYSTEM

Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to

TM-263, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-278, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-
tomer occurs.

>> GO TO 5.

4.

REPRODUCE MALFUNCTION SYMPTOM

Check the malfunction described by the customer on the vehicle.
Check if the behavior is fail safe or normal operation. Refer to

TM-263, "Fail-safe"

.

Interview sheet can be used effectively when reproduce malfunction conditions. Refer to

TM-278, "Diagnostic

Work Sheet"

.

Verify the relationship between the symptom and the conditions in which the malfunction described by the cus-
tomer occurs.

>> GO TO 6.

5.

PERFORM “DTC CONFIRMATION PROCEDURE”

Perform “DTC CONFIRMATION PROCEDURE” of the appropriate DTC to check if DTC is detected again.
Refer to

TM-266, "DTC Inspection Priority Chart"

 when multiple DTCs are detected, and then determine the

order for performing the diagnosis.
Is any DTC detected?

YES

>> GO TO 7.

NO

>> Follow

GI-41, "Intermittent Incident"

 to check.

6.

IDENTIFY MALFUNCTIONING SYSTEM WITH “DIAGNOSIS CHART BY SYMPTOM”

TM-278

< BASIC INSPECTION >

[CVT: RE0F10D]

DIAGNOSIS AND REPAIR WORK FLOW

Use

TM-373, "Symptom Table"

 from the symptom inspection result in step 4. Then identify where to start per-

forming the diagnosis based on possible causes and symptoms.

>> GO TO 8.

7.

REPAIR OR REPLACE THE MALFUNCTIONING PARTS

Repair or replace the detected malfunctioning parts.
Reconnect parts or connector after repairing or replacing, and then erase DTC if necessary.

>> GO TO 8.

8.

FINAL CHECK

Perform “DTC CONFIRMATION PROCEDURE” again to make sure that the repair is correctly performed.
Check that malfunctions are not reproduced when obtaining the malfunction information from the customer,
referring to the symptom inspection result in step 3 or 4.

Is DTC or malfunction symptom reproduced?

YES-1 (DTC is reproduced.)>>GO TO 5.
YES-2 (Malfunction is reproduced.)>>GO TO 6.
NO

>> Before delivering the vehicle to the customer, make sure that DTC is erased.

Diagnostic Work Sheet

INFOID:0000000010589258

DESCRIPTION

There are many operating conditions that may cause a malfunction
of the transmission parts. By understanding those conditions prop-
erly, a quick and exact diagnosis can be achieved.
In general, perception of a problem varies depending on individuals.
Ask the customer about his/her concerns carefully. It is important to
understand the phenomenon or status. To systemize all the informa-
tion for the diagnosis, prepare the question sheet referring to the
question points.
In some cases, multiple conditions that appear simultaneously may
cause a DTC to be detected.

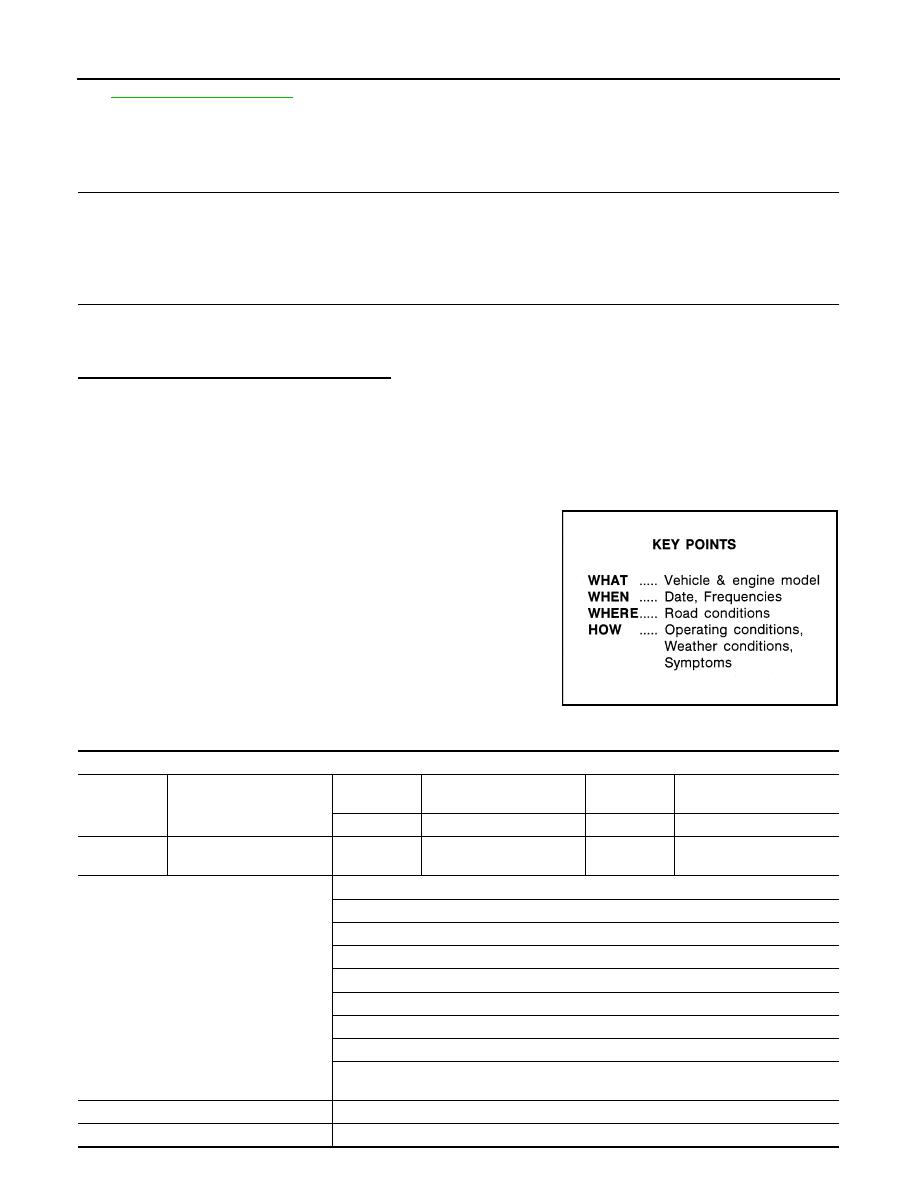

Worksheet Sample

SEF907L

Question sheet

Customer's
name

MR/MS

Registration
number

Initial year
registration

Year

Month

day

Vehicle type

Chassis No.

Storage date

Year

Month

day

Engine

Mileage

km/mile

Symptom

†

 Vehicle does not start. (

†

 R position

†

 D position

†

 M position)

†

 Upshifting does not occur.

†

 Downshifting does not occur.

†

 Lock-up malfunction

†

 Shift point is too high.

†

 Shift point is too low.

†

 Shift shock (

†

 N

⇒

D

†

 Lock-up

†

 R, D, and M position)

†

 Slip (

†

 N

⇒

D

†

 Lock-up

†

 R, D, and M position)

†

Noise

†

 Vibration

When selector lever position is shifted, shift pattern does not change.

†

 Other

 (

)

First occurrence

†

 Recently (as from month

 of year

)

Frequency of occurrence

†

 Always

†

 Under certain conditions

†

 Sometimes (

 time(s)/day)

DIAGNOSIS AND REPAIR WORK FLOW

TM-279

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Climate con-
ditions

Irrelevant

Weather

†

 Clear

†

 Cloud

†

 Rain

†

 Snow

†

 Others

)

Temperature

†

 Hot

†

 Warm

†

 Cool

†

 Cold

†

 Temperature (Approx.

°

C/

°

F)

Relative humidity

†

 High

†

 Moderate

†

 Low

Transaxle condition

†

 In cold-start

†

 During warm-up (approx.

°

C/

°

F)

†

 After warm-up

†

Engine speed:

rpm

Road conditions

†

 Urban area

†

 Suburb area

†

 Highway

†

 Mountainous road (uphill or downhill)

Operating condition, etc.

Irrelevant

†

 When engine starts

†

 During idling

†

 During driving

†

 During acceleration

†

 At constant speed driving

†

 During deceleration

†

 During cornering (RH curve or LH curve)

Other conditions

Question sheet

Customer's
name

MR/MS

Registration
number

Initial year
registration

Year

Month

day

Vehicle type

Chassis No.

Storage date

Year

Month

day

Engine

Mileage

km/mile

TM-280

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TCM

ADDITIONAL SERVICE WHEN REPLACING TCM

Description

INFOID:0000000010589259

Always perform the following items when the TCM is replaced.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

SAVING AND WRITING OF TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, it is necessary to save data of current TCM in CONSULT before replacing the TCM. After this, the
saved data must be written in new TCM.

Work Procedure

INFOID:0000000010589260

1.

SAVE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Save necessary data stored in TCM in CONSULT according to the following instructions:

With CONSULT

1.

Turn ignition switch OFF.

2.

Connect all of disconnected connectors.

3.

Turn ignition switch ON.

4.

Select “Work Support” in “TRANSMISSION”.

5.

Select “READ IP CHARA - REPLACEMENT TCM”.

6.

Import data according to the instructions on the CONSULT screen.

>> GO TO 2.

2.

SAVE TCM DATA (VEHICLE SPECIFICATIONS)

NOTE:
Save necessary data stored in TCM in CONSULT according to the following instructions:

With CONSULT

1.

Turn ignition switch OFF.

2.

Turn ignition switch ON.

3.

Select “Re/programming, Configuration”.

4.

Select “AT/CVT”.
NOTE:
If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 3.

5.

Select “Programming”.

6.

Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 3.

3.

REPLACE TCM

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Replace TCM. Refer to

TM-391, "Removal and Installation"

.

>> GO TO 4.

4.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:

With CONSULT

1.

Select “Programming”.

2.

Perform programming according to the CONSULT display.

ADDITIONAL SERVICE WHEN REPLACING TCM

TM-281

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

>> GO TO 5.

5.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:

With CONSULT

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Turn ignition switch ON.

3.

Select “Work Support” in “TRANSMISSION”.

4.

Select “WRITE IP CHARA - REPLACEMENT TCM”.

5.

Write data saved in CONSULT in TCM according to the instructions on the CONSULT screen.

>> WORK END

TM-282

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

Description

INFOID:0000000010589261

Perform the following work after the transaxle assembly is replaced.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing transaxle assembly, it is necessary to write new data in TCM.

ERASING OF CVT FLUID DEGRADATION LEVEL DATA

• TCM records the degradation level of the CVT fluid calculated from the vehicle driving status. Therefore, if

the transaxle assembly is replaced, it is necessary to erase the CVT fluid degradation level data recorded by
TCM.

Work Procedure

INFOID:0000000010589262

1.

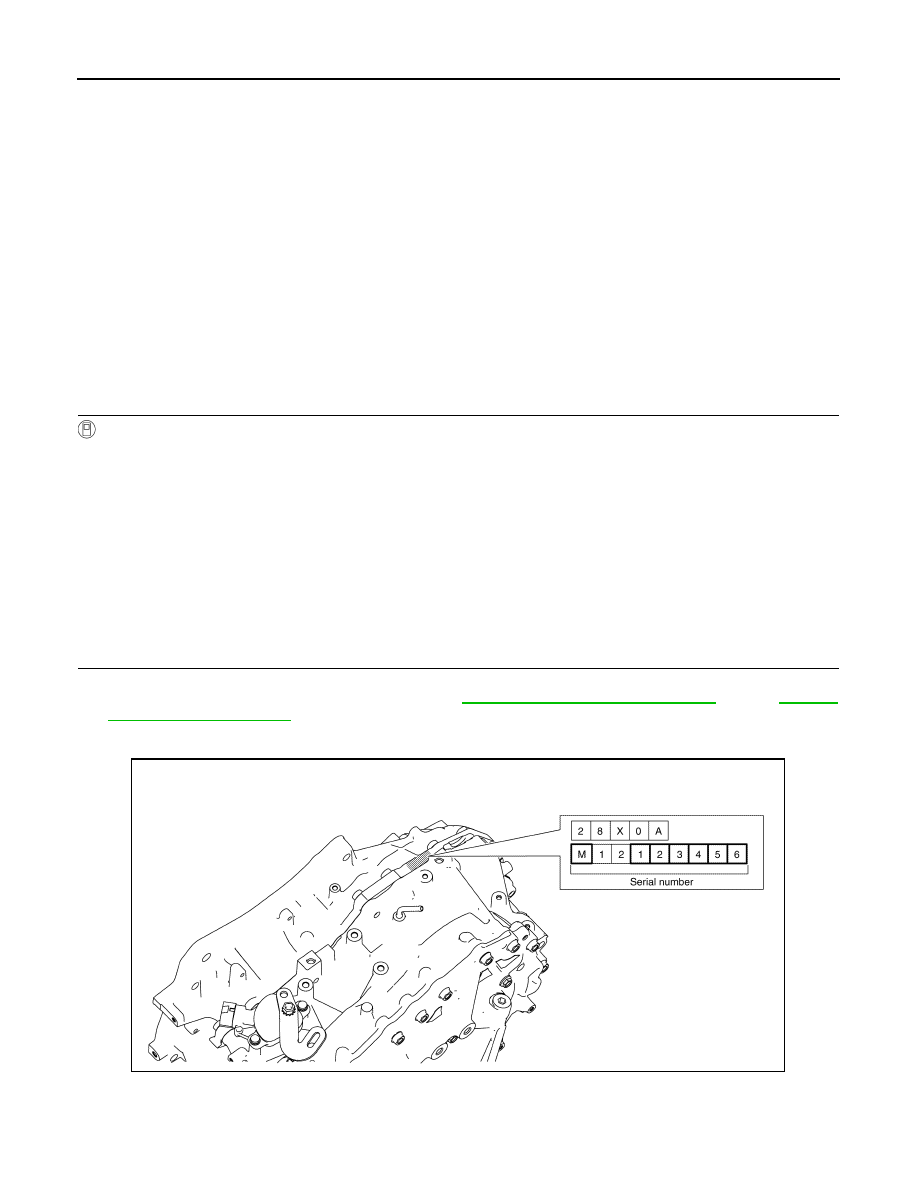

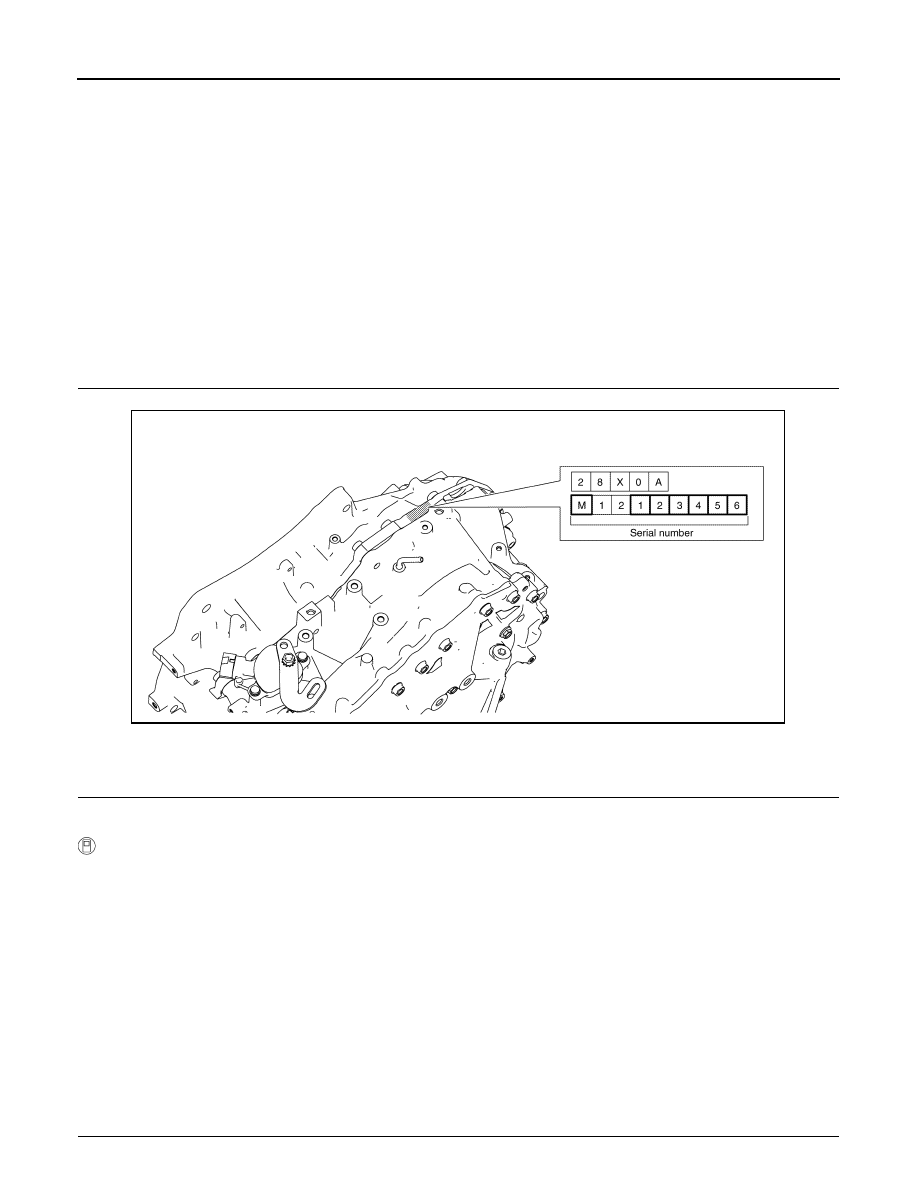

CHECK THE SERIAL NUMBER

Write down the serial number of new transaxle assembly.

>> GO TO 2.

2.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION:

When the work is interrupted, obtain data again from the supplied CD.
1.

Shift the selector lever to the P position.

2.

Turn ignition switch OFF and wait for 10 seconds.

3.

Turn ignition switch ON.

4.

Insert the supplied CD into CONSULT.

5.

Select “Work Support” in “TRANSMISSION”.

6.

Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

7.

Check that the serial number displayed on CONSULT screen and those written in the memo agree.

8.

Write data in TCM according to the instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.

>> GO TO 3.

3.

ERASE CVT FLUID DEGRADATION LEVEL DATA

JSDIA6075GB

ADDITIONAL SERVICE WHEN REPLACING TRANSAXLE ASSEMBLY

TM-283

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

With CONSULT

1.

Select “WORK SUPPORT” in “TRANSMISSION”.

2.

Select “CONFORM CVTF DETERIORTN”.

3.

Touch “Clear”.

>> WORK END

TM-284

< BASIC INSPECTION >

[CVT: RE0F10D]

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE AS-
SEMBLY

Description

INFOID:0000000010589263

When replacing TCM and transaxle assembly as a set, perform the following work.

TCM PROGRAMMING

• Since vehicle specifications are not yet written in a new TCM, it is necessary to write them with CONSULT.

CAUTION:

When replacing TCM, save TCM data on CONSULT before removing TCM.

WRITING TCM DATA

• TCM performs accurate control by retrieving data (inherent characteristic value) of each solenoid. For this

reason, after replacing TCM and transaxle assembly, it is necessary to write new data in TCM.

Work Procedure

INFOID:0000000010589264

1.

SAVE TCM DATA (VEHICLE SPECIFICATIONS)

With CONSULT

1.

Turn ignition switch OFF.

2.

Connect all of disconnected connectors.

3.

Turn ignition switch ON.

4.

Select “Re/programming, Configuration”.

5.

Select “AT/CVT”.
NOTE:
If “AT/CVT” is not displayed and TCM data cannot be saved on CONSULT, GO TO 2.

6.

Select “Programming”.

7.

Save TCM data on CONSULT according to the CONSULT display.

>> GO TO 2.

2.

REPLACE TCM AND TRANSAXLE ASSEMBLY

1.

Turn ignition switch OFF and wait for 10 seconds.

2.

Replace TCM and transaxle assembly. Refer to

TM-391, "Removal and Installation"

 (TCM),

TM-415,

"Removal and Installation"

 (Transaxle assembly).

CAUTION:

Write down the serial number of new transaxle assembly.

>> GO TO 3.

JSDIA6075GB

ADDITIONAL SERVICE WHEN REPLACING TCM AND TRANSAXLE ASSEM-

BLY

TM-285

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

3.

WRITE TCM DATA (VEHICLE SPECIFICATIONS)

NOTE:
Write data saved in CONSULT into a new TCM according to the following instructions:

With CONSULT

1.

Select “Programming”.

2.

Perform programming according to the CONSULT display.

>> GO TO 4.

4.

WRITE TCM DATA (IP CHARACTERISTICS VALUE)

NOTE:
Write data of new solenoid in TCM according to the following instructions:

With CONSULT

CAUTION:

When the work is interrupted, obtain data again from the supplied CD.
1.

Shift the selector lever to the P position.

2.

Turn ignition switch OFF and wait for 10 seconds.

3.

Turn ignition switch ON.

4.

Insert the supplied CD into CONSULT.

5.

Select “Work Support” in “TRANSMISSION”.

6.

Select “WRITE IP CHARA - REPLACEMENT AT/CVT”.

7.

Check that the serial number displayed on CONSULT screen and those written in the memo agree.

8.

Write data in TCM according to the instructions on the CONSULT screen.
NOTE:
When writing is complete, the shift position indicator of the combination meter displays P.

>> WORK END

TM-286

< BASIC INSPECTION >

[CVT: RE0F10D]

STALL TEST

STALL TEST

Work Procedure

INFOID:0000000010589265

INSPECTION

1.

Check the engine oil level. Replenish if necessary. Refer to

LU-22, "Inspection"

.

2.

Check for leak of the CVT fluid. Refer to

TM-378, "Inspection"

.

3.

Drive for about 10 minutes to warm up the vehicle so that the CVT fluid temperature is 50 to 80

°

C (122 to

176

°

F).

4.

Be sure to apply the parking brake and block the tires.

5.

Start the engine, depress the brake pedal and put the selector lever to the D position.

6.

While depressing the brake pedal, depress the accelerator pedal gradually.

7.

Read the stall speed quickly. Then, release your foot from the accelerator pedal quickly.

CAUTION:

Do not depress the accelerator pedal for 5 seconds or more during the test.

8.

Place the selector lever in the N position.

9.

Cool the CVT fluid.

CAUTION:

Run the engine with the idle speed for at least 1 minute.

10. Put the selector lever to the R position and perform Step 6 to Step 9 again.

NARROWING-DOWN MALFUNCTIONING PARTS

O: Within the stall speed standard value.

H: Stall speed is higher than the standard value.

L: Stall speed is lower than the standard value.

Stall speed

: Refer to

TM-421, "Stall Speed"

.

Selector lever position

Possible cause

D

R

Stall speed

H

O

• Forward  clutch

O

H

• Reverse brake

L

L

• Engine
• Torque converter one way clutch

H

H

• Line pressure is low.
• Primary pulley
• Secondary pulley
• Steel belt

CVT POSITION

TM-287

< BASIC INSPECTION >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

CVT POSITION

Inspection

INFOID:0000000010589266

1.

Turn ON the ignition switch with the shift selector at the “P” position.

2.

Press the shift selector button with the brake pedal depressed, and confirm that the shift selector can be
moved to positions other than “P”. Also confirm that movement is not allowed from the “P” position to other
position without depressing the brake pedal.

3.

Move the shift selector and check for “excessive effort”, “sticking”, “noise” or “rattle”.

4.

Confirm that shift selector stops at each position with the feel of engagement when it is moved through all
the positions. Check whether or not the actual position the shift selector is in matches the position shown
by the transaxle body.

5.

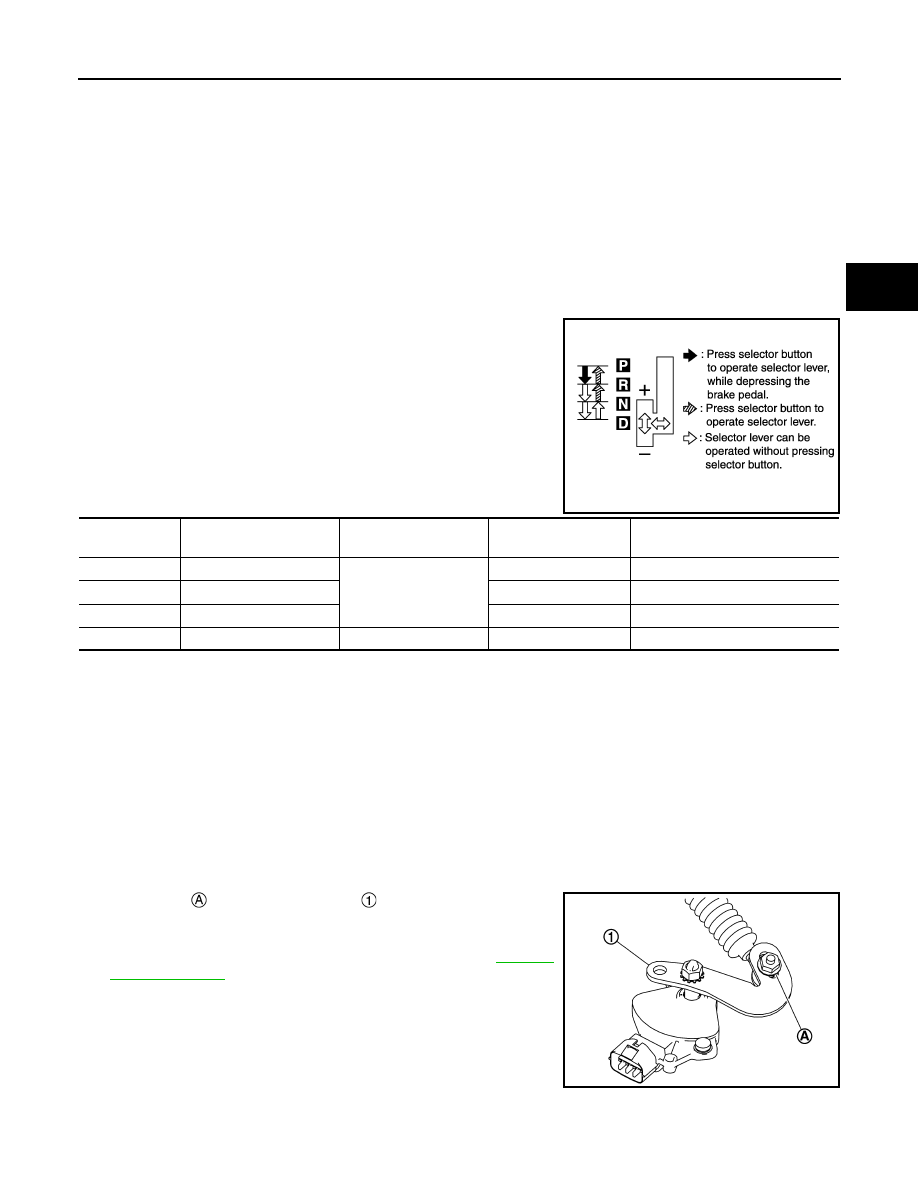

Make sure that the shift selector is moved to all the shift posi-
tions in the manner shown.

6.

When the shift selector button is pressed without applying for-
ward/backward force to the shift selector at “P”, “R”, “N”, or “D”
positions, there should be no “sticking” on the shift selector but-
ton operation.

7.

The relationship between selector lever, engine starting ability,
and shift position indicator lighting should satisfy the conditions
of the following table.

8.

Confirm that the back-up lamps illuminate only when lever is placed in the “R” position. Confirm that the
back-up lamps does not illuminate when selector lever is pushed against “R” position in the “P” or “N”
position.

9.

Check that the transaxle is locked when the selector lever is in the “P” position.

10. When selector lever is set to manual shift gate, make sure that manual mode is displayed on combination

meter. Shift selector lever to “+” and “

−

” sides, and check that set shift position changes.

Adjustment

INFOID:0000000010589267

1.

Shift the selector lever to the “P” position.

CAUTION:

Rotate the wheels at least a quarter turn and be certain the Park position mechanism is fully
engaged.

2.

Loosen nut

 and set manual lever

 to the “P” position.

CAUTION:

Never apply force to the manual lever.

3.

Tighten the nut to the specified torque. Refer to

TM-385,

"Exploded View"

.

CAUTION:

In tightening, fix the manual lever.

JPDIA0344GB

Selector lever

position

Load direction to the se-

lector lever

Applied load to the se-

lector lever

Engine starting ability

Shift position indicator lighting

P

P (over stroke)

←

 P

→

 R

30 N (3.1 kg, 6.7 lb)

Start

P indicator shall be illuminated

R

P

←

 R

Not start

R indicator shall be illuminated

N

R

←

 N

Start

N indicator shall be illuminated

D

—

—

Not  start

—

JSDIA5177ZZ

TM-288

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F10D]

U0073 COMMUNICATION BUS A OFF

DTC/CIRCUIT DIAGNOSIS

U0073 COMMUNICATION BUS A OFF

DTC Logic

INFOID:0000000010589268

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at
least 10 seconds, then perform the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start the engine and wait for at least 5 seconds.

2.

Check the DTC.

Is “U0073” detected?

YES

>> Go to

TM-288, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010589269

For the diagnosis procedure, refer to

LAN-24, "Trouble Diagnosis Flow Chart"

.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

Possible causes

U0073

COMM BUS A OFF
(Control Module Communica-
tion Bus A Off)

TCM communication blockage lasts for 2 sec-
onds or more when turning ON the ignition
switch. (Communication not established.)

Harness or connector
(CAN communication line is error)

U0100 LOST COMMUNICATION (ECM A)

TM-289

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F10D]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

U0100 LOST COMMUNICATION (ECM A)

DTC Logic

INFOID:0000000010589270

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PREPARATION BEFORE WORK

If another “DTC CONFIRMATION PROCEDURE” occurs just before, turn ignition switch OFF and wait for at
least 10 seconds, then perform the next test.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1.

Start the engine and wait for at least 5 seconds.

2.

Check the DTC.

Is “U0100” detected?

YES

>> Go to

TM-289, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010589271

For the diagnosis procedure, refer to

LAN-24, "Trouble Diagnosis Flow Chart"

.

DTC

CONSULT screen terms

(Trouble diagnosis content)

DTC detection condition

Possible causes

U0100

LOST COMM (ECM A)
(Lost Communication With
ECM/PCM A)

When the ignition switch is ON, TCM is un-
able to receive the CAN communications
signal from ECM continuously for 2 sec-
onds or more.

• ECM
• Harness or connector

(CAN communication line is open or
shorted)
