CAMERA AIMING ADJUSTMENT

DAS-97

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

1.

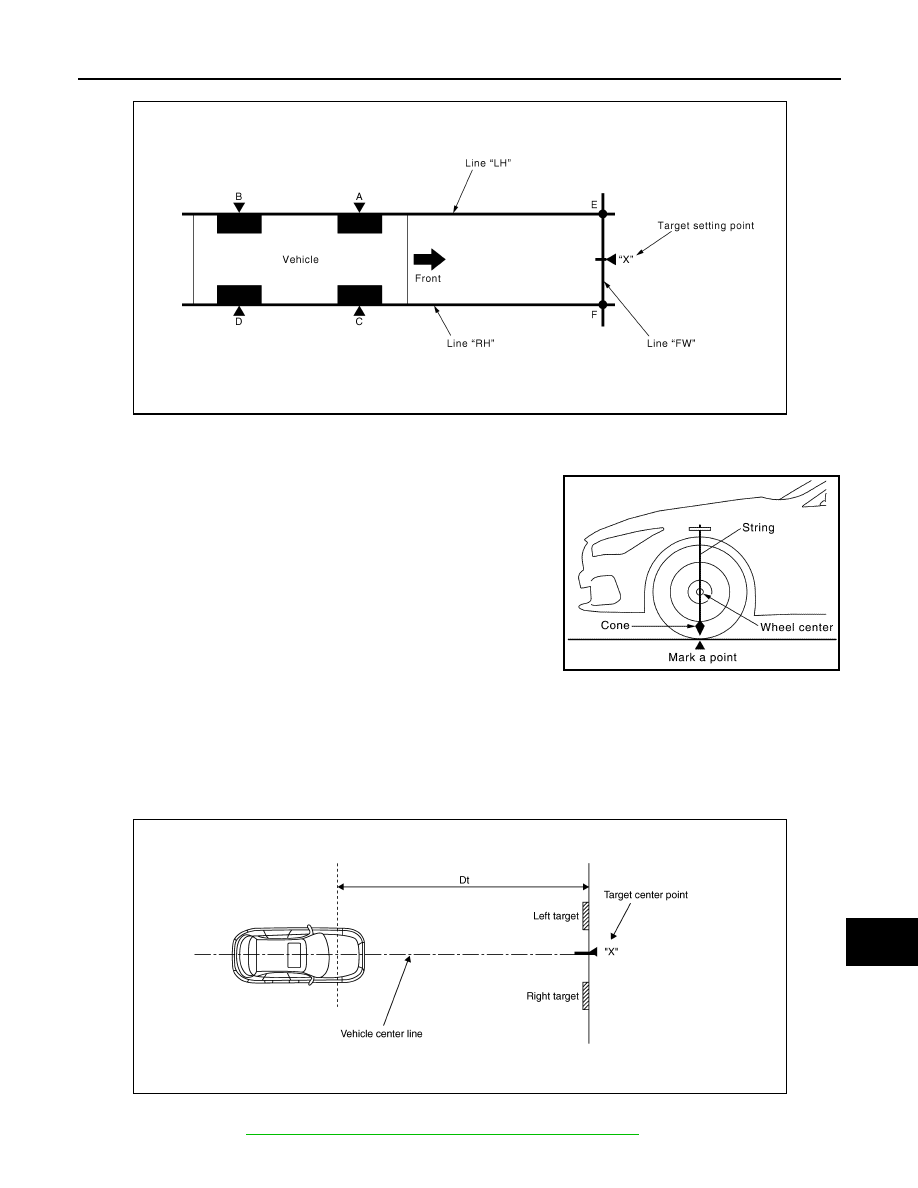

Mark points “A”, “B”, “C” and “D”at the center of the lateral sur-
face of each wheels.
NOTE:
Hang a string with a cone from the fender so as to pass through
the center of wheel, and then mark a point at the center of the
lateral surface of the wheel.

2.

Draw line “LH” passing through points “A” and “B” on the left side
of vehicle.
NOTE:
Approximately 4 m (13.12 ft) or more from the front end of vehi-
cle.

3.

Mark point “E” on the line “LH” at the positions 2800 mm (110.24
in) from point “A”.

4.

Draw line “RH” passing through points “C” and “D” on the right side of vehicle in the same way as step 2.

5.

Mark point “F” on the line “RH” at the positions 2800 mm (110.24 in) from point “C”.

6.

Draw line “FW” passing through the points “E” and “F” on the front side of vehicle.

7.

Mark point “X” at the center of point “E” and “F” on the line “FW”.

CAUTION:

Make sure that “E” to “X” is equal to “F” to “X”.

8.

Position the center of the right target and left target to point of “X”.

>> Proceed to

DAS-98, "Work Procedure (Camera Aiming Adjustment)"

.

“A” – “E” (“C” – “F”)

: 2800 mm (110.24 in)

PKIB4694E

JSOIA1043GB

JMOIA0063GB

DAS-98

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CAMERA AIMING ADJUSTMENT

Work Procedure (Camera Aiming Adjustment)

INFOID:0000000010609511

CAUTION:

Perform the adjustment under unloaded vehicle condition.

1.

CHECK VEHICLE HEIGHT

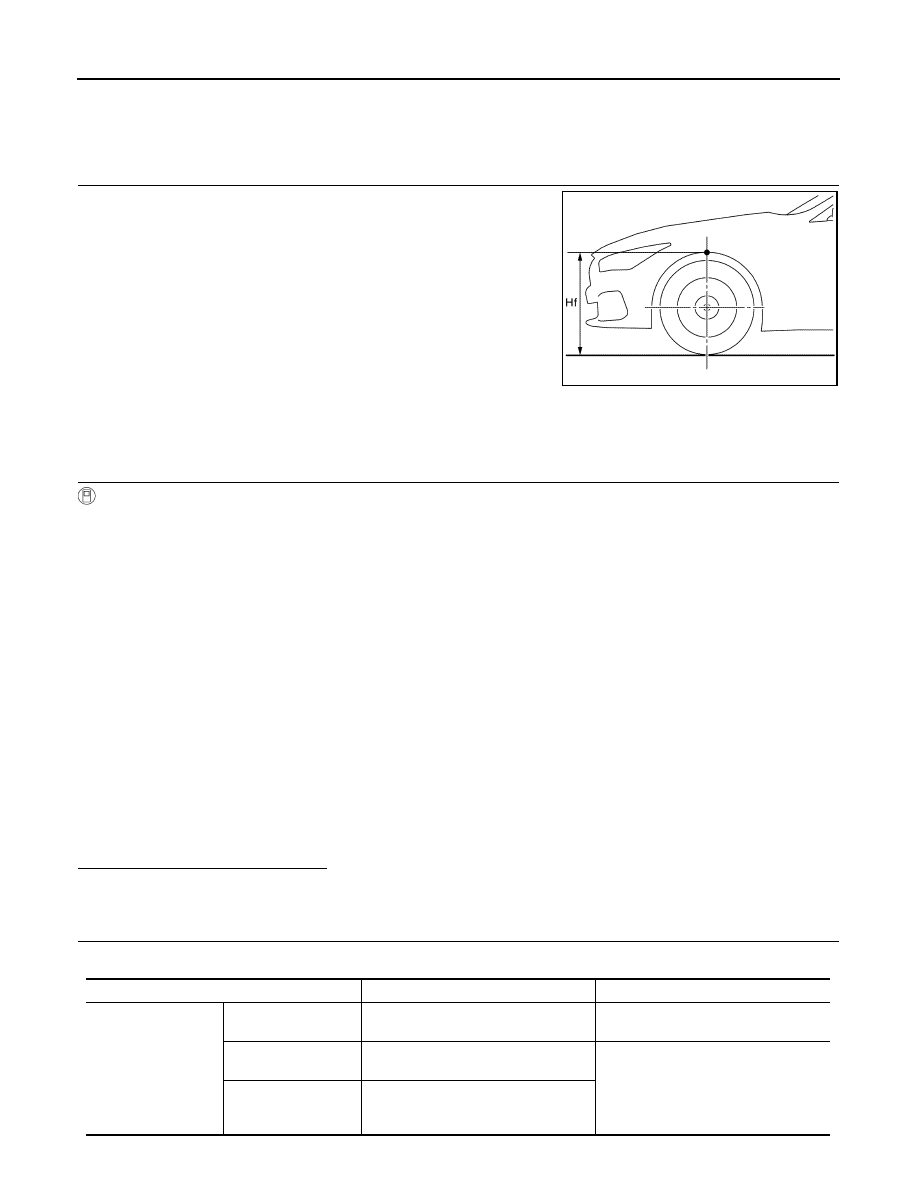

Measure both side of front wheelarch height (Hf). Then calculate
“Dh”.

CAUTION:

Be sure to measure wheelarch height correctly.
NOTE:
“Dh” may be calculated as a minus value.

>> GO TO 2.

2.

CAMERA AIMING ADJUSTMENT

With CONSULT

CAUTION:

Operate CONSULT outside the vehicle, and close all the doors. (To retain vehicle attitude appropri-
ately)
1.

Select “Work Support” on “LANE CAMERA” with CONSULT.

2.

Select “AUTO AIM”.

3.

Confirm the following items;

-

The target should be accurately placed.

-

The vehicle should be stopped.

4.

Select “Start” to perform camera aiming.

CAUTION:

• Never select “Start” when the target is not accurately placed.
• Wait 5 seconds or more after selecting “Start”.

5.

Input the following parameters, and then select “Start”.

-

Htu: 1501 (mm)

-

Htl: 1299 (mm)

-

Dt: 2800 (mm)

-

Ts: 101 (mm)

-

Dbt: 956 (mm)

-

VP: 2 (RHD models for Europe)/4 (LHD models for Europe)/6 (for Russia)/7 (for Australia)

6.

Confirm the displayed item.

Is “Normally Completed” displayed?

YES

>> Select “End” to close the aiming adjustment procedure. Then GO TO 4.

NO

>> GO TO 3.

3.

INCOMPLETE CAUSE CONFIRMATION

1.

Perform the following services according to the displayed message.

Dh [mm] = (Hfl + Hfr)

÷

 2

−

 763

where,

Hfl: Front left wheelarch height [mm]

Hfr: Front right wheelarch height [mm]

JSOIA1046GB

Displayed message

Possible cause

Service procedure

Stop

—

Temporary malfunction in internal pro-
cessing of the front camera unit.

Go back to step 1.

00H Routine not acti-
vated

Front camera unit malfunction.

Position the target appropriately again.
Then perform the aiming again.

10H Writing error

• Temporary malfunction in internal

processing of the front camera unit.

• Front camera unit malfunction.

DAS

CAMERA AIMING ADJUSTMENT

DAS-99

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

NOTE:
Replace camera unit if “00H Routine not activated” or “Writing error is detected.” are repeatedly indicated
during the above two services are performed.

2.

Confirm that “Normally completed” is displayed and then select “End” to close the adjustment procedure.

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis of front camera unit with CONSULT.

Is any DTC detected?

YES

>> Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

DAS-

61, "DTC Index"

.

NO

>> WORK END

Work Procedure (Target Mark Sample)

INFOID:0000000010609512

Adjust the scale so that the item is the same size as the following, and print.
• Target length (L): 202 mm
• Target width (W): 303 mm

CAUTION:

• Never allow a clearance on the black and white boundary.

0 – 16

—

• A target is not -yet-placed.

(Front camera unit cannot detect the
target.)

• The position of the targets is not cor-

rect.

• The position of the front camera unit

is not correct.

• Inappropriate work environment.
• Inappropriate vehicle condition.
• Input value is not correct against ac-

tual setting position.

Position the target appropriately again.
Then perform the aiming again.

Abnormally complet-

ed.

—

Displayed message

Possible cause

Service procedure

DAS-100

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CAMERA AIMING ADJUSTMENT

• Never apply tape to target surface.

JSOIA0633ZZ

DAS

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

DAS-101

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

Description

INFOID:0000000010619788

• Always perform the rear camera calibration after removing and installing or replacing the rear camera.
• Always perform the rear camera calibration after replacing the around view monitor control unit.

CAUTION:

• Place the vehicle on level ground when the calibration is operated.
• Follow the CONSULT when performing the calibration. (Rear camera calibration cannot be operated

without CONSULT.)

Work Procedure (Preparation)

INFOID:0000000010619789

1.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of the camera control unit with CONSULT (AVM).

Is any DTC detected?

Except “U1308”>>Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

DAS-49, "DTC Index"

.

“U1308” or no DTC>>GO TO 2.

2.

PREPARATION BEFORE REAR CAMERA CALIBRATION

1.

Perform pre-inspection for diagnosis. Refer to

DAS-82, "Inspection Procedure"

.

2.

Adjust the tire pressure to the specified pressure value.

3.

Maintain no-load in vehicle.

4.

Check if coolant and engine oil are filled up to correct level and fuel tank is full.

5.

Shift the selector lever to “P” position and release the parking brake.

6.

Clean the rear camera.

>> GO TO 3.

3.

PREPARATION OF CALIBRATION TARGET MARK

1.

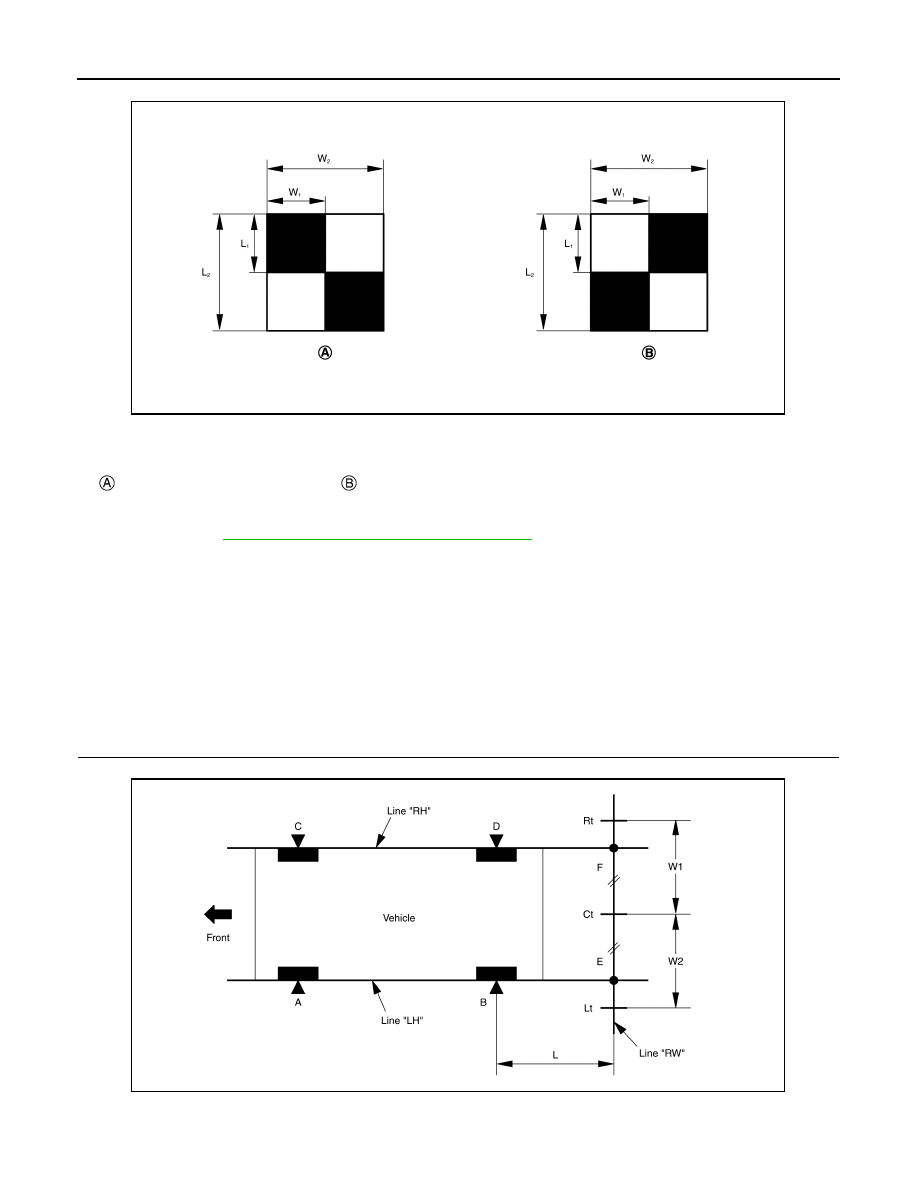

Prepare six sheets of white paper and black paper, respectively, with dimensions of 250 mm (9.84 in)

×

250 mm (9.84 in) to create a left target, right target, and center target.
NOTE:
Correct the magnification of print and print the target mark sample in the service manual on the blackpa-
per. Refer to

DAS-105, "Work Procedure (Target Mark Sample)"

.

2.

Tape two sheets of black paper and two sheets of white paper
together to make a target of 500 mm (19.69 in)

×

 500 mm (19.69

in).

NOTE:
Use a transparent tape.

3.

Create two more targets according to step 2.

W

:250 mm (9.84 in)

L

:250 mm (9.84 in)

JSOIA0635ZZ

DAS-102

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

>> Refer to

DAS-102, "Work Procedure (Target Setting)"

.

Work Procedure (Target Setting)

INFOID:0000000010619790

CAUTION:

• Perform this operation in a horizontal position where there is a clear view for 3 m (9.84 ft) backward

and 4 m (13.12 ft) wide.

• Place the target in a well-lighted location. (Poor lighting may make it hard to adjust.)
• The target may not be detected when it shines by the reflected light of the sun or lighting.
• The target may not be detected when there is the same pattern of black and white as the target when

the pattern is within 0.5 m (1.64 ft) from either side and upward/downward position from the target. (It
is desirable that the target is positioned on the single-color floor.)

1.

TARGET SETTING

W

1

:250 mm (9.84 in)

W

2

:500 mm (19.69 in)

L

1

:250 mm (9.84 in)

L

2

:500 mm (19.69 in)

Left target and right target

Center target

JSOIA0630ZZ

JSOIA1098GB

DAS

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

DAS-103

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

1.

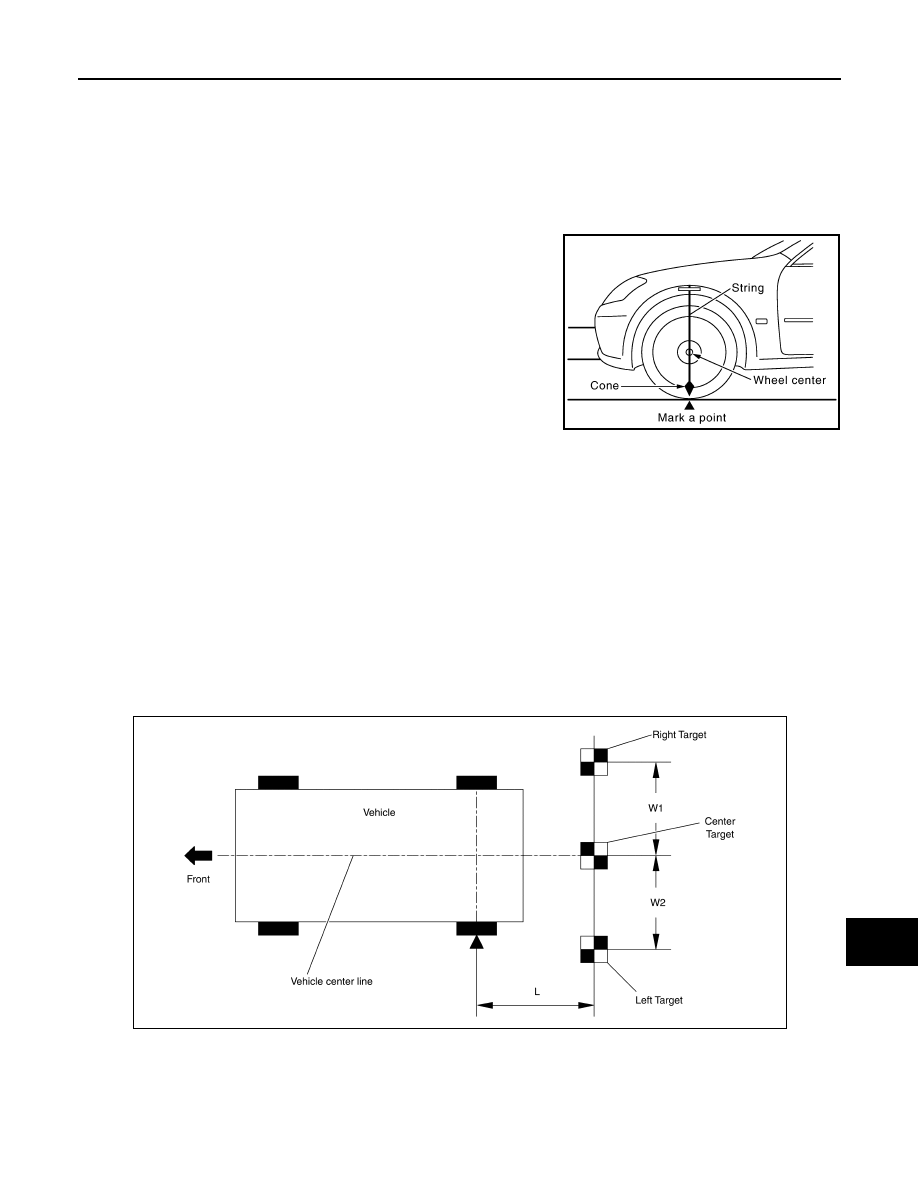

Mark points “A”, “B”, “C” and “D” at the center of the lateral sur-
face of each wheel.
NOTE:
Hang a string with a cone from the fender so as to pass through
the center of wheel, and then mark a point at the center of the
lateral surface of the wheel.

2.

Draw line “LH” passing through points “A” and “B” on the left side
of vehicle.
NOTE:
Approximately 2.2 m (7.22 ft) or more at the rear from the rear
axle.

3.

Mark point “E” on the line “LH” at the positions 1,854 mm (72.99
in) from point “B”.

4.

Draw line “RH” passing through points “C” and “D” on the right side of vehicle in the same way as step 2.
NOTE:
Approximately 2.2 m (7.22 ft) or more at the rear from the rear axle.

5.

Mark point E on the line “RH” at the positions 1,854 mm (72.99 in) from point “D”.

6.

Draw line “RW” passing through the points “E” and “F” on the rear of vehicle.
NOTE:
Approximately 1.8 m (5.91 ft) or more at both left and right sides from vehicle center.

7.

Mark point “Ct” at the center of point “E” and “F” on the line “RW”.

CAUTION:

Make sure that “E” to “Ct” is equal to “F” to “Ct”.

8.

Mark point “Lt” and “Rt” on the line “RW” at the positions 1,450 mm (57.09 in) from point “Ct”.

9.

Position the center of the target mark to point of “Ct”, “Lt” and “Rt”.

CAUTION:

To perform an accurate calibration, check that the black-and-white pattern is as shown in the fig-
ure. The pattern of the center target differs from that of right/left target.

Distance between B and E

: 1,854 mm (72.99 in)

Distance between D and F

: 1,854 mm (72.99 in)

Distance W1

: 1,450 mm (57.09 in)

Distance W2

: 1,450 mm (57.09 in)

Distance L

: 1,854 mm (72.99 in)

W1

: 1,450 mm (57.09 in)

W2

: 1,450 mm (57.09 in)

L

: 1,854 mm (72.99 in)

PKIB7667E

JSOIA1097GB

DAS-104

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

>> Refer to

DAS-104, "Work Procedure (Rear Camera Calibration)"

.

Work Procedure (Rear Camera Calibration)

INFOID:0000000010619791

CAUTION:

For accuracy, perform the calibration under the specified vehicle condition (Fuel full, no-load, speci-
fied tire pressure, etc.). Refer to

DAS-101, "Work Procedure (Preparation)"

.

1.

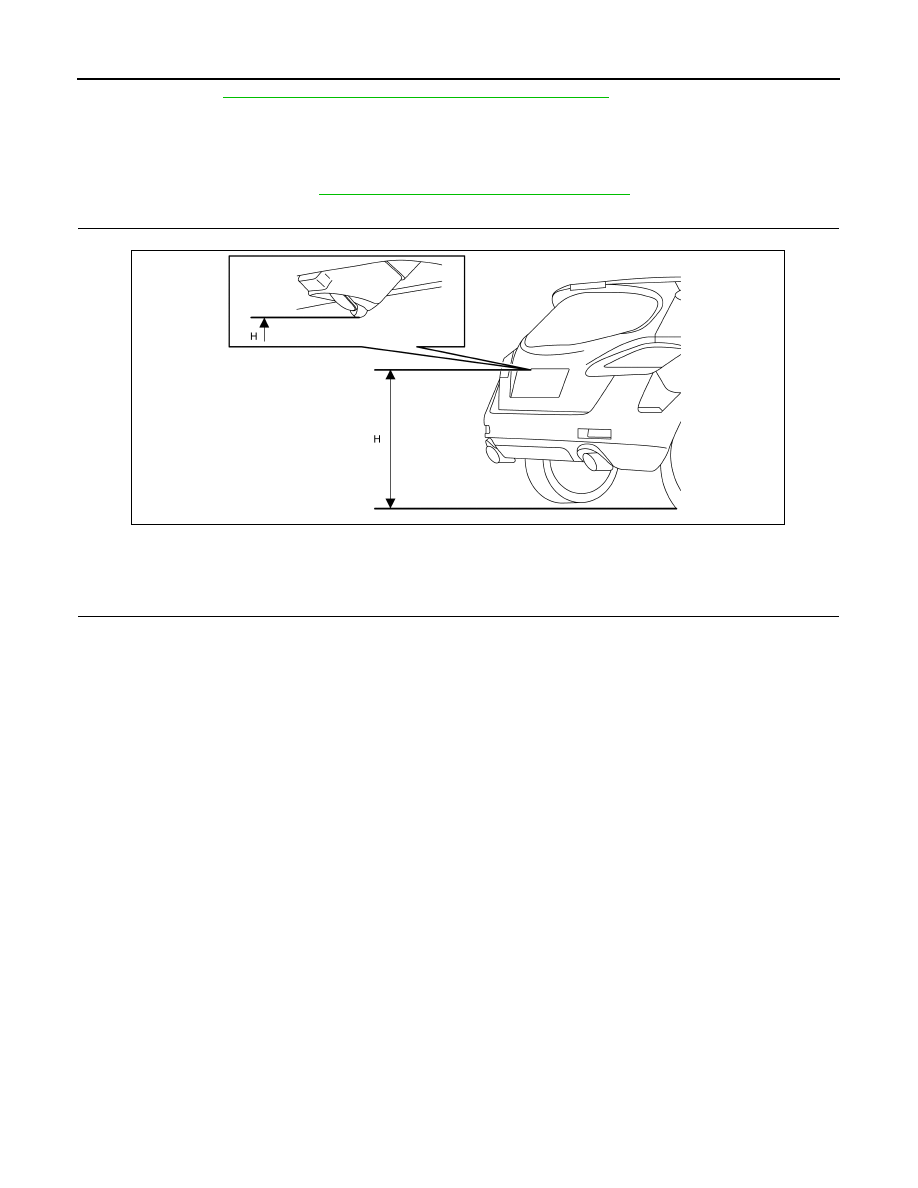

CHECK REAR CAMERA HEIGHT

Measure the rear camera height.

H:Rear camera height.

>> GO TO 2.

2.

REAR CAMERA CALIBRATION

1.

Select “Work Support” on “AVM” with CONSULT.

2.

Select “REAR CAMERA ITS” and then touch “Start”.

3.

Touch“OK”.

4.

Input the rear camera height “H”, and then touch “APPLY”.

5.

Confirm that the same value is displayed on the center display.

6.

Confirm the following items;

-

The target should be accurately placed.

-

The vehicle should be stopped.

-

The vehicle should be under the specified vehicle condition.

7.

Select “Start” to perform camera aiming.

CAUTION:

To properly maintain vehicle attitude, operate CONSULT outside the vehicle with all the doors
closed.

8.

Confirm the displayed item.

-

“Completed”: Select “Completion”.

-

“Not completed”: Perform the following services.

JSOIA0634ZZ

DAS

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

DAS-105

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

>> GO TO 3.

3.

PERFORM SELF-DIAGNOSIS

Perform self-diagnosis of around view monitor control unit with CONSULT (AVM).

Is any DTC detected?

YES

>> Perform diagnosis on the detected DTC and repair or replace the applicable item. Refer to

DAS-

49, "DTC Index"

.

NO

>> GO TO 4.

4.

ACTION TEST

Test the BSW system operation by action test. Refer to

DAS-108, "BSW : Description"

.

>> WORK END

Work Procedure (Target Mark Sample)

INFOID:0000000010619792

NOTE:

Displayed item

Code

Possible causes

Service procedure

Check the error contents
using the screen of naviga-
tion system.

11

• A target is not-yet-placed. (Center)
• Target mark reflects the light. (Center)

• Position the target appropriately again. (Center)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Center)

12

• A target is not-yet-placed. (Right)
• Target mark reflects the light. (Right)

• Position the target appropriately again. (Right)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Right)

13

• A target is not-yet-placed. (Left)
• Target mark reflects the light. (Left)

• Position the target appropriately again. (Left)

Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark. (Left)

21

A target is dirty. (Center)

Clean target mark. (Center)

22

A target is dirty. (Right)

Clean target mark. (Right)

23

A target is dirty. (Left)

Clean target mark. (Left)

51

• The position of the target is not correct.

(Center)

• Target mark reflects the light. (Center)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Center)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Center)

• Install rear camera properly

52

• The position of the target is not correct.

(Right)

• Target mark reflects the light. (Right)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Right)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark.

(Right)

• Install rear camera properly

53

• The position of the target is not correct.

(Left)

• Target mark reflects the light. (Left)
• The position of the rear camera is not

correct.

• Set target mark direction as shown in the figure.

(Left)
Refer to

DAS-102, "Work Procedure (Target

Setting)"

.

• Shut out the light reflecting on target mark. (Left)
• Install rear camera properly

DAS-106

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CALIBRATING CAMERA IMAGE (AROUND VIEW MONITOR)

Change the magnification of print to 250 mm (9.84 in)

×

 250 mm (9.84 in) and print the target mark sample.

JSOIA0633ZZ

DAS

ACTION TEST

DAS-107

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ACTION TEST

LDW

LDW : Description

INFOID:0000000010416827

• Perform action test to verify the customer's concern.
• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for LDW: Refer to

DAS-15, "LDW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Lane Departure Warning"

.

LDW : Inspection Procedure

INFOID:0000000010416828

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for LDW: Refer to

DAS-15, "LDW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Lane Departure Warning"

.

1.

CHECK LDW SYSTEM SETTING

1.

Start the engine.

2.

Check that the LDW system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR LDW

1.

Enable the setting of the LDW system on the vehicle information display.

2.

Check the LDW operation according to the following table.

Vehicle condition/ Driver's operation

Action

LDW ON indi-

cator

Indication on the combination

meter

Buzzer

Less than

Approx. 55

km/h (34

MPH)

Close to lane marker

No action

ON

White

OFF

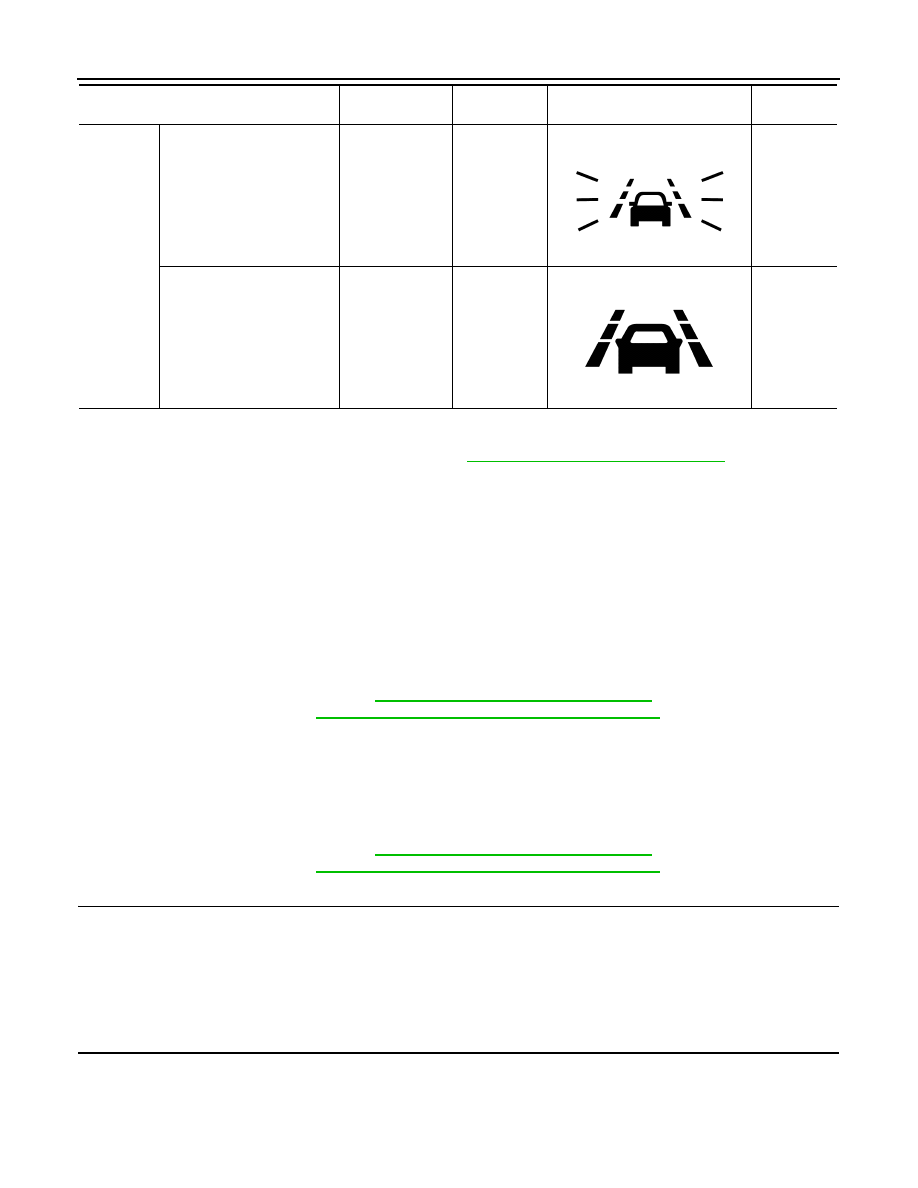

JSOIA1422ZZ

DAS-108

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed
reaches approximately 55 km/h (34 MPH). Refer to

DAS-15, "LDW : System Description"

.

>> Inspection End.

BSW

BSW : Description

INFOID:0000000010416829

• Perform action test to verify the customer

′

s concern.

• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for BSW: Refer to

DAS-17, "BSW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Blind Spot Warning"

.

BSW : Inspection Procedure

INFOID:0000000010416830

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for BSW: Refer to

DAS-17, "BSW : System Description"

.

- Handling precaution: Refer to

DAS-31, "Precautions for Blind Spot Warning"

.

1.

CHECK BSW SYSTEM SETTING

1.

Start the engine.

2.

Check that the BSW system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

>> GO TO 2.

2.

ACTION TEST FOR BSW

1.

Enable the setting of the BSW system on the vehicle information display.

2.

Check the BSW operation according to the following table.

Approx. 60

km/h (37

MPH) or

more

Close to lane marker

Warning

• Buzzer sounds
• Warning lamp

blinks

ON

OFF  (orange) Blink

Short contin-

uous beeps

• Close to lane marker
• Turn signal ON (Deviate

side)

No action

ON

White

OFF

Vehicle condition/ Driver's operation

Action

LDW ON indi-

cator

Indication on the combination

meter

Buzzer

JSOIA1367ZZ

JSOIA1422ZZ

DAS

ACTION TEST

DAS-109

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

Vehicle condition/Driver

′

s operation

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle speed
reaches approximately 29 km/h (18 MPH). Refer to

DAS-17, "BSW : System Description"

.

>> Inspection End.

MOD

MOD : Description

INFOID:0000000010416831

• Perform action test to verify the customer's concern.
• Perform action test and check the system operation after system diagnosis.

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for MOD: Refer to

DAS-22, "MOD : System Description"

.

MOD : Inspection Procedure

INFOID:0000000010416832

WARNING:

Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION:

• Fully understand the following items well before the road test;
- System description for MOD: Refer to

DAS-22, "MOD : System Description"

.

1.

CHECK MOD SYSTEM SETTING

1.

Start the engine.

2.

Check that the MOD system setting can be enabled/disabled on the vehicle information display.

3.

Turn OFF the ignition switch and wait for 30 seconds or more.

4.

Check that the previous setting is saved when the engine starts again.

Warning
systems

ON

indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Turn signal

condition

Status of vehi-

cle detection
within detec-

tion area

Indication on the combination

meter

Buzzer

ON

Less than Ap-

prox. 29 km/h

(18 MPH)

—

—

OFF

OFF

Approx. 32

km/h (20

MPH) or more

—

Vehicle is ab-

sent

OFF

OFF

OFF

Vehicle is de-

tected

ON

OFF

ON (vehicle
detected di-
rection)

Before turn

signal oper-

ates vehicle is

detected

Blink

Short continuous beeps

Vehicle is de-

tected after

turn signal op-

erates

Blink

OFF

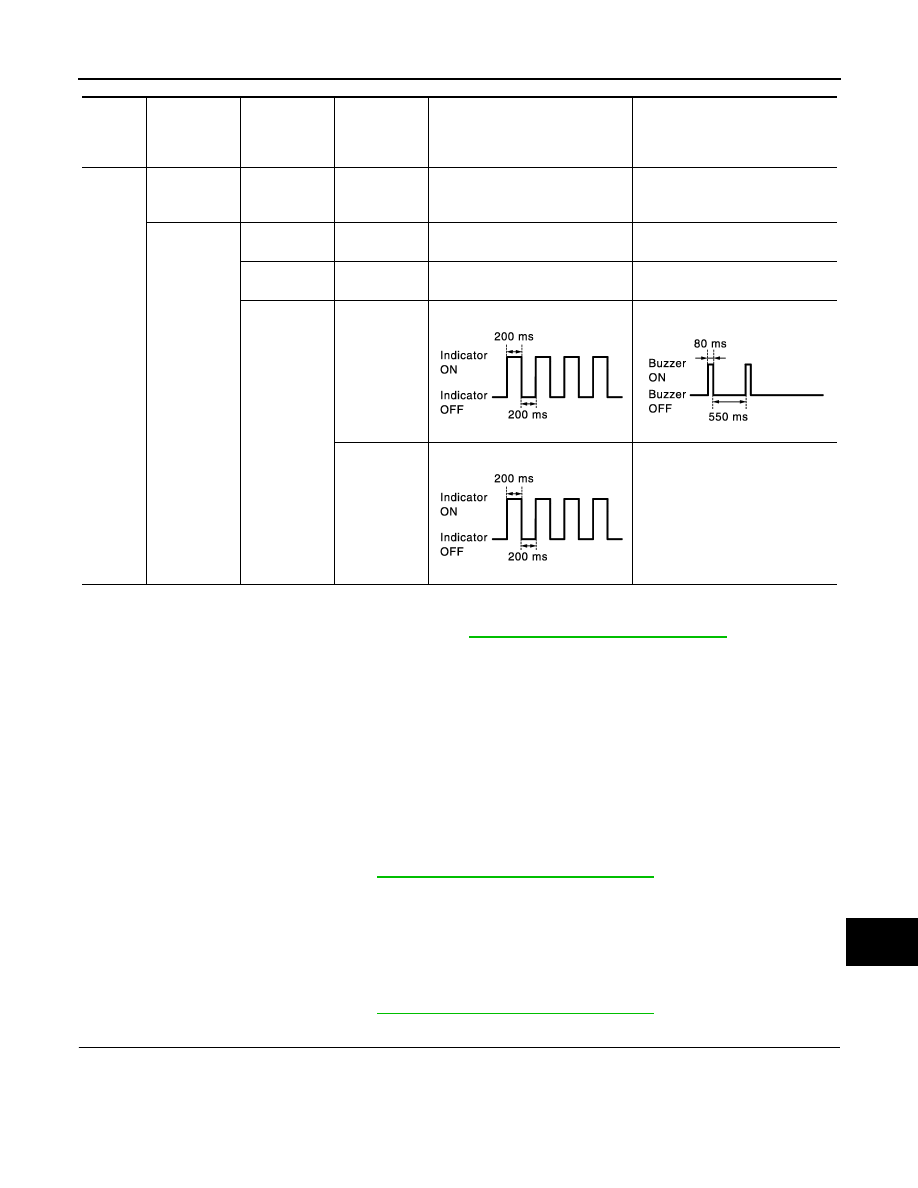

JSOIA0251GB

JSOIA0252GB

JSOIA0251GB

DAS-110

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

ACTION TEST

>> GO TO 2.

2.

ACTION TEST FOR MOD

1.

Enable the setting of the MOD system on the vehicle information display.

2.

Turn warning systems switch ON (warning systems ON indicator is ON).

3.

Check the MOD operation according to the following table.

NOTE:
After the operating conditions of warning are satisfied, the warning continues until the vehicle reaches a
higher speed. Refer to

DAS-22, "MOD : System Description"

.

>> Inspection End.

Vehicle condition/ Driver's operation

Vehicle response

Moving Object De-
tection ON indicator

Vehicle speed

(Approx.)

[km/h (MPH)]

Status of vehicle detection
within detection area

Indication on the Moving Object Detection

indicator

Buzzer

OFF

—

—

OFF

OFF

Blue

Less than approx.

8 km/h (5 MPH)

Vehicle is detected

ON

ON

Approx. 8 km/h (5
MPH) or more

Vehicle is absent

ON

OFF

Vehicle is detected

ON

OFF

Vehicle is not detected

ON

OFF

DAS

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

DAS-111

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

Description

INFOID:0000000010416835

Vehicle specification needs to be written with CONSULT because it is not written after replacing around view
monitor control unit.
Configuration has three functions as follows:

CAUTION:

• When replacing around view monitor control unit, you must perform “Select Saved Data List” or

"After Replace ECU" with CONSULT.

• Complete the procedure of “Select Saved Data List” or "After Replace ECU" in order.
• If you set incorrect “Select Saved Data List” or "After Replace ECU", incidents might occur.
• Configuration is different for each vehicle model. Confirm configuration of each vehicle model.
• Never perform “Select Saved Data List” or "After Replace ECU" except for new around view monitor

control unit.

Work Procedure

INFOID:0000000010416836

1.

WRITING MODE SELECTION

CONSULT

Select “Reprogramming, Configuration” of around view monitor control unit.

When writing saved data>>GO TO 2.
When writing manually>>GO TO 3.

2.

PERFORM “SAVED DATA LIST”

CONSULT

Automatically “Operation Log Selection” window will display if “Before Replace ECU” was performed. Select
applicable file from the “Save Data List” and press “Confirm”.

>> Work End.

3.

PERFORM “AFTER REPLACE ECU” OR “MANUAL CONFIGURATION”

CONSULT

1.

Select “After Replace ECU” or “Manual Configuration”.

2.

Identify the correct model and configuration list. Refer to

DAS-112, "Configuration List"

.

3.

Confirm and/or change setting value for each item.

CAUTION:

Thoroughly read and understand the vehicle specification. ECU control may not operate normally
if the setting is not correct.

4.

Select “Next”.

CAUTION:

Make sure to select “Next”, confirm each setting value and press “OK” even if the indicated con-
figuration of brand new around view monitor control unit is same as the desirable configuration. If
not, configuration which is set automatically by selecting vehicle model can not be memorized.

5.

When "Completed", select "End".

>> GO TO 4.

4.

OPERATION CHECK

Function

Description

"Before Replace ECU"

• Reads the vehicle configuration of current around view monitor control unit.
• Saves the read vehicle configuration.

"After Replace ECU"

Writes the vehicle configuration with manual selection.

"Select Saved Data List"

Writes the vehicle configuration with saved data.

DAS-112

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

CONFIGURATION (AROUND VIEW MONITOR CONTROL UNIT)

Confirm that each function controlled by around view monitor control unit operates normally.

>> Work End.

Configuration List

INFOID:0000000010416837

CAUTION:

Thoroughly read and understand the vehicle specification. Incorrect settings may result in abnormal
control of ECU.

⇔

: Items which confirm vehicle specifications

SETTING ITEM

NOTE

Items

Setting value

HANDLE POSITION

RHD

⇔

 LHD

—

TRANSMISSION

A/T

⇔

 M/T

—

TIRE SIZE

TYPE 1

⇔

 TYPE 3

• TYPE 1: 17 inch
• TYPE 3: 19 inch

4WD/2WD

4WD

⇔

 2WD

—

SONAR

WITH

⇔

 WITHOUT

• WITH 1: With sonar
• WITHOUT: Without sonar

LDW FUNCTION

WITH

⇔

 WITHOUT

• WITH 1: With LDW function
• WITHOUT: Without LDW function
