Qashqai J11. Driver assistance system - part 5

DAS

DRIVER ASSISTANCE SYSTEMS

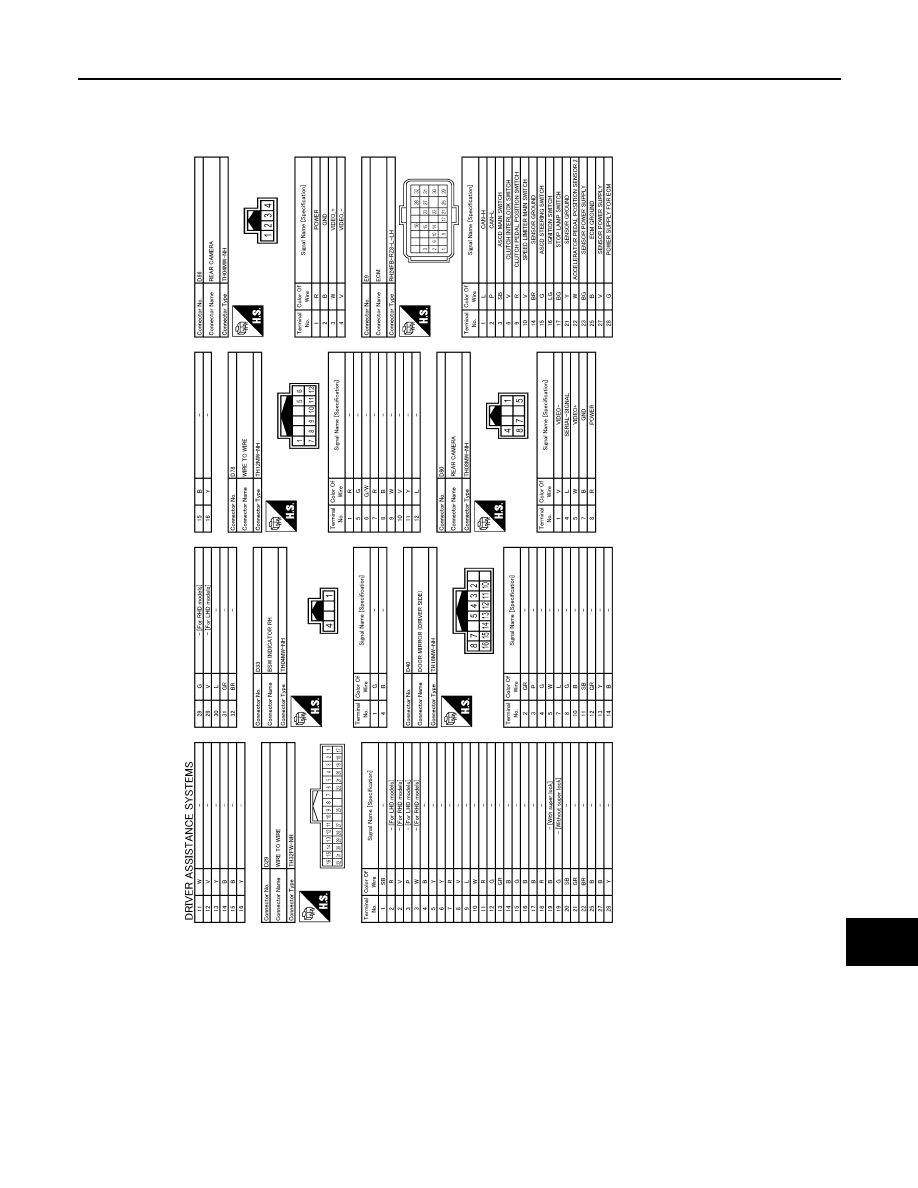

DAS-65

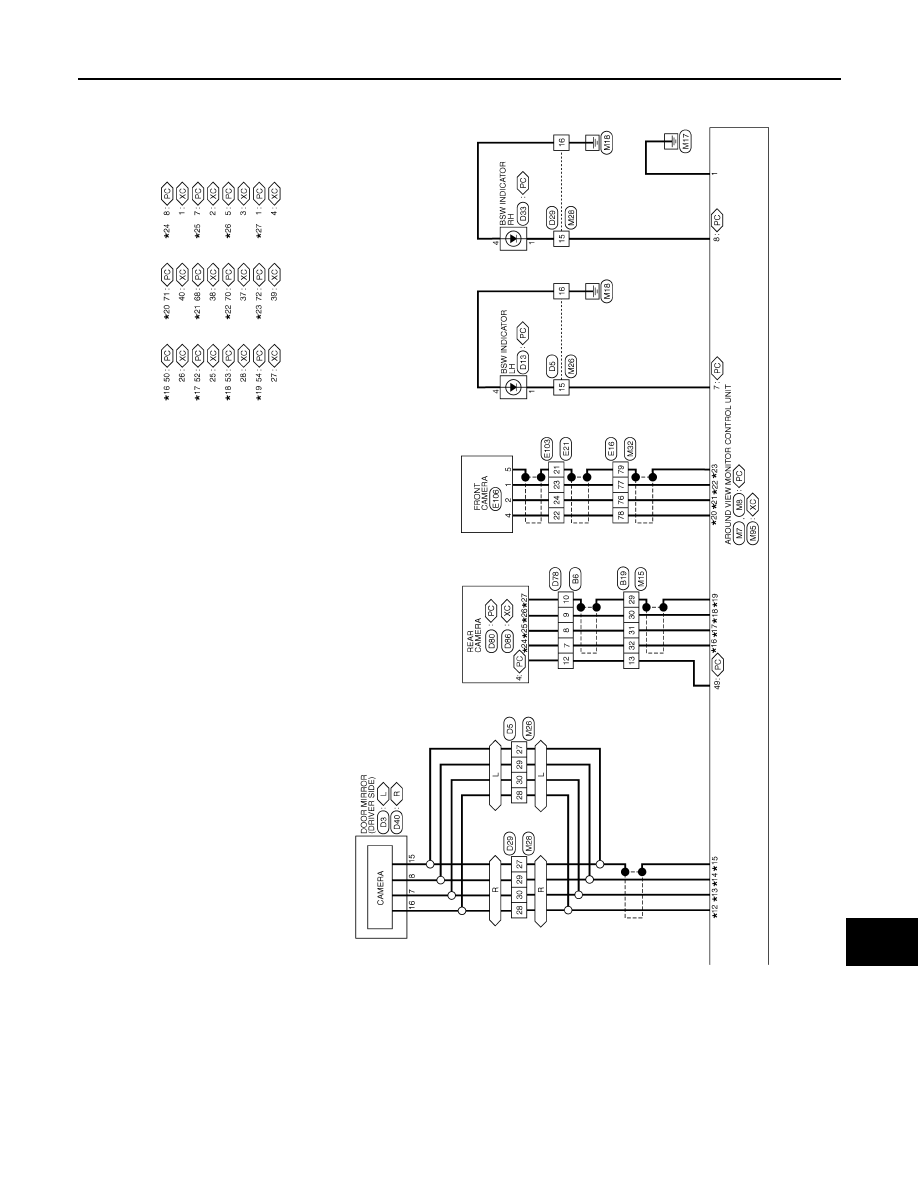

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2185GB

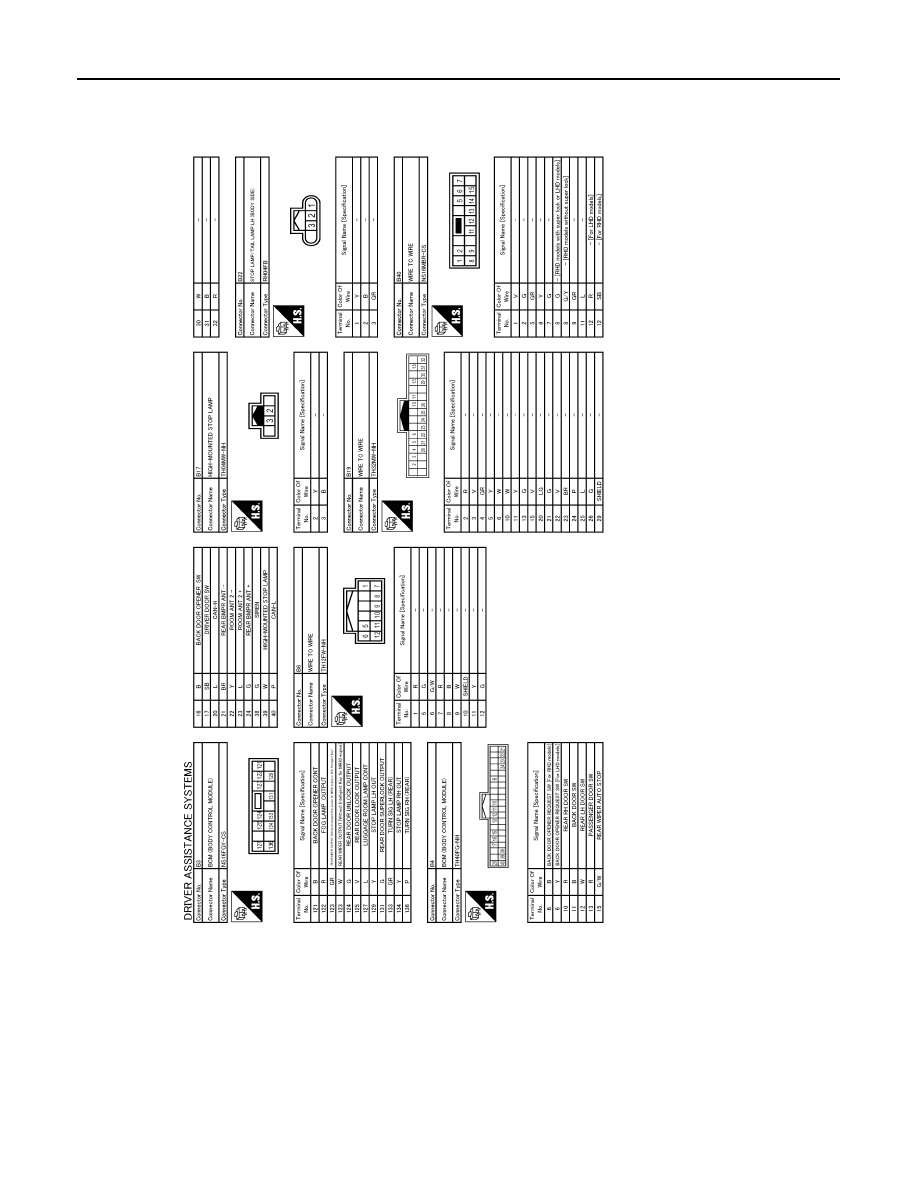

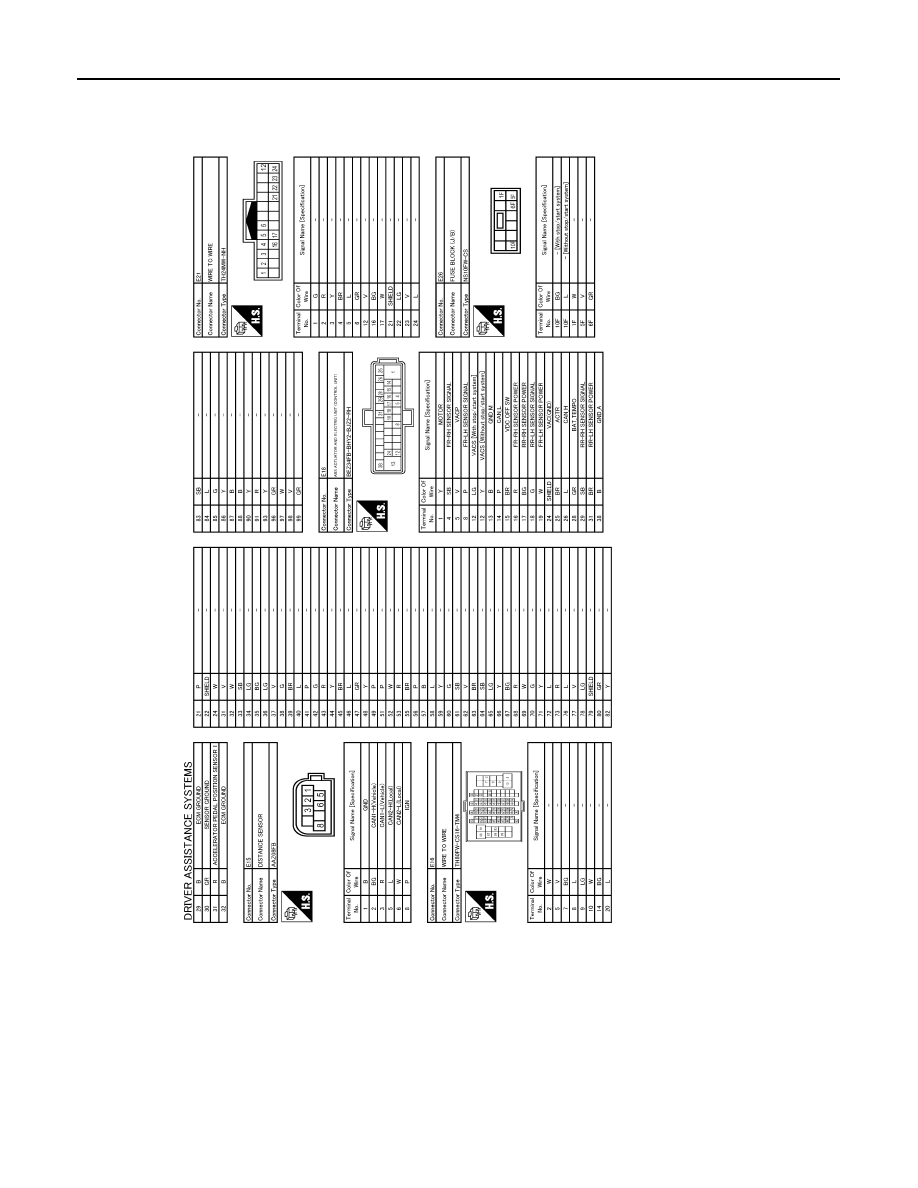

DAS-66

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2198GB

DAS

DRIVER ASSISTANCE SYSTEMS

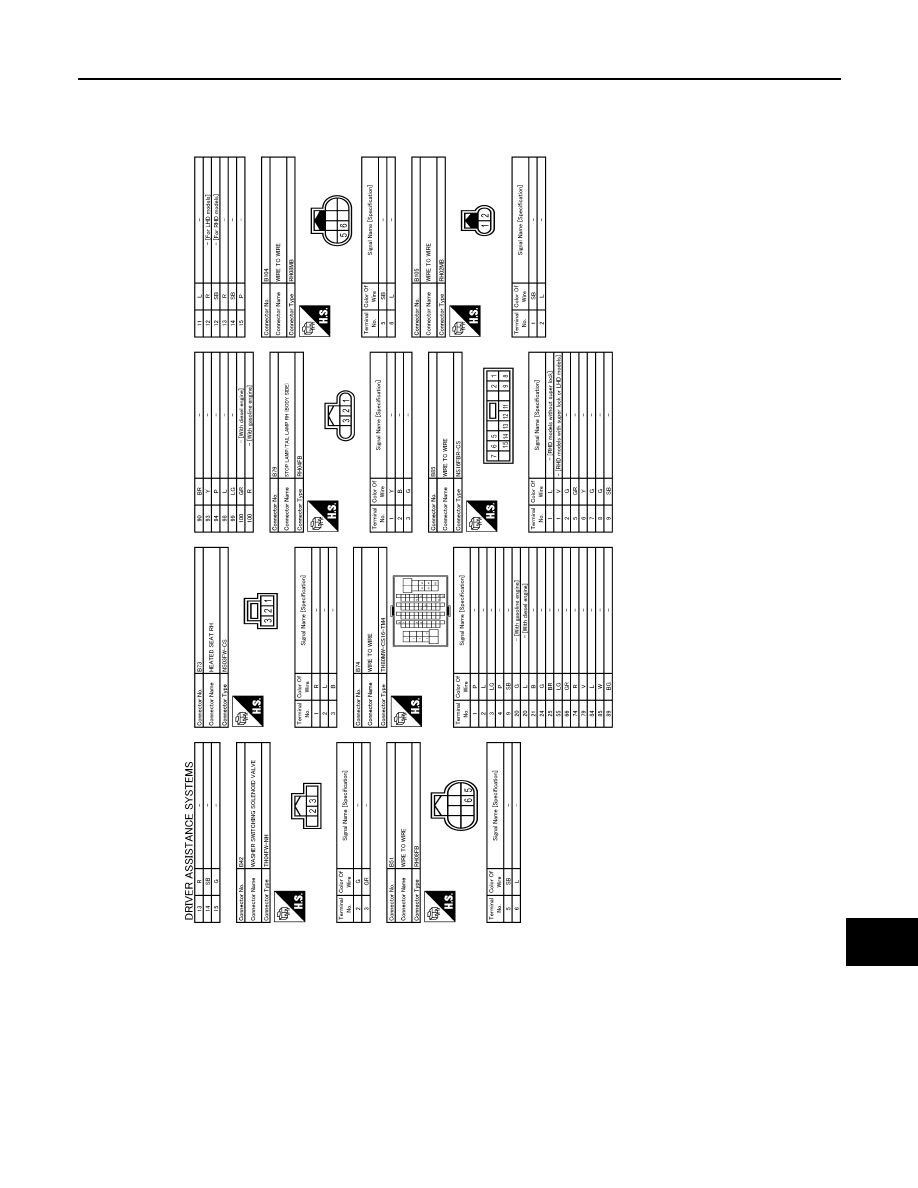

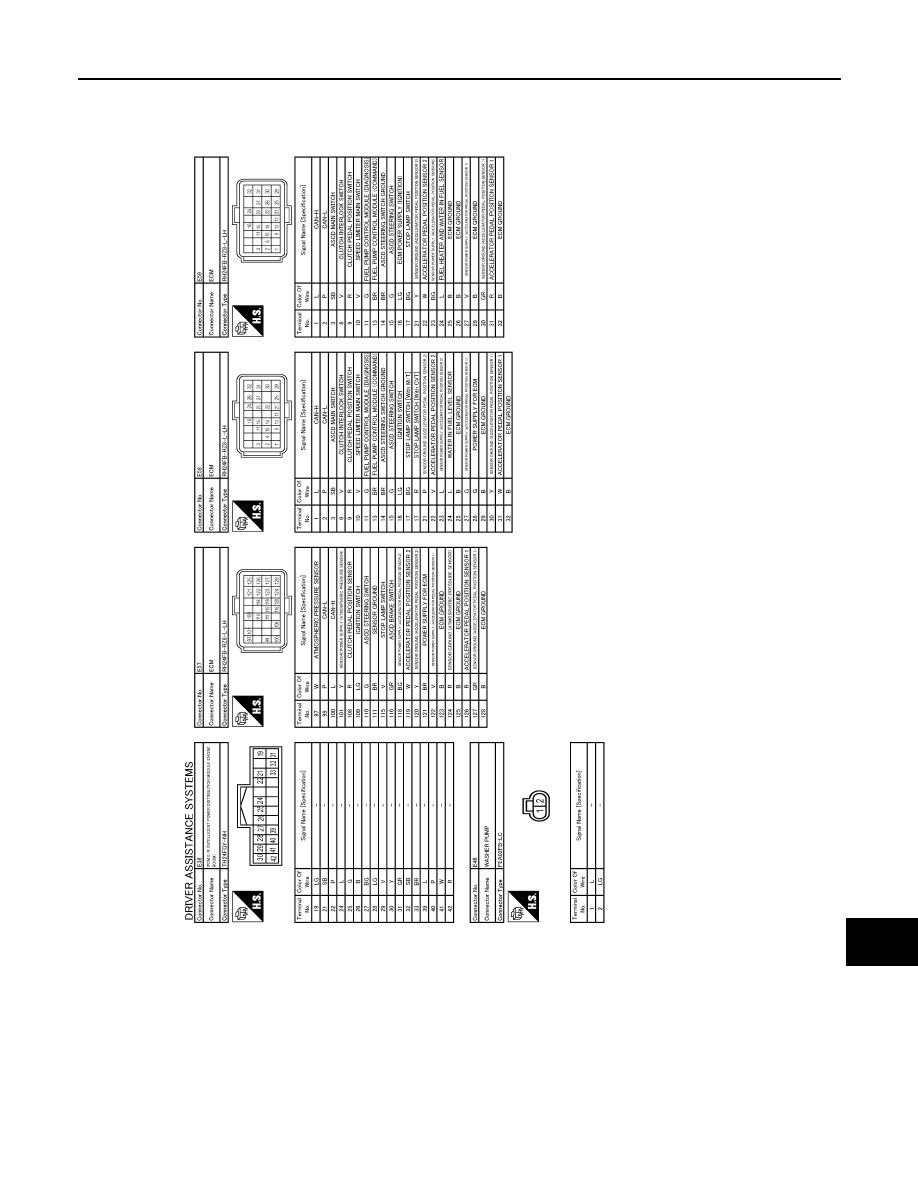

DAS-67

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2199GB

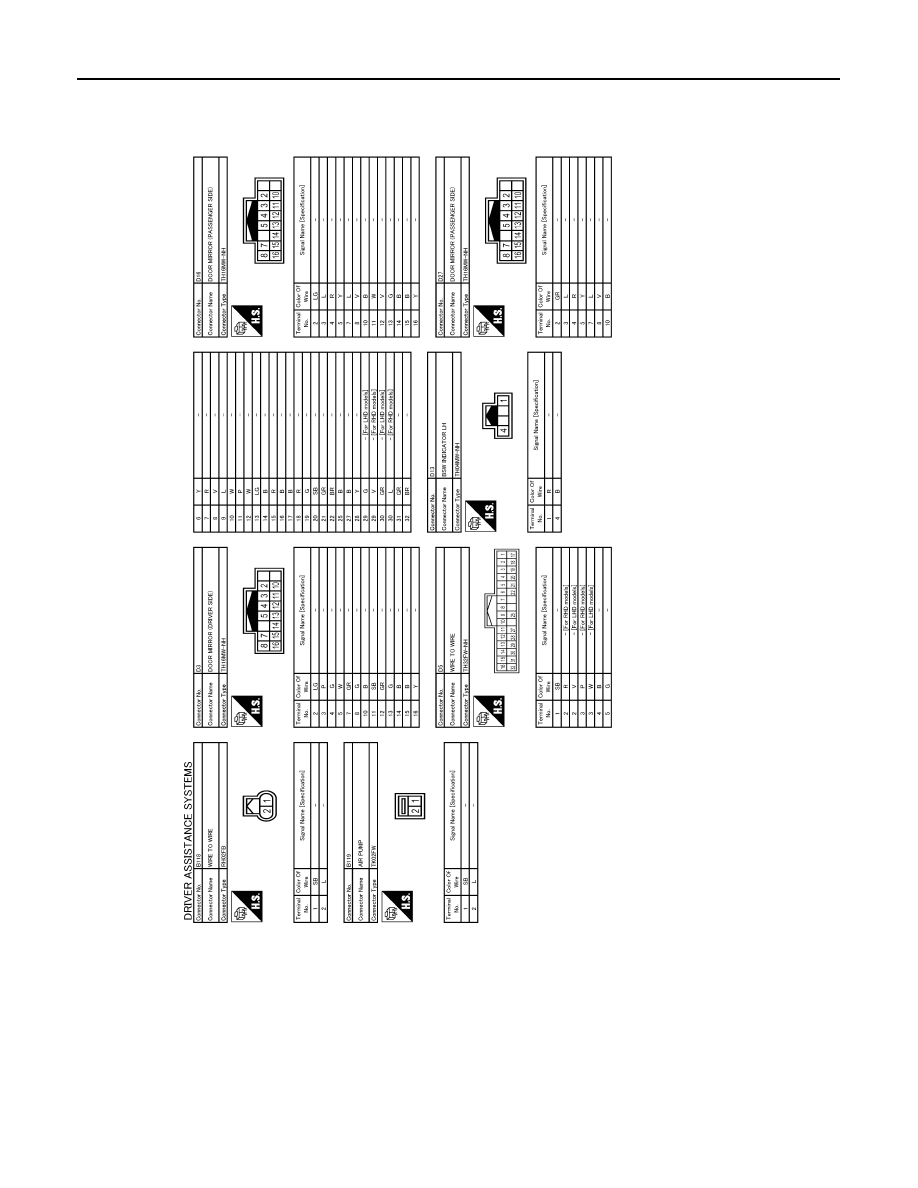

DAS-68

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2200GB

DAS

DRIVER ASSISTANCE SYSTEMS

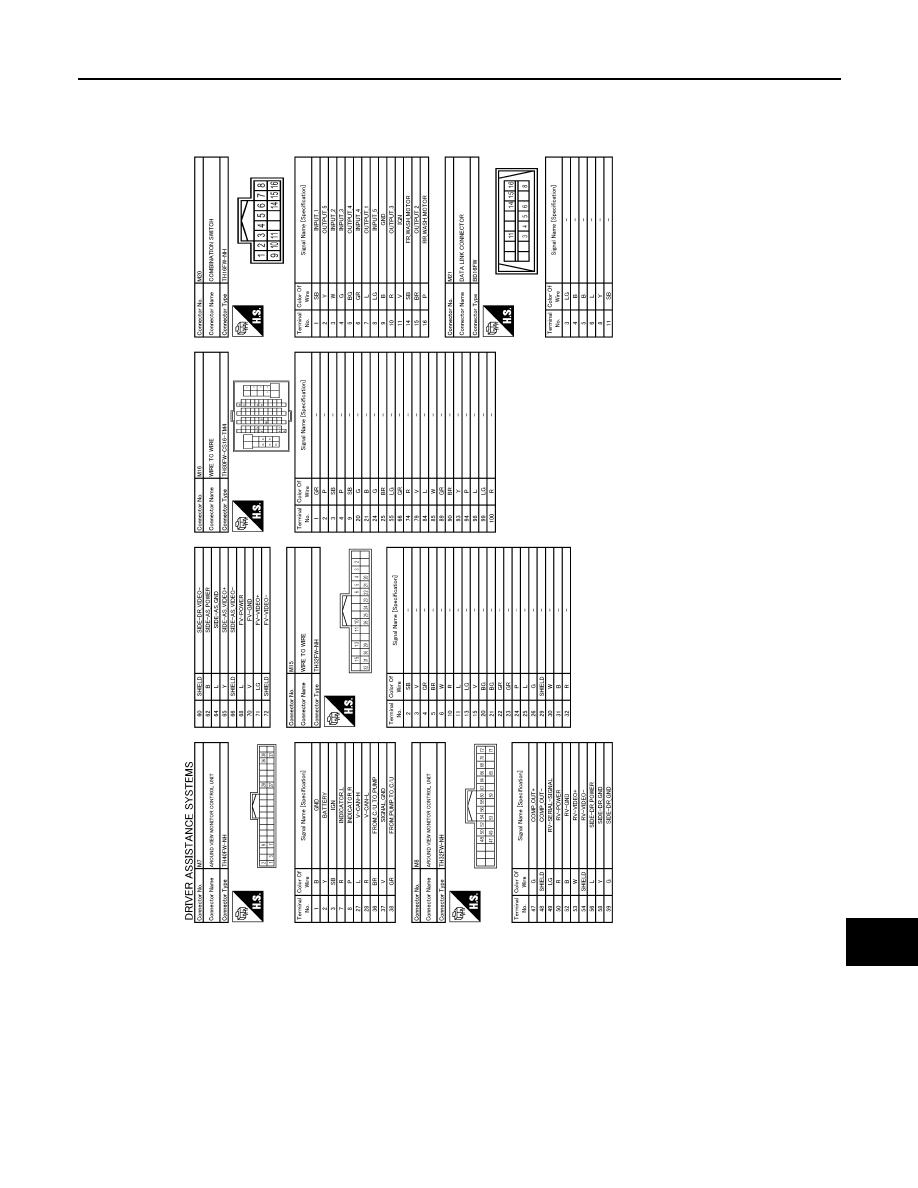

DAS-69

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2201GB

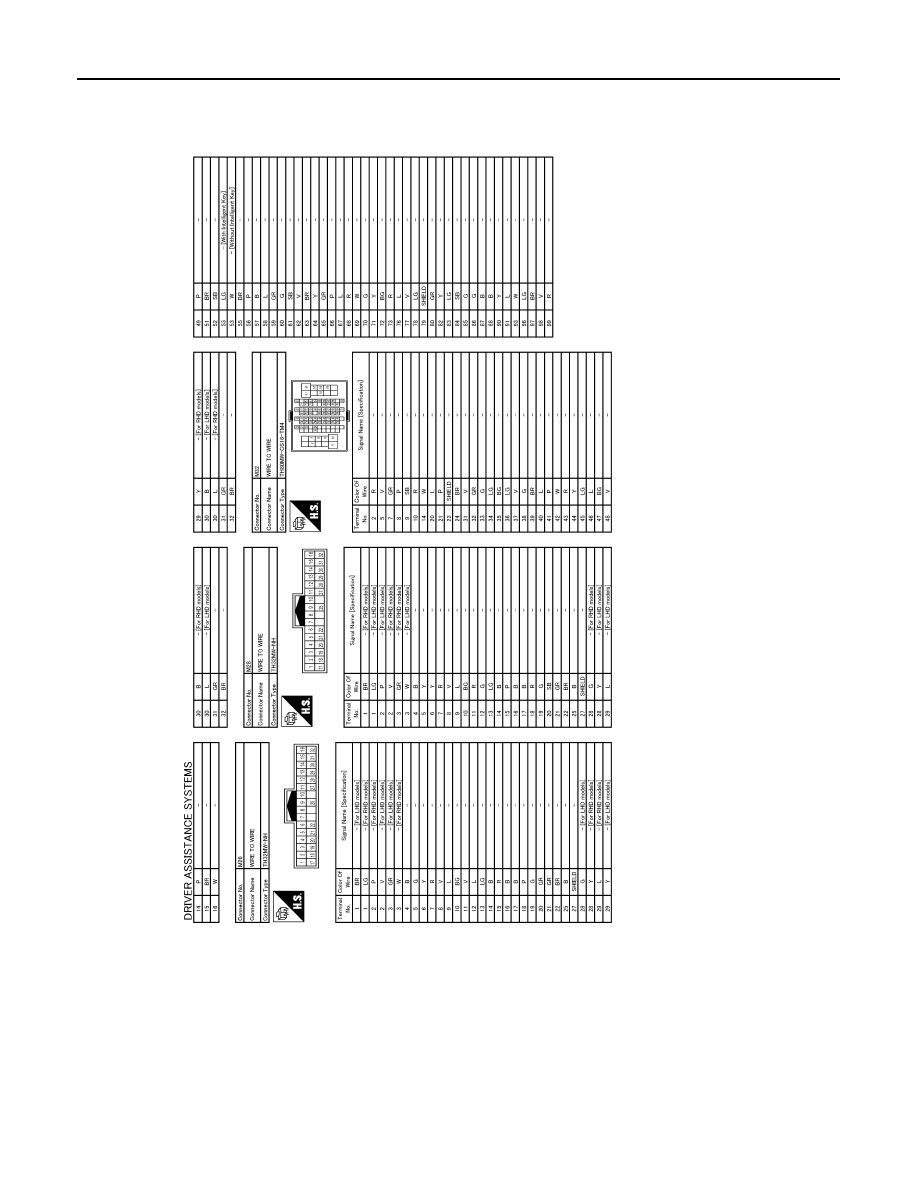

DAS-70

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2202GB

DAS

DRIVER ASSISTANCE SYSTEMS

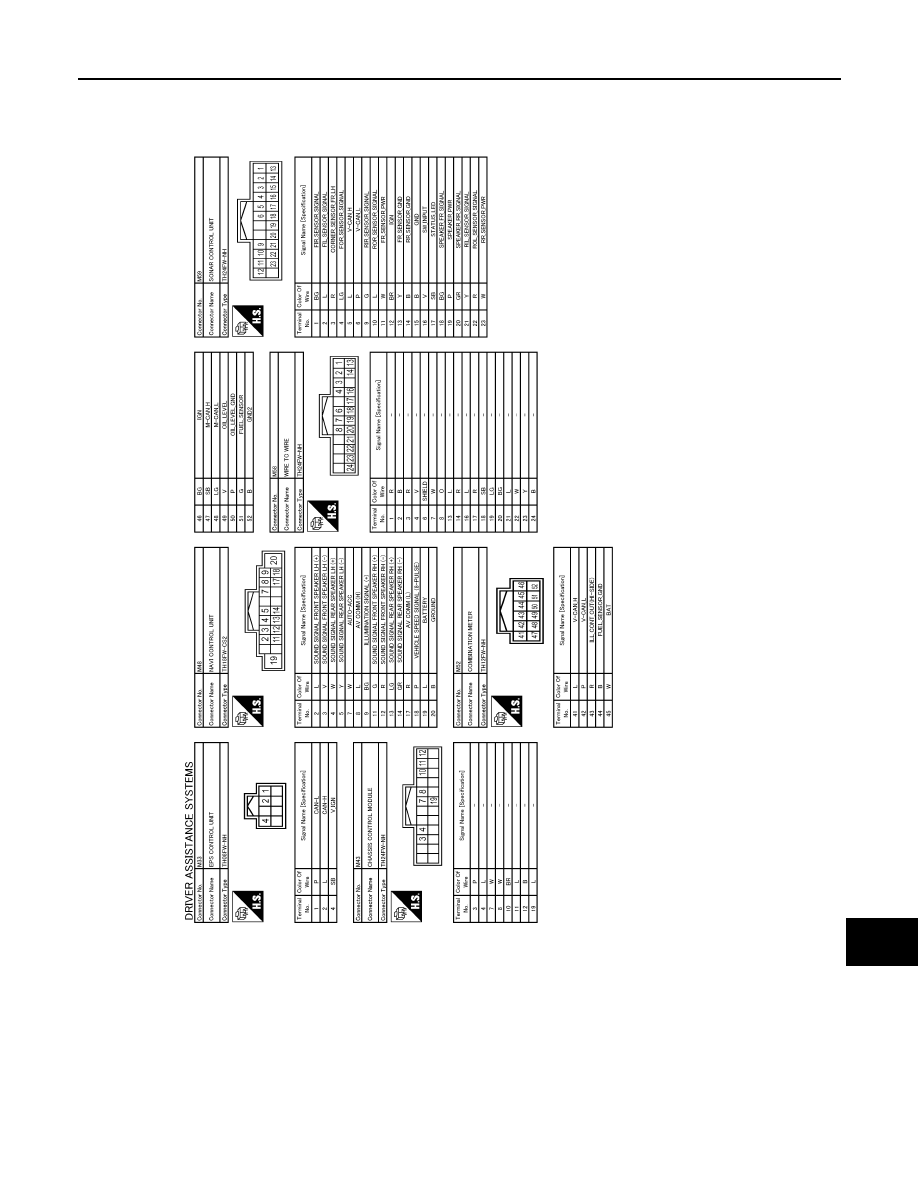

DAS-71

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2203GB

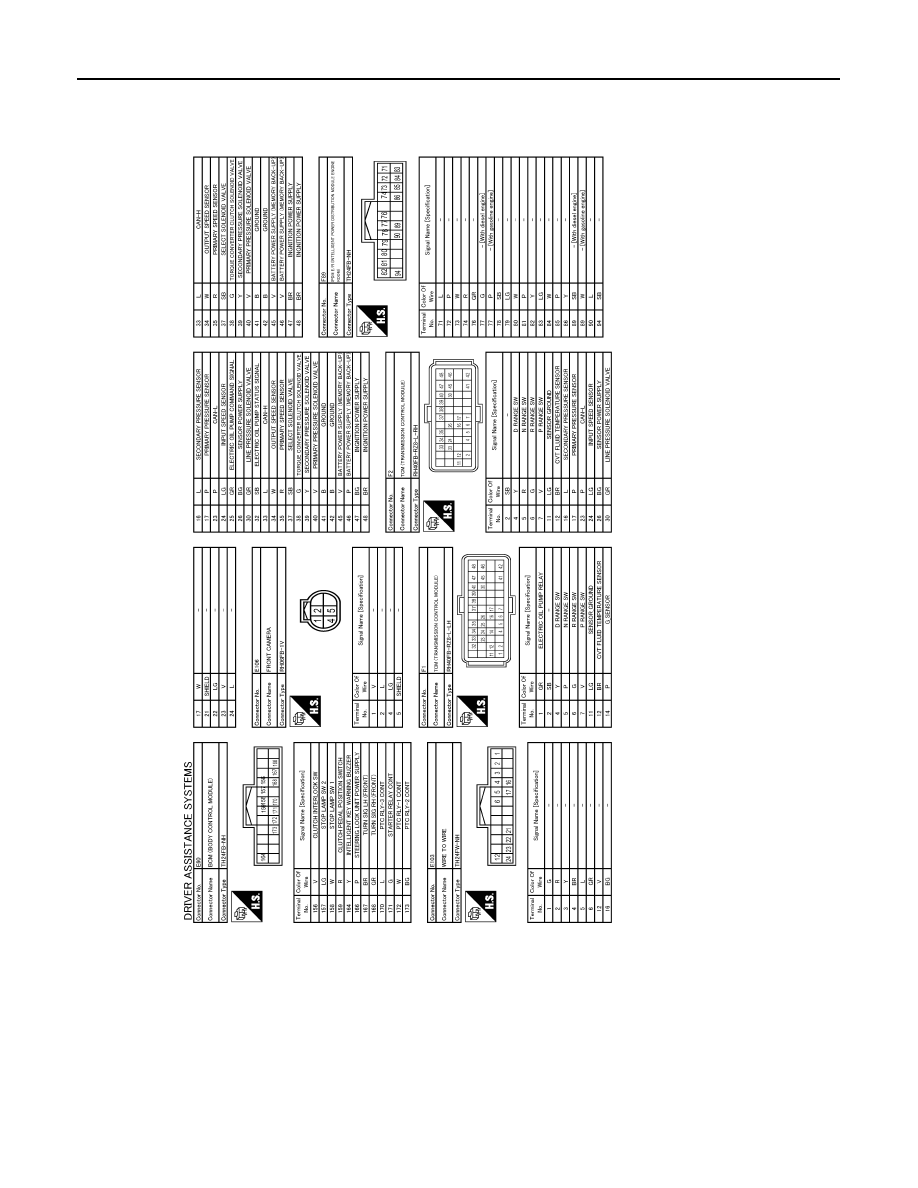

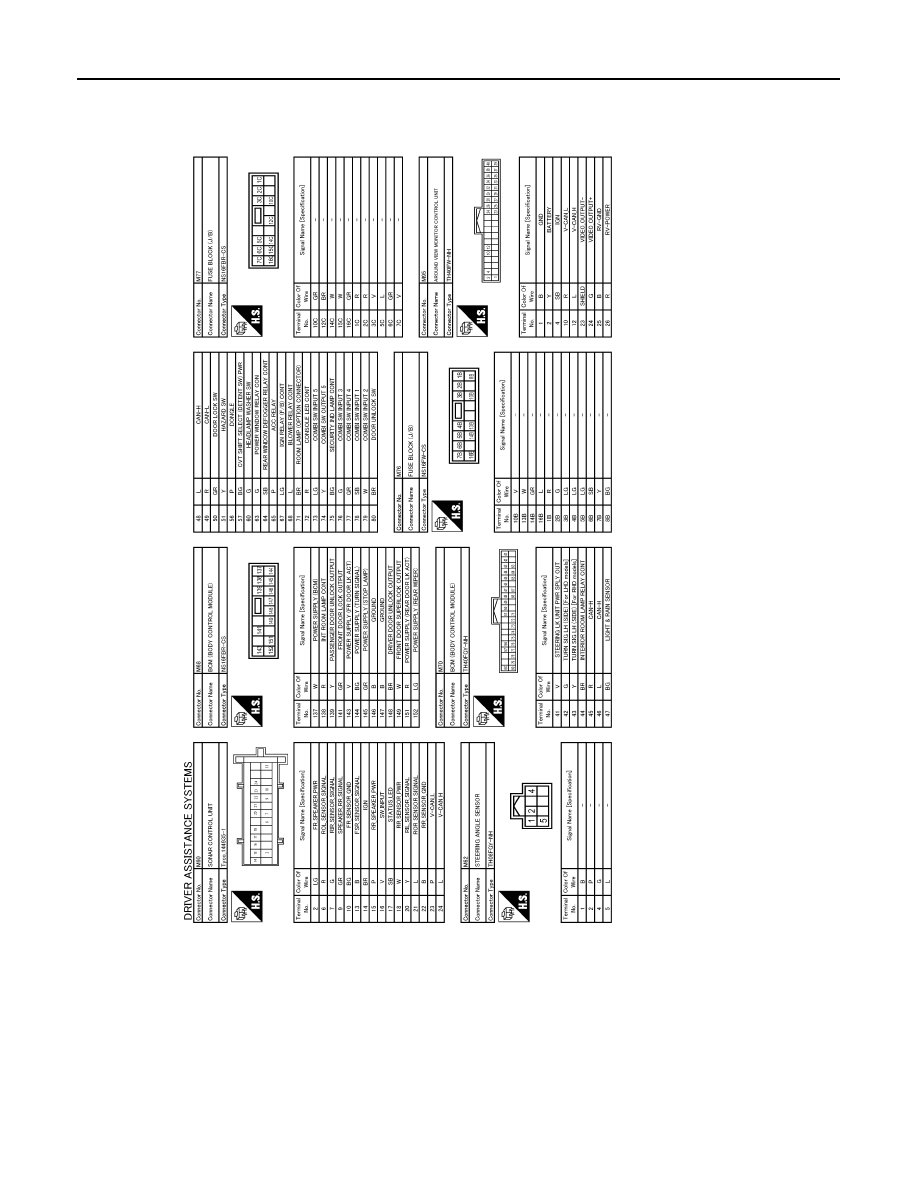

DAS-72

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2204GB

DAS

DRIVER ASSISTANCE SYSTEMS

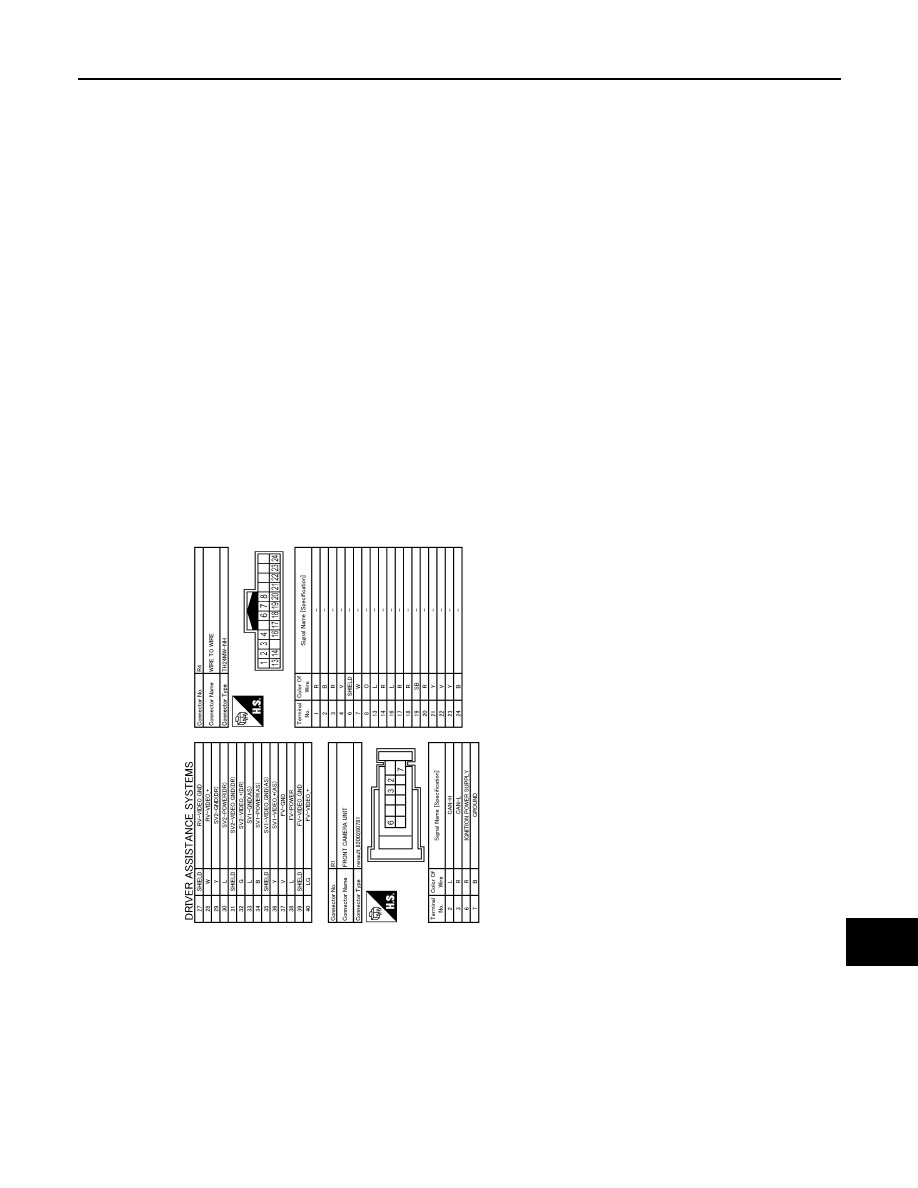

DAS-73

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2205GB

DAS-74

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2206GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-75

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2207GB

DAS-76

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

DRIVER ASSISTANCE SYSTEMS

JROWC2208GB

DAS

DRIVER ASSISTANCE SYSTEMS

DAS-77

< WIRING DIAGRAM >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

JROWC2209GB

DAS-78

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

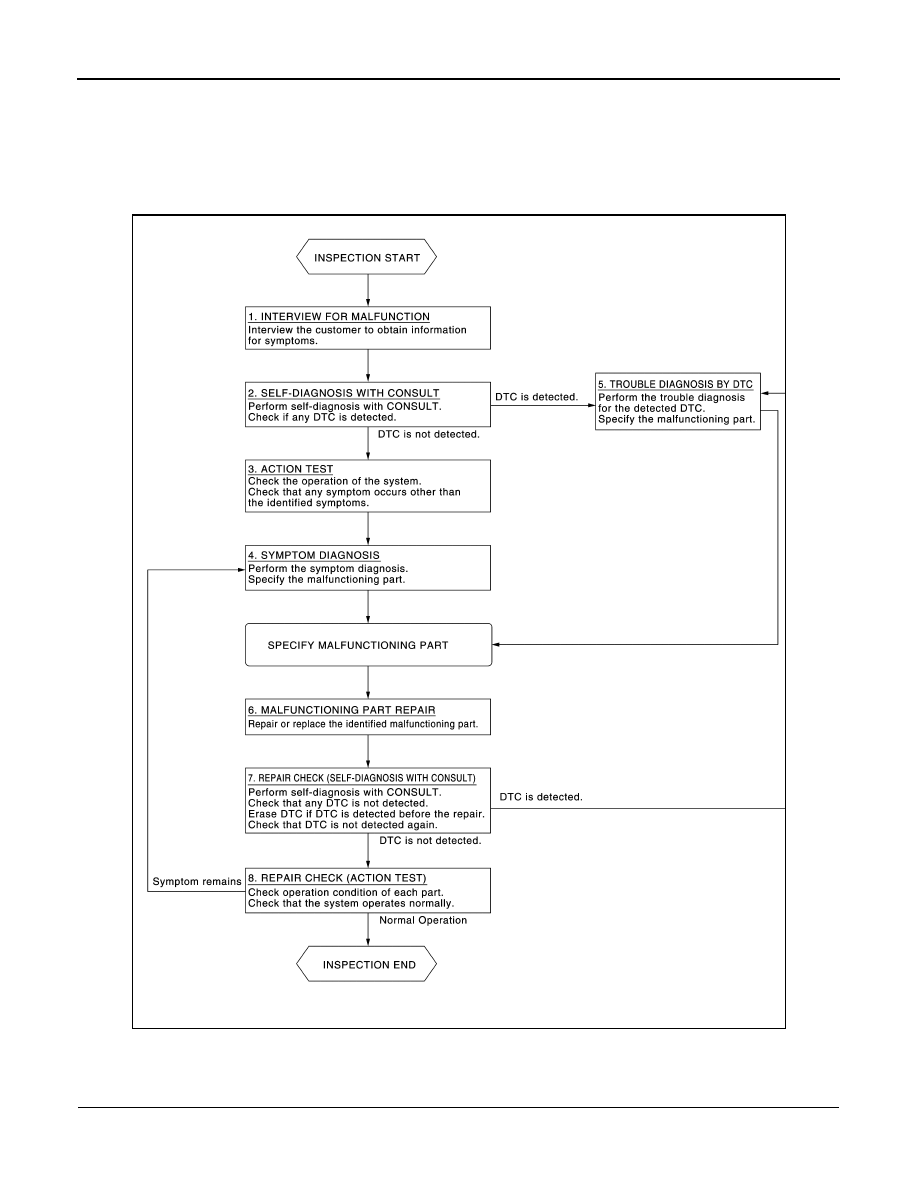

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000010416812

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

It is also important to clarify the customer concerns before starting the inspection. Interview the customer
about the concerns carefully and understand the symptoms fully.

JSOIA0485GB

DAS

DIAGNOSIS AND REPAIR WORK FLOW

DAS-79

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

NOTE:
The customers are not professionals. Never assume that “maybe the customer means” or “maybe the cus-
tomer mentioned this symptom”.

>> GO TO 2.

2.

SELF-DIAGNOSIS WITH CONSULT

1.

Perform “All DTC Reading” with CONSULT.

2.

Check if the DTC is detected on the “Self-Diagnostic Results” of following:

-

“LASER/RADAR”

-

“AVM”

-

“LANE CAMERA”

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 3.

3.

ACTION TEST

Perform the following system action test to check the system operation:
• LDW refer to

DAS-107, "LDW : Description"

.

• BSW refer to

DAS-108, "BSW : Description"

.

• MOD refer to

DAS-109, "MOD : Description"

.

Check if any other malfunctions occur.

>> GO TO 4.

4.

SYMPTOM DIAGNOSIS

Perform the applicable diagnosis according to the diagnosis chart by symptom. Refer to

DAS-195, "Symptom

Table"

.

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

1.

Check the DTC in the “Self-Diagnostic Results”.

2.

Perform trouble diagnosis for the detected DTC following:

-

“LASER/RADAR”: Refer to

DAS-53, "DTC Index"

.

-

“AVM”: Refer to

DAS-49, "DTC Index"

.

-

“LANE CAMERA”: Refer to

DAS-61, "DTC Index"

.

>> GO TO 6.

6.

MALFUNCTIONING PART REPAIR

Repair or replace the identified malfunctioning parts.

>> GO TO 7.

7.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT)

1.

Erases self-diagnosis results.

2.

Perform “All DTC Reading” again after repairing or replacing the specific items.

3.

Check if any DTC is detected in self-diagnosis results of following:

-

“LASER/RADAR”

-

“AVM”

-

“LANE CAMERA”

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 8.

8.

REPAIR CHECK (ACTION TEST)

DAS-80

< BASIC INSPECTION >

[DRIVER ASSISTANCE SYSTEM]

DIAGNOSIS AND REPAIR WORK FLOW

Perform the following system action test. Check that the malfunction symptom is solved or no other symptoms
occur.
Is there a malfunction symptom?

YES

>> GO TO 4.

NO

>> Inspection End.
