VDC OFF INDICATOR LAMP

Component Function Check

INFOID:0000000010329874

1.

CHECK VDC OFF INDICATOR LAMP FUNCTION (1)

Check that VDC OFF indicator lamp in combination meter turns ON for 1 second after ignition switch is turned
ON.

CAUTION:

Never start the engine.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Proceed to

BRC-129, "Diagnosis Procedure"

.

2.

CHECK VDC OFF INDICATOR LAMP FUNCTION (2)

Check that VDC OFF indicator lamp in combination meter turns ON/OFF when VDC OFF switch is operated.
Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check the VDC OFF switch system. Refer to

BRC-123, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010329875

1.

CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) POWER SUPPLY AND GROUND CIR-

CUIT

Perform the trouble diagnosis for ABS actuator and electric unit (control unit) power supply and ground circuit.
Refer to

BRC-129, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK VDC OFF INDICATOR LAMP SIGNAL

With CONSULT

1.

Select “ABS”, “DATA MONITOR” and “OFF LAMP” according to this order.

2.

Turn the ignition switch OFF.

3.

Check that data monitor displays “On” for 1 second after ignition switch is turned ON, and then changes to
“Off”.

CAUTION:

Never start the engine.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Replace the ABS actuator and electric unit (control unit). Refer to

BRC-142, "Removal and Instal-

lation"

.

3.

CHECK VDC OFF INDICATOR LAMP SIGNAL

With CONSULT

1.

Select “ABS”, “DATA MONITOR” and “OFF LAMP” according to this order.

2.

Check that data monitor displays “On” or “Off” each time when VDC OFF switch is operated.

Is the inspection result normal?

YES

>> Replace the combination meter. Refer to

MWI-80, "Removal and Installation"

.

NO

>> Check the VDC OFF switch system. Refer to

BRC-123, "Diagnosis Procedure"

.

BRC-130

< SYMPTOM DIAGNOSIS >

[WITH ESP]

EXCESSIVE OPERATION FREQUENCY

SYMPTOM DIAGNOSIS

EXCESSIVE OPERATION FREQUENCY

Description

INFOID:0000000010329876

VDC function, TCS function, ABS function, EBD function, Brake limited slip differential (BLSD) function, Brake
assist function, hill start assist function or Brake force distribution function operates in excessive operation fre-
quency.

Diagnosis Procedure

INFOID:0000000010329877

1.

CHECK BRAKING FORCE

Check brake force using a brake tester.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check brake system.

2.

CHECK FRONT AND REAR AXLE

Check that there is no excessive looseness in front and rear axle.
• 2WD: Refer to

FAX-8, "Inspection"

 (front) or

RAX-3, "Inspection"

 (rear).

• 4WD: Refer to

FAX-47, "Inspection"

 (front) or

RAX-10, "Exploded View"

 (rear).

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace error-detected parts.

3.

CHECK WHEEL SENSOR

Check wheel sensor.
• Check installation and damage of wheel sensor.
• Check connection of wheel sensor harness connector.
• Check terminal of wheel sensor harness connector.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>>

Repair installation or replace wheel sensor.

• Front wheel sensor: Refer to

BRC-138, "FRONT WHEEL SENSOR : Removal and Installation"

.

• Rear wheel sensor: Refer to

BRC-139, "REAR WHEEL SENSOR : Removal and Installation"

.

4.

CHECK SENSOR ROTOR

Check that there is no looseness, damage or foreign material on sensor rotor.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>>

Repair installation or replace sensor rotor.

• Front sensor rotor: Refer to

BRC-141, "FRONT SENSOR ROTOR : Removal and Installation -

Front Sensor Rotor"

.

• Rear sensor rotor: Refer to

BRC-141, "REAR SENSOR ROTOR : Removal and Installation -

Rear Sensor Rotor"

.

5.

CHECK WARNING LAMP TURNS OFF

Check that ABS warning lamp, brake warning lamp and VDC warning lamp turn OFF approx. 1 second after
key switch is turned ON and stay in OFF status during driving.

CAUTION:

Brake warning lamp turns ON when parking brake is operated (parking brake switch is ON) or brake
fluid is less than the specified level (brake fluid level switch is ON).

Is the inspection result normal?

YES

>> Normal

NO

>> GO TO 6.

6.

PERFORM THE SELF-DIAGNOSIS

EXCESSIVE OPERATION FREQUENCY

BRC-131

< SYMPTOM DIAGNOSIS >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

With CONSULT

1.

Turn the ignition switch OFF

→

 ON.

CAUTION:

• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
• Set the vehicle to READY/Start the engine.

2.

Repeat step 1 two or more times.

3.

Perform self-diagnosis for “ABS”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> Check Steering Angle Sensor Calibration. GO TO 7.

7.

CHECK STEERING ANGLE CALIBRATION

1.

Using DATA MONITOR confirm that the steering angle sensor output signal is between

±

3degrees when

vehicle is driving in a straight line.

Is the inspection result normal?

YES

>> Inspection end.

NO

>> Recalibrate steering angle sensor.

BRC-132

< SYMPTOM DIAGNOSIS >

[WITH ESP]

UNEXPECTED BRAKE PEDAL REACTION

UNEXPECTED BRAKE PEDAL REACTION

Description

INFOID:0000000010329878

A malfunction of brake pedal feel (height or others) is detected when brake pedal is depressed.

Diagnosis Procedure

INFOID:0000000010329879

1.

CHECK FRONT AND REAR AXLE

Check that there is no excessive looseness in front and rear axle.
• 2WD: Refer to

FAX-9, "Inspection"

 (front) or

RAX-3, "Inspection"

 (rear).

• AWD: Refer to

FAX-47, "Inspection"

 (front) or

RAX-10, "Inspection"

 (rear).

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace error-detected parts.

2.

CHECK DISC ROTOR

Check disc rotor runout.
• Front: Refer to

BR-15, "DISC ROTOR : Inspection"

.

• Rear: Refer to

BR-16, "DISC ROTOR : Inspection"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Refinish the disc rotor.

3.

CHECK BRAKE FLUID LEAKAGE

Check fluid leakage.
Refer to

BR-11, "Inspection"

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace error-detected parts.

4.

CHECK BRAKE PEDAL

Check each item of brake pedal. Refer to

BR-8, "Inspection and Adjustment"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Adjust each item of brake pedal. Refer to

BR-8, "Inspection and Adjustment"

.

5.

CHECK BRAKING FORCE

Check brake force using a brake tester.
Is the inspection result normal?

YES

>> GO TO 6.

NO

>> Check each components of brake system.

6.

CHECK BRAKE PERFORMANCE

Disconnect ABS actuator and electric unit (control unit) connector so that ABS does not operate. Check that
brake force is normal in this condition. Connect harness connectors after checking.
Is the inspection result normal?

YES

>> Normal

NO

>> Check each components of brake system.

THE BRAKING DISTANCE IS LONG

BRC-133

< SYMPTOM DIAGNOSIS >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

THE BRAKING DISTANCE IS LONG

Description

INFOID:0000000010329880

Brake stopping distance is long when ABS function is operated.

Diagnosis Procedure

INFOID:0000000010329881

CAUTION:

Brake stopping distance on slippery road like rough road, gravel road or snowy road may become
longer when ABS is operated than when ABS is not operated.

1.

CHECK BRAKING FORCE

Check brake force using a brake tester.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check each components of brake system.

2.

CHECK BRAKE PERFORMANCE

Disconnect ABS actuator and electric unit (control unit) connector so that ABS does not operate. Check brake
stopping distance in this condition. Connect harness connectors after checking.

Is the inspection result normal?

YES

>> Normal

NO

>> Check each components of brake system.

BRC-134

< SYMPTOM DIAGNOSIS >

[WITH ESP]

DOES NOT OPERATE

DOES NOT OPERATE

Description

INFOID:0000000010329882

VDC function, TCS function, ABS function, EBD function, Brake limited slip differential (BLSD) function, Brake
assist function, hill start assist function or Brake force distribution function does not operate.

Diagnosis Procedure

INFOID:0000000010329883

CAUTION:

• VDC function, TCS function, ABS function, EBD function, Brake limited slip differential (BLSD) func-

tion, Brake assist function, hill start assist function and Brake force distribution function never oper-
ate when the vehicle speed is 10 km/h (6.2 MPH) or less. However, TCS function, Brake limited slip
differential (BLSD) function and hill start assist function operates when the vehicle speed is 0 km/h
(0 MPH) (the vehicle is in stop status).

• VDC function and TCS function never operate when VDC OFF switch is operated (when VDC OFF

indicator lamp turns ON).

1.

CHECK ABS WARNING LAMP

Check that ABS warning lamp, brake warning lamp and VDC warning lamp turn ON and turn OFF approx. 1
second after key switch is turned ON. Check that ABS warning lamp, brake warning lamp and VDC warning
lamp and stay in OFF status during driving.

CAUTION:

Brake warning lamp turns ON when parking brake is operated (parking brake switch is ON) or brake
fluid is less than the specified level (brake fluid level switch is ON).
Is the inspection result normal?

YES

>> Normal

NO

>> GO TO 2.

2.

PERFORM SELF-DIAGNOSIS

With CONSULT

1.

Turn the ignition switch OFF

→

 ON.

CAUTION:

• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
• Start the engine.

2.

Repeat step 1 two or more times.

3.

Perform self-diagnosis for “ABS” with CONSULT.

Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> Inspection End.

BRAKE PEDAL VIBRATION OR OPERATION SOUND OCCURS

BRC-135

< SYMPTOM DIAGNOSIS >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

BRAKE PEDAL VIBRATION OR OPERATION SOUND OCCURS

Description

INFOID:0000000010329884

• Brake pedal vibrates and motor sound from ABS actuator and electric unit (control unit) occurs, when the

engine starts.

• Brake pedal vibrates during braking.

CAUTION:

Vibration may be felt during brake pedal is lightly depressed (just placing a foot on it) in the following
conditions. This is normal.
• When shifting gears
• When driving on slippery road
• During cornering at high speed
• When passing over bumps or grooves [Approx. 50 mm (1.97 in) or more]
• When pulling away just after starting engine [at approx. 10 km/h (6.2 MPH) or higher]

Diagnosis Procedure

INFOID:0000000010329885

1.

SYMPTOM CHECK 1

Check that there are pedal vibrations when the engine is started.
Do vibrations occur?

YES

>> GO TO 2.

NO

>> Check brake pedal. Refer to

BR-8, "Inspection and Adjustment"

.

2.

SYMPTOM CHECK 2

Check that motor sound from ABS actuator occurs when the engine starts.

Does the operation sound occur?

YES

>> GO TO 3.

NO

>> Perform self-diagnosis for “ABS” with CONSULT.

3.

SYMPTOM CHECK 3

Check symptoms when electrical component (headlamps, etc.) switches are operated.

Does the symptom occur?

YES

>> Check that radio (including wiring), antenna and antenna lead-in wires are not located near ABS

actuator and electric unit (control unit). Move them if they are located near ABS actuator and elec-
tric unit (control unit).

NO

>> GO TO 4.

4.

PERFORM SELF-DIAGNOSIS

With CONSULT

1.

Turn the ignition switch OFF

→

 ON.

CAUTION:

• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
• Start the engine.

2.

Repeat step 1 two or more times.

3.

Perform self-diagnosis for “ABS”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> Inspection End.

BRC-136

< SYMPTOM DIAGNOSIS >

[WITH ESP]

VEHICLE JERKS DURING

VEHICLE JERKS DURING

Description

INFOID:0000000010329886

The vehicle jerks when VDC function, TCS function, ABS function, EBD function, Brake limited slip differential
(BLSD) function, Brake assist function, hill start assist function or Brake force distribution function operates.

Diagnosis Procedure

INFOID:0000000010329887

1.

CHECK SYMPTOM

Check that the vehicle jerks when VDC function, TCS function, ABS function, EBD function, Brake limited slip
differential (BLSD) function, Brake assist function, hill start assist function or Brake force distribution function
operates.

Is the inspection result normal?

YES

>> Normal

NO

>> GO TO 2.

2.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

1.

Turn the ignition switch OFF

→

 ON.

CAUTION:

• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
• Start the engine.

2.

Repeat step 1 two or more times.

3.

Perform self-diagnosis for “ABS”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> GO TO 3.

3.

CHECK CONNECTOR

With CONSULT

1.

Turn the ignition switch OFF.

2.

Disconnect ABS actuator and electric unit (control unit) harness connector.

3.

Check connector terminal for deformation, disconnection and looseness.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Poor connection of connector terminal. Repair or replace connector terminal.

4.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

1.

Connect harness connector.

2.

Turn the ignition switch OFF

→

 ON.

CAUTION:

• Be sure to wait of 10 seconds after turning ignition switch OFF or ON.
• Start the engine.

3.

Repeat step 2 two or more times.

4.

Perform self-diagnosis for “ABS”.

Is any DTC detected?

YES

>> Check the DTC. Refer to

BRC-53, "DTC Index"

.

NO

>> GO TO 5.

5.

PERFORM THE SELF-DIAGNOSIS

With CONSULT

Perform self-diagnosis for “ENGINE”, “TRANSMISSION”.

Is any DTC detected?

YES

>> Check the DTC.

NO

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-142, "Removal and Installa-

tion"

.

NORMAL OPERATING CONDITION

BRC-137

< SYMPTOM DIAGNOSIS >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000010329888

Symptom

Result

Brake pedal slightly vibrates and operation sound (motor sound and sound from suspen-
sion) occurs when VDC function, TCS function, ABS function, EBD function, Brake limited
slip differential (BLSD) function, Brake assist function, hill start assist function or Brake
force distribution function operates.

This is not a malfunction, because it is
caused by VDC function, TCS function,
ABS function, EBD function, Brake limited
slip differential (BLSD) function, Brake
assist function, hill start assist function
and Brake force distribution function that
are normally operated.

Brake stopping distance may become longer than models without ABS function depending
on the road conditions, when ABS function is operated on slippery road like rough road,
gravel road or snowy road.

Brake pedal vibrates and operation sound occurs during sudden acceleration and corner-
ing, when VDC function, TCS function, Brake assist function or Brake force distribution
function is operated.

Brake pedal vibrates and motor sound from the engine room occurs, when the engine starts
or the vehicle starts just after starting the engine.

This is not a malfunction, because it is
caused by operation check of ABS actua-
tor and electric unit (control unit).

Acceleration may be felt insufficient depending on the road conditions.

This is not a malfunction, because it is
caused by TCS function that puts the
highest priority to obtain the optimum
traction (stability).

TCS function may operate momentarily, while driving on a road where friction coefficient
varies, or when downshifting, or fully depressing accelerator pedal.

ABS warning lamp and VDC OFF indicator lamp may turn ON, when the vehicle is on a ro-
tating turntable or is given a strong shaking or large vibrations on a ship while the engine is
running.

In this case, restart the engine on a nor-
mal road. If the normal condition is re-
stored, there is no malfunction. In that
case, erase “ABS” self-diagnosis result
memory with CONSULT.

VDC warning lamp may turn ON and VDC function, TCS function, Brake assist function,
and Brake force distribution function may not normally operate, when driving on a special
road the is extremely slanted (bank in a circuit course).

A malfunction in yaw rate/side/decel G sensor system may be detected when the vehicle
sharply turns during a spin turn, acceleration turn or drift driving while VDC function, TCS
function, are OFF (VDC OFF switch is pressed and VDC OFF indicator lamp is in ON sta-
tus).

The vehicle speed does not increase, when the accelerator pedal is depressed while the
vehicle is on a 2-wheel chassis dynamometer for speedometer check.

This is normal. (When checking the vehi-
cle on a chassis dynamometer, operate
VDC OFF switch so that TCS function is
OFF.)

BRC-138

< REMOVAL AND INSTALLATION >

[WITH ESP]

WHEEL SENSOR

REMOVAL AND INSTALLATION

WHEEL SENSOR

FRONT WHEEL SENSOR

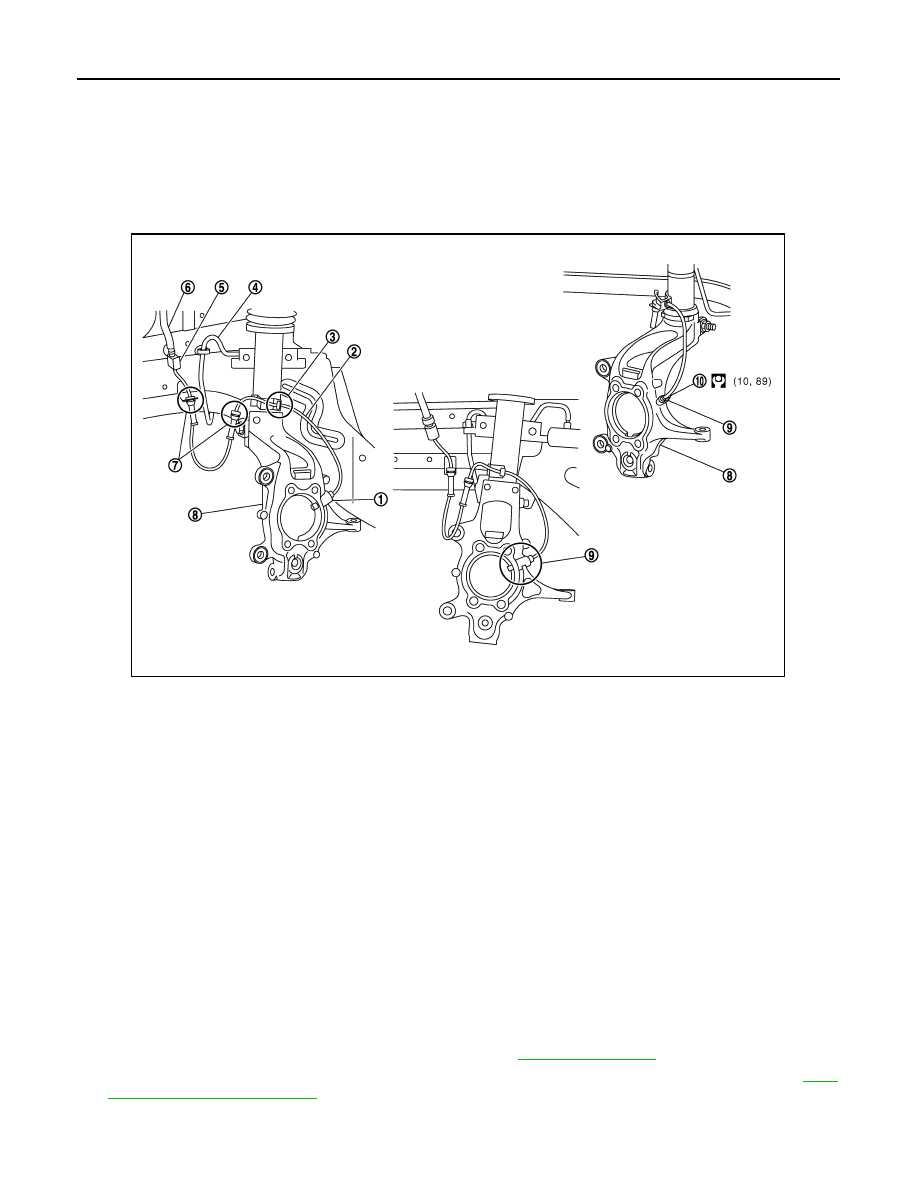

FRONT WHEEL SENSOR : Exploded View

INFOID:0000000010428744

FRONT WHEEL SENSOR : Removal and Installation

INFOID:0000000010428745

CAUTION:

• Be careful not to damage front wheel sensor edge and sensor rotor teeth.
• When removing the front wheel hub and bearing, first remove the front wheel sensor from the steer-

ing knuckle. Failure to do so may result in damage to the front wheel sensor wires making the front
wheel sensor inoperative.

• Pull out the front wheel sensor, being careful to turn it as little as possible. Do not pull on the front

wheel sensor harness.

• Before installation, check if foreign objects such as iron fragments are adhered to the pick-up part of

the front wheel sensor or to the inside of the hole in the steering knuckle for the front wheel sensor,
or if a foreign object is caught in the surface of the sensor rotor. Fix as necessary and then install the
front wheel sensor.

REMOVAL

1.

Remove the front wheel and tire using power tool. Refer to

WT-57, "Inspection"

.

2.

Partially remove the fender protector to gain access to the wheel sensor harness connector. Refer to

EXT-

32, "Removal and Installation"

.

3.

Disconnect the harness connector from the front wheel sensor.

4.

Remove the front wheel sensor bolt from the wheel hub and bearing.

1.

Front LH wheel sensor

2.

Front LH wheel sensor harness

3.

Harness locker

4.

Brake tube

5.

ABS connector

6.

ABS harness

7.

Locking plate

8.

Steering knuckle

9.

Wheel sensor head

10. Bolt

E1FIA0157GB

WHEEL SENSOR

BRC-139

< REMOVAL AND INSTALLATION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

5.

Remove the front wheel sensor from the strut bracket.

6.

Remove the front wheel sensor from the steering knuckle.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the hole in the

steering knuckle for the front wheel sensor. Make sure no foreign material has been caught in the
sensor rotor. Remove any foreign material and clean the mount.

• Do not twist front wheel sensor harness when installing front

wheel sensor. Check that grommet (2) is fully inserted to
bracket (1). Check that front wheel sensor harness is not
twisted after installation.

REAR WHEEL SENSOR

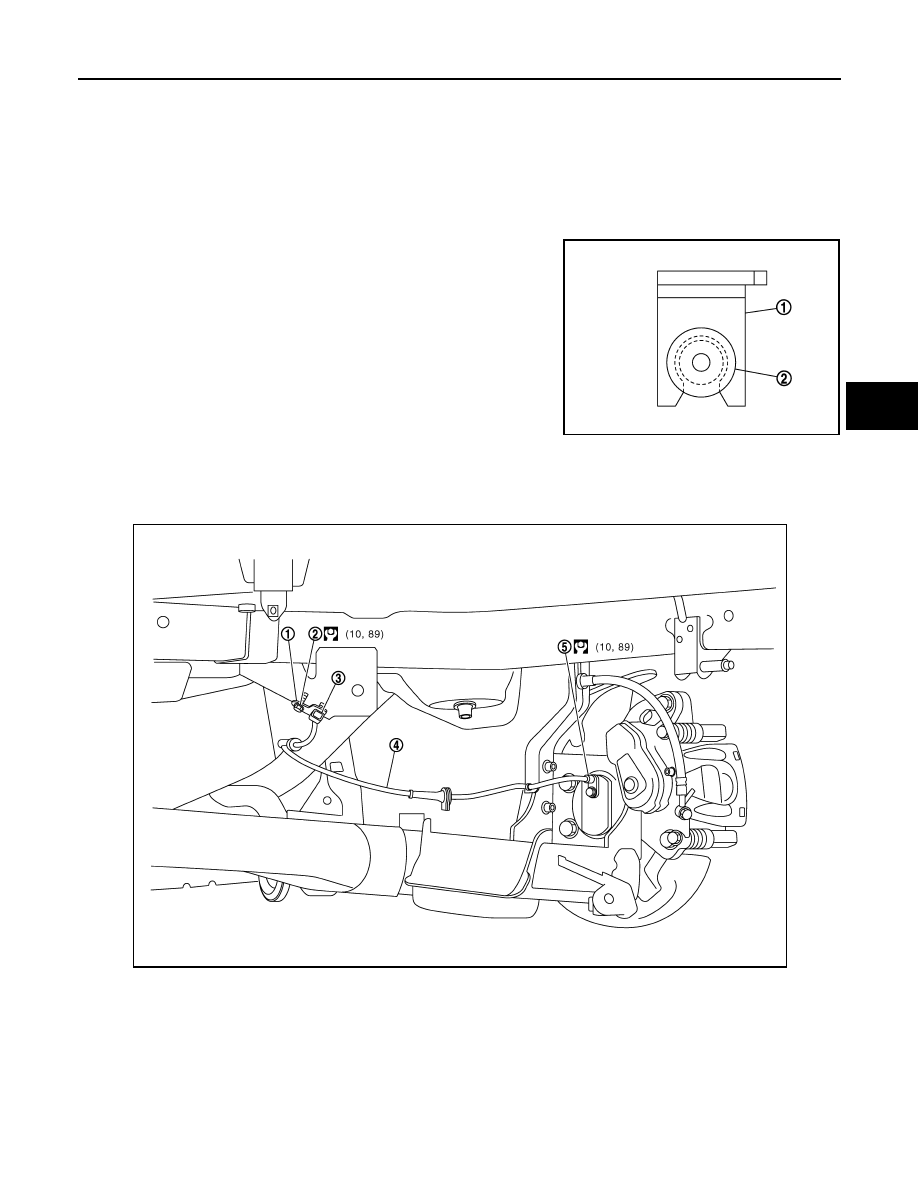

REAR WHEEL SENSOR : Exploded View

INFOID:0000000010428746

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000010428747

CAUTION:

• Be careful not to damage rear wheel sensor edge and sensor rotor teeth.

JPFIC0209ZZ

1.

Bracket sensor

2.

Bolt

3.

ABS connector RH

4.

Rear RH wheel sensor harness

5.

Rear RH wheel sensor

E1FIA0158GB

BRC-140

< REMOVAL AND INSTALLATION >

[WITH ESP]

WHEEL SENSOR

• When removing the rear wheel hub and bearing, first remove the rear wheel sensor from the rear

wheel hub and bearing. Failure to do so may result in damage to the rear wheel sensor making the
rear wheel sensor inoperative.

• Pull out the rear wheel sensor, being careful to turn it as little as possible. Do not pull on the rear

wheel sensor harness.

• Before installation, check if foreign objects such as iron fragments are adhered to the pick-up part of

the rear wheel sensor or to the inside of the hole in the rear wheel hub and bearing for the rear wheel
sensor, or if a foreign object is caught in the surface of the sensor rotor. Fix as necessary and then
install the rear wheel sensor.

REMOVAL

1.

Remove the rear wheel and tire using power tool. Refer to

WT-57, "Inspection"

.

2.

Remove the rear wheel sensor bolt.

3.

Disconnect the harness connector from the rear wheel sensor.

4.

Remove the rear wheel sensor from the wheel hub and bearing.

5.

Remove the rear wheel sensor harness grommet from the bracket.

6.

Remove the bolt, the rear wheel sensor harness, and the rear wheel sensor from the bracket.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing, make sure there is no foreign material such as iron chips on and in the hole in the

rear wheel hub and bearing for the rear wheel sensor. Make sure no foreign material has been caught
in the sensor rotor. Remove any foreign material and clean the mount.

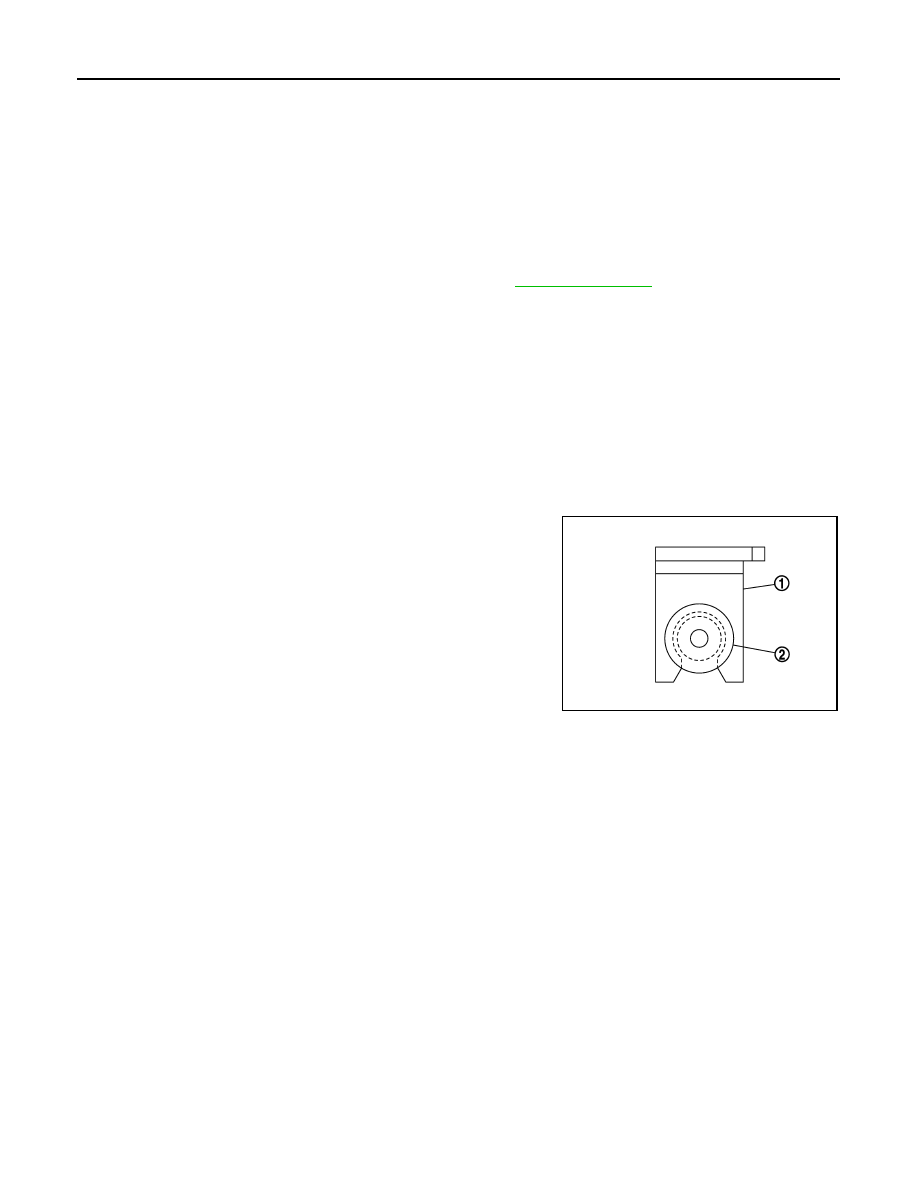

• Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to
bracket (1). Check that rear wheel sensor harness is not
twisted after installation.

JPFIC0209ZZ

SENSOR ROTOR

BRC-141

< REMOVAL AND INSTALLATION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR

FRONT SENSOR ROTOR : Removal and Installation - Front Sensor Rotor

INFOID:0000000010428748

The front wheel sensor rotor is an integral part of the wheel hub and bearing and cannot be disassembled.
Refer to

FAX-10, "Removal and Installation"

 (2WD) or

FAX-49, "Removal and Installation"

 (4WD).

REAR SENSOR ROTOR

REAR SENSOR ROTOR : Removal and Installation - Rear Sensor Rotor

INFOID:0000000010428749

The rear wheel sensor rotor is an integral part of the wheel hub and bearing and cannot be disassembled.
Refer to

BRC-141, "REAR SENSOR ROTOR : Removal and Installation - Rear Sensor Rotor"

.

BRC-142

< REMOVAL AND INSTALLATION >

[WITH ESP]

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

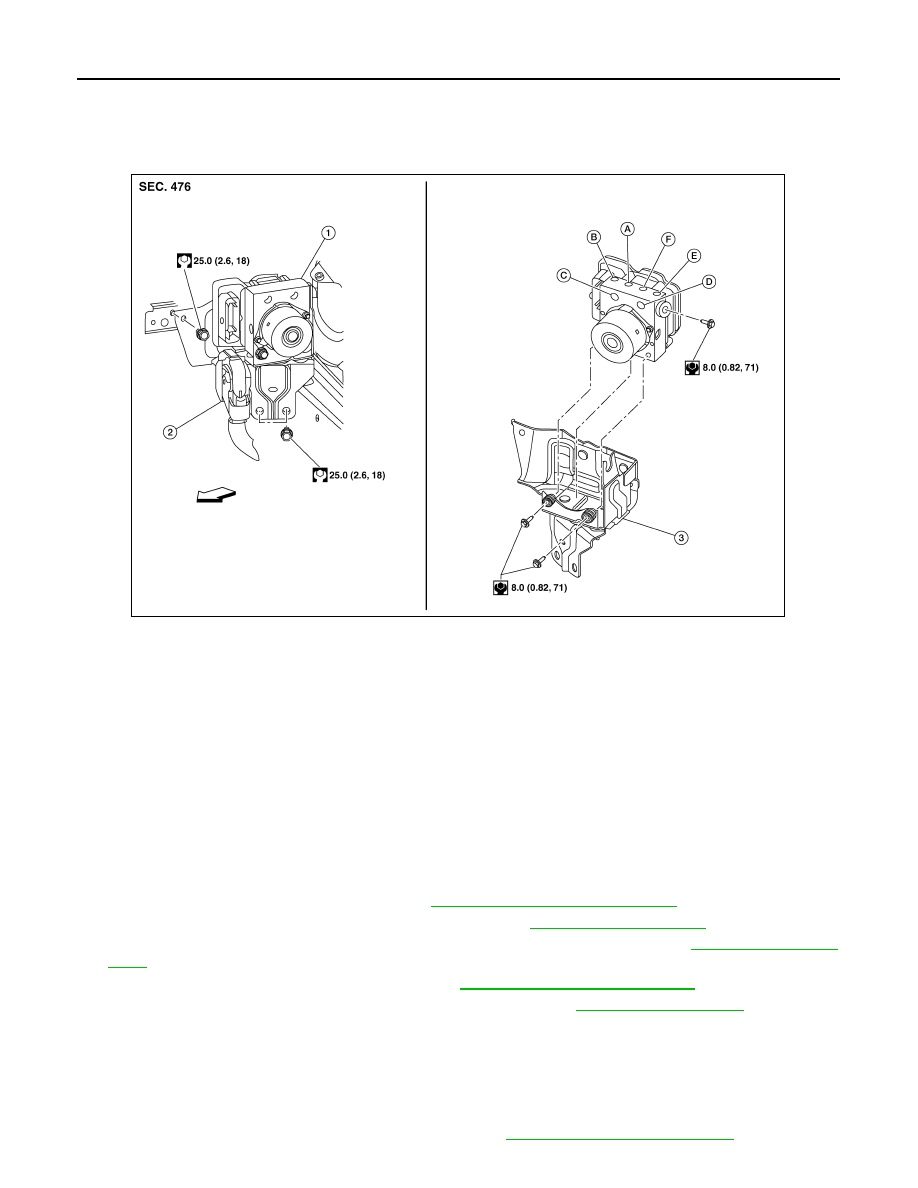

Exploded View

INFOID:0000000010428750

Removal and Installation

INFOID:0000000010428751

REMOVAL

CAUTION:

• To remove brake tube, use a flare nut wrench to prevent flare nuts and brake tube from being dam-

aged.

• Do not remove actuator by holding harness.
NOTE:
When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-
ing.

1.

Disconnect negative battery terminal. Refer to

PG-155, "Removal and Installation"

.

2.

Remove the cowl top cover and cowl top extension. Refer to

EXT-29, "Exploded View"

.

3.

Separate brake tubes from ABS actuator and electric unit (control unit). Refer to

BRC-142, "Exploded

View"

.

4.

Remove the brake booster vacuum hose. Refer to

BR-29, "Removal and installation"

.

5.

Separate the brake booster vacuum tube and place aside. Refer to

BR-32, "Exploded View"

.

6.

Disconnect the harness connector from the ABS actuator and electric unit (control unit).

7.

Remove ABS actuator and electric unit (control unit) bracket bolts and bushings.

8.

Remove ABS actuator and electric unit (control unit) from vehicle.

INSTALLATION

Installation is in the reverse order of removal.
• After work is completed, bleed air from brake tube. Refer to

BR-12, "Bleeding Brake System"

.

1.

ABS actuator and electric unit (control unit)

2.

Connector

3.

Bracket

A.

To front LH brake caliper

B.

To rear RH brake caliper

C. From master cylinder secondary side

D.

From master cylinder primary side

E.

To rear LH brake caliper

F.

To front RH brake caliper

AWFIA1079ZZ

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

BRC-143

< REMOVAL AND INSTALLATION >

[WITH ESP]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

• Adjust the neutral position of steering angle sensor. Refer to

BRC-64, "Work Procedure"

.

• Perform calibration of the decel G sensor. Refer to

BRC-66, "Work Procedure"

.

CAUTION:

• To install, use flare nut crowfoot and torque wrench.
• Do not reuse the bushings.
• Replace the ABS actuator if it has been dropped or sustained an impact.
• Do not install actuator by holding harness.
• After installing harness connector in the ABS actuator and electric unit (control unit), make sure

connector is securely locked.

BRC-144

< REMOVAL AND INSTALLATION >

[WITH ESP]

VDC OFF SWITCH

VDC OFF SWITCH

Removal and Installation

INFOID:0000000010428752

REMOVAL

1.

Remove the instrument lower panel LH. Refer to

IP-12, "Exploded View"

.

2.

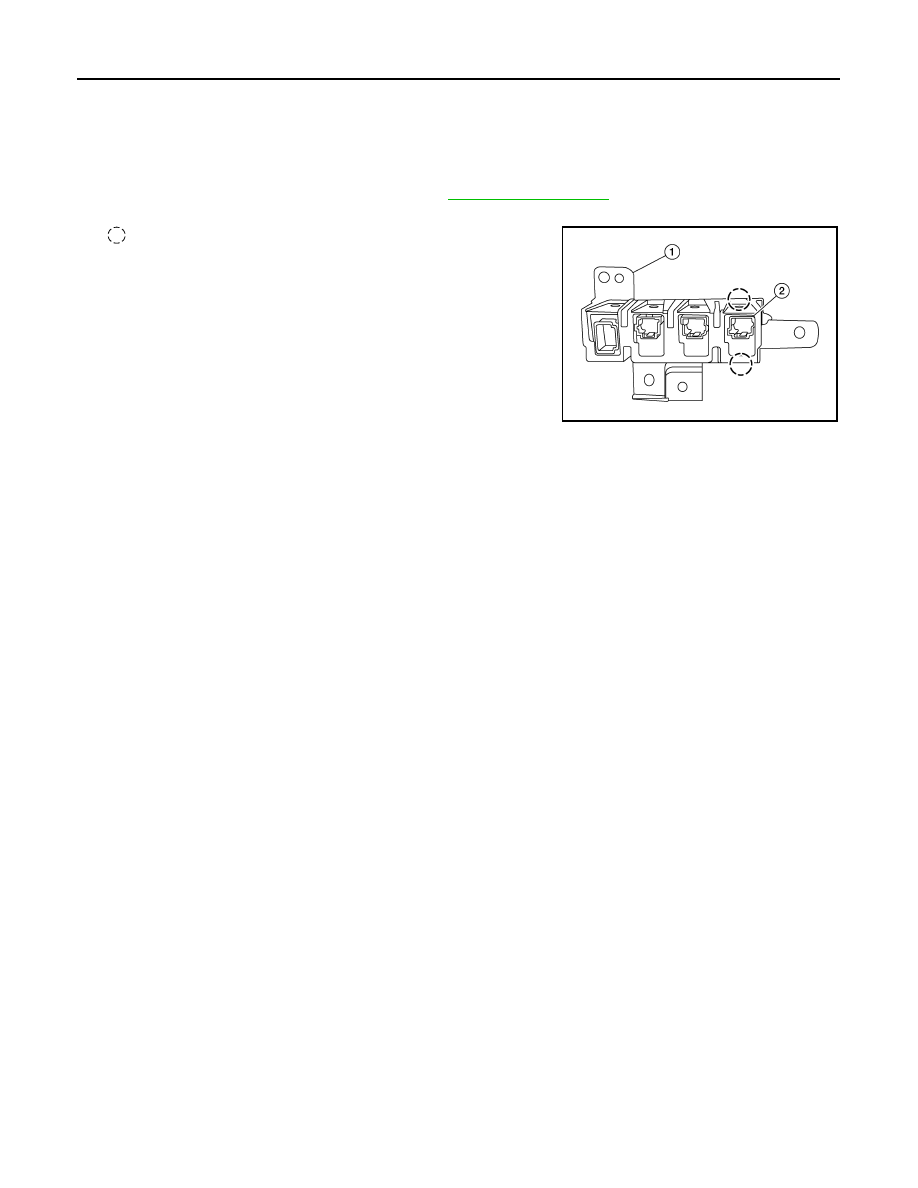

Release pawls using suitable tool and remove the VDC OFF switch (2) from the upper switch carrier (1).

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

ALFIA0414ZZ
