LG956 Wheel Loader. Manual - part 15





Operation & Maintenance Manual──LG956L Wheel Loader

 59

Wheel base

                                                          3200 mm                          3200 mm                      3200 mm



Min. ground clearance

                                        457 mm                          457 mm                        457 mm



Max. dumping height(-45° dumping angle)

    3180 mm                      3500 mm                      3700 mm



Dumping space (-45° dumping angle)

              1090 mm                      1160 mm                      1140 mm



Dumping angle

                                                        ≥45°                              ≥45°                          ≥45°



Operating weight

17250kg             17000kg          17080kg

8.3 Performance of Whole Machine (with Bucket of 3.0m

3

 and Standard Lift

Arm)



 Weichai engine   Shangchai engine   Cummins engine

Bucket capacity

                    3.0 m

3

                            3.0 m

3

                              3.0 m

3



Rated loading capacity

50000N            45000N              42000N



Lifting time (full load)

                                        ≤6.4 s                          ≤6.4 s                              ≤6.4 s



Lowering time (empty bucket)

                         ≤3.6 s                          ≤3.6 s                              ≤3.6 s



Dumping time (empty bucket)

                          ≤1.3 s                          ≤1.3 s                              ≤1.3 s



Travel speed

  Forward:

        1

st

                                0~12.3 km/h        0~13.5km/h         0~13.5km/h



        2

nd



                              0~40.5 km/h        0~38km/h                    0~38km/h



    Reverse gear

                                              0~16.1 km/h              0~16.1 km/h        0~16.1 km/h



Max. breakout force

                                          ≥180 kN           ≥180 kN           ≥180 kN



Max. traction force (supplied by engine)

      ≥160 kN                      ≥150 kN           ≥150 kN



Tipping load

                                ≥110 kN           ≥110 Kn                      ≥110 kN



Max. climbing angle

                                              30°                                30°                                  30°



Min. turning radius(outside of rear wheel)

      6036 mm                    6036 mm                      6036 mm



Level passing radius (outside of bucket)

          6746 mm                    6746 mm                      6746 mm



Max. turning angle

                                                  38°                                38°                                38°

Tire charge pressure:

          Front wheel

0.39±0.01 MPa       0.39±0.01 MPa      0.39±0.01 MPa



Rear wheel

 0.33±0.01 MPa       0.33±0.01 MPa      0.33±0.01 MPa



Operation & Maintenance Manual──LG956L Wheel Loader

 60

8.4 Principle Dimension and Weight (with Bucket of 3.0m

3

 and Standard

Lift Arm)

Length (bucket on ground)

                                8079 mm                        8079 mm                      8079 mm



Width (outside of wheels)

                                  2785 mm                        2785 mm                      2785 mm



Bucket width

                                                        3024 mm                        3024 mm                      3024 mm



Height

                                                                    3382 mm                        3382 mm                      3382 mm



Wheel track

                                                          2190 mm                        2190 mm                      2190 mm



Wheel base

                                                          3200 mm                          3200 mm                      3200 mm



Min. ground clearance

                                        457 mm                          457 mm                        457 mm



Max. dumping height(-45° dumping angle)

    3120 mm                      3120 mm                      3120 mm



Dumping space (-45° dumping angle)

              1130 mm                      1130 mm                      1130 mm



Dumping angle

                                                        ≥45°                              ≥45°                          ≥45°



Operating weight

16900kg             16900kg          16900kg



8.5 Product Standard and License

Product Standard: Q/LGJ 001     wheel loader



Operation & Maintenance Manual──LG956L Wheel Loader

 61



CHAPTER III OPERATION AND

APPLICATION

1 BE FAMILIAR WITH MACHINE

1.1 Control Systems and Gauges

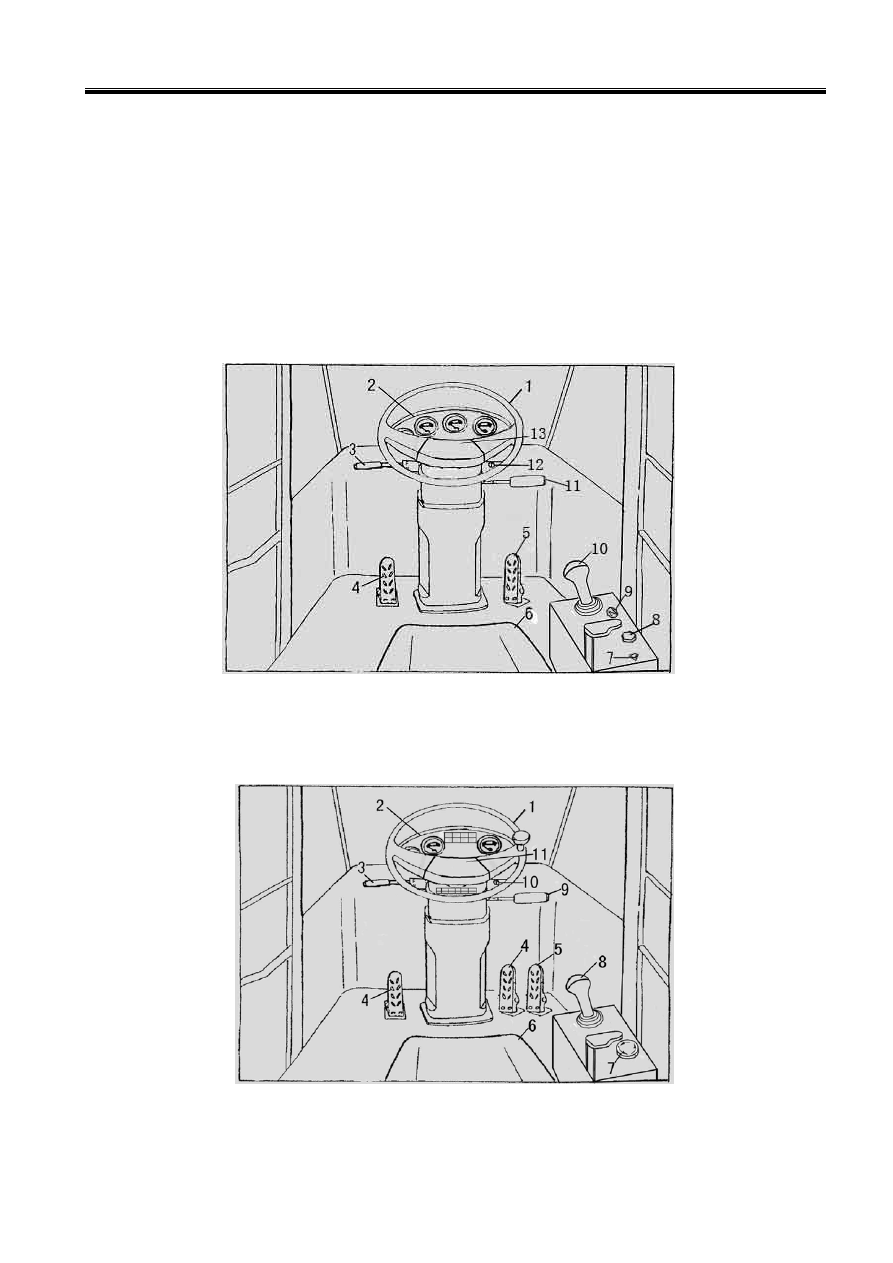

1. Steering Wheel    2. Gauge Panel    3. Steering Switch  4. Brake Pedal  5. Accelerator Pedal

6. Seat    7. Select Switch for Cutting Off Power    8. Brake Valve Manual Control Handle

9. Flameout Control Flexible Shaft    10. Equipment Control Lever

11. Speed Change Control Lever    12. Starting Switch      13. Horn Button

Figure 3-1 General view of control System (pilot single handle and select switch for cutting off power)

1. Steering Wheel  2. Gauge Panel  3. Speed Change Control Lever    4. Brake Pedal (on both sides)

5. Accelerator Pedal  6. Seat  7. Parking Brake Switch  8. Equipment Control Lever

9. Switch Group    10. Starting Switch    11. Horn Button

Figure 3-2 General view of control System (with pilot single handle and three pedals)

Operation & Maintenance Manual──LG956L Wheel Loader

 62

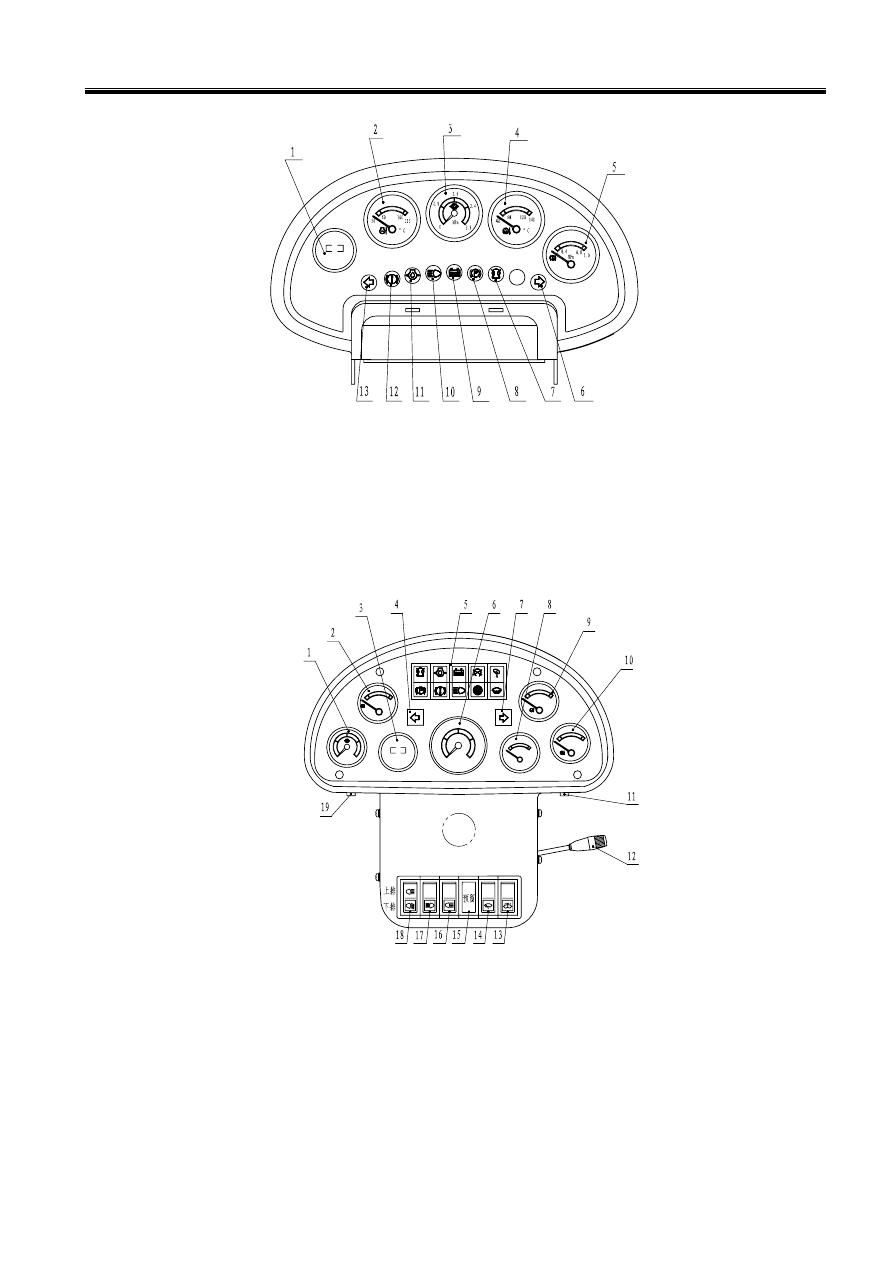

1. Working Chronometer    2. Engine Water Temperature Gauge 3. Gearbox Oil Pressure Gauge

4. Torque Converter Oil Temperature Gauge    5. Brake Air Pressure Gauge

6. Right Turn Indicator Lamp    7. Preheating Indicator Lamp

8. Parking Brake Indicator Lamp    9. Charge Indicator Lamp    10. High Beam Indicator Lamp

11. Engine Oil Pressure Warning Lamp

12. Low Brake Air Pressure Warning Lamp    13. Left Turn Indicator Lamp

Figure 3-3 General view of gauges

1. Gearbox Pressure Gauge    2. Brake Air Pressure Gauge  3. Working Chronometer

4. Left Turn Indicator Lamp    5. Indicator Lamp    6. Revolution Indicator

7. Right Turn Indicator Lamp    8. Fuel Level Gauge    9. Engine Water Temperature Gauge

10. Torque Converter Oil Temperature Gauge  11. Starting Switch  12. Switch Group

13. Water Spraying Switch    14. Rain Wiper Switch    15. Cover Board    16. Rear Headlight Switch

17. Front Headlight Switch    18. Rear Light Lamp Switch    19. Warning Lamp Switch



Figure 3-4 General view of gauges (with revolution indicator and fuel level gauge)
