NOTE

When it rains or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy. This is the same phenomenon
as when window glass mists up on a humid
day, and does not indicate a functional prob-
lem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers
inside the lamp, we recommend you to have
the lamp checked.

Bulb location and capacity

E01003201747

CAUTION

When replacing a bulb, be sure to use a new
bulb of the same type, wattage and colour. If
you install a different bulb, the bulb could
malfunction or fail to come on and could
lead to a vehicle fire.

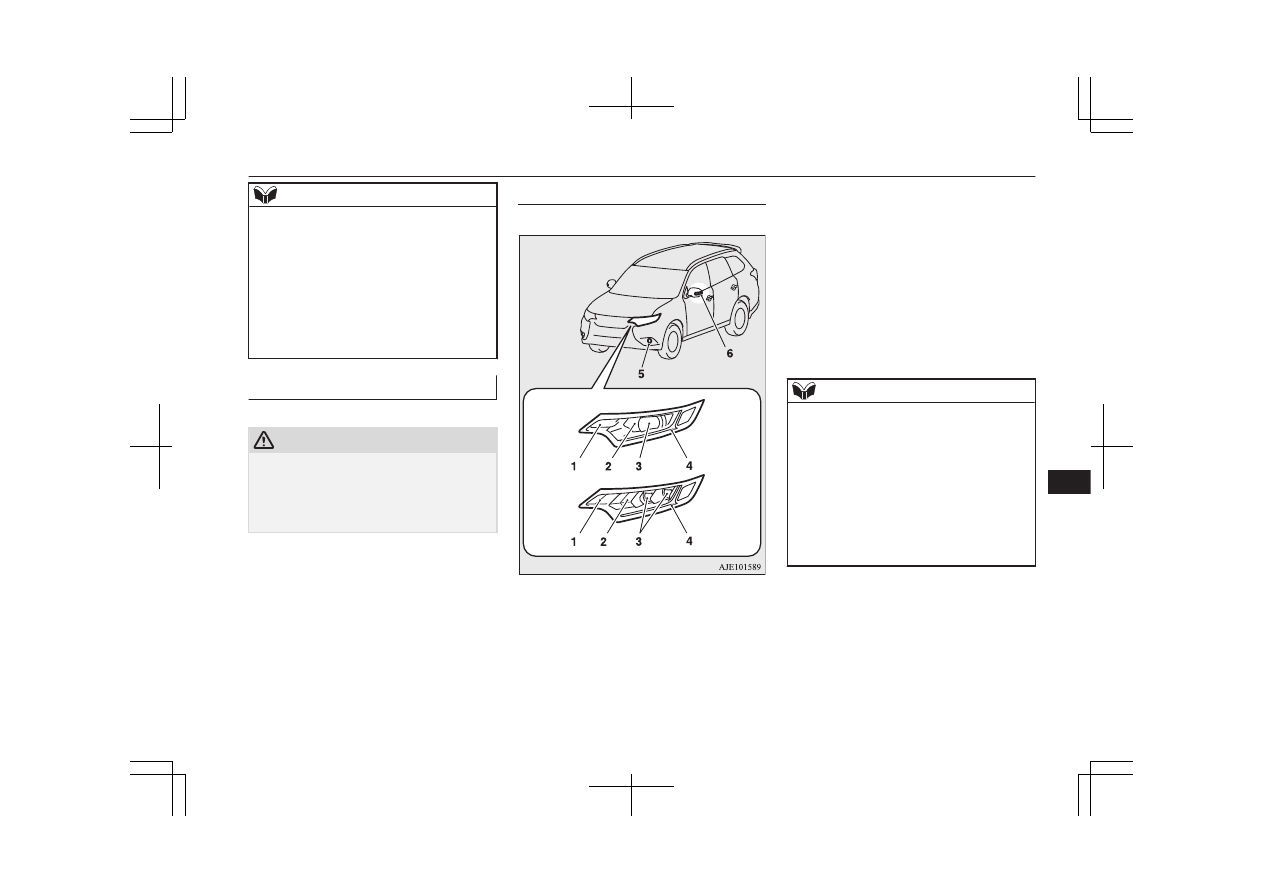

Outside

E01003305498

Front

Type A

Type B

Type A: Halogen headlamps type
Type B: LED headlamps type

1- Front turn-signal lamps: 21 W (PY21W)
2- Headlamps, high-beam

Halogen: 60 W (HB3)
LED: −

3- Headlamps, low beam

Halogen: 55 W (H7)
LED: −

4- Position lamps: −

Daytime running lamps: −

5- Front fog lamps

Halogen: 19 W (H16)
LED: −

6- Side turn-signal lamps: −

Codes in parentheses indicate bulb types.

NOTE

The following lamps use an LED instead of
the bulb. If you need to repair or replace
these lamps, contact a MITSUBISHI
MOTORS Authorized Service Point.

•

Headlamps, high-beam (LED type)

•

Headlamps, low beam (LED type)

•

Position lamps

•

Daytime running lamps

•

Front fog lamps (LED type)

•

Side turn-signal lamps

Replacement of lamp bulbs

11-25

OGGE19E1

Maintenance

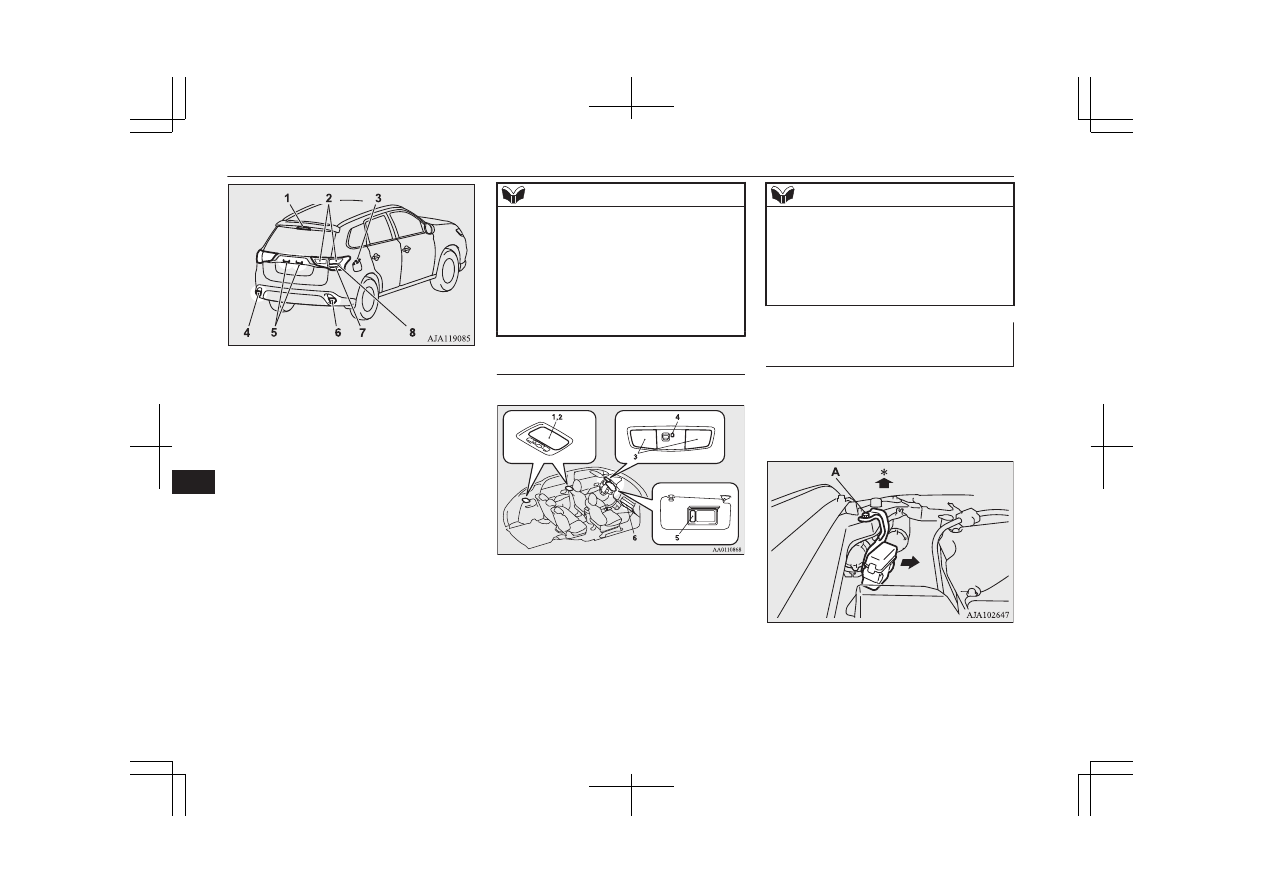

Rear

1- High-mounted stop lamp: −
2- Tail lamps: −
3- Charging port courtesy lamp: 5W

(W5W)

4- Rear fog lamp (LHD vehicles): 21 W

(W21W)
Reversing lamp (RHD vehicles): 16 W
(W16W)

5- Licence plate lamps: 5 W (W5W)
6- Reversing lamp (LHD vehicles): 16 W

(W16W)
Rear fog lamp (RHD vehicles): 21 W
(W21W)

7- Rear turn-signal lamps: 21 W (WY21W)
8- Stop lamps: −

Codes in parentheses indicate bulb types.

NOTE

The following lamps use an LED instead of
the bulb.
If you need to repair or replace these lamps,
contact a MITSUBISHI MOTORS Author-
ized Service Point.

•

High-mounted stop lamp

•

Tail lamps

•

Stop lamps

Inside

E01003403756

1- Luggage room lamp: 8 W
2- Room lamp (rear): 8 W
3- Map & room lamps (front): 8 W
4- Downlight
5- Vanity mirror lamps: 2 W
6- Glove box lamp: 1.4 W

NOTE

The following lamps use an LED instead of
the bulb. If you need to repair or replace
these lamps, contact a MITSUBISHI
MOTORS Authorized Service Point.

•

Downlight

•

Front foot lamps

Headlamps (low beam, halogen

bulb)

E01009301506

1. When replacing the bulb on the left side

of the vehicle, remove the bolt (A) hold-
ing down the relay box and move the re-
lay box.

*: Front of the vehicle

Replacement of lamp bulbs

11-26

OGGE19E1

Maintenance

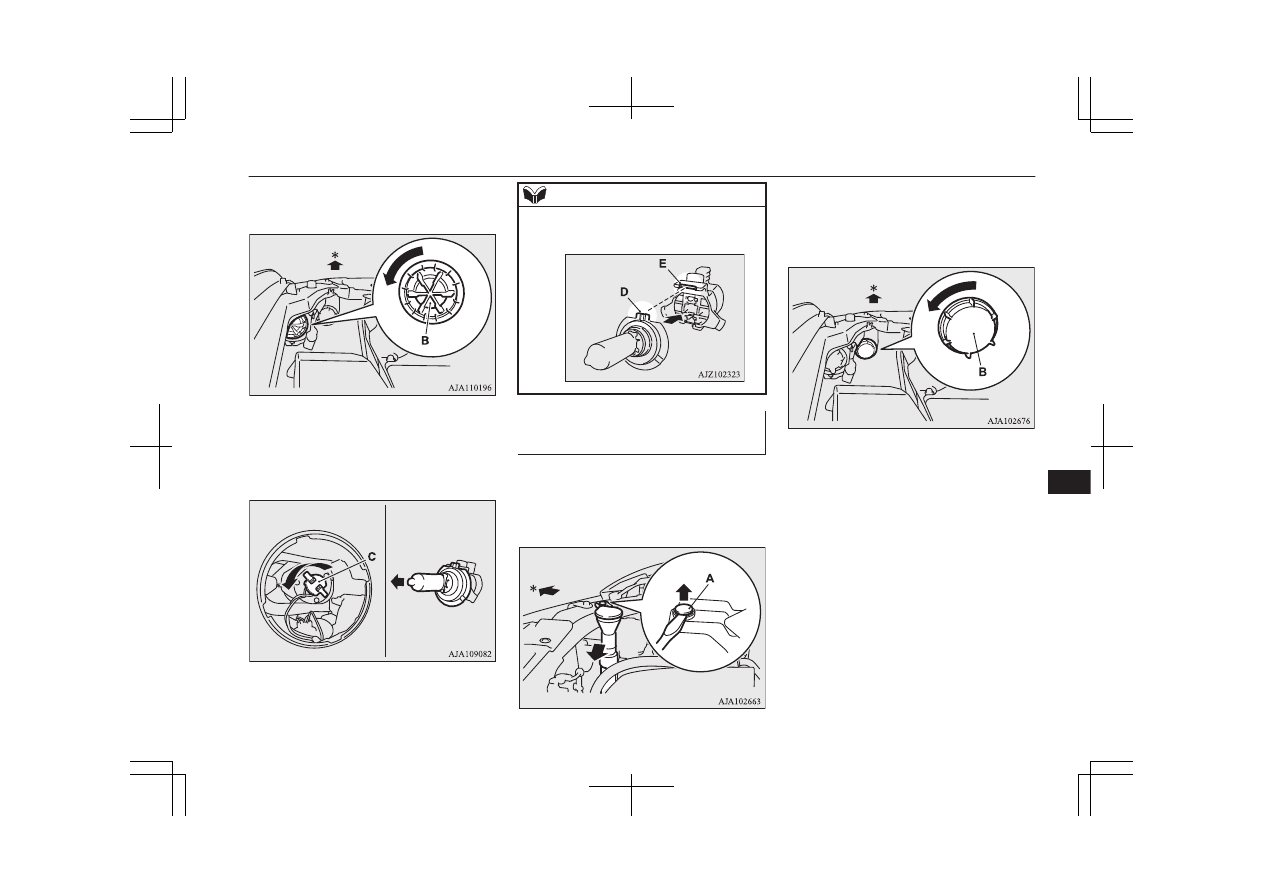

2. Turn the cap (B) anticlockwise to re-

move it.

*: Front of the vehicle

3. Turn the socket (C) anticlockwise to re-

move it, and then pull the bulb out of the
socket.

4. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the bulb, align the tab (D)
with the notch (E) of the socket.

Headlamps (high-beam, halo-

gen bulb)

E01009401376

1. When replacing the bulb on the right

side of the vehicle, remove the clip (A)
holding down the washer tank spout and
then move it.

*: Front of the vehicle

2. Turn the cap (B) anticlockwise to re-

move it.

*: Front of the vehicle

Replacement of lamp bulbs

11-27

OGGE19E1

Maintenance

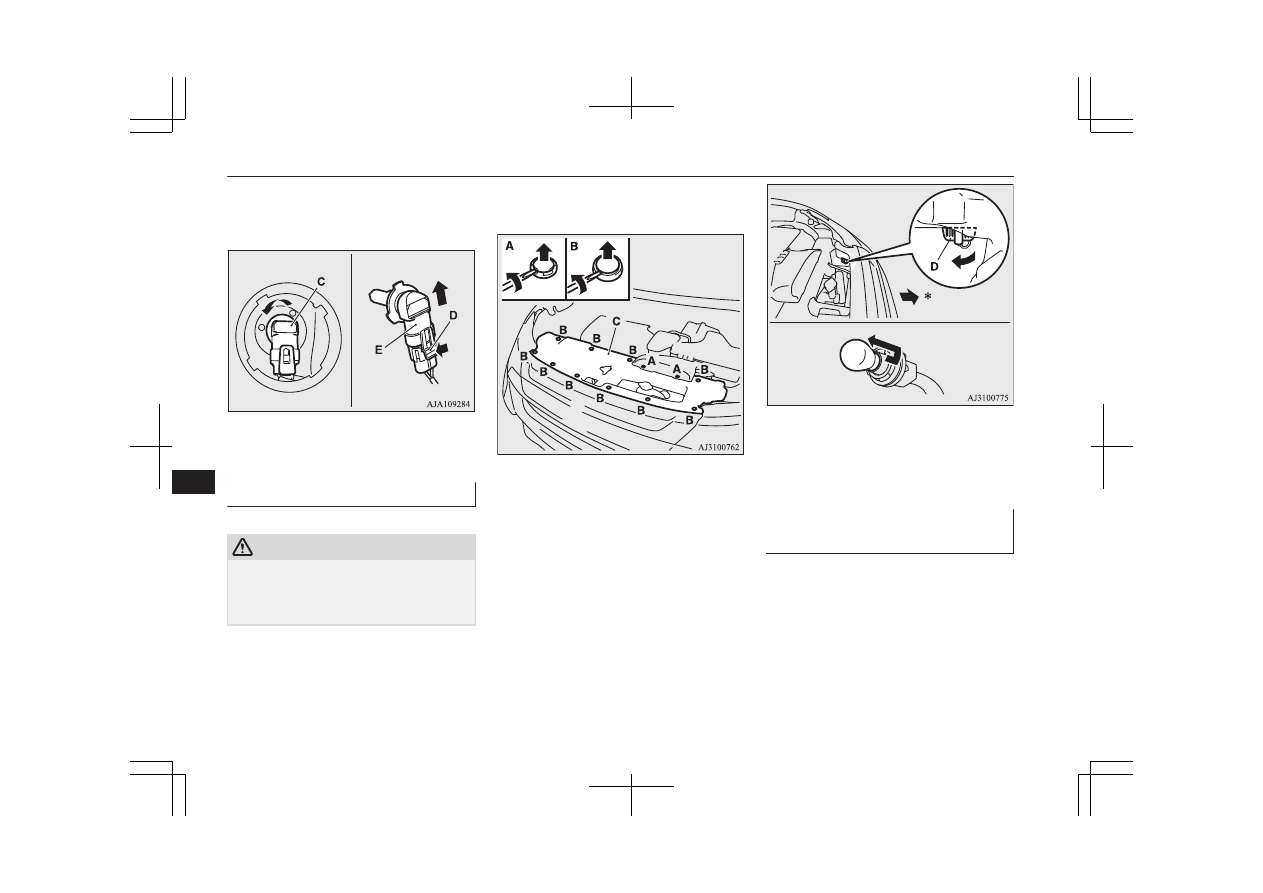

3. Turn the bulb (C) anticlockwise to re-

move it, and then while holding down
the tab (D), pull out the bulb (E).

4. To install the bulb, perform the removal

steps in reverse.

Front turn-signal lamps

E01003802320

CAUTION

Make  sure  that  the  Plug-in  Hybrid  EV  sys-
tem  have  cooled  down  before  replacing  the
bulb  on  the  right  side  of  the  vehicle,  other-
wise you could be burnt by the radiator hose.

1. Remove the 12 clips (A, B), and then re-

move the cover (C).

2. Turn the socket (D) anticlockwise to re-

move it, then remove the bulb from the
socket by turning it anticlockwise while
pressing in.

*: Front of the vehicle

3. To install the bulb, perform the removal

steps in reverse.

Front fog lamps (Halogen bulb

type)*

E01004003674

1. Insert a straight blade (or minus) screw-

driver with a cloth over its tip at the

Replacement of lamp bulbs

11-28

OGGE19E1

Maintenance

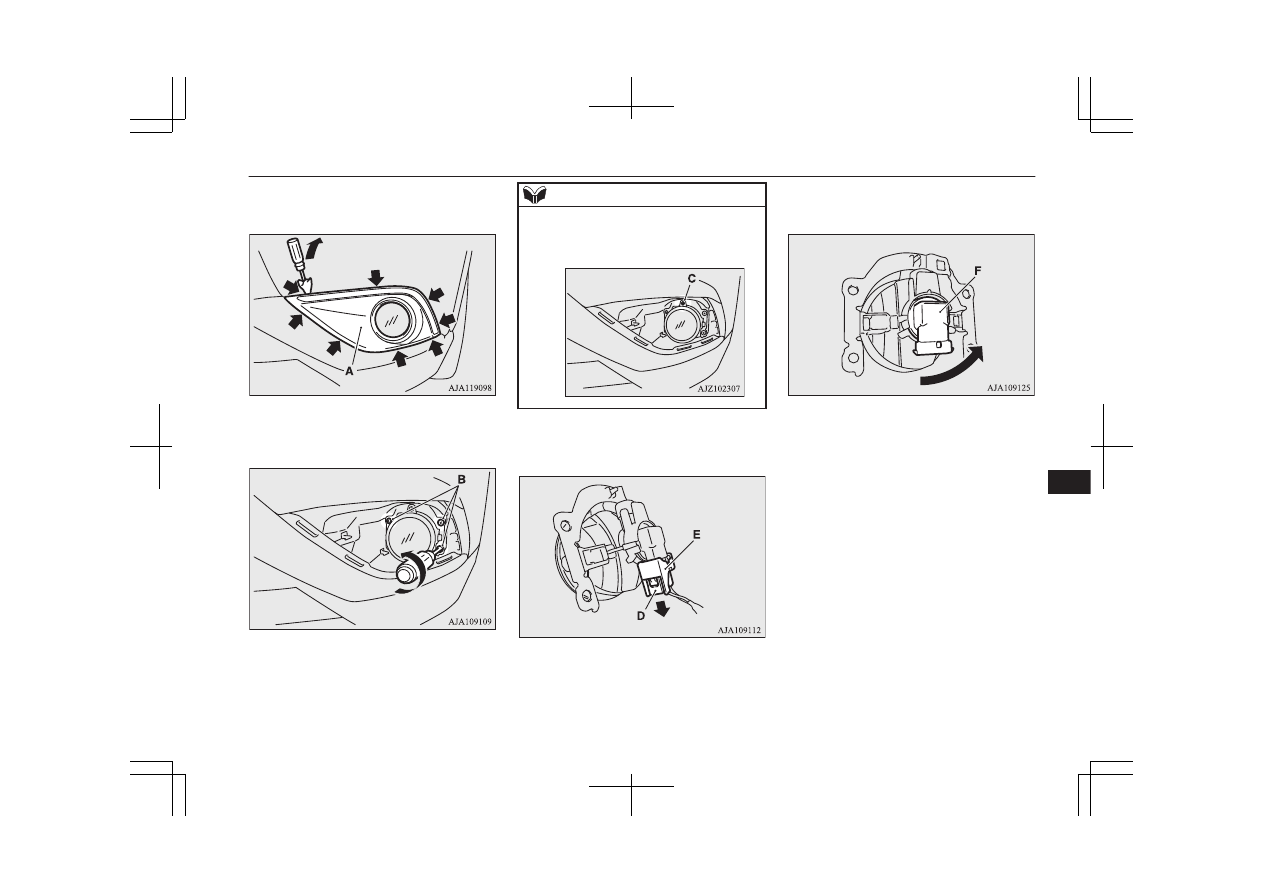

points indicated by arrows and pry gen-
tly to remove the cover (A).

2. Remove the 3 screws (B) and remove

the lamp unit.

NOTE

When unfastening the screws of the fog
lamp, be careful not to mistakenly move the
beam position adjustment screw (C).

3. While holding down the tab (D), pull out

the socket (E).

4. Turn the bulb (F) anticlockwise to re-

move it.

5. To install the bulb, perform the removal

steps in reverse.

Replacement of lamp bulbs

11-29

OGGE19E1

Maintenance

Rear fog lamp (driver’s side)/

Reversing lamp (Passenger’s

side)

E01004101655

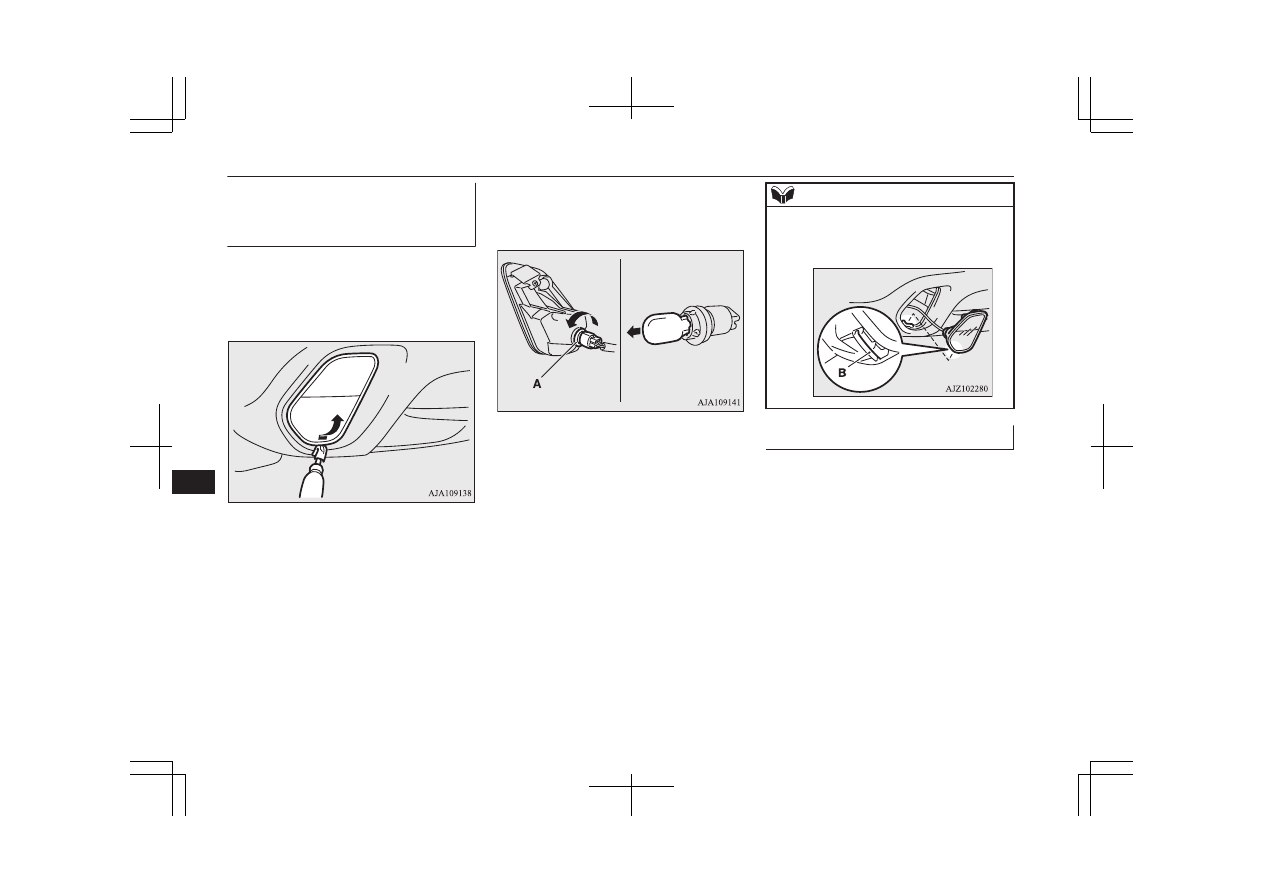

1. Insert a straight blade (or minus) screw-

driver with a cloth over its tip at the edge
of the lamp unit, and then push the lamp
unit upward to remove it.

2. Turn the socket (A) anticlockwise to re-

move it, and then pull the bulb out of the
socket.

3. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the lamp unit, first insert the
notch (B) into the hole on the body, and then
push on the lamp unit to fit it into place.

Rear combination lamps

E01004202767

1. Open the tailgate.

Replacement of lamp bulbs

11-30

OGGE19E1

Maintenance

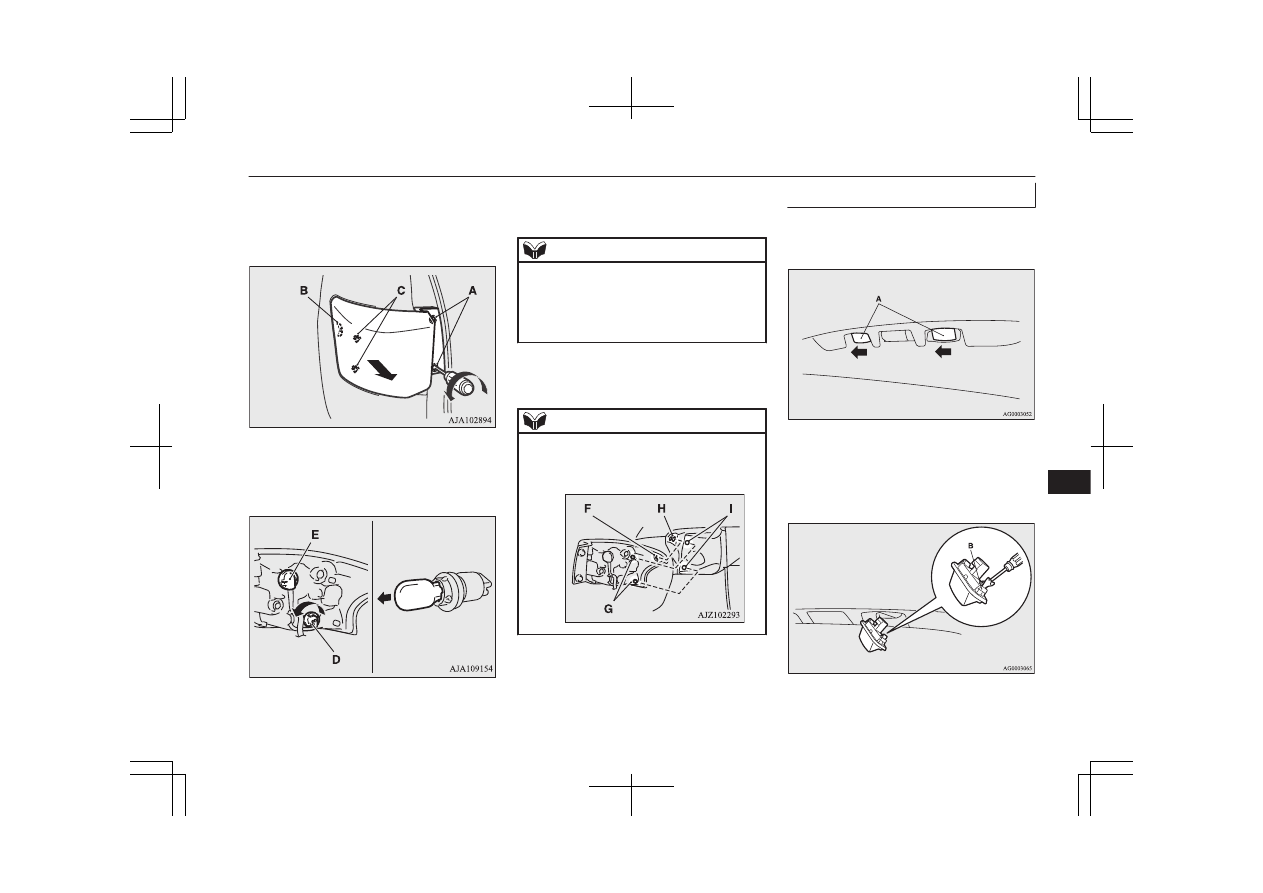

2. Remove the screws (A), and then move

the lamp unit towards the rear of the ve-
hicle to unfix the notch (B) and pins (C)
of the lamp unit.

3. Turn the socket anticlockwise and re-

move it, and then pull the bulb out of the
socket.

D- Rear turn-signal lamp

E- Tail lamp and stop lamp (LED)-cannot

be replaced

NOTE

The tail lamp and stop lamp use an LED in-
stead of the bulb.
If you need to repair or replace these lamps,
contact a MITSUBISHI MOTORS Author-
ized Service Point.

4. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the lamp unit, align the
notch (F) and pin (G) on the lamp unit with
the clip (H) and hole (I) in the body.

Licence plate lamps

E01004602325

1. Remove while pressing the lamp unit

(A) to the left side of the vehicle.

2. Insert a minus screwdriver with the end

covered with a cloth or other object to
press the hook (B) aside and remove the
lens.

Replacement of lamp bulbs

11-31

OGGE19E1

Maintenance

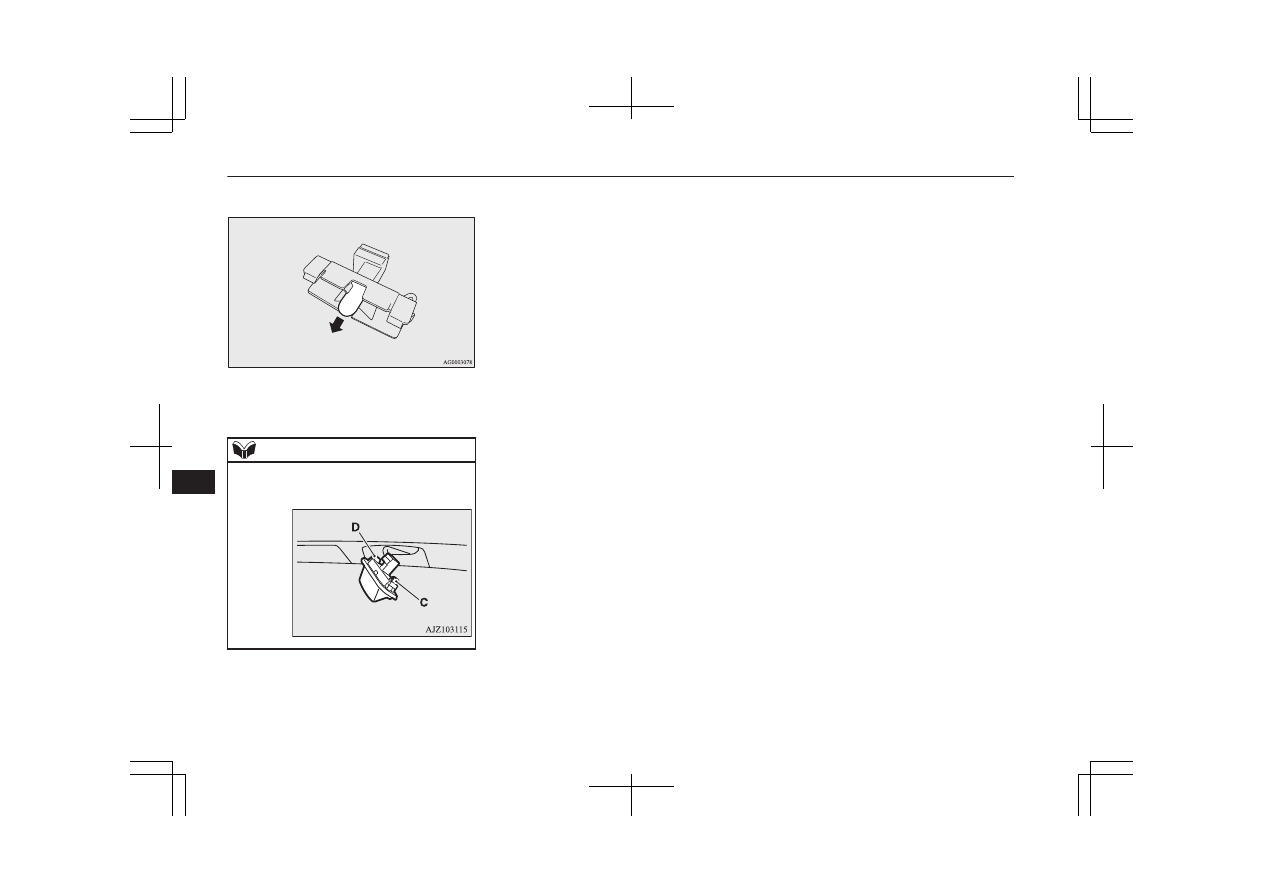

3. Remove the bulb from the socket.

4. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the lamp unit, first insert the
end of tab (C) and then align tab (D).

Replacement of lamp bulbs

11-32

OGGE19E1

Maintenance

Specifications

OGGE19E1

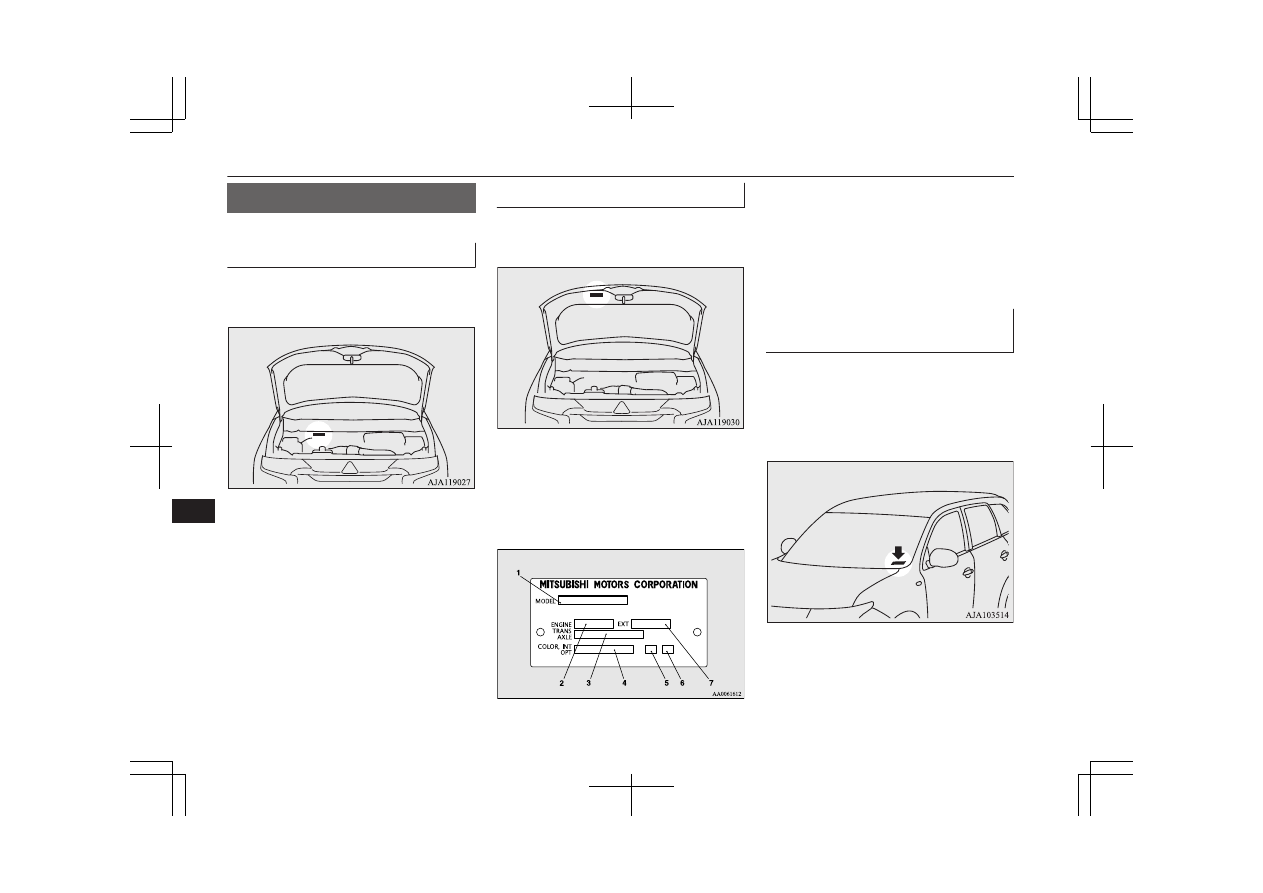

Vehicle labeling

E01100105571

Vehicle identification number

The vehicle identification number is stamped
on the bulkhead as shown in the illustration.

Vehicle information code plate

The vehicle information code plate is riveted
as shown in the illustration.

The  plate  shows  the  model  code,  engine
model,  transaxle  model  and  body  colour
code, etc.
Please  use  this  number  when  ordering  re-
placement parts.

1- Model code
2- Engine model code
3- Transaxle model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code

Vehicle identification number

plate (RHD vehicles only)

The vehicle identification number is stamped
on the plate riveted to the left front corner of
the instrument panel pad. It is visible from
outside of the vehicle through the wind-
screen.

Vehicle labeling

12-02

OGGE19E1

Specifications

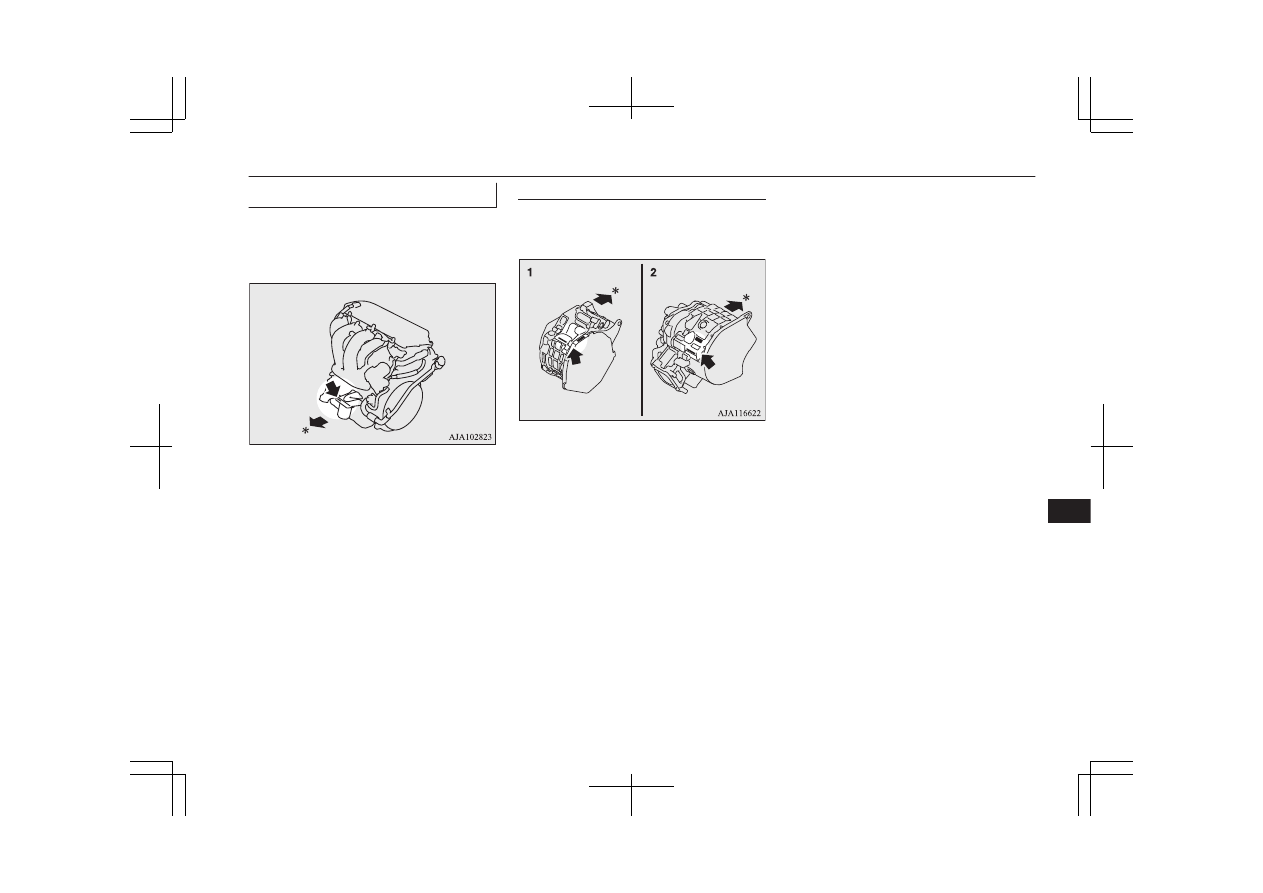

Engine model/number

The engine model and number are stamped
on the engine cylinder block as shown in the
illustration.

*: Front of the vehicle

Electric motor model/number

The electric motor model and number are
stamped as shown in the illustration.

1- Front motor
2- Rear motor

*: Front of the vehicle

Vehicle labeling

12-03

OGGE19E1

Specifications

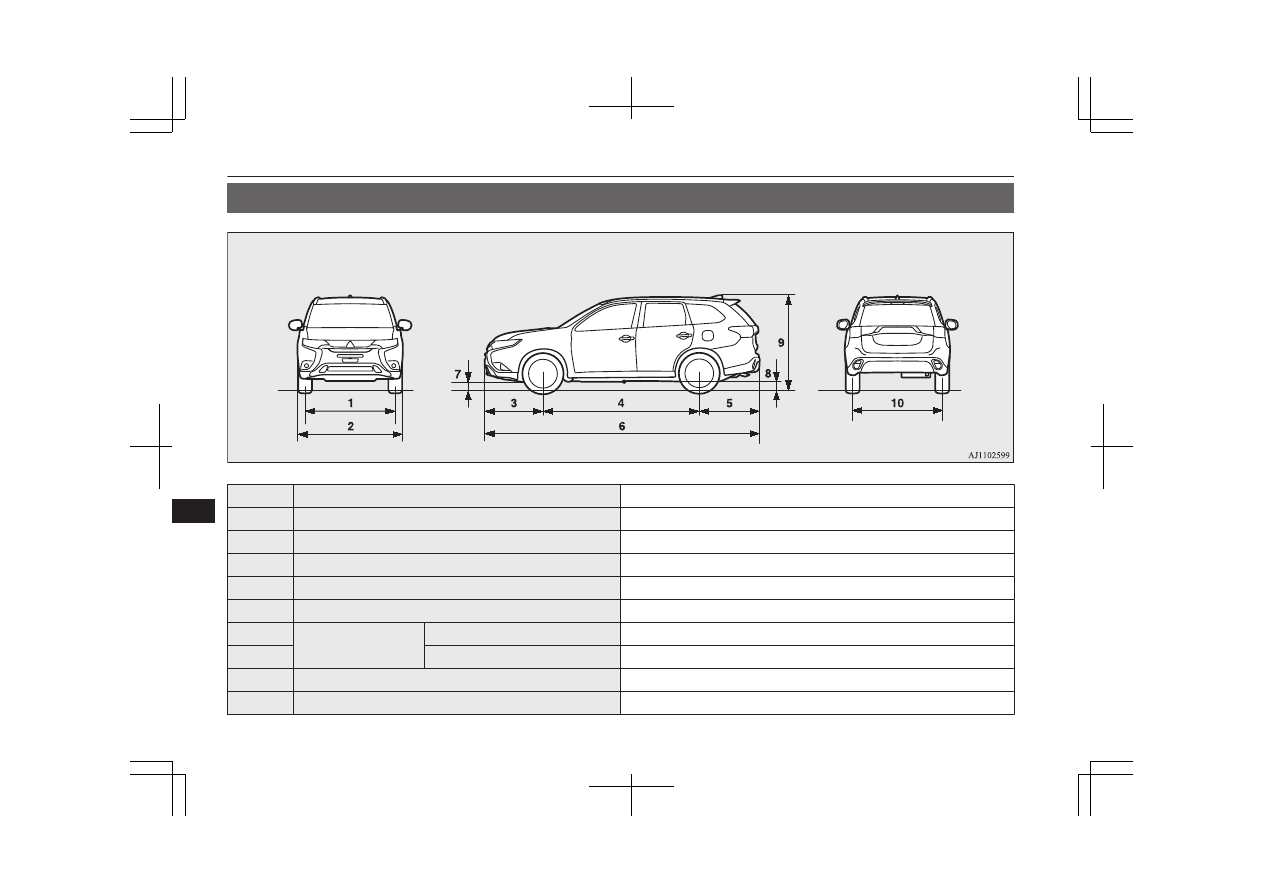

Vehicle dimensions

E01100205178

Front track

1,540 mm

Overall width

1,800 mm

Front overhang

990 mm

Wheel base

2,670 mm

Rear overhang

1,035 mm

Overall length

4,695 mm

Ground clearance (un-
laden)

Without exhaust pipe protector

190 mm

With exhaust pipe protector

185 mm

Overall height (unladen)

1,710 mm

Rear track

1,540 mm

Vehicle dimensions

12-04

OGGE19E1

Specifications

Minimum turning radius

Body

5.76 m

Wheel

5.3 m

Vehicle performance

E01100303553

Maximum speed

170 km/h

Vehicle weight

E01100409309

Item

Except for S Edition

S Edition

LHD

RHD

LHD

RHD

Kerb weight

Without

op-

tional parts

1,880 kg

1,900 kg

With full op-
tional parts

1,947 kg

1,945 kg

1,957 kg

1,955 kg

Maximum gross vehicle weight

2,390 kg

Maximum

axle

weight

Front

1,200 kg

Rear

1,255 kg, 1,365 kg

Maximum towable
weight

With brake

1,500 kg

Without brake

750 kg

Maximum trailer-nose weight

75 kg

: In case of trailer towing

Vehicle performance

12-05

OGGE19E1

Specifications

Item

Except for S Edition

S Edition

LHD

RHD

LHD

RHD

Maximum roof load

80 kg

Seating capacity

5 persons

: In case of trailer towing

NOTE

Trailer specifications indicate the manufacturer’s recommendation.

Engine specifications

E01100604856

Engine model

4B12

No. of cylinders

4 in line

Total displacement

2,360 cc

Bore

88.0 mm

Stroke

97.0 mm

Camshaft

Double overhead

Mixture preparation

Electronic injection

Maximum output (EEC net)

99 kW/4,500 rpm

Maximum torque (EEC net)

211 N•m/4,500 rpm

Engine specifications

12-06

OGGE19E1

Specifications

Charging system specifications

E01101901190

Normal charging system

Rated input voltage

AC 230V (single phase)

Rated input frequency

50 Hz/60 Hz

Maximum rated current

10 A

, 8 A

Maximum power consumption

3.6 kVA

Applicable standards

Charging cable
(with connector
and control box)

EN61851-1

IEC61851-1
IEC62196-1

On board charger

EN61851-21

IEC61851-21

Leakage current sensitivity in cable control box

20 mA

Charging mode

Based on IEC61851-1

Mode 2/Case B

Mode 3/Case C

IP degrees

IP44: When a charge connector is connected

IP55: When charging lid is closed and vehicle is moving

Quick charging system

Applicable standards

IEC62196-1

CHAdeMO

Maximum input current

60 A

: When using a genuine charging cable with control box

: When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)

Charging system specifications

12-07

OGGE19E1

Specifications

IP degrees

IP44: When a charge connector is connected

IP55: When the charging lid is closed and the vehicle is

moving

: When using a genuine charging cable with control box

: When using a home or public charging device (EVSE: Electric Vehicles Supply Equipment)

Electric motor specifications

E01100604869

Item

Front Motor

Rear Motor

Electric motor model

S61

Y61

Maximum output (ECE net)

60 kW

70 kW

Maximum torque

137 Nm

195 Nm

Maximum 30 minutes power

25 kW

Low voltage electrical system

E01100804151

Voltage

12 V

Auxiliary battery

Type (JIS)

S46B24L(S)

Capacity (5HR)

36 Ah

Spark plug type

NGK

DIFR5E11

Electric motor specifications

12-08

OGGE19E1

Specifications

Content .. 29 30 31 32 ..
