Fluid type

Use  brake  fluid  conforming  to  DOT3  or
DOT4 from a sealed container. The brake flu-
id  is  hygroscopic.  Too  much  moisture  in  the
brake  fluid  will  adversely  affect  the  brake
system, reducing the performance.

WARNING

Take  care  in  handling  brake  fluid  as  it  is
harmful  to  the  eyes,  may  irritate  your
skin  and  will  damage  painted  surfaces.
Wipe up any spills immediately.
If  brake  fluid  gets  on  your  hand  or  in
your  eyes,  flush  immediately  with  clean
water. Follow up with a doctor as necessa-
ry.

CAUTION

Use only the specified brake fluid.
Do not mix or add different brands of brake
fluid to prevent chemical reactions.
Do not let any petroleum-based fluid touch,
mix with, or get into the brake fluid.
This will damage the seals.

Keep the reservoir tank cap closed to pre-
vent the brake fluid from deteriorating ex-
cept maintenance.

Clean the filler cap before removing and
close the cap securely after maintenance.

Auxiliary battery

E01001203864

The condition of the auxiliary battery is very
important for quick starting of the plug-in hy-
brid EV system and proper functioning of the
vehicle’s  electrical  system.  Regular  inspec-
tion  is  especially  important  in  cold  weather.
Be  sure  to  have  a  MITSUBISHI  MOTORS
Authorized Service Point check the auxiliary
battery.

WARNING

Be  sure  to  have  a  MITSUBISHI
MOTORS  Authorized  Service  Point
charge the battery. Do not charge the bat-
tery  yourself.  Flammable  gases  may  leak
and explode.

CAUTION

There is a type of auxiliary battery is not
properly installed in the vehicle, even if the
same specification.
When replacing the auxiliary battery, please
contact a MITSUBISHI MOTORS Author-
ized Service Point.

NOTE

When  the  auxiliary  battery  is  removed,  the
controlling timer for forcibly starting the en-
gine may be reset.
Since  a  fuel  injection  device  may  cause  a
clogging  if  the  state  where  the  engine  does
not operate continues after reset of the timer,
please select the battery charge mode in or-
der to start the engine. However, if the drive
battery  level  is  nearly  full,  the  engine  may
not  start  even  though  the  battery  charge
mode is selected.
In that case, activate the battery charge mode
again after the drive battery quantity decrea-
ses.  Refer  to  “SAVE/CHARGE  mode
switch” on page 7-28.

When the auxiliary battery is removed, since
the timer control of the MITSUBISHI Re-
mote Control is reset and the drive battery
temperature control cannot be used, commu-
nicate the wireless LAN device and your ve-
hicle again.

When  the  auxiliary  battery  is  removed,  the
timer  control  of  the  MITSUBISHI  Remote
Control  is  reset  and  each  function  of  the
MITSUBISHI  Remote  Control  cannot  be
used.  Also  the  drive  battery  cannot  be
warmed up.
Communicate  the  wireless  LAN  device  and
your vehicle again.

Auxiliary battery

11-09

OGGE19E1

Maintenance

Tyres

E01001300255

WARNING

Driving with tyres that are worn, dam-
aged or improperly inflated can lead to a
loss of control or blow out of the tyres
which can result in a collision with serious
or fatal injury.

Tyre inflation pressures

E01001404472

Tyre size

Front

Rear

215/70R16 100H

2.4 bar (35 psi) [240 kPa], 2.6 bar (38 psi) [260 kPa]*

225/55R18 98H

2.4 bar (35 psi) [240 kPa], 2.6 bar (38 psi) [260 kPa]*

*: Above 160 km/h (99 mph)
Check the tyre inflation pressure of all the tyres while they are cold; if insufficient or excessive, adjust to the specified value.
After the tyre inflation pressure has been adjusted, check the tyres for damage and air leaks. Be sure to put caps on the valves.

Tyres

11-10

OGGE19E1

Maintenance

NOTE

The tyres that can be installed on your vehicle are shown on the driver’s door label. For details, contact a MITSUBISHI MOTORS Authorized Service Point.

Wheel condition

E01001801970

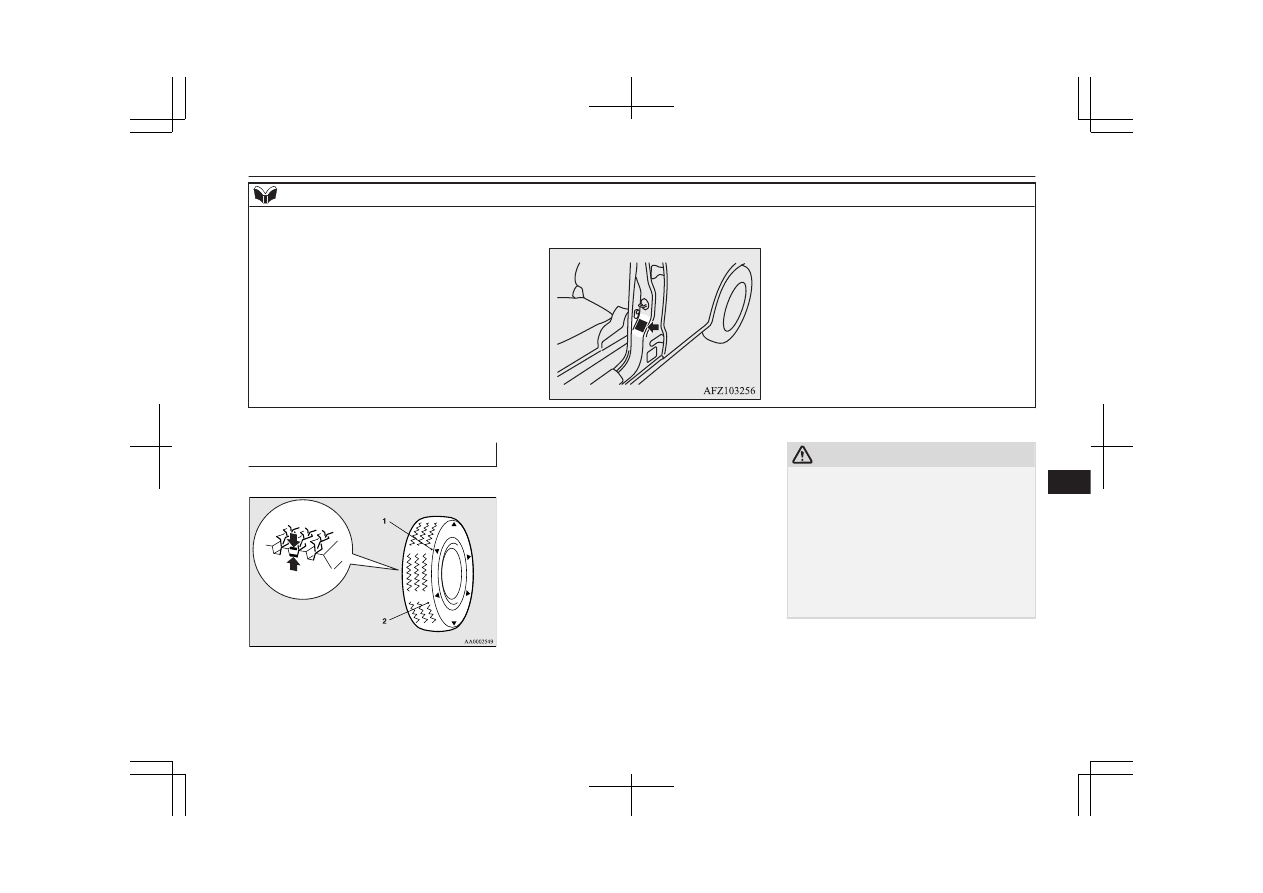

1- Location of the tread wear indicator
2- Tread wear indicator

Check  the  tyres  for  cuts,  cracks  and  other
damage.  Replace  the  tyres  if  there  are  deep
cuts  or  cracks.  Also  check  each  tyre  for
pieces of metal or pebbles.
The use of worn tyres can be very dangerous
because of the greater chance of skidding or
hydroplaning.  The  tread  depth  of  the  tyres
must exceed 1.6 mm in order for the tyres to
meet the minimum requirement for use.
Tread wear indicators will appear on the sur-
face of the tyre as the tyre wears, thereby in-
dicating  that  the  tyre  no  longer  meets  the
minimum  requirement  for  use.  When  these
wear indicators appear, the tyres must be re-
placed with new ones.
When replacement of any of the tyres is nec-
essary, replace all of them.

CAUTION

Always  use  tyres  of  the  same  size,  same
type,  and  same  brand,  and  which  have  no
wear  differences.  Using  tyres  of  different
size, type, brands or degree of wear, will in-
crease the differential oil temperature, result-
ing  in  possible  damage  to  the  driving  sys-
tem. Further, the drive train will be subjected
to excessive loading, possibly leading to oil
leakage, component seizure, or other serious
faults.

Tyres

11-11

OGGE19E1

Maintenance

Replacing tyres and wheels

E01007201820

CAUTION

Avoid using different size tyres from the one
listed and the combined use of different
types of tyres, as this can affect driving safe-
ty.
Refer to “Tyres and wheels” on page 12-09.

Even  if  a  wheel  has  the  same  rim  size  and
offset  as  the  specified  type  of  wheel,  its
shape  may  prevent  it  from  being  fitted  cor-
rectly. We recommend you to consult a spe-
cialist before using wheels that you have.

As your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
MOTORS  GENUINE  wheels  should  be
used. Use of another type of wheel risks air
leaks  and  sensor  damage,  as  it  will  not  be
possible  to  install  the  tyre  pressure  sensor
properly.
Refer  to  “Tyre  pressure  monitoring  system
(TPMS)” on page 7-92.

NOTE

A  steel  wheel  with  diameter  of  16  inches
cannot be used on your vehicle because it in-
terferes with brake parts.
Additionally,  an  aluminium  wheel  with  di-
ameter of 16 inches may not be used on your
vehicle  depending  on  its  type,  even  if  a
MITSUBISHI MOTORS GENUINE wheel.
Consult  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  before  using  wheels  that
you have.

Tyre rotation

E01001902516

Tyre  wear  varies  with  vehicle  conditions,
road  surface  conditions  and  individual  driv-
er’s driving habits. To equalize the wear and
help extend tyre life, it is recommended to ro-
tate  the  tyres  immediately  after  discovery  of
abnormal wear, or whenever the wear differ-
ence between the front and rear tyres is rec-
ognizable.

When  rotating  tyres,  check  for  uneven  wear
and  damage.  Abnormal  wear  is  usually
caused  by  incorrect  tyre  pressure,  improper
wheel alignment, out of balance wheel, or se-
vere  braking.  We  recommend  you  to  have  it
checked  to  determine  the  cause  of  irregular
tread wear.

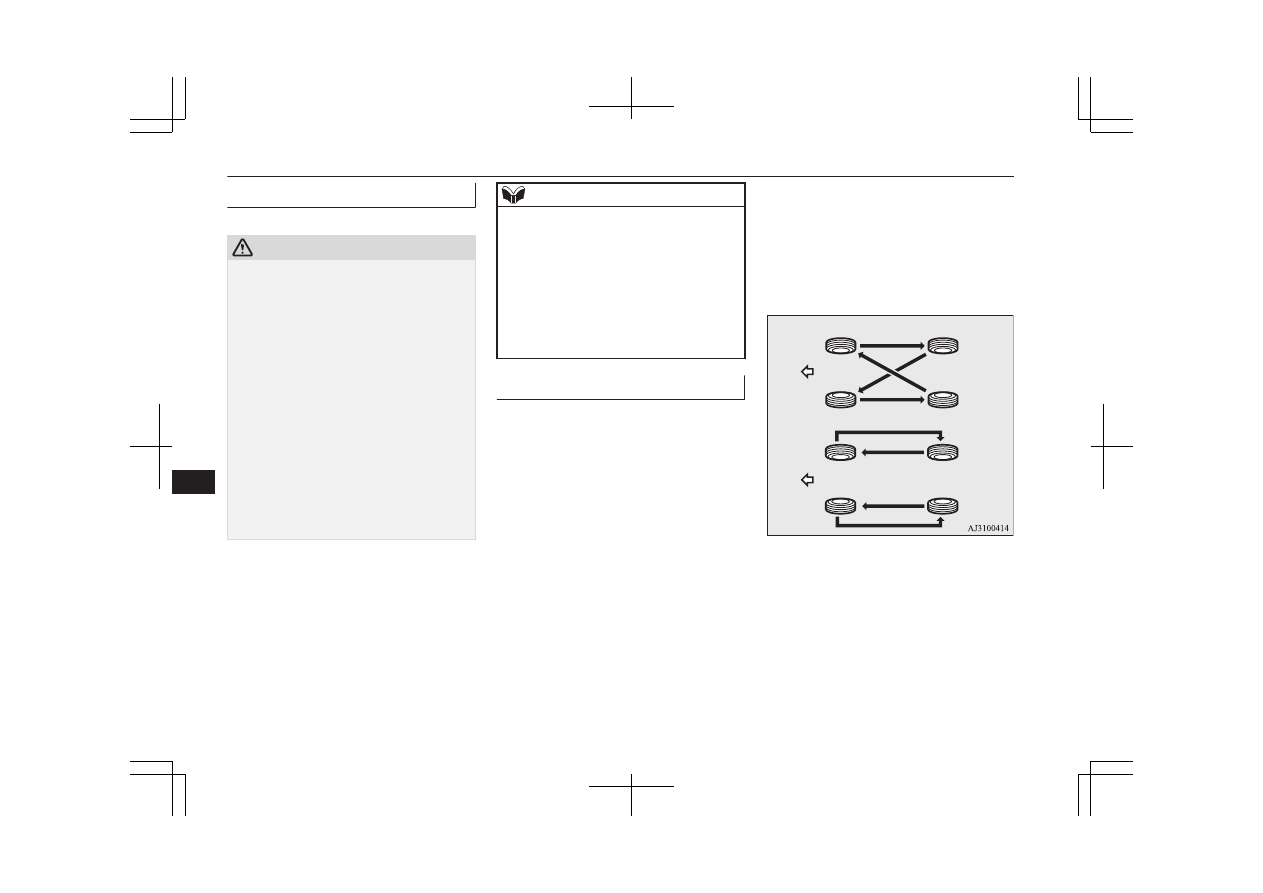

Tyres that do not have arrows showing rotation
direction

Front

Tyres that have arrows showing rotation direc-
tion

Front

Tyres

11-12

OGGE19E1

Maintenance

CAUTION

If  the  tyres  have  arrows  (A)  indicating  the
correct  direction  of  rotation,  swap  the  front
and rear tyres on the left-hand side of the ve-
hicle  and  the  front  and  rear  tyres  on  the
right-hand  side  of  the  vehicle  separately.
Keep each tyre on its original side of the ve-
hicle.  When  fitting  the  tyres,  make  sure  the
arrows  point  in  the  direction  in  which  the
wheels will turn when the vehicle moves for-
ward.  Any  tyre  whose  arrow  points  in  the
wrong  direction  will  not  perform  to  its  full
potential.

Front

CAUTION

Avoid the combined use of different types of
tyres.
Using different types of tyres can affect ve-
hicle performance and safety.

Snow tyres

E01002001979

The  use  of  snow  tyres  is  recommended  for
driving on snow and ice. To preserve driving
stability,  mount  snow  tyres  of  the  same  size
and tread pattern on all 4 wheels.
A  snow  tyre  that  is  worn  down  more  than
50% is no longer appropriate to use.
Snow tyres which do not meet specifications
must not be used.

CAUTION

Observe permissible maximum speed for
your snow tyres and the legal speed limit.

As your vehicle is equipped with a tyre pres-
sure monitoring system, only MITSUBISHI
Motors genuine wheels should be used. Use
of another type of wheel risks air leaks and
sensor damage, as it will not be possible to
install the tyre pressure sensor properly.
Refer to “Tyre pressure monitoring system
(TPMS)” on page 7-92.

NOTE

The laws and regulations concerning snow
tyres (driving speed, required use, type, etc.)
vary. Find out and follow the laws and regu-
lations in the area you intend to drive.

If flange nuts are used on your vehicle,
change to tapered nuts when steel wheels are
used.

Snow traction device (tyre

chains)

E01002103336

If snow traction device (tyre chains) have to
be  used,  ensure  that  they  are  fitted  only  on
the  drive  wheels  (front)  in  accordance  with
the manufacturer’s instructions.
On 4WD vehicles in which the driving power
is  distributed  preferentially  to  the  front
wheels,  ensure  that  the  snow  traction  device
(tyre chains) are fitted on the front.
Use  only  snow  traction  device  (tyre  chains)
which  are  designed  for  use  with  the  tyres
mounted  on  the  vehicle:  use  of  the  incorrect
size  or  type  of  snow  traction  device  (tyre
chains) could result in damage to the vehicle
body.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  before  putting  on  a  snow
traction device (tyre chains). The max. snow
traction device (tyre chains) height is as fol-
lows.

Tyre size

Wheel size

Max. snow

traction de-

vice (tyre

chains)

height [mm]

215/70R16

100H

16 x 6 1/2 J

9 mm

Tyres

11-13

OGGE19E1

Maintenance

Tyre size

Wheel size

Max. snow

traction de-

vice (tyre

chains)

height [mm]

225/55R18

98H

18x7 J

9 mm

When  driving  with  a  snow  traction  device
(tyre chains) on the tyres, do not drive faster
than  50  km/h  (30  mph).  When  you  reach
roads  that  are  not  covered  in  snow,  immedi-
ately  remove  the  snow  traction  device  (tyre
chains).

CAUTION

Choose a clear straight stretch of road where
you can pull off and still be seen while you
are fitting the snow traction device (tyre
chains).

Do not fit snow traction device (tyre chains)
before you need them. This will wear out
your snow traction device (tyre chains) and
the road surface.

After driving around for 100-300 meters,
stop and retighten the snow traction device
(tyre chains).

Drive carefully and do not exceed 50 km/h
(30 mph). Remember that preventing acci-
dents is not the purpose of snow traction de-
vice (tyre chains).

When snow traction device (tyre chains) are
installed, take care that they do not damage
the disc wheel or body.

CAUTION

An  aluminium  wheel  can  be  damaged  by  a

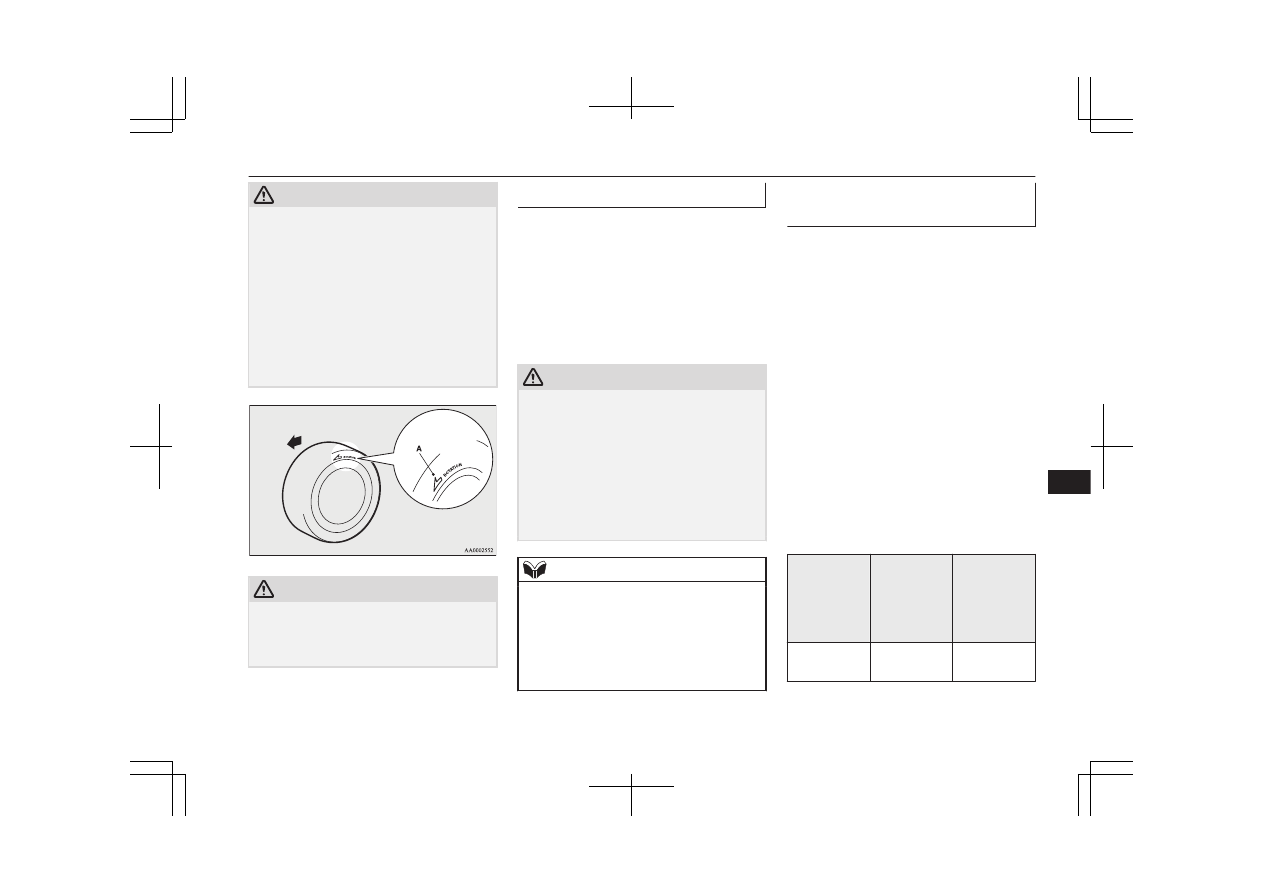

snow  traction  device  (tyre  chains)  while
driving. When fitting a snow traction device
(tyre  chains)  on  an  aluminium  wheel,  take
care that any part of the snow traction device
(tyre  chains)  and  fitting  cannot  be  brought
into contact with the wheel.

When installing or removing a snow traction
device (tyre chains), take care that hands and
other parts of your body and not injured by
the sharp edges of the vehicle body.

NOTE

The laws and regulations concerning the use
of snow traction device (tyre chains) vary.
Always follow local laws and regulations.
In most countries, it is prohibited by the law
to use of snow traction device (tyre chains)
on roads without snow.

Wiper blade rubber
replacement

E01002600532

Windscreen wiper blades

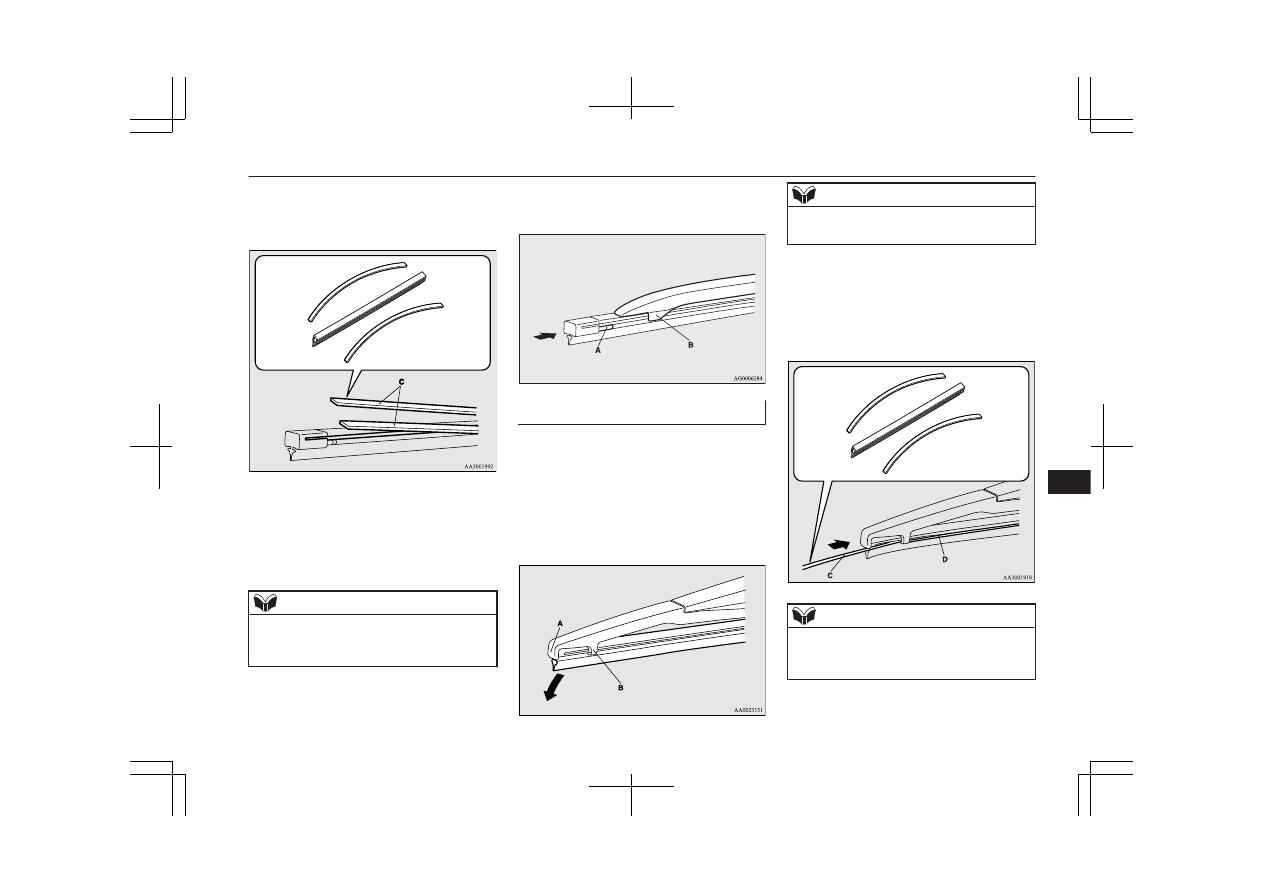

1. Lift the wiper arm off the windscreen.
2. Pull the wiper blade until its stopper (A)

disengages from the hook (B). Then,
pull the wiper blade further to remove it.

NOTE

Do not allow the wiper arm to fall onto the
windscreen; it could damage the glass.

3. Attach the retainers (C) to a new wiper

blade.

Wiper blade rubber replacement

11-14

OGGE19E1

Maintenance

Refer to the illustration to ensure that the
retainers are correctly aligned as you at-
tach them.

4. Insert the wiper blade into the arm, start-

ing  with  the  opposite  end  of  the  blade
from  the  stopper.  Make  sure  the  hook
(B)  is  fitted  correctly  in  the  grooves  in
the blade.

NOTE

If retainers are not supplied with the new
wiper blade, use the retainers from the old
blade.

5. Push the wiper blade until the hook (B)

engages securely with the stopper (A).

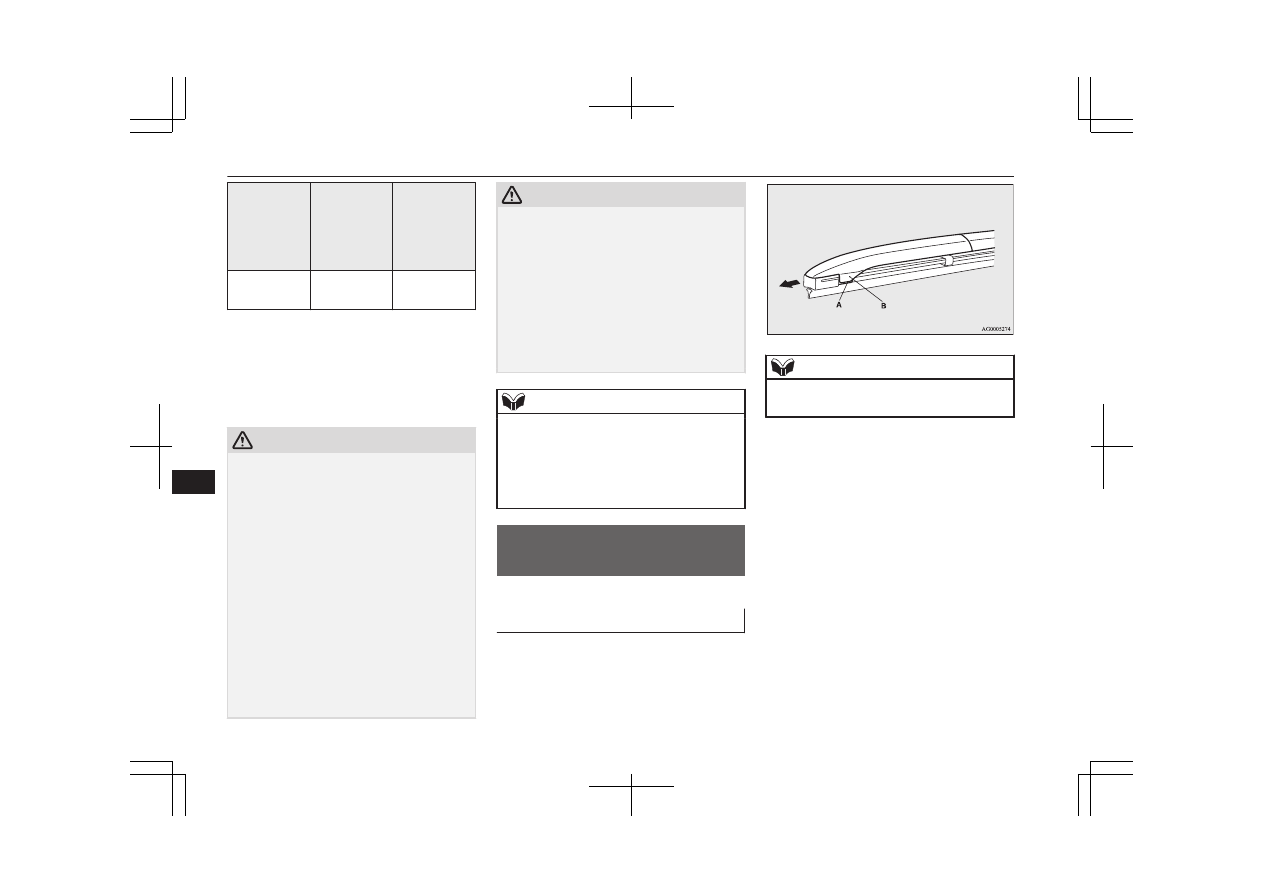

Rear window wiper blades

1. Lift the wiper arm off the window glass.
2. Pull the wiper blade downward to disen-

gage it from the stopper (A) at the end of
the wiper arm. Pull the wiper blade fur-
ther to remove it.

3. Slide a new wiper blade through the

hook (B) on the wiper arm.

NOTE

Do not allow the wiper arm to fall onto the
window glass; it could damage the glass.

4. Firmly insert the retainer (C) into the

groove (D) in the wiper blade.
Refer to the illustration to ensure that the
retainers are correctly aligned as you in-
sert them into the groove.

NOTE

If a retainer is not supplied with the new
wiper blade, use the retainer from the old
blade.

Wiper blade rubber replacement

11-15

OGGE19E1

Maintenance

General maintenance

E01002701556

Fuel, engine coolant, oil and ex-

haust gas leakage

Look under the body of your vehicle to check
for fuel, engine coolant, oil and exhaust gas
leaks.

WARNING

If you see a suspicious fuel leak or if you
smell fuel, do not operate the vehicle; call
your MITSUBISHI MOTORS Author-
ized Service Point for assistance.

Exterior and interior lamp op-

eration

Operate  the  combination  lamp  switch  to
check that all lamps are functioning properly.
If  the  lamps  do  not  illuminate,  the  probable
cause is a blown fuse or defective lamp bulb.
Check  the  fuses  first.  If  there  is  no  blown
fuse, check the lamp bulbs.
For information regarding the inspection and
replacement of the fuses and the bulbs, refer
to “Fuses” on page 11-16 and “Replacement
of lamp bulbs” on page 11-24.

If the fuses and bulbs are all OK, we recom-
mend you to have your vehicle checked and
repaired.

Meter, gauge and indicator/

warning lamps operation

Start the plug-in hybrid EV system and check
the operation of all instruments, gauges and
indication and warning lamps.
If there is anything wrong, we recommend
you to have your vehicle inspected.

Hinges and latches lubrication

Check all latches and hinges, and, if necessa-
ry, have them lubricated.

Fusible links

E01002901633

The fusible links will melt to prevent a fire if
a large current attempts to flow through cer-
tain electrical systems.
In case of a melted fusible link, we recom-
mend you to have your vehicle inspected.
For the fusible links, please refer to “Passen-
ger compartment fuse location table” on page
11-19 and “Engine compartment fuse loca-
tion table” on page 11-21.

WARNING

Fusible links must not be replaced by any
other device. Failing to fit the correct fusi-
ble link may result in fire in the vehicle,
property destruction and serious or fatal
injuries at any time.

Fuses

E01003003332

Fuse block location

E01011800035

To  prevent  damage  to  the  electrical  system
due  to  short-circuiting  or  overloading,  each
individual circuit is provided with a fuse.
There  are  fuse  blocks  in  the  passenger  com-
partment and in the engine compartment.

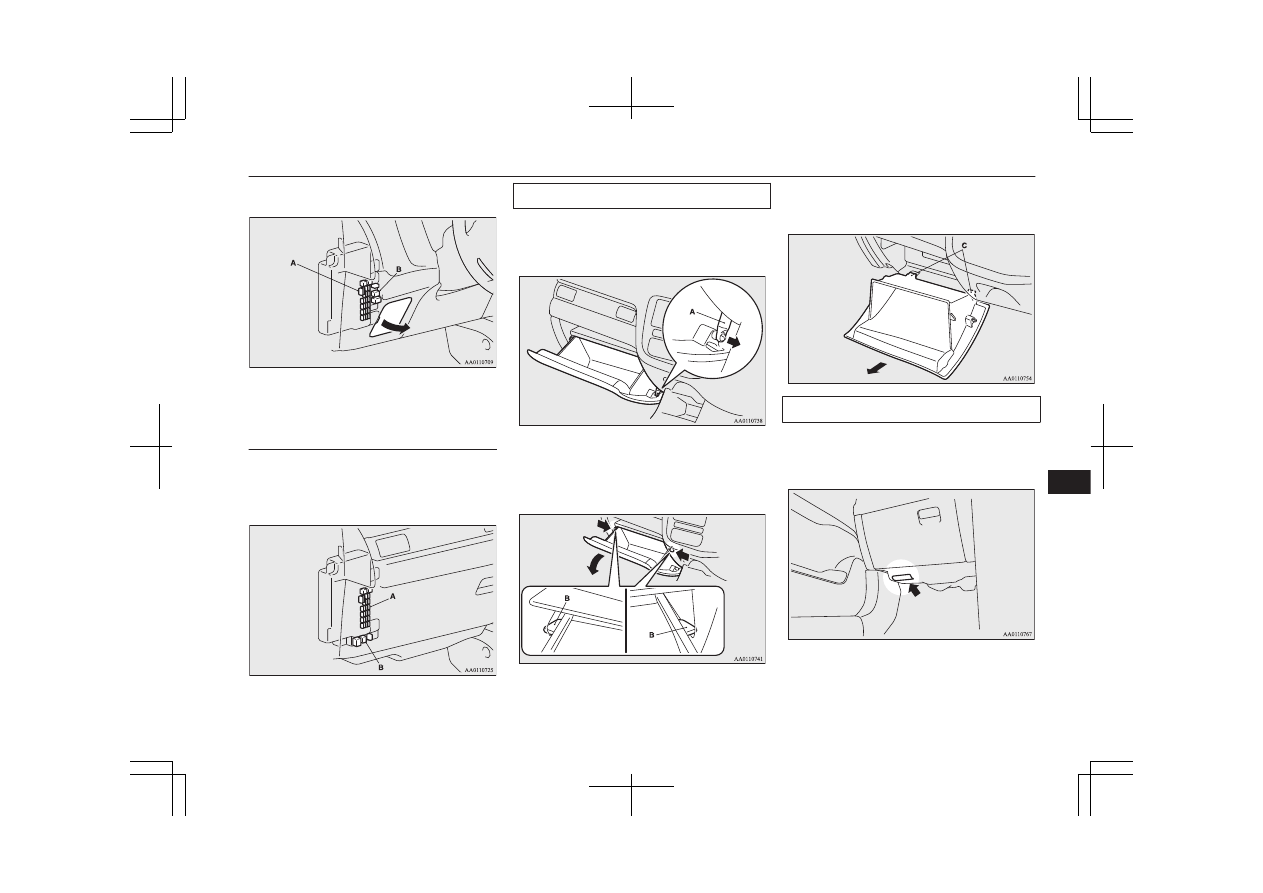

Passenger compartment (LHD

vehicles)

The fuse blocks in the passenger compart-
ment are located behind the fuse lid in front
of the driver’s seat at the position shown in
the illustration.

General maintenance

11-16

OGGE19E1

Maintenance

Pull the fuse lid to remove it.

A- Main fuse block

B- Sub fuse block

Passenger compartment (RHD

vehicles)

The fuse boxes in the passenger compartment
are located behind the glove box at the posi-
tion shown in the illustration.

A- Main fuse block

B- Sub fuse block

Main fuse block

1. Open the glove box.
2. Uncouple the rod (A) on the right side of

the glove box.

3. While pressing the side of the glove box,

unhook the left and right hooks (B) and
lower the glove box.

4. Remove the glove box fastener (C), and

then remove the glove box.

Sub fuse block
When changing the fuse of the sub fuse
block, perform it with the hole of the bottom
cover.

Fuses

11-17

OGGE19E1

Maintenance

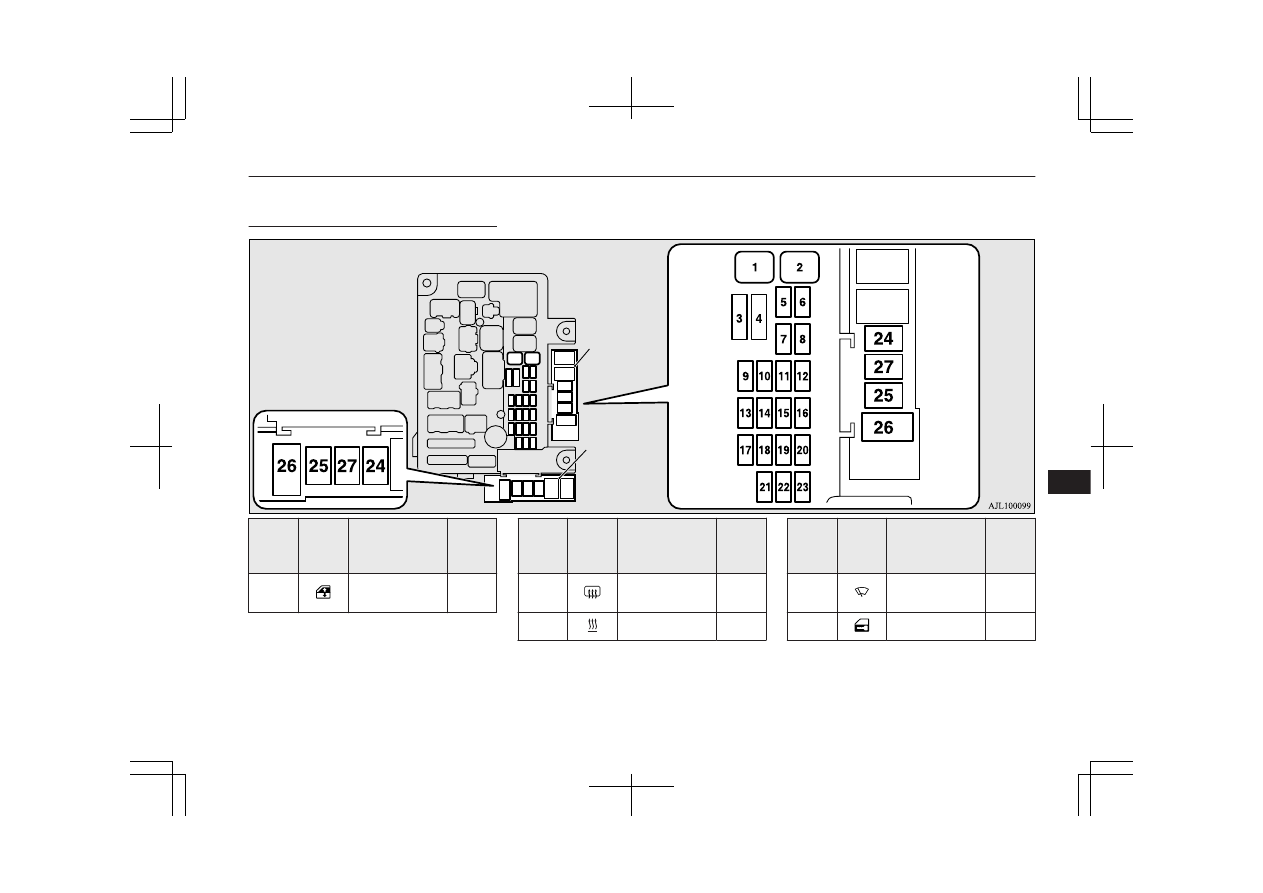

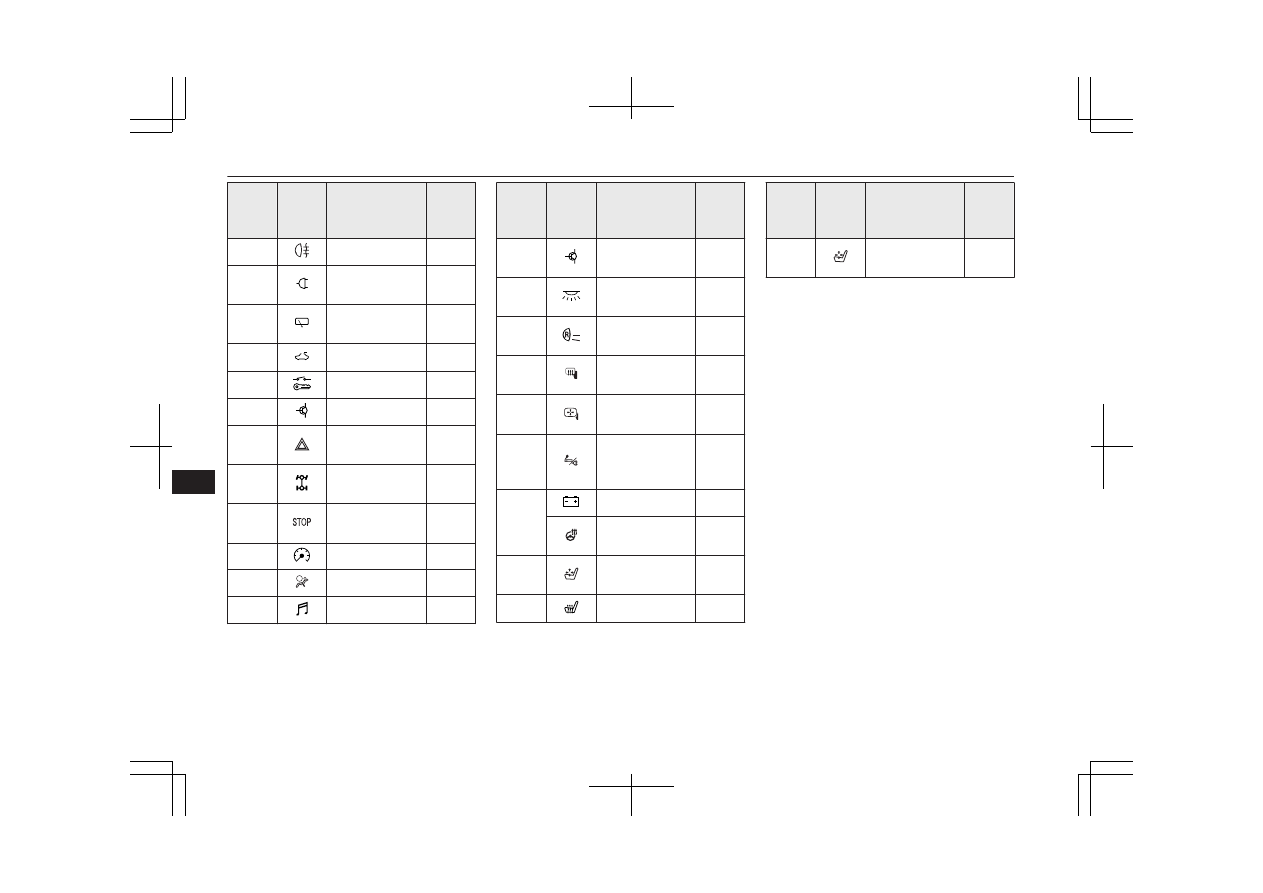

Passenger compartment fuse lo-
cation table

E01007902127

Main fuse block

Sub fuse block
(LHD)

Sub fuse block
(RHD)

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Electric window

control

30 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Rear window

demister

30 A

Heater

30 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Windscreen wip-

ers

30 A

Door locks

20 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

Fuses

11-19

OGGE19E1

Maintenance

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Rear fog lamp

10 A

Accessory sock-

15 A

Rear window

wiper

15 A

Sunroof

20 A

Ignition switch

10 A

Option

10 A

Hazard warning

flasher

15 A

4-wheel drive

system

10 A

Stop lamps

(Brake lamps)

15 A

Instruments

10 A

SRS airbag

7.5 A

Radio

15 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Control unit re-

lay

7.5 A

Interior lamps

(Room lamps)

15 A

Reversing lamps

(Backup lamps)

7.5 A

Heated door

mirror

7.5 A

Outside rear-

view mirrors

10 A

Cigarette lighter/

Accessory sock-

15 A

Charge

7.5 A

Heated steering

wheel

15 A

Power seat

(Driver seat)

30 A

Heated seat

30 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

No.

Sym-

bol

Electrical sys-

tem

Ca-

paci-

ties

Power seat (Pas-

senger seat)

30 A

: Fusible link

: Even if your vehicle is equipped with the

rear fog lamp, the fuse of the rear fog lamp
may not be installed on your vehicle.

Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.

The table above shows the main equip-
ment corresponding to each fuse.

Fuses

11-20

OGGE19E1

Maintenance

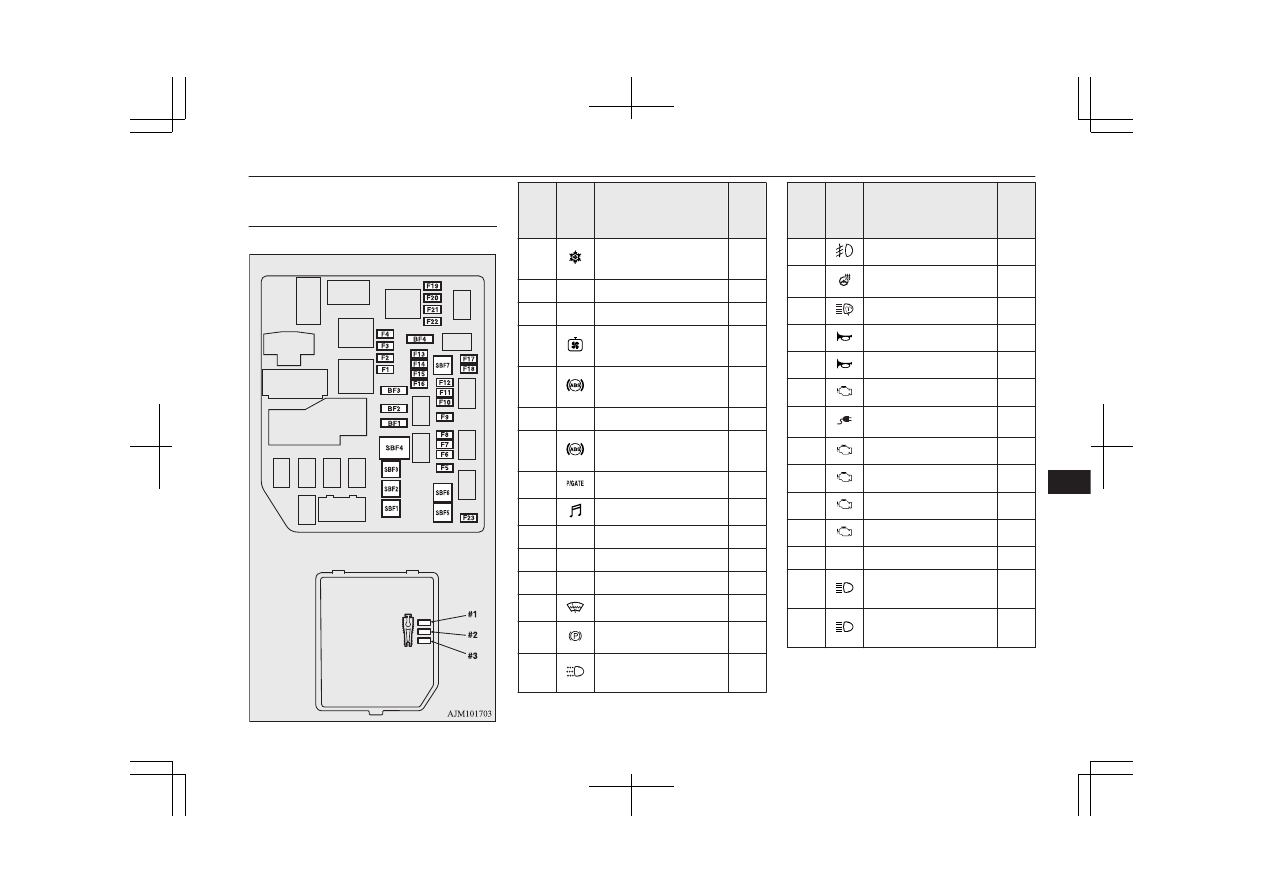

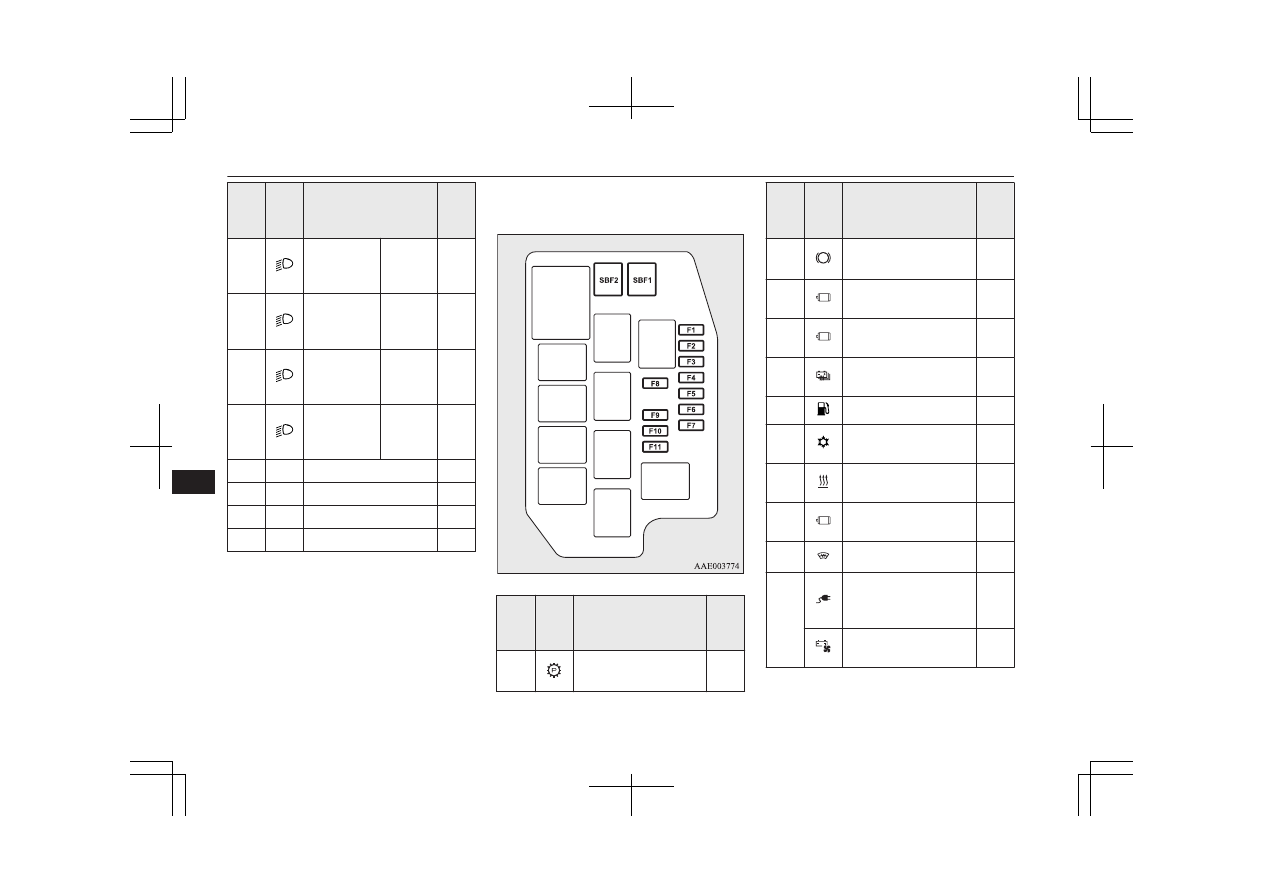

Engine compartment fuse loca-
tion table

E01008002402

Main fuse block

Behind of the fuse block cover

No.

Sym-

bol

Electrical system

Ca-

paci-

SBF1

Air conditioning con-

denser fan motor

SBF2

—

SBF3

—

SBF4

Radiator fan motor

SBF5

Anti-lock brake system

SBF6

—

SBF7

Anti-lock brake system

BF1

Electric tailgate

30 A

BF2

Audio system amp

30 A

BF3 IOD

IOD

30 A

BF4

—

Wiper de-icer

15 A

Electric parking brake 7.5 A

Daytime running

lamps

10 A

: Fusible link

No.

Sym-

bol

Electrical system

Ca-

paci-

Front fog lamps

15 A

Heated steering wheel 15 A

Headlamp washer

20 A

Security horn

20 A

Horn

10 A

F10

ETV

15 A

F11

Charging lid lock

15 A

F12

Engine

7.5 A

F13

ENG/POWER

20 A

F14

Fuel pump

15 A

F15

Ignition coil

10 A

F16

—

F17

Headlamp high-beam

(left)

10 A

F18

Headlamp high-beam

(right)

10 A

: Fusible link

Fuses

11-21

OGGE19E1

Maintenance

No.

Sym-

bol

Electrical system

Ca-

paci-

F19

Headlamp

low beam

(left)

LED

20 A

F20

Headlamp

low beam

(right)

LED

20 A

F21

Headlamp

low beam

(left)

Halogen 10 A

F22

Headlamp

low beam

(right)

Halogen 10 A

F23

—

Spare fuse

10 A

—

Spare fuse

15 A

—

Spare fuse

20 A

: Fusible link

Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.

The table above shows the main equip-
ment corresponding to each fuse.

Sub fuse block

No.

Sym-

bol

Electrical system

Ca-

paci-

SBF1

Electrical Parking

Lock

: Fusible link

No.

Sym-

bol

Electrical system

Ca-

paci-

SBF2

Vacuum pump (Regen-

erative brake)

Water pump (Electric

motor)

20 A

Battery management

unit

7.5A

Drive battery PTC

heater

15A

Fuel tank filler door

7.5 A

Solenoid valve (Air

conditioning)

7.5 A

Water pump (Air con-

ditioning)

7.5 A

Electric motor unit

control

10 A

Heated windscreen

7.5 A

Power feeder and

charger connector

(12V)

10 A

Drive battery fun mo-

tor

15 A

: Fusible link

Fuses

11-22

OGGE19E1

Maintenance

No.

Sym-

bol

Electrical system

Ca-

paci-

F10

Ignition control

15 A

F11

Ignition control

7.5 A

: Fusible link

Some fuses may not be installed on your
vehicle, depending on the vehicle model
or specifications.

The table above shows the main equip-
ment corresponding to each fuse.

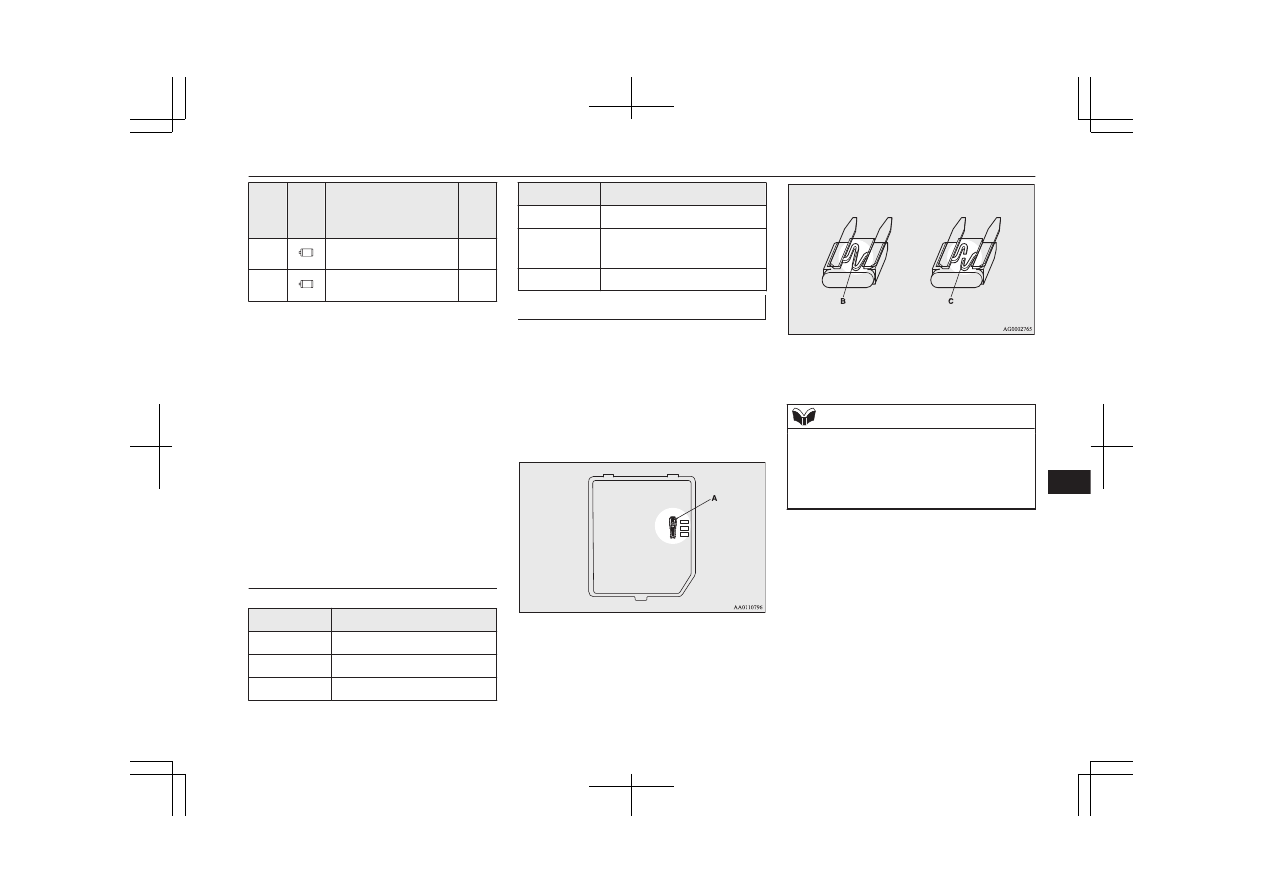

The fuse block does not contain spare 7.5 A
or 30 A fuses. If one of these fuses burns out,
substitute with the following fuse.
7.5 A: 10 A spare fuse
30 A: 30 A audio system amp fuse
When using a substitute fuse, replace with a
fuse of the correct capacity as soon as possi-
ble.

Identification of fuse

E01008101389

Capacity

Colour

7.5 A

Brown

10 A

Red

15 A

Blue

Capacity

Colour

20 A

Yellow

30 A

Green (fuse type) / Pink (fu-

sible link type)

40 A

Green (fusible link type)

Fuse replacement

E01007801884

1. Before replacing a fuse, always turn off

the electrical circuit concerned and put
the operation mode of the power switch
in OFF.

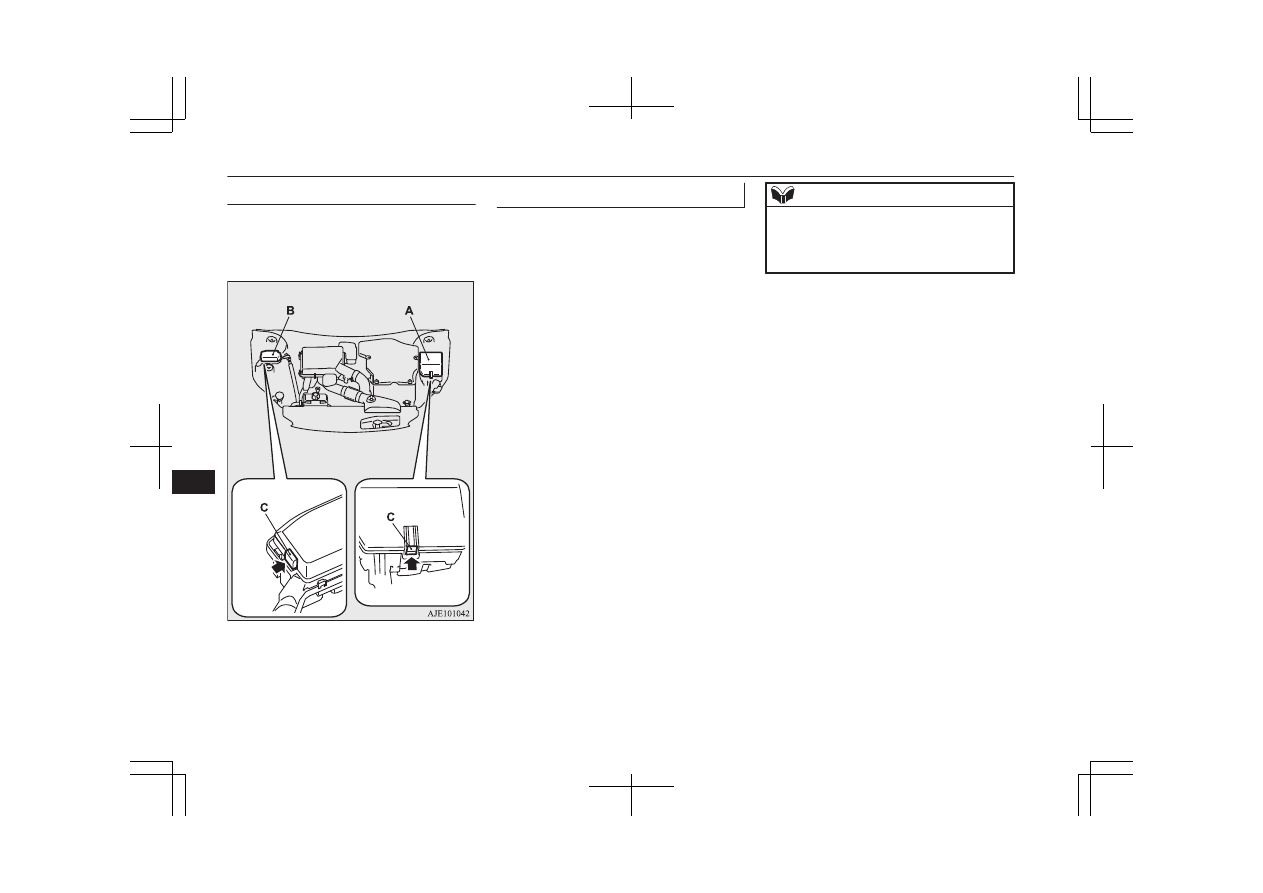

2. Remove the fuse puller (A) from the in-

side of the main fuse block cover in the
engine compartment.

3. Referring to the fuse load capacity table,

check the fuse pertaining to the problem.

B- Fuse is OK
C- Blown fuse

NOTE

If any system does not function but the fuse
corresponding to that system is normal, there
may be a fault in the system elsewhere. We
recommend you to have your vehicle
checked.

Fuses

11-23

OGGE19E1

Maintenance

4. Insert a new fuse of the same capacity

by using the fuse puller into the same
place in the fuse block.

CAUTION

If the newly inserted fuse blows again after a
short time, we recommend you to have the
electrical system checked to find the cause
and rectify it.

Never use a fuse with a larger capacity than
specified or a substitute (such as a cable or
foil). Doing so could cause the circuit wires
to overheat and create a fire.

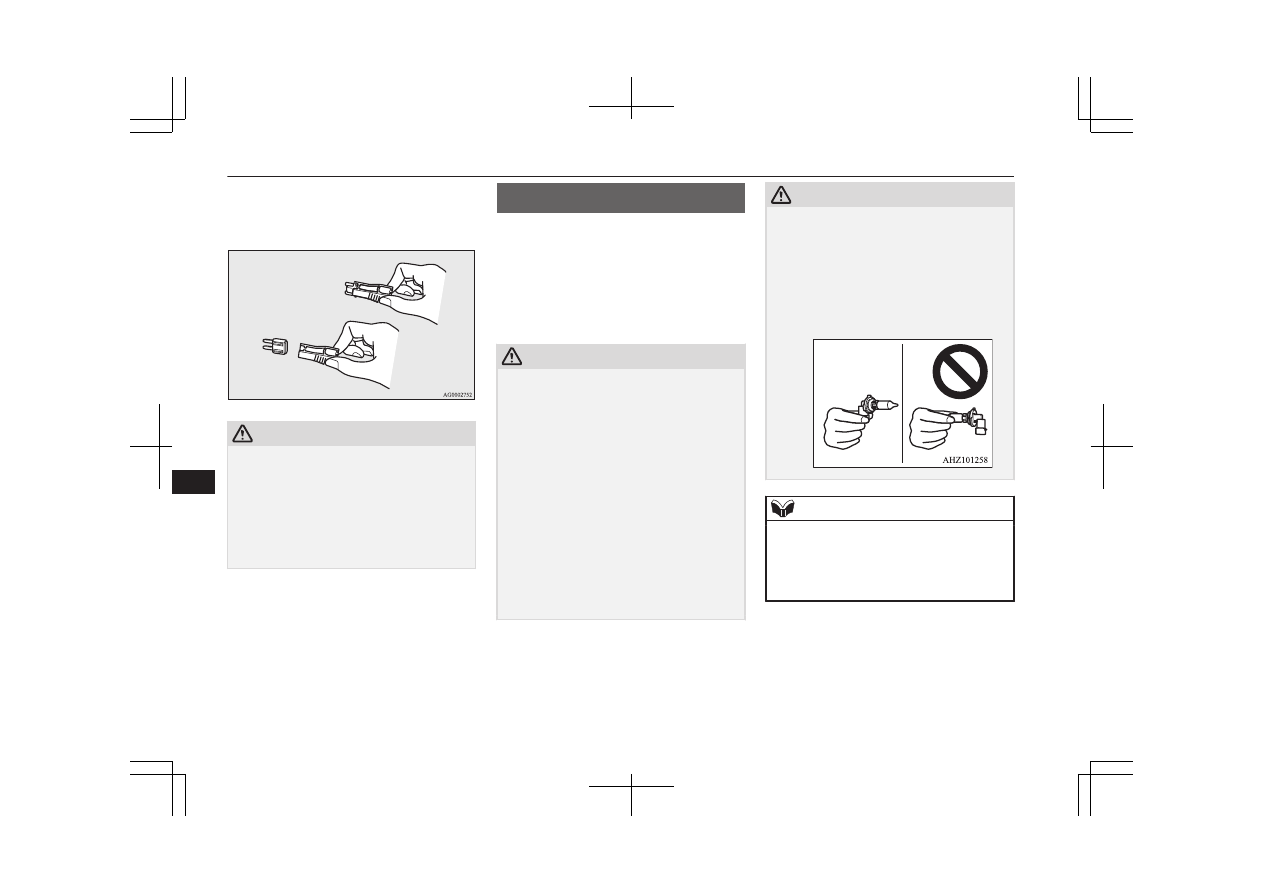

Replacement of lamp bulbs

E01003102004

Before  replacing  a  bulb,  ensure  the  lamp  is
off.  Do  not  touch  the  glass  part  of  the  new
bulb  with  your  bare  fingers;  the  skin  oil  left
on  the  glass  will  evaporate  when  the  bulb
gets hot and the vapour will condense on the
reflector and dim the surface.

CAUTION

Do not install commercially available LED-
type bulbs.
Commercially  available  LED-type  bulbs
could  adversely  affect  the  operation  of  the
vehicle, such as by preventing the lamps and
other  vehicle  equipment  from  operating
properly.

Bulbs  are  extremely  hot  immediately  after
being turned off.
When  replacing  a  bulb,  wait  for  it  to  cool
sufficiently  before  touching  it.  You  could
otherwise be burnt.

Handle  halogen  lamp  bulbs  with  care.  The
gas  inside  a  halogen  lamp  bulbs  is  highly
pressurized,  so  dropping,  knocking,  or
scratching a halogen lamp bulb can cause it
to shatter.

CAUTION

Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb
to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and
refit it after drying thoroughly.

NOTE

If you are unsure of how to carry out the
work as required, we recommend you to
consult a specialist.

Be careful not to scratch the vehicle body
when removing a lamp or lens.

Replacement of lamp bulbs

11-24

OGGE19E1

Maintenance

Mitsubishi Outlander PHEV (2019 year). Instruction - part 30
