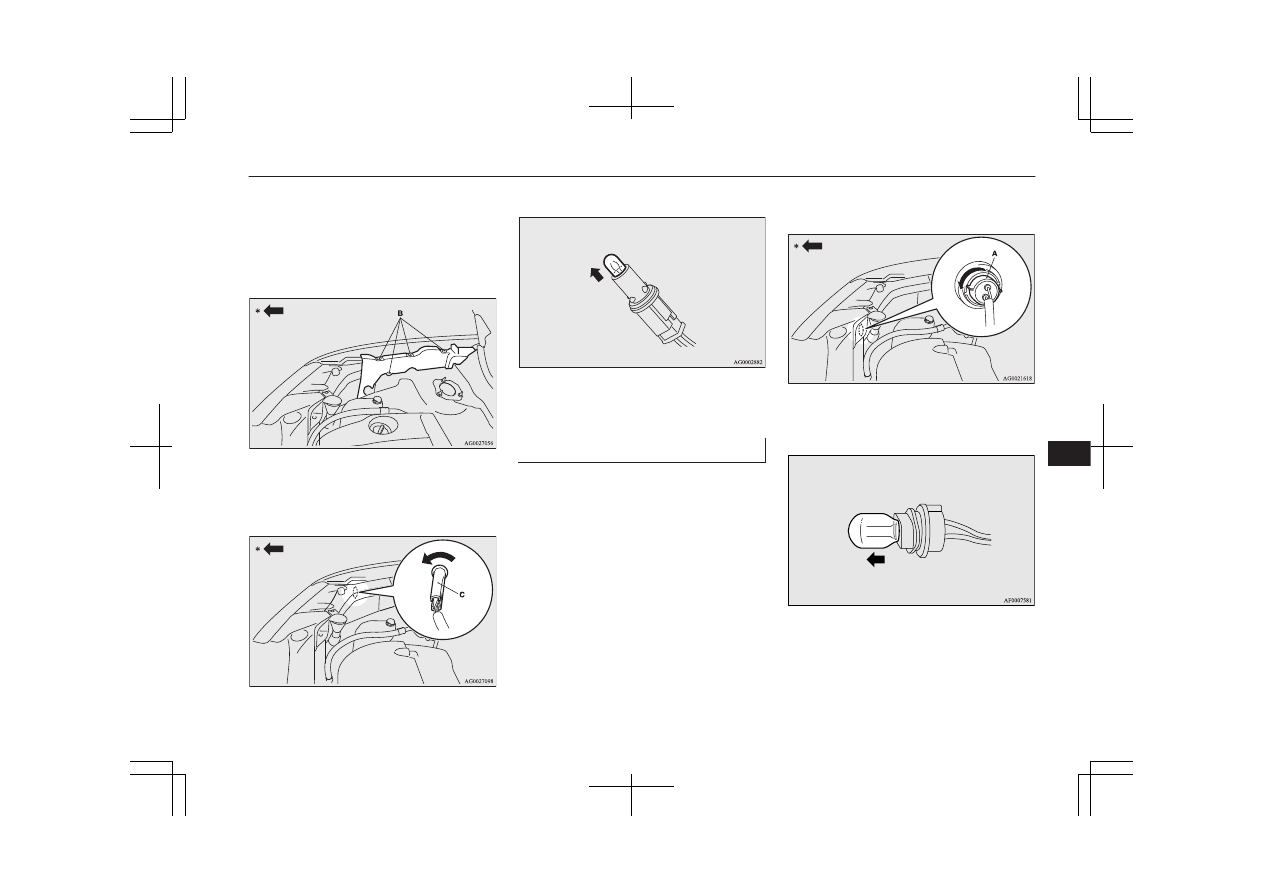

2. Turn the cap (B) anticlockwise to re-

move it.

*: Front of the vehicle

3. Turn the bulb (C) anticlockwise to re-

move it.

*: Front of the vehicle

4. While holding down the tab (D), pull out

the socket (E).

5. To install the bulb, perform the removal

steps in reverse.

CAUTION

Handle halogen lamp bulbs with care. The
gas inside halogen lamp bulbs is highly pres-
surized, so dropping, knocking, or scratching
a halogen lamp bulb can cause it to shatter.

Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb
to break the next time the headlamps are op-
erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.

Position lamps (type 1)

E01003702619

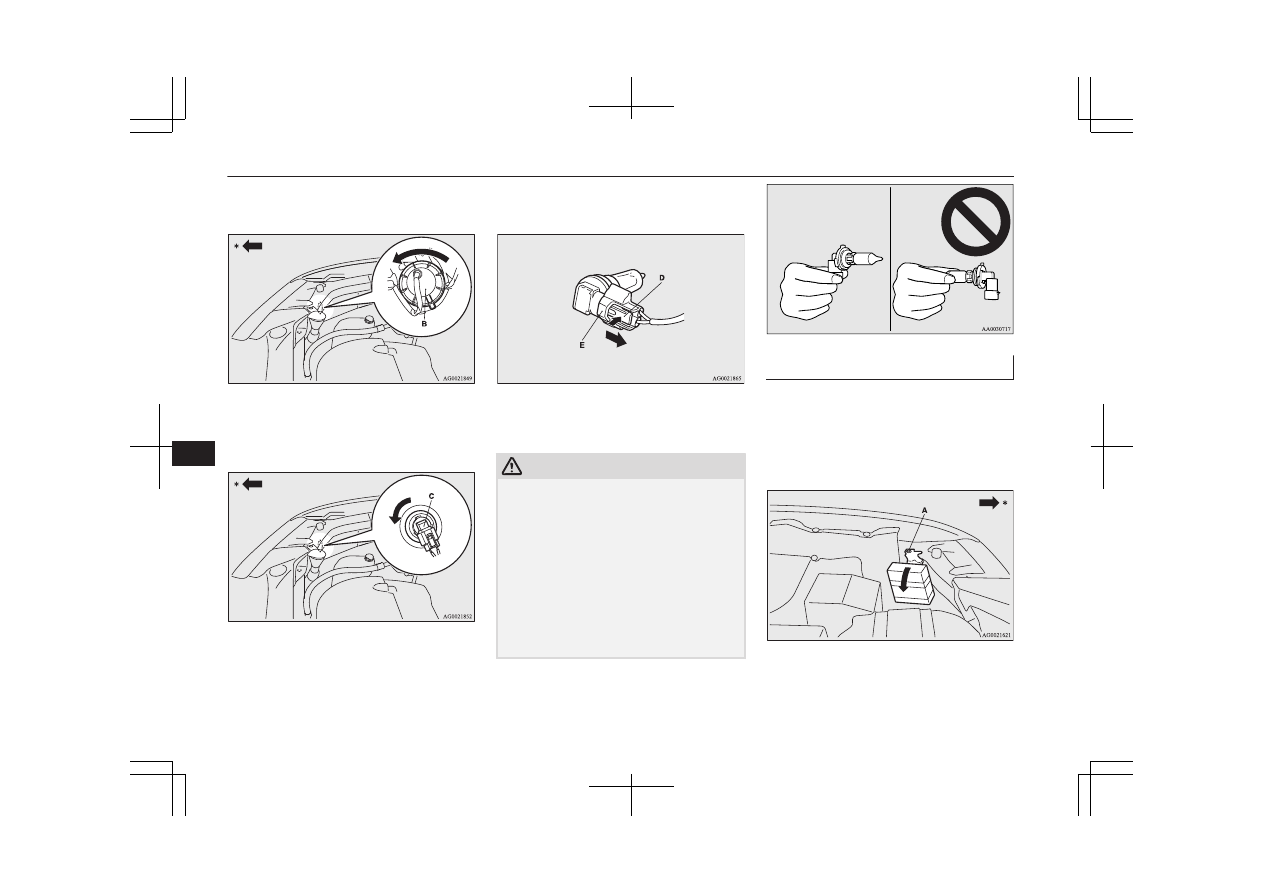

1. When replacing the bulb on the left side

of the vehicle in the case of diesel-pow-
ered vehicles, remove the bolt (A) hold-
ing down the relay box and move the re-
lay box towards the rear of the vehicle.

*: Front of the vehicle

Replacement of lamp bulbs

10-30

OGAE18E1

Maintenance

2. When replacing the bulb on the right

side of the vehicle in the case of diesel-
powered  vehicles,  remove  the  clips  (B)
by  prying  with  a  straight  blade  (or  mi-
nus)  screwdriver,  and  remove  the  side
cover.

*: Front of the vehicle

3. Turn the socket (C) anticlockwise to re-

move it.

*: Front of the vehicle

4. Pull the bulb out of the socket.

5. To install the bulb, perform the removal

steps in reverse.

Front turn-signal lamps

E01003800922

To remove

1. Remove the upper cover.

For information regarding how to re-
move the upper cover, refer to “Remov-
ing and installing the upper cover and
duct” on page 10-10.

2. Remove the entire socket and bulb as-

sembly (A) by turning it anticlockwise.

*: Front of the vehicle

3. Remove the bulb by pulling it out.

To install

1. To install the bulb, perform the removal

steps in reverse.

Replacement of lamp bulbs

10-31

OGAE18E1

Maintenance

2. Install the upper cover.

For information regarding how to install
the upper cover, refer to “Removing and
installing the upper cover and duct” on
page 10-10.

Side turn-signal lamps (on

fender)*

E01003900516

NOTE

For the side turn-signal lamps (on fender), it
is  not  possible  to  repair  or  replace  just  the
bulb.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  when  there  is  a  need  for
repair or replacement.

Side turn-signal lamps (on out-

side rear-view mirror)*

E01003900529

NOTE

An LED, not a bulb, is used in the side turn-
signal lamps (on outside rear-view mirror).
Contact a MITSUBISHI MOTORS Author-
ized Service Point when there is a need for
repair or replacement.

Front fog lamps*

E01004003603

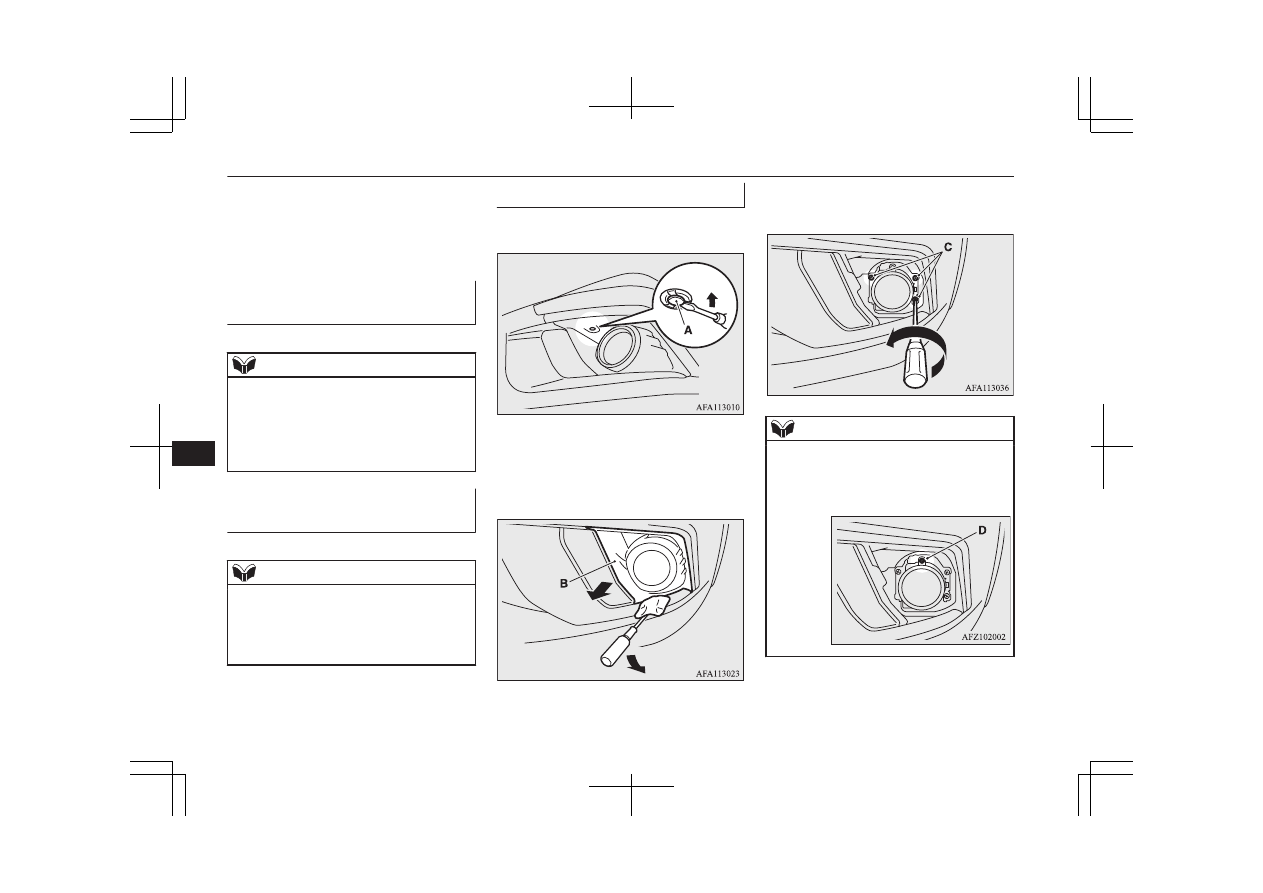

1. Remove the clip (A).

2. Insert a straight blade (or minus) screw-

driver with a cloth over its tip into the
fog lamp cover (B) and pry gently to re-
move it.

3. Remove the screws (C) and remove the

lamp unit.

NOTE

Except for vehicles equipped with daytime
running lamps, when unfastening the screws,
be careful not to move the beam position ad-
justment screw (D).

Replacement of lamp bulbs

10-32

OGAE18E1

Maintenance

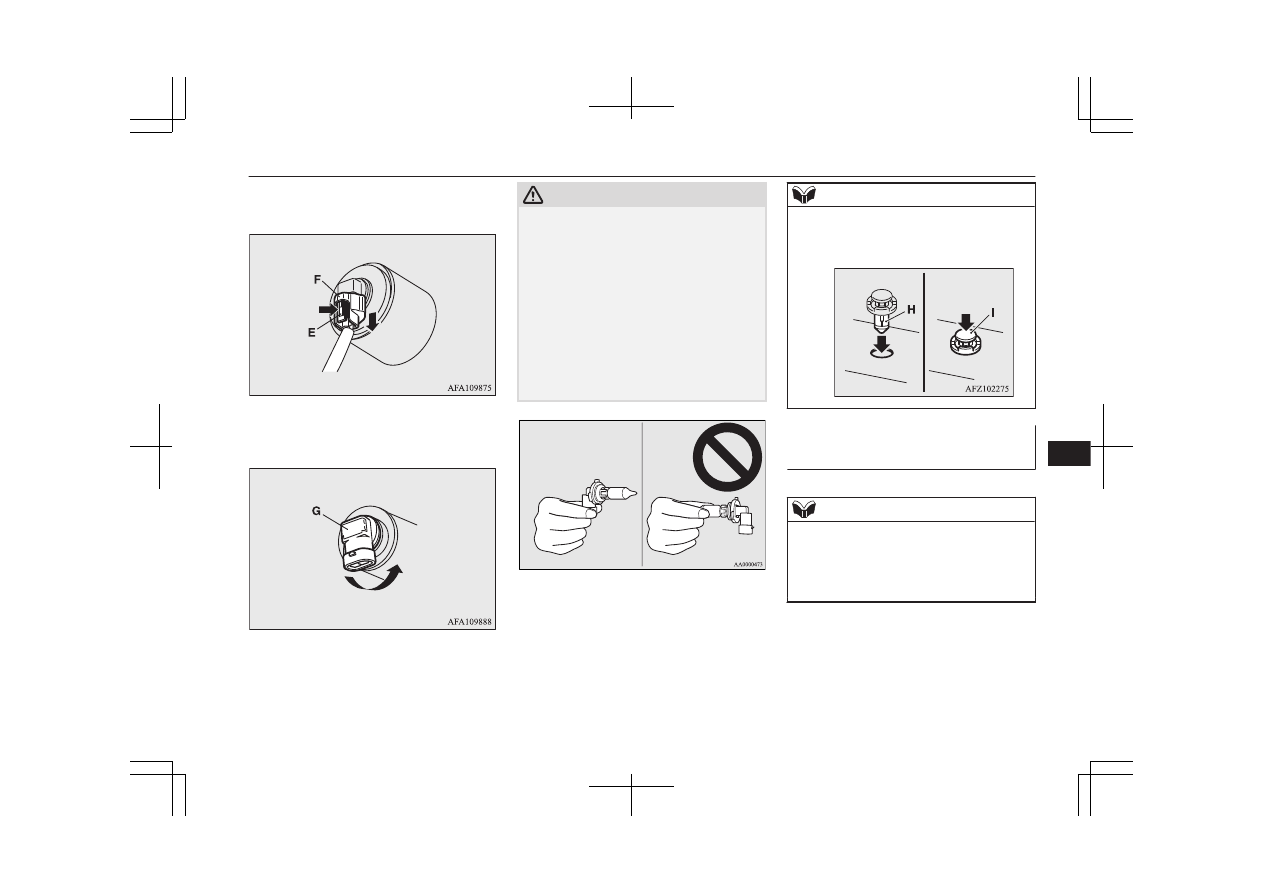

4. While holding down the tab (E), pull out

the socket (F).

5. Turn the bulb (G) anticlockwise to re-

move it.

6. To install the bulb, perform the removal

steps in reverse.

CAUTION

Handle  halogen  lamp  bulbs  with  care.  The
gas  inside  a  halogen  lamp  bulbs  is  highly
pressurized,  so  dropping,  knocking,  or
scratching a halogen lamp bulb can cause it
to shatter.

Never hold the halogen lamp bulb with a
bare hand, dirty glove, etc.
The oil from your hand could cause the bulb
to break the next time the fog lamps are op-
erated.
If the glass surface is dirty, it must be
cleaned with alcohol, paint thinner, etc., and
refit it after drying it thoroughly.

NOTE

When refitting the clip, first insert part (H)
of the clip into the hole and then press part
(I) into it.

Daytime running lamps* / Posi-

tion lamps (Type 2)*

E01012400096

NOTE

The  daytime  running  lamps/position  lamps
(Type  2)  use  an  LED  instead  of  a  bulb.
Check  with  a  MITSUBISHI  MOTORS  Au-
thorized Service Point when the lamp needs
to be repaired or replaced.

Replacement of lamp bulbs

10-33

OGAE18E1

Maintenance

Rear fog lamp

E01004101730

NOTE

The rear fog lamp uses an LED instead of a
bulb. Check with a MITSUBISHI MOTORS
Authorized Service Point when the lamp
needs to be repaired or replaced.

Rear combination lamps

E01004203009

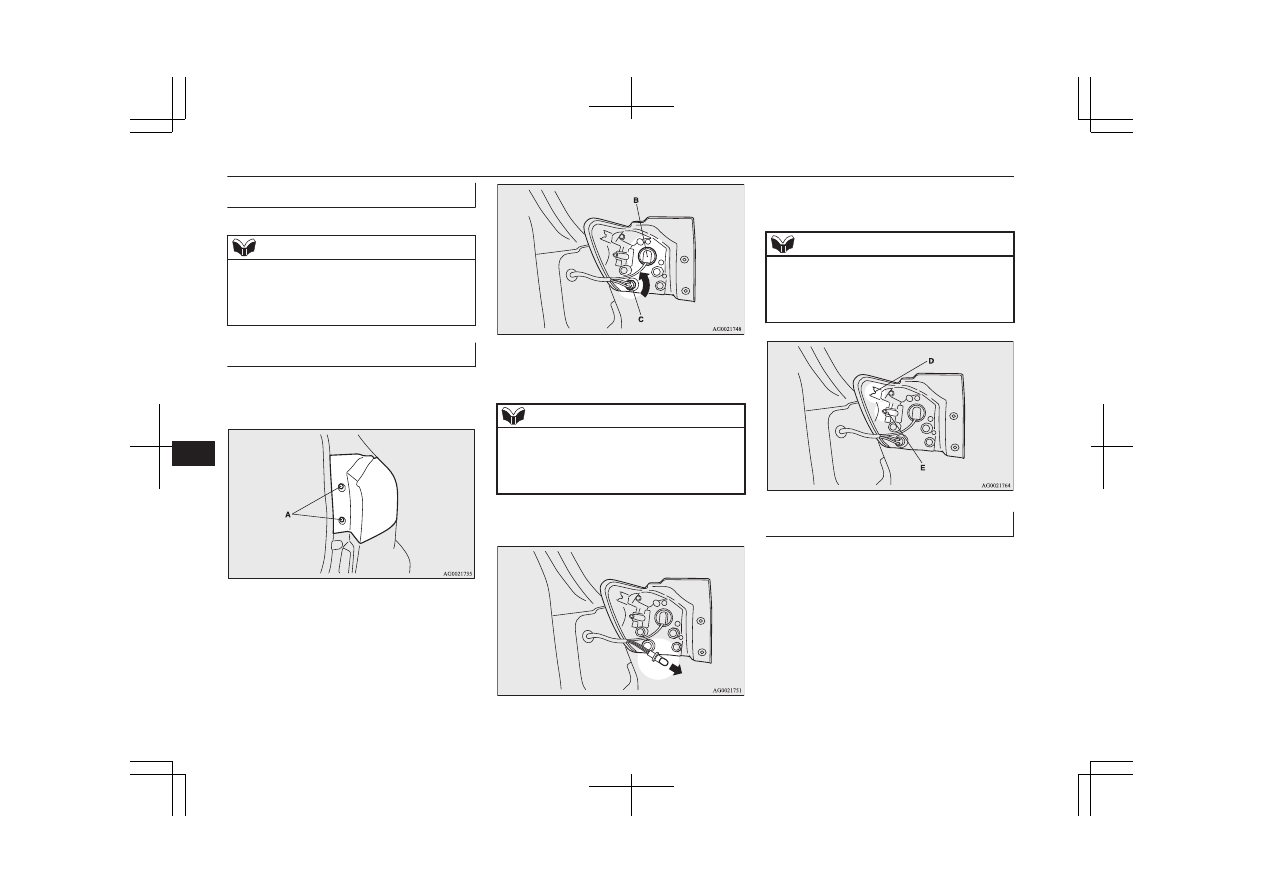

1. Remove the screws (A) that hold the

lamp unit and remove the lamp unit.

2. Turn the socket and bulb assembly anti-

clockwise to remove it.

B- Stop and tail lamp (LED) - cannot be
replaced
C- Rear turn-signal lamps

NOTE

An  LED,  not  a  bulb,  is  used  in  the  stop
lamp/tail  lamp.  Contact  a  MITSUBISHI
MOTORS  Authorized  Service  Point  when
there is a need for repair or replacement.

3. Pull the bulb out of the socket.

4. To install the bulb, perform the removal

steps in reverse.

NOTE

When mounting the lamp unit, align the
groove (D) on the lamp unit with the clip on
the body and the pin (E) on the unit with the
hole in the body.

Reversing lamps

E01004401430

1. Open the tailgate.

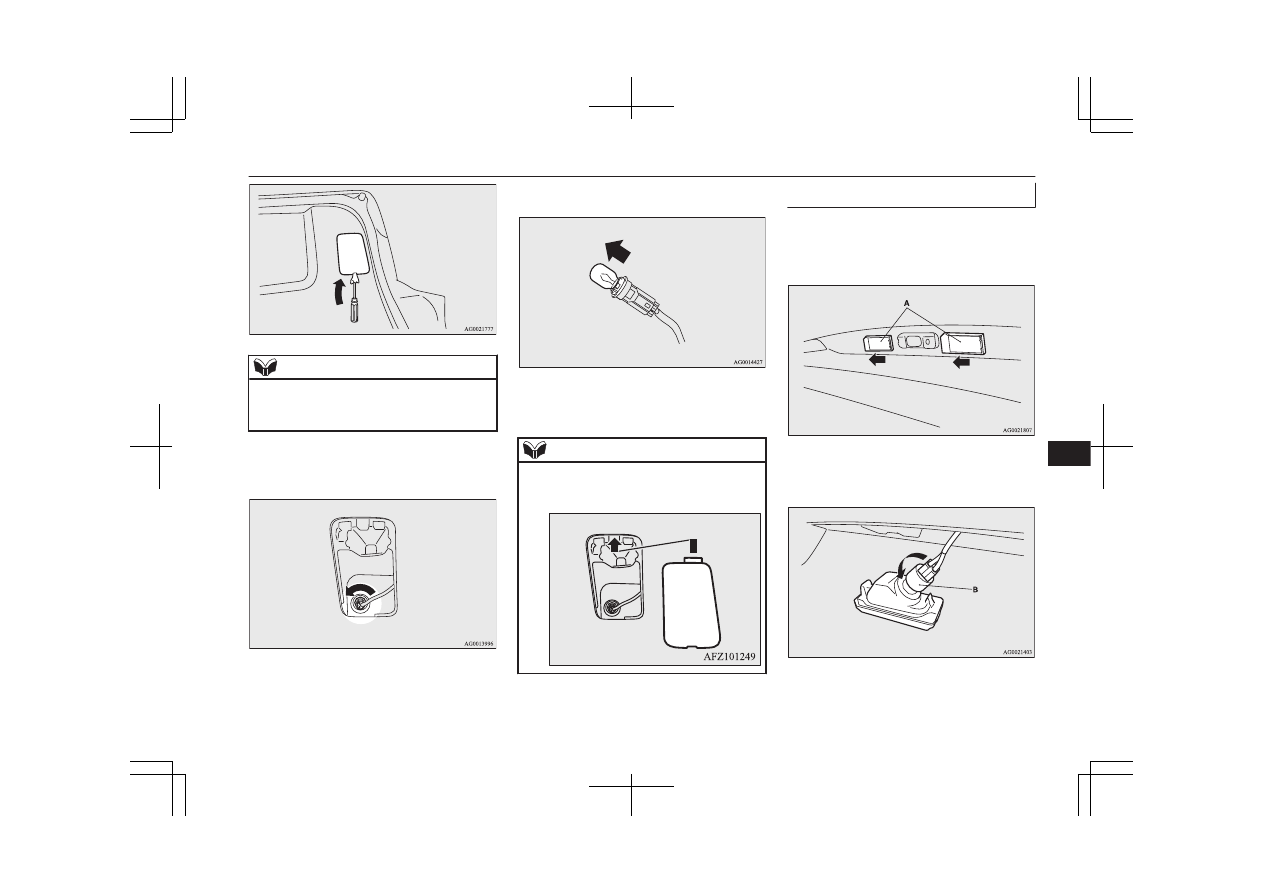

2. Insert a straight blade (or minus) screw-

driver into the notch of the cover and pry
gently to remove the cover.

Replacement of lamp bulbs

10-34

OGAE18E1

Maintenance

NOTE

Wrap a piece of cloth around the tip of the
screwdriver in order to avoid scratching the
cover.

3. Remove the socket and bulb assembly

by turning it anticlockwise.

4. Remove the bulb by pulling it out.

5. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the lid, align the tab on the
lid with the hole on the vehicle side.

Licence plate lamps

E01004602093

1. When removing the lamp unit (A), push

it towards the left side of the vehicle
body.

2. Remove the socket (B) and bulb assem-

bly by turning it anticlockwise.

Replacement of lamp bulbs

10-35

OGAE18E1

Maintenance

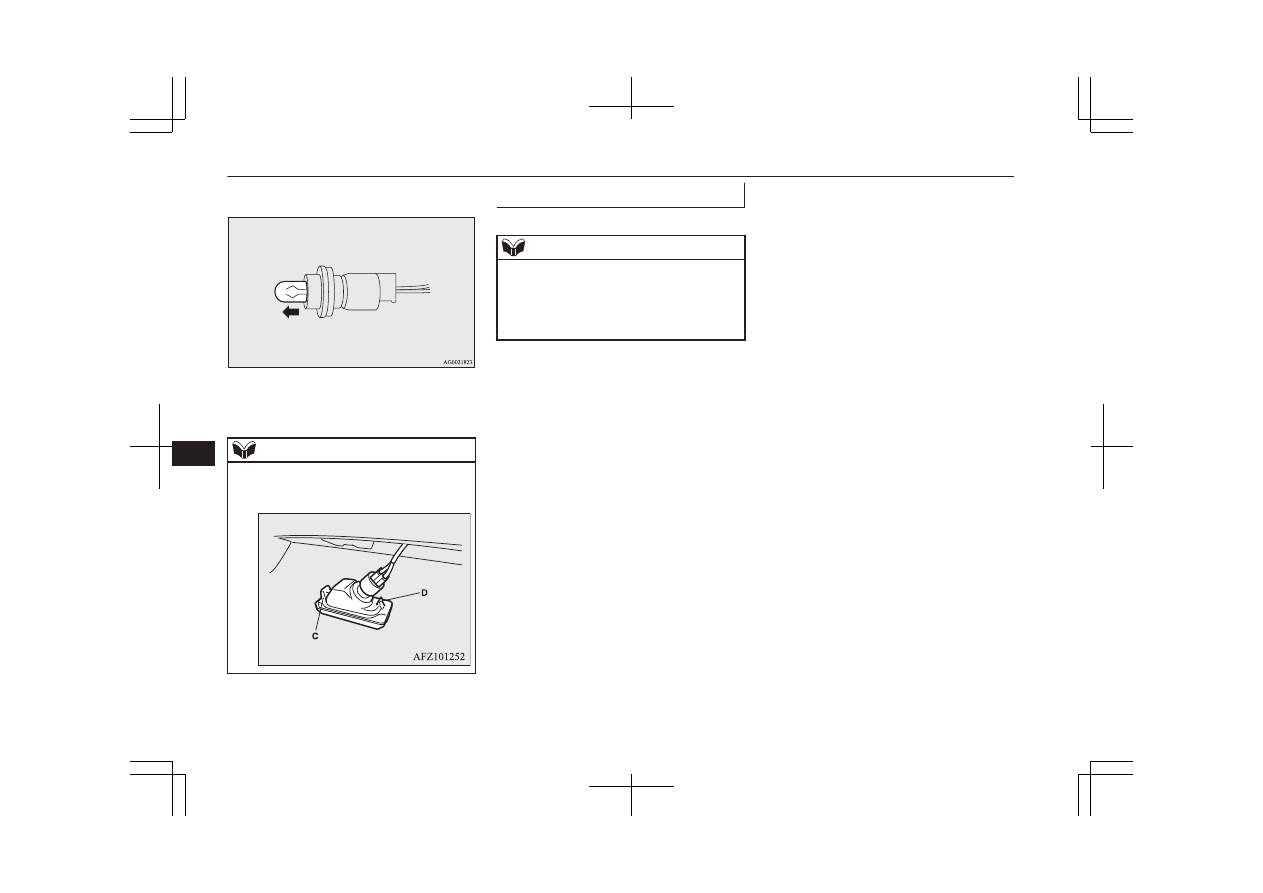

3. Remove the bulb by pulling it out.

4. To install the bulb, perform the removal

steps in reverse.

NOTE

When installing the lamp, insert tab (C) first
then align and insert tab (D).

High-mounted stop lamp

E01004500593

NOTE

An  LED,  not  a  bulb,  is  used  in  the  high-
mounted stop lamp.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  when  there  is  a  need  for
repair or replacement.

Replacement of lamp bulbs

10-36

OGAE18E1

Maintenance

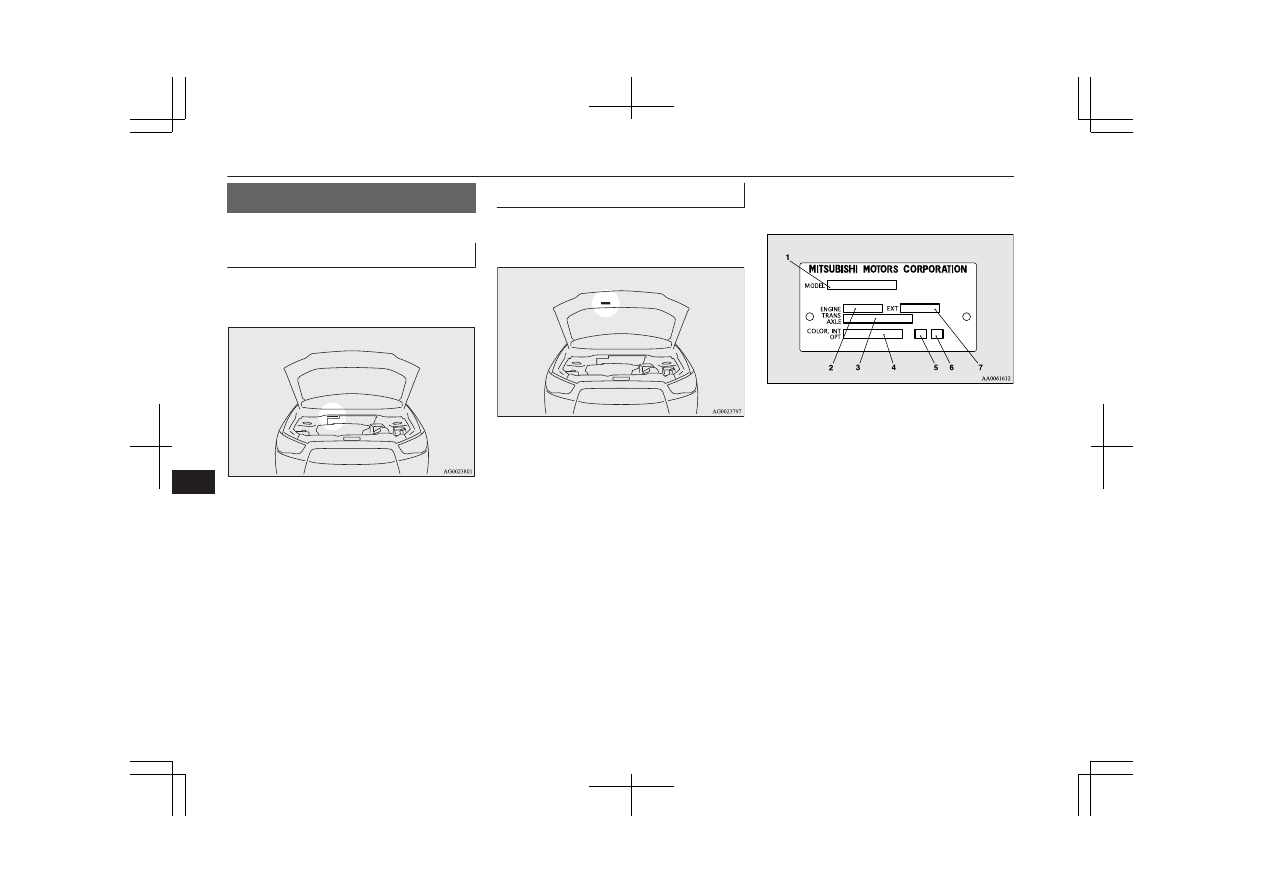

Vehicle labeling

E01100105207

Vehicle identification number

The vehicle identification number is stamped
on the bulkhead as shown in the illustration.

Vehicle information code plate

The vehicle information code plate is riveted
as shown in the illustration.

The plate shows model code, engine model,
transmission model and body colour code,
etc.

Please use this number when ordering re-
placement parts.

1- Model code
2- Engine model code
3- Transmission model code
4- Body colour code
5- Interior code
6- Option code
7- Exterior code

Vehicle labeling

11-02

OGAE18E1

Specifications

Vehicle identification number

plate (RHD vehicles only)

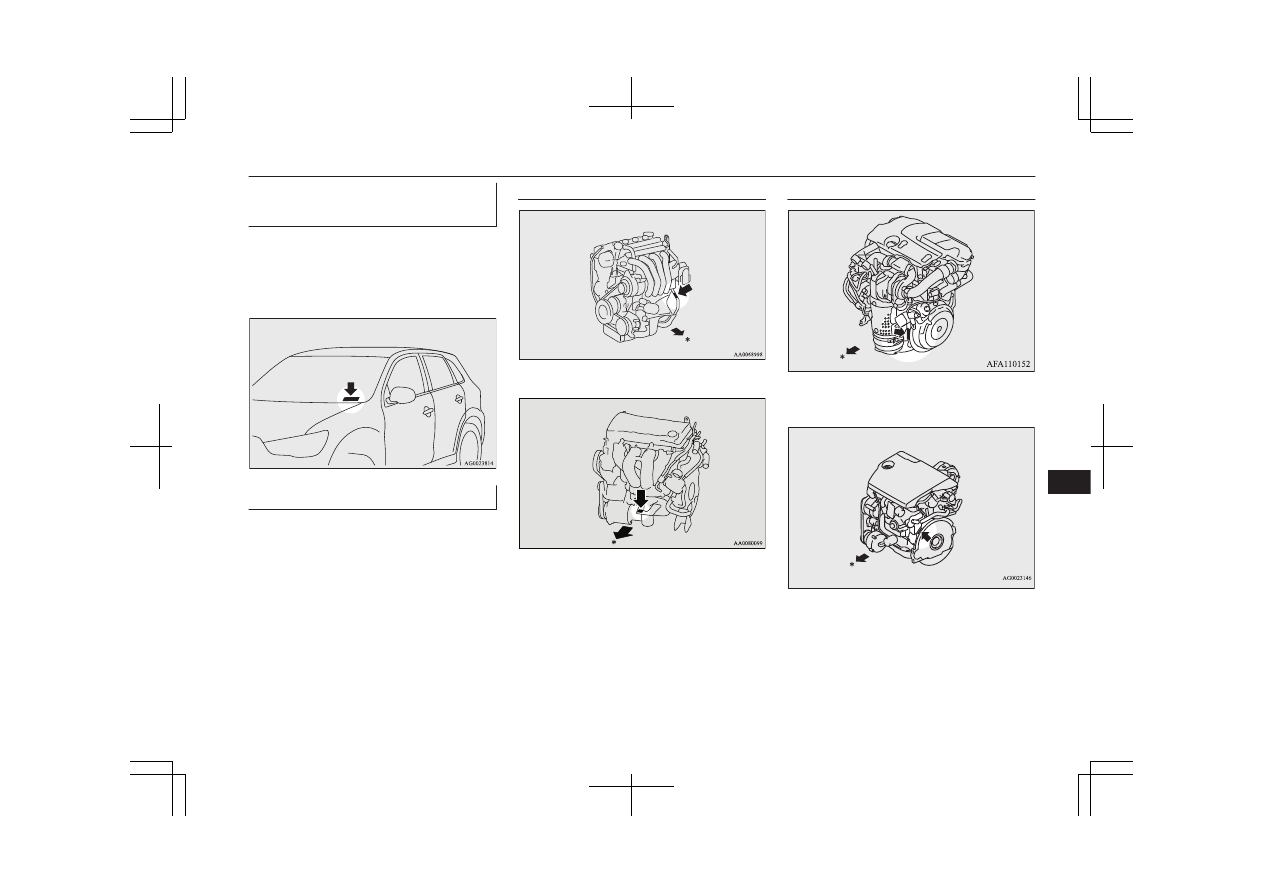

The vehicle identification number is stamped
on the plate riveted to the left front corner of
the vehicle body. It is visible from outside of
the vehicle through the windscreen.

Engine model/number

The engine model and number are stamped
on the engine cylinder block as shown in the
illustrations.

Petrol-powered vehicles

1600 models

*: Front of the vehicle

2000 models

*: Front of the vehicle

Diesel-powered vehicles

1600 models

*: Front of the vehicle

2200 models

*: Front of the vehicle

Vehicle labeling

11-03

OGAE18E1

Specifications

Item

Vehicles for Russia, Kazakhstan,

Moldova and Ukraine

Except for vehicles for Russia,

Kazakhstan, Moldova and Uk-

raine

Vehicles with

16 or 17 inch

tyre

Vehicles with

18 inch tyre

Vehicles with

16 or 17 inch

tyre

Vehicles with

18 inch tyre

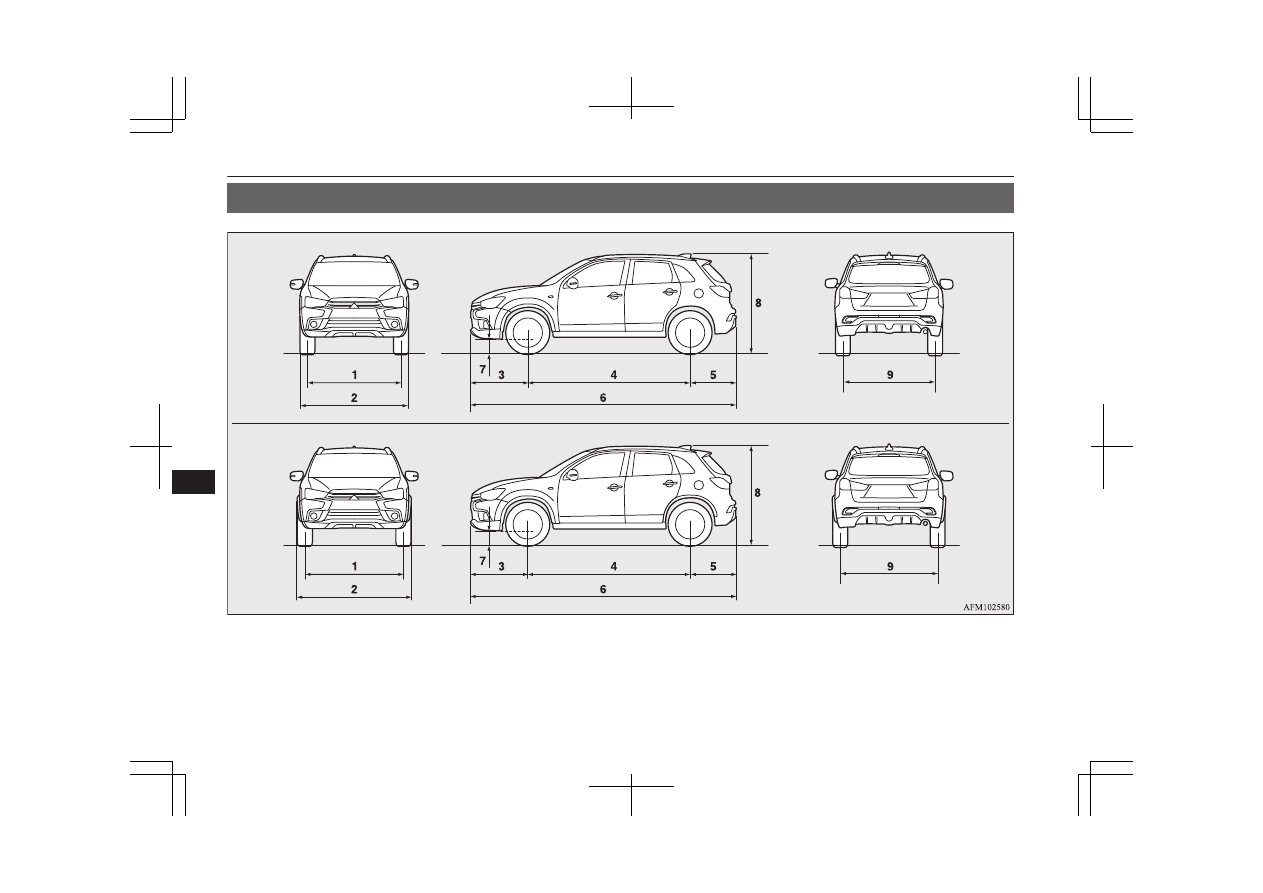

Front track

1,525 mm

1,540 mm

1,525 mm

1,545 mm

Overall width

Without wheel lip molding

—

1,770 mm

—

With wheel lip molding

1,810 mm

―

1,810 mm

Front overhang

930 mm

Wheel base

2,670 mm

Rear Overhang

765 mm

Overall length

4,365 mm

Ground clearance (unla-
den)

Petrol-powered vehicles

195 mm

215 mm

180 mm,

190 mm

Diesel-powered vehicles

—

170 mm,

180 mm

Overall height (unladen)

1,630 mm

1,645 mm

1,630 mm,

1,640 mm

Rear track

1,530 mm

1,540 mm

1,530 mm

1,545 mm

Minimum turning radius

Body

5.7 m

Wheel

5.3 m

: 215/70R16 size tyre

Vehicle dimensions

11-05

OGAE18E1

Specifications

NOTE

The overall width varies depending on whether the vehicle is equipped with wheel lip moldings.
To determine whether your vehicle is equipped with wheel lip moldings, refer to “Exterior” on page 1-12.

Vehicle performance

E01100304228

Petrol-powered vehicles

Maximum speed

1600 models

183 km/h (114 mph)

2000 models

191 km/h (119 mph)

Diesel-powered vehicles

Maximum speed

1600 models

2WD

182 km/h (113 mph)

4WD

180 km/h (112 mph)

2200 models

190 km/h (118 mph)

Vehicle performance

11-06

OGAE18E1

Specifications

Vehicle weight

E01100408780

Petrol-powered vehicles

Item

1600 models

INFORM

INVITE

INTENSE
INSTYLE

Kerb weight

Without optional parts

1,260 kg

1,260 kg, 1,290 kg

1,285 kg

With full optional parts

1,299 kg

1,299 kg, 1,306 kg

1,355 kg

Maximum gross vehicle weight

1,870 kg, 1,825 kg

Maximum axle weight

Front

930 kg

Rear

1,000 kg, 1,070 kg

Maximum towable weight

With brake

1,200 kg

Without brake

665 kg, 670 kg

Maximum trailer-nose weight

60 kg

Maximum roof load

80 kg

Seating capacity

5 persons

: Vehicles for Russia, Kazakhstan, Moldova and Ukraine

: In case of trailer towing

NOTE

Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight

11-07

OGAE18E1

Specifications

Item

2000 models

INVITE

INTENSE

Kerb weight

Without optional parts

1,440 kg

1,445 kg

With full optional parts

1,455 kg

1,512 kg

Maximum gross vehicle weight

1,970 kg, 2,035 kg

Maximum axle weight

Front

1,030 kg

Rear

1,000 kg, 1,085 kg

Maximum towable weight

With brake

1,300 kg

Without brake

745 kg

Maximum trailer-nose weight

65 kg

Maximum roof load

80 kg

Seating capacity

5 persons

: In case of trailer towing

NOTE

Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight

11-08

OGAE18E1

Specifications

Diesel-powered vehicles

Item

1600 models

2200 models

2WD

4WD

M/T

INFORM

INVITE

INTENSE
INSTYLE

INFORM

INVITE

INTENSE
INSTYLE

INFORM

INVITE

INTENSE
INSTYLE

Kerb weight

Without option-
al parts

1,355 kg

1,380 kg

1,420 kg

1,445 kg

1,520 kg

1,540 kg

With full option-
al parts

1,378 kg

1,442 kg

1,443 kg

1,507 kg

1,543 kg

1,602 kg

Maximum gross vehicle weight

1,980 kg, 2,050 kg

2,060 kg, 2,130 kg

Maximum axle
weight

Front

1,120 kg

Rear

1,000 kg, 1,090 kg

Maximum towa-
ble weight

With brake

1,400 kg

Without brake

695 kg

745 kg

750 kg

Maximum trailer-nose weight

70 kg

Maximum roof load

80 kg

Seating capacity

5 persons

: In case of trailer towing

NOTE

Trailer specifications indicate the manufacturer’s recommendation.

Vehicle weight

11-09

OGAE18E1

Specifications

Mitsubishi ASX (2018 year). Instruction - part 26
