Mitsubishi ASX (2018 year). Instruction

OGAE18E1

Ventilators

E00700100878

*: Optional equipment *

1- Centre ventilators
2- Side ventilators

NOTE

Do not place beverages on top of the instru-
ment panel.
If they splash into the air conditioning venti-
lators, they could damage the system.

Air flow and direction adjust-

ments

E00700200938

Centre ventilators

Move the knob (A) to adjust the air flow di-
rection.

To close the ventilator, fully move the knob
(A) to the inner side.

1- Close
2- Open

Side ventilators

Move the knob (A) to adjust the air flow di-
rection.

To close the ventilator, fully move the knob
(A) to the outer side.

Left

Right

1- Close
2- Open

NOTE

On  vehicles  with  air  conditioning,  the  cool
air  from  the  ventilators  may  appear  as  a
mist.
This  is  due  to  moist  air  being  suddenly
cooled  by  the  air  conditioning.  This  will
clear after a few moments.

Be careful not to spill drinks, etc., into the
ventilators.
Doing so might cause the air conditioning
not to function normally.

Ventilators

7-02

OGAE18E1

For pleasant driving

Mode selection dial

E00726501688

To change the amount of air flowing from the
ventilators, turn the mode selection dial.

Heater/
Manual air conditioning

Automatic air conditioning

Face position

Air flows only to the upper part of the pas-
senger compartment.

Foot/face position

Air flows to the upper part of the passenger
compartment, and flows to the leg area.

Foot position

Air flows mainly to the leg area.

Foot/demister position

Air flows to the leg area, the windscreen and
the door windows.

Demister position

Air flows mainly to the windscreen and the
door windows.

CAUTION

When using the mode selection dial between
the “

” and “

” positions, prevent fog-

ging by pressing the air selection switch to
select outside air. (Refer to “Air selection
switch” on page 7-05.)

NOTE

For vehicles equipped with the Auto Stop &
Go  (AS&G)  system,  the  windscreen  and
door windows may mist up while the AS&G
system  is  operating.  If  the  windscreen  and
door  windows  mist  up,  set  the  mode  selec-
tion  dial  to  “

” to demist the windscreen

and door windows.

With the mode selection dial between the
“

” and “

” positions, the air flows

mainly  to  the  upper  part  of  the  passenger
compartment.  With  the  mode  selection  dial
between  the  “

” and “

” positions, the

air flows mainly to the leg area.

With the mode selection dial in the “

” po-

sition, a small amount of air flows to the
windscreen and the door windows.

NOTE

With the mode selection dial between the
“

” and “

” positions, the air flows

mainly to the leg area. With the mode selec-
tion dial between the “

” and “

” posi-

tions, the air flows mainly to the windscreen
and door windows.

Heater/Air conditioning

E00700501693

The heater/air conditioning can only be used
while the engine is running.

CAUTION

The engine speed may increase when the air
conditioning is operating.
With  an  increased  engine  speed,  an  A/T  or
CVT  vehicle  will  creep  to  a  greater  degree
than  with  a  lower  engine  speed.  Fully  de-
press the brake pedal to prevent the vehicle
from creeping.

Heater/Air conditioning

7-03

OGAE18E1

For pleasant driving

Control panel

E00700601678

Heater/Manual air conditioning

Automatic air conditioning

A- Temperature control dial

B- Air selection switch
C- Blower speed selection dial

D- Air conditioning switch

E- Mode selection dial

F- Rear window demister switch

® p. 5-64

NOTE

On  vehicles  with  the  heater,  button  (D)  is
not  available  for  use.  The  indicator  below
the  button  doesn’t  come  on  even  if  it  is
pushed.

NOTE

On vehicles with automatic air conditioning,
there is an interior air temperature sensor
(G) in the illustrated position.
Never place anything over the sensor, since
doing so will prevent it from functioning
properly.

Blower speed selection dial

E00700700249

Select the blower speed by turning the blower
speed selection dial clockwise or anticlock-
wise.

Turn the dial clockwise to increase the air
flow and anticlockwise to decrease the air
flow.

Heater/
Manual air conditioning

Automatic air conditioning

Temperature control dial

E00700901453

Turn the temperature control dial clockwise
or anticlockwise.

Heater/
Manual air conditioning

Automatic air conditioning

Heater/Air conditioning

7-04

OGAE18E1

For pleasant driving

NOTE

While the engine coolant temperature is low,
the temperature of the air from the heater
will be cool/cold until the engine warms up,
even if you have selected warm air with the
dial.

On  vehicles  with  the  automatic  air  condi-
tioning,  when  the  temperature  is  set  to  the
highest  or  the  lowest  setting  under  the  AU-
TO  operation,  the  air  selection  and  the  air
conditioning  will  be  automatically  changed
as follows.

•

Quick Heating (When the temperature is
set to the highest setting)
Outside air will be introduced and the air
conditioning will stop.

•

Quick Cooling (When the temperature is
set to the lowest setting)
Inside air will be recirculated and the air
conditioning will operate.

The  settings  described  above  are  the  factory
settings.  The  air  selection  and  air  condition-
ing switches can be customized (function set-
ting changed), and the automatic switching of
outside air and the air conditioning according
to operating conditions can be changed as de-
sired.
For  further  information,  we  recommend  you
to  consult  a  MITSUBISHI  MOTORS  Au-
thorized Service Point.
Refer  to  “Customizing  the  air  conditioning
switch (Automatic air conditioning)” on page
7-07.

Refer to “Customizing the air selection” on
page 7-06.

Air selection switch

E00701300721

To change the air selection, simply press the
air selection switch. There is a sound each
time the switch is pressed.

Outside air: Indication lamp (A) is OFF
Outside air is introduced into the passen-
ger compartment.

Recirculated air: Indication lamp (A) is
ON
Air is recirculated inside the passenger
compartment.

Heater/
Manual air conditioning

Automatic air conditioning

CAUTION

Normally,  use  the  outside  position  to  keep
the  windscreen  and  side  windows  clear  and
quickly  remove  fog  or  frost  from  the  wind-
screen.
If high cooling performance is desired, or if
the outside air is dusty or otherwise contami-
nated  use  the  recirculation  position.  Switch
to  the  outside  position  periodically  to  in-
crease ventilation so that the windows do not
become fogged up.

Use of the recirculation position for exten-
ded time may cause the windows to fog up.

NOTE

On vehicles with the heater and the manual
air  conditioning,  when  the  system  operates
with the selection switch in the outside posi-
tion,  the  system  automatically  determines
whether  to  continue  using  outside  air  or  to
perform recirculation. If the outside air tem-
perature is high, the system selects recircula-
tion  and  causes  the  indication  lamp  (A)  in
the  switch  to  illuminate  (for  vehicles  with
the  manual  air  conditioning,  the  system  se-
lects recirculation to achieve rapid cooling).
Press  the  selection  switch  to  return  to  out-
side air introduction.

Heater/Air conditioning

7-05

OGAE18E1

For pleasant driving

NOTE

On vehicles with the automatic air condi-
tioning, when the mode selection dial or the
blower speed selection dial is set to the
“AUTO” position again after manual opera-
tion, the air selection dial will also be auto-
matically controlled.

On  vehicles  with  the  automatic  air  condi-
tioning,  when  the  engine  coolant  tempera-
ture rises to a certain level, the air selection
is automatically switched to the recirculation
position  and  the  indication  lamp  (A)  comes
on.  At  this  time,  the  system  will  not  switch
to the outside position even if the air selec-
tion switch is pushed.

Customizing the air selection

E00732500107

Functions can be changed as desired, as sta-
ted below.

Enable automatic air control

• Heater/Manual air conditioning:

When the system operates, the air se-
lection switch will be automatically
controlled.

• Automatic air conditioning:

When the mode selection dial or
blower speed selection dial is turned
to the “AUTO” position, the air selec-
tion switch is also controlled automat-
ically.

Disable automatic air control

• Heater/Manual air conditioning:

Even when the system operates, the
air selection switch will not be auto-
matically controlled.

• Automatic air conditioning:

Even when the mode selection dial or
blower speed selection dial is turned
to the “AUTO” position, the air selec-
tion switch is not controlled automati-
cally.

Setting change method
Hold down the air selection switch for
about 10 seconds or more.
When the setting is changed, a sound is
emitted and the indication lamp flashes.

• When the setting is changed from ena-

ble to disable 3 sounds are emitted and
the indication lamp flashes 3 times.

• When the setting is changed from dis-

able to enable 2 sounds are emitted
and the indication lamp flashes 3
times.

NOTE

The factory setting is “Enable automatic air
control.”

When the mode selection dial is turned to
“

”, in order to prevent misting of the

windows the ventilator automatically
switches to outside air even if “Disable auto-
matic air control” is set.

Air conditioning switch (Air
conditioning)

E00701502280

Push the switch to turn the air conditioning
on, indication lamp (A) will come on.
There is a sound each time the switch is
pressed.

Manual air conditioning

Automatic air conditioning

Push the switch again to switch it off.

NOTE

If a problem is detected in the air condition-
ing system, the air conditioning operation in-
dication lamp (A) blinks. Press the air condi-
tioning switch once to turn it off, then once
more to turn it back on. If the air condition-
ing operation indication lamp does not blink
for a while, there is nothing wrong. If it
starts to blink again, we recommend you to
have it checked.

Heater/Air conditioning

7-06

OGAE18E1

For pleasant driving

NOTE

Sometimes,  for  example  after  using  a  high-
pressure  car  wash,  the  condenser  can  get
wet,  and  the  operation  indication  lamp  (A)
blinks temporarily. In this case there is noth-
ing wrong. Wait a while, press the air condi-
tioning  switch  once  to  turn  the  system  off,
then once more to turn it back on. Once the
water evaporates, the blinking will stop.

Customizing the air condition-
ing switch (Automatic air condi-
tioning)

E00764700030

Functions can be changed as desired, as sta-
ted below.

Enable  automatic  air  conditioning  con-
trol:
If  the  mode  selection  dial  or  blower
speed  selection  dial  is  turned  to  the
“AUTO”  position,  or  the  temperature
control  dial  is  set  to  the  minimum  tem-
perature,  the  air  conditioning  switch  is
controlled automatically.

Disable  automatic  air  conditioning  con-
trol:
The  air  conditioning  switch  is  not  con-
trolled  automatically  as  long  as  the  air
conditioning switch is not operated.

Setting change method
Hold down the air conditioning switch
for about 10 seconds or more.

When the setting is changed, a sound is
emitted and the indication lamp flashes.

• When the setting is changed from ena-

ble to disable 3 sounds are emitted and
the indication lamp flashes 3 times.

• When the setting is changed from dis-

able to enable 2 sounds are emitted
and the indication lamp flashes 3
times.

NOTE

The factory setting is “Enable automatic air
conditioning control”.

When you turn the mode selection dial to
“

”, in order to prevent misting of the

windows the air conditioning operates auto-
matically even if “Disable automatic air con-
ditioning control” is set.

Operating the air conditioning

system

E00701800436

Heating (Heater/Manual air

conditioning)

Set the mode selection dial to the “ ” posi-
tion and set the air selection switch (A) to the
outside position.

Turn the temperature control dial clockwise
or anticlockwise to the desired temperature.
Select the desired blower speed.

NOTE

For quick heating, set the blower speed se-
lection dial to the position shown in the il-
lustration.

Heater/Air conditioning

7-07

OGAE18E1

For pleasant driving

Cooling (Manual air condition-
ing)

E00701900684

1. Set the mode selection dial to the “ ”

position.

2. Set the air selection switch (A) to the

outside position.

3. Push the air conditioning switch (B).
4. Change the temperature by turning the

control dial clockwise or anticlockwise.

5. Select the desired blower speed.

CAUTION

If the outside air is dusty or otherwise conta-
minated, or if high cooling performance is
desired, set air selection switch to the recir-
culation position and the temperature control
dial all the way to the left.
Switch to the outside position periodically to
increase ventilation so that the windows do
not become fogged up.

NOTE

When the air conditioning operates with the
selection  switch  in  the  outside  position,  the
system  automatically  determines  whether  to
continue  using  outside  air  or  to  perform  re-
circulation.  If  the  outside  air  temperature  is
high, the system selects recirculation to ach-
ieve rapid cooling and causes the indication
lamp  in  the  switch  to  illuminate.  Press  the
selection switch to return to outside air intro-
duction.

Combination of unheated air
and heated air (Heater/Manual
air conditioning)

E00702000435

Select the mode selection dial to the position
shown in the illustration and set the air selec-
tion switch (A) to the outside position.
The air flow will be directed to the leg area
and the upper part of the passenger compart-
ment. Select the desired blower speed.

Warm air flows to the leg area and unheated
or slightly warm air (depending upon temper-
ature setting) flows to the upper part of the
passenger compartment.

Automatic mode (Automatic air
conditioning)

E00764801142

In normal conditions, use the system in the
AUTO mode and follow these procedures:

1. Set the blower speed selection dial to the

“AUTO” position.

2. Set the temperature control dial to the

desired temperature.

3. Set the mode selection dial to the “AU-

TO” position.

The outlet position recirculation/outside air
select and blower speed, and ON/OFF of the
air conditioning will be controlled automati-
cally.

Heater/Air conditioning

7-08

OGAE18E1

For pleasant driving

To stop the system, turn the blower speed se-
lection dial to the “OFF” position.

NOTE

While the engine coolant temperature is low,
the  temperature  of  the  air  from  the  heater
will be cool/cold until the engine warms up,
even if you have selected warm air with the
dial.  To  prevent  the  windscreen  and  win-
dows  from  fogging  up,  the  ventilator  mode
will  be  changed  to  “

” and the blower

speed will be reduced.

If the blower speed selection dial, air condi-
tioning switch, mode selection dial, or air se-
lection  switch  is  operated  while  the  system
is operating in the AUTO mode, the activa-
ted  function  overrides  the  corresponding
function  of  automatic  control.  All  other
functions remain under automatic control.

Manual mode (Automatic air
conditioning)

E00764900032

Blower  speed  and  ventilator  mode  may  be
controlled  manually  by  setting  the  blower
speed  selection  dial  and  the  mode  selection
dial to the desired positions. To return to au-
tomatic  operation,  set  the  dials  to  the  “AU-
TO” position.

Demisting of the windscreen
and door windows

E00702102052

CAUTION

For safety, make sure you have a clear view
through all the windows.

Use the mode selection dial (“ ” or “

”)

to remove frost or mist from the windscreen
or door windows.

For ordinary demisting
Perform the following settings to prevent
misting of the windscreen and door windows,
and to heat the leg area.

Heater/Manual air conditioning

Automatic air conditioning

1. Set the air selection switch (A) to the

outside position.

2. Set the mode selection dial to the “ ”

position.

3. Select your desired blower speed by

turning the blower speed selection dial.

4. Select your desired temperature by turn-

ing the temperature control dial.

5. On vehicles with air conditioning, push

the air conditioning switch (B).

For quick demisting

Heater/Manual air conditioning

Automatic air conditioning

1. Set the mode selection dial to the “

”

position.

2. Set the blower to the maximum speed.
3. Set the temperature to the highest posi-

tion.

Heater/Air conditioning

7-09

OGAE18E1

For pleasant driving

NOTE

When the mode selection dial is in the “

”

position, the system operates automatically
and outside air is set automatically.

To demist effectively, direct the air flow
from the side ventilators towards the door
windows.

On vehicles with air conditioning, do not set
the temperature control dial to the max. cool
position. Cool air will blow against the win-
dow glasses and prevent demisting.

For  vehicles  with  the  Auto  Stop  &  Go
(AS&G) system, if the mode selection dial is
set to the demister position shown in the il-
lustration,  the  AS&G  system  will  not  oper-
ate and the engine will not stop automatical-
ly  even  if  the  vehicle  is  stopped.  This  is  to
ensure that good visibility is maintained.

Introduction of outside air
(Heater/Manual air condition-
ing)

E00702200408

To introduce air into the vehicle during hot
weather, set the air selection switch (A) to the
outside position and set the temperature con-
trol dial to the positions shown in the illustra-
tion. Be sure to set the temperature control
dial all the way to the left. Select the desired
blower speed.

NOTE

Turn the mode selection dial clockwise and
air will flow to the leg area and the wind-
screen.

Important operation tips for
the air conditioning

E00708302463

Park the vehicle in the shade.
Parking in the hot sun will make the ve-
hicle inside extremely hot, and it will re-
quire more time to cool the interior.
If it is necessary to park in the sun, open
the windows for the first few minutes of
air conditioning operation to expel the
hot air.

Close the windows when the air condi-
tioning is in use. The entry of outside air
through open windows will reduce the
cooling efficiency.

Too  much  cooling  is  not  good  for  the
health.  Keep  the  difference  between  the
vehicle  interior  temperature  and  outside
temperature at 5 to 6 °C.

When  operating  the  system,  make  sure
the  air  intake,  which  is  located  in  front
of the windscreen, is free of obstructions
such as leaves and snow. Leaves collec-
ted in the air-intake plenum may reduce
air  flow  and  plug  the  plenum  water
drains.

Important operation tips for the air conditioning

7-10

OGAE18E1

For pleasant driving

Air conditioning system refrig-

erant and lubricant recommen-

dations

If  the  air  conditioning  seems  less  effective
than  usual,  the  cause  might  be  a  refrigerant
leak. We recommend you to have the system
inspected.
The  air  conditioning  system  in  your  vehicle
must  be  charged  with  the  refrigerant
HFO-1234yf (Except for vehicles for Russia,
Kazakhstan,  Moldova  and  Ukraine)  or
HFC-134a (Vehicles for Russia, Kazakhstan,
Moldova  and  Ukraine)  and  the  lubricant
PAG46A (Except for vehicles for Russia, Ka-
zakhstan,  Moldova  and  Ukraine)  or
SUN-PAG56  (Vehicles  for  Russia,  Kazakh-
stan, Moldova and Ukraine).
Use of any other refrigerant or lubricant will
cause severe damage which will result in the
need to replace your vehicle’s entire air con-
ditioning  system.  The  release  of  refrigerant
into the atmosphere is not recommended.
We  recommend  you  to  recover  and  recycle
the refrigerant for reuse.

During a long period of disuse

The air conditioning should be operated for at
least  five  minutes  each  week,  even  in  cold
weather.  This  is  to  prevent  the  compressor
from  seizing  and  to  maintain  the  air  condi-
tioning in the best operating condition.

Air purifier

E00708400561

An air filter has been incorporated into the air
conditioning so that pollen and dust are
cleaned from the air.
Replace the air filter periodically as its ability
to clean the air will be reduced as it collects
pollen and dirt. For the maintenance interval,
refer to the “SERVICE BOOKLET”.

NOTE

Operation in certain conditions such as driv-
ing on a dusty road and frequent use of the
air  conditioning  can  lead  to  reduction  of
service life of the filter. When you feel that
the  air  flow  is  lower  than  normal  or  when
the  windscreen  or  windows  start  to  fog  up
easily, replace the air filter.
We recommend you to have it checked.

LW/MW/FM radio/CD
player*

E00708502348

The audio system can only be used when the
ignition switch or the operation mode is in
ON or ACC.

NOTE

To  listen  to  the  audio  system  while  the  en-
gine is not running, turn the ignition switch
to  the  “ACC”  position  or  put  the  operation
mode in ACC.
If the ignition switch or the operation mode
is left in ACC, the accessory power will au-
tomatically turn off after a certain period of
time  and  you  will  no  longer  be  able  to  use
the  audio  system.  The  accessory  power
comes on again if the ignition switch or the
engine  switch  is  operated  with  it  in  the
“ACC” position. Refer to “ACC power auto-
cutout function” on pages 3-14 and 6-13.

If a cellular phone is used inside the vehicle,
it may create noise from the audio equip-
ment. This does not mean that anything is
wrong with your audio equipment. In such a
case, use the cellular phone at a place as far
away as possible from the audio equipment.

If foreign objects or water get into the audio
equipment,  or  if  smoke  or  a  strange  odour
comes from it, immediately turn off the au-
dio  system.  We  recommend  you  to  have  it
checked.  Never  try  to  repair  it  by  yourself.
Avoid  continuous  usage  without  inspection
by a qualified person.

Air purifier

7-11

OGAE18E1

For pleasant driving

Important Points on Usage

E00735500023

iPod/iPhone Playback Func-

tion*

This product supports audio playback
from iPod/iPhone devices, however dif-
fering versions mean that playback can-
not be guaranteed.

Please be aware that depending on the
iPod/iPhone model or version, operation
may differ.

How to Clean

E00735700025

If the product becomes dirty, wipe with
a soft cloth.

If  very  dirty,  use  a  soft  cloth  dipped  in
neutral  detergent  diluted  in  water,  and
then  wrung  out.  Do  not  use  benzene,
thinners,  or  other  chemical  wipes.  This
may harm the surface.

Trademarks

E00735801153

Product names and other proper names
are the trademarks or registered trade-
marks of their respective owners.

Furthermore, even if there is no specific
denotation of trademarks or registered
trademarks, these are to be observed in
their entirety.

“Made  for  iPod,”  “Made  for  iPhone”
mean  that  an  electronic  accessory  has
been designed to connect specifically to
iPod  or  iPhone,  respectively,  and  has
been  certified  by  the  developer  to  meet
Apple performance standards.
iPhone,  iPod,  iPod  classic,  iPod  nano,
and iPod touch are trademarks of Apple
Inc.,  registered  in  the  U.S.  and  other
countries.
Apple  is  not  responsible  for  the  opera-
tion of this device or its compliance with
safety and regulatory standards.

NOTE

iPod and iTunes licensing allows individual
users to privately reproduce and play back
non- copyrighted material as well as material
that may be legally copied and reproduced.
Infringement of copyright is prohibited.

NOTE

For vehicles with a Bluetooth

2.0 interface,

the  types  of  devices  that  can  be  connected
may  vary.  For  details,  access  the
MITSUBISHI MOTORS website.
Please read and agree to the “Warning about
Links  to  the  Web  Sites  of  Other  Compa-
nies”.
The websites mentioned above may connect
you to websites other than the MITSUBISHI
MOTORS website.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

LW/MW/FM radio/CD player*

7-12

OGAE18E1

For pleasant driving

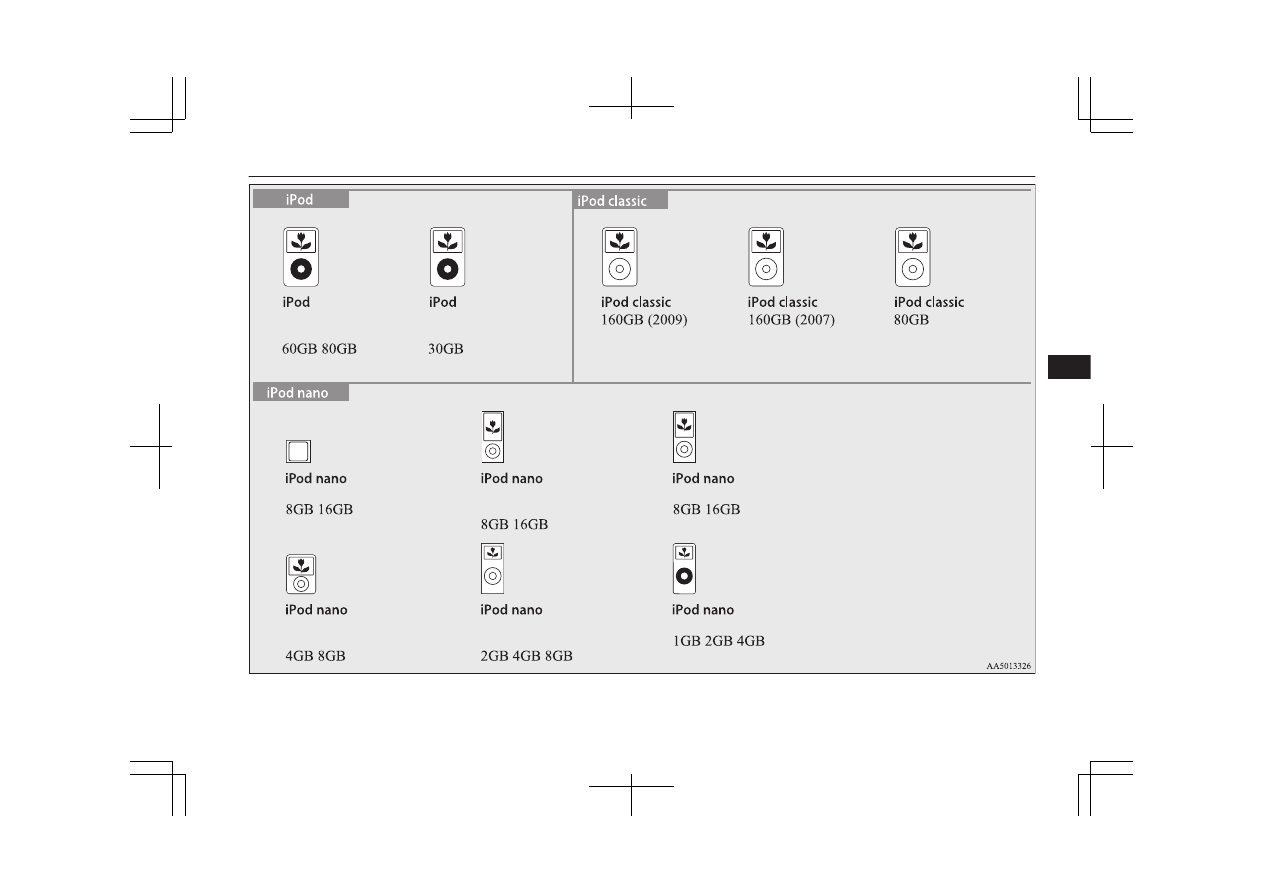

5th generation

(video)

5th generation

(video)

6th generation

5th generation

(video camera)

4th generation (video)

1st generation

2nd generation

(aluminium)

3rd generation

(video)

LW/MW/FM radio/CD player*

7-13

OGAE18E1

For pleasant driving

4th generation
8GB 32GB 64GB

3rd generation
32GB 64GB

2nd generation
8GB 16GB 32GB

1st generation
8GB 16GB 32GB

16GB 32GB 64GB

8GB 16GB 32GB

8GB 16GB

16GB 32GB

Handling of Discs

E00735900027

This explains care that should be taken in the
handling of discs.

Important Points on Handling

Fingerprints  or  other  marks  on  the  read
surface of the disc may result in its con-
tent  being  more  difficult  to  read.  When
holding the disc, grip both edges, or one
edge  and  the  centre  hole,  in  order  that
the read surface is not touched.

Do not affix paper or stickers, or other-
wise damage the disc.

Do not forcefully insert a disc if another
is already within the device. This can re-
sult in damage to discs, or malfunction.

Cleaning

Periodically clean the read surface of the
disc.  When  cleaning,  do  not  wipe  in  a
circular  motion.  Instead,  wipe  gently
outwards  from  the  centre  of  the  disc  to
the outer edge.

New discs may have burring around the
outer edge or in the hole in the centre.
Ensure you check for these. If there are
burrs, these may lead to faulty operation,
therefore ensure these are removed.

Important Points on Storage

When not using discs, ensure these are
kept in cases, and stored out of direct
sunlight.

If discs are not going to be used for a
long period of time, remove these from
the product.

Disc Playback Environment

In cold environments such as in mid-winter
when the interior of the vehicle is cold, turn-
ing the heater on and immediately trying to
use the product may cause condensation (wa-
ter droplets) to form on the disc and internal
optical components, and this may prevent the
product from operating correctly.
In these conditions, remove the disc, and wait
a short time before use.

Copyright

Actions  such  as  unauthorized  reproduction,
broadcast,  public  performance,  or  rental  of
discs  that  comprise  other  than  personal  use
are prohibited by law.

Types of Disc That Can Be

Played Back

E00736001064

The following marks are printed on the disc
label, package, or jacket.

Handling of Discs

7-14

OGAE18E1

For pleasant driving

Type

Size

Maxi-

mum
play-

back

time

Comments

CD-DA

12 cm 74 mi-

nutes

—

CD-
TEXT

12 cm 74 mi-

nutes

—

CD-
R/RW

12 cm —

•Disc contain-
ing MP3 files

Discs That May Not Be Played

Back

Playback of discs other than those de-
scribed in “Types of Disc That Can Be
Played Back” is not guaranteed.

8 cm discs may not be used.

Do not insert irregularly-shaped discs
(for example, heartshaped), as these may
result in malfunction. Additionally, discs
that have transparent portions may not
be played back.

Discs that have not been finalized cannot
be played back.

Even if recorded using the correct for-
mat on a recorder or computer, applica-
tion software settings and environments;
disc peculiarities, damage, or marking;
or dirt or condensation on the lens inside
the product may render the disc unplaya-
ble.

Depending on the disc, some functions
may not be used, or the disc may not
play back.

Do not use discs with cracks or warps.

If the disc has stickers affixed, remains
from removed stickers, or affixed adhe-
sive, then do not use the disc.

Discs that have decorative labels or
stickers may not be used.

Nonstandard CDs

This product will play back audio CDs, how-
ever please be aware of the following points
regarding CD standards.

Ensure that you use discs with

the label surface.

Playback of other than standard CDs is
not guaranteed. Even if the audio can be
played back, the audio quality cannot be
guaranteed.

When playing back other than standard
CDs, the following may occur.

• There may be noise during playback.
• There may be jumping in the audio.
• The disc may not be recognized.
• The first track may not be played

back.

• It may take longer than usual until

start of playback of tracks.

• Playback may start from within the

track.

• Some parts may not be played back.
• Tracks may freeze during playback.
• Tracks may be displayed erroneously.

Audio Files (MP3/WMA/
AAC)

E00736100026

This product can play back MP3/WMA/AAC
format audio files recorded on CD-ROM,
CD-R/RW, and USB devices.

Audio Files (MP3/WMA/AAC)

7-15

OGAE18E1

For pleasant driving

Mitsubishi ASX (2018 year). Instruction - part 17
