Mitsubishi ASX (2018 year). Instruction

The tyre inflation pressure sensor IDs for two
sets of tyres can be registered by a
MITSUBISHI MOTORS Authorized Service
Point, and the valid ID set can be switched by
the multi-information meter switch (It’s ben-
eficial in case of seasonal tyre change be-
tween summer tyre and winter tyre.)

WARNING

The  spare  wheel  does  not  have  a  tyre  in-
flation pressure sensor.
When the spare tyre is used, the tyre pres-
sure  monitoring  system  will  not  work
properly.
See  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  as  soon  as  possible  to
replace or repair the original tyre.

NOTE

The tyre pressure monitoring system
(TPMS) is not a substitute for regularly
checking tyre inflation pressures.
Be sure to check the tyre inflation pressures
as described in “Tyres” on page 10-13.

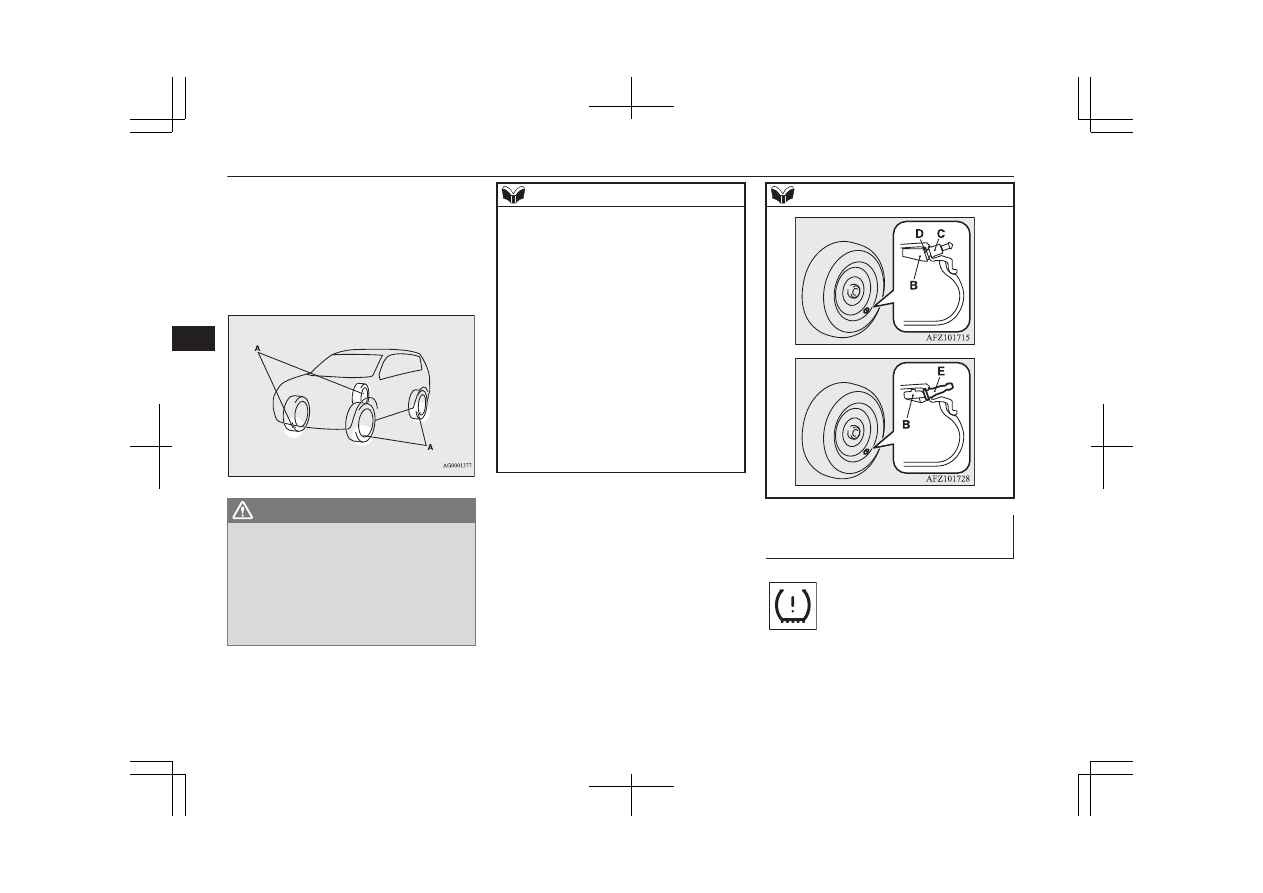

The tyre inflation pressure sensor (B) is in-
stalled in the illustrated location.

•

On vehicles with Type 1 sensor which has
the metallic air valve (C), replace grom-
met and washer (D) with a new one when
the tyre is replaced.

•

On vehicles with Type 2 sensor which has
the rubber air valve (E), replace rubber air
valve (E) with a new one when the tyre is
replaced.
For

details,

please

contact

your

MITSUBISHI MOTORS Authorized
Service Point.

NOTE

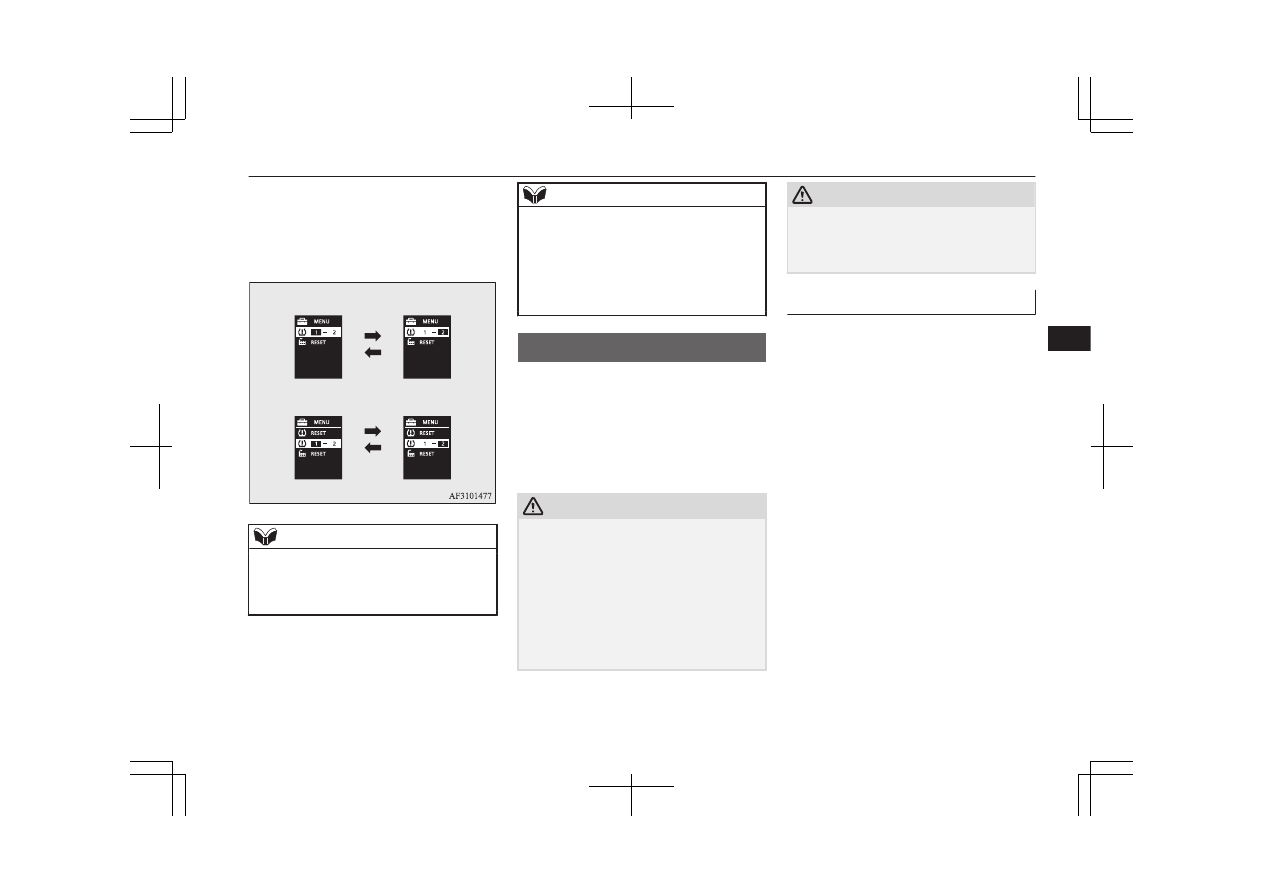

Type 1

Type 2

The tyre pressure monitoring

system warning lamp/display

E00637200111

When the ignition switch is turned to the
“ON” position or the operation mode is put in
ON, the tyre pressure monitoring system
warning lamp normally illuminates and goes
off a few seconds later.

Tyre pressure monitoring system (TPMS)*

6-72

OGAE18E1

Starting and driving

If one or more of the vehicle tyres (except for
the spare tyre) is significantly under-inflated,
the  warning  lamp  will  remain  illuminated
while  the  ignition  switch  or  the  operation
mode is in ON.
Refer to “If the warning lamp/display illumi-
nates  while  driving”  on  page  6-74  and  take
the necessary measurements.

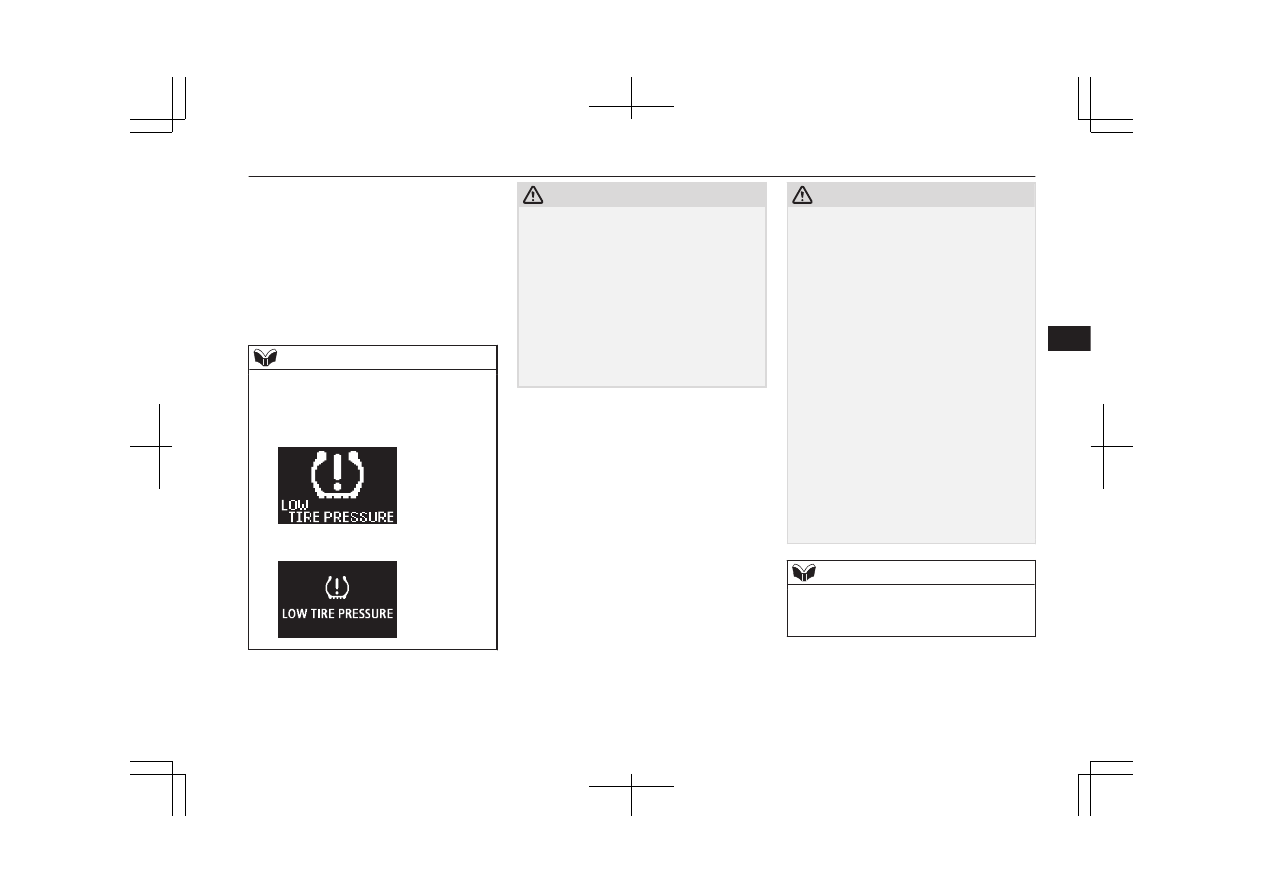

NOTE

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

Type 1

Type 2

CAUTION

If  the  warning  lamp  does  not  illuminate
when  the  ignition  switch  is  turned  to  the
“ON” position or the operation mode is put
in ON, it means that the tyre pressure moni-
toring  system  (TPMS)  is  not  working  prop-
erly.  Have  the  system  inspected  by  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
In  such  situations,  a  malfunctioning  of  the
system  may  prevent  the  monitoring  of  the
tyre  pressure.  Avoid  sudden  braking,  sharp
turning and high-speed driving.

CAUTION

If a malfunction is detected in the tyre pres-
sure  monitoring  system  (TPMS),  the  warn-
ing lamp will blink for approximately 1 mi-
nute and then remain continuously illumina-
ted.
The  warning  lamp  will  issue  further  warn-
ings each time the engine is restarted as long
as the malfunction exists.
Check to see whether the warning lamp goes
off after few minutes driving.
If it then goes off during driving, there is no
problem.
However,  if  the  warning  lamp  does  not  go
off,  or  if  it  blinks  again  when  the  engine  is
restarted,  have  the  vehicle  inspected  by  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
In  such  situations,  a  malfunctioning  of  the
system may be preventing the monitoring of
the  tyre  pressure.  For  safety  reasons,  when
the  warning  lamp  appears  while  driving,
avoid  sudden  braking,  sharp  turning  and
high-speed driving.

NOTE

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

Tyre pressure monitoring system (TPMS)*

6-73

OGAE18E1

Starting and driving

NOTE

Type 1

Type 2

Each  tyre,  including  the  spare  (if  so  equip-
ped),  should  be  checked  monthly  when  cold
and  inflated  to  the  inflation  pressure  recom-
mended  by  the  vehicle  manufacturer  on  the
tyre  inflation  pressure  label.  (If  your  vehicle
has tyres of a different size than the size indi-
cated on the tyre inflation pressure label, you
should  determine  the  proper  tyre  inflation
pressure for those tyres.)
As an added safety feature, your vehicle has
been  equipped  with  the  tyre  pressure  moni-
toring system (TPMS) that illuminates a low
tyre  pressure  telltale  when  one  or  more  of
your tyres is significantly under-inflated.

Accordingly, when the low tyre pressure tell-
tale  illuminates,  you  should  stop  and  check
your  tyres  as  soon  as  possible,  and  inflate
them to the proper pressure. Driving on a sig-
nificantly  under-inflated  tyre  causes  the  tyre
to overheat and can lead to tyre failure.
Under-inflation  also  reduces  fuel  efficiency
and  tyre  tread  life,  and  may  affect  the  vehi-
cle’s handling and stopping ability.
Please note that the tyre pressure monitoring
system (TPMS) is not a substitute for proper
tyre  maintenance,  and  it  is  the  driver’s  re-
sponsibility to maintain correct tyre pressure,
even  if  under-inflation  has  not  reached  the
level to trigger illumination of the tyre pres-
sure  monitoring  system  (TPMS)  low  tyre
pressure telltale.
Your  vehicle  has  also  been  equipped  with  a
warning lamp to indicate when the system is
not operating properly.
The warning lamp is combined with the low
tyre pressure telltale.
When  the  system  detects  a  malfunction,  the
telltale  will  flash  for  approximately  one  mi-
nute  and  then  remain  continuously  illumina-
ted. This sequence will continue upon subse-
quent  vehicle  start-ups  as  long  as  the  mal-
function exists.
When  the  warning  lamp  is  illuminated,  the
system  may  not  be  able  to  detect  or  signal
low tyre pressure as intended.

The tyre pressure monitoring system (TPMS)
malfunctions may occur for a variety of rea-
sons,  including  the  installation  of  replace-
ment or alternate tyres or wheels on the vehi-
cle that prevent the tyre pressure monitoring
system  (TPMS)  from  functioning  properly.
Always  check  the  tyre  pressure  monitoring
system  (TPMS)  malfunction  telltale  after  re-
placing one or more tyres or wheels on your
vehicle  to  ensure  that  the  replacement  or  al-
ternate tyres and wheels allow the tyre pres-
sure  monitoring  system  (TPMS)  to  continue
to function properly.

If the warning lamp/display il-

luminates while driving

E00637300037

1. If the warning lamp illuminates, avoid

hard braking, sharp steering manoeuvres
and  high  speeds.  You  should  stop  and
adjust  the  tyres  to  the  proper  inflation
pressure  as  soon  as  possible.  Adjust  the
spare  tyre  at  the  same  time.  Refer  to
“Tyres” on page 10-13

NOTE

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

Tyre pressure monitoring system (TPMS)*

6-74

OGAE18E1

Starting and driving

NOTE

When inspecting or adjusting the tyre pres-
sure, do not apply excessive force to the
valve stem to avoid breakage.

After inspecting or adjusting the tyre pres-
sure, always reinstall the valve cap on the
valve stem.
Without the valve cap, dirt or moisture could
get into the valve, resulting in damage to the
tyre inflation pressure sensor.

Do not use metal valve caps, which may
cause a metal reaction, resulting in corrosion
and damage of the tyre inflation pressure
sensors.

Once adjustments have been made, the
warning lamp will go off after a few minutes
of driving.

2. If the warning lamp remains illuminated

after you have been driving for about 10
minutes  after  you  adjust  the  tyre  infla-
tion  pressure,  one  or  more  of  the  tyres
may  have  a  puncture.  Inspect  the  tyre
and if it has a puncture, have it repaired
by  a  MITSUBISHI  MOTORS  Author-
ized Service Point as soon as possible.

WARNING

If  the  warning  lamp/display  illuminates
while  you  are  driving,  avoid  hard  brak-
ing,  sharp  steering  manoeuvres  and  high
speeds.
Driving  with  an  under-inflated  tyre  ad-
versely  affects  vehicle  performance  and
can result in an accident.

CAUTION

The warning lamp/display may not illumi-
nate immediately in the event of a tyre blow-
out or rapid leak.

NOTE

To avoid the risk of damage to the tyre infla-
tion  pressure  sensors,  have  any  punctured
tyre  repaired  by  a  MITSUBISHI  MOTORS
Authorized Service Point. If the tyre repair is
not done by a MITSUBISHI MOTORS Au-
thorized  Service  Point,  damage  to  the  tyre
inflation  pressure  sensor  is  not  covered  by
your warranty.

Do not use an aerosol puncture-repair spray
on any tyre.
Such a spray could damage the tyre inflation
pressure sensors.
Have any puncture repaired by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.

NOTE

Using the tyre repair kit may damage the
tyre inflation pressure sensor. The vehicle
must promptly be inspected and repaired by
a MITSUBISHI MOTORS Authorized Serv-
ice Point.

The tyre pressure monitoring system (TPMS)
may not work normally in the following cir-
cumstances:

A wireless facility or device using the
same frequency is near the vehicle.

Snow or ice is stuck inside the fenders
and/or on the wheels.

The tyre inflation pressure sensor’s bat-
tery is dead.

Wheels other than MITSUBISHI
MOTORS GENUINE wheels are being
used.

Wheels that are not fitted with tyre infla-
tion pressure sensors are being used.

Wheels whose ID codes are not memo-
rized by the vehicle are used.

A window tint that affects the radio
wave signals is installed.

Tyre pressure monitoring system (TPMS)*

6-75

OGAE18E1

Starting and driving

NOTE

Tyre inflation pressures vary with the ambi-
ent temperature. If the vehicle is subjected to
large variations in ambient temperature, the
tyre inflation pressures may be low (causing
the warning lamp/display to come on) when
the ambient temperature is relatively low. If
the warning lamp/display comes on, adjust
the tyre inflation pressure.

Whenever the tyres and wheels

are replaced with new ones

E00637400025

If  new  wheels  with  new  tyre  inflation  pres-
sure sensors are installed, their ID codes must
be  programmed  into  the  tyre  pressure  moni-
toring  system.  Have  tyre  and  wheel  replace-
ment  performed  by  a  MITSUBISHI
MOTORS Authorized Service Point to avoid
the  risk  of  damaging  the  tyre  inflation  pres-
sure sensors. If the wheel replacement is not
done  by  a  MITSUBISHI  MOTORS  Author-
ized Service Point, it is not covered by your
warranty.

CAUTION

The use of non-genuine wheels will prevent
the proper fit of the tyre inflation pressure
sensors, resulting air leakage or damage of
the sensors.

Reset of low tyre pressure

warning threshold

E00637500039

The threshold is set based on the tyre pres-
sure which the reset function is executed by
following procedure.

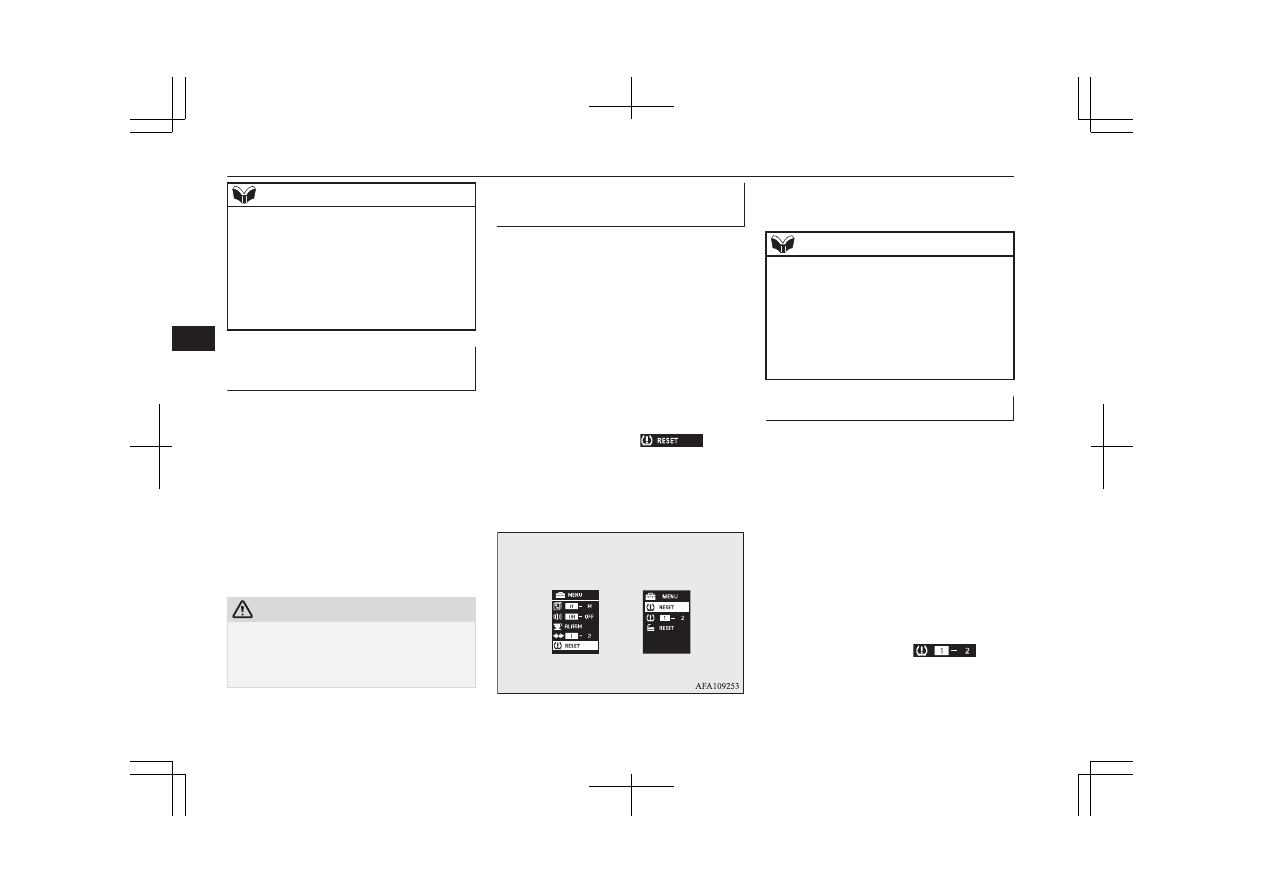

1. Operate the multi-information meter

switch  to  switch  the  information  screen
to the menu screen.
Refer  to  “Multi  information  display
switch” on page 5-04.
Refer to “Changing the function settings
(when  the  ignition  switch  or  the  opera-
tion mode is ON)” on page 5-19.

2. Lightly press the multi-information me-

ter switch to select “

” (reset

of low tyre pressure warning threshold).

3. Press and hold the multi-information

meter switch for about 3 seconds or
more, the buzzer sounds.

Type 1

Type 2

4. The warning lamp start flashing slowly.

5. Drive for a while. The reset is completed

if the warning lamp goes out.

NOTE

The reset function should be executed every
time when the tyre pressure or tyre rotation
is adjusted.

The reset function should be executed when
the  tyre  is  cold.  If  it  is  executed  when  the
tyre  is  warm  (e.g.  after  driving),  there  may
be  a  low  tyre  pressure  warning  earlier  than
usual.

Tyre ID set change

E00637600030

In case that 2 sets of tyre inflation pressure
sensor ID are registered in the receiver, the
valid tyre ID set can be changed by following
procedure.

1. Operate the multi-information meter

switch  to  switch  the  information  screen
to the menu screen.
Refer  to  “Multi  information  display
switch” on page 5-04
Refer to “Changing the function settings
(when  the  ignition  switch  or  the  opera-
tion mode is ON)” on page 5-19

2. Lightly press the multi-information me-

ter switch to select “

” (tyre

ID set change).

Tyre pressure monitoring system (TPMS)*

6-76

OGAE18E1

Starting and driving

3. Press and hold the multi-information

meter switch for about 3 seconds or
more.
The setting changes the selected tyre ID
set.

Type 1

Type 2

NOTE

Each time this procedure is done, the tyre ID
set is changed. (1 - 2 - 1 - 2 …)

The tyre ID set is NOT changed, in case that
only 1 set of ID is registered.

NOTE

When  changing  the  tyre  ID  set,  the  reset
function  of  low  tyre  pressure  warning
threshold  is  automatically  started.  (The
warning  lamp  start  flashing  slowly.)  If  the
tyre  is  warm  at  this  time.  the  reset  function
should  be  executed  again  when  the  tyre  is
cold.

Reversing sensor system*

E00615500345

This system operates when you are backing
the vehicle. It uses corner and back sensors to
detect an obstacle and the information screen
in the multi-information display and the buz-
zer to inform you of the approximate distance
to the obstacle.

CAUTION

The  reversing  sensor  system  assists  you  in
determining  the  approximate  distance  be-
tween  the  vehicle  and  an  obstacle  located
behind the vehicle. It has limitations in terms
of detectable areas and objects, and may not
properly  detect  some  objects.  Therefore,  do
not place excessive confidence in the revers-
ing sensor system and operate the vehicle as
carefully as you would do with a vehicle not
equipped with this system.

CAUTION

Make sure to check the surroundings with
your own eyes to ensure safety. Do not oper-
ate the vehicle by relying on the reversing
sensor system alone.

Obstacle detection areas

E00615601848

The  detection  areas  of  the  corner  and  back
sensors  are  limited  to  those  shown  in  the  il-
lustration.  Moreover,  the  sensors  are  unable
to  detect  low  or  thin  objects  or  objects  near
the  rear  bumper.  Thus,  make  sure  to  check
the surroundings as you operate the vehicle in
a safe manner.

Reversing sensor system*

6-77

OGAE18E1

Starting and driving

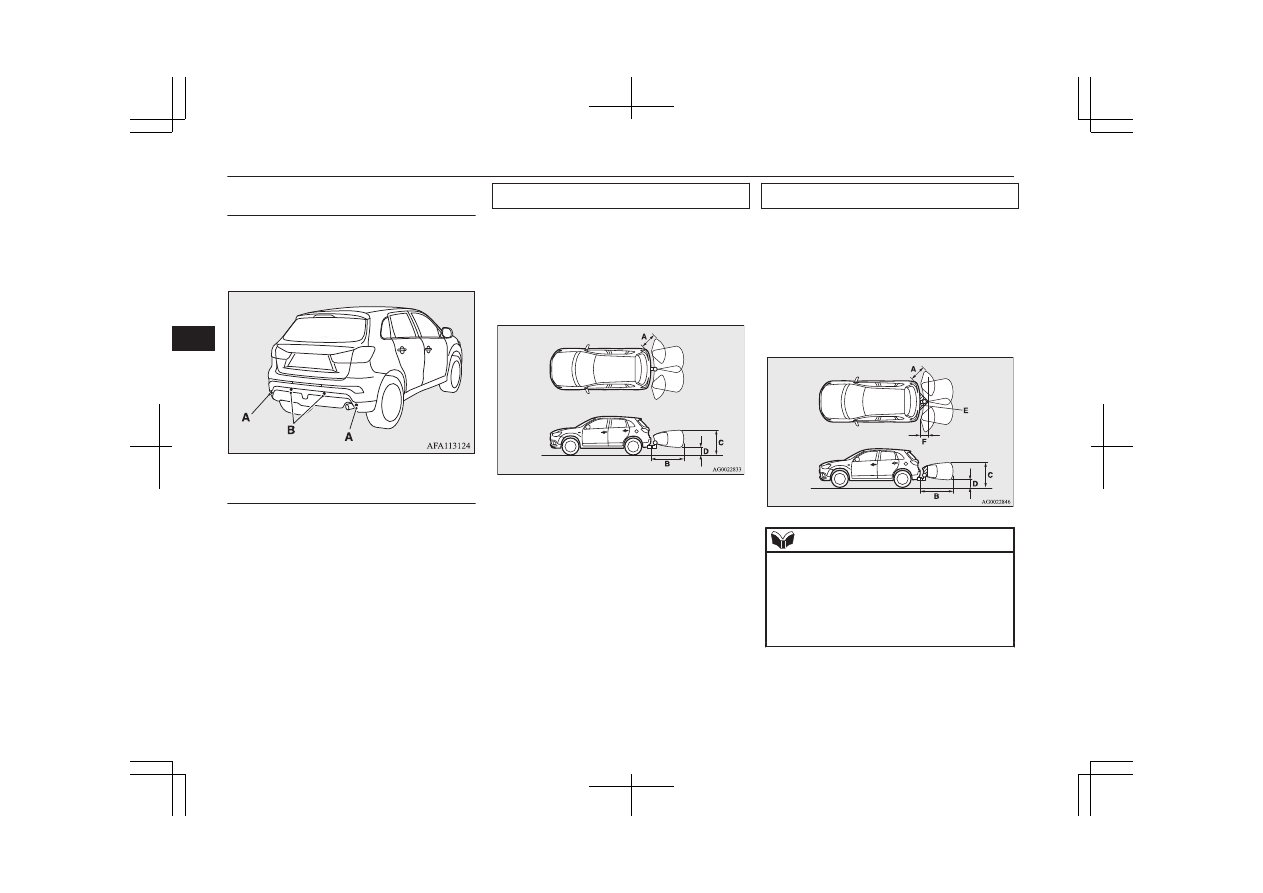

Corner and back sensor loca-

tions

There are two corner sensors (A) at the cor-
ners of the rear bumper, and two back sensors
(B) in the centre of the rear bumper.

Reversing sensor system detec-

tion areas

Depending  on  whether  the  vehicle  is  equip-
ped with a towing bar, you can change the re-
versing  sensor  system  between  the  standard
mode  and  the  towing  bar  mode.  The  towing
bar  mode  changes  the  system  to  exclude  the
area in which the towing bar is mounted from
the detection areas.

Vehicles without a towing bar
The detection areas are within approximately
60  cm  (A)  from  the  corner  sensors,  150  cm
(B) from the back sensors, and 60 cm (C) or
less  from  the  ground  surface,  excluding  the
area  approximately  10  cm  (D)  from  the
ground surface.

Vehicles with a towing bar
The detection areas are within approximately
60  cm  (A)  from  the  corner  sensors,  150  cm
(B) from the back sensors, and 60 cm (C) or
less  from  the  ground  surface,  excluding  the
area  approximately  10  cm  (D)  from  the
ground  surface.  The  non-detection  areas  (E)
are within approximately 20 cm (F) from the
bumper.

NOTE

If  the  rear  bumper  has  been  exposed  to  an
impact,  the  corner  or  back  sensors  may  fail
and  prevent  the  system  from  functioning
properly.  Have  the  vehicle  inspected  at  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

Reversing sensor system*

6-78

OGAE18E1

Starting and driving

NOTE

The sensors do not detect objects located in
the area directly below or near the bumper.
If the height of an object is lower than the
mounted position of the corner or back sen-
sors, the sensors may not continue detecting
it even if they detected it initially.

For information on how to change the detec-
tion areas, please refer to “Changing the de-
tection areas” on page 6-80.

CAUTION

The reversing sensor system may not operate
properly under the following conditions:

•

The sensors or surroundings are covered
with ice, snow, or mud.

•

The sensors are frozen.

•

The system receives ultrasonic noise from
other sources (the horns of other vehicles,
motorcycle engines, brakes, radios, pour-
ing rain, splashing water, tyre chains,
etc.).

•

The sensors are extremely hot or cold
(while the vehicle is parked for a long pe-
riod of time under a blazing sun or in cold
weather).

•

The vehicle tilts significantly.

•

The vehicle is driven on a rough road
(with a bumpy, gravel, hilly, or grassy
surface).

•

The vehicle is too close to an obstacle.

CAUTION

•

The sensors or surroundings have been
wiped by hand, or stickers or accessories
have been attached.

The reversing sensor system may not proper-
ly detect the following:

•

Objects that are thin, such as wire nets or
ropes.

•

Objects that absorb sound waves, such as
snow.

•

Objects that are shaped with a sharp an-
gle.

•

Objects with a smooth surface, such as
glass.

•

Objects that are low, such as kerbstones.

NOTE

The  buzzer  may  sound  lower  than  the  nor-
mal warning sound when the reversing sen-
sor system is receiving ultrasonic noise from
other  sources,  but  this  is  not  a  malfunction.
The  buzzer  will  stop  sounding  and  the  sys-
tem will return to normal operation after the
noise is no longer received.

To operate

E00615700738

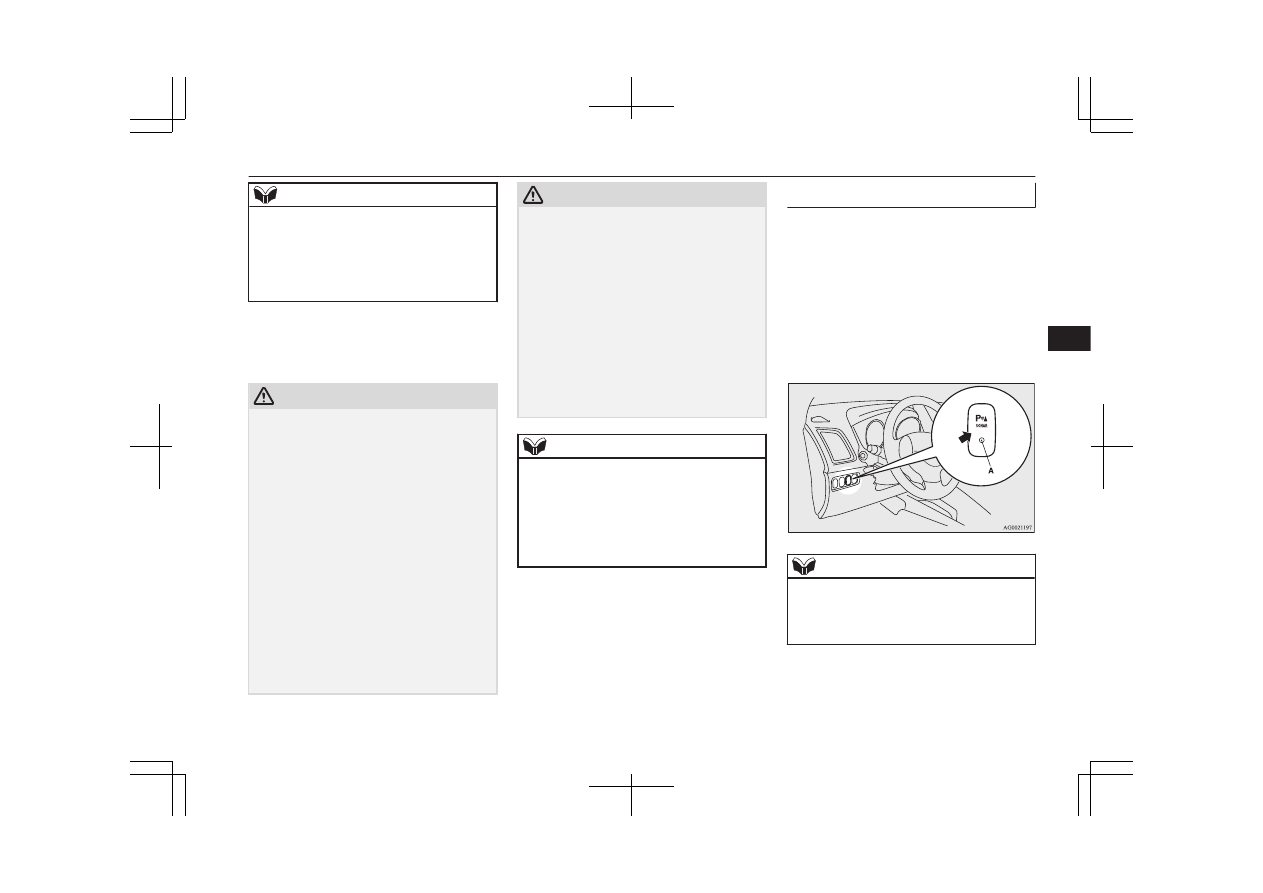

To  operate  the  system,  move  the  gearshift
lever  or  selector  lever  to  the  “R”  position
while  the  ignition  switch  or  the  operation
mode  is  in  ON.  When  the  reversing  sensor
system is operated, the reversing sensor sys-
tem  operation  indication  lamp  (A)  will  turn
on.  To  stop  the  operation,  push  the  “SO-
NAR”  switch;  the  reversing  sensor  system
operation indication lamp (A) is turned off.

NOTE

Only when the gearshift lever or selector
lever is in the “R” position, the reversing
sensor system can be operated or be stopped
by using the “SONAR” switch.

Reversing sensor system*

6-79

OGAE18E1

Starting and driving

Warning for obstacles

If there is an obstacle behind the vehicle, a
warning will be issued with the information
screen in the multi-information display and a
warning buzzer.

Type 2

Type 1

1- Corner sensor (left)
2- Back sensor
3- Corner sensor (right)

Corner sensor

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 60 to 40 cm

Intermittent

Approx. 40 to 20 cm

Fast intermittent

Within approx.

20 cm

Continuous

Back sensor (vehicles without a towing
bar)

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 150 to

80 cm

Intermittent

Approx. 80 to 40 cm

Fast intermittent

Within approx.

40 cm

Continuous

Back sensor (vehicles with a towing bar)

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 150 to

100 cm

Intermittent

Approx. 100 to

60 cm

Fast intermittent

Within approx.

60 cm

Continuous

CAUTION

The distances given are to be used for refer-
ence only, as errors may be caused by vari-
ous factors, such as temperature, humidity,
or the shape of the obstacles.

NOTE

When  the  sensors  detect  different  obstacles
at  the  same  time,  the  information  screen  in
the  multi-information  display  indicates  the
directions of the obstacles each sensor is de-
tecting. However, closer obstacles are given
priority over other detected obstacles and the
warning  buzzer  sounds  to  inform  you  of
closer obstacles.

Changing the detection areas

E00615800159

The detection areas can be changed as fol-
lows:

Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds twice to indi-
cate that the detection area has been changed.

Vehicles without a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate
that the detection area has been changed.

Reversing sensor system*

6-80

OGAE18E1

Starting and driving

NOTE

The detection area will not change if you
keep the “SONAR” switch pushed for
10 seconds or more.

After pushing the “SONAR” switch, revers-
ing sensor system operation differs accord-
ing to the detection area setting.

•

Setting when towing bar is not equipped
When the gearshift lever or selector lever
is moved to the “R” position, the revers-
ing sensor system will operate even if cor-
ner sensor operation was stopped by push-
ing the “SONAR” switch.

•

Setting when towing bar is equipped
When  reversing  sensor  system  operation
was  stopped  by  pushing  the  “SONAR”
switch,  the  reversing  sensor  system  will
not operate until the engine has been stop-
ped even if the gearshift lever or selector
lever is moved to the “R” position.
To resume reversing sensor system opera-
tion,  push  the  “SONAR”  switch  or  stop
and restart the engine, and then move the
gearshift lever or selector lever to the “R”
position.

Reversing sensor system warn-

ing display

E00615900277

In case there is a malfunction in the reversing
sensor  system,  the  display  for  the  malfunc-
tioning  sensor  will  blink  and  the  warning
buzzer  will  sound  for  approximately  5  sec-
onds.  Even  after  the  buzzer  has  stopped
sounding,  the  display  will  continue  blinking
until  the  system  reverts  to  the  normal  state.
Have

the

vehicle

inspected

MITSUBISHI MOTORS Authorized Service
Point.

Example: Corner sensor (left) mulfunctioning

Type 2

Type 1

Rear-view camera*

E00618402453

The rear-view camera is a system that shows
the view behind the vehicle on the screen of
the MITSUBISHI Multi-Communication
System (MMCS), the DISPLAY AUDIO or
the Smartphone Link Display Audio.

CAUTION

The  rear-view  camera  is  an  assistance  sys-
tem that enables the driver to check for ob-
stacles behind the vehicle. Its range of view
is  limited,  so  you  should  not  overly  depend
on  it.  Please  drive  just  as  carefully  as  you
would  if  the  vehicle  did  not  have  the  rear-
view camera.

Be sure to visually confirm safety around the
vehicle with your own eyes. Do not depend
entirely on the rear-view camera.

Range of view of rear-view

camera

The range of view of the rear-view camera is
limited to the area shown in the illustrations.
It cannot show both sides and the lower part
of the rear bumper, etc.
When reversing, be sure to visually confirm
safety around the vehicle.

Rear-view camera*

6-81

OGAE18E1

Starting and driving

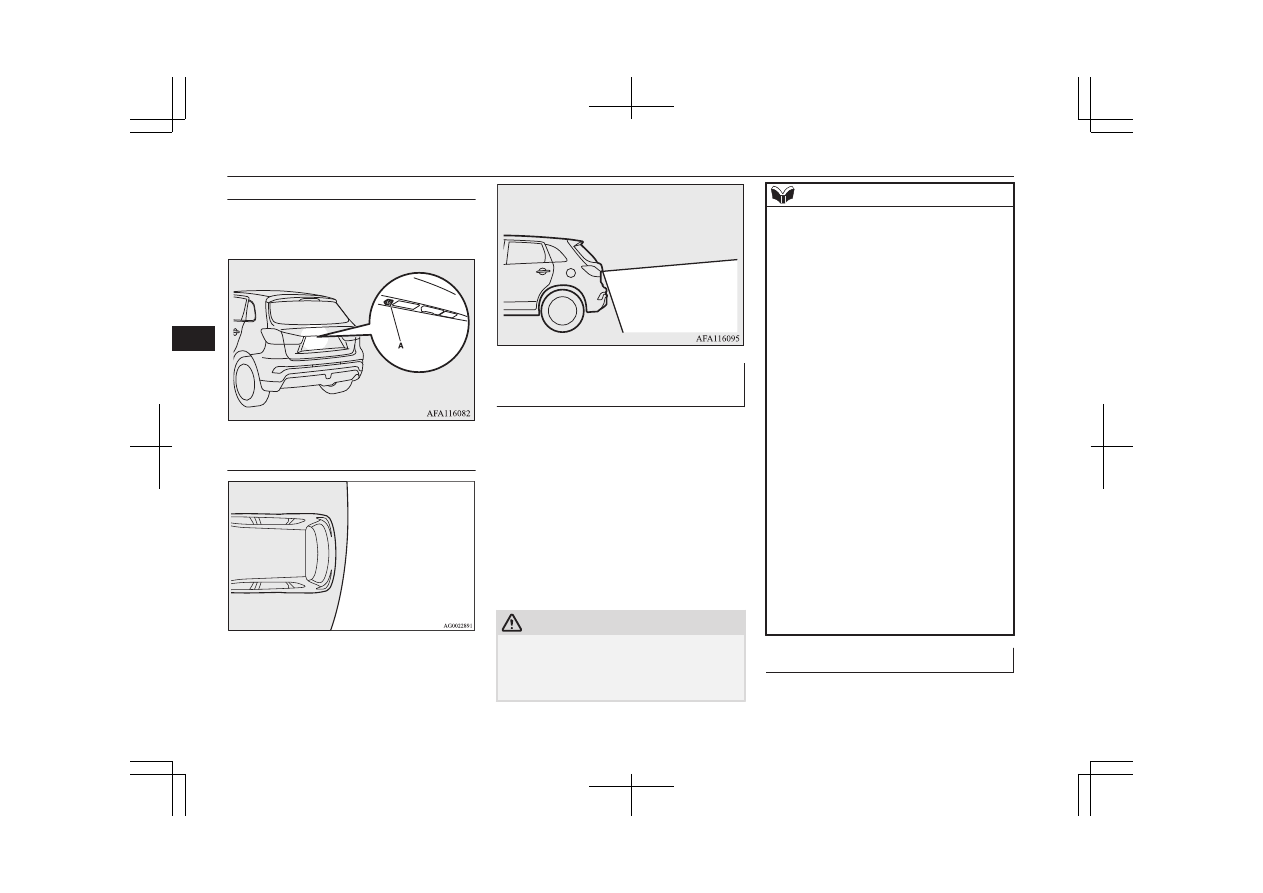

Location of rear-view camera

The rear-view camera (A) is integrated into
the part near the tailgate handle.

Range of view of rear-view

camera

How to use the rear-view cam-

era

When you place the gearshift lever or selec-
tor lever in the “R” position with the ignition
switch or the operation mode in ON, the view
behind  the  vehicle  will  automatically  appear
on  the  screen  of  the  MITSUBISHI  Multi-
Communication  System  (MMCS),  the  DIS-
PLAY AUDIO or the Smartphone Link Dis-
play  Audio.  When  you  move  the  gearshift
lever  or  the  selector  lever  to  any  other  posi-
tion, the screen will return to its original indi-
cation.

CAUTION

The rear-view camera has a special lens that
can make objects shown on the screen ap-
pear to be closer or further away than they
actually are.

NOTE

Because  the  rear-view  camera  has  a  special
lens,  the  lines  on  the  ground  between  park-
ing  spaces  may  not  look  parallel  on  the
screen.

In the following situations, the screen indi-
cation may be difficult to see. There is no
abnormality.

•

Low light (nighttime).

•

When the light of the sun or the light from
a vehicle’s headlamps shines directly into
the lens.

If the camera is hot and is then cooled by
rain or a car wash, the lens can mist up. This
phenomenon does not indicate a malfunc-
tion.

It is not possible to fully see obstacles when
the lens is dirty. If the lens becomes conta-
minated by water droplets, snow, mud or oil,
wipe off the contamination, taking care not
to scratch the lens.

Please observe the following cautions. Ig-
noring them could lead to a camera malfunc-
tion.

•

Do not subject the camera to physical
shock.

•

Do not apply wax to the camera.

•

Do not splash the camera with boiling wa-
ter.

•

Do not disassemble the camera.

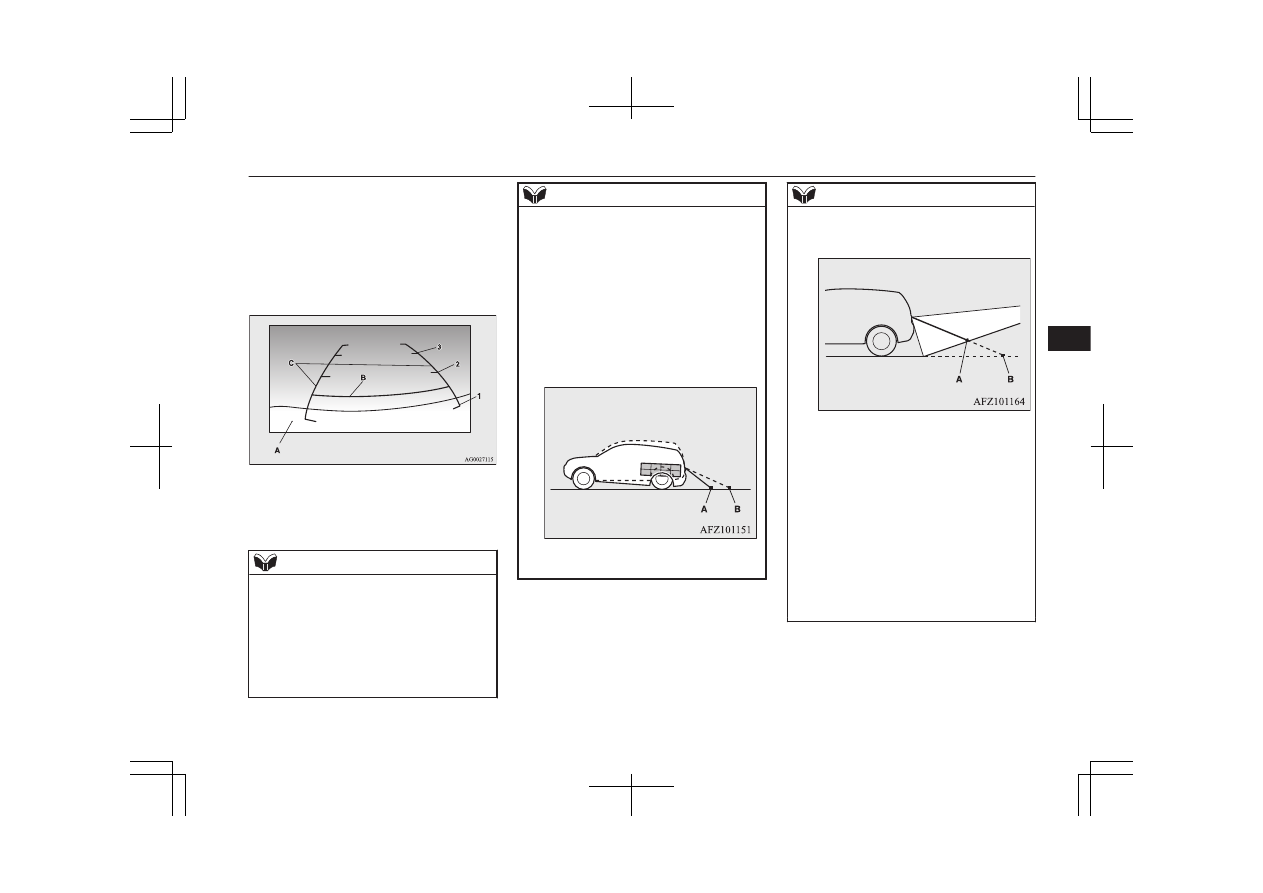

Reference lines on the screen

Reference lines and upper surface of the rear
bumper (A) are displayed on the screen.

Rear-view camera*

6-82

OGAE18E1

Starting and driving

Red line (B) indicates approximately
50 cm behind the rear bumper.

Two Green lines (C) indicate approxi-
mately 20 cm outside of the vehicle
body.

Short transverse lines (1 to 3) indicate
distance from the rear bumper.

Check surroundings for safety.

1. Approximately at the rear edge of the

rear bumper

2. Approximately 100 cm
3. Approximately 200 cm

NOTE

It is possible to change the display language
of the screen.
For details, please refer to the separated
owner’s manual for “MITSUBISHI Multi-
Communication System (MMCS)”.

When the vehicle is tilting because of the
number of people in the vehicle, the weight
and positioning of luggage, and/or the condi-

NOTE

tion of the road surface, the lines in the view
from the rear-view camera may not be accu-
rately positioned relative to the actual road.
The reference lines for distance and vehicle
width are based on a level, flat road surface.
In the following cases, objects shown on the
screen will appear to be farther off than they
actually are.

•

When the rear of the vehicle is weighed
down with the weight of passengers and
luggage in the vehicle.

A- Actual objects

B- Objects shown on the screen

NOTE

•

When there is an upward slope at the
back.

A- Actual objects

B- Objects shown on the screen

The reference lines for distance and vehicle
width are intended to indicate the distance to
a flat object such as a level, flat road surface.
This  may  make  the  distance  to  a  projecting
object  shown  on  the  screen  differ  from  the
actual  distance  to  the  projecting  object.  Do
not use them as a guide for distances to solid
objects.

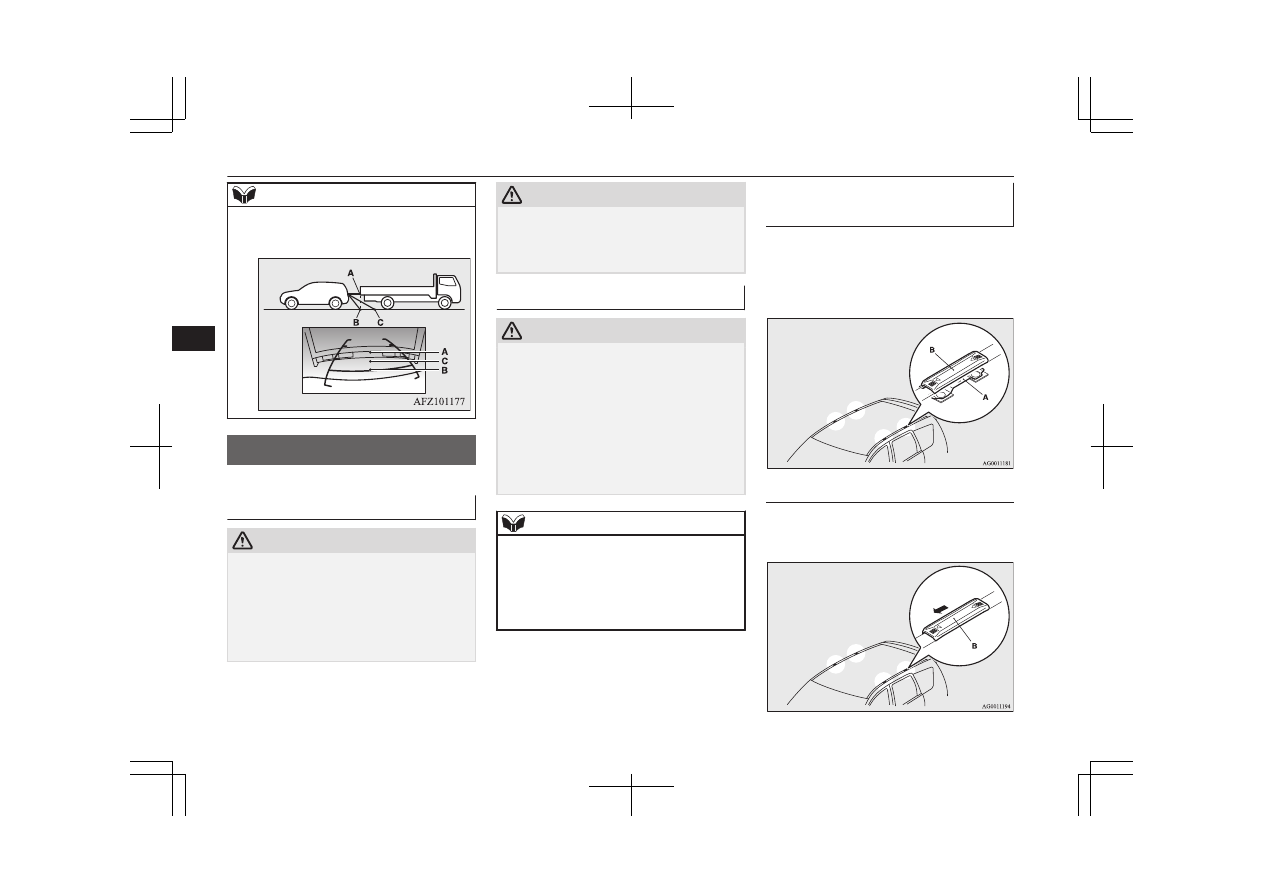

Example: On the screen the point B appears
the nearest, then the point C and A in order
of distance. The points A and B actually are
the same distances from the vehicle, and the

Rear-view camera*

6-83

OGAE18E1

Starting and driving

NOTE

point C is farther off than the points A and
B.

Check surroundings for safety.

Cargo loads

E00609901383

Cargo loads precautions

CAUTION

Do not load cargo or luggage higher than the
top of the seatback. Be sure that your cargo
or luggage cannot move once your vehicle is
moving. Having the driver’s vision blocked,
and your cargo being thrown inside the cab-
in if you suddenly have to brake can cause a
serious accident or injury.

CAUTION

Load heavy cargo or luggage in the front of
the vehicle. If the load in the back of the ve-
hicle is too heavy, steering may become un-
stable.

Loading a roof carrier

CAUTION

Use a roof carrier that properly fits your ve-
hicle. Do not load luggage directly onto the
roof. For installation, refer to the instruction
manual accompanying the roof carrier.

When attaching/removing the roof carrier
and loading/removing luggage, do not apply
excessive pressure on a single point.
Depending on how and where the force is
applied, this may cause dents on the vehicle
roof.

NOTE

We  recommend  you  to  use  a  genuine
MITSUBISHI  roof  carrier,  since  the  brack-
ets to be used have a special shape.
For details, we recommend you to consult a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

Roof carrier mounting brack-

ets*

When installing the roof carrier, use the
brackets (A).
The brackets (A) are located under each cov-
er (B).

Attaching the roof carrier

Slide each cover (B) towards the front of the
vehicle to remove it.

Cargo loads

6-84

OGAE18E1

Starting and driving

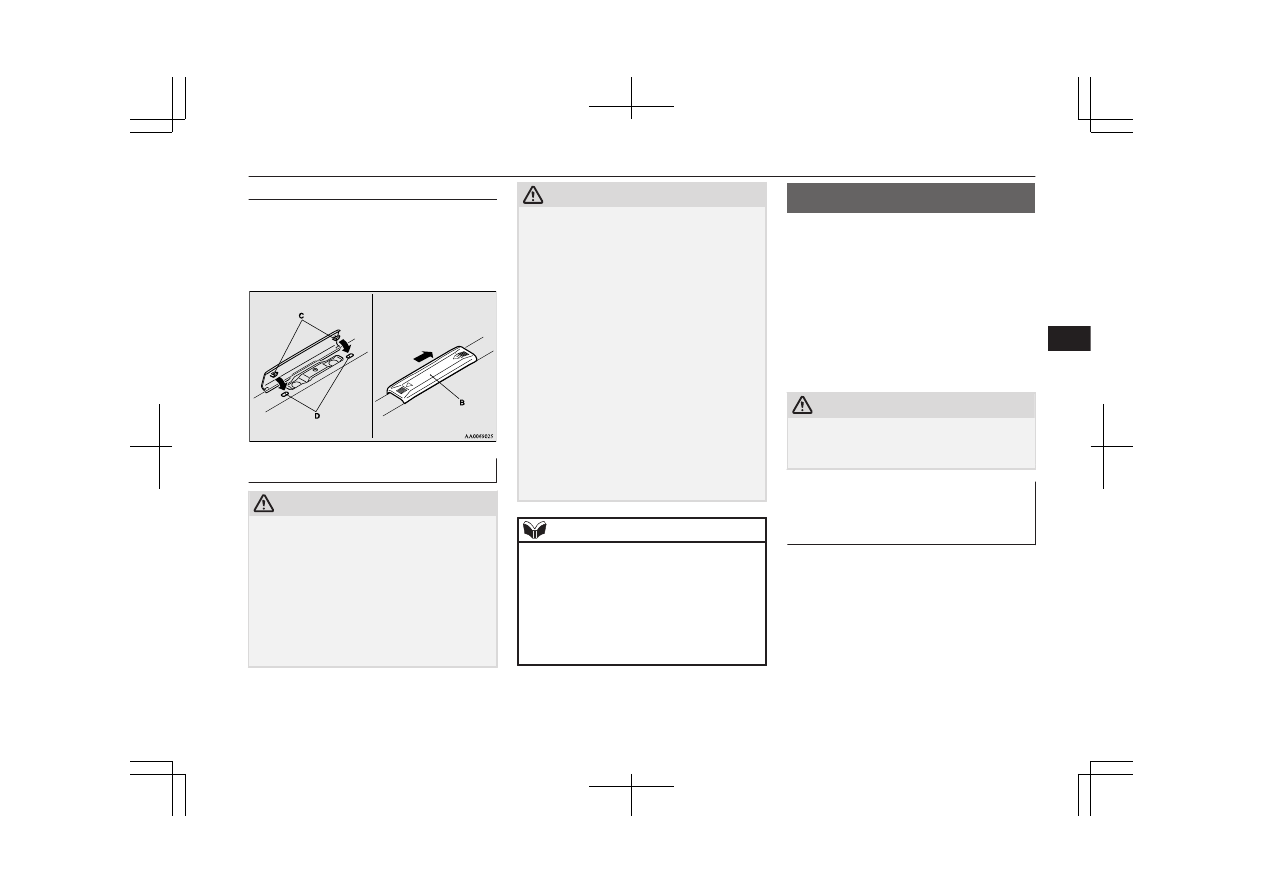

Refitting the covers

1. With each cover, put the tabs (C) on the

cover in the holes (D) in the roof.

2. Slide the cover (B) towards the rear of

the vehicle to install it.

Roof carrier precaution

CAUTION

Make  sure  that  the  weight  of  the  luggage
does not exceed the allowable roof load.
If  the  allowable  roof  load  is  exceeded,  this
may cause damage to the vehicle.
The roof load is the total allowable load on
the  roof  (the  weight  of  the  roof  carrier  plus
the weight of luggage placed on the roof car-
rier).
For  the  specific  value,  refer  to  “Maximum
roof load” on page 11-07.

CAUTION

When  luggage  is  loaded  onto  the  vehicle,
please  make  sure  to  drive  slowly  and  avoid
excessive manoeuvres such as sudden brak-
ing or quick turning.
In addition, place the luggage on the carrier
so  that  its  weight  is  distributed  evenly  with
the  heaviest  items  on  the  bottom.  Do  not
load items that are wider than the roof carri-
er.
The additional weight on the roof could raise
the vehicle’s centre of gravity and affect ve-
hicle handling characteristics.
As a result, driving errors or emergency ma-
noeuvres could lead to a loss of control and
result in an accident.

Before driving and after travelling a short
distance, always check the load to make sure
it is securely fastened to the roof carrier.
Check periodically during your travel that
the load remains secure.

NOTE

To prevent wind noise or reduction in fuel
economy, remove the roof carrier when not
in use.

Remove the roof carrier before using an au-
tomatic car wash.

Be sure that adequate clearance is main-
tained for raising the tailgate when installing
a roof carrier.

Trailer towing

E00610001948

In  order  to  tow  a  trailer  with  your  vehicle,
have  a  trailer  towing  device  mounted  that
meets  all  relevant  regulations  in  your  area,
consult  a  MITSUBISHI  MOTORS  Author-
ized Service Point.
The  regulations  concerning  the  towing  of  a
trailer  may  differ  from  country  to  country.
You  are  advised  to  obey  the  regulations  in
each area.

CAUTION

Danger of Accident!
A towing bar should be fitted according to
MITSUBISHI MOTORS guidelines.

Maximum towable weight with

brake and maximum trailer-

nose weight

Never  exceed  the  maximum  towable  weight
with  brake  and  the  maximum  trailer-nose
weight as listed in the specifications.
(Refer to page 11-07.)
If you tow a trailer at an altitude of more than
1,000 m above sea-level, reduce your weight
by 10 % of the gross combination weight for
every increase of 1,000 m above sea-level, as
the  engine  output  is  lowered  owing  to  de-
crease in atmospheric pressure.

Trailer towing

6-85

OGAE18E1

Starting and driving

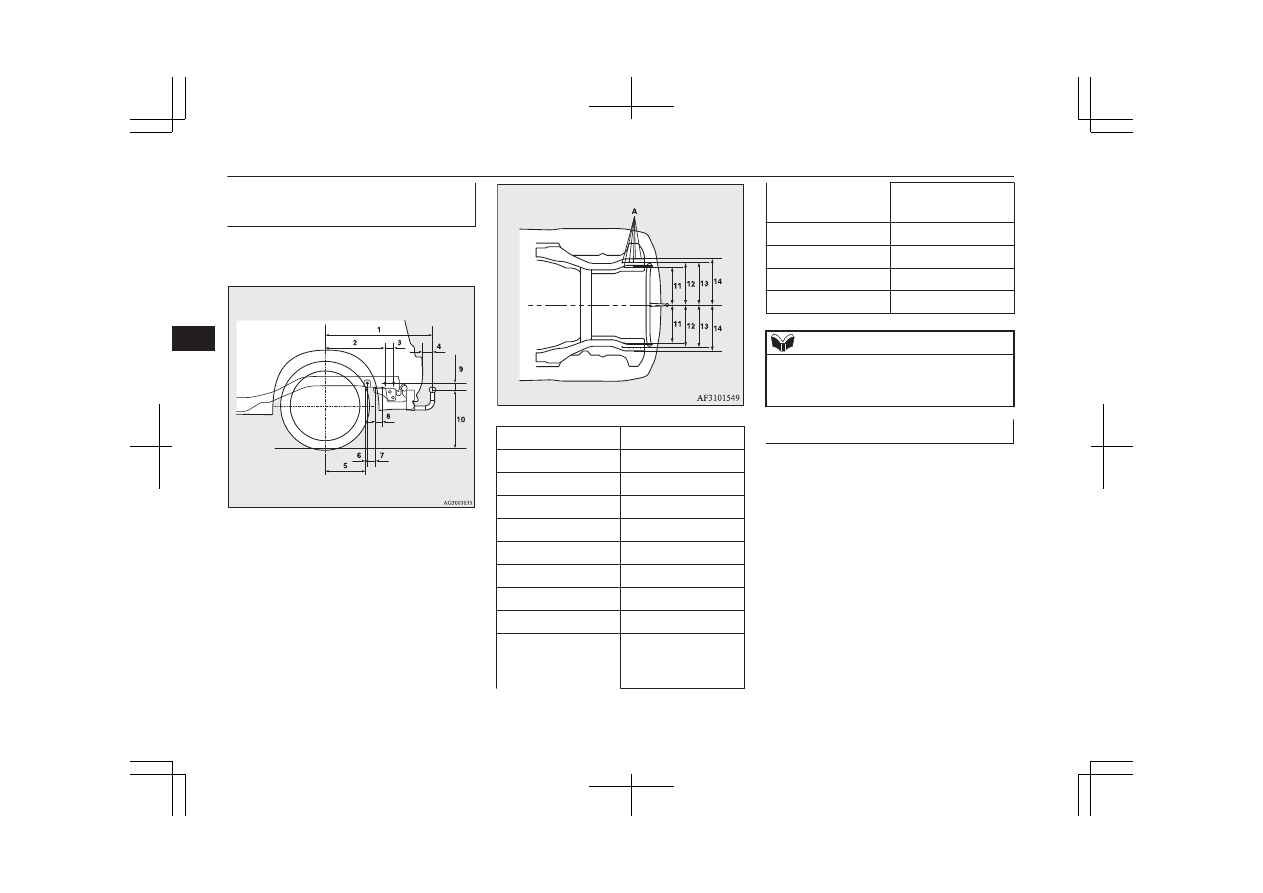

Towing bar mounting specifi-

cations

See the following table for fixing points (A)
for the towing bar.

838.5 mm

461 mm

68.5 mm

75 mm

310 mm

13.5 mm

66.5 mm

50 mm

48 mm

459 mm to 472 mm

(at kerb weight con-

dition)

377 mm to 400 mm
(at laden condition)

447 mm

487 mm

495 mm

525.5 mm

NOTE

The values under item 12 can be varied de-
pending on the loading condition of cargo or
luggage.

Operating hints

To prevent the clutch from slipping (Ve-
hicle with a M/T only), do not rev the
engine more than is required when start-
ing off.

Be sure that the driving speed does not
exceed 100 km/h (62 mph) for trailer op-
eration. It is also recommended that you
obey the local regulations in case driving
speed with a trailer is limited to less than
100 km/h (62 mph).

To prevent shocks from the overrun
brake, depress the brake pedal lightly at
first and then more strongly.

To make full use of engine braking,
change to a lower shift point before de-
scending a slope.

Trailer towing

6-86

OGAE18E1

Starting and driving

Additional precautions for vehi-

cles equipped with an A/T or

CVT

It is recommended the “D” position on slopes
or at low speed.
Use the sports mode in mountainous areas in
order  to  make  better  use  of  engine  braking
and  to  assist  the  brake  system.  However,  be
sure that the speed does not exceed the maxi-
mum  speed  limit  for  the  selected  shift  posi-
tion.

Overheating

This will normally occur as a result of some
mechanical  failure.  If  your  vehicle  should
overheat,  stop  and  check  for  a  loose  or  bro-
ken  water  pump/alternator  drive  belt,  a
blocked  radiator  air  intake  or  a  low  coolant
level. If these items are satisfactory the over-
heating could be caused by a number of me-
chanical  causes  that  would  have  to  be
checked at a competent service centre.

CAUTION

If the engine overheats, please refer to the
“Engine overheating” section of “For emer-
gencies” prior to taking any corrective ac-
tion.

CAUTION

On vehicles equipped with A/T, CVT, if the

warning display is showing, the tempera-

ture of the A/T fluid, CVT fluid is high.
Read  the  reference  page  and  take  the  re-
quired measures.
Read  the  reference  page  and  take  the  re-
quired measures.
Refer to “When a malfunction occurs in the
A/T”  on  page  6-30,  “When  a  malfunction
occurs in the CVT” on page 6-37.

Trailer towing

6-87

OGAE18E1

Starting and driving

Mitsubishi ASX (2018 year). Instruction - part 16
