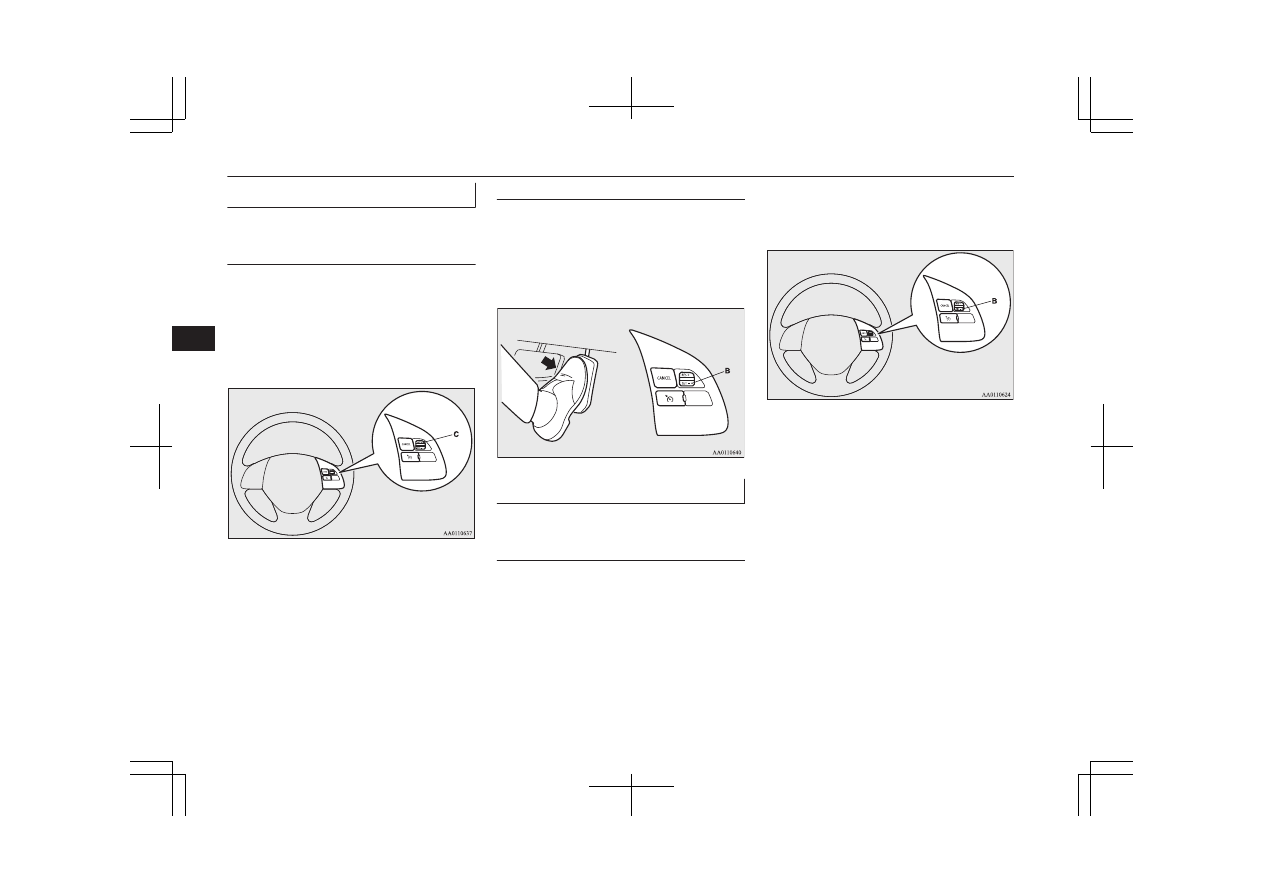

To increase the set speed

E00609400697

There are 2 ways to increase the set speed.

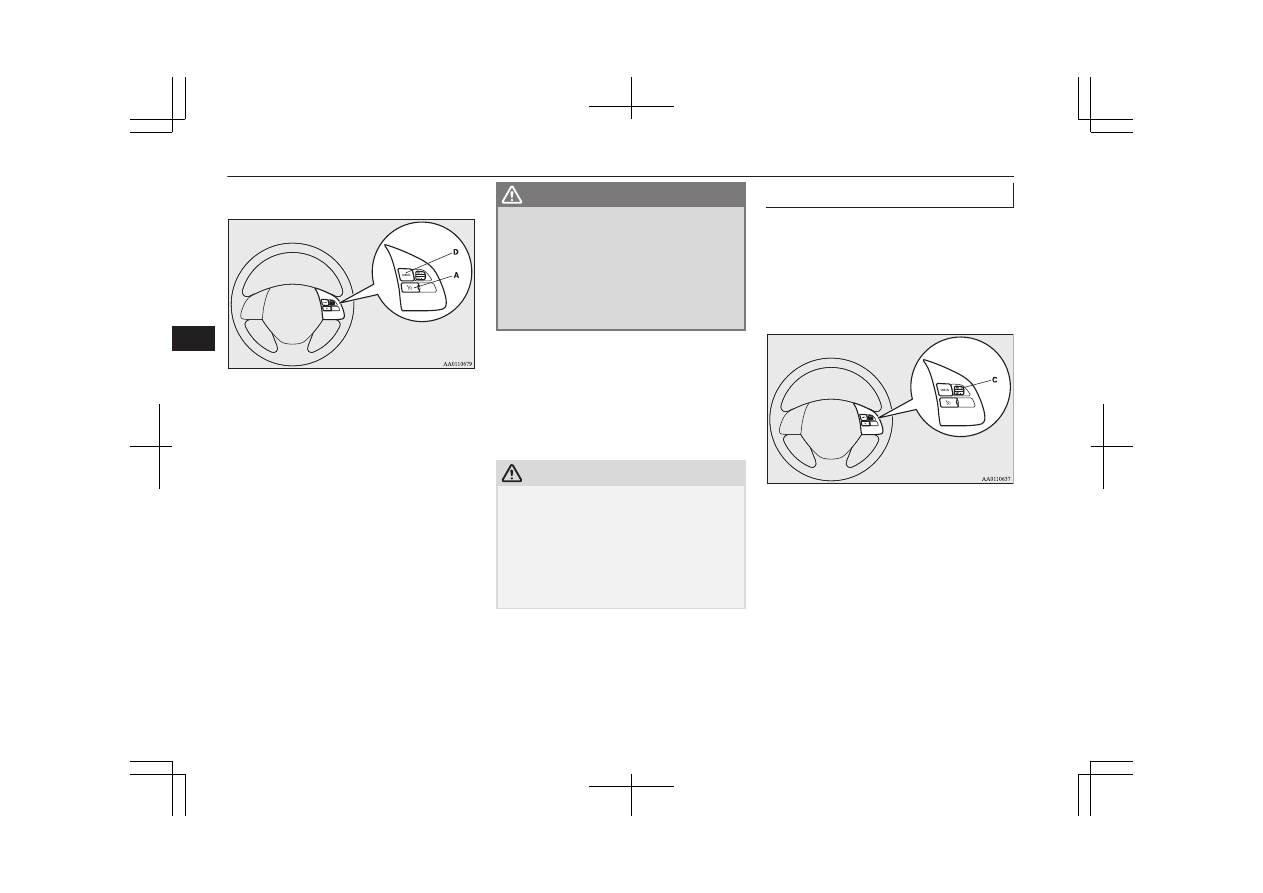

RES + switch

Push up and hold the RES + switch (C) while
driving at the set speed, and your speed will
then gradually increase.
When you reach your desired speed, release
the switch. Your new cruising speed is now
set.

To increase your speed in small amounts,
push up the RES + switch for less than about
1 second and release it.
Each time you push up the RES + switch,
your vehicle will go about 1.6 km/h (1 mph)
faster.

Accelerator pedal

While driving at the set speed, use the accel-
erator pedal to reach your desired speed and
then push down the SET - switch (B) and re-
lease the switch momentarily to set a new de-
sired cruising speed.

To decrease the set speed

E00609500614

There are 2 ways to decrease the set speed.

SET - switch

Push down and hold the SET - switch (B)
while driving at the set speed, and your speed
will slow down gradually.

When you reach your desired speed, release
the switch. Your new cruising speed is now
set.

To slow down your speed in small amounts,
push down the SET - switch for less than
about 1 second and release it.
Each time you push down the SET - switch,
your vehicle will slow down by about
1.6 km/h (1 mph).

Cruise control*

6-56

OGAE18E1

Starting and driving

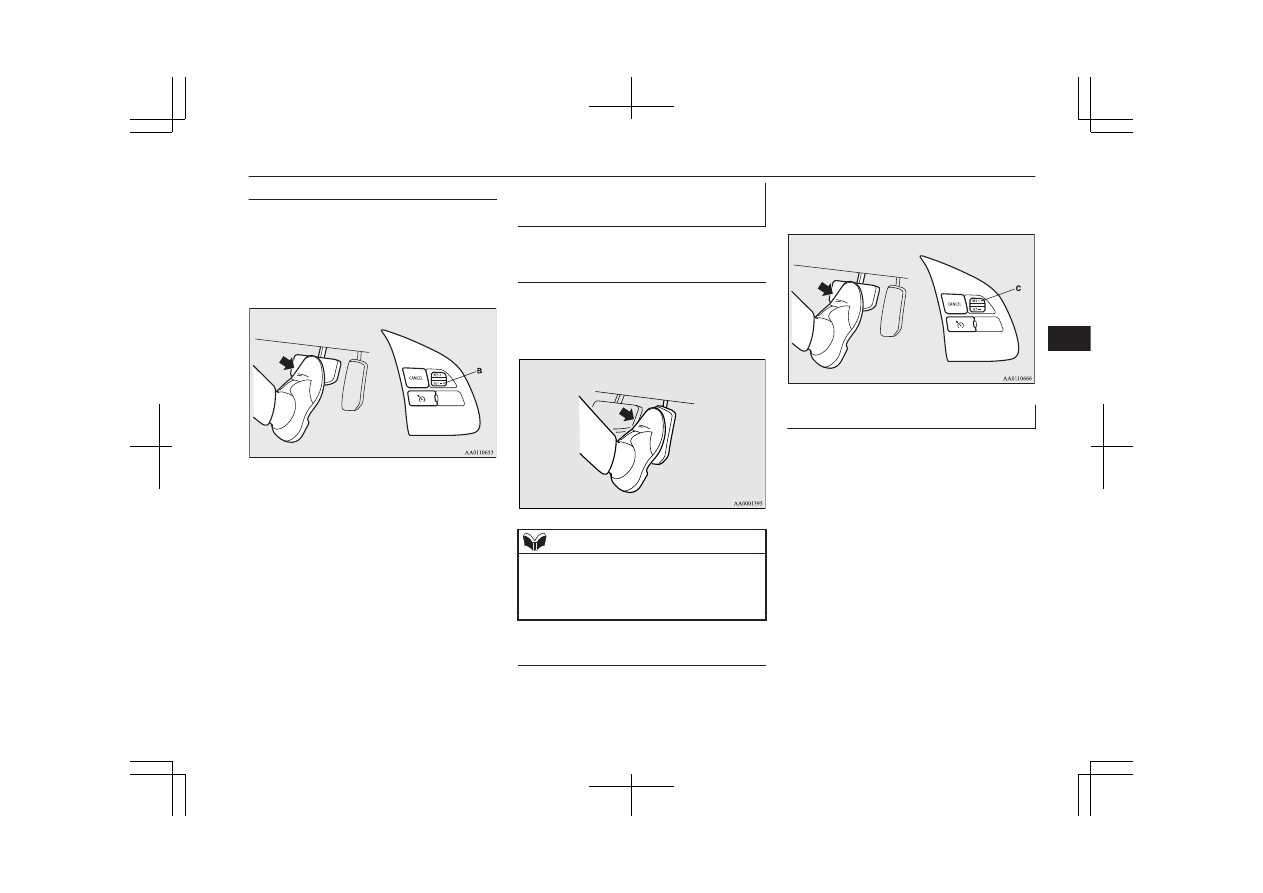

Brake pedal

While driving at the set speed, use the brake
pedal, which disengages the cruise control,
then push down the SET - switch (B) and re-
lease the switch momentarily to set a new de-
sired cruising speed.

To temporarily increase or de-

crease the speed

E00609600211

To temporarily increase the

speed

Depress the accelerator pedal as you would
normally. When you release the pedal, you
will return to your set speed.

NOTE

In some driving conditions, the set speed
driving may be deactivated. If this happens,
refer to “To activate” on page 6-55 and re-
peat the speed setting procedure.

To temporarily decrease the

speed

Depress the brake pedal to decrease the
speed. To return to the previously set speed,
push up the RES + switch (C).

Refer to “To resume the set speed” on page
6-58.

To deactivate

E00609701437

The set speed driving can be deactivated as
follows:

Press the CRUISE CONTROL ON/OFF
switch (A) (Cruise control will be turned
off.)

Press the CANCEL switch (D).

Cruise control*

6-57

OGAE18E1

Starting and driving

Depress the brake pedal.

The set speed driving is deactivated automat-
ically in any of the following ways.

When you depress the clutch pedal (on
vehicles with M/T).

When your speed slows to about
15 km/h (9 mph) or more below the set
speed because of a hill, etc.

When your speed slows to about
40 km/h (25 mph) or less.

When the Active Stability Control
(ASC) starts operating. (if so equipped)
Refer to “Active stability control (ASC)”
on page 6-51.

WARNING

On  vehicles  equipped  with  A/T,  CVT,  al-
though the set speed driving will be deac-
tivated  when  shifting  to  the  “N”  (NEU-
TRAL)  position,  never  move  the  selector
lever  to  the  “N”  (NEUTRAL)  position
while driving.
You  would  have  no  engine  braking  and
could cause a serious accident.

Also, the set speed driving may be deactiva-
ted as follows:

When  the  engine  speed  rises  and  ap-
proaches  the  tachometer's  red  zone  (the
red-coloured  part  of  the  tachometer  di-
al).

CAUTION

When  the  set  speed  driving  is  deactivated
automatically  in  any  situation  other  than
those  listed  above,  there  may  be  a  system
malfunction.
Press  the  CRUISE  CONTROL  ON/OFF
switch to turn off the cruise control and have
your  vehicle  inspected  by  a  MITSUBISHI
MOTORS Authorized Service Point.

To resume the set speed

E00609800675

If the set speed driving is deactivated by the
condition described in “To deactivate” on
page 6-57, you can resume the previously set
speed by push up the RES + switch (C) while
driving at a speed of about 40 km/h (25 mph)
or higher.

Under either of the following conditions,
however, using the switch does not allow you
to resume the previously set speed.
In these situations, repeat the speed setting
procedure:

The CRUISE CONTROL ON/OFF
switch is pressed.

Cruise control*

6-58

OGAE18E1

Starting and driving

[Except vehicles equipped with keyless
operation system]
Turn the ignition switch to the “LOCK”
or “ACC” position.
[Vehicles equipped with keyless opera-
tion system]
Put the operation mode in OFF or ACC.

“CRUISE” indication lamp is turned
OFF.

Forward Collision
Mitigation system (FCM)*

E00635101315

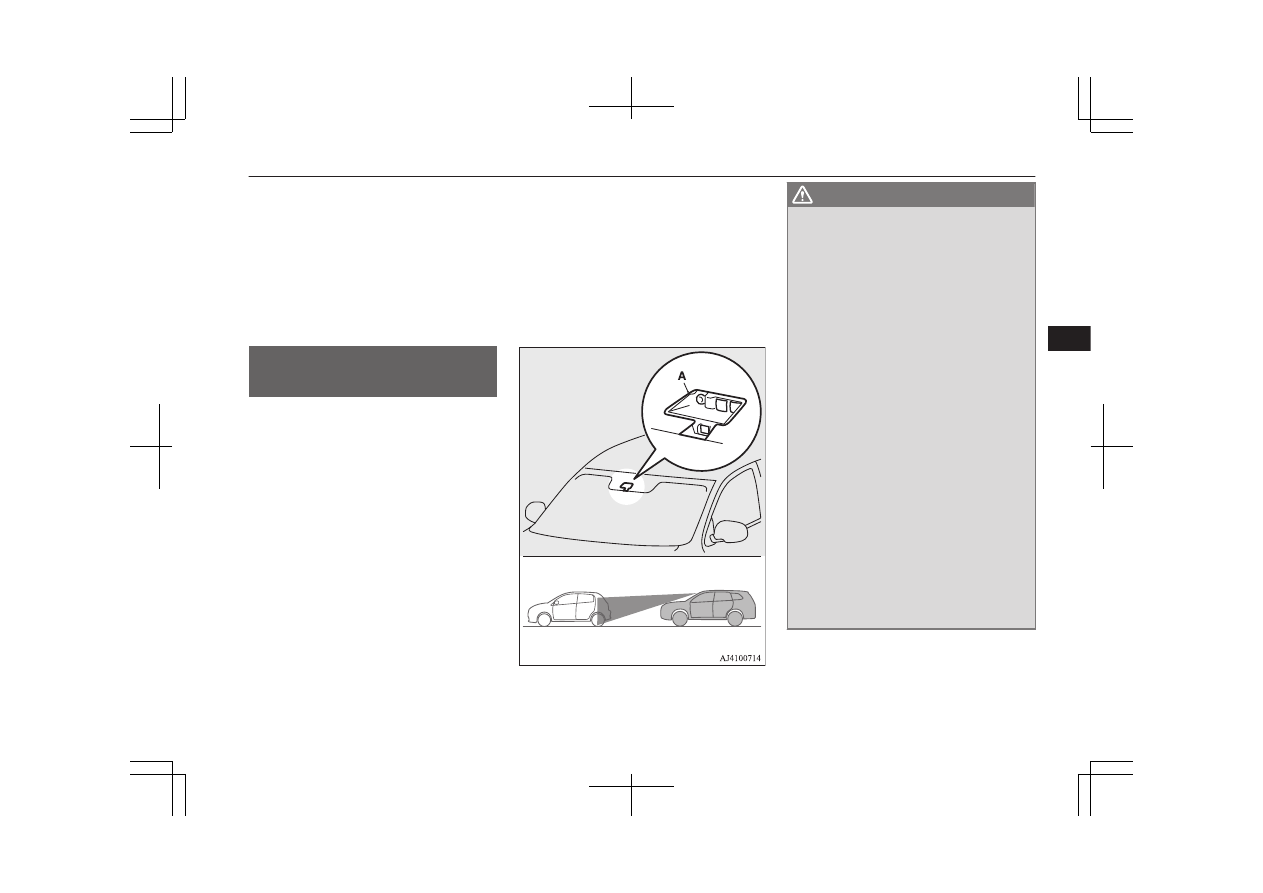

The  Forward  Collision  Mitigation  System
(FCM)  uses  a  sensor  (A)  to  determine  the
distance and relative speed to a vehicle and a
pedestrian in front. When your vehicle is ap-
proaching  a  vehicle  or  a  pedestrian  straight-
ahead in your path and the FCM judges that
there  is  the  risk  of  a  collision,  the  system
gives  audible  and  visual  warnings  (forward
collision  warning  function),  increases  the
brake fluid pressure (FCM brake prefill func-
tion),  and  also  provides  braking  force  assis-
tance  when  you  depress  the  brake  pedal
(FCM  brake  assist  function)  to  avoid  frontal
collision.

When the risk of collision increases more, the
system causes the brakes to work moderately
to encourage you to apply brakes. If the sys-
tem judges that a potential collision is immi-
nent,  it  initiates  emergency  braking  to  miti-
gate  collision-caused  damages  or  to  avoid
possible collision (FCM braking function).
Stop  lamps  are  illuminated  during  automatic
braking.

WARNING

A driver is responsible for driving safely.
The  FCM  is  the  system  to  mitigate  colli-
sion-  caused  damages  or  to  avoid  colli-
sions as much as possible.
The system is not intended to compensate
for  driver’s  loss  of  attention  to  the  front
during driving due to distraction or care-
lessness or supplement a drop in visibility
due to the rain and fog.
It  is  never  a  substitute  for  your  safe  and
careful driving. Always be ready to apply
the brakes manually.

The FCM works to avoid frontal collisions
as  much  as  possible.  However,  the  effect
of its operation varies depending on situa-
tions and conditions, such as driving con-
ditions, road conditions, and steering, ac-
celeration and braking operations, so that
the  performance  the  function  can  deliver
is not always the same.
If  your  vehicle  is  in  danger  of  collision,
take  all  necessary  collision-evading  ac-
tions,  such  as  depressing  the  brake  pedal
strongly regardless of whether the system
is activated or not.

Do not try to confirm the operation of the
FCM. In certain situations, this can cause
an accident resulting in serious injury or
death.

Forward Collision Mitigation system (FCM)*

6-59

OGAE18E1

Starting and driving

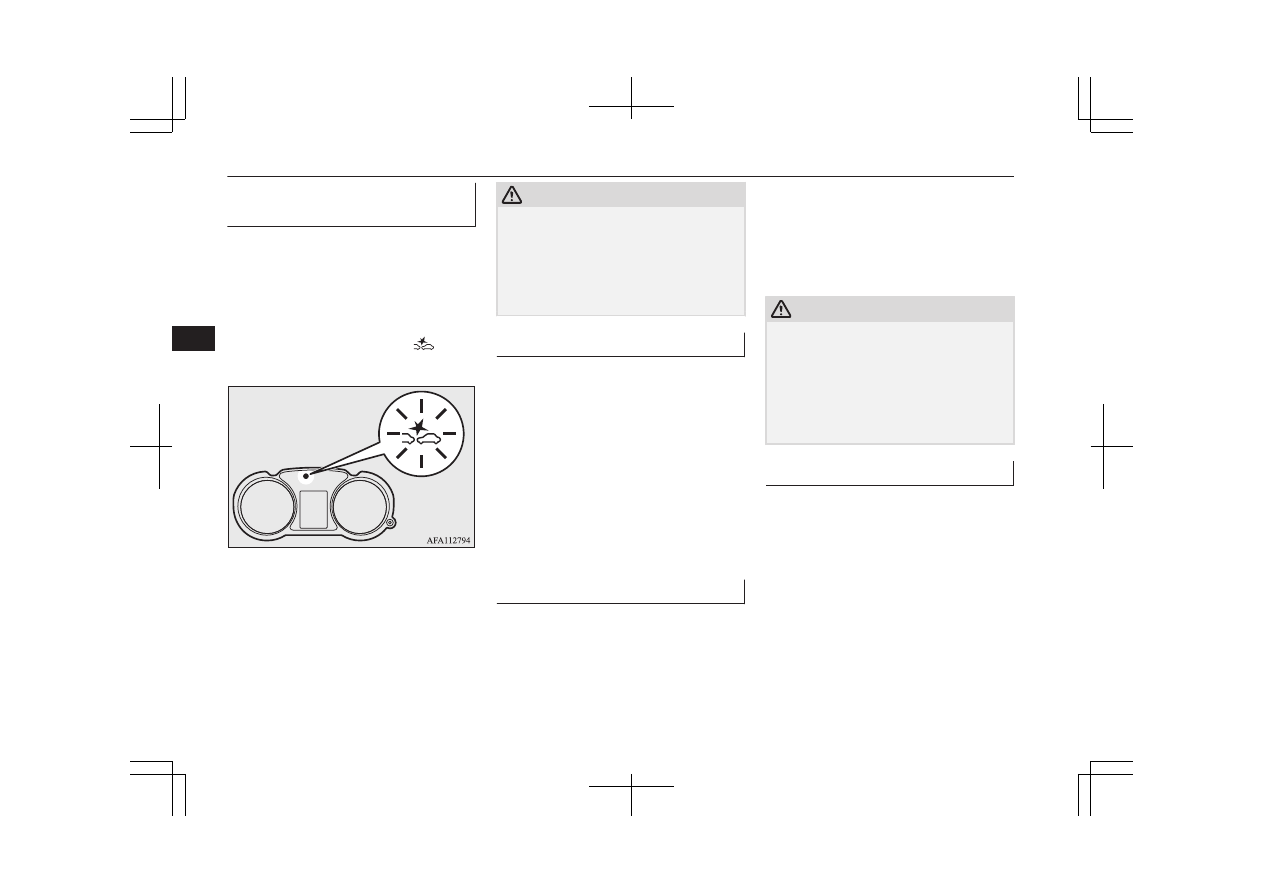

Forward collision warning

function

E00635401190

If  the  system  judges  that  there  is  a  risk  of
your vehicle colliding with a vehicle or a pe-
destrian  in  front,  this  function  warns  you  of
the  potential  hazard  with  visual  and  audible
alarms.
When  this  function  is  triggered,  a  buzzer
sounds and, at the same time, the

indica-

tor starts flashing.

The forward collision warning function oper-
ates at the following vehicle speed:

Against a vehicle: Approximately 15
km/h to 140 km/h.

Against a pedestrian: Approximately 7
km/h to 65 km/h.

CAUTION

Under certain conditions, the audible alarm
may not work at all or may be scarcely audi-
ble. Do not overly rely on the system; if your
vehicle is in danger of collision, take all nec-
essary collision-evading actions, such as de-
pressing the brake pedal strongly regardless
of whether the system is activated or not.

FCM brake prefill function

E00635201101

If  the  system  judges  that  there  is  a  risk  of
your vehicle colliding with a vehicle or a pe-
destrian  in  front,  this  function  prefills  the
brake line with additional brake fluid to make
the  brakes  more  responsive  to  your  brake
pedal operation.
The  FCM  brake  prefill  function  operates  at
the following vehicle speed:

Against a vehicle: Approximately
5 km/h to 80 km/h.

Against a pedestrian: Approximately
5 km/h to 65 km/h.

FCM brake assist function

E00635301128

If the system judges that there is a risk of
your vehicle colliding with a vehicle or a pe-
destrian in front, this function deploys the
brake assist sooner than the brake assist oper-
ation.

The FCM brake assist function operates at
the following vehicle speed:

Against a vehicle: Approximately
15 km/h to 80 km/h.

Against a pedestrian: Approximately
15 km/h to 65 km/h.

CAUTION

The  brake  assist  function  may  not  be  trig-
gered  when  the  brake  pedal  is  operated  in
certain ways.
Do not overly rely on the system; if your ve-
hicle is in danger of collision, take all neces-
sary  collision-evading  actions,  such  as  de-
pressing the brake pedal strongly regardless
of whether the system is activated or not.

FCM braking function

E00635501553

If the system judges that there is a high risk
of your vehicle colliding with a vehicle or a
pedestrian  in  front,  the  system  applies  the
brakes moderately to encourage you to apply
the brakes.
If  the  system  judges  that  a  collision  is  un-
avoidable, it initiates emergency braking con-
trol  to  mitigate  collision-caused  damages  or,
if the situation permits, to avoid a collision.
When the emergency braking control is trig-
gered, you are warned of the hazard by a vis-
ual alarm.

Forward Collision Mitigation system (FCM)*

6-60

OGAE18E1

Starting and driving

Once the emergency braking has worked, you
are alerted to this by a message on the infor-
mation screen of the multi-information dis-
play.

The FCM braking function operates at the
following vehicle speed:

Against a vehicle: Approximately
5 km/h to 80 km/h

Against a pedestrian: Approximately
5 km/h to 65 km/h

CAUTION

Do not use the FCM as a normal braking.

After your vehicle has stopped following the
activation of the FCM, automatic braking is
released. As the vehicle will then start creep-
ing, be sure to depress the brake pedal to
hold the vehicle stationary.

When applying the brake during the auto-
matic braking condition the pedal will feel
firm.
This is not abnormal.
You can apply more pressure to the pedal to
assist in braking.

In the following situations, the system pro-
vides neither control nor alarming.

CAUTION

•

When a vehicle or a pedestrian suddenly
cuts in front of your vehicle.

•

When the distance from a vehicle or a pe-
destrian in front is extremely short.

•

To an oncoming vehicle.

•

On vehicles equipped with A/T or CVT,
when the selector lever is in the “P”
(PARK) or “R” (REVERSE) position.

•

On vehicles equipped with M/T, when the
gearshift lever is in the “R” (Reverse) po-
sition.

•

When the FCM has detected a problem in
the system.

If the ASC is deactivated, the FCM braking
function will not operate. Refer to “Active
Stability Control (ASC)” on page 6-51.

The FCM may or may not detect a motorcy-
cle, bicycle or wall depending on the situa-
tion. The FCM is not designed to detect
these objects.

The forward collision warning function
and/or the FCM braking function may not
activate in the following situations.

•

When a vehicle suddenly appears just in
front of your vehicle.

•

When a vehicle cuts in front of your vehi-
cle very closely.

•

When the vehicle in front is offset to the
left or right.

•

When the vehicle in front is towing a
trailer.

•

A freight trailer that is not carrying a con-
tainer.

CAUTION

•

The vehicle has a protruding load from
the carrier.

•

The vehicle has a low vehicle height.

•

The vehicle has an extremely high ground
clearance.

•

When a vehicle in front is extremely dirty.

•

When a vehicle in front is covered with
snow.

•

When a vehicle in front has a large glass
surface.

•

When a vehicle in front does not have re-
flectors (lamp reflector) or the position of
the reflector is low.

•

When a vehicle in front is a car carrier or
a similar shaped vehicle.

•

When there is a different object near the
vehicle.

•

When driving on a road with many and
successive curves, including when pass-
ing their entrances and outlets.

•

When accelerating and decelerating
quickly.

•

When  the  system  recognizes  driver’s
steering,  accelerating,  braking  or  gear
shifting  actions  as  evasive  actions  to
avoid collision.

•

When you are driving on a road with
steep and alternating up and down slopes.

•

When driving on a slippery road covered
by rain water, snow, ice etc.

•

When a road surface is surging, and there
is unevenness.

•

When driving in dark areas, such as in a
tunnel or at night.

Forward Collision Mitigation system (FCM)*

6-61

OGAE18E1

Starting and driving

CAUTION

•

When your vehicle changed lanes, and
your vehicle approached immediately be-
hind the vehicle in front.

•

During a certain time after your vehicle
turns left or right.

•

When you are carrying extremely heavy
loads in the rear seats or luggage area.

•

After the engine has been running for an
extended period of time.

•

When using a windscreen washer.

•

windscreen

wipers

are

not

MITSUBISHI MOTORS GENUINE
parts or equivalent.

•

When the sensor becomes extremely hot
or cold.

•

If the battery becomes weak or runs
down.

•

When the sensor is affected by strong
light, such as direct sunlight or the head-
lamps of an oncoming vehicle.

•

Under adverse weather conditions (rain,
snow, sand storms, etc.)

•

When the windscreen of the sensor por-
tion is covered with dirt, water droplets,
snow and ice, etc.

•

When water, snow or sand on the road are
extorted by the vehicle in front or an on-
coming vehicle.

The FCM may not detect a pedestrian in cer-
tain situations. Some of these include:

•

It the pedestrian is shorter than approxi-
mately 1 m or taller than approximately 2
m.

CAUTION

•

If the pedestrian is wearing loose-fitting
clothes.

•

If part of a pedestrian’s body is hidden,
such as when holding an umbrella, large
bag, etc.

•

If a pedestrian bends forward, sits or lies
on the road.

•

When a pedestrian is pushing/pulling
something, such as a stroller, bicycle or
wheelchair.

•

When pedestrians gather in a group.

•

When a pedestrian’s clothing appears to
be nearly the same colour or brightness as
its surroundings.

•

When a pedestrian is very close to an ob-
ject, such as a vehicle.

•

When a pedestrian is in a dark area, such
as at night or in a tunnel.

•

When the pedestrian is walking fast or
running.

•

When a pedestrian suddenly rushes in
front of the vehicle.

•

When the position of a pedestrian is close
to the edge of the vehicle.

Factors such as the positional relationship
between your vehicle and a vehicle in front,
driver’s own technique of steering the vehi-
cle and irregularly moving traffic due to ac-
cidents or vehicle trouble may deter the
FCM control and alarm from functioning.

When the system recognizes driver’s steer-
ing or accelerating actions as evasive actions
to avoid a collision, the FCM control and
alarm functions may be cancelled.

CAUTION

The FCM control and alarm functions may
be triggered in the following situations.

•

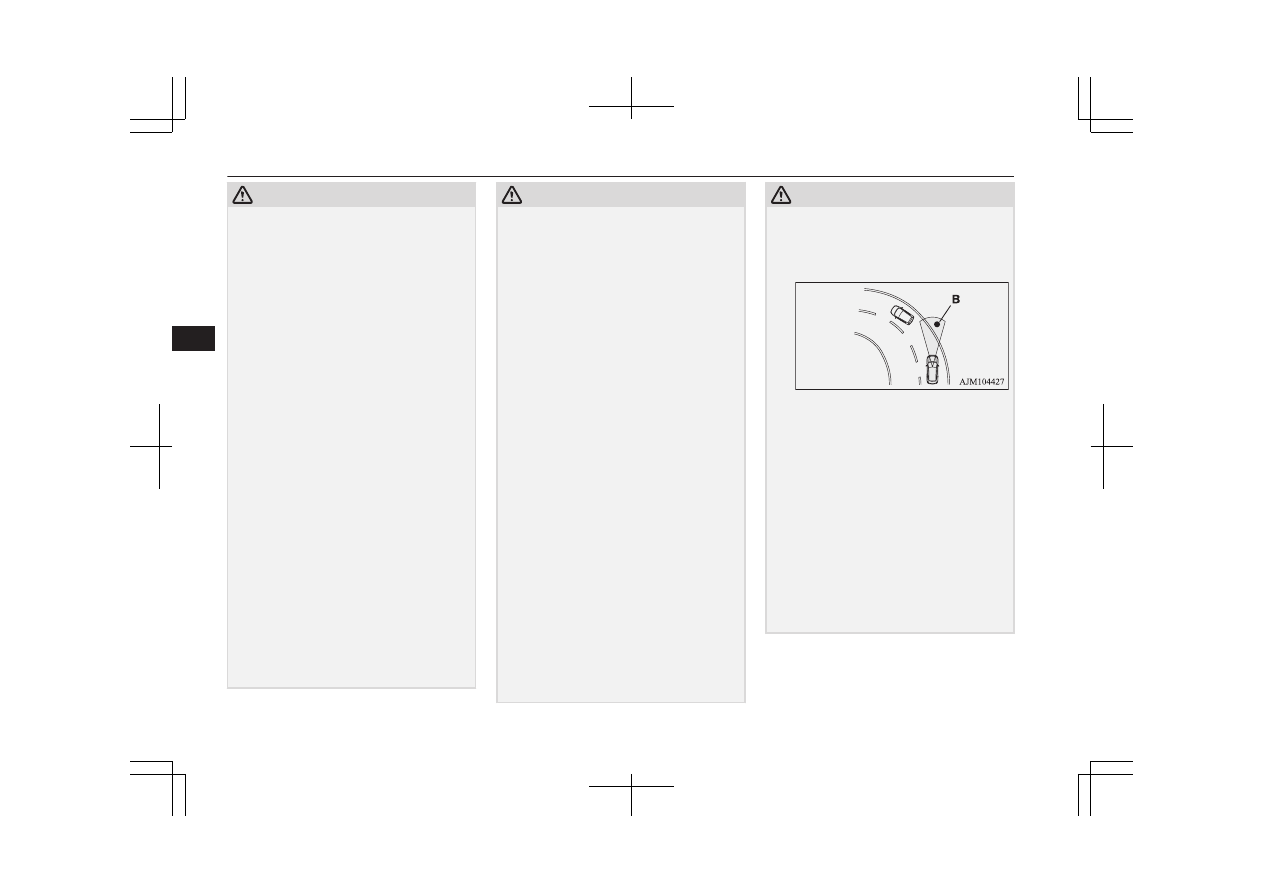

When there is a structure (B) beside the
entrance of a curve and intersection.

•

When running on a narrow iron bridge.

•

When passing through a gate with small
head or side clearances.

•

When there are metallic objects, steps or
projections on the road surface.

•

When quickly approaching a vehicle in
front to overtake it.

•

When passing an electronic toll collection
gate.

•

When running under an overpass, an pe-
destrian overpass or a small tunnel.

•

When running in Multi-storey car park.

•

When the road gradiently and suddenly
changes while running.

•

When stopping very close to a wall or a
vehicle in front.

Forward Collision Mitigation system (FCM)*

6-62

OGAE18E1

Starting and driving

CAUTION

•

When passing close to a vehicle, pedes-
trian or object.

•

When driving on the road that the vehicle
in front runs in offset position from your
vehicle.

•

When passing through an area where ob-
jects may contact the vehicle, such as
thick grass, tree branches, or a banner.

•

When there are patterns on the road that
may be mistaken for a vehicle or a pedes-
trian.

•

When a vehicle cuts into your path in the
detecting range of the sensor.

•

When an oncoming vehicle is positioned
straight ahead of your vehicle on a curved
road.

CAUTION

•

When passing through a plastic curtain
etc.

•

When the FCM detects a long object car-
ried on your vehicle, such as skies or a
roof carrier.

•

When driving through fog, steam, smoke
or dust.

•

When the windscreen of the sensor por-
tion is covered with dirt, water droplets,
snow and ice, etc.

Turn off the system beforehand when the ve-
hicle is placed in any of the following situa-
tions as the system can operate unexpected-
ly.

•

When using an automatic car wash.

•

When your vehicle’s wheels are driven by
the engine on a lift.

•

When your vehicle is towed or your vehi-
cle tows another vehicle.

•

When your vehicle is carried on a truck.

•

When enjoying sports driving on a circuit.

•

When your vehicle is on a chassis dyna-
mometer or free rollers.

•

When the tyre pressure is not correct.

•

When installing the spare tyre for emer-
gency.

•

When the snow traction device (tyre
chains) are attached.

•

If the windscreen on or surrounding the
sensor is cracked or scratched.

NOTE

A sound will be heard during the activation
of automatic braking, this is a function of the
brake control and is not abnormal.

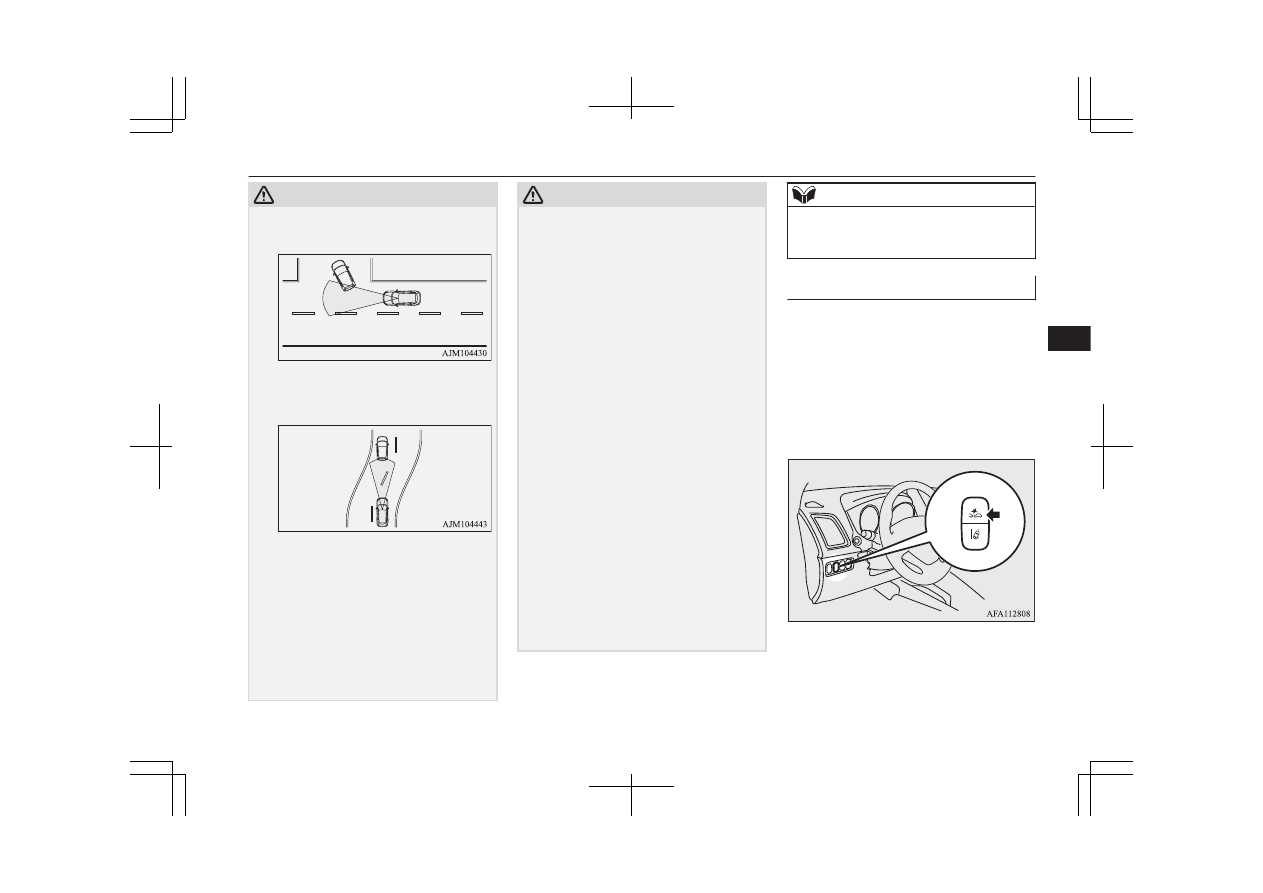

FCM ON/OFF switch

E00635601394

This switch is used to turn on and off the
FCM and also to select your desired collision
alarm timing.
When the switch is held pressed, the
ON/OFF state of the FCM changes from ON
to OFF and vice versa. If you give the switch
a short press with the FCM in the ON state,
you can change the collision alarm timing.

Forward Collision Mitigation system (FCM)*

6-63

OGAE18E1

Starting and driving

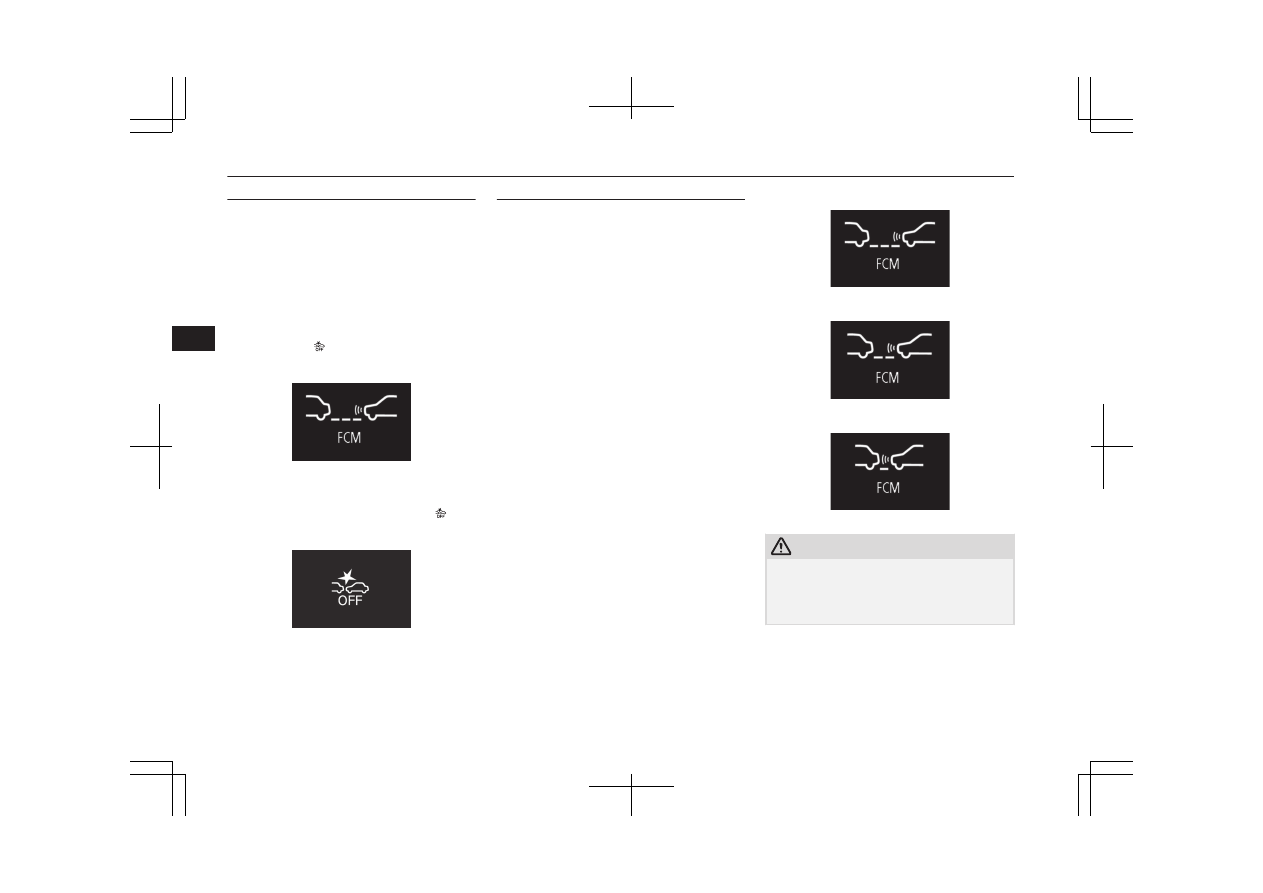

To turn on/off the system

You can switch the system from OFF to ON
or ON to OFF if you hold the FCM ON/OFF
switch  pressed  when  the  ignition  switch  is
turned to the “ON” position or the operation
mode is put in ON.
Once the system is turned on, the information
screen  of  the  multi-information  display
shows the collision alarm timing currently se-
lected,  and  the  indicator  on  the  instrument
cluster goes out.

When you turn off the system, the following
message appears on the information screen of
the multi-information display and the indi-
cator will come on in the instrument cluster.

Cycling the ignition switch to the “ON” posi-
tion or putting the operation mode in ON will
set the FCM back ON.

To change alarm timing

Give  a  short  press  to  the  FCM  ON/OFF
switch  to  change  the  timing  at  which  the
frontal  collision  alarm  is  triggered.  Every
time  you  press  the  switch,  the  alarm  timing
changes  from  three  levels  (far,  middle  or
near).
As  you  make  selection,  the  selected  alarm
timing is displayed on the information screen
of  the  multi-information  display.  Even  after
turning  off  the  FCM,  turning  the  ignition
switch to the “LOCK” position or putting the
operation  mode  in  OFF,  the  system  retains
your last selected alarm timing in memory.

Distance mode: Far

Distance mode: Middle

Distance mode: Near

CAUTION

For  the  FCM  brake  prefill,  the  FCM  brake
assist  and  the  FCM  braking  functions,  the
function  triggering  timing  cannot  be
changed.

Forward Collision Mitigation system (FCM)*

6-64

OGAE18E1

Starting and driving

System problem warning

E00693300082

If  there  is  a  malfunction  in  the  system,  a
warning  will  appear  on  the  information
screen  of  the  multi-information  display  de-
pending on the situation.

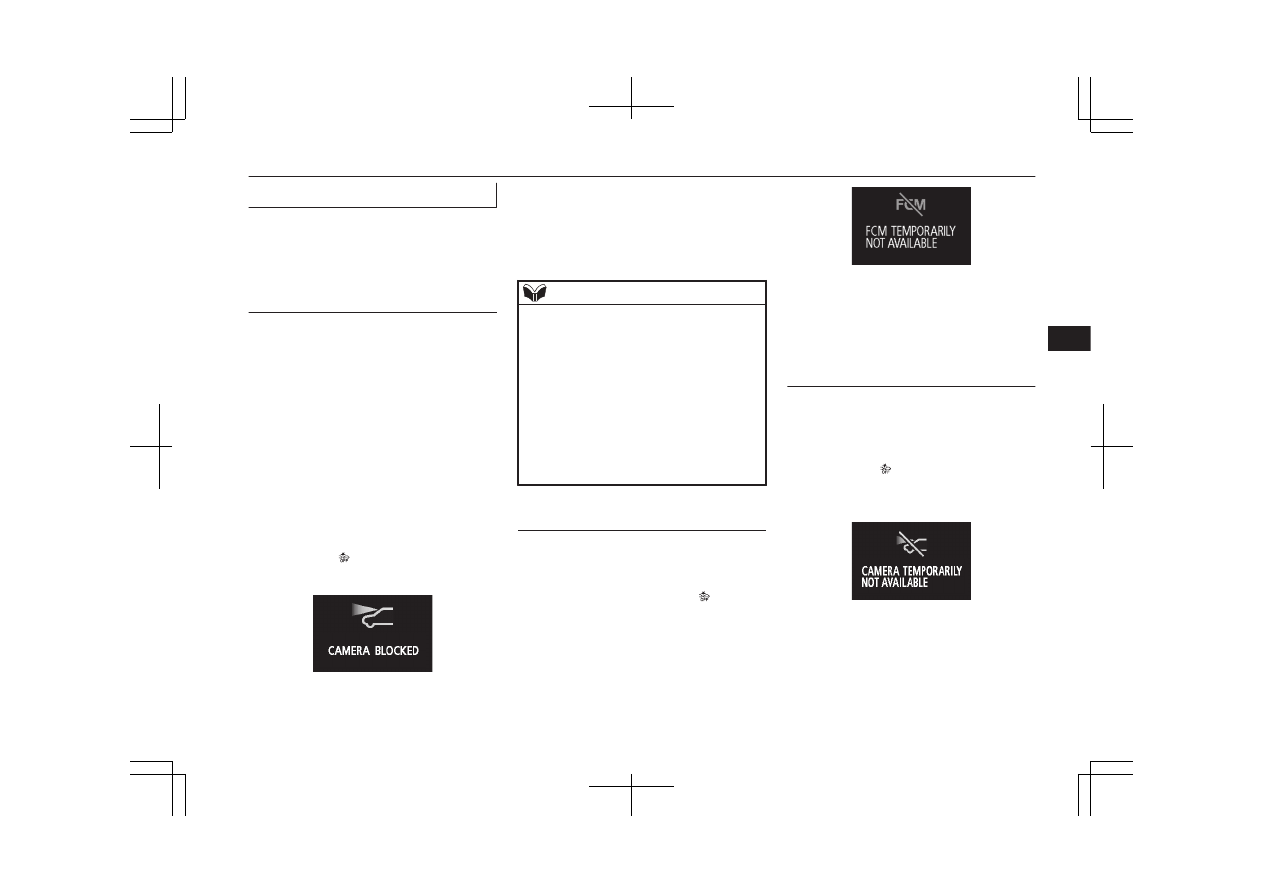

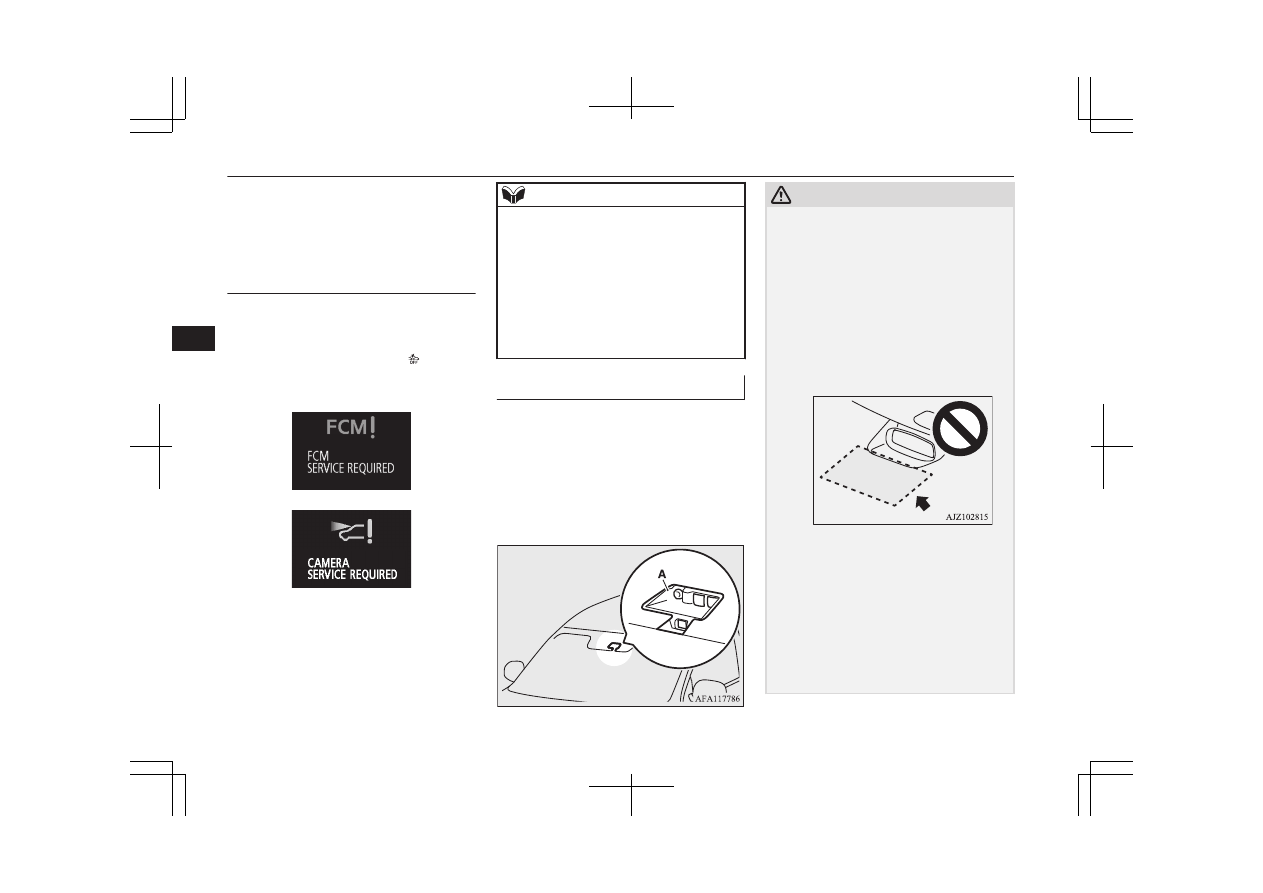

Windscreen is dirty

When the FCM system determines that its
performance has been degraded, the FCM
will become inoperative.
This can occur when:

Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.

There are adverse weather conditions,
such as rain, snow, sand storms, etc.

A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.

The following message will appear on the in-
formation screen of the multi-information
display and the indicator will come on in
the instrument cluster.

When the sensor performance returns, the
FCM functions will resume operation.

If  the  display  keeps  showing  the  message,
there  is  a  possibility  that  the  sensor  has  a
malfunction.  Contact  a  MITSUBISHI
MOTORS  Authorized  Service  Point  for  in-
spection of the sensor.

NOTE

The  “CAMERA  BLOCKED”  message  may
temporarily  appear  on  the  information
screen when the sensor cannot detect a vehi-
cle,  a  pedestrian  or  an  object  within  range.
This is not a malfunction. When a vehicle or
an  object  comes  within  range,  the  FCM
function  will  resume  and  the  message  will
go off.

The “CAMERA BLOCKED” message may
appear on the information screen when driv-
ing on a nonbusy road with a few vehicles
and obstacles in front.

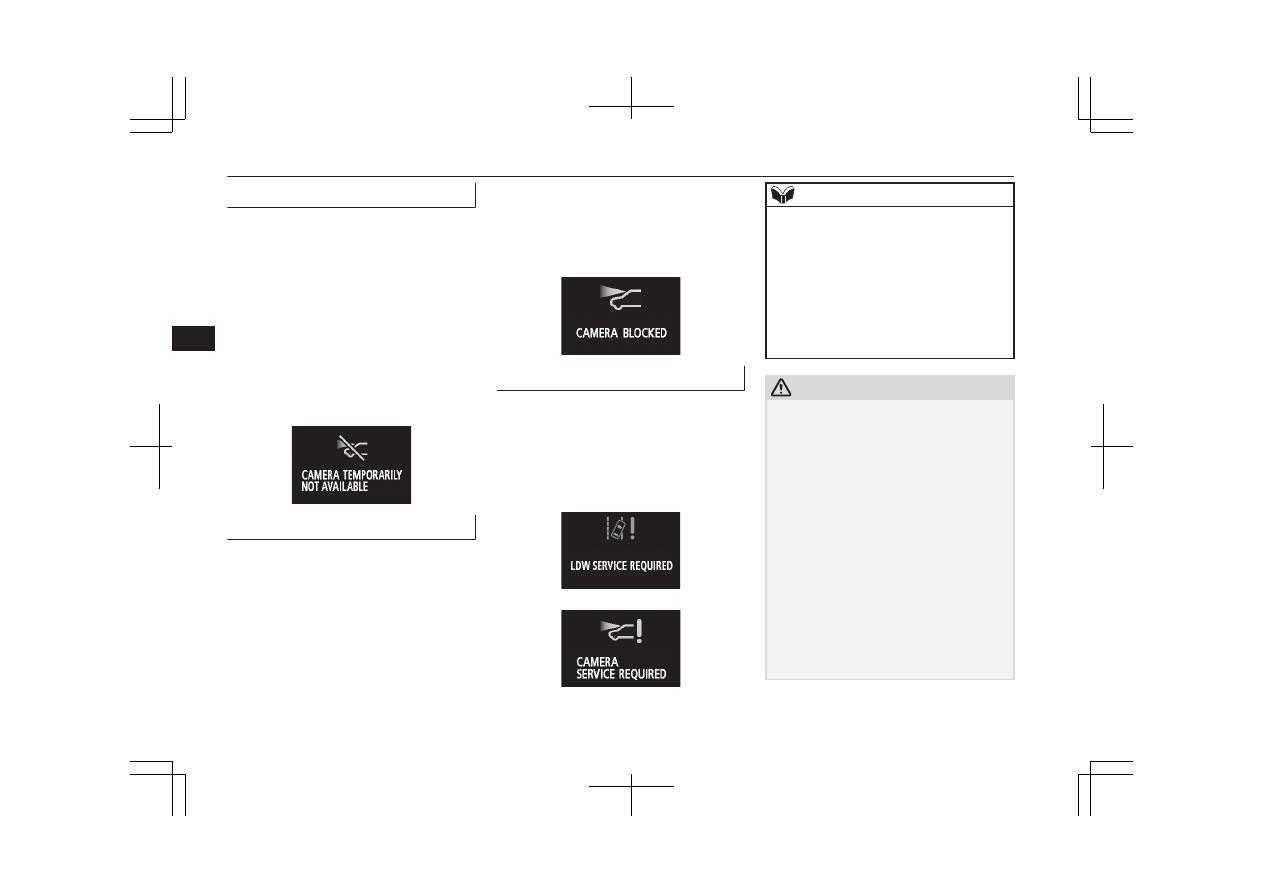

When the system cannot oper-

ate temporarily

If  the  system  becomes  temporarily  unavaila-
ble  for  some  reason,  the  following  message
will  appear  on  the  information  screen  of  the
multi-information  display,  the

indicator

will come on in the instrument cluster and the
FCM will automatically be turned off.

If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of
the system.

Sensor is too hot or cold

If  the  system  becomes  temporarily  unavaila-
ble due to the high or low temperature of the
sensor, the following message will appear on
the  information  screen  of  the  multi-informa-
tion display, the   indicator will come on in
the instrument cluster and the FCM will auto-
matically be turned off.

After the temperature of the sensor has been
in range, the system will automatically return
to operation.

Forward Collision Mitigation system (FCM)*

6-65

OGAE18E1

Starting and driving

If the display keeps showing the message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized Service Point for inspection of
the system.

FCM deactivation due to fault

If the FCM detects a malfunction in the sys-
tem,  either  one  of  the  following  messages
will  appear  on  the  information  screen  of  the
multi-information  display,  the

indicator

will come on in the instrument cluster and the
FCM will automatically be turned off.

If the message remains even after the ignition
switch is turned to the “LOCK” position and
then turned back to the “ON” position or the
operation mode is put in OFF, and then
turned back to “ON”, please contact a
MITSUBISHI MOTORS Authorized Service
Point.

NOTE

If the sensor or its surrounding area reaches
an extremely high temperature when parking
the  vehicle  under  a  blazing  sun,  the  “FCM
SERVICE  REQUIRED”  message  may  ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage  remains  even  after  restarting  the  en-
gine,  please  contact  a  MITSUBISHI
MOTORS Authorized Service Point.

Handling of the sensor

E00652200226

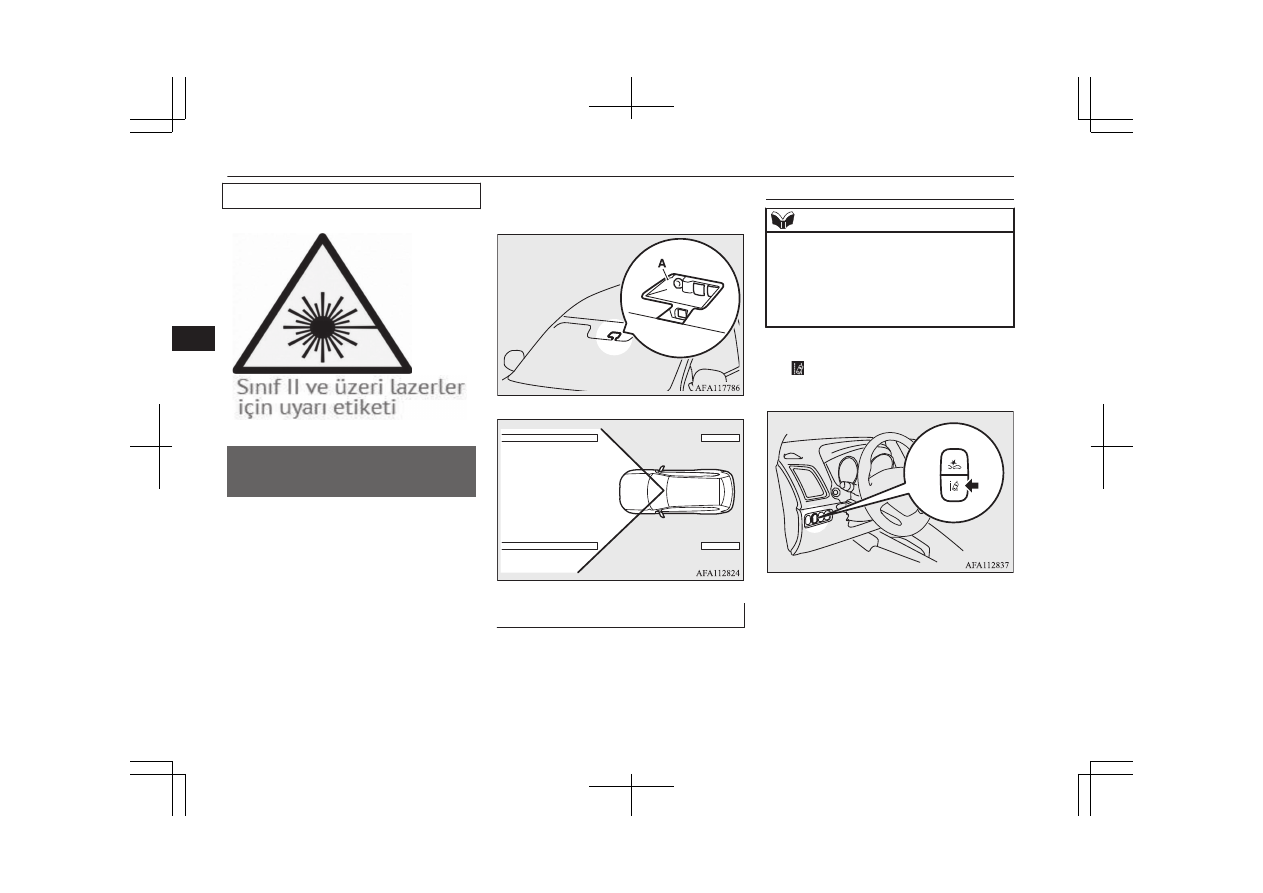

The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys-
tems:

Forward Collision Mitigation system
(FCM)

Lane Departure Warning (LDW)

CAUTION

To maintain proper performance of the FCM
and LDW;

•

Always keep clean the windscreen.
If the inside of the windscreen where the
sensor is installed becomes dirty or fog-
ged, contact a MITSUBISHI MOTORS
Authorized Service Point.

•

Do not apply an impact or load on the
sensor or its surrounding area.

•

Do not put anything including a sticker or
film on the windscreen in front of or sur-
rounding the area of the sensor.

•

Do not attempt to detach or disassemble
the sensor.

•

If the windscreen is misted, remove the
mist from the windscreen by using the de-
mister switch.

•

Maintain the wiper blades in good condi-
tion.
Refer to “Wiper blades” on page 9-05.
When replacing the wiper blades, use on-
ly MITSUBISHI MOTORS GENUINE
parts or equivalent.

Forward Collision Mitigation system (FCM)*

6-66

OGAE18E1

Starting and driving

CAUTION

•

Do not dirty or damage the sensor.

•

Do not spray glass cleaner on the sensor.
Also, do not spill liquid, such as a bever-
age, on the sensor.

•

Do not install an electronic device, such
as an antenna, or a device that emits
strong electric waves near the sensor.

•

Always use tyres of the same size, same
type and same brand and that have no sig-
nificant wear differences.

•

Do not modify the vehicle’s suspensions.

If the windscreen on the sensor or in the sur-
rounding  area  of  the  sensor  is  cracked  or
scratched,  the  sensor  may  not  detect  an  ob-
ject properly. This could cause a serious ac-
cident. Turn off the FCM and have your ve-
hicle  inspected  as  soon  as  possible  at  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
If  you  need  to  replace  the  windscreen,  con-
tact  a  MITSUBISHI  MOTORS  Authorized
Service Point.

The sensor emits infrared rays when the op-
eration mode is in ON. Do not look into the
sensor by using optical goods such as a mag-
nifying glass. The infrared ray might injure
your eyes.

Laser radar specifications

Laser classification

Max average power

45 mW

Pulse duration

33 ns

Wavelength

905 nm

Divergent angle (ho-
rizon x vertical)

28° x 12°

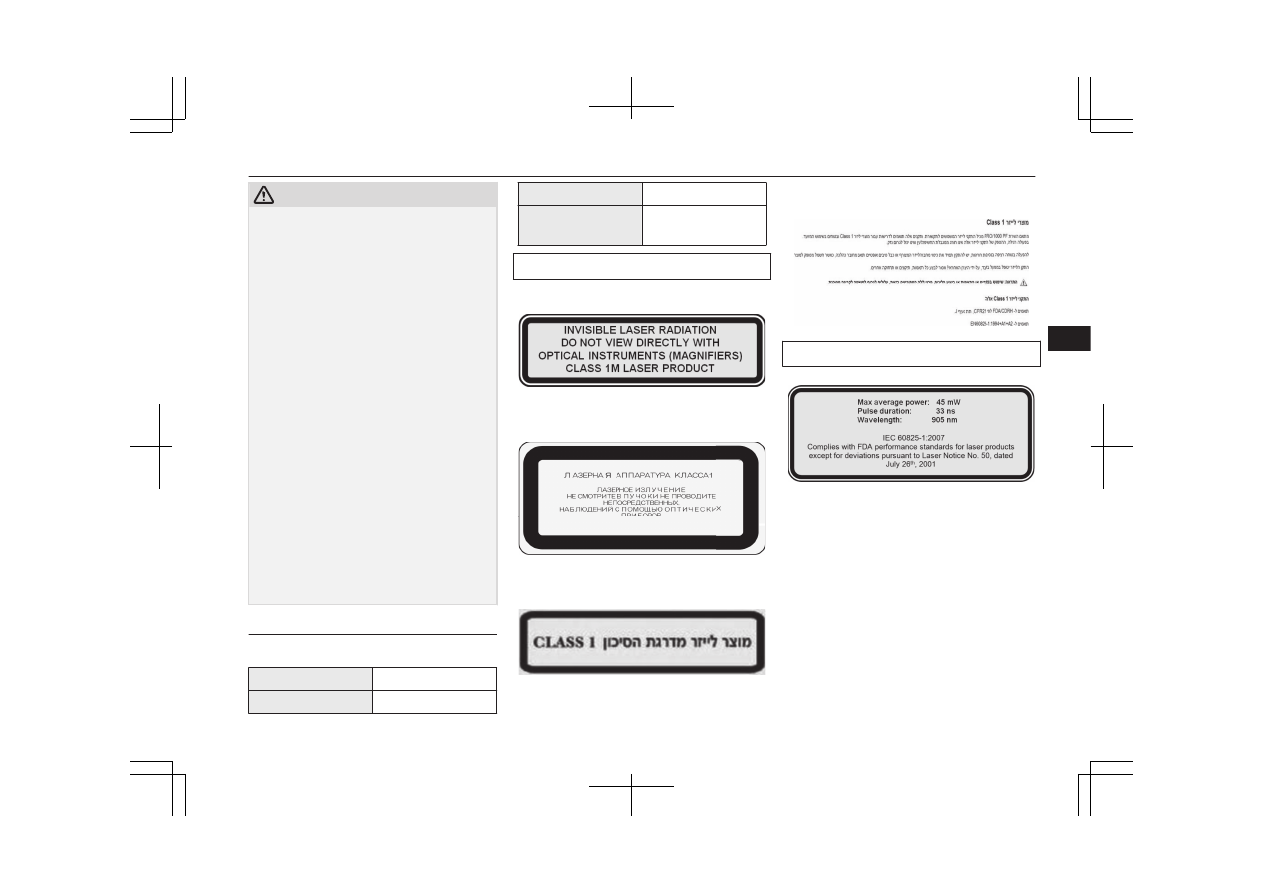

Laser classification label
For Europe

For Russia, Kazakchstan and Belarus

For Israel

Laser explanatory label

Forward Collision Mitigation system (FCM)*

6-67

OGAE18E1

Starting and driving

Laser warning label

Lane Departure Warning
(LDW)*

E00635701177

By recognizing through a sensor (A) the lane
in which your vehicle is running, the Lane
Departure Warning (LDW) gives you a warn-
ing when your vehicle is likely to drift from
its lane with an audible alarm and a visual
alarm displayed on the information screen of
the multi-information display.

For details about handling the sensor, refer to
“Handling of the sensor” on page 6-66.

How to operate LDW

E00635801240

The indication on the information screen of
the multi-information display changes as fol-
lows depending on the state of the system.

To turn on/off the LDW

NOTE

The LDW is turned on when the vehicle is
shipped from the factory.

The currently selected LDW setting (on or
off) is stored even when the ignition switch
is turned to the “LOCK” position or the op-
eration mode is put in OFF.

To turn on the LDW, press the LDW switch.
The indicator will appear on the informa-
tion screen of the multi-information display.

Lane Departure Warning (LDW)*

6-68

OGAE18E1

Starting and driving

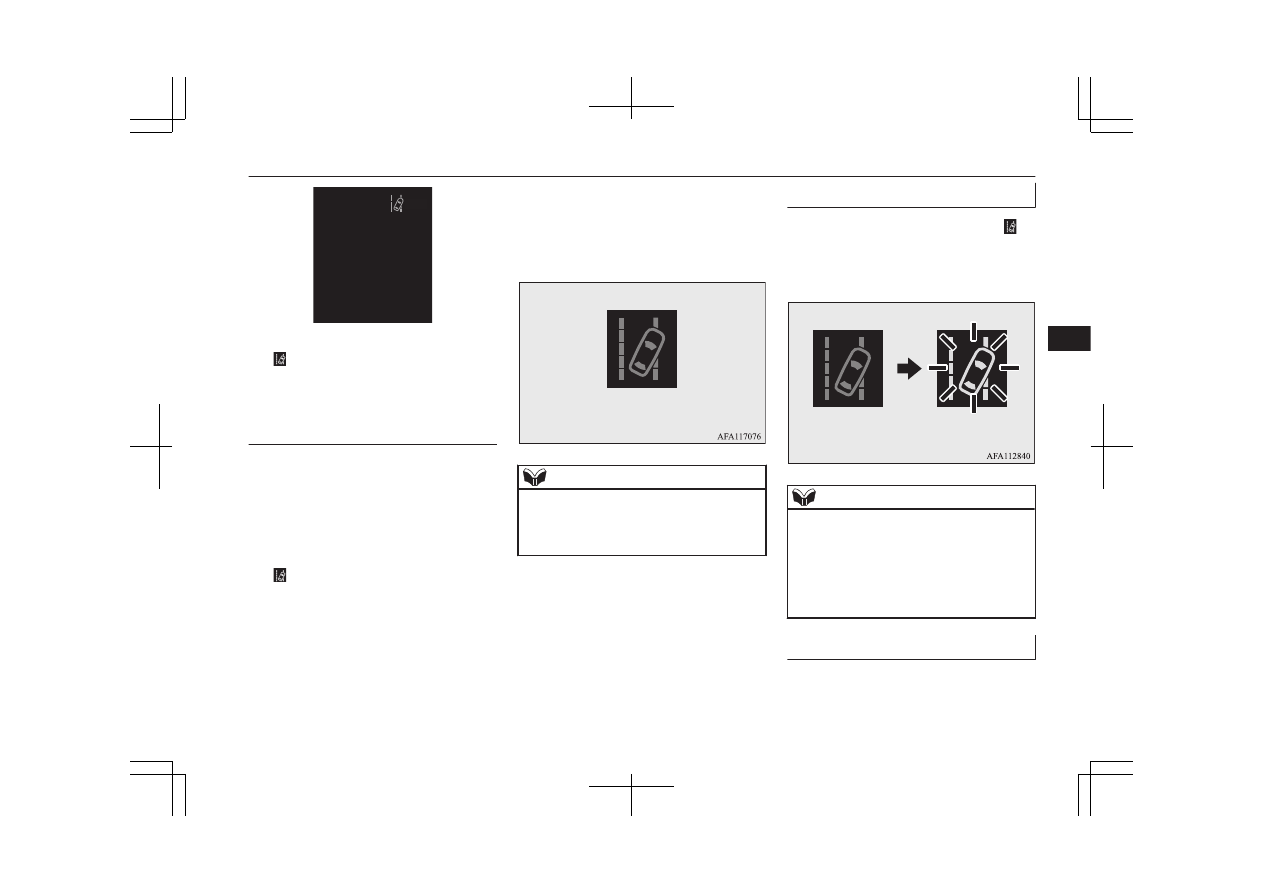

To turn off the LDW, press the LDW switch.
The   indicator on the information screen of
the  multi-information  display  will  then  go
out.  To  return  the  LDW  to  “ON”,  press  the
LDW switch again.

Standby state

In the standby mode, the system is capable of
recognizing the lane in which your vehicle is
positioned and issuing audible warning when
your vehicle goes out of the lane.
The  system  automatically  shifts  from  the
“ON”  state  to  the  standby  state  if  all  of  the
following conditions are simultaneously met.
The   indicator on the information screen in
the multi-information display will be changed
to green.

The vehicle speed is approximately 65
km/h or higher.

The turn-signal lever is not operated.

The hazard lamp is not activated.

Environmental conditions are adequate
for the system to recognize the lane
markings on both sides.

The system has been placed in the “ON”
state.

(green)

NOTE

The system stays in the “ON” state for ap-
proximately 7 seconds after the hazard lamp
has stopped flashing or the turn-signal lever
has returned to the home position.

Lane departure warning

E00638600125

A buzzer sounds intermittently and the in-
dicator starts flashing in yellow when your
vehicle is about to leave or has left the lane in
the standby mode.

(green)

(flashing in yellow)

NOTE

If the warning continues for approximately 3
seconds or more, the system switches to the
standby mode before the warning stops.

If the lane markers are only on one side of
the road, the LDW will operate only for the
appropriate side where the lane marker is
drawn.

System problem warning

E00635901049

If a problem occurs with the system, a visual
warning specific to the type of the problem is
given together with an audible alarm.

Lane Departure Warning (LDW)*

6-69

OGAE18E1

Starting and driving

Too hot or cold sensor

E00638700113

The  alarm  shown  below  is  displayed  if  the
system becomes temporarily unavailable due
to  a  too  high  or  low  temperature  of  the  sen-
sor.
If  the  temperature  of  the  sensor  reaches  the
predetermined value, the system automatical-
ly recovers the normal state.
If  the  alarm  continues  showing,  there  is  a
possibility that the LDW has a malfunction.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  for  inspection  of  the  sys-
tem.

Windscreen is dirty

E00652600086

The alarm shown below is displayed if the
system becomes temporarily unavailable due
to dirt on the windscreen at the sensor por-
tion.
After having cleaned the windscreen, the sys-
tem will automatically return to operation.

If  the  alarm  continues  showing,  there  is  a
possibility that the sensor has a malfunction.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  for  inspection  of  the  sen-
sor.

LDW deactivation due to fault

E00638800202

The alarm shown below is displayed if the
LDW goes into a non-initialized state due to
a fault.
If

this

happens,

please

contact

MITSUBISHI MOTORS Authorized Service
Point for inspection of the system.

NOTE

If the sensor or its surrounding area reaches
an extremely high temperature when parking
the  vehicle  under  a  blazing  sun,  the  “LDW
SERVICE  REQUIRED”  message  may  ap-
pear.
If  the  message  remains  even  after  the  tem-
perature of the sensor or its surrounding area
has  been  in  range,  please  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

CAUTION

LDW has its performance limitations. Do
not over-rely on the system.

LDW is not designed to lessen risks associ-
ated with not looking ahead carefully (atten-
tion drawn to something on the side, absent-
mindedness, etc.) or poor visibility caused
by bad weather etc. Keep steering your vehi-
cle correctly and drive safely.

The system may not operate correctly in the
following conditions. If required, set the
LDW switch to “OFF.”

•

When driving on a road whose lane mark-
ings (white or yellow) are worn out or
smeared with dirt to an extent not recog-
nizable by the system.

•

When  lane  markings  are  vague,  typically
during  a  drive  in  the  rain,  snow,  fog  or
dark  area,  or  when  running  against  the
sun.

Lane Departure Warning (LDW)*

6-70

OGAE18E1

Starting and driving

CAUTION

•

When the vehicle is moving in a place
where lane markings are interrupted, such
as a toll booth entrance and motorway
junction.

•

When running on a road portion with in-
completely  removed  old  lane  markings,
shadows,  lingering  snow,  truck-like  pud-
dles  mistakable  for  lane  markings  (espe-
cially  after  the  rain  when  road  surface  is
reflecting  light)  or  similar  confusing  fac-
tors.

•

When running in a lane other than the
cruising lane and passing lane.

•

When running beside a closed lane sec-
tion or in a provisional lane in a traffic
work zone.

•

When running in an extremely narrow
lane.

•

When  the  following  distance  between
your  vehicle  and  a  vehicle  in  front  be-
comes  extremely  reduced  (especially
when a marking is hidden by a vehicle in
front this is running too close to the mark-
ing).

•

When entering a junction or other point of
road where lanes are laid out complicated-
ly.

•

When passing a road section where the
number of lanes increases/decreases or
multiple lanes are crossing each other.

•

When the lane is marked by double or
otherwise special lines.

•

When driving on a winding or rough road.

CAUTION

•

When driving on a slippery road covered
by rain water, snow, ice, etc.

•

When passing through a place where the
brightness suddenly changes, like the inlet
or outlet of a tunnel.

•

When turning steep curves.

•

When the road surface is reflecting the
light shining from the direction opposite
to the running direction.

•

Vehicle largely lurches when it is running
over steps or other irregularities of the
road surface.

•

When the headlamp illumination is inade-
quate because of contaminated or deterio-
rated lenses or improperly aimed head-
lamps.

•

When the vehicle is leaning much to one
side due to heavy luggage on it or improp-
erly adjusted tyre pressures.

•

When oncoming vehicles’ headlamps
shine the sensor.

•

When  the  vehicle  is  equipped  with  non-
standard  tyres  (including  excessively
worn  tyres  and  temporary  spare  tyre),
uses snow traction device (tyre chains), or
has  non-specified  components  such  as  a
modified suspension.

•

When the windscreen is covered with wa-
ter droplets, snow, dust, etc.

Follow the instructions given below to keep
your LDW in good operating conditions.

•

Always keep the windscreen clean.

CAUTION

•

Avoid applying a strong shock or pressure
to the sensor. Do not attempt to detach or
disassemble it.

•

Do not put anything like a sticker on the
area in front of the sensor of the wind-
screen.

•

Use only MITSUBISHI MOTORS GEN-
UINE parts when replacing the wind-
screen wipers.

Tyre pressure monitoring
system (TPMS)*

E00637100279

The tyre pressure monitoring system (TPMS)
uses tyre inflation pressure sensors (A) on the
wheels to monitor the tyre inflation pressures.
The system only indicates when a tyre is sig-
nificantly under-inflated.
The base tyre pressure can be set at desired
value by the driver with the reset function ex-
ecution. (The low pressure warning threshold
is set based on the reset.)

Tyre pressure monitoring system (TPMS)*

6-71

OGAE18E1

Starting and driving

Mitsubishi ASX (2018 year). Instruction - part 15
