BRUSH

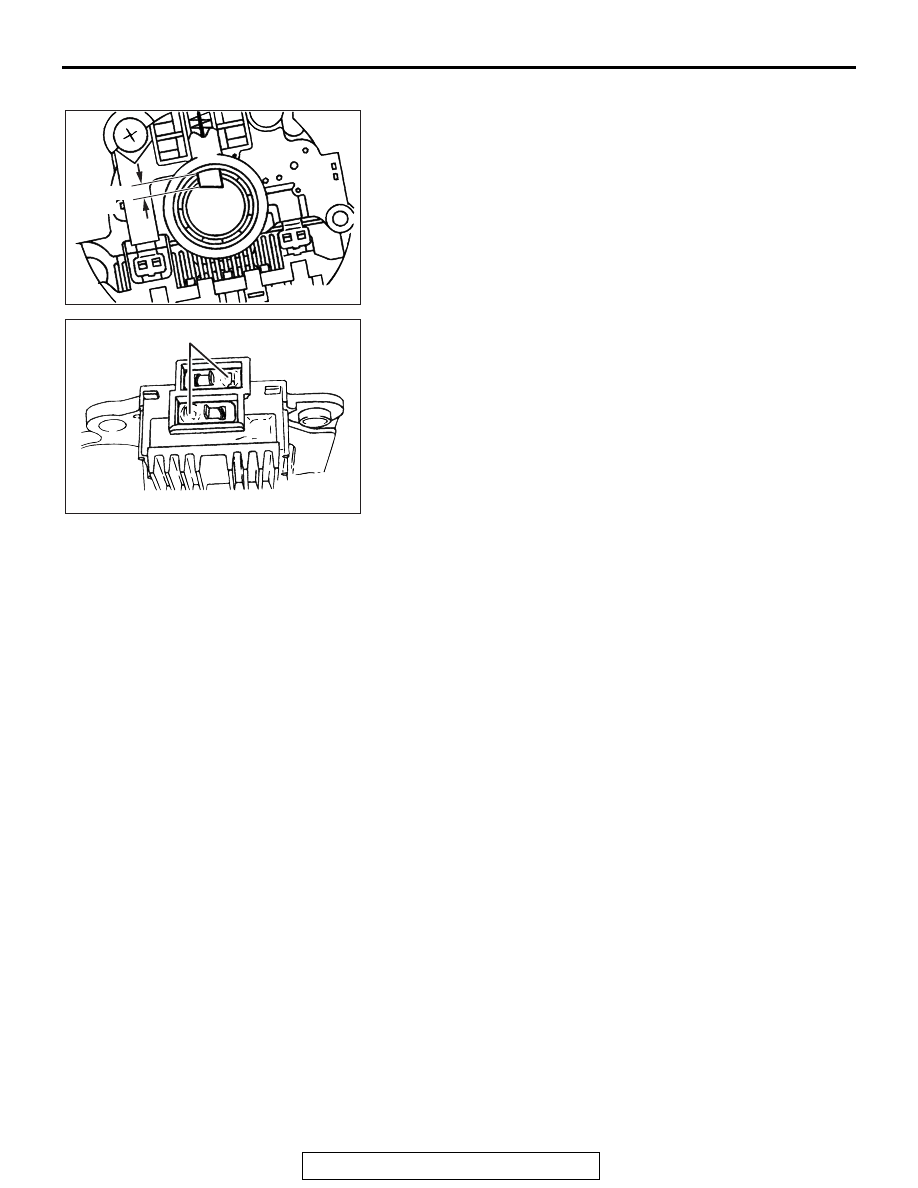

1. Measure the length of the protrusion of the brush. Replace

the brush if the protrusion length is shorter than the limit.

Limit: 2 mm (0.08 inch) minimum

2. Unsolder the lead of the brush. The brush will come out,

becoming ready for removal.

3. Install a new brush by pushing it into the holder as shown in

the drawing and soldering the lead.

STARTING SYSTEM

GENERAL INFORMATION

M1162000100859

If the ignition switch is turned to the "START" posi-
tion, current flows in the coil provided inside mag-
netic switch, attracting the plunger. When the plunger
is attracted, the lever connected to the plunger is
actuated to engage the starter clutch.
On the other hand, attracting the plunger will turn on
the magnetic switch, allowing the "B" terminal and
"M" terminal to conduct. Thus, current flows to
engage the starter motor.

When the ignition switch is returned to the "ON" posi-
tion after starting the engine, the starter clutch is dis-
engaged from the ring gear.
An overrunning clutch is provided between the pinion
and the armature shaft, to prevent damage to the
starter.

AK304683

Protrusion
length

AB

AK304684

Solder

AE

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-28

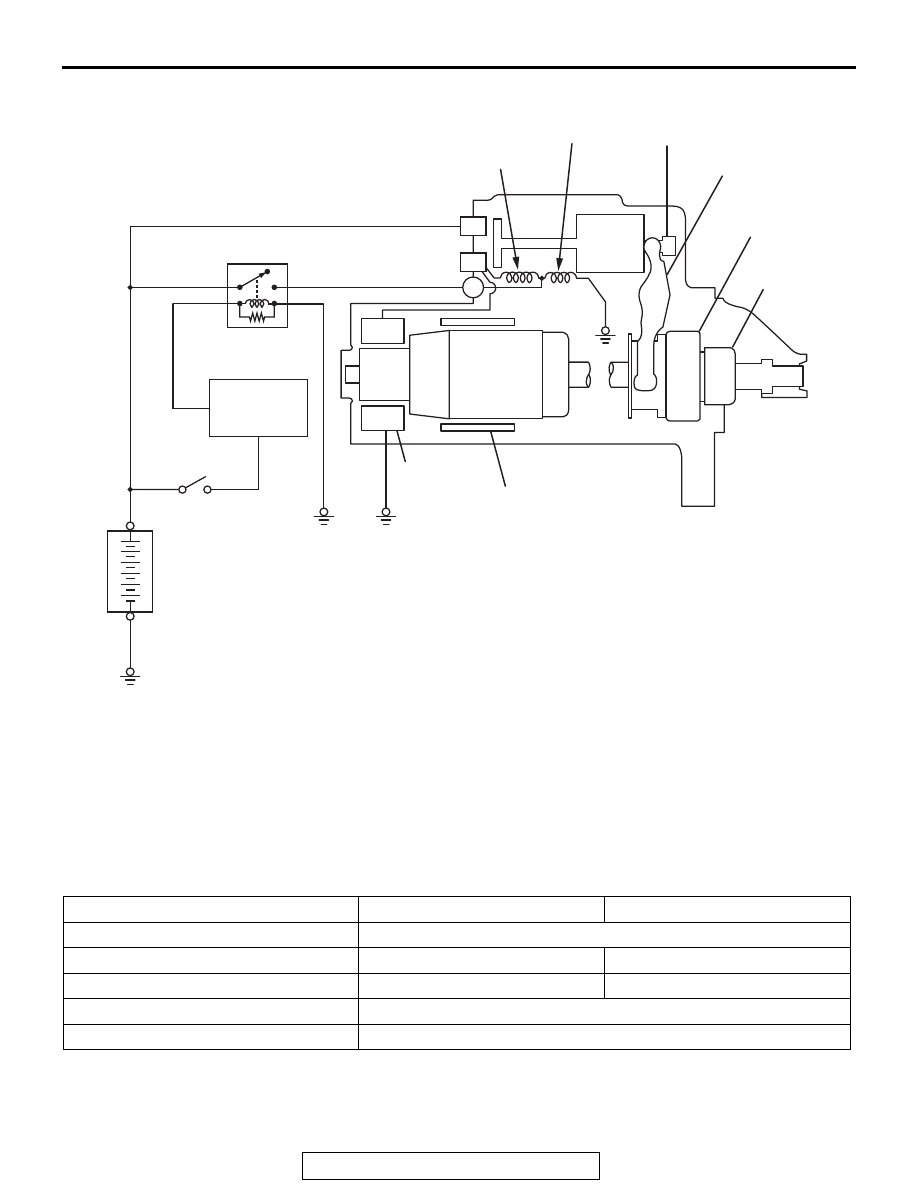

OPERATION

For models equipped with A/T, when the ignition
switch is turned to the "ST" position while the selec-
tor lever is at the "P" or "N" position, the contact
(magnetic switch) of the starter is switched ON and
the starter motor is activated.

GENERAL SPECIFICATIONS

M1162000200124

AK603513

Pull-in coil

Holding coil

Plunger

Lever

Pinion gear

Overrunning clutch

Yoke

Brush

Armature

Ignition switch - ST

ECM

Starter relay

Battery

+

–

AC

B

M

S

Item

2.4L engine

3.0L engine

Type

Reduction drive with planetary gear

Identification number

M000T21571

M000T23471

Part No.

1810A011

1810A184

Rated output kW/V

1.4/12

Number of pinion teeth

8

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-29

SERVICE SPECIFICATIONS

M1162000300626

STARTING SYSTEM DIAGNOSIS

M1162000700505

TROUBLESHOOTING HINTS

The starter motor does not operate at all.

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

• Check the starter (coil).

• Check for poor contact at the battery terminals and

starter.

• Check the transmission range switch.

The starter motor doesn't stop

• Check the starter (magnetic switch).

TROUBLESHOOTING GUIDE

The starting system troubleshooting guide is shown in the fol-
lowing steps.

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

STEP 1.
Q: Is the battery in good condition? (Refer to GROUP 54A,

Chassis Electrical

− Battery − On-vehicle Service −

Battery Check

P.54A-7

.)

YES : Go to Step 2.
NO :  Charge or replace the battery.

ITEMS

STANDARD VALUE

LIMIT

Free running
characteristics

Terminal voltage V 11

−

Current A

90

−

Speed r/min

2,400 or more

−

Pinion gap mm (in)

0.5

− 2.0 (0.02 − 0.07)

−

Commutator run-out mm (in)

0.05 (0.002)

Minimum 0.1 (0.004)

Commutator diameter mm (in)

29.4 (1.16)

Minimum 28.8 (1.13)

Undercut depth mm (in)

0.5 (0.02)

Minimum 0.2 (0.008)

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-30

STEP 2.

• Disconnect the starter motor S (solenoid) terminal connec-

tor.

• Using a jumper wire, apply battery positive voltage to the

starter motor S (solenoid) terminal.

• Check the engine condition.

OK: Turns normally

Q: Dose the starter motor operate normally?

YES :

• Check the ignition switch (Refer to GROUP 54A,

Chassis Electrical

− Ignition Switch − Ignition

Switch

− Inspection

P.54A-26

.)

• Check the transmission range switch. (Refer to

GROUP 23A, CVT

− On-vehicle Service −

Essential Service

− Transmission Range Switch

Continuity Check

P.23A-143

.) <2.4L>   (Refer to

GROUP 23C, Automatic Transaxle

− On-vehicle

Service

− Essential Service − Transmission Range

Switch Check

P.23C-269

.) <3.0L>

• Check the line between the battery and starter

motor S (solenoid) terminal.

NO :  Go to Step 3.

STEP 3.

• Check the cable between starter B (battery) terminal and

battery positive terminal for connection and continuity.

Q: Is the starter cable in good condition?

YES : Go to Step 4.
NO :  Repair or replace the cable.

STEP 4.

• Check the connection and the continuity of the cable

between the starter motor body and the negative battery
terminal.

Q: Is the ground line in good condition?

YES : Go to Step 5.
NO :  Repair or replace the cable.

STEP 5.
Q: Is the starter motor in good condition? (Refer to Starting

System

− Starter Motor Assembly − Inspection

P.16-34

.)

YES : Excessive rotational resistance of the engine.
NO :  Replace the starter motor.
