STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-31

ON-VEHICLE SERVICE

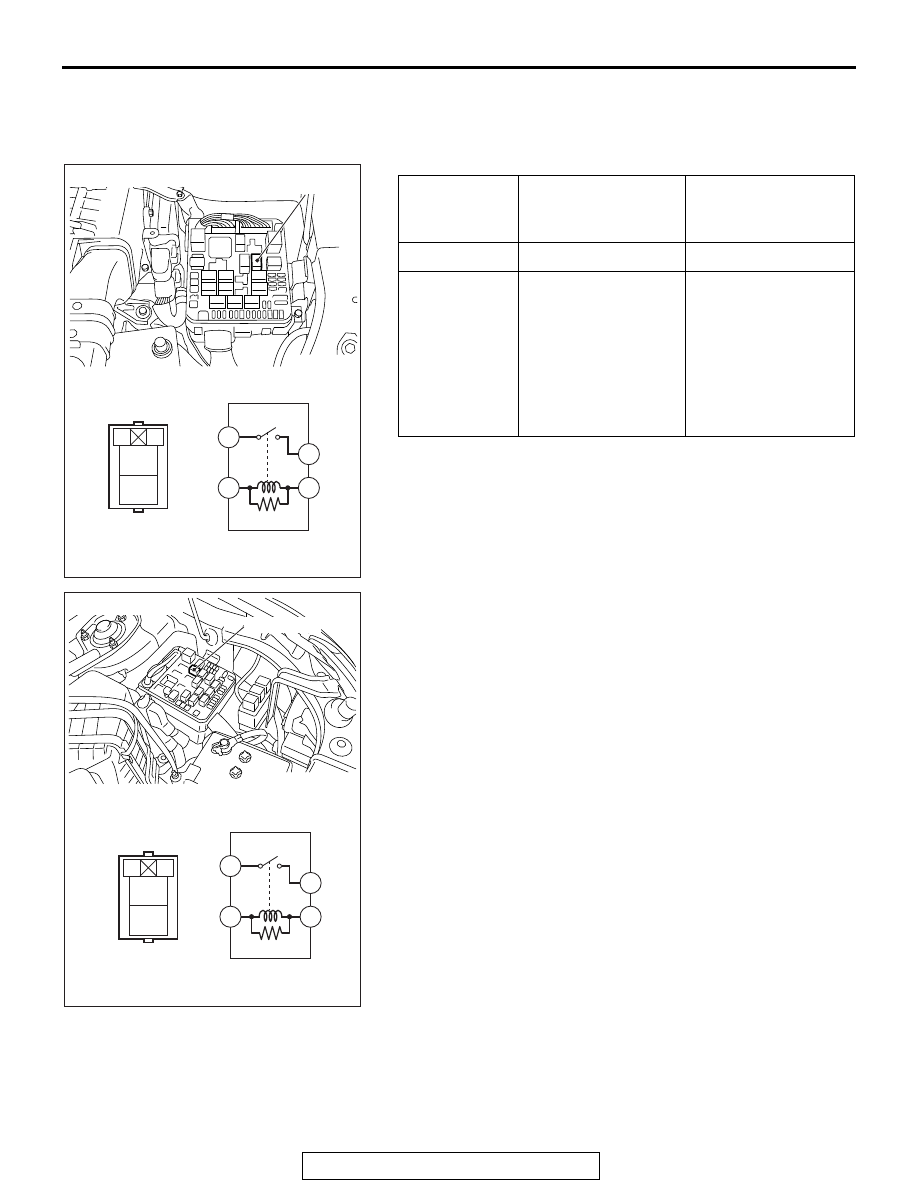

STARTER RELAY CHECK

M1162001400875

Battery
voltage

Terminal number to
be connected to
tester

Continuity test
results

Not applied

3

− 4

Open circuit

Connect
terminal 2 to
battery (+)
terminal.
Connect
terminal 1 to
battery (

−)

terminal.

3

− 4

Continuity (less than
2 ohms)

4

3

2

1

1

2

3

4

AC506970

AC505376

Starter relay

AI

<2.4L Engine>

AC703791

AC703792

4

2

3

1

1

2

3

4

Starter relay

AC

<3.0L Engine>

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-32

STARTER MOTOR ASSEMBLY INSPECTION

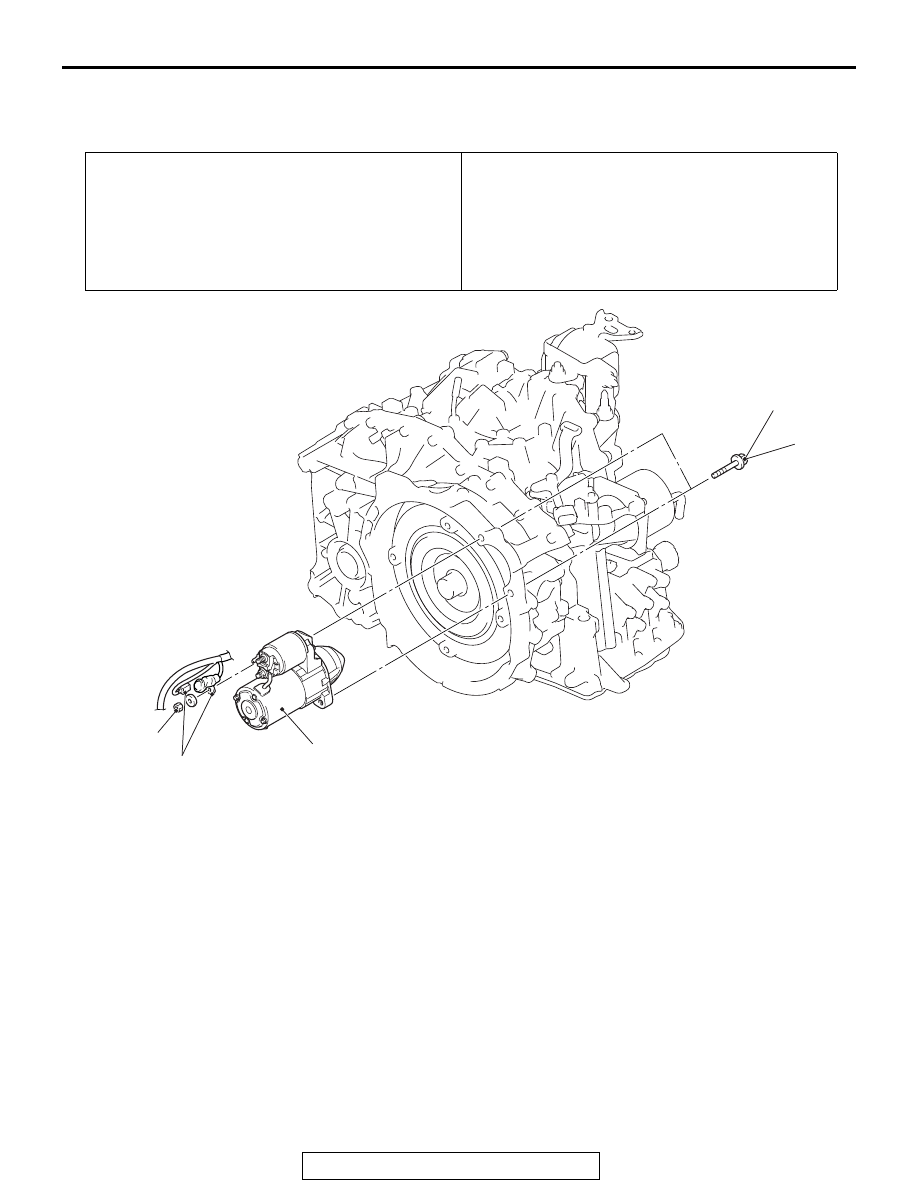

REMOVAL AND INSTALLATION <2.4L ENGINE>

M1162001002345

REMOVAL SERVICE POINT

.

<<A>> STARTER CONNECTOR AND TERMI-
NAL/STARTER ASSEMBLY REMOVAL

1. Slide the starter assembly, and disconnect the starter

connector and terminal.

2. Remove the starter assembly from the lower front of the

engine.

Pre-removal operation
• Air Cleaner Intake Duct and Air Cleaner Intake Hose

Removal (Refer to GROUP 15, Air Cleaner <2.4L

Engine>

P.15-4

).

• Battery and Battery Tray Removal (Refer to GROUP 54A,

Battery

P.54A-11

).

• Engine Room Under Cover Front A, B Removal (Refer to

GROUP 51, Under Cover

P.51-22

).

Post-installation operation
• Engine Room Under Cover Front A, B Installation (Refer

to GROUP 51, Under Cover

P.51-22

).

• Battery and Battery Tray Installation (Refer to GROUP

54A, Battery

P.54A-11

).

• Air Cleaner Intake Duct and Air Cleaner Intake Hose

Installation (Refer to GROUP 15, Air Cleaner <2.4L

Engine>

P.15-4

).

AC611210

36 ± 9 N·m
27 ± 6 ft-lb

11 ± 1 N·m
93 ± 13 in-lb

2

AB

3

1

Removal steps

•

Emission vacuum hose and brake
booster vacuum hose connection
(Refer to GROUP 15, Intake
Manifold <2.4L Engine>

P.15-9

).

•

Throttle body stay (Refer to
GROUP 13A, Throttle Body

P.13A-885

).

1.

Starter mounting bolts

<<

A

>>

2.

Starter connector and terminal
connection

<<

A

>>

3.

Starter assembly

Removal steps (Continued)

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-33

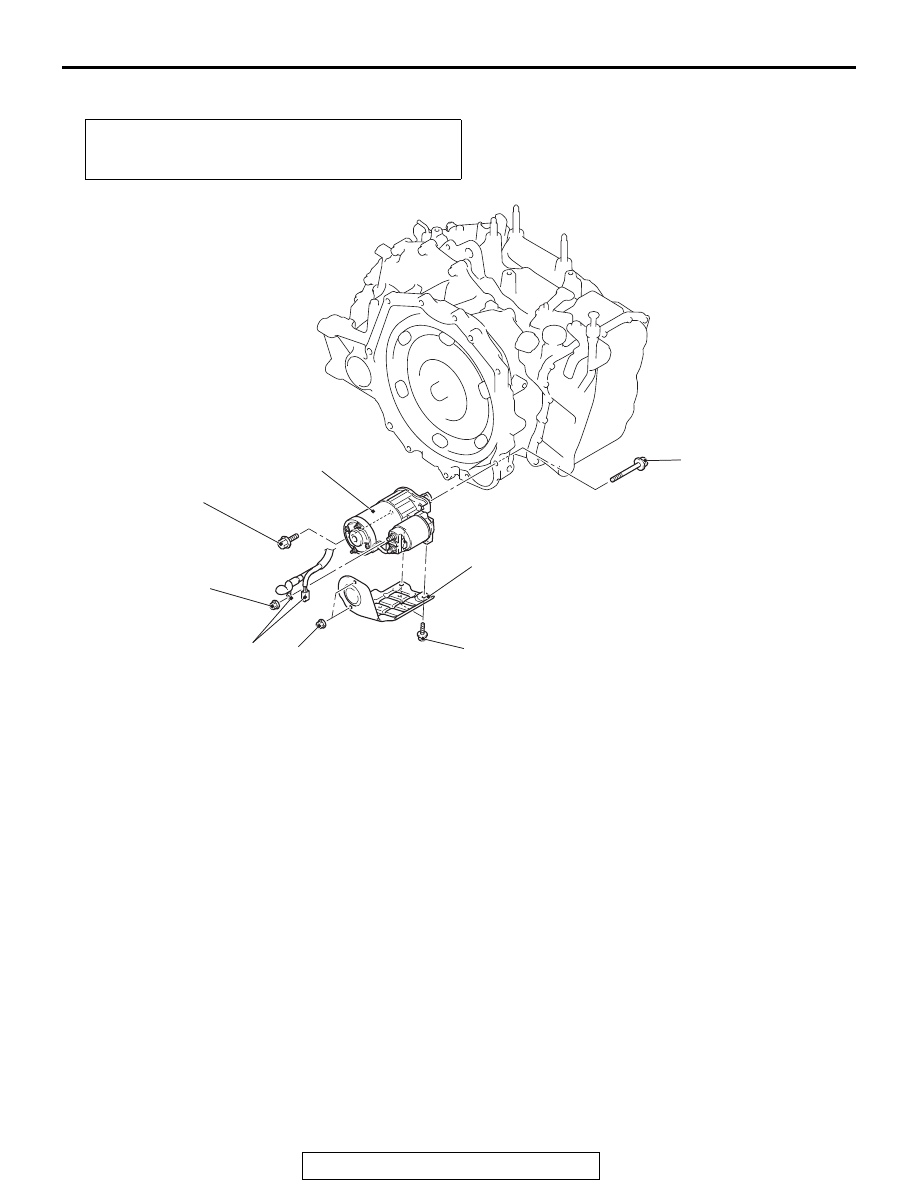

REMOVAL AND INSTALLATION <3.0L ENGINE>

M1162001002594

REMOVAL SERVICE POINT

.

<<A>> STARTER ASSEMBLY REMOVAL

Remove the starter assembly from under the vehicle.

Pre-removal and Post-installation Operation
• Engine Room Under Cover Front Removal and Installa-

tion (Refer to GROUP 51, Under Cover

P.51-22

).

AC703793

1

2

3

36 ± 9 N·m
27 ± 6 ft-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

11 ± 1 N·m
93 ± 13 in-lb

AB

36 ± 9 N·m
27 ± 6 ft-lb

Removal steps

1.

Starter connector and terminal
connection

2.

Starter cover

<<

A

>>

3.

Starter assembly

Removal steps (Continued)

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-34

INSPECTION

M1162001100830

.

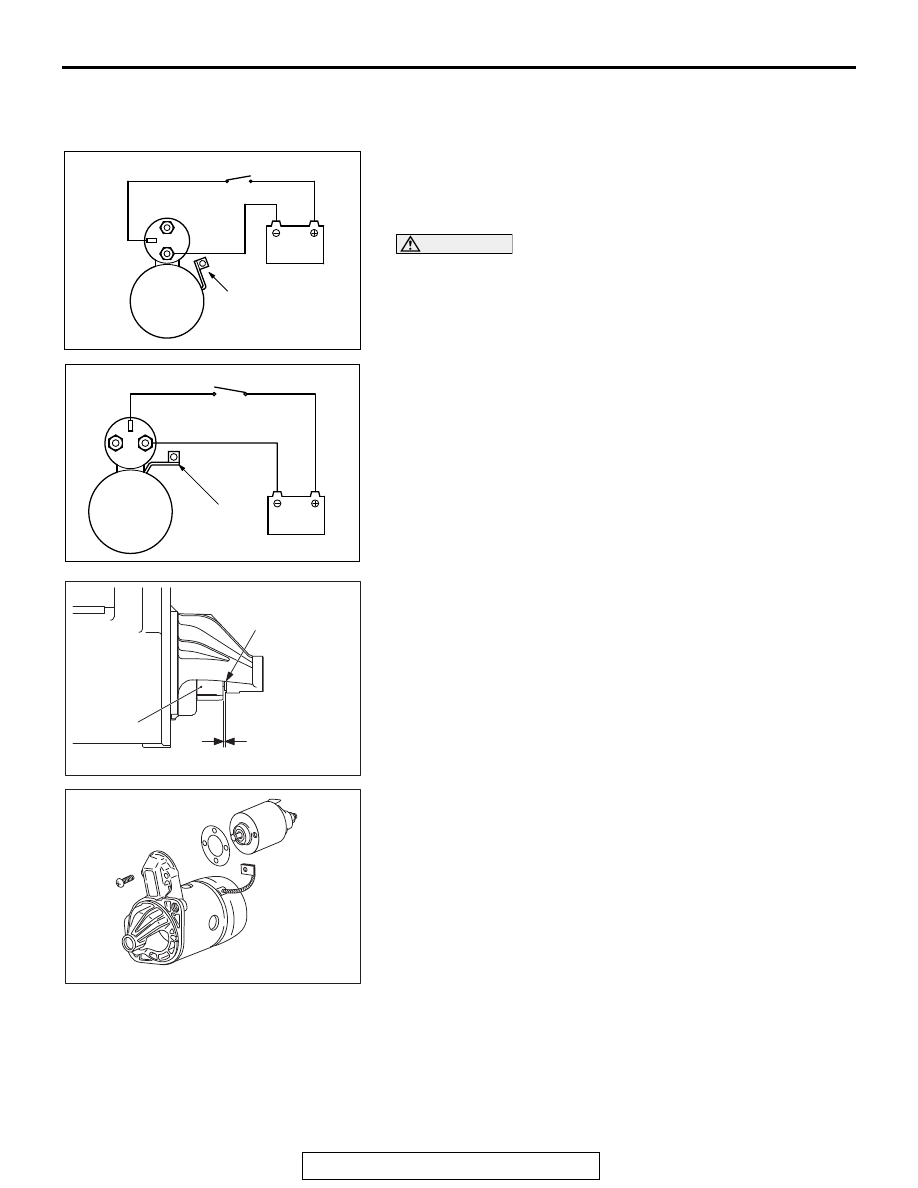

PINION GAP ADJUSTMENT

1. Disconnect the lead wire from the M-terminal of the

magnetic switch.

2. Connect a 12-volt battery between the S-terminal and

M-terminal.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
3. Set the switch to "ON", and the pinion will move out.

4. Check the pinion-to-stopper clearance (pinion gap) with a

feeler gauge.

Standard value: 0.5

− 2.0 mm (0.02 − 0.07 inch)

5. If the pinion gap is out of specification, adjust by adding or

removing gasket(s) between the magnetic switch and front
bracket.

.

AKX01239

B

M

S

Battery

Switch

Starter
motor

Wire

AK

<2.4L engine>

AK305042AG

Switch

S

M

Wire

Battery

Starter
motor

B

<3.0L engine>

AK700044AB

Stopper

Pinion gap

Pinion
