RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-208

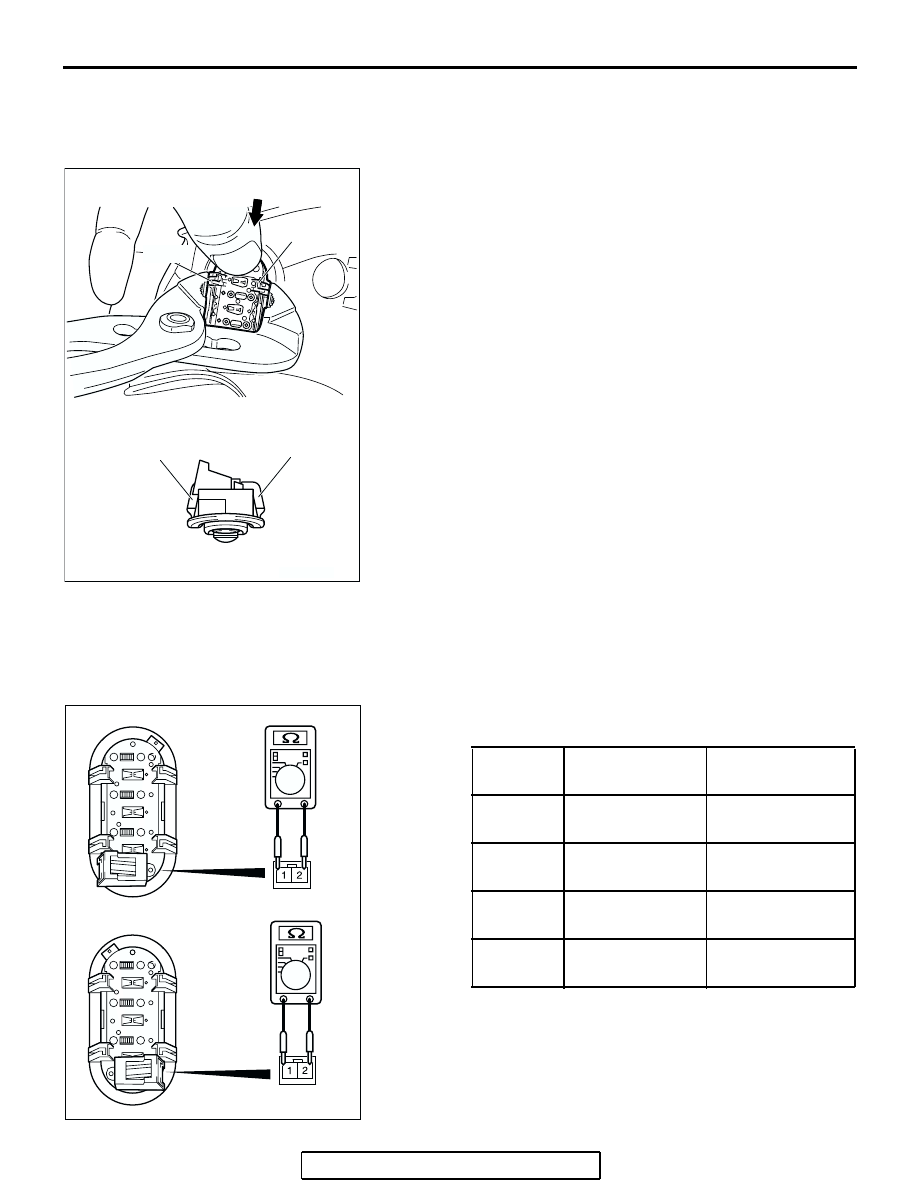

REMOVAL SERVICE POINT

.

<<A>> REMOTE CONTROLLED RADIO SWITCH
REMOVAL

Use a tool to hold the tabs on the remote controlled radio
switch, and push out the switch by your finger.

INSPECTION

M1544009700236

REMOTE CONTROLLED RADIO SWITCH
CONTINUITY CHECK

Use an ohmmeter to measure the resistance value between the
terminal.

AC106586

TAB

TAB

A

AB

VIEW A

TAB

TAB

SWITCH
POSITION

MEASUREMENT
VALUE (RH)

MEASUREMENT
VALUE (LH)

No push

Approximately
24.0 k

Ω

Open circuit

Upper

Approximately 6.8
k

Ω

Approximately 1.2
k

Ω

Center

Less than 2 ohms Approximately 470

k

Ω

Lower

Approximately
15.0 k

Ω

Approximately 3.3
k

Ω

AC207684AD

REMOTE CONTROLLED RADIO SWITCH (RH)

REMOTE CONTROLLED RADIO SWITCH (LH)

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-209

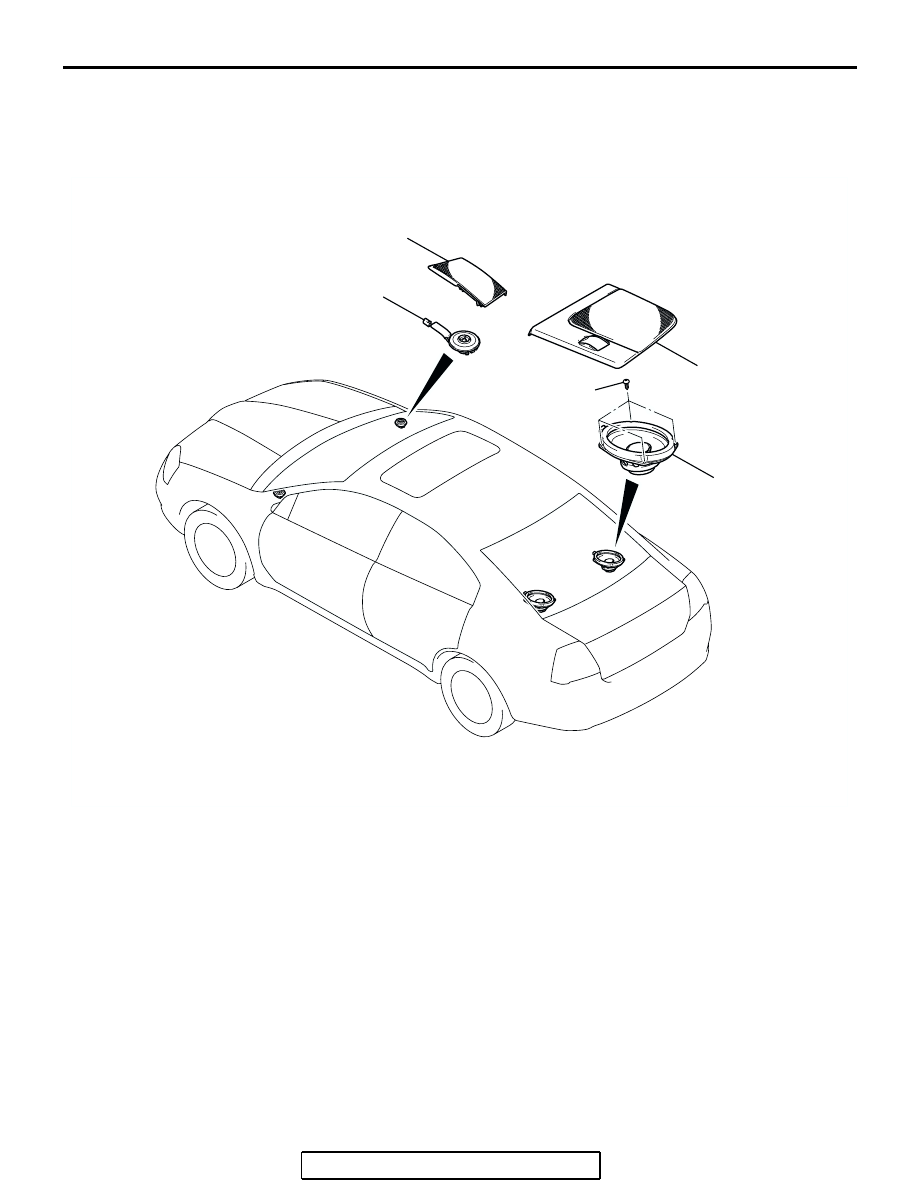

SPEAKER

REMOVAL AND INSTALLATION

M1544002600476

<TWEETER/REAR SPEAKER>

AC307015AC

1

2

4

3

1.5 ± 0.5 N·m
14 ± 4 in-Ib

TWEETER REMOVAL STEPS

•

FRONT DOOR OPENING TRIM,
FRONT PILLAR TRIM (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

1.

FRONT SPEAKER GARNISH

2.

TWEETER

REAR SPEAKER REMOVAL STEPS

3.

REAR SHELF SPEAKER GARNISH
(REFER TO GROUP 52A, TRIMS

P.52A-10

.)

4.

REAR SPEAKER

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-210

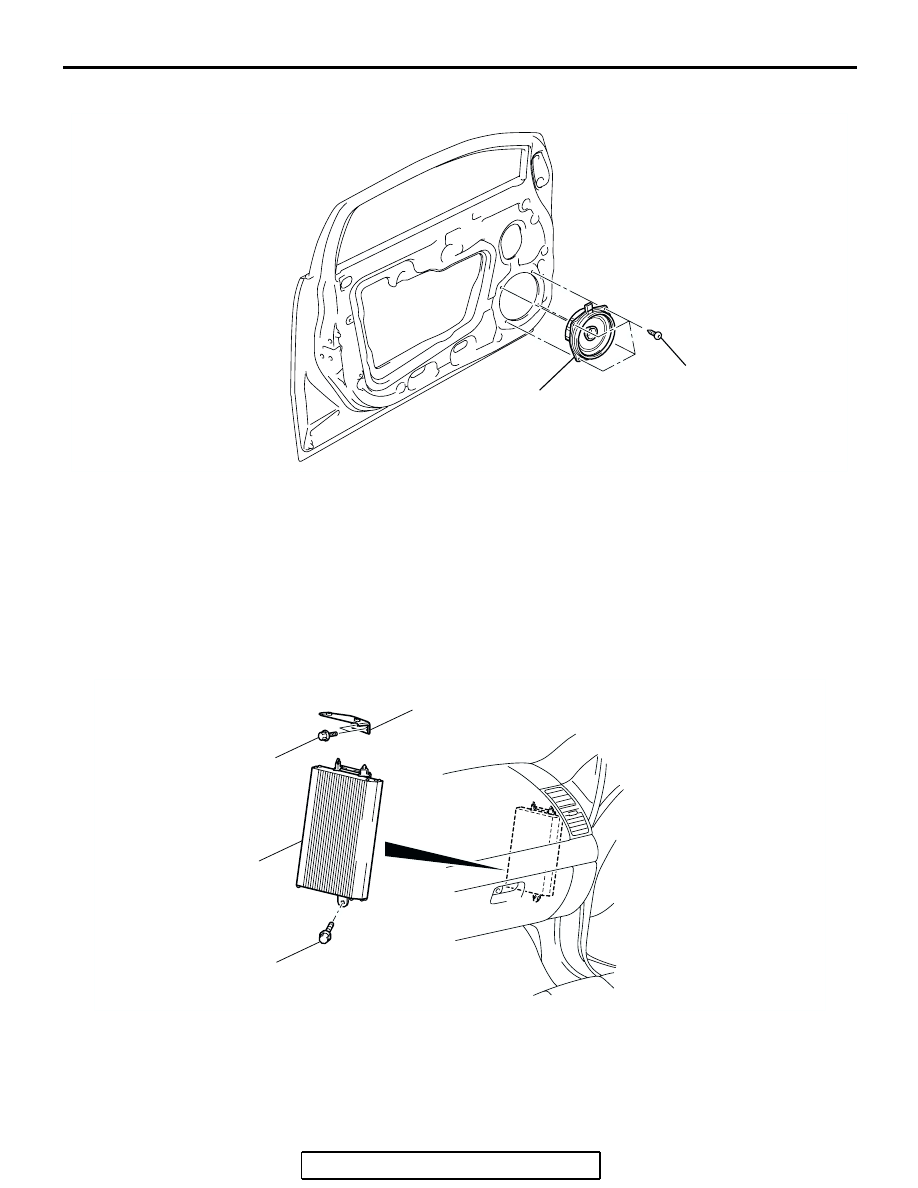

<FRONT DOOR SPEAKER>

AMPLIFIER

REMOVAL AND INSTALLATION

M1544004100295

AC307181AB

1

1.5 ± 0.5 N·m
14 ± 4 in-Ib

FRONT DOOR SPEAKER REMOVAL
STEPS

•

FRONT DOOR TRIM ASSEMBLY
(REFER TO GROUP 52A,  DOOR TRIM

P. 52A-13

.)

1.

FRONT DOOR SPEAKER

AC307102 AB

1

2

5.0 ± 1.0 N·m
44 ± 9 in-lb

5.0 ± 1.0 N·m
44 ± 9 in-lb

RADIO WITH CD PLAYER

TSB Revision

CHASSIS ELECTRICAL

54A-211

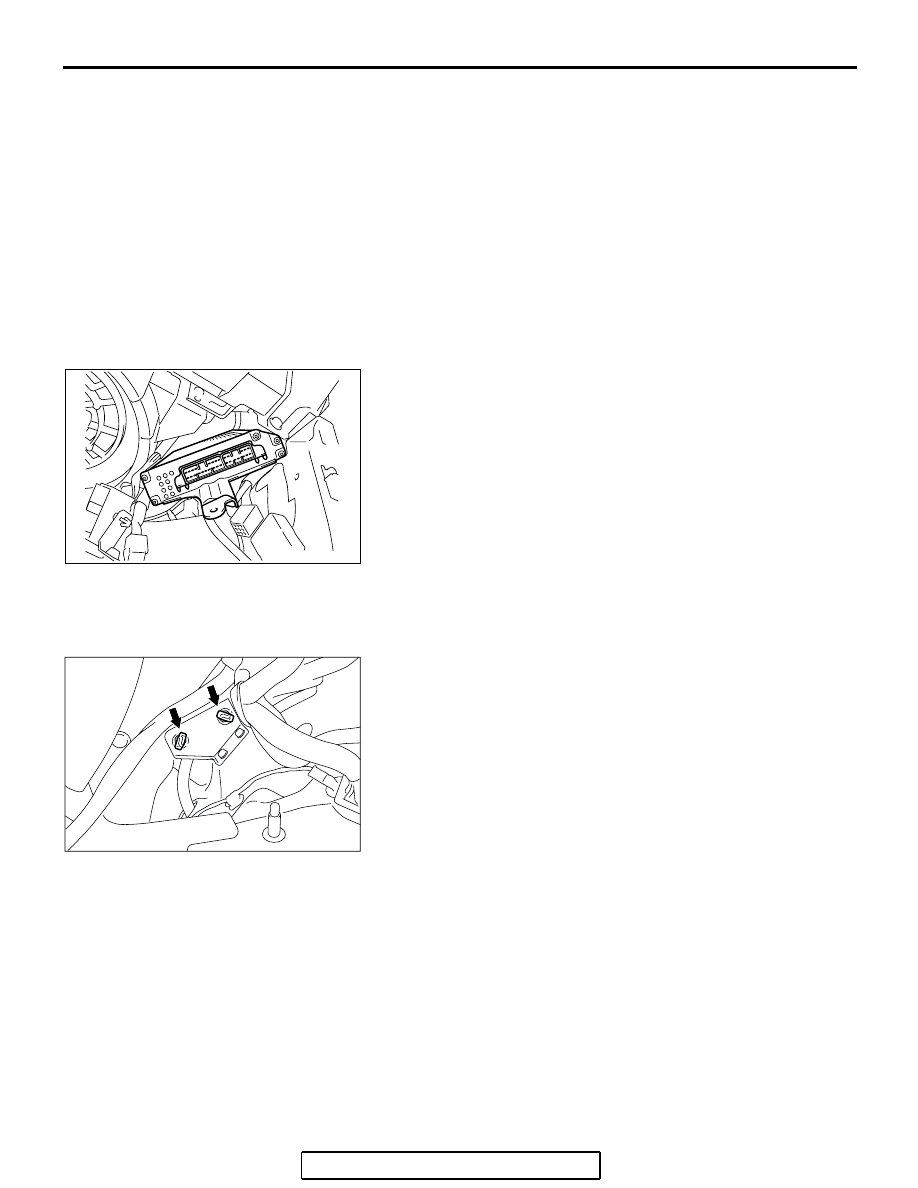

REMOVAL SERVICE POINTS

.

<<A>> AMPLIFIER REMOVAL

Move the audio amplifier wiring harness to one side, and then
maneuver out the audio amplifier.

INSTALLATION SERVICE POINTS

.

>>A<< AMPLIFIER INSTALLATION

Install while aligning with the amplifier mounting hole.

REMOVAL STEPS

•

GLOVEBOX ASSEMBLY,
INSTRUMENT PANEL PARCEL BOX
(REFER TO GROUP 52A,
INSTRUMENT PANEL ASSEMBLY

P.52A-3

.)

•

FRONT SCUFF PLATE (RH), COWL
SIDE TRIM (RH) (REFER TO
GROUP 52A, TRIMS

P.52A-10

.)

<<A>>

1. AUDIO AMPLIFIER
2. AMPLIFIER BOX BRACKET

REMOVAL STEPS (Continued)

AC207462 AC

AC307132AB
