STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-29

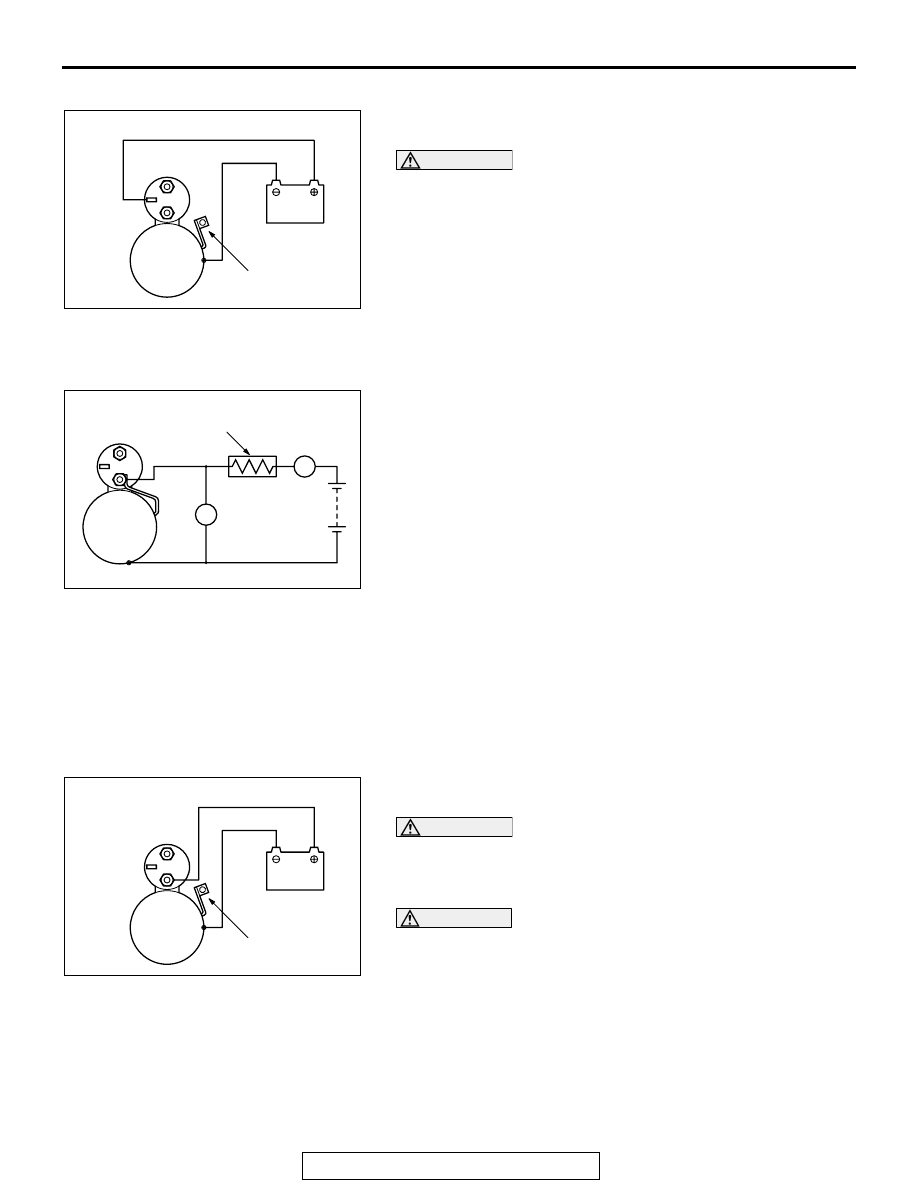

MAGNETIC SWITCH HOLD-IN TEST

AKX01245

B

M

S

Battery

Starter
motor

Wire

AF

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal and body.
3. Manually pull out the pinion as far as the pinion stopper

position.

4. If the pinion remains out, everything is operating properly. If

the pinion moves in, the hold-in circuit is open. Replace the
magnetic switch.

.

FREE RUNNING TEST

AKX01247

S

M

B

Ammeter

Carbon-pile
rheostat

Battery

Starter
motor

Voltmeter

AF

A

V

1. Place the starter motor in a vise equipped with soft jaws and

connect a fully-charged 12-volt battery to the starter motor
as follows:

2. Connect a test ammeter (100-ampere scale) and carbon pile

rheostat in series between the positive battery terminal and
starter motor terminal.

3. Connect a voltmeter (15-volt scale) across the starter motor.
4. Rotate carbon pile to full-resistance position.
5. Connect the battery cable from the negative battery terminal

to the starter motor body.

6. Adjust the rheostat until the battery positive voltage shown

by the voltmeter is 11 V.

7. Confirm that the maximum amperage is within the

specifications and that the starter motor turns smoothly and
freely.

Current: maximum 90 Amps

.

MAGNETIC SWITCH RETURN TEST

AKX01249

B

M

S

Battery

Starter
motor

Wire

AF

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the M-terminal and body.

WARNING

Be careful not to get your fingers caught when pulling
out the pinion.

3. Pull the pinion out and release. If the pinion quickly returns

to its original position, everything is operating properly. If it
doesn't, replace the magnetic switch.

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-30

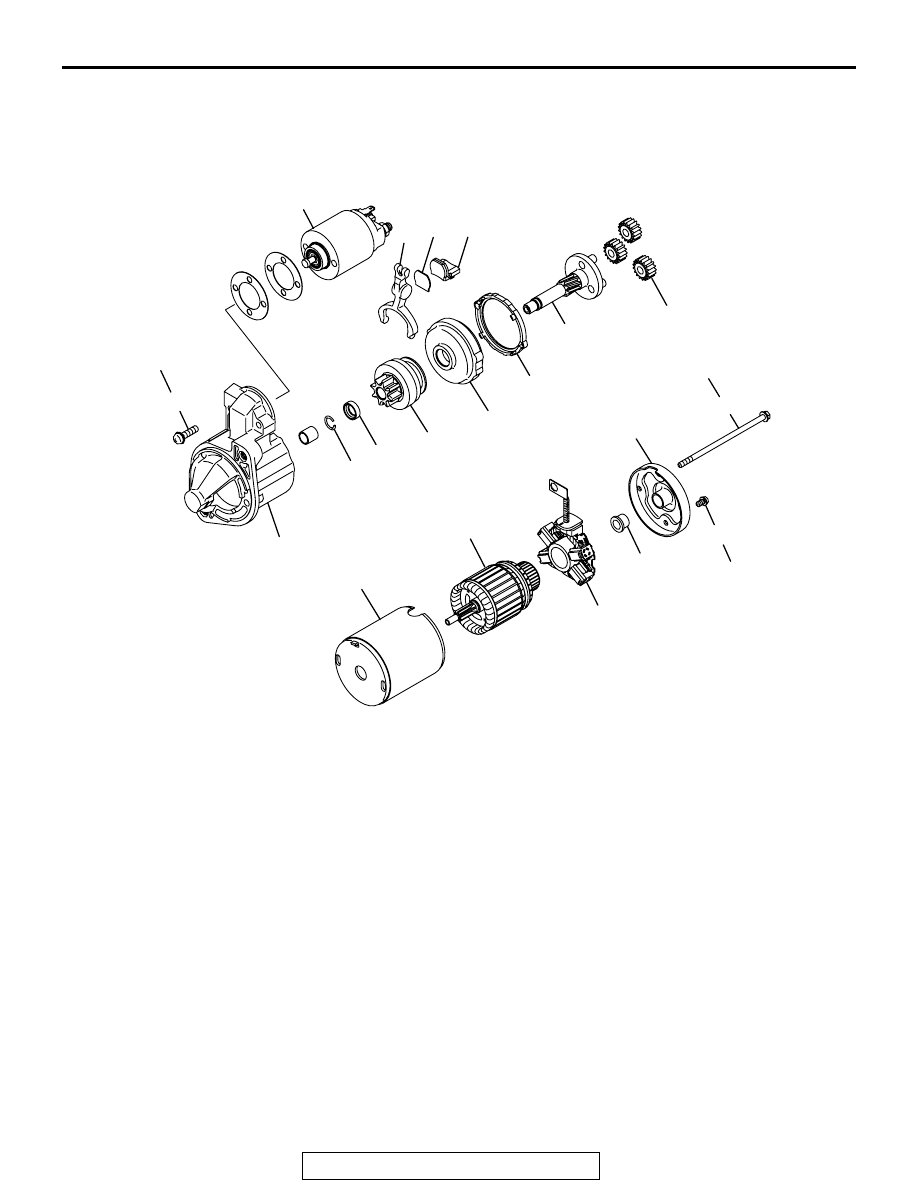

DISASSEMBLY AND ASSEMBLY

M1162001200611

AK704430 AB

2

16

17

18

19

15

13

12

20

4

14

11

1

5

6

8

7

9

10

3

6.1 ± 1.0 N·m
54 ± 8 in-lb

3.4 ± 1.0 N·m
30 ± 8 in-lb

5.8 ± 1.6 N·m
52 ± 13 in-lb

DISASSEMBLY STEPS

1. Screw

<<

A>>

2. Magnetic switch
3. Screw
4. Bolt
5. Rear bracket
6. Brush holder
7. Rear bearing
8. Armature
9. Yoke assembly
10. Packing A

11. Packing B
12. Plate
13. Planetary gear
14. Lever

<<

B>> >>A

<< 15. Snap ring

<<

B>> >>A

<< 16. Stop ring

17. Overrunning clutch
18. Internal gear
19. Planetary gear shaft
20. Front bracket

DISASSEMBLY STEPS

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-31

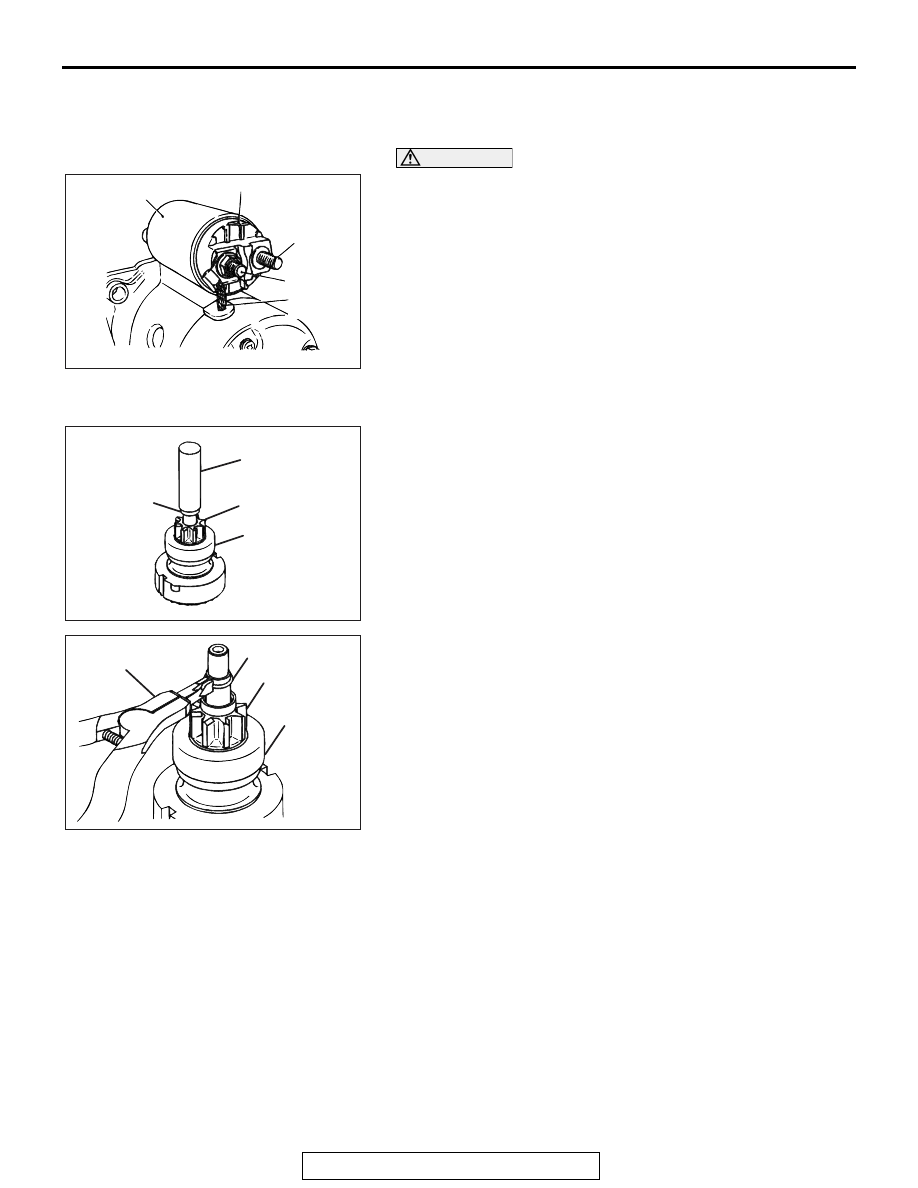

DISASSEMBLY SERVICE POINTS

.

<<A>> MAGNETIC SWITCH REMOVAL

AK301505AG

Magnetic
stitch

B terminal

S terminal

M terminal

Field coil
lead

CAUTION

Do not clamp the yoke assembly with a vise.
Disconnect the lead from the M terminal of the magnetic switch.

.

<<B>> SNAP RING / STOP RING REMOVAL

AK304685

Socket wrench

Stop ring

Pinion gear

Overrunning
clutch

AF

1. Apply a long socket wrench of an appropriate size to the

stop ring and strike the wrench to drive out the stop ring
toward the pinion gear side.

AK304686

Snap ring pliers

Snap ring

Pinion gear

Overrunning
clutch

AF

2. Remove the snap ring with snap ring pliers, then remove the

stop ring and overrunning clutch.

STARTER MOTOR PARTS CLEANING

.

1. Never clean in a solvent such starter motor parts as the

magnetic switch, brush holder, and armature. If they are
soaked in a solvent, their insulation could be impaired.
When these parts require cleaning, wipe off contamination
with cloth.

2. Never soak the drive unit in a solvent. If it is washed in a

solvent, the grease having been packed in the overrunning
clutch at the factory will be washed out. Wipe the drive unit
with cloth if it requires cleaning.

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-32

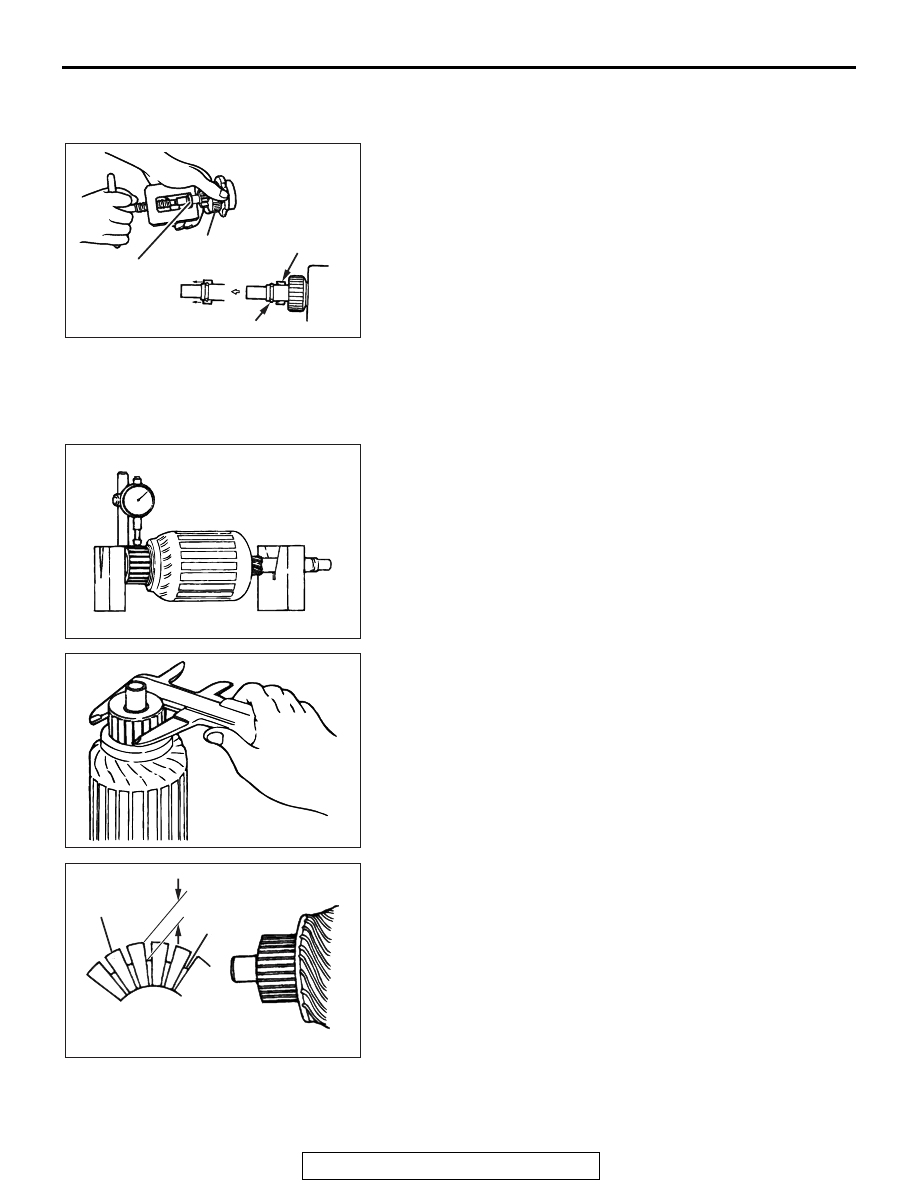

REASSEMBLY SERVICE POINTS

.

>>A<< STOP RING / SNAP RING INSTALLATION

AK304687

Overrunning
clutch

Stop ring

Snap ring

Stop ring

AF

Use a suitable puller to pull the stop ring until it gets over the
snap ring.

INSPECTION

M1162001300470

.

COMMUTATOR CHECK

AK304688

1. Place the armature on a pair of V-blocks, and check the

deflection by using a dial gauge.

Standard value: 0.05 mm (0.002 inch)
Limit: 0.10 mm (0.004 inch)

AK304689

2. Check the outer diameter of the commutator.

Standard value: 29.4 mm (1.16 inch)
Minimum limit: 28.8 mm (1.13 inch)

AK304690

Segment

Undercut

Mica

AF

3. Check the depth of the undercut between segments.

Standard value: 0.5 mm (0.02 inch)
Minimum limit: 0.2 mm (0.01 inch)

.
