STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-25

TROUBLESHOOTING GUIDE

The starting system troubleshooting guide is shown in the fol-
lowing steps.

WARNING

Battery posts, terminals and related accessories con-
tain lead and lead compounds. WASH HANDS AFTER
HANDLING.

STEP 1.
Q: Is the battery in good condition? (Refer to GROUP 54A,

Chassis Electrical

− Battery − On-vehicle Service −

Battery Test

P.54A-9

.)

YES : Go to Step 2.
NO :  Charge or replace the battery.

STEP 2.

• Disconnect the starter motor S (solenoid) terminal connec-

tor.

• Using a jumper wire, apply battery positive voltage to the

starter motor S (solenoid) terminal.

• Check the engine condition.

OK: Turns normally

Q: Does the starter motor operate normally?

YES :

• Check the ignition switch (Refer to GROUP 54A,

Chassis Electrical

− Ignition Switch − Ignition

Switch

− Inspection

P.54A-271

.)

• Check the starter relay system (Refer to GROUP

13A, Multiport Fuel Injection (MFI)

− Multiport Fuel

Injection (MFI) Diagnosis

− Symptom Procedures −

Ignition Switch

− ST System and Starter Relay

System

P.13A-818

 <M/T>,

P.13A-830



<TC-SST>).

• Check the shift lever position. (Refer to GROUP

22C, Twin Clutch-sportronic Shift Transmission
(TC-SST)

− On-vehicle Service − Shift Lever

Operation Check

P.22C-330

.)

• Check the line between the battery and starter

motor S (solenoid) terminal.

NO :  Go to Step 3.

STEP 3.

• Check the cable between starter B (battery) terminal and

battery positive terminal for connection and continuity.

Q: Is the starter cable in good condition?

YES : Go to Step 4.
NO :  Repair or replace the cable.

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-26

STEP 4.

• Check the connection and the continuity of the cable

between the starter motor body and the negative battery
terminal.

Q: Is the ground line in good condition?

YES : Go to Step 5.
NO :  Repair or replace the cable.

STEP 5.
Q: Is the starter motor in good condition? (Refer to Starting

System

− Starter Motor Assembly − Inspection

P.16-20

.)

YES : Excessive rotational resistance of the engine.
NO :  Replace the starter motor.

ON-VEHICLE SERVICE

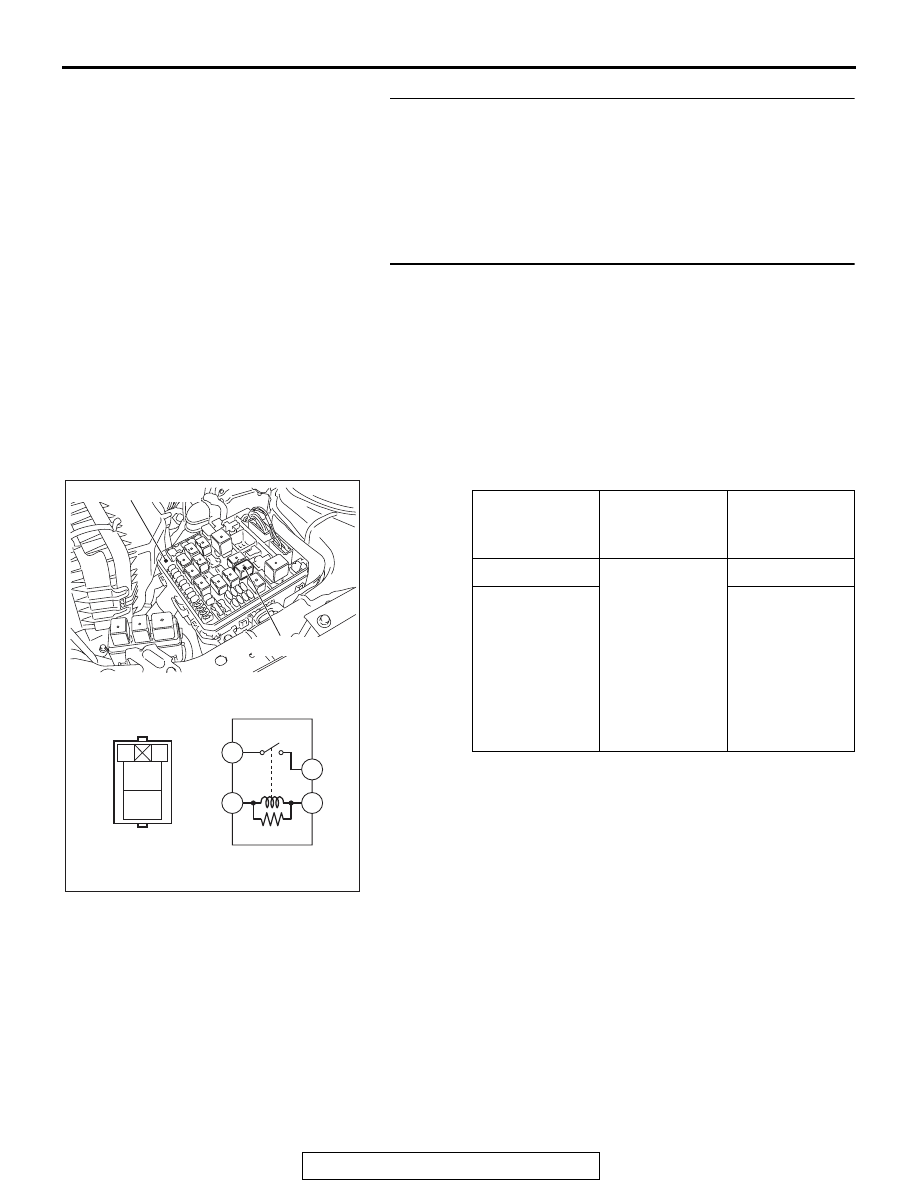

STARTER RELAY CHECK

M1162001400831

4

3

2

1

1

2

3

4

AC709288AB

Starter relay

Relay box assembly

Battery voltage Terminal No. to

be connected
to tester

Continuity test
result

Not applied

4

− 3

Open circuit

Connect
terminal No.2
and battery (+)
terminal.
Connect
terminal No.1
and battery (

−)

terminal.

Continuity (Less
than 2 ohms)

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-27

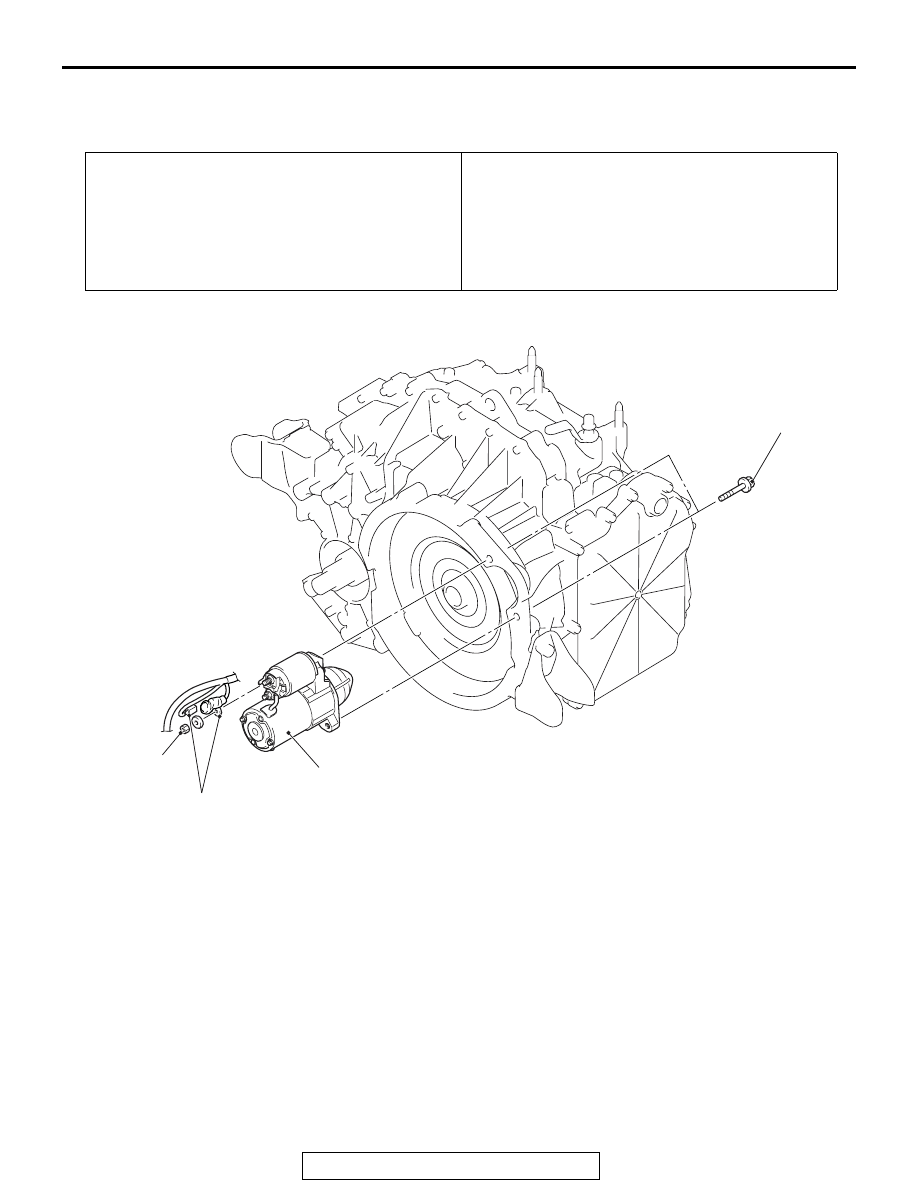

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION

M1162001002260

Pre-removal operation
• Engine Room Under Cover Front A, B and Engine Room

Under Cover Center Removal (Refer to GROUP 51,

Under Cover

P.51-16

).

• Air Cleaner Body Removal (Refer to GROUP 15, Air

Cleaner

P.15-10

).

• Charge Air Cooler Outlet Hose E Removal (Refer to

GROUP 15, Charge Air Cooler

P.15-10

).

Post-installation operation
• Charge Air Cooler Outlet Hose E Installation (Refer to

GROUP 15, Charge Air Cooler

P.15-10

).

• Air Cleaner Body Installation (Refer to GROUP 15, Air

Cleaner

P.15-10

).

• Engine Room Under Cover Front A, B and Engine Room

Under Cover Center and Engine Room Side Cover (RH)

Installation (Refer to GROUP 51, Under Cover

P.51-16

).

AC706237

1

AC

2

36 ± 9 N·m
27 ± 6 ft-lb

11 ± 1 N·m
93 ± 13 in-lb

Removal steps

1.

Starter connector and terminal
connection

<<A>>

2.

Starter assembly

REMOVAL SERVICE POINT

.

<<A>> STARTER ASSEMBLY REMOVAL

Remove the starter assembly from the lower front of the
engine.

STARTING SYSTEM

TSB Revision

ENGINE ELECTRICAL

16-28

INSPECTION

M1162001100829

.

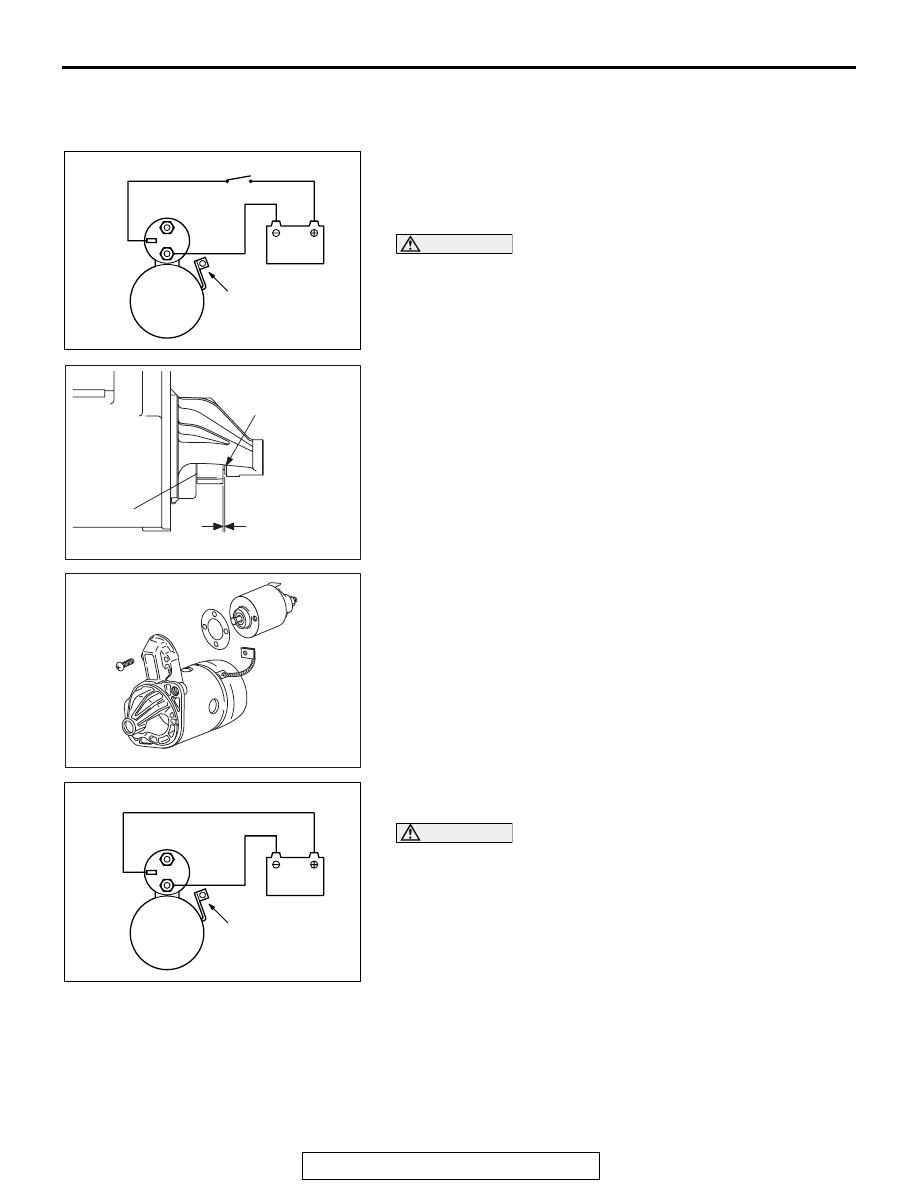

PINION GAP ADJUSTMENT

AKX01239

B

M

S

Battery

Switch

Starter
motor

Wire

AF

1. Disconnect the lead wire from the M-terminal of the

magnetic switch.

2. Connect a 12-volt battery between the S-terminal and

M-terminal.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
3. Set the switch to "ON", and the pinion will move out.

AKX00198

Stopper

Pinion gap

Pinion

AC

4. Check the pinion-to-stopper clearance (pinion gap) with a

feeler gauge.

Standard value: 0.5

− 2.0 mm (0.02 − 0.07 inch)

AKX00199

5. If the pinion gap is out of specification, adjust by adding or

removing gasket(s) between the magnetic switch and front
bracket.

.

MAGNETIC SWITCH PULL-IN TEST

AKX01243

B

M

S

Battery

Starter
motor

Wire

AF

1. Disconnect the field coil wire from the M-terminal of the

magnetic switch.

CAUTION

This test must be performed quickly (in less than 10 sec-
onds) to prevent the coil from burning.
2. Connect a 12-volt battery between the S-terminal and

M-terminal.

3. If the pinion moves out, the pull-in coil is good. If it doesn't,

replace the magnetic switch.

.
