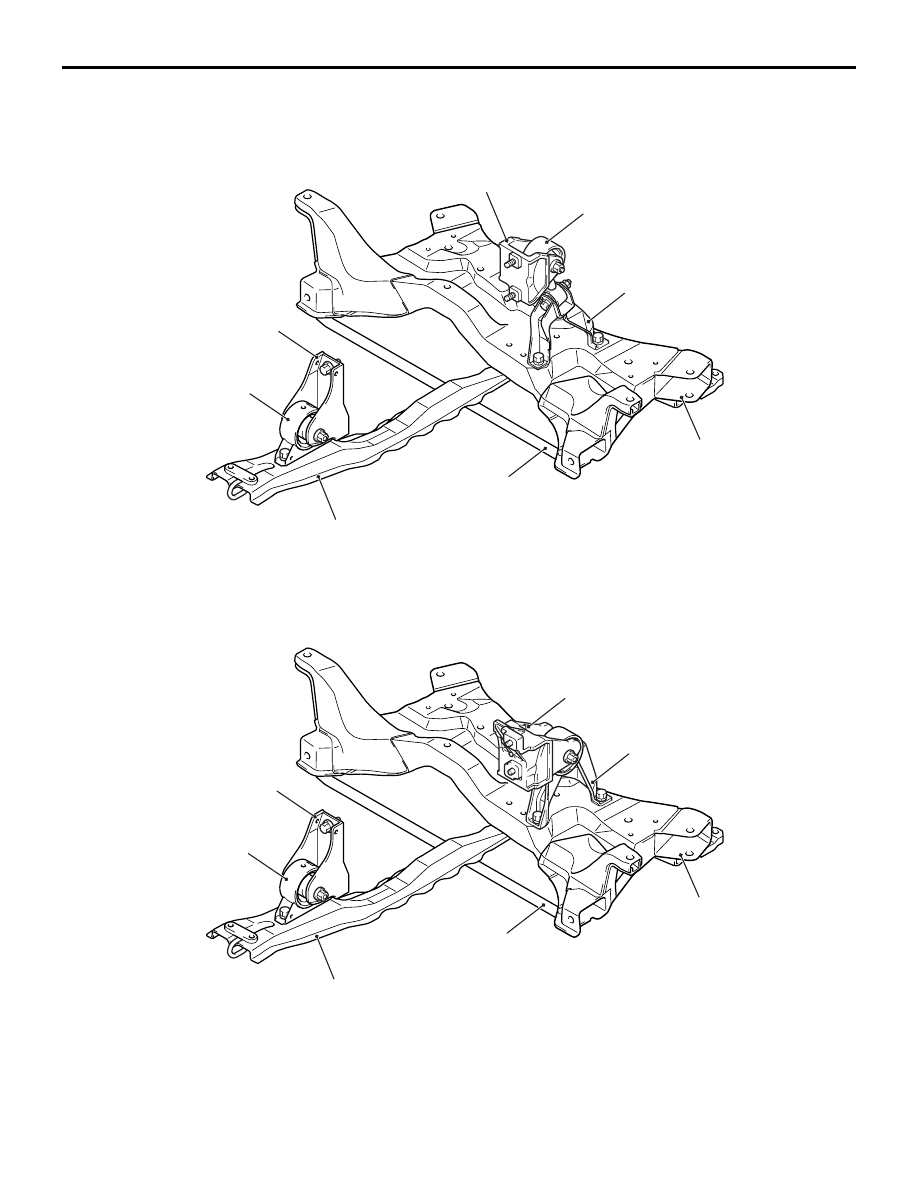

Transmission case rear
roll stopper bracket

Engine rear
roll stopper rod

Engine rear
roll stopper rod
bracket

Front axle No.1
crossmember

Front axle
crossmember bar

Front suspension
centremember

Engine front
roll stopper
bracket

Transmission case rear
roll stopper bracket

Engine rear
roll stopper
bracket

Front axle No.1
crossmember

Front axle
crossmember bar

Front suspension
centremember

Engine front
roll stopper
bracket

Transmission case
front roll stopper bracket

AB

<L.H. drive vehicles>

<R.H. drive vehicles>

Transmission case
front roll stopper bracket

GENERAL INFORMATION

POWER PLANT MOUNT

32-3

SPECIAL TOOL

POWER PLANT MOUNT

32-4

SPECIAL TOOL

M1321000600442

Tool

Number

Name

Use

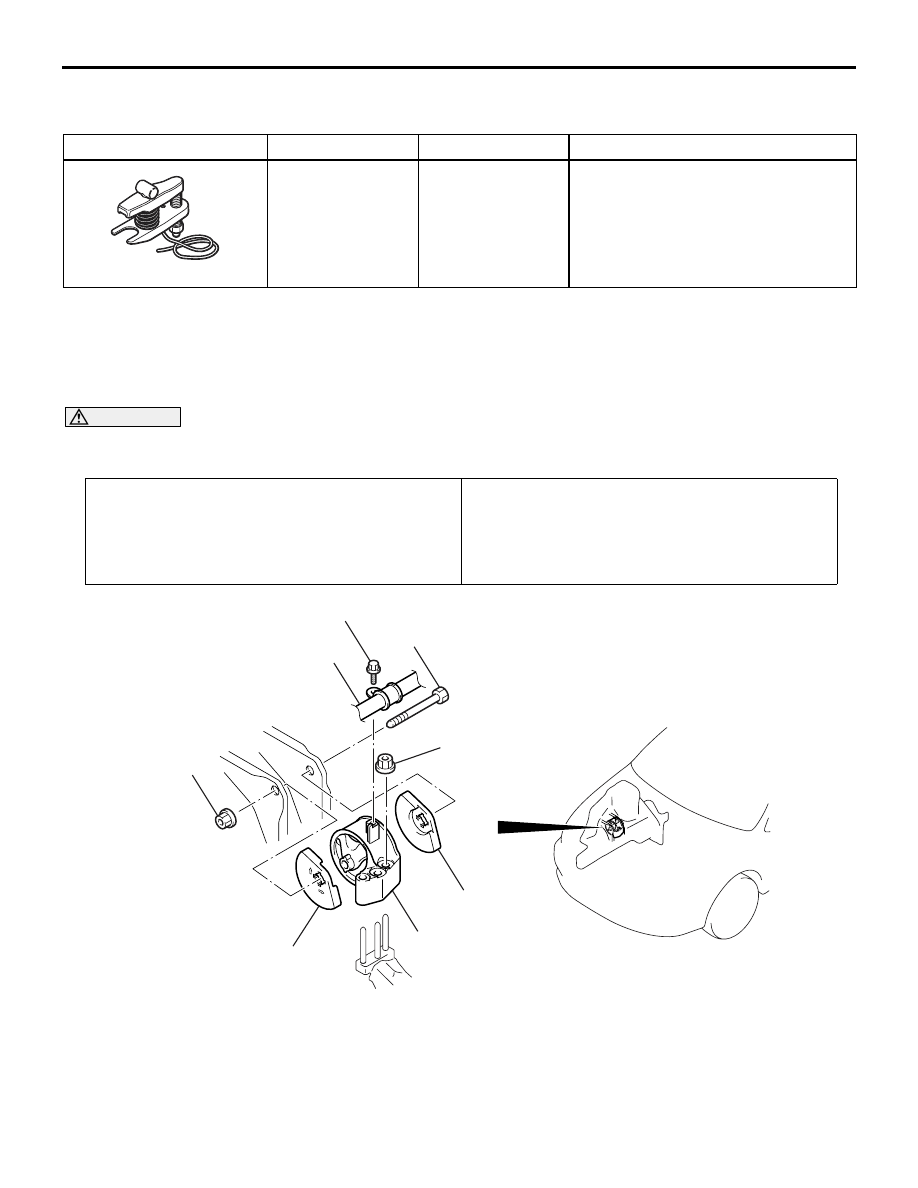

AC106827

MB991897

Ball joint remover

Knuckle and tie rod end ball joint
disconnection
NOTE: Steering linkage puller
(MB990635 or MB991113) is also
available to disconnect knuckle and
tie rod end ball joint.

ENGINE MOUNTING

REMOVAL AND INSTALLATION

M1321001100752

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front

Bumper

P.51-2

).

• Raise the engine and transmission assembly until its

weight is not applied to the insulator, and support it

securely.

Post-installation Operation
• Under Cover Installation (Refer to GROUP 51, Front

Bumper

P.51-2

).

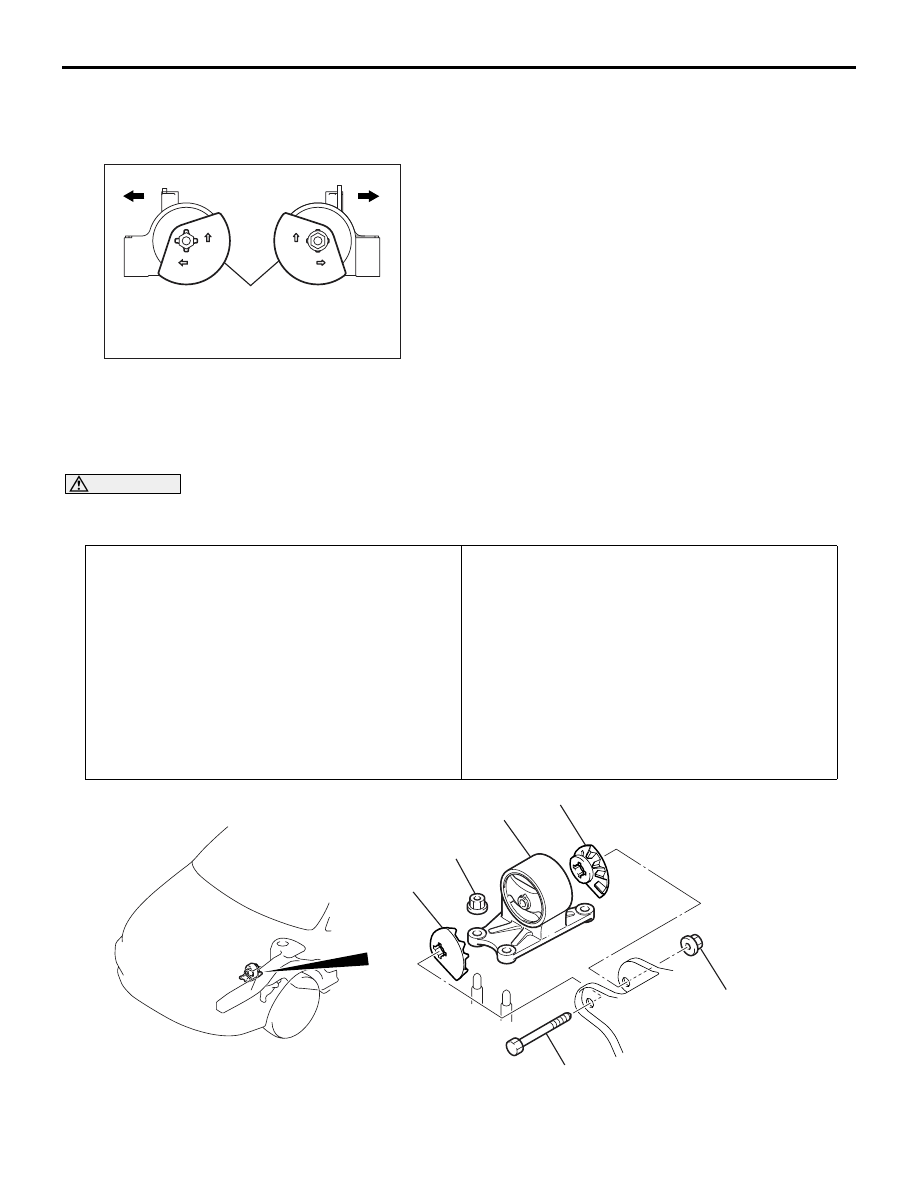

AC210425

1

4

3

2

4

12 ± 2 N·m

98 ± 10 N·m*

67 ± 7 N·m*

AB

Removal steps

1.

Power steering oil pressure hose

2.

Engine mounting bolt

3.

Engine mounting insulator

>>

A

<< 4.

Engine mounting cushion stoppers

Removal steps (Continued)

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-5

INSTALLATION SERVICE POINT
>>A<< ENGINE MOUNTING CUSHION
STOPPER INSTALLATION

R

F

F

R

AC210426

Engine side

Engine side

<Vehicle
rear view>

<Vehicle
front view>

Engine mounting
cushion stopper

AC

Arrow marks on the engine mounting cushion stop-
per should face the shown direction.
NOTE: Disregard F and R stamped as a shared part.

INSPECTION

M1321001200232

• Check the engine mounting insulator for cracks,

separation or deformation.

• Check the engine mounting cushion stoppers for

deformation.

TRANSMISSION MOUNTING

REMOVAL AND INSTALLATION

M1321001400968

CAUTION

*: Indicates parts which should be initially tightened, and then fully tightened after placing the vehicle
horizontally and loading the full weight of the engine on the vehicle body.

Pre-removal Operation
• Under Cover Removal (Refer to GROUP 51, Front

Bumper

P.51-2

).

• Raise the engine and transmission assembly until its

weight is not applied to the insulator, and support it

securely.

• Battery and Battery Tray Removal

• Air Cleaner Removal (Refer to GROUP 15, Air Cleaner

P.15-5

).

• Radiator Assembly Removal (Refer to GROUP 14, Radia-

tor

P.14-24

).

• Air Pipe C, Air By-pass Hose, Air Hose D Removal (Refer

to GROUP 15, Intercooler

P.15-6

).

• Rear Roll Stopper Removal (Refer to

P.32-7

).

Post-installation Operation
• Rear Roll Stopper Installation (Refer to

P.32-7

).

• Air Pipe C, Air By-pass Hose, Air Hose D Installation

(Refer to GROUP 15, Intercooler

P.15-6

).

• Radiator Assembly Installation (Refer to GROUP 14,

Radiator

P.14-24

).

• Air Cleaner Installation (Refer to GROUP 15, Air Cleaner

P.15-5

).

• Battery and Battery Tray Installation

• Under Cover Installation (Refer to GROUP 51, Front

Bumper

P.51-2

).

AC505022

1

3

2

3

47 ± 7 N·m*

82 ± 7 N·m*

AB

Removal steps

1.

Transmission mounting bolt

2.

Transmission mounting insulator

>>

A

<< 3.

Transmission mounting stopper

Removal steps (Continued)

TRANSMISSION MOUNTING

POWER PLANT MOUNT

32-6

INSTALLATION SERVICE POINT
>>A<< TRANSMISSION MOUNTING
STOPPER INSTALLATION

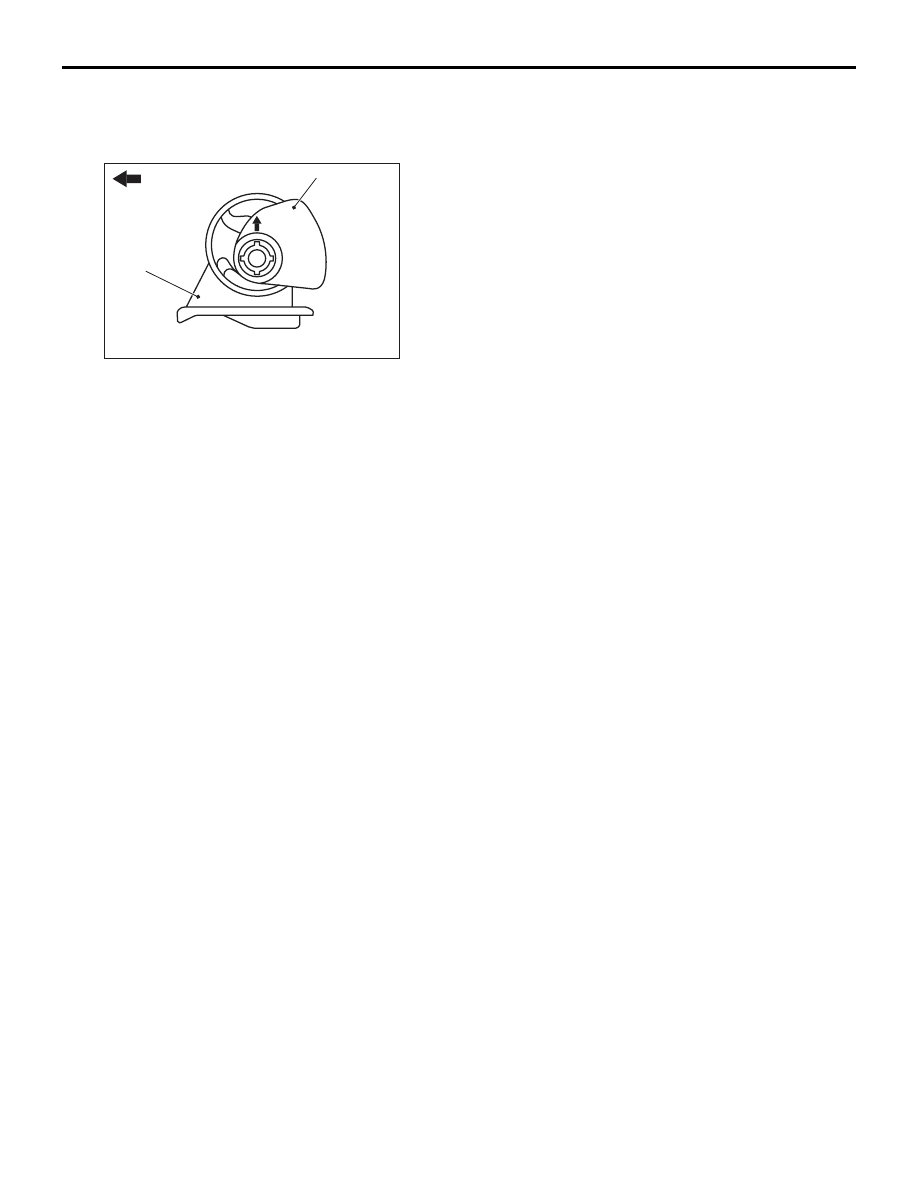

AC200645

Engine side

Transmission
mounting
insulator

Transmission
mounting
stopper

AI

Install the transmission mounting stopper so that its
arrow points upward.

INSPECTION

M1321001500200

• Check the transmission mounting insulator for

cracks, separation or deformation.

• Check the transmission mounting stoppers for

deformation.
