TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-21

COMMENTS ON TROUBLE SYMPTOM

This code is set when the mode selection damper
control motor potentiometer does not send any sig-
nal to the A/C-ECU due to short or open circuit.

PROBABLE CAUSES

• Malfunction of the mode selection damper control

motor and potentiometer

• Malfunction of the automatic A/C control panel

(A/C-ECU)

• Damaged the wiring harness or connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the mode selection damper
control motor and potentiometer.
Refer to

P.55-114

.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the mode selection damper control
motor and potentiometer.

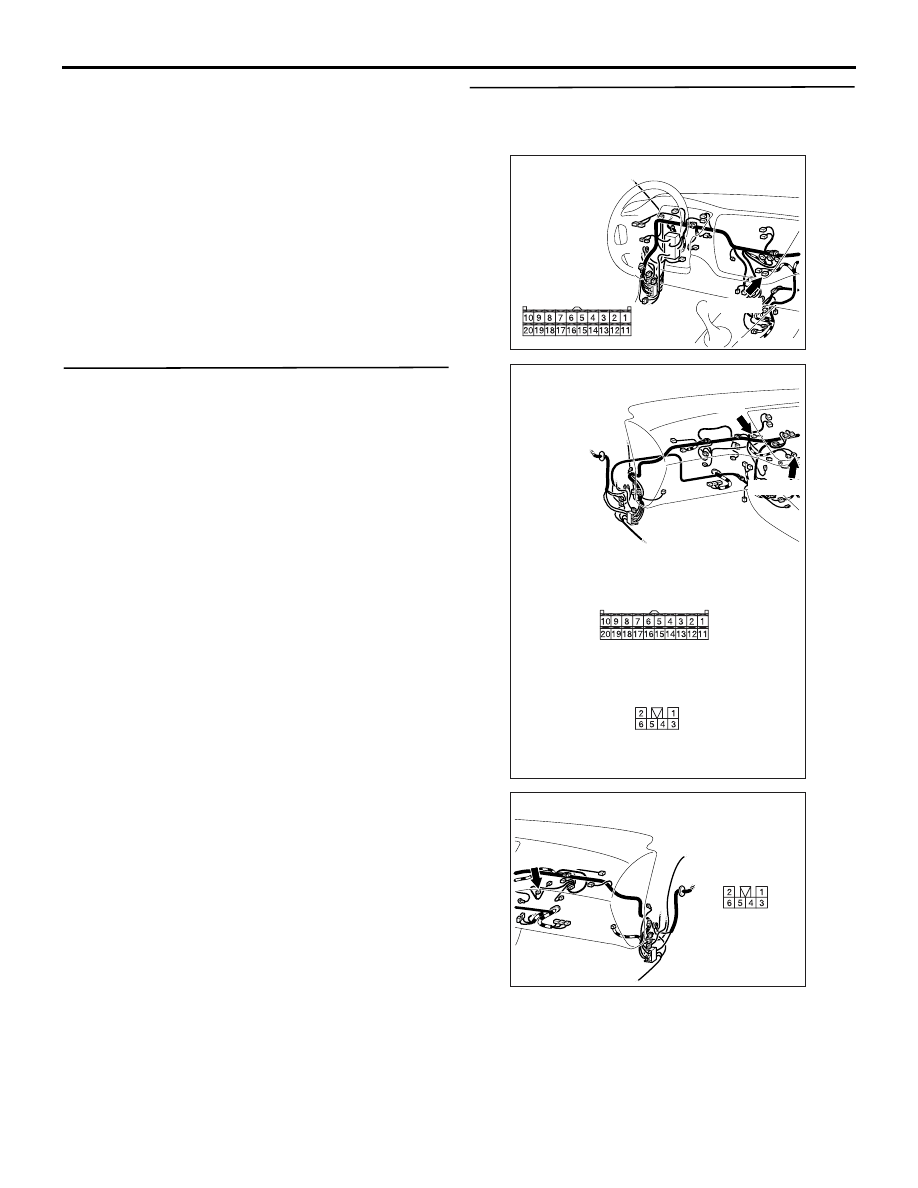

STEP 2. Connector check: C-36 A/C-ECU
connector and C-143 mode selection damper
control motor and potentiometer connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

AC504622AB

Connector: C-36 <LHD>

Harness side

C-36 (B)

AC504624AK

Connectors: C-36, C-143 <RHD>

Harness side

C-36

C-143

C-143

C-36 (B)

AC504617AM

Connector: C-143 <LHD>

Harness side

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-22

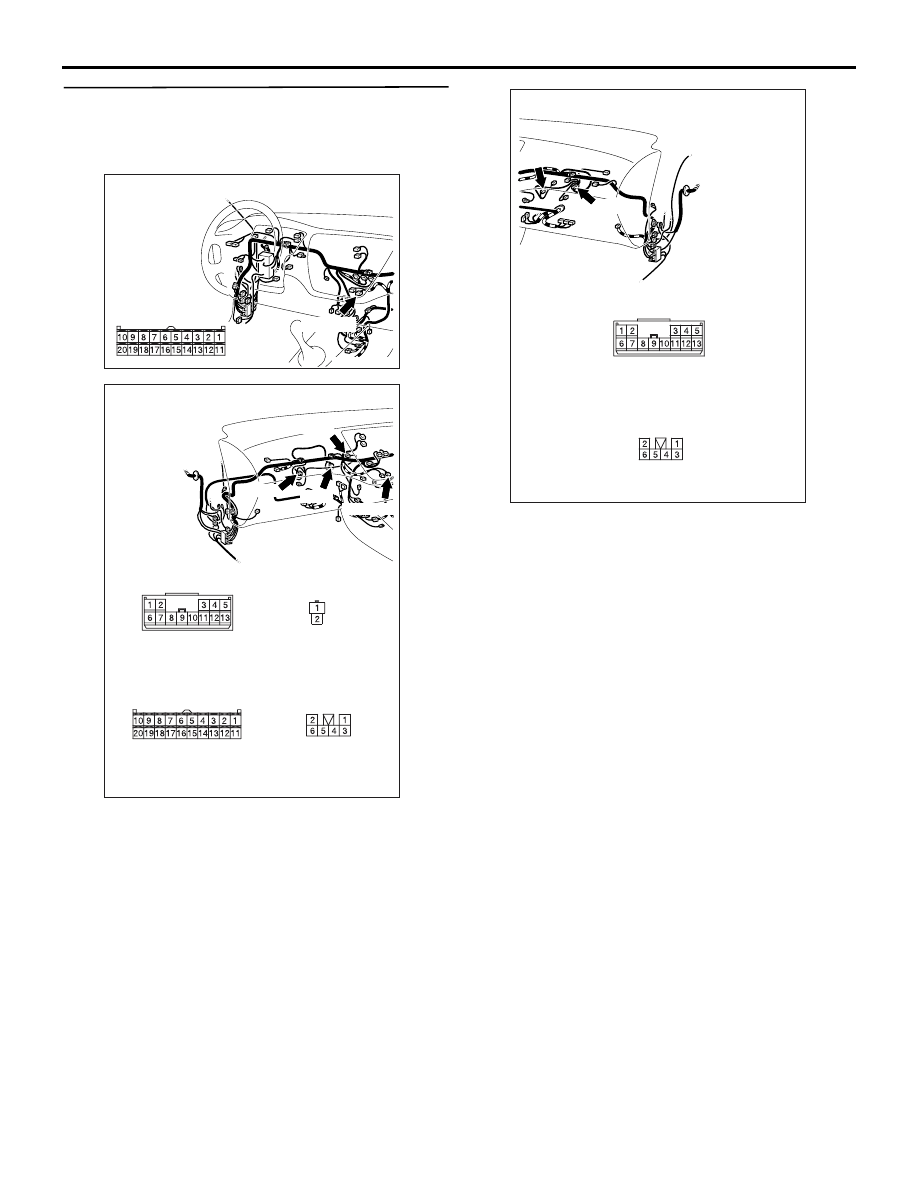

STEP 3. Check the wiring harness between C-36
A/C-ECU connector (terminals 10, 6 and 20) and
C-143 mode selection damper control motor and
potentiometer connector (terminals 2, 5 and 6).

NOTE: Prior to the wiring harness inspection, check
intermediate connector C-10 and heater water tem-
perature sensor connector C-32 <RH drive vehi-
cles>, and repair if necessary.

• Check the potentiometer power supply, earth and

signal line for open or short circuit.

Q: Is the check result normal?

YES :

Malfunction of the automatic A/C control

panel (A/C-ECU)

NO :

Repair the wiring harness.

AC504622AB

Connector: C-36 <LHD>

Harness side

C-36 (B)

AC504624AR

Connectors: C-10, C-32, C-36, C-143 <RHD>

Harness side

C-10

C-36

C-143

C-10

C-36 (B)

C-143

Harness side

C-32

Harness side

C-32

AC504701AD

Connectors: C-10, C-143 <LHD>

Harness side

C-10

C-143

C-10

C-143

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-23

Code No.41: Air Mixing Damper Control Motor System

COMMENTS ON TROUBLE SYMPTOM

This code is set when the air mixing damper cannot
be rotated to the preset opening angle.

PROBABLE CAUSES

• Malfunction of the air mixing damper control

motor and potentiometer

• Malfunction of the automatic A/C control panel

(A/C-ECU)

• Damaged the wiring harness or connectors

DIAGNOSIS PROCEDURE

STEP 1. Check the air mixing damper control
motor and potentiometer.
Refer to

P.55-114

.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Replace the air mixing damper control
motor and potentiometer.

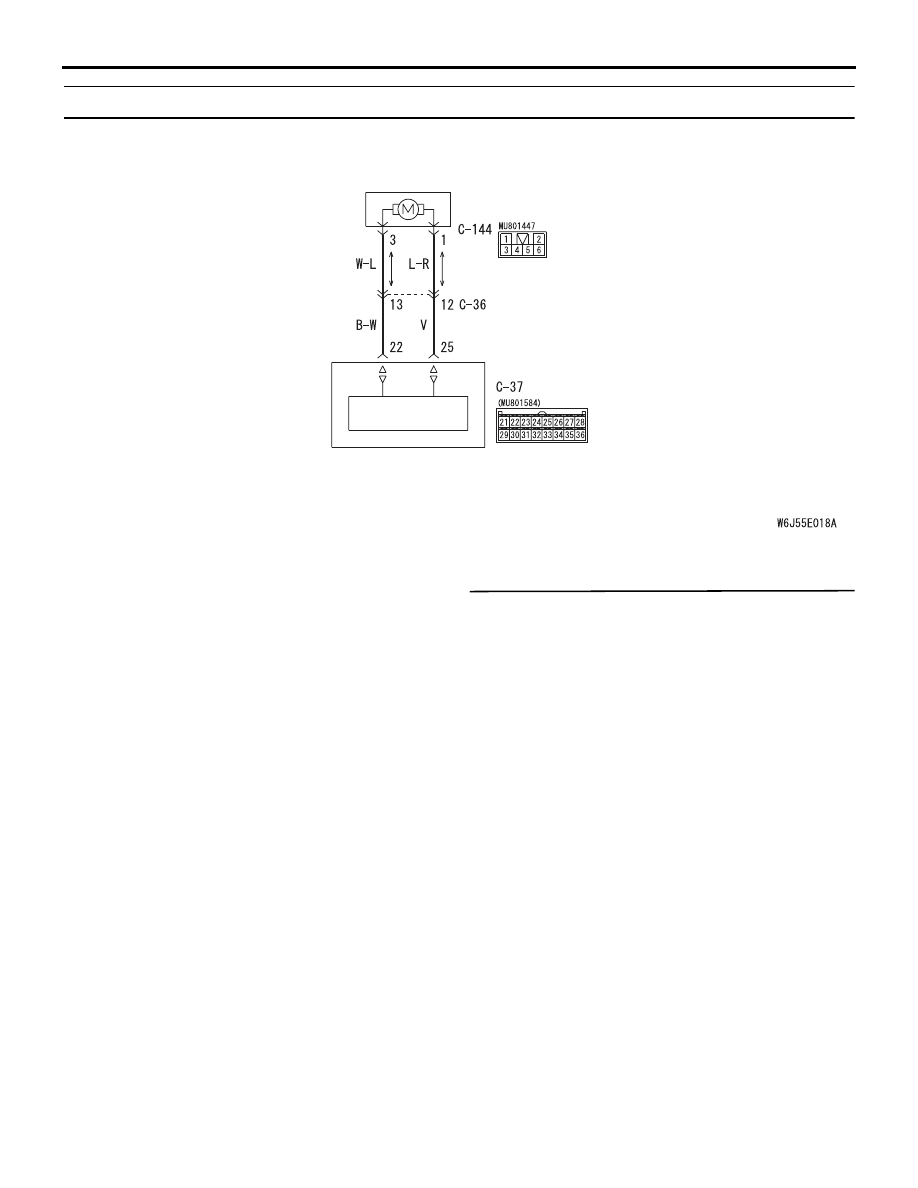

Air Mixing Damper Control Motor Circuit

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Grey     R : Red     P : Pink     V : Violet     PU : Purple

MOTOR
DRIVE CIRCUIT

A/C-ECU

AIR MIXING DAMPER CONTROL
MOTOR AND POTENTIOMETER

TROUBLESHOOTING

HEATER, AIR CONDITIONER AND VENTILATION

55-24

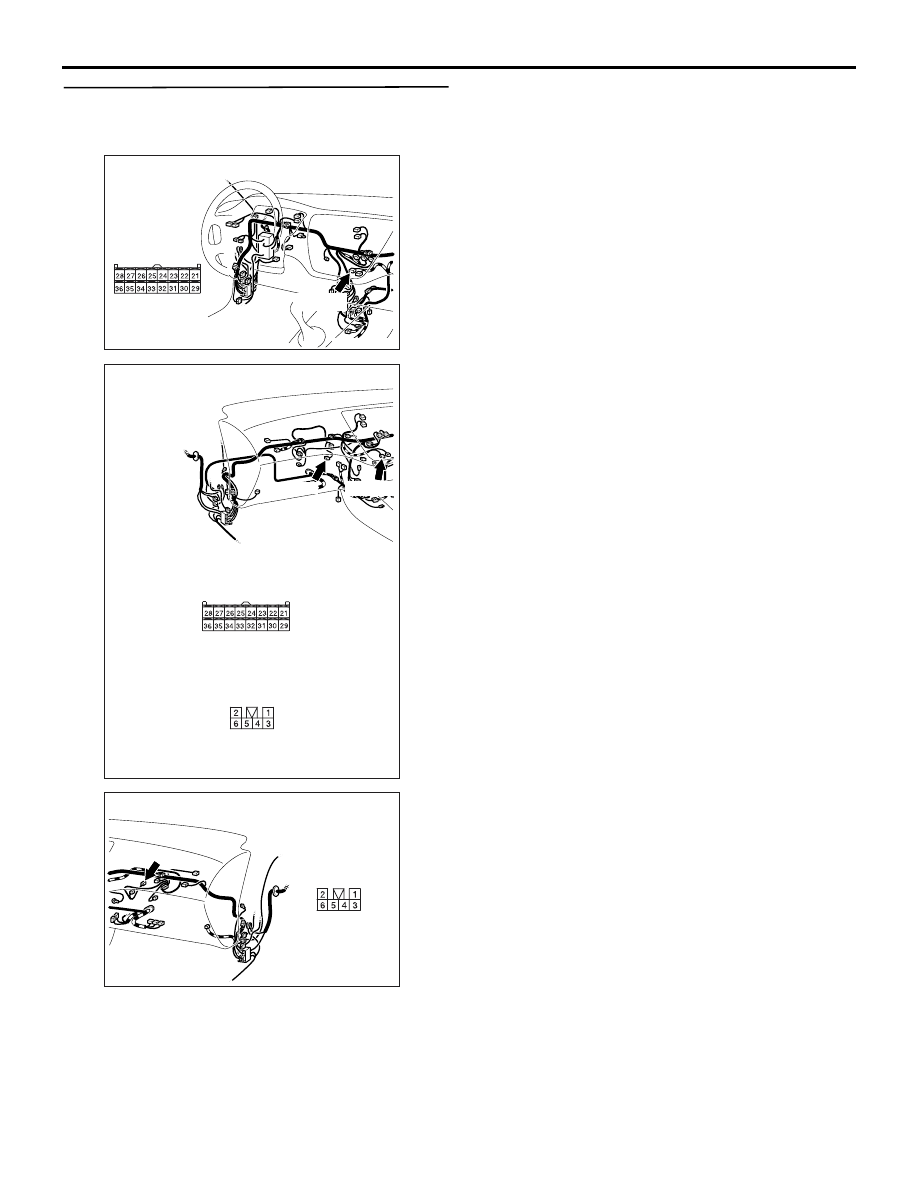

STEP 2. Connector check: C-37 A/C-ECU
connector and C-144 air mixing damper control
motor and potentiometer connector

Q: Is the check result normal?

YES :

Go to Step 3.

NO :

Repair the connector.

AC504622AC

Connector: C-37 <LHD>

Harness side

C-37 (B)

AC504624AM

Connectors: C-37, C-144 <RHD>

Harness side

C-37

C-144

C-144

C-37 (B)

AC504617AL

Connector: C-144 <LHD>

Harness side
