COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-37

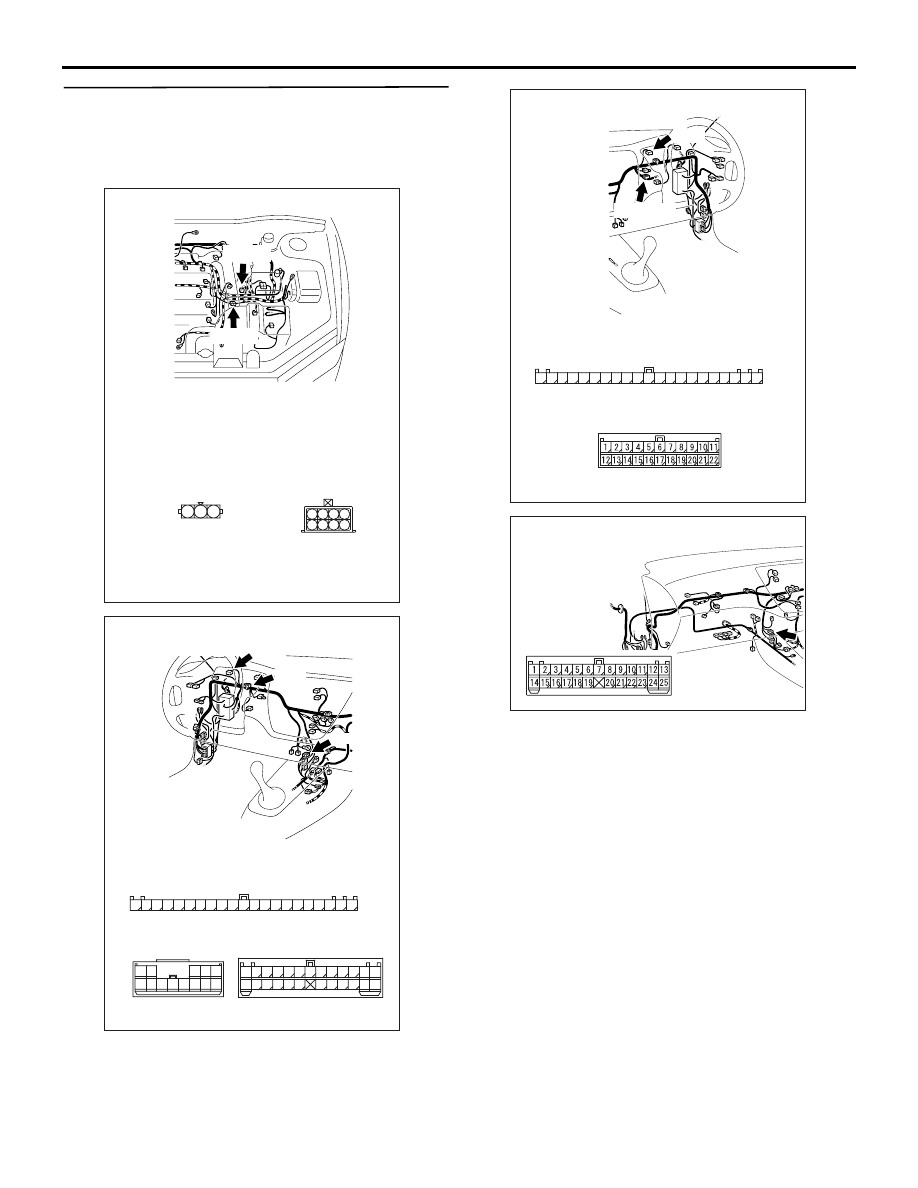

STEP 4. Check the wiring harness between
combination meter connector C-01 (terminal 12)
and vehicle speed sensor connector B-04
(terminal 3).
NOTE:

AC310440

Connectors: B-04, B-27

AC

B-27(B)

B-04(B)

1

2

3

Harness side

B-04

B-27

1
5

2
6

3
7

4
8

AC310447

1

13

7

4

2

3

5

6

10

8

9

11

12

18

14

15

1716

212019

C-01

AU

C-21

1 2

4

3

12

11

10

9

8

7

6

13

5

C-124

18

3

16

15

14

1 2

17

4 5

8

20

19

6 7

2122

9 10

25

13

24

23

12

11

Connectors: C-01, C-21, C-124
<L.H. drive vehicles>

Harness side

C-21

C-01

C-124

AC310457

1

13

7

4

2

3

5

6

10

8

9

11

12

18

14

15

1716

212019

C-01

AG

C-101

Connectors: C-01, C-101
<R.H. drive vehicles>

Harness side

C-101(L)

C-01

AC310454

Connector : C-124
<R.H. drive vehicles>

BO

Also check joint connector C-21 <LH drive vehicles>
or C-101 <RH drive vehicles>, intermediate connec-
tor B-27 and C-124 for loose, corroded, or damaged
terminals, or terminals pushed back in the connector.
If joint connector C-21 <LH drive vehicles> or C-101
<RH drive vehicles>, intermediate connector B-27 or
C-124 are damaged, repair or replace the connector.

Q: Is the wiring harness between combination meter

connector C-01 (terminal 12) and vehicle speed
sensor connector B-04 (terminal 3) in good
condition?
YES :

Replace the combination meter. The

speedometer should work normally.

NO :

Repair the wiring harness. The
speedometer should work normally.

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-38

INSPECTION PROCEDURE 2: Tachometer does not work.

AC504348AB

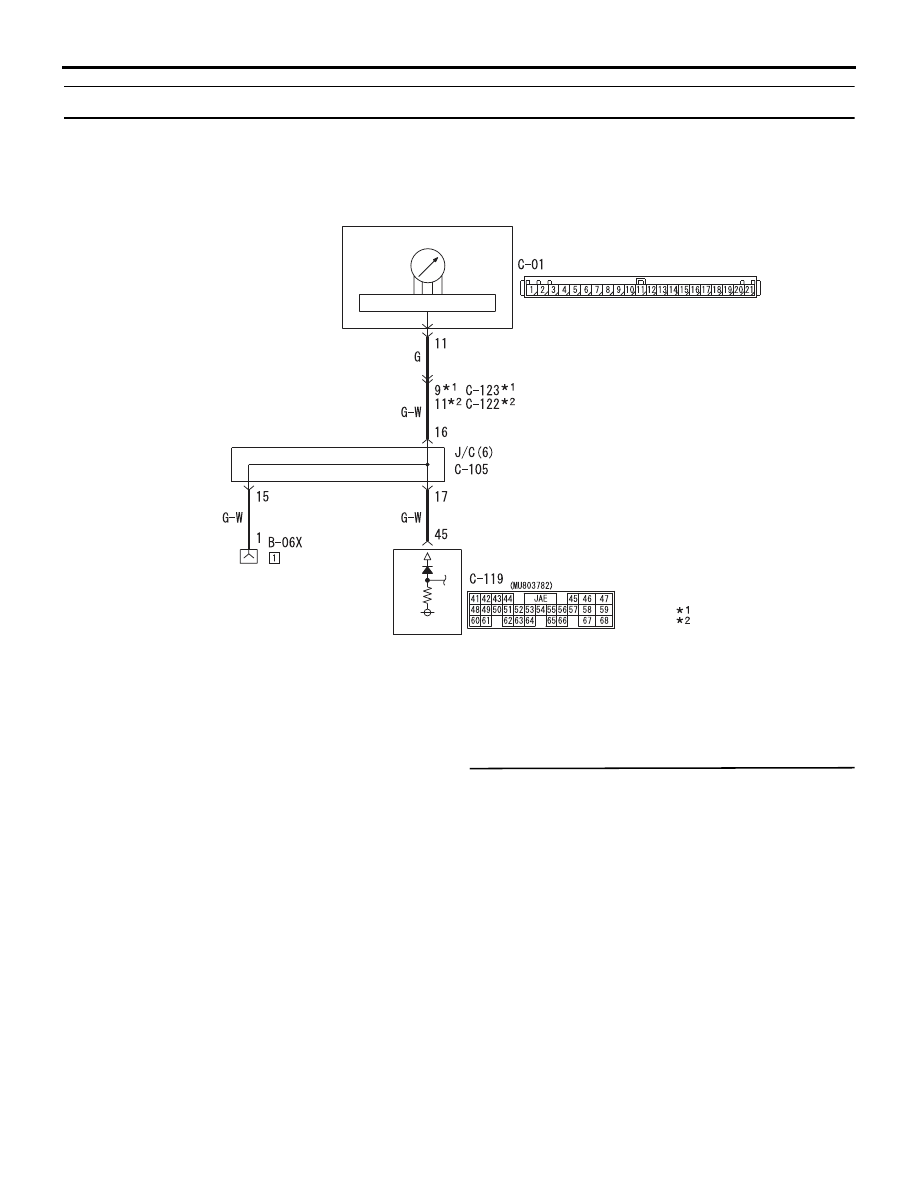

Tachometer Circuit

CONTROL CIRCUIT

TACHO

COMBINATION
METER

ENGINE-ECU

ENGINE SPEED
DETECTION
CONNECTOR

NOTE

: L.H. drive vehicles
: R.H. drive vehicles

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

TECHNICAL DESCRIPTION (COMMENT)

Ignition signal may not be received from the
engine-ECU, or the combination meter assembly, the
wiring harness, or the connector(s) may be defective.

TROUBLESHOOTING HINTS

• Malfunction of the combination meter assembly

• Malfunction of the engine-ECU

• The wiring harness or connectors may have

loose, corroded, or damaged terminals, or termi-
nals pushed back in the connector.

DIAGNOSIS PROCEDURE

STEP 1. Check the other meters.

Check to see that the speedometer, fuel gauge
and water thermometer are operating normally.

Q: Do all other meters operate?

Yes <other meters all operate> :

Go to Step 2.

NO <one of the meters do not operate.> :

Refer to

INSPECTION PROCEDURE 5

P.54A-48

.

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-39

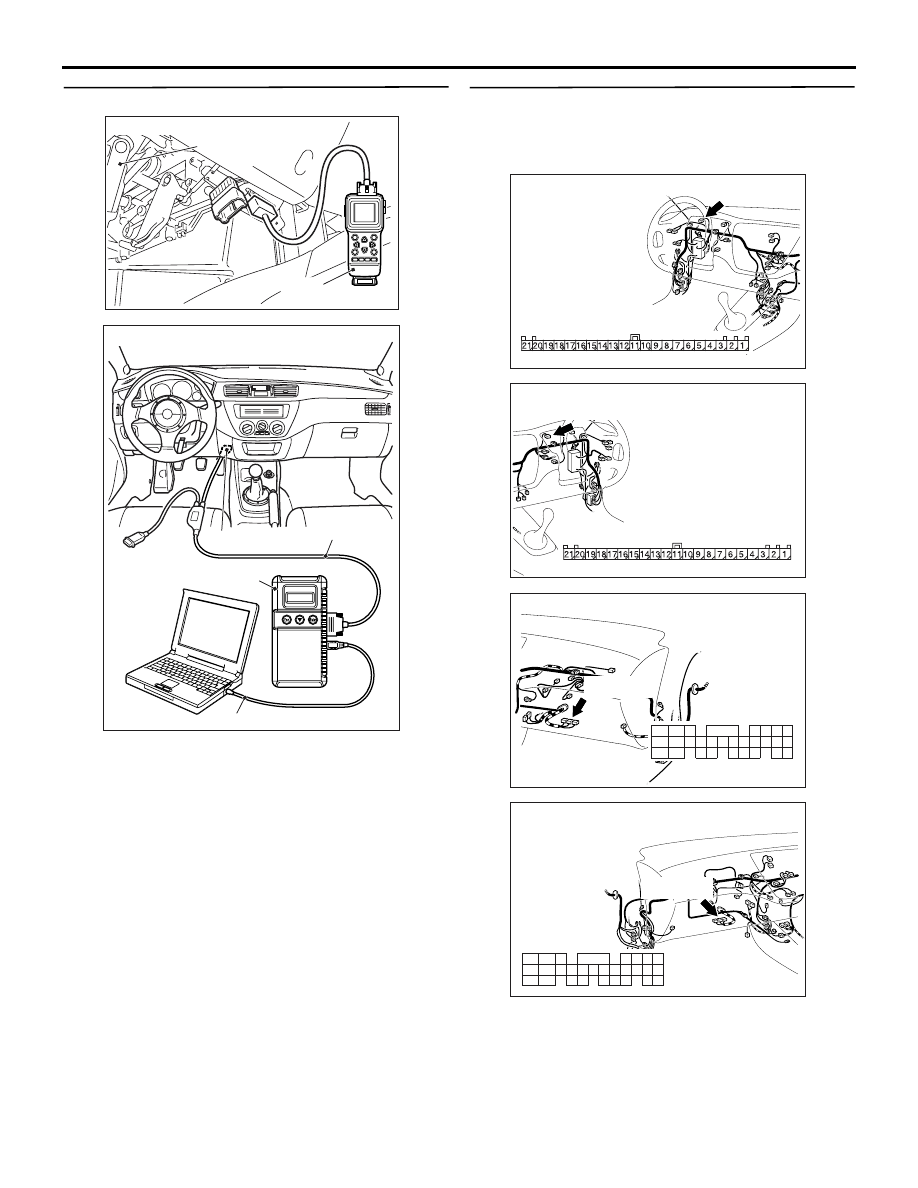

STEP 2. M.U.T.-II/III MPI diagnosis code is reset.

AC304777

Steering shaft

AB

MB991502

<Using the M.U.T.-II>

AC210056

MB991911

16-PIN

MB991827

MB991824

AF

<Using the M.U.T.-III>

(1) Connect M.U.T.-II/III to the diagnosis connector.
(2) Turn the ignition switch to the "ON" position.
(3) Read the MPI system diagnosis code.

Q: Is MPI system diagnosis code P0500 set?

YES :

Refer to GROUP 13A

− Troubleshooting

P.13A-372

.

NO :

Go to Step 3.

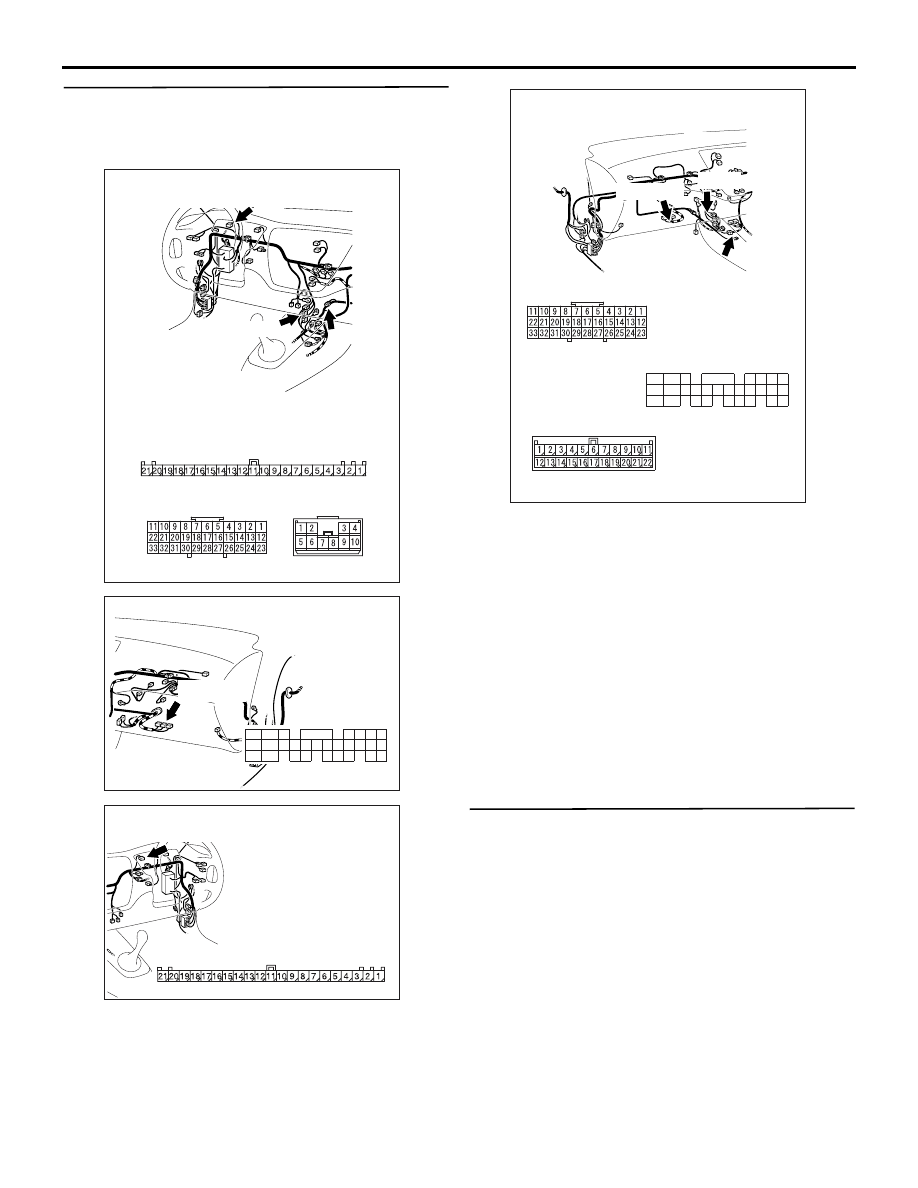

STEP 3. Check combination meter connector
C-01 and engine-ECU connector C-119 for loose,
corroded or damaged terminals, or terminals
pushed back in the connector.

AC310446

Connector: C-01
<L.H. drive vehicles>

Harness side

BF

AC310456

Connector: C-01
<R.H. drive vehicles>

Harness side

AU

AC504357

AC

Connector: C-119 <L.H. drive vehicles>

Harness side

C-119(GR)

56
66

58

59

57

68 67

47 46 45

50

51

545352

55

64

65

6362

44

48

49

6160

42

43

41

JAE

AC504359

AC

Connector: C-119 <R.H. drive vehicles>

Harness side

C-119(GR)

56
66

58

59

57

68 67

47 46 45

50

51

545352

55

64

65

6362

44

48

49

6160

42

43

41

JAE

Q: Are combination meter connector C-01 and

engine-ECU connector C-119 in good condition?
YES :

Go to Step 4.

NO :

Repair or replace the damage
component(s). The speedometer should
work normally.

COMBINATION METER ASSEMBLY

CHASSIS ELECTRICAL

54A-40

STEP 4. Check the wiring harness between
combination meter connector C-01 (terminal 11)
and engine-ECU connector C-119 (terminal 45).
NOTE:

AC310447

Connectors: C-01, C-105, C-123
<L.H. drive vehicles>

C-105

C-01

AV

C-123(GR)

C-01

C-123

C-105

Harness side

AC504357

AC

Connector: C-119 <L.H. drive vehicles>

Harness side

C-119(GR)

56
66

58

59

57

68 67

47 46 45

50

51

545352

55

64

65

6362

44

48

49

6160

42

43

41

JAE

AC310456

Connector: C-01
<R.H. drive vehicles>

Harness side

AU

AC504366

Connectors: C-105, C-119, C-122
<R.H. drive vehicles>

C-105

AB

C-119

C-122

Harness side

C-119(GR)

C-122(L)

C-105

Harness side

56
66

58

59

57

68 67

47 46 45

50

51

545352

55

64

65

6362

44

48

49

6160

42

43

41

JAE

Also check joint connector C-105 and intermediate
connector C-123 <LH drive vehicles> or C-122 <RH
drive vehicles> for loose, corroded, or damaged ter-
minals, or terminals pushed back in the connector. If
joint connector C-105 or intermediate connector
C-123 <LH drive vehicles> or C-122 <RH drive vehi-
cles> are damaged, repair or replace the connector.

Q:  Are the wiring harness between combination

meter connector C-01 (terminal 11) and
engine-ECU connector C-119 (terminal 45) in good
condition?
YES :

Go to Step 5.

NO :

Repair the wiring harness. The
speedometer should work normally.

STEP 5. Replace the combination meter and
check operation.

Q: Does the tachometer operate?

YES :

There is no action to be taken.

NO :

Repair the engine-ECU. The tachometer
should work normally.
