SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-87

COMMENTS ON TROUBLE SYMPTOM

If the front passenger's or rear power window does
not work by means of the respective power window
sub switch, the power window sub switch or the
power window regulator motor may be defective.

FUSIBLE
LINK

5

POWER
WINDOW
RELAY

ETACS-ECU

POWER
WINDOW
SUB SWITCH
(REAR: LH)

POWER
WINDOW
MOTOR
(REAR: LH)

POWER
WINDOW
SUB SWITCH
(REAR: RH)

POWER
WINDOW
MOTOR
(REAR: RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue     W : White     Y : Yellow     SB : Sky blue
BR : Brown     O : Orange     GR : Gray     R : Red     P : Pink     V : Violet

CPU

CPU

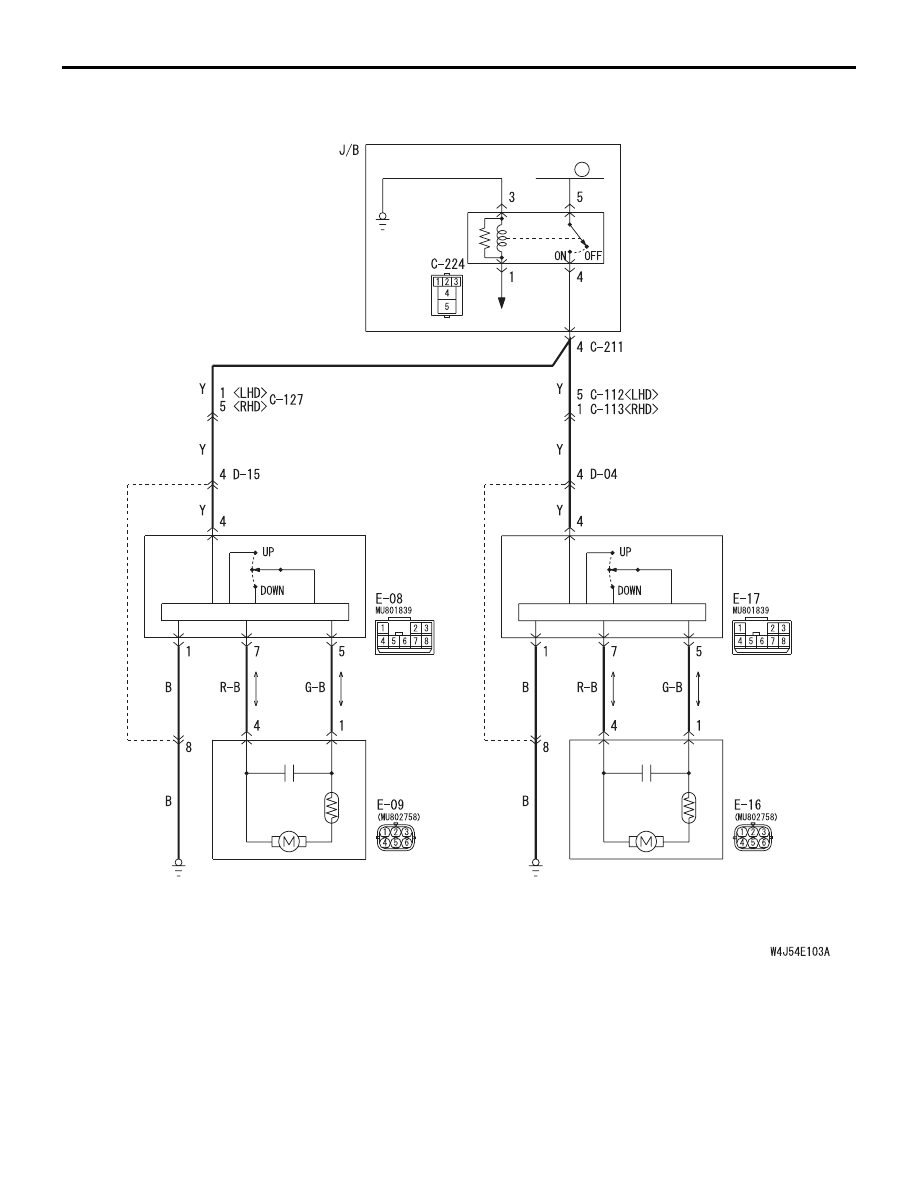

Power Window (rear) Circuit

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-88

POSSIBLE CAUSES

• Malfunction of the front power window sub

switch, rear power window sub switch (RH) or
rear power window sub switch (LH)

• Malfunction of the front power window regulator

motor (RH) <LH drive vehicles>, front power win-
dow regulator motor (LH) <RH drive vehicles>,
rear power window regulator motor (RH) or rear
power window regulator motor (LH)

• Damaged harness wires and connectors

DIAGNOSIS PROCEDURE

Step 1. Check the power window main switch.
Check that the power window lock switch is turned
off.

Q: Is the check result normal?

YES :

Go to Step 2.

NO :

Turn off the power window lock switch.

Step 2. Determine a trouble spot.

Q: Which power window does not work?

Front passenger's door <LH drive vehicles> :

Go

to Step 3.

Front passenger's door <RH drive vehicles> :

Go

to Step 12.

Rear right door :

Go to Step 21.

Rear left door :

Go to Step 30.

Step 3. Connector check: E-14 front power
window sub switch connector

Q: Is the check result normal?

YES :

Go to Step 4.

NO :

Repair the connector.

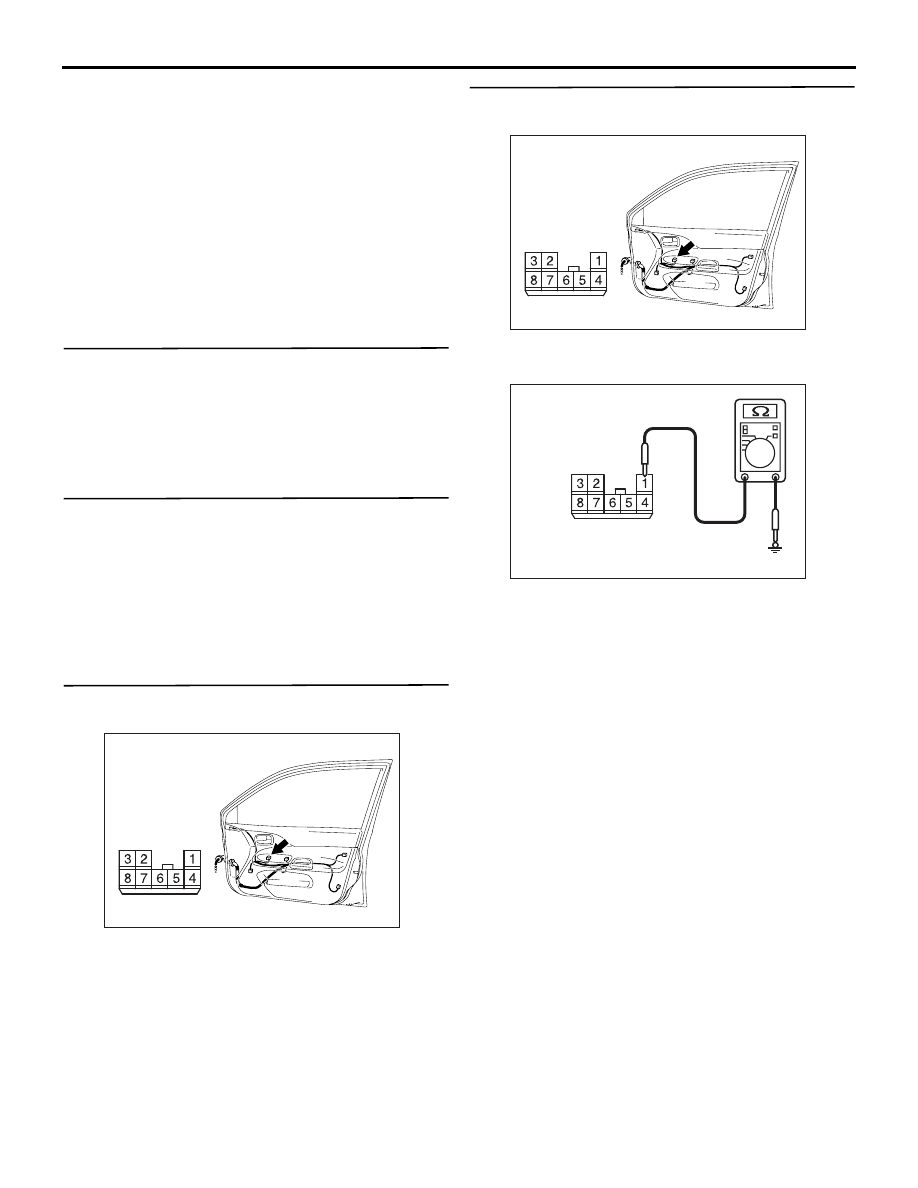

Step 4. Resistance measurement at E-14 front
power window sub switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Resistance between E-14 front power window

sub switch connector terminal No.1 and body
earth

OK: 2

Ω or less

Q: Is the check result normal?

YES :

Go to Step 6.

NO :

Go to Step 5.

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC303981

Connector E-14
(Harness side)

AC

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-89

Step 5. Check the wiring harness from E-14 front
power window sub switch connector terminal
No.1 to body earth.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connector C-110, and repair if necessary.

• Check the earth wires for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

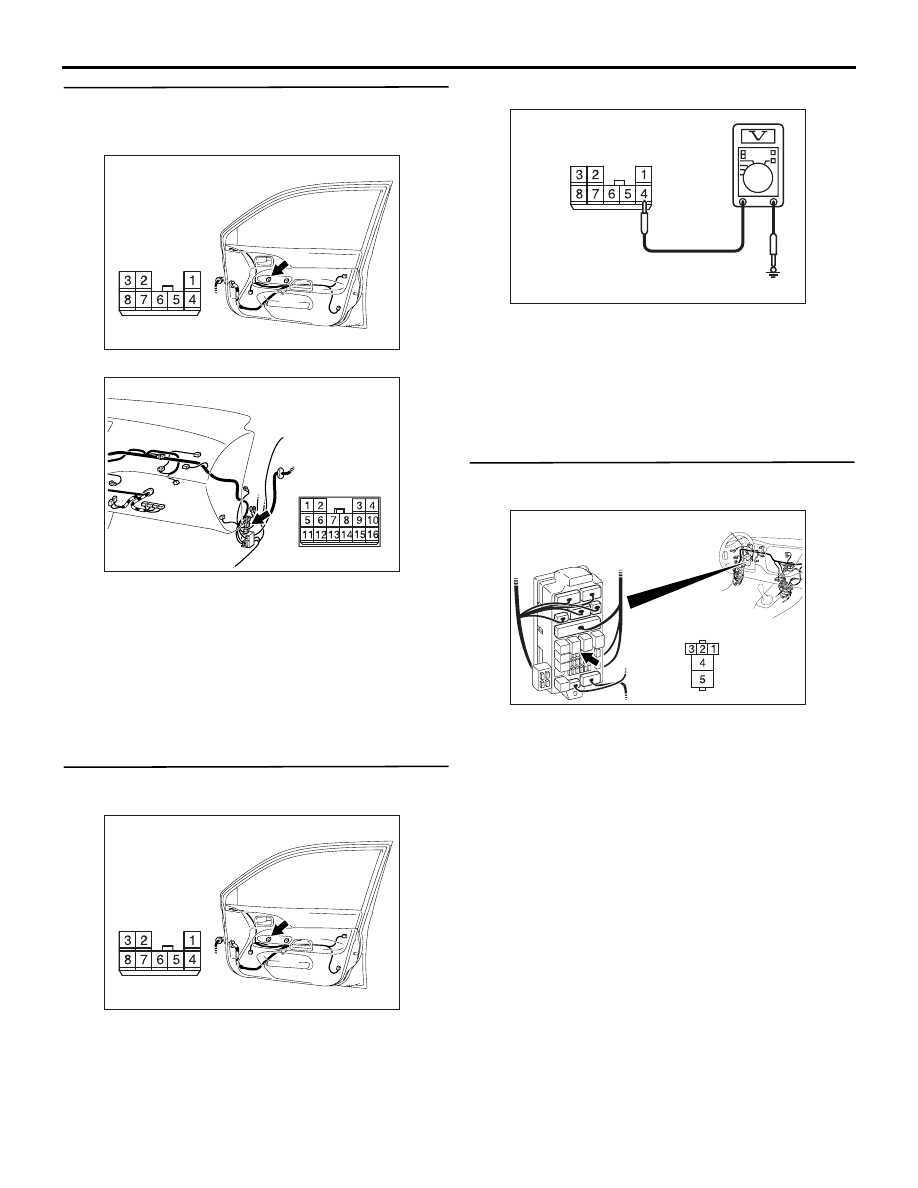

Step 6. Voltage measurement at E-14 front power
window sub switch connector

(1) Disconnect the connector, and measure at the

wiring harness side.

(2) Turn the ignition switch to the ON position.

(3) Voltage between E-14 front power window sub

switch connector terminal No.4 and body earth

OK: System voltage

Q: Is the check result normal?

YES :

Go to Step 9.

NO :

Go to Step 7.

Step 7. Connector check: C-224 power window
relay connector

Q: Is the check result normal?

YES :

Go to Step 8.

NO :

Repair the connector.

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310452

Connector: C-110 <LHD>

AC

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC303982

Connector E-14
(Harness side)

AC

AC310448

AI

Connector: C-224 <LHD>

Junction block (front view)

Junction block side

SYMPTOM PROCEDURES

SMART WIRING SYSTEM (SWS) NOT USING SWS MONITOR

54B-90

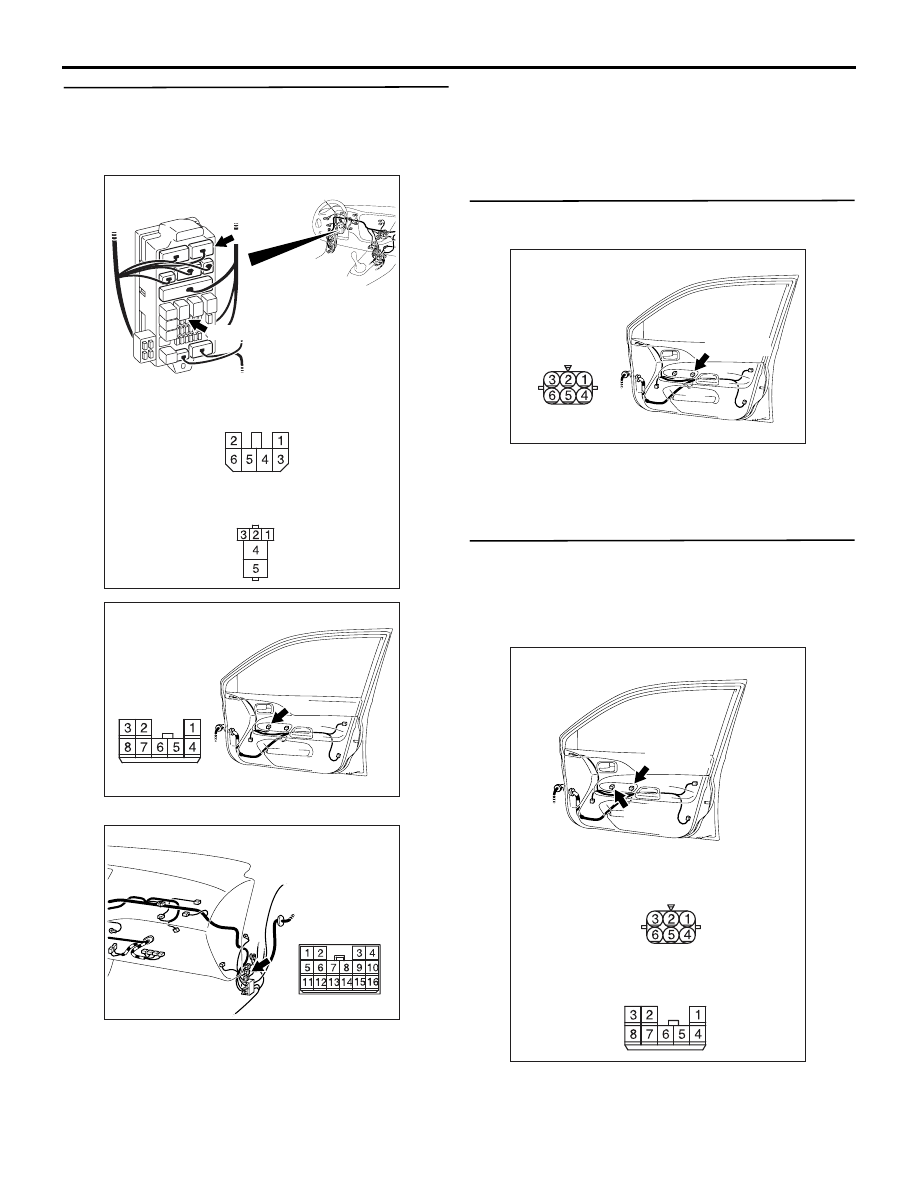

Step 8. Check the wiring harness from E-14 front
power window sub switch connector terminal
No.4 to C-224 power window relay connector
terminal No.4.

NOTE:

Prior to the wiring harness inspection, check interme-
diate connectors C-110 and junction block connector
C-211, and repair if necessary.

• Check the power supply line for open circuit.

Q: Is the check result normal?

YES :

The trouble can be an intermittent

malfunction (Refer to GROUP 00, How to
Cope with Intermittent Malfunction

P.00-5

).

NO :

Repair the wiring harness.

Step 9. Connector check: E-11 front power
window regulator motor (RH) connector

Q: Is the check result normal?

YES :

Go to Step 10.

NO :

Repair the connector.

Step 10. Check the wiring harness from E-11
front power window regulator motor (RH)
connector terminal Nos.1 and 4 to E-14 front
power window sub switch connector terminal
Nos.5 and 7.

• Check the input and output lines for open or short

circuit.

AC310449

AD

Connectors: C-211, C-224 <LHD>

Junction block (front view)

Junction block side

C-211

C-224

C-224

Harness side

C-211

AC310488

Connector: E-14 <LHD>

Harness side

AD

Front door (RH)

AC310452

Connector: C-110 <LHD>

AC

AC310488

Connector: E-11 <LHD>

Harness side

E-11 (GR)

AE

Front door (RH)

AC310489

Connectors: E-11, E-14 <LHD>

E-14

E-11

Harness side

Harness side

E-14

E-11 (GR)

AB

Front door (RH)
