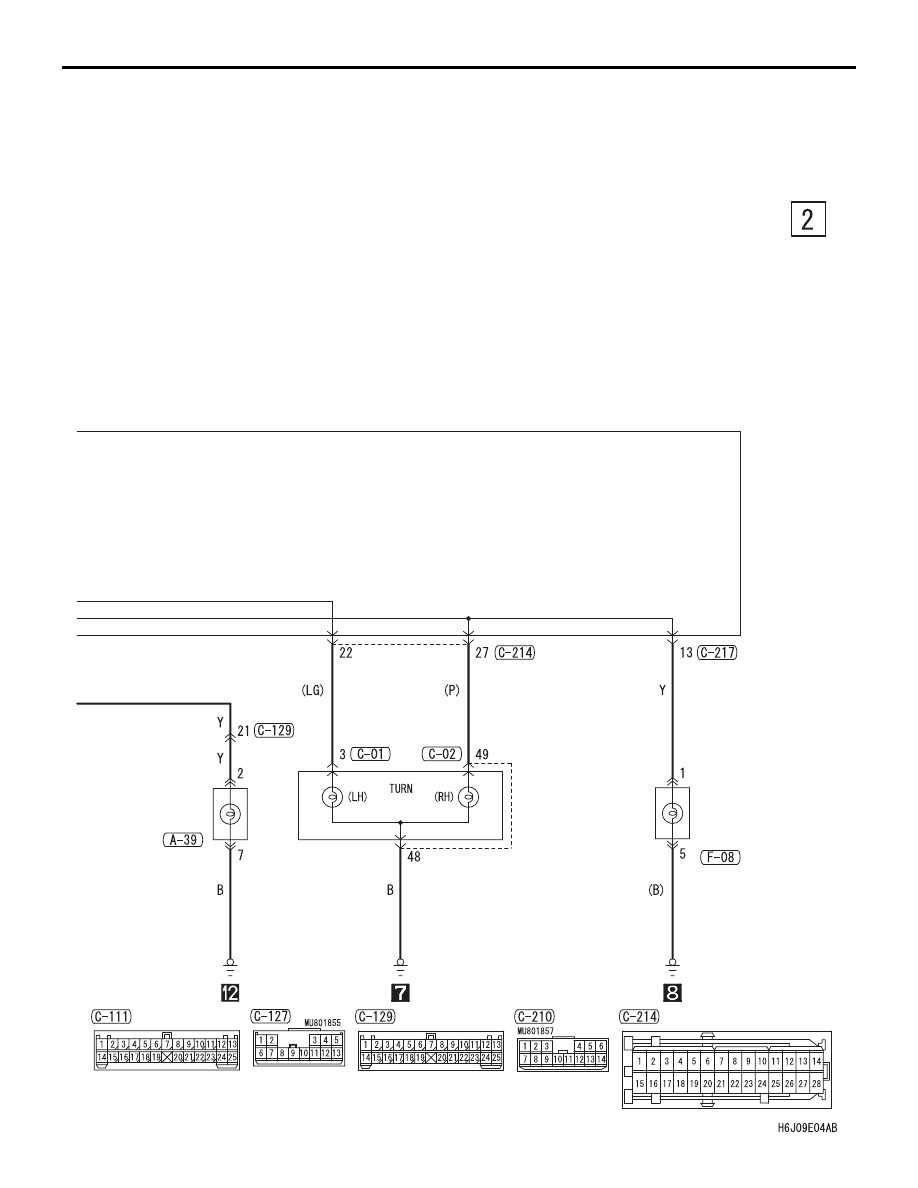

TURN-SIGNAL LAMP AND HAZARD WARNING LAMP

CIRCUIT DIAGRAMS

90-103

HEADLAMP
ASSEMBLY
(TURN : RH)

REAR
COMBINATION
LAMP
(TURN : RH)

COMBINATION
METER

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple

TURN-SIGNAL LAMP AND HAZARD WARNING LAMP

CIRCUIT DIAGRAMS

90-104

TURN-SIGNAL LAMP AND HAZARD WARNING LAMP <RH drive vehicles> (CONTINUED)

BATTERY

RELAY
BOX

RELAY
BOX

FRONT-
ECU

TAIL LAMP
RELAY

POWER

SOURCE

HAZARD
WARNING
SWITCH

IGNITION
SWITCH (IG2)

FRONT SIDE

TAIL LAMP, POSITION
LAMP, LICENCE
PLATE LAMP AND
LIGHTING MONITOR
BUZZER

·AUTOMATIC AIR
 CONDITIONER
·COOLING
 SYSTEM

·METER AND
 GAUGE
·TAIL LAMP,
 POSITION LAMP,
 LICENCE PLATE
 LAMP AND
 LIGHTING MONITOR
 BUZZER

·AUTOMATIC AIR
 CONDITIONER

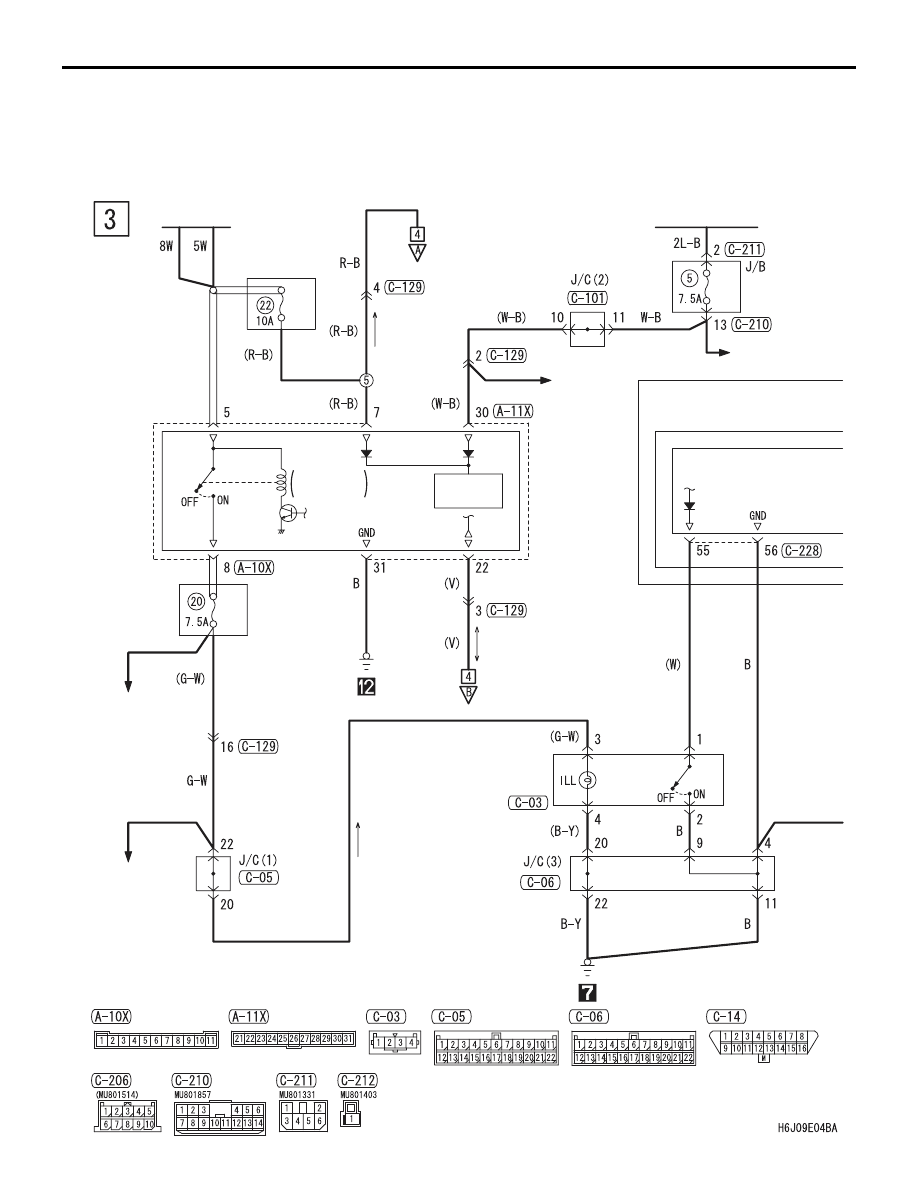

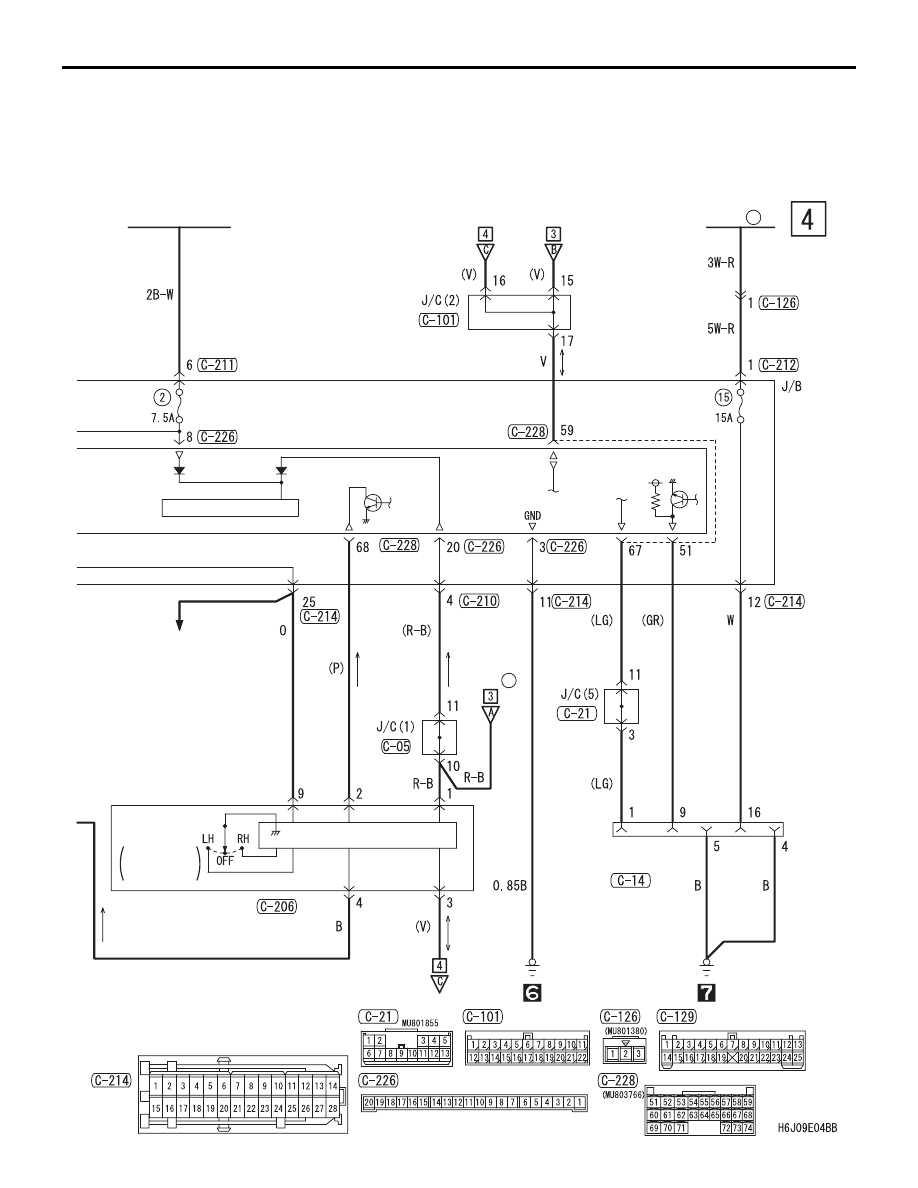

TURN-SIGNAL LAMP AND HAZARD WARNING LAMP

CIRCUIT DIAGRAMS

90-105

TURN-SIGNAL
LAMP
SWITCH

COLUMN SWITCH

IGNITION
SWITCH (IG1)

COLUMN
SWITCH

FRONT-
ECU

FUSIBLE
LINK

1

POWER SOURCE

ETACS-ECU

COLUMN-ECU

DIAGNOSIS
CONNECTOR

RELAY
BOX
(FUSE     )

22

J/B SIDE

·ACD AND AYC
·ANTI-SKID
 BRAKING
 SYSTEM (ABS)
·BRAKE WARNING
 LAMP, OIL
 PRESSURE
 WARNING LAMP
 AND FUEL
 WARNING LAMP
·CHARGING
 SYSTEM

·ENGINE CONTROL
 SYSTEM
·ENGINE OIL
 LEVEL WARNING
 LAMP
·METER AND
 GAUGE
·SUPPLEMENTAL
 RESTRAINT
 SYSTEM (SRS)
·WINDSHIELD
 WIPER AND
 WASHER

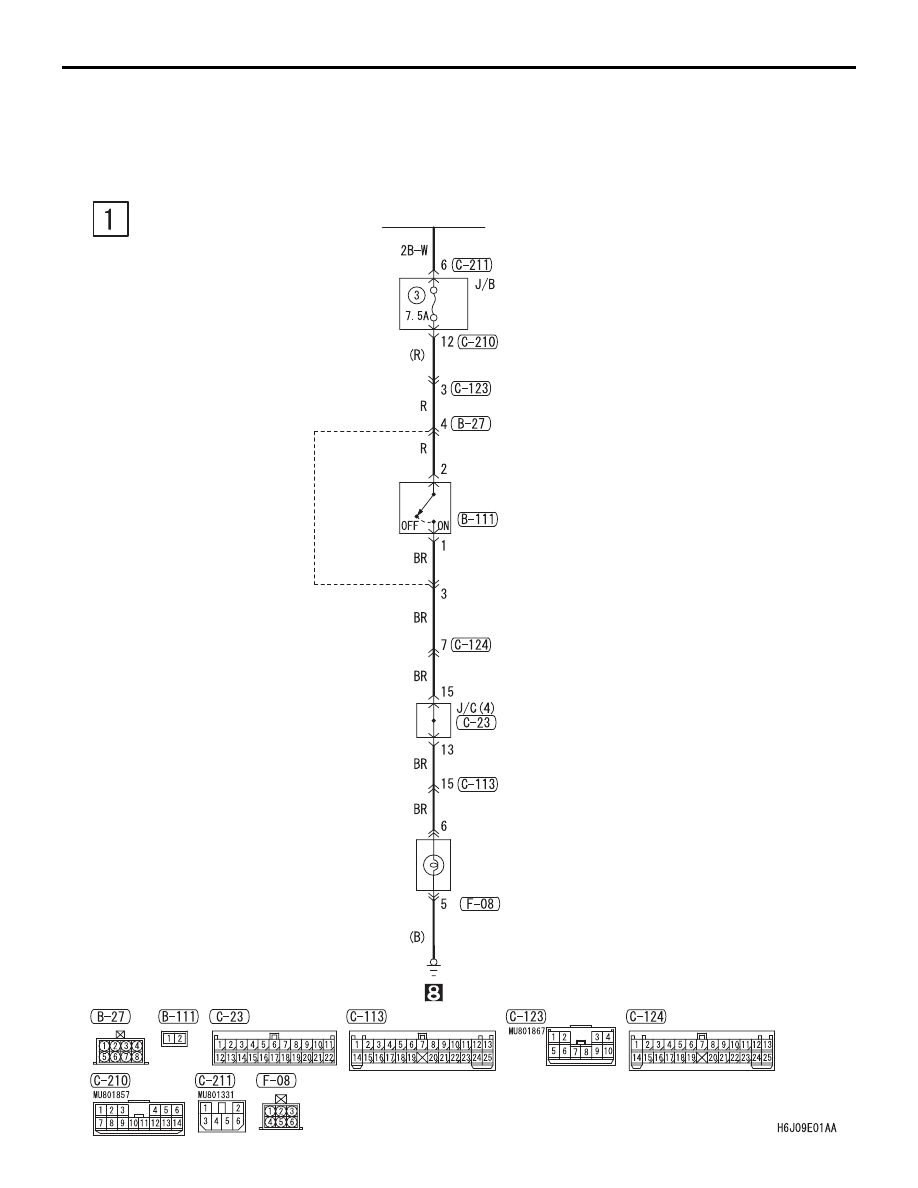

BACK-UP LAMP

CIRCUIT DIAGRAMS

90-106

BACK-UP LAMP

BACK-UP LAMP <LH drive vehicles>

M1901011700120

IGNITION
SWITCH (IG1)

BACK-UP
LAMP SWITCH

REAR
COMBINATION
LAMP
(BACK : RH)

Wire colour code
B : Black     LG : Light green     G : Green     L : Blue    W : White
Y : Yellow     SB : Sky blue     BR : Brown    O : Orange
GR : Grey     R : Red     P : Pink     V : Violet    PU : Purple
