REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-23

REA R  SEAT ASSEM B LY

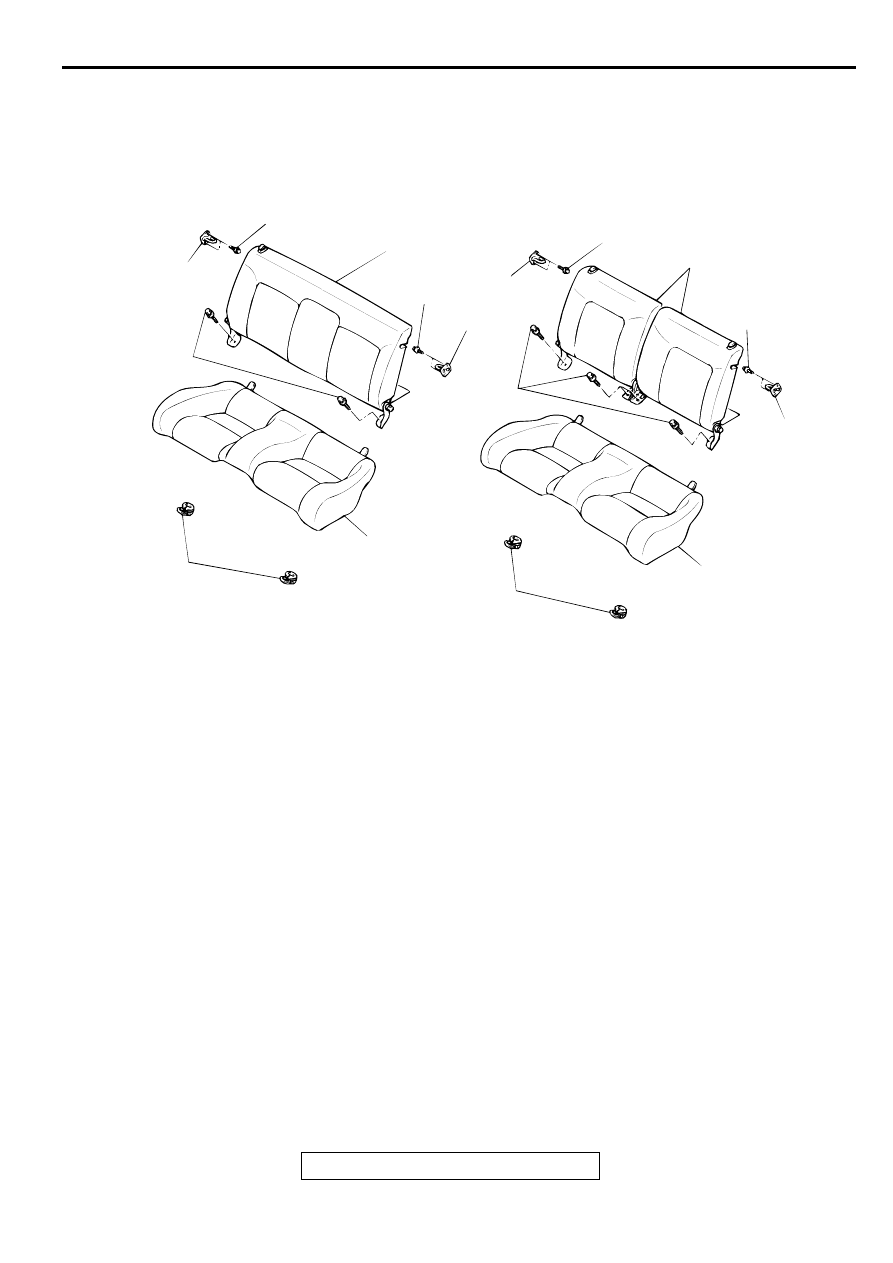

REMOVAL AND INSTALLATION

M1522001800060

<ECLIPSE>

AC003040AB

1

1

2

2

3

3

4

4

4

4

21 ± 4 N·m
16 ± 4 ft-lb

21 ± 4 N·m
16 ± 4 ft-lb

4.9 ± 1.0 N·m
43 ± 9 in-lb

4.9 ± 1.0 N·m
43 ± 9 in-lb

4.9 ± 1.0 N·m
43 ± 9 in-lb

4.9 ± 1.0 N·m
43 ± 9 in-lb

<BENCH SEAT>

<SPLIT SEAT>

REMOVAL STEPS

<<A>>

1. REAR SEAT CUSHION
2. REAR SEAT STOPPER
3. REAR SEATBACK

STRIKER REMOVAL STEPS

•

QUARTER TRIM, LOWER (REFER
TO

P.52A-10

.)

4. STRIKER

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-24

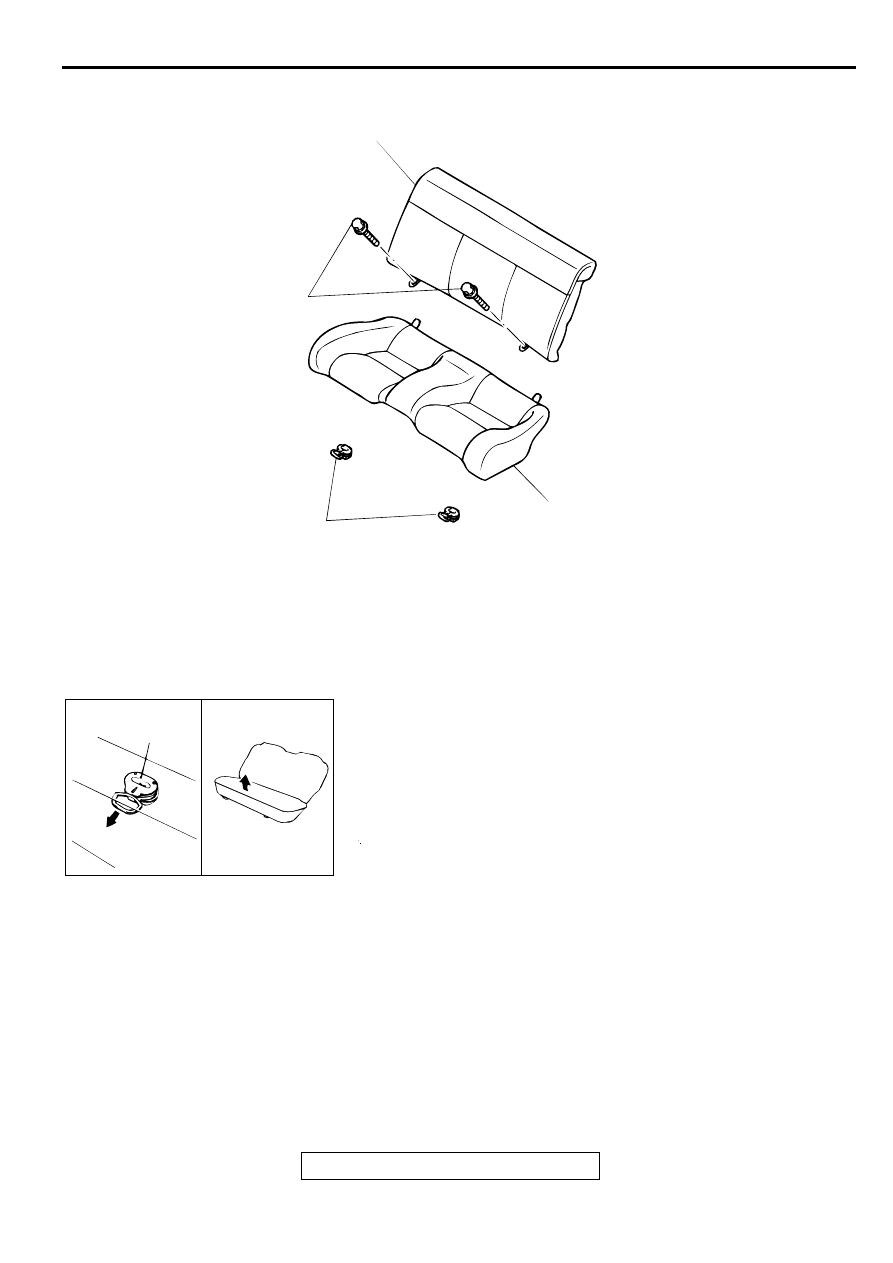

<ECLIPSE SPYDER>

REMOVAL SERVICE POINT

<<A>> REAR SEAT CUSHION REMOVAL
While pulling the rear seat stopper pulled, lift up the seat
cushion to remove it.

AC003050

1

2

3

21 ± 4 N·m
16 ± 4 ft-lb

AB

REMOVAL STEPS

<<A>>

1. REAR SEAT CUSHION

2. REAR SEAT STOPPER

>>A<<

3. REAR SEATBACK

REMOVAL STEPS (Continued)

AC000341AB

REAR SEAT STOPPER

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-25

INSTALLATION SERVICE POINT

>>A<< REAR SEATBACK INSTALLATION
Push the rear seatback in the direction indicated in the
illustration; then securely attach the attachment wire to the
body side hook and install the rear seatback.

AC003051AB

REAR SEATBACK

HOOK

ATTACHMENT WIRE

REAR SEAT ASSEMBLY

TSB Revision

INTERIOR

52A-26

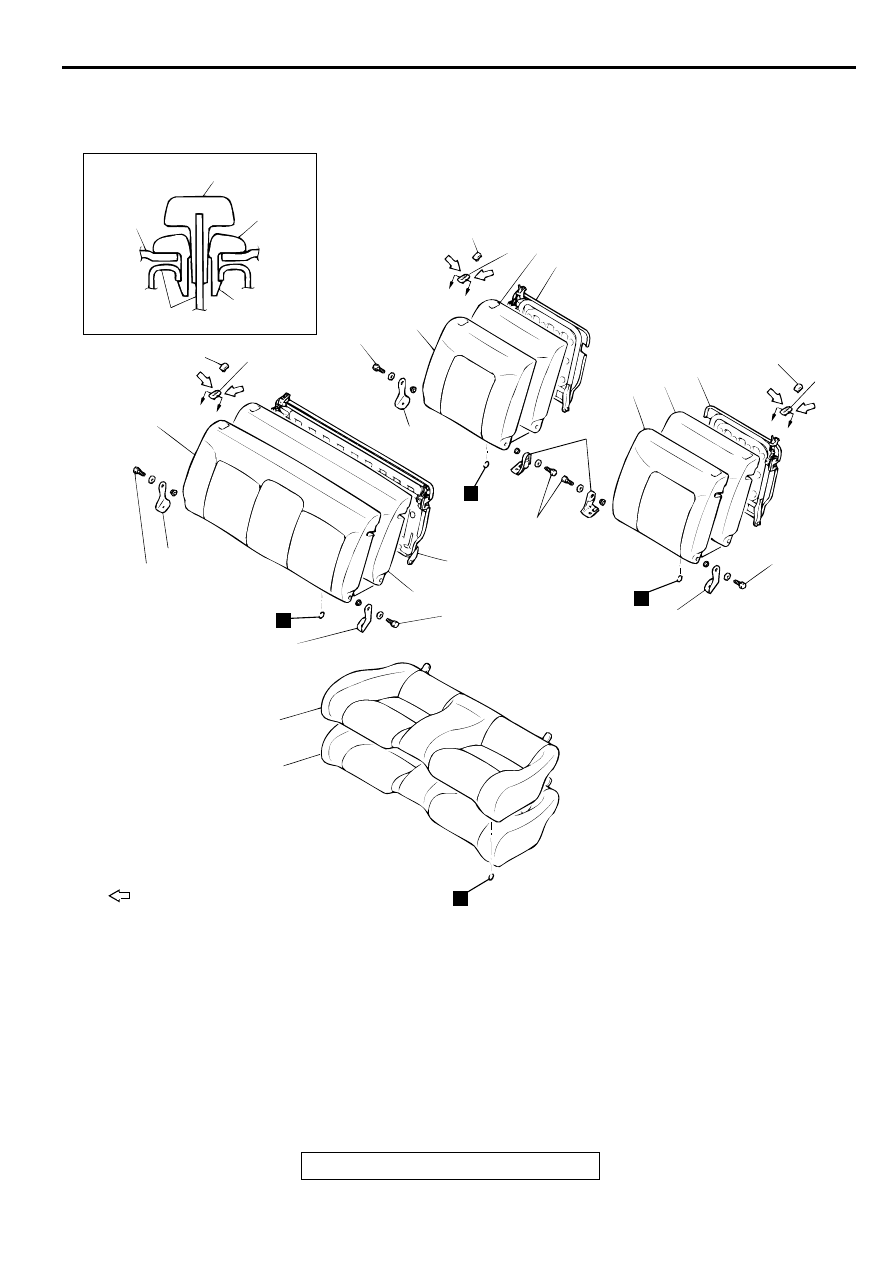

DISASSEMBLY AND ASSEMBLY

M1522002000090

<ECLIPSE>

AC003041AB

1

2

3

4

3

4

5

5

5

6

7

8

6

7

8

N

N

N

5

N

A

A

A

A

A

A

7

8

3

4

6

13 ± 2 N·m
111 ± 22 in-lb

13 ± 2 N·m
111 ± 22 in-lb

5

13 ± 2 N·m
111 ± 22 in-lb

13 ± 2 N·m
111 ± 22 in-lb

13 ± 2 N·m
111 ± 22 in-lb

<BENCH SEAT>

<SPLIT SEAT>

NOTE
      : Claw position

SECTION A – A

REAR
SEATBACK
COVER

KNOB

GARNISH

REAR
SEATBACK
FRAME

CLAW

DISASSEMBLY STEPS

1. REAR SEAT CUSHION COVER
2. REAR SEAT CUSHION PAD
3. KNOB
4. GARNISH

5. REAR SEATBACK HINGE
6. REAR SEATBACK COVER
7. REAR SEATBACK PAD
8. REAR SEATBACK FRAME

DISASSEMBLY STEPS (Continued)
