2-34

POWER TRAIN

- Manual Transaxle

TRANSAXLE CONTROL

The shift cable and selector cable are equipped
with bushings on their transaxle ends to absorb
minute vibrations from the engine and transaxle.

N72ZClOAA

Also, the shift cable bracket on the shift lever end

uses rubber to provides elastic support to the shift
lever assembly thus minimizing vibration of the shift
lever.

<Non-turbo>

Vibration-prevention rubber

cable

1

Bushing

Shift

and

selector cable

Cable bracket

Rubber

Shift lever
assembly

Cross section A-A

Vibration-prevention
rubber

Shift lever
bracket

Floor panel

POWER TRAIN   Automatic Transaxle

AUTOMATIC   TRANSAXLE

N72MOOAA

l

The automatic transaxle comes in three models:

 and manufactured by Chrysler

 for



 and

Corporation.

for

l

 and

 are essentially the same

l

 is electronically controlled

as the previous models.

automatic transaxle newly developed for

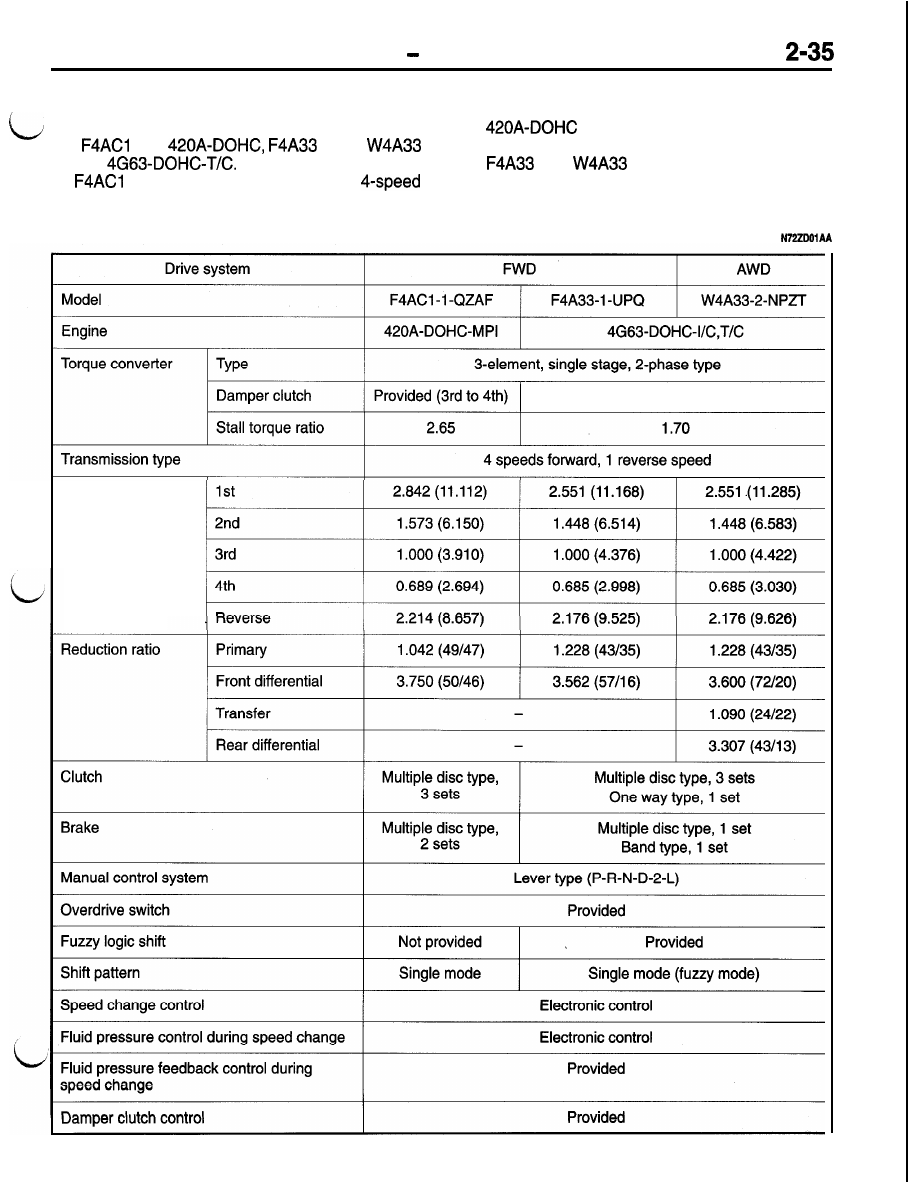

SPECIFICATIONS

Provided (2nd to 4th)

Gear ratio
(Total gear ratio)

POWER TRAIN

 Automatic Transaxle

Drive system

Self-diagnosis function

Fail-safe function

Data list function

Actuator forced drive function

ATF capacity

Speedometer gear ratio

FWD

AWD

Provided

Provided

Provided

Provided

8.6 (9.1)

6.7 (7.1)

POWER TRAIN   Automatic Transaxle

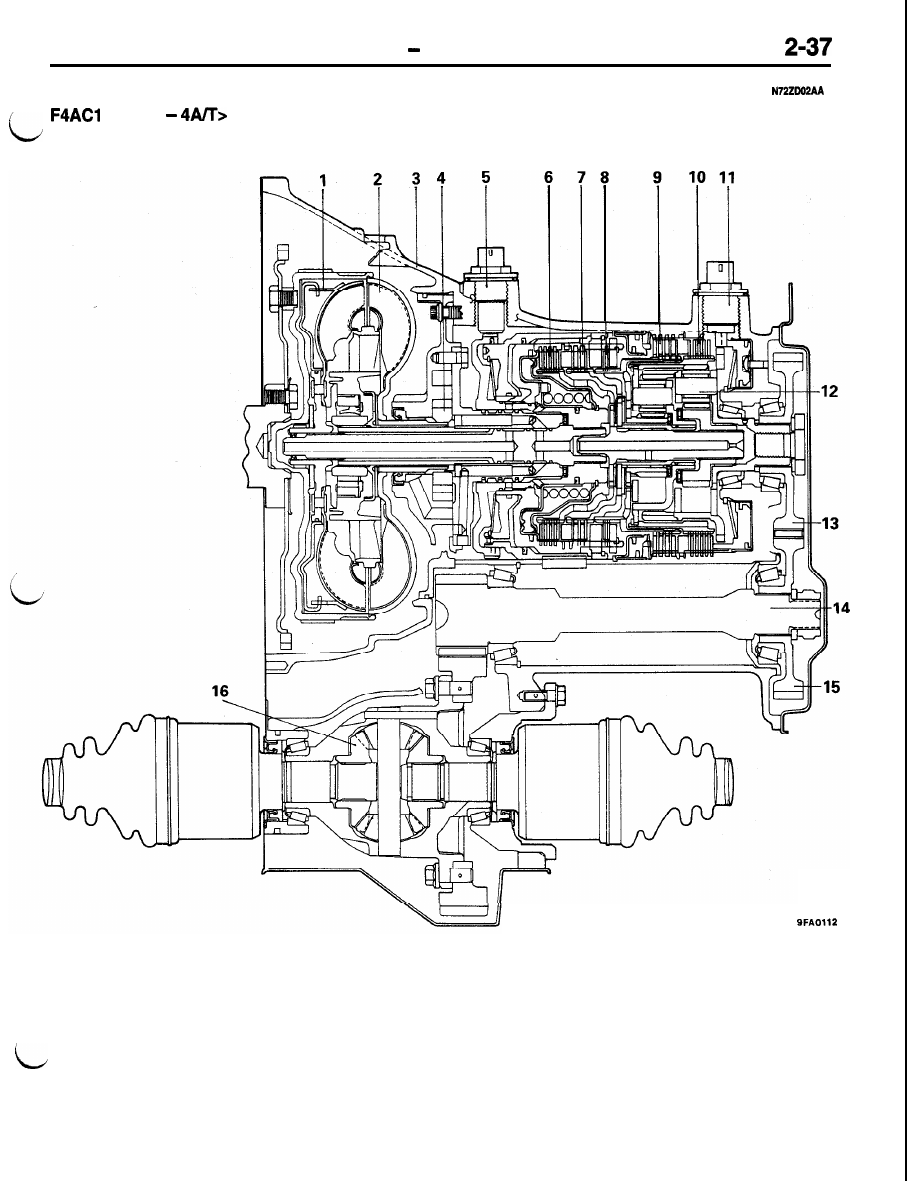

SECTIONAL VIEW

 <FWD

1. Damper clutch

2. Torque converter
3. Case
4. Oil pump
5. Input speed sensor
6. Underdrive clutch
7. Overdrive clutch

8. Reverse clutch
9. 2-4 clutch

10. Low/Reverse clutch

11. Output speed sensor

12. Planetary gear set
13. Output shaft gear
14. Transfer shaft
15. Transfer shaft gear
16. Defferential

17. Input shaft
