Mitsubishi 380. Manual - part 597





MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-480

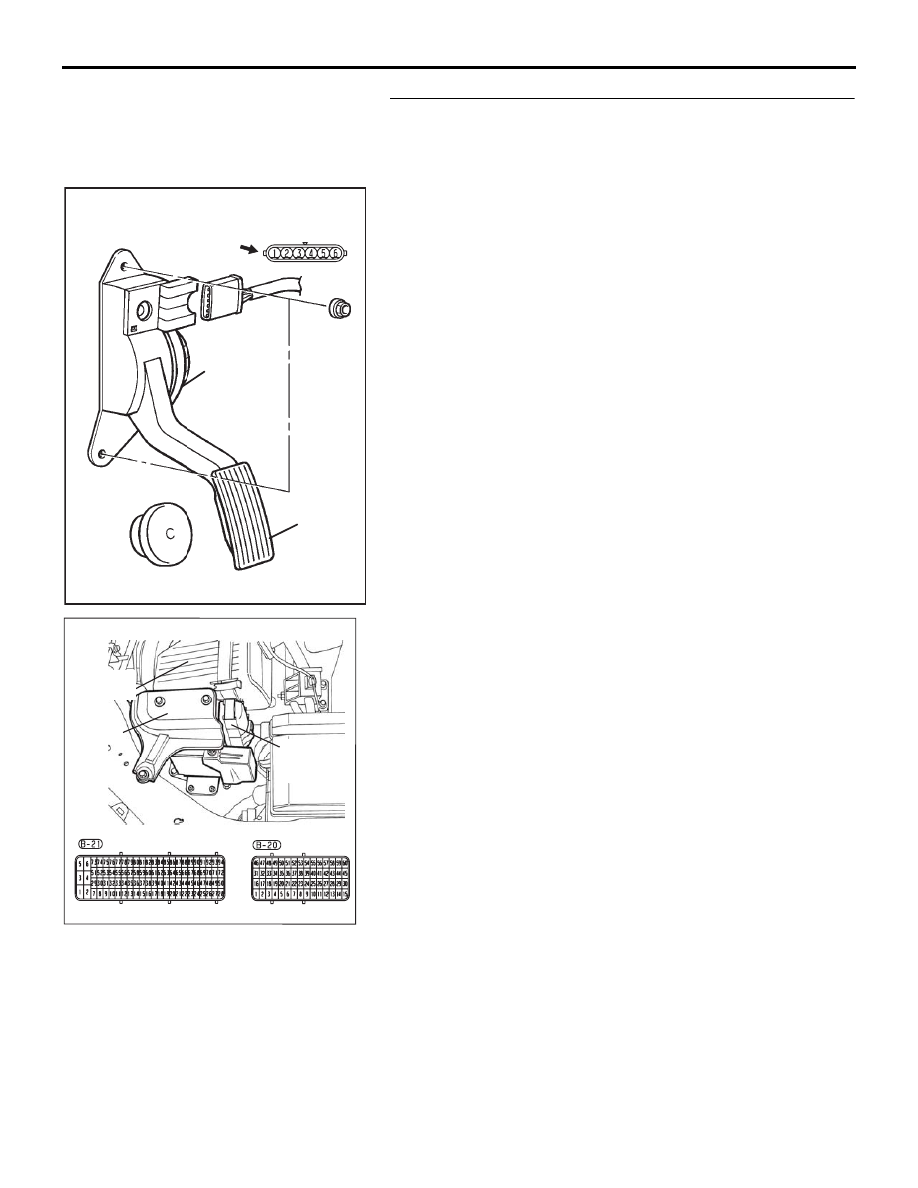

STEP 5. Check for open circuit and short circuit to ground
between accelerator pedal position sensor connector C-24
(terminal No. 5) and ENGINE-ECU connector B-21 (terminal
No. 75).
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 10.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-481

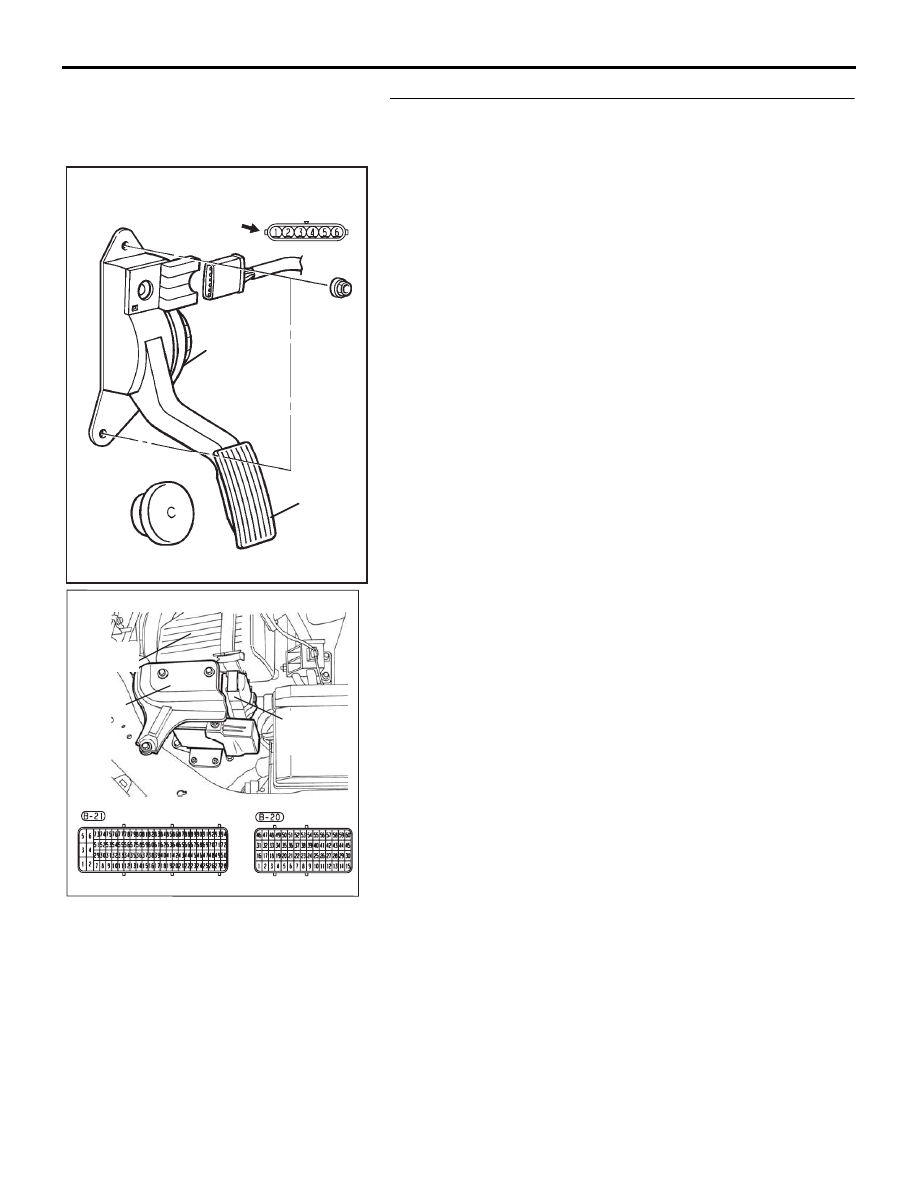

STEP 6. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 5) and
ENGINE-ECU connector B-21 (terminal No. 75).
Q: Is the harness wire in good condition?

YES : Go to Step 7.
NO :  Repair it. Then go to Step 10.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-482

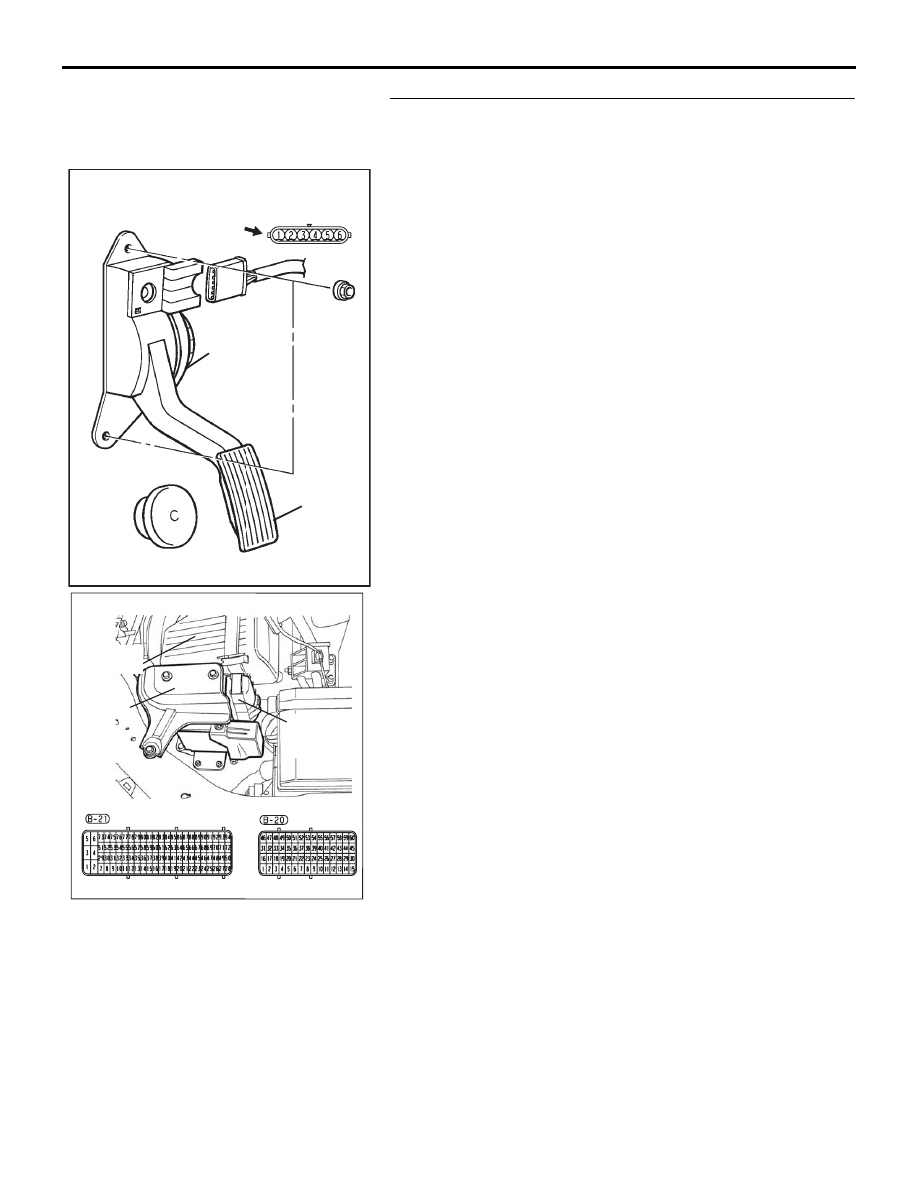

STEP 7. Check for open circuit and short circuit to ground
between accelerator pedal position sensor connector C-24
(terminal No. 3) and ENGINE-ECU connector B-21 (terminal
No. 59).
Q: Is the harness wire in good condition?

YES : Go to Step 8.
NO :  Repair or replace it. Then go to Step 10.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-483

STEP 8. Check for harness damage between accelerator
pedal position sensor connector C-24 (terminal No. 3) and
ENGINE-ECU connector B-21 (terminal No. 59).
Q: Is the harness wire in good condition?

YES : Go to Step 9.
NO :  Repairor replace it. Then go to Step 10.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
