MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-472

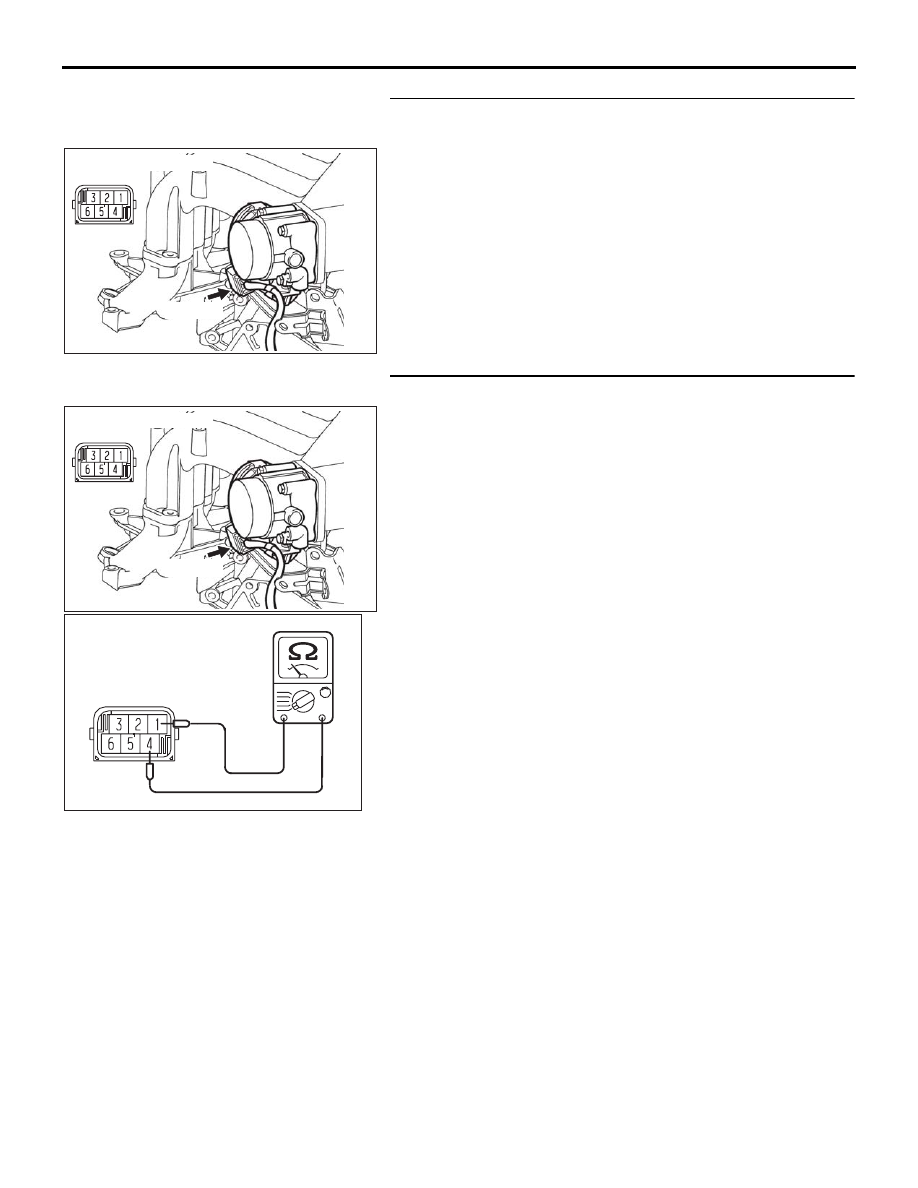

STEP 1. Check harness connector B-06 at throttle actuator
control motor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 2.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 7.

STEP 2. Check the throttle actuator control motor.
(1) Disconnect the connector B-06.

(2) Measure the resistance between throttle actuator control

motor side connector terminal No. 1 and No. 4.

Standard value: 1.5

± 0.3 ohms [at 20°C (68°F)]

Q: Is the measured resistance between standard value?

YES : Go to Step 3.
NO :  Replace the throttle body assembly. Then go to Step

7.

03DB180A

CONNECTOR: B-06

B-06 (B)

03DB180A

CONNECTOR: B-06

B-06 (B)

03DB181A

THROTTLE ACTUATOR

CONTROL MOTOR

CONNECTOR

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-473

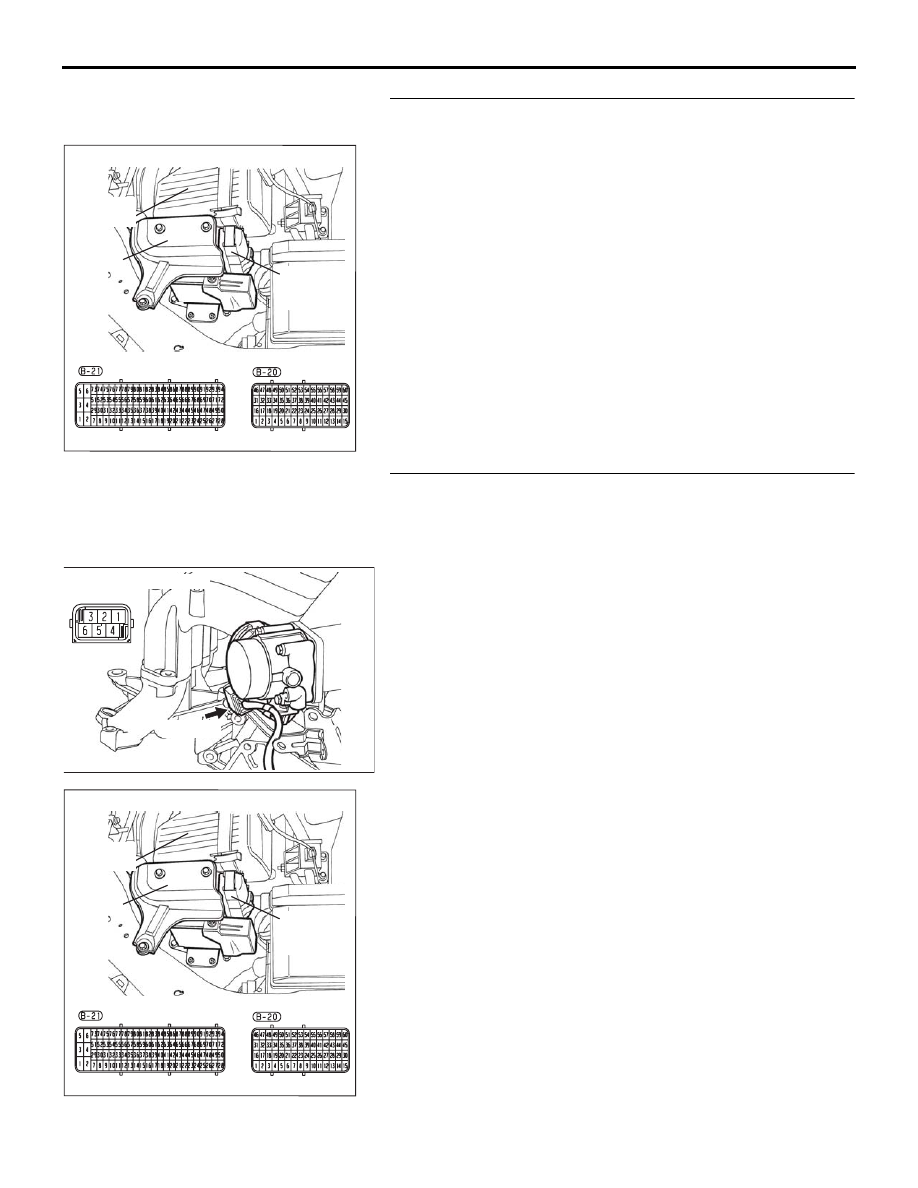

STEP 3. Check harness connector B-20 at ENGINE-ECU for
damage
Q: Is the harness connector in good condition?

YES : Go to Step 4.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 7.

STEP 4. Check for short circuit to ground and harness
damage between throttle actuator control motor connector
B-06 (terminal No. 4) and ENGINE-ECU connector B-20
(terminal No. 50).
Q: Is the harness wire in good condition?

YES : Go to Step 5.
NO :  Repair it. Then go to Step 7.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

03DB180A

CONNECTOR: B-06

B-06 (B)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-474

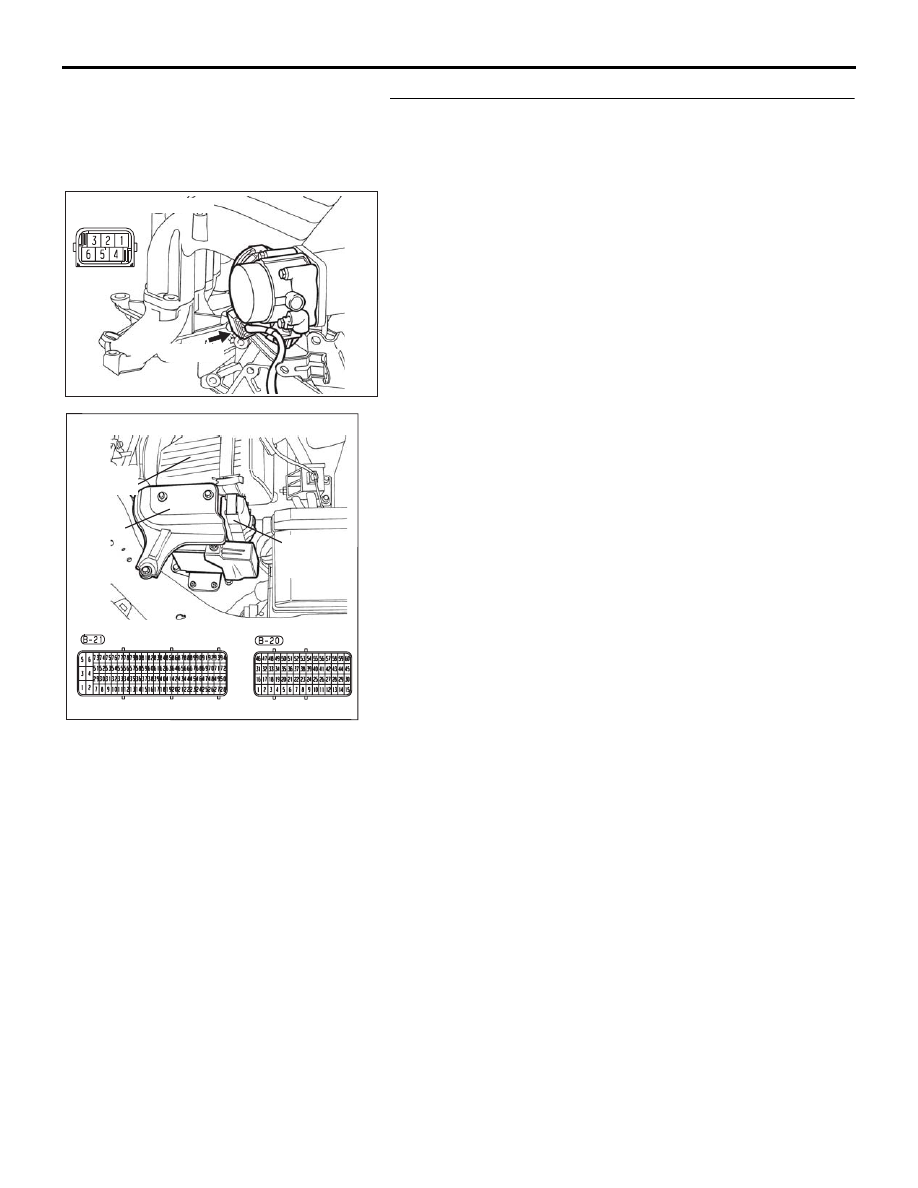

STEP 5. Check for short circuit to ground and harness
damage between throttle actuator control motor connector
B-06 (terminal No. 1) and ENGINE-ECU connector B-20
(terminal No. 49).
Q: Is the harness wire in good condition?

YES : Go to Step 6.
NO :  Repair it. Then go to Step 7.

03DB180A

CONNECTOR: B-06

B-06 (B)

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-475

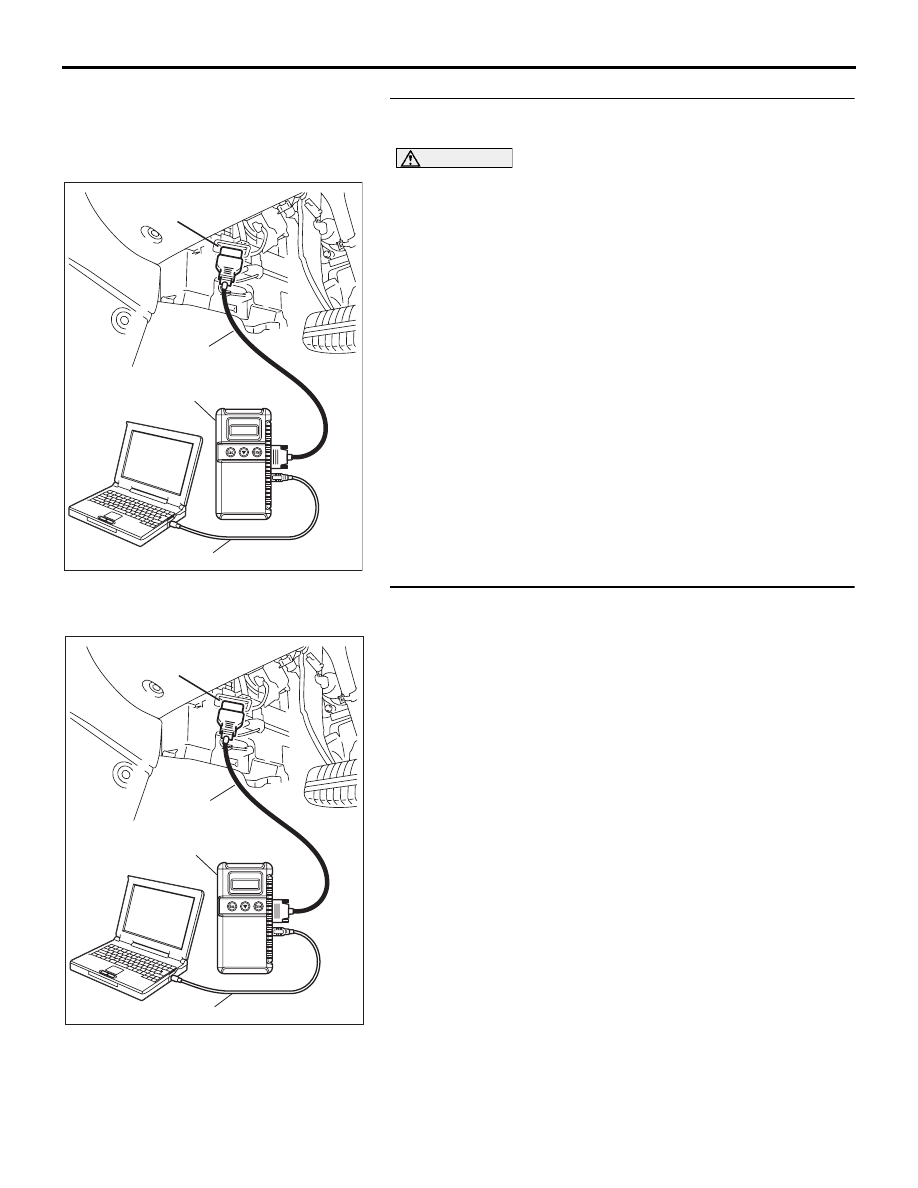

STEP 6. Using diagnostic tool , read the diagnostic trouble
code (DTC).

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is DTC P2103 set?

YES : Replace the ENGINE-ECU. Then go to Step 7.
NO :  It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

STEP 7. Using diagnostic tool , read the diagnostic trouble
code (DTC).
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) After the DTC has been deleted, read the DTC again.
(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is DTC P2103 set?

YES : Retry the troubleshooting.
NO :  The inspection is complete.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827
