DTC P2122: Accelerator Pedal Position Sensor (main) Circuit Low Input.

.

CIRCUIT OPERATION

• A 5-volt power supply is applied on the accelera-

tor pedal position sensor (main) power terminal
(terminal No.5) from the ENGINE-ECU (terminal
No. 75).
The ground terminal (terminal No. 4) is grounded
with ENGINE-ECU (terminal No. 13).

.

TECHNICAL DESCRIPTION

• The accelerator pedal position sensor (main) out-

puts voltage which corresponds to the accelera-
tor pedal depression.

• The ENGINE-ECU checks whether the voltage is

within a specified range.

.

DTC SET CONDITIONS

Check Conditions

• Ignition switch is "ON" position.

• Battery voltage is above 6.5 volt.

Judgement Criteria

• Accelerator pedal position sensor (main) output

voltage is below 0.859 volt for 0.2 second.

• MIL activated immediately.

• Engine speed limited to 1200rpm and power

restricted.

.

EOBD DRIVE CYCLE PATTERN

None.

.

TROUBLESHOOTING HINTS (The most
likely causes for this code to be set are:)

• Accelerator pedal position sensor failed.

• Open or shorted accelerator pedal position sen-

sor (main) circuit, harness damage or connector
damage.

• Refer to component locations GROUP-

70

• Refer to configuration diagrams GROUP-

80

• Refer to circuit diagrams GROUP-

90

DIAGNOSIS

Required Special Tools:

• : Diagnostic tool (MUT-III Sub Assembly)

• MB991824: V.C.I.

• MB991827: USB Cable

• MB991910: Main Harness A

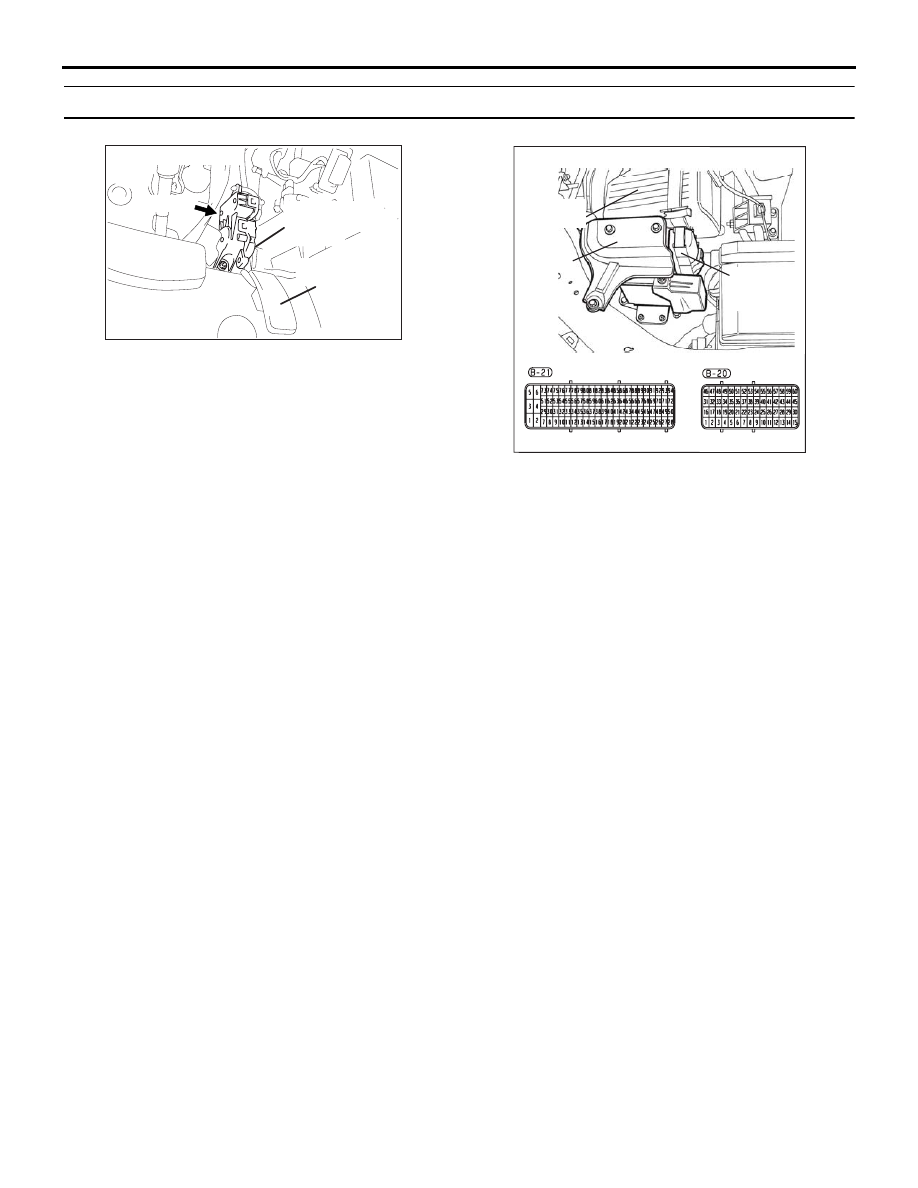

AK303201

ACCELERATOR

PERAL

AB

CONNECTOR: C-24

C-24 (B)

ACCELERATOR

PEDAL POSITION

SENSOR

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-477

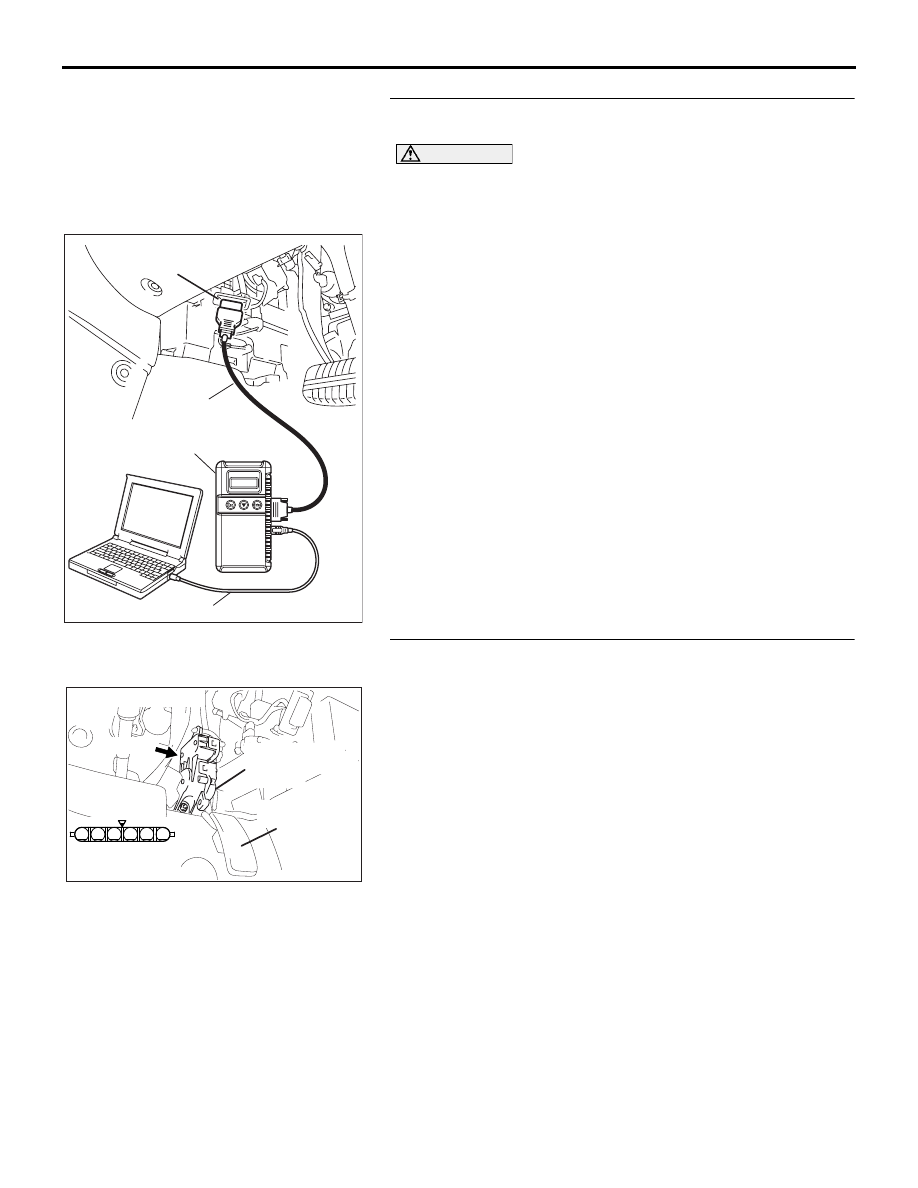

STEP 1. Using diagnostic tool , check data list item 11:
Accelerator Pedal Position Sensor (main).

CAUTION

To prevent damage to diagnostic tool , always turn the
ignition switch to the "LOCK"(OFF) position before con-
necting or disconnecting diagnostic tool .
(1) Connect diagnostic tool to the data link connector.
(2) Turn the ignition switch to the "ON" position.
(3) Set diagnostic tool to the data reading mode for



item 11,

Accelerator Pedal Position Sensor (main).

• Output voltage is between 435 and 1035 mV when foot

is released from accelerator pedal.

• Output voltage is between 4000 - 4824 mV when accel-

erator pedal is fully depressed.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q: Is the sensor operating properly?

YES : It can be assumed that this malfunction is intermittent.

Refer to GROUP 00, How to Use
Troubleshooting/Inspection Service Points

− How to

Cope with Intermittent Malfunctions

P.00-14

.

NO :  Go to Step 2.

STEP 2. Check harness connector C-24 at accelerator
pedal position sensor for damage.
Q: Is the harness connector in good condition?

YES : Go to Step 3.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

00DB076A

MB991910

DATA LINK

CONNECTOR

MB991824

MB991827

AK303202

1

6 5 4 3 2

ACCELERATOR

PERAL

AB

CONNECTOR: C-24

C-24 (B)

ACCELERATOR

PEDAL POSITION

SENSOR

HARNESS

CONNECTOR:

COMPONENT SIDE

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-478

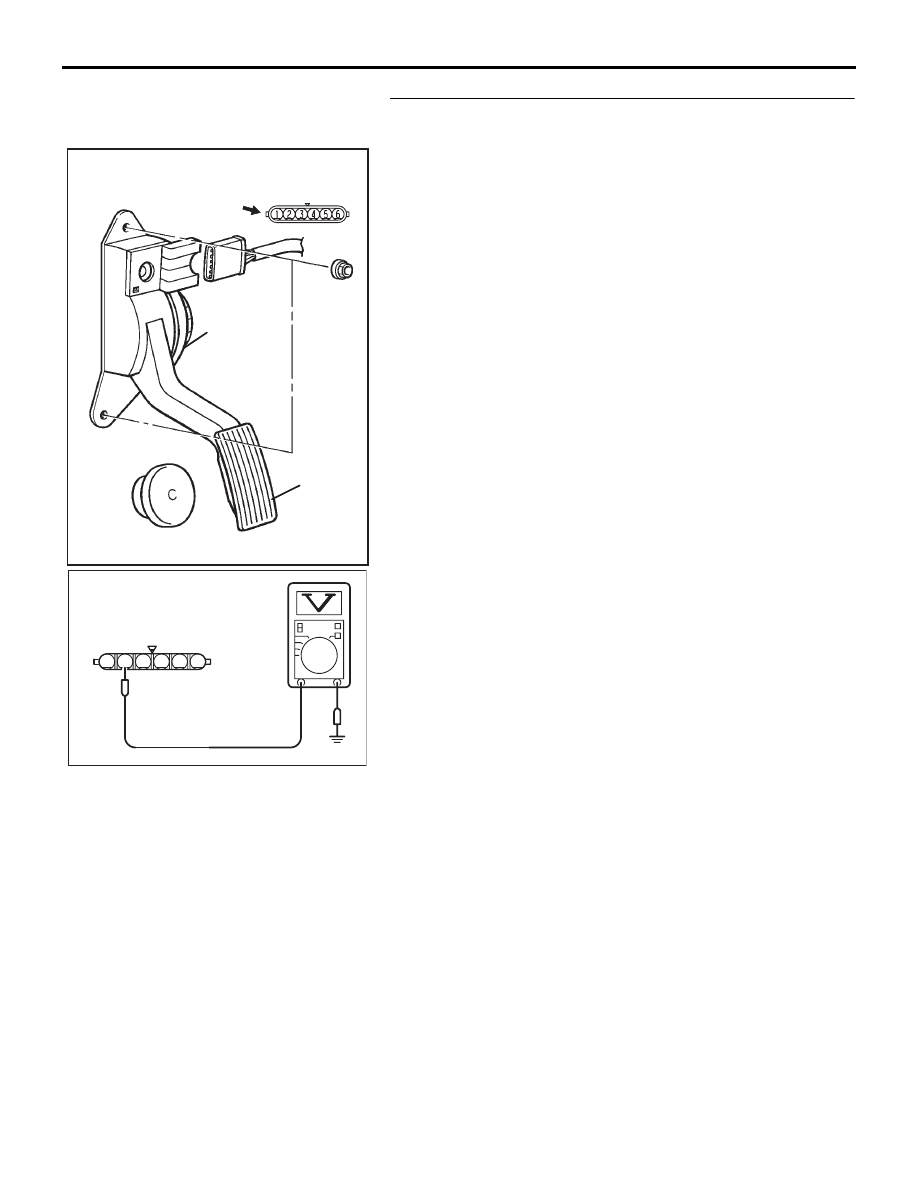

STEP 3. Measure the sensor supply voltage at accelerator
pedal position sensor harness side connector C-24.
(1) Disconnect the connector C-24 and measure at the harness

side.

(2) Turn the ignition switch to the "ON" position.

(3) Measure the voltage between terminal No. 5 and ground.

• Voltage should be between 4.9 and 5.1 volts.

(4) Turn the ignition switch to the "LOCK"(OFF) position.

Q:  Is the measured voltage between 4.9 and 5.1 volts?

YES : Go to Step 7.
NO :  Go to Step 4.

ACCELERATOR
PEDAL

CONNECTOR: C-24

C-24 (B)

ACCELERATOR
PEDAL POSITION
SENSOR

HARNESS
CONNECTOR:
COMPONENT SIDE

16DB562A

1

6 5 4 3 2

03DB251A

C-24 HARNESS

CONNECTOR:

COMPONENT SIDE

MULTIPORT FUEL INJECTION (MPI) DIAG

MULTIPORT FUEL INJECTION (MPI)

13A-479

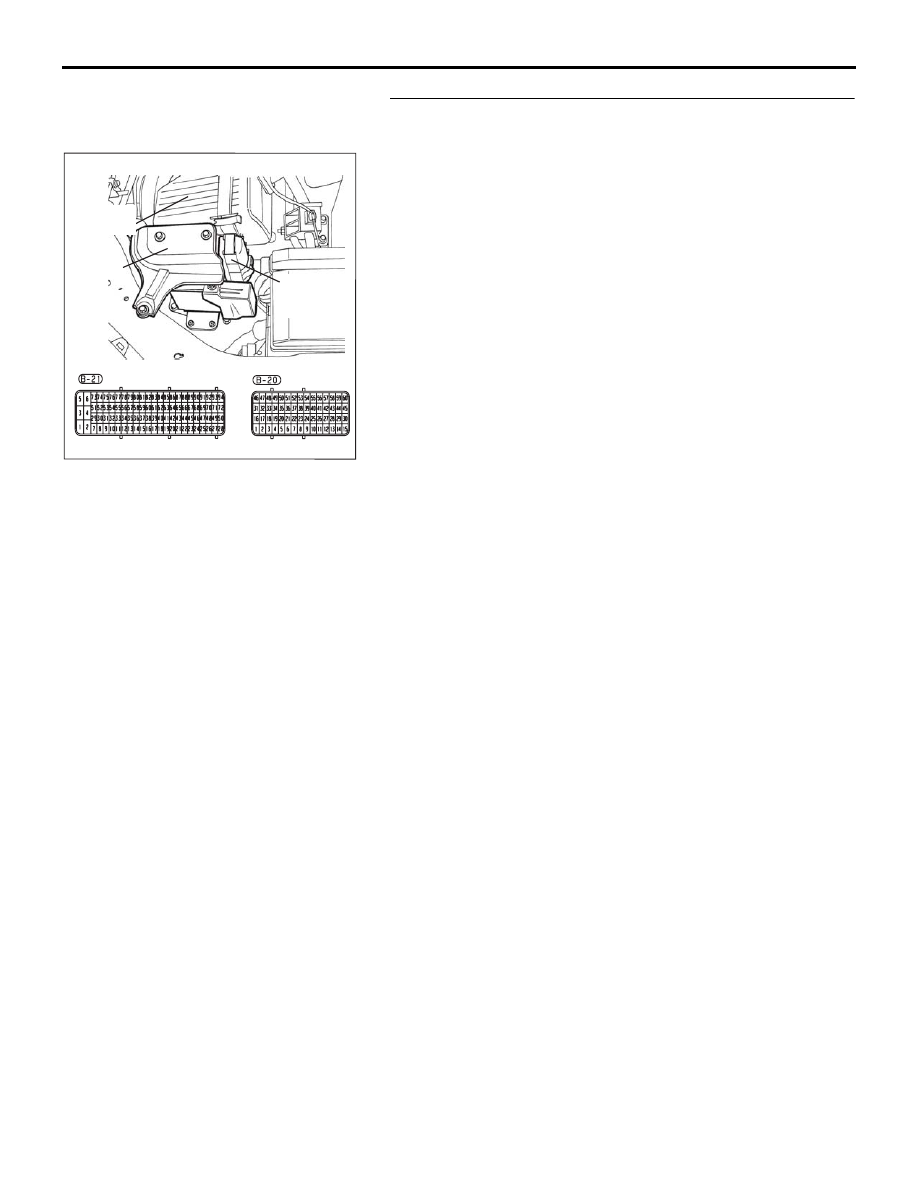

STEP 4. Check harness connector B-21 at ENGINE-ECU for
damage.
Q: Is the harness connector in good condition?

YES : Go to Step 5.
NO :  Repair or replace it. Refer to GROUP 00E, Harness

Connector Inspection

P.00E-2

. Then go to Step 10.

16DB400A

COVER

ENGINE

CONTROL

UNIT

AIR

CLEANER
