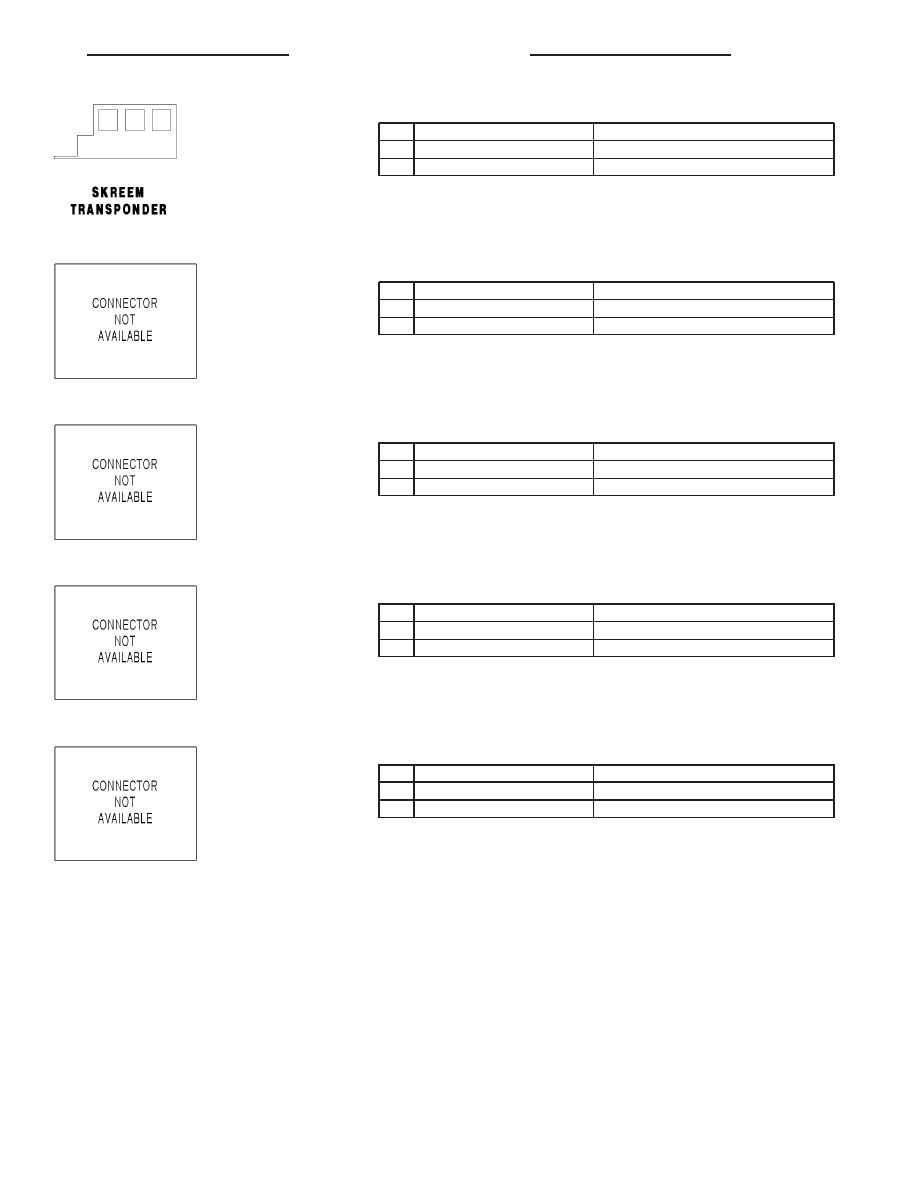

SKREEM TRANSPONDER

CAV

CIRCUIT

FUNCTION

1

20BR

TRANSPONDER COIL (+)

2

-

TRANSPONDER COIL (-)

SPEAKER-LEFT FRONT DOOR ASSEMBLY C1

CAV

CIRCUIT

FUNCTION

1

18BL/YL

SPEAKER-LEFT FRONT (+) CTEL

2

18BL/DG

SPEAKER-LEFT FRONT (-) CTEL

SPEAKER-LEFT FRONT DOOR ASSEMBLY C2

CAV

CIRCUIT

FUNCTION

1

18BR/DG

SPEAKER-LEFT FRONT (+)

2

18BR

SPEAKER-LEFT FRONT (-)

SPEAKER-LEFT REAR

CAV

CIRCUIT

FUNCTION

1

16BR/BL

SPEAKER-LEFT REAR

2

16WT/BL

SPEAKER-LEFT REAR

SPEAKER-RIGHT FRONT DOOR

CAV

CIRCUIT

FUNCTION

1

18BR/RD

SPEAKER-RIGHT FRONT (+)

2

18BK

SPEAKER-RIGHT FRONT (-)

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 77

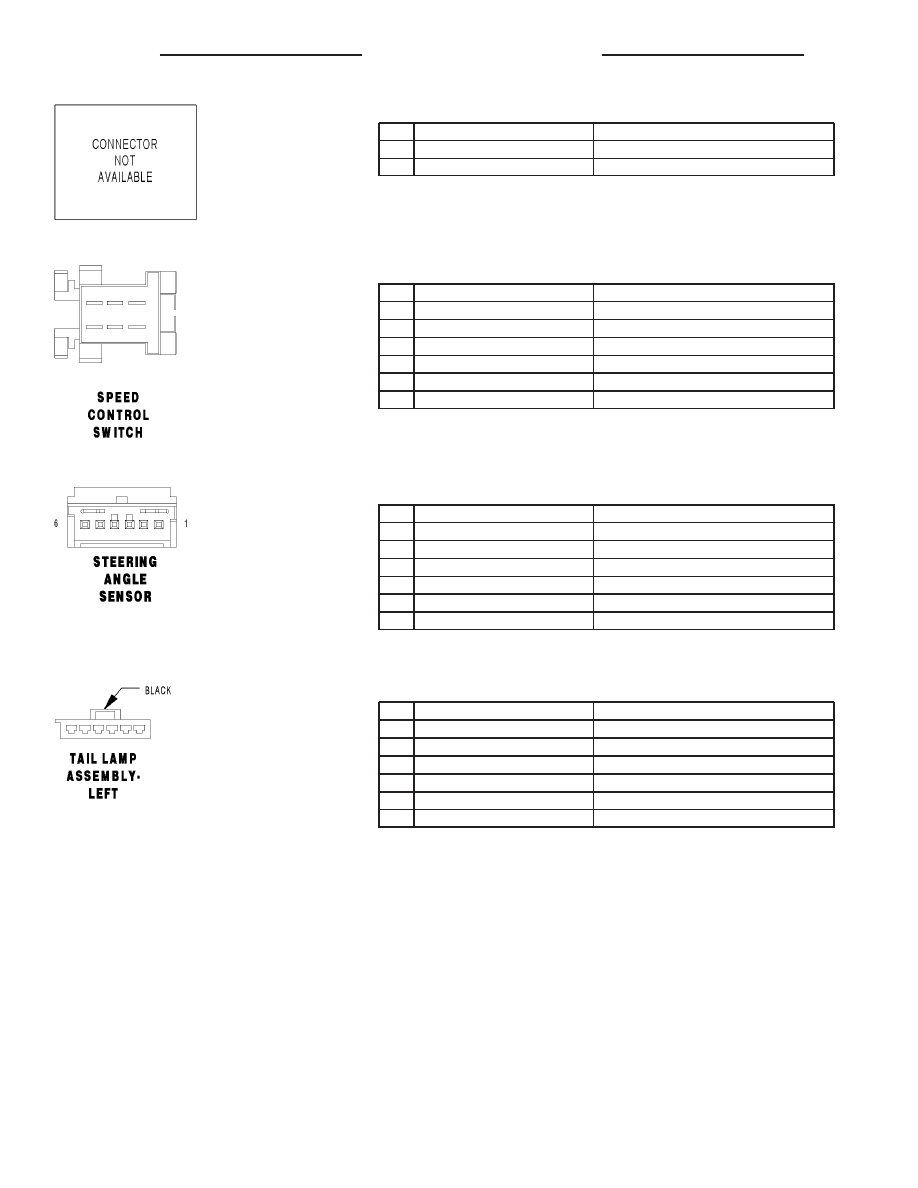

SPEAKER-RIGHT REAR

CAV

CIRCUIT

FUNCTION

1

16BR/GY

SPEAKER-RIGHT REAR

2

16WT/GY

SPEAKER-RIGHT REAR

SPEED CONTROL SWITCH

CAV

CIRCUIT

FUNCTION

1

18GY

OFF SIGNAL

2

18BK

VERIFICATION SIGNAL

3

18BL

RESUME SIGNAL

4

18YL

DECEL/SET SIGNAL

5

18DG

ACCEL/SET SIGNAL

6

18RD

S/C SWITCH 12 VOLT SUPPLY

STEERING ANGLE SENSOR

CAV

CIRCUIT

FUNCTION

1

20DG/WT

CAN C BUS (-)

2

-

-

3

20DG

CAN C BUS (+)

4

-

-

5

20BK/RD

FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

6

20BR

GROUND

TAIL LAMP ASSEMBLY-LEFT - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

16GY/BK

LEFT LAMP RELAY OUTPUT

3

16BK/RD

BRAKE LAMP SWITCH OUTPUT

4

16WT/RD

BACK-UP LAMP

5

16BK/WT

LEFT TURN SIGNAL

6

16BR

GROUND

8W - 80 - 78

8W-80 CONNECTOR PIN-OUTS

VA

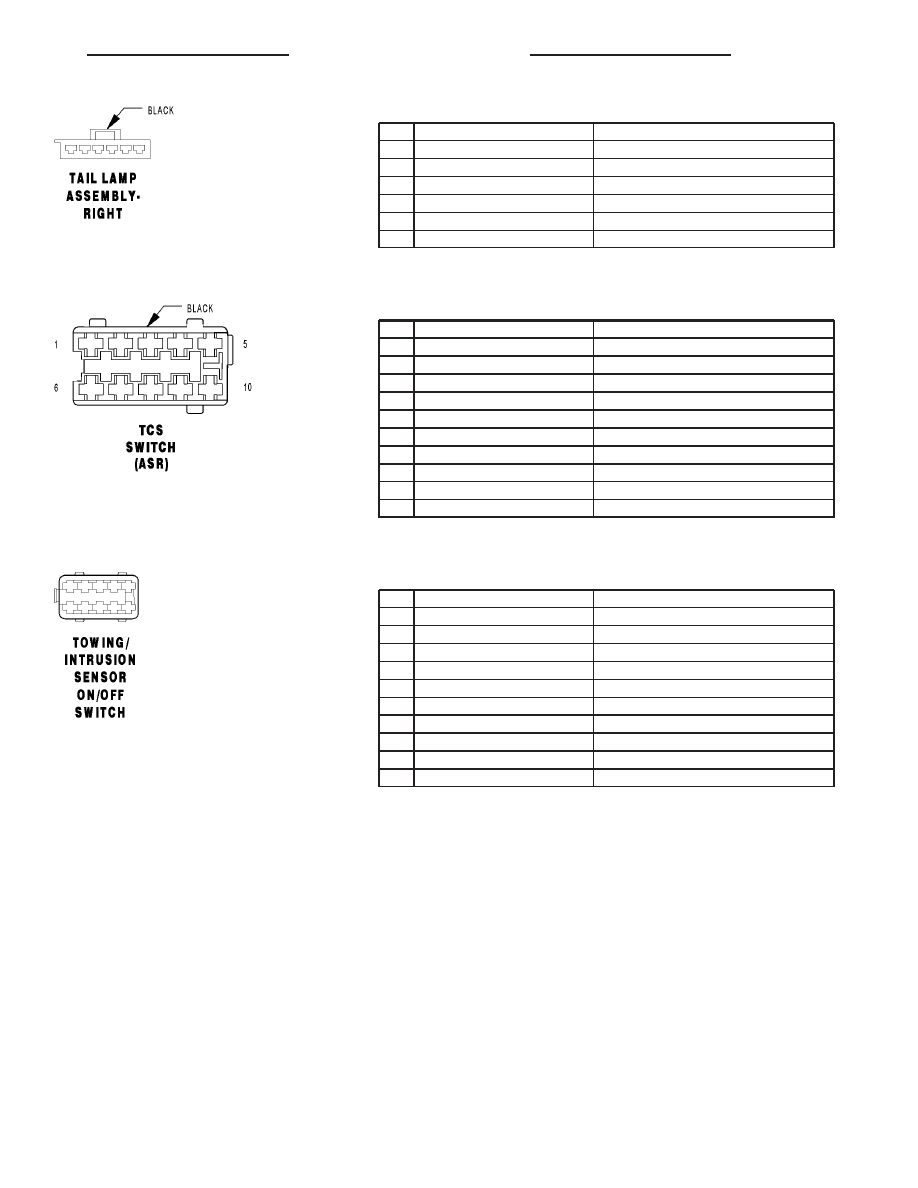

TAIL LAMP ASSEMBLY-RIGHT - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

16GY/RD

RIGHT LAMP RELAY OUTPUT

3

16BK/RD

BRAKE LAMP SWITCH OUTPUT

4

16WT/RD

BACK-UP LAMP

5

16BK/DG

RIGHT TURN SIGNAL

6

16BR

GROUND

TCS SWITCH (ASR) - BLACK

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

-

-

3

18BK/BL

TCS SWITCH (ASR) SENSE

4

-

-

5

-

-

6

-

-

7

16BK/BL/DG

FUSED IGNITION SWITCH OUTPUT

8

-

-

9

-

-

10

16BR

GROUND

TOWING/INTRUSION SENSOR ON/OFF SWITCH

CAV

CIRCUIT

FUNCTION

1

18GY/DG/RD

LAMP DRIVER

2

-

-

3

18GY/YL

INTRUSION SENSOR SWITCH SENSE

4

18BR

GROUND

5

-

-

6

-

-

7

-

-

8

18GY/BR

TOWING SENSOR SWITCH SENSE

9

18VT/DG

TOWING/INTRUSION SENSOR INDICATOR DRIVER

10

18BR

GROUND

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 79

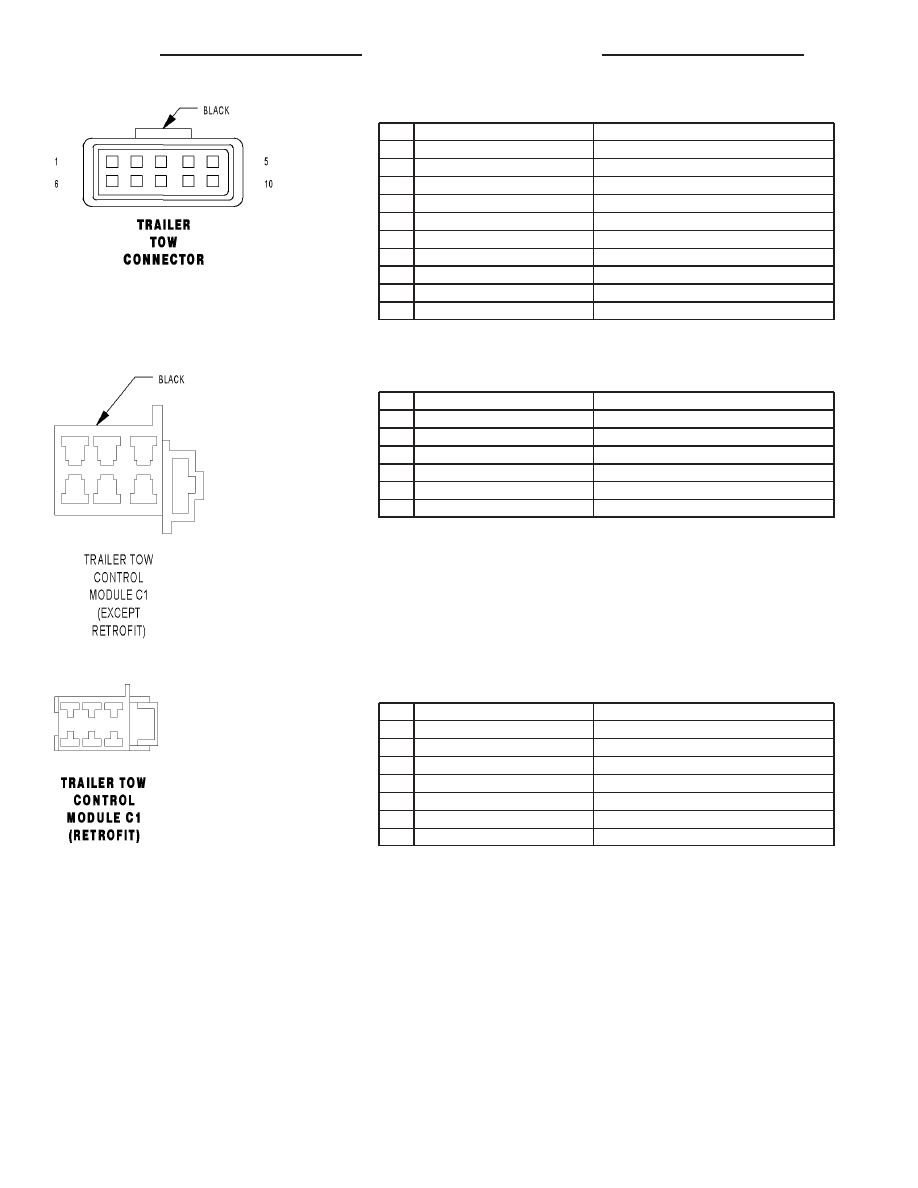

TRAILER TOW CONNECTOR - BLACK

CAV

CIRCUIT

FUNCTION

1

-

-

2

16BK/DG/GY

STOP/TURN SIGNAL-RIGHT

3

16BK/RD

BACK-UP LAMP

4

14RD

FUSED B(+)

5

16GY/RD

RIGHT LAMP RELAY OUTPUT

6

-

-

7

14RD/BK

ELECTRIC BRAKES

8

14BR

GROUND

9

-

-

10

16BK/RD/WT

STOP/TURN SIGNAL-LEFT

TRAILER TOW CONTROL MODULE C1 (EXCEPT RETROFIT) - BLACK

CAV

CIRCUIT

FUNCTION

A

-

-

B

-

-

C

16BK/RD/WT

STOP/TURN SIGNAL-LEFT

D

16BK/DG/GY

STOP/TURN SIGNAL-RIGHT

E

-

-

F

14RD/BK

ELECTRIC BRAKES

TRAILER TOW CONTROL MODULE C1 (RETROFIT)

CAV

CIRCUIT

FUNCTION

2

16BK/DG/GY

STOP/TURN SIGNAL-RIGHT

5

16BK/RD/WT

STOP/TURN SIGNAL-LEFT

8

14RD

FUSED B(+)

11

16BK/WT

LEFT TURN SIGNAL

14

16BK/RD

BRAKE LAMP SWITCH OUTPUT

17

16BR

GROUND

20

16BK/DG

RIGHT TURN SIGNAL

8W - 80 - 80

8W-80 CONNECTOR PIN-OUTS

VA
