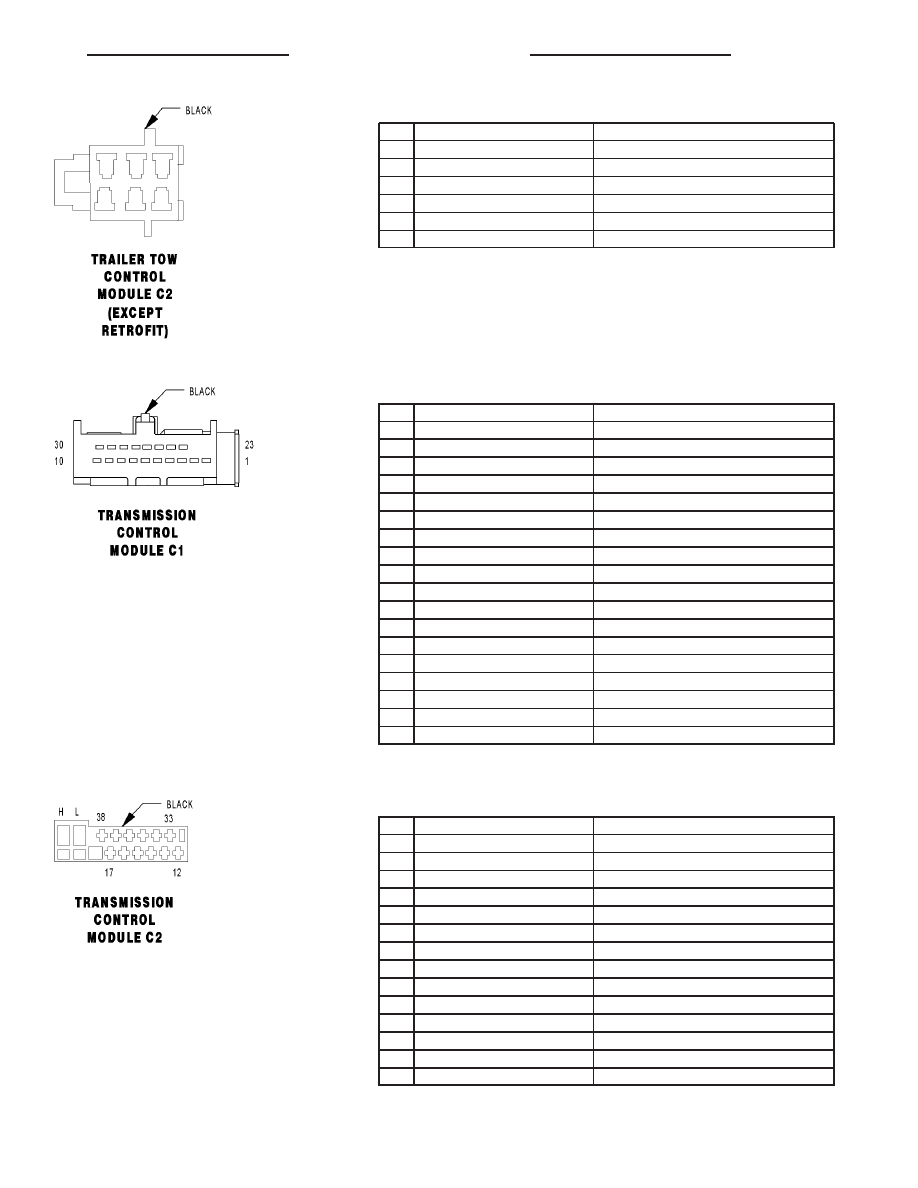

TRAILER TOW CONTROL MODULE C2 (EXCEPT RETROFIT) - BLACK

CAV

CIRCUIT

FUNCTION

A

16BK/RD

BRAKE LAMP SWITCH OUTPUT

B

16BK/DG

RIGHT TURN SIGNAL

C

16BR

GROUND

D

14RD

FUSED B(+)

E

16BK/WT

LEFT TURN SIGNAL

F

-

-

TRANSMISSION CONTROL MODULE C1 - BLACK

CAV

CIRCUIT

FUNCTION

1

20BL

K-TCM/RADIO

2

-

-

3

-

-

4

-

-

5

-

-

6

-

-

7

-

-

8

-

-

9

-

-

10

-

-

23

-

-

24

-

-

25

-

-

26

-

-

27

-

-

28

-

-

29

16BK/DG

TRANSMISSION RELAY OUTPUT

30

18BR

GROUND

TRANSMISSION CONTROL MODULE C2 - BLACK

CAV

CIRCUIT

FUNCTION

12

20BL/GY

N2 INPUT SPEED SENSOR

13

20BK/BL

SENSOR SUPPLY VOLTAGE

14

16WT

1-2/4-5 SOLENOID CONTROL

15

16YL

3-4 SOLENOID CONTROL

16

16WT/BL

2-3 SOLENOID CONTROL

17

16YL/BL

TCC SOLENOID CONTROL

33

20PK

SENSOR GROUND

34

20GY/BL

TEMPERATURE SENSOR-P/N SWITCH

35

20BL/DG

N3 INPUT SPEED SENSOR

36

16BR/GY

MODULATION PRESSURE SOLENOID CONTROL

37

16BK/RD

SHIFT PRESSURE SOLENOID CONTROL

38

16BK

SOLENOID SUPPLY VOLTAGE

H

20DG/WT

CAN C BUS (+)

L

20DG

CAN C BUS (-)

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 81

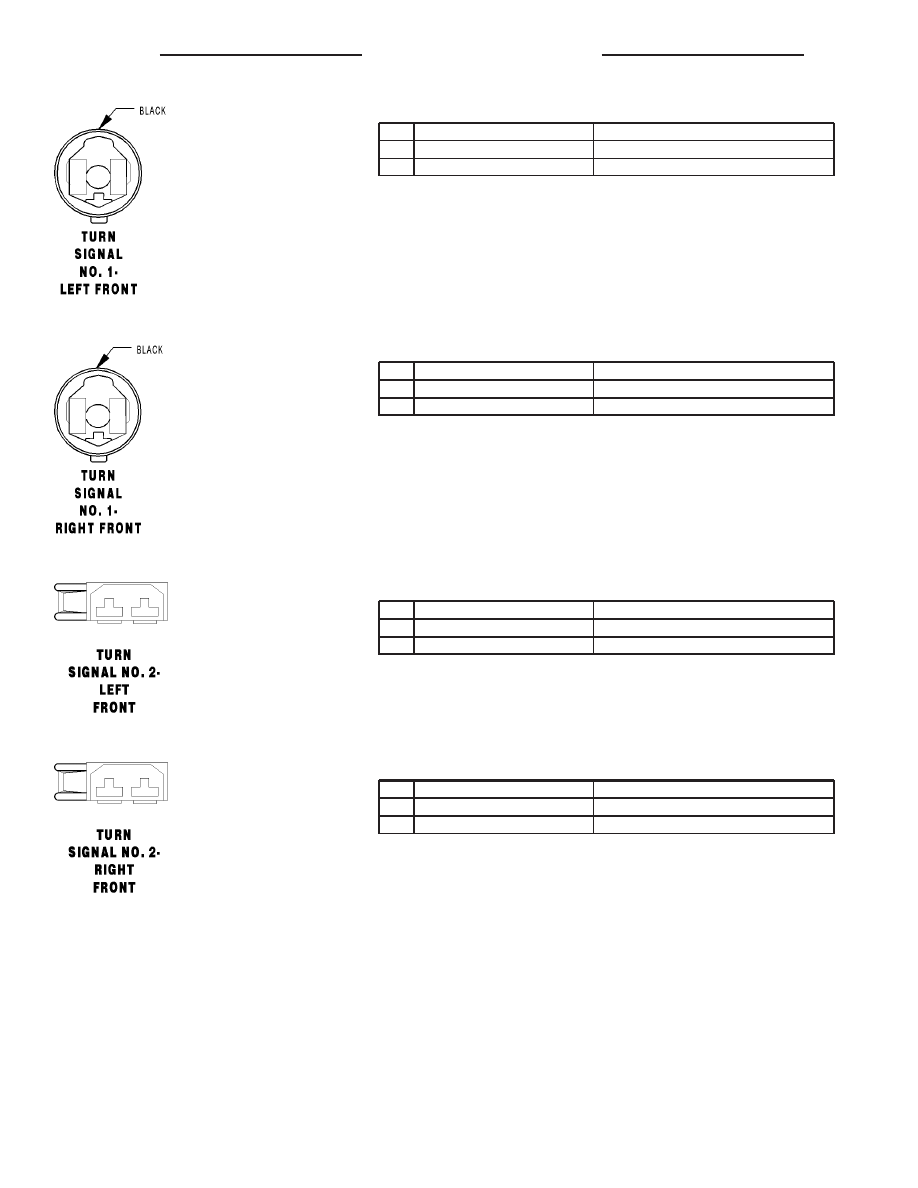

TURN SIGNAL NO. 1-LEFT FRONT - BLACK

CAV

CIRCUIT

FUNCTION

1

16BK/WT

LEFT TURN SIGNAL

2

16BR

GROUND

TURN SIGNAL NO. 1-RIGHT FRONT - BLACK

CAV

CIRCUIT

FUNCTION

1

16BK/DG

RIGHT TURN SIGNAL

2

16BR

GROUND

TURN SIGNAL NO. 2-LEFT FRONT

CAV

CIRCUIT

FUNCTION

1

16BK/WT

LEFT TURN SIGNAL

2

16BR

GROUND

TURN SIGNAL NO. 2-RIGHT FRONT

CAV

CIRCUIT

FUNCTION

1

16BK/DG

RIGHT TURN SIGNAL

2

16BR

GROUND

8W - 80 - 82

8W-80 CONNECTOR PIN-OUTS

VA

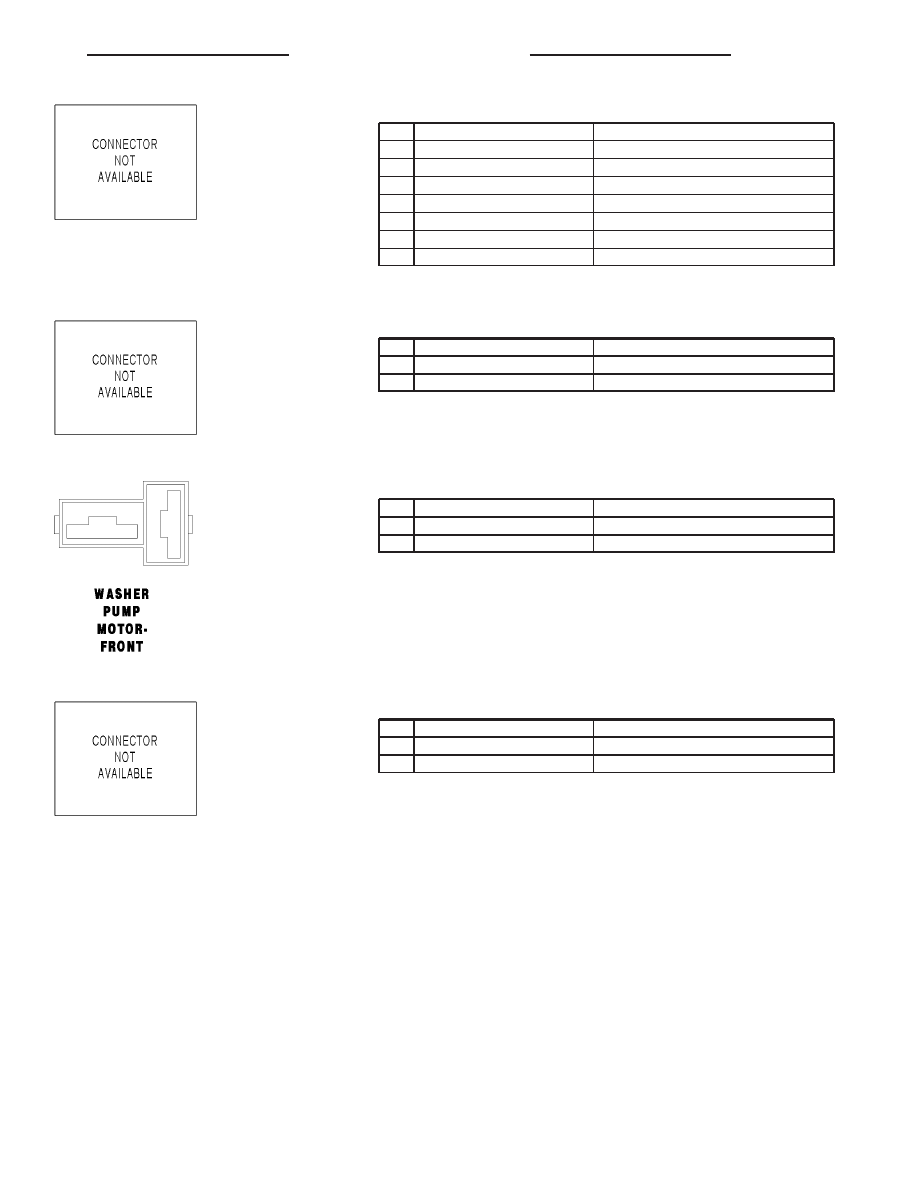

WARM AIR AUXILIARY HEATER ASSEMBLY C1

CAV

CIRCUIT

FUNCTION

1

16YL

HEATER TIMER (CUT-IN SIGNAL)

2

14RD

FUSED B(+)

3

20BK/YL

K-CTM/SSM

4

14BR

GROUND

5

16BR/WT

HEATER TIMER

6

16GY/RD

HEATER TIMER

7

16WT/RD

WARM AIR AUXILIARY HEATER CONTROL

WARM AIR AUXILIARY HEATER ASSEMBLY C2

CAV

CIRCUIT

FUNCTION

1

16DG/RD

METERING PUMP DRIVER

2

16BR

GROUND

WASHER PUMP MOTOR-FRONT

CAV

CIRCUIT

FUNCTION

1

16BR

GROUND

2

16BK/VT/RD

WASHER ON/OFF SWITCH OUTPUT

WATER CYCLE VALVE

CAV

CIRCUIT

FUNCTION

1

18BR/VT

WATER CYCLE VALVE CONTROL

2

18BR

GROUND

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 83

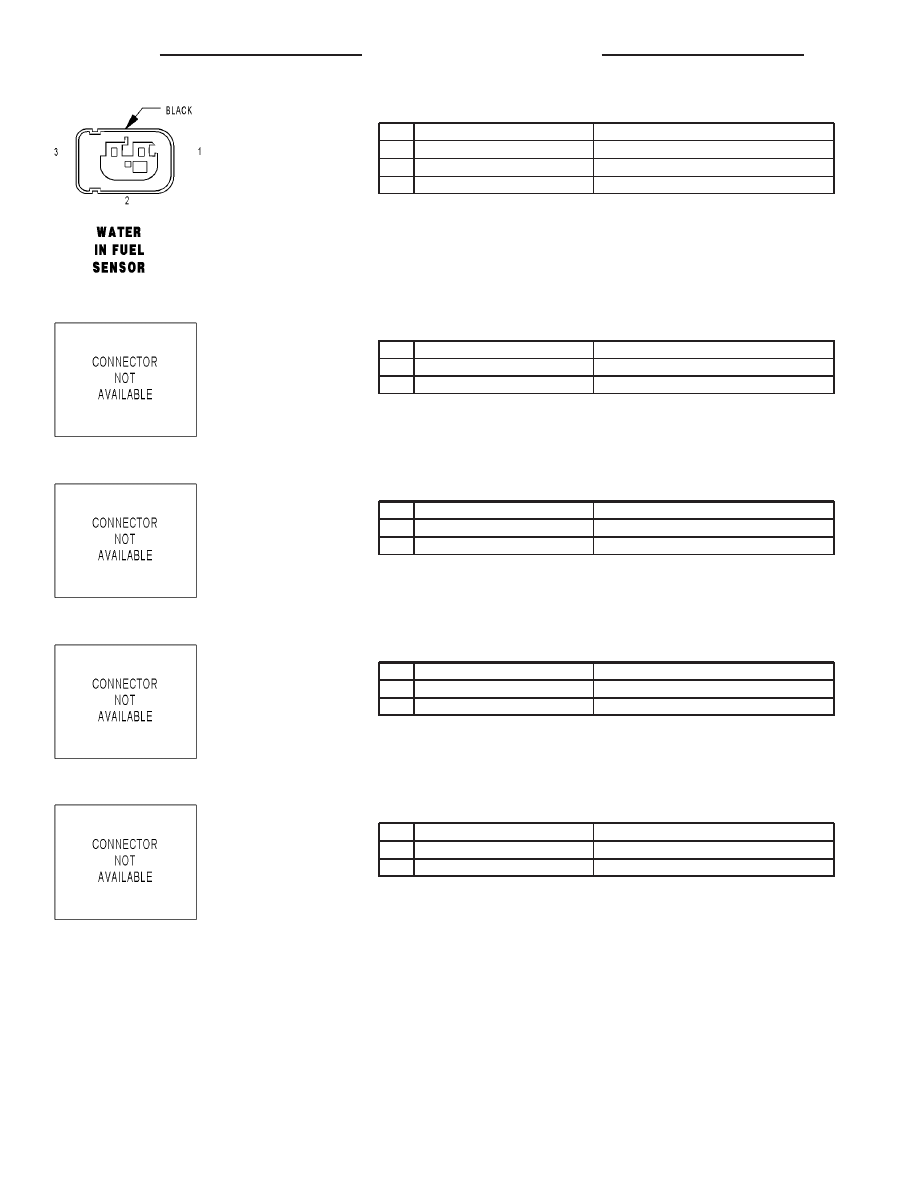

WATER IN FUEL SENSOR - BLACK

CAV

CIRCUIT

FUNCTION

1

18BR

WATER IN FUEL SENSOR GROUND

2

18BR/RD

WATER IN FUEL SENSOR 12 VOLT SUPPLY

3

18BK/YL

WATER IN FUEL SENSOR SIGNAL

WHEEL SPEED SENSOR-LEFT FRONT

CAV

CIRCUIT

FUNCTION

1

18BK

LEFT FRONT WHEEL SPEED SENSOR (+)

2

18BR

LEFT FRONT WHEEL SPEED SENSOR (-)

WHEEL SPEED SENSOR-LEFT REAR

CAV

CIRCUIT

FUNCTION

1

18WT

LEFT REAR WHEEL SPEED SENSOR (+)

2

18BR

LEFT REAR WHEEL SPEED SENSOR (-)

WHEEL SPEED SENSOR-RIGHT FRONT

CAV

CIRCUIT

FUNCTION

1

18BK

RIGHT FRONT WHEEL SPEED SENSOR (+)

2

18BR

RIGHT FRONT WHEEL SPEED SENSOR (-)

WHEEL SPEED SENSOR-RIGHT REAR

CAV

CIRCUIT

FUNCTION

1

18BK

RIGHT REAR WHEEL SPEED SENSOR (+)

2

18BR

RIGHT REAR WHEEL SPEED SENSOR (-)

8W - 80 - 84

8W-80 CONNECTOR PIN-OUTS

VA
