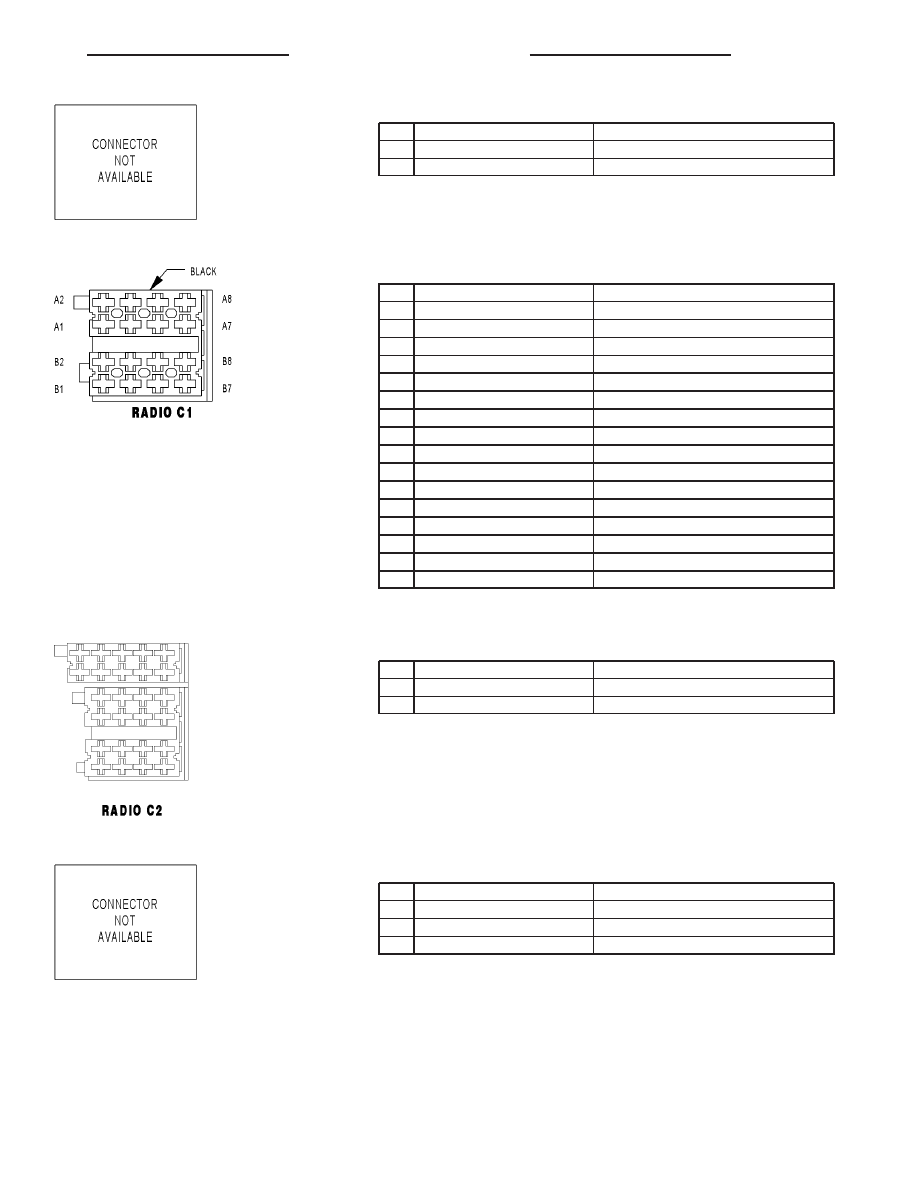

RADIO ANTENNA

CAV

CIRCUIT

FUNCTION

1

16BK

RADIO ANTENNA

2

16BK

RADIO ANTENNA W/SHIELD

RADIO C1 - BLACK

CAV

CIRCUIT

FUNCTION

A1

20BL/RD/WT

VEHICLE SPEED SENSOR OUTPUT

A2

20YL

K-TCM/RADIO

A3

18DG/YL/BK

CTEL MUTE

A4

16RD/YL

FUSED B(+)

A5

16BK

RADIO ANTENNA

A6

16GY/DG/RD

LAMP DRIVER

A7

16BK/RD

FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)

A8

16BR

GROUND

B1

16BR/GY

SPEAKER-RIGHT REAR

B2

16WT/GY

SPEAKER-RIGHT REAR

B3

18BR/RD

SPEAKER-RIGHT FRONT (+)

B4

18BK

SPEAKER-RIGHT FRONT (-)

B5

18BR/DG

SPEAKER-LEFT FRONT (+)

B6

18BR

SPEAKER-LEFT FRONT (-)

B7

16BR/BL

SPEAKER-LEFT REAR

B8

16WT/BL

SPEAKER-LEFT REAR

RADIO C2

CAV

CIRCUIT

FUNCTION

1

16BK

RADIO ANTENNA W/SHIELD

2

16BK

SHIELD

RADIO/CELLULAR ANTENNA

CAV

CIRCUIT

FUNCTION

1

16BK/RD

FUSED IGNITION SWITCH OUTPUT (ACC-RUN-START)

2

16BK

RADIO ANTENNA W/SHIELD

3

16BK

CELLULAR ANTENNA W/SHIELD

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 69

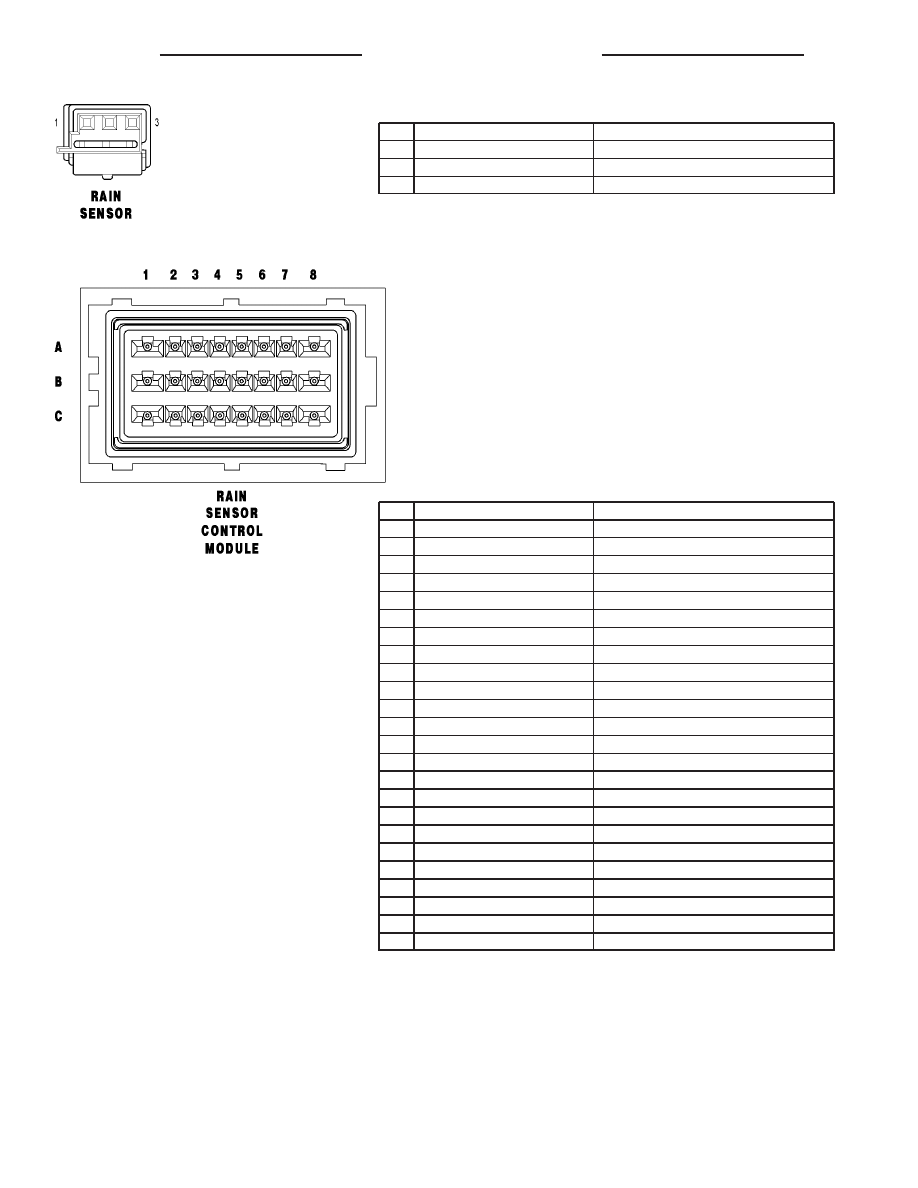

RAIN SENSOR

CAV

CIRCUIT

FUNCTION

1

20DG

CIRCUIT 30

2

20BR

RAIN SENSOR GROUND

3

20BK/DG

RAIN SENSOR INPUT SIGNAL

RAIN SENSOR CONTROL MODULE

CAV

CIRCUIT

FUNCTION

A1

14BK/VT

SWITCHED POWER

A2

20WT

RAIN SENSOR INPUT SIGNAL

A3

18BK

WIPER STAGE 1 INPUT

A4

16BK/VT/RD

WASHER PUMP OUTPUT

A5

-

-

A6

-

-

A7

-

-

A8

14BK/DG

FRONT WIPER MOTOR STAGE 2 OUTPUT

B1

-

-

B2

18BK/GY/RD

FRONT WIPER MOTOR STAGE 2 INPUT

B3

18WT/VT

NO FUNCTION DEFINED

B4

18BK/VT

NO FUNCTION DEFINED

B5

-

-

B6

-

-

B7

-

-

B8

14BK/DB

FRONT WIPER MOTOR STAGE 1 OUTPUT

C1

14BR

GROUND

C2

16BK/VT/WT

FRONT WIPER MOTOR GROUND

C3

20RD

CIRCUIT 30

C4

-

-

C5

-

-

C6

-

-

C7

20YL

RAIN SENSOR GROUND

C8

-

-

8W - 80 - 70

8W-80 CONNECTOR PIN-OUTS

VA

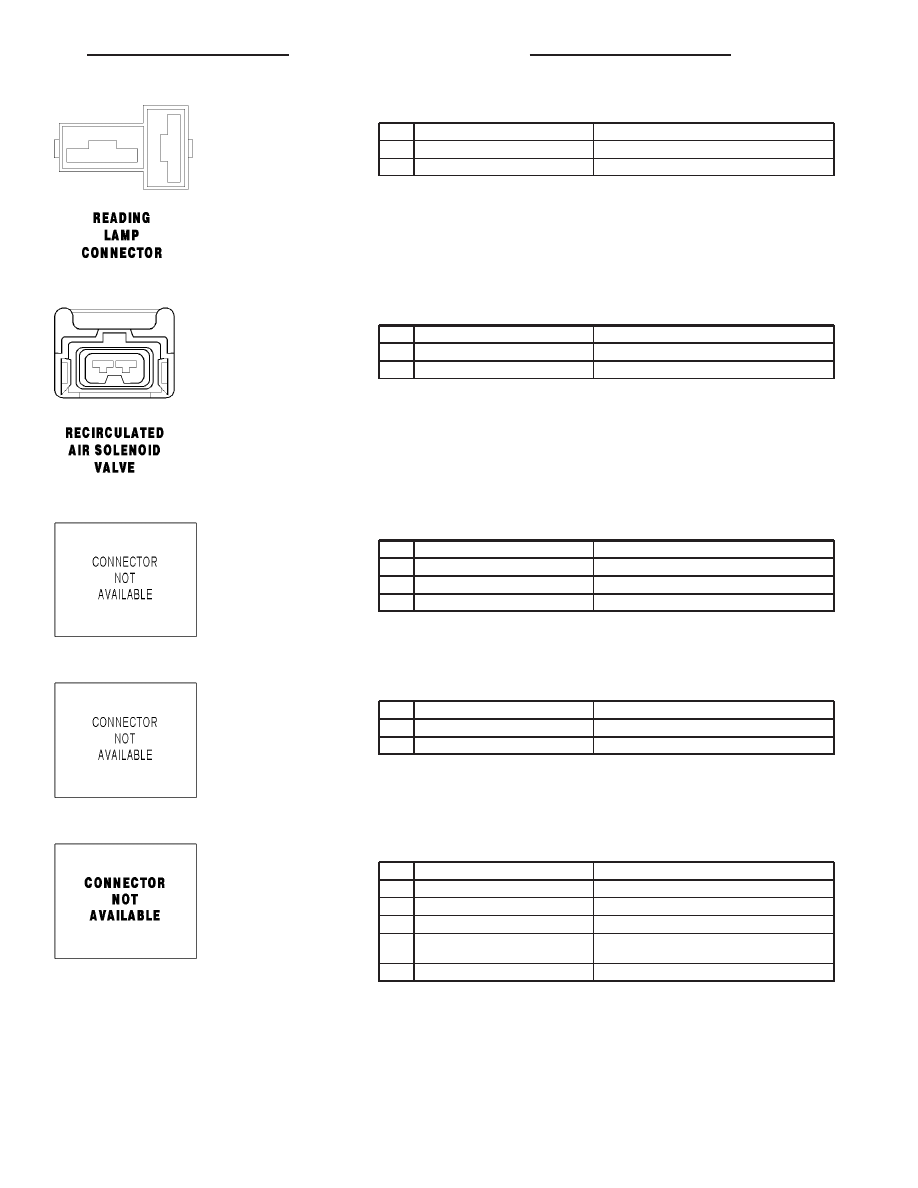

READING LAMP CONNECTOR

CAV

CIRCUIT

FUNCTION

1

16BR

GROUND

2

16RD/YL

MAP/READING LAMP SWITCH OUTPUT

RECIRCULATED AIR SOLENOID VALVE

CAV

CIRCUIT

FUNCTION

1

16RD

RECIRCULATED AIR SOLENOID VALVE CONTROL

2

16BK

GROUND

REFRIGERANT PRESSURE SENSOR

CAV

CIRCUIT

FUNCTION

1

18BR/BL

SENSOR GROUND

2

20BR/RD

REFRIGERANT PRESSURE SENSOR FEEDBACK

3

20RD/BL

5 VOLT SUPPLY

REMOTE KEYLESS ENTRY ANTENNA

CAV

CIRCUIT

FUNCTION

1

20BR

RKE ANTENNA

3

-

GROUND

ROLLOVER SWITCH ASSEMBLY

CAV

CIRCUIT

FUNCTION

1

14RD

FUSED B(+)

2

14BR

GROUND

4

16DG

DOSING PUMP CONTROL

6

16BK/BL/DG (EXCEPT PROGRAM TIM-
ER)

FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

6

16BL (PROGRAM TIMER)

CABIN HEATER CONTROL

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 71

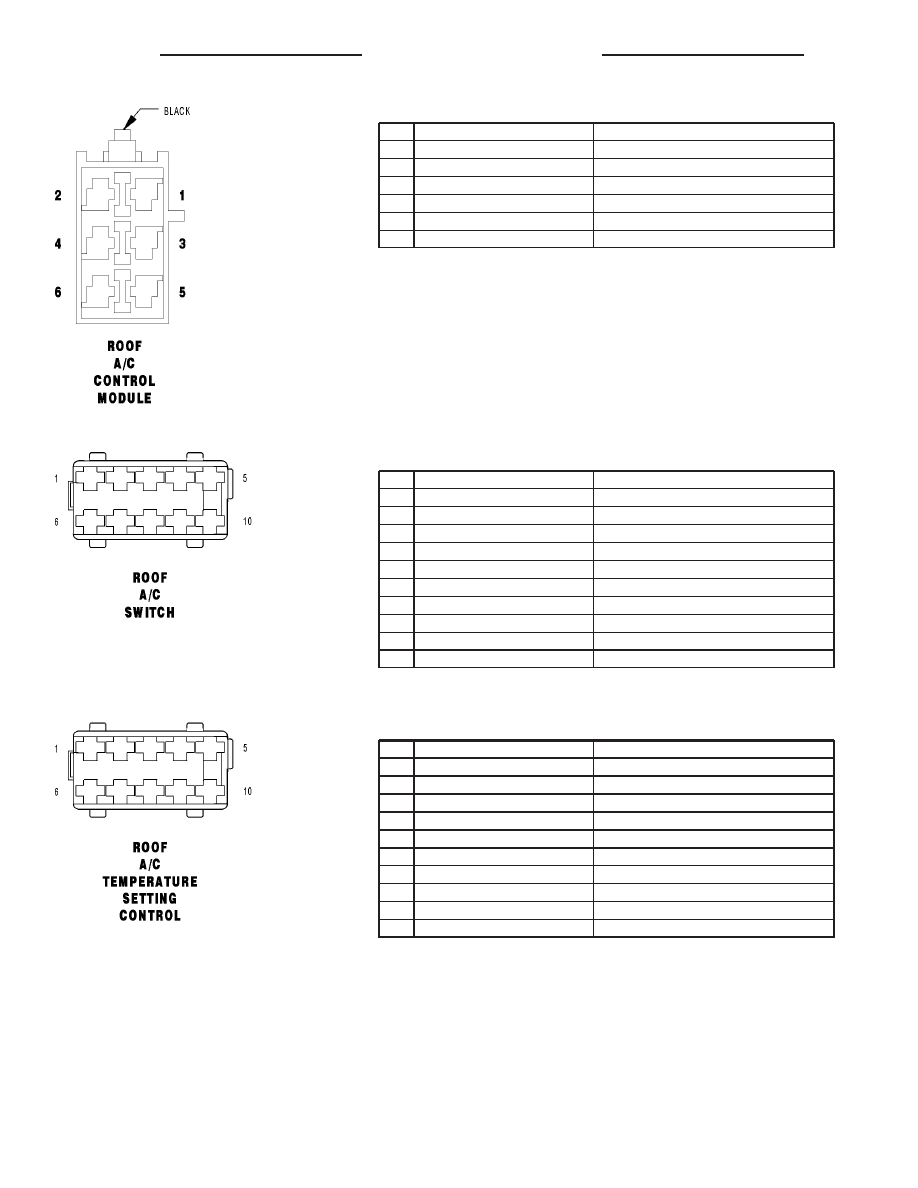

ROOF A/C CONTROL MODULE - BLACK

CAV

CIRCUIT

FUNCTION

1

12BR

GROUND

2

12RD

FUSED B(+)

3

16YL

12V A/C FAN MOTOR CONTROL-LOW SPEED

4

16VT

12V A/C FAN MOTOR CONTROL-HIGH SPEED

5

16BK

TEMPERATURE SENSOR SIGNAL

6

16BR

TEMPERATURE SWITCH SENSE

ROOF A/C SWITCH

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

-

-

3

16RD/BK

FUSED D(+) RELAY NO. 1 OUTPUT

4

16VT

A/C FAN MOTOR CONTROL-HIGH SPEED

5

-

-

6

-

-

7

16YL

A/C FAN MOTOR CONTROL-LOW SPEED

8

16RD/BK

FUSED D(+) RELAY NO. 1 OUTPUT

9

-

-

10

16BR

GROUND

ROOF A/C TEMPERATURE SETTING CONTROL

CAV

CIRCUIT

FUNCTION

1

-

-

2

-

-

3

16BR

TEMPERATURE SWITCH SENSE

4

-

-

5

16BK

TEMPERATURE SENSOR SIGNAL

6

-

-

7

-

-

8

-

-

9

16GY/DG/RD

LAMP DRIVER

10

-

-

8W - 80 - 72

8W-80 CONNECTOR PIN-OUTS

VA
