Mercedes-Benz Sprinter / Dodge Sprinter. Manual - part 360

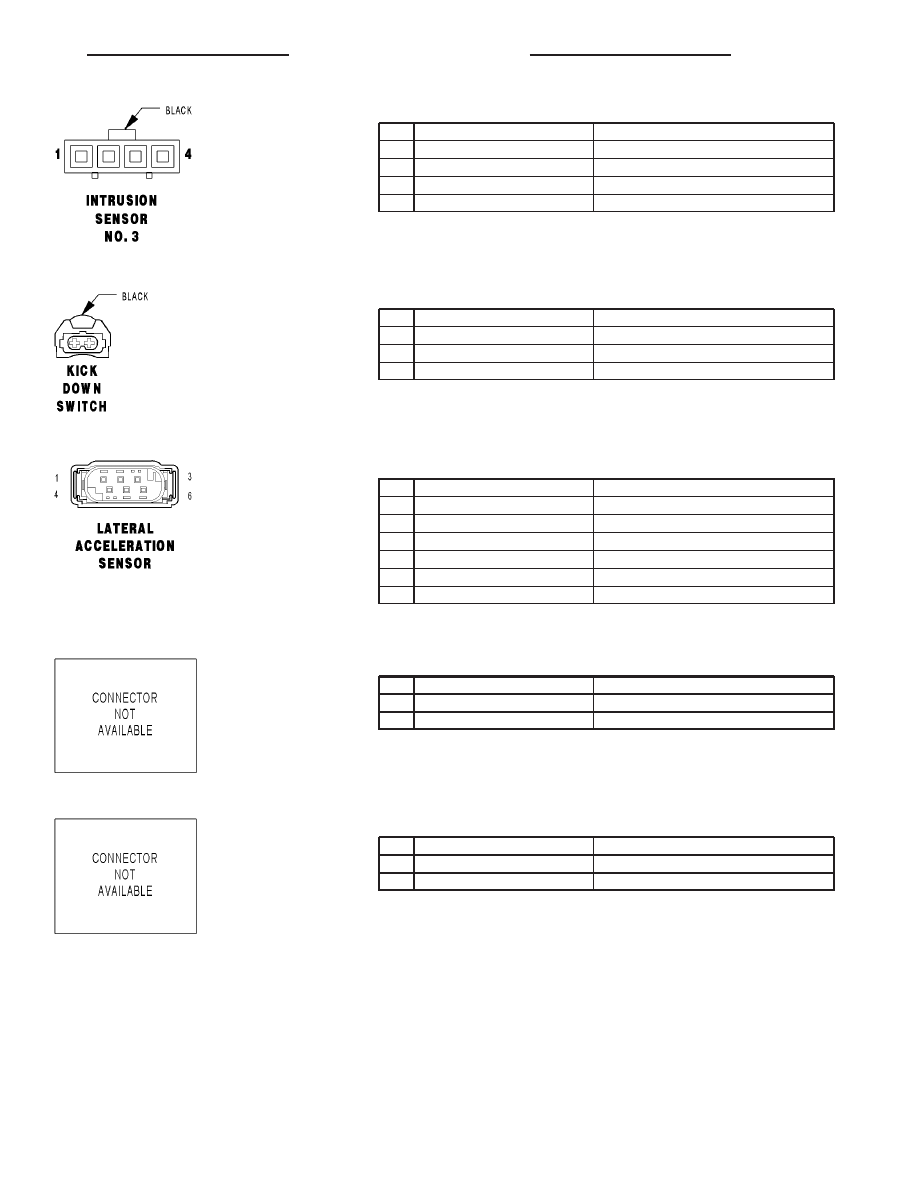

INTRUSION SENSOR NO. 3 - BLACK

CAV

CIRCUIT

FUNCTION

1

20BR

GROUND

2

20DG/WT/BL

INTRUSION SENSOR 3 SIGNAL

3

20DG/YL

INTRUSION SENSOR INTERFACE

4

20RD/DG

FUSED B(+)

KICK DOWN SWITCH - BLACK

CAV

CIRCUIT

FUNCTION

1

18BR/DG

KICKDOWN SWITCH SIGNAL

2

18BR (EXCEPT OBD)

SENSOR GROUND

2

18BR (OBD)

GROUND

LATERAL ACCELERATION SENSOR

CAV

CIRCUIT

FUNCTION

1

20YL/RD

SENSOR SIGNAL

2

20YL/WT

SENSOR SIGNAL

3

20RD/BL

POWER INPUT

4

20DG/YL

SENSOR SIGNAL

5

20BK/DG

SENSOR SIGNAL

6

20BR

GROUND

LICENSE PLATE LAMP NO. 1

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

16BR

GROUND

LICENSE PLATE LAMP NO. 2

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

16BR

GROUND

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 61

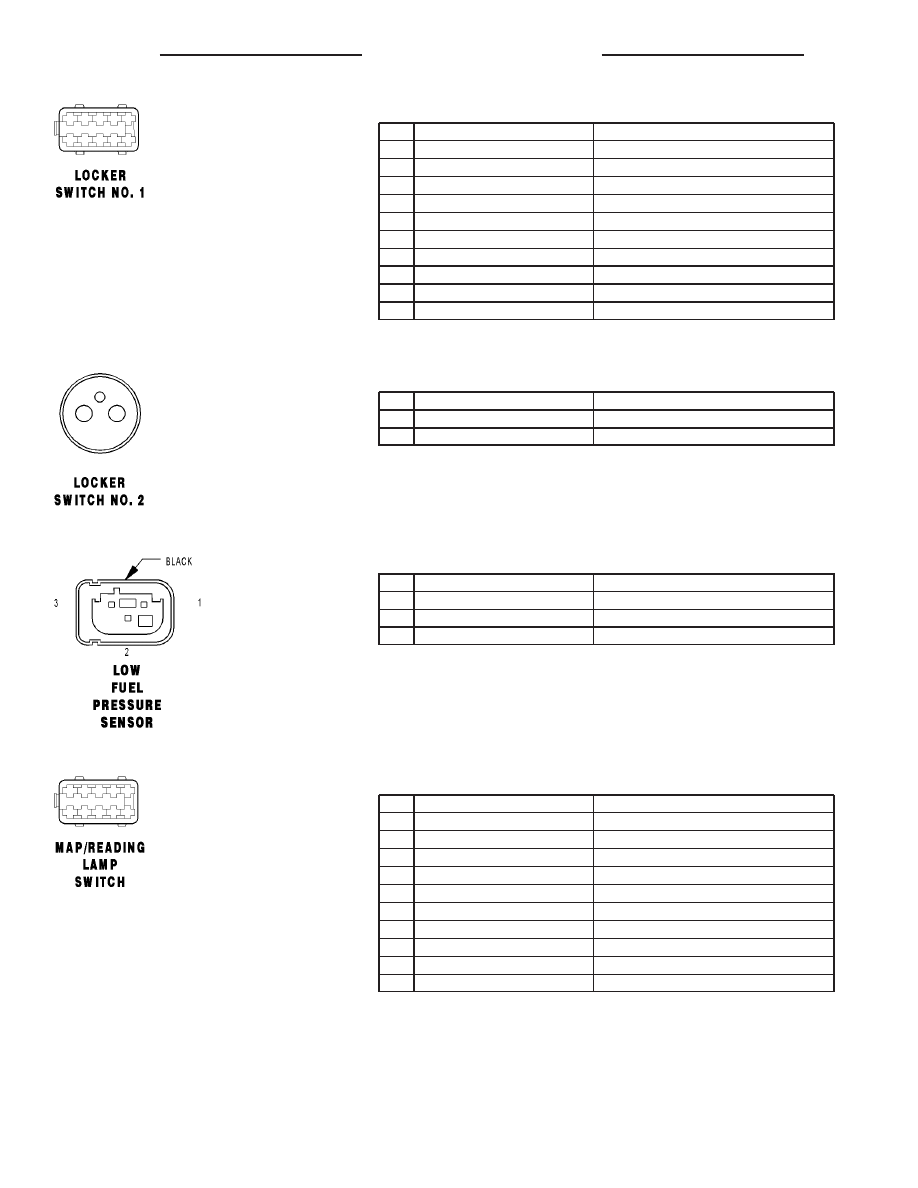

LOCKER SWITCH NO. 1

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

-

-

3

16BK/RD

FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

4

16BR/BK

LOCKER SWITCH NO. 2 OUTPUT

5

-

-

6

-

-

7

16VT/YL

DIFFERENTIAL LOCK SOLENOID CONTROL

8

-

-

9

-

-

10

20BR

GROUND

LOCKER SWITCH NO. 2

CAV

CIRCUIT

FUNCTION

1

16BR/BK

LOCKER SWITCH NO. 2 OUTPUT

2

16BK/RD

FUSED OPTIONAL EQUIPMENT RELAY OUTPUT

LOW FUEL PRESSURE SENSOR - BLACK

CAV

CIRCUIT

FUNCTION

1

18GY/DG

LOW FUEL PRESSURE SENSOR 5 VOLT SUPPLY

2

18GY/YL

LOW FUEL PRESSURE SENSOR GROUND

3

18GY/RD

LOW FUEL PRESSURE SENSOR SIGNAL

MAP/READING LAMP SWITCH

CAV

CIRCUIT

FUNCTION

1

16GY/DG/RD

LAMP DRIVER

2

-

-

3

16RD/YL

FUSED B(+)

4

-

-

5

-

-

6

-

-

7

16RD/YL

MAP/READING LAMP SWITCH OUTPUT

8

-

-

9

-

-

10

16BR

GROUND

8W - 80 - 62

8W-80 CONNECTOR PIN-OUTS

VA

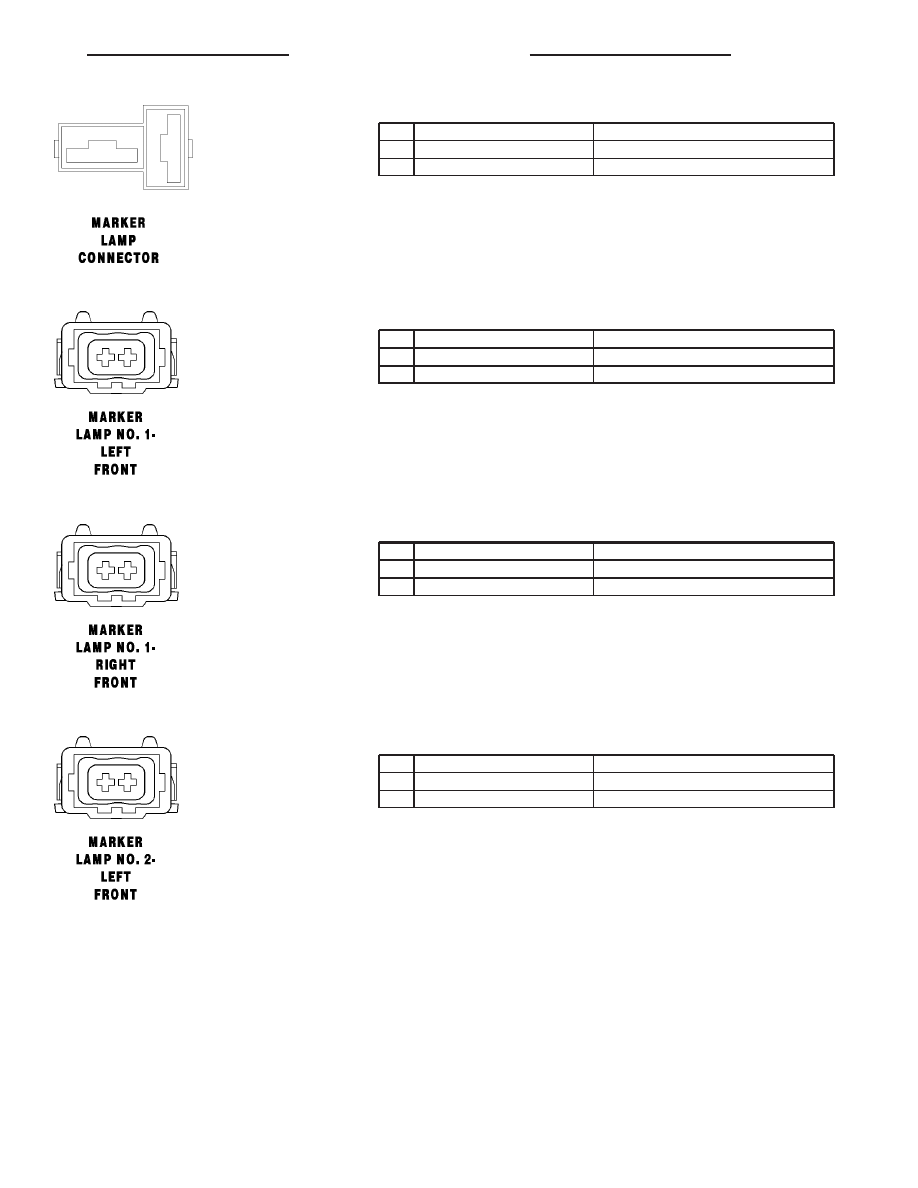

MARKER LAMP CONNECTOR

CAV

CIRCUIT

FUNCTION

1

16GY/RD

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP NO. 1-LEFT FRONT

CAV

CIRCUIT

FUNCTION

1

16GY/BK

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP NO. 1-RIGHT FRONT

CAV

CIRCUIT

FUNCTION

1

16GY/RD

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP NO. 2-LEFT FRONT

CAV

CIRCUIT

FUNCTION

1

16GY/BK

LAMP DRIVER

2

16BR

GROUND

VA

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 63

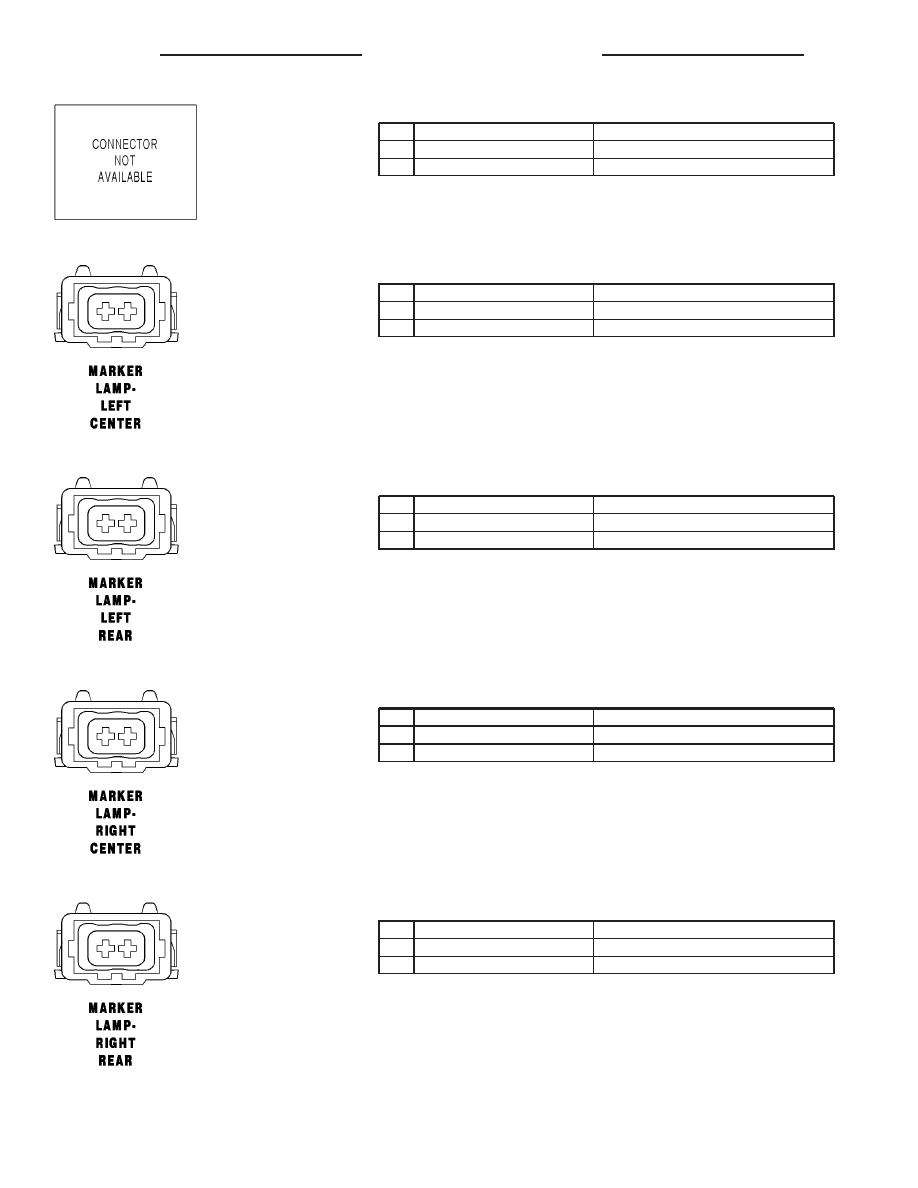

MARKER LAMP NO. 2-RIGHT FRONT

CAV

CIRCUIT

FUNCTION

1

16GY/RD

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP-LEFT CENTER

CAV

CIRCUIT

FUNCTION

1

16GY/BK

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP-LEFT REAR

CAV

CIRCUIT

FUNCTION

1

16GY/BK

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP-RIGHT CENTER

CAV

CIRCUIT

FUNCTION

1

16GY/RD

LAMP DRIVER

2

16BR

GROUND

MARKER LAMP-RIGHT REAR

CAV

CIRCUIT

FUNCTION

1

16GY/RD/WT

LAMP DRIVER

2

16BR

GROUND

8W - 80 - 64

8W-80 CONNECTOR PIN-OUTS

VA
