(5) Stabilize the front lamp unit reflector with one

hand, then use the other hand to pull the headlamp
leveling motor away from the reflector until the ball
on the end of the motor pushrod unsnaps from the
bracket on the reflector.

(6) Remove the headlamp leveling motor from the

mount on the front lamp unit housing.

INSTALLATION

(1) Position the headlamp leveling motor to the

mount on the front lamp unit housing (Fig. 28).

(2) Snap the ball on the end of the headlamp lev-

eling motor into the bracket on the front lamp unit
reflector.

(3) Push the headlamp leveling motor into the

mount integral to the front lamp unit housing until it
is fully seated, then rotate the motor clockwise about
30 degrees to lock it into place (Fig. 27).

(4) Reconnect the front lamp unit wire harness

connector to the connector receptacle for the head-
lamp leveling motor.

(5) Position the front lamp unit rear cover onto the

lamp housing and engage the retainers over each
side of the cover to secure it (Fig. 26).

(6) Reconnect the battery negative cable.

HEADLAMP LEVELING
SWITCH

REMOVAL

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

steering wheel, steering column, airbag, seat belt

tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the cluster bezel from the instrument

panel (Fig. 29). (Refer to 23 - BODY/INSTRUMENT
PANEL/CLUSTER BEZEL - REMOVAL).

(3) From the back of the cluster bezel, squeeze the

two latches on the headlamp leveling switch body
and push the switch out through the face of the bezel
(Fig. 30).

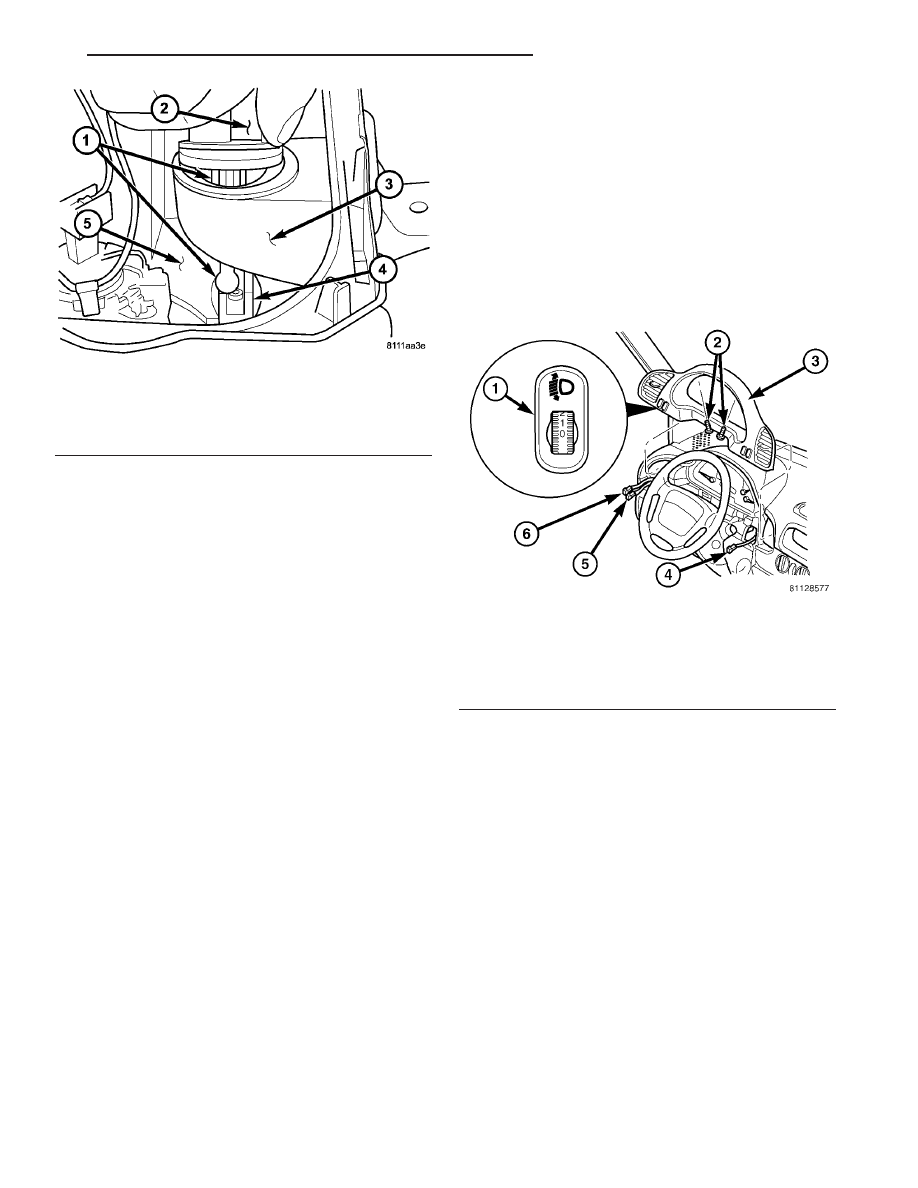

Fig. 28 Headlamp Leveling Motor Remove/Install

1 - PUSHROD
2 - MOTOR
3 - MOUNT
4 - BRACKET
5 - REFLECTOR

Fig. 29 Headlamp Leveling Switch

1 - HEADLAMP LEVELING SWITCH
2 - SCREW (2)
3 - CLUSTER BEZEL
4 - TO REAR WINDOW DEFOGGER SWITCH (OPTIONAL)
5 - TO HEADLAMP LEVELING SWITCH
6 - TO FOG LAMP SWITCH (OPTIONAL)

VA

LAMPS/LIGHTING - EXTERIOR

8L - 17

(4) Remove the headlamp leveling switch from the

face of the cluster bezel.

INSTALLATION

WARNING: To avoid personal injury or death, on
vehicles equipped with airbags, disable the supple-
mental

restraint

system

before

attempting

any

steering wheel, steering column, airbag, seat belt
tensioner, or instrument panel component diagno-
sis or service. Disconnect and isolate the battery
negative (ground) cable, then wait two minutes for
the system capacitor to discharge before perform-
ing further diagnosis or service. This is the only
sure way to disable the supplemental restraint sys-
tem. Failure to take the proper precautions could
result in accidental airbag deployment.

(1) Position the headlamp leveling switch to the

proper mounting hole on the face of the cluster bezel
(Fig. 29).

(2) Using hand pressure, push the headlamp level-

ing switch firmly and evenly into the switch mount-
ing hole of the cluster bezel until both of the latches
on the switch body are fully engaged.

(3) Reinstall the cluster bezel onto the instrument

panel. (Refer to 23 - BODY/INSTRUMENT PANEL/
CLUSTER BEZEL - INSTALLATION).

(4) Reconnect the battery negative cable.

HIGH BEAM HEADLAMP BULB

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Disengage and swing the retainers that secure

the front lamp unit rear cover to each side of the

lamp housing and remove the cover (Fig. 31).

(3) Disconnect the front lamp unit wire harness

connector from the high beam headlamp bulb base
(Fig. 32).

(4) Disengage

the

high

beam

headlamp

bulb

retainer by pushing it slightly toward the front lamp
unit housing and outward from the bulb base, then
pivot the retainer off of the bulb base.

(5) Remove the high beam headlamp bulb from the

integral bulb holder on the front lamp unit reflector.

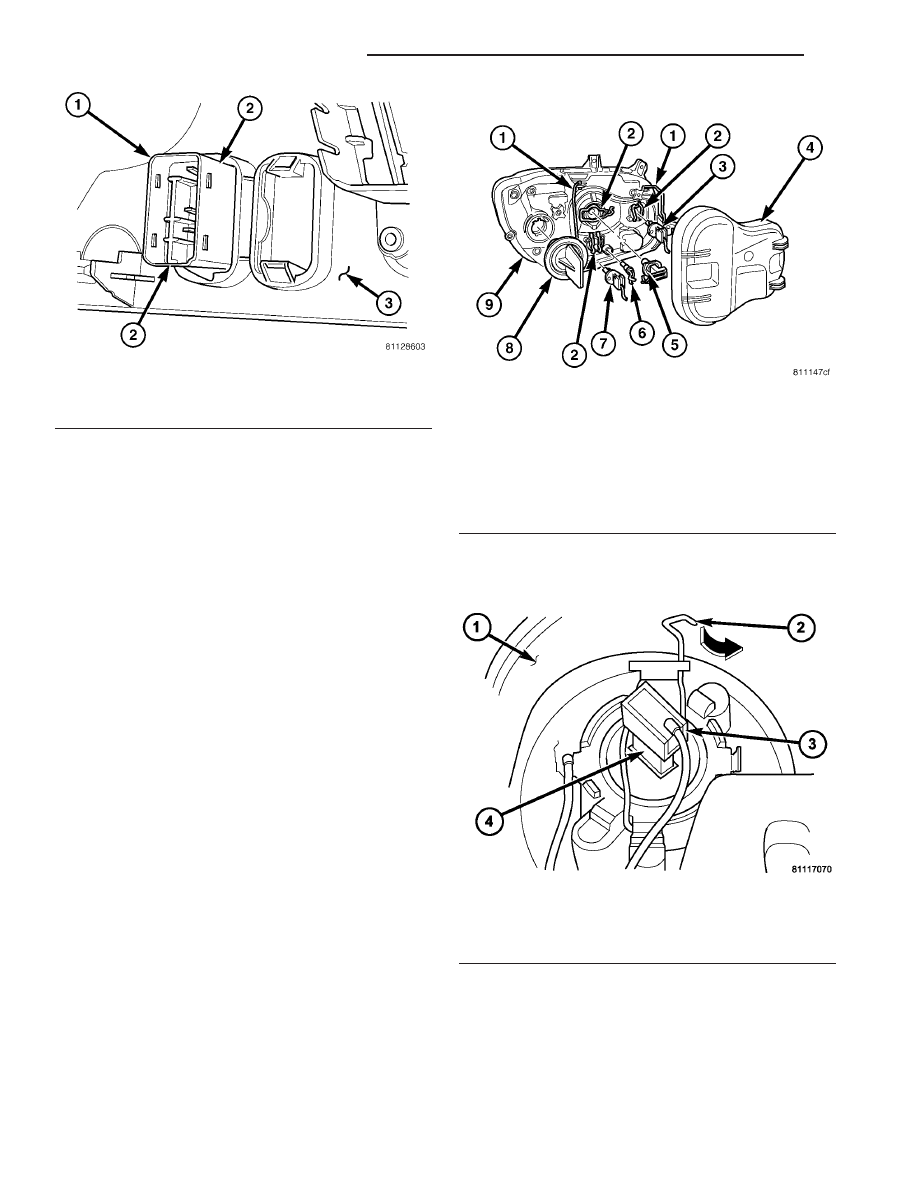

Fig. 30 Headlamp Leveling Switch Remove/Install

1 - SWITCH
2 - LATCH (2)
3 - CLUSTER BEZEL

Fig. 31 Front Lamp Unit Bulbs Remove/Install

1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT

Fig. 32 High Beam Headlamp Bulb Remove/Install

1 - LAMP HOUSING
2 - BULB RETAINER
3 - CONNECTOR
4 - BULB BASE

8L - 18

LAMPS/LIGHTING - EXTERIOR

VA

INSTALLATION

(1) Position the high beam headlamp bulb into the

integral bulb holder on the front lamp unit reflector.
Be certain that the lugs on the bulb base are
engaged in the recesses of the bulb holder (Fig. 31).

(2) Engage the high beam headlamp bulb retainer

by pivoting it over the bulb base, pressing it slightly
outward from the bulb base and toward the front
lamp unit housing, then inward toward the side of
the bulb base.

(3) Reconnect the front lamp unit wire harness

connector to the high beam headlamp bulb base.

(4) Position the front lamp unit rear cover onto the

lamp housing and engage the retainers over each
side of the cover to secure it (Fig. 13).

(5) Reconnect the battery negative cable.

LICENSE PLATE LAMP BULB

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the license plate lamp unit from its

mounting location, but do not disconnect it from the
vehicle wire harness. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - EXTERIOR/LICENSE PLATE
LAMP UNIT - REMOVAL).

(3) Remove the cover from the back of the lamp

housing (Fig. 33).

(4) Grasp the lamp housing firmly in one hand,

then disengage the bulb from between the bulb hold-
ers with the other hand.

INSTALLATION

(1) Grasp the license plate lamp housing firmly in

one hand, then engage the bulb between the bulb
holders with the other hand (Fig. 33).

(2) Reinstall the cover onto the back of the lamp

housing.

(3) Reinstall the license plate lamp unit to its

mounting location. (Refer to 8 - ELECTRICAL/
LAMPS/LIGHTING - EXTERIOR/LICENSE PLATE
LAMP UNIT - INSTALLATION).

(4) Reconnect the battery negative cable.

LICENSE PLATE LAMP UNIT

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Using hand pressure, press the right side of

the license plate lamp housing toward the left
against the spring pressure of the retaining clip, then
pull the right side of the lamp downward to disen-
gage it from the mounting hole (Fig. 34).

(3) Pull the license plate lamp housing slightly to

the right to disengage the left side of the unit from
the mounting hole.

(4) Disconnect the one or two vehicle wire harness

connections from the terminals on the back of the
license plate lamp unit.

(5) Remove the license plate lamp unit from the

vehicle.

INSTALLATION

(1) Position the license plate lamp unit to the

mounting hole on the vehicle (Fig. 34).

(2) Reconnect the one or two vehicle wire harness

connections to the terminals on the back of the
license plate lamp unit.

(3) Engage the left side of the license plate lamp

unit into the left side of the mounting hole.

(4) Using hand pressure, press the right side of

the license plate lamp housing toward the left
against the spring pressure of the retaining clip, then

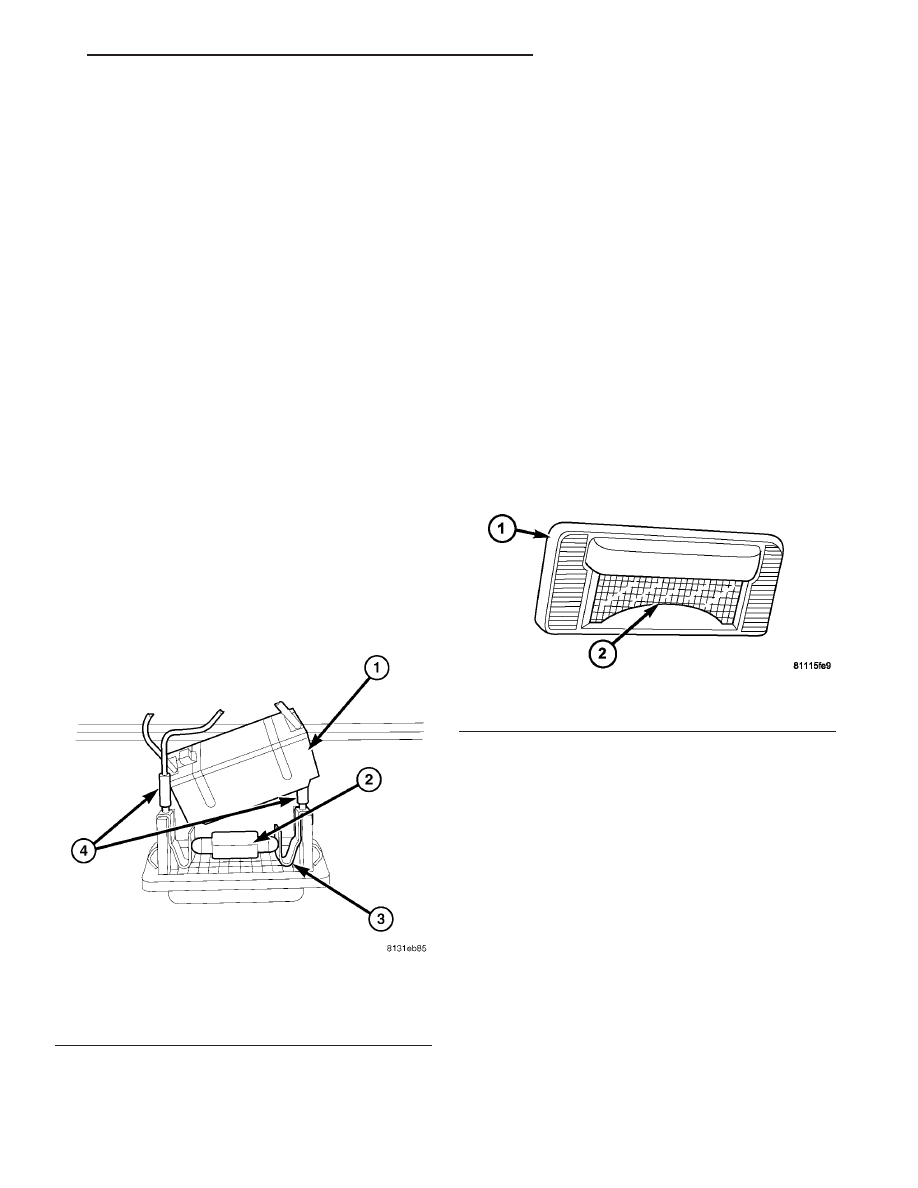

Fig. 33 License Plate Lamp Bulb Remove/Install

1 - COVER
2 - BULB
3 - BULB HOLDER (2)
4 - WIRE HARNESS CONNECTOR (1 or 2)

Fig. 34 License Plate Lamp Unit Remove/Install

1 - LAMP HOUSING
2 - LENS

VA

LAMPS/LIGHTING - EXTERIOR

8L - 19

push the right side of the lamp upward to engage it
into the right side of the mounting hole.

(5) Reconnect the battery negative cable.

LOW BEAM HEADLAMP BULB

REMOVAL

(1) Disconnect and isolate the battery negative

cable.

(2) Disengage and swing the retainers that secure

the front lamp unit rear cover to each side of the
lamp housing and remove the cover (Fig. 35).

(3) Disconnect the front lamp unit wire harness

connector from the low beam headlamp bulb base
(Fig. 36).

(4) Disengage

the

low

beam

headlamp

bulb

retainer by pushing it slightly toward the front lamp
unit housing and downward from the bulb base, then
pivot the retainer off of the bulb base.

(5) Remove the low beam headlamp bulb from the

integral bulb holder on the front lamp unit reflector.

INSTALLATION

(1) Position the low beam headlamp bulb into the

integral bulb holder on the front lamp unit reflector.
Be certain that the lugs on the bulb base are
engaged in the recesses of the bulb holder (Fig. 36).

(2) Engage the low beam headlamp bulb retainer

by pivoting it over the bulb base, pressing it slightly
toward the front lamp unit housing and upward
toward the side of the bulb base.

(3) Reconnect the front lamp unit wire harness

connector to the low beam headlamp bulb base.

(4) Position the front lamp unit rear cover onto the

lamp housing and engage the retainers over each
side of the cover to secure it (Fig. 35).

(5) Reconnect the battery negative cable.

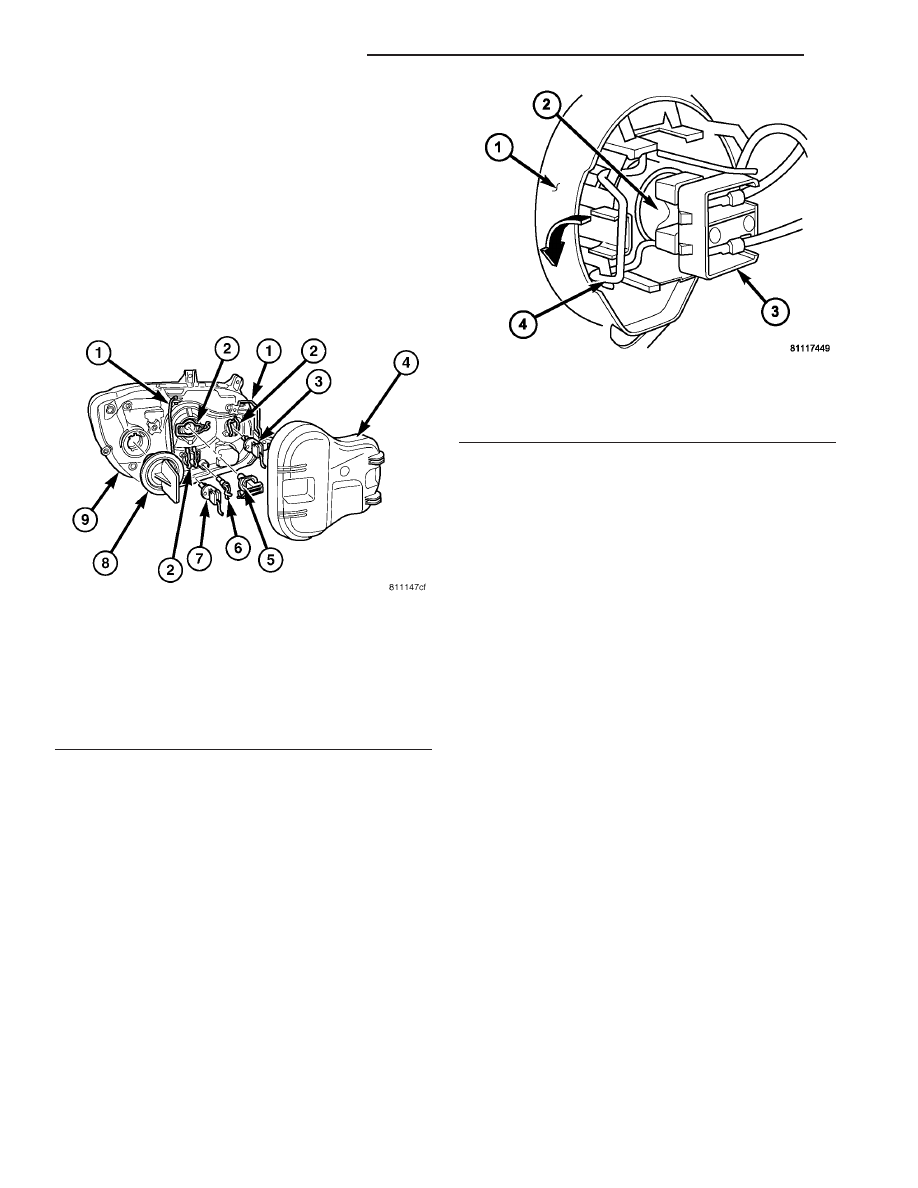

Fig. 35 Front Lamp Unit Bulbs Remove/Install

1 - COVER RETAINER (2)
2 - BULB RETAINER (3)
3 - FOG LAMP BULB (OPTIONAL)
4 - COVER
5 - LOW BEAM BULB
6 - POSITION BULB
7 - HIGH BEAM BULB
8 - TURN/PARK/SIDE MARKER BULB
9 - FRONT LAMP UNIT

Fig. 36 Low Beam Headlamp Bulb Remove/Install

1 - LAMP HOUSING
2 - BULB BASE
3 - CONNECTOR
4 - BULB RETAINER

8L - 20

LAMPS/LIGHTING - EXTERIOR

VA
