by the NLGI. All approved products have the NLGI
symbol (Fig. 1) on the label. At the bottom NLGI
symbol is the usage and quality identification letters.
Wheel bearing lubricant is identified by the letter
“G”. Chassis lubricant is identified by the latter “L”.
The letter following the usage letter indicates the
quality of the lubricant. The following symbols indi-
cate the highest quality.

When service is required, DaimlerChrysler Corpo-

ration recommends that only MOPAR

t brand parts,

lubricants and chemicals be used. MOPAR

t provides

the

best

engineered

products

for

servicing

DaimlerChrysler Corporation vehicles.

AUTOMATIC TRANSMISSION FLUID - NAG1

NOTE: Refer to Service Procedures in this group for
fluid level checking procedures.

Use ATF approved to MB 236.10, MB 236.12, such

as Shell ATF 3403/M-115, MOPAR

t part number

05127382AA, Fuchs/Shell ATF 3353, or equivalent.

Automatic Transmission Fluid (ATF) is red in color

when new. The ATF is dyed red so it can be identified
from other fluids used in the vehicle such as engine
oil or antifreeze. The red color is not permanent and
is not an indicator of fluid condition. As the vehicle is
driven, the ATF will begin to look darker in color and
may eventually become brown. This is normal.

FLUID ADDITIVES

DaimlerChrysler strongly recommends against the

addition of any fluids to the transmission, other than
those automatic transmission fluids listed above.
Exceptions to this policy are the use of special dyes
to aid in detecting fluid leaks.

Various “special” additives and supplements exist

that claim to improve shift feel and/or quality. These
additives and others also claim to improve converter
clutch operation and inhibit overheating, oxidation,
varnish, and sludge. These claims have not been sup-
ported to the satisfaction of DaimlerChrysler and
these additives must not be used. The use of trans-
mission “sealers” should also be avoided, since they
may adversely affect the integrity of transmission
seals.

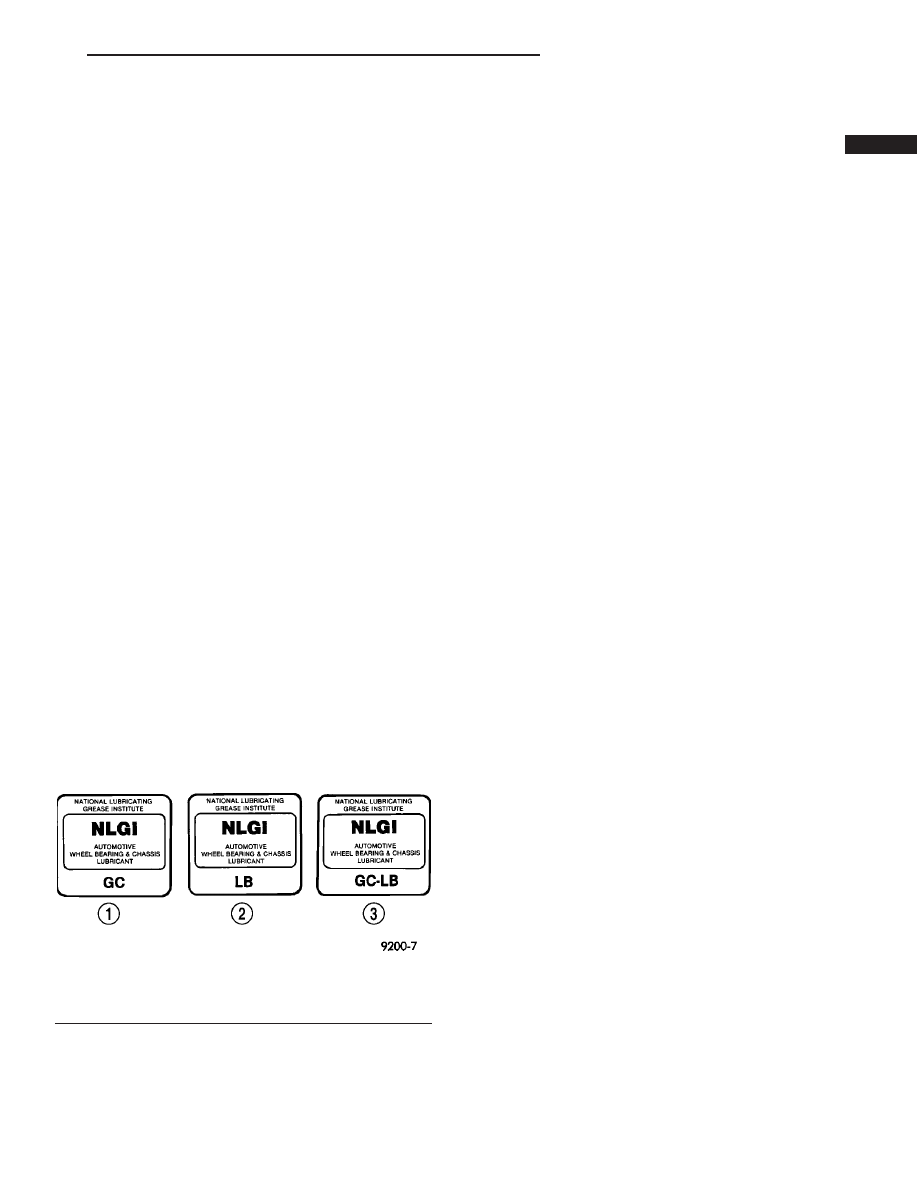

Fig. 1 NLGI Symbol

1 - WHEEL BEARINGS
2 - CHASSIS LUBRICATION
3 - CHASSIS AND WHEEL BEARINGS

LUBRICATION & MAINTENANCE

0 - 1

AXLE FLUID

Use oils approved to MB 235.0 or 235.6, such as

Shell Spirax MB90, Caltex Hypoid LD, or MOPAR

part number 4874469, or equivalent. An API GL-5/
MIL-2105-E SAE 90 Hypoid Gear Oil may be substi-
tuted. Reduced axle durability may result if an
unapproved product is used.

BRAKE FLUID

Use brake fluid approved to MB 331.0, such as

Intac B026D, MOPAR

t Brake & Clutch Fluid, part

number 04549625AC, or equivalent. If the approved
product is not available, use a DOT 4 brake fluid:
minimum dry boiling point (ERBP) 500°F, minimum
wet boiling point (WERBP) 356°F, maximum viscos-
ity 1500 mm

/s, conforming to FMVSS 116 and ISO

4925.

HOAT COOLANT

WARNING: ANTIFREEZE IS AN ETHYLENE-GLYCOL
BASE COOLANT AND IS HARMFUL IF SWAL-
LOWED OR INHALED. IF SWALLOWED, DRINK
TWO GLASSES OF WATER AND INDUCE VOMIT-
ING. IF INHALED, MOVE TO FRESH AIR AREA.
SEEK MEDICAL ATTENTION IMMEDIATELY. DO NOT
STORE IN OPEN OR UNMARKED CONTAINERS.
WASH SKIN AND CLOTHING THOROUGHLY AFTER
COMING IN CONTACT WITH ETHYLENE-GLYCOL.
KEEP OUT OF REACH OF CHILDREN. DISPOSE OF
GLYCOL BASE COOLANT PROPERLY, CONTACT
YOUR DEALER OR GOVERNMENT AGENCY FOR
LOCATION OF COLLECTION CENTER IN YOUR
AREA. DO NOT OPEN A COOLING SYSTEM WHEN
THE ENGINE IS AT OPERATING TEMPERATURE OR
HOT UNDER PRESSURE, PERSONAL INJURY CAN
RESULT. AVOID RADIATOR COOLING FAN WHEN
ENGINE COMPARTMENT RELATED SERVICE IS
PERFORMED, PERSONAL INJURY CAN RESULT.

CAUTION: Use of Propylene-Glycol based coolants
is not recommended, as they provide less freeze
protection and less corrosion protection.

The cooling system is designed around the coolant.

The coolant must accept heat from engine metal, in
the cylinder head area near the exhaust valves and
engine block. Then coolant carries the heat to the
radiator where the tube/fin radiator can transfer the
heat to the air.

The use of aluminum cylinder blocks, cylinder

heads, and water pumps requires special corrosion
protection. Use coolant approved to MB 325.0, such
as EURO Peak Coolant/Anti-freeze (OLD WORLD
INDUSTRIES), Zerex G05 or G48 (The Valvoline
Company), Glysantin G05 (BASF AG), MOPAR

t part

number 05066386AA, or an equivalent Extended Life

Coolant with the HOAT inhibitor system. This cool-
ant offers the best engine cooling without corrosion
when mixed with 50% anti-freeze and 50% distilled
water to obtain a freeze point of -37°C (-34°F). If it
loses color or becomes contaminated, drain, flush,
and replace with fresh properly mixed coolant solu-
tion.

CAUTION: This coolant may not be mixed with any
other type of antifreeze. Mixing of coolants other
than specified (non-HOAT), may result in engine
damage that may not be covered under the new
vehicle warranty, and decreased corrosion protec-
tion.

CAUTION: Do not use coolant additives that are
claimed to improve engine cooling.

COOLANT PERFORMANCE

The required ethylene-glycol (antifreeze) and water

mixture depends upon climate and vehicle operating
conditions. The coolant performance of various mix-
tures follows:

Pure Water-Water can absorb more heat than a

mixture of water and ethylene-glycol. This is for pur-
pose of heat transfer only. Water also freezes at a
higher temperature and allows corrosion.

100

percent

Ethylene-Glycol-The

corrosion

inhibiting additives in ethylene-glycol need the pres-
ence of water to dissolve. Without water, additives
form deposits in system. These act as insulation
causing temperature to rise. The increased tempera-
ture can result in engine detonation. In addition, 100
percent ethylene-glycol freezes at -22°C (-8°F).

50/50 Ethylene-Glycol and Water-Is the recom-

mended mixture, it provides protection against freez-
ing to -37°C (-34°F). The antifreeze concentration
must always be a minimum of 44 percent, year-
round in all climates. If percentage is lower, engine
parts may be eroded by cavitation. Maximum protec-
tion against freezing is provided with a 68 percent
antifreeze concentration, which prevents freezing
down to -67.7°C (-90°F). A higher percentage will
freeze at a warmer temperature. Also, a higher per-
centage of antifreeze can cause the engine to over-
heat because specific heat of antifreeze is lower than
that of water.

CAUTION: Richer antifreeze mixtures cannot be
measured with normal field equipment and can
cause problems associated with 100 percent ethyl-
ene-glycol.

0 - 2

LUBRICATION & MAINTENANCE

ENGINE OIL - DIESEL ENGINES

SAE VISCOSITY GRADE

CAUTION: Low viscosity oils must have the proper
API quality.

Only use engine oils that are labeled on the con-

tainer as meeting API (American Petroleum Insti-
tute)

and/or

DaimlerChrysler

specifications

228.3, 228.5, 229.3, and 229.5, such as MOPAR

t SAE

15W-40 HD Diesel Engine Oil (e.g. MOPAR

t Part

No. 03798231AD), or equivalent.

Do not add any materials (other than leak detec-

tion dyes) to the engine oil. Engine oil is an engi-
neered product and it’s performance may be impaired
by supplemental additives.

When topping off engine oil, only use oil of the

same quality grade and SAE classification.

Always refer to the following viscosity chart for the

proper viscosity grade based on ambient tempera-
ture. Select oil viscosity according to the lowest air
temperature expected before the next oil change.

The temperature limits given for the different SAE

classes should be regarded as guidelines which may
be exceeded temporarily to avoid excessively frequent
engine oil changes.

The following engine oils have been determined to

meet DaimlerChrysler requirements:

DaimlerChrysler

Approved En-

gine Oil

SAE Rating

MB Sheet

Number

76 Pure Syn-

thetic Motor Oil

5W-40

229.3

76 Royal Triton

QLT

15W-40

228.3

Agip All Guard

Motor Oil

15W-40

228.3

DaimlerChrysler

Approved En-

gine Oil

SAE Rating

MB Sheet

Number

Agip Eurosport

5W-40

229.3

Agip Synthetic

5W-40

229.3

Akron Ultra

Clear C1-4 (1)

15W-40

228.3

BP Vanellus C6

Global Plus

10W-40

228.3

Brad Penn Eu-

ro-Diesel LD

15W-40

228.3

Castrol Elixion

(1)

5W-40

228.5

Castrol Tection

S (1)

15W-40

228.3

Chevron Delo

400 Multigrade

15W-40

228.3

Diesel Special

Benz M&A

15W-40

228.3

Dislub Premium

15W-40

228.3

Exxon XD-3

Extra (1)

15W-40

228.3

FormulaShell

Ultra

5W-40

229.3

FormulaShell

Ultra AB

5W-30

229.5

Gonher Super

Fleet MB-III

15W-40

228.3

Hydroclear

Power-D En-

gine Oil

15W-40

228.3

IDO Premium

15W-40

228.3

Kendall GT-1

Full Synthetic

Motor Oil

5W-40

229.3

Long Life EF

Diesel Engine
Oil Multigrade

15W-40

228.3

Lubral Super
Diesel MB-III

15W-40

228.3

Max Raloy Die-

sel

5W-30

228.5

MB Motorenöl

000 989 60 01

10W-40

228.5

Mexlub CF-4

MB-3P

15W-40

228.3

Mobil 1 0W-40

0W-40

229.5

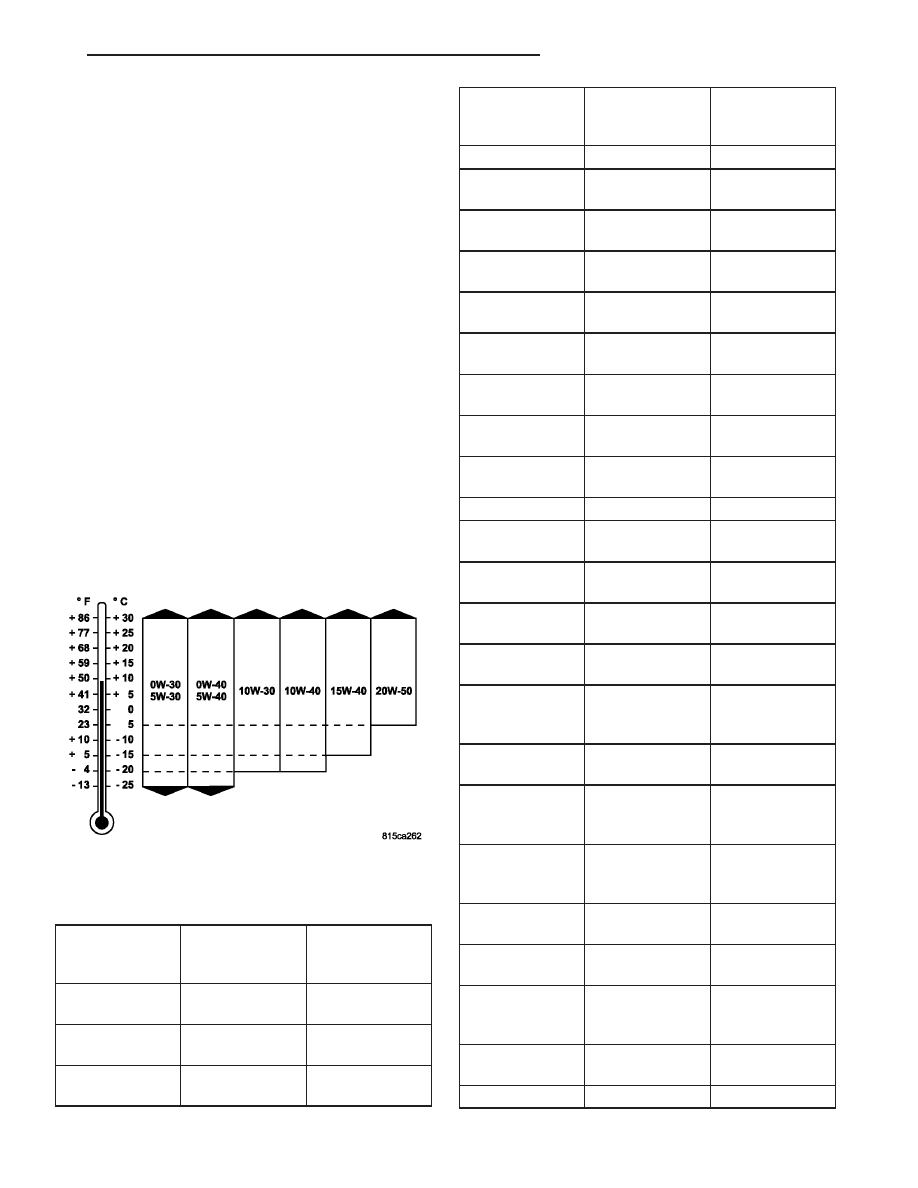

OIL VISCOSITY CHART

LUBRICATION & MAINTENANCE

0 - 3

DaimlerChrysler

Approved En-

gine Oil

SAE Rating

MB Sheet

Number

Mobil Delvac 1

5W-40

228.5

Mobil Delvac

1300 Super (1)

15W-40

228.3

Mobil SHC For-

mula MB

5W-30

229.5

MOPAR

Part

No.

04798231AD

15W-40

228.3

Motul 8100 E-

Tech 0W-40

0W-40

229.3

Motul 8100 X-

cess 5W-40

5W-40

229.3

Panolin Indy SV

5W-40

229.3

Pennzoil Euro-

pean Formula

Ultra

5W-30

229.5

Pennzoil Syn-

thetic European

Formula

5W-40

229.3

Premium Syn-

thetik Motorenöl

5W-30

229.5

QS Superfleet

15W-40

228.3

Quaker State

European For-

mula Ultra

5W-30

229.5

Quaker State

Full Synthetic

European For-

mula

5W-40

229.3

Quaker State

Super Series III

(1)

15W-40

228.3

Raloy Diesel

Turbo MX

15W-40

228.3

Raloy Motor

Diesel

15W-40

228.3

Repsol Turbo

UHPD

10W-40

228.5

Roshfrans Vol-

tro Diesel (1)

15W-40

228.3

Shell Helix Ultra

5W-30

229.3

Shell Helix Ultra

5W-40

229.3

Shell Rimula X

CH-4

15W-40

228.3

Shell Rimula X

CH-4

20W-50

228.3

DaimlerChrysler

Approved En-

gine Oil

SAE Rating

MB Sheet

Number

Shell Rotella T

Multigrade (1)

15W-40

228.3

Super Diesel

Oil MB-3

15W-40

228.3

Supreme Duty

Diesel Engine

Oil Multi- grade

15W-40

228.3

Unoil GX-7

5W-40

229.3

Ursa Premium

TDX

10W-30

228.3

Ursa Premium

TDX

15W-40

228.3

Valvoline Syn-

Power MXL

0W-30

229.3

(1) Engine oil also meets API classification CI-4.

Other oils may meet requirements - see oil label to

determine

Use of the approved fluid is required if the

ASSYST Oil Service Reminder is followed. Use of a
lower quality oil on this service schedule may cause
severe engine damage.

FUEL REQUIREMENTS - DIESEL ENGINE

WARNING: Do not use alcohol or gasoline as a fuel
blending agent. They can be unstable under certain
conditions and hazardous or explosive when mixed
with diesel fuel.

Use only commercially available vehicular diesel

fuels No. 2 or No. 1 (ASTM D 975 No. 2-D or No.
1-D).

NOTE: Because of its better quality, the manufac-
turer recommends the use of commercially avail-
able vehicular diesel fuel No. 2.

DIESEL FUELS FOR USE AT VERY LOW TEMPERA-
TURE

At very low temperatures, the fluidity of No. 2 die-

sel fuel may become insufficient due to paraffin sep-
eration. For this reason, the vehicle comes equipped
with a fuel preheater. It permits trouble free engine
operation to a temperature of approximately 14°F
(-10°C) when using No. 2 diesel fuel.

To avoid malfunctions, No. 2 diesel fuel of a low-

ered cloud point is marketed during the cold season.

At temperatures below 14 °F (-10 °C) use winter-

ized or No. 1 diesel fuel only.

0 - 4

LUBRICATION & MAINTENANCE

Content .. 168 169 170 171 ..
