Payload

is the combination weight of cargo and passengers that the vehicle is designed to

carry. The maximum payload for your vehicle can be found on the Tire and Load
Information label on the driver's door frame or door pillar. Look for “THE COMBINATION
WEIGHT OF OCCUPANTS AND CARGO SHOULD NEVER EXCEED XXX kg or XXX
lbs” for your maximum payload. The payload listed on the tire label is the maximum
payload for the vehicle as built by the assembly plant. If any aftermarket or dealer installed
equipment has been installed on the vehicle, the weight of the equipment must be subtracted
from the payload listed on the tire label in order to be accurate.

SAMPLE

CARGO

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-37

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Cargo Weight

includes all weight added to the Base Curb Weight, including cargo and

optional equipment. When towing, trailer tongue load or king pin weight is also part of
cargo weight.

The cargo weight limit decreases depending on the number of vehicle occupants. The cargo
weight limit can be calculated by subtracting the total weight of the vehicle occupants from
the “combination weight of occupants and cargo should never exceed” value on the tire
label.

Examples: Based on a single occupant weight of 68 kg (150 lbs), and a value of 385 kg (849
lbs) for the “combination weight of occupants and cargo should never exceed”:
The cargo weight limit with one occupant is 385 kg (849 lbs)

－

68 kg (150 lbs) = 317 kg

(699 lbs)
The cargo weight limit with two occupants is 385 kg (849 lbs)

－

(68 × 2) kg ( (150 × 2)

lbs) = 249 kg (549 lbs)
If the weight of the occupant increases, the cargo weight limit decreases by that much.

GAW (Gross Axle Weight)

is the total weight placed on each axle (front and rear) -

including vehicle curb weight and all payload.

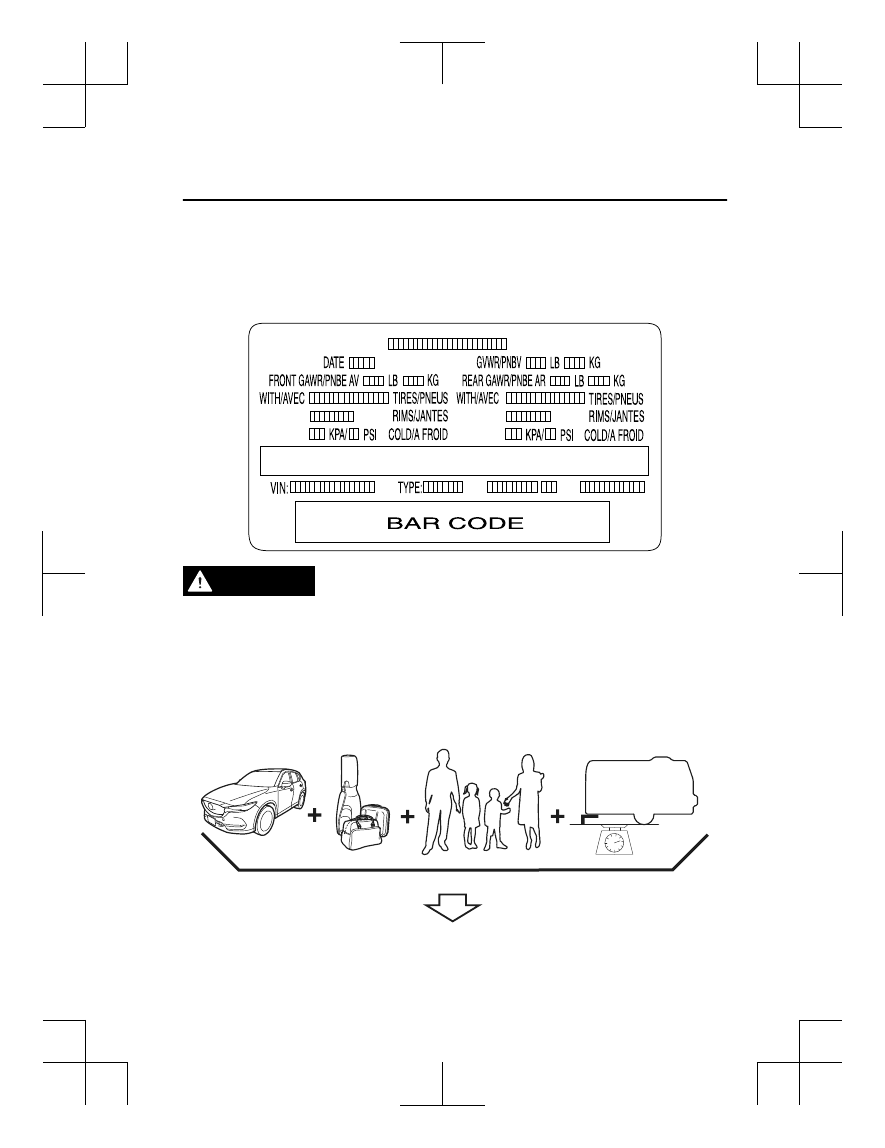

GAWR (Gross Axle Weight Rating)

is the maximum allowable weight that can be carried

by a single axle (front or rear).

These numbers are shown on the Safety Compliance

Certification Label located on the driver's door frame or door pillar. The total load on
each axle must never exceed its GAWR.

GVW

GVW (Gross Vehicle Weight)

is the Vehicle Curb Weight cargo passengers.

GVWR (Gross Vehicle Weight Rating)

is the maximum allowable weight of the fully

loaded vehicle (including all options, equipment, passengers and cargo).

The GVWR is

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-38

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

shown on the Safety Compliance Certification Label located on the driver's door
frame or door pillar. The GVW must never exceed the GVWR.

SAMPLE

WARNING

Never Exceed Axle Weight Rating Limits:

Exceeding the Safety Certification Label axle weight rating limits is dangerous and could
result in death or serious injury as a result of substandard vehicle handling, performance,
engine, transmission and/or structural damage, serious damage to the vehicle, or loss of
control.
Always keep the vehicle within the axle weight rating limits.

GCW

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-39

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

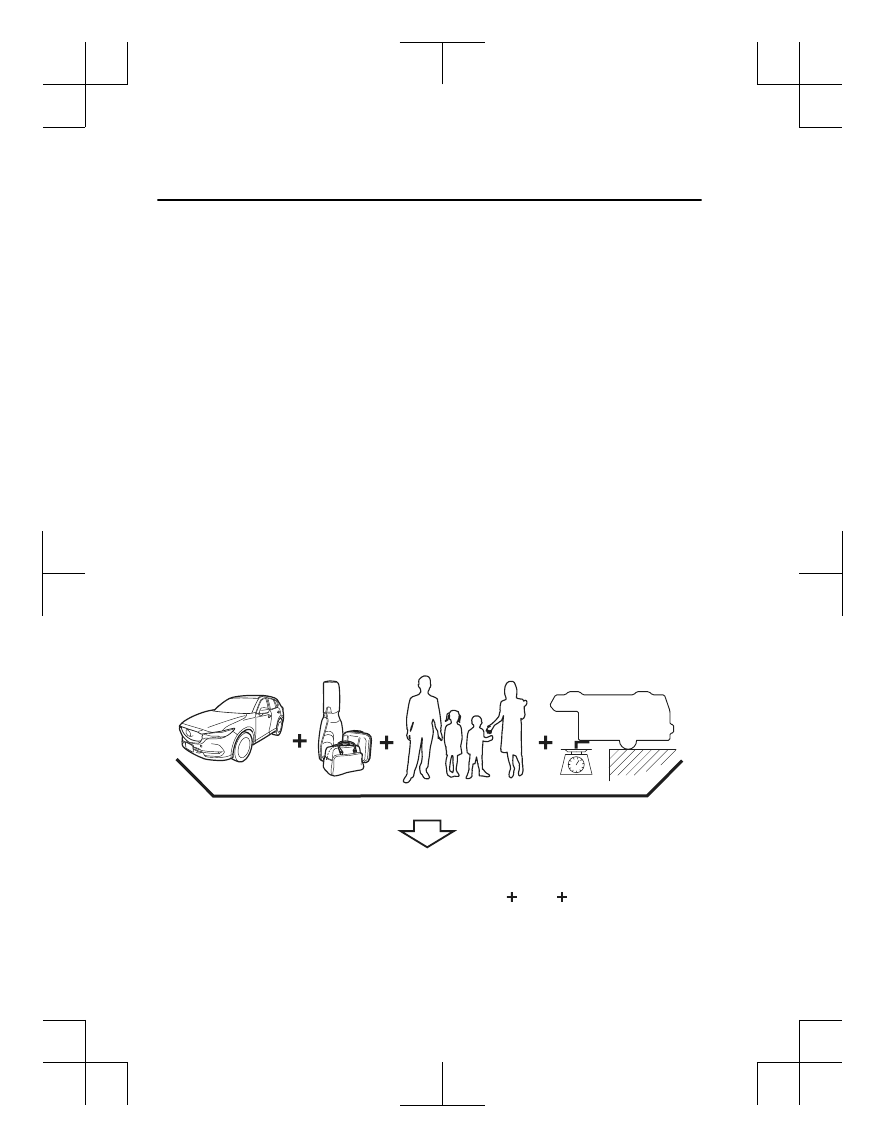

GCW (Gross Combination Weight)

is the weight of the loaded vehicle (GVW) plus the

weight of the fully loaded trailer.

GCWR (Gross Combination Weight Rating)

is the maximum allowable weight of the

vehicle and the loaded trailer - including all cargo and passengers - that the vehicle can
handle without risking damage. (Important: The towing vehicle's braking system is rated for
operation at GVWR, not at GCWR. Separate functional brakes should be used for safe
control of towed vehicles and for trailers weighing more than 1,500 lbs).

The GCW must

never exceed the GCWR.

Maximum Loaded Trailer Weight

is the highest possible weight of a fully loaded trailer

the vehicle can tow. It assumes a vehicle with only mandatory options, no cargo (internal or
external), a tongue load of 10

－

15% (conventional trailer) or king pin weight of 15

－

25%

(fifth-wheel trailer), and driver only (150 lbs).

Consult your dealership (or the RV and

Trailer Towing Guide provided by your dealership) for more detailed information.
Tongue Load or Fifth-Wheel King Pin Weight

refers to the amount of the weight that a

trailer pushes down on a trailer hitch.

Examples:

For a 5000 lb conventional trailer, multiply 5000 by 0.10 and 0.15 to obtain a

proper tongue load range of 500 to 750 lbs. For an 11,500 lb fifth-wheel trailer, multiply by
0.15 and 0.25 to obtain a proper king pin load range of 1,725 to 2,875 lbs.

WARNING

Never Exceed GVWR or GAWR Specifications:

Exceeding the GVWR or the GAWR specified on the certification label is dangerous. Exceeding
any vehicle rating limitation could result in a serious accident, injury, or damage to the
vehicle.
Do not use replacement tires with lower load carrying capacities than the originals because
they may lower the vehicle's GVWR and GAWR limitations. Replacement tires with a higher
limit than the originals do not increase the GVWR and GAWR limitations.
Never exceed the GVWR or the GAWR specified on the certification label.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-40

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Steps for Determining the Correct Load Limit

Steps for Determining Correct Load Limit-
(1) Locate the statement “The combined weight of occupants and cargo should never

exceed XXX kg or XXX lbs.” on your vehicle's placard.

(2) Determine the combined weight of the driver and passengers that will be riding in your

vehicle.

(3) Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs.
(4) The resulting figure equals the available amount of cargo and luggage load capacity. For

example, if the “XXX” amount equals 1400 lbs. and there will be five 150 lb passengers
in your vehicle, the amount of available cargo and luggage load capacity is 650 lbs.
(1400

－

750 (5 × 150) = 650 lbs.)

(5) Determine the combined weight of luggage and cargo being loaded on the vehicle. That

weight may not safely exceed the available cargo and luggage load capacity calculated
in Step 4.

(6) If your vehicle will be towing a trailer, load from your trailer will be transferred to your

vehicle. Consult this manual to determine how this reduces the available cargo and
luggage load capacity of your vehicle.

Customer Information and Reporting Safety Defects

Tire Information (U.S.A.)

8-41

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Specifications

Technical information about your Mazda.

Identification Numbers..................... 9-2

Vehicle Identification
Number......................................... 9-2
Motor Vehicle Safety Standard Label
(U.S.A. and Canada).....................9-2

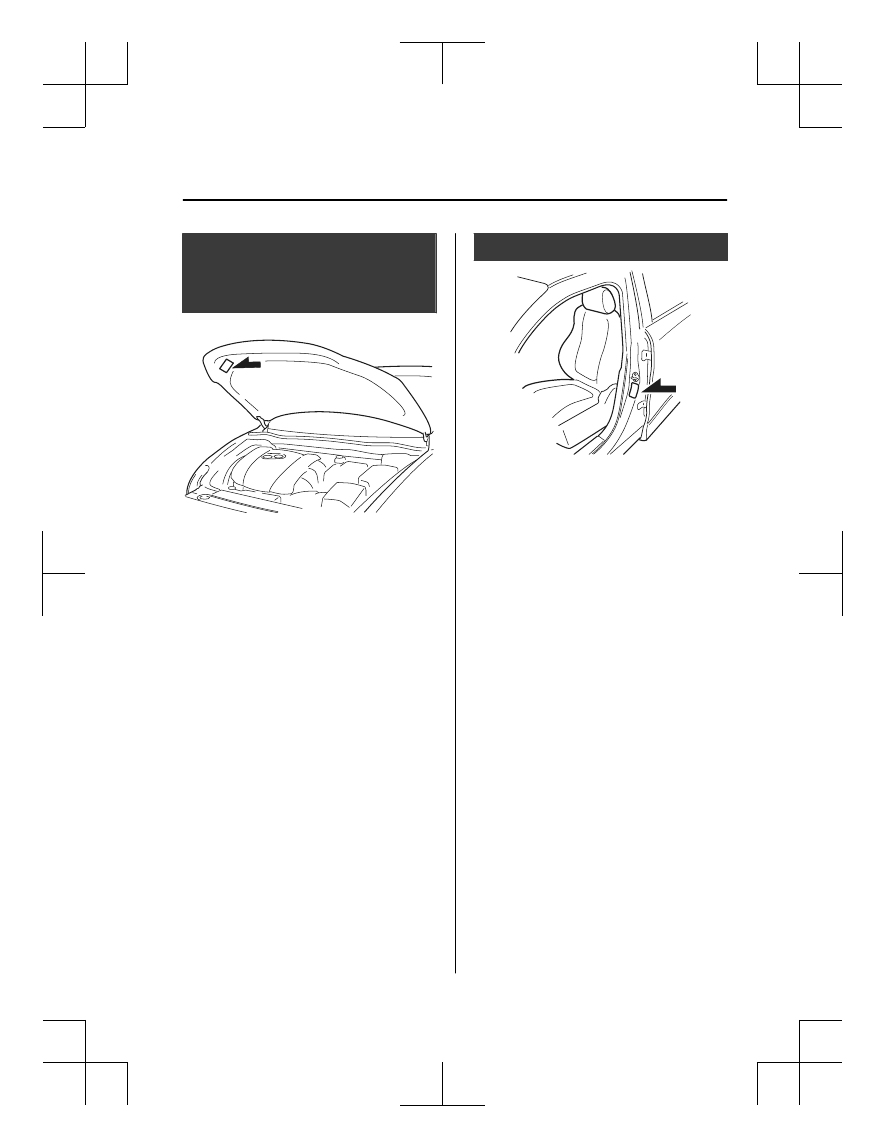

Vehicle Emission Control
Information Label (U.S.A. and
Canada).........................................9-3
Tire Pressure Label.......................9-3
Engine Number.............................9-4

Vehicle Specification..........................9-5

Engine...........................................9-5
Electrical System.......................... 9-6
Lubricant Quality..........................9-7
Capacities..................................... 9-8
Dimensions................................... 9-9
Weights....................................... 9-10
Light Bulbs................................. 9-11
Tires............................................ 9-12

9-1

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

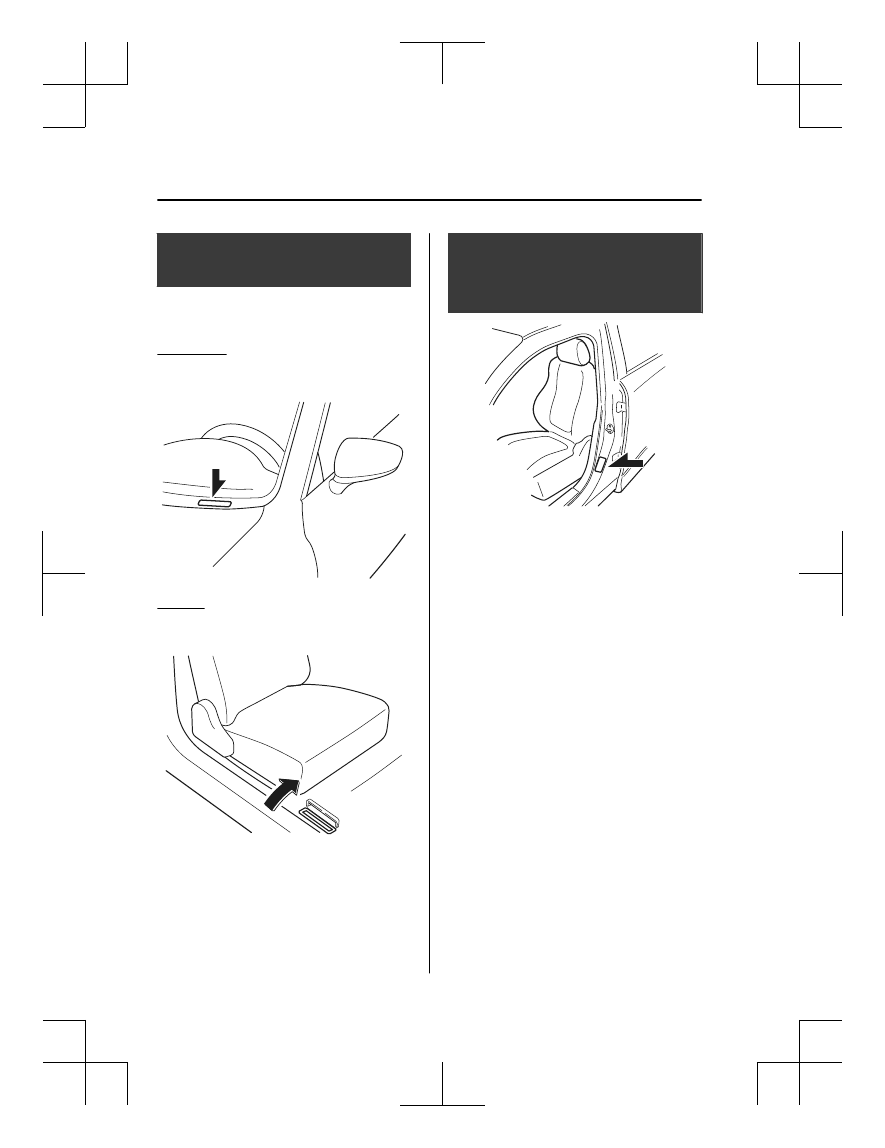

Vehicle Identification

Number

The vehicle identification number legally
identifies your vehicle.

Dashboard

The number is on a plate attached to the
left top side of the dashboard.

Chassis

Open the cover shown in the figure to
check the vehicle identification number.

Motor Vehicle Safety

Standard Label (U.S.A.

and Canada)

Specifications

Identification Numbers

9-2

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Engine

Item

SKYACTIV-G 2.5

SKYACTIV-G 2.5T

Type

DOHC-16V in-line, 4-cylinder

Bore × Stroke

89.0 × 100.0 mm (3.50 × 3.94 in)

Displacement

2,488.5 ml (2,488.5 cc)

Compression ratio

13.0

10.5

Specifications

Vehicle Specification

9-5

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Electrical System

Battery

Classification

U.S.A. and Canada

Mexico

SKYACTIV-G 2.5

S-95

55D23L (12V-60Ah/20HR)

SKYACTIV-G 2.5T

55D23L (12V-60Ah/20HR) or 75D23L (12V-65Ah/

20HR)

1 The battery specification differs depending on the country or region. Check the battery installed on the vehicle

and use a battery with an equal or higher performance. However, the performance of the battery may vary even
among the same battery types, consult an Authorized Mazda Dealer for replacement.

Spark-plug

Classification

Specification

SKYACTIV-G 2.5

U.S.A. and
Canada

Mazda Genuine spark plug

P5SP-18110

Mexico

Mazda Genuine spark plug

PE5R-18-110-A or

PE5S-18-110

SKYACTIV-G 2.5T

Mazda Genuine spark plug

PY8V-18-110

1 The spark plugs provide the SKYACTIV-G its optimum performance. Consult an Authorized Mazda Dealer

for details.

CAUTION

When cleaning the iridium plugs, do not use a wire brush. The fine particulate coating on the
iridium alloy and platinum tips could be damaged.

Specifications

Vehicle Specification

9-6

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Lubricant Quality

Lubricant

U.S.A. and Canada

Mexico

Engine oil

Refer to Recommended Oil on page 6-20.

Coolant

FL-22 type

Automatic transaxle
fluid

SKYACTIV-G
2.5

Mazda Genuine ATF-A7

Mazda Genuine ATF-FZ

SKYACTIV-G
2.5T

Mazda Genuine ATF-FZ

Transfer case oil

Mazda Long Life Hypoid Gear

Oil SG1

―

Rear differential oil

Mazda Long Life Hypoid Gear

Oil SG1

―

Brake fluid

SAE J1703 or FMVSS116 DOT-3

1 Periodic replacement is unnecessary.

2 Replacement is necessary when the component is submerged in water.

NOTE

Refer to Introduction on (page 6-2) for owner's responsibility in protecting your investment.

Specifications

Vehicle Specification

9-7

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Capacities

(Approximate Quantities)

Item

U.S.A. and Canada

Mexico

Engine oil

SKYACTIV-G
2.5

With oil filter
replacement

4.5 L (4.8 US qt, 4.0 Imp qt)

Without oil fil‐
ter replacement

4.3 L (4.5 US qt, 3.8 Imp qt)

SKYACTIV-G
2.5T

With oil filter
replacement

4.8 L (5.1 US qt, 4.2 Imp qt)

Without oil fil‐
ter replacement

4.6 L (4.9 US qt, 4.0 Imp qt)

Coolant

SKYACTIV-G 2.5

7.5 L (7.9 US qt, 6.6 Imp qt)

7.7 L (8.1 US qt, 6.8 Imp qt)

SKYACTIV-G 2.5T

8.5 L (9.0 US qt, 7.5 Imp qt)

Automatic
transaxle
fluid

SKYACTIV-G 2.5

7.1 L (7.5 US qt, 6.2 Imp qt)

7.8 L (8.2 US qt, 6.9 Imp qt)

SKYACTIV-G 2.5T

8.0 L (8.5 US qt, 7.0 Imp qt)

Transfer
case oil

SKYACTIV-G 2.5

0.45 L (0.48 US qt, 0.40 Imp qt)

―

SKYACTIV-G 2.5T

0.40 L (0.42 US qt, 0.35 Imp qt)

―

Rear differential oil

0.35 L (0.37 US qt, 0.31 Imp qt)

―

Fuel tank

58.0 L (15.3 US gal, 12.8 Imp

gal)

56.0 L (14.8 US gal, 12.3 Imp

gal)

Check oil and fluid levels with dipsticks or reservoir gauges.

Specifications

Vehicle Specification

9-8

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Dimensions

Item

Vehicle specification

Overall length

4,575 mm (180.1 in)

Overall width

1,845 mm (72.6 in)

Overall height

1,675 mm (65.9 in)

Front tread

1,596 mm (62.8 in)

Rear tread

1,596 mm (62.8 in)

Wheelbase

2,698 mm (106.2 in)

Specifications

Vehicle Specification

9-9

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Weights

U.S.A. and Canada

SKYACTIV-G 2.5

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,143 kg (4,724 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,100 kg (2,425 lbs)

Rear

1,043 kg (2,299 lbs)

SKYACTIV-G 2.5T

Item

Weight

GVWR (Gross Vehicle Weight Rating)

2,190 kg (4,828 lbs)

GAWR (Gross Axle Weight Rating)

Front

1,145 kg (2,524 lbs)

Rear

1,045 kg (2,304 lbs)

Mexico

SKYACTIV-G 2.5

Item

Weight

Without moonroof

With moonroof

GVW (Gross Vehicle Weight)

Total

2,060 kg (4,542 lbs)

2,110 kg (4,652 lbs)

Front

1,035 kg (2,282 lbs)

1,045 kg (2,304 lbs)

Rear

1,025 kg (2,260 lbs)

1,065 kg (2,348 lbs)

GAW (Permissible axle load)

Front

1,055 kg (2,326 lbs)

1,065 kg (2,348 lbs)

Rear

1,105 kg (2,436 lbs)

1,145 kg (2,524 lbs)

SKYACTIV-G 2.5T

Item

Weight

GVW (Gross Vehicle Weight)

Total

2,115 kg (4,663 lbs)

Front

1,100 kg (2,425 lbs)

Rear

1,015 kg (2,238 lbs)

GAW (Permissible axle load)

Front

1,125 kg (2,480 lbs)

Rear

1,090 kg (2,403 lbs)

Specifications

Vehicle Specification

9-10

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Light Bulbs

Exterior light

All the light bulbs are the LED type.
The LED bulb cannot be replaced. Consult an Authorized Mazda Dealer when the
replacement is necessary.

Interior light

Light bulb

Wattage

UN-R

Overhead light (Front)/Map lights

LED type

LED

―

Bulb type

―

Rear map lights

LED type

LED

―

Bulb type

―

Vanity mirror lights

LED type

LED

―

Bulb type

―

Ambient lights

LED

―

Luggage compartment light

LED type

LED

―

Bulb type

―

1 UN-R stands for United Nations Regulation.

Specifications

Vehicle Specification

*Some models.

9-11

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Tires

NOTE

The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type originally
fitted to your vehicle. For details, contact an Authorized Mazda Dealer.

Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Pressure Label on page 9-3.
Refer to Tire Inflation Pressure on page 6-35.

Standard tire

(U.S.A. and Canada)

Tire size

Front

Rear

P225/65R17 100H

230 kPa (34 psi)

P225/55R19 99V

240 kPa (35 psi)

(Mexico)

Tire size

Up to 3 persons

―Full load

225/65R17 102V

Front

230 kPa (2.3 bar, 33 psi)

260 kPa (2.6 bar, 38 psi)

Rear

230 kPa (2.3 bar, 33 psi)

280 kPa (2.8 bar, 41 psi)

225/55R19 99V

Front

250 kPa (2.5 bar, 36 psi)

260 kPa (2.6 bar, 38 psi)

Rear

250 kPa (2.5 bar, 36 psi)

290 kPa (2.9 bar, 42 psi)

1 person's weight: About 75 kg

Temporary spare tire

(U.S.A. and Canada)

Tire size

Inflation pressure

T145/90D16 106M

１

420 kPa (60 psi)

T155/90D17 101M

420 kPa (60 psi)

1 SKYACTIV-G 2.5

2 SKYACTIV-G 2.5T

(Mexico)

Tire size

Inflation pressure

T155/80R17 100M

420 kPa (4.2 bar, 60 psi)

Lug nut tightening torque

When installing a tire, tighten the lug nut to the following torque.
108―147 N·m (12―14 kgf·m, 80―108 ft·lbf)

Specifications

Vehicle Specification

9-12

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Mazda CX-5 (2024 year). Manual in english - page 20
