Mazda CX-5 (2024 year). Manual in english



Driving on roads with tight curves.



Driving under bad weather conditions (rain, fog, and snow).



Slippery roads such as ice or snow-bound roads.



Roads with heavy traffic and insufficient distance between vehicles.



Roads with no white (yellow) lane lines.



Narrow roads resulting from road construction or lane closures.



The vehicle is driven on a temporary lane or section with a closed lane resulting from road
construction where there may be multiple white (yellow) lane lines or they are interrupted.



Vehicle is driven on roads other than expressways and highways.



The tire pressures are not adjusted to the specified pressure.



The vehicle is being used to tow a camper or boat trailer.



Tires of a different specified size are used, such as an emergency spare tire.

CAUTION

Heed the following cautions so that the LAS & LDWS can operate normally.



Do not modify the suspensions.



Always use wheels of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.

NOTE



When the turn signal lever is operated for a lane change, the LAS & LDWS is
automatically disabled. The LAS & LDWS becomes operational again when the turn
signal lever is returned and the system detects white (yellow) lane lines while the vehicle
is being driven normally within its vehicle lane.



If the steering wheel, accelerator pedal, or brake pedal is operated abruptly and the
vehicle moves close to a white (yellow) line, the system determines that the driver is
making a lane change and the LAS & LDWS operation is temporarily canceled. The LAS
& LDWS becomes operational again when the system detects white (yellow) lane lines
while the vehicle is being driven normally within its vehicle lane.



If the vehicle deviates from its lane repeatedly within a short period of time, the LAS &
LDWS may not operate.



When white (yellow) lane lines are not detected, the LAS & LDWS does not operate.



Under the following conditions, the LAS & LDWS may not be able to detect white (yellow)
lane lines correctly and it may not operate normally.



If an object placed on the dashboard is reflected in the windshield and picked up by the
camera.



Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.

When Driving

i-ACTIVSENSE

4-181

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



The tire pressures are not adjusted to the specified pressure.



Tires other than conventional tires are equipped.



Vehicle is driven on an intersection or junction, or on a forked road.



The white (yellow) lane lines are less visible because of dirt or fading/patchiness.



A vehicle in front of your vehicle is running near a white (yellow) lane line making it
less visible.



A white (yellow) lane line is less visible because of bad weather (rain, fog, or snow).



The vehicle is driven on a temporary lane or section with a closed lane resulting from
construction where there may be multiple white (yellow) lane lines or they are
interrupted.



A misleading line is picked up on the road such as a temporary line for construction, or
because of shade, lingering snow, or grooves filled with water.



The surrounding brightness suddenly changes such as when entering or exiting a
tunnel.



The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.



The windshield is dirty or foggy.



The windshield, camera is fogged (water droplets).



Back-light is reflected off the road surface.



The road surface is wet and shiny after rain, or there are puddles on the road.



The shade of a guardrail parallel to a white (yellow) lane line is cast on the road.



The width of the driving lane is narrow or wide.



Driving on roads with tight curves.



The road is excessively uneven.



The vehicle is shaken after hitting a road bump.



There are 2 or more adjacent white (yellow) lane lines.



There are various road markings or lane markings of various shapes near an
intersection.

▼

System Operation

System operation

When the ignition is switched ON, the system goes on standby.
Drive the vehicle in the center of the vehicle lane while the system is on standby. When all
of the following conditions are met, and the system becomes operational.



The engine is running.



The vehicle speed is about 64 km/h (40 mph) or faster.



The system detects white (yellow) lane lines on both the right and left sides.



The driver is operating the steering wheel.



The driving lane is neither narrow nor wide.



The steering assist function of the Cruising & Traffic Support (CTS) is not operating.

When Driving

i-ACTIVSENSE

4-182

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

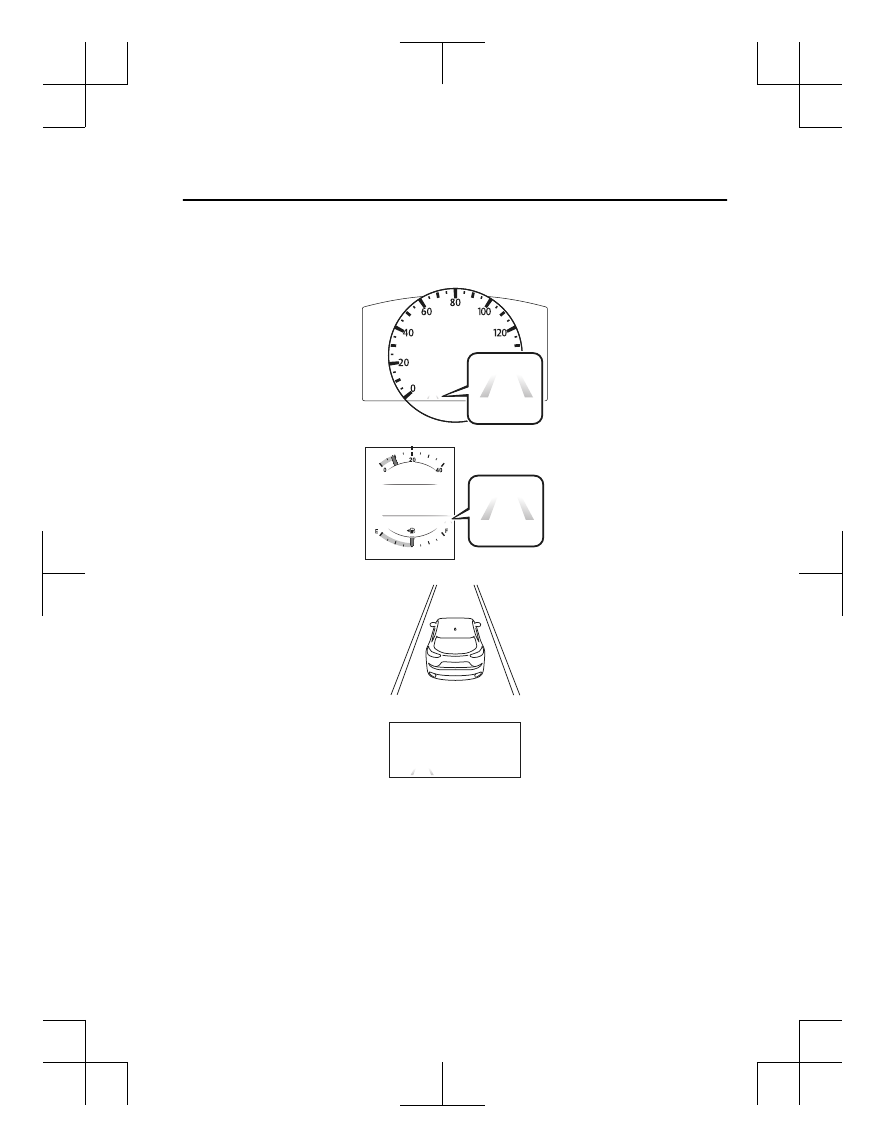

When the system becomes operational, the LAS & LDWS indication (white) is displayed on
the multi-information display and active driving display.

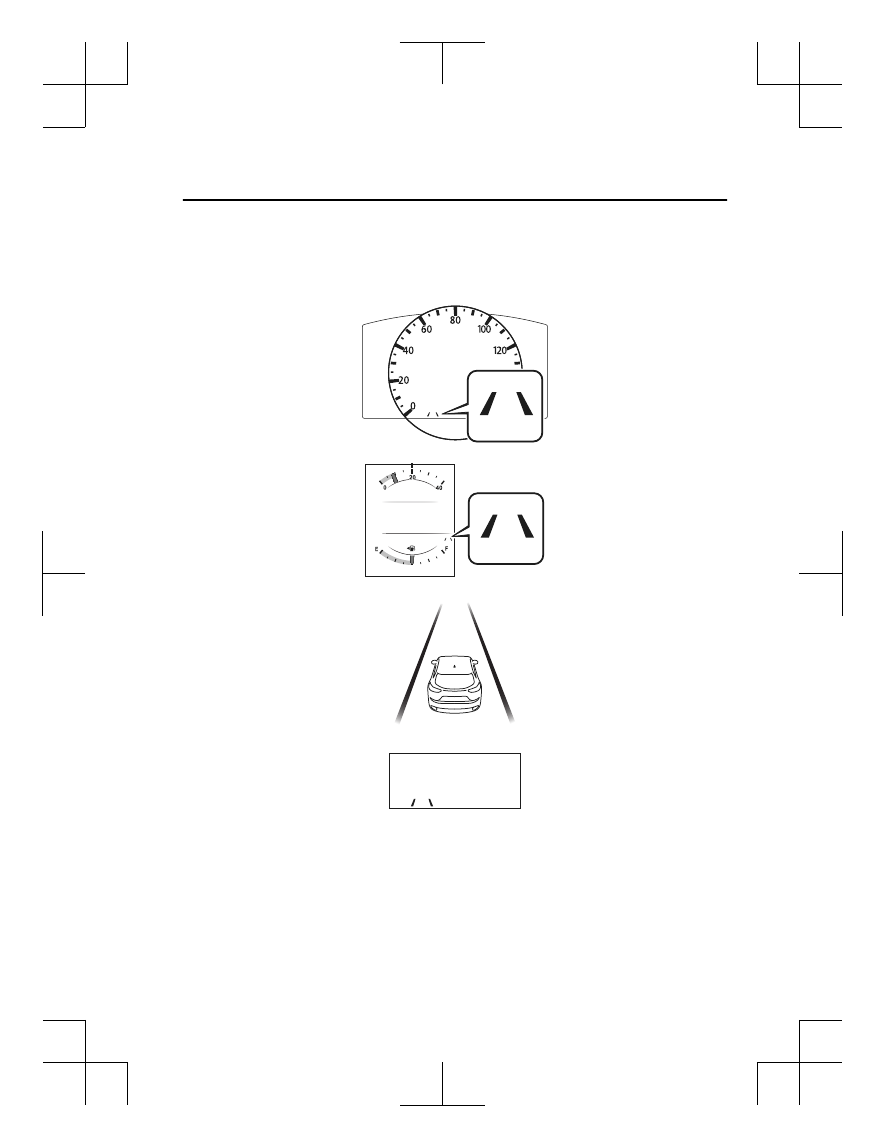

Multi-information display (Basic display)

Instrument Cluster (Type A)

Instrument Cluster (Type B)

Multi-information display (i-ACTIVSENSE display)

Active driving display

The LAS & LDWS goes on stand-by status in the following cases:



The system cannot detect white (yellow) lane lines.



The vehicle speed is less than about 56 km/h (35 mph).



The ABS/TCS is operating.



The TCS is turned off.



The Off-Road Traction Assist is turned on.

When Driving

i-ACTIVSENSE

*Some models.

4-183

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).



The vehicle is making a sharp curve.



The brake pedal is depressed.



The steering wheel is operated abruptly.



The width of a lane is excessively narrow or wide.



The steering assist function of the CTS operated.

NOTE



The LAS & LDWS does not operate until the system detects white (yellow) lane lines on
either the left or right.



When the system detects a white (yellow) lane line on one side only, the system will not
operate the steering wheel operation assist and the warning for the lane line on the side
that is not being detected. The steering wheel operation assist and the warning is only for
a lane deviation on the side that is being detected.



When the system determines that the driver is driving the vehicle with his or her hands off
the steering wheel while the steering wheel operation assist is operating, and if the
condition continues several times within a certain period of time, the warning sound is
activated. The higher the number of times the steering wheel operation assist operates,
the longer the period of time the warning sound is activated.



The timing at which the lane departure warning is activated and the steering wheel
operation assist is performed varies.



The following settings for the LAS & LDWS can be changed. Refer to the Settings section
in the Mazda Connect Owner's Manual.



Steering operation assist operational/non-operational

Vehicle lane line display

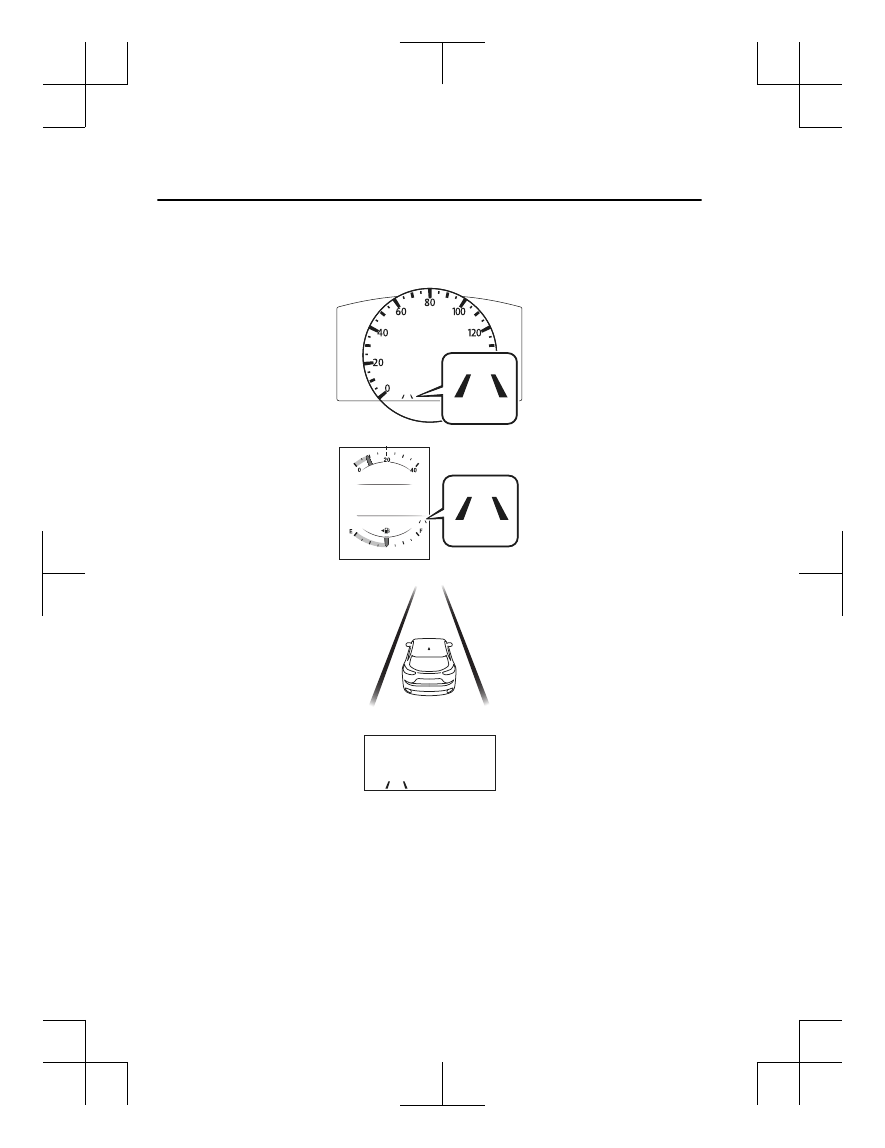

When the LAS & LDWS goes on standby, the vehicle lane lines are indicated on the
multi-information display and the active driving display. When white (yellow) lines on both
the left and right sides are detected and the system becomes operational, the vehicle lane
lines indicated on the multi-information display and the active driving display change to
white.

When Driving

i-ACTIVSENSE

4-184

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

(Operational status)
Multi-information display (Basic display)

Instrument Cluster (Type A)

Instrument Cluster (Type B)

Multi-information display (i-ACTIVSENSE display)

Active driving display

NOTE

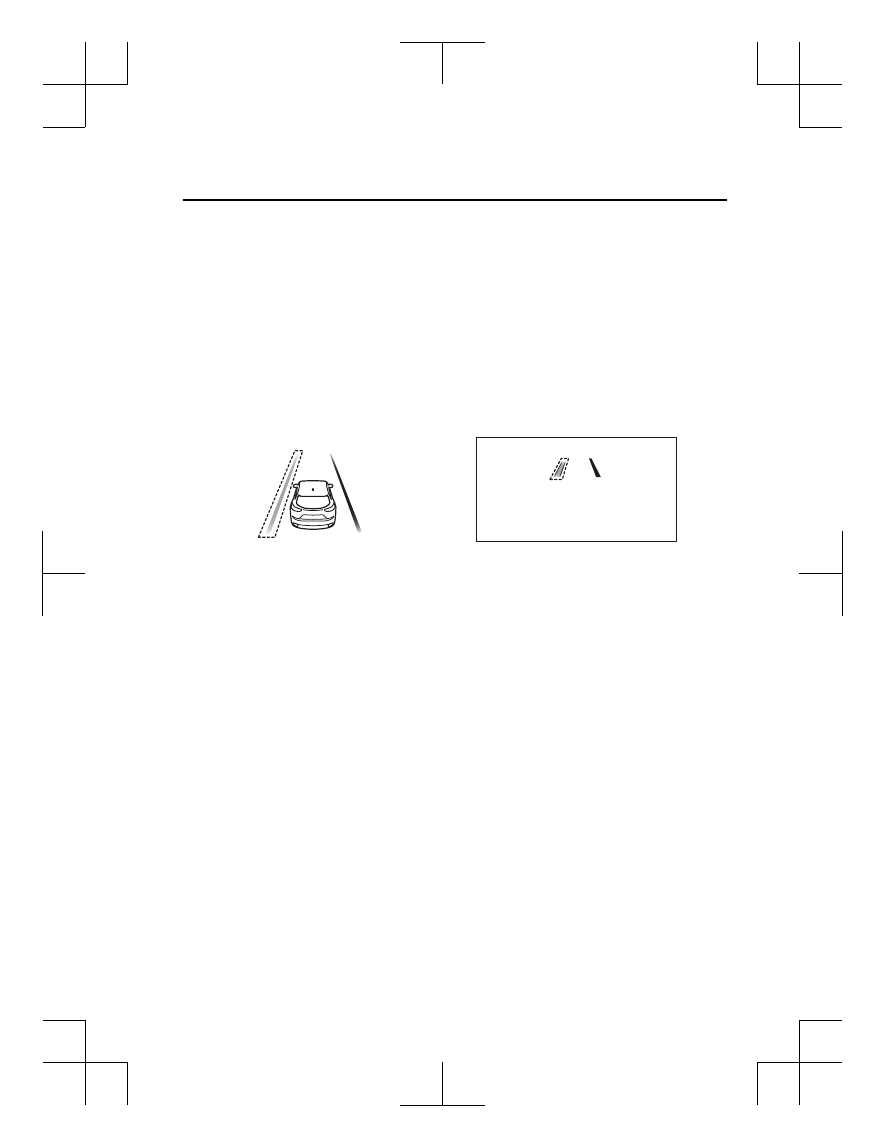

When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display and the active driving display changes to white.

Auto cancel

In the following cases, the LAS & LDWS is automatically canceled, the LAS & LDWS
warning indication (amber) turns on, and an alert is displayed. When the LAS & LDWS
become operational, the system turns back on automatically.

When Driving

i-ACTIVSENSE

4-186

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



The temperature in the Forward Sensing Camera (FSC) is too high or too low.



The windshield around the Forward Sensing Camera (FSC) is foggy.



The windshield around the Forward Sensing Camera (FSC) is blocked by an obstruction,
causing poor forward visibility.

Auto cancel of warning/steering assist

When the following operations are performed, the LAS & LDWS operation is canceled
automatically. The LAS & LDWS resumes automatically after the operation.



The steering wheel is operated abruptly.



The brake pedal is operated.



The accelerator pedal is operated.



The turn signal lever is operated.



The vehicle crosses a lane line.

NOTE



After the operation, the LAS & LDWS operation may not operate for a period of 5
seconds at the most until the lane lines are detected.



Under the following conditions, the LAS & LDWS cancels the warning/steering assist
automatically.



The TCS OFF switch is pressed to cancel the TCS.



The Off-Road Traction Assist switch is pressed to turn on the Off-Road Traction Assist.



When Off-road mode is selected using Mazda intelligent Drive Select (Mi-Drive).

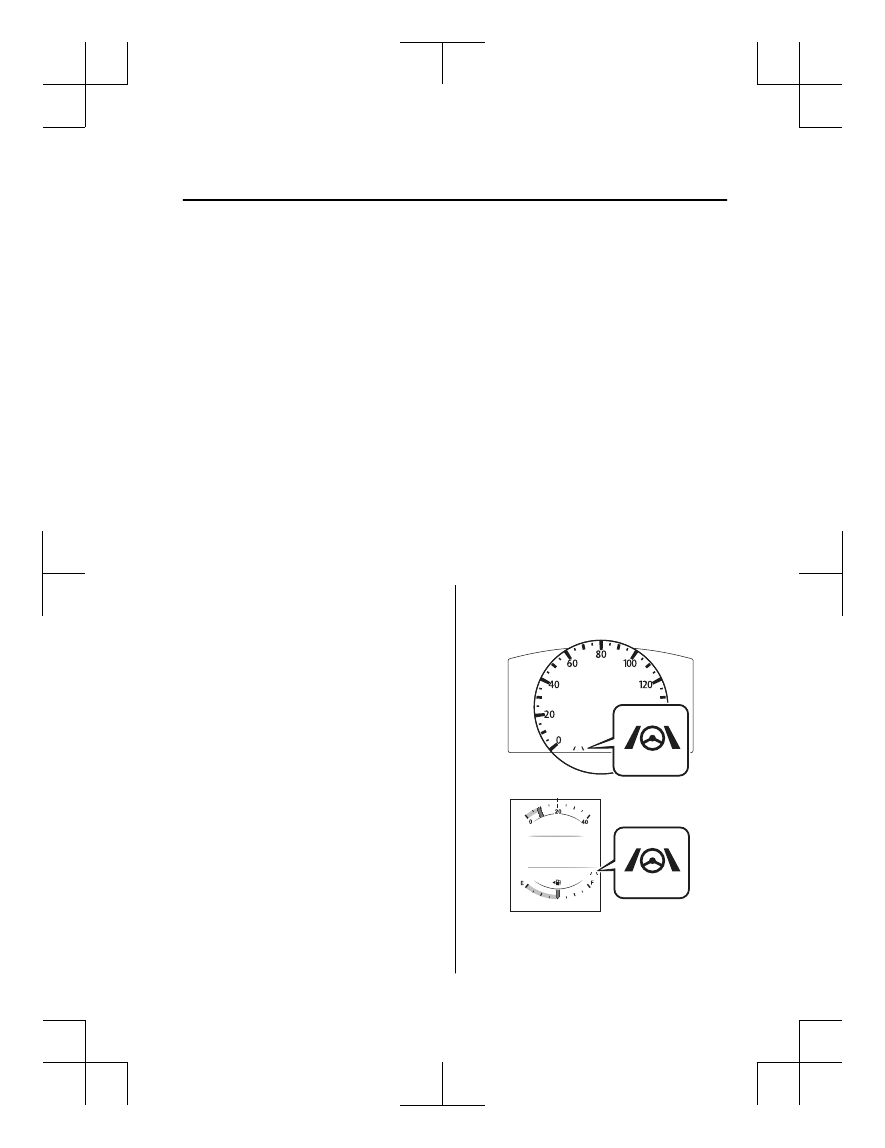

Steering wheel operation assist OFF (non-operational)

The steering wheel operation assist for the LAS & LDWS can be turned off. However, when
driving the vehicle while the CTS function is in use, the steering wheel operation assist
turns on automatically.
When the steering wheel operation assist has been turned off, only the lane departure
warning is operational.
Refer to the Settings section in the Mazda Connect Owner's Manual.

System operation

Drive the vehicle in the center of the driving lane while the LAS & LDWS OFF indicator
light in the instrument cluster is turned off.
The system becomes operational when all of the following conditions are met.



The engine is running.



The vehicle speed is about 64 km/h (40 mph) or faster.



The system detects white (yellow) lane lines on both the right and left sides or on either
side.

When Driving

i-ACTIVSENSE

4-187

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



The vehicle is driven on a straight road or road with gentle curves.



The steering assist function of the CTS is not operating.

The LAS & LDWS goes on stand-by status in the following cases:



The vehicle speed is less than about 56 km/h (35 mph).



The system cannot detect white (yellow) lane lines.



The vehicle is making a sharp curve.



The vehicle is making a curve at an inappropriate speed.



The steering assist function of the CTS operated.

NOTE



The LAS & LDWS remains on stand-by until it detects white (yellow) lines on both the left
and right sides, or on either side.



When the system detects a white (yellow) lane line on one side only, the system will not
activate warnings for the lane line on the side that is not being detected.

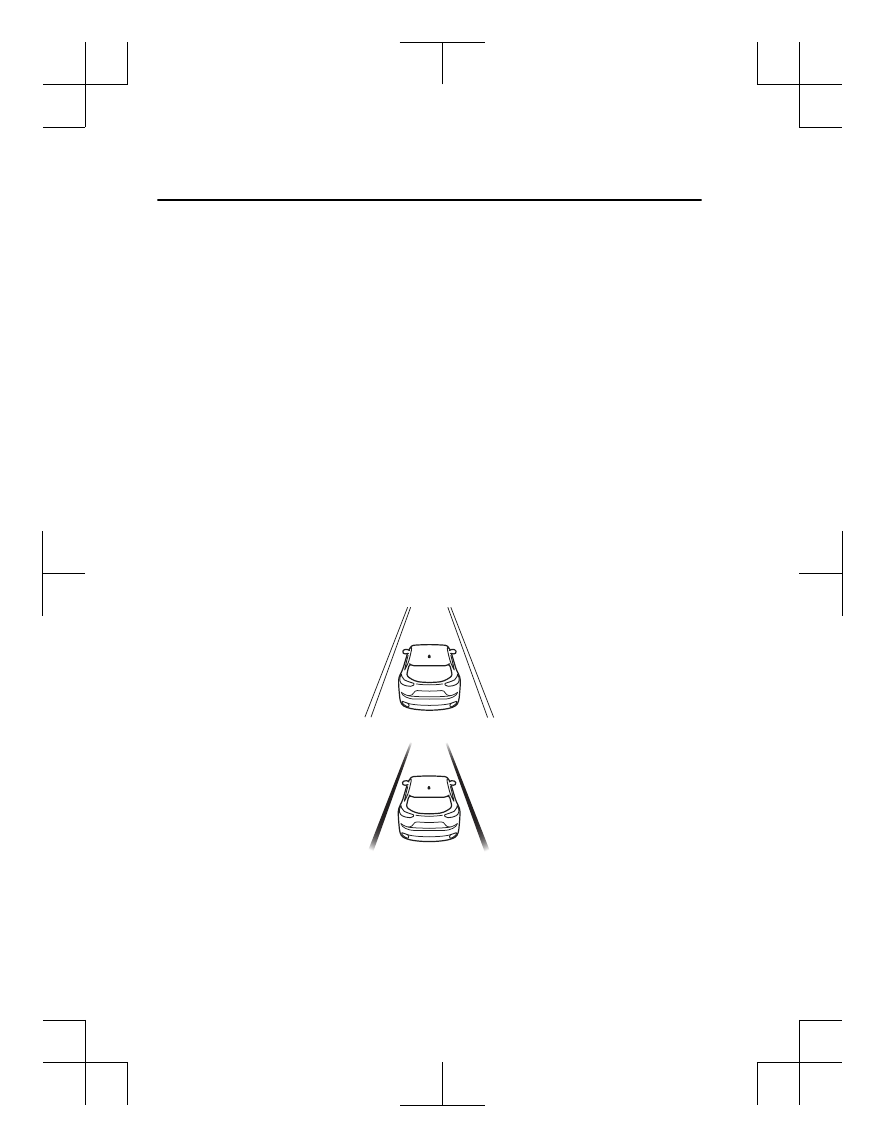

Vehicle lane line display

When the LAS & LDWS becomes operational while on standby, the vehicle lane lines are
displayed in the multi-information display. The system changes to operational status display
when the system detects a white (yellow) line on either the left or right.

(Stand-by status)

(Operational status)

NOTE

When only one side of the white (yellow) lines is detected, only the detected vehicle lane line
indicated on the multi-information display changes to white.

When Driving

i-ACTIVSENSE

4-188

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Auto cancel



The temperature in the Forward Sensing Camera (FSC) is too high or too low.



The windshield around the Forward Sensing Camera (FSC) is foggy.



The windshield around the Forward Sensing Camera (FSC) is blocked by an obstruction,
causing poor forward visibility.

Auto cancel of warnings

When the following operations are performed, the LAS & LDWS determines that the driver
intends to make a lane change and the system operation is canceled automatically. The LAS
& LDWS resumes automatically after the operation.



The steering wheel is operated abruptly.



The brake pedal is depressed.



The accelerator pedal is depressed.



The turn signal lever is operated.



The vehicle crosses a lane line.

▼

Steering Wheel Operation Assist

When the system determines that the
vehicle might be deviating from its lane,
the steering wheel operation assist
operates.
The system notifies the driver that it
provided steering wheel operation
assistance on the multi-information
display and the active driving display.

Multi-information display (Basic
display)

Instrument Cluster (Type A)

Instrument Cluster (Type B)

When Driving

i-ACTIVSENSE

4-189

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

Lane Departure Warning

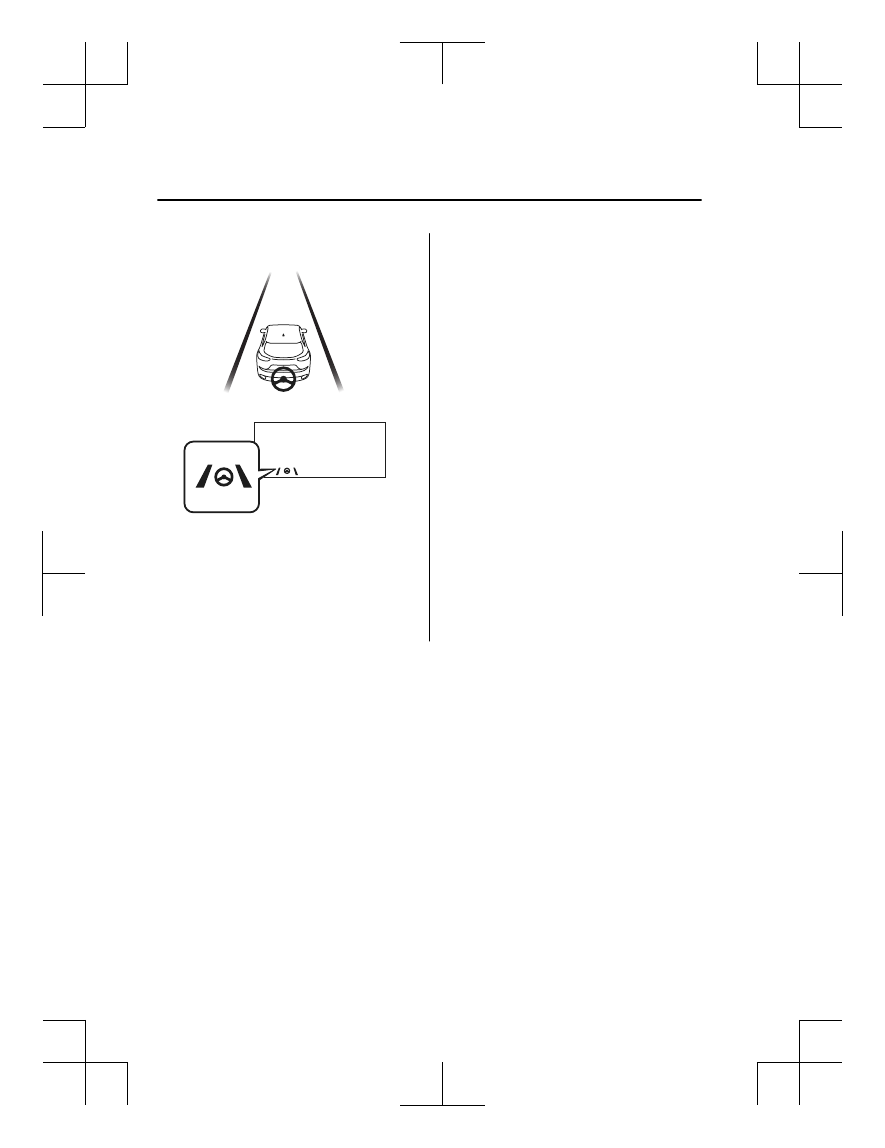

If the system determines that the vehicle may deviate from its lane, the lane departure
warning is activated and the direction in which the system determines that the vehicle may
deviate is indicated in the multi-information display and the active driving display.
For vehicles equipped with the multi-information display, the direction which the system
determined that the vehicle may be deviating from its lane is indicated in the
multi-information display.
For vehicles equipped with the active driving display, the color of the lane line in the
direction which the system determined that the vehicle may be deviating from its lane
changes from white to amber and the vehicle lane line flashes.

Multi-information Display

Active Driving Display

NOTE



If you have set the lane departure warning sound to the beep sound setting, the warning
sound may not be heard depending on the surrounding noise conditions.



If you have set the lane departure warning system to the steering wheel vibrations setting,
the vibration may not be felt depending on the road surface conditions.



When the setting for the steering operation assist is changed to operational, the warnings
can be set to activate/not activate. (If the setting for the steering operation assist is
changed to non-operational, the warnings cannot be set to non-operational.)
Refer to the Settings section in the Mazda Connect Owner's Manual.



The LAS & LDWS can be changed to the following settings regardless of whether the
steering operation assist has been set to operational/non-operational. Always check the
setting status when driving the vehicle and make setting changes if necessary.
Refer to the Settings section in the Mazda Connect Owner's Manual.



Steering wheel vibration: Strong/weak



Warning sound volume



Types of warnings (steering wheel vibration/beep sound)

When Driving

i-ACTIVSENSE

4-191

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

System Canceling

When the LAS & LDWS is turned off,

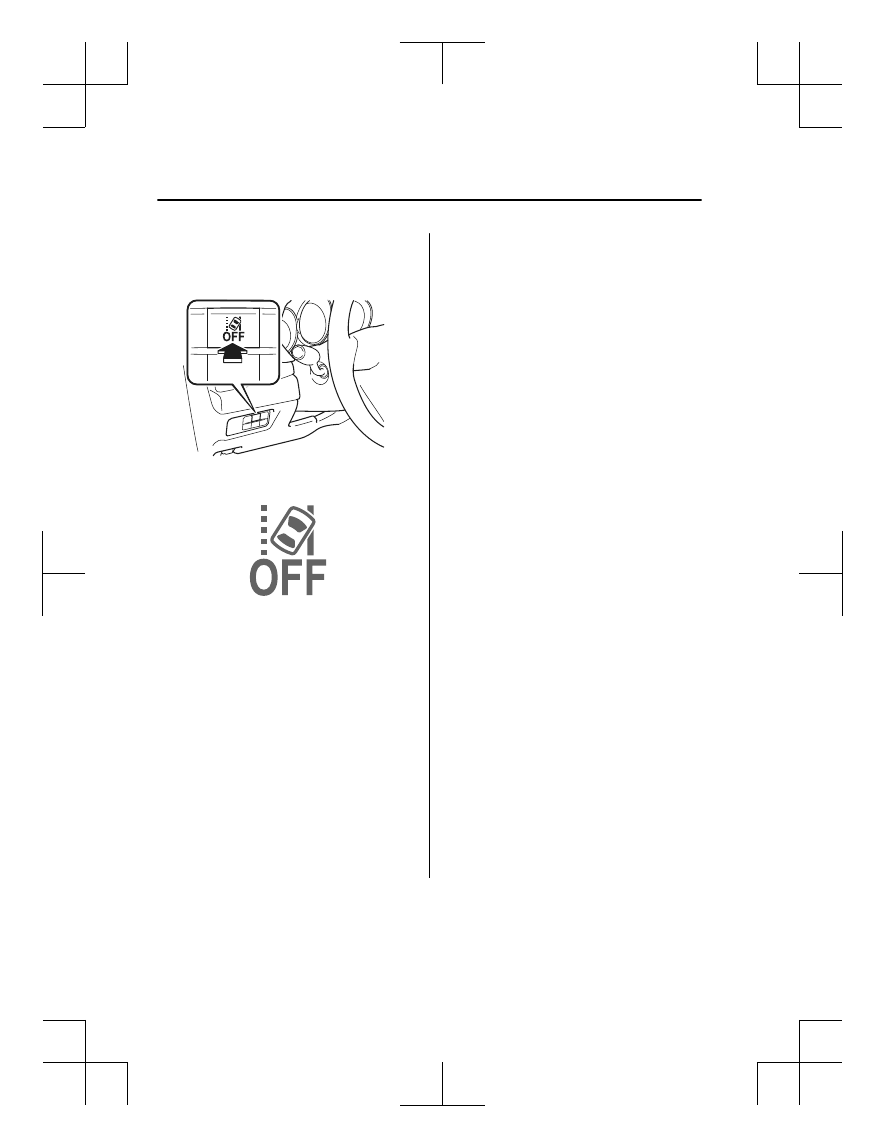

press the LAS & LDWS OFF switch.

The LAS & LDWS OFF indicator light
turns on.

NOTE



When driving the vehicle while the CTS
function is in use, the LAS & LDWS
turns on automatically.



In the following cases, the LAS & LDWS
is canceled automatically and the LAS
& LDWS OFF indicator light turns on.
Have your vehicle inspected at an
Authorized Mazda Dealer.



There is a malfunction in the power
steering.



There is a malfunction in the TCS.



There is a malfunction in the Forward
Sensing Camera (FSC).



When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the lane-keep
system operable, the system will be
operable when the ignition is switched
ON the next time.

When the LAS & LDWS is turned off, the
vehicle lane line indication in the
multi-information display and the active
driving display turn off.

When Driving

i-ACTIVSENSE

4-192

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Advanced Smart City Brake Support (Advanced SCBS)

The Advanced SCBS alerts the driver of a possible collision using the display and a warning
sound when the Forward Sensing Camera (FSC) detects a vehicle ahead or pedestrian and
determines that a collision with the object is unavoidable while the vehicle is driven at a
vehicle speed of about 4 to 80 km/h (2 to 50 mph) if the object is a vehicle ahead and about
10 to 80 km/h (6.2 to 50 mph) if the object is a pedestrian. In addition, the system reduces
damage in the event of a collision by operating the brake control (Advanced SCBS brake)
when the system determines that a collision is unavoidable. In addition, when the driver
depresses the brake pedal, the brakes are applied firmly and quickly to assist. (Brake Assist
(Advanced SCBS brake assist))

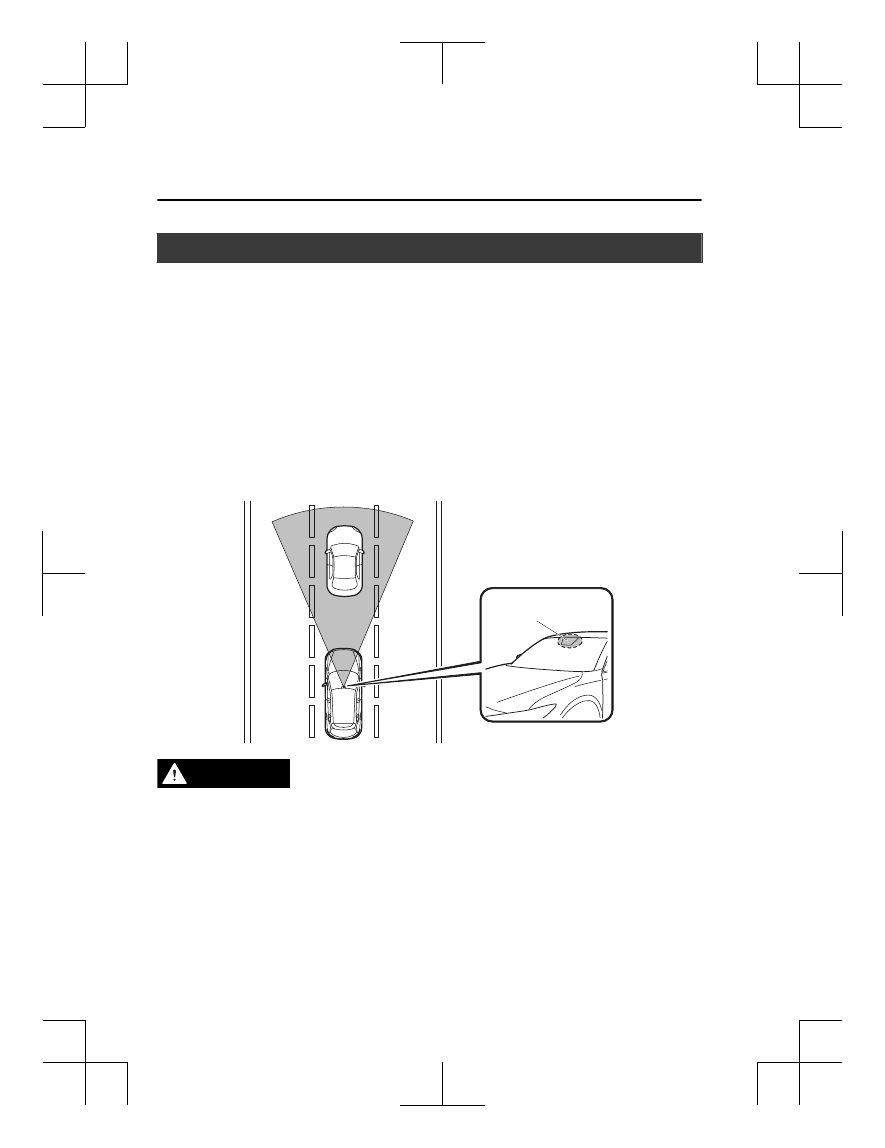

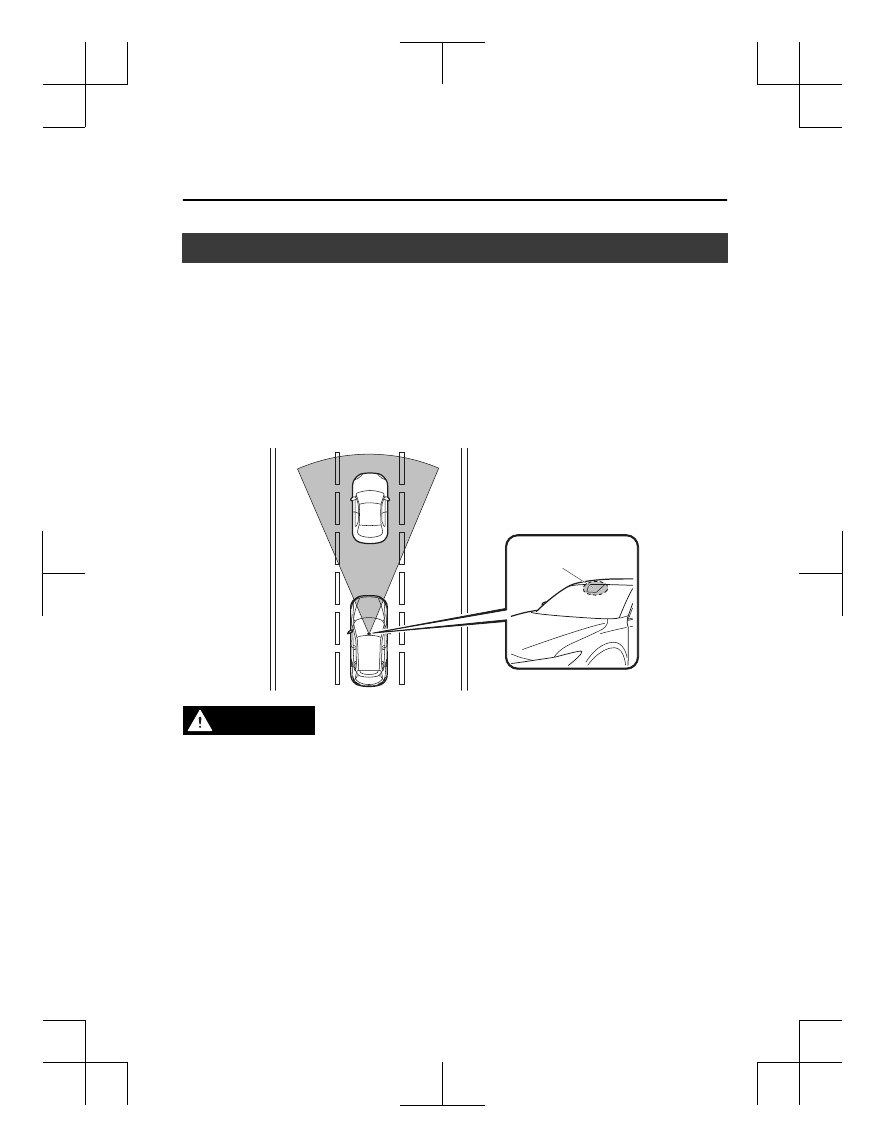

Forward Sensing
Camera (FSC)

WARNING

Do not rely completely on the Advanced SCBS system:



The Advanced SCBS system is only designed to reduce damage in the event of a collision.
Over reliance on the system leading to the accelerator pedal or brake pedal being
mistakenly operated could result in an accident.



The Advanced SCBS system operates in response to a vehicle ahead or a pedestrian. The
system does not operate in response to obstructions such as a wall, 2-wheeled vehicles, or
animals.

When Driving

i-ACTIVSENSE

*Some models.

4-193

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

CAUTION

In the following cases, turn the system off to prevent a mis-operation:



The vehicle is being towed or when towing another vehicle.



The vehicle is on a chassis roller.



When driving on rough roads such as in areas of dense grass or off-road.

Refer to Stopping the Advanced Smart City Brake Support (Advanced SCBS) System Operation
on page 4-195 on how to turn off the Advanced SCBS system.

NOTE



The Advanced SCBS system will operate under the following conditions.



The engine is running.



The Smart City Brake Support (SCBS) warning indication (amber) does not illuminate.



(Object is vehicle ahead)

The vehicle speed is between about 4 to 80 km/h (2 to 50 mph).



(Object is a pedestrian)

The vehicle speed is between about 10 to 80 km/h (6.2 to 50 mph).



The Advanced SCBS system is not turned off.



Under the following conditions, the Advanced SCBS system may not operate normally:



The Advanced SCBS system will not operate if the driver is deliberately performing
driving operations (accelerator pedal and steering wheel).



If there is the possibility of partial contact with a vehicle ahead.



The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.



The braking performance is adversely affected due to cold temperatures or wet brakes.



The vehicle is driven at the same speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



In the following cases, the Advanced SCBS may operate.



Objects on the road at the entrance to a curve.



Vehicles passing in the opposite lane while making a curve.



When passing through a toll gate.



When passing through low gates, narrow gates, car washing machines, or tunnels.



If you suddenly come close to a vehicle ahead.



2-wheeled vehicles, animals, or standing trees.

When Driving

i-ACTIVSENSE

4-194

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



During the Advanced SCBS brake control, the brake pedal may move rearward or become
stiff. The brakes are operating, but continue to depress the brake pedal.

▼

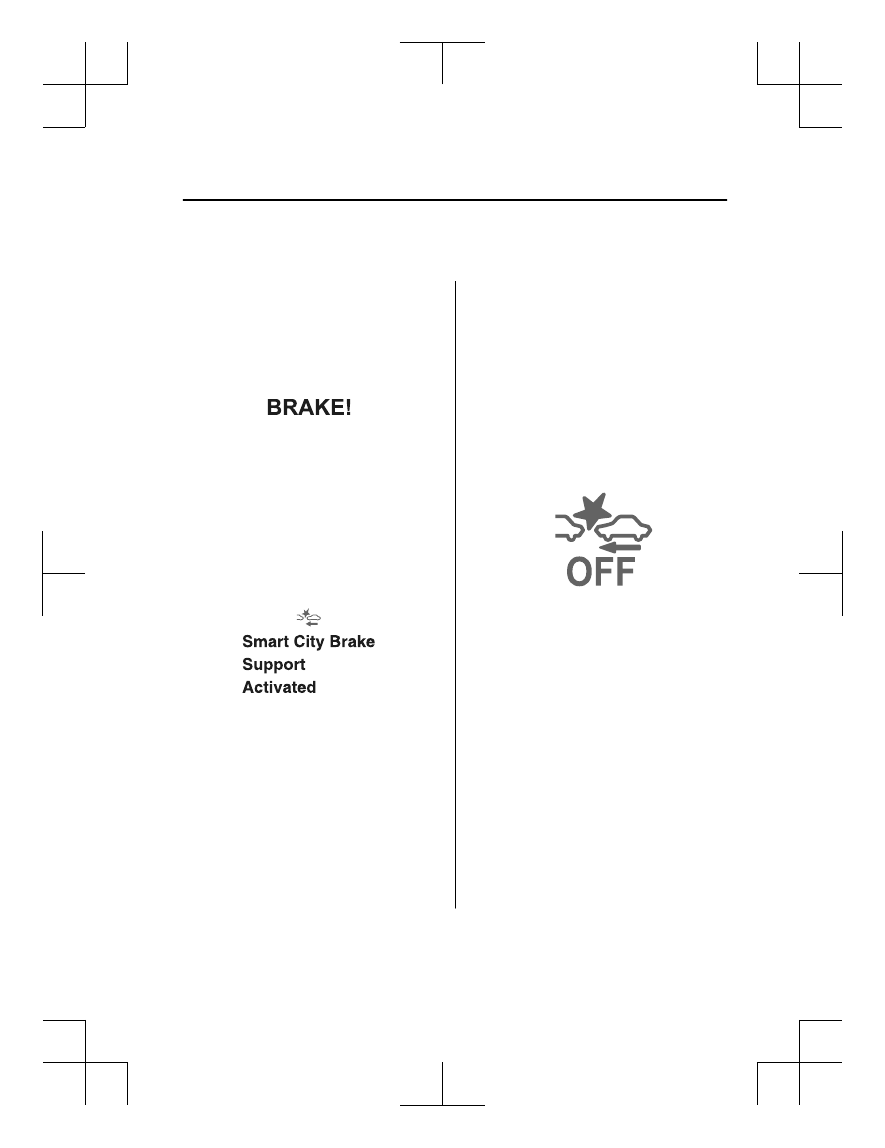

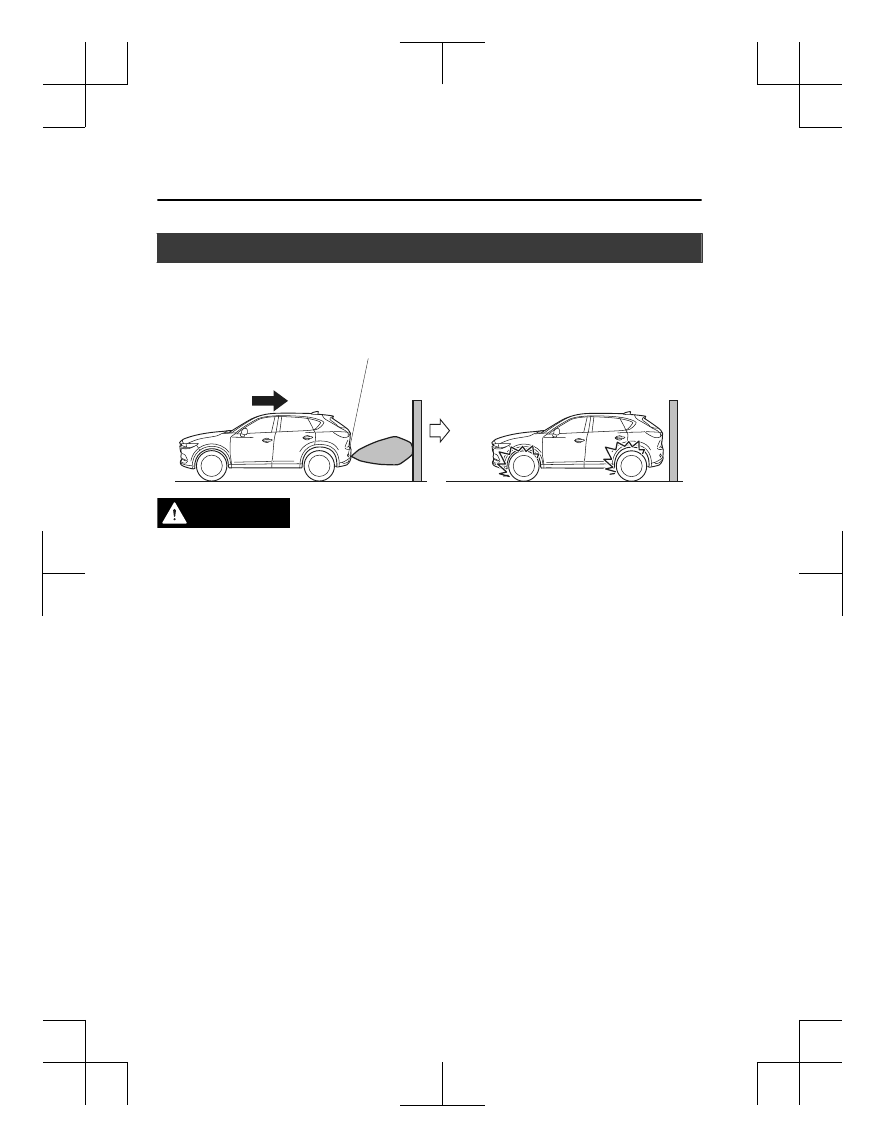

Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

NOTE

The operation distance and volume of the
collision warning can be changed. Refer
to the Settings section in the Mazda
Connect Owner's Manual.

▼

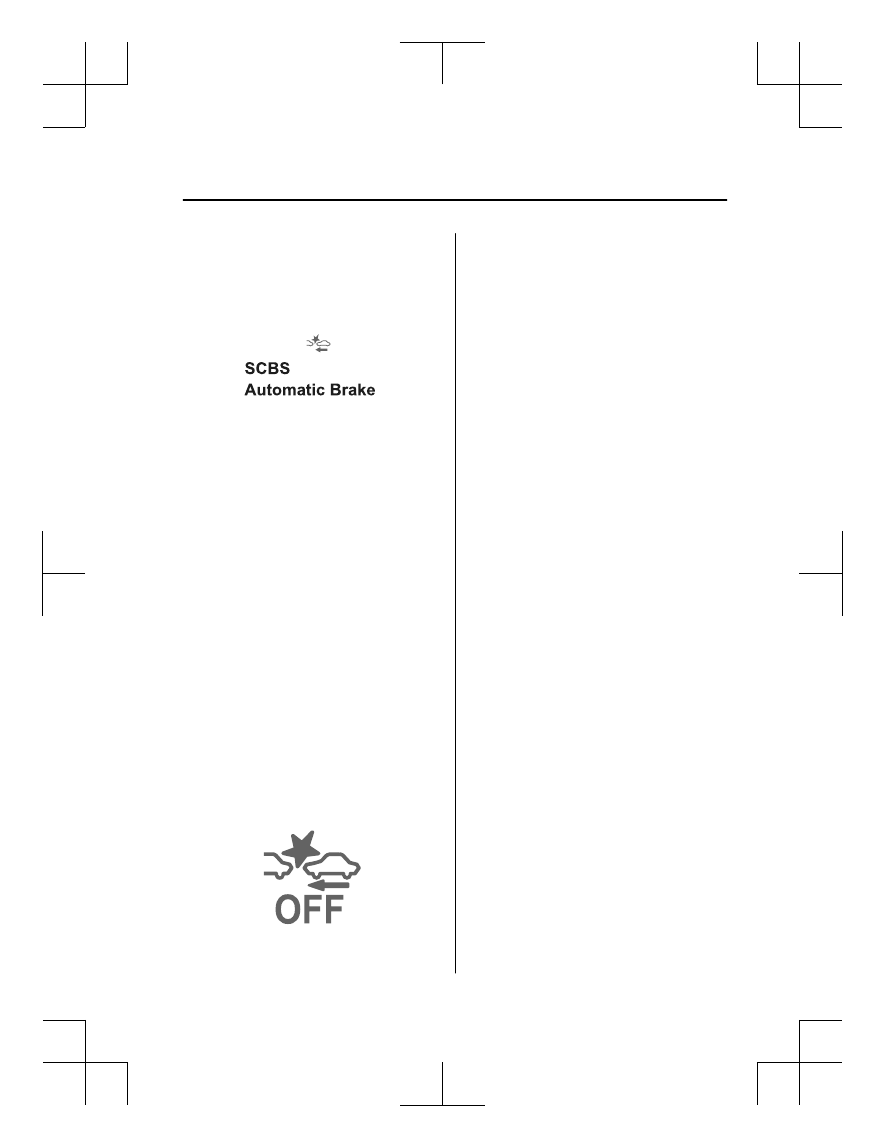

Automatic Brake Operation Display

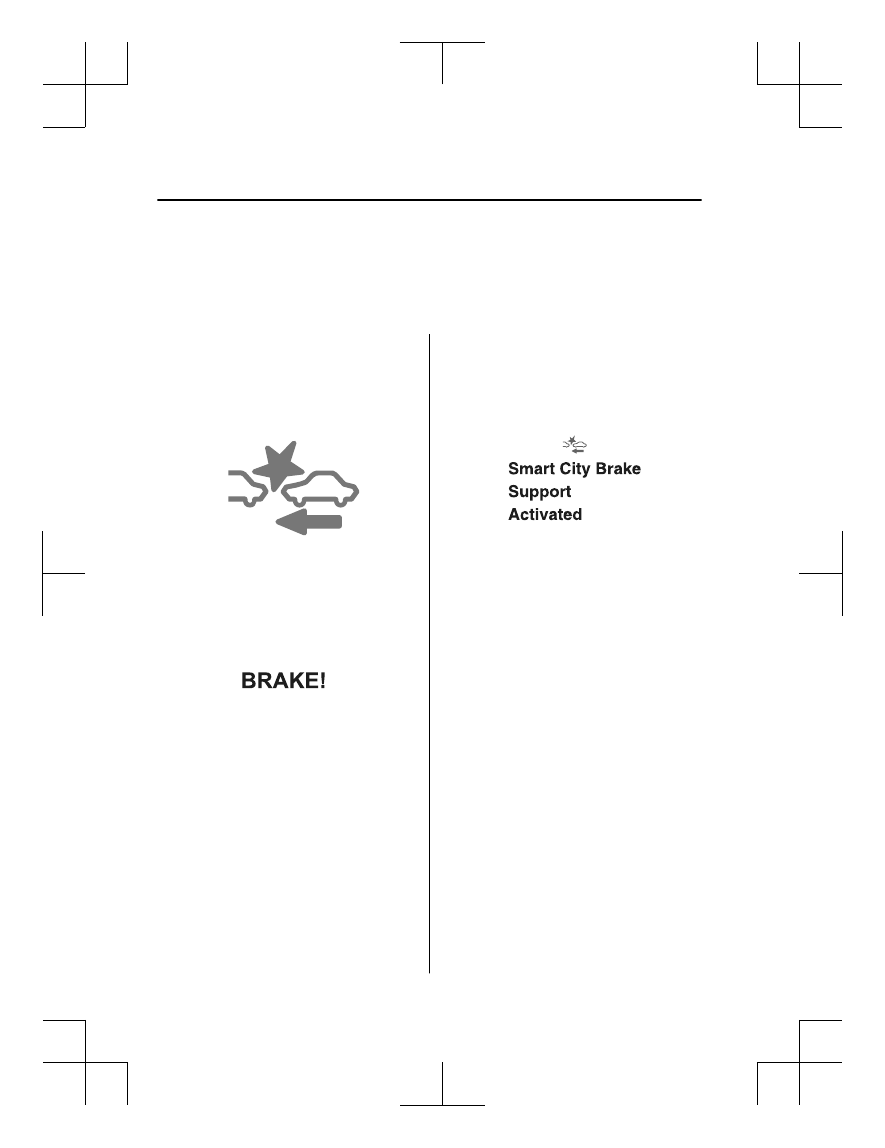

The automatic brake operation display is
indicated on the multi-information display
after the Advanced SCBS is operated.

NOTE



The collision warning beep sounds
intermittently while the Advanced SCBS
brake or brake assist (Advanced SCBS
brake assist) is operating.



If the vehicle is stopped by the Advanced
SCBS operation and the brake pedal is
not depressed, the warning beep sounds
1 time after about 2 seconds and the
Advanced SCBS brake is automatically
released.

▼

Stopping the Advanced Smart City
Brake Support (Advanced SCBS)
System Operation

The Advanced SCBS system can be
temporarily deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When the Advanced SCBS system is
turned off, the Smart City Brake Support
(SCBS) OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE

When the Advanced SCBS system is set to
inoperable, the Smart City Brake Support
[Reverse] (SCBS R) system and the Smart
Brake Support (SBS) are also set to
inoperable.

When Driving

i-ACTIVSENSE

4-195

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Smart City Brake Support [Forward] (SCBS F)

The SCBS F system alerts the driver of a possible collision using an indication in the
display and a warning sound when the Forward Sensing Camera (FSC) detects a vehicle
ahead and determines that a collision with a vehicle ahead is unavoidable while the vehicle
is being driven at a vehicle speed of about 4 to 80 km/h (2 to 50 mph). In addition, the
system reduces damage in the event of a collision by operating the brake control (Smart City
Brake Support (SCBS) brake) when the system determines that a collision is unavoidable
while the vehicle is being driven at a vehicle speed of about 4 to 30 km/h (2 to 18 mph). It
may also be possible to avoid a collision if the relative speed between your vehicle and the
vehicle in front of you is less than about 20 km/h (12 mph). In addition, when the driver
depresses the brake pedal while the system is in the operation range at about 4 to 30 km/h (2
to 18 mph), the brakes are applied firmly and quickly to assist. (Brake Assist (Smart City
Brake Support (SCBS) brake assist))

Forward Sensing
Camera (FSC)

WARNING

Do not rely completely on the SCBS F system:



The SCBS F system is only designed to reduce damage in the event of a collision. Over
reliance on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.



The SCBS F is a system which operates in response to a vehicle ahead. The system may not
be able to detect or react to 2-wheeled vehicles or pedestrians.

When Driving

i-ACTIVSENSE

4-196

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

CAUTION

In the following cases, turn the system off to prevent a mis-operation:



The vehicle is being towed or when towing another vehicle.



The vehicle is on a chassis roller.



When driving on rough roads such as in areas of dense grass or off-road.

Refer to Stopping the Smart City Brake Support [Forward] (SCBS F) system Operation on page
4-198 on how to turn off the SCBS F system.

NOTE



The SCBS F system will operate under the following conditions.



The engine is running.



The Smart Brake Support/Smart City Brake Support (SBS/SCBS) system warning
indication/warning light (amber) does not illuminate.



(Rear-end collision warning)

The vehicle speed is about 4 to 80 km/h (2 to 50 mph).



(Brake control (Smart City Brake Support (SCBS) brake))

The vehicle speed is about 4 to 30 km/h (2 to 18 mph).



The SCBS F system is not turned off.



Under the following conditions, the SCBS F system may not operate normally:



The SCBS F system will not operate if the driver is deliberately performing driving
operations (accelerator pedal and steering wheel).



If there is the possibility of partial contact with a vehicle ahead.



The vehicle is driven on a slippery road surface such as wet roads or icy or snow-bound
roads.



The braking performance is adversely affected due to cold temperatures or wet brakes.



The vehicle is driven at the same speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



In the following cases, the Forward Sensing Camera (FSC) determines that there is a
vehicle ahead and the SCBS F may operate.



Objects on the road at the entrance to a curve.



Vehicles passing in the opposite lane while making a curve.



Metal objects, bumps, or protruding objects on the road.



When passing through a toll gate.



When passing through low gates, narrow gates, car washing machines, or tunnels.

When Driving

i-ACTIVSENSE

4-197

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



If you suddenly come close to a vehicle ahead.



2-wheeled vehicles, pedestrians, animals or standing trees.



Vehicle is driven with some of the tires having significant wear.



During the SCBS F brake control, the brake pedal may move rearward or become stiff.
The brakes are operating, but continue to depress the brake pedal.

▼

Smart City Brake Support (SCBS)
Indicator Light (Red)

If the Smart City Brake Support (SCBS) is
operating, the indicator light (red) flashes.

▼

Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

NOTE

The operation distance and volume of the
collision warning can be changed. Refer
to the Settings section in the Mazda
Connect Owner's Manual.

▼

Automatic Brake Operation
Display

The automatic brake operation display is
indicated on the multi-information display
after the SCBS F is operated.

NOTE



The collision warning beep sounds
intermittently while the SCBS F brake or
brake assist (SCBS F brake assist) is
operating.



If the vehicle is stopped by the SCBS F
operation and the brake pedal is not
depressed, the warning beep sounds 1
time after about 2 seconds and the SCBS
F brake is automatically released.

▼

Stopping the Smart City Brake
Support (SCBS) System Operation

The SCBS F system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.

When Driving

i-ACTIVSENSE

4-198

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Smart City Brake Support [Reverse] (SCBS R)

The SCBS R is a system which is designed to reduce damage in the event of a collision by
operating the brake control (SCBS brake) when the system’s ultrasonic sensors detect an
obstruction at the rear of the vehicle while driving at a speed of about 2 to 8 km/h (2 to 4
mph) and the system determines that a collision is unavoidable.

Reverse

Ultrasonic sensor (rear)

WARNING

Do not rely completely on the SCBS R system:



The SCBS R system is only designed to reduce damage in the event of a collision. Over
reliance on the system leading to the accelerator pedal or brake pedal being mistakenly
operated could result in an accident.



To assure the correct operation of the SCBS R, heed the following cautions.



Do not apply a sticker to an ultrasonic sensor (rear) (including transparent stickers).
Otherwise, the ultrasonic sensor (rear) may not be able to detect vehicles or obstructions
which could result in an accident.



Do not disassemble an ultrasonic sensor (rear).



If cracks or damage caused by flying gravel or debris is visible around an ultrasonic
sensor (rear), stop using the SCBS R system immediately and have your vehicle inspected
by an Authorized Mazda Dealer. If the vehicle continues to be driven with cracks or
scratch marks left around an ultrasonic sensor, the system may operate unnecessarily
and cause an unexpected accident.
Refer to Stopping the Smart City Brake Support [Reverse] (SCBS R) System Operation on
page 4-203.



Consult an Authorized Mazda Dealer for rear bumper replacement.

Do not modify the suspension:

If the vehicle height or inclination is changed, the SCBS R system may not operate correctly
because it cannot detect obstructions correctly.

When Driving

i-ACTIVSENSE

4-200

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Do not apply a strong force to an ultrasonic sensor (rear):

When washing the vehicle, do not spray highly pressurized water against an ultrasonic sensor
(rear), or rub it strongly. In addition, do not hit the rear bumper forcefully when loading and
unloading cargo Otherwise, the sensors may not detect obstructions correctly which could
cause the SCBS R system to not operate normally, or it could operate unnecessarily.

CAUTION



When driving off-road in areas where there is grass or foliage, it is recommended that the
SCBS R system be turned off.



Always use tires of the specified size and the same manufacturer, brand, and tread pattern
on all 4 wheels. In addition, do not use tires with significantly different wear patterns on the
same vehicle. Otherwise, the SCBS R system may not operate normally.



If ice or snow is stuck on the ultrasonic sensors (rear) they may not be able to detect
obstructions correctly depending on the conditions. In such cases, the system may not be
able to perform controls correctly. Always drive carefully and pay attention to the rear of
the vehicle.

NOTE



The vehicle posture changes depending on the accelerator pedal, brake pedal and
steering wheel operations, which could make it difficult for the system to recognize an
obstruction, or it could facilitate unnecessary detection. In such cases, the SCBS R may or
may not operate.



The SCBS R system will operate under the following conditions.



The engine is running.



The selector lever is in the R (reverse) position.



“Reverse Smart City Brake Support Malfunction” is not displayed in the
multi-information display.



The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).



The SCBS R is not turned off.



The DSC is not malfunctioning.



The SCBS R operates using ultrasonic sensors (rear) which detect obstructions at the rear
by emitting ultrasonic waves and then receiving the returning waves reflected off the
obstructions.



In the following cases, the ultrasonic sensors (rear) cannot detect obstructions and the
SCBS R may not operate.



The height of the obstruction is low such as low walls or trucks with low loading
platforms.



The height of the obstruction is high such as trucks with high loading platforms.

When Driving

i-ACTIVSENSE

4-201

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



The obstruction is small.



The obstruction is thin such as a signpost.



The obstruction is positioned away from the center of the vehicle.



The surface of the obstruction is not pointed vertically relative to the vehicle.



The obstruction is soft such as a hanging curtain or snow stuck to a vehicle.



The obstruction is shaped irregularly.



The obstruction is extremely close.



In the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly
and the SCBS R may not operate.



Something is stuck on the bumper near an ultrasonic sensor (rear).



The steering wheel is turned sharply, or the brake or accelerator pedal is operated.



There is another obstruction near one obstruction.



During inclement weather such as rain, fog and snow.



High or low humidity.



High or low temperatures



Strong winds.



The path of travel is not flat.



Heavy luggage is loaded in the luggage compartment or on the rear seat.



Objects such as a wireless antenna, fog light, or illuminated license plate is installed
near an ultrasonic sensor (rear).



The orientation of an ultrasonic sensor (rear) has deviated for reasons such as a
collision.



The vehicle is affected by other sound waves such as the horn, engine noise, ultrasonic
sensor of another vehicle.



In the following cases, an ultrasonic sensor (rear) may detect something as a target
obstruction which could cause the SCBS R system to operate.



Driving on a steep slope.



Wheel blocks.



Hanging curtains, gate poles such as at toll gates and railroad crossing.



When traveling near objects such as foliage, barriers, vehicles, walls, and fences along
a road.



When driving off-road in areas where there is grass and forage.



When passing through low gates, narrow gates, car washing machines, and tunnels.



A towing bar is installed or a trailer is connected.



During the SCBS R brake control, the brake pedal may move rearward or become stiff.
The brakes are operating, but continue to depress the brake pedal.



When the system operates, the user is notified by the multi-information display.



The Smart City Brake Support (SCBS) warning indication (amber) turns on when the
system has a malfunction.
Refer to Taking Action on page 7-31.

When Driving

i-ACTIVSENSE

4-202

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

Automatic Brake Operation Display

“SCBS Automatic Brake” is indicated in
the multi-information display after the
Smart City Brake Support (SCBS) brakes
is operated.

NOTE



The collision warning beep sounds
intermittently while the Smart City
Brake Support (SCBS) brake is
operating.



If the vehicle is stopped by the Smart
City Brake Support (SCBS) operation
and the brake pedal is not depressed, the
warning beep sounds one time after
about 2 seconds and the Smart City
Brake Support (SCBS) brake is
automatically released.

▼

Stopping the Smart City Brake
Support [Reverse] (SCBS R) System
Operation

The SCBS R system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When the SCBS R system is turned off,
the Smart City Brake Support (SCBS)
OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE

When the SCBS R system is set to
inoperable, Advanced Smart City Brake
Support (Advanced SCBS) and the Smart
Brake Support (SBS) are also set to
inoperable.

When Driving

i-ACTIVSENSE

4-203

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Smart Brake Support

(SBS)

The SBS system alerts the driver of a
possible collision using a display and
warning sound if the radar sensor (front)
and the Forward Sensing Camera (FSC)
determine that there is the possibility of a
collision with a vehicle ahead while the
vehicle is being driven at about 15 km/h or
faster (10 mph or faster). Furthermore, if
the radar sensor (front) and the Forward
Sensing Camera (FSC) determines that a
collision is unavoidable, the automatic
brake control is performed to reduce
damage in the event of a collision.
In addition, when the driver depresses the
brake pedal, the brakes are applied firmly
and quickly to assist. (Brake Assist (SBS
brake assist))

WARNING

Do not rely completely on the SBS system
and always drive carefully:

The SBS is designed to reduce damage in
the event of a collision, not avoid an
accident. The ability to detect an
obstruction is limited depending on the
obstruction, weather conditions, or traffic
conditions. Therefore, if the accelerator
pedal or brake pedal is mistakenly
operated it could result in an accident.
Always verify the safety of the surrounding
area and depress the brake pedal or
accelerator pedal while keeping a safer
distance from vehicles ahead or on-coming
vehicles.

CAUTION

In the following cases, turn the system off
to prevent a mis-operation:



The vehicle is being towed or when
towing another vehicle.



The vehicle is on a chassis roller.



When driving on rough roads such as in
areas of dense grass or off-road.

NOTE



The SBS system operates when all of the
following conditions are met:



The ignition is switched ON.



The SBS system is on.



The vehicle speed is about 15 km/h or
faster (10 mph or faster).



The relative speed between your
vehicle and the vehicle ahead is about
15 km/h or faster (10 mph or faster).



The Dynamic Stability Control (DSC)
is not operating.



The SBS system may not operate under
the following conditions:



If the vehicle is accelerated rapidly
and it comes close to a vehicle ahead.



The vehicle is driven at the same
speed as the vehicle ahead.



The accelerator pedal is depressed.



The brake pedal is depressed.



The steering wheel is being operated.



The selector lever is being operated.



The turn signal is being used.



When the vehicle ahead is not
equipped with taillights or the
taillights are turned off.

When Driving

i-ACTIVSENSE

4-204

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



When warnings and messages, such
as a dirty windshield, related to the
Forward Sensing Camera (FSC) are
being displayed in the
multi-information display.



Although the objects which activate the
system are four-wheeled vehicles, the
radar sensor (front) could detect the
following objects, determine them to be
an obstruction, and operate the SBS
system.



Objects on the road at the entrance to
a curve (including guardrails and
snow banks).



A vehicle appears in the opposite lane
while cornering or rounding a curve.



When crossing a narrow bridge.



When passing under a low gate or
through a tunnel or narrow gate.



When entering an underground
parking area.



Metal objects, bumps, or protruding
objects on the road.



If you suddenly come close to a
vehicle ahead.



When driving in areas where there is
high grass or forage.



Two-wheeled vehicles such as
motorbikes or bicycles.



Pedestrians or non-metallic objects
such as standing trees.



During the SBS brake control, the brake
pedal may move rearward or become
stiff. The brakes are operating, but
continue to depress the brake pedal.



When the system operates, the user is
notified by the multi-information
display.



The SBS warning indication (amber)
turns on when the system has a
malfunction.

Refer to Taking Action on page 7-31.

▼

Collision Warning

If there is the possibility of a collision with
a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the multi-information display and the
active driving display.

▼

Stopping The Smart Brake Support
(SBS) System Operation

The SBS system can be temporarily
deactivated.
Refer to the Settings section in the Mazda
Connect Owner's Manual.
When the SBS system is turned off, the
SBS OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.

NOTE

If the SBS system operation is turned off,
the Smart City Brake Support (SCBS)
system operation is turned off
simultaneously.

When Driving

i-ACTIVSENSE

4-205

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

360° View Monitor

▼

360° View Monitor

The 360°View Monitor consists of the following functions which assist the driver in
checking the area surrounding the vehicle using various indications in the center display and
a warning sound while the vehicle is being driven at low speeds or while parking.



Top view

The top view displays an image of the vehicle from directly above on the center display
by combining the images taken from the 4 cameras set on all sides of the vehicle. The top
view displays on the right side of the screen when the front view or rear view screen is
being displayed. The top view assists the driver in checking the area surrounding the
vehicle when the vehicle is moving forward or in reverse.



Front view/front wide view

The image from the front of the vehicle is displayed on the center display.
The view from the front assists the driver in checking the front of the vehicle by
displaying guide lines on the displayed image taken from the front of the vehicle.



Side view

The images taken from the front left and right sides of the vehicle are displayed on the
center display.
The side view assists the driver in checking the front sides of the vehicle by displaying
guide lines on the displayed image taken from the front left and right sides of the vehicle.



Rear view/rear wide view

The image from the rear of the vehicle is displayed on the center display.
The image from the rear assists the driver in checking the rear of the vehicle by displaying
guide lines on the displayed image taken from the rear of the vehicle.



Parking sensor

If there are any obstructions near the vehicle while the top view/side view is displayed, an
obstruction detection indication turns on around the bumper in the center display.
The parking sensors use ultrasonic sensors to detect obstructions around the vehicle when
the vehicle is driven at low speeds, such as during garage or parallel parking, and notifies
the driver of the approximate distance from the vehicle to the surrounding obstruction
using sound and an obstruction detection indication.
Refer to Parking Sensor System on page 4-263.



Rear Cross Traffic Alert (RCTA)

If there is the possibility of a collision with an approaching vehicle while the rear view/
rear wide view is displayed, a warning is displayed on the center display.
The Rear Cross Traffic Alert (RCTA) uses rear side radar sensor to detect vehicles
approaching from the rear left and right sides of the vehicle, and it assists the driver in
checking the rear of the vehicle while reversing by flashing the Blind Spot Monitoring
(BSM) warning lights and activating the warning sound.

When Driving

i-ACTIVSENSE

4-206

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Refer to Rear Cross Traffic Alert (RCTA) on page 4-145.

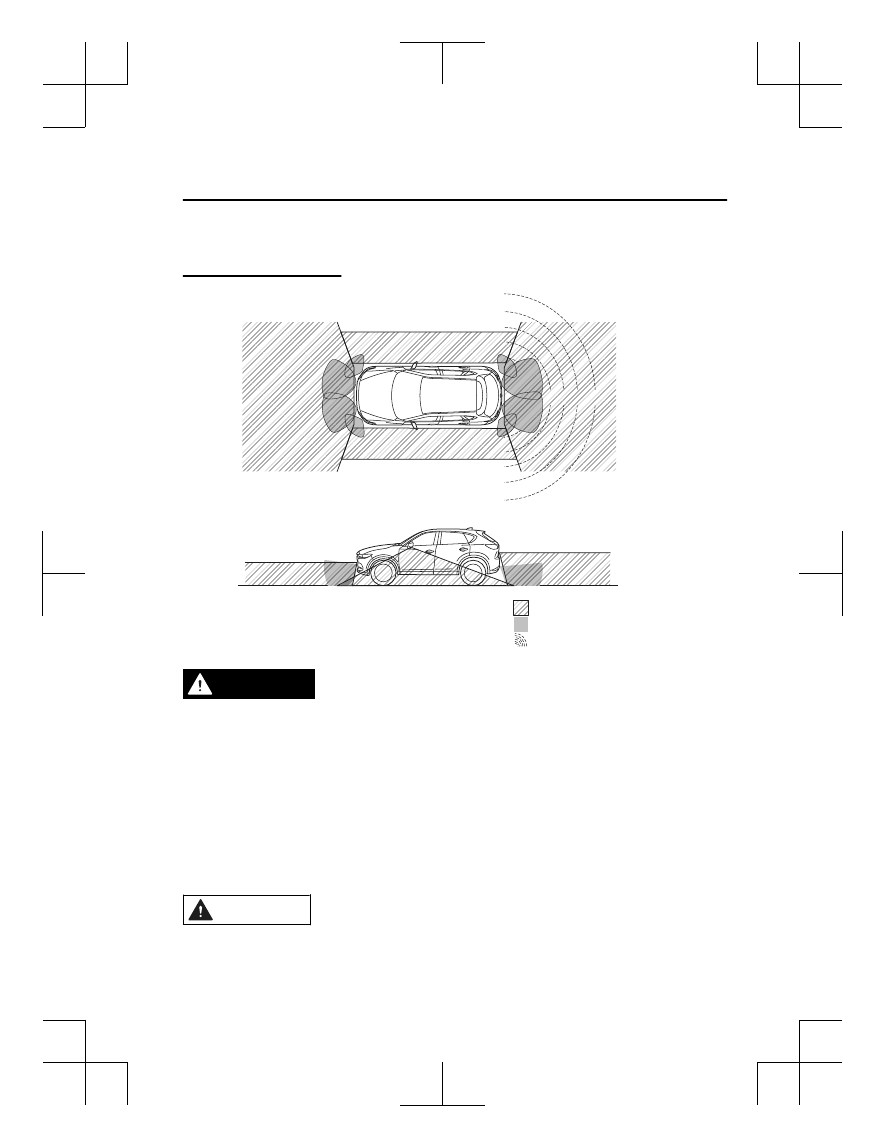

360°View Monitor Range

: Cameras
: Ultrasonic sensors
: Radar sensors (rear)

WARNING

Always confirm the safety of the area around the vehicle with the mirrors and directly with
your eyes when driving:

The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of
the area around the vehicle.
The shooting range of the cameras and detection range of the sensors are limited. For
example, the areas in black at the front and rear of the vehicle image and the seams where
each of the camera images merge are blind spots where an obstruction may not be visible. In
addition, the extended vehicle width lines and projected vehicle path lines are only to be used
as references, and the images on the screen may differ from the actual conditions.

CAUTION



Do not use the 360°View Monitor under any of the following conditions.

When Driving

i-ACTIVSENSE

4-207

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



Icy or snow-covered roads.



Tire chains or a temporary spare tire is installed.



The front or rear doors are not fully closed.



The vehicle is on a road incline.



The door mirrors are retracted.



Do not hit the front/rear camera, front bumper, liftgate, and door mirrors forcefully. The
camera position or installation angle may shift.



The cameras are waterproof. Do not disassemble, modify, or remove a camera.



The camera cover is made of hard plastic, therefore do not apply oil film remover, organic
solvents, wax, or coating agents. If any such agent gets on the camera cover, wipe it off
using a soft cloth immediately.



Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise,
it could scratch the camera lens and negatively affect the images.



Consult an Authorized Mazda Dealer for repair, painting, or replacement of the front/rear
camera, front bumper, liftgate and door mirrors.



Heed the following cautions to assure that the 360°View Monitor operates normally.



Do not modify the vehicle suspensions or lower/raise the vehicle body, or both.



Always use tires of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.



When the display is cold, images may leave trails or the screen might be darker than usual,
making it difficult to check the vehicle surroundings. Always confirm the safety at the front
and around the vehicle visually when driving.



The method for parking/stopping the vehicle using the 360°View Monitor differs depending
on the road circumstances/conditions and the vehicle conditions. When and how much you
turn the steering wheel will differ depending on the situation, therefore always check the
vehicle surroundings directly with your eyes while using the system.
Also, before using the system, always make sure that the vehicle can be parked/stopped in
the parking/stopping space.

NOTE



If there are water droplets, snow, or mud on the camera lens, wipe it off using a soft cloth.
If the camera lens is especially dirty, wash it off with mild detergent.



If the camera lens is touched or there is any dirt on it, it could affect the screen image.
Wipe the lens using a soft cloth.



If the area where the camera is installed, such as the front bumper, liftgate or door
mirrors, has been damaged in a vehicle accident, the camera (position, installation angle)
may have shifted. Always consult an Authorized Mazda Dealer to have the vehicle
inspected.

When Driving

i-ACTIVSENSE

4-208

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



If the camera is subjected to excessive changes in temperature such as by pouring hot
water on the camera during cold weather, the 360°View Monitor may not operate
normally.



If the lead-acid battery voltage is low, the screen might be temporarily difficult to view,
however, this does not indicate a problem.



The 360°View Monitor has limitations. Objects under the bumper or near both ends of the
bumper cannot be displayed.



Obstructions above the upper image range of the camera are not displayed.



Under the following conditions, the screen might be difficult to view, however this does
not indicate a problem.



The temperature near the lens is high/low.



Rainy conditions, water droplets on the camera, or high humidity.



Mud or foreign matter near the camera.



Extremely bright light such as sunlight or headlights hitting the camera lens directly.



The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights
(display may flicker).



Extremely small dark or white dots appear on the screen (dots may flicker).



Because the 360°View Monitor camera uses a special lens, the distance displayed on the
screen differs from the actual distance.



Obstructions displayed on the screen may appear differently than in actuality.
(Obstructions may appear fallen, larger, or longer than they actually are.)



Do not apply stickers to a camera or the area around it. In addition, do not install
accessories or an illuminated number/character license plate to the area around a
camera. Otherwise, the camera may not correctly display the surrounding conditions.



Only rear and rear wide images displayed on the monitor from the 360° view monitor
camera are reversed images (mirror images).



Free/open source software information

This product includes free/open sources. Information about the licensing and source code
is available at the following URL.
https://www.denso.com/global/en/opensource/svss/mazda/

When Driving

i-ACTIVSENSE

4-209

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

Types of Images Displayed on the Screen

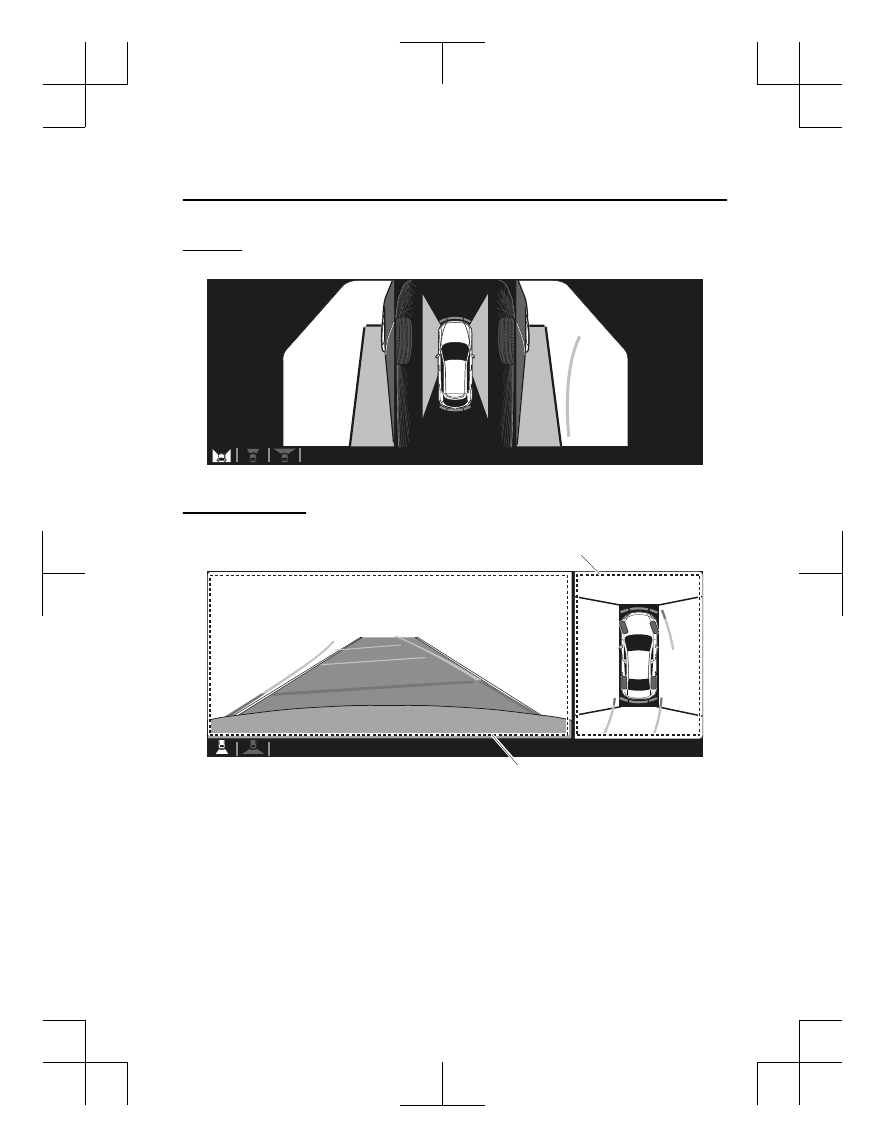

Top view/Front view

Displays the image of the area around the vehicle and the vehicle front.

Front view screen

Top view screen

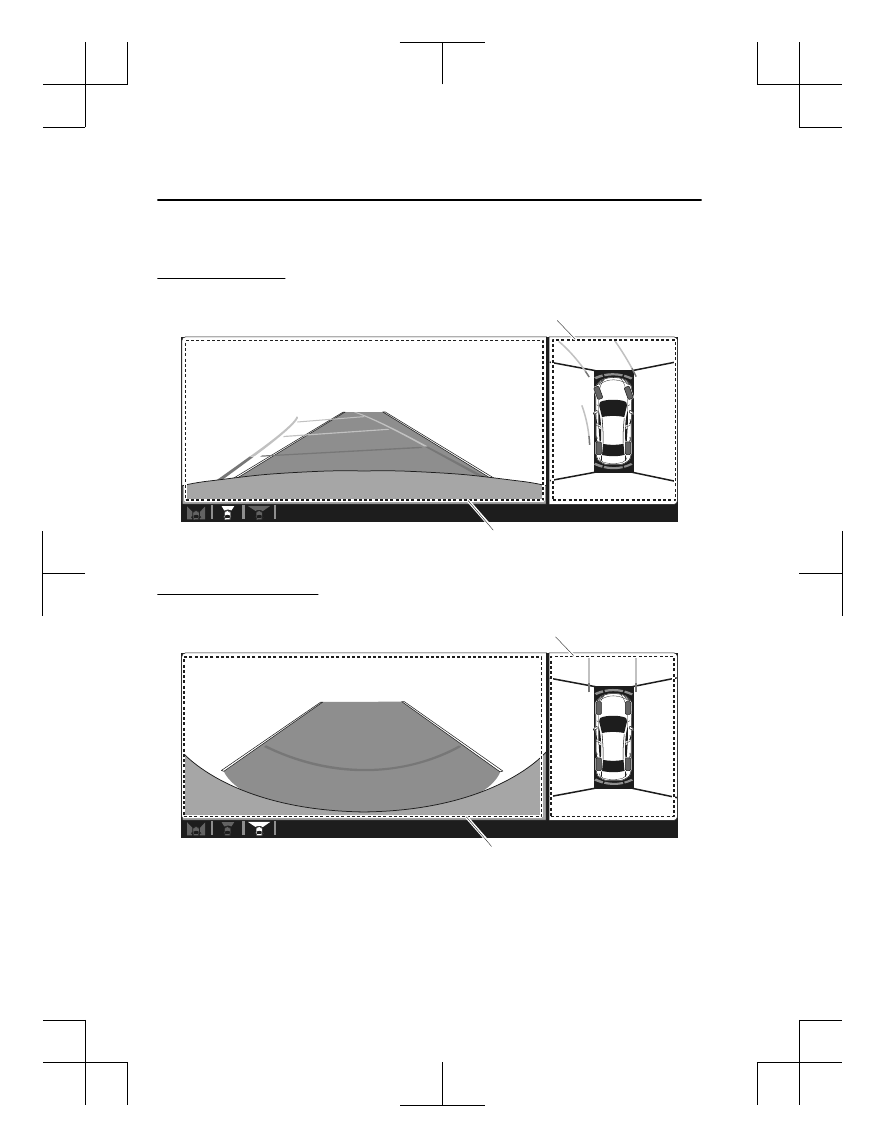

Top view/Front wide view

Displays the image of the area around the vehicle and the front of the vehicle (wide-area).

Front wide view screen

Top view screen

When Driving

i-ACTIVSENSE

4-210

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

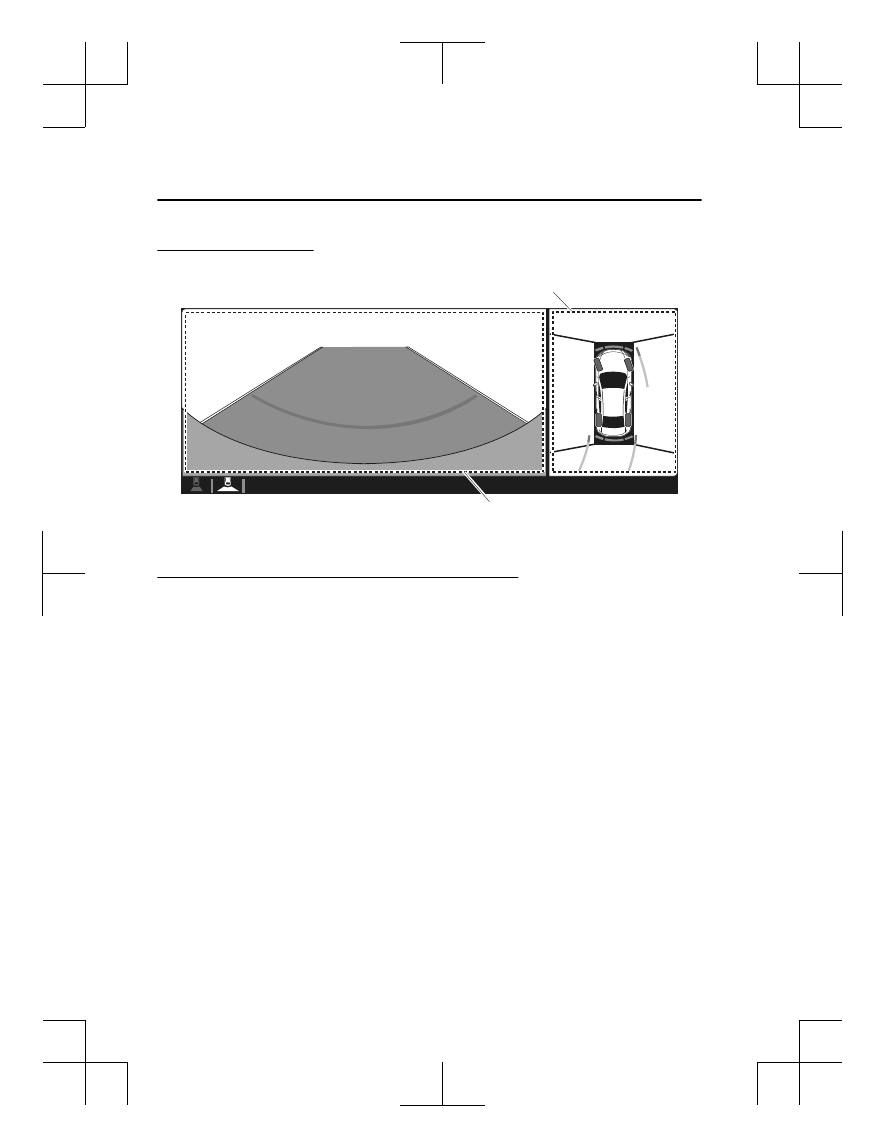

Top view/Rear wide view

Displays the image of the area around the vehicle and the rear of the vehicle (wide-area).

Rear wide view screen

Top view screen

▼

How to Use the System

Top view/Front view, Top view/Front wide view, Side view

Indication

Images are displayed on the screen when the 360°View Monitor switch is pressed with all of
the following conditions met.



The ignition is switched ON.

When Driving

i-ACTIVSENSE

4-212

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Mazda CX-5 (2024 year). Manual in english - page 11
