Mazda CX-5 (2023 year). Manual in english - page 18





Maintenance and Care
Owner Maintenance
Engine Compartment Overview
SKYACTIV-G 2.5
Windshield washer fluid reservoir
Brake fluid reservoir
Engine oil-dipstick
Battery
Fuse block
Cooling system cap
Engine coolant reservoir
Engine oil-filler cap
SKYACTIV-G 2.5T
Windshield washer fluid reservoir
Brake fluid reservoir
Engine oil-filler cap
Battery Fuse block
Cooling system cap
Engine oil dipstick
Engine coolant reservoir
6-19
Maintenance and Care
Owner Maintenance
requirements of the International
Engine Oil
Lubricant Standardization and Approval
Committee (ILSAC), comprised of U.S.
NOTE
and Japanese automobile manufacturers.
Changing the engine oil should be
performed by an Authorized Mazda
-40
-30 -20
-10
0
10
20
30
40
Dealer.
Refer to Introduction (page 6-2) for
owner's responsibility in protecting your
–40
-20
0
20
40
60
80
100
investment.
Recommended Oil
U.S.A., Canada
SKYACTIV-G 2.5
SKYACTIV-G 2.5T
Use SAE 0W-20 engine oil.
Use SAE 5W-30 engine oil.
Mazda Genuine Oil is used in your Mazda
Mazda Genuine Oil is used in your Mazda
vehicle. Mazda Genuine 0W-20 Oil is
vehicle. Mazda Genuine 5W-30 Oil is
required to achieve optimum fuel
required to achieve optimum fuel
economy.
economy.
For maintenance service, Mazda
For maintenance service, Mazda
recommends Genuine Mazda Parts and
recommends Genuine Mazda Parts and
Genuine Mazda Premium Oil.
Genuine Mazda Premium Oil.
(ILSAC)
(ILSAC)
Only use SAE 0W-20 oil “Certified For
Only use SAE 5W-30 oil “Certified For
Gasoline Engines” by the American
Gasoline Engines” by the American
Petroleum Institute (API).
Petroleum Institute (API).
Oil with this trademark symbol conforms
Oil with this trademark symbol conforms
to the current engine and emission system
to the current engine and emission system
protection standards and fuel economy
protection standards and fuel economy
6-20
Maintenance and Care
Owner Maintenance
requirements of the International
(Mexico)
Lubricant Standardization and Approval
-40
-30 -20
-10
0
10
20
30
40
Committee (ILSAC), comprised of U.S.
and Japanese automobile manufacturers.
–40
-20
0
20
40
60
80
100
-40
-30 -20
-10
0
10
20
30
40
–40
-20
0
20
40
60
80
100
SKYACTIV-G 2.5
Use API SM or higher, SAE 5W-30
engine oil. If SAE 5W-30 engine oil is not
available, use SAE 5W-20, SAE 0W-30 or
Except U.S.A., Canada
SAE 10W-30 engine oil.
SKYACTIV-G 2.5
The quality designation SM, SN or SP
Use SAE 5W-30 engine oil.
must be on the label.
Oil container labels provide important
information.
A chief contribution this type of oil makes
SKYACTIV-G 2.5T
to fuel economy is reducing the amount of
Use API SM or higher, SAE 5W-30
fuel necessary to overcome engine
engine oil. If SAE 5W-30 engine oil is not
friction.
available, use SAE 0W-30 or SAE
10W-30 engine oil.
For maintenance service, Mazda
recommends Mazda Genuine Parts.
The quality designation SM, SN or SP
must be on the label.
Inspecting Engine Oil Level
1. Be sure the vehicle is on a level
surface.
2. Warm up the engine to normal
operating temperature.
3. Turn it off and wait at least 5 minutes
(ILSAC)
for the oil to return to the oil pan.
6-21
Maintenance and Care
Owner Maintenance
4. Pull out the dipstick, wipe it clean, and
Engine Coolant
reinsert it fully.
Inspecting Coolant Level
WARNING
Do not use a match or live flame in the
engine compartment. DO NOT ADD
MAX
COOLANT WHEN THE ENGINE IS HOT:
A hot engine is dangerous. If the engine has
OK
been running, parts of the engine
compartment can become very hot. You
MIN
could be burned. Carefully inspect the
5.
Pull it out again and examine the level.
engine coolant in the coolant reservoir, but
The level is normal if it is between the
do not open it.
MIN and MAX marks.
If it is near or below MIN, add enough
oil to bring the level to MAX.
Pull over to a safe location, then switch
CAUTION
the ignition off and make sure the fan is
not running before attempting to work
Do not overfill the engine oil. This may
near the cooling fan:
cause engine damage.
Working near the cooling fan when it is
6.
Make sure the O-ring on the dipstick is
running is dangerous. The fan could
positioned properly before reinserting
continue running indefinitely even if the
the dipstick.
engine has stopped and the engine
7.
Reinsert the dipstick fully.
compartment temperature is high. You
could be hit by the fan and seriously
injured.
Do not remove either cooling
system cap when the engine and radiator
are hot:
When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.
6-22
Maintenance and Care
Owner Maintenance
NOTE
SKYACTIV-G 2.5T
Changing the coolant should be done by
an Authorized Mazda Dealer.
Inspect the antifreeze protection and
coolant level in the coolant reservoir at
least once a year―at the beginning of the
winter season―and before traveling where
temperatures may drop below freezing.
Inspect the condition and connections of
all cooling system and heater hoses.
Replace any that are swollen or
deteriorated.
If it is at or near L, add enough coolant to
the coolant reservoir to provide freezing
The coolant should be at full in the
and corrosion protection and to bring the
radiator and between the F and L marks on
level to F.
the coolant reservoir when the engine is
Securely tighten the coolant reservoir tank
cool.
cap after adding coolant.
SKYACTIV-G 2.5
CAUTION
¾ Radiator coolant will damage paint.
Rinse it off quickly if spilled.
¾ If the “FL22” mark is shown on or near
the cooling system cap, use of FL-22 is
recommended when replacing engine
coolant. Using engine coolant other than
FL-22 may cause serious damage to the
engine and cooling system.
If the coolant reservoir is empty or new
coolant is required frequently, consult an
Authorized Mazda Dealer.
6-23
Maintenance and Care
Owner Maintenance
Brake Fluid
Washer Fluid
Inspecting Brake Fluid Level
Inspecting Washer Fluid Level
WARNING
WARNING
If the brake fluid level is low, have the
Use only windshield washer fluid or plain
brakes inspected:
water in the reservoir:
A low brake fluid level is dangerous.
Using radiator antifreeze as washer fluid is
A low level could indicate brake lining wear
dangerous. If sprayed on the windshield, it
or a brake system leak which could cause
will dirty the windshield, affect your
the brakes to fail and lead to an accident.
visibility, and could result in an accident.
Inspect the fluid level in the reservoir
Using Washer Fluid Without Anti-freeze
regularly. It should be kept between the
Protection in Cold Weather:
MAX and MIN lines.
Operating your vehicle in temperatures
The level normally drops with
below 4 °C (40 °F) using washer fluid
accumulated distance, a condition
without anti-freeze protection is dangerous
associated with wear of brake linings. If it
as it could cause impaired windshield
is excessively low, have the brake system
vision and result in an accident. In cold
inspected by an Authorized Mazda Dealer.
weather, always use washer fluid with
anti-freeze protection.
NOTE
State or local regulations may restrict the
use of volatile organic compounds
(VOCs), which are commonly used as
anti-freeze agents in washer fluid. A
washer fluid with limited VOC content
should be used only if it provides adequate
freeze resistance for all regions and
climates in which the vehicle will be
operated.
Add washer fluid under any of the
following conditions.
The top of the fluid level is low.
The Low Washer Fluid Level Warning
Indication/Warning Light (if equipped)
turns on.
6-24
Maintenance and Care
Owner Maintenance
The top of the fluid level is lower than L
Body Lubrication
(if equipped).
All moving points of the body, such as
door and hood hinges and locks, should be
lubricated each time the engine oil is
changed. Use a nonfreezing lubricant on
locks during cold weather.
F
Make sure the hood's secondary latch
keeps the hood from opening when the
primary latch is released.
L
Use plain water if washer fluid is
unavailable.
But use only washer fluid in cold weather
to prevent it from freezing.
NOTE
Front and rear washer fluid is supplied
from the same reservoir.
6-25
Maintenance and Care
Owner Maintenance
Replacing Windshield Wiper Blades
Wiper Blades
When the wipers no longer clean well, the
blades are probably worn or cracked.
CAUTION
Replace them.
¾ Hot waxes applied by automatic car
CAUTION
washers have been known to affect the
wiper's ability to clean windows.
¾ To prevent damage to the wiper arms
¾ To prevent damage to the wiper blades,
and other components, do not try to
do not use gasoline, kerosene, paint
sweep the wiper arm by hand.
thinner, or other solvents on or near
¾ Do not bend the blade rubber
them.
unnecessarily when replacing it.
¾ When the wiper lever is in the AUTO
Otherwise, the metal stiffener in the
position and the ignition is switched ON,
blade may deform and the windshield
the wipers may move automatically in
wiper operation may be adversely
the following cases:
affected.
¾ If the windshield above the rain sensor
is touched.
NOTE
¾ If the windshield above the rain sensor
When raising both windshield wiper arms,
is wiped with a cloth.
raise the driver's side wiper arm first.
¾ If the windshield is struck with a hand
When lowering the wiper arms, slowly
or other object.
lower the wiper arm from the passenger's
¾ If the rain sensor is struck with a hand
side first while supporting it with your
or other object from inside the vehicle.
hand. Forcefully lowering the wiper arms
could damage the wiper arm and blade,
Be careful not to pinch hands or fingers
and may scratch or crack the windshield.
as it may cause injury, or damage the
wipers. When washing or servicing the

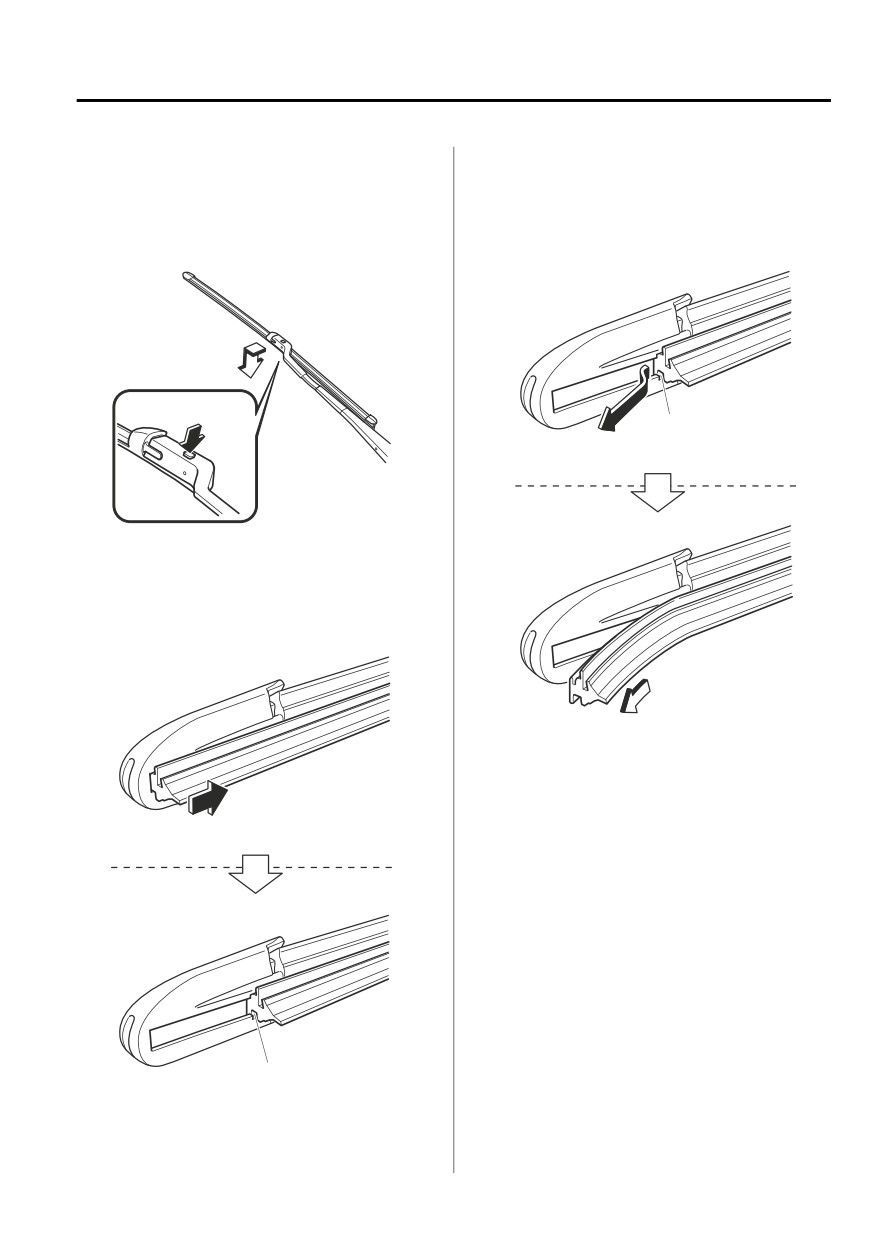

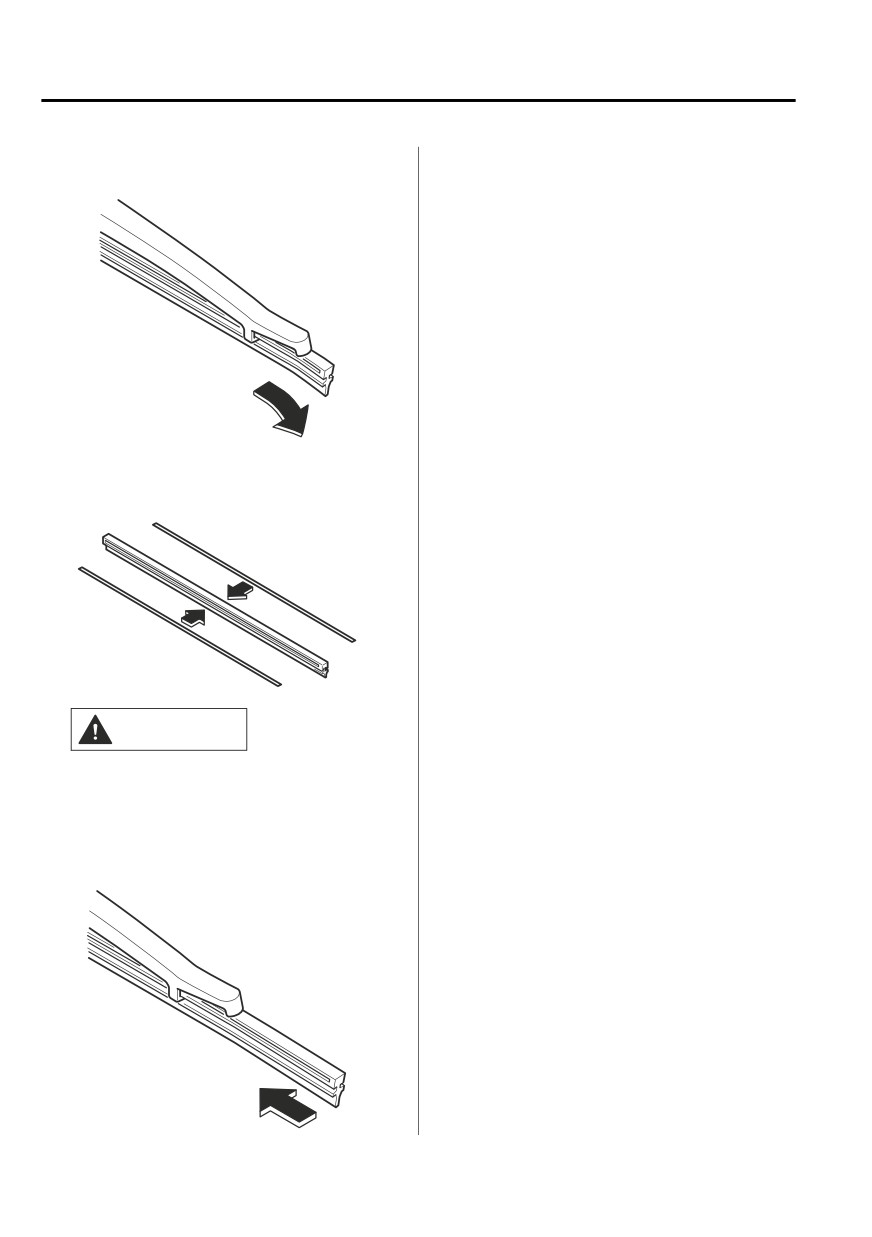

Replace the wiper blades using the
vehicle, make sure the wiper lever is in
following procedure.
the OFF position.
1. Raise the wiper arm.
Contamination of either the windshield or
CAUTION
the blades with foreign matter can reduce
wiper effectiveness. Common sources are
To prevent damage to the windshield
insects, tree sap, and hot wax treatments
let the wiper arm down easily, do not
used by some commercial car washes.
let it slap down on the windshield.
If the blades are not wiping properly, clean
the window and blades with a good
cleaner or mild detergent; then rinse
thoroughly with clean water. Repeat if
necessary.
6-26
Maintenance and Care
Owner Maintenance
2. Slide the blade component in the
4. Pull the end of the blade rubber from
direction of the arrow while pressing
the blade holder groove in the direction
the wiper arm tab to remove the blade
of the arrow and remove the blade
component from the wiper arm.
rubber from the blade holder.
Groove
3. Pull the blade rubber in the direction of
the arrow and slide it to a position
where the blade holder groove can be
checked.
Groove
6-27
Maintenance and Care
Owner Maintenance
5. Insert the end of the new blade rubber
blade holder groove, slide the blade
into the groove of the blade holder
rubber end in the opposite direction.
until it contacts the end of the blade
holder.
Groove
Groove
7. Make sure that the blade rubber is
correctly installed to the blade holder.
8. Align the wiper arm tabs with the
6. After pulling the blade rubber in the
blade component grooves.
direction of the arrow and sliding the
blade rubber to a position to check the
Tabs
Grooves
6-28
Maintenance and Care
Owner Maintenance
9. Align the blade component projection
1. Remove the cover and raise the wiper
with the wiper arm notch.
arm.
Notch
Projection
10. Slide the blade component and install
it to the wiper arm.
2. Firmly rotate the wiper blade to the
right until it unlocks, then remove the
blade.
11. Slowly lower the wiper arm onto the
windshield.
Replacing Rear Window Wiper
Blade
When the wiper no longer cleans well, the
CAUTION
blade is probably worn or cracked.
Replace it.
To prevent damage to the rear window,
do not let the wiper arm fall on it.
CAUTION
To prevent damage to the wiper arm and
other components, do not move the wiper
by hand.
6-29
Maintenance and Care
Owner Maintenance
3. Pull down the blade rubber and slide it
out of the blade holder.
4. Remove the metal stiffeners from the
blade rubber and install them in the
new blade.
CAUTION
Do not bend or discard the stiffeners.
You need to use them again.
5. Carefully insert the new blade rubber.
Then install the blade assembly in the
reverse order of removal.
6-30
Maintenance and Care
Owner Maintenance

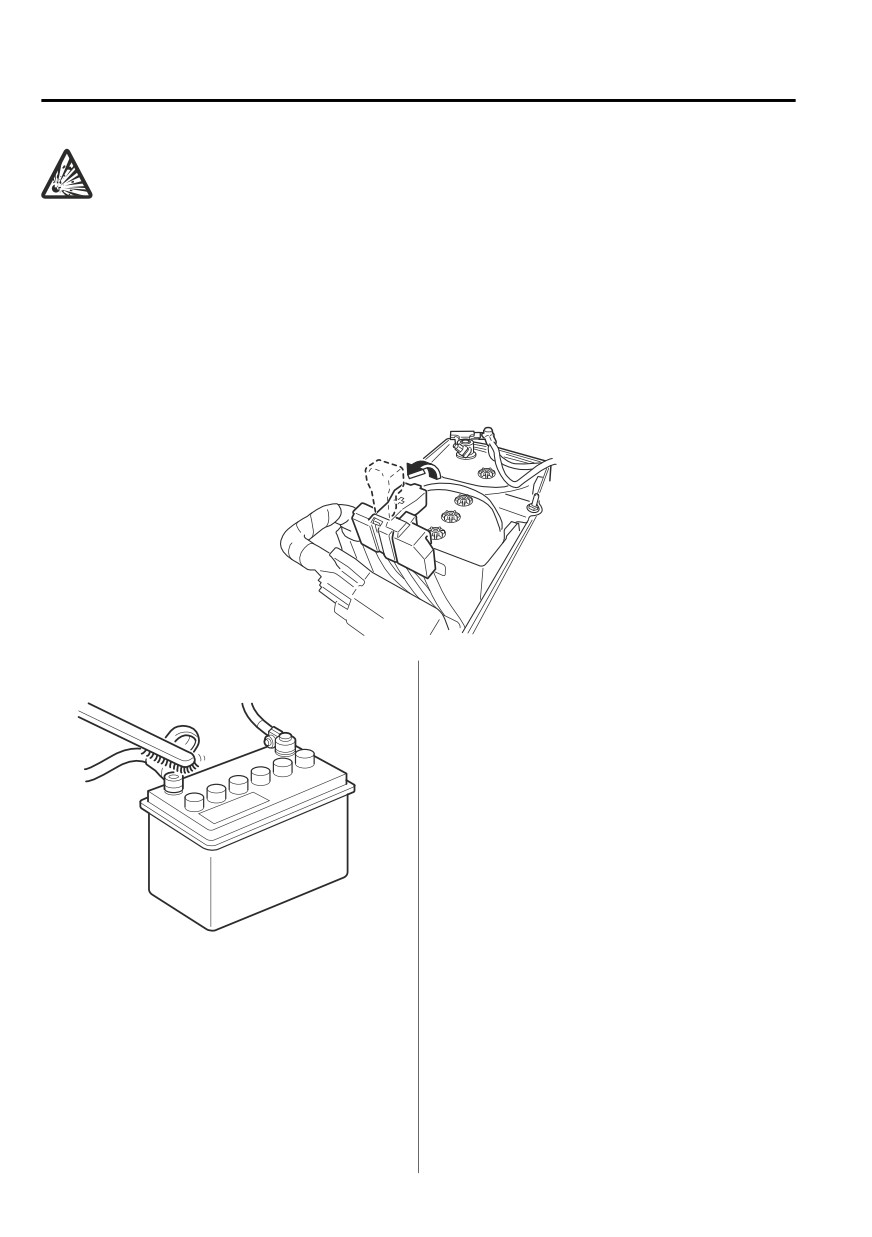

Battery
WARNING
Wash hands after handling the battery and related accessories:
Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm.
Read the following precautions carefully before using the battery or inspecting to
ensure safe and correct handling:
Always wear eye protection when working near the battery:
Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.
Wear eye protection and protective gloves to prevent contact with battery fluid:
Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.
Always keep batteries out of the reach of children:
Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.
Keep flames and sparks away from open battery cells and do not allow metal tools to
contact the positive (
) or negative (
) terminal of the battery when working near a battery.
Do not allow the positive (
) terminal to contact the vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during normal
battery operation, could ignite and cause the battery to explode. An exploding battery can cause serious
burns and injuries. Keep all flames including cigarettes and sparks away from open battery cells.
6-31
Maintenance and Care
Owner Maintenance
Keep all flames and sparks away from open battery cells because hydrogen gas is
produced from open battery cells while charging the battery or adding battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced during
normal battery operation, could ignite and cause the battery to explode. An exploding battery
can cause serious burns and injuries. Keep all flames including cigarettes and sparks away
from open battery cells.
NOTE
Before performing battery maintenance, remove the battery cover.
Battery Maintenance
If the vehicle will not be used for an
extended time, disconnect the battery
cables and charge the battery every 6
weeks.
Battery Replacement
Contact an Authorized Mazda Dealer for
battery replacement.
To get the best service from a battery:
Keep it securely mounted.
Keep the top clean and dry.
Keep terminals and connections clean,
tight, and coated with petroleum jelly or
terminal grease.
Rinse off spilled electrolyte immediately
with a solution of water and baking
soda.
6-32
Maintenance and Care
Owner Maintenance
messages are displayed in the instrument
Key Battery Replacement
cluster).
If the buttons on the transmitter are
The system does not operate and the
inoperable and the operation indicator
operation indicator light on the
light does not flash, the battery may be
transmitter does not flash when the
dead.
buttons are pressed.
Replace with a new battery before the
The system's operational range is
transmitter becomes unusable.
reduced.
Replacing the battery at an Authorized
CAUTION
Mazda Dealer, is recommended to prevent
damage to the key. If replacing the battery
¾ Make sure the battery is installed
by yourself, follow the instruction.
correctly. Battery leakage could occur if it
is not installed correctly.

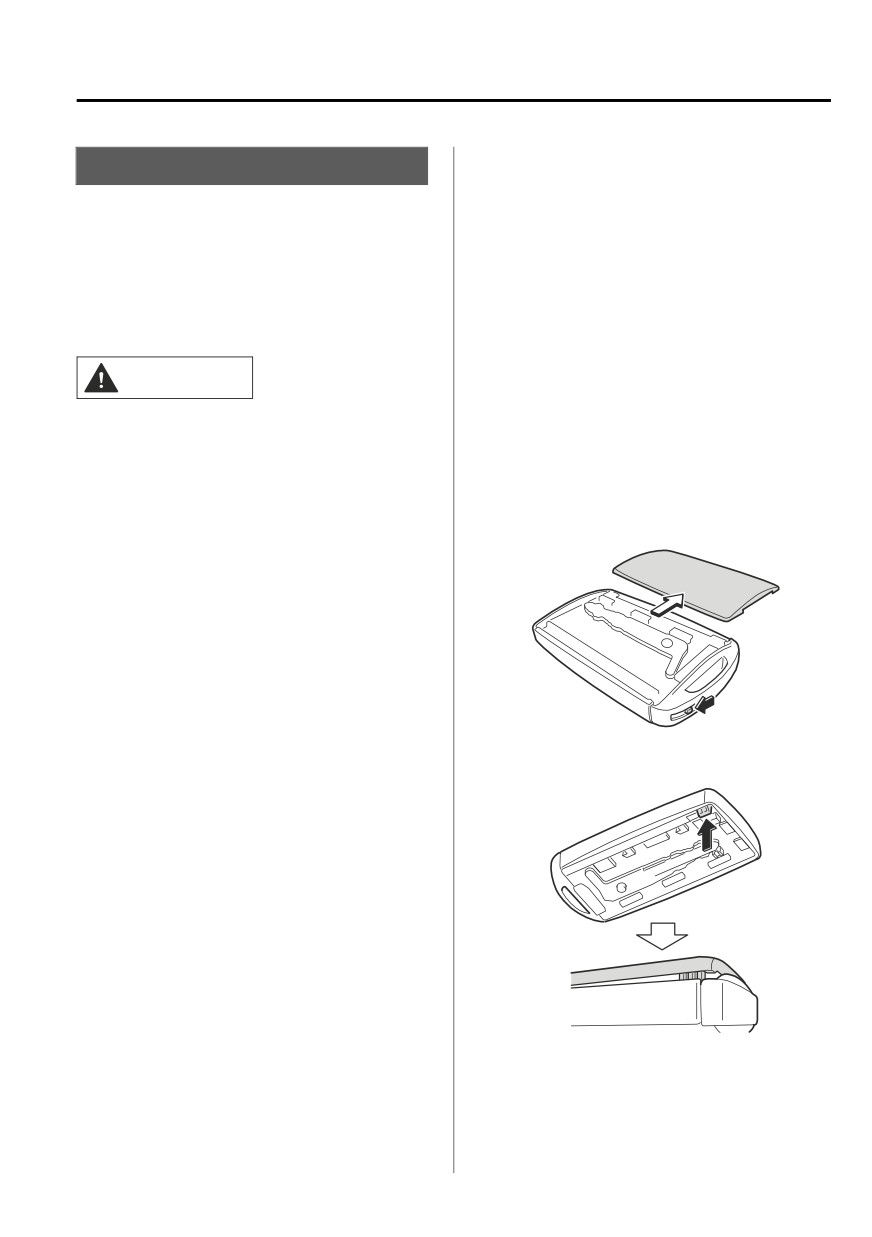

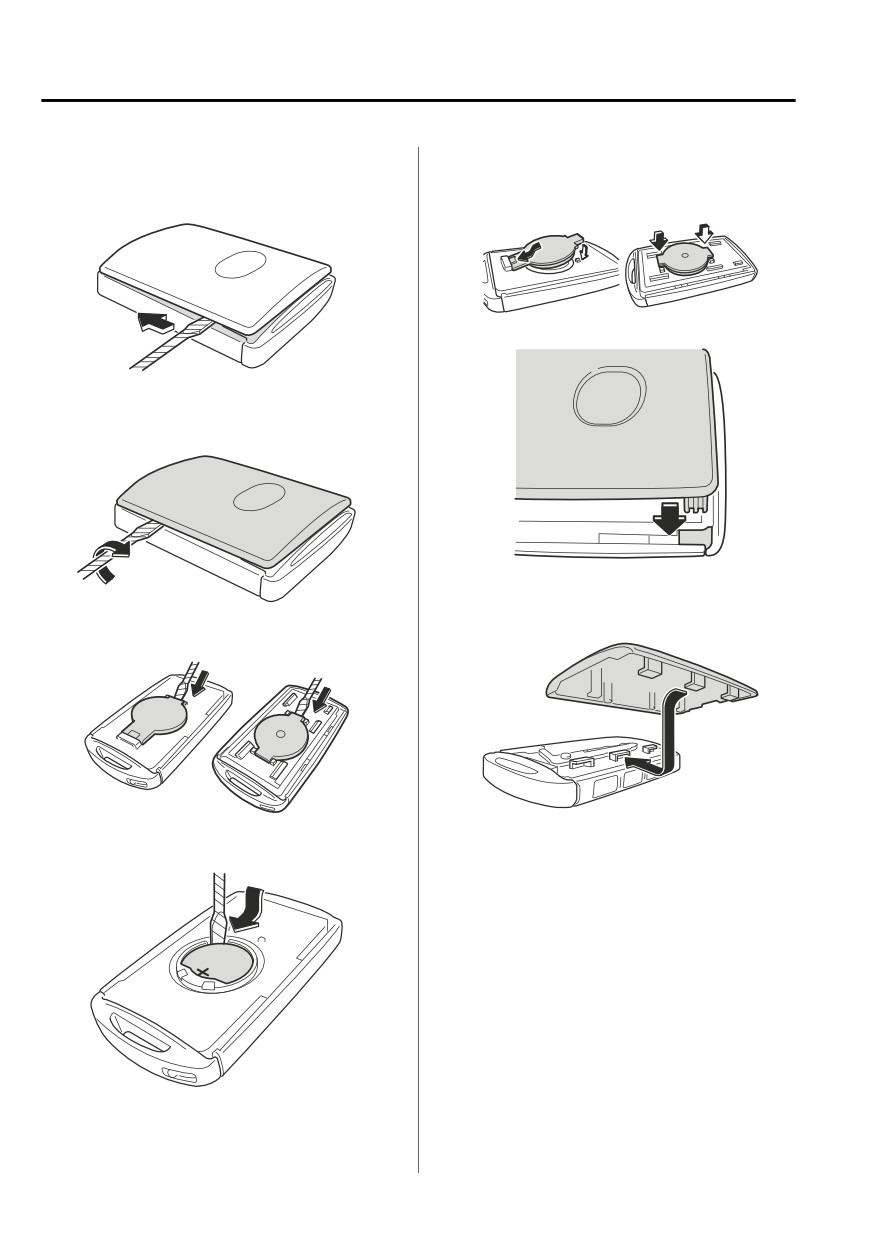

Replacing the key battery
¾ When replacing the battery, be careful
1.
Remove the lower cover while sliding
not to touch any of the internal circuitry
the knob in the direction of the arrow.
and electrical terminals, bend the
electrical terminals, or get dirt in the
transmitter as the transmitter could be
damaged.
¾ There is the danger of explosion if the
battery is not correctly replaced.
¾ Dispose of used batteries according to
the following instructions.
2.
Press in the tab to unlock the upper
¾ Insulate the plus and minus terminals
cover.
of the battery using cellophane or
equivalent tape.
¾ Never disassemble.
¾ Never throw the battery into fire or
water.
¾ Never deform or crush.
¾ Replace only with the same type battery
(CR2032 or equivalent).
The following conditions indicate that the
battery power is low:
The KEY indicator light (green) flashes
in the instrument cluster for about 30
seconds after the engine is switched
OFF (for vehicles with a type A/type B
instrument cluster (page 4-12, 4-31),
6-33
Maintenance and Care
Owner Maintenance
3. Insert a tape-wrapped flathead
7. Insert a new battery into the transmitter
screwdriver into the gap and slide it in
so that the positive pole is facing up.
the direction of the arrow.
8. Install the cap.
9. Install the upper cover.
4. Twist the flathead screwdriver in the
direction of the arrow and remove the
upper cover.
10. Insert the tabs of the lower cover into
the slots of the transmitter and install
5. Remove the cap using the
the lower cover.
tape-wrapped flathead screwdriver.
6. Remove the battery using
tape-wrapped flathead screwdriver.
6-34
Maintenance and Care
Owner Maintenance
Use only a Mazda-genuine tire valve cap:
Tires
Use of a non-genuine part is dangerous as
For reasons of proper performance, safety,
the correct tire air pressure cannot be
and better fuel economy, always maintain
maintained if the tire valve becomes
recommended tire inflation pressures and
damaged. If the vehicle is driven under this
stay within the recommended load limits
condition, the tire air pressure will decrease
and weight distribution.
which could result in a serious accident. Do
not use any part for the tire valve cap that
WARNING
is not a Mazda-genuine part.
Inspect all tire pressures monthly
Using Different Tire Types:
(including the spare) when the tires are
Driving your vehicle with different types of
cold. Maintain recommended pressures for
tires is dangerous. It could cause poor
the best ride, handling, and minimum tire
handling and poor braking; leading to loss
wear.
of control.
Refer to the specification charts (page
Except for the limited use of the temporary
9-7).
spare tire, use only the same type tires
NOTE
(radial, bias-belted, bias-type) on all four
wheels.
Always check tire pressure when tires
are cold.
Using Wrong-Sized Tires:
Warm tires normally exceed
Using any other tire size than what is
recommended pressures. Do not release
specified for the vehicle (page 9-7) is
air from warm tires to adjust the
dangerous. It could seriously affect ride,
pressure.
handling, ground clearance, tire clearance,
Underinflation can cause reduced fuel
and speedometer calibration. This could
economy, uneven and accelerated tire
cause you to have an accident. Use only
wear, and poor sealing of the tire bead,
tires that are the correct size specified for
which will deform the wheel and cause
the vehicle.
separation of tire from rim.
Overinflation can produce a harsh ride,
Tire Inflation Pressure
uneven and accelerated tire wear, and a
greater possibility of damage from road
WARNING
hazards.
Keep your tire pressure at the correct
levels. If one frequently needs inflating,
Always inflate the tires to the correct
have it inspected.
pressure:
Overinflation or underinflation of tires is
dangerous. Adverse handling or
unexpected tire failure could result in a
serious accident.
Refer to Tires on page 9-7.
6-35
Maintenance and Care
Owner Maintenance

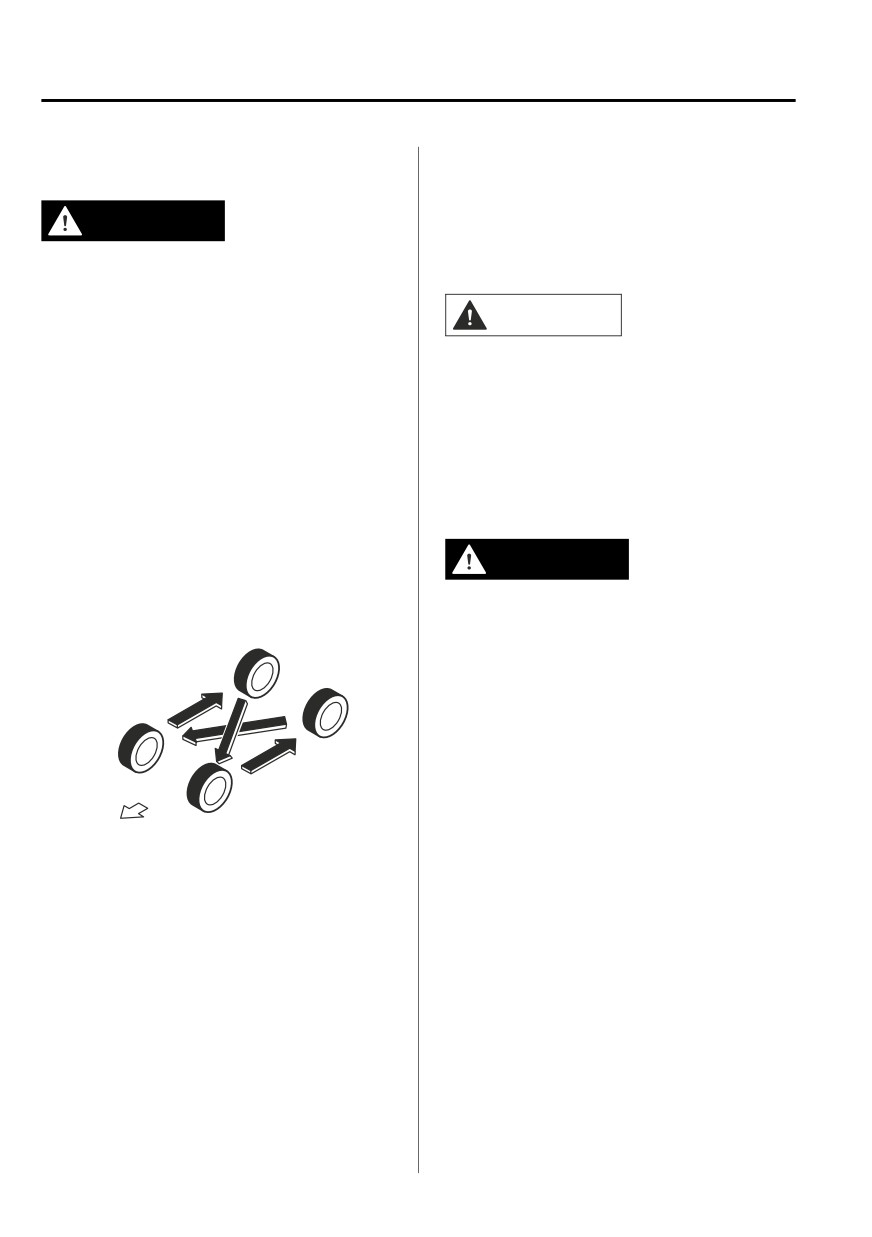

Tire Rotation
Severe braking
WARNING
After rotation, inflate all tire pressures to
specification (page 9-7) and inspect the
lug nuts for tightness.
Rotate tires periodically:
Irregular tire wear is dangerous. To
CAUTION
equalize tread wear for maintaining good
performance in handling and braking,
Rotate unidirectional tires and radial tires
rotate the tires every 12,000 km (7,500
that have an asymmetrical tread pattern or
miles). However Mazda recommends to
studs only from front to rear, not from side
rotate every 8,000 km (5,000 miles) to help
to side. Tire performance will be reduced if
increase tire life and distribute wear more
rotated from side to side.
evenly.
Refer to Scheduled Maintenance on page
Replacing a Tire
6-4.
WARNING
During rotation, inspect them for correct
balance.
Always use tires that are in good condition:
Driving with worn tires is dangerous.
Reduced braking, steering, and traction
could result in an accident.
Replace all four tires at the same time:
Replacing just one tire is dangerous. It
could cause poor handling and poor
braking resulting in loss of vehicle control.
Forward
Mazda strongly recommends that you
Do not include (TEMPORARY USE
replace all four tires at the same time.
ONLY) spare tire in rotation.

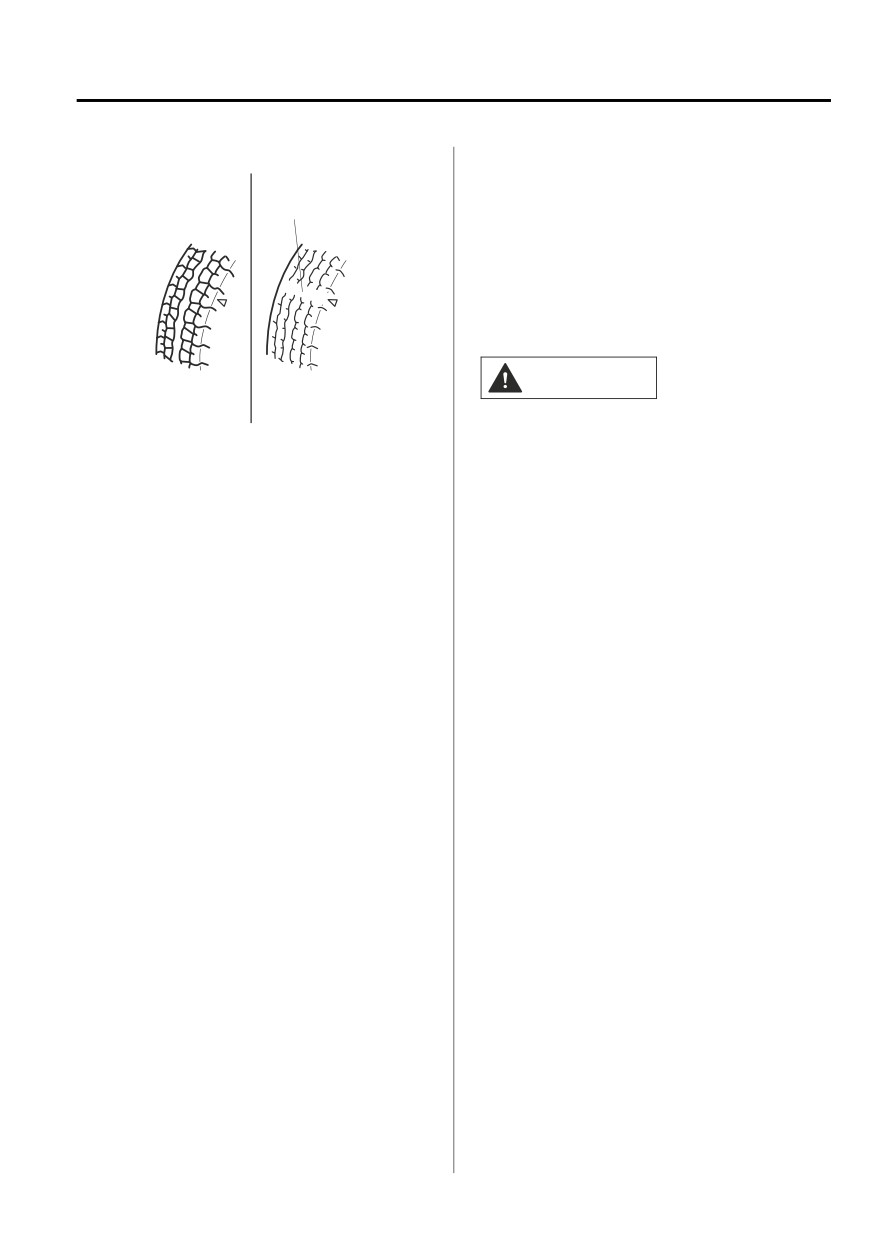

If a tire wears evenly, a wear indicator will
Also, inspect them for uneven wear and
appear as a solid band across the tread.
damage. Abnormal wear is usually caused
by one or a combination of the following:
Incorrect tire pressure
Improper wheel alignment
Out-of-balance wheel
6-36
Maintenance and Care
Owner Maintenance
Replace the tire when this happens.
tire. This tire should be used only for an
Tread wear
emergency and only for a short distance.
indicator
Use the temporary spare tire only until the
conventional tire is repaired, which should
be as soon as possible.
Refer to Tires on page 9-7.
CAUTION
New tread
Worn tread
¾ Do not use your temporary spare tire rim
You should replace the tire before the band
with a snow tire or a conventional tire.
crosses the entire tread.
Neither will properly fit and could
NOTE
damage both tire and rim.
Tires degrade over time, even when they
¾ The temporary spare tire has a tread life
are not being used on the road. It is
of less than 5,000 km (3,000 miles). The
recommended that tires generally be
tread life may be shorter depending on
replaced when they are 6 years or older.
driving conditions.
Heat caused by hot climates or frequent
¾ The temporary spare tire is for limited
high loading conditions can accelerate the
use, however, if the tread wear
aging process. You should replace the
solid-band indicator appears, replace the
spare tire when you replace the other road
tire with the same type of temporary
tires due to the aging of the spare tire. The
spare (page 6-36).
period in which the tire was manufactured
(both week and year) is indicated by a
NOTE
4-digit number.
Tires degrade over time, even when they
Refer to Tire Labeling on page 8-25.
are not being used on the road. It is
recommended that tires generally be
Temporary Spare Tire
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
Inspect the temporary spare tire at least
high loading conditions can accelerate the
monthly to make sure it is properly
aging process. You should replace the
inflated and stored.
spare tire when you replace the other road
NOTE
tires due to the aging of the spare tire. The
The temporary spare tire condition
period in which the tire was manufactured
gradually deteriorates even if it has not
(both week and year) is indicated by a
been used.
4-digit number.
The temporary spare tire is easier to
Refer to Tire Labeling on page 8-25.
handle because of its construction which is
lighter and smaller than a conventional
6-37
Maintenance and Care
Owner Maintenance
Replacing a Wheel
WARNING
Always use wheels of the correct size on
your vehicle:
Using a wrong-sized wheel is dangerous.
Braking and handling could be affected,
leading to loss of control and an accident.
CAUTION
A wrong-sized wheel may adversely affect:
¾ Tire fit
¾ Wheel and bearing life
¾ Ground clearance
¾ Snow-chain clearance
¾ Speedometer calibration
¾ Headlight aim
¾ Bumper height
¾ Tire Pressure Monitoring System*
NOTE
When replacing a wheel, make sure the
new one is the same as the original
factory wheel in diameter, rim width,
and offset (inset/outset).
For details, contact an Authorized
Mazda Dealer.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
6-38
*Some models.
Maintenance and Care
Owner Maintenance
Light Bulbs
Headlights (High/Low beam)
Overhead lights
/Daytime running lights
/Front map lights
Ambient lights
Parking lights
Vanity mirror lights
Front turn signal lights
/Parking lights
Side turn signal lights
Front side-marker lights
Daytime running lights
/Parking lights
High-mount brake light
Rear map lights
Rear turn signal lights
Rear side-marker lights
Luggage compartment
light
Brake lights/Taillights
License plate lights
Taillights
Reverse lights
Some models.
CAUTION
When removing the lens or lamp unit using a flathead screwdriver, make sure that the
flathead screwdriver does not contact the interior terminal. If the flathead screwdriver
contacts the terminal, a short circuit may occur.
NOTE
To replace the bulb, contact an Authorized Mazda Dealer.
6-39
Maintenance and Care
Owner Maintenance
Use the protective cover and carton for the replacement bulb to dispose of the old bulb
promptly and out of the reach of children.
Replacing Exterior Light Bulbs
Overhead light/Front map lights
All the exterior light bulbs are LED type.
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.
Replacing Interior Light Bulbs
The interior lights have either LEDs or
normal bulbs.
LED type
Overhead lights/Front map lights
Rear map lights
Vanity mirror lights*
Luggage compartment light
Ambient lights*
The LED bulb cannot be replaced as a
single unit because it is an integrated unit.
The LED bulb has to be replaced with the
unit. If a replacement is necessary, consult
an Authorized Mazda Dealer.
Bulb type
Overhead light/Front map lights, Rear
map lights, Vanity mirror lights*
1. Wrap a flathead screwdriver with a
soft cloth to prevent damage to the
lens, and then remove the lens by
carefully prying on the edge of the lens
with a flathead screwdriver.
2. Disconnect the bulb by pulling it out.
6-40
*Some models.
Maintenance and Care
Owner Maintenance
Rear map lights
Vanity mirror lights*
Driver’s seat
Passenger’s seat
3. Install the new bulb in the reverse
order of the removal procedure.
Luggage compartment light
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens unit by
carefully prying on the edge of the lens
unit with the flathead screwdriver.
*Some models.
6-41
Maintenance and Care
Owner Maintenance
2. Disconnect the electrical connector
4. Disconnect the bulb by pulling it out.
from the bulb by pressing the tab on
the connector with your finger and
pulling the connector.
5. Install the new bulb in the reverse
order of the removal procedure.
CAUTION
When replacing the bulb always
disconnect the connector first.
Otherwise, electric and electronic
devices could be shorted.
3. Insert the flathead screwdriver into the
gap between the lens and the lens unit,
and then slide the screwdriver to
detach the lens.
6-42
Maintenance and Care
Owner Maintenance
3.
Pull the fuse straight out with the fuse
Fuses
puller provided on the fuse block
Your vehicle's electrical system is
located in the engine compartment.
protected by fuses.
If any lights, accessories, or controls do
not work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
Fuse Replacement
4.
Inspect the fuse and replace it if it is
blown.
Replacing the fuses on the vehicle's left
side
If the electrical system does not work, first
inspect the fuses on the vehicle's left side.
1. Make sure the ignition is switched off,
and other switches are off.
2. Open the fuse panel cover.
Normal
Blown
5. Insert a new fuse of the same
amperage rating, and make sure it fits
tightly. If it does not fit tightly, have an
expert install it. Consult an Authorized
Mazda Dealer.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or OUTLET circuit.
6-43
Maintenance and Care
Owner Maintenance
3.
If any fuse but the MAIN fuse is
CAUTION
blown, replace it with a new one of the
same amperage rating.
Always replace a fuse with a genuine
Mazda fuse or equivalent of the same
rating. Otherwise you may damage the
electric system.
6. Reinstall the cover and make sure that
it is securely installed.
Replacing the fuses under the hood
If the headlights or other electrical
Normal
Blown
components do not work and the fuses in
the cabin are normal, inspect the fuse
block under the hood.
If a fuse is blown, it must be replaced.
WARNING
Follow these steps:
Do not replace the main fuse by
1. Make sure the ignition is switched off,
yourself. Have an Authorized Mazda
and other switches are off.
Dealer perform the replacement:
2. Remove the fuse block cover.
Replacing the fuse by yourself is
dangerous because the MAIN fuse is a
high current fuse. Incorrect
replacement could cause an electrical
shock or a short circuit resulting in a
fire.
4.
Reinstall the cover and make sure that
it is securely installed.
6-44
Maintenance and Care
Owner Maintenance
Fuse Panel Description
Fuse block (Engine compartment)
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
1
CABIN.+B
50 A
For protection of various circuits
2
IG2
30 A
For protection of various circuits
INJECTOR
3
30 A
Engine control system*
ENG.SUB
SCR1
4
20 A
Engine control system*
EVVT
5
P.WINDOW1
30 A
Power windows*
6
R.HEATER
20 A
7
ADD FAN DE
40 A
Cooling fan*
8
WIPER.DEI
20 A
Windshield wiper de-icer*
9
DEFOG
30 A
Rear window defogger
10
DCDC DE
40 A
For protection of various circuits
11
EPB R
20 A
Electric parking brake (EPB) (RH)
12
EPB L
20 A
Electric parking brake (EPB) (LH)
*Some models.
6-45
Maintenance and Care
Owner Maintenance
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
AUDIO
13
30 A
Audio system*
DCDC REG
14
FAN GE
30 A
Cooling fan*
15
ENG.MAIN
40 A
Engine control system
16
ABS/DSC M
50 A
ABS, Dynamic stability control system
17
FAN DE
40 A
Cooling fan*
18
WIPER
20 A
Front window wiper and washer
19
HEATER
40 A
Air conditioner
20
ADD FAN GE
30 A
Cooling fan*
21
ENGINE.IG1
7.5 A
Engine control system
22
C/U IG1
15 A
For protection of various circuits
23
AUDIO2
7.5 A
Audio system
24
METER2
7.5 A
Instrument cluster*
25
ENGINE3
15 A
Engine control system
26
ENGINE2
15 A
Engine control system
27
ENGINE1
15 A
Engine control system*
28
AT
15 A
Transaxle control system, Ignition switch
29
H/CLEAN
20 A
30
A/C
7.5 A
Air conditioner
31
AT PUMP
15 A
Transaxle control system
32
HORN
15 A
Horn
33
R.WIPER
15 A
Rear window wiper
34
H/L HI
20 A
Headlight high beam
35
ST.HEATER
15 A
Heated steering wheel*
36
FOG
15 A
37
ENG.+B
7.5 A
Engine control system
38
H/L LOW L
15 A
Headlight low beam (LH)
39
ENGINE4
15 A
Engine control system*
40
INTERIOR1
15 A
For protection of various circuits*
41
METER1
10 A
Instrument cluster
42
SRS1
7.5 A
Air bag
43
AUDIO1
15 A
Audio system
44
BOSE
25 A
Bose Sound System-equipped model*
45
ABS/DSC S
30 A
ABS, Dynamic stability control system
46
FUEL PUMP
15 A
Fuel system*
6-46
*Some models.
Maintenance and Care
Owner Maintenance
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
47
FUEL WARM
25 A
Fuel warmer*
48
TAIL
15 A
Taillights, License plate lights, Parking lights
SCR2
49
25 A
FUEL PUMP2
50
HAZARD
25 A
Hazard warning flashers, Turn signal lights, Parking lights
51
H/L LOW R
15 A
Headlight low beam (RH)
52
OUTLET
25 A
Accessory sockets
53
STOP
10 A
Brake lights
54
ROOM
25 A
For protection of various circuit
Fuse block (Left side)
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
1
P.SEAT D
30 A
Power seat*
2
P.WINDOW3
30 A
Power windows
3
R.OUTLET3
15 A
Accessory sockets*
4
P.WINDOW2
25 A
Power windows
5
ESCL
15 A
Trailer hitch*
*Some models.
6-47
Maintenance and Care
Owner Maintenance
FUSE
DESCRIPTION
PROTECTED COMPONENT
RATING
6
D.LOCK
25 A
Power door locks
7
SEAT WARM
20 A
Seat warmer*
8
SUNROOF
10 A
Moonroof*
9
F.OUTLET
15 A
Accessory sockets
10
MIRROR
7.5 A
Power control mirror
11
R.OUTLET1
15 A
Accessory sockets*
12
SCR3
15 A
13
SCR4
15 A
14
R.OUTLET2
15 A
Accessory sockets
15
USB
7.5 A
USB power outlet*
16
PLG
20 A
Power liftgate*
17
M.DEF
7.5 A
Mirror defogger*
18
R.SEAT W
20 A
Rear seat warmer*
19
INTERIOR2
15 A
For protection of various circuit
20
AT IND
7.5 A
AT shift indicator
21
P.SEAT P
30 A
Power seat*
6-48
*Some models.
Maintenance and Care
Appearance Care
Damage Caused by Bird Dropping,
Exterior Care
Insects, or Tree Sap
The paintwork on your Mazda represents
Occurrence
the latest technical developments in
composition and methods of application.
Bird droppings contain acids. If these are
not removed they can eat away the clear
Environmental hazards, however, can
and color base coat of the vehicle's
harm the paint's protective properties, if
paintwork.
proper care is not taken.
When insects stick to the paint surface and
Here are some examples of possible
decompose, corrosive compounds form.
damage, with tips on how to prevent them.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
Etching Caused by Acid Rain or
not removed.
Industrial Fallout
Occurrence
Tree sap will harden and adhere
permanently to the paint finish. If you
Industrial pollutants and vehicle emissions
scratch the sap off while it is hard, some
drift into the air and mix with rain or dew
vehicle paint could come off with it.
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
Prevention
the acid becomes concentrated and can
It is necessary to have your Mazda washed
damage the finish.
and waxed to preserve its finish according
And the longer the acid remains on the
to the instructions in this section. This
surface, the greater the chance is for
should be done as soon as possible.
damage.
Prevention
Bird droppings can be removed with a soft
sponge and water. If you are traveling and
It is necessary to wash and wax your
these are not available, a moistened tissue
vehicle to preserve its finish according to
may also take care of the problem. The
the instructions in this section. These steps
cleaned area should be waxed according to
should be taken immediately after you
the instructions in this section.
suspect that acid rain has settled on your
Insects and tree sap are best removed with
vehicle's finish.
a soft sponge and water or a commercially
available chemical cleaner.
Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.
6-49
Maintenance and Care
Appearance Care
Water Marks
Chipped paint can lead to rust forming
on your Mazda. Before this happens,
Occurrence
repair the damage by using Mazda
Rain, fog, dew, and even tap water can
touch-up paint according to the
contain harmful minerals such as salt and
instructions in this section. Failure to
lime. If moisture containing these minerals
repair the affected area could lead to
settles on the vehicle and evaporates, the
serious rusting and expensive repairs.
minerals will concentrate and harden to
form white rings. The rings can damage
Follow all label and container directions
your vehicle's finish.
when using a chemical cleaner or polish.
Prevention
Read all warnings and cautions.
It is necessary to wash and wax your
Maintaining the Finish
vehicle to preserve its finish according to
Washing
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.
CAUTION
Paint Chipping
¾ When the ignition is switched ON and
Occurrence
the wiper lever is in the AUTO position,
the windshield wipers may operate
Paint chipping occurs when gravel thrown
automatically in the following cases:
in the air by another vehicle's tires hits
your vehicle.
¾ The area of the windshield above the
rain sensor is touched or wiped with a
How to avoid paint chipping
cloth.
Keeping a safe distance between you and
¾ The windshield or the rain sensor area
the vehicle ahead reduces the chances of
in the cabin is hit.
having your paint chipped by flying
When the ignition is switched ON and
gravel.
the wiper lever is in the AUTO position,
NOTE
do not touch the windshield or the
windshield wipers Otherwise, the
The paint chipping zone varies with the
speed of the vehicle. For example, when
windshield wipers will operate
traveling at 90 km/h (56 mph), the paint
automatically which could catch your
chipping zone is 50 m (164 ft).
fingers or damage the windshield wipers.
When removing ice or snow, or cleaning
In low temperatures a vehicle's finish
hardens. This increases the chance of
the windshield, always make sure the
paint chipping.
wiper lever is in the OFF position.
6-50















Content      ..     16      17      18      19     ..
