If Trouble Arises
Flat Tire
6.
Continue raising the jack head
Do not jack up the vehicle in a
gradually by rotating the screw with
position other than the designated
your hand until the jack head is
jack-up position or place any
inserted into the jack-up position.
objects on or under the jack:
Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or
under the jack is dangerous as it
could deform the vehicle body or
the vehicle could fall off the jack
resulting in an accident.
Use only the jack provided with
your Mazda:
Using a jack that is not designed for
your Mazda is dangerous. The
vehicle could slip off the jack and
seriously injure someone.
1. Tire blocks
Never place objects under the
2. Jacking position
jack:
Jacking the vehicle with an object
WARNING
under the jack is dangerous. The
jack could slip and someone could
Use only the front and rear jacking
be seriously injured by the jack or
positions recommended in this
the falling vehicle.
manual:
Attempting to jack the vehicle in
NOTE
positions other than those
When raising the jack head into the
recommended in this manual is
jacking position and aligning the
dangerous. The vehicle could slip
groove in the jack head with the rail
off the jack and seriously injure or
under the vehicle body, the top of
even kill someone. Use only the
the jack head contacts the vehicle's
front and rear jacking positions
underbody without the rail
recommended in this manual.
contacting the bottom of the
groove.
7-8
If Trouble Arises
Flat Tire
7.
Insert the jack lever and attach the
WARNING
lug wrench to tire jack.
Do not jack up the vehicle higher
than is necessary:
Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in
an accident.
Do not start the engine or shake
the vehicle while it is jacked up:
Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the
8.
Turn the jack handle clockwise and
vehicle to fall off the jack resulting
raise the vehicle high enough so
in an accident.
that the spare tire can be installed.
Before removing the lug nuts, make
Never go under the vehicle while it
sure your Mazda is firmly in
is jacked up:
position and that it cannot slip or
Going under the vehicle while it is
move.
jacked up is dangerous as it could
result in death or serious injury if
the vehicle were to fall off the jack.
9.
Remove the lug nuts by turning
them counterclockwise; then
remove the wheel and center cap.
7-9
If Trouble Arises
Flat Tire
Locking Lug Nuts
To install the antitheft lug nut
If your Mazda is equipped with the
1. Place the special key on top of the
optional antitheft wheel lug nuts, a
nut, and be sure to hold the key
special key must be used to unlock the
square to it. If you hold the key at
locking lug nut for each wheel. The key
an angle, you may damage both key
is stored in the glove compartment,
and nut. Do not use a power
center console storage, storage box, or
impact wrench.
trunk. Register the key and lug nuts
2. Place the lug wrench on top of the
with the lock manufacturer by filling
special key, apply pressure, and
out the registration card and mailing it
turn it clockwise.
in using the accompanying envelope. If
Nut tightening torque
the key is lost, consult an Authorized
Mazda Dealer or use the lock
108147 (1214,
N·m (kgf·m, ft·lbf)
manufacturer’s order form to order a
80108)
new key.
Mounting the Spare Tire
Antitheft wheel lug nuts cannot be
installed on a steel wheel spare tire.
1. Remove dirt and grime from the
When installing a temporary spare tire,
mounting surfaces of the wheel and
use one of the original lug nuts in place
hub, including the hub bolts, with a
of the locking lug nut. The original lug
cloth.
nuts are stored inside your Mazda.
1. Antitheft lug nut
2. Special key
To remove an antitheft lug nut
WARNING
1. Obtain the special key for the
antitheft lug nut.
Make sure the mounting surfaces
2. Place the special key on top of the
of the wheel, hub and lug nuts are
antitheft lug nut, and be sure to
clean before changing or replacing
hold the key square to it. If you
tires:
hold the key at an angle, you may
When changing or replacing a tire,
damage both key and nut. Do not
not removing dirt and grime from
use a power impact wrench.
the mounting surfaces of the wheel,
3. Place the lug wrench on top of the
hub and hub bolts is dangerous.
key and apply pressure. Turn the
The lug nuts could loosen while
wrench counterclockwise.
driving and cause the tire to come
off, resulting in an accident.
2. Mount the spare tire.
7-10
If Trouble Arises
Flat Tire
3.
Install the lug nuts with the beveled
Nut tightening torque
edge inward; tighten them by hand.
108147 (1214,
N·m (kgf·m, ft·lbf)
80108)
WARNING
Always securely and correctly
tighten the lug nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel
could wobble or come off. This
could result in loss of vehicle
WARNING
control and cause a serious
accident.
Do not apply oil or grease to lug
nuts and bolts and do not tighten
Be sure to reinstall the same nuts
the lug nuts beyond the
you removed or replace them with
recommended tightening torque:
metric nuts of the same
Applying oil or grease to lug nuts
configuration:
and bolts is dangerous. The lug nuts
Because the wheel studs and lug
could loosen while driving and
nuts on your Mazda have metric
cause the tire to come off, resulting
threads, using a non-metric nut is
in an accident. In addition, lug nuts
dangerous. On a metric stud, it
and bolts could be damaged if
would not secure the wheel and
tightened more than necessary.
would damage the stud, which
4.
Turn the jack handle
could cause the wheel to slip off
counterclockwise using the lug
and cause an accident.
wrench and lower the vehicle.
6.
(Aluminum wheel equipped
5.
Use the lug wrench to tighten the
vehicle)
nuts in the order shown.
Remove the center cap by tapping
it from the backside of the wheel
using the lug wrench.
7.
(Without flat tire belt)
Store the damaged and/or flat tire
in the rear cargo area.
(With flat tire belt)
Open the luggage mat.
8.
Remove the belt for securing the
flat tire.
If you are unsure of how tight the
nuts should be, have them
inspected at an Authorized Mazda
Dealer.
7-11
If Trouble Arises
Flat Tire
9. Put the flat tire into the liftgate on
13.Thread the belt through the buckle,
the left and toward the back.
then pull the belt end to secure the
flat tire.
10.Fold the right side of the rear
seatback forward.
14.Return the seatback on the right
11.Thread the belt through the rear
side of the rear seat to its original
seat as shown in the figure.
position.
15.Remove the tire blocks and store
the tools and jack.
16.Check the inflation pressure. Refer
to Tires on page 9-8.
17.Have the flat tire repaired or
replaced as soon as possible.
WARNING
12.Thread the buckle through the
Do not drive with any tires that have
wheel as shown in the figure and
incorrect air pressure:
secure it so that the buckle does
Driving on tires with incorrect air
not contact the wheel.
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
When you check the regular tires' air
pressure, check the spare tire, too.
NOTE
To prevent the jack and tool from
rattling, store them properly.
7-12
If Trouble Arises
Battery Runs Out
Jump-Starting
Jump-Starting
Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If
you feel unsure about jump-starting, we strongly recommend that you have a
competent service technician do the work.
WARNING
Follow These Precautions Carefully:
To ensure safe and correct handling of the battery, read the following precautions
carefully before using the battery or inspecting it.
Keep flames and sparks away from open battery cells and do not allow
metal tools to contact the positive (+) or negative (-) terminal of the battery when
working near a battery. Do not allow the positive (+) terminal to contact the
vehicle body:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Keep all flames and sparks away from open battery cells because hydrogen
gas is produced from open battery cells while charging the battery or adding
battery fluid:
Flames and sparks near open battery cells are dangerous. Hydrogen gas, produced
during normal battery operation, could ignite and cause the battery to explode. An
exploding battery can cause serious burns and injuries. Keep all flames including
cigarettes and sparks away from open battery cells.
Do not jump-start a frozen battery or one with a low fluid level:
Jump-starting a frozen battery or one with a low fluid level is dangerous. It may
rupture or explode, causing serious injury.
Connect the negative cable to a good ground point away from the battery:
Connecting the end of the second jumper cable to the negative (-) terminal of the
discharged battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.
7-13
If Trouble Arises
Battery Runs Out
Route the jumper cables away from parts that will be moving:
Connecting a jumper cable near or to moving parts (cooling fans, belts) is
dangerous. The cable could get caught when the engine starts and cause serious
injury.
CAUTION
Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and
other electrical parts beyond repair with a 24 V power supply (two 12 V batteries in
series or a 24 V motor generator set).
NOTE
Do not use vehicles with M Hybrid as a booster vehicle.
1. Move the booster vehicle so that its battery is as close as possible to your
vehicle's battery.
2. Make sure that the power such as for the headlights and air conditioner is turned
off.
3. Remove the battery cover.

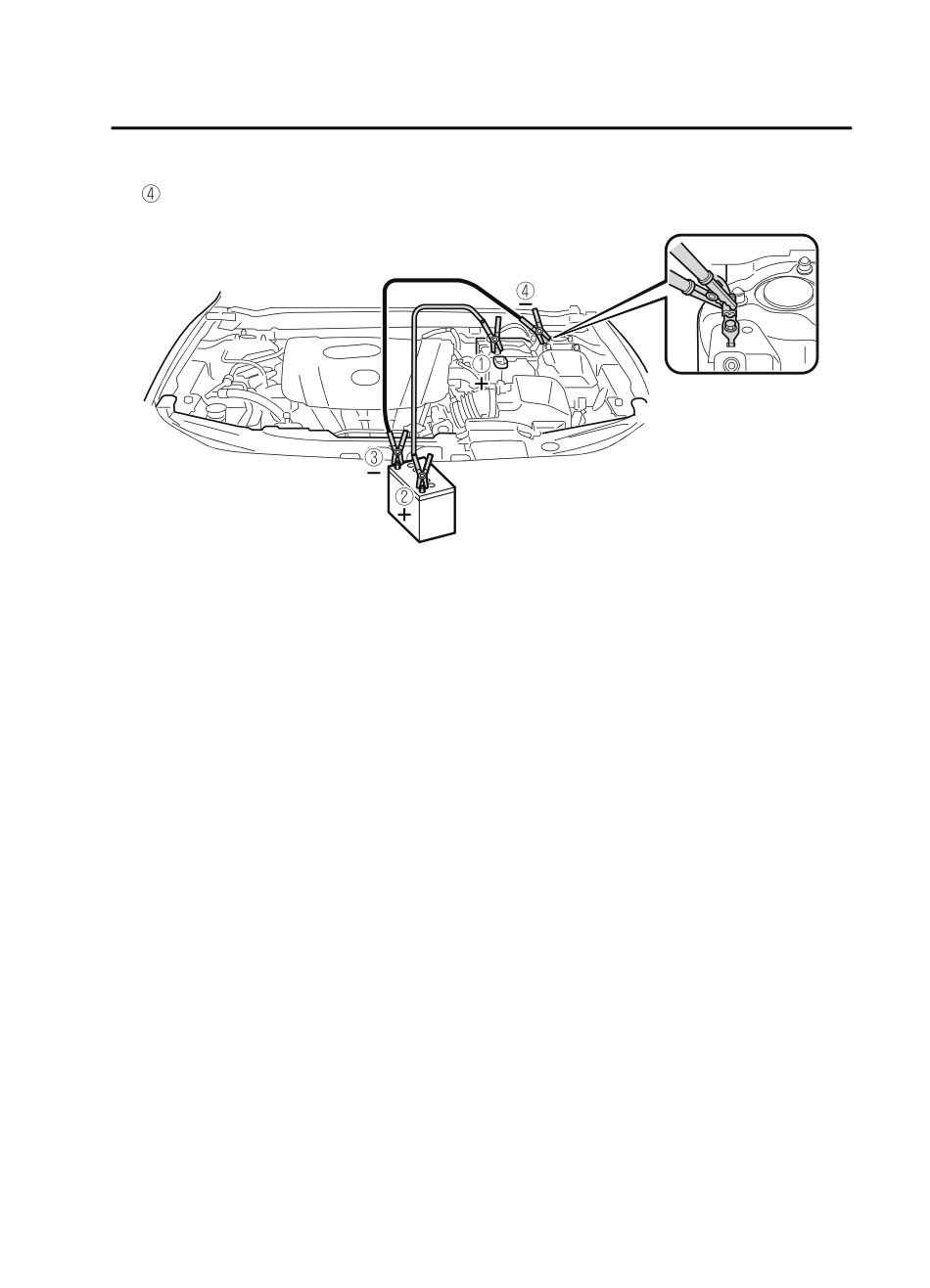

4. Turn off the booster vehicle's engine and connect the jumper cables in the
following order.
Make sure that the jumper cables are securely connected so that they do not
disconnect due to engine vibrations.
1st lead
Positive (+) terminal on the discharged battery
Positive (+) terminal on booster vehicle's battery
2nd lead
Negative (-) terminal on booster vehicle's battery
7-14
If Trouble Arises
Battery Runs Out
Location shown in the figure (do not connect to the negative (-) terminal of
the battery)
5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to
temporarily charge the battery of your vehicle.
7. Disconnect the jumper cables in the reverse order of their connection.
8. Install the battery cover.
9. Have your vehicle inspected by an Authorized Mazda Dealer as soon as possible.
7-15
If Trouble Arises
Emergency Starting
Starting a Flooded Engine
Push-Starting
Starting a Flooded Engine
Push-Starting
If the engine fails to start, it may be
Do not push-start your Mazda.
flooded (excessive fuel in the engine).
WARNING
Follow this procedure:
Never tow a vehicle to start it:
1. If the engine does not start within 5
Towing a vehicle to start it is
seconds on the first try, wait 10
dangerous. The vehicle being towed
seconds and try again.
could surge forward when its engine
2. Make sure the parking brake is on.
starts, causing the 2 vehicles to collide.
3. Depress the accelerator all the way
The occupants could be injured.
and hold it there.
4. Depress the brake pedal, then press
NOTE
the push button start. If the engine
You cannot start a vehicle with an
starts, release the accelerator
automatic transmission by pushing it.
immediately because the engine
will suddenly rev up.
5. If the engine fails to start, crank it
without depressing the accelerator.
If the engine still does not start using
the previous procedure, have your
vehicle inspected by an Authorized
Mazda Dealer.
7-16
If Trouble Arises
Overheating
Open the hood ONLY after steam is
Overheating
no longer escaping from the engine:
Steam from an overheated engine is
Overheating
dangerous. The escaping steam could
If the engine coolant temperature
seriously burn you.
gauge indicates overheating and the
If the engine coolant temperature
high engine coolant temperature
gauge indicates overheating and the
warning indication is displayed, the
high engine coolant temperature
vehicle loses power or you hear a loud
warning indication is displayed:
knocking or pinging noise, the engine
is probably too hot.
1.
Drive safely to the side of the road
WARNING
and park off the right-of-way.
2.
Shift into park (P).
3.
Apply the parking brake.
4.
Turn off the air conditioner.
5.
Check whether coolant or steam is
Pull over to a safe location, then
escaping from the engine
switch the ignition off and make sure
compartment.
the fan is not running before
attempting to work near the cooling
If steam is coming from the engine
fan:
compartment:
Working near the cooling fan when it is
Do not go near the front of the
running is dangerous. The fan could
vehicle. Stop the engine.
continue running indefinitely even if
Wait until the steam dissipates,
the engine has stopped and the engine
then open the hood and start the
compartment temperature is high. You
engine.
could be hit by the fan and seriously
injured.
If neither coolant nor steam is
escaping:
Open the hood and idle the engine
until it cools.
Do not remove either
cooling system cap when the engine
CAUTION
and radiator are hot:
When the engine and radiator are hot,
If the cooling fan does not operate
scalding coolant and steam may shoot
while the engine is running, the
out under pressure and cause serious
engine temperature will increase.
injury.
Stop the engine and call an
Authorized Mazda Dealer.
6.
Make sure the cooling fan is
operating, then turn off the engine
after the temperature has
decreased.
7-17
If Trouble Arises
Overheating
7. When cool, check the coolant level.
SKYACTIV-G 2.5T
If it is low, look for coolant leaks
from the radiator and hoses.
If you find a leak or other damage, or
if coolant is still leaking:
Stop the engine and call an Authorized
Mazda Dealer.

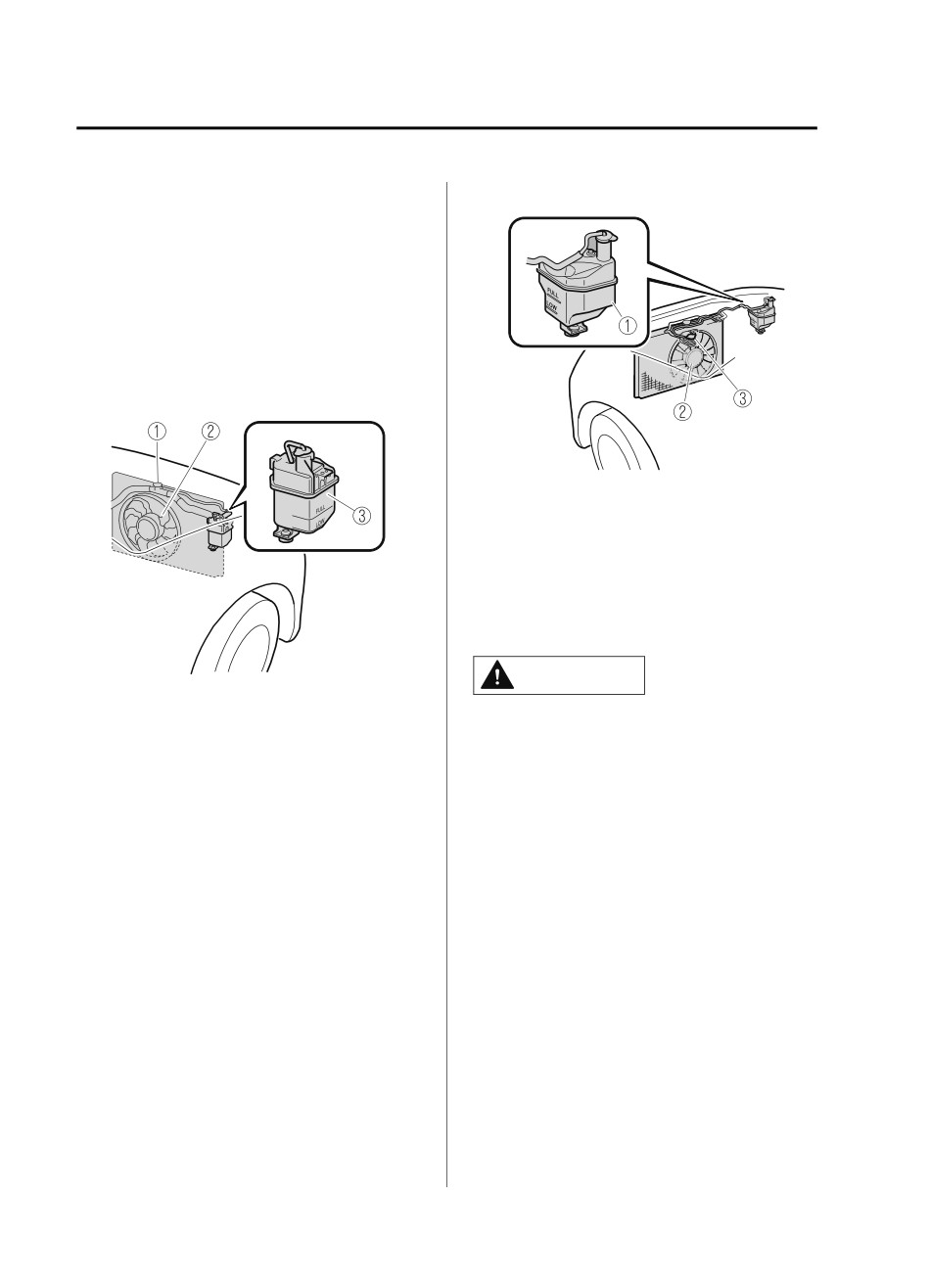

SKYACTIV-G 2.0 and SKYACTIV-G
2.5
1. Coolant reservoir
2. Cooling fan
3. Cooling system cap
If you find no problems, the engine is
cool, and no leaks are obvious:
Carefully add coolant as required
(page 6-18).
CAUTION
1. Cooling system cap
2. Cooling fan
If the engine continues to overheat or
3. Coolant reservoir
frequently overheats, have the cooling
system inspected. The engine could be
seriously damaged unless repairs are
made. Consult an Authorized Mazda
Dealer.
7-18
If Trouble Arises
Emergency Towing

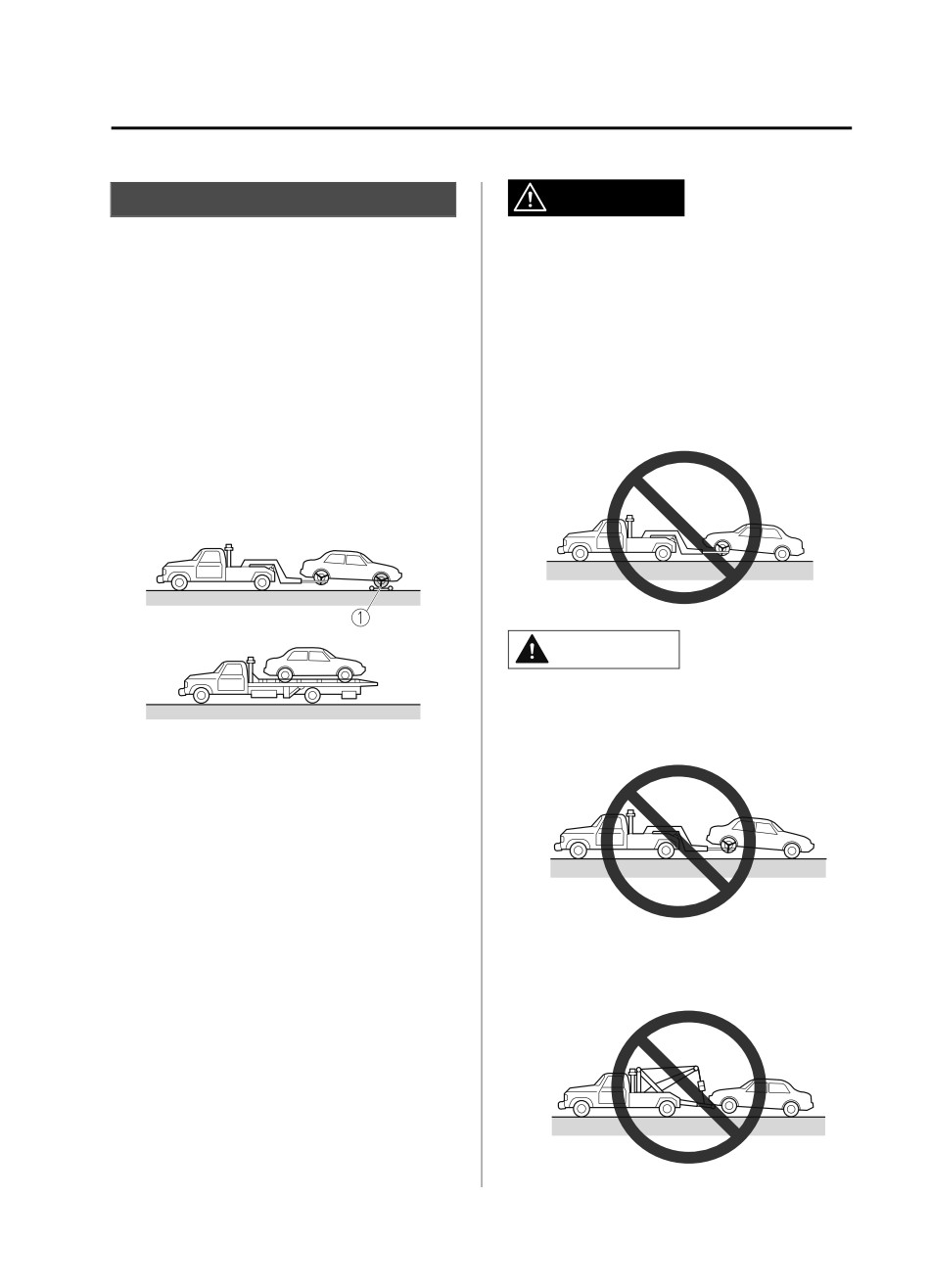

Towing Description
WARNING
Towing Description
Always tow an AWD vehicle with all
four wheels off the ground:
We recommend that towing be done
Towing an AWD vehicle with either the
only by an Authorized Mazda Dealer
front or rear wheels on the ground is
or a commercial tow-truck service.
dangerous as the drive train could be
damaged, or the vehicle could trail
Proper lifting and towing are necessary
away from the tow truck and cause an
to prevent damage to the vehicle.
accident. If the drive train has been
Particularly when towing an AWD
damaged, transport the vehicle on a
vehicle, where all the wheels are
flatbed truck.
connected to the drive train, proper
transporting of the vehicle is absolutely
essential to avoid damaging the drive
system. Government and local laws
must be followed.
CAUTION
¾ Do not tow the vehicle pointed
backward with driving wheels on the
1. Wheel dollies
ground. This may cause internal
damage to the transmission.
A towed FWD vehicle should have its
drive wheels (front wheels) off the
ground. If excessive damage or other
conditions prevent this, use wheel
dollies.
When towing a FWD vehicle with the
rear wheels on the ground, release the
¾ Do not tow with sling-type
parking brake.
equipment. This could damage your
Refer to Electric Parking Brake (EPB) on
vehicle. Use wheel-lift or flatbed
page 4-72.
equipment.
A towed AWD vehicle must have all its
wheels off the ground.
7-19
If Trouble Arises
Emergency Towing

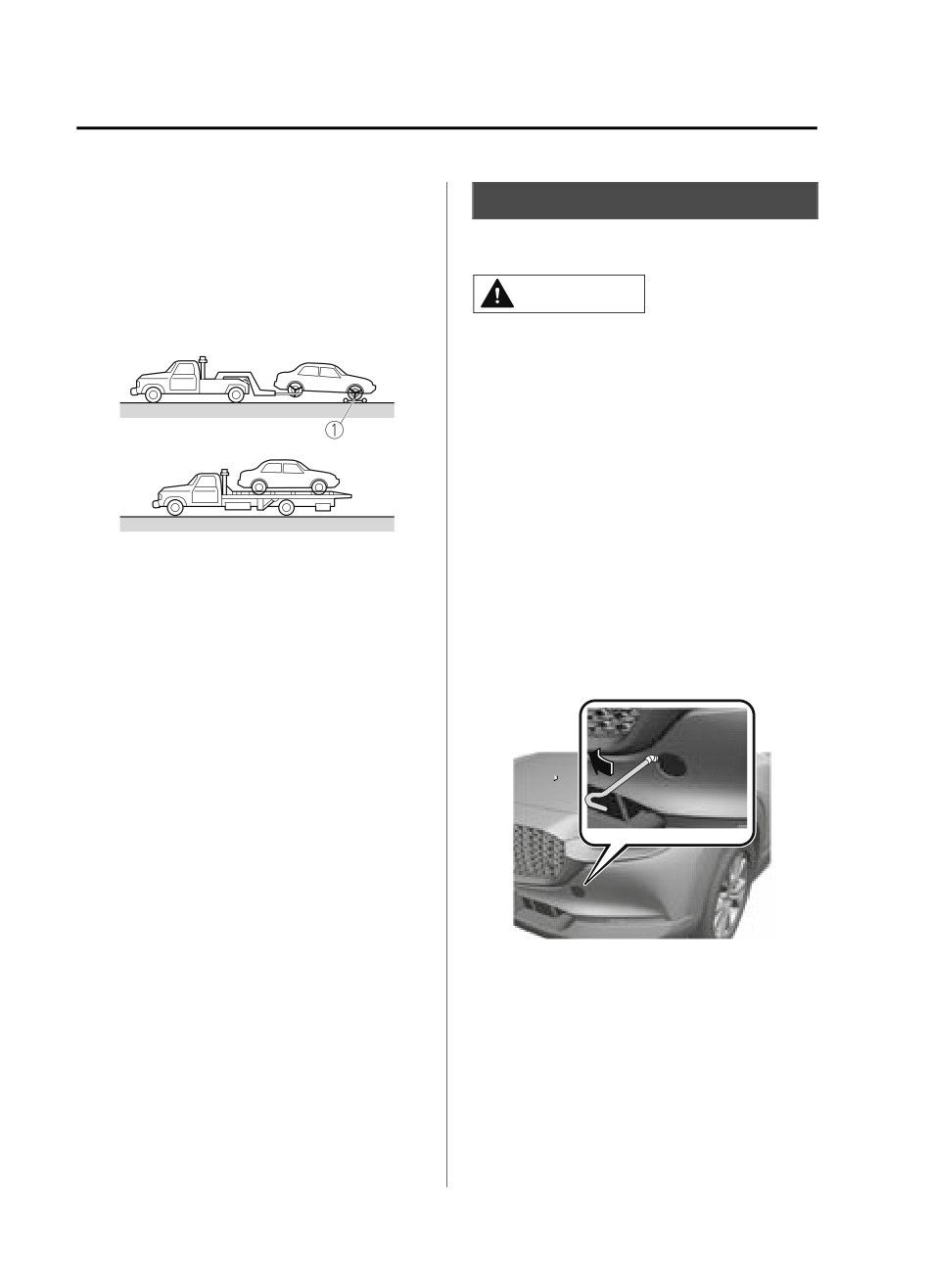

¾ If the parking brake cannot be
Tiedown Hooks
released when towing the vehicle,
transport the vehicle with all front
Tiedown Hooks
and rear wheels raised off the ground
as shown in the figure. If the vehicle
is towed without raising the wheels
CAUTION
off the ground, the brake system
Do not use the front and rear tiedown
could be damaged.
eyelets for towing the vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other purpose
could result in the vehicle being
damaged.

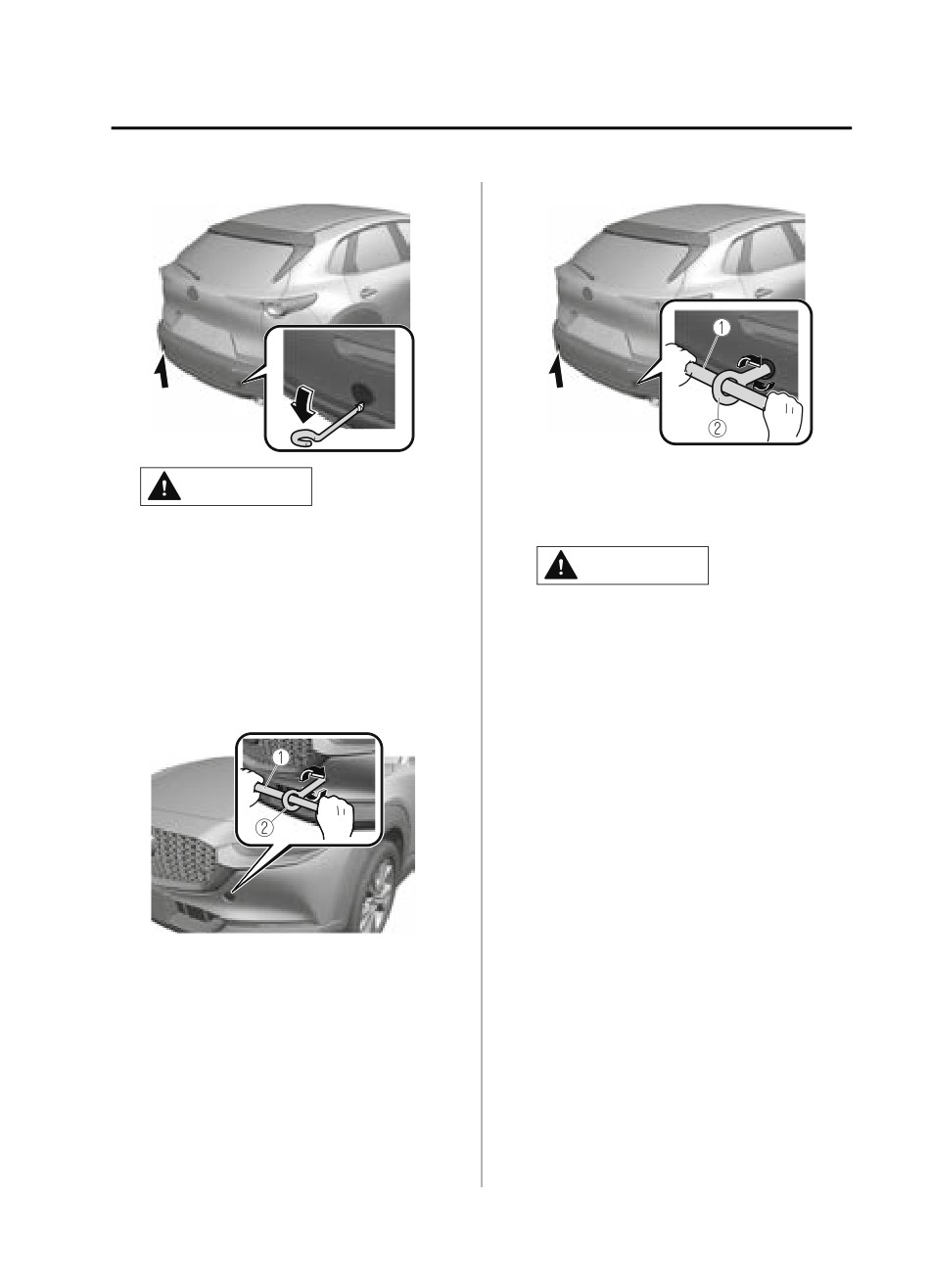

1. Remove the tiedown eyelet and the
lug wrench from the luggage
1. Wheel dollies
compartment (page 7-3).
2. Wrap a flathead screwdriver or
similar tool with a soft cloth to
prevent damage to a painted
bumper, and open the cap located
on the front or rear bumper.
Front
7-20
*Some models.
If Trouble Arises
Emergency Towing
Rear
Rear
1. Lug wrench
2. Tiedown eyelet
CAUTION
4. Hook the tying rope to the tiedown
Do not use excessive force as it may
eyelet.
damage the cap or scratch the
painted bumper surface.
CAUTION
If the tiedown eyelet is not securely
NOTE
tightened, it may loosen or
Remove the cap completely and
disengage from the bumper when
store it so as not to lose it.
tying the vehicle. Make sure that
3. Securely install the tiedown eyelet
the tiedown eyelet is securely
using the lug wrench.
tightened to the bumper.
Front
1. Lug wrench
2. Tiedown eyelet
7-21
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Brake System Warning Indication/
If a Warning Light Turns
Warning Light
On or Flashes
If a Warning Light Turns On or
Flashes
If any warning light turns on/flashes,
take appropriate action for each light.
This warning has the following
There is no problem if the light turns
functions:
off, however if the light does not turn
Warning light inspection
off or turns on/flashes again, consult
an Authorized Mazda Dealer.
For an operation check, make sure that
The details for some warnings can be
the light turns on when the ignition is
viewed on the center display or
switched on, and turns off a few
multi-information display in the
seconds later or when the engine is
instrument cluster.
started.
Center display
When the light turns on
1. Select “Information” on the home
If the brake system warning light
screen.
remains illuminated the brake fluid
2. Select “Vehicle Status Monitor”.
may be low or there could be a
3. Select the applicable warning to
problem with the brake system. Park
view the warning details.
the vehicle in a safe place immediately
and contact an Authorized Mazda
NOTE
Dealer.
You can also display the currently
Refer to Inspecting Brake Fluid Level on
occurring warning by sliding the
page 6-20.
commander knob to the left while on
the home screen of the center display.
WARNING
Multi-information display
Do not drive with the brake system
1. Press the INFO switch on the
warning light illuminated. Contact an
steering switch to display the
Authorized Mazda Dealer to have the
warning indication screen.
brakes inspected as soon as possible:
Refer to Multi-information Display
Driving with the brake system warning
on page 4-20.
light illuminated is dangerous. It
indicates that your brakes may not
work at all or that they could
completely fail at any time. If this light
remains illuminated, after checking
that the parking brake is fully released,
have the brakes inspected
immediately.
7-22
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Driving when the brake system warning
CAUTION
light and ABS warning light are
¾ In addition, the effectiveness of the
illuminated simultaneously is
braking may diminish so you may
dangerous.
need to depress the brake pedal
When both lights are illuminated, the
more strongly than normal to stop
rear wheels could lock more quickly in
the vehicle.
an emergency stop than under normal
¾ (With M Hybrid)
circumstances.
When starting the engine, the brake
system warning light may turn on and
the warning indication may be
displayed. In this case, park the
vehicle in a safe location and release
the brake pedal.
If the brake system warning light/
warning indication does not turn off
even after parking the vehicle, have
the vehicle inspected by an
Authorized Mazda Dealer.
Electronic Brake Force Distribution
System Warning
If the electronic brake force
distribution control unit determines
that some components are operating
incorrectly, the control unit may
illuminate the brake system warning
light and the ABS warning light
simultaneously. The problem is likely to
be the electronic brake force
distribution system.
WARNING
Do not drive with both the brake
system warning light and ABS warning
light illuminated. Have the vehicle
towed to an Authorized Mazda
Dealer to have the brakes inspected as
soon as possible:
7-23
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Charging System Warning
3. Inspect the engine oil level (page
Indication/Warning Light
6-17). If it's low, add the
appropriate amount of engine oil
while being careful not to overfill.
CAUTION
Do not run the engine if the oil
If the warning light illuminates while
level is low. Otherwise, it could
driving, it indicates a malfunction of
result in extensive engine damage.
the alternator or of the charging
4. Start the engine and check the
system.
warning light.
Drive to the side of the road and park
off the right-of-way. Consult an
If the light remains illuminated even
Authorized Mazda Dealer.
though the oil level is normal or after
adding oil, stop the engine
CAUTION
immediately and have your vehicle
Do not continue driving when the
towed to an Authorized Mazda Dealer.
charging system warning light is
High Engine Coolant Temperature
illuminated because the engine could
Warning Indication
stop unexpectedly.
Engine Oil Warning Indication/
Warning Light
Displays if the engine coolant
temperature has increased excessively.
“Elevated Engine Coolant Temp. Drive
This warning light indicates low engine
Slowly” displayed
oil pressure.
Drive slowly to reduce engine load
CAUTION
until you can find a safe place to stop
the vehicle and wait for the engine to
Do not run the engine if the oil
cool down.
pressure is low. Otherwise, it could
“Excessive Engine Coolant Temp. Stop
result in extensive engine damage.
the Vehicle in a Safe Location”
If the light illuminates or the warning
displayed
indication is displayed while driving:
This indicates the possibility of
1. Drive to the side of the road and
overheating. Park the vehicle in a safe
park off the right-of-way on level
place immediately and stop the
ground.
engine.
2. Turn off the engine and wait 5
Refer to Overheating on page 7-17.
minutes for the oil to drain back
into the oil pan.
7-24
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
ABS Warning Indication/Warning
CAUTION
Light
Do not drive the vehicle with the high
engine coolant temperature warning
light illuminated. Otherwise, it could
result in damage to the engine.
Power Steering Malfunction
If the ABS warning light stays on while
Indication/Indicator Light
you're driving, the ABS control unit has
detected a system malfunction. If this
occurs, your brakes will function
normally as if the vehicle had no ABS.
Should this happen, consult an
Authorized Mazda Dealer as soon as
The message is displayed if the electric
possible.
power steering has a malfunction.
If the message is displayed, stop the
NOTE
vehicle in a safe place and do not
When the engine is jump-started to
operate the steering wheel. There is no
charge the battery, uneven rpm
problem if the indication turns off
occurs and the ABS warning light
when the engine is restarted after
may illuminate. If this occurs, it is the
some time has passed. If the indication
result of the weak battery and does
displays even after the engine is
not indicate an ABS malfunction.
restarted, contact an Authorized
Recharge the battery.
Mazda Dealer if the message is
The brake assist system does not
displayed continuously.
operate while the ABS warning light
NOTE
is illuminated.
If the message is displayed, the
Master Warning Indication
power steering will not operate
normally. In this case, the steering
wheel can still be operated,
however, the operation may feel
heavy compared to normal, or the
steering wheel could vibrate when
The indication displays if the system
turning.
has a malfunction.
Repeatedly jerking the steering
Check the reason for the indication
wheel left and right while the vehicle
displaying on the center display or
is stopped or moving extremely
multi-information display.
slowly will cause the power steering
Refer to If a Warning Light Turns On or
system to go into protective mode
Flashes on page 7-22.
which will make the steering feel
heavy, but this does not indicate a
problem. If this occurs, park the
vehicle safely and wait several
minutes for the system to return to
normal.
7-25
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Brake Control System Warning
Brake Override Warning Indication
Indication/Warning Light
This message is displayed when the
accelerator pedal and brake pedal are
The warning light illuminates when the
depressed at the same time while
system has a malfunction. Have your
driving.
vehicle inspected at an Authorized
Release the accelerator pedal and
Mazda Dealer.
depress the brake pedal.
Electric Parking Brake (EPB)
Check Engine Indication/Light
Indication/Indicator Light
If this light illuminates while driving,
This warning has the following
the vehicle may have a problem. It is
functions:
important to note the driving
conditions when the light illuminated
Parking brake warning/Indicator light
and consult an Authorized Mazda
inspection
Dealer.
The light illuminates when the parking
The check engine light may illuminate
brake is applied with the ignition
in the following cases:
switched to START or ON. It turns off
The engine's electrical system has a
when the parking brake is released.
problem.
When the light is flashing
The emission control system has a
problem.
The light flashes if the Electric Parking
The fuel-filler cap is missing or not
Brake (EPB) has a malfunction. If the
tightened securely.
light remains flashing even if the
Electric Parking Brake (EPB) switch is
If the check engine light remains on, or
operated, consult an Authorized
it flashes continuously , do not drive at
Mazda Dealer as soon as possible.
high speeds and consult an Authorized
Mazda Dealer as soon as possible.
7-26
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
AWD Warning Indication/
WARNING
Warning Light*
If the check engine light turns on, do
not disconnect the battery cables.
If the battery cables are disconnected
and then reconnected, the engine
could be damaged and catch on fire.
“AWD Malfunction. Front Wheel
i-stop Warning Indication/
Drive Only. Have the Vehicle
Warning Light (Amber)*
Inspected” is displayed/When the
light is turned on
The indication is displayed/the light
turns on under the following
conditions. The system may have a
malfunction. Have the vehicle checked
The light turns on/flashes
at an Authorized Mazda Dealer.
continuously if the system has a
problem.
When there is a malfunction in the
Have the vehicle inspected by an
AWD system.
Authorized Mazda Dealer.
“Excessive AWD System Load. Drive
Automatic Transmission Warning
Slowly Until Warning Light Turns Off.
Indication/Warning Light
Vehicle Now in Front Wheel Drive” is
displayed/When the light is flashing
The indication is displayed/the light
flashes under the following conditions.
Park the vehicle in a safe place and
check that the warning indication light
The indication/light illuminates when
turns off/ the warning light stops
the transmission has a problem.
flashing, and then drive the vehicle.
Contact an Authorized Mazda Dealer
CAUTION
if the indication is continuously
displayed.
If the automatic transmission warning
indication/light illuminates, the
When the differential oil temperature
transmission has an electrical problem.
is excessively high.
Continuing to drive your Mazda in this
When there is a large difference
condition could cause damage to your
between the front and rear wheel
transmission. Consult an Authorized
rotation, such as when trying to
Mazda Dealer as soon as possible.
remove the vehicle from mud.
*Some models.
7-27
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
“Mismatched Tire Diameters. Vehicle
WARNING
Now in Front Wheel Drive” is
displayed/When the light is turned on
Never tamper with the air bag/
The indication is displayed/the light
pretensioner systems and always have
turns on under the following
an Authorized Mazda Dealer perform
conditions. Inspect the tire sizes or tire
all servicing and repairs:
pressures on all 4 wheels. Contact an
Self-servicing or tampering with the
Authorized Mazda Dealer if the
systems is dangerous. An air bag/
indication remains on or the warning
pretensioner could accidentally
light remains illuminated.
activate or become disabled causing
serious injury or death.
When any of the tire diameter is
different.
Tire Pressure Monitoring System
When any of the tire pressure is
(TPMS) Warning Indication/
incorrect.
Warning Light (Flashing)
TCS/DSC Indication/Indicator
Light (Turns on)
If there is a problem with the TPMS or
the voltage of a tire pressure sensor
decreases, the TPMS warning light
If the light stays on, the TCS, DSC or
flashes and a message is displayed on
the brake assist system may have a
the multi-information display. Have
malfunction and they may not operate
your vehicle inspected by an
correctly. Take your vehicle to an
Authorized Mazda Dealer.
Authorized Mazda Dealer.
Air Bag/Front Seat Belt
WARNING
Pretensioner System Warning
Indication/Warning Light
Do not drive the vehicle at high
speeds if the TPMS warning light turns
on or flashes:
Driving the vehicle at high speeds
while the TPMS warning light is turned
on or flashing is dangerous because
the brake performance and the
A system malfunction is indicated if the
warning light constantly flashes,
steering wheel operability will be
constantly illuminates or does not
reduced. If the vehicle is driven at high
illuminate at all when the ignition is
speeds or the brakes are suddenly
switched ON. If any of these occur,
applied, it could lead to an accident.
consult an Authorized Mazda Dealer
Gradually apply the brakes to lower the
as soon as possible. The system may
vehicle's speed.
not operate in an accident.
7-28
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Do not ignore the TPMS warning light
“Key Not Detected” is displayed
when it is turned on or flashing:
If the presence of the key cannot be
Continuing to drive the vehicle while
detected (dead battery, battery
ignoring the illumination/flashing of
malfunction, no key), it is displayed
the TPMS warning light is dangerous
when the driver attempts to start the
because a tire may burst which could
engine (push button start operation,
lead to an accident. Take appropriate
brake pedal depression).
measures as soon as possible.
Displayed when it is determined that
KEY Warning Indication/Warning
a key that was in the vehicle has
Light (Red)
been removed from the vehicle. (Key
taken out warning. Other than
IG-OFF).
Security Indicator Light
“Keyless Entry System Malfunction.
Have the Vehicle Inspected” is
displayed
If the security indicator light flashes
This message is displayed if the
continuously while you are driving, do
advanced keyless entry & push button
not shut off the engine. Go to an
start system has a problem.
Authorized Mazda Dealer and have it
Contact an Authorized Mazda Dealer.
checked. If the engine is shut off while
the indicator light is flashing, you will
CAUTION
not be able to restart it.
If the message is indicated, or the push
Make sure the key is within the
button start indicator light (amber)
operational range for signal
flashes, the engine may not start. If the
transmission. Switch the ignition off,
engine cannot be started, try starting it
and then restart the engine. If the
using the emergency operation for
engine does not start after 3 or more
starting the engine, and have the
tries, contact an Authorized Mazda
vehicle inspected at an Authorized
Dealer.
Mazda Dealer as soon as possible.
NOTE
Refer to Emergency Operation for
Because the electronic codes are reset
Starting the Engine on page 4-9.
when the immobilizer system is
repaired, the keys are needed. Make
sure to bring all the keys to an
Authorized Mazda Dealer so that they
can be programmed.
7-29
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
High Beam Control System (HBC)
CAUTION
Warning Indication/Warning Light
(Amber)*
Do not drive the vehicle while an
exterior light has a malfunction. Poor
visibility, and not being able to signal
braking and turns may cause an
accident. In addition, if the vehicle is
driven with the lights not turned on, it
The light remains turned on if there is a
may conflict with laws and regulations
due to poor maintenance.
problem with the system. Have your
vehicle inspected at an Authorized
Low Fuel Warning Indication/
Mazda Dealer.
Warning Light
i-ACTIVSENSE Warning
Indication/Warning Light*
The warning indication/warning light
displays/turns on when the ignition is
switched ON and the remaining fuel is
The indication displays if the system
about 9 L (2.3 US gal, 1.9 Imp gal) or
has a malfunction.
the remaining distance to empty is 50
Check the reason for the indication
km (31 miles) or shorter. The warning
displaying on the center display or
light flashes when the vehicle
multi-information display.
continues to be driven with the
Refer to If a Warning Light Turns On or
warning indication/warning light
Flashes on page 7-22.
displayed/turned on and the
Exterior Light Warning Indication/
remaining fuel in the tank is near
Warning Light
empty.
NOTE
The light illumination timing may vary
because fuel inside the fuel tank moves
around according to the driving
conditions and the vehicle posture.
This light illuminates if there is a
malfunction in the exterior lights
Action to be taken
(except license plate lights). Have your
Add fuel. If the light is flashing, refuel
vehicle inspected by an Authorized
as soon as possible.
Mazda Dealer.
7-30
*Some models.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Check Fuel Cap Warning
Seat Belt Warning Indication/
Indication/Warning Light
Warning Light (Front seat)
If the check fuel cap warning light
The seat belt warning light turns on if
illuminates while driving, the fuel-filler
the driver or front passenger's seat is
cap may not be installed properly.
occupied and the seat belt is not
fastened with the ignition switched
Action to be taken
ON.
Stop the engine and reinstall the
If the driver or front passenger's seat
fuel-filler cap.
belt is unfastened (only when the front
Refer to Refueling on page 3-33.
passenger's seat is occupied) and if the
vehicle is driven at about 20 km/h (12
Engine Oil Level Warning
mph) or faster, or about 10 km/h (6
Indication/Warning Light
mph) or faster for a continuous 30
seconds, with the seat belt unfastened,
the warning light flashes for a certain
period. After a short time, the warning
light stops flashing, but remains
illuminated.
This warning light indicates that the
NOTE
engine oil level is around the MIN
mark (page 6-17).
The warning light flashes for about 6
seconds if the driver or front
CAUTION
passenger's seat is not fastened
when the ignition is switched ON.
Do not continue to drive the vehicle
(Except Mexico)
with the engine oil level warning
Placing heavy items on the front
indication/warning light displayed/
passenger's seat may cause the front
turned on. If the vehicle continues to
passenger's seat belt warning
be driven with an insufficient amount
function to operate depending on
of engine oil, it could cause damage to
the weight of the item.
the engine.
To allow the front passenger
Action to be taken
occupant classification sensor to
function properly, do not place and
Add 1 L (0.26 US gal, 0.22 Imp gal) of
sit on an additional seat cushion on
engine oil (page 6-16).
the front passenger's seat. The
sensor may not function properly
because the additional seat cushion
could cause sensor interference.
If a small child is seated on the front
passenger's seat, the warning light
may not operate.
7-31
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Action to be taken
Door-Ajar/Liftgate-Ajar Warning
Indication/Warning Light
Fasten the seat belts.
Seat Belt Warning Light (Rear seat)
(Red)
If the rear seat belts are not fastened
while the ignition is switched ON , the
driver and the passenger are alerted by
the warning light.
The warning light operates even if there
The light turns on if any door/liftgate is
is no passenger on the rear seat.
not closed securely.
NOTE
Action to be taken
If a rear seat belt is not fastened by a
Close the door/liftgate securely.
certain period of time after the engine
has been started, the warning light
Tire Pressure Monitoring System
turns off.
(TPMS) Warning Indication/
Action to be taken
Warning Light (Turns on)
Fasten the seat belts.
Low Washer Fluid Level Warning
Indication/Warning Light*
If a tire pressure decreases below the
specified air pressure, the TPMS
warning light turns on.
At the same time, a message and the
tire pressure of each tire are displayed
This warning light indicates that little
on the multi-information display
washer fluid remains.
alternately. In addition, the tire (s) with
Action to be taken
low air pressure is displayed in yellow.
Add washer fluid (page 6-20).
7-32
*Some models.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
WARNING
CAUTION
¾ Adjust the tire pressures while the
Do not drive the vehicle at high
tires are cool. Because the air
speeds if the TPMS warning light turns
pressure in the tires fluctuates
on or flashes:
depending on the temperature,
Driving the vehicle at high speeds
before adjusting the tire pressures,
while the TPMS warning light is turned
let the vehicle sit for an hour or drive
on or flashing is dangerous because
it only within a 1.6 km (1 mile)
the brake performance and the
distance. If the tire pressures are
steering wheel operability will be
adjusted while the tires are warm,
reduced. If the vehicle is driven at high
the tire pressures may decrease
speeds or the brakes are suddenly
below the specified air pressure after
applied, it could lead to an accident.
cooling down which could turn on
Gradually apply the brakes to lower the
the warning light. In addition,
vehicle's speed.
because the air pressure in the tires
decreases when the ambient
Do not ignore the TPMS warning light
temperature is low, if the ambient
when it is turned on or flashing:
temperature increases, an
Continuing to drive the vehicle while
illuminated TPMS warning light may
ignoring the illumination/flashing of
turn off. Under any circumstances,
the TPMS warning light is dangerous
always adjust the tire pressures while
because a tire may burst which could
the tires are cool.
lead to an accident. Take appropriate
¾ After adjusting the tire pressures, the
measures as soon as possible.
TPMS warning light turns off. If the
TPMS warning light does not turn off,
NOTE
drive the vehicle at a speed of about
While the TPMS is learning the tire
25 km (16 mph) or faster for 3
positions, such as immediately after a
minutes or longer and make sure the
tire position has been changed, the tire
warning light turns off.
pressure at the tire position prior to it
being changed is displayed until the
If the TPMS warning light remains on
system completes the learning. For this
even after adjusting the tire pressures,
reason, the tire pressures displayed for
one of the tires may have a puncture.
the tire positions may be different from
the actual tire pressures at the tire
positions.
Action to be taken
Adjust the tire pressures to the
appropriate pressures.
Refer to Tire Inflation Pressure on page
6-31.
7-33
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
KEY Indicator Light (Green)
(Flashing)
“Low Key Fob Battery. Replace
Battery” is displayed/When the light
is flashing
When the key battery is low, the
indication is displayed when the
ignition is switched OFF.
Action to be taken
Replace the key battery.
7-34
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Message Indicated on Multi-information Display
Message Indicated on Multi-information Display
If there is a notification from the vehicle, a message is displayed on the
multi-information display. Check the information and take the necessary action.
1. Multi-information display
If the warning light turns on/flashes simultaneously or a symbol is indicated on the
display, check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-22.
Display*1*2*3
Content
Action to be taken
This message is indicated when there
Depress the brake pedal. Cancel the
is a problem with the brake related
Depress Brake Pedal.
AUTOHOLD function and have your
system while the vehicle is being held
Brake Hold Disabled
vehicle inspected at an Authorized
in a stop position by the AUTOHOLD
Mazda Dealer.
function.
This message indicates the possibility
Steep Slope. Continue
of the vehicle not being held in the
Depress and hold your foot on the
Pressing Brake Pedal to
stopped position by the AUTOHOLD
brake pedal.
Hold Stopped Position
function, such as on steep slopes.
This message is indicated when the
Depress Brake Pedal and
Operate the Electric Parking Brake
Electric Parking Brake (EPB) switch is
Operate Switch to Re-
(EPB) switch while depressing the
operated without depressing the
lease Elec. Parking Brake
brake pedal.
brake pedal.
This message is indicated when the
Depress Brake Pedal and
cancel operation is done without de-
Cancel the AUTOHOLD function stop
Operate Switch to Re-
pressing the brake pedal while the
hold control while depressing the
lease
vehicle is being held in the stopped
brake pedal.
position by the AUTOHOLD function.
7-35
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Display*1*2*3
Content
Action to be taken
This message is indicated when the
Mazda Radar Cruise Control with
Mazda Radar Cruise
Stop & Go function (MRCC with Stop
Have your vehicle inspected by an
Control Canceled. Drive
& Go function), and the Traffic Jam
Authorized Mazda Dealer.
Safely
Assist (TJA) have been canceled other
than by the driver.
This message is indicated when the
Distance & Speed Alert
Distance & Speed Alert (DSA) have
Have your vehicle inspected by an
Operation Canceled
been canceled other than by the driv-
Authorized Mazda Dealer.
Drive Safely
er.
Cruise Control Opera-
This message is indicated when the
Have your vehicle inspected by an
tion Canceled. Drive
Cruise Control have been canceled
Authorized Mazda Dealer.
Safely
other than by the driver.
This message is indicated after the
Emergency Braking Acti-
Smart Brake Support (SBS) brakes op-
vated. Depress Brake
Depress the brake pedal.
erate and when the Smart Brake Sup-
Pedal to Hold Stop
port (SBS) is canceled.
Touch the key against push button
This message is indicated when the
Touch Key Fob to Push
start to start the engine.
key battery is weak (battery dead or
Button Start Switch
Refer to Engine Start Function When
damaged key).
Key Battery is Dead on page 4-8.
This message is indicated when the
When starting the engine, press the
Depress Brake Pedal to
push button start is pressed without
push button start with the brake ped-
Start Vehicle
depressing the brake pedal.
al depressed.
This message is indicated when the
Check Gear Selector
selector lever is shifted to the P or R
Check the selector lever position.
Lever Position
position while driving.
This message is indicated when AU-
Close Door and Fasten
TOHOLD is about to operate and a
When the AUTOHOLD is turned on,
Seat Belt
door is opened or a seat belt is unfas-
close the doors and fasten seat belts.
tened.
Wiper Blades Must Be
This message is indicated when the
Return the wiper arms to the initial
on Windshield Before
ignition is switched ON with the wip-
positions.
Operating
er arms at the service positions.
This message is indicated when there
Windshield Wiper Range
is snow or dirt accumulation on the
Remove foreign matter from the
of Motion Reduced. Re-
windshield and the wiper operation
windshield.
move Obstruction(s)
range is narrowed.
This message is indicated when the
Vehicle Not Switched
Switch the ignition OFF before leaving
driver’s door is opened without
Off
the vehicle.
switching the ignition OFF.
7-36
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Display*1*2*3
Content
Action to be taken
Displays when the push button start
Gear Selector Lever Not
is pressed while the selector lever is
Shift the selector lever to the P posi-
in Park
in a position other than P, and the ig-
tion and then switch the ignition OFF.
nition is switched to ACC.
Excessive Transmission
This message is indicated when the
Drive slowly to reduce load on the
Temperature. Drive
internal temperature of the automatic
automatic transmission.
Slowly
transmission is high.
Excessive Transmission
This message is indicated when the
Park the vehicle in a safe place imme-
Temp. Stop Vehicle in a
automatic transmission fluid temper-
diately and contact an Authorized
Safe Location
ature is abnormally high.
Mazda Dealer.
This message is indicated when the
power consumption exceeds a cer-
There is no need to contact an Au-
tain amount such as by repeatedly
thorized Mazda Dealer. Drive the ve-
Battery Saving Mode.
opening/closing the doors or the lift-
hicle for 5 minutes or longer to
Drive Vehicle to Charge
gate when the ignition is switched
charge the battery. The warning mes-
Battery
OFF.
sage will clear just after starting the
Some of the functions are restricted
engine.
to reduce power consumption.
This message is indicated when the
Shift Into Park Before Ex-
driver’s door is opened with the se-
Close the driver’s door or shift the se-
iting Vehicle
lector lever in a position other than
lector lever to the P position.
the P position.
*1
A pop-up is displayed when a warning occurs.
*2
One screen displays four rows. If the entire message cannot be displayed on the screen, it switches to
another screen.
*3
The displayed content may differ from the actual vehicle.
7-37
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Seat Belt Warning Beep
Warning Sound is
Front seat
Activated
Except Mexico
Lights-On Reminder
If the driver's seat belt is not fastened
The lights-on reminder is operable
when the ignition is switched ON, a
beep sound will be heard for about 6
when the time setting*1 of the auto
seconds. If the driver or the front
headlight off function is off.
passenger's seat belt is not fastened
If the ignition is switched OFF with the
and if the vehicle is driven at about 20
exterior lights turned on and the
km/h (12 mph) or faster, or about 10
driver’s door is opened, a sound is
km/h (6 mph) or faster for a
activated.
continuous 30 seconds, with the seat
Operate the headlight switch to turn
belt unfastened, a sound is activated
off the exterior lights.
continuously for a certain period.
*1
If the light switch is left on, the
Until a seat belt is fastened or a given
auto headlight off function
period of time has elapsed, the beep
automatically turns off the lights
sound will not stop even if the vehicle
about 30 seconds after switching
speed falls below 20 km/h (12 mph).
the ignition off. The time setting
can be changed.
NOTE
Refer to the Settings section in the
To allow the front passenger
Mazda Connect Owner's Manual.
occupant classification sensor to
NOTE
function properly, do not place and
sit on an additional seat cushion on
When the ignition is switched to
the front passenger's seat. The
ACC, the “Ignition Not Switched OFF
sensor may not function properly
(STOP) Warning Beep” (page 7-39)
because the additional seat cushion
overrides the lights-on reminder.
could cause sensor interference.
A personalized function is available
If a small child is seated on the front
to change the sound volume for the
passenger's seat, the warning beep
lights-on reminder.
may not operate.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
7-38
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
Mexico
Ignition Not Switched Off (STOP)
Warning Beep
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
If the driver's door is opened with the
passenger's seat belt unfastened, a
ignition switched to ACC, a beep will
warning beep sounds continuously. If
be heard continuously in the cabin to
the seat belt remains unfastened, the
notify the driver that the ignition has
beep sound stops once and then
not been switched OFF (STOP). Under
continues for about 90 seconds. The
this condition, the keyless entry system
beep stops after the driver or front
will not operate, the vehicle cannot be
passenger's seat belt is fastened.
locked, and the battery voltage will be
Until a seat belt is fastened or a given
depleted.
period of time has elapsed, the beep
sound will not stop even if the vehicle
Key Removed from Vehicle
Warning Beep
speed falls below 20 km/h (12 mph).
Vehicles with advanced keyless
NOTE
function
Placing heavy items on the front
passenger's seat may cause the front
If the key is taken out of the vehicle
passenger's seat belt warning
while the ignition is switched to ACC
function to operate depending on
or ON, and all the doors are closed, a
the weight of the item.
sound is activated 6 times outside of
To allow the front passenger seat
the vehicle and a sound is activated 1
weight sensor to function properly,
time in the vehicle.
do not place and sit on an additional
Vehicles without advanced keyless
seat cushion on the front passenger's
function
seat. The sensor may not function
properly because the additional seat
If the key is taken out of the vehicle
cushion could cause sensor
while the ignition is switched to ACC
interference.
or ON, and all the doors are closed, a
If a small child is seated on the front
sound is activated 1 time in the
passenger's seat, the warning beep
vehicle.
may not operate.
NOTE
Rear seat
Make sure that you leave the vehicle
while carrying the key, or switch the
The warning beep only sounds if a seat
ignition OFF.
belt is unfastened after being fastened.
7-39















Content      ..     14      15      16      17     ..
