Mazda CX-5 (2022 year). Manual in english

Signal

Warning

Charging System Warn

‐

ing Indication/Warning

Light

If the warning light illuminates while driving, it indicates a malfunction of the alter

‐

nator or of the charging system.
Drive to the side of the road and park off the right-of-way. Consult an Authorized
Mazda Dealer.

CAUTION

Do not continue driving when the charging system warning light is illuminated be‐
cause the engine could stop unexpectedly.

Engine Oil Warning

Light

This warning light indicates low engine oil pressure.

CAUTION

Do not run the engine if the oil pressure is low. Otherwise, it could result in extensive
engine damage.

If the light illuminates or the warning indication is displayed while driving:
1. Drive to the side of the road and park off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes for the oil to drain back into the oil pan.
3. Inspect the engine oil level (page 6-21). If it's low, add the appropriate amount of

engine oil while being careful not to overfill.

CAUTION

Do not run the engine if the oil level is low. Otherwise, it could result in extensive
engine damage.

4. Start the engine and check the warning light.

If the light remains illuminated even though the oil level is normal or after adding oil,
stop the engine immediately and have your vehicle towed to an Authorized Mazda
Dealer.

(Red)

High Engine Coolant

Temperature Warning

Indication/Warning

Light

The light flashes when the engine coolant temperature is extremely high, and illumi

‐

nates when the engine coolant temperature increases further.

Handling Procedure
Flashing light

Drive slowly to reduce engine load until you can find a safe place to stop the vehicle
and wait for the engine to cool down.

Illuminated light

This indicates the possibility of overheating. Park the vehicle in a safe place immedi

‐

ately and stop the engine.
Refer to Overheating on page 7-17.

CAUTION

Do not drive the vehicle with the high engine coolant temperature warning light illumi‐
nated. Otherwise, it could result in damage to the engine.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-24

Signal

Warning

Power Steering Mal

‐

function Indication

The message is displayed if the electric power steering has a malfunction.
If the message is displayed, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the message in the display turns off after a
while. Contact an Authorized Mazda Dealer if the message is displayed continuously.

NOTE



If the message is displayed, the power steering will not operate normally. In this
case, the steering wheel can still be operated, however, the operation may feel
heavy compared to normal, or the steering wheel could vibrate when turning.



Repeatedly jerking the steering wheel left and right while the vehicle is stopped or
moving extremely slowly will cause the power steering system to go into protective
mode which will make the steering feel heavy, but this does not indicate a problem.
If this occurs, park the vehicle safely and wait several minutes for the system to
return to normal.

Power Steering Mal

‐

function Indicator

Light

The light illuminates/flashes if the electric power steering has a malfunction.
If the light illuminates/flashes, stop the vehicle in a safe place and do not operate the
steering wheel. There is no problem if the light turns off after a while. Contact an Au

‐

thorized Mazda Dealer if the light illuminates/flashes continuously.

NOTE



If the indicator light illuminates/flashes, the power steering will not operate nor

‐

mally. If this happens, the steering wheel can still be operated, however, the opera

‐

tion may feel heavy compared to normal, or the steering wheel could vibrate when
turning.



▼

Contact Authorized Mazda Dealer and Have Vehicle Inspected

If any of the following warning lights or the indicator light turns on/flashes, the system may
have a malfunction. Contact an Authorized Mazda Dealer to have your vehicle inspected.

Signal

Warning

ABS Warning Light

If the ABS warning light stays on while you're driving, the ABS control unit has detected
a system malfunction. If this occurs, your brakes will function normally as if the vehicle
had no ABS.
Should this happen, consult an Authorized Mazda Dealer as soon as possible.

NOTE



When the engine is jump-started to charge the battery, uneven rpm occurs and the ABS
warning light may illuminate. If this occurs, it is the result of the weak battery and does
not indicate an ABS malfunction.
Recharge the battery.



The brake assist system does not operate while the ABS warning light is illuminated.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-25

Signal

Warning

Master Warning In

‐

dication/Warning

Light

With Multi-information Display (Type A/Type B)

Displays when notification of the system malfunctions is required.
Check the message indicated in the display and consult an Authorized Mazda Dealer.

Master warning
indication

Master
warning light

Master warning
indication

Multi-information Display

Type A

Type B

Indication in display and master warning light in instrument cluster are illuminated at
same time.
This indicates a malfunction with the vehicle system. Check the message indicated in the
display and consult an Authorized Mazda Dealer.
For details, refer to the explanations for the warning/indicator lights, in the warning/indi

‐

cator lights section, which match the symbol in the upper part of the display.
If a message is not indicated in the display, operate the INFO switch to display the “Warn

‐

ing” screen.
Refer to Message Indicated in Multi-information Display (Type A) on page 4-13.
Refer to Message Indicated in Multi-information Display (Type B) on page 4-31.

With Multi-information Display (Type C)

The light illuminates continuously if any one of the following occurs. Consult an Author

‐

ized Mazda Dealer.



There is a malfunction in the battery management system.



There is a malfunction in the brake switch.

Electric Parking

Brake (EPB) Warn

‐

ing Indication/
Warning Light

The warning light illuminates when the system has a malfunction. Have your vehicle in

‐

spected at an Authorized Mazda Dealer.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-26

Signal

Warning

(Red)

Brake Pedal Opera

‐

tion Demand Warn

‐

ing Light

When only flashing

Flashes if there is the possibility of the vehicle not being held in the stopped position by
the AUTOHOLD function, such as on steep slopes. Depress and hold your foot on the
brake pedal.

When flashing and beep sound is activated at the same time

The warning light flashes and the beep sound is activated for about 5 seconds if there is a
problem with the system. If the warning light flashes and the warning sound is activated,
immediately depress the brake pedal and stop using the AUTOHOLD function then con

‐

tact an Authorized Mazda Dealer.

WARNING

Immediately depress the brake pedal if the warning light flashes and the beep sound is acti‐
vated while using the AUTOHOLD function:

Because the AUTOHOLD function is canceled forcibly, the vehicle may move unexpectedly
and result in an accident.

Check Engine Light

If this light illuminates while driving, the vehicle may have a problem. It is important to
note the driving conditions when the light illuminated and consult an Authorized Mazda
Dealer.
The check engine light may illuminate in the following cases:



The engine's electrical system has a problem.



The emission control system has a problem.



The fuel tank level being very low or approaching empty.



The fuel-filler cap is missing or not tightened securely.

If the check engine light remains on, or it flashes continuously , do not drive at high
speeds and consult an Authorized Mazda Dealer as soon as possible.

WARNING

If the check engine light turns on, do not disconnect the battery cables.

If the battery cables are disconnected and then reconnected, the engine could be damaged
and catch on fire.

Automatic Trans

‐

axle Warning Indi

‐

cation/Warning

Light

The indication/light illuminates when the transaxle has a problem.

CAUTION

If the automatic transaxle warning indication/light illuminates, the transaxle has an electri‐
cal problem. Continuing to drive your Mazda in this condition could cause damage to your
transaxle. Consult an Authorized Mazda Dealer as soon as possible.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-27

Signal

Warning

AWD Warning Indi

‐

cation

“4WD System Malfunction” is displayed

The indication is displayed under the following conditions. The system may have a mal

‐

function. Have the vehicle checked at an Authorized Mazda Dealer.



When there is a malfunction in the AWD system.



When there is a large difference between the tire size of the front and rear wheels.

“4WD System High Load” is displayed

The indication is displayed under the following conditions. Park the vehicle in a safe place
and check that the warning indication light turns off, and then drive the vehicle. Contact
an Authorized Mazda Dealer if the indication is continuously displayed.



When the differential oil temperature is excessively high.



When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.

AWD Warning

Light

When the light is turned on

The light turns on under the following conditions. The system may have a malfunction.
Have the vehicle checked at an Authorized Mazda Dealer.



When there is a malfunction in the AWD system.



When there is a large difference between the tire size of the front and rear wheels.

When the light is flashing

Park the vehicle in a safe place. After a few moments, if the warning light stops flashing,
you can resume driving. If the light does not stop flashing, contact an Authorized Mazda
Dealer.



When the differential oil temperature is excessively high.



When there is a large difference between the front and rear wheel rotation, such as
when trying to remove the vehicle from mud.

(Turns on)

TCS/DSC Indicator

Light

If the light stays on, the TCS, DSC or the brake assist system may have a malfunction and
they may not operate correctly. Take your vehicle to an Authorized Mazda Dealer.

Air Bag/Front Seat

Belt Pretensioner

System Warning

Light

A system malfunction is indicated if the warning light constantly flashes, constantly illu

‐

minates or does not illuminate at all when the ignition is switched ON. If any of these oc

‐

cur, consult an Authorized Mazda Dealer as soon as possible. The system may not operate
in an accident.

WARNING

Never tamper with the air bag/pretensioner systems and always have an Authorized Mazda
Dealer perform all servicing and repairs:

Self-servicing or tampering with the systems is dangerous. An air bag/pretensioner could
accidentally activate or become disabled causing serious injury or death.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-28

*Some models.

Signal

Warning

(Flashing)

Tire Pressure Moni

‐

toring System

Warning Light

If the tire pressure monitoring system has a malfunction, the tire pressure warning light
flashes. Have your vehicle checked by an Authorized Mazda Dealer as soon as possible.

WARNING

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, decrease vehicle speed immediately and avoid sudden
maneuvering and braking:

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pres‐
sure warning beep sound is heard, it is dangerous to drive the vehicle at high speeds, or
perform sudden maneuvering or braking. Vehicle drivability could worsen and result in an
accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can
check the visual condition of the tire and determine if you have enough air to proceed to a
place where air may be added and the system monitored again by an Authorized Mazda
Dealer or a tire repair station.

Do not ignore the TPMS Warning Light:

Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have
the problem taken care of as soon as possible before it develops into a more serious situa‐
tion that could lead to tire failure and a dangerous accident.

(Amber)

KEY Warning Indi

‐

cation

“Keyless System Malfunction” is displayed

This message is displayed if the advanced keyless entry & push button start system has a
problem.
Contact an Authorized Mazda Dealer.

CAUTION

If the message is indicated, or the push button start indicator light (amber) flashes, the en‐
gine may not start. If the engine cannot be started, try starting it using the emergency oper‐
ation for starting the engine, and have the vehicle inspected at an Authorized Mazda Deal‐
er as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9.

“Ignition is On” is displayed

This message is displayed when the driver's door is opened without switching the ignition
off.

“Key Not Detected” is displayed

This message is displayed when any of the following operations is performed with the key
out of the operational range or placed in areas inside the cabin where it is difficult for the
key to be detected.



The push button start is pressed with the ignition switched off



The ignition is switched on



All doors are closed without switching the ignition off

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-29

Signal

Warning

(Red)

(Turns on)

KEY Warning

Light

If any malfunction occurs in the keyless entry system, it illuminates continuously.

CAUTION

If the key warning indicator light illuminates or the push button start indicator light (amber)
flashes, the engine may not start. If the engine cannot be started, try starting it using the
emergency operation for starting the engine, and have the vehicle inspected at an Author‐
ized Mazda Dealer as soon as possible.
Refer to Emergency Operation for Starting the Engine on page 4-9.

(Amber)

High Beam Control

System (HBC)

Warning Indication/

Warning Light

The light remains turned on if there is a problem with the system. Have your vehicle in

‐

spected at an Authorized Mazda Dealer.

NOTE

If the Forward Sensing Camera (FSC) field of view is impaired during bad weather condi

‐

tions (such as rain, fog, and snow) and when the windshield is dirty, the warning indica

‐

tion/warning light for the High Beam Control System (HBC) may display/turn on. Howev

‐

er, this does not indicate a problem.

Blind Spot Monitor

‐

ing (BSM) Warning

Indication

The Warning indication turns on if there is any malfunction in the Blind Spot Monitoring
(BSM). Have your vehicle inspected by an Authorized Mazda Dealer.

NOTE

If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause. However, it does not indicate a malfunction.

Blind Spot Monitor

‐

ing (BSM) OFF In

‐

dicator Light

A problem in the system may be indicated under the following conditions.
Have your vehicle inspected at an Authorized Mazda Dealer.



The light does not turn on when the ignition is switched ON.



The light remains on even when the Blind Spot Monitoring (BSM) system can be oper

‐

ated.



It turns on while driving the vehicle.

NOTE

If the vehicle is driven on a road with less traffic and few vehicles that the radar sensors
can detect, the system may pause (The Blind Spot Monitoring (BSM) OFF indicator light
in the instrument cluster illuminates). However, it does not indicate a malfunction.

(Amber)

Driver Attention

Alert (DAA) Warn

‐

ing Indication

The message is displayed when the system has a malfunction. Have your vehicle inspect

‐

ed at an Authorized Mazda Dealer.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-30

*Some models.

Signal

Warning

(Amber)

Mazda Radar Cruise
Control with Stop &

Go function

(MRCC with Stop

& Go function)

Warning Indication

The message is displayed when the system has a malfunction. Have your vehicle inspect

‐

ed at an Authorized Mazda Dealer.

Traffic Jam Assist

(TJA) Warning Indi

‐

cation

The message is displayed when the system has a malfunction. Have your vehicle inspect

‐

ed at an Authorized Mazda Dealer.

Lane-keep Assist

System (LAS) &

Lane Departure

Warning System

(LDWS) Warning

Indication

The message is displayed when the system has a malfunction. Have your vehicle inspect

‐

ed at an Authorized Mazda Dealer.
The system does not operate when the warning message is displayed.

CAUTION



Always use tires for all wheels that are of the specified size, and the same manufacture,
brand, and tread pattern. In addition, do not use tires with significantly different wear
patterns on the same vehicle. If such improper tires are used, the system may not operate
normally.



When an emergency spare tire is used, the system may not operate normally.

LED Headlight

Warning Light

This light illuminates if there is a malfunction in the LED headlight. Have your vehicle
inspected by an Authorized Mazda Dealer.

▼

Taking Action

Take the appropriate action and verify that the warning light turns off.

Signal

Warning

Action to be taken

(Amber)

Smart Brake Support/

Smart City Brake Sup

‐

port (SBS/SCBS)

Warning Indication/

Warning Light

The light turns on if the windshield or the
radar sensor are dirty, or there is a malfunc

‐

tion in the system.

Verify the reason why the warning light is
illuminated on the center display.
If the reason why the warning light is illu

‐

minated is due to a dirty windshield, clean
the windshield.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em

‐

blem.
For any other reasons, have the vehicle in

‐

spected at an Authorized Mazda Dealer.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-31

Signal

Warning

Action to be taken

Low Fuel Warning In

‐

dication/Warning

Light

The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).

NOTE

The light illumination timing may vary be

‐

cause fuel inside the fuel tank moves
around according to the driving conditions
and the vehicle posture.

Add fuel.

Check Fuel Cap Warn

‐

ing Indication/Warning

Light

If the check fuel cap warning light illumi

‐

nates while driving, the fuel-filler cap may
not be installed properly.

Stop the engine and reinstall the fuel-filler
cap.
Refer to Refueling on page 3-28.

Engine Oil Level

Warning Light

This warning light indicates that the engine
oil level is around the MIN mark (page
6-21).

Add 1 L (0.3 US gal, 0.2 Imp gal) of en

‐

gine oil (page 6-20).

Seat Belt Warning

Light (Front seat)

Except Mexico

The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig

‐

nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and if the vehicle is driven
at about 20 km/h (12 mph) or faster, or
about 10 km/h (6 mph) or faster for a con

‐

tinuous 30 seconds, with the seat belt unfas

‐

tened, the warning light flashes for a certain
period. After a short time, the warning light
stops flashing, but remains illuminated.

NOTE



The warning light flashes for about 6
seconds if the driver's seat belt is not fas

‐

tened when the ignition is switched ON.



To allow the front passenger occupant
classification sensor to function properly,
do not place and sit on an additional seat
cushion on the front passenger's seat.
The sensor may not function properly be

‐

cause the additional seat cushion could
cause sensor interference.



If a small child is seated on the front pas

‐

senger's seat, the warning light may not
operate.

Fasten the seat belts.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-32

Signal

Warning

Action to be taken

Seat Belt Warning

Light (Front seat)

Mexico

The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig

‐

nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than about 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re

‐

mains illuminated. If a seat belt remains un

‐

fastened, the warning light flashes again for
a given period of time.

NOTE



Placing heavy items on the front pas

‐

senger's seat may cause the front pas

‐

senger's seat belt warning function to op

‐

erate depending on the weight of the
item.



To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor
may not function properly because the
additional seat cushion could cause sen

‐

sor interference.



If a small child is seated on the front pas

‐

senger's seat, the warning light may not
operate.

Fasten the seat belts.

(Red)

Seat Belt Warning

Light (Rear seat)

If the rear seat belts are not fastened while
the ignition is switched ON , the driver and
the passenger are alerted by the warning
light.
The warning light operates even if there is
no passenger on the rear seat.

NOTE

If a rear seat belt is not fastened by a cer

‐

tain period of time after the engine has
been started, the warning light turns off.

Fasten the seat belts.

Low Washer Fluid

Level Warning Indica

‐

tion/Warning Light

This warning light indicates that little wash

‐

er fluid remains.

Add washer fluid (page 6-24).

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-33

Signal

Warning

Action to be taken

Door-Ajar/Lift

‐

gate-Ajar Warning In

‐

dication/Warning

Light

The light turns on if any door/liftgate is not
closed securely.

Close the door/liftgate securely.

Tire Pressure Monitoring System Warning Light (Turns on)

Take the appropriate action and verify that the warning light turns off.

Warning

When the warning light illuminates, and the warning beep sound is heard when tire pressure is too low in one or
more tires.

WARNING

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound
is heard, decrease vehicle speed immediately and avoid sudden maneuvering and braking:

If the tire pressure monitoring system warning light illuminates or flashes, or the tire pressure warning beep sound
is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden maneuvering or braking. Vehicle
drivability could worsen and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can check the visual condition
of the tire and determine if you have enough air to proceed to a place where air may be added and the system
monitored again by an Authorized Mazda Dealer or a tire repair station.

Do not ignore the TPMS Warning Light:

Ignoring the TPMS warning light is dangerous, even if you know why it is illuminated. Have the problem taken
care of as soon as possible before it develops into a more serious situation that could lead to tire failure and a
dangerous accident.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-34

*Some models.

Action to be taken

Inspect the tires and adjust to the specified inflation pressure (page 6-35).

CAUTION

When replacing/repairing the tires or wheels or both, have the work done by an Authorized Mazda Dealer, or the
tire pressure sensors may be damaged.

NOTE



Perform tire pressure adjustment when the tires are cold. Tire pressure will vary according to the tire temper

‐

ature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the
tire pressures. When pressure is adjusted on hot tires to the cold inflation pressure, the TPMS warning light/
beep may turn on after the tires cool and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient
temperature, may turn off if the ambient temperature rises. In this case, it will also be necessary to adjust the
tire air pressures. If the TPMS warning light illuminates due to a drop in tire air pressure, make sure to check
and adjust the tire air pressures.



After adjusting the tire air pressures, it may require some time for the TPMS warning light to turn off. If the
TPMS warning light remains illuminated, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10
minutes, and then verify that it turns off.



Tires lose air naturally over time and the TPMS cannot tell if the tires are getting too soft over time or you
have a flat. However, when you find one low tire in a set of four-that is an indication of trouble; you should
have someone drive the vehicle slowly forward so you can inspect any low tire for cuts and any metal objects
sticking through tread or sidewall. Put a few drops of water in the valve stem to see if it bubbles indicating a
bad valve. Leaks need to be addressed by more than simply refilling the trouble tire as leaks are dangerous

―

take it to an Authorized Mazda Dealer which has all the equipment to fix tires, TPMS systems and order

the best replacement tire for your vehicle.

If the warning light illuminates again even after the tire pressures are adjusted, there may be a tire puncture.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-35

KEY Warning Indication/Warning Light

Take the appropriate action and verify that the warning light turns off.

Signal

Cause

Action to be taken

(White)

KEY Warning Indica

‐

tion

The key battery is dead.

Replace the key battery (page 6-33).

(Red)

(Flashing)

KEY Warning Light

The key battery is dead.

Replace the key battery (page 6-33).

The key is not within the operation range.

Bring the key into the operation range
(page 3-8).

The key is placed in areas inside the cabin
where it is difficult for the key to be detect

‐

ed.

A key from another manufacturer similar to
the key is in the operation range.

Take the key from another manufacturer
similar to the key out of the operation
range.

Without the ignition switched off, the key is
taken out of the cabin, and then all the
doors are closed.

Bring the key back into the cabin.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-36

Message Indicated on Multi-information Display

If there is a notification from the vehicle, a message is displayed in the multi-information
display. Check the information and take the necessary action.

(Display example)

Instrument Cluster

Type A

Type B

If the warning light turns on/flashes simultaneously or a symbol is indicated in the display,
check the information regarding the warning light or symbol.
Refer to If a Warning Light Turns On or Flashes on page 7-22.

Display

Content

Action to be taken

Indicated when the push button start is
pressed while the selector lever is not in
the P position.

Shift the selector lever to the P position.

Indicated when the push button start is
pressed without depressing the brake
pedal.

Depress the brake pedal and press the
push button start.

Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.

Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.

Indicates when there is a problem with
the brake related system while the vehi

‐

cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) stop hold control.

Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function), and have your vehicle inspect

‐

ed at an Authorized Mazda Dealer.

Indicates the possibility of the vehicle
not being held in the stopped position by
the AUTOHOLD function or the Mazda
Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go func

‐

tion) stop hold control, such as on steep
slopes.

Depress and hold your foot on the brake
pedal.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-37

Display

Content

Action to be taken

Indicates when the cancel operation is
done without depressing the brake pedal
while the vehicle is being held in the
stopped position by the AUTOHOLD
function.

Cancel the AUTOHOLD function stop
hold control while depressing the brake
pedal.

Indicated when the engine coolant tem

‐

perature is high or the engine is hot, and
the engine output is limited.

Drive slowly and make sure that the in

‐

dication turns off.
If the indication does not turn off, con

‐

sult an Authorized Mazda Dealer.

This message is indicated when the
Mi-Drive switch is operated while there
is a problem with the Mazda intelligent
Drive Select (Mi-Drive) related system.

Have your vehicle inspected by an Au

‐

thorized Mazda Dealer.

This message is indicated when SPORT
mode is selected while Mazda Radar
Cruise Control with Stop & Go function
(MRCC with Stop & Go function), and
Traffic Jam Assist (TJA) are operating.

When Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function), and Traffic Jam Assist
(TJA) are operating, the vehicle cannot
be driven in SPORT mode.

This message is indicated when there is
a problem with the related system during
Mi-Drive operation.

Have your vehicle inspected by an Au

‐

thorized Mazda Dealer.

This message is indicated when Mazda
Radar Cruise Control with Stop & Go
function (MRCC with Stop & Go func

‐

tion), and Traffic Jam Assist (TJA) are
turned on while the vehicle is being
driven in SPORT mode.

When Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function), and Traffic Jam Assist
(TJA) are operating, the vehicle cannot
be driven in SPORT mode.

This message is indicated when the
Mi-Drive switch operation is not accept

‐

ed during ABS operation.

Operate the Mi-Drive switch during
steady driving.

This message is indicated when
Mi-Drive is stopped by an operation oth

‐

er than by the driver.

If this message is indicated even though
the Mi-Drive switch is operated again,
have your vehicle inspected by an Au

‐

thorized Mazda Dealer.

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

7-38

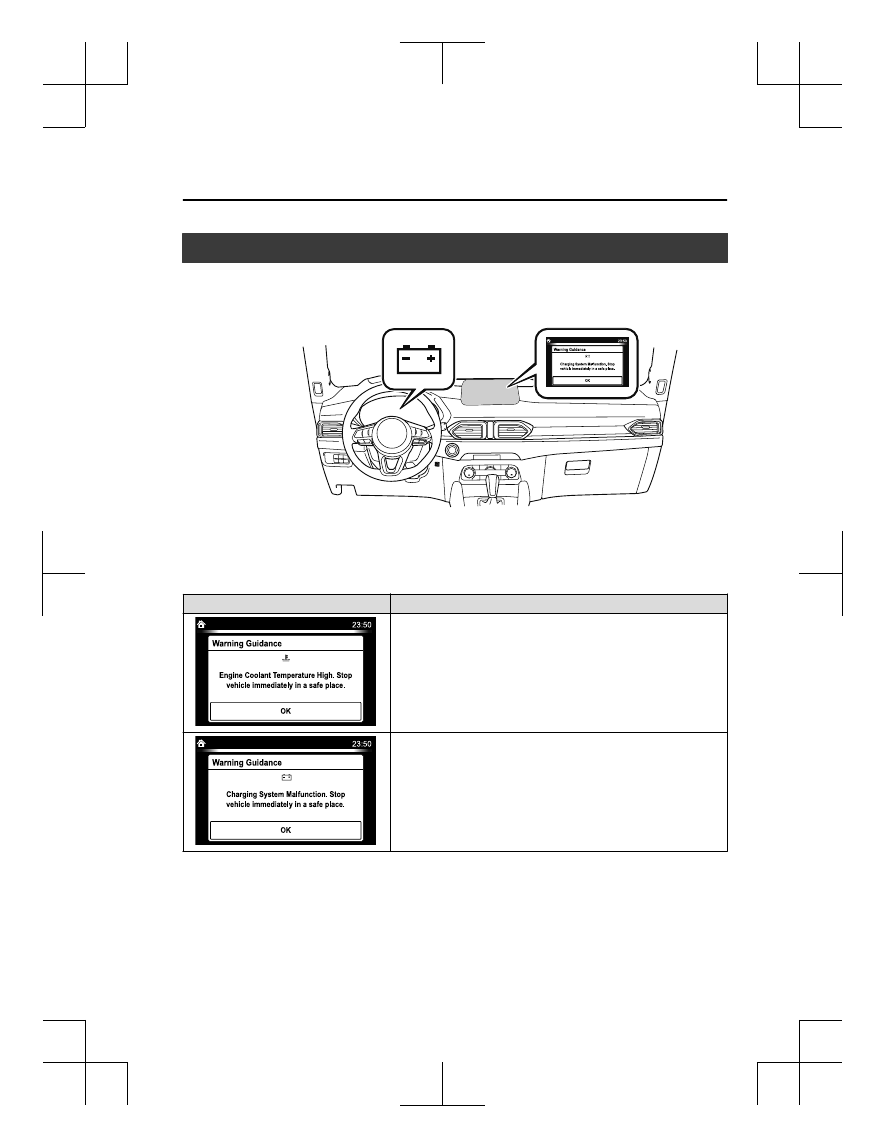

Message Indicated on Display

If a message is displayed in the center display, take appropriate action (in a calm manner)
according to the displayed message.

(Display example)

▼

Stop Vehicle in Safe Place Immediately

If the following messages are displayed in the center display, a vehicle system may be
malfunctioning. Stop the vehicle in a safe place and contact an Authorized Mazda Dealer.

Display

Indicated Condition

Displays if the engine coolant temperature has increased excessively.

Displays if the charging system has a malfunction.

▼

Verify Display Content

Displays in the following cases:

If Trouble Arises

Warning/Indicator Lights and Warning Sounds

*Some models.

7-39

Mazda CX-5 (2022 year). Manual in english - page 39
