Mazda CX-5 (2022 year). Manual in english - page 24

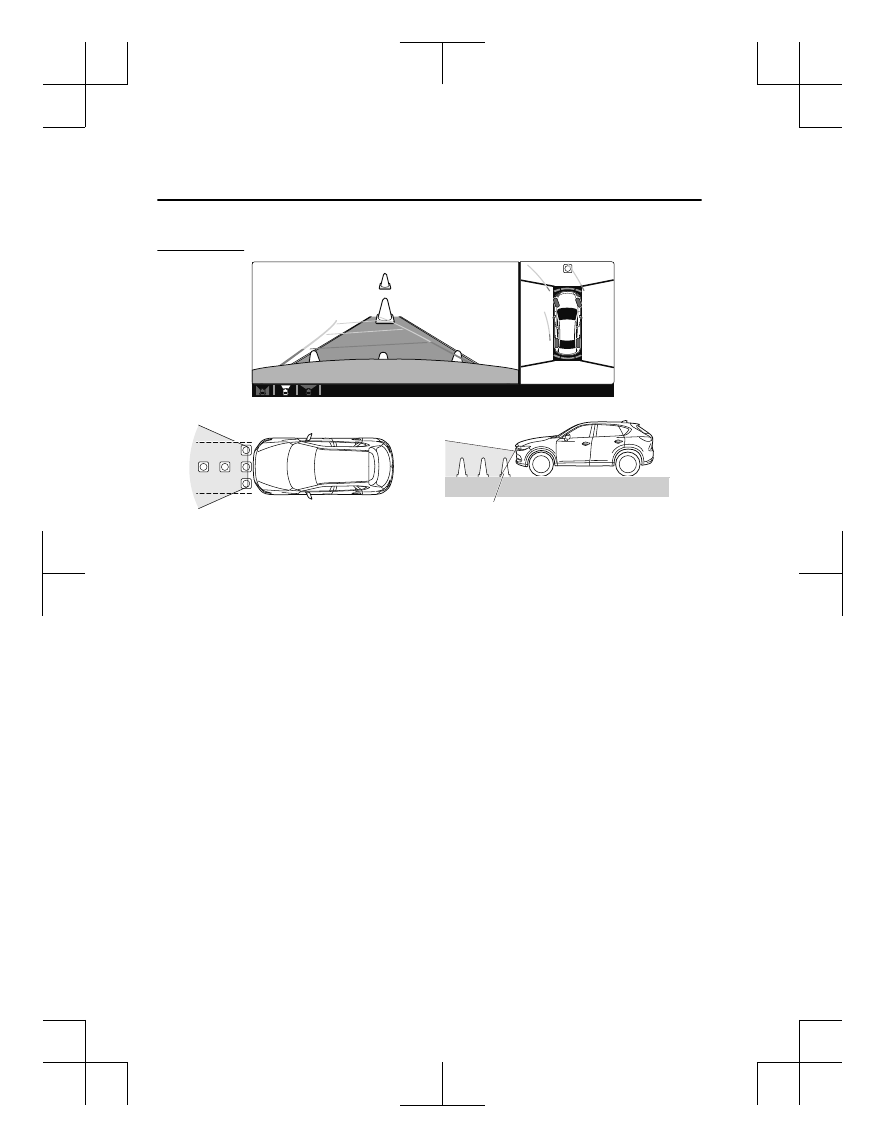

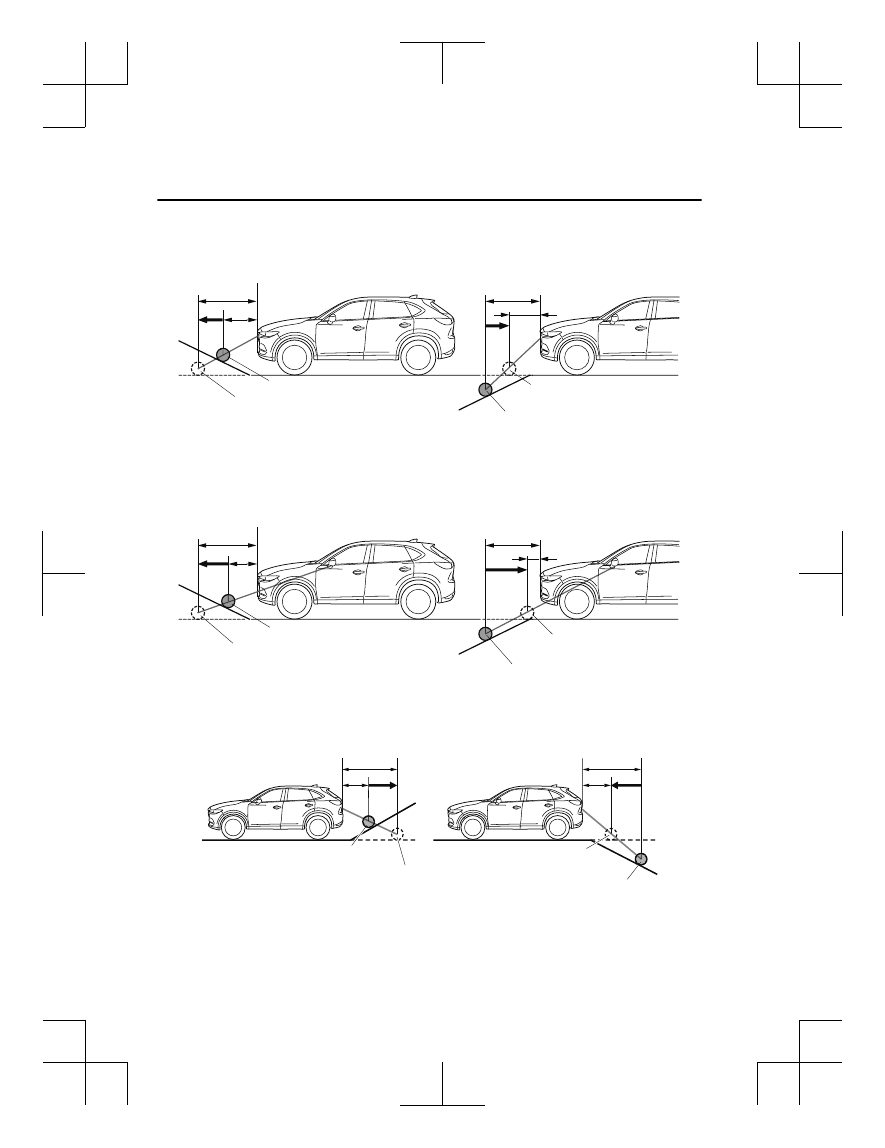

Front camera

Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

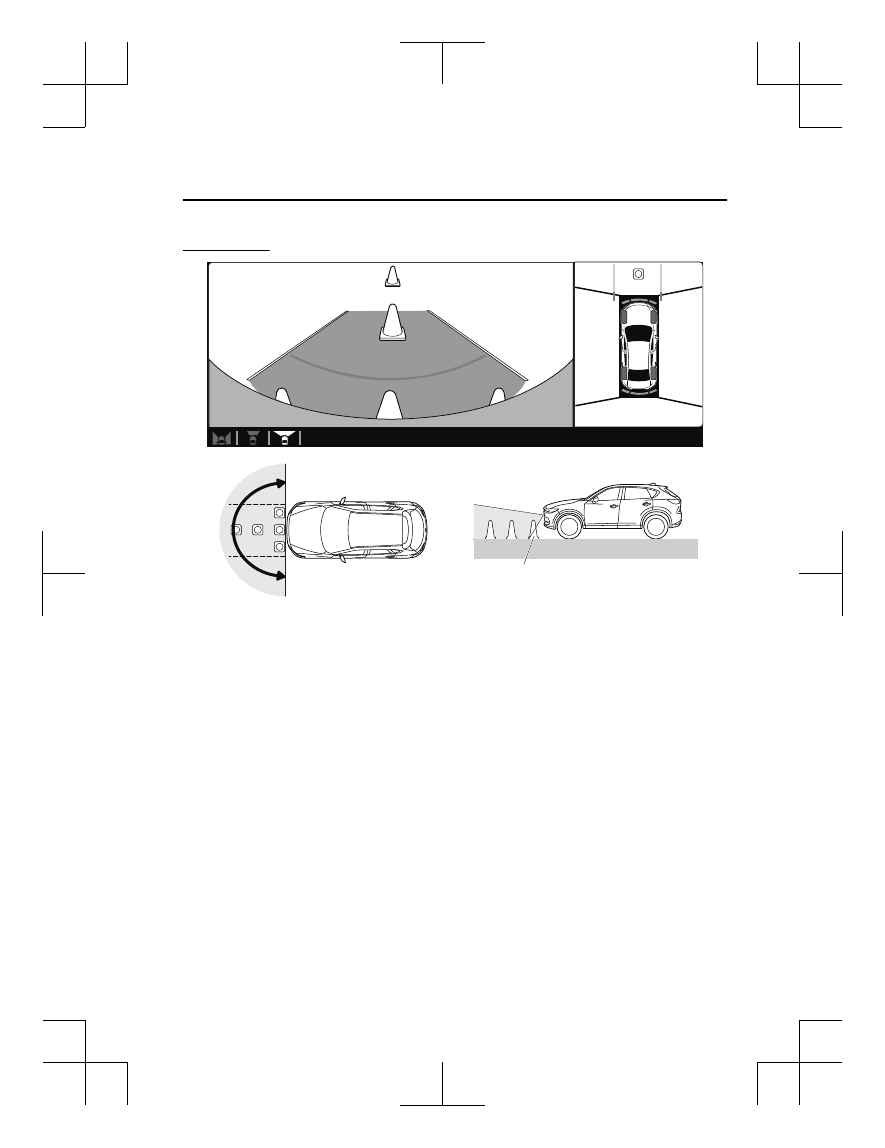

Side camera

Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

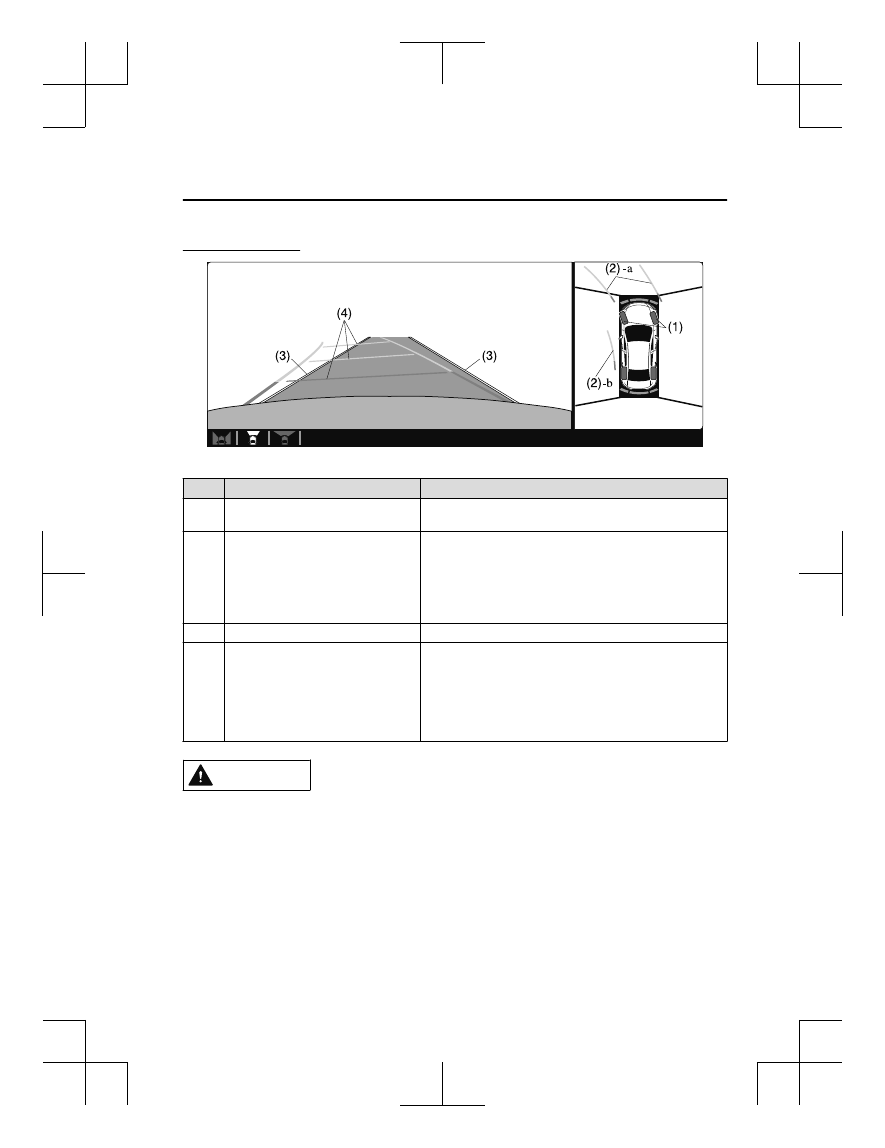

Rear camera

Actual obstruction

A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle

Obstruction appearing on screen

Obstruction appearing
on screen

Appears further than
actual distance

Appears closer than
actual distance

When Driving

i-ACTIVSENSE

4-226

NOTE

If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer
than the actual distance from the vehicle.

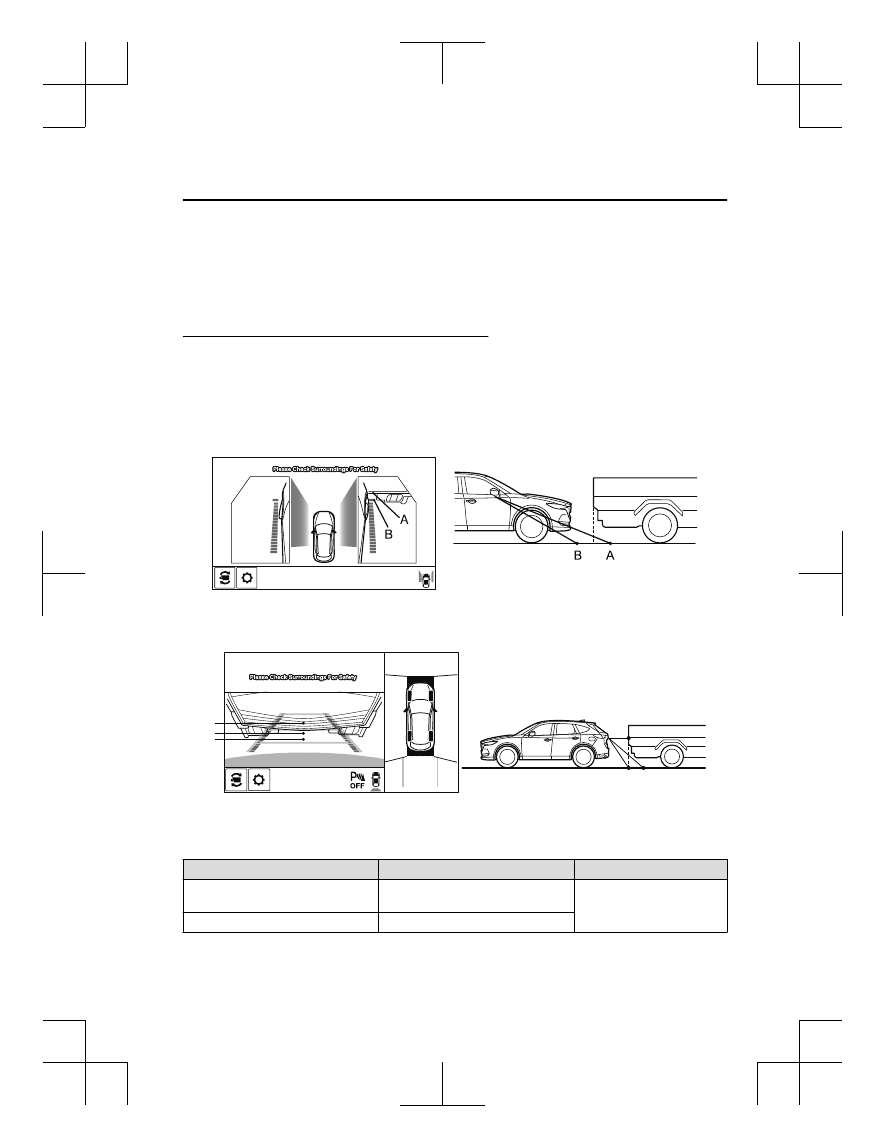

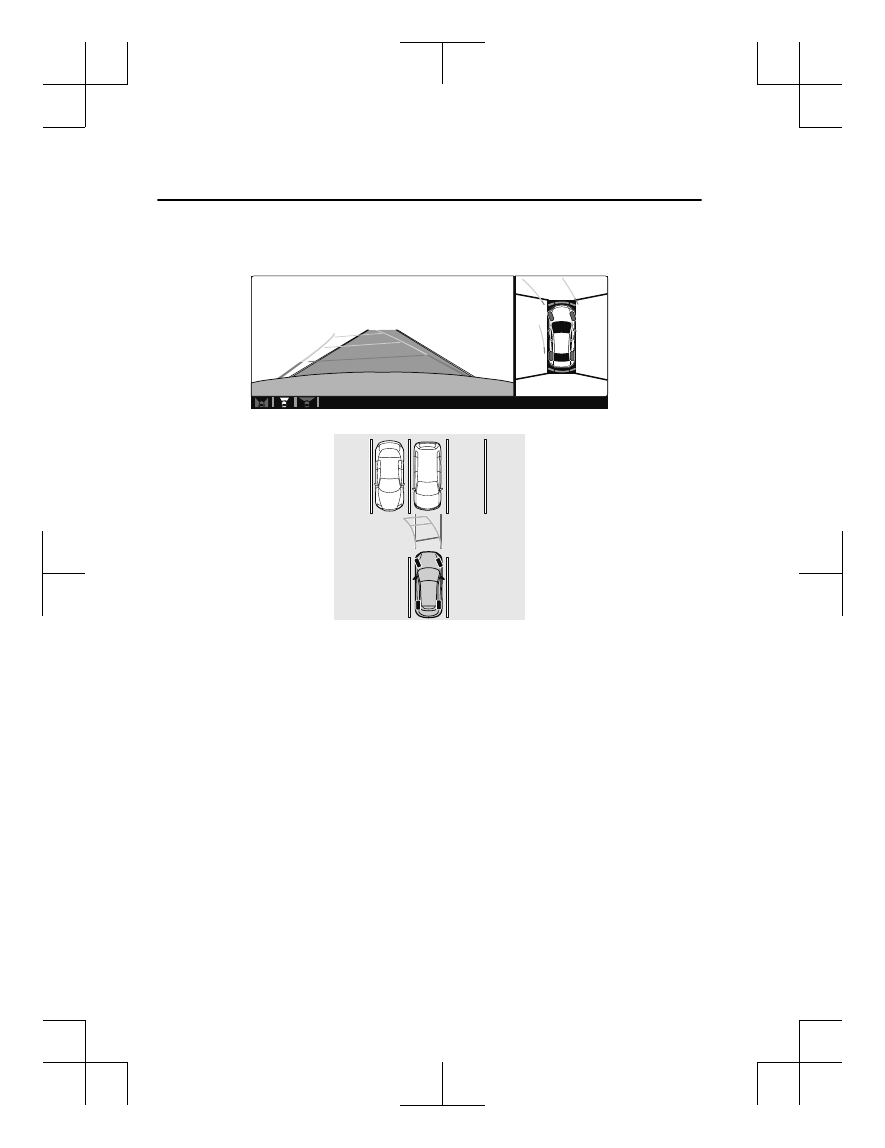

Three-dimensional object at vehicle front or rear

Because the vehicle front end guide lines (side camera) or the distance guide lines (rear
camera) are displayed based on a flat surface, the distance to the three-dimensional object
displayed on the screen is different from the actual distance.

Side camera

(Actual condition)

(Screen display)

Rear camera

(Actual condition)

Sensed distance on screen A > B > C

Actual distance B > C = A

(Screen display)

▼

System Problem Indication

Center display indication

Cause

Action to be taken

“No image signal reception” is dis

‐

played

The control unit might be damaged.

Have your vehicle inspected
by an Authorized Mazda
Dealer.

Screen is pitch-black and blank

The camera might be damaged.

When Driving

i-ACTIVSENSE

4-227

360° View Monitor (Mazda Connect (Type B))

▼

360° View Monitor

The 360°View Monitor consists of the following functions which assist the driver in
checking the area surrounding the vehicle using various indications in the center display and
a warning sound while the vehicle is being driven at low speeds or while parking.



Top view

The top view displays an image of the vehicle from directly above on the center display
by combining the images taken from the 4 cameras set on all sides of the vehicle. The top
view displays on the right side of the screen when the front view or rear view screen is
being displayed. The top view assists the driver in checking the area surrounding the
vehicle when the vehicle is moving forward or in reverse.



Front view/front wide view

The image from the front of the vehicle is displayed on the center display.
The view from the front assists the driver in checking the front of the vehicle by
displaying guide lines on the displayed image taken from the front of the vehicle.



Side view

The images taken from the front left and right sides of the vehicle are displayed on the
center display.
The side view assists the driver in checking the front sides of the vehicle by displaying
guide lines on the displayed image taken from the front left and right sides of the vehicle.



Rear view/rear wide view

The image from the rear of the vehicle is displayed on the center display.
The image from the rear assists the driver in checking the rear of the vehicle by displaying
guide lines on the displayed image taken from the rear of the vehicle.



Parking sensor

If there are any obstructions near the vehicle while the top view/side view is displayed, an
obstruction detection indication turns on around the bumper in the center display.
The parking sensors use ultrasonic sensors to detect obstructions around the vehicle when
the vehicle is driven at low speeds, such as during garage or parallel parking, and notifies
the driver of the approximate distance from the vehicle to the surrounding obstruction
using sound and an obstruction detection indication.
Refer to Parking Sensor System on page 4-302.



Rear Cross Traffic Alert (RCTA)

If there is the possibility of a collision with an approaching vehicle while the rear view/
rear wide view is displayed, a warning is displayed on the center display.
The Rear Cross Traffic Alert (RCTA) uses rear side radar sensor to detect vehicles
approaching from the rear left and right sides of the vehicle, and it assists the driver in
checking the rear of the vehicle while reversing by flashing the Blind Spot Monitoring
(BSM) warning lights and activating the warning sound.

When Driving

i-ACTIVSENSE

4-228

*Some models.

Refer to Rear Cross Traffic Alert (RCTA) on page 4-141.

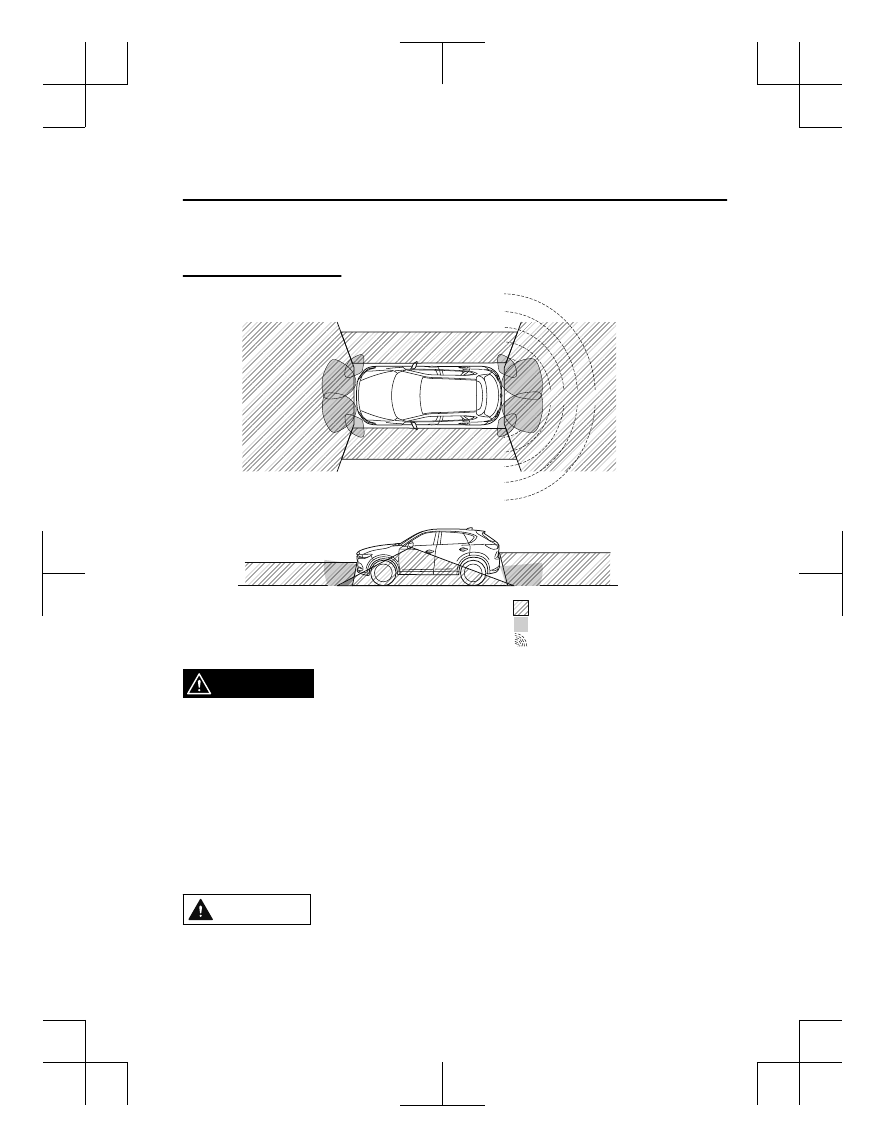

360°View Monitor Range

: Cameras
: Ultrasonic sensors
: Radar sensors (rear)

WARNING

Always confirm the safety of the area around the vehicle with the mirrors and directly with
your eyes when driving:

The 360°View Monitor is an auxiliary device which assists the driver in checking the safety of
the area around the vehicle.
The shooting range of the cameras and detection range of the sensors are limited. For
example, the areas in black at the front and rear of the vehicle image and the seams where
each of the camera images merge are blind spots where an obstruction may not be visible. In
addition, the extended vehicle width lines and projected vehicle path lines are only to be used
as references, and the images on the screen may differ from the actual conditions.

CAUTION



Do not use the 360°View Monitor under any of the following conditions.

When Driving

i-ACTIVSENSE

4-229



Icy or snow-covered roads.



Tire chains or a temporary spare tire is installed.



The front or rear doors are not fully closed.



The vehicle is on a road incline.



The door mirrors are retracted.



Do not hit the front/rear camera, front bumper, liftgate, and door mirrors forcefully. The
camera position or installation angle may shift.



The cameras are waterproof. Do not disassemble, modify, or remove a camera.



The camera cover is made of hard plastic, therefore do not apply oil film remover, organic
solvents, wax, or coating agents. If any such agent gets on the camera cover, wipe it off
using a soft cloth immediately.



Do not rub the camera lens forcefully, or clean it with an abrasive or hard brush. Otherwise,
it could scratch the camera lens and negatively affect the images.



Consult an Authorized Mazda Dealer for repair, painting, or replacement of the front/rear
camera, front bumper, liftgate and door mirrors.



Heed the following cautions to assure that the 360°View Monitor operates normally.



Do not modify the vehicle suspensions or lower/raise the vehicle body, or both.



Always use tires of the specified type and size for the front and rear wheels. Consult an
Authorized Mazda Dealer for tire replacement.



When the display is cold, images may leave trails or the screen might be darker than usual,
making it difficult to check the vehicle surroundings. Always confirm the safety at the front
and around the vehicle visually when driving.



The method for parking/stopping the vehicle using the 360°View Monitor differs depending
on the road circumstances/conditions and the vehicle conditions. When and how much you
turn the steering wheel will differ depending on the situation, therefore always check the
vehicle surroundings directly with your eyes while using the system.
Also, before using the system, always make sure that the vehicle can be parked/stopped in
the parking/stopping space.

NOTE



If there are water droplets, snow, or mud on the camera lens, wipe it off using a soft cloth.
If the camera lens is especially dirty, wash it off with mild detergent.



If the camera lens is touched or there is any dirt on it, it could affect the screen image.
Wipe the lens using a soft cloth.



If the area where the camera is installed, such as the front bumper, liftgate or door
mirrors, has been damaged in a vehicle accident, the camera (position, installation angle)
may have shifted. Always consult an Authorized Mazda Dealer to have the vehicle
inspected.

When Driving

i-ACTIVSENSE

4-230



If the camera is subjected to excessive changes in temperature such as by pouring hot
water on the camera during cold weather, the 360°View Monitor may not operate
normally.



If the battery voltage is low, the screen might be temporarily difficult to view, however,
this does not indicate a problem.



The 360°View Monitor has limitations. Objects under the bumper or near both ends of the
bumper cannot be displayed.



Obstructions above the upper image range of the camera are not displayed.



Under the following conditions, the screen might be difficult to view, however this does
not indicate a problem.



The temperature near the lens is high/low.



Rainy conditions, water droplets on the camera, or high humidity.



Mud or foreign matter near the camera.



Extremely bright light such as sunlight or headlights hitting the camera lens directly.



The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights
(display may flicker).



Extremely small dark or white dots appear on the screen (dots may flicker).



Because the 360°View Monitor camera uses a special lens, the distance displayed on the
screen differs from the actual distance.



Obstructions displayed on the screen may appear differently than in actuality.
(Obstructions may appear fallen, larger, or longer than they actually are.)



Do not apply stickers to a camera or the area around it. In addition, do not install
accessories or an illuminated number/character license plate to the area around a
camera. Otherwise, the camera may not correctly display the surrounding conditions.



Only rear and rear wide images displayed on the monitor from the 360° view monitor
camera are reversed images (mirror images).



Free/open source software information

This product includes free/open sources. Information about the licensing and source code
is available at the following URL.
https://www.denso.com/global/en/opensource/svss/mazda/

When Driving

i-ACTIVSENSE

4-231

▼

Types of Images Displayed on the Screen

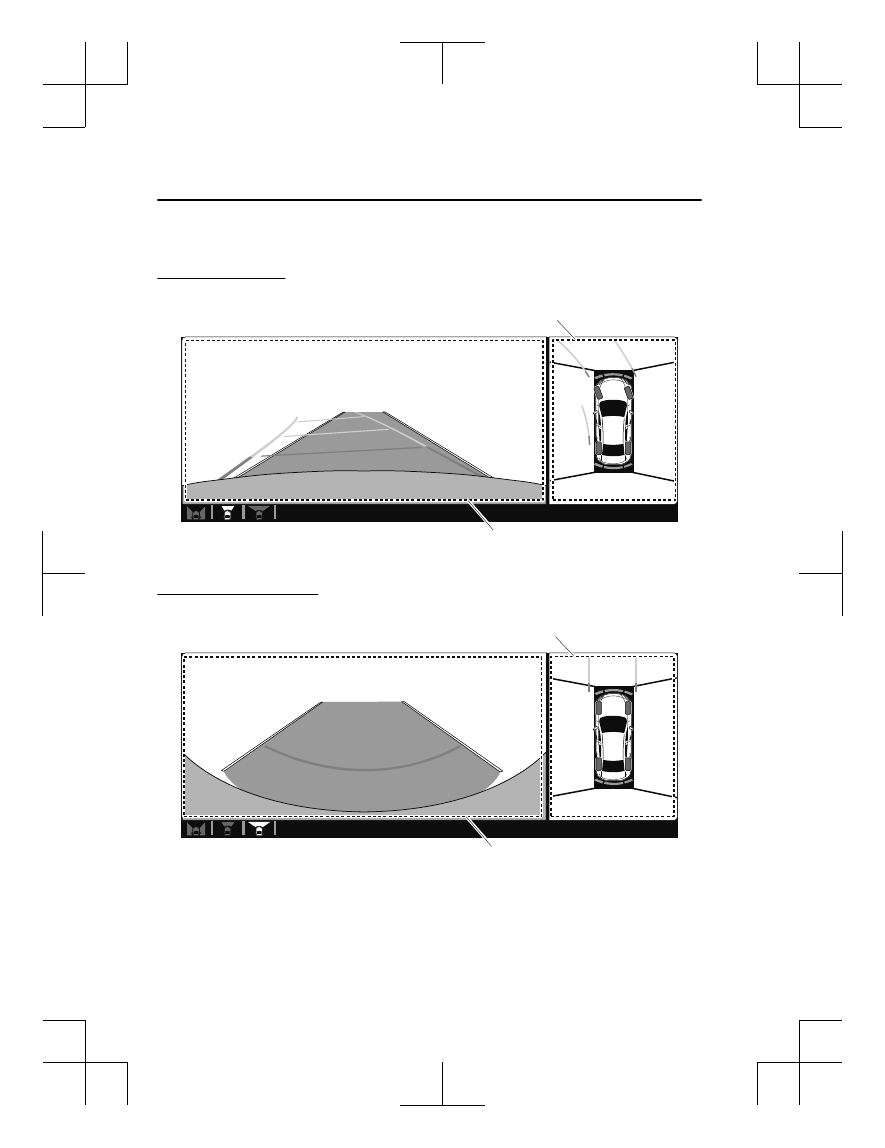

Top view/Front view

Displays the image of the area around the vehicle and the vehicle front.

Front view screen

Top view screen

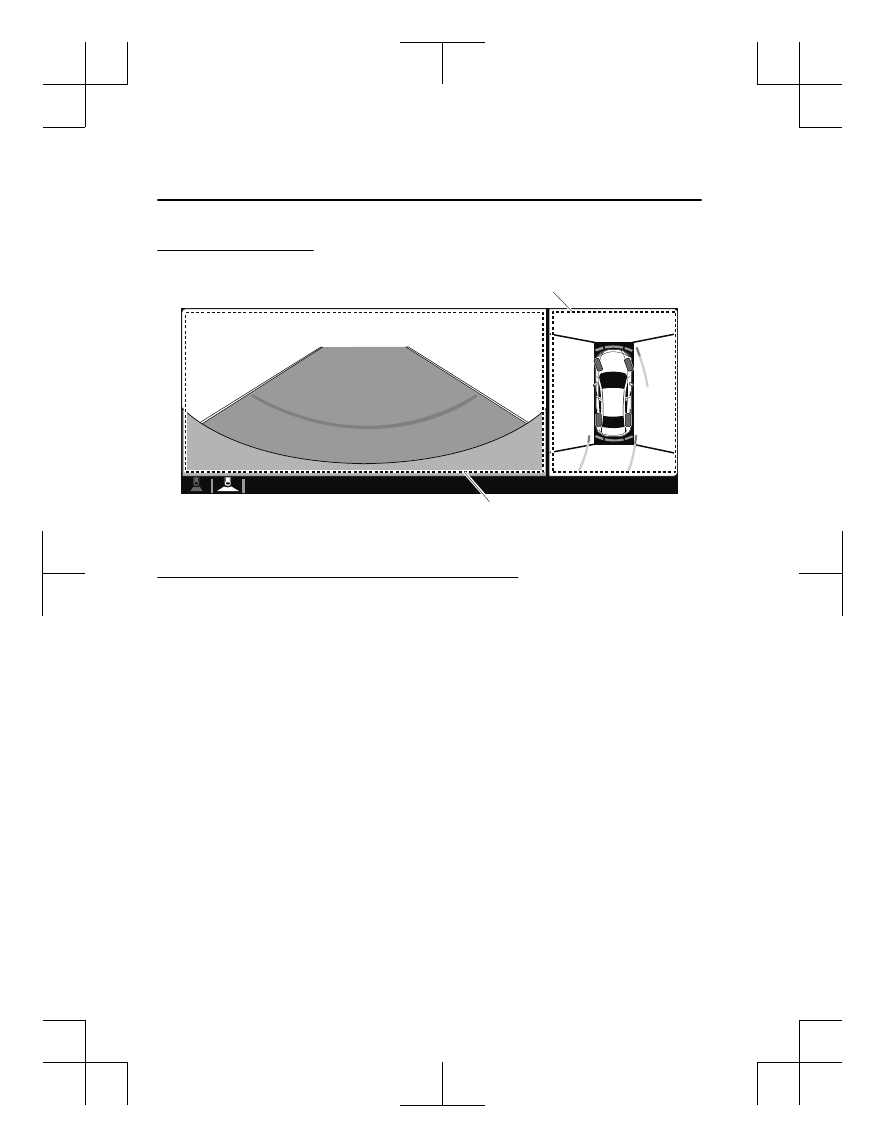

Top view/Front wide view

Displays the image of the area around the vehicle and the front of the vehicle (wide-area).

Front wide view screen

Top view screen

When Driving

i-ACTIVSENSE

4-232

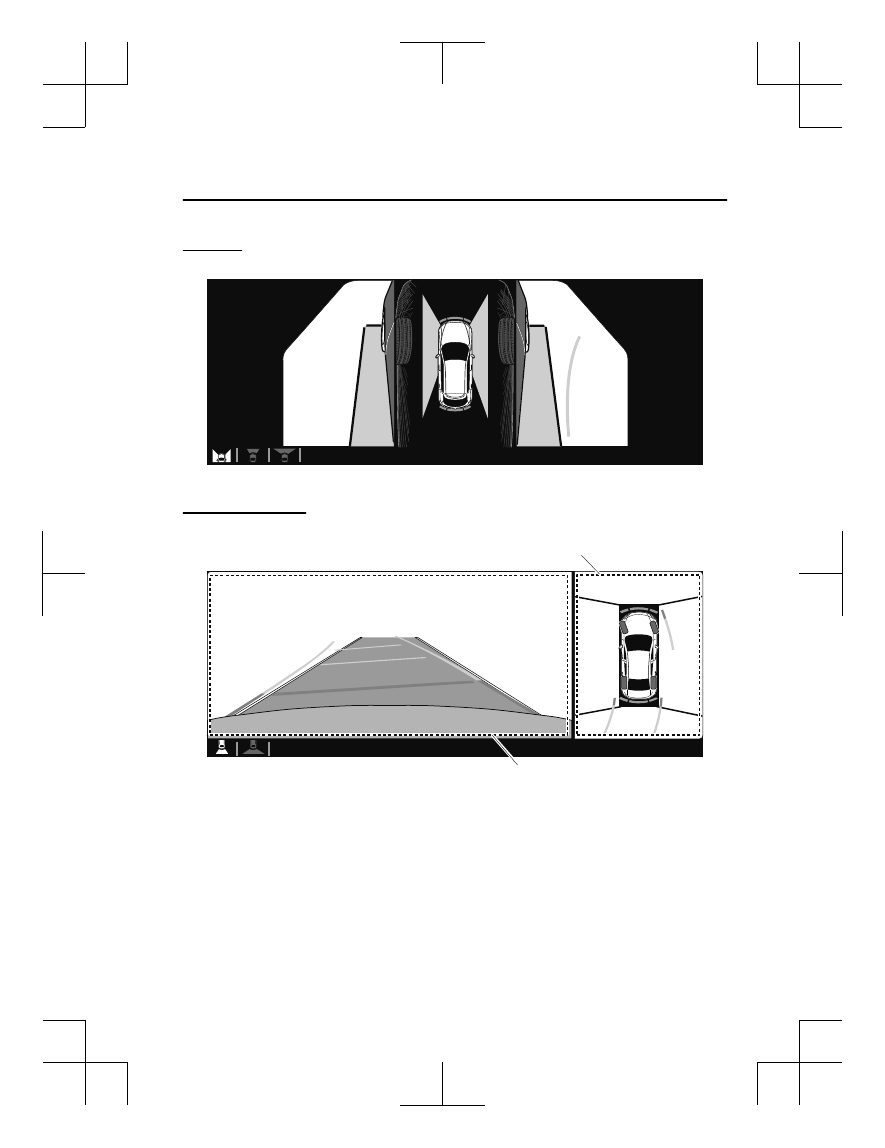

Side view

Displays the image of the left and right sides of the vehicle.

Top view/Rear view

Displays the image of the area around the vehicle and the rear of the vehicle.

Rear view screen

Top view screen

When Driving

i-ACTIVSENSE

4-233

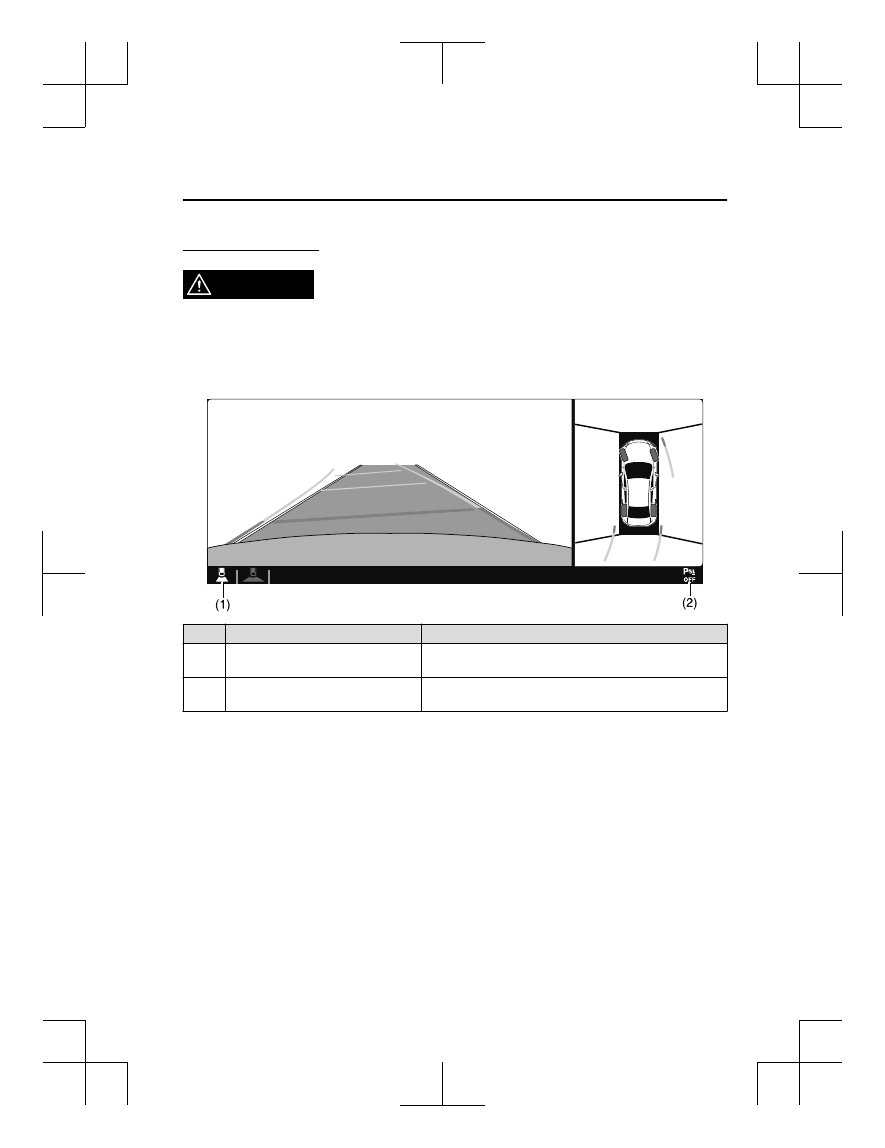

Top view/Rear wide view

Displays the image of the area around the vehicle and the rear of the vehicle (wide-area).

Rear wide view screen

Top view screen

▼

How to Use the System

Top view/Front view, Top view/Front wide view, Side view

Indication

Images are displayed on the screen when the 360°View Monitor switch is pressed with all of
the following conditions met.



The ignition is switched ON.

When Driving

i-ACTIVSENSE

4-234



The selector lever is in a position other than R.

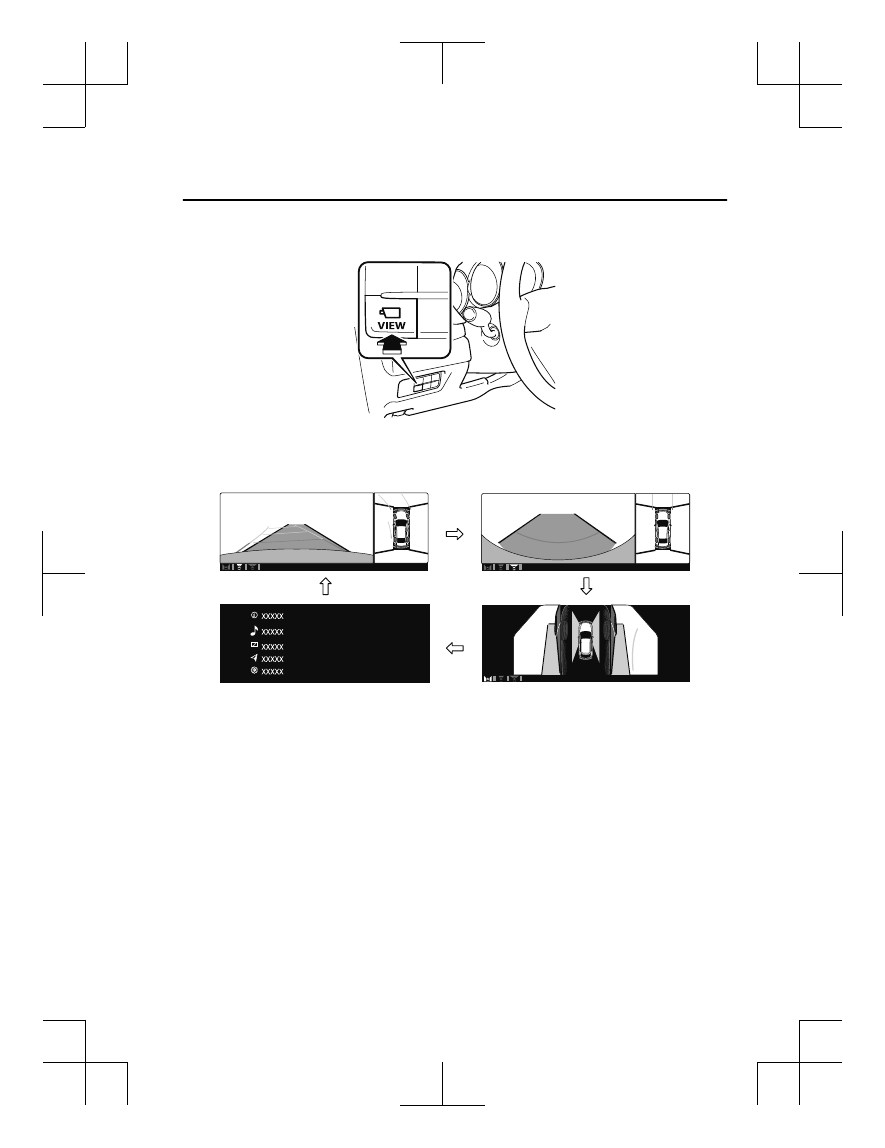

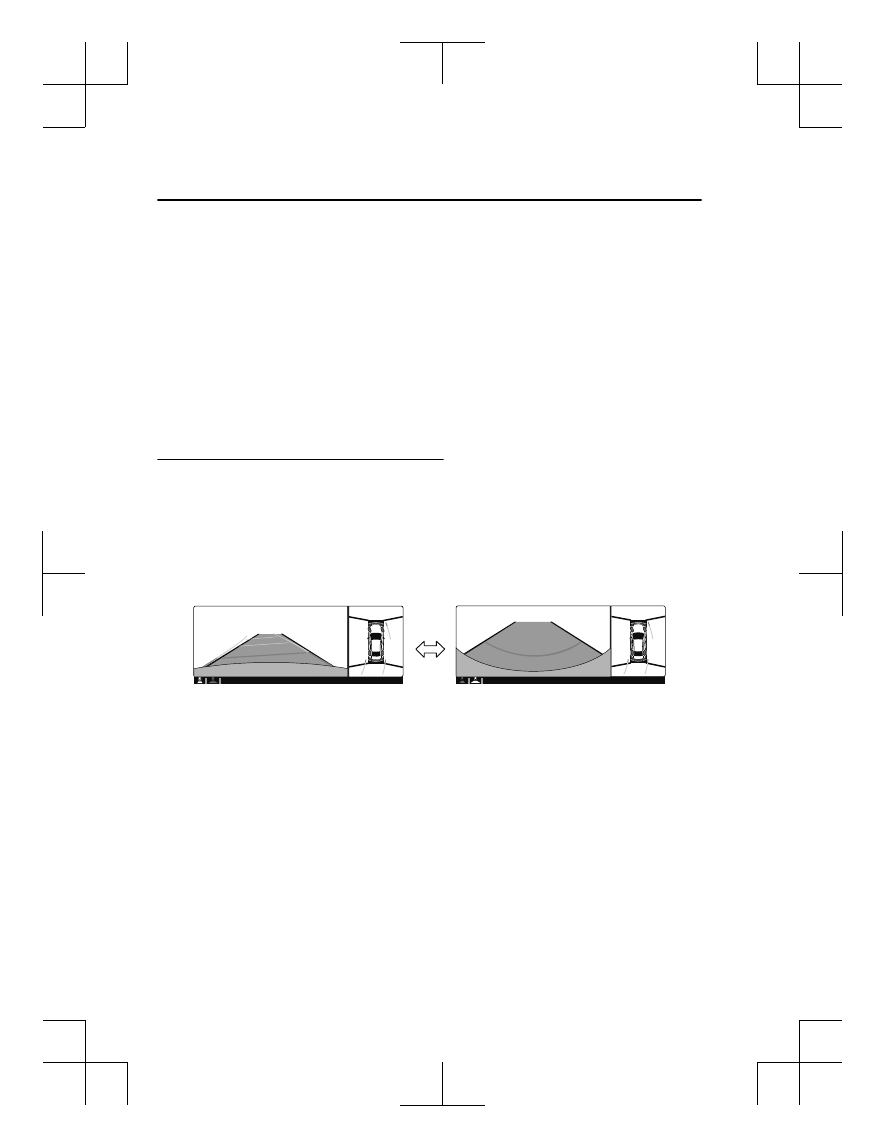

Display switching

The displayed screen can be changed each time the 360°view monitor switch is pressed.

Top view/Front view

Top view/Front wide view

Home screen

Side view

NOTE



When the selector lever is in R position, the displayed screen does not switch to the top
view/front view, top view/front wide view, or the side view.



Display of the top view/front view, top view/front wide view, or the side view stops even
with the display conditions met if any of the following conditions occurs.



When a switch around the commander knob is pressed.



The selector lever is shifted to P position (displayed when the selector lever is in a
position other than P).



(Displayed when vehicle speed is less than 15 km/h (9.3 mph))



4 minutes and 30 seconds have passed.



The vehicle speed is about 15 km/h (9.3 mph) or faster.



(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)

When Driving

i-ACTIVSENSE

4-235



The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have passed
since pressing the 360°View Monitor switch.



4 minutes and 22 seconds have passed from the point when the vehicle speed was less
than 15 km/h (9.3 mph) after 8 seconds have passed since pressing the 360°View
Monitor switch.



The 360°View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.



Automatic display of the 360°View Monitor when the ultrasonic sensor detects an
obstruction.



Automatic display of the 360°View Monitor when the ignition is switched ON.



Screen priority level when the system launches.

Top view/Rear view, Top view/Rear wide view

The top view/rear view, top view/rear wide view displays when all of the following
conditions are met.



The ignition is switched ON.



Selector lever is in R position.

Display switching

The displayed screen can be changed each time the 360°view monitor switch is pressed.

Top view/Rear view

Top view/Rear wide view

NOTE



The top view/rear view and top view/rear wide view automatically display whether or not
the 360°View Monitor switch is turned on or off when shifting the selector lever to R
position.



The top view/rear view and top view/rear wide view displays the previously displayed
screen.



The setting can be changed to display the top view/front view when shifting from reverse
to a forward gear without operating the 360°View Monitor switch to check the front of the
vehicle while parallel parking.
Refer to the Settings section in the Mazda Connect Owner's Manual.

When Driving

i-ACTIVSENSE

4-236

Screen operation/icon

WARNING

Always stop the vehicle when adjusting the 360°View Monitor image quality.

Do not adjust the 360°View Monitor image quality while driving. If you adjust the 360°View
Monitor image quality (such as brightness, contrast, tone, and color density) while driving, it
could lead to an unexpected accident.

Display/Icon

Content

(1)

View status icon

Indicates which image is displayed among the front view/front
wide view/side view/rear view/rear wide view.

(2)

Parking sensor status icon

Indicates that the parking sensor has a problem or it is switch

‐

ed off.

▼

Top View/Front View

Use the top view/front view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

When Driving

i-ACTIVSENSE

4-237

Display range

Target object

NOTE



In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the screen area for each camera may be affected and it may display in that
color.



Obstructions displayed in the front view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The screen area for each camera may appear bright/dark depending on the illumination
level around any of the cameras.

When Driving

i-ACTIVSENSE

4-238

Viewing the screen

Display/Icon

Content

(1)

Tire icon

Indicates the tire direction. Moves in conjunction with the
steering wheel operation.

(2)

Projected vehicle path lines (yellow &
red)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper is ex

‐

pected to travel.
b) Indicates the path where the inner side of the vehicle is ex

‐

pected to travel.

(3)

Extended vehicle width lines (blue)

Indicates the approximate width of the vehicle.

(4)

Projected vehicle path distance guide
lines (yellow & red)

Indicates the distance (from front end of bumper) in front of
the vehicle.



The red line indicates the point about 0.5 m (19 in) from the
front end of the bumper.



The yellow lines indicate the points about 1.0 m (39 in) and
2.0 m (78 in) from the front end of the bumper.

CAUTION

The parking sensor detection range has limitations. For example, obstructions closing in from
the side and objects short in height may not be detected. Always confirm the safety around
the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-302.

NOTE

The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.

When Driving

i-ACTIVSENSE

4-239

How to use the projected vehicle path line function

(Screen display)

(Actual condition)

Make sure that there are no obstructions within the projected vehicle path lines.
Drive the vehicle forward while turning the steering wheel so that no obstructions come
within the projected vehicle path lines.

▼

Top View/Front Wide View

Use the top view/front wide view to assist in checking the safety of the surrounding area
when accelerating from a stop or entering a T-shaped intersection and intersection.

When Driving

i-ACTIVSENSE

4-240

Display range

Target object

NOTE



In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the screen area for each camera may be affected and it may display in that
color.



Obstructions displayed in the front view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The screen area for each camera may appear bright/dark depending on the illumination
level around any of the cameras.

When Driving

i-ACTIVSENSE

4-241

Content .. 22 23 24 25 ..
