When a switch around the commander knob is pressed.



The selector lever is shifted to P position (displayed when the selector lever is in a
position other than P).



(Displayed when vehicle speed is less than 15 km/h (9.3 mph))



4 minutes and 30 seconds have passed.



The vehicle speed is about 15 km/h (9.3 mph) or faster.



(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)



The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have passed
since pressing the 360°View Monitor switch.



4 minutes and 22 seconds have passed from the point when the vehicle speed was less
than 15 km/h (9.3 mph) after 8 seconds have passed since pressing the 360° View
Monitor switch.



The 360°View Monitor displays the previously displayed screen.



The 360° View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.



Automatic display of the 360°View Monitor when the ultrasonic sensor detects an
obstruction.



Automatic display of the 360°View Monitor when the ignition is switched ON.

Top view/Rear view, Rear wide view

The top view/rear view, rear wide view displays when all of the following conditions are
met.



The ignition is switched ON.



Selector lever is in R position.

When Driving

i-ACTIVSENSE

4-210

Display switching

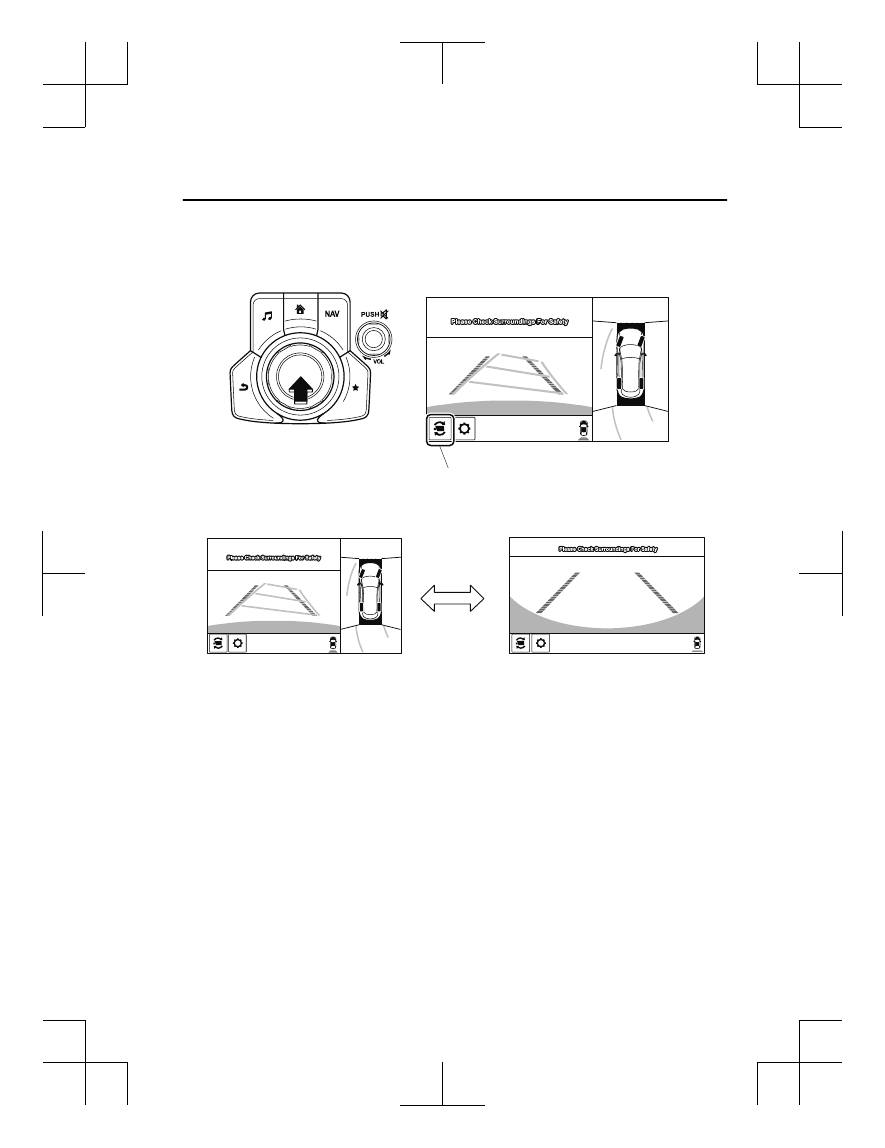

The displayed screen can be switched by pressing the commander knob or by touching the
switch camera icon on the screen while the top view/rear view, rear wide view is displayed.

Top view/Rear view

Rear wide view

Switch camera icon

NOTE



The top view/rear view and rear wide view automatically display whether or not the 360°
View Monitor switch is turned on or off when shifting the selector lever to R position.



The setting can be changed to display the top view/front view when shifting from reverse
to a forward gear without operating the 360°View Monitor switch to check the front of the
vehicle while parallel parking.
Refer to the Settings section in the Mazda Connect Owner's Manual.

When Driving

i-ACTIVSENSE

4-211

Screen operation/icon

WARNING

Always stop the vehicle when adjusting the 360°View Monitor image quality.

Do not adjust the 360°View Monitor image quality while driving. If you adjust the 360° View
Monitor image quality (such as brightness, contrast, tone, and color density) while driving, it
could lead to an unexpected accident.

(Display example)

Display/Icon

Content

View status icon

Indicates which image is displayed among the front view/front
wide view/side view/rear view/rear wide view.

Parking sensor status icon

Indicates that the parking sensor has a problem or it is switch

‐

ed off.

Rear Cross Traffic Alert (RCTA) status
icon

Indicates that the radar sensor (rear) has a problem or it is
turned off.

Switch camera icon

Each time the screen is touched, the display screen switches.

Setting icon

The image quality for the 360°View Monitor can be adjusted.

▼

Top View/Front View

Use the top view/front view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

When Driving

i-ACTIVSENSE

4-212

Display range

(Actual condition)

(Screen display)

Target object

NOTE



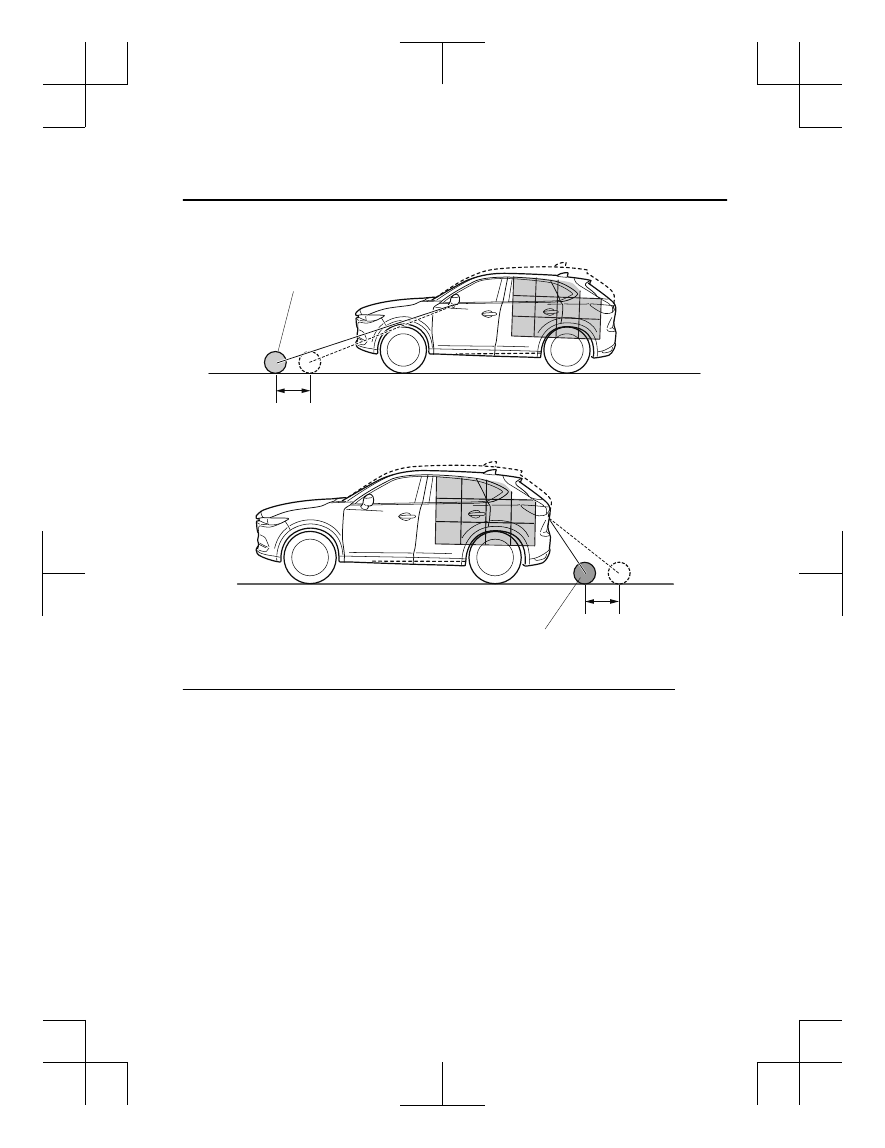

In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the whole screen may be affected and it may display in that color.



Obstructions displayed in the front view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The entire screen may appear bright/dark depending on the illumination level around
any of the cameras.

When Driving

i-ACTIVSENSE

4-213

Viewing the screen

-b

-a

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)

Display/Icon

Content

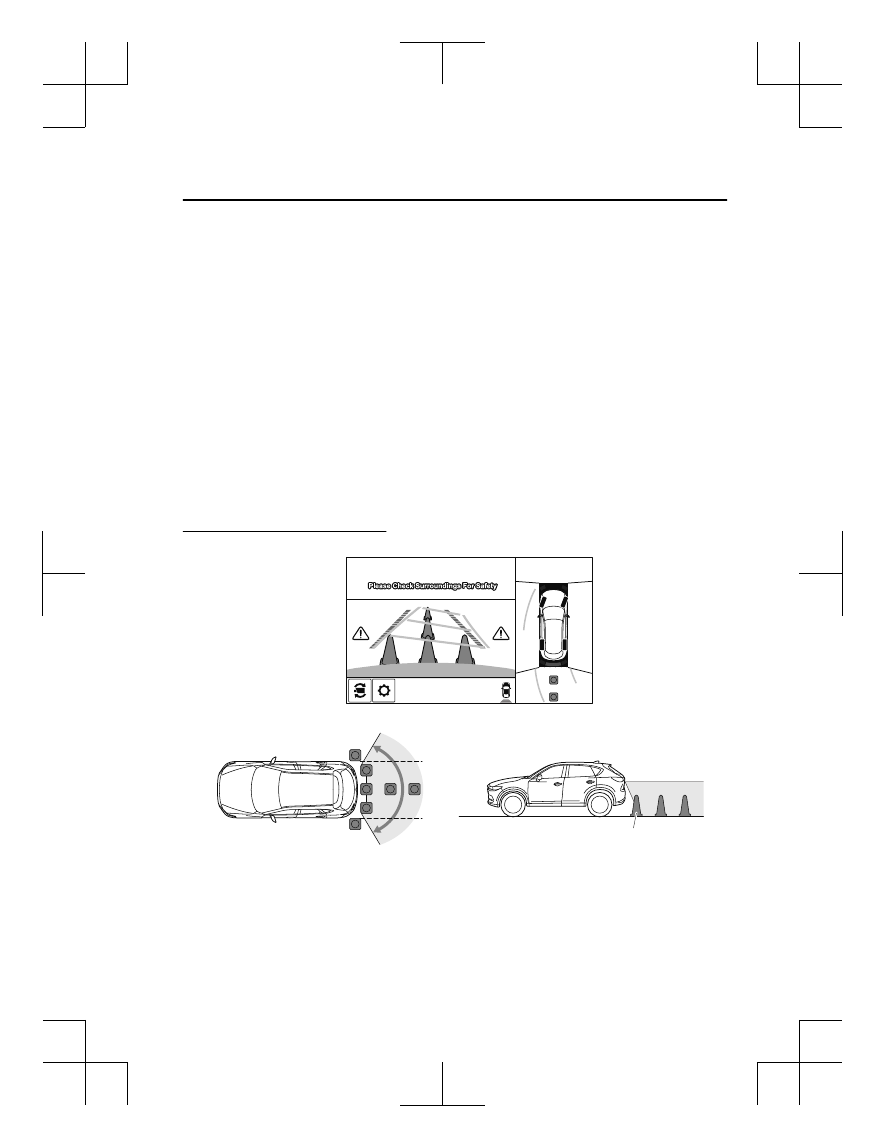

Parking sensor view

Displays the parking sensor detection condition when the
parking sensor is activated.
For details, refer to the parking sensor obstruction detection
indication and warning sound.
Refer to Parking Sensor System on page 4-293.

Tire icon

Indicates the tire direction. Moves in conjunction with the
steering wheel operation.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper is ex

‐

pected to travel.
b) Indicates the path where the inner side of the vehicle is ex

‐

pected to travel.

Extended vehicle width lines and dis

‐

tance guide lines (red/blue)

Indicates the approximate width of the vehicle and the dis

‐

tance (from front end of bumper) in front of the vehicle.



The red lines indicate the points up to about 0.5 m (19 in)
from the front end of the bumper.



The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the front end of the bumper.

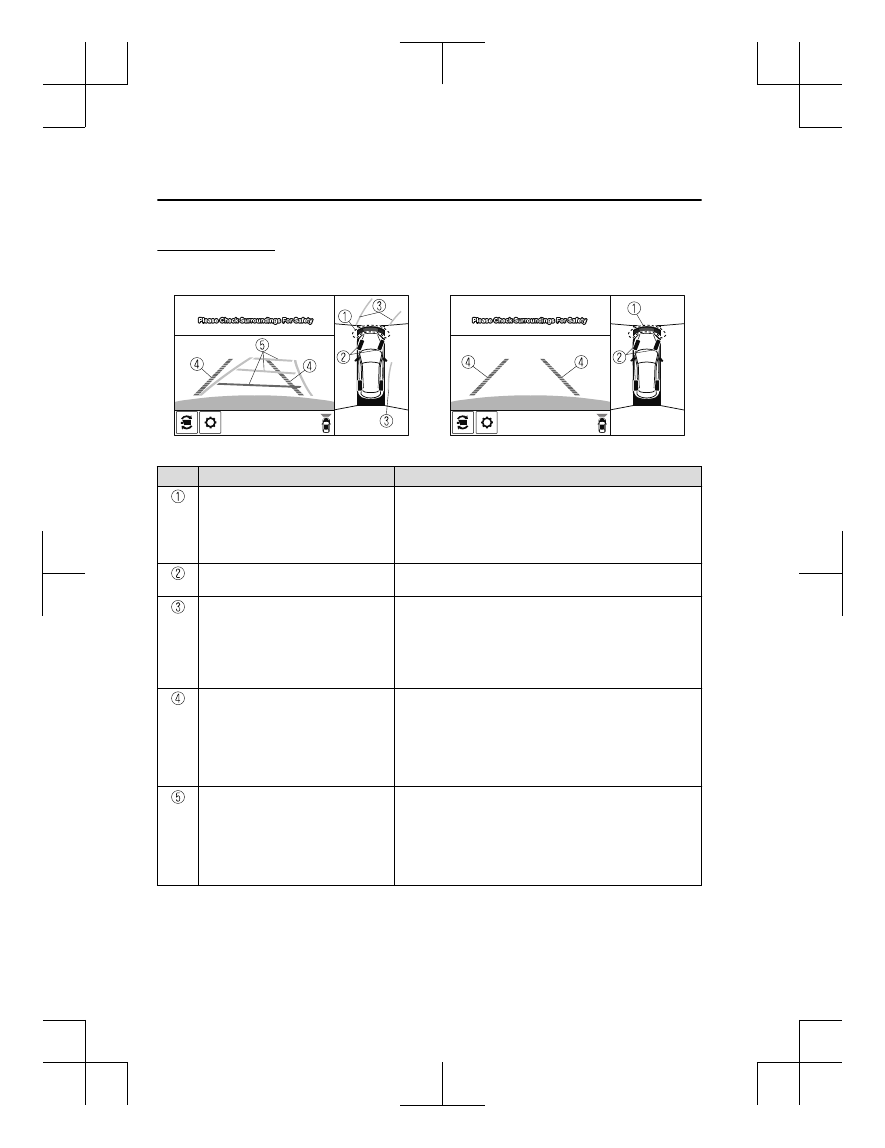

Projected vehicle path distance guide
lines (red/amber)

Indicates the distance (from front end of bumper) in front of
the vehicle.



The red line indicates the point about 0.5 m (19 in) from the
front end of the bumper.



The amber lines indicate the points about 1 m (39 in) and 2
m (78 in) from the front end of the bumper.

When Driving

i-ACTIVSENSE

4-214

CAUTION

The parking sensor detection range has limitations. For example, obstructions closing in from
the side and objects short in height may not be detected. Always confirm the safety around
the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-293.

NOTE

The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.

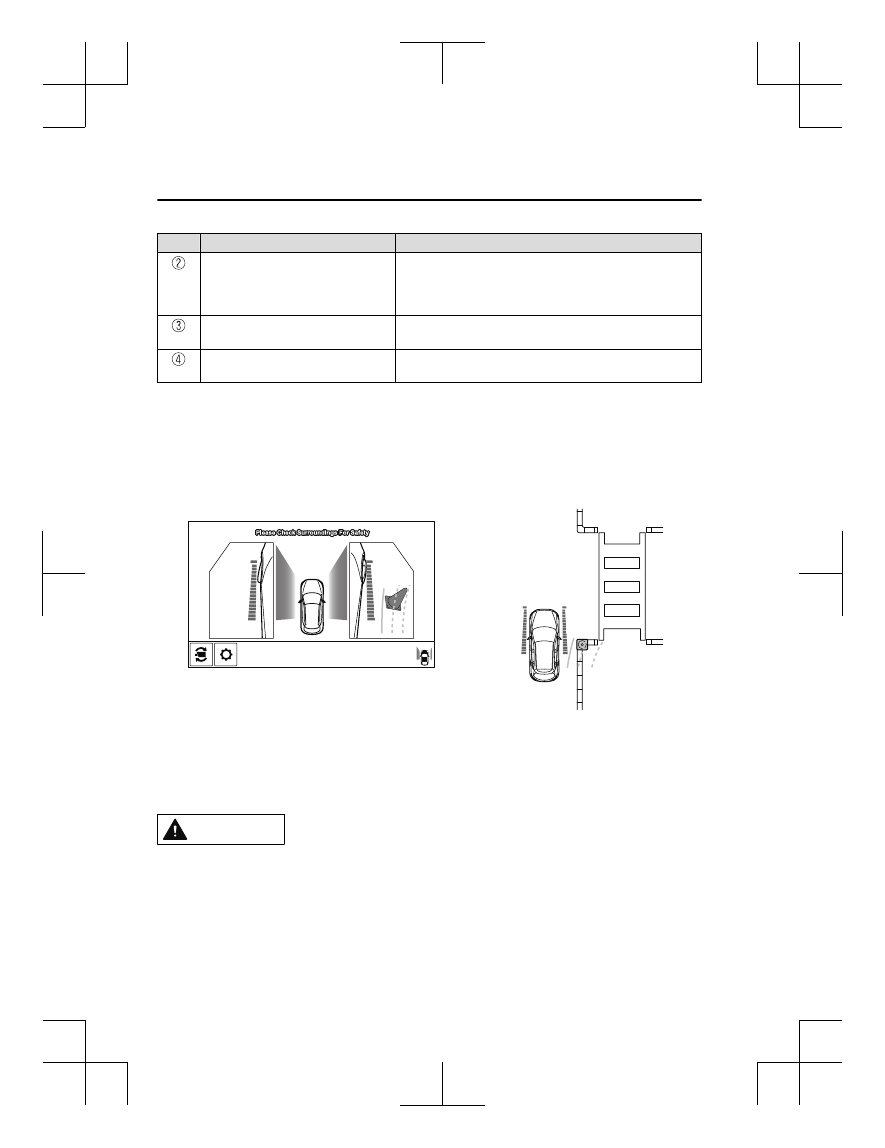

How to use the projected vehicle path line function

(Actual condition)

(Screen display)

Make sure that there are no obstructions within the projected vehicle path lines.
Drive the vehicle forward while turning the steering wheel so that no obstructions come
within the projected vehicle path lines.

▼

Front Wide View

Use the front wide view to assist in checking the safety of the surrounding area when
accelerating from a stop or entering a T-shaped intersection and intersection.

When Driving

i-ACTIVSENSE

4-215

Display range

(Actual condition)

(Screen display)

Target object

Viewing the screen

Display/Icon

Content

Extended vehicle width lines and dis

‐

tance guide lines (red/blue)

Indicates the approximate width of the vehicle and the distance
(from front end of bumper) in front of the vehicle.



The red lines indicate the points up to about 0.5 m (19 in)
from the front end of the bumper.



The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the front end of the bumper.

When Driving

i-ACTIVSENSE

4-216

NOTE



The parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/front view or side view display if the parking sensor warning sound
is activated.



The front wide view screen displays the image in front of the vehicle at a wide angle and
corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.

▼

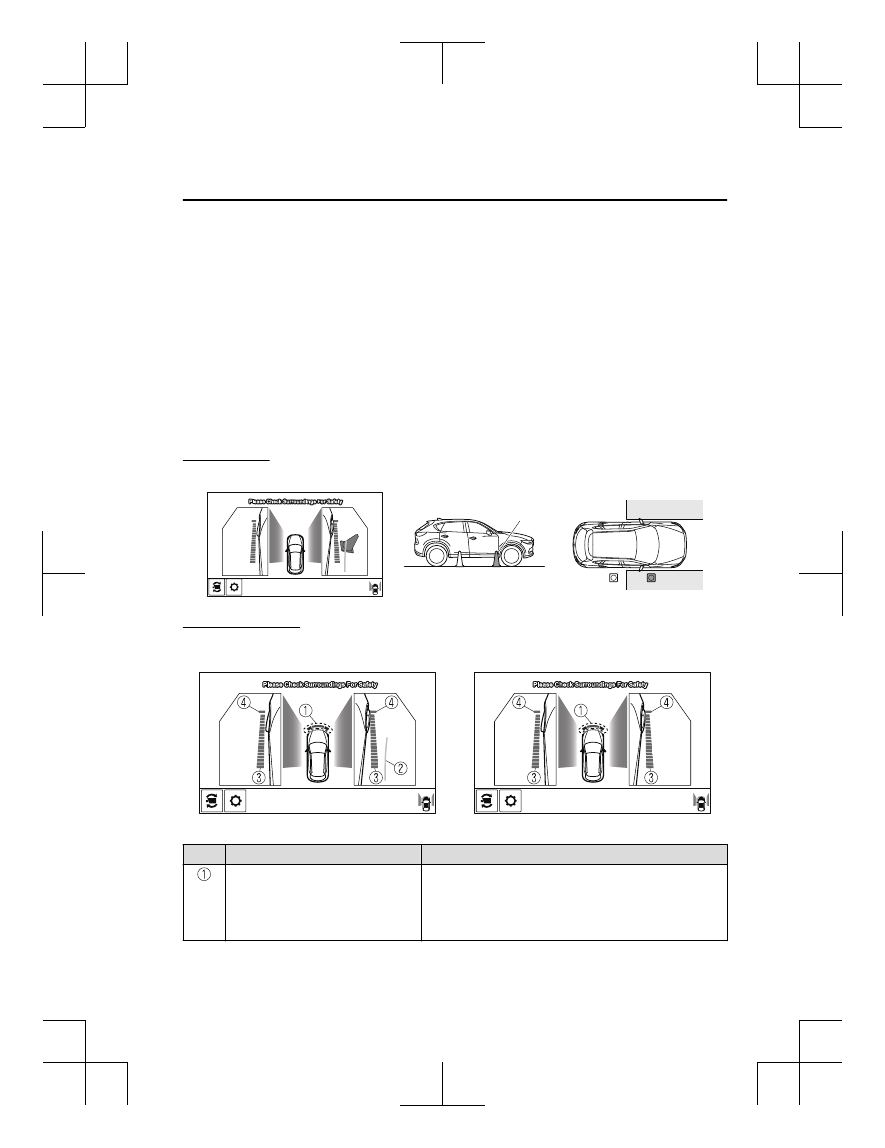

Side View

Use the side view to assist in checking the safety of the surrounding area when accelerating
from a stop, parking, or stopping the vehicle.

Display range

(Actual condition)

(Screen display)

Target object

Viewing the screen

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)

Display/Icon

Content

Parking sensor view

When Driving

i-ACTIVSENSE

4-217

Display/Icon

Content

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
The projected vehicle path lines (amber) indicate the path the
inner side of the vehicle is expected to travel.

Vehicle parallel guide lines (blue)

Indicates the approximate vehicle width including the door
mirrors.

Vehicle front end guide lines (blue)

Indicates the point about 0.25 m (9.8 in) from the front edge
of the vehicle (front edge of the bumper).

NOTE

The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.

How to use the projected vehicle path line function

(Actual condition)

(Screen display)

A B

A B C

Make sure that there are no obstructions within the projected vehicle path lines.
Turn the steering wheel so that the projected vehicle path lines travel inside of the
obstruction (A), and drive the vehicle forward until it passes the obstruction.
If the projected vehicle path lines are on an obstruction (B) or outside of the obstruction (C),
the vehicle may contact the obstruction when turning the vehicle sharply.

CAUTION



The parking sensor detection range has limitations. For example, obstructions closing in
from the side and objects short in height may not be detected. Always confirm the safety
around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-293.

When Driving

i-ACTIVSENSE

4-218



Do not turn the steering wheel any more until the vehicle has passed the obstruction, even
if the obstruction is not visible on the side view image. If the steering wheel is turned even
more, the vehicle may contact the obstruction if it is turned sharply.

NOTE



Because there might be a difference between the image displayed on the screen and the
actual conditions, always check the safety of the surrounding area using the mirrors and
directly with your eyes when driving.



Even though the object displayed on the screen, such as a road curb or a division line of a
parking space, and the vehicle parallel guide lines appear parallel, they may not actually
be parallel.

▼

Top View/Rear View

Use the top view/rear view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

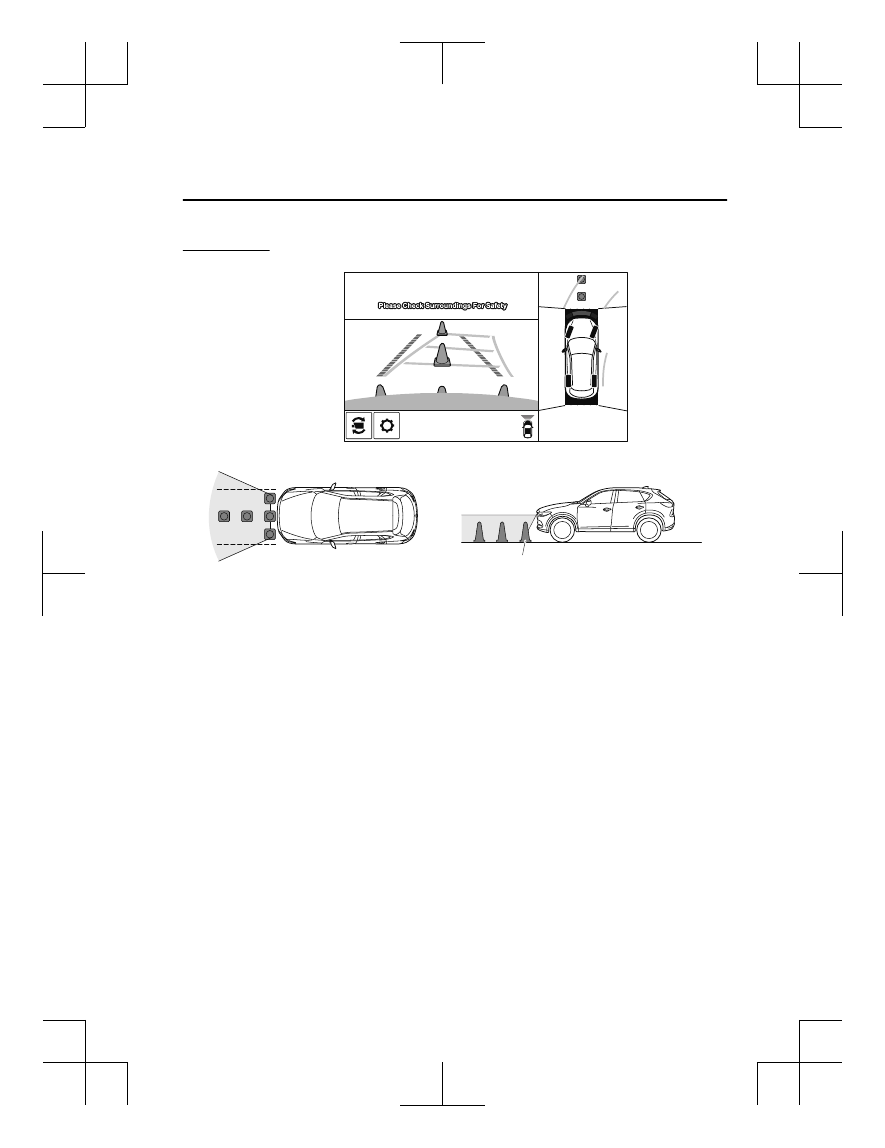

Range of displayed screen image

(Actual condition)

(Screen display)

Target object

NOTE



In the top view screen, the areas in black at the front and rear of the vehicle image and the
seams where each of the camera images merge are blind spots.



Because images displayed in the top view screen are processed from each camera, the top
view screen may display in the following ways.

When Driving

i-ACTIVSENSE

4-219



If an image containing an object with a conspicuous color is picked up by any of the
cameras, the whole screen may be affected and it may display in that color.



Obstructions displayed in the rear view may not display on the top view screen.



If the position or angle of each camera changes due to tilting of the vehicle, the image
may appear distorted.



Lines on the road may appear distorted at the seams where each of the camera images
merge.



The entire screen may appear bright/dark depending on the illumination level around
any of the cameras.

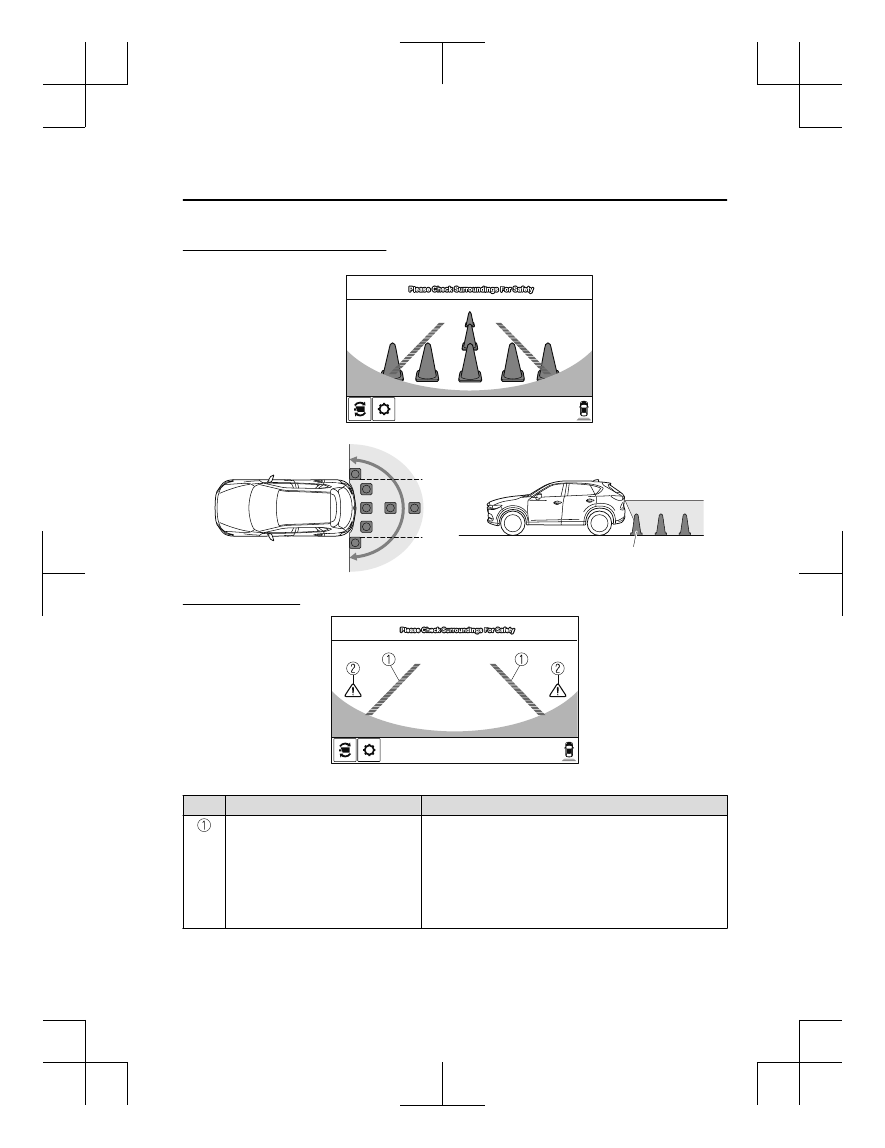

Viewing the screen

-a

-b

(When the projected vehicle
path line display is on)

(When the projected vehicle
path line display is off)

Display/Icon

Content

Parking sensor view

Tire icon

Indicates the tire direction. Moves in conjunction with the
steering wheel operation.

Projected vehicle path lines (amber)

Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the rear wheels are expected to
travel.
b) Indicates the path where the outer side of the vehicle is ex

‐

pected to travel.

Extended vehicle width lines and dis

‐

tance guide lines (red/blue)

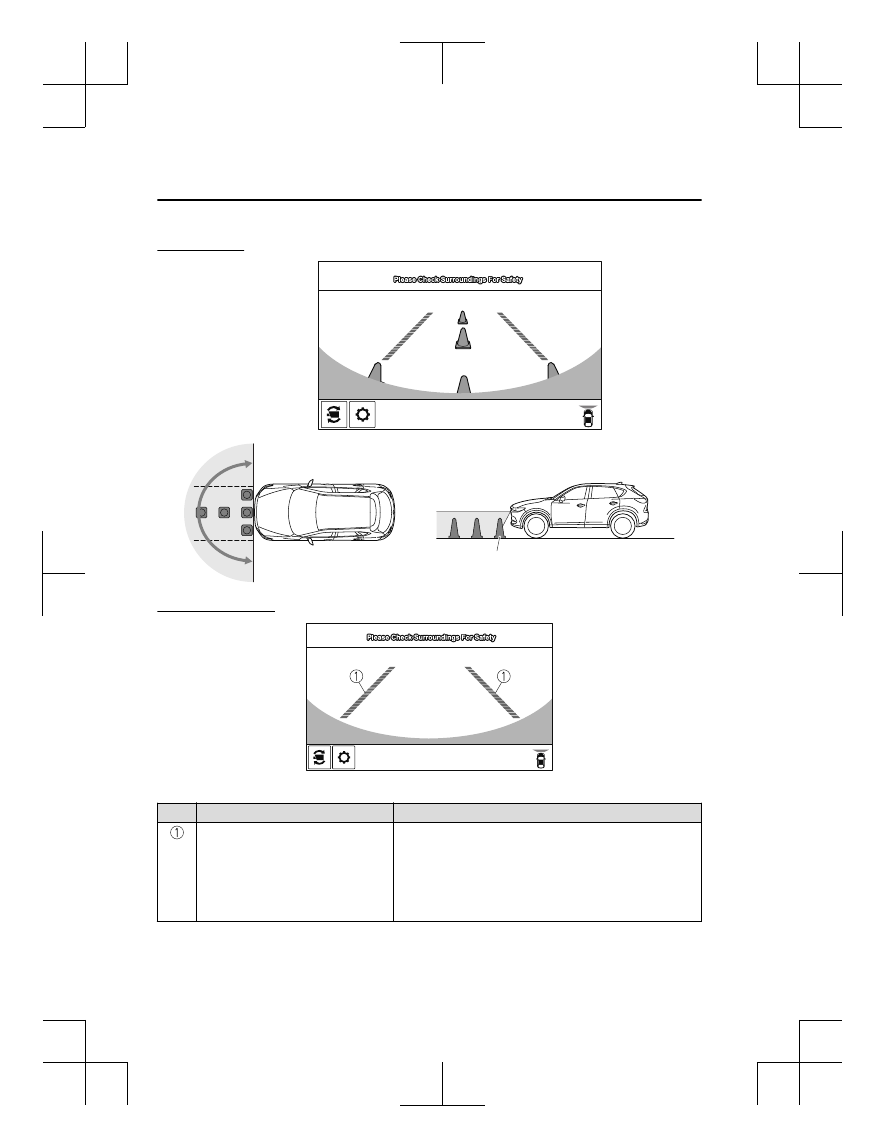

These guide lines indicate the approximate width of the vehi

‐

cle and distance to a point measured from the rear of the vehi

‐

cle (from the end of the bumper).



The red lines indicate the points up to about 0.5 m (19 in)
from the rear end of the bumper.



The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the rear end of the bumper.

When Driving

i-ACTIVSENSE

4-220

Display/Icon

Content

Projected vehicle path distance guide
lines (red/amber)

These guide lines indicate the approximate distance to a point
measured from the rear of the vehicle (from the end of the
bumper).



The red line indicates the point about 0.5 m (19 in) from the
rear end of the bumper.



The amber lines indicate the points about 1 m (39 in) and 2
m (78 in) from the rear end of the bumper.

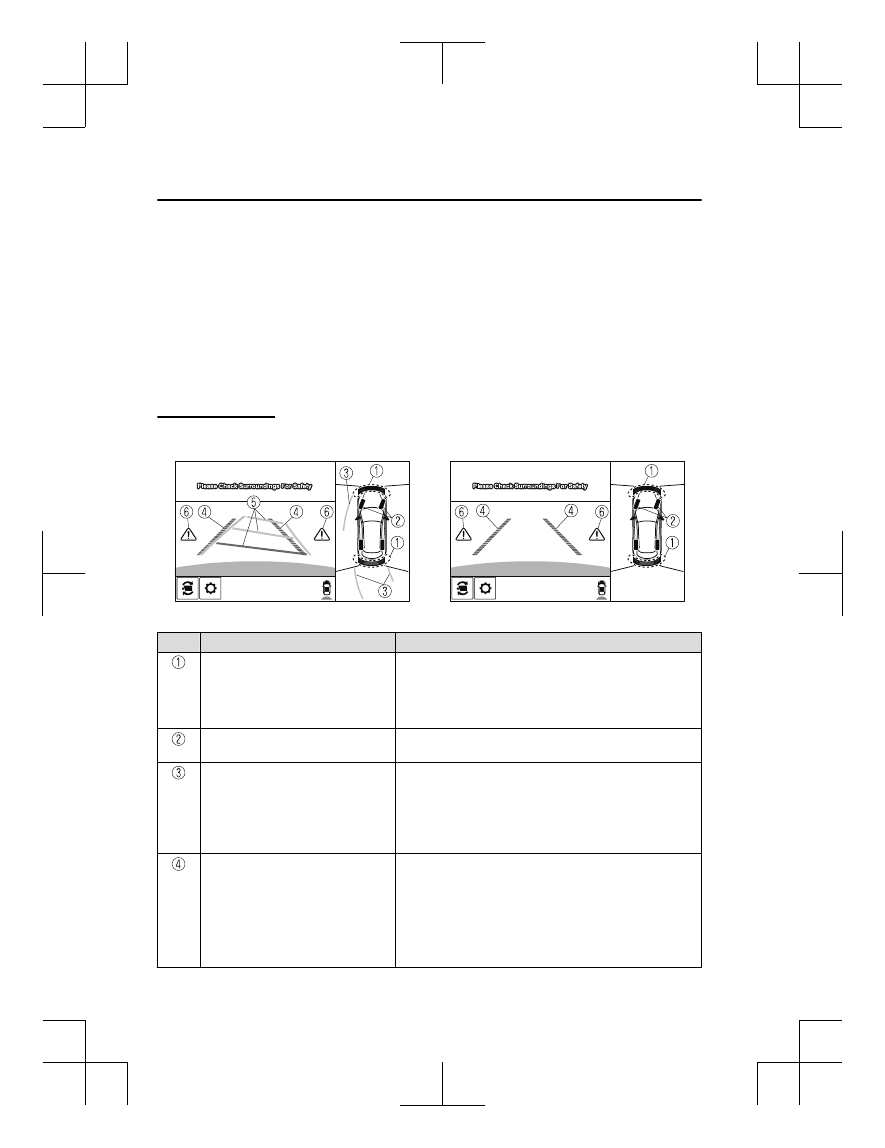

Blind Spot Monitoring (BSM) warning
lights

Indicates when the Rear Cross Traffic Alert (RCTA) has oper

‐

ated.
For details, refer to Rear Cross Traffic Alert (RCTA).
Refer to Rear Cross Traffic Alert (RCTA) on page 4-141.

NOTE

The setting can be changed so that the projected vehicle path lines are not displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.

How to use the projected vehicle path line function

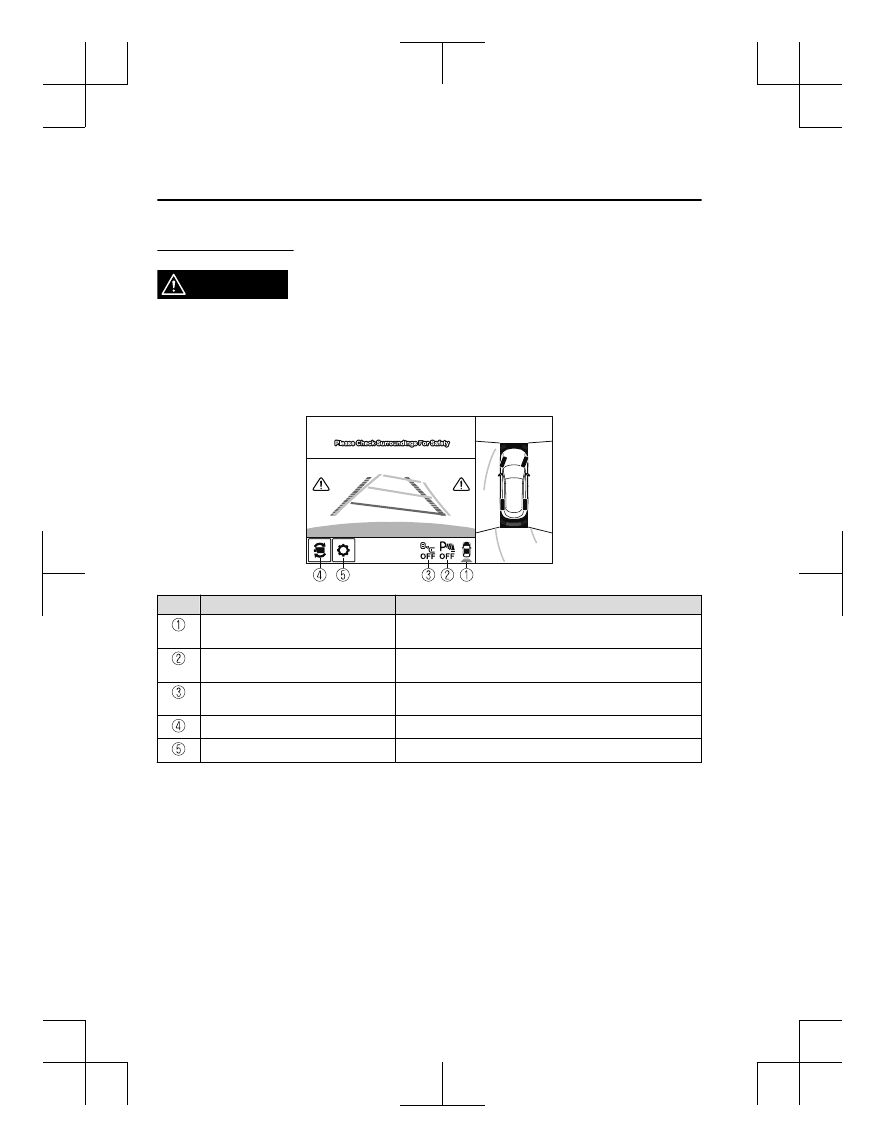

CAUTION



The front of the vehicle swings out wide when turning the steering wheel while reversing.
Maintain sufficient distance between the vehicle and an obstruction.



The parking sensor detection range has limitations. For example, obstructions closing in
from the side and objects short in height may not be detected. Always confirm the safety
around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning sound.
Refer to Parking Sensor System on page 4-293.

NOTE



Because there might be a difference between the image displayed on the screen, such as
indicated in the following, and the actual conditions when parking, always check the
safety at the rear of the vehicle and the surrounding area directly with your eyes.



Even though the back end of the parking space (or garage) displayed on the screen and
distance guide lines appear parallel, they may not actually be parallel.



When parking in a space with a division line on only one side of the parking space, even
though the division line and the vehicle width guide line appear parallel, they may not
actually be parallel.



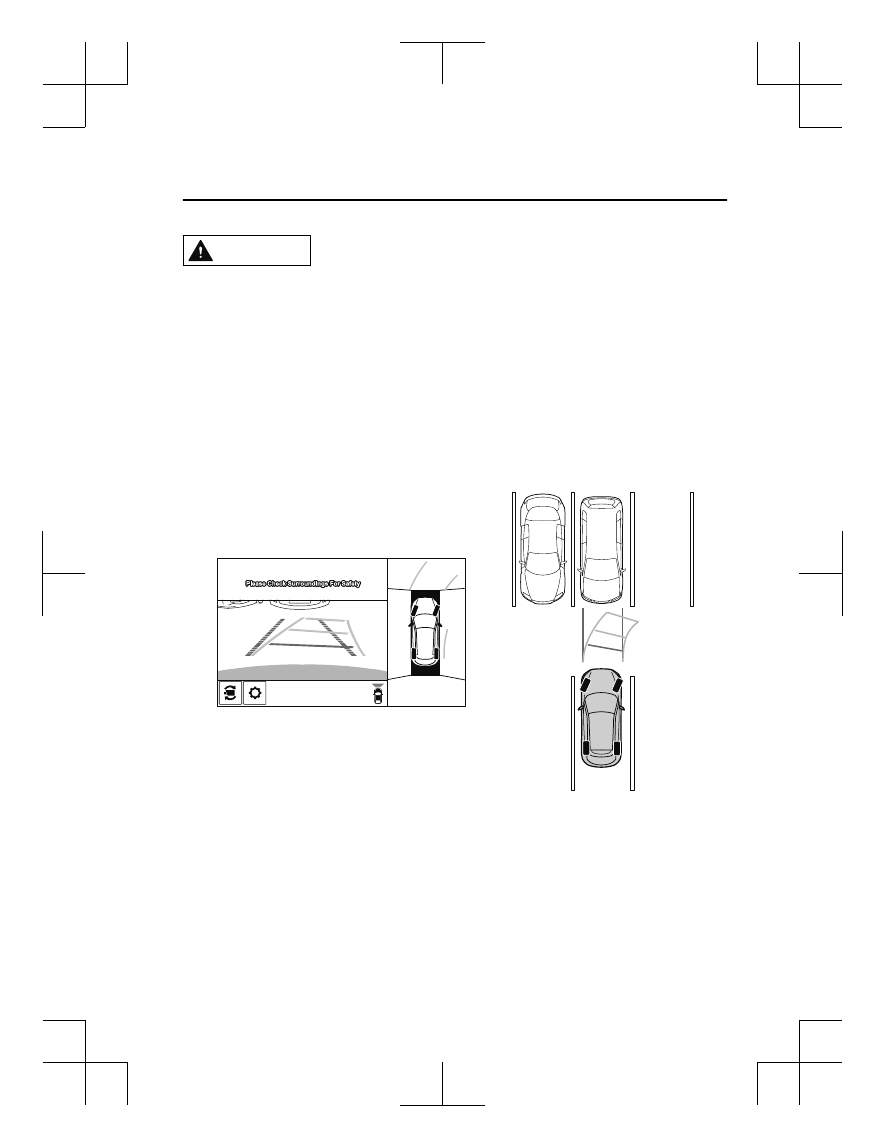

The following shows an example of vehicle parking with the steering wheel turned to the
left while backing up the vehicle. When backing into a parking space from the opposite
direction, the steering operation is reversed.

When Driving

i-ACTIVSENSE

4-221

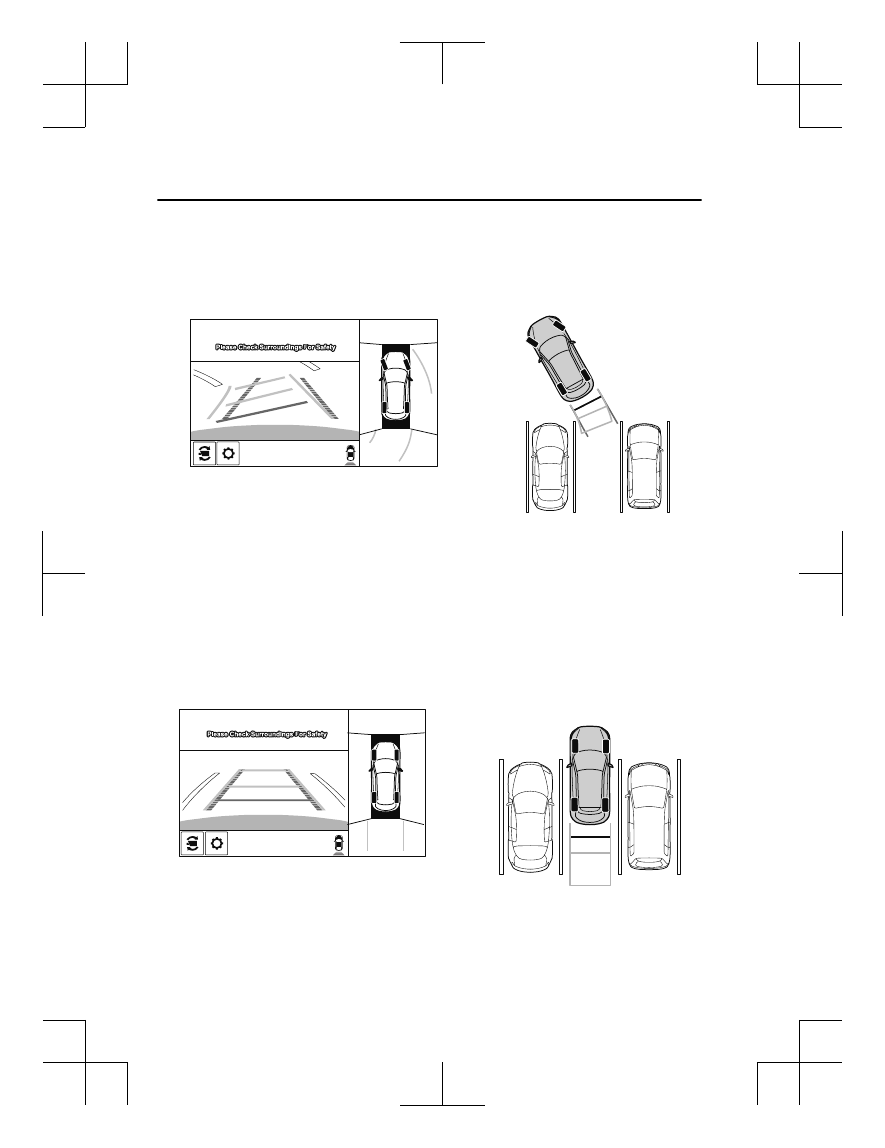

1. Back the vehicle into the parking space by turning the steering wheel so that the vehicle

enters the center of the parking space.

(Actual condition)

(Screen display)

2. After the vehicle starts entering the parking space, stop and adjust the steering wheel so

that the distance between the vehicle width lines and the sides of the parking space on
the left and right are roughly equal, and then continue backing up slowly.

3. Once the vehicle width lines and the sides of the parking space on the left and right are

parallel, straighten the wheels and back the vehicle slowly into the parking space.
Continue checking the vehicle's surroundings and then stop the vehicle in the best
possible position. (If the parking space has division lines, check whether the vehicle
width guide lines are parallel to them.)

(Actual condition)

(Screen display)

▼

Rear Wide View

Use the rear wide view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.

When Driving

i-ACTIVSENSE

4-222

Range of displayed screen image

(Actual condition)

(Screen display)

Target object

Viewing the screen

Display/Icon

Content

Extended vehicle width lines and dis

‐

tance guide lines (red/blue)

These guide lines indicate the approximate width of the vehi

‐

cle and distance to a point measured from the rear of the vehi

‐

cle (from the end of the bumper).



The red lines indicate the points up to about 0.5 m (19 in)
from the rear end of the bumper.



The blue lines indicate the points from about 0.5 m (19 in)
and up to 2 m (78 in) from the rear end of the bumper.

When Driving

i-ACTIVSENSE

4-223

Display/Icon

Content

Blind Spot Monitoring (BSM) warning
lights

Indicates when the Rear Cross Traffic Alert (RCTA) has oper

‐

ated.
For details, refer to Rear Cross Traffic Alert (RCTA).
Refer to Rear Cross Traffic Alert (RCTA) on page 4-141.

NOTE



The parking sensor obstruction detection indication does not display. Switch the screen
display to the top view/rear view display if the parking sensor warning sound is activated.



The rear wide view screen displays the image at the rear of the vehicle at a wide angle
and corrects the image to help detect approaching obstructions from the side. Therefore, it
differs from the actual view.

▼

Margin of Error Between Road Surface on Screen and Actual Road Surface

There might be some margin of error between the road surface appearing on the screen and
the actual road surface. A margin of error in the perceived distance could lead to an
accident, therefore be aware of the following conditions which can more easily produce
errors in the perceived distance.

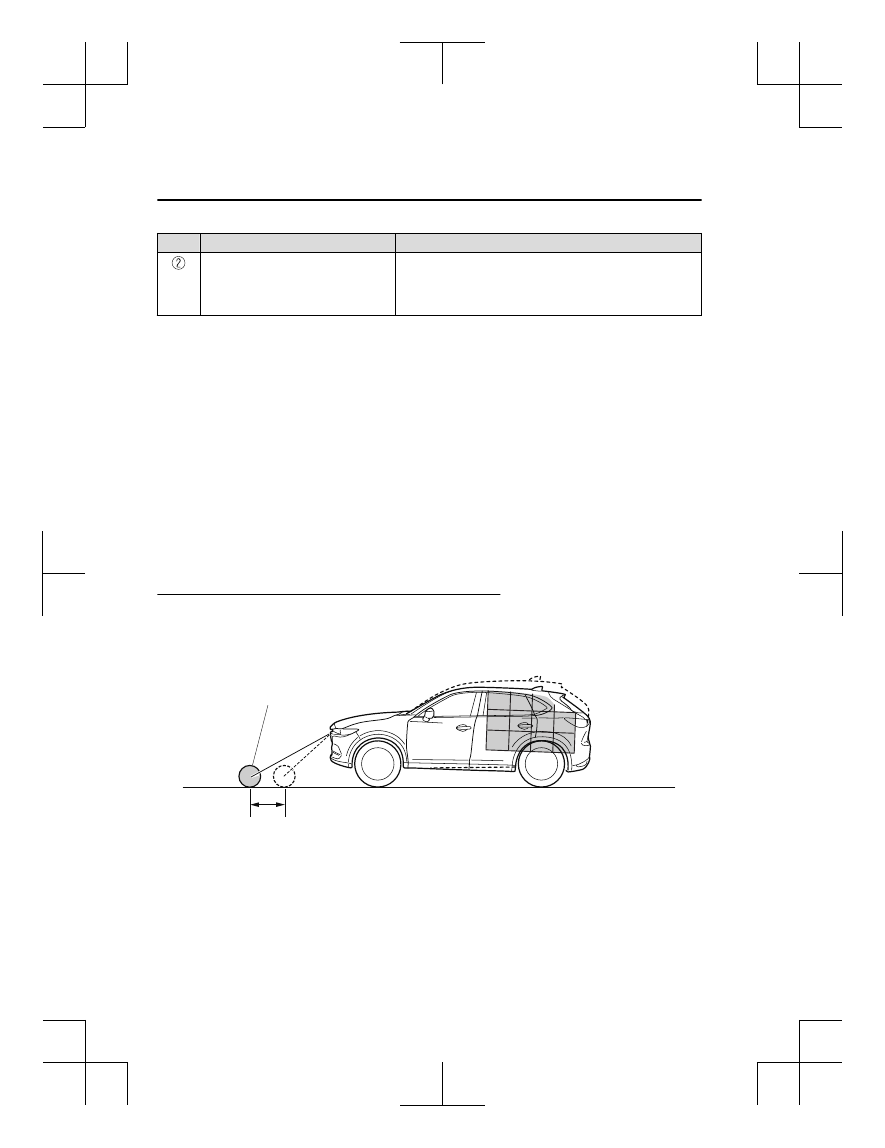

The vehicle tilts due to weight of passengers and cargo.

If the vehicle is tilted, obstructions picked up by a camera can appear farther or closer than
the actual distance from the vehicle.

Front camera

Obstruction

Margin of error

When Driving

i-ACTIVSENSE

4-224

Side camera

Obstruction

Margin of error

Rear camera

Obstruction

Margin of error

There is a steep up or down grade in the road at the front or rear of the vehicle

If there is a steep up or down grade in the road at the front or rear of the vehicle,
obstructions picked up by the camera can appear farther or closer than the actual distance
from the vehicle.

When Driving

i-ACTIVSENSE

4-225

Mazda CX-5 (2022 year). Manual in english - page 23
