When Driving
Rear View Monitor

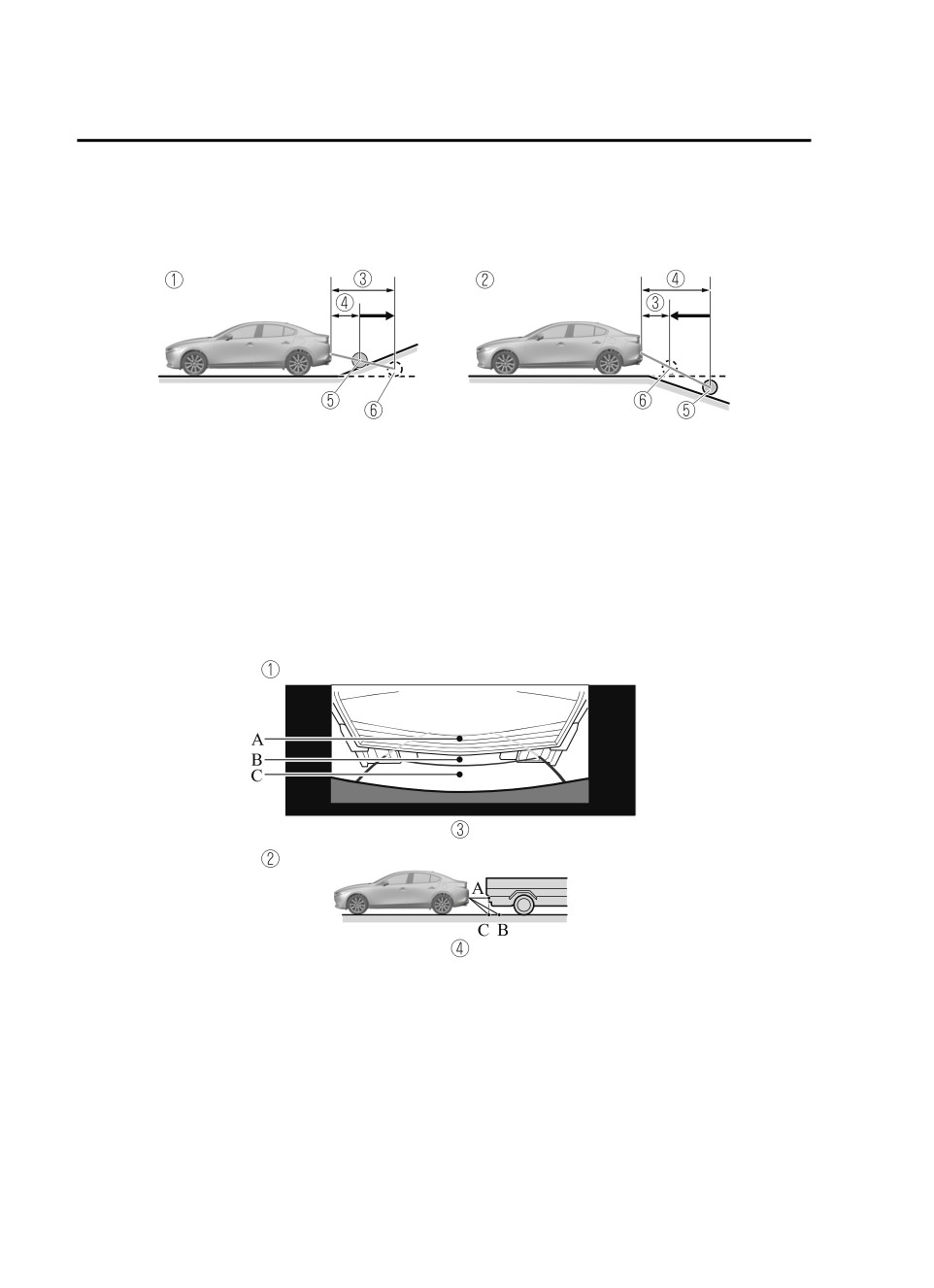

When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed
on the screen appears farther (downgrade: closer) than the actual distance.
1. Appears farther than actual distance
2. Appears closer than actual distance
3. Distance between the vehicle and object displayed on the screen.
4. Actual distance between the vehicle and object.
5. Object at actual position
6. Object on screen
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance
to the three-dimensional object displayed on the screen is different from the actual
distance.
1.
(Screen display)
2.
(Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A
4-246
When Driving
Rear View Monitor
(Predicted vehicle path assist lines display type)

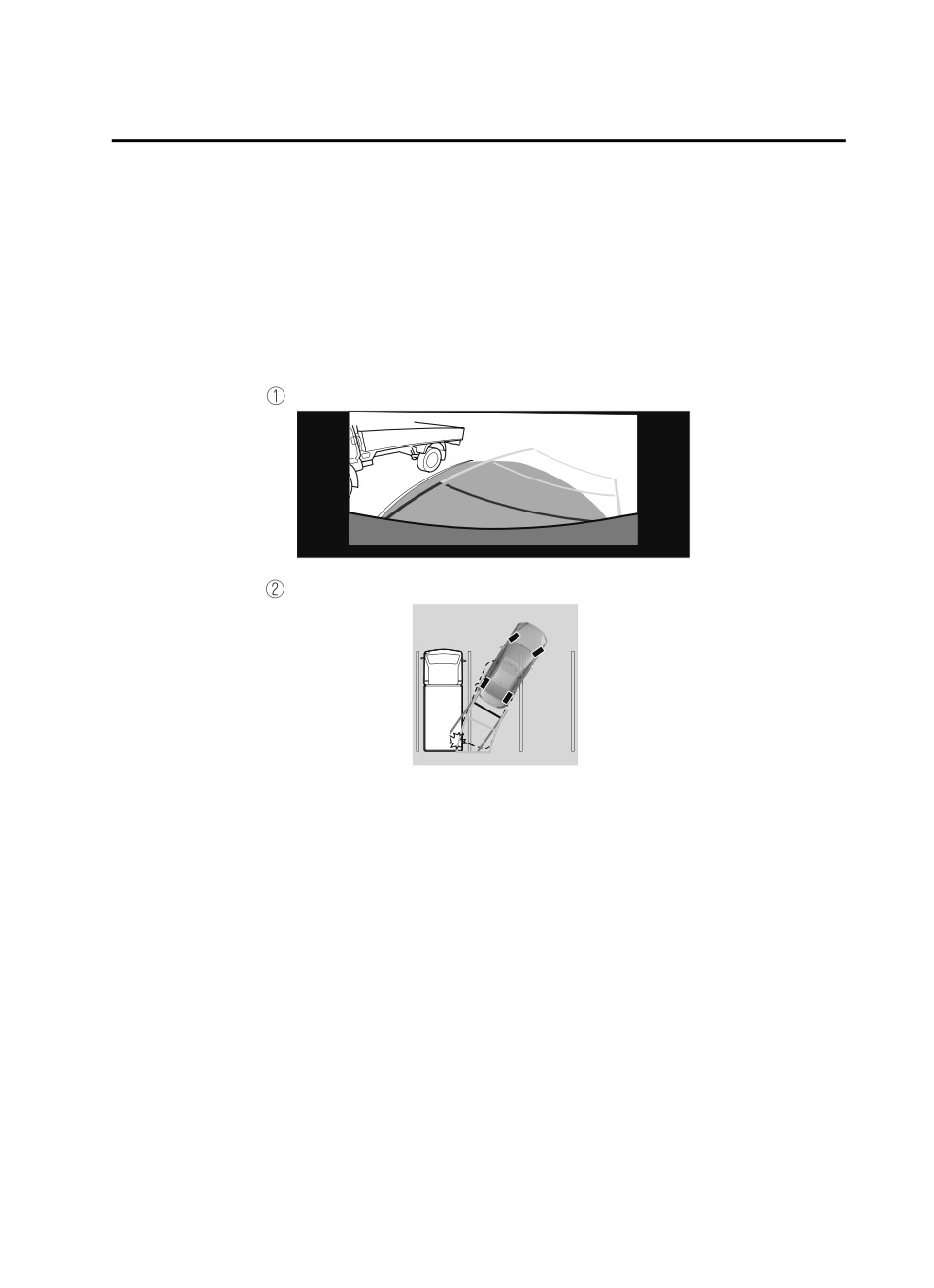

When reversing near a three-dimensional object
When reversing near an overhanging object, the vehicle may hit the object even if
the anticipated course line does not contact the object on the screen. The position
of the object displayed on the screen is different from the actual position because
the anticipated course lines on the screen are displayed based on a horizontal road
surface. When backing up near an overhanging object, confirm the rear and
surrounding conditions directly with your eyes.
1.
(Screen display)
2.
(Actual view)
4-247
When Driving
Parking Sensor System
Parking Sensor System*
Parking Sensor System
The parking sensors use ultrasonic sensors which detect obstructions around the
vehicle when the vehicle is driven at low speeds, such as during garage or parallel
parking, and a buzzer sound and detection indicator notify the driver of the
approximate distance from the vehicle to the surrounding obstruction.
WARNING
Do not rely completely on the parking sensor system and be sure to confirm the
safety around your vehicle visually when driving:
This system can assist the driver in operating the vehicle in the forward and
backward directions while parking. The detection ranges of the sensors are limited,
therefore, driving the vehicle while relying only on the system may cause an
accident. Always confirm the safety around your vehicle visually when driving.
CAUTION
¾ Do not install any accessories within the detection ranges of the sensors. It may
affect the system operation.
¾ Depending on the type of obstruction and the surrounding conditions, the
detection range of a sensor may narrow, or the sensors may not be able to detect
obstructions.
¾ When washing the vehicle, do not spray highly pressurized water against the
sensor area, or rub it strongly. Otherwise, it may not be able to detect obstructions
correctly and the system may not operate normally.
NOTE
When the ignition is switched OFF, the system status before it was turned off is
maintained. For example, if the ignition is switched OFF while the parking sensor
is activated, the system will be activated when the ignition is switched ON the
next time.
The system may not operate normally under the following conditions:
Mud, ice, or snow is adhering to the sensor area (Returns to normal operation
when removed).
The sensor area is frozen (Returns to normal operation when the ice is thawed).
The sensor is covered by a hand.
The sensor is excessively shocked.
The vehicle is excessively tilted.
Under extremely hot or cold weather conditions.
The vehicle is driven on bumps, inclines, gravel, grating, or grass covered roads.
4-248 *Some models.
When Driving
Parking Sensor System
Anything which generates ultrasonic waves such as another vehicle's horn, the
engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors approaches the vehicle.
The vehicle is driven in heavy rain or in road conditions causing water-splash.
A commercially-available fender pole or an antenna for a radio transmitter is
installed to the vehicle.
The vehicle is moving towards a tall or square curbstone, or a steep grade.
An obstruction is too close to the sensor.
The vehicle is moving towards an uneven wall or stairs.
There are multiple obstructions.
The vehicle is driven in a place with low ceilings.
Obstructions under the bumper cannot be detected. Obstructions which are
lower than the sensor or thin may not be detected even though they were
detected once.
The following types of obstructions may not be detected:
Thin objects such as wire, rope or poles
Things which absorb sonic waves easily such as cotton or snow
Angular shaped objects
Very tall objects, and those which are wide at the top
Small, short objects
Always have the system inspected at an Authorized Mazda Dealer if any shock is
applied to the bumpers, even in a minor accident. If the sensors are deviated, they
cannot detect obstructions.
The system may have a malfunction if a sound is not activated or the detection
indication is not displayed even when the parking sensor OFF switch is pressed
and the parking sensor is operable. Have your vehicle inspected by an Authorized
Mazda Dealer.
The system may have a malfunction if the indicator light does not turn on even
when the parking sensor OFF switch is turned on. Have your vehicle inspected by
an Authorized Mazda Dealer.
The system may have a malfunction if a message indicating a system malfunction is
displayed. Have your vehicle inspected by an Authorized Mazda Dealer.
A message may be displayed even when the ambient temperature is extremely
cold, or mud, ice, or snow adheres to the sensor area. Remove any foreign matter
from the sensor area.
When installing a trailer hitch, consult an Authorized Mazda Dealer.
If a Mazda genuine trailer hitch is used, the rear side of the parking sensor system
is automatically turned off.
4-249
When Driving
Parking Sensor System

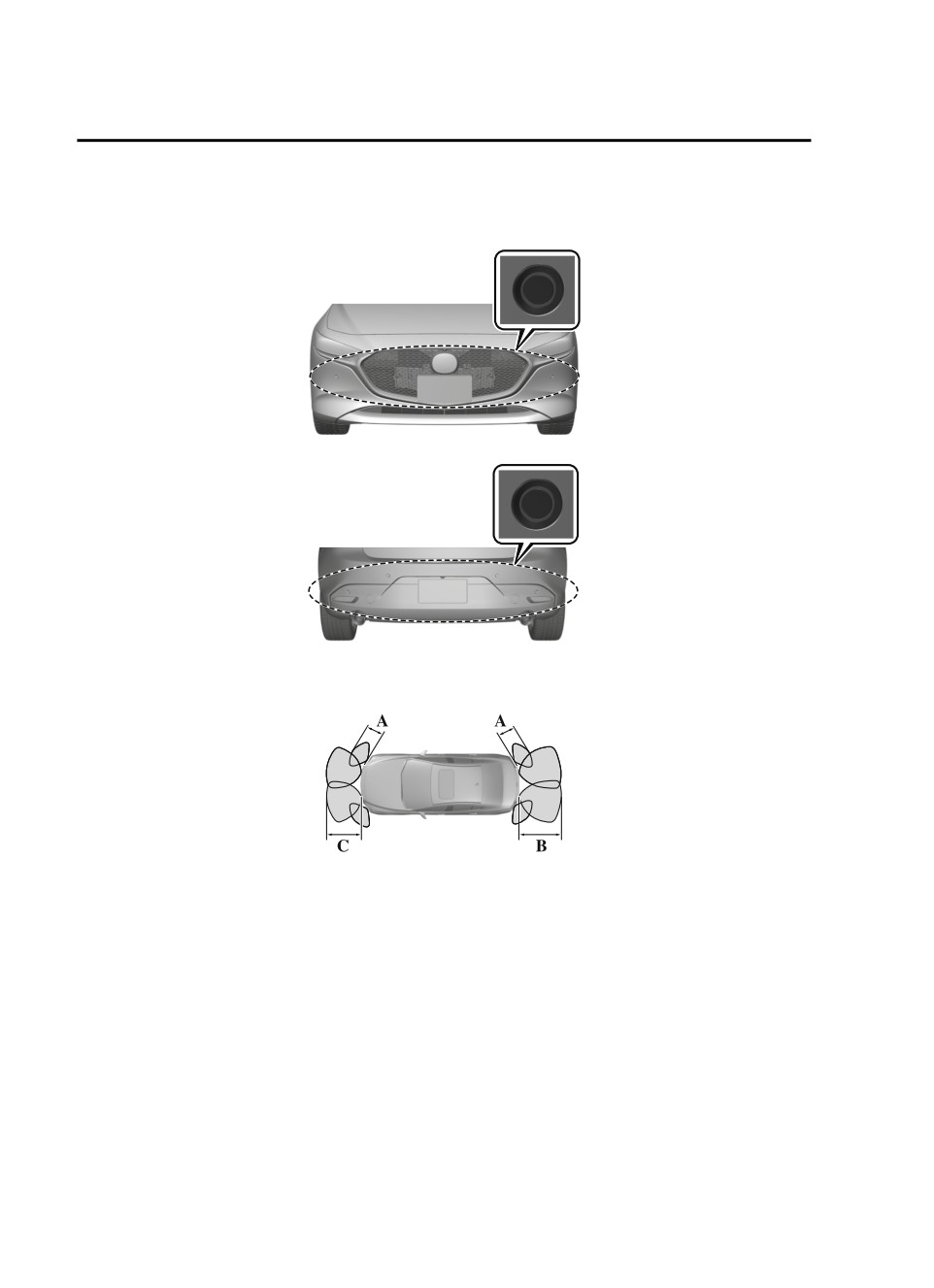

Sensor installation positions
Front
Rear
Sensor Detection Range
The sensors detect obstructions within the following range.
A:About 55.0 cm (About 21.6 in)
B:About 150 cm (About 59.0 in)
C:About 100 cm (About 39.3 in)

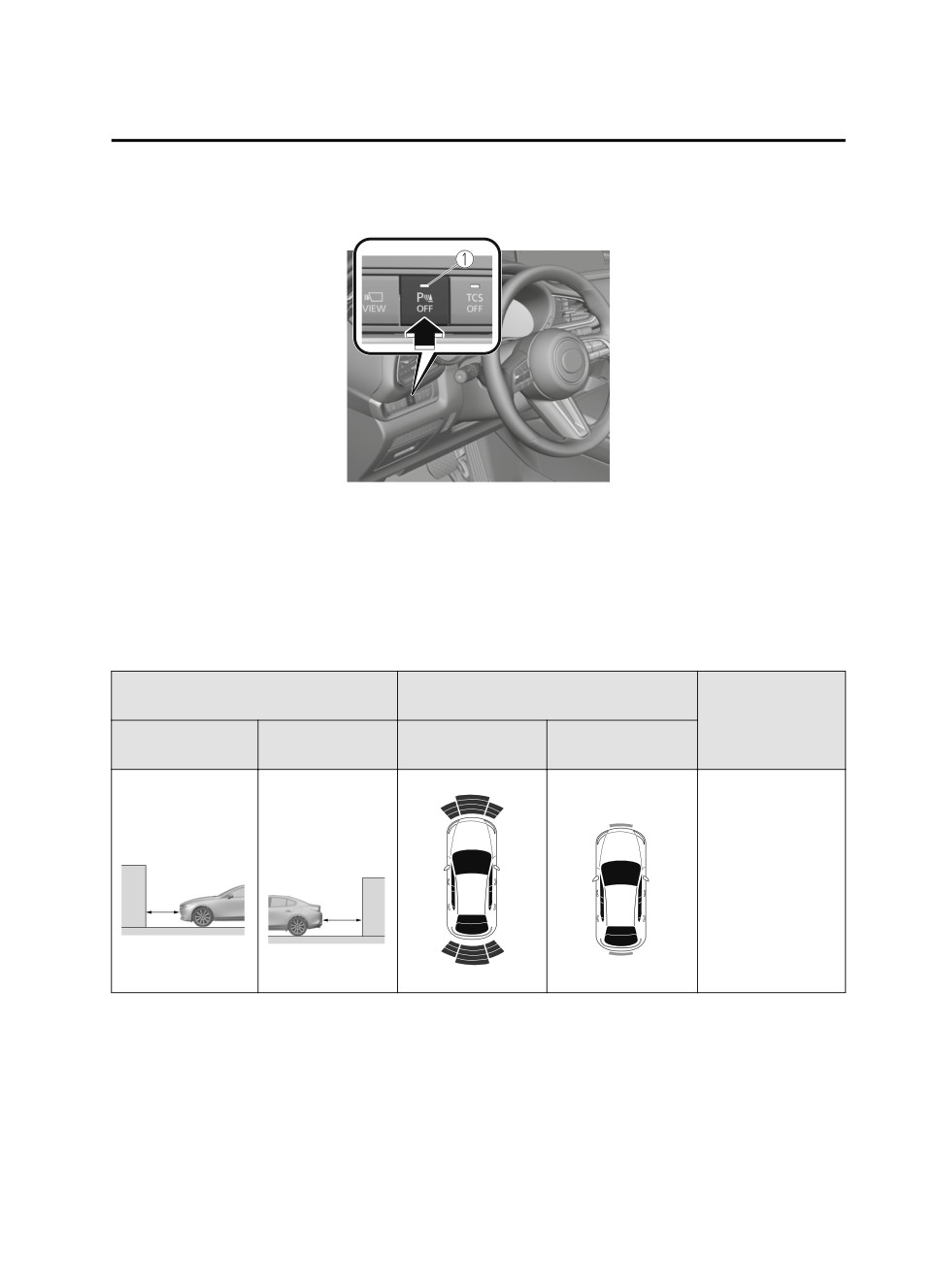

Parking Sensor OFF Switch
When the switch is pressed, the parking sensor is stopped and the indicator light
turns on.
4-250
When Driving
Parking Sensor System
If the switch is pressed again, the parking sensor becomes operational and the
indicator light turns off.
1. Indicator light
Sound and viewing distance display
Informs the driver of the approximate distance from the vehicle to the obstruction
using warning beeps depending on the distance. If multiple obstructions are
detected at the same time, warning beeps are activated according to the distance to
the nearest obstruction.

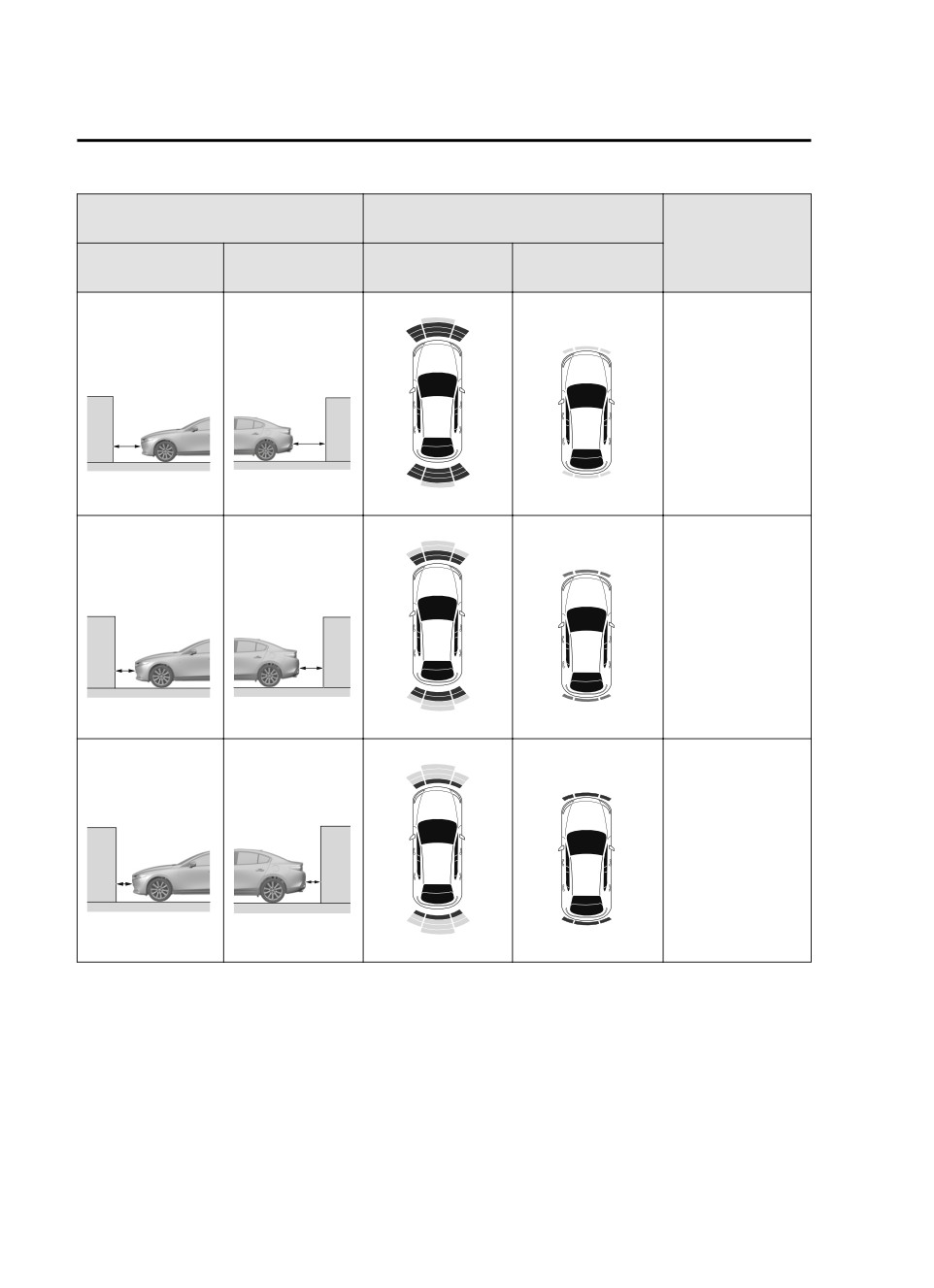

Front*Rear
Distance between vehicle and ob-
Display
struction
Beeper sound
With out 360°
With 360° view
Front
Rear
view monitor
monitor
Green
Approx.
Approx. 10060.0
15060.0 cm
cm (39.323.6 in)
(59.023.6 in)
Slow intermittent
sound
*Some models.
4-251
When Driving
Parking Sensor System
Distance between vehicle and ob-
Display
struction
Beeper sound
With out 360°
With 360° view
Front
Rear
view monitor
monitor
Yellow
Approx.
Approx.
60.045.0 cm
60.045.0 cm
(23.617.7 in)
(23.617.7 in)
Medium intermit-
tent sound
Amber
Approx.
Approx.
45.035.0 cm
45.035.0 cm
(17.713.7 in)
(17.713.7 in)
Fast intermittent
sound
Red
Within approx.
Within approx.
35.0 cm (13.7 in)
35.0 cm (13.7 in)
Continuous sound
4-252
When Driving
Parking Sensor System
Corner
Display
Distance between vehi-
With out 360° view
Beeper sound
cle and obstruction
With 360° view monitor
monitor
Yellow
Approx. 55.038.0 cm
(21.614.9 in)
Medium intermittent
sound
Amber
Approx. 38.025 cm
(14.99.8 in)
Fast intermittent
sound
Red
Within approx. 25 cm
(9.8 in)
Continuous sound
4-253
When Driving
Parking Sensor System
NOTE

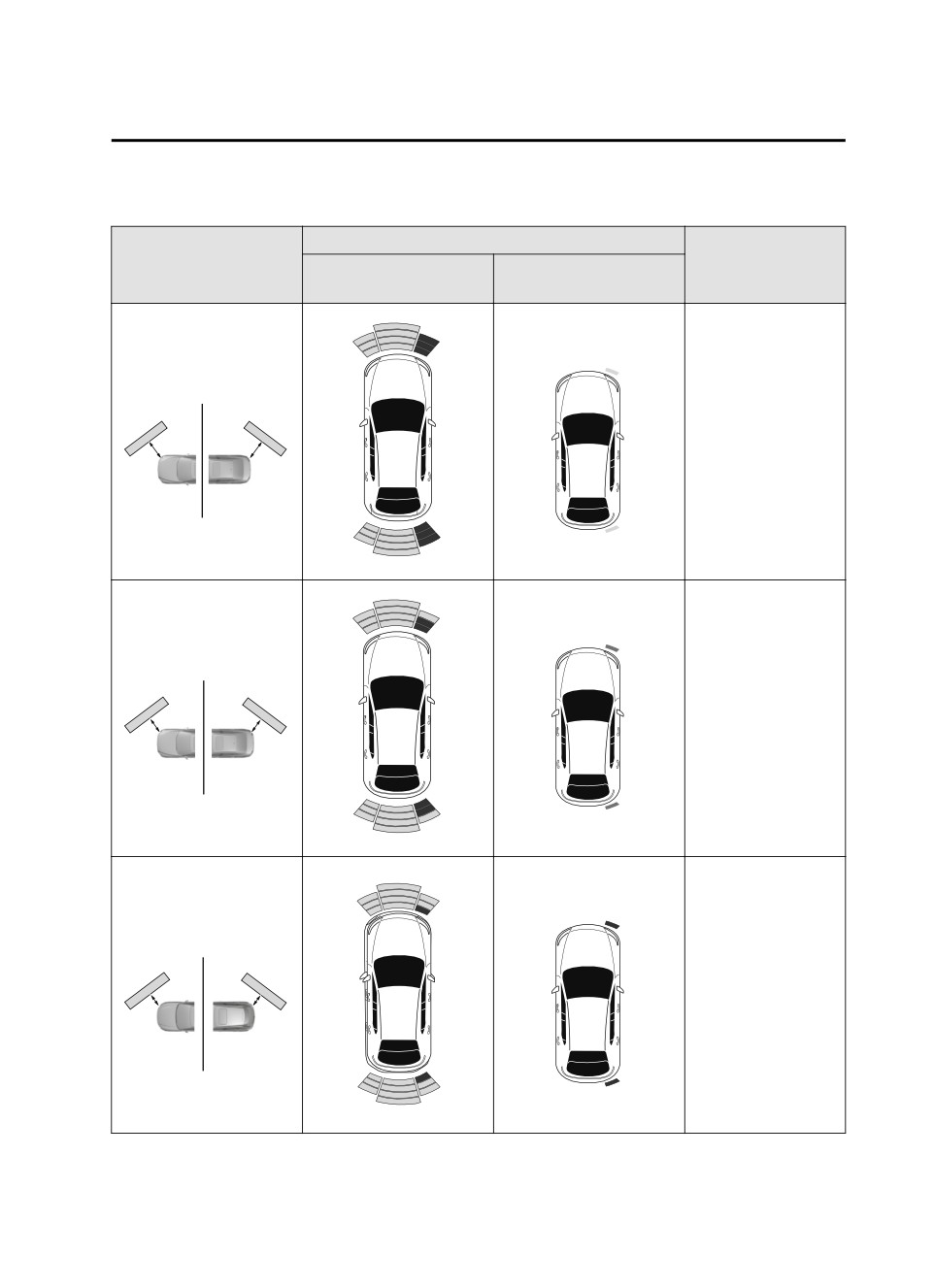

The detection indicator can be switched between display and non-display and the
buzzer volume can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
(Vehicles with 360° View Monitor)
When the detection indicator is set to “Display”, even with the 360° view monitor
not displayed, if a front sensor or a front corner sensor detects an obstruction, the
360° view monitor switches automatically to display. When an obstruction is no
longer detected, the display switches to the display before the obstruction was
detected.
However, while the 360° view monitor is displayed, it continues to display no
matter if an obstruction is detected or not.
If an obstruction in the same area excluding the close area is detected
continuously for 6 seconds or longer, only the warning beeps stop activating.
(Detection is indicated) If the detection area changes to the close side, the
warning beeps resumes. (If the detection area changes to the far side, the warning
beeps remain off)

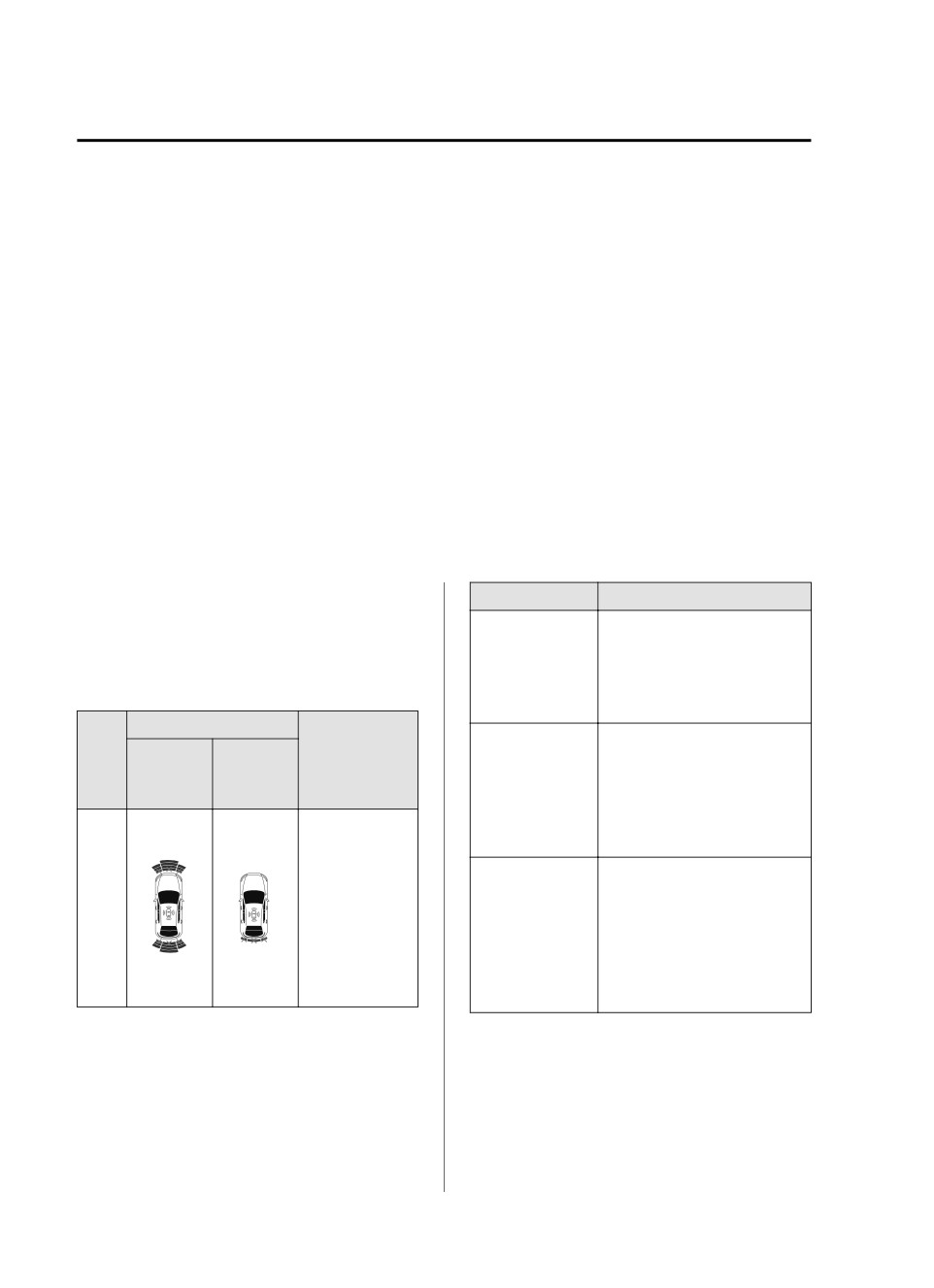

System Problem Indication
Indicator/Beep
How to check
If any of the problems indicated in the
A message indi-
There may be a problem
table occurs, the driver is notified of
cating a system
with the system. Have your
the problem depending on the type of
malfunction or
vehicle inspected by an Au-
system as shown.
sensor malfunc-
thorized Mazda Dealer as
tion is displayed.
soon as possible.
Detection Indicator
Remove any foreign matter
With out
With 360°
Solution
A message indi-
from the sensor area. If the
360° view
view mon-
cating that the
system does not recover,
monitor
itor
sensor is dirty is
have the vehicle inspected
The system may
displayed.
by an Authorized Mazda
have a mal-
Dealer.
Sys-
function. Have
Foreign matter may have
tem
the vehicle in-
A certain ob-
gotten on the sensor area
mal-
spected at an
struction detec-
corresponding to the detec-
func-
Authorized
tion indication is
tion indicator. If the system
tion
Mazda Dealer
continuously dis-
does not recover, have the
as soon as pos-
played.
vehicle inspected by an Au-
sible.
thorized Mazda Dealer.
The driver is notified of a problem
with the following indications.
4-254
Interior Features
5
Use of various features for ride comfort, including air-
conditioning system and audio system.
Climate Control System
5-2
Interior Equipment
5-39
Operating Tips
5-2
Sunvisors
5-39
Vent Operation
5-3
Interior Lights
5-40
Manual Type
5-5
Accessory Socket
5-42
Fully Automatic Type
5-10
Cup Holder
5-43
Bottle Holder
5-45
Assist Grips
5-45
Mazda Connect
5-15
Rear Coat Hooks
5-46
What is Mazda Connect ?
5-15
Storage Compartments
5-46
Mazda Connect Basic
Operations
5-19
Connected Service (If
applicable)
5-37
5-1
Interior Features
Climate Control System
required for the air conditioner
Operating Tips
maintenance.
For details, consult an Authorized
Operating Tips
Mazda Dealer.
Operate the climate control system
with the engine running.
To prevent the battery from being
discharged, do not leave the fan
control switch on for a long period of
time with the ignition switched ON
when the engine is not running.
Clear all obstructions such as leaves,
snow and ice from the hood and the
air inlet in the cowl grille to improve
the system efficiency.
1.
Label
Use the climate control system to
defog the windows and dehumidify
the air.
The recirculate mode should be used
when driving through tunnels or
while in a traffic jam, or when you
would like to shut off outside air for
quick cooling of the interior.
Use the outside air position for
ventilation or windshield defrosting.
If the vehicle has been parked in
direct sunlight during hot weather,
open the windows to let warm air
escape, then run the climate control
system.
Run the air conditioner about 10
minutes at least once a month to
keep internal parts lubricated.
Have the air conditioner checked
before the weather gets hot. Lack of
refrigerant may make the air
conditioner less efficient.

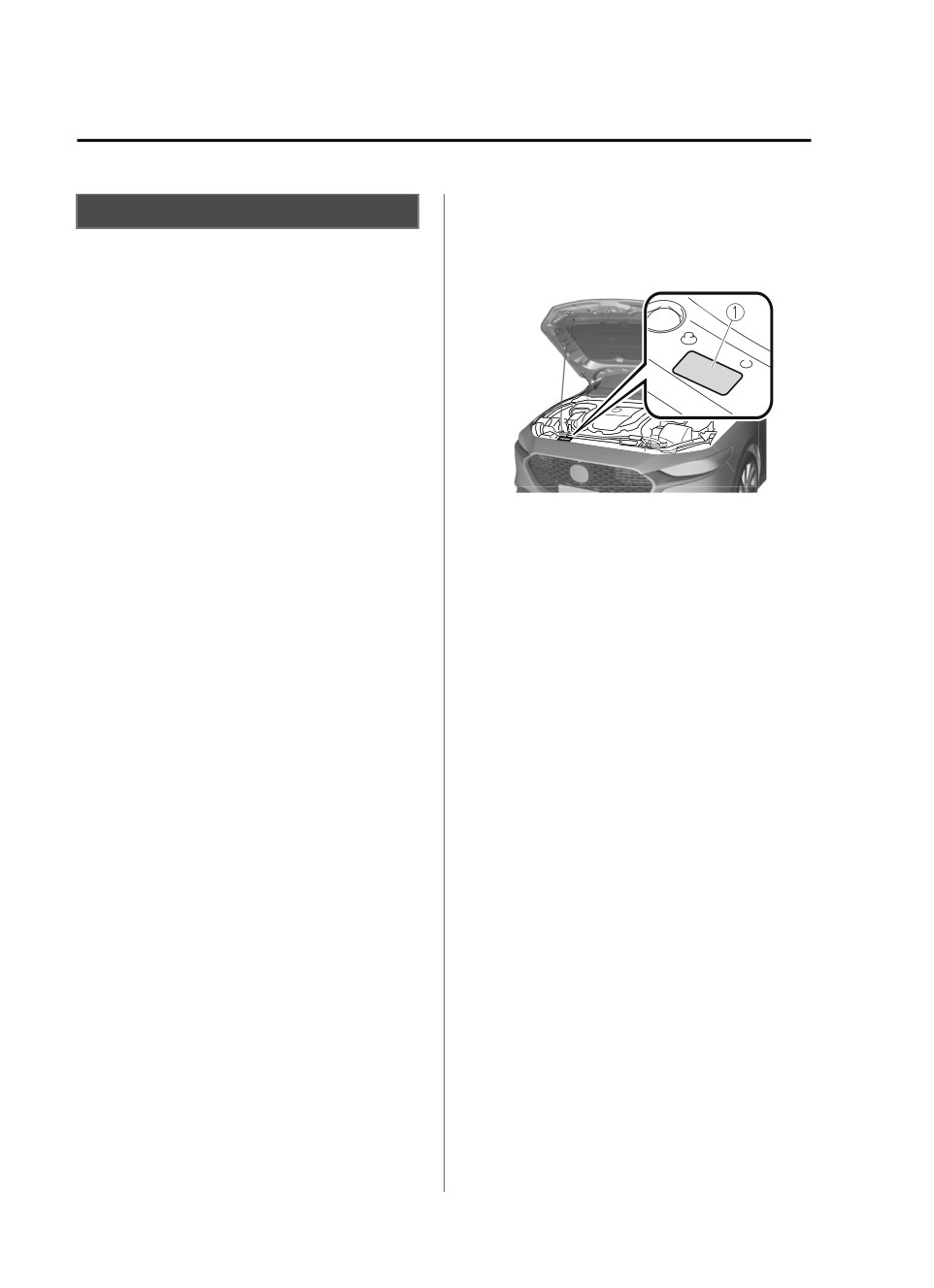

The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If
the wrong type of refrigerant is used,
it could result in a serious
malfunction of the air conditioner.
Consult a professional, government
certified repairer for the inspection
or repair because a special device is
5-2
Interior Features
Climate Control System
Airflow direction adjustment
Vent Operation
Adjusting the Vents
Directing airflow

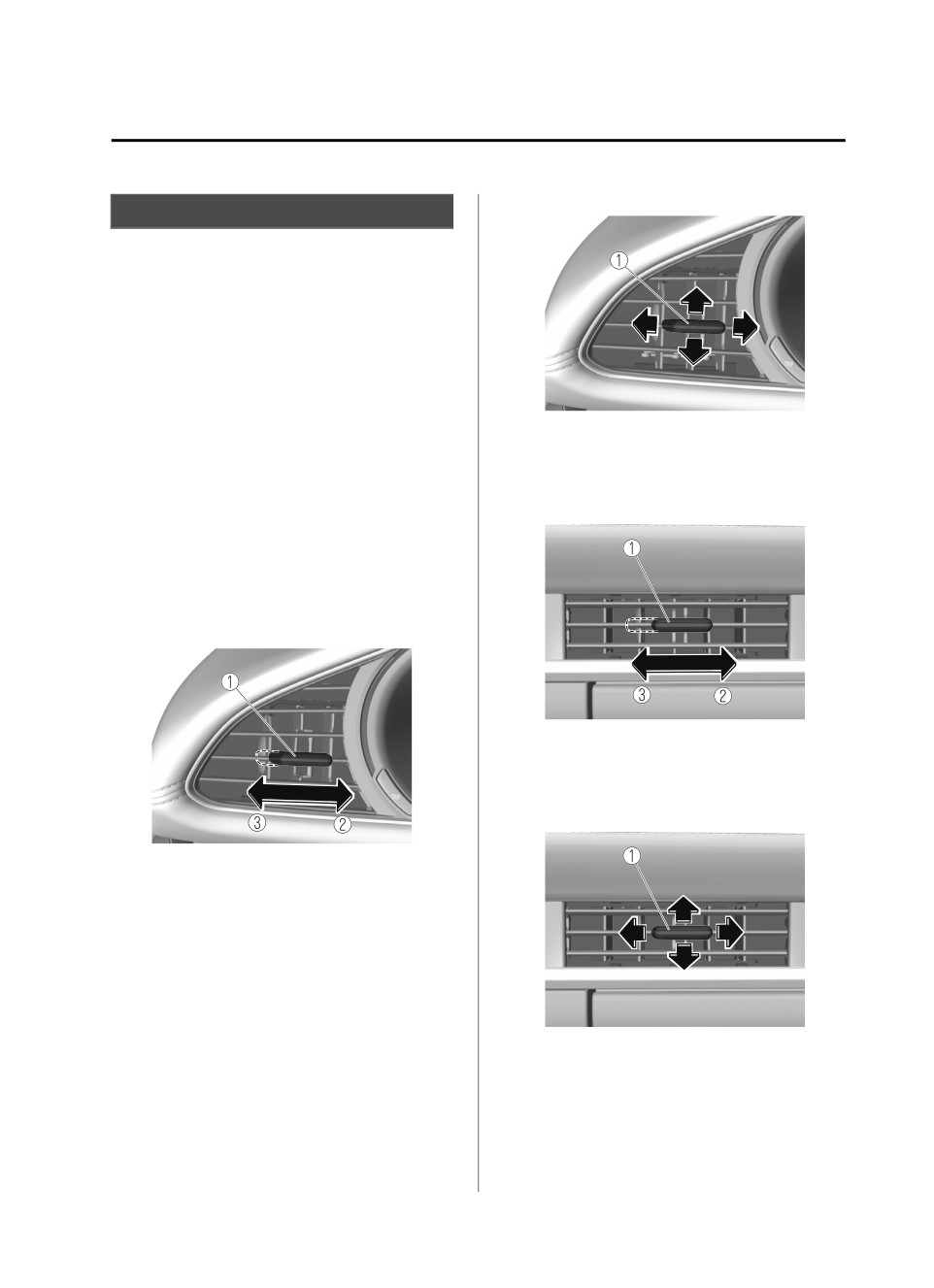

To adjust the direction of airflow, move
the adjustment knob.
NOTE
When using the air conditioner
1. Knob
under humid ambient temperature
conditions, the system may blow fog
from the vents. This is not a sign of
Passenger's Side Vents
trouble but a result of humid air
Air vent open/close
being suddenly cooled.
The air vents can be fully opened and
closed by operating the knob.
Driver's Side Vents
Air vent open/close
1. Knob
2. Open
3. Close
Airflow direction adjustment
1. Knob
2. Open
3. Close
NOTE
The figure indicates the air vent on the
left side of the instrument cluster. The
operation direction for the air vent on
the right side of the instrument cluster
is symmetrical with the air vent on the
1. Knob
left side.
5-3
Interior Features
Climate Control System
Selecting the Airflow Mode

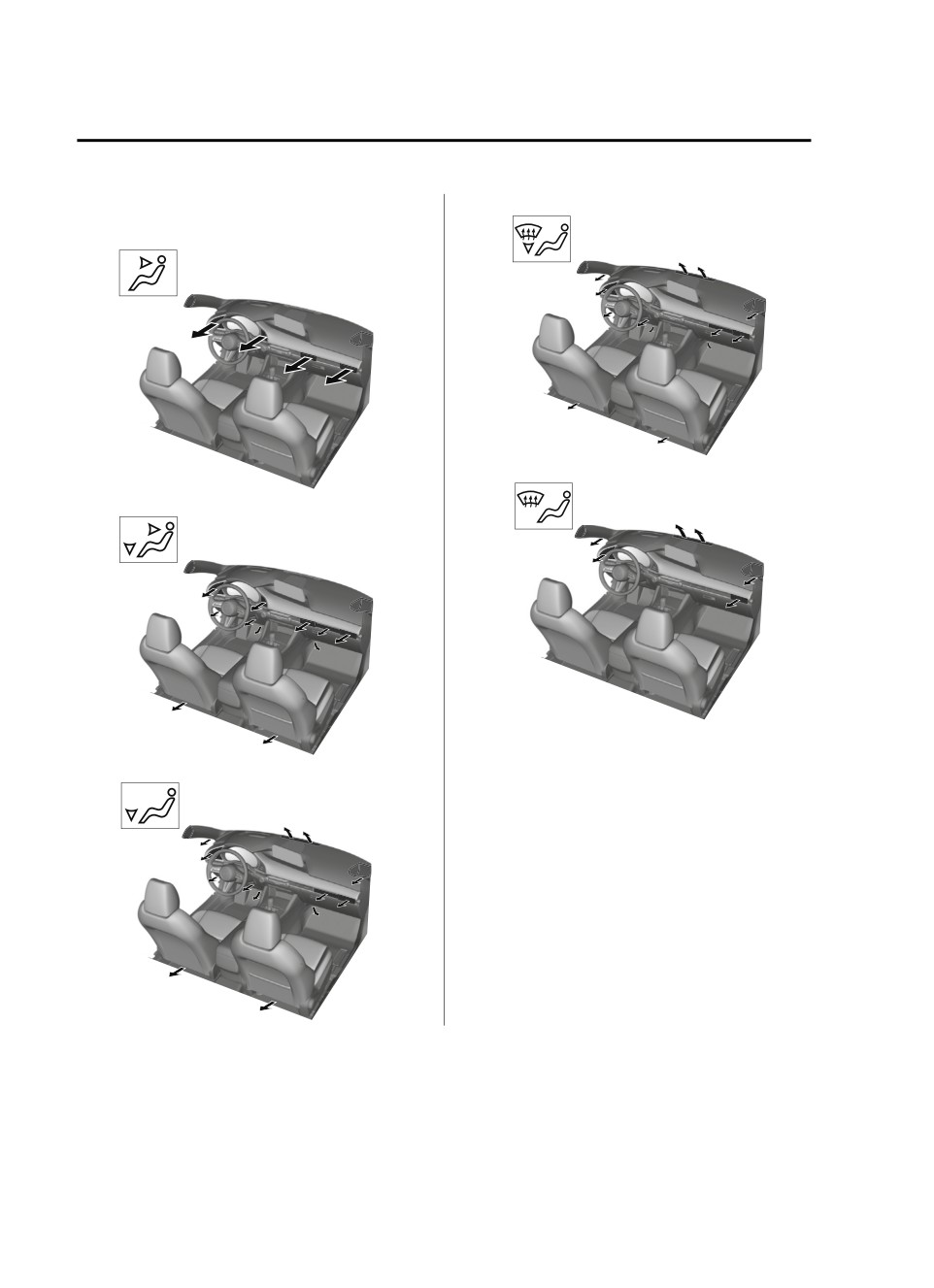

Defroster and Floor Vents
Dashboard Vents
Defroster Vents
Dashboard and Floor Vents
NOTE
Floor Vents
The location airflow exits the air vents
and the airflow amount may change
depending on the open or close status
of the air vents.
5-4
Interior Features
Climate Control System
Manual Type
Manual Type

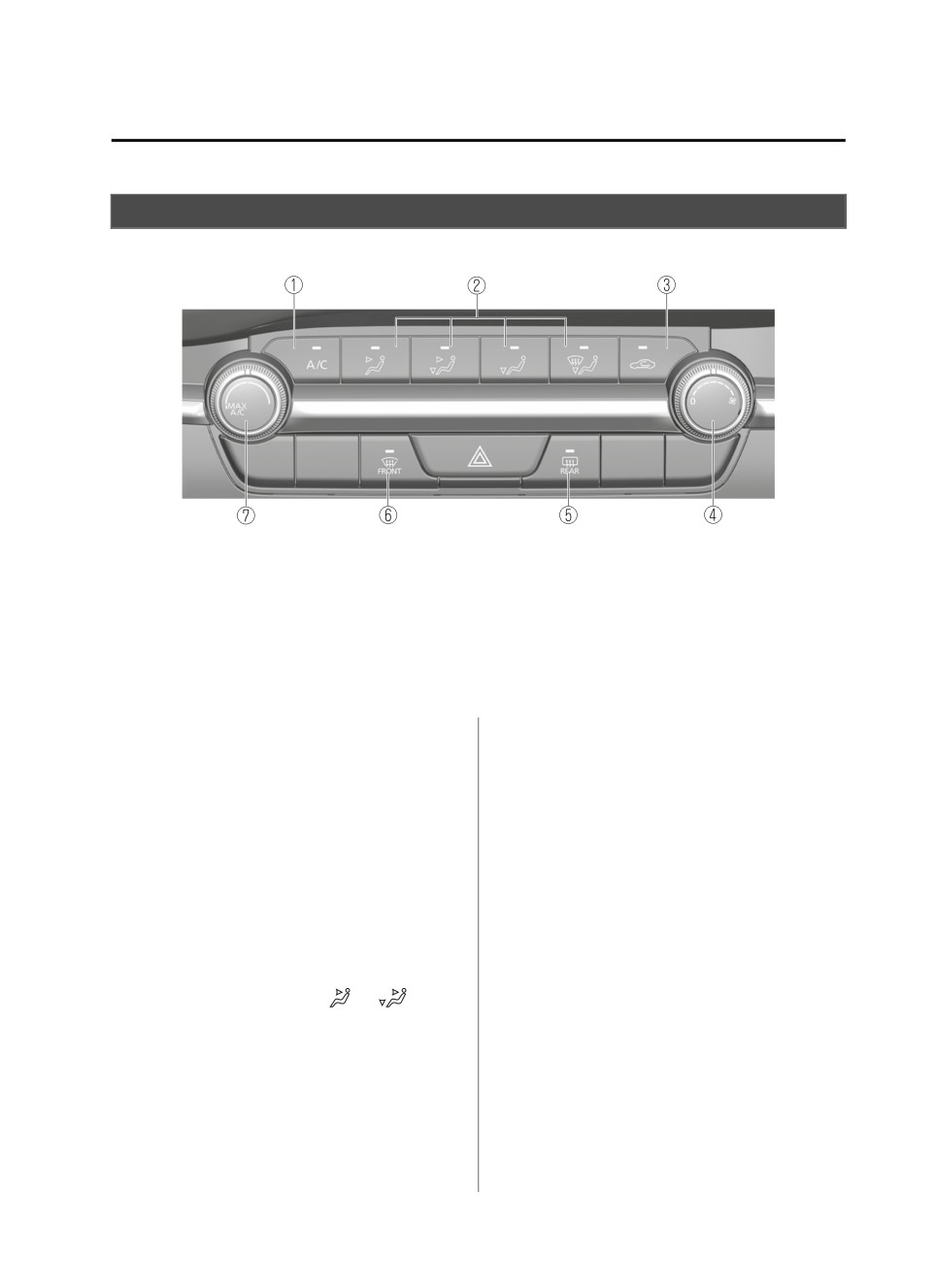

1. A/C switch
2. Mode selector switch
3. Air intake selector switch
4. Fan control dial
5. Rear window defogger switch
6. Windshield defroster switch
7. Temperature control dial
Control Switches
Fan control dial
Temperature control dial
This dial allows variable fan speeds.
The fan has seven speeds.
This dial controls temperature. Turn it
clockwise for hot and
Mode selector switches
counterclockwise for cold.
The desired airflow mode can be
MAX A/C
selected (page 5-4).
Fully turn the temperature control dial
A/C switch
counterclockwise for MAX A/C
Press the A/C switch to turn the air
(maximum cooling).
conditioner on. The indicator light on
NOTE
the switch will illuminate when the fan
control dial is in any position except
When the mode is set to or
with
OFF.
the fan control dial in a position other
than 0 and the temperature control
Press the switch once again to turn the
dial in the MAX A/C position, the air
air conditioner off.
intake selector switches to the
recirculated air position and the A/C
NOTE
turns on automatically.
The air conditioner may not function
If A/C is not desired, press the A/C
when the outside temperature
switch to turn it off.
approaches 0 °C (32 °F).
5-5
Interior Features
Climate Control System
Air intake selector switch
To exit the default recirculated air
position, press the air intake selector
This switch controls the source of air
switch to select the outside air
entering the vehicle.
position.
When the air intake selector switch is
Outside or recirculated air positions
set to the outside air position and
can be selected. Press the switch to
the outside temperature exceeds
select outside/recirculated air
about 73°F (23), the climate
positions.
control system may automatically
Recirculated air position (indicator
select the recirculated air position to
light illuminated)
improve the efficiency of the climate
control system.
Outside air is shut off. Air within the
vehicle is recirculated. Use this
Windshield defroster switch
position when going through tunnels,
Press the switch to defrost the
driving in congested traffic (high engine
windshield and front door windows.
exhaust areas), or when quick cooling
Refer to Windshield Defrosting and
is desired.
Defogging on page 5-8.
Outside air position (indicator light
turned off)
Outside air is allowed to enter the
cabin. Use this position for ventilation
or windshield defrosting.
WARNING
Do not use the
position (indicator
light turns on) in cold or rainy
weather:
Using the
position (indicator light
turns on) in cold or rainy weather is
dangerous as it will cause the windows
to fog up. Your vision will be
hampered, which could lead to a
serious accident.
NOTE
The recirculated air position is the
default position whenever the
ignition is switched ON, the climate
control system is on, and the outside
temperature exceeds about 73°F
(23).
5-6
Interior Features
Climate Control System
Rear window defogger switch
Cooling
Press the rear window defogger switch
1. Press the switch.
to defrost the rear window.
2. Set the temperature control dial to
Refer to Rear Window Defogger on
the cold position.
page 4-68.
3. Set the fan control dial to the
desired speed.
Heating
4. Turn on the air conditioner by
1. Press the
switch.
pressing the A/C switch.
2. Set the air intake selector to the
5. After cooling begins, adjust the fan
outside air position (indicator light
control dial and temperature
turns off).
control dial as needed to maintain
3. Set the temperature control dial to
maximum comfort.
the hot position.
4. Set the fan control dial to the
CAUTION
desired speed.
If the air conditioner is used while
5. If dehumidified heating is desired,
driving up long hills or in heavy traffic,
turn on the air conditioner.
monitor the high engine coolant
NOTE
temperature warning indication to see
if it is displayed (page 7-29).
If the windshield fogs up easily, press
The air conditioner may cause engine
the
switch.
overheating. If the warning indication
If cooler air is desired at face level,
is displayed, turn the air conditioner
press the
switch and adjust the
off (page 7-21).
temperature control dial to maintain
maximum comfort.
NOTE
The air to the floor is warmer than air
When maximum cooling is desired,
to the face (except when the
set the temperature control dial to
temperature control dial is set at the
the extreme cold position and set
extreme hot or cold position).
the air intake selector to the
recirculated air position, then turn
the fan control dial fully clockwise.
If warmer air is desired at floor level,
press the
switch and adjust the
temperature control dial to maintain
maximum comfort.
The air to the floor is warmer than air
to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
5-7
Interior Features
Climate Control System
Ventilation
Be careful that the windows do not
fog up when doing any of the
1. Press the switch.
following:
2. Set the air intake selector to the
Switching to recirculate mode
outside air position (indicator light
Turning off the air conditioner
turns off).
For maximum defrosting, turn on the
3. Set the temperature control dial to
air conditioner, set the temperature
the desired position.
control dial to the extreme hot
4. Set the fan control dial to the
position, and turn the fan control
desired speed.
dial fully clockwise.
Windshield Defrosting and
If warm air is desired at the floor,
Defogging
press the
switch.
With the
or
*1 switch, the air
1. Press the
switch.
conditioner is automatically turned
2. Set the temperature control dial to
on and the outside air position is
the desired position.
automatically selected to defrost the
3. Set the fan control dial to the
desired speed.
windshield. In the
switch, the
4. If dehumidified heating is desired,
outside air position cannot be
turn on the air conditioner.
changed to the recirculated air
position.
WARNING
*1 Depending on the market.
Do not defog the windshield using the
Dehumidifying
switch with the temperature
Operate the air conditioner in cool or
control set to the cold position:
cold weather to help defog the
Using the
switch with the
windshield and side windows.
temperature control set to the cold
1. Press the desired mode switch you
position is dangerous as it will cause
want to set.
the outside of the windshield to fog
2. Set the air intake selector to the
up. Your vision will be hampered,
outside air position (indicator light
which could lead to a serious accident.
turns off).
Set the temperature control to the hot
3. Set the temperature control dial to
or warm position when using the
the desired position.
switch.
4. Set the fan control dial to the
desired speed.
NOTE
5. Turn on the air conditioner by
pressing the A/C switch.
Fogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned off.
5-8
Interior Features
Climate Control System
NOTE
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the
temperature does not have to be set to
cold. Therefore, set the temperature
control dial to the desired position
(hot or cold) and turn on the air
conditioner when you want to
dehumidify the cabin air.
5-9
Interior Features
Climate Control System
Fully Automatic Type
Fully Automatic Type

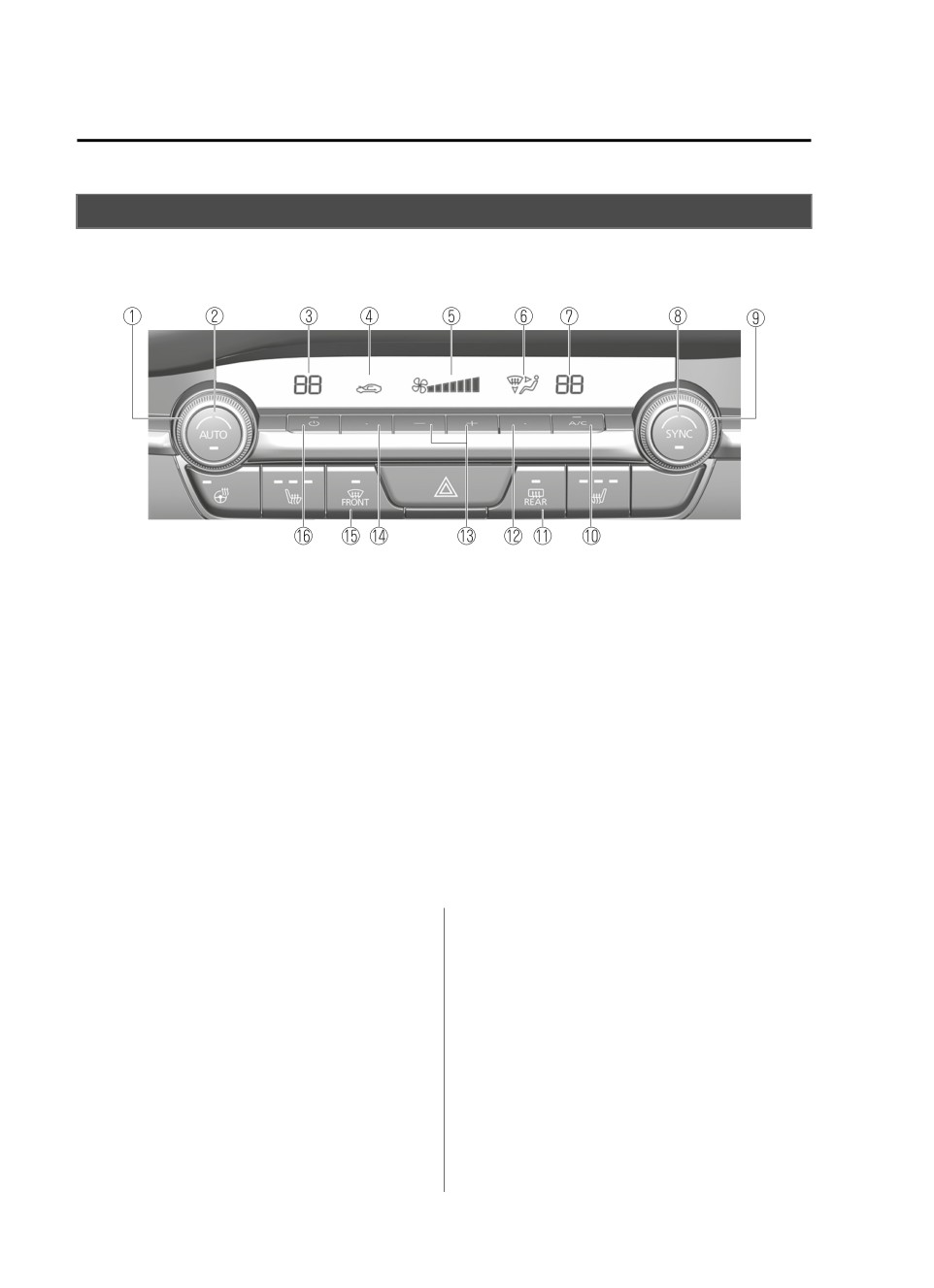

Climate control system information is displayed on the display.
1. Driver temperature control dial
2. AUTO switch
3. Temperature setting display (driver’s side)
4. Air intake display
5. Airflow display
6. Mode selector display
7. Temperature setting display (passenger’s side)
8. SYNC (synchronized temperature) switch
9. Passenger temperature control dial
10.A/C switch
11.Rear window defogger switch
12.Mode selector switch
13.Fan control switch
14.Air intake selector switch
15.Windshield defroster switch
16.Power switch
Control Switches
Seat warmer level selection*
Heated steering wheel operation*
AUTO switch
By pressing the AUTO switch the
NOTE
following functions will be
AUTO switch indicator light
automatically controlled in accordance
When the AUTO switch indicator
with the selected set temperature:
light is on, it indicates auto
Airflow temperature
operation, and the system will
Amount of airflow
function automatically.
Selection of airflow mode
If any of the following switches are
Outside/Recirculated air selection
operated while in auto control, the
Air conditioner operation
AUTO switch indicator turns off.
5-10
*Some models.
Interior Features
Climate Control System
Mode selector switch
The temperature units for the
Fan control switch
temperature setting display can be
Windshield defroster switch
changed in conjunction with the
The functions for switches other
temperature units for the outside
than those operated continue to
temperature display.
operate in auto control.
Refer to Outside Temperature
Display on page 4-25.
Power switch (System On/Off)
Fan control switch
The climate control system turns on or
off by pressing the power switch.
The fan has 7 speeds. The selected
speed will be displayed.
Temperature control dial
Mode selector switch
This dial controls temperature. Turn it
clockwise for hot and
The desired airflow mode can be
counterclockwise for cold.
selected (page 5-4).
Turn the temperature control dial to
NOTE
adjust the temperature between 15 °C
(60 °F) and 29 °C (84 °F).
With the airflow mode set to the
position and the temperature control
When the SYNC switch is on:
Turn the driver temperature control
dial set at a medium temperature,
heated air is directed to the feet and
dial to control the temperature
throughout the entire cabin.
air at a comparably lower
temperature will flow through the
When the SYNC switch is off:
Turn the driver or front passenger
central, left and right vents.
temperature control dial to
To set the air vent to
, press the
independently control the
windshield defroster switch.
temperature on each side of the
In the
position, the outside air
cabin.
position is automatically selected.
NOTE
The climate control system changes
to the individual operation mode
(SYNC switch indicator light turns
off) by turning the front passenger
temperature control dial even when
the SYNC switch is on, which allows
individual control of the set
temperature for the driver and front
passenger.
When you set the temperature to the
lower or upper limit, “Lo” or “Hi” is
displayed.
5-11
Interior Features
Climate Control System
A/C switch
NOTE
Pressing the A/C switch while the
The recirculated air position is the
AUTO switch is turned on will turn off
default position whenever the
the air conditioner (cooling/
ignition is switched ON, the climate
dehumidifying functions).
control system is on, and the outside
The on/off of the air conditioner
temperature exceeds about 73°F
switches each time the A/C switch is
(23).
pressed.
To exit the default recirculated air
position, press the air intake selector
NOTE
switch to select the outside air
The air conditioner operates when
position.
the A/C switch is pressed while the
When the air intake selector switch is
air conditioner is turned off.
set to the outside air position and
The air conditioner may not function
the outside temperature exceeds
when the outside temperature
about 73°F (23), the climate
approaches 0 °C (32 °F).
control system may automatically
select the recirculated air position to
Air intake selector switch
improve the efficiency of the climate
Outside or recirculated air positions
control system.
can be selected. Press the switch to
SYNC (Synchronized Temperature)
select outside/recirculated air
switch
positions.
Use the SYNC switch to change the
Recirculated air position (
)
mode between the individual
Outside air is shut off. Air within the
operation (driver and passenger) and
vehicle is recirculated. Use this
interconnection (simultaneous)
position when going through tunnels,
modes.
driving in congested traffic (high engine
Interconnection mode (indicator light
exhaust areas), or when quick cooling
turns on)
is desired.
The set temperature for the driver and
Outside air position (
)
front passenger is controlled
Outside air is allowed to enter the
simultaneously.
cabin. Use this position for ventilation
Individual operation mode (indicator
or windshield defrosting.
light turns off)
WARNING
The set temperature can be controlled
individually for the driver and front
Do not recirculate the air in the cabin
passenger.
during cold or rainy weather:
Windshield defroster switch
Recirculating the air in the cabin during
cold and rainy weather is dangerous as
Press the switch to defrost the
it will cause the windows to fog up.
windshield and front door windows.
Your vision will be hampered, which
Refer to Windshield Defrosting and
could lead to a serious accident.
Defogging on page 5-14.
5-12
Interior Features
Climate Control System
Rear window defogger switch
Operation of Automatic Air
Conditioner
Press the rear window defogger switch
to defrost the rear window.
1. Press the AUTO switch. Selection of
Refer to Rear Window Defogger on
the airflow mode, air intake
page 4-68.
selector and amount of airflow will
be automatically controlled.
2. Use the temperature control dial to
select a desired temperature.
If you want to set the temperature
on the front passenger's side
separately from the driver's side,
turn the front passenger
temperature control dial to switch
the mode automatically to the
individual operation mode and set
the temperature for the front
passenger's side.
To turn off the system, press the power
switch.
NOTE
Set the control dial to the
recommended temperature of 22 °C
(72 °F), and then adjust it as desired.
Setting the temperature to maximum
hot or cold will not provide the
desired temperature at a faster rate.
When selecting heat, the system will
restrict airflow until the engine has
warmed to prevent cold air from
blowing out of the vents.
5-13
Interior Features
Climate Control System
Windshield Defrosting and
Sunlight/Temperature Sensor
Defogging
The climate control system measures
Press the windshield defroster switch.
inside and outside temperatures,
In this position, the outside air position
humidity and sunlight using the
is automatically selected, and the air
sunlight/temperature sensor. It sets
conditioner automatically turns on.
temperatures inside the cabin
The air conditioner will directly
accordingly.
dehumidify the air to the front
windshield and side windows on page
CAUTION
5-4.
Do not obstruct both sensors,
Airflow amount will be increased.
otherwise the climate control system
will not operate properly.
WARNING

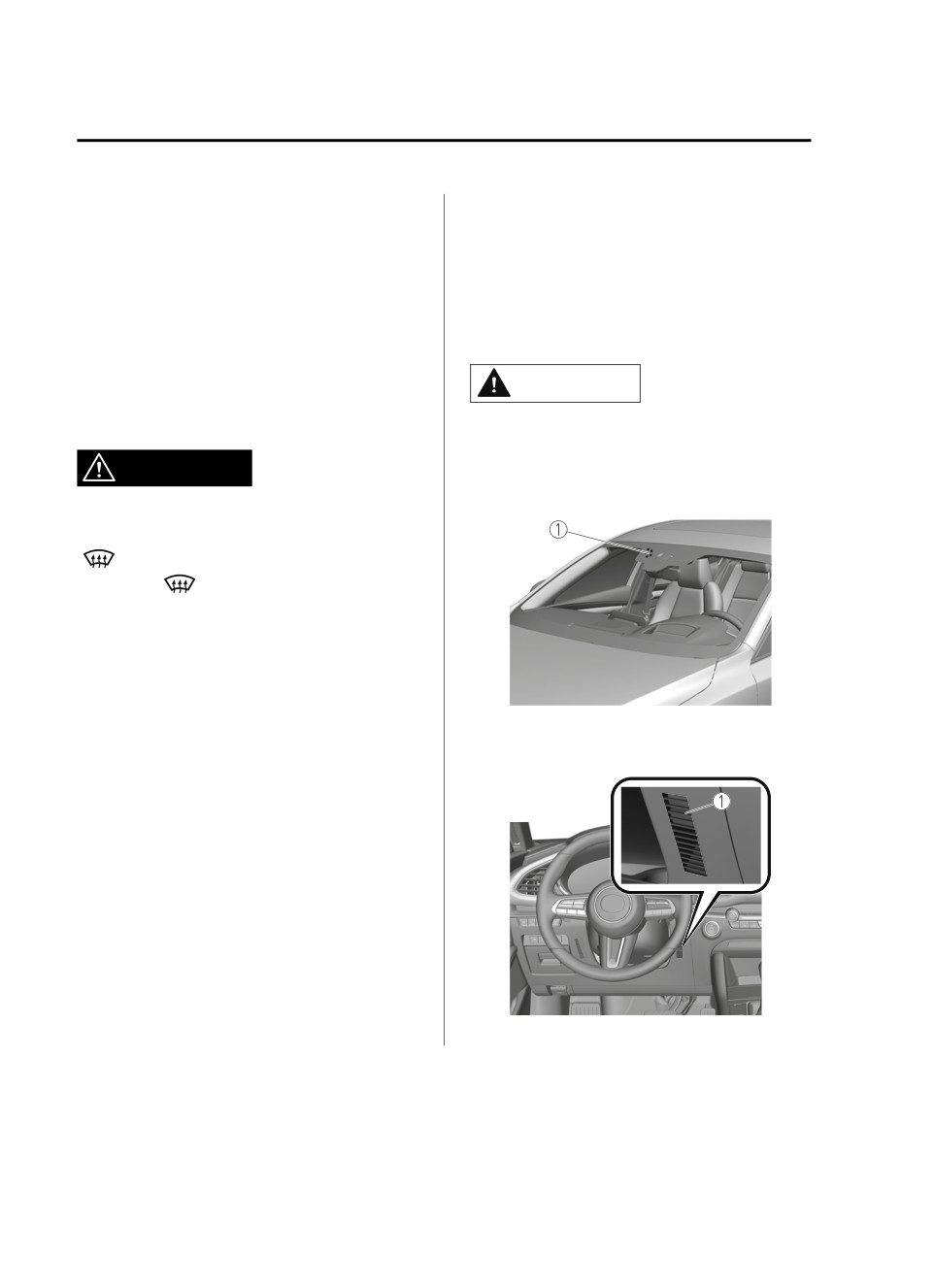

Sunlight sensor
Set the temperature control to the hot
or warm position when defogging
(
position):
Using the
position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windshield to fog
up. Your vision will be hampered,
which could lead to a serious accident.
1. Sunlight sensor
NOTE
Interior temperature sensor
Fogging on the windows clears up
more easily while the air conditioner
is on, but they will fog up more easily
if the air conditioner is turned off.
Be careful that the windows do not
fog up when doing any of the
following:
Switching to recirculate mode
Turning off the air conditioner
Use the temperature control dial to
increase the air flow temperature
and defog the windshield more
quickly.
1. Interior temperature sensor
5-14
Interior Features
Mazda Connect
What is Mazda Connect ?
What is Mazda Connect ?
This manual only indicates a part of the information for Mazda Connect. For details,
check the Web owner's manual at the Mazda site for each country and region.

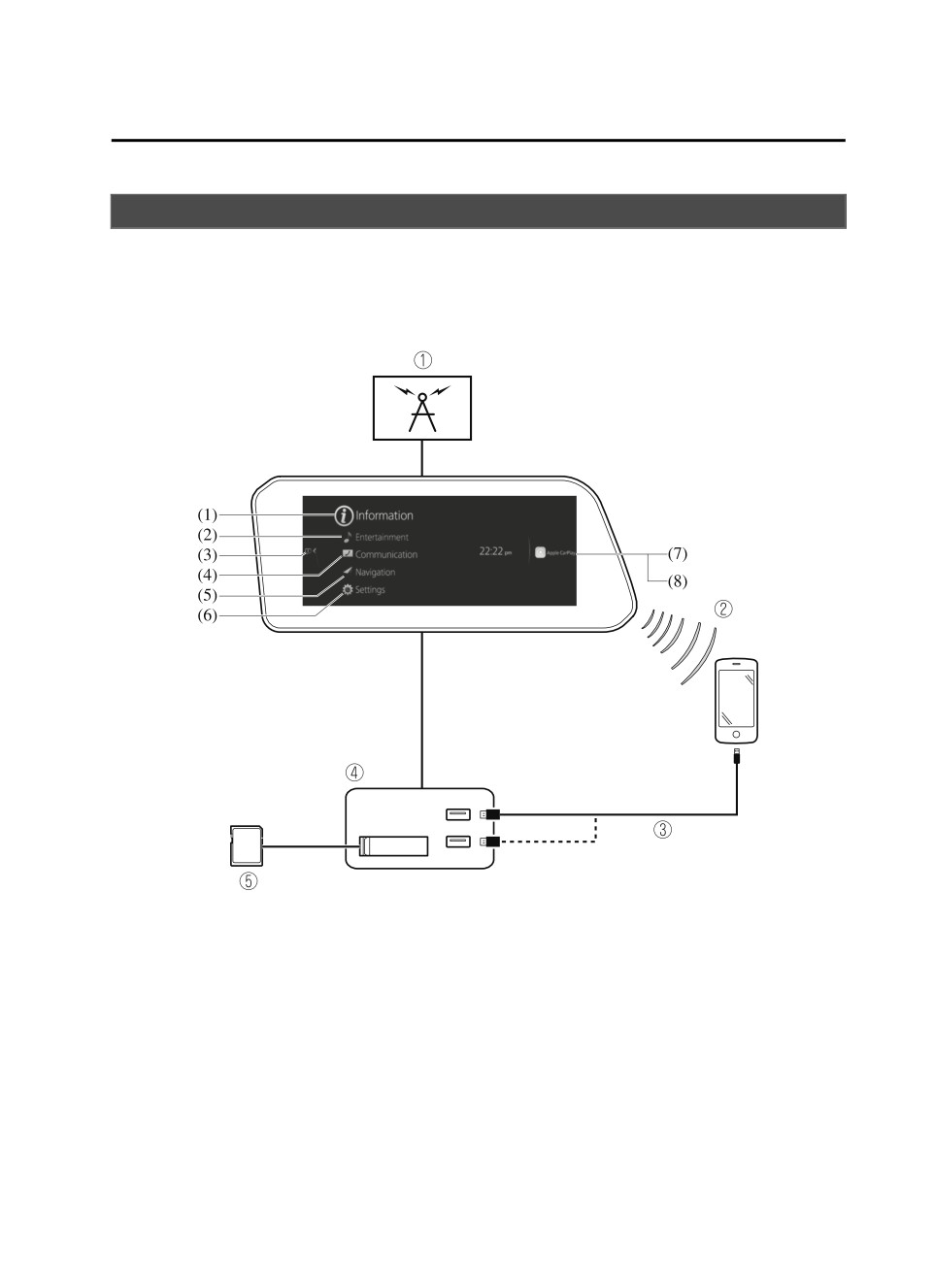

1. Radio
2. Bluetooth® Audio/Hands-Free Call/SMS (Short Message Service)
3. USB Audio/USB Video
4. USB port*1/SD card slot*2
5. SD card (Navigation system)*
*1
The location of the USB slot differs depending on the specifications.
*2
The SD card slot is for the navigation system only. For vehicles with the
navigation system, the SD card (Mazda genuine) with stored map data is
inserted into the SD card slot and used.
*Some models.
5-15
Interior Features
Mazda Connect
No.
Menu
Explanation
Fuel Efficiency Monitor:
Monitor fuel efficiency in real time and view fuel efficiency history.
SiriusXM Travel Link*:
(1)
Information
Access traffic information, weather, fuel prices, parking information
and sports scores.
Vehicle Status Monitor:
View important vehicle maintenance messages, information, and inter-
vals.
FM
AM
SiriusXM*
Pandora
(2)
Entertainment
Bluetooth
USB1 Audio/USB2 Audio
USB1 Video/USB2 Video
Audio Off
Displays text messages received by the mobile device paired to Mazda
(3)
Notifications
Connect and notifications from the vehicle.
By connecting your mobile device, such as a Smartphone, to Mazda
(4)
Communication
Connect via Bluetooth®, you can use the hands-free call and short mes-
sage functions.
The navigation system (vehicles with navigation system) can be used
when the SD card for the navigation system is inserted.
If the SD card for the navigation system is not inserted, the compass in-
(5)
Navigation
dicating the direction in which the vehicle is moving is displayed. The
compass may not indicate the correct bearing when the vehicle is stop-
ped or traveling at a slow speed.
For the navigation system operation, refer to the navigation system
manual.
5-16
*Some models.
Interior Features
Mazda Connect
No.
Menu
Explanation
You can change the settings for the Mazda Connect screen, sound set-
tings, and the vehicle functions.
In-Vehicle Displays:
Configures settings and content for all in-vehicle displays.
Sound Settings:
Configures the in-vehicle listening experience.
Safety Settings:
(6)
Settings
Configures safety and driver assistance features.
Vehicle Settings:
Configures vehicle convenience features.
Connectivity Settings:
Configures Bluetooth and other device connectivity settings.
System Settings:
Configures language, time, and other general settings.
You can use Apple CarPlay™ by connecting an iPhone® compatible with
(7)
Apple CarPlay
Apple CarPlay™ to the USB slot.
You can use Android Auto™ by connecting an Android™ Smartphone
(8)
Android Auto
compatible with Android Auto™ to the USB port.
WARNING
Always adjust Mazda Connect while the vehicle is stopped:
Do not adjust Mazda Connect with the Commander switch while driving the
vehicle. Adjusting Mazda Connect with the Commander switch while driving the
vehicle is dangerous as it could distract your attention from the vehicle operation
which could lead to a serious accident.
Even if the audio remote control switches are equipped on the steering wheel, learn
to use the switches without looking down at them so that you can keep your
maximum attention on the road while driving the vehicle.
Do not allow the connection plug cord to get tangled with the shift lever (manual
transmission)/selector lever (automatic transmission):
Allowing the plug cord to become tangled with the shift lever (manual
transmission)/selector lever (automatic transmission) is dangerous as it could
interfere with driving, resulting in an accident.
5-17
Interior Features
Mazda Connect
Do not adjust a mobile device or a similar product while driving the vehicle:
Adjusting a mobile device or a similar product while driving the vehicle is dangerous
as it could distract your attention from the vehicle operation which could lead to a
serious accident. Always adjust a mobile device or a similar product while the
vehicle is stopped.
CAUTION
For the purposes of safe driving, adjust the audio volume to a level that allows you
to hear sounds outside of the vehicle including car horns and particularly emergency
vehicle sirens.
NOTE
Do not use Mazda Connect for a long time with the engine stopped. Otherwise,
the battery power could be depleted.
If a mobile phone or CB radio is used in or near the vehicle, it could cause noise to
occur from the audio system. However, this does not indicate a problem.
5-18
Interior Features
Mazda Connect
Mazda Connect Basic Operations
Mazda Connect Basic Operations
NOTE
The explanation of functions described in this manual may differ from the actual
operation, and the shapes of screens and buttons and the letters and characters
displayed may also differ from the actual appearance.
Additionally, depending on future software updates, the content may successively
change without notice.
Commander Switch Operation
The commander switch can be used to switch to each function and to operate each
function.
Set the palm of your hand on the commander knob so that your fingers can touch
each of the switches.
You can switch the screens without having to look down at your hand.
NOTE
For safety reasons, some operations are disabled while driving the vehicle.
5-19
Interior Features
Mazda Connect

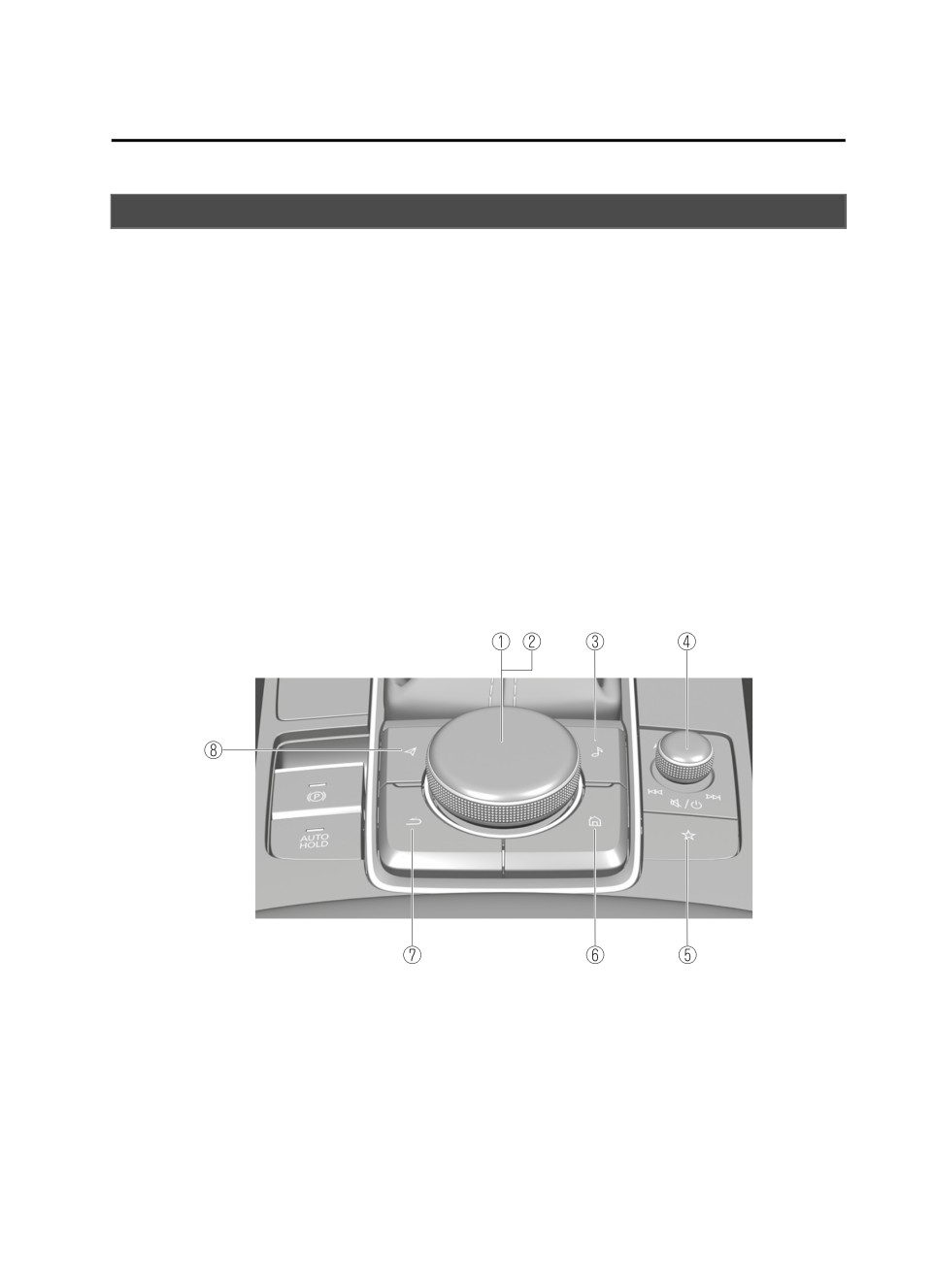

The shape of the switches varies depending on the specifications.
No.
Item
Explanation
Commander knob (selection):
1
Rotate or slide the commander knob to highlight/select the on-screen
functions you want to use.
Commander knob (select):
2
Depress the commander knob to select the desired on-screen function
you want to use.
Entertainment button:
The audio source screen last used is displayed.
3
(During Apple CarPlay™ or Android Auto™ music playback)
Displays the Apple CarPlay™ or Android Auto™ now playing screen.
5-20
Interior Features
Mazda Connect
No.
Item
Explanation
Volume knob:
Volume adjustment
Adjust the volume by turning the volume knob.
If you adjust the volume during voice guidance, the volume of the
voice guidance will change.
If you adjust the volume during a hands-free call, the conversation vol-
ume will change.
Press the volume knob to mute/pause the audio. Press the knob again
to resume.
Power off/on
Press and hold to turn off the Mazda Connect power and turn off the
screen.
Press and hold again to turn on the Mazda Connect power.
NOTE
If you press the volume knob to mute an audio source which can be
paused, such as Apple CarPlay™, USB audio, or Bluetooth® audio,
while it is playing, the song playback pauses. Press the volume knob
4
again to cancel the mute and the pause at the same time.
Selecting a radio station
Radio stations saved to your Favorites can be selected by sliding the
volume knob left (SEEK DOWN)/right (SEEK UP) while listening to
FM/AM/SiriusXM®*. The station will change each time you slide the
volume knob.
If you want to manually tune to the next available station before or af-
ter the currently selected station, slide and hold the volume knob left
(SEEK DOWN) or right (SEEK UP) until you hear a beep and the tuner
will select the next available station.
Playback Control
Music and video files can be cued when listening to stored content via
USB, Bluetooth®, and SiriusXM®*, audio, or video.
Slide the volume knob right to skip to the next track or slide it to the
left to go back to the previous track. You can also slide and hold the
volume knob to fast forward or rewind the track.
*Some models.
5-21
Interior Features
Mazda Connect
No.
Item
Explanation
Favorites button:
Displays the favorites screen.
5
Press and hold to register AM/FM/SiriusXM®* stations, contacts, navi-
gation destinations, or any highlighted menu items to create easily ac-
cessible shortcuts.
Home button:
Displays the home screen.
(While Apple CarPlay™ or Android Auto™ is displayed)
Displays the Apple CarPlay™ or Android Auto™ home screen.
6
(While Apple CarPlay™ or Android Auto™ is connected)
Press and hold while the Mazda Connect screen is displayed to switch
the screen from Mazda Connect to Apple CarPlay™ or Mazda Connect
to Android Auto™. In addition, press and hold while the Apple
CarPlay™ or Android Auto™ screen is displayed to switch to the Mazda
Connect screen.
Back button:
7
Returns to previous screen.
Map button:
Displays the navigation screen (vehicles with navigation system).
In order for the navigation system to function, the SD card for the navi-
gation system is required.
If the SD card for the navigation system is not inserted, the compass in-
dicating the direction in which the vehicle is moving is displayed.
For the navigation system operation, refer to the navigation system
8
manual.
(During Apple CarPlay™ or Android Auto™ route guidance)
Displays the Apple CarPlay™ or Android Auto™ map screen.
NOTE
With an active Mazda Navigation route, pressing the Map button will
repeat the navigation voice guidance.
5-22
*Some models.
Interior Features
Mazda Connect

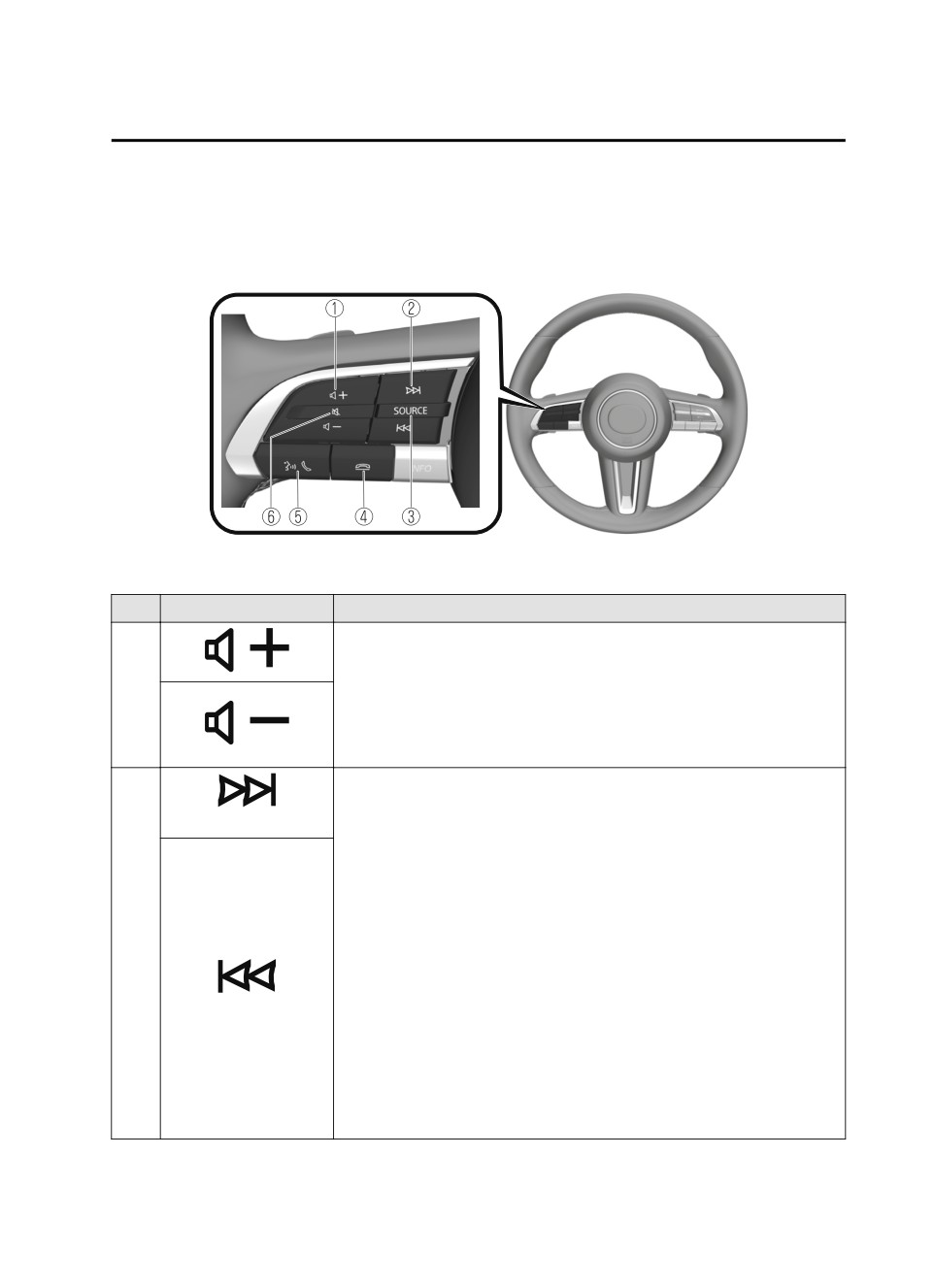

Audio Remote Control Switch Operation
The audio remote control switch is on the left side of the steering wheel. You can
operate basic audio functions, pick up/hang up the phone, or activate voice
control using the switch.
The shape of the switches may differ depending on the specifications.
No.
Item
Explanation
Volume adjustment button:
Press the (+) or (-) button to adjust the volume.
If you adjust the volume during voice guidance, the volume of the
1
voice guidance will change.
If you adjust the volume during a hands-free call, the conversation vol-
ume will change.
Seek Switch:
Selecting a radio station
(SEEK UP)
Radio stations saved to your Favorites can be selected by pressing the
seek switch while listening to FM/AM radio. The station will change to
the previous or next favorite station each time you press the seek
switch. If you want to manually tune to the next available station be-
fore or after the currently selected station, press and hold the seek
2
switch until it beeps and the tuner will select the next available station.
(SEEK DOWN)
Playback Control
Music and video files can be cued when listening to stored content via
USB, Bluetooth®, and SiriusXM®*, audio, or video.
Slide the volume knob right to skip to the next track or slide it to the
left to go back to the previous track. You can also slide and hold the
volume knob to fast forward or rewind the track.
*Some models.
5-23















Content      ..     11      12      13      14     ..
