When Driving
i-ACTIVSENSE
Types of Images Displayed on the Screen
Top view/Front view
Displays the image of the area around the vehicle and the vehicle front.

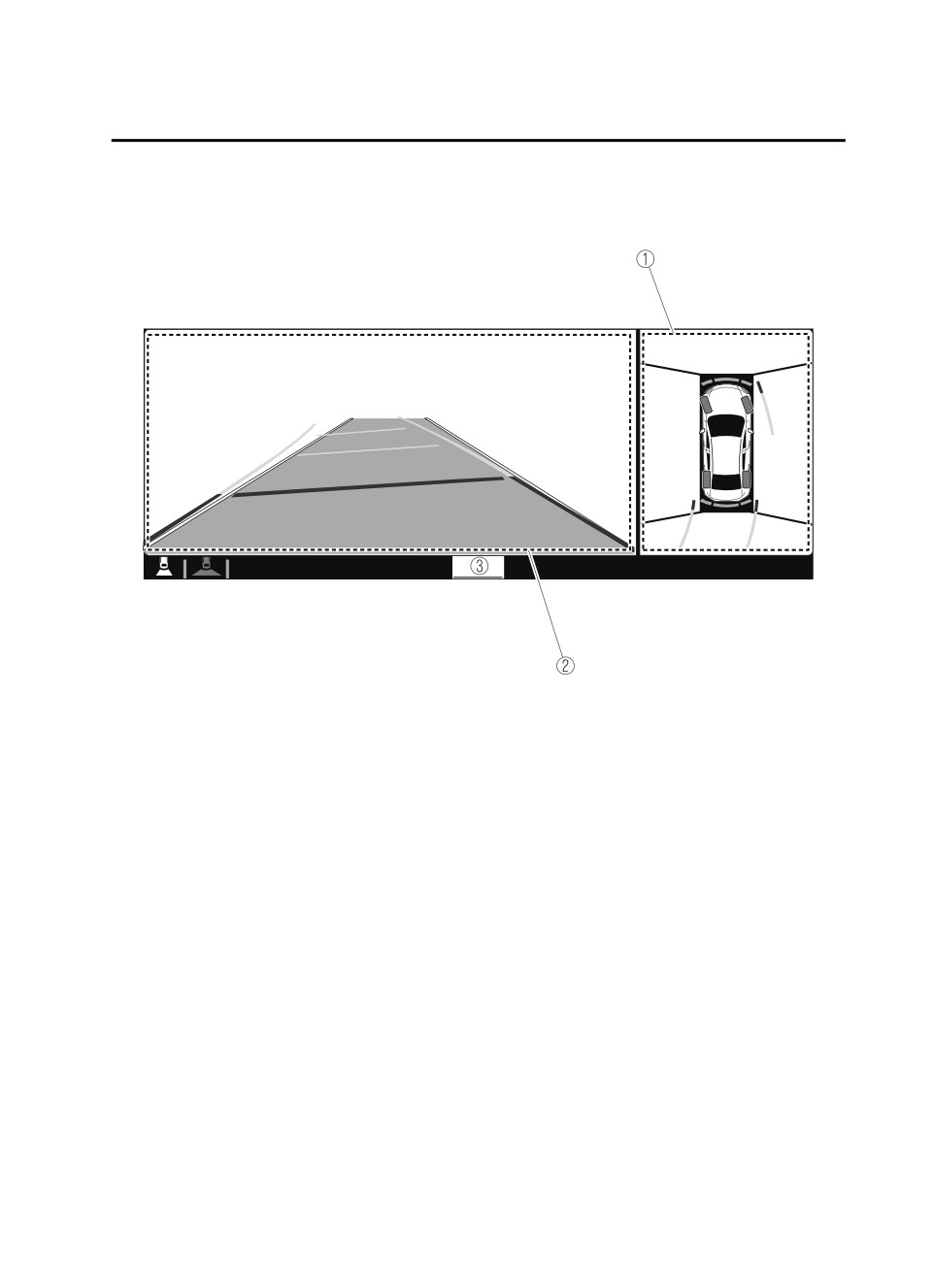

1. Top view screen
2. Front view screen
3.
“Check surroundings for safety.” message is displayed
4-182
When Driving
i-ACTIVSENSE
Top view/Front wide view
Displays the image of the area around the vehicle and the front of the vehicle
(wide-area).

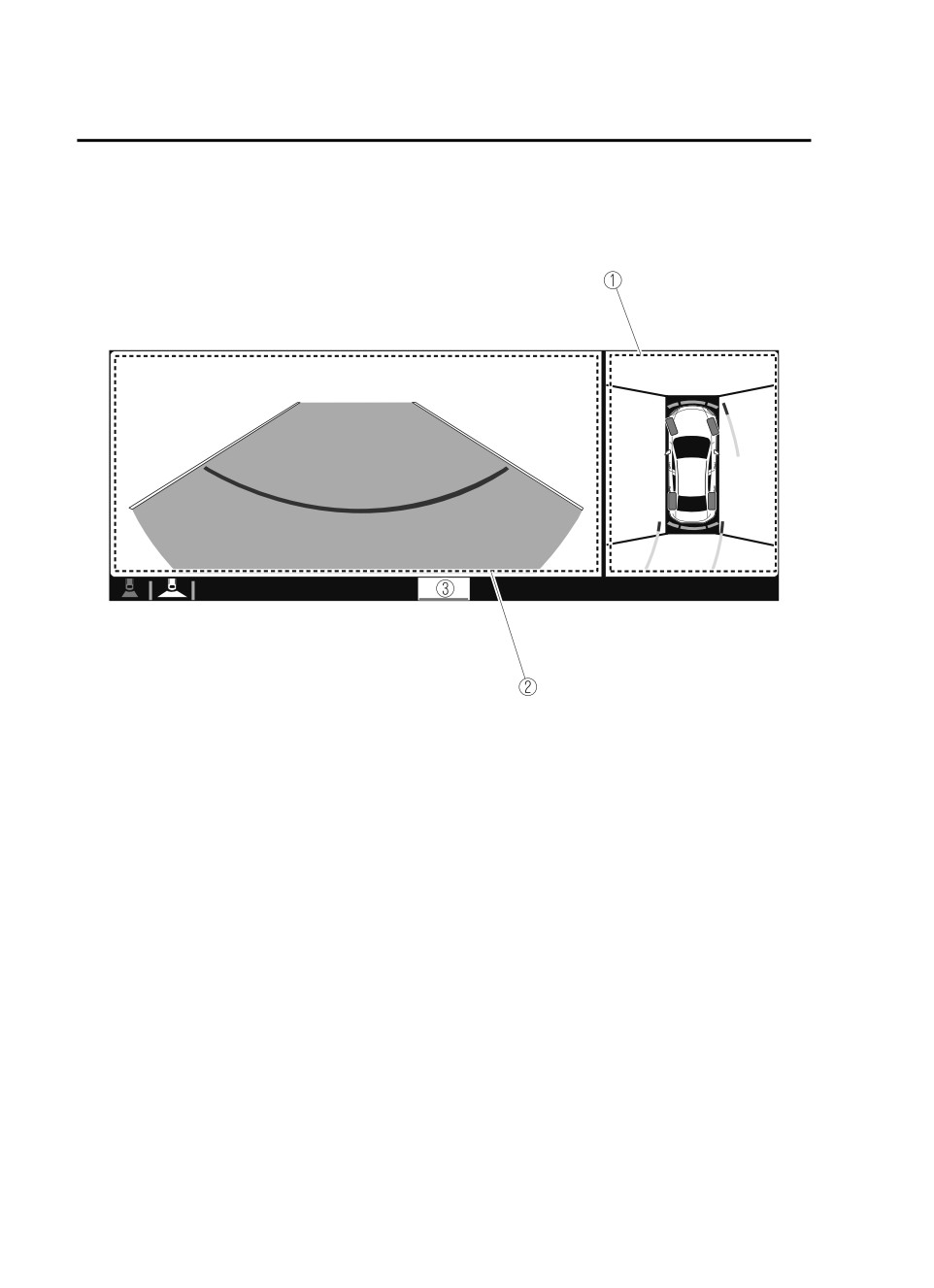

1. Top view screen
2. Front wide view screen
3.
“Check surroundings for safety.” message is displayed
4-183
When Driving
i-ACTIVSENSE
Side view

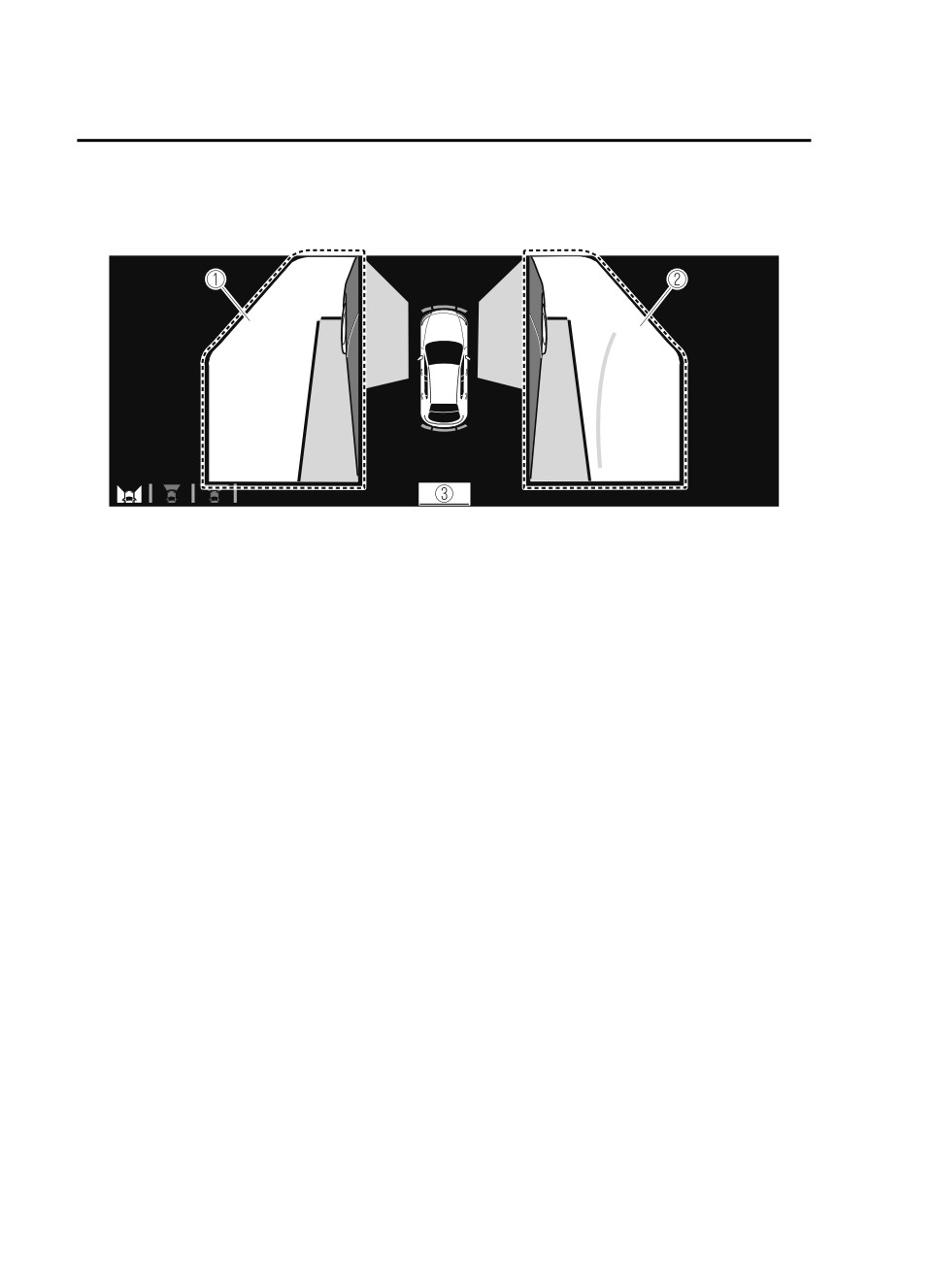

Displays the image of the left and right sides of the vehicle.
1. Left side view screen
2. Right side view screen
3.
“Check surroundings for safety.” message is displayed
4-184
When Driving
i-ACTIVSENSE
Top view/Rear view
Displays the image of the area around the vehicle and the rear of the vehicle.
1. Top view screen
2. Rear view screen
3.
“Check surroundings for safety.” message is displayed
4-185
When Driving
i-ACTIVSENSE
Top view/Rear wide view
Displays the image of the area around the vehicle and the rear of the vehicle
(wide-area).
1. Top view screen
2. Rear wide view screen
3.
“Check surroundings for safety.” message is displayed
4-186
When Driving
i-ACTIVSENSE
How to Use the System
Top view/Front view, Top view/Front wide view, Side view
Indication

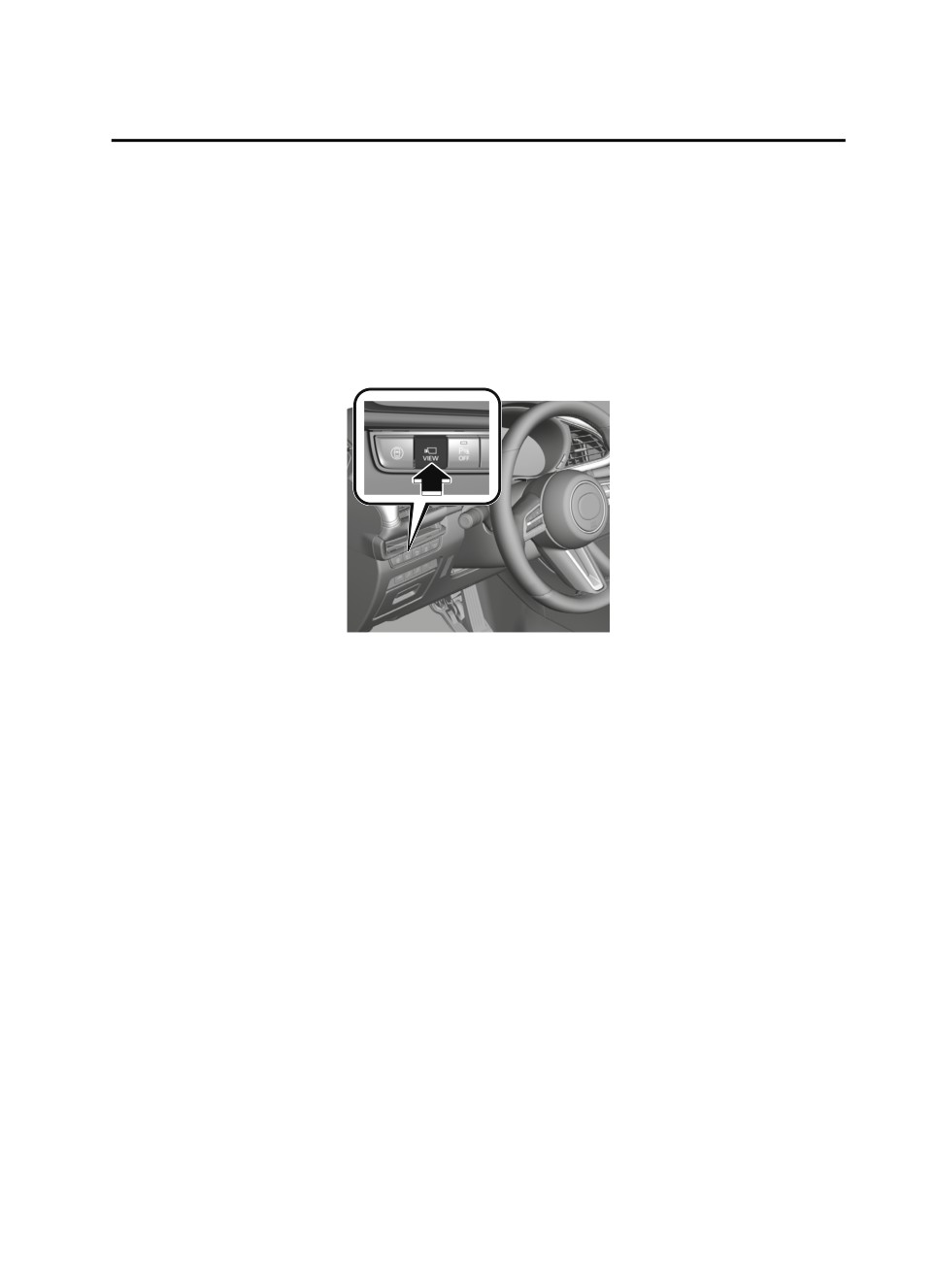

Images are displayed on the screen when the 360°View Monitor switch is pressed
with all of the following conditions met.
The ignition is switched ON.
The shift lever/selector lever is in a position other than R.
4-187
When Driving
i-ACTIVSENSE

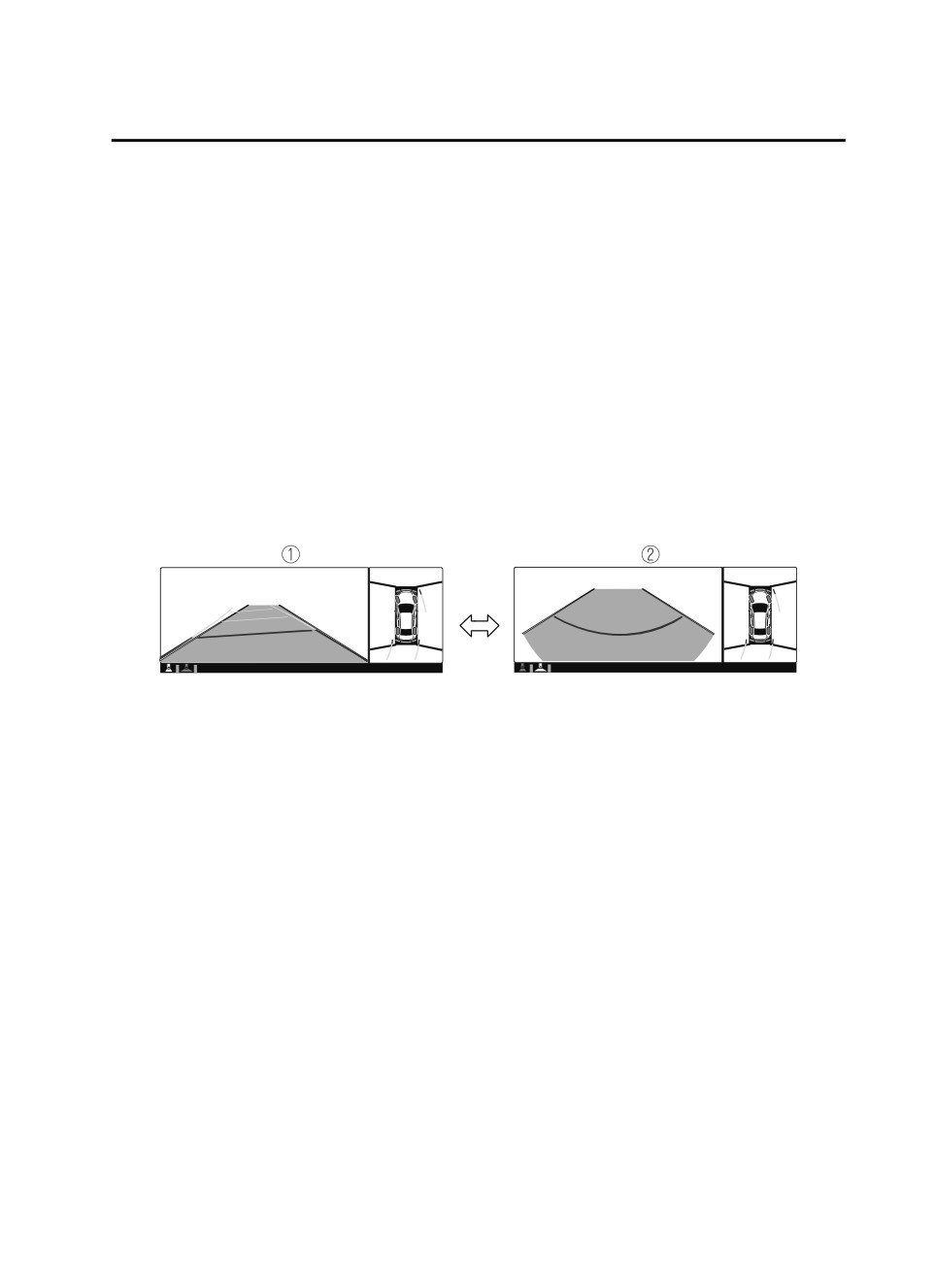

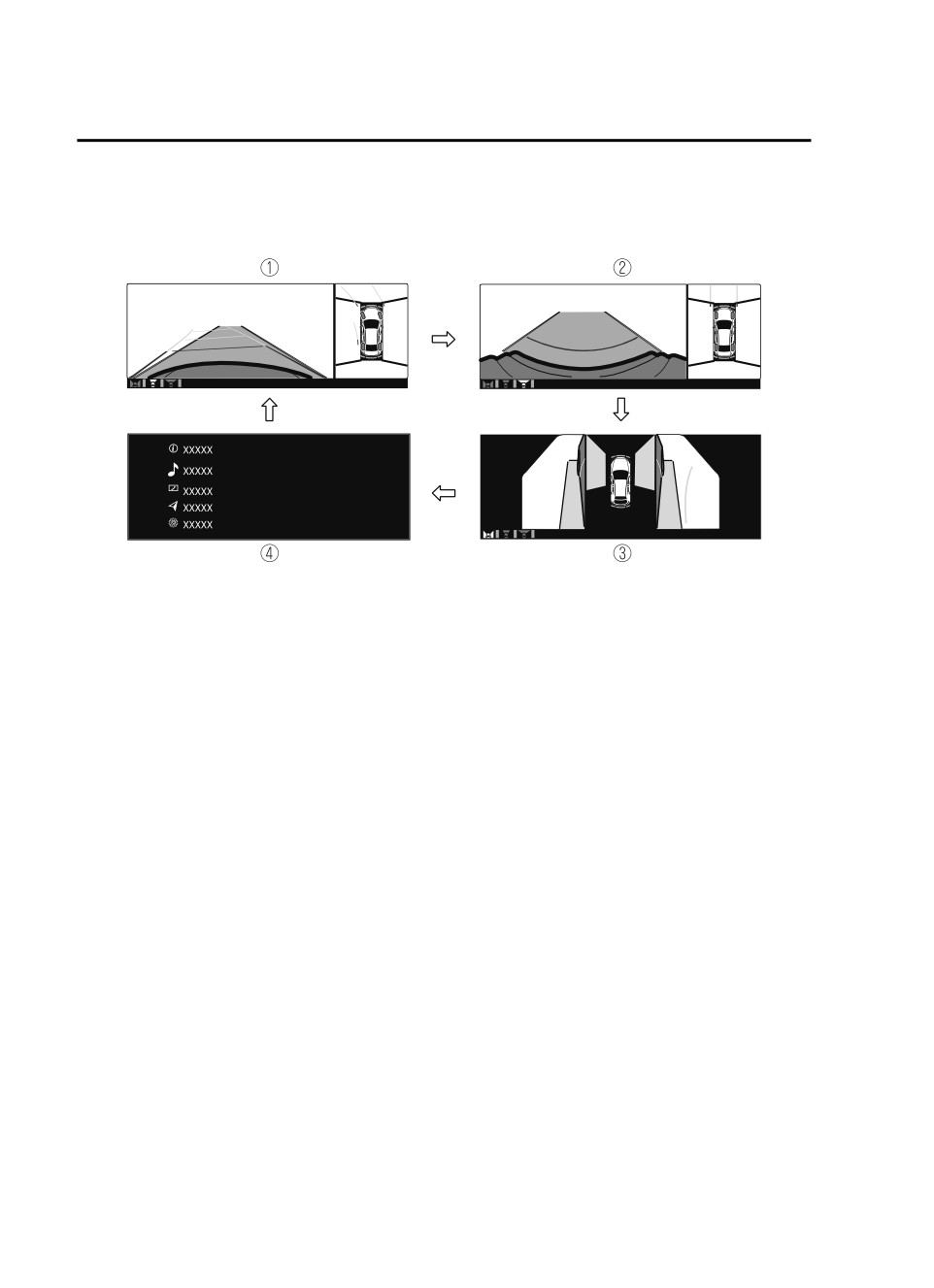

Display switching
The displayed screen can be changed each time the 360°view monitor switch is
pressed.
1. Top view/Front view
2. Top view/Front wide view
3. Side view
4. Home screen
NOTE
When the shift lever/selector lever is in R position, the displayed screen does not
switch to the top view/front view, top view/front wide view, or the side view.
Display of the top view/front view, top view/front wide view, or the side view
stops even with the display conditions met if any of the following conditions
occurs.
When a switch around the commander knob is pressed.
(Manual transmission)
The parking brake is applied.
(Automatic transmission)
The selector lever is shifted to P position (displayed when the selector lever is in
a position other than P).
(Displayed when vehicle speed is less than 15 km/h (9.3 mph))
4 minutes and 30 seconds have passed.
The vehicle speed is about 15 km/h (9.3 mph) or faster.
(Displayed when the vehicle speed is about 15 km/h (9.3 mph) or faster)
The vehicle speed is about 15 km/h (9.3 mph) or faster after 8 seconds have
passed since pressing the 360°View Monitor switch.
4 minutes and 22 seconds have passed from the point when the vehicle speed
was less than 15 km/h (9.3 mph) after 8 seconds have passed since pressing
the 360°View Monitor switch.
4-188
When Driving
i-ACTIVSENSE
The 360°View Monitor settings can be changed as follows.
Refer to the Settings section in the Mazda Connect Owner's Manual.
Automatic display of the 360°View Monitor when the ultrasonic sensor detects
an obstruction.
Automatic display of the 360°View Monitor when the ignition is switched ON.
Screen priority level when the system launches.
Top view/Rear view, Top view/Rear wide view
The top view/rear view, top view/rear wide view displays when all of the following
conditions are met.
The ignition is switched ON.
Shift lever/selector lever is in R position.
Display switching
The displayed screen can be changed each time the 360°view monitor switch is
pressed.
1. Top view/Rear view
2. Top view/Rear wide view
NOTE
The top view/rear view and top view/rear wide view automatically display
whether or not the 360°View Monitor switch is turned on or off when shifting the
shift lever/selector lever to R position.
The top view/rear view and top view/rear wide view displays the previously
displayed screen.
The setting can be changed to display the top view/front view when shifting from
reverse to a forward gear without operating the 360°View Monitor switch to check
the front of the vehicle while parallel parking.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-189
When Driving
i-ACTIVSENSE

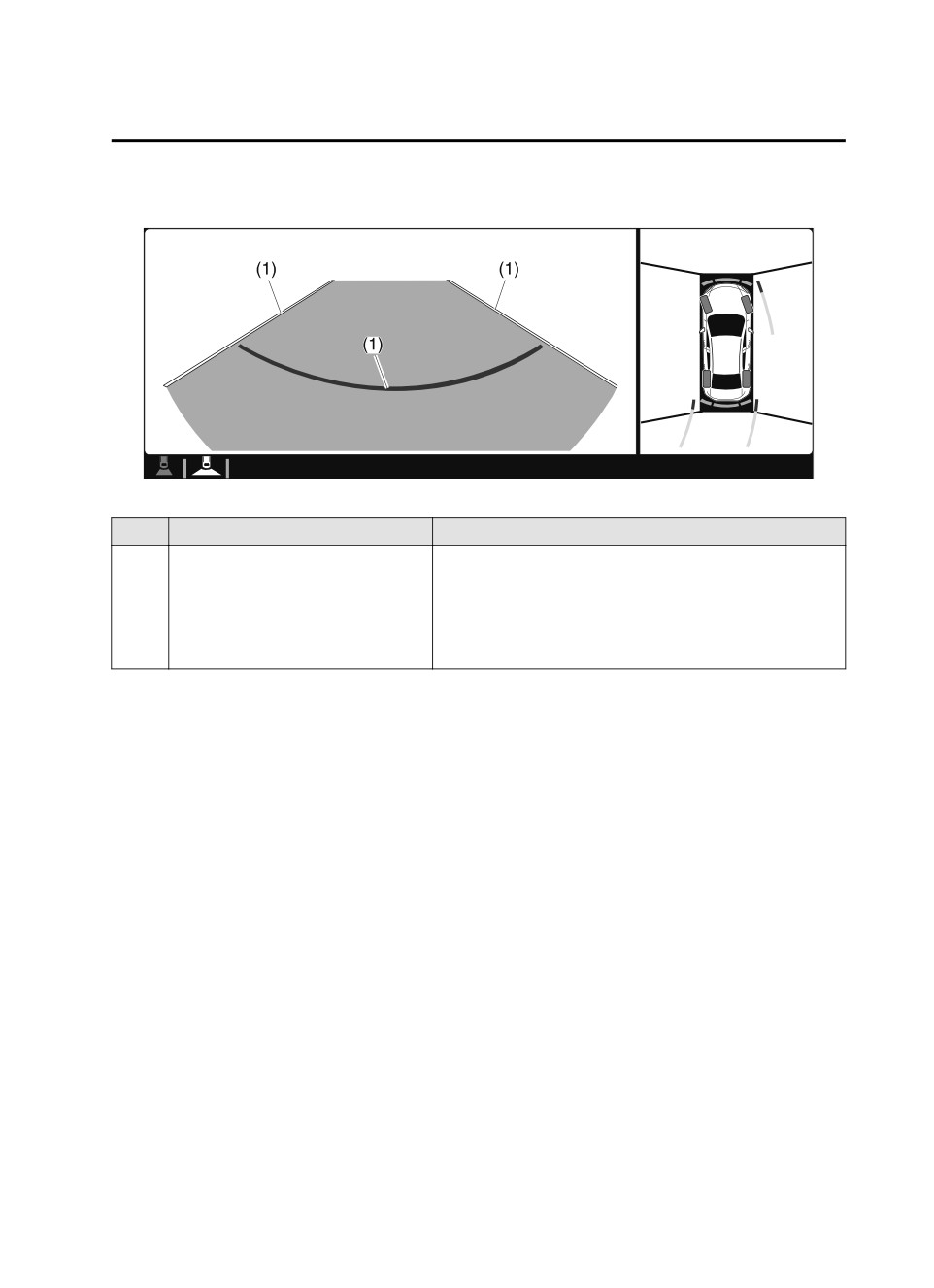

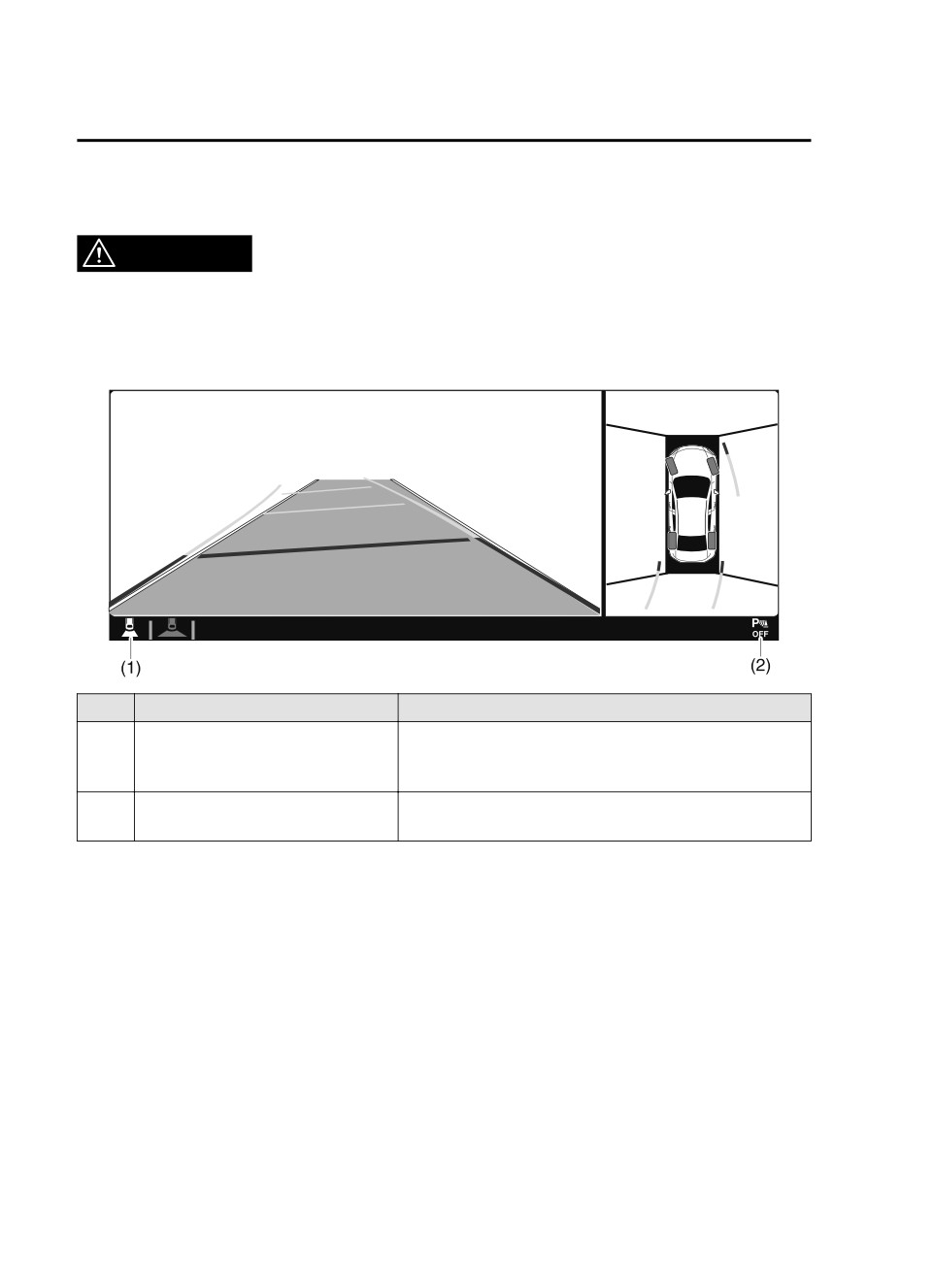

Screen operation/icon
WARNING
Always stop the vehicle when adjusting the 360°View Monitor image quality.
Do not adjust the 360°View Monitor image quality while driving. If you adjust the
360°View Monitor image quality (such as brightness, contrast, tone, and color
density) while driving, it could lead to an unexpected accident.

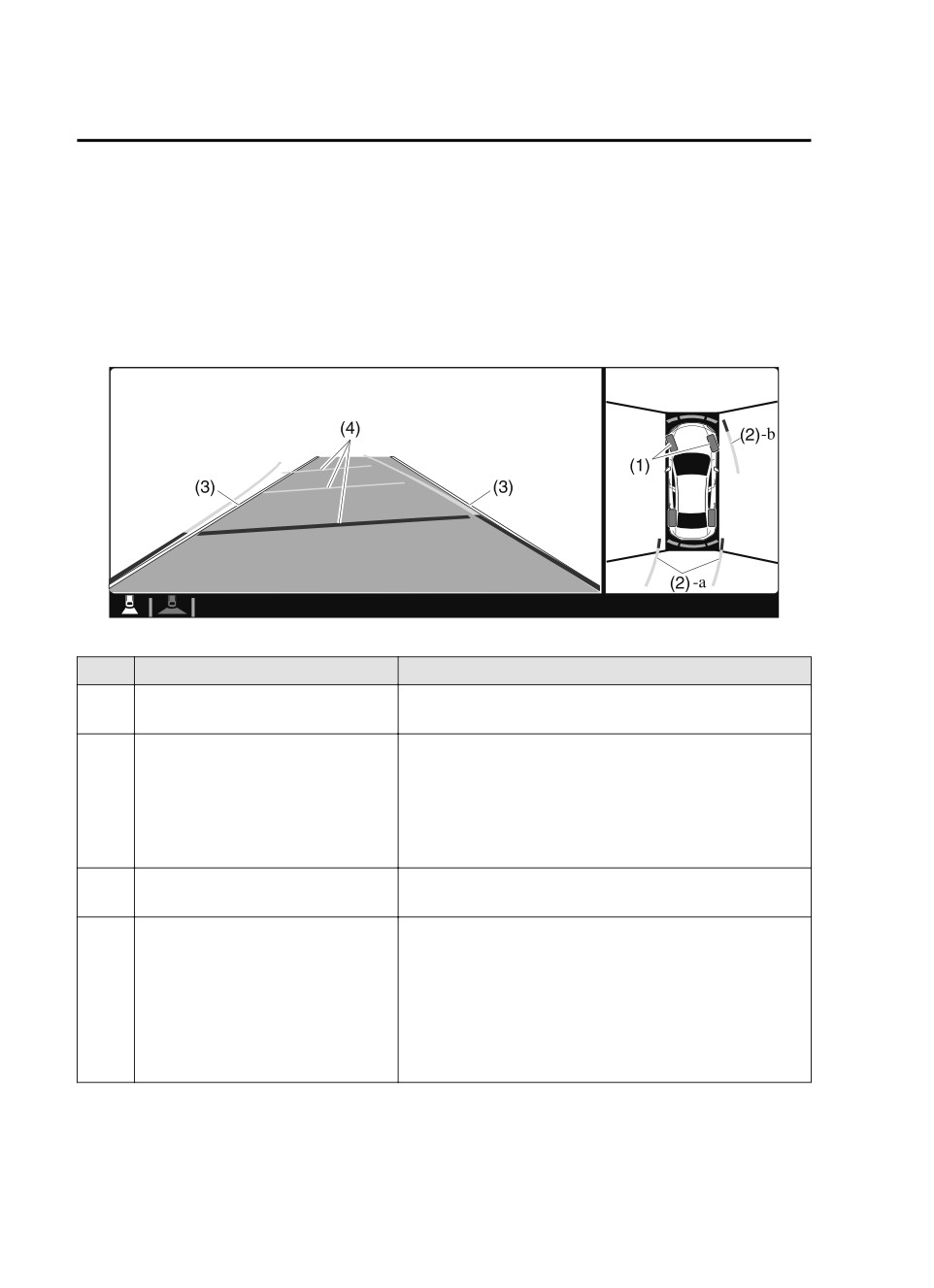

Display/Icon
Content
(1)
View status icon
Indicates which image is displayed among the front
view/front wide view/side view/rear view/rear wide
view.
(2)
Parking sensor status icon
Indicates that the parking sensor has a problem or it is
switched off.
4-190
When Driving
i-ACTIVSENSE
Top View/Front View

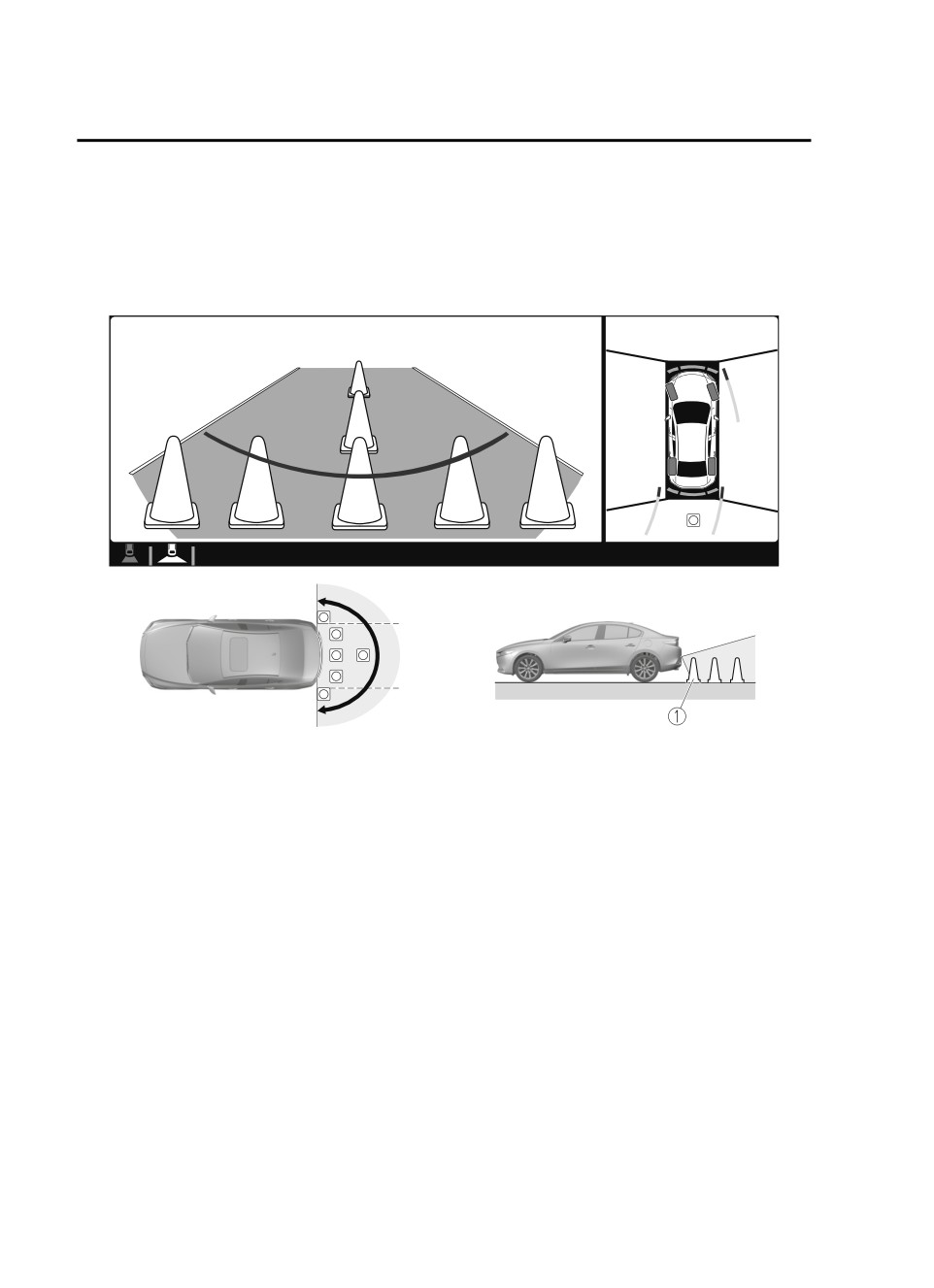

Use the top view/front view to assist in checking the safety of the surrounding area
when accelerating from a stop, parking, or stopping the vehicle.

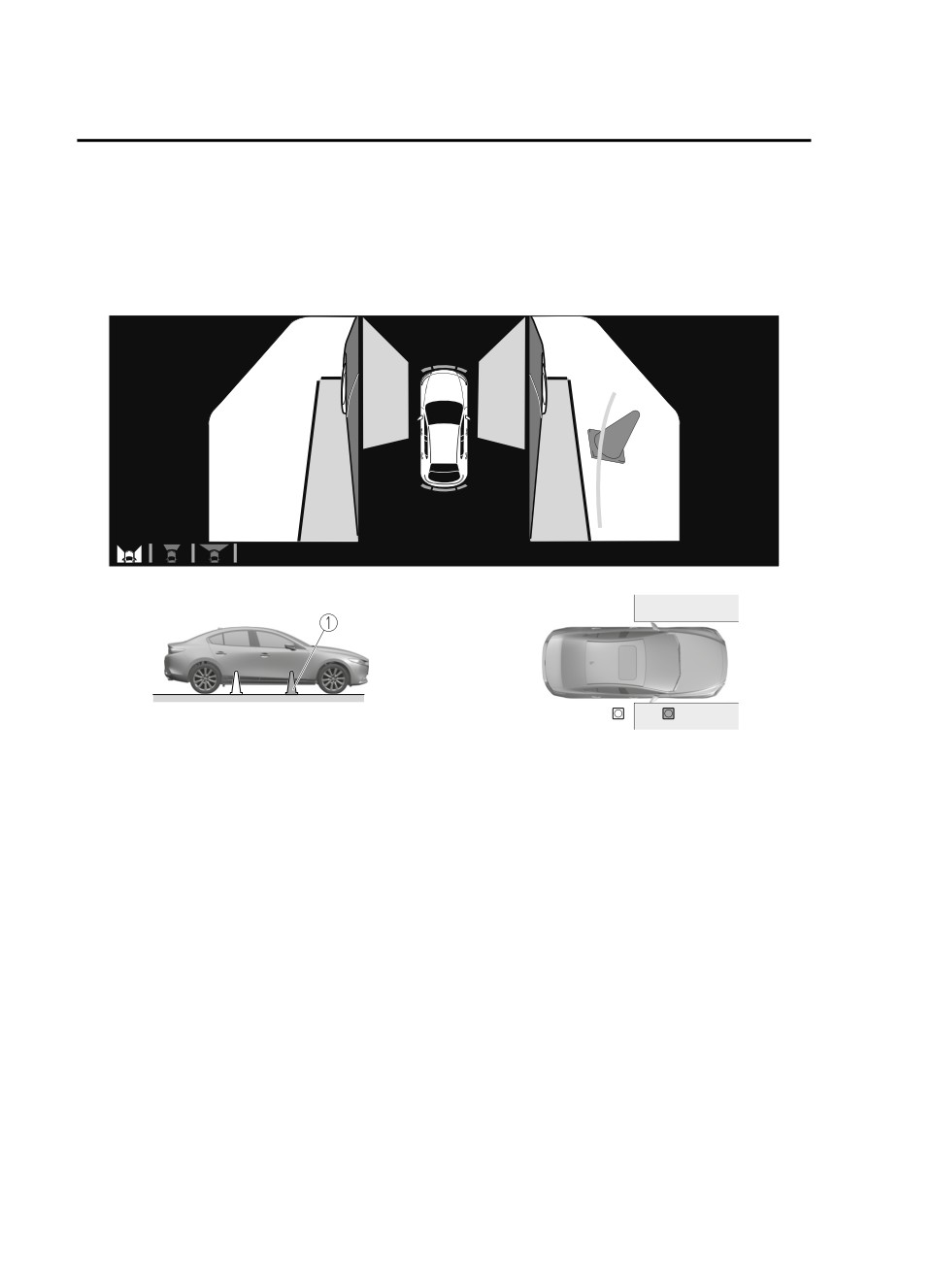

Display range

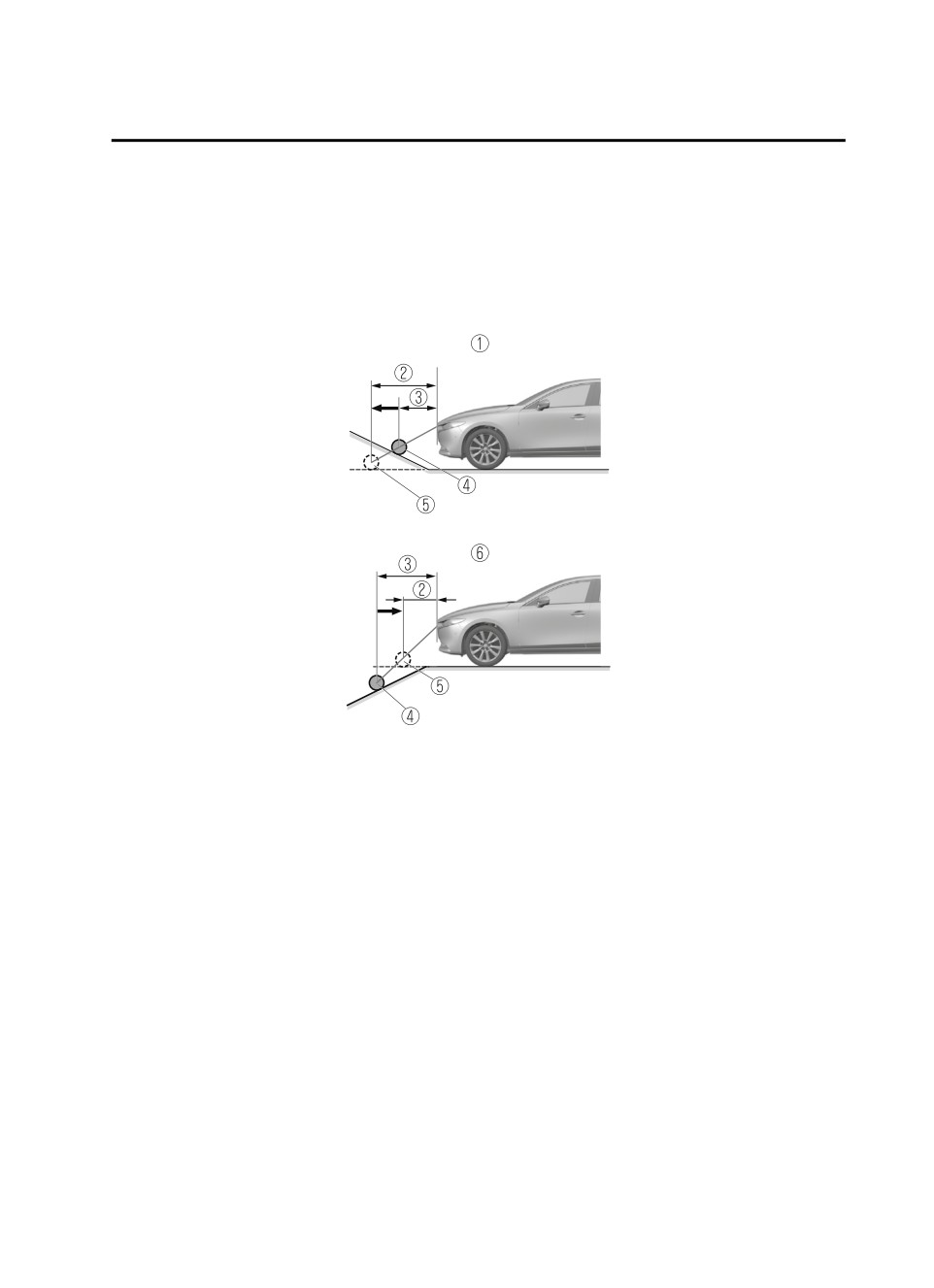

1. Target object
NOTE

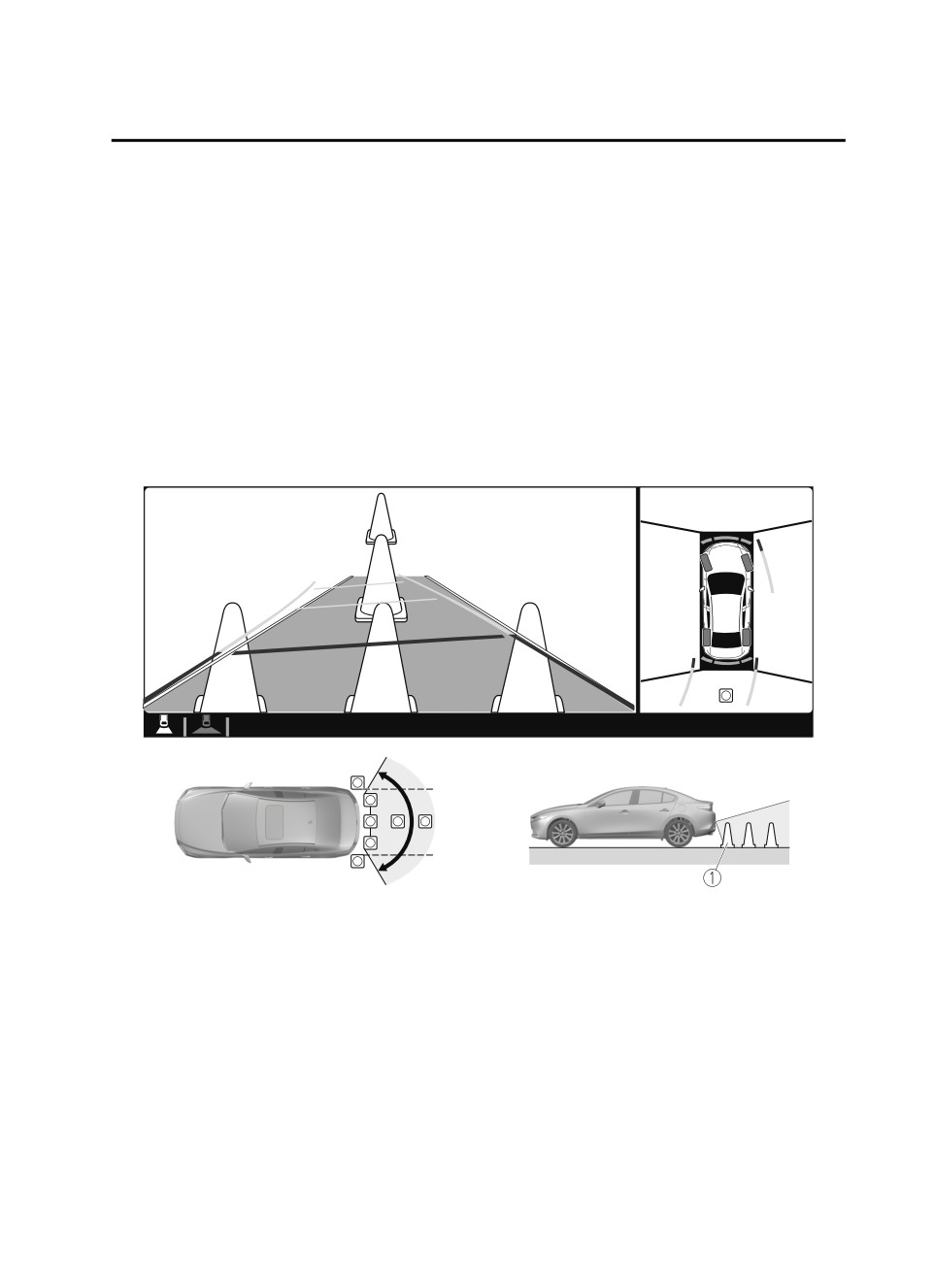

In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
Depending on the surrounding environment, the color of objects may be
displayed on the screen in a color different from the actual one.
Depending on the surrounding environment, it may take a few seconds for the
color of the screen display to adjust.
Obstructions displayed in the front view may not display on the top view screen.
If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
4-191
When Driving
i-ACTIVSENSE

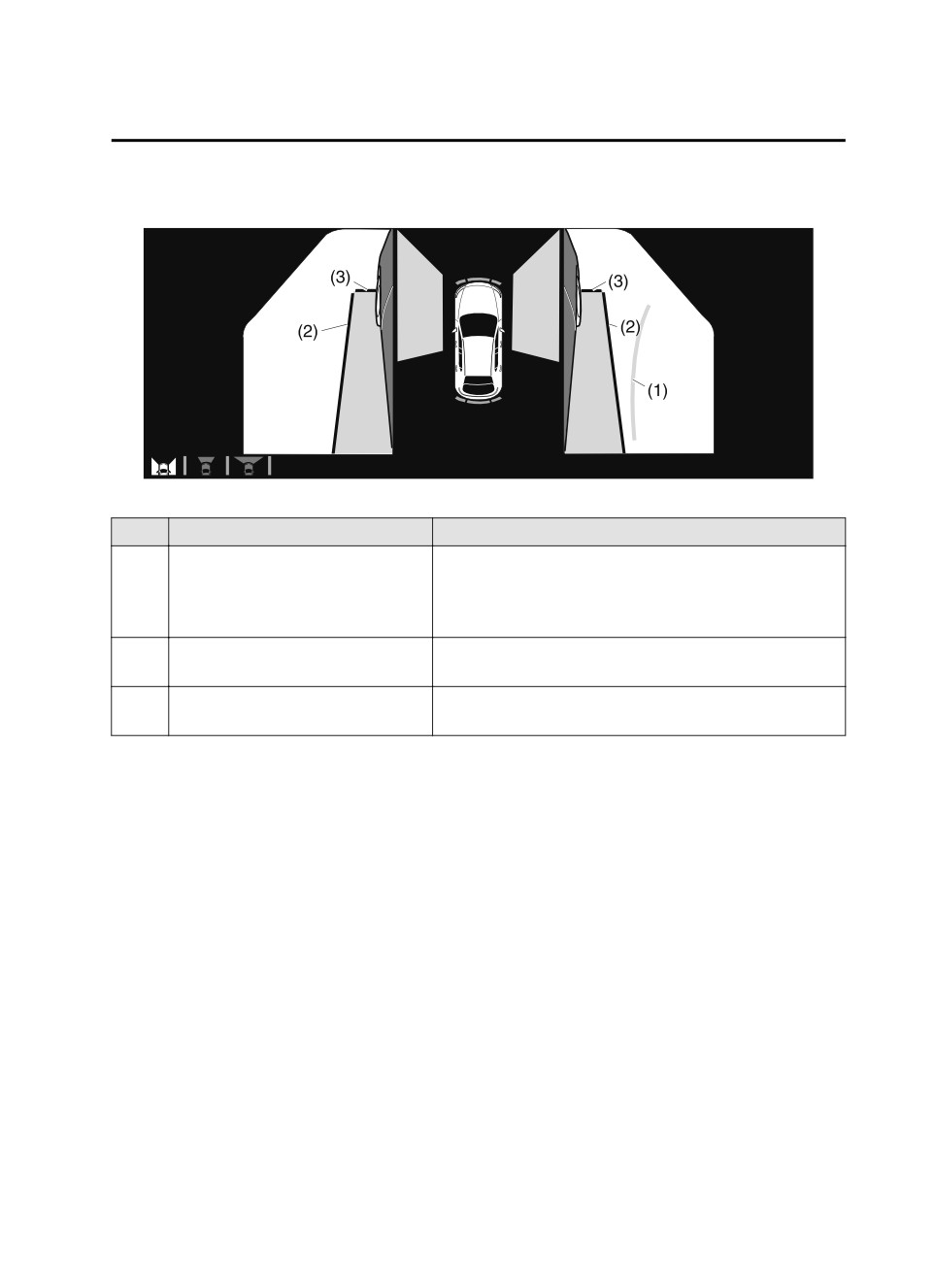

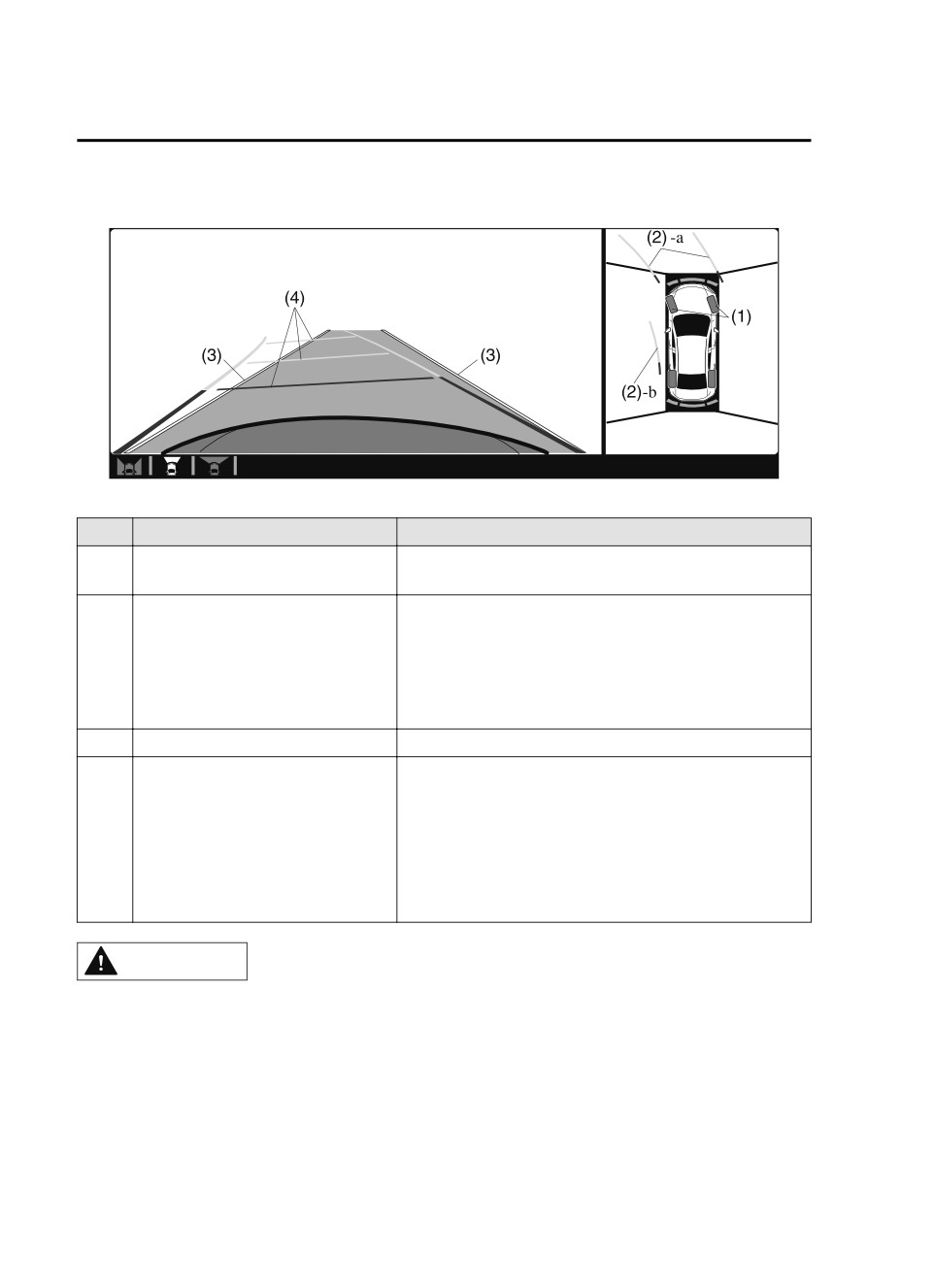

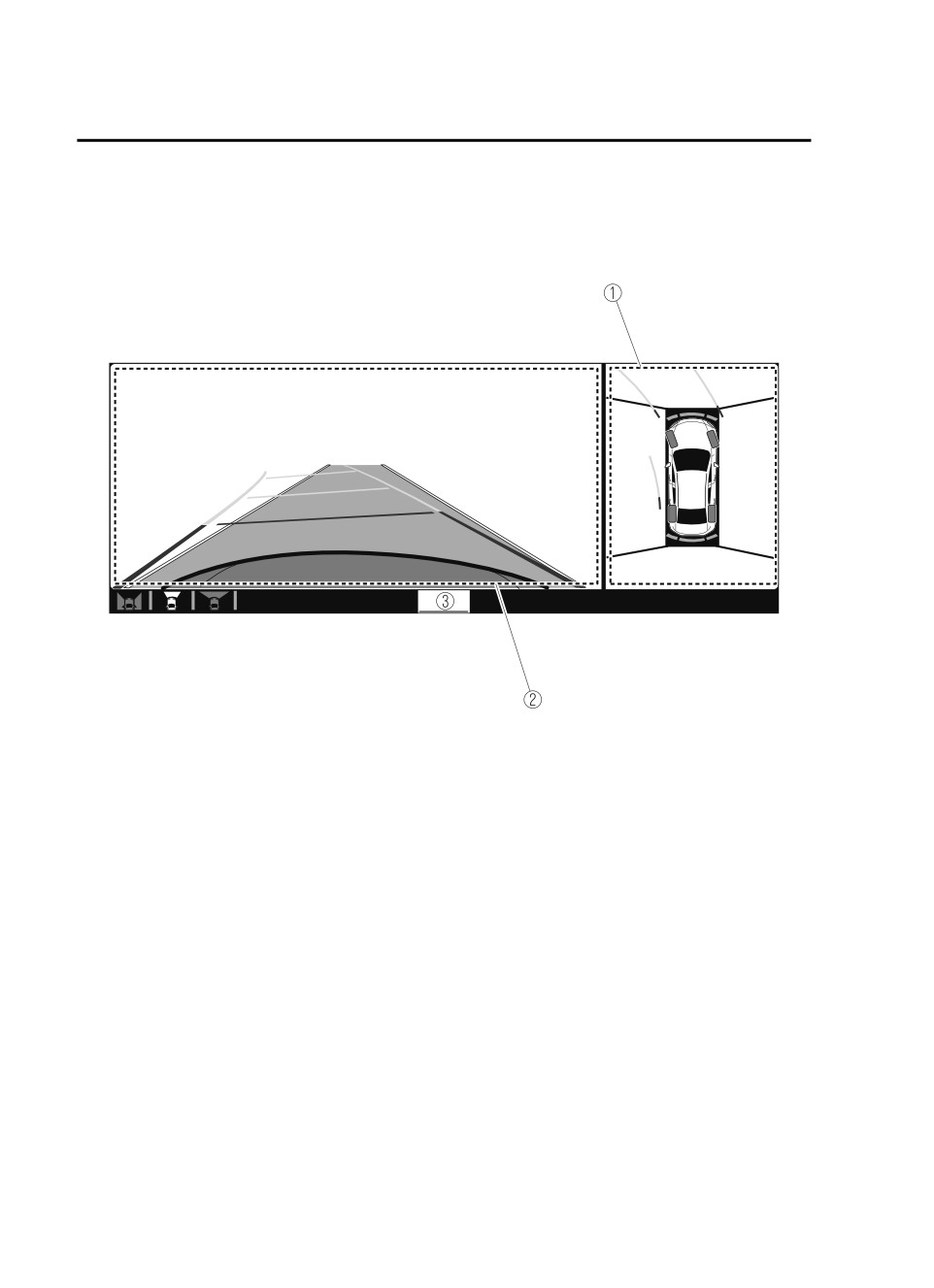

Viewing the screen
Display/Icon
Content
(1)
Tire icon
Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
(2)
Projected vehicle path lines (yellow
Indicates the approximate projected path of the vehicle.
& red)
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the front bumper
is expected to travel.
b) Indicates the path where the inner side of the vehicle
is expected to travel.
(3)
Extended vehicle width lines (blue)
Indicates the approximate width of the vehicle.
(4)
Projected vehicle path distance
Indicates the distance (from front end of bumper) in
guide lines (yellow & red)
front of the vehicle.
The red line indicates the point about 0.5 m (19 in)
from the front end of the bumper.
The yellow lines indicate the points about 1.0 m (39
in) and 2.0 m (78 in) from the front end of the bump-
er.
CAUTION
The parking sensor detection range has limitations. For example, obstructions
closing in from the side and objects short in height may not be detected. Always
confirm the safety around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and warning
sound.
Refer to Parking Sensor System on page 4-248.
4-192
When Driving
i-ACTIVSENSE
NOTE
The setting can be changed so that the projected vehicle path lines are not
displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.

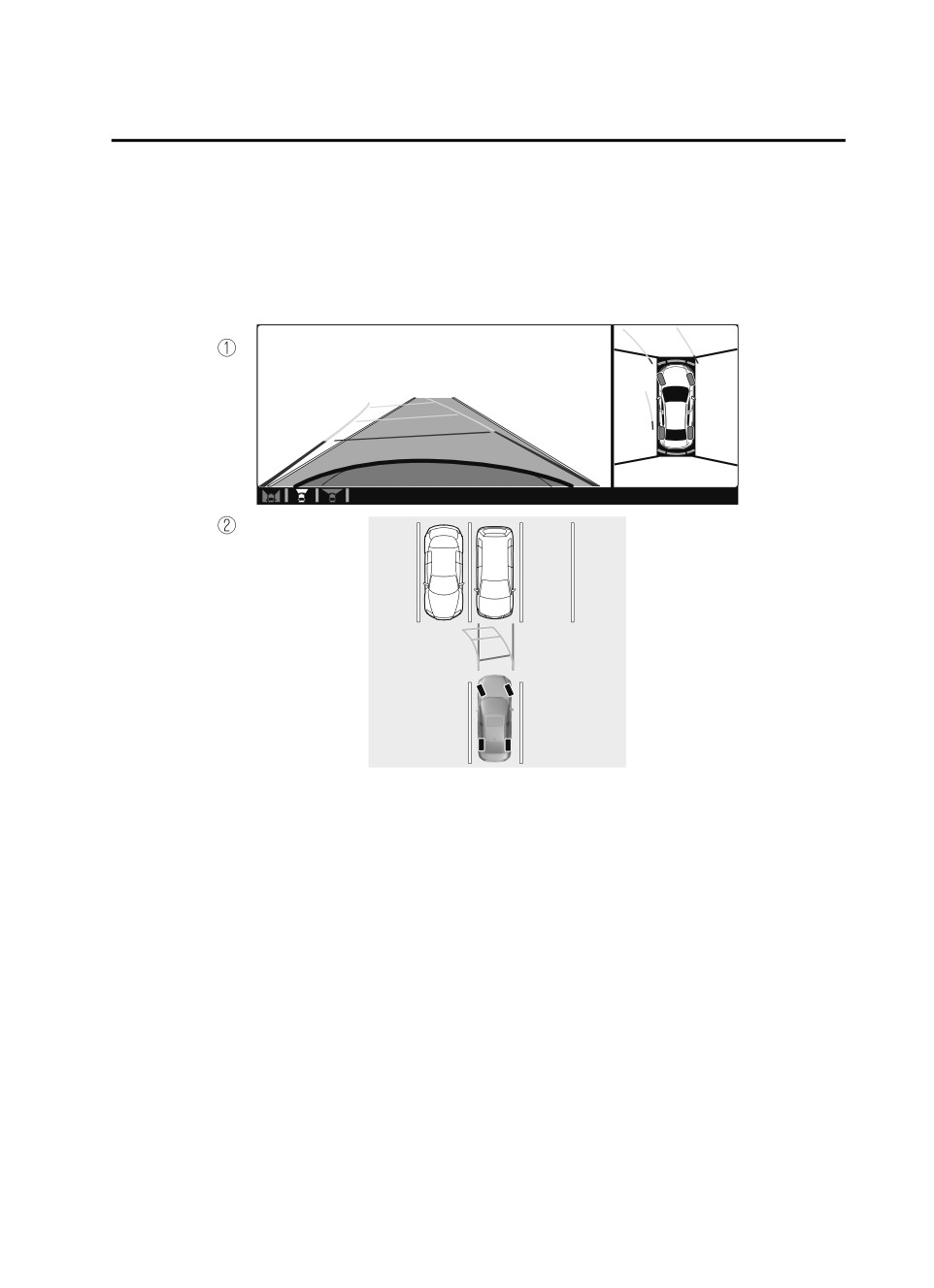

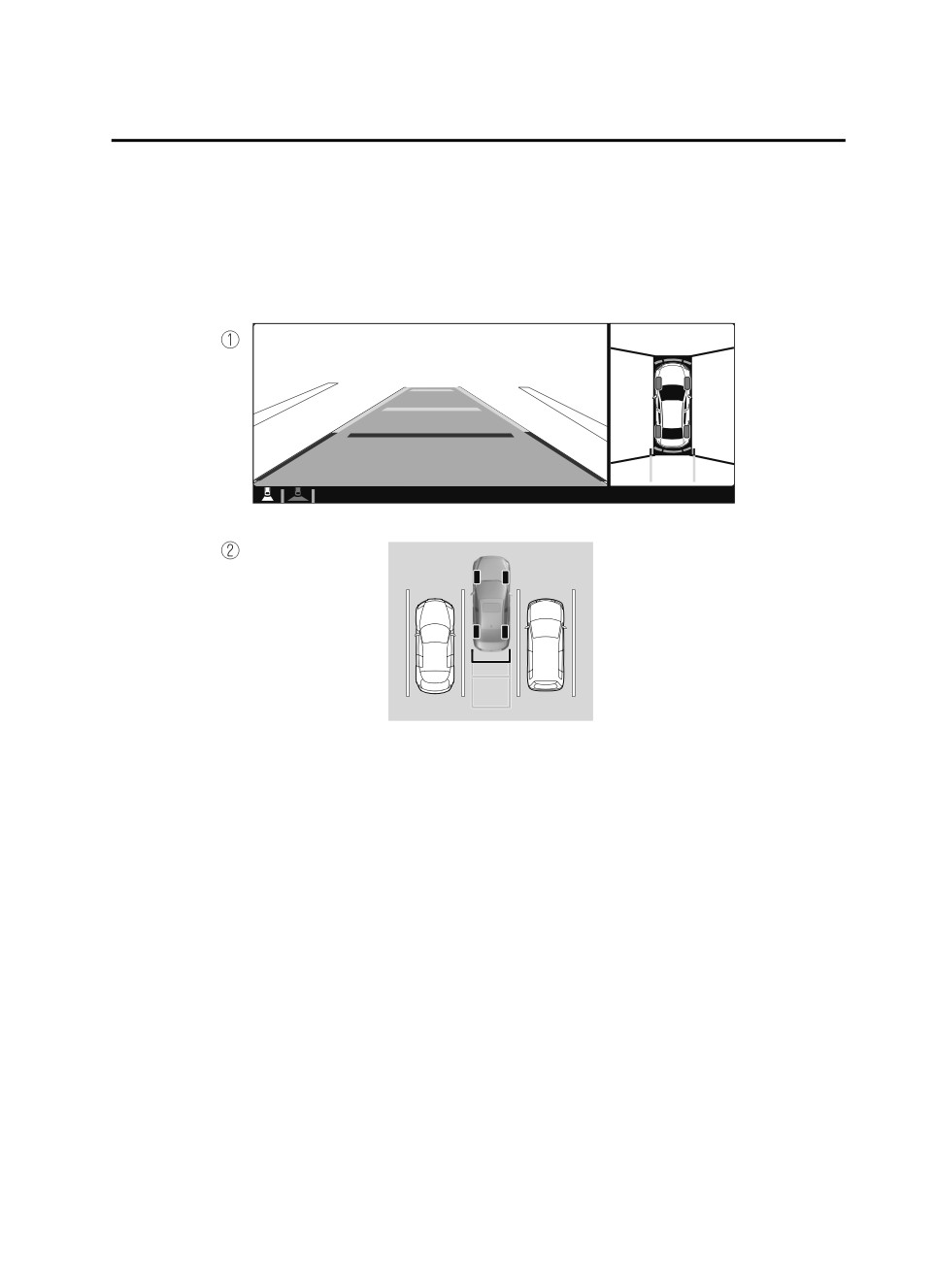

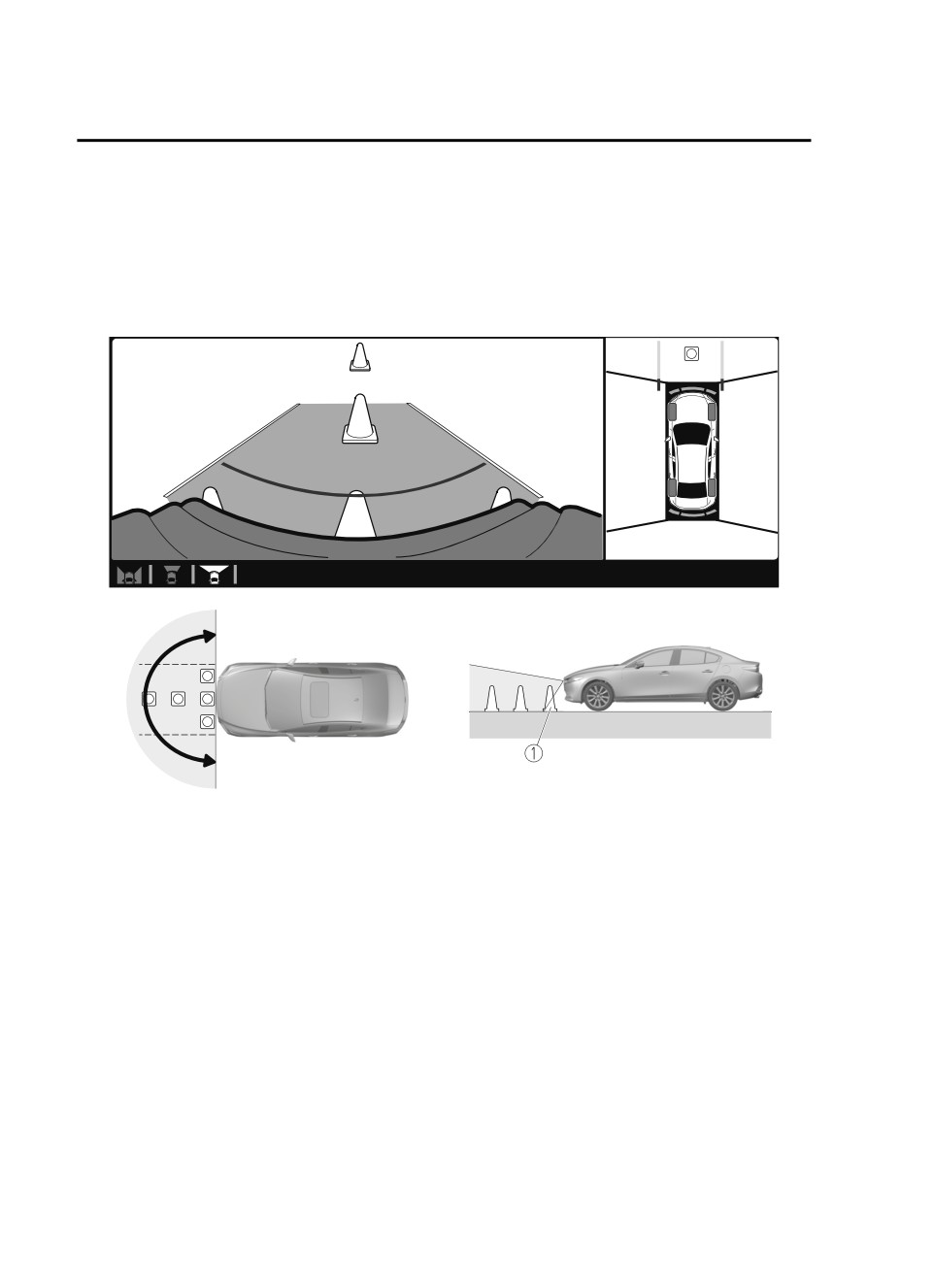

How to use the projected vehicle path line function
1.
(Screen display)
2.
(Actual condition)
Make sure that there are no obstructions within the projected vehicle path lines.
Drive the vehicle forward while turning the steering wheel so that no obstructions
come within the projected vehicle path lines.
4-193
When Driving
i-ACTIVSENSE
Top View/Front Wide View

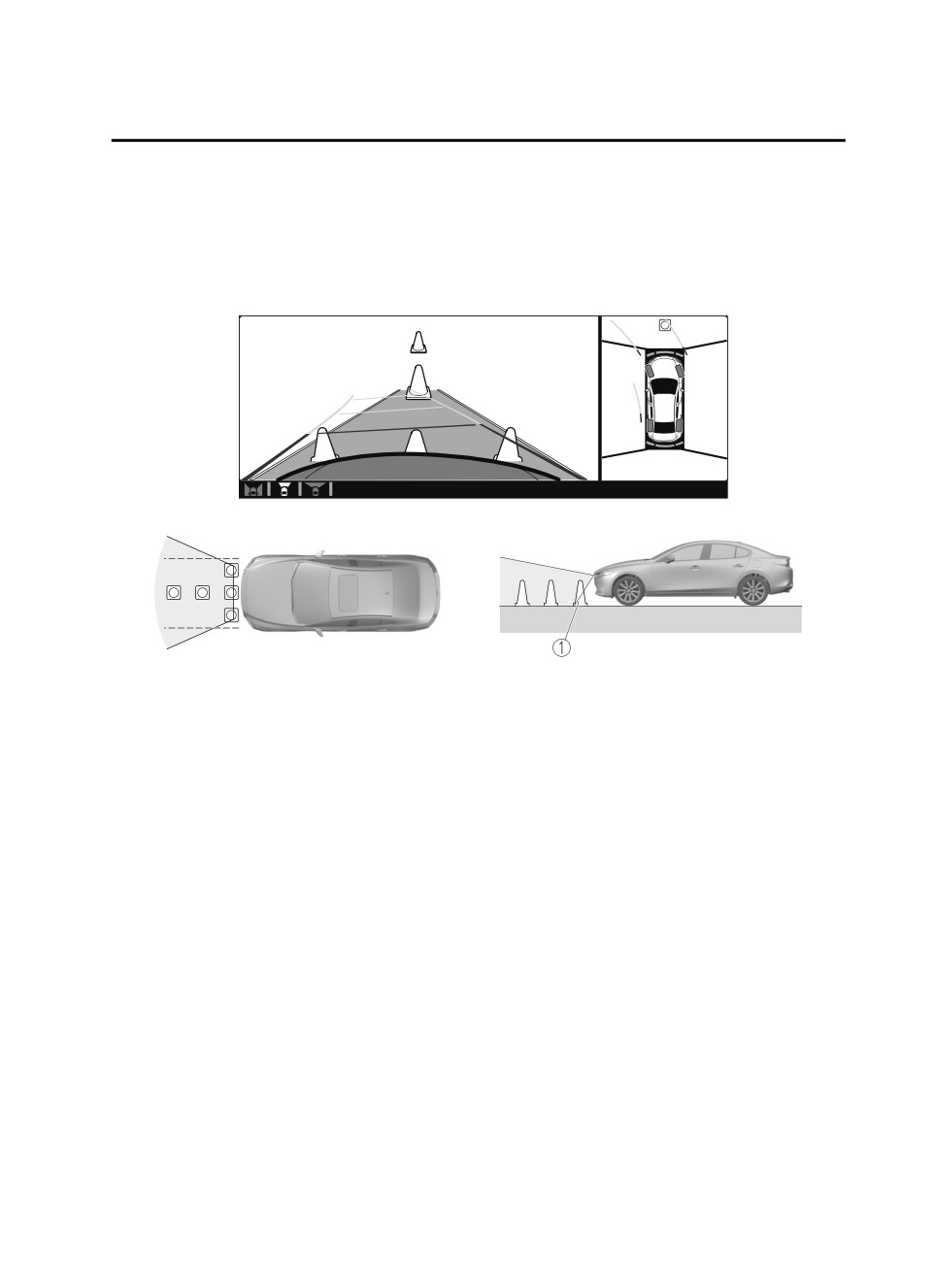

Use the top view/front wide view to assist in checking the safety of the surrounding
area when accelerating from a stop or entering a T-shaped intersection and
intersection.
Display range
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
Depending on the surrounding environment, the color of objects may be
displayed on the screen in a color different from the actual one.
Depending on the surrounding environment, it may take a few seconds for the
color of the screen display to adjust.
Obstructions displayed in the front view may not display on the top view screen.
If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.

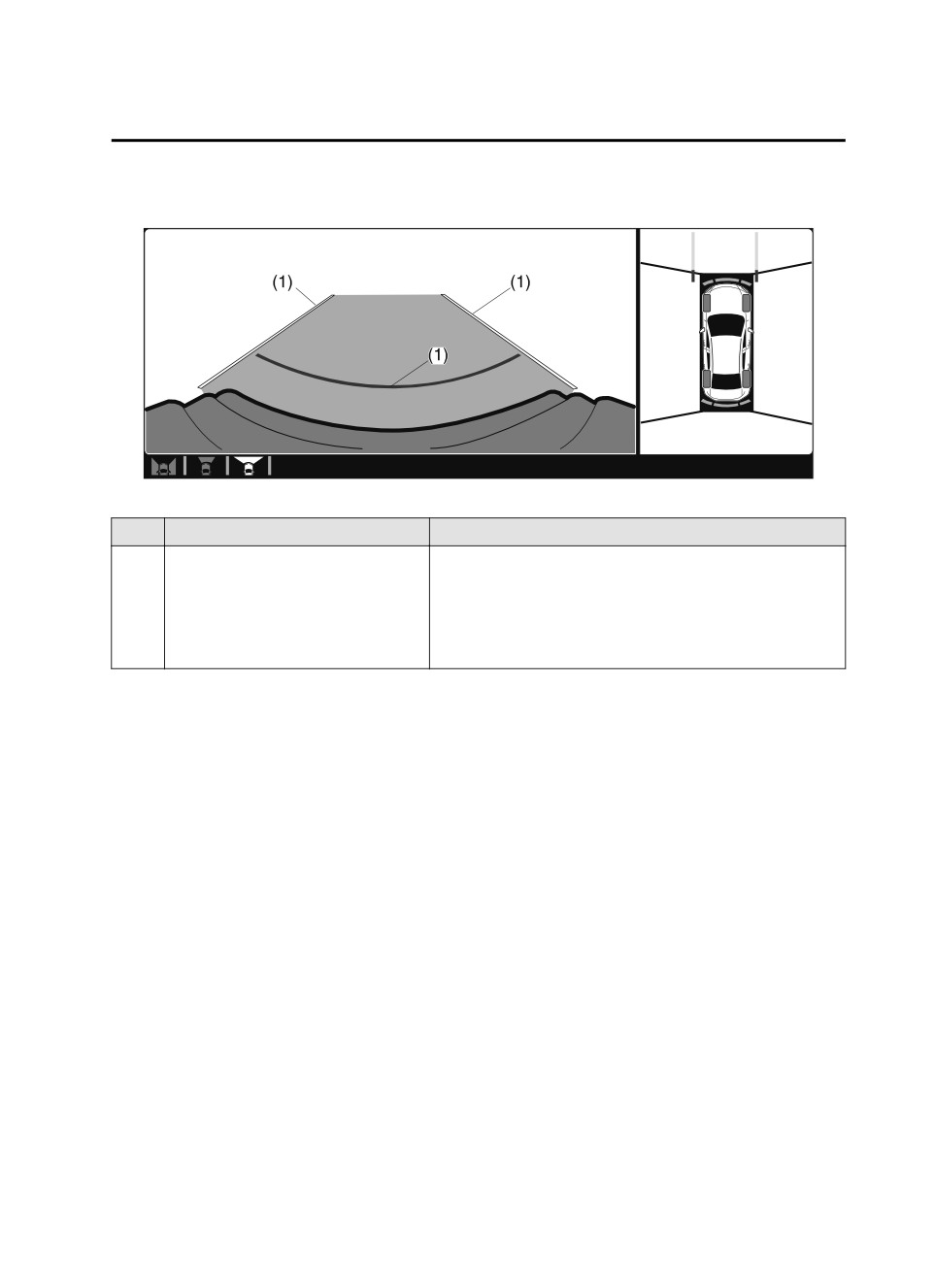

4-194
When Driving
i-ACTIVSENSE
Viewing the screen
Display/Icon
Content
(1)
Extended vehicle width lines and
Indicates the approximate width of the vehicle and the
distance guide lines (blue & red)
distance (from front end of bumper) in front of the vehi-
cle.
The red lines indicate the points up to about 0.5 m (19
in) from the front end of the bumper.
NOTE
The front wide view screen displays the image in front of the vehicle at a wide angle
and corrects the image to help detect approaching obstructions from the side.
Therefore, it differs from the actual view.
4-195
When Driving
i-ACTIVSENSE
Side View
Use the side view to assist in checking the safety of the surrounding area when
accelerating from a stop, parking, or stopping the vehicle.
Display range
1. Target object
4-196
When Driving
i-ACTIVSENSE
Viewing the screen
Display/Icon
Content
(1)
Projected vehicle path lines (yellow)
Indicates the approximate projected path of the vehicle.
Moves in conjunction with the steering wheel operation.
The projected vehicle path lines (yellow) indicate the
path the inner side of the vehicle is expected to travel.
(2)
Vehicle parallel guide lines (blue)
Indicates the approximate vehicle width including the
door mirrors.
(3)
Vehicle front end guide lines (blue)
Indicates the point about 0.25 m (9.84 in) from the front
edge of the vehicle (front edge of the bumper).
NOTE
The setting can be changed so that the projected vehicle path lines are not
displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-197
When Driving
i-ACTIVSENSE

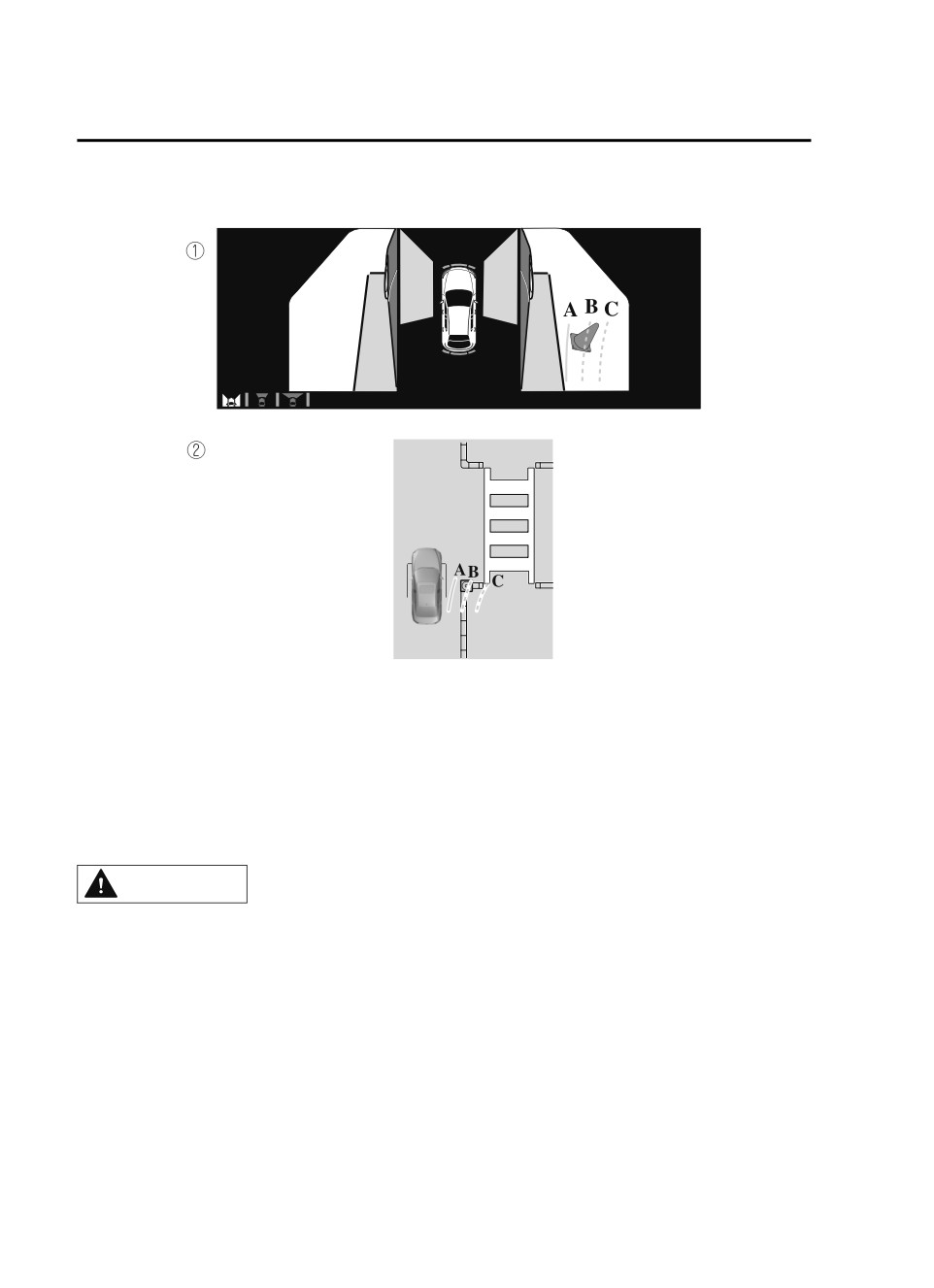

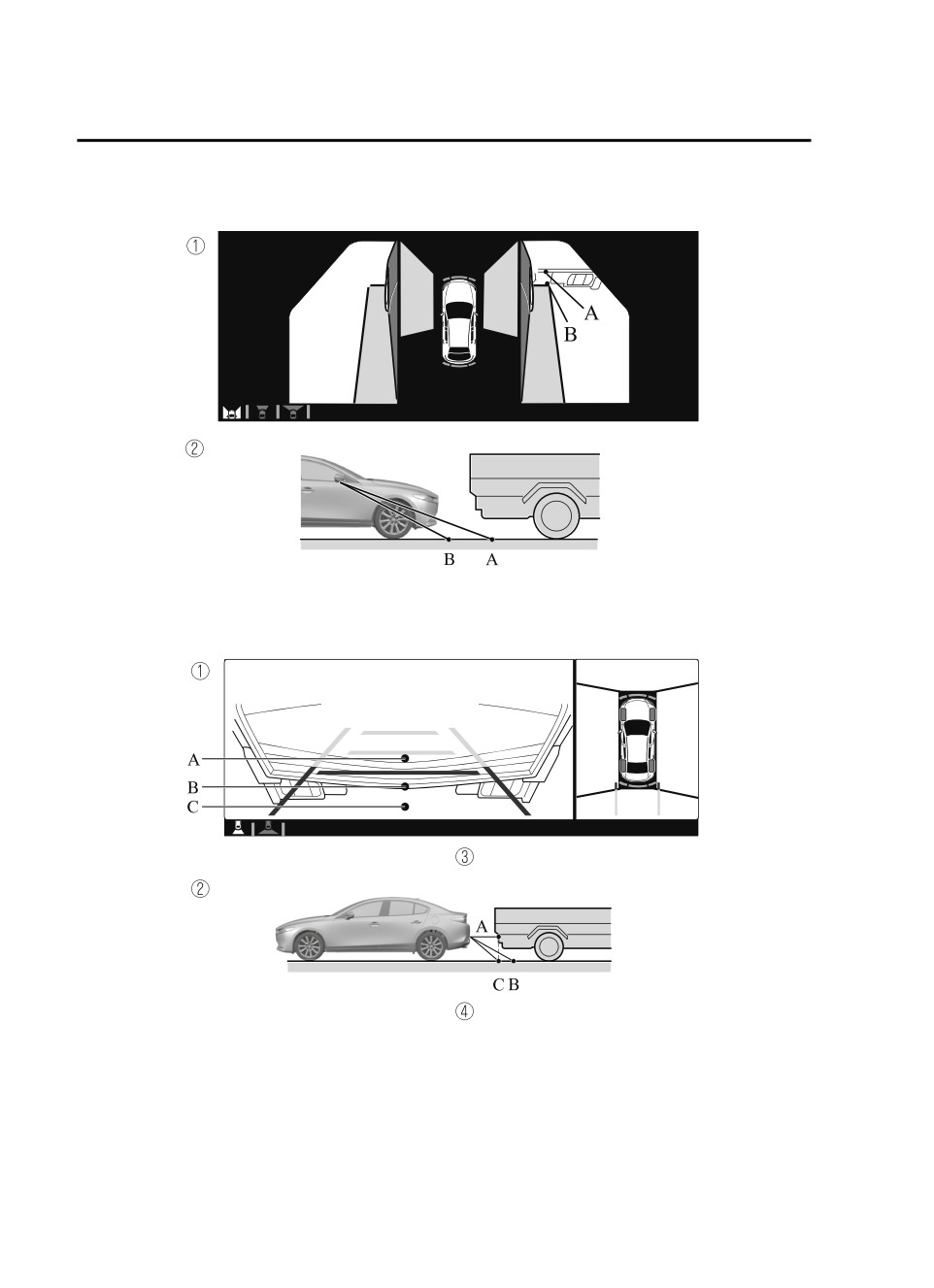

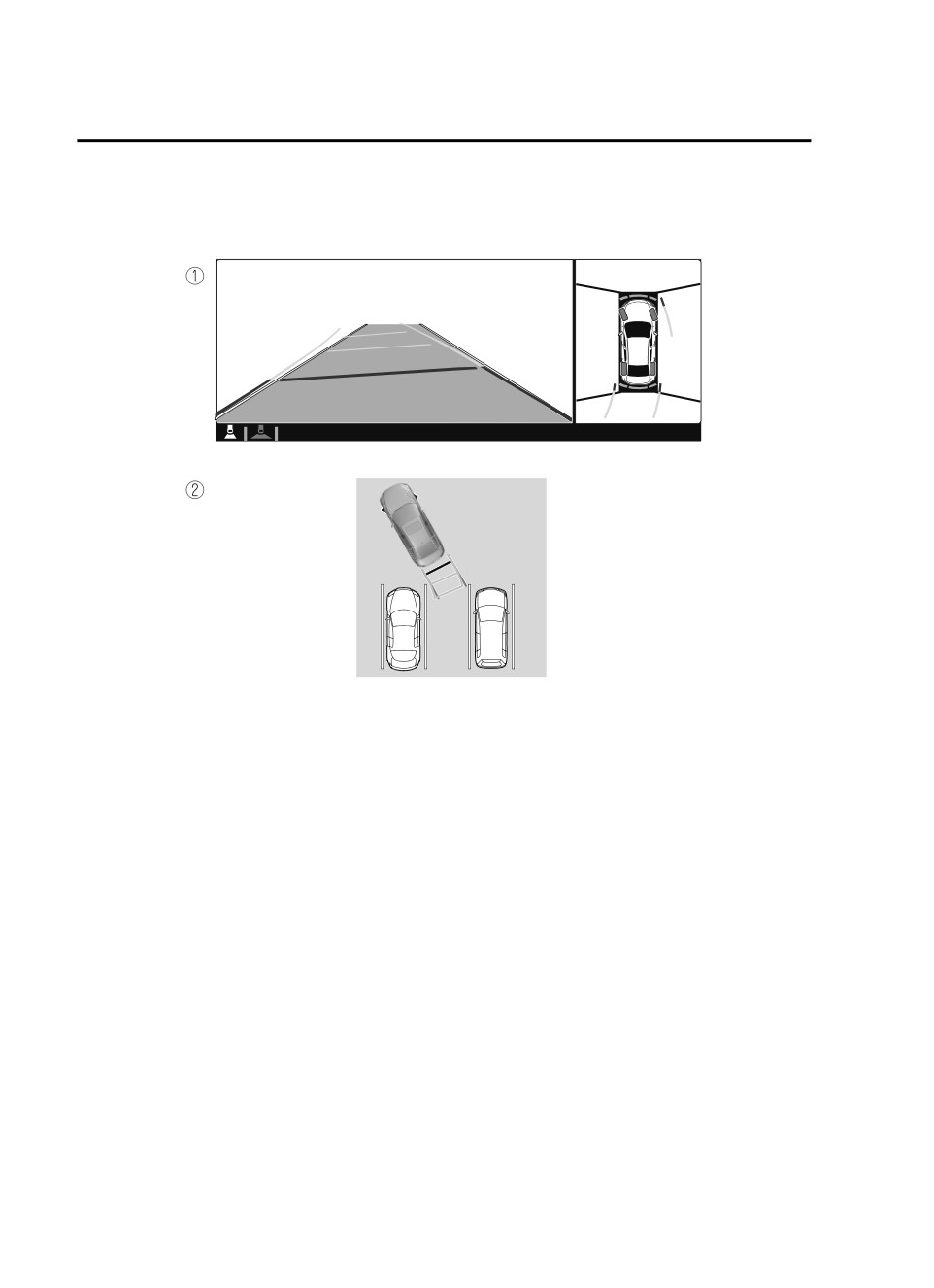

How to use the projected vehicle path line function
1.
(Screen display)
2.
(Actual condition)
Make sure that there are no obstructions within the projected vehicle path lines.
Turn the steering wheel so that the projected vehicle path lines travel inside of the
obstruction (A), and drive the vehicle forward until it passes the obstruction.
If the projected vehicle path lines are on an obstruction (B) or outside of the
obstruction (C), the vehicle may contact the obstruction when turning the vehicle
sharply.
CAUTION
¾ The parking sensor detection range has limitations. For example, obstructions
closing in from the side and objects short in height may not be detected. Always
confirm the safety around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and
warning sound.
Refer to Parking Sensor System on page 4-248.
¾ Do not turn the steering wheel any more until the vehicle has passed the
obstruction, even if the obstruction is not visible on the side view image. If the
steering wheel is turned even more, the vehicle may contact the obstruction if it is
turned sharply.
4-198
When Driving
i-ACTIVSENSE
NOTE
Because there might be a difference between the image displayed on the screen
and the actual conditions, always check the safety of the surrounding area using
the mirrors and directly with your eyes when driving.
Even though the object displayed on the screen, such as a road curb or a division
line of a parking space, and the vehicle parallel guide lines appear parallel, they
may not actually be parallel.
Top View/Rear View
Use the top view/rear view to assist in checking the safety of the surrounding area
when accelerating from a stop, parking, or stopping the vehicle.
Range of displayed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
Depending on the surrounding environment, the color of objects may be
displayed on the screen in a color different from the actual one.
Depending on the surrounding environment, it may take a few seconds for the
color of the screen display to adjust.
Obstructions displayed in the rear view may not display on the top view screen.
4-199
When Driving
i-ACTIVSENSE
If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
Viewing the screen
Display/Icon
Content
(1)
Tire icon
Indicates the tire direction. Moves in conjunction with
the steering wheel operation.
(2)
Projected vehicle path lines (yellow
Indicates the approximate projected path of the vehicle.
& red)
Moves in conjunction with the steering wheel operation.
a) Indicates the path where the edge of the rear bumper
is expected to travel.
b) Indicates the path where the outer side of the vehicle
is expected to travel.
(3)
Extended vehicle width lines (blue)
These guide lines indicate the approximate width of the
vehicle.
(4)
Projected vehicle path distance
These guide lines indicate the approximate distance to a
guide lines (yellow & red)
point measured from the rear of the vehicle (from the
end of the bumper).
The red line indicates the point about 0.5 m (19 in)
from the rear end of the bumper.
The yellow lines indicate the points about 1.0 m (39
in) and 2.0 m (78 in) from the rear end of the bumper.
NOTE
The setting can be changed so that the projected vehicle path lines are not
displayed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-200
When Driving
i-ACTIVSENSE
How to use the projected vehicle path line function
CAUTION
¾ The front of the vehicle swings out wide when turning the steering wheel while
reversing. Maintain sufficient distance between the vehicle and an obstruction.
¾ The parking sensor detection range has limitations. For example, obstructions
closing in from the side and objects short in height may not be detected. Always
confirm the safety around the vehicle visually when driving.
For details, refer to the parking sensor obstruction detection indication and
warning sound.
Refer to Parking Sensor System on page 4-248.
NOTE
Because there might be a difference between the image displayed on the screen,
such as indicated in the following, and the actual conditions when parking, always
check the safety at the rear of the vehicle and the surrounding area directly with
your eyes.
Even though the back end of the parking space (or garage) displayed on the
screen and distance guide lines appear parallel, they may not actually be
parallel.
When parking in a space with a division line on only one side of the parking
space, even though the division line and the vehicle width guide line appear
parallel, they may not actually be parallel.
The following shows an example of vehicle parking with the steering wheel turned
to the left while backing up the vehicle. When backing into a parking space from
the opposite direction, the steering operation is reversed.
4-201
When Driving
i-ACTIVSENSE
1. Back the vehicle into the parking space by turning the steering wheel so that the
vehicle enters the center of the parking space.
1.
(Screen display)
2.
(Actual condition)
2. After the vehicle starts entering the parking space, stop and adjust the steering
wheel so that the distance between the vehicle width lines and the sides of the
parking space on the left and right are roughly equal, and then continue backing
up slowly.
4-202
When Driving
i-ACTIVSENSE
3. Once the vehicle width lines and the sides of the parking space on the left and
right are parallel, straighten the wheels and back the vehicle slowly into the
parking space. Continue checking the vehicle's surroundings and then stop the
vehicle in the best possible position. (If the parking space has division lines,
check whether the vehicle width guide lines are parallel to them.)
1.
(Screen display)
2.
(Actual condition)
4-203
When Driving
i-ACTIVSENSE
Top View/Rear Wide View

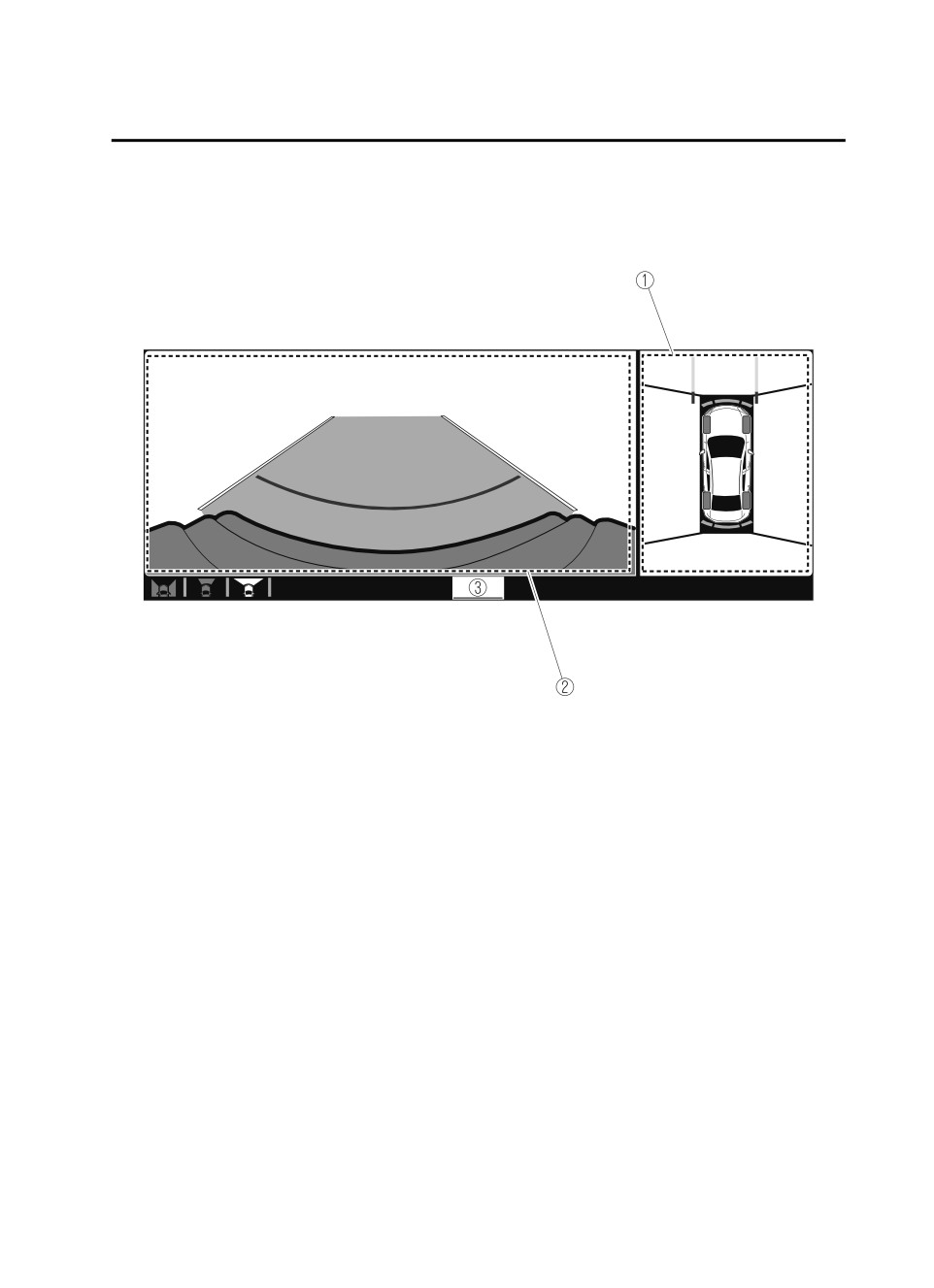

Use the top view/rear wide view to assist in checking the safety of the surrounding
area when accelerating from a stop, parking, or stopping the vehicle.
Range of displayed screen image
1. Target object
NOTE
In the top view screen, the areas in black at the front and rear of the vehicle image
and the seams where each of the camera images merge are blind spots.
Because images displayed in the top view screen are processed from each camera,
the top view screen may display in the following ways.
Depending on the surrounding environment, the color of objects may be
displayed on the screen in a color different from the actual one.
Depending on the surrounding environment, it may take a few seconds for the
color of the screen display to adjust.
Obstructions displayed in the front view may not display on the top view screen.
If the position or angle of each camera changes due to tilting of the vehicle, the
image may appear distorted.
Lines on the road may appear distorted at the seams where each of the camera
images merge.
The screen area for each camera may appear bright/dark depending on the
illumination level around any of the cameras.
4-204
When Driving
i-ACTIVSENSE
Viewing the screen
Display/Icon
Content
(1)
Extended vehicle width lines and
These guide lines indicate the approximate width of the
distance guide lines (blue & red)
vehicle and distance to a point measured from the rear
of the vehicle (from the end of the bumper).
The red lines indicate the points up to about 0.5 m
(19 in) from the rear end of the bumper.
NOTE
The top view/rear wide view screen displays the image at the rear of the vehicle at a
wide angle and corrects the image to help detect approaching obstructions from the
side. Therefore, it differs from the actual view.
4-205
When Driving
i-ACTIVSENSE
Margin of Error Between Road Surface on Screen and Actual Road Surface
There might be some margin of error between the road surface appearing on the
screen and the actual road surface. A margin of error in the perceived distance could
lead to an accident, therefore be aware of the following conditions which can more
easily produce errors in the perceived distance.

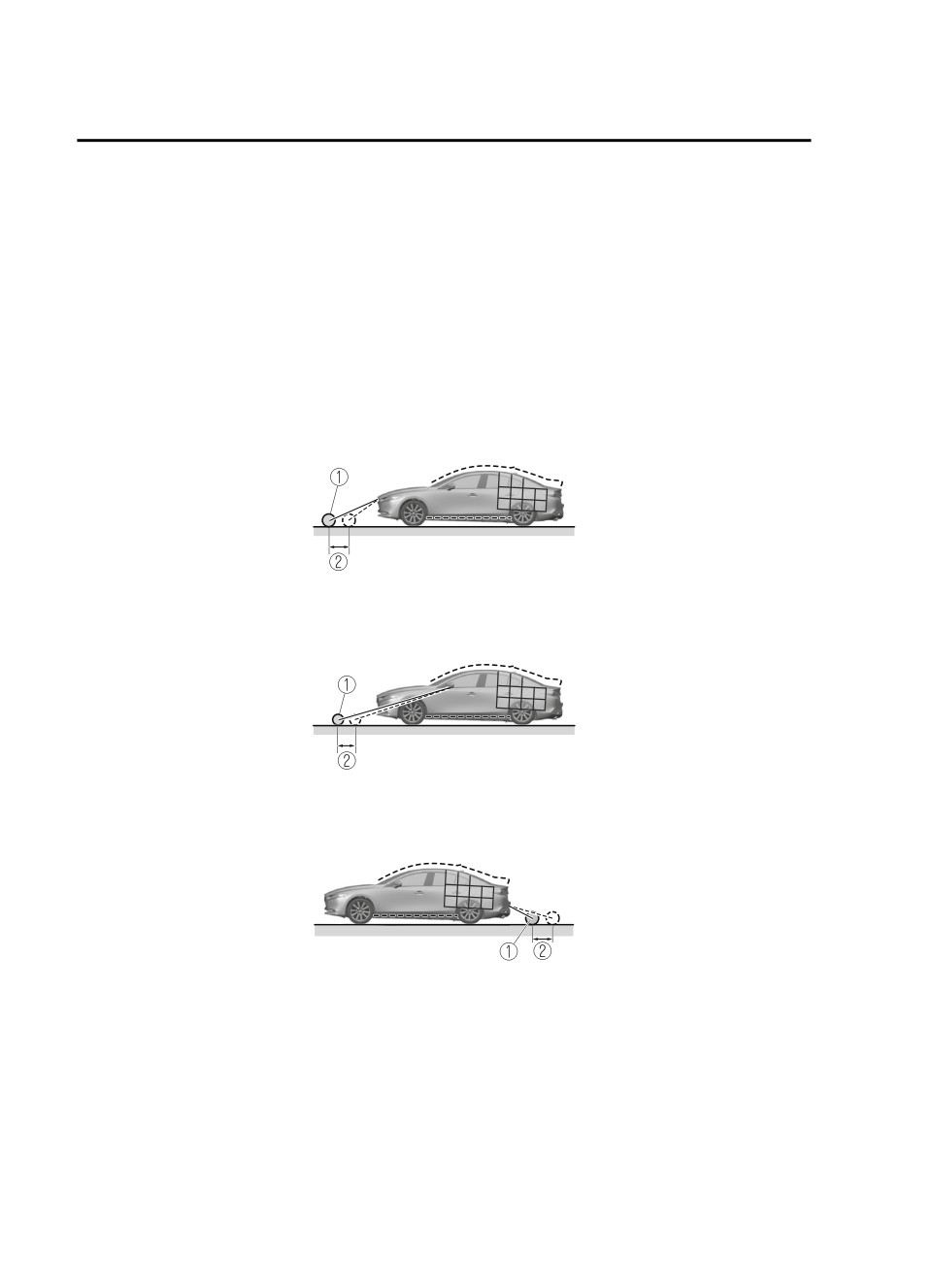

The vehicle tilts due to weight of passengers and cargo.
If the vehicle is tilted, obstructions picked up by a camera can appear farther or
closer than the actual distance from the vehicle.
Front camera
1. Obstruction
2. Margin of error
Side camera
1. Obstruction
2. Margin of error
Rear camera
1. Obstruction
2. Margin of error
4-206
When Driving
i-ACTIVSENSE

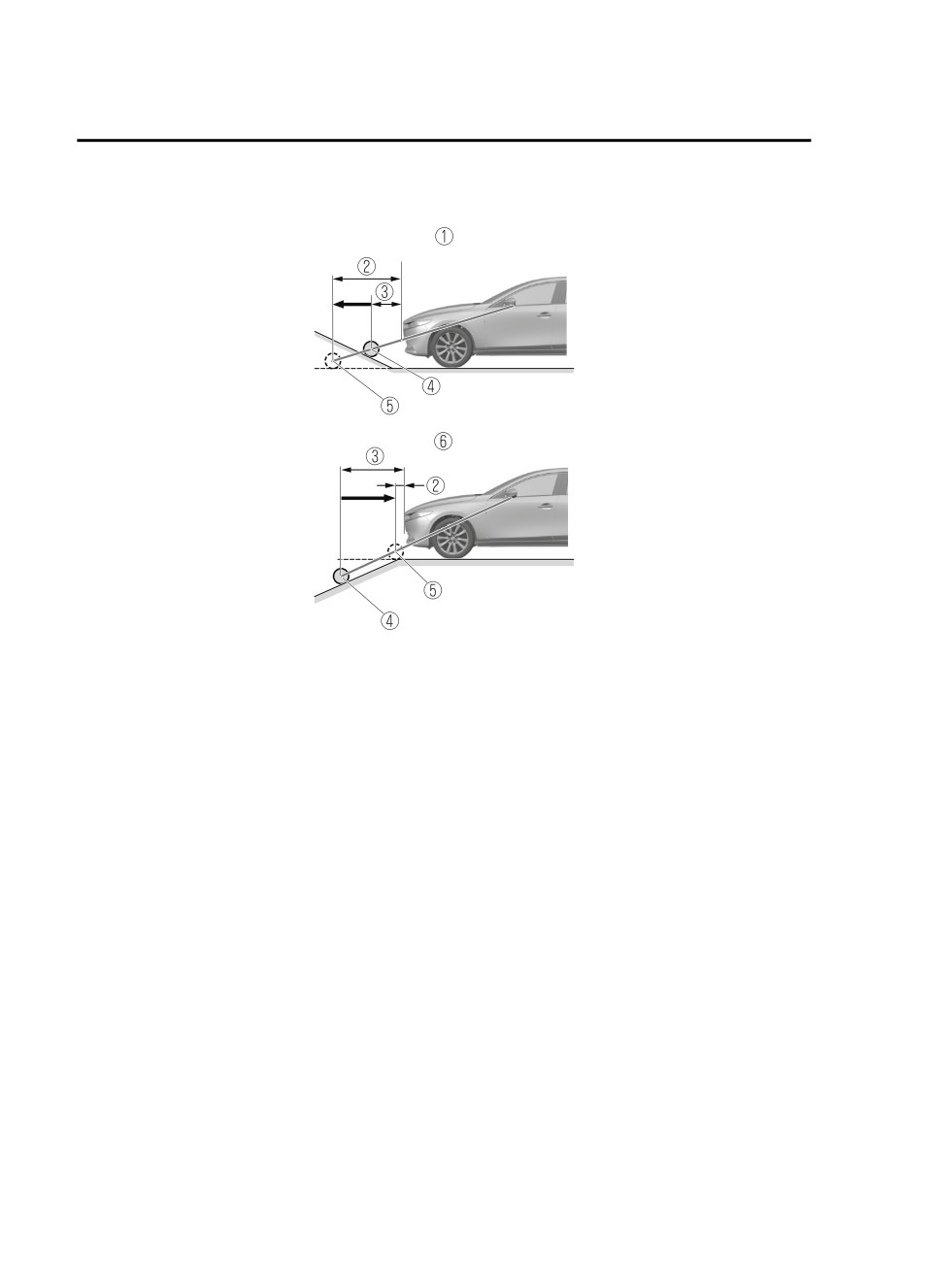

There is a steep up or down grade in the road at the front or rear of the vehicle
If there is a steep up or down grade in the road at the front or rear of the vehicle,
obstructions picked up by the camera can appear farther or closer than the actual
distance from the vehicle.
Front camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Actual obstruction
5. Obstruction appearing on screen
6. Appears closer than actual distance
4-207
When Driving
i-ACTIVSENSE
Side camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Actual obstruction
5. Obstruction appearing on screen
6. Appears closer than actual distance
4-208
When Driving
i-ACTIVSENSE

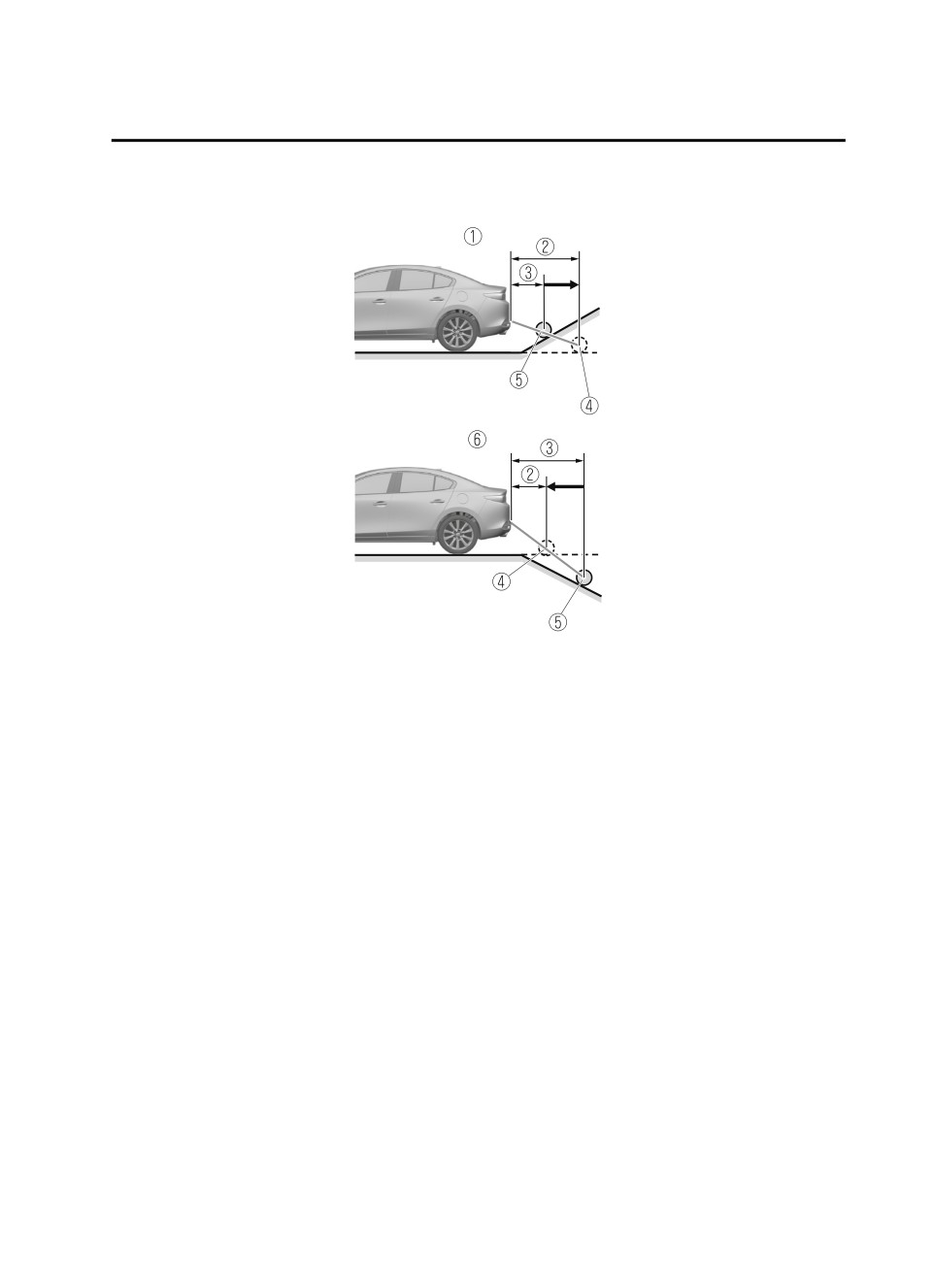

Rear camera
1. Appears further than actual distance
2. Distance of obstruction being viewed on screen
3. Actual distance of obstruction from vehicle
4. Obstruction appearing on screen
5. Actual obstruction
6. Appears closer than actual distance
NOTE
If the vehicle is on a slope, obstructions taken by the camera can appear farther or
closer than the actual distance from the vehicle.
Three-dimensional object at vehicle front or rear
Because the vehicle front end guide lines (side camera) or the distance guide lines
(rear camera) are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual
distance.
4-209
When Driving
i-ACTIVSENSE
Side camera
1.
(Screen display)
2.
(Actual condition)
Rear camera
1.
(Screen display)
2.
(Actual condition)
3. Sensed distance on screen A>B>C
4. Actual distance B>C=A
4-210
When Driving
i-ACTIVSENSE
System Problem Indication
Center display indication
Cause
Action to be taken
“No camera signal.” is displayed
The control unit might be damaged.
Have your vehicle inspected
by an Authorized Mazda
Screen is pitch-black and blank
The camera might be damaged.
Dealer.
4-211
When Driving
i-ACTIVSENSE

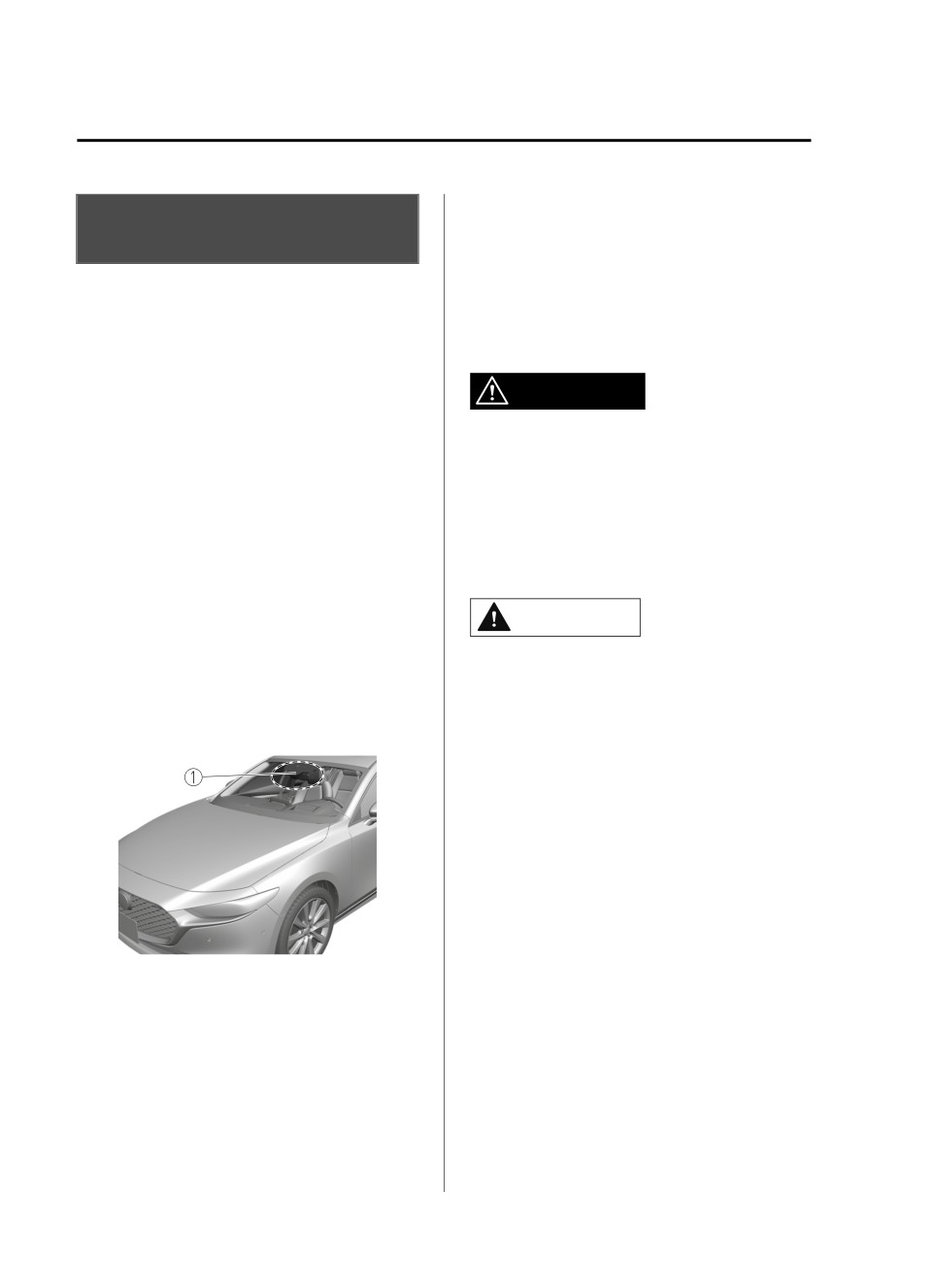

The Forward Sensing Camera (FSC)
Forward Sensing Camera
determines the conditions ahead of
(FSC)*
the vehicle while traveling at night and
detects traffic lanes. The distance in
Forward Sensing Camera (FSC)
which the Forward Sensing Camera
(FSC) can detect objects varies
Your vehicle is equipped with a
depending on the surrounding
Forward Sensing Camera (FSC). The
conditions.
Forward Sensing Camera (FSC) is
positioned near the rearview mirror
WARNING
and used by the following systems.
High Beam Control System (HBC)
Do not modify the suspension:
Lane Departure Warning System
If the vehicle height or inclination is
(LDWS)
changed, the system will not be able to
Traffic Sign Recognition System (TSR)
correctly detect vehicles ahead. This
Distance & Speed Alert (DSA)
will result in the system not operating
Driver Attention Alert (DAA)
normally or mistakenly operating,
Mazda Radar Cruise Control
which could cause a serious accident.
(MRCC)
Mazda Radar Cruise Control with
CAUTION
Stop & Go function (MRCC with
Stop & Go function)
¾ Do not apply accessories, stickers or
Lane-keep Assist System (LAS)
film to the windshield near the
Traffic Jam Assist (TJA)
Forward Sensing Camera (FSC).
Smart Brake Support (SBS) forward
If the area in front of the Forward
drive detection
Sensing Camera (FSC) lens is
obstructed, it will cause the system
to not operate correctly.
Consequently, each system may not
operate normally which could lead
to an unexpected accident.
¾ Do not disassemble or modify the
Forward Sensing Camera (FSC).
Disassembly or modification of the
Forward Sensing Camera (FSC) will
cause a malfunction or mistaken
1. Forward Sensing Camera (FSC)
operation. Consequently, each
system may not operate normally
which could lead to an unexpected
accident.
¾ Heed the following cautions to
assure the correct operation of the
Forward Sensing Camera (FSC).
¾ Be careful not to scratch the
Forward Sensing Camera (FSC)
lens or allow it to get dirty.
4-212 *Some models.
When Driving
i-ACTIVSENSE
¾ Do not remove the Forward
¾ High Beam Control System
Sensing Camera (FSC) cover.
(HBC)
¾ Do not place objects on the
¾ Lane Departure Warning System
dashboard which reflect light.
(LDWS)
¾ Always keep the windshield glass
¾ Traffic Sign Recognition System
around the camera clean by
(TSR)
removing dirt or fogging. Use the
¾ Distance & Speed Alert (DSA)
windshield defroster to remove
¾ Driver Attention Alert (DAA)
fogging on the windshield.
¾ Mazda Radar Cruise Control
¾ Consult an Authorized Mazda
(MRCC)
Dealer regarding cleaning the
¾ Mazda Radar Cruise Control
interior side of the windshield
with Stop & Go function (MRCC
around the Forward Sensing
with Stop & Go function)
Camera (FSC).
¾ Lane-keep Assist System (LAS)
¾ Consult an Authorized Mazda
¾ Traffic Jam Assist (TJA)
Dealer before performing repairs
¾ Smart Brake Support (SBS)
around the Forward Sensing
forward drive detection
Camera (FSC).
¾ The direction in which the Forward
¾ The Forward Sensing Camera (FSC)
Sensing Camera (FSC) is pointed
is installed to the windshield.
has been finely adjusted. Do not
Consult an Authorized Mazda
change the installation position of
Dealer for windshield repair and
the Forward Sensing Camera (FSC)
replacement.
or remove it. Otherwise, it could
¾ When cleaning the windshield, do
result in damage or malfunction.
not allow glass cleaners or similar
¾ Always use tires for all wheels that
cleaning fluids to get on the
are of the specified size, and the
Forward Sensing Camera (FSC)
same manufacturer, brand, and tread
lens. In addition, do not touch the
pattern. In addition, do not use tires
Forward Sensing Camera (FSC)
with significantly different wear
lens.
patterns on the same vehicle as the
¾ When performing repairs around
system may not operate normally.
the rearview mirror, consult an
¾ The Forward Sensing Camera (FSC)
Authorized Mazda Dealer.
includes a function for detecting a
¾ Consult an Authorized Mazda
soiled windshield and informing the
Dealer regarding cleaning of the
driver, however, depending on the
camera lens.
conditions, it may not detect plastic
¾ Do not hit or apply strong force to
shopping bags, ice or snow on the
the Forward Sensing Camera (FSC)
windshield. In such cases, the system
or the area around it. If the
cannot accurately determine a
Forward Sensing Camera (FSC) is
vehicle ahead and may not be able
severely hit or if there are cracks or
to operate normally. Always drive
damage caused by flying gravel or
carefully and pay attention to the
debris in the area around it, stop
road ahead.
using the following systems and
consult an Authorized Mazda
Dealer.
4-213















Content      ..     9      10      11      12     ..
