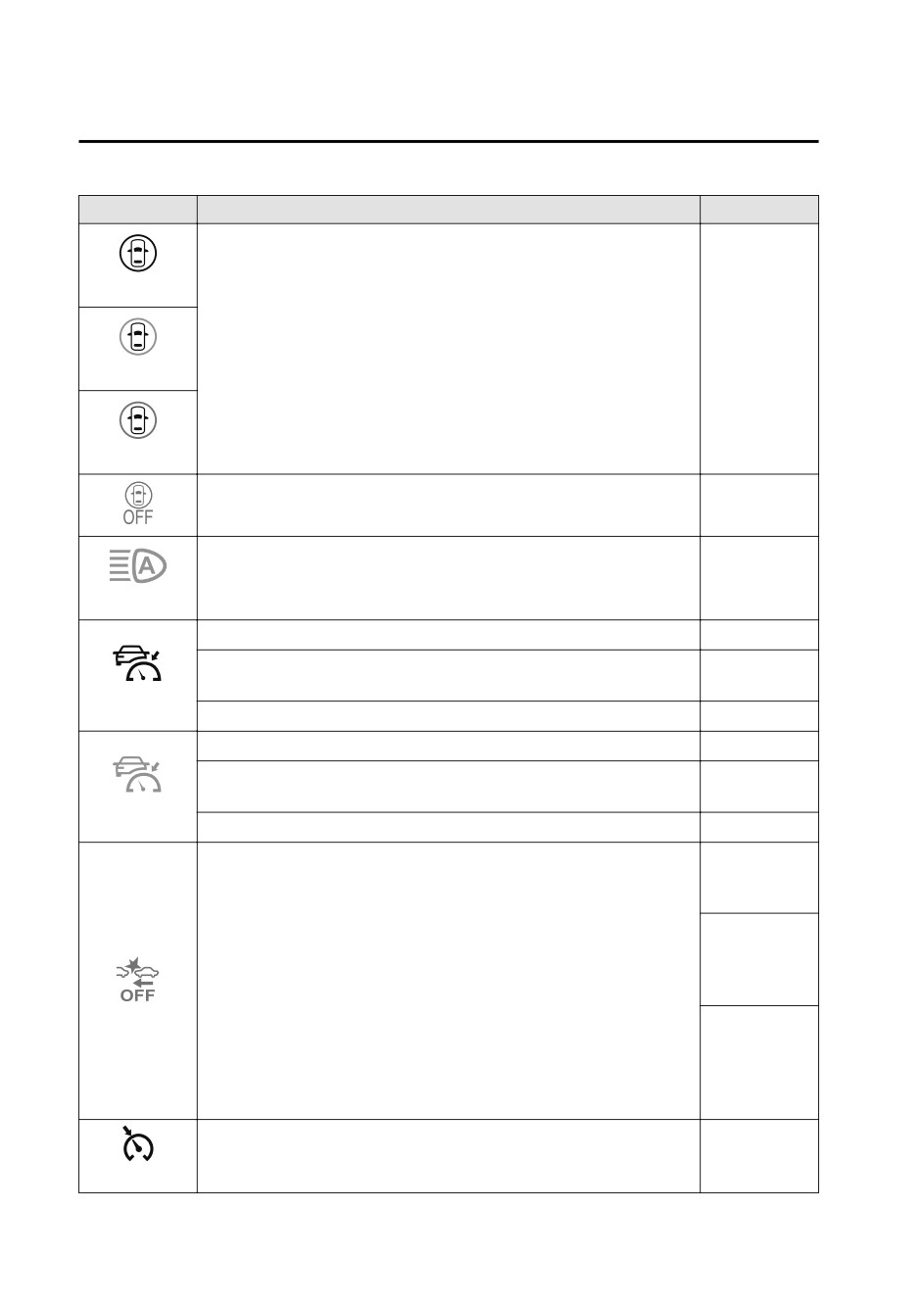

When Driving
Instrument Cluster and Display
Signal
Indicator
Refer to
(White)
i-ACTIVSENSE Status Symbol (Warning/Risk Avoidance Support Sys-
4-88
tem)
(Green)
(Amber)
i-ACTIVSENSE OFF Symbol (Warning/Risk Avoidance Support Sys-
4-88
tem)
*High Beam Control System (HBC) Indicator Light
4-92
(Green)
*Mazda Radar Cruise Control (MRCC) Standby Indication
4-123
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
4-132
Stop & Go function) Standby Indication
(White)
*Traffic Jam Assist (TJA) Standby Indication
4-143
*Mazda Radar Cruise Control (MRCC) Set Indication
4-123
*Mazda Radar Cruise Control with Stop & Go function (MRCC with
4-132
Stop & Go function) Set Indication
(Green)
*Traffic Jam Assist (TJA) Set Indication
4-143
Smart Brake
Support (SBS)
4-157
Smart Brake
Support [Rear]
(SBS-R)
*Smart Brake Support (SBS) OFF Indicator Light*1
4-160
Smart Brake
Support [Rear
Crossing]
(SBS-RC)
4-164
*Cruise Standby Indication
4-209
(White)
4-26
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Instrument Cluster and Display
Signal
Indicator
Refer to
*Cruise Set Indication
4-209
(Green)
*1
The light turns on when the ignition is switched on for an operation check, and
turns off a few seconds later or when the engine is started. If the light does not
turn on or remains turned on, have the vehicle inspected at an Authorized
Mazda Dealer.
*2
The light turns on continuously when the parking brake is applied.
Wrench Indication/Indicator Light
NOTE
The wrench indication/indicator
light may display/turn on earlier than
the preset period depending on
vehicle usage conditions.
Whenever the engine oil is replaced,
The wrench indication/indicator light
a reset of the vehicle engine control
is displayed/turns on under the
unit is necessary.
following conditions.
Refer to the Information section in
When the preset maintenance
the Mazda Connect Owner's
period has arrived.
Manual.
Refer to the Information section in
the Mazda Connect Owner's
Manual.
CAUTION
¾ When the maintenance period
arrives, have your vehicle inspected
by an Authorized Mazda Dealer as
soon as possible. If maintenance is
neglected, a decrease in vehicle
performance may occur which
could cause damage. Have your
vehicle inspected before the
maintenance period arrives.
¾ If the vehicle continues to be
driven after the engine oil
replacement period has passed, it
could cause damage to the engine.
Replace the engine oil before the
maintenance period arrives.
*Some models.
4-27
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Instrument Cluster and Display

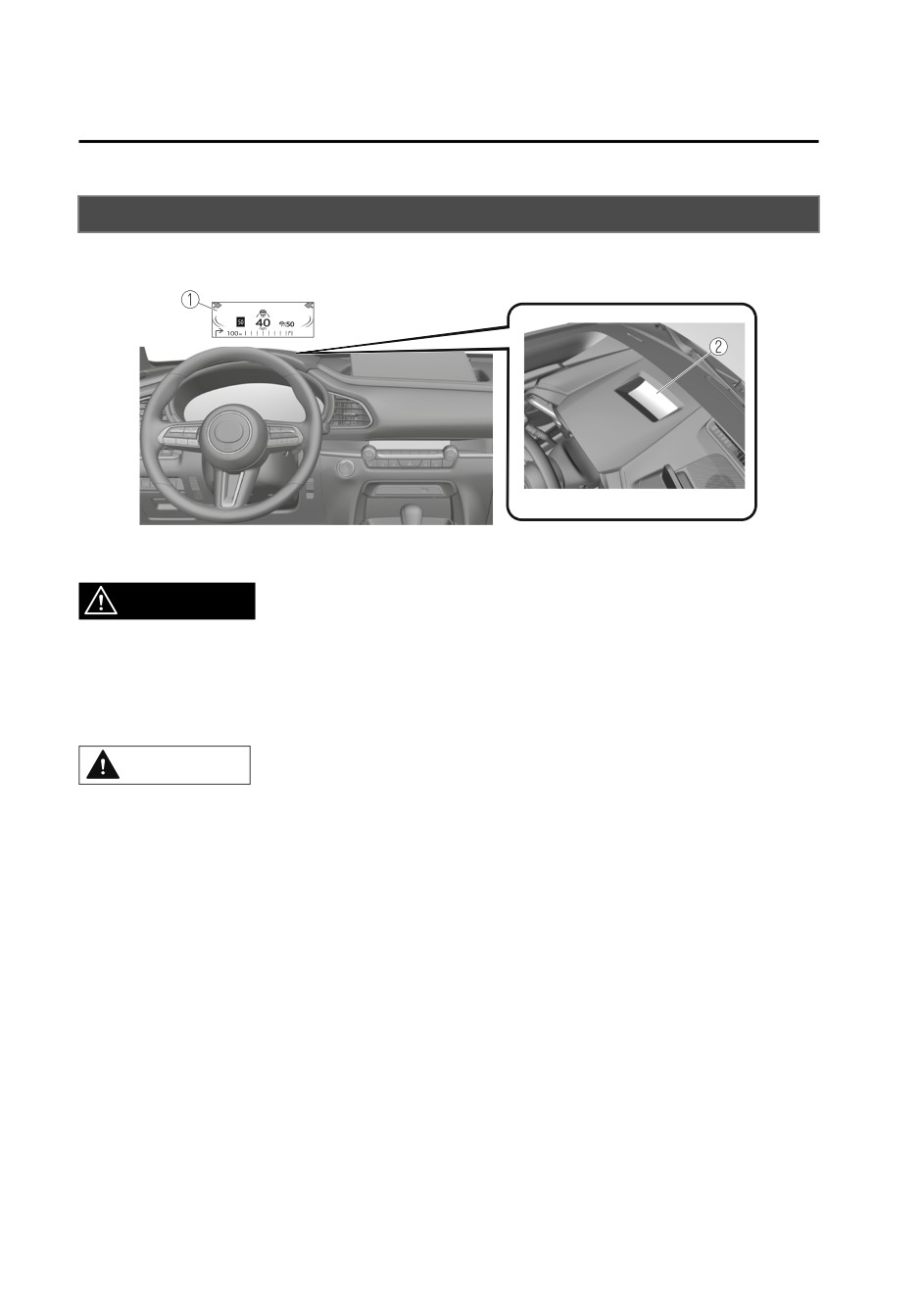

Active Driving Display*
Active Driving Display
1. Display
2. Dust-proof sheet
WARNING
Always adjust the display brightness and position with the vehicle stopped:
Adjusting the display brightness and position while driving the vehicle is dangerous
as doing so could distract your attention from the road ahead and lead to an
accident.
CAUTION
¾ Do not place beverages near the dust-proof sheet of the active driving display. If
water or other liquids are splashed on the dust-proof sheet, it could cause
damage.
¾ Do not place objects or apply stickers above the active driving display or to the
dust-proof sheet as they will cause interference.
NOTE
Wearing polarized sunglasses will reduce the visibility of the active driving display
due to the characteristics of the display.
If the battery has been removed and re-installed or the battery voltage is low, the
adjusted position may deviate.
The display may be difficult to view or temporarily affected by weather conditions
such as rain, snow, light, and temperature.
If the audio system is removed, the active driving display cannot be operated.
4-28
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Instrument Cluster and Display
The active driving display indicates the following information:
Lane Departure Warning System (LDWS) Warnings*
Lane Departure Warning System (LDWS) on page 4-95.
Blind Spot Monitoring (BSM) Operation Conditions and Warnings*
Refer to Blind Spot Monitoring (BSM) on page 4-96.
Traffic Sign Recognition System (TSR) traffic signs and Warnings*
Refer to Traffic Sign Recognition System (TSR) on page 4-101.
Front Cross Traffic Alert (FCTA) Operation Conditions and Warning*
Refer to Front Cross Traffic Alert (FCTA) on page 4-112.
Mazda Radar Cruise Control (MRCC) Operation Conditions and Warnings*
Refer to Mazda Radar Cruise Control (MRCC) on page 4-119.
Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop & Go
function) Operation Conditions and Warnings*
Refer to Mazda Radar Cruise Control with Stop & Go function (MRCC with Stop
& Go function) on page 4-127.
Traffic Jam Assist (TJA) Operation Conditions and Warnings*
Refer to Traffic Jam Assist (TJA) on page 4-137.
Lane-keep Assist System (LAS) Warnings*
Lane-keep Assist System (LAS) on page 4-151.
Smart Brake Support (SBS) Operation Conditions and Warnings*
Refer to Smart Brake Support (SBS) on page 4-155.
Smart Brake Support [Rear] (SBS-R) Operation Conditions and Warnings*
Refer to Smart Brake Support [Rear] (SBS-R) on page 4-157.
Smart Brake Support [Rear Crossing] (SBS-RC) Operation Conditions and
Warnings*
Refer to Smart Brake Support [Rear Crossing] (SBS-RC) on page 4-161.
Cruise Control Operation Conditions
Refer to Cruise Control on page 4-209.
Navigation Guidance (vehicles with navigation system)
Intersection Name (vehicles with navigation system)
Street name (vehicles with navigation system)
Lane Guidance (vehicles with navigation system)
Speed limit indicator (vehicles with navigation system)
Vehicle Speed
The active driving display settings can be changed or adjusted.
Refer to the Settings section in the Mazda Connect Owner's Manual.
NOTE
The desired driving position (display position, brightness level, display
information) can be called up after programming the position.
Refer to Driving Position Memory on page 2-10.
The street name may not be displayed depending on the market and region.
*Some models.
4-29
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving

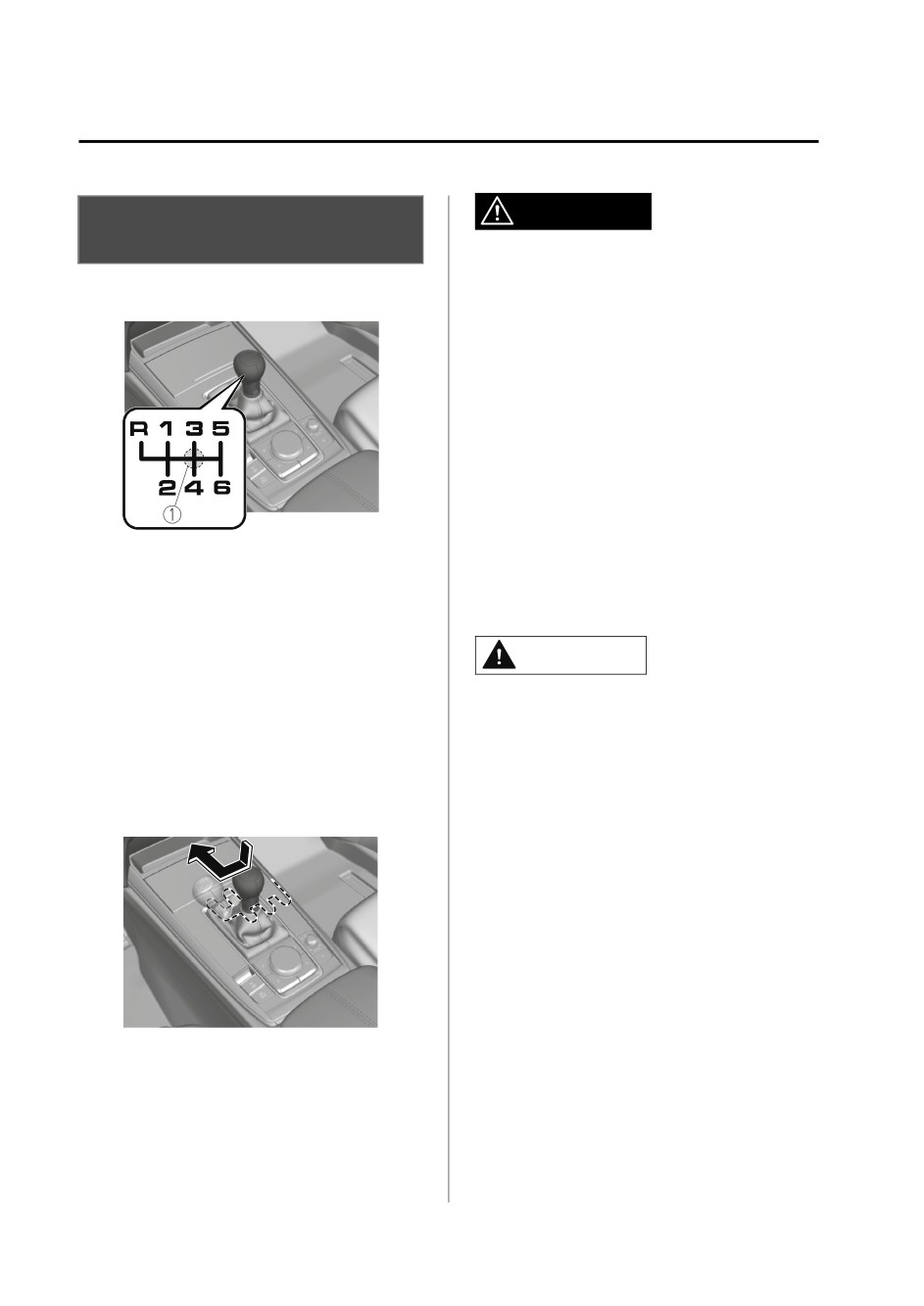

Manual Transmission Operation
Manual Transmission
WARNING
Shift Pattern
Do not use sudden engine braking on
slippery road surfaces or at high
Manual Transmission Shift Pattern
speeds:
Shifting down while driving on wet,
snowy, or frozen roads, or while
driving at high speeds causes sudden
engine braking, which is dangerous.
The sudden change in tire speed could
cause the tires to skid. This could lead
to loss of vehicle control and an
accident.
Always leave the shift lever in 1 or R
position and set the parking brake
1. Neutral position
when leaving the vehicle unattended:
Otherwise the vehicle could move and
The shift pattern of the transmission is
cause an accident.
conventional, as shown.
Depress the clutch pedal all the way
CAUTION
down while shifting; then release it
slowly.
¾ Keep your foot off the clutch pedal
except when shifting gears. Also, do
Your vehicle is equipped with a device
not use the clutch to hold the vehicle
to prevent shifting to R (reverse) by
on an upgrade. Riding the clutch will
mistake. Push the shift lever downward
cause needless clutch wear and
and shift to R.
damage.
¾ Do not apply any excessive lateral
force to the shift lever when
changing from 5th to 4th gear. This
could lead to the accidental
selection of 2nd gear, which could
result in damage to the transmission.
¾ Make sure the vehicle comes to a
complete stop before shifting to R.
Shifting to R while the vehicle is still
moving may damage the
transmission.
4-30
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Manual Transmission Operation
NOTE
NOTE
The GSI turns off when the following
If shifting to R is difficult, shift back
operations are performed.
into neutral, release the clutch pedal,
and try again.
The vehicle is stopped.
The vehicle is put in neutral.

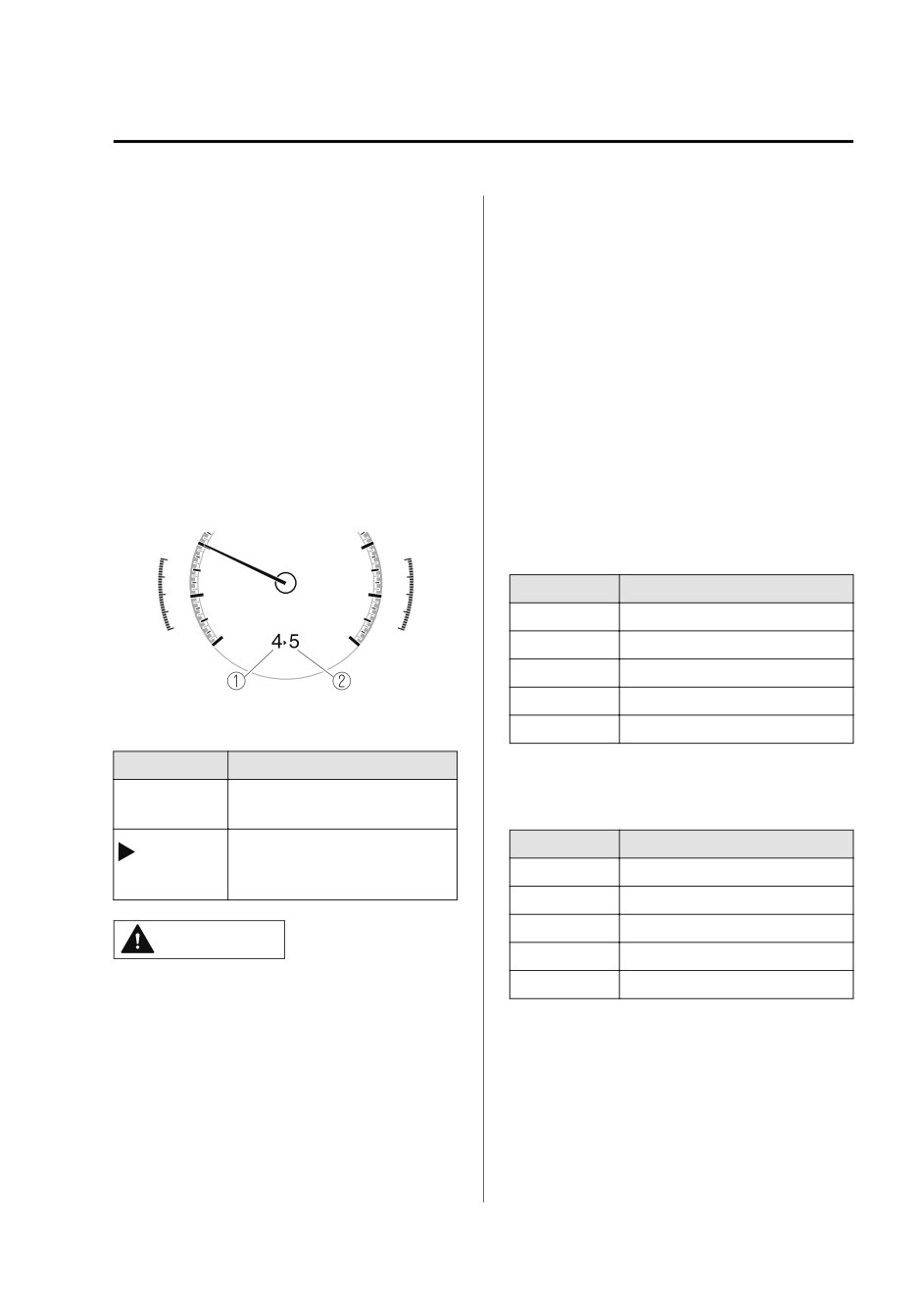

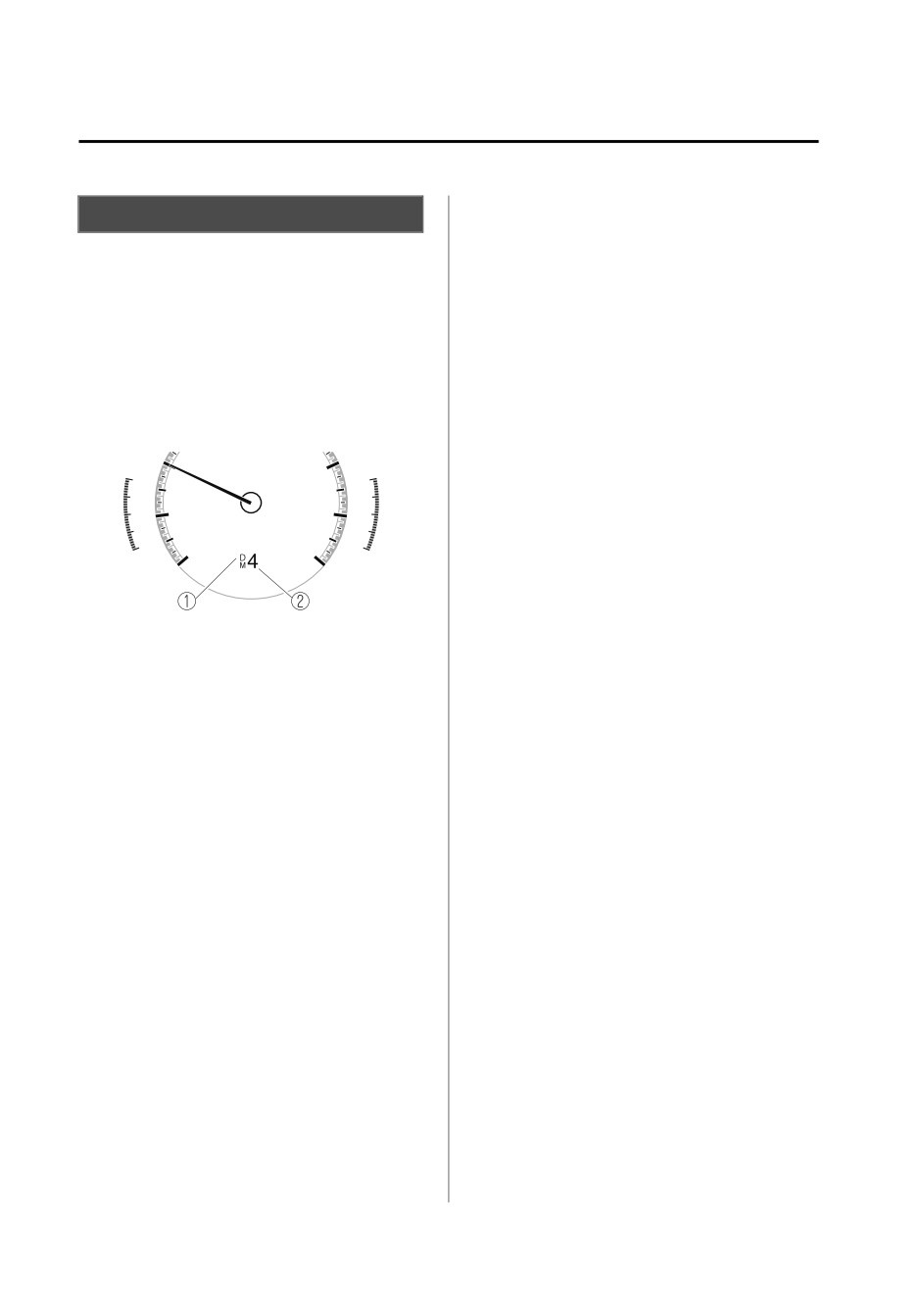

Gear Shift Indicator (GSI)
The vehicle is driven in reverse.
The GSI supports you to obtain
The clutch is not fully engaged when
optimum fuel economy and smooth
accelerating from a stop.
driving. It displays the selected gear
The clutch pedal remains depressed
position in the instrument cluster as
for 2 seconds or longer while driving.
well as notifies the driver to change to
Recommendations for Shifting
the most suitable gear position
corresponding to the actual driving
Upshifting
condition.
For normal acceleration, Mazda
recommends these shift points:
(U.S.A. and Canada)
Gear
Vehicle speed
1 to 2
24 km/h (15 mph)
2 to 3
42 km/h (26 mph)
3 to 4
60 km/h (37 mph)
4 to 5
75 km/h (46 mph)
1. Selected gear position
2. Suitable gear position
5 to 6
79 km/h (49 mph)
Indication
Condition
For cruising, Mazda recommends these
shift points:
The selected gear position is
Numeral
displayed.
(U.S.A. and Canada)
Shift up or down to the indi-
Gear
Vehicle speed
and numer-
cated gear position is recom-
1 to 2
13 km/h (8 mph)
al
mended.
2 to 3
29 km/h (18 mph)
3 to 4
49 km/h (30 mph)
CAUTION
4 to 5
63 km/h (39 mph)
Do not rely solely on the shift-up/
5 to 6
70 km/h (43 mph)
shift-down recommendations by
indications. The actual driving situation
might require shift operations different
from indication. To avoid the risk of
accidents, the road and traffic
conditions have to be judged correctly
by the driver before shifting.
4-31
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Manual Transmission Operation
Downshifting
When you must slow down in heavy
traffic or on a steep upgrade,
downshift before the engine starts to
overwork. This reduces the chance of
stalling and gives better acceleration
when you need more speed.
On a steep downgrade, downshifting
helps maintain safe speed and
prolongs brake life.
4-32
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09

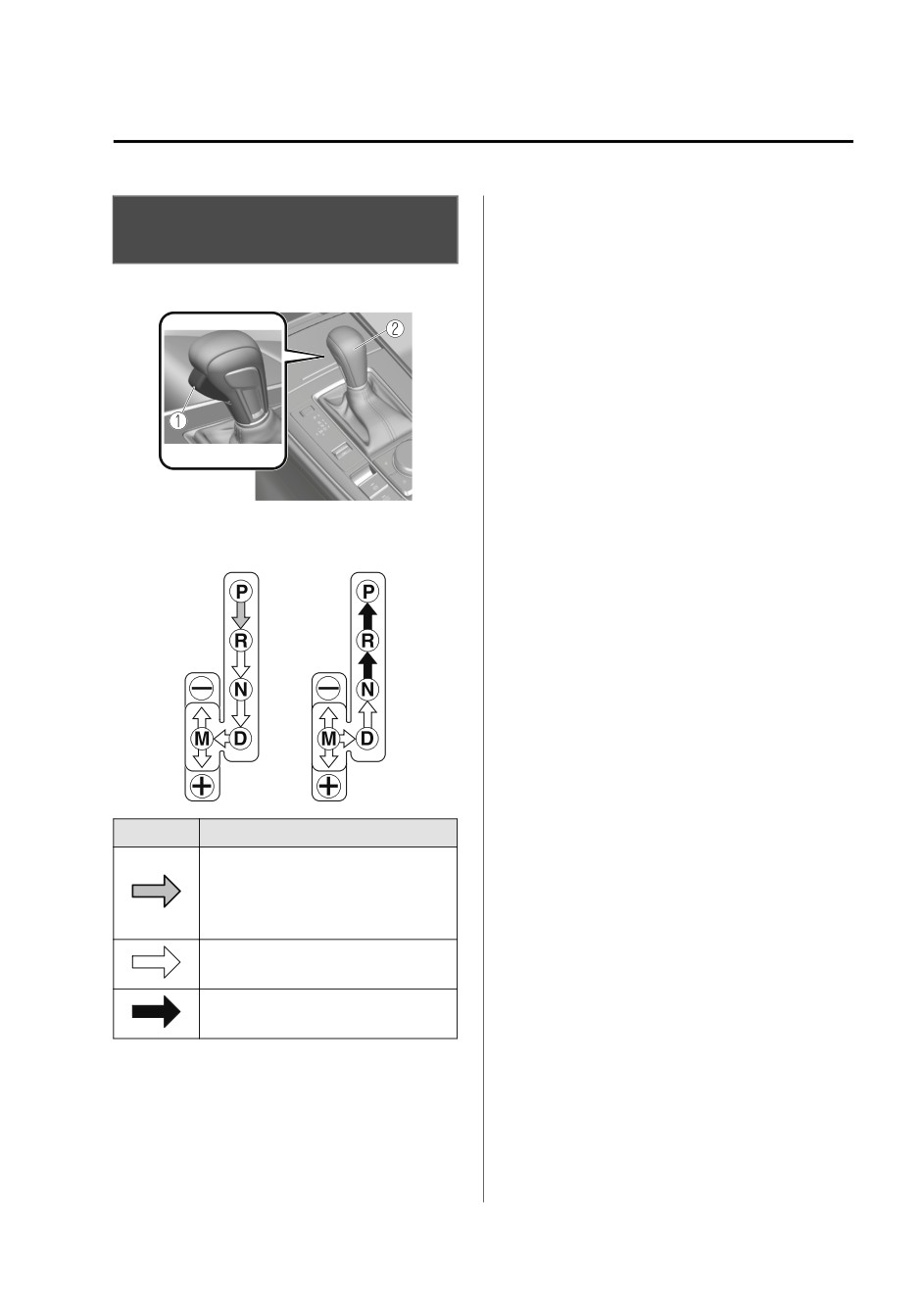

When Driving
Automatic Transmission
NOTE
Automatic Transmission
The Sport AT has an option that is not
Controls
included in the traditional automatic
transmission that gives the driver the
Automatic Transmission Controls
option of selecting each gear instead of
leaving it to the transmission to shift
gears. Even if you intend to use the
automatic transmission functions as a
traditional automatic, you should also
be aware that you can inadvertently
shift into manual shift mode and an
inappropriate gear may be retained as
the vehicle speed increases. If you
notice the engine speed going higher
or hear the engine racing, confirm you
1. Lock-release button
have not accidentally slipped into
2. Selector lever
manual shift mode (page 4-36).
Indication
Various Lockouts
Indicates that you must depress
the brake pedal and hold in the
lock-release button to shift (The ig-
nition must be switched ON).
Indicates the selector lever can be
shifted freely into any position.
Indicates that you must hold in the
lock-release button to shift.
4-33
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
Shift-Lock Override
Shift-Lock System
If the selector lever will not move from
Shift-Lock System
P position using the proper shift
The shift-lock system prevents shifting
procedure, continue to hold down the
out of P unless the brake pedal is
brake pedal.
depressed.

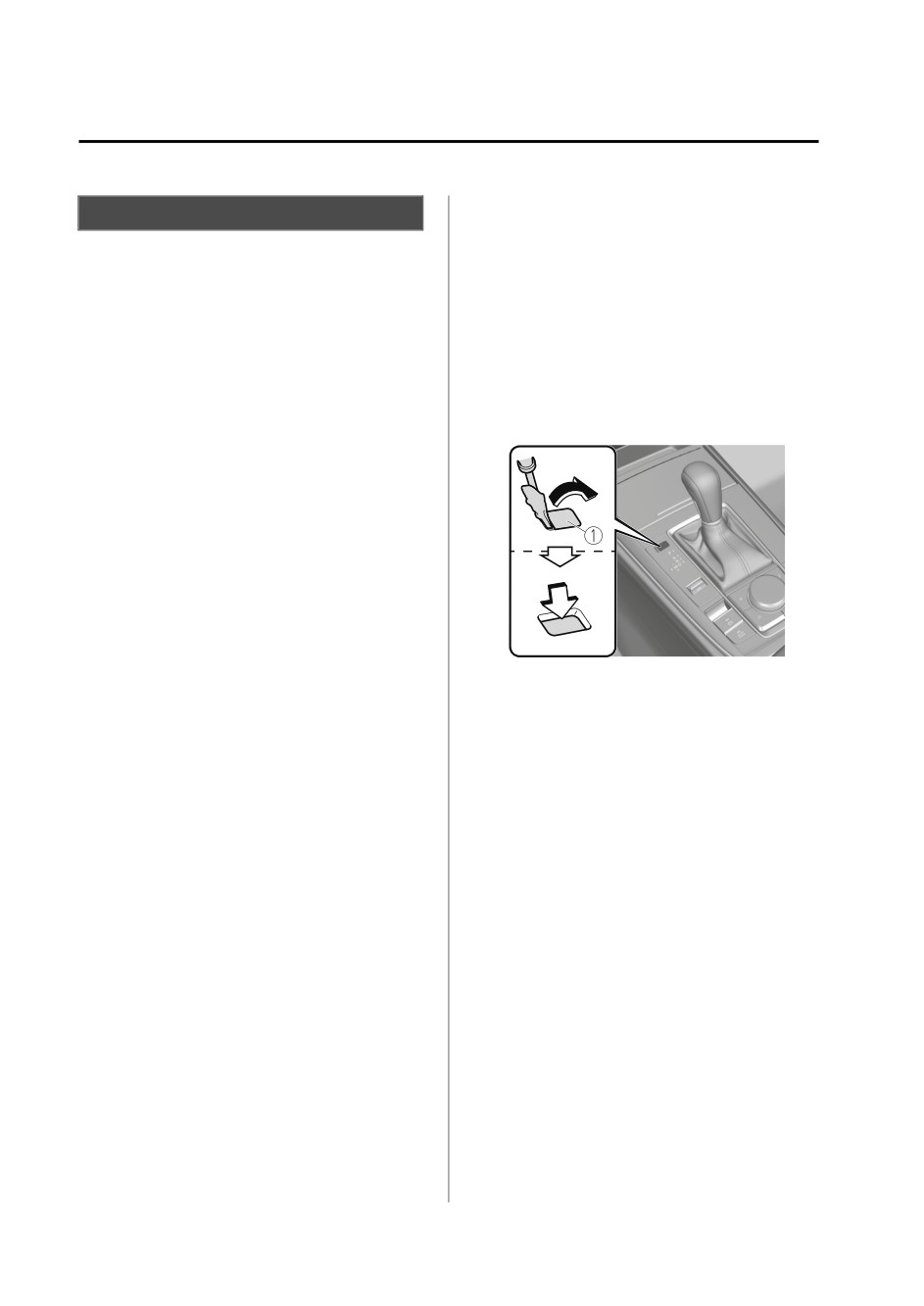

1. Remove the shift-lock override
cover using a cloth-wrapped flat
To shift from P:
head screwdriver.
1. Depress and hold the brake pedal.
2. Insert a flat screwdriver and push it
2. Start the engine.
down.
3. Press and hold the lock-release
button.
4. Move the selector lever.
NOTE
When the ignition is switched to
ACC or the ignition is switched off,
the selector lever cannot be shifted
from P position.
The ignition cannot be switched to
OFF if the selector lever is not in P
position.
1. Cover
3. Press and hold the lock-release
button.
4. Move the selector lever.
Take the vehicle to an Authorized
Mazda Dealer to have the system
checked.
4-34
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
N (Neutral)
Transmission Ranges
In N, the wheels and transmission are
Transmission Ranges
not locked. The vehicle will roll freely
even on the slightest incline unless the
The shift position indication in the
parking brake or brakes are on.
instrument cluster illuminates.
Refer to Shift Position Indication on
WARNING
page 4-36.
Shift the selector lever to the P or N
position to start the engine.
If the engine is running faster than
idle, do not shift from N or P into a
P (Park)
driving gear:
P locks the transmission and prevents
It's dangerous to shift from N or P into
a driving gear when the engine is
the front wheels from rotating.
running faster than idle. If this is done,
WARNING
the vehicle could move suddenly,
causing an accident or serious injury.
Always set the selector lever to P
Do not shift into N when driving the
position and set the parking brake:
vehicle:
Only setting the selector lever to the P
Shifting into N while driving is
position without using the parking
dangerous. Engine braking cannot be
brake to hold the vehicle is dangerous.
applied when decelerating which
If P fails to hold, the vehicle could
could lead to an accident or serious
move and cause an accident.
injury.
CAUTION
CAUTION
¾ Shifting into P, N or R while the
Do not shift into N when driving the
vehicle is moving can damage your
vehicle. Doing so can cause
transmission.
transmission damage.
¾ Shifting into a driving gear or reverse
when the engine is running faster
NOTE
than idle can damage the
Apply the parking brake or depress the
transmission.
brake pedal before moving the selector
R (Reverse)
lever from N position to prevent the
vehicle from moving unexpectedly.
In position R, the vehicle moves only
backward. You must be at a complete
D (Drive)
stop before shifting to or from R,
D is the normal driving position. From
except under rare circumstances as
a stop, the transmission will
explained in Rocking the Vehicle (page
automatically shift through a 6-gear
3-52).
sequence.
4-35
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
M (Manual)
Manual Shift Mode
M is the manual shift mode position.
Gears can be shifted up or down by
Manual Shift Mode
operating the selector lever.
The manual shift mode gives you the
Refer to Manual Shift Mode on page
feel of driving a manual transmission
4-36.
vehicle by allowing you to operate the
selector lever manually. This allows you
Shift Position Indication
to control engine rpm and torque to
the drive wheels much like a manual
transmission when more control is
desired.
To change to manual shift mode, shift
the lever from D to M.

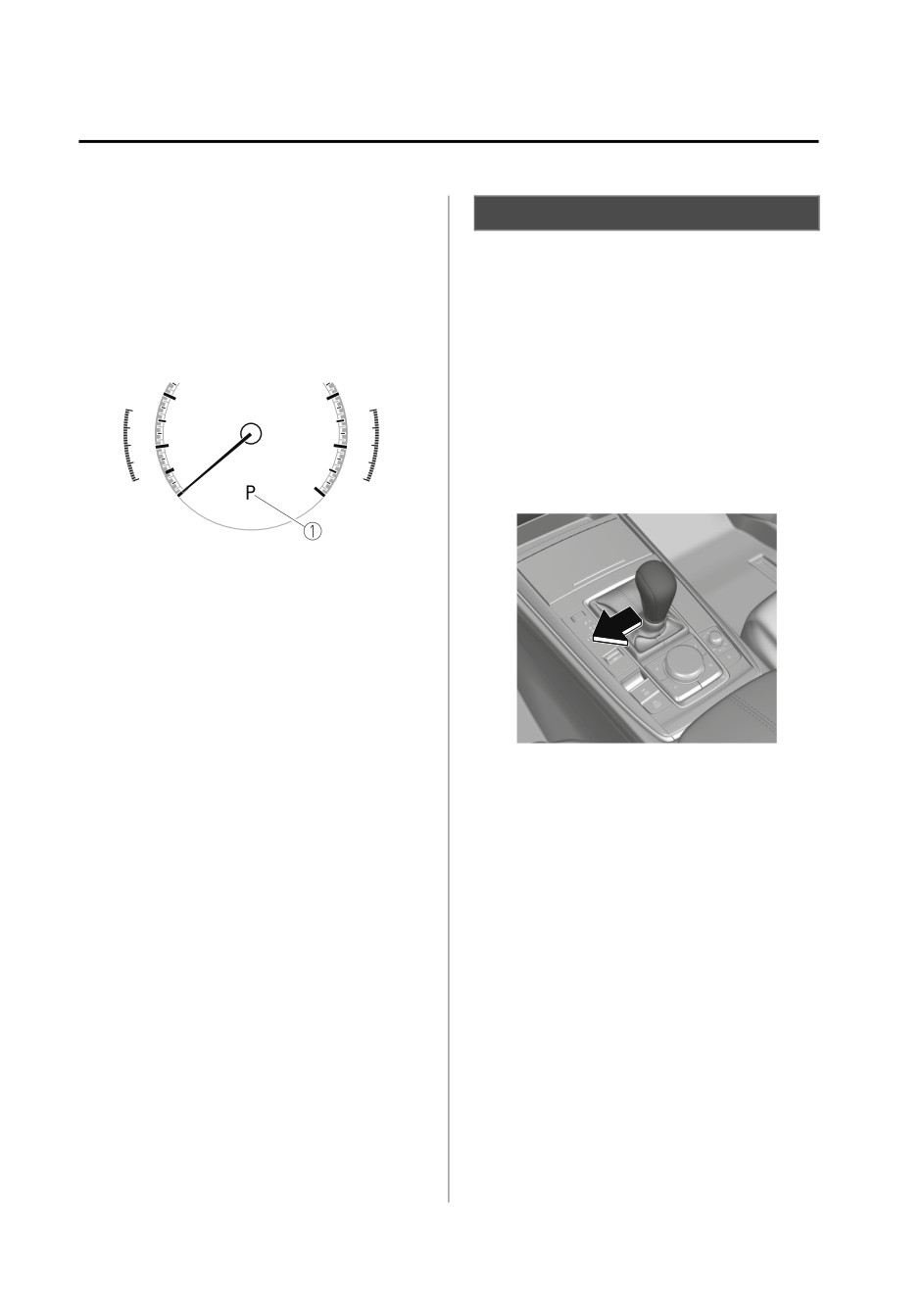

1. Shift position indication
The selector position is indicated when
the ignition is switched ON.
Gear position indication
In manual shift mode, the “M” of the
shift position indication illuminates
and the numeral for the selected gear
is displayed.
NOTE
Active Adaptive Shift (AAS)
Changing to manual shift mode
Active Adaptive Shift (AAS)
while driving will not damage the
automatically controls the transmission
transmission.
shift points to best suit the road
If you change to manual shift mode
conditions and driver input. This
when the vehicle is stopped, the gear
improves driving feel. The transmission
will shift to M1.
may switch to AAS mode when driving
If you change to manual shift mode
up and down slopes, cornering, driving
without depressing the accelerator
at high elevations, or depressing the
pedal when driving in D range, 5th
accelerator pedal quickly while the
gear/6th gear, the gear will shift to
selector lever is in the D position.
M4/M5.
Depending on the road and driving
To return to automatic shift mode, shift
conditions/vehicle operations, gear
the lever from M to D.
shifting could be delayed or not occur,
however, this does not indicate a
problem because the AAS mode will
maintain the optimum gear position.
4-36
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
Indications
Manually Shifting Up
You can shift gears up by operating the
selector lever or the steering shift
switches*.
M1 M2 M3 M4 M5 M6

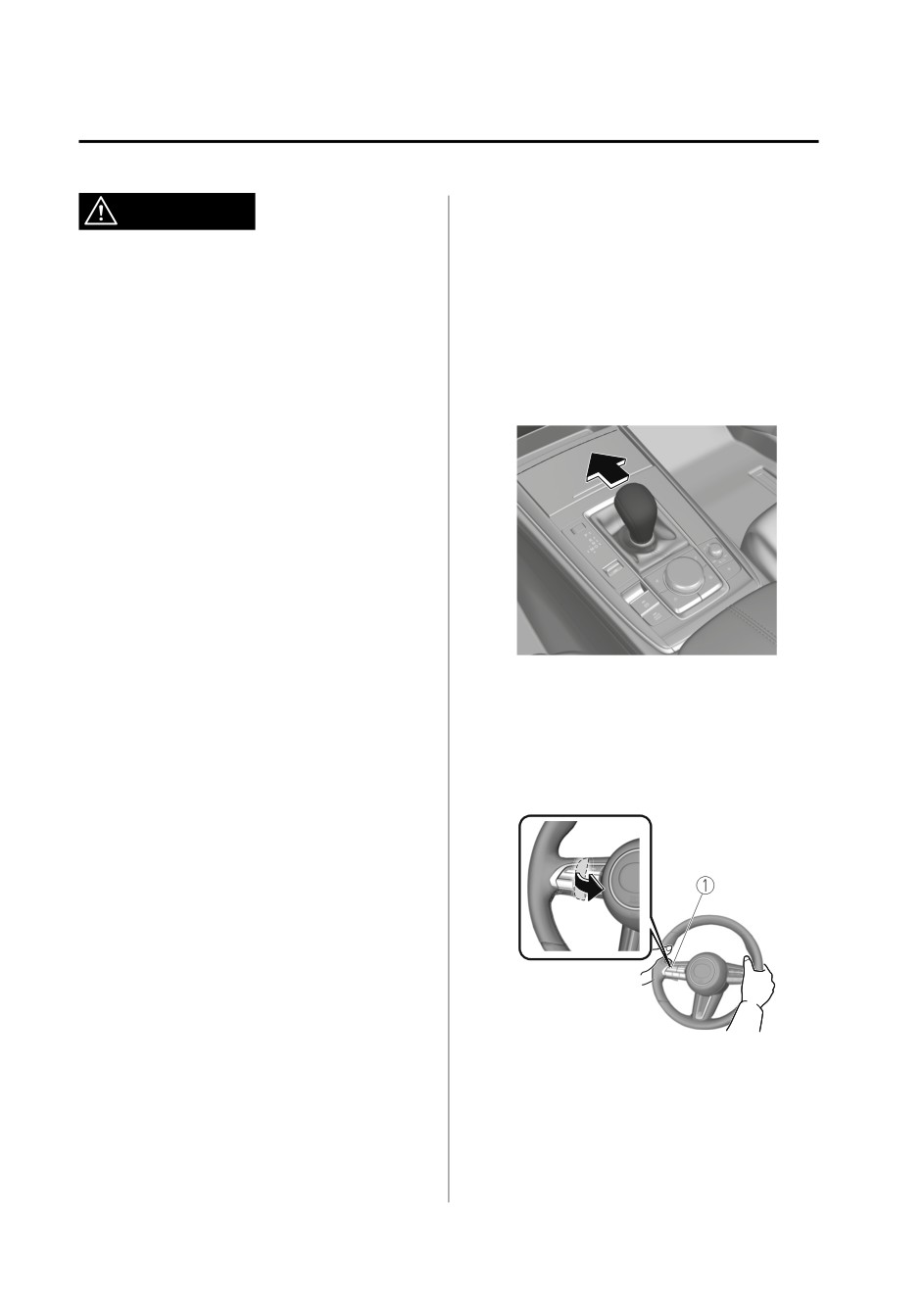

Using selector lever
To shift up to a higher gear, tap the
selector lever back + once.

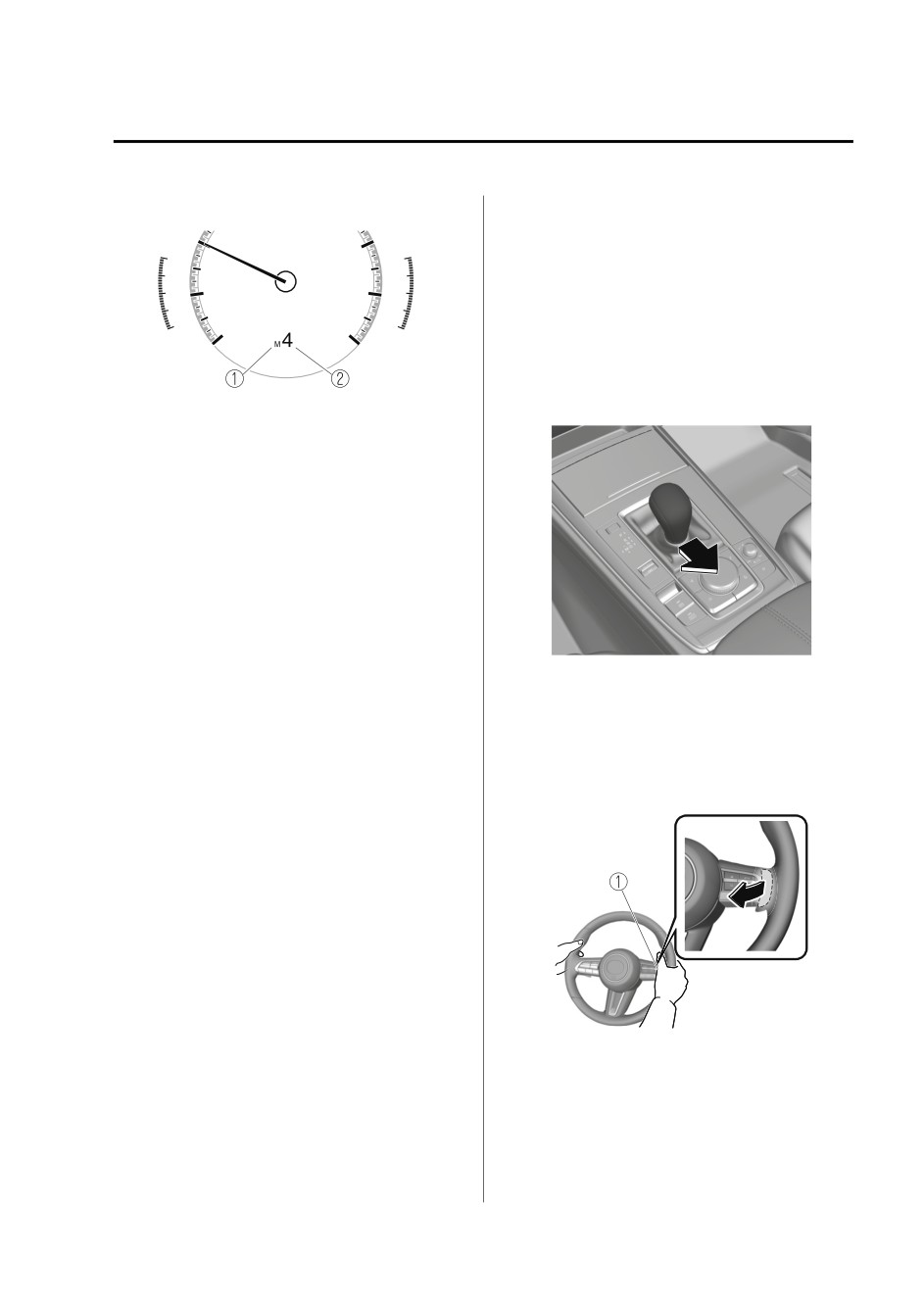

1. Manual shift mode indication
2. Gear position indication
Manual shift mode indication
In manual shift mode, the “M” of the
shift position indication in the
instrument panel illuminates.
Gear position indication
The numeral for the selected gear
illuminates.
NOTE
Using steering shift switch*
If the gears cannot be shifted down
To shift up to a higher gear with the
when driving at higher speeds, the
steering shift switches, pull the UP
gear position indication will flash
switch (+/OFF) toward you once with
twice to signal that the gears cannot
your fingers.
be shifted down (to protect the
transmission).
If the automatic transmission fluid
(ATF) temperature becomes too
high, there is the possibility that the
transmission will switch to automatic
shift mode, canceling manual shift
mode and turning off the gear
position indication illumination. This
is a normal function to protect the
AT. After the ATF temperature has
decreased, the gear position
1. UP switch (+/OFF)
indication illumination turns back on
and driving in manual shift mode is
restored.
*Some models.
4-37
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
Manually Shifting Down
WARNING
You can shift gears down by operating
Keep your hands on the steering
the selector lever or the steering shift
wheel rim when using fingers on the
switches*.
steering shift switches:
M6 M5 M4 M3 M2 M1
Putting your hands inside the rim of
Using selector lever
the steering wheel when using the
steering shift switches is dangerous. If
To shift down to a lower gear, tap the
the driver's air bag were to deploy in a
selector lever forward - once.
collision, your hands could be
impacted causing injury.
NOTE
When driving slowly, the gears may
not shift up.
Do not drive the vehicle with the
tachometer needle in the RED ZONE
while in manual shift mode. In
addition, manual shift mode
switches to automatic shift mode
while the accelerator pedal is
completely depressed.
Using steering shift switch*
This function is canceled while the
To shift down to a lower gear with the
TCS is turned off or the Off-Road
steering shift switches, pull the DOWN
Traction Assist* is turned on.
switch (-) toward you once with your
However, if the vehicle is
fingers.
continuously driven at a high rpm,
the gears may automatically shift up
to protect the engine.
The steering shift switch can be used
temporarily even if the selector lever
is in the D position while driving. In
addition, it returns to automatic shift
mode when the UP switch (+/OFF)
is pulled rearward for a sufficient
amount of time.
1. DOWN switch (-)
4-38
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
Second Gear Fixed Mode
WARNING
When the selector lever is moved back
Do not use engine braking on slippery
+ while the vehicle speed is about 10
road surfaces or at high speeds:
km/h (6.2 mph) or less, the
Shifting down while driving on wet,
transmission is set in the second gear
snowy, or frozen roads, or while
fixed mode. The gear is fixed in second
driving at high speeds causes sudden
while in this mode for easier
engine braking, which is dangerous.
acceleration from a stop and driving on
The sudden change in tire speed could
slippery roads such as snow-covered
cause the tires to skid. This could lead
roads.
to loss of vehicle control and an
If the selector lever is moved back + or
accident.
forward - while in the second gear
fixed mode, the mode will be
Keep your hands on the steering
canceled.
wheel rim when using fingers on the
steering shift switches:
Putting your hands inside the rim of
the steering wheel when using the
steering shift switches is dangerous. If
the driver's air bag were to deploy in a
collision, your hands could be
impacted causing injury.
NOTE
When driving at high speeds, the
gear may not shift down.
During deceleration, the gear may
automatically shift down depending
on vehicle speed.
When depressing the accelerator
fully, the transmission will shift to a
lower gear, depending on vehicle
speed. However, the transmission
does not kickdown while the TCS is
turned off or the Off-Road Traction
Assist* is operating.
*Some models.
4-39
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission

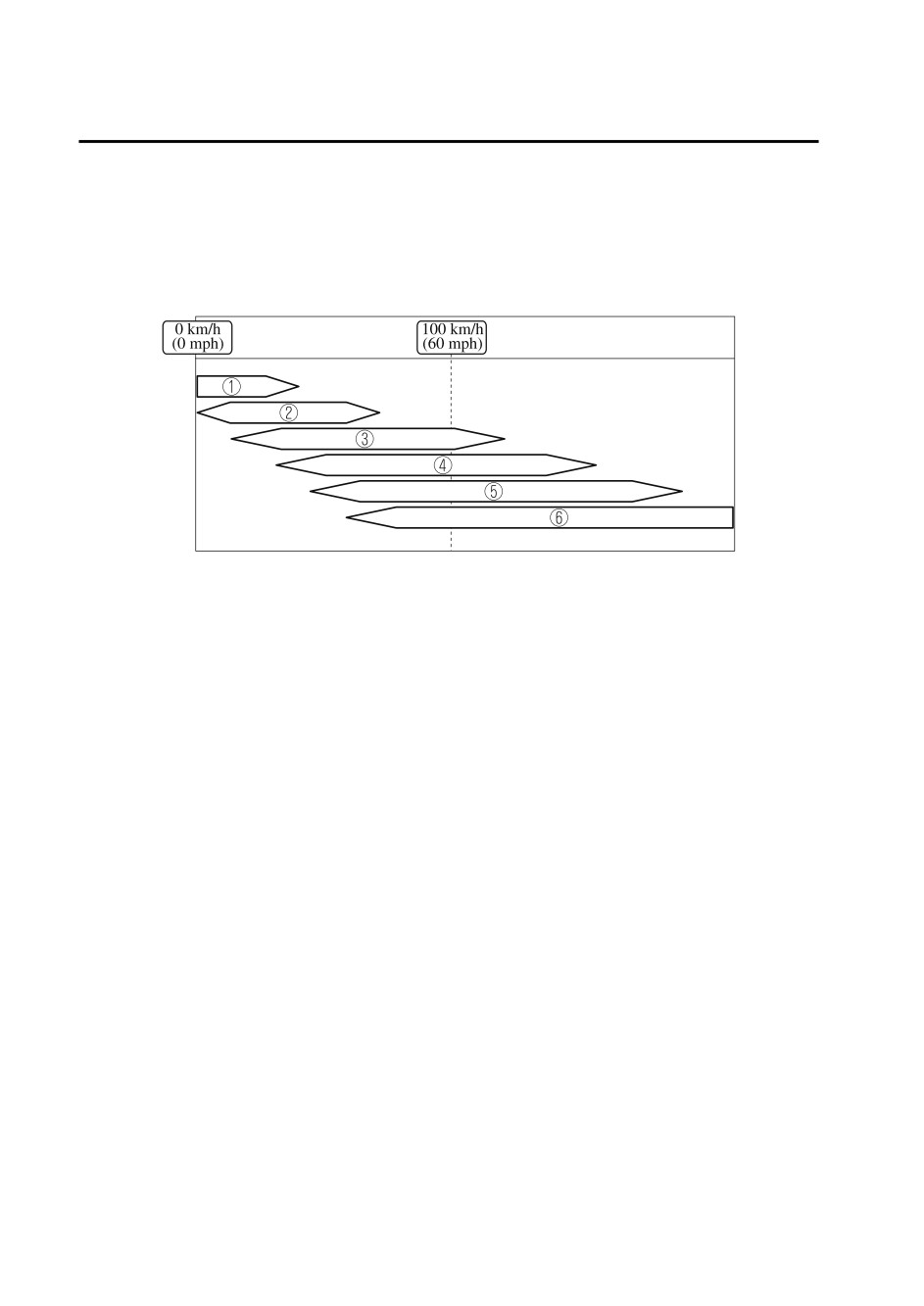

Shift Gear (Shifting) Speed Limit
For each gear position while in the manual mode, the speed limit is set as follows:
When the selector lever is operated within the range of the speed limit, the gear is
shifted.
1.
1st
2.
2nd
3.
3rd
4.
4th
5.
5th
6.
6th
Shift up
The gear does not shift up while the vehicle speed is lower than the speed limit.
Shift down
The gear does not shift down while the vehicle speed exceeds the speed limit.
If the vehicle speed exceeds the speed limit and the gear does not shift down, the
gear position indication flashes 2 times to notify the driver that the gear cannot be
shifted.
Kickdown
When the accelerator pedal is depressed fully while driving, the gear shifts down.
However, the transmission does not kickdown while the TCS is turned off or the
Off-Road Traction Assist* is operating.
NOTE
The gear also shifts down using kickdown while in the second gear fixed mode.
Auto-shift down
The gear shifts down automatically depending on the vehicle speed during
deceleration.
4-40
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
NOTE
If the vehicle comes to a stop while in the second gear fixed mode, the gear remains
in second.
Recommendations for Shifting
Upshifting
For normal acceleration and cruising, Mazda recommends these shift points:
(U.S.A. and Canada)
Gear
Vehicle speed*1
M1 to M2
24 km/h (15 mph)
M2 to M3
40 km/h (25 mph)
M3 to M4
65 km/h (40 mph)
M4 to M5
73 km/h (45 mph)
M5 to M6
81 km/h (50 mph)
*1
Always observe local speed limit regulations.
Downshifting
When you must slow down in heavy traffic or on a steep upgrade, downshift before
the engine starts to overwork. This gives better acceleration when you need more
speed.
On a steep downgrade, downshifting helps maintain safe speed and prolongs brake
life.
4-41
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
NOTE
Direct Mode*
Shifting up and down while in direct
mode may not be possible depending
Direct Mode
on the vehicle speed. In addition,
Direct mode can be used for
because direct mode is canceled
temporarily switching gears by
(released) depending on the rate of
operating the steering shift switch
acceleration or if the accelerator is fully
while the vehicle is being driven with
depressed, use of the manual shift
the selector lever in the D position.
mode is recommended if you need to
While in direct mode, the D and M
drive the vehicle in a particular gear for
indication illuminate and the gear
long periods.
position in use is illuminated.
1. Direct mode indication
2. Gear position indication
Direct mode is canceled (released)
under the following conditions.
The UP switch (+/OFF) is pulled
rearward for a certain amount of
time or longer.
The vehicle is driven for a certain
amount of time or longer (time
differs depending on the driving
conditions while operating).
The vehicle is stopped or moving at a
slow speed.
4-42
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Automatic Transmission
Climbing steep grades from a stop
Driving Tips
To climb a steep grade from a stopped
Driving Tips
position:
1. Depress the brake pedal.
2. Shift to D or M1, depending on the
WARNING
load weight and grade steepness.
3. Release the brake pedal while
Do not let the vehicle move in a
gradually accelerating.
direction opposite to the direction
selected by the selector lever:
Descending steep grades
Do not let the vehicle move backward
When descending a steep grade, shift
with the selector lever in a forward
to lower gears, depending on load
position, or do not let the vehicle
weight and grade steepness. Descend
move forward with the selector lever in
slowly, using the brakes only
the reverse position. Otherwise, the
occasionally to prevent them from
engine may stop, causing the loss of
overheating.
the power brake and power steering
functions, and make it difficult to
control the vehicle which could result
in an accident.
Passing
For extra power when passing another
vehicle or climbing steep grades,
depress the accelerator fully. The
transmission will shift to a lower gear,
depending on vehicle speed.
NOTE
The accelerator pedal may initially
feel heavy as it is being depressed,
then feel lighter as it is depressed
further. This change in pedal force
aids the engine control system in
determining how much the
accelerator pedal has been
depressed for performing kickdown,
and functions to control whether or
not kickdown should be performed.
4-43
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

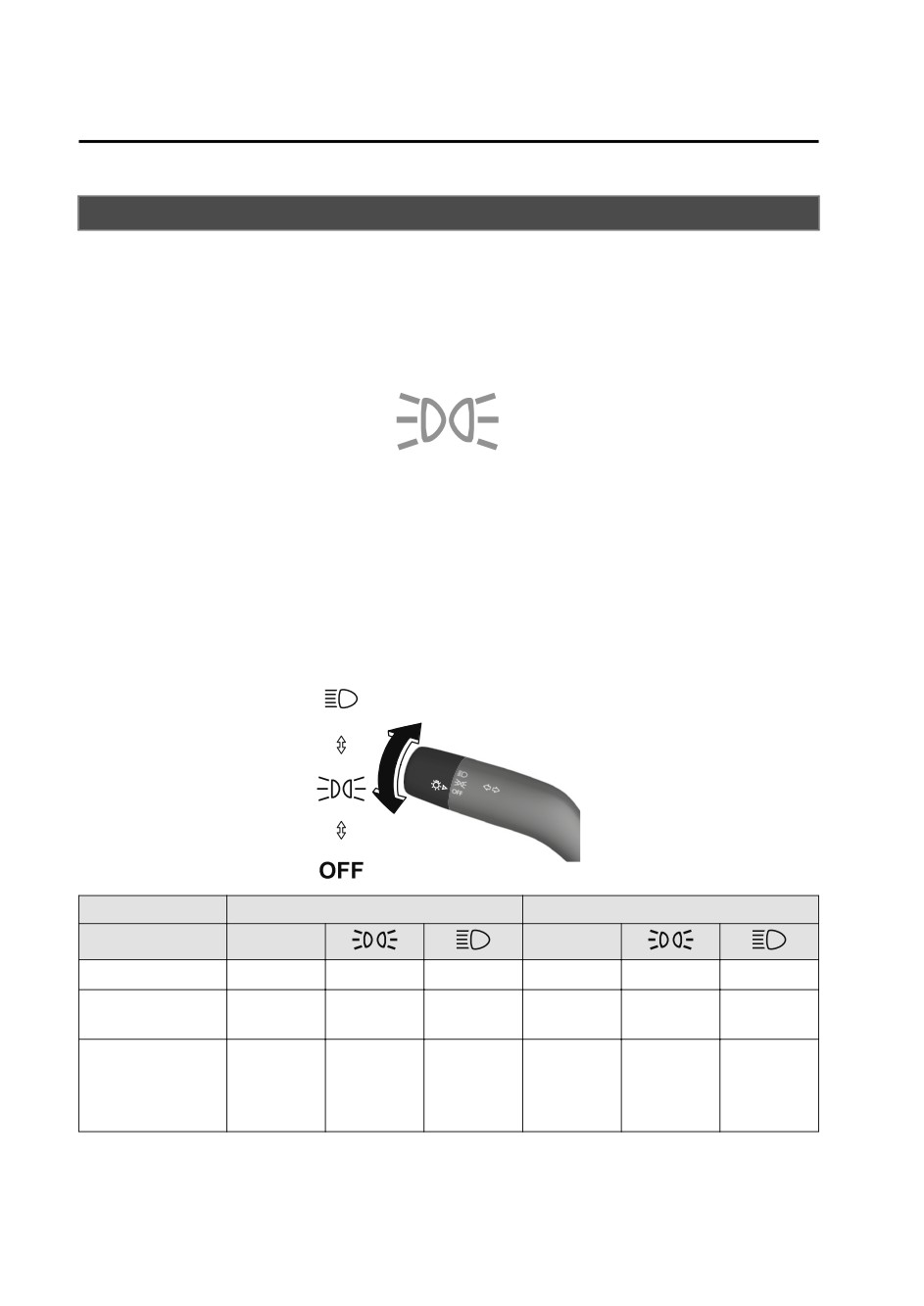

Lighting Control
Headlights
Turn the headlight switch to turn the headlights and other exterior lights on or off.
When the taillights, parking lights, license plate lights, and the side-marker lights are
turned on, the lights-on indicator light in the instrument cluster turns on.
NOTE
If the light switch is left on, the lights will automatically switch off approximately
30 seconds after switching the ignition off.
The time setting can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
To prevent discharging the battery, do not leave the lights on while the engine is
off unless safety requires them.
Without auto-light control
Ignition Position
ACC or OFF
ON
Switch Position
OFF
OFF
Headlights
Off
Off
Off*1
Off
Off
On
Daytime running
Off
Off
Off
On*2
On*2*3
Off
lights
Taillights
Parking lights
Off
On*1
On*1
Off
On
On
License plate lights
Side-marker lights
*1
The lights are turned on for the specified period by the auto headlight off function.
4-44
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
2
When the light switch is switched to a different position from the OFF,
position while the
vehicle is stopped, the daytime running lights turn off. When starting to drive the vehicle, the daytime
running lights turn on again.
*3
When the light switch is switched to the OFF position, and then to the
position again, the
daytime running lights turn off directly after starting the engine. The daytime running lights turn on
when you begin driving the vehicle.

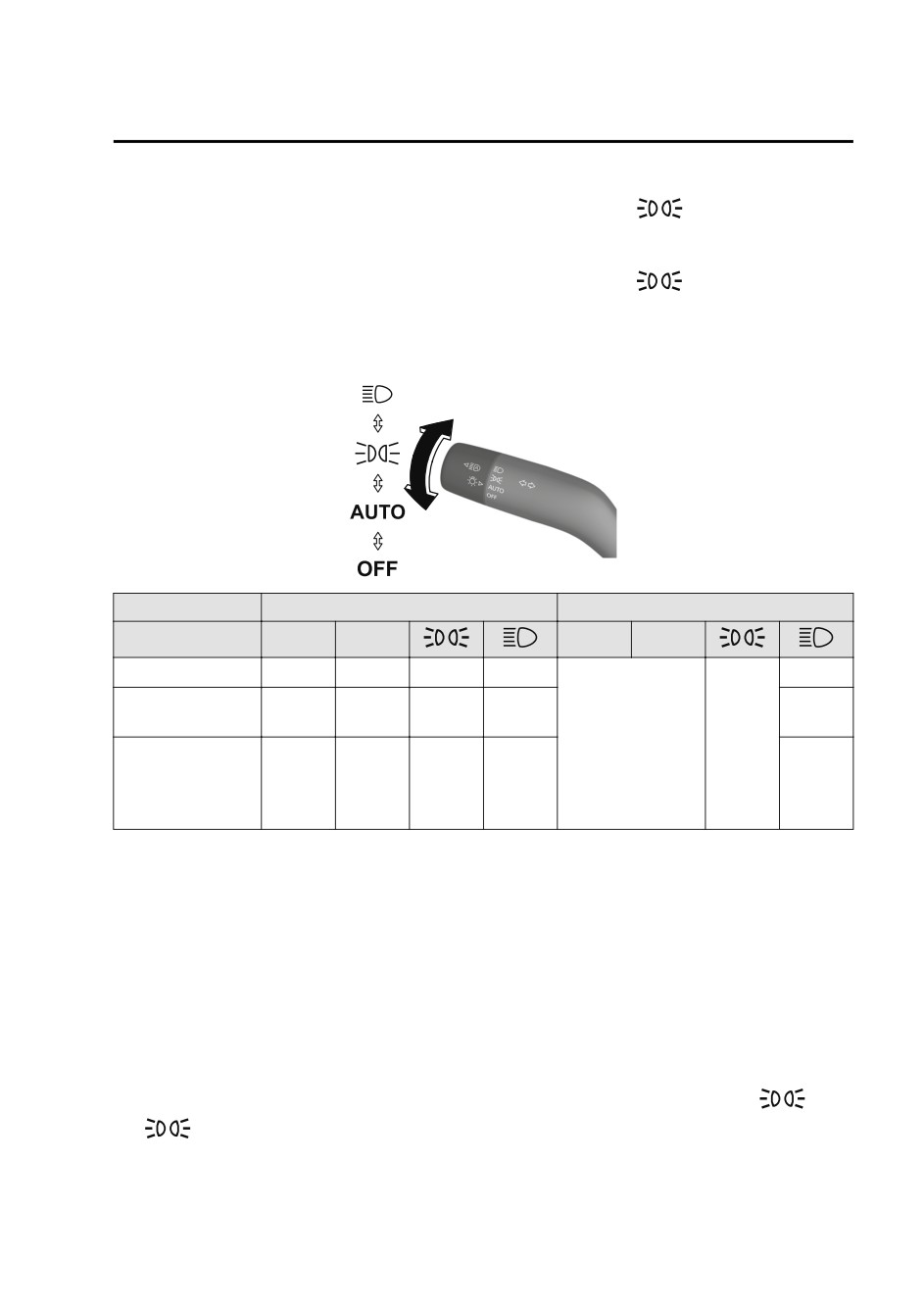

With auto-light control
Ignition Position
ACC or OFF
ON
Switch Position
OFF*1
AUTO
OFF*1
AUTO
Headlights
Off
Off*2
Off
Off*2
On
Daytime running
Off
Off
Off
Off
Off
lights
Auto*3*5
Auto*4*5
Taillights
Parking lights
Off
Off*2
On*2
On*2
On
License plate lights
Side-marker lights
*1
The light switch returns to the AUTO position automatically.
*2
The lights are turned on continuously if the ignition is switched from ON to any other position with
the lights turned on. The lights are turned on for the specified period by the auto headlight off
function.
*3
During the daytime, the daytime running lights turn on automatically. During the nighttime, the
headlights, parking lights, taillights, license plate lights, and the side-marker lights turn on
automatically.
*4
During the daytime, the daytime running lights, parking lights, taillights, license plate lights, and the
side-marker lights turn on automatically. During the nighttime, the headlights, parking lights,
taillights, license plate lights, and the side-marker lights turn on automatically.
*5
When the light switch is switched to the OFF position while the vehicle is stopped, all of the lights
that are turned on turn off. When the light switch is switched from a position other than
to the
position while the vehicle is stopped, the running lights or the headlights turn off. When
starting to drive the vehicle, the lights that are turned off turn on again.
4-45
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

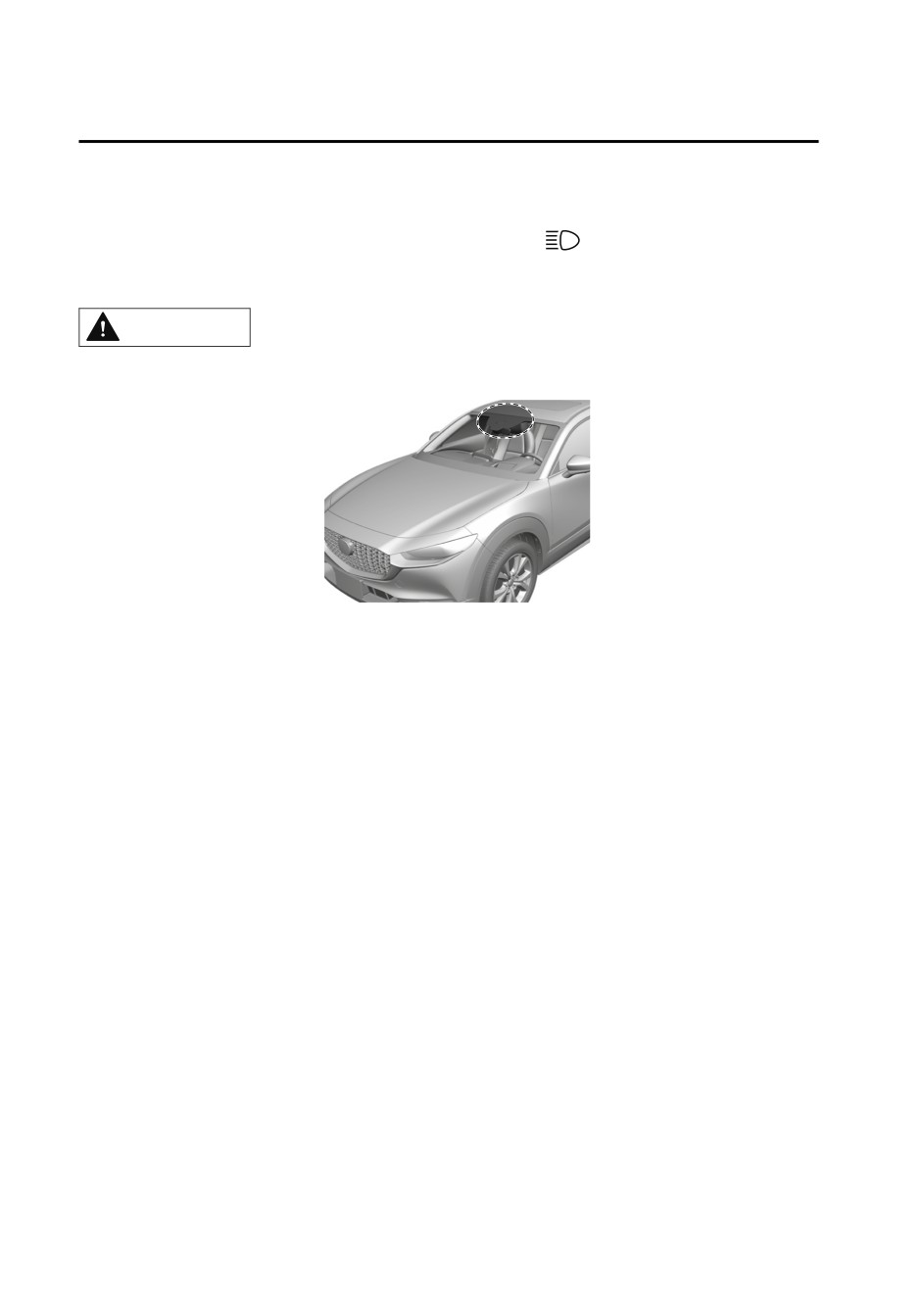

Auto-light control*
When the headlight switch is in a position other than
and the ignition is
switched ON, the light sensor senses the surrounding lightness or darkness and
automatically turns the headlights and other exterior lights on or off.
CAUTION
¾ Do not shade the light sensor by adhering a sticker or a label on the windshield.
Otherwise the light sensor will not operate correctly.
¾ The light sensor also works as a rain sensor for the auto-wiper control. Keep hands
and scrapers clear of the windshield when the wiper lever is in the AUTO position
and the ignition is switched ON as fingers could be pinched or the wipers and
wiper blades could be damaged when the wipers activate automatically. If you are
going to clean the windshield, be sure the wipers are turned off completely when
it is particularly tempting to leave the engine running. This is particularly important
when clearing ice and snow.
NOTE
The headlights and other exterior lights may not turn off immediately even if the
surrounding area becomes well-lit because the light sensor determines that it is
night time if the surrounding area is continuously dark for several minutes such as
inside long tunnels, traffic jams inside tunnels, or in indoor parking lots.
If the headlight switch and the windshield wiper switch are in AUTO, and the
wipers are operated at low or high speed by the auto wiper control for several
seconds, bad weather conditions are determined and the headlights may be
turned on.
The sensitivity of the auto-light control may be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
4-46
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

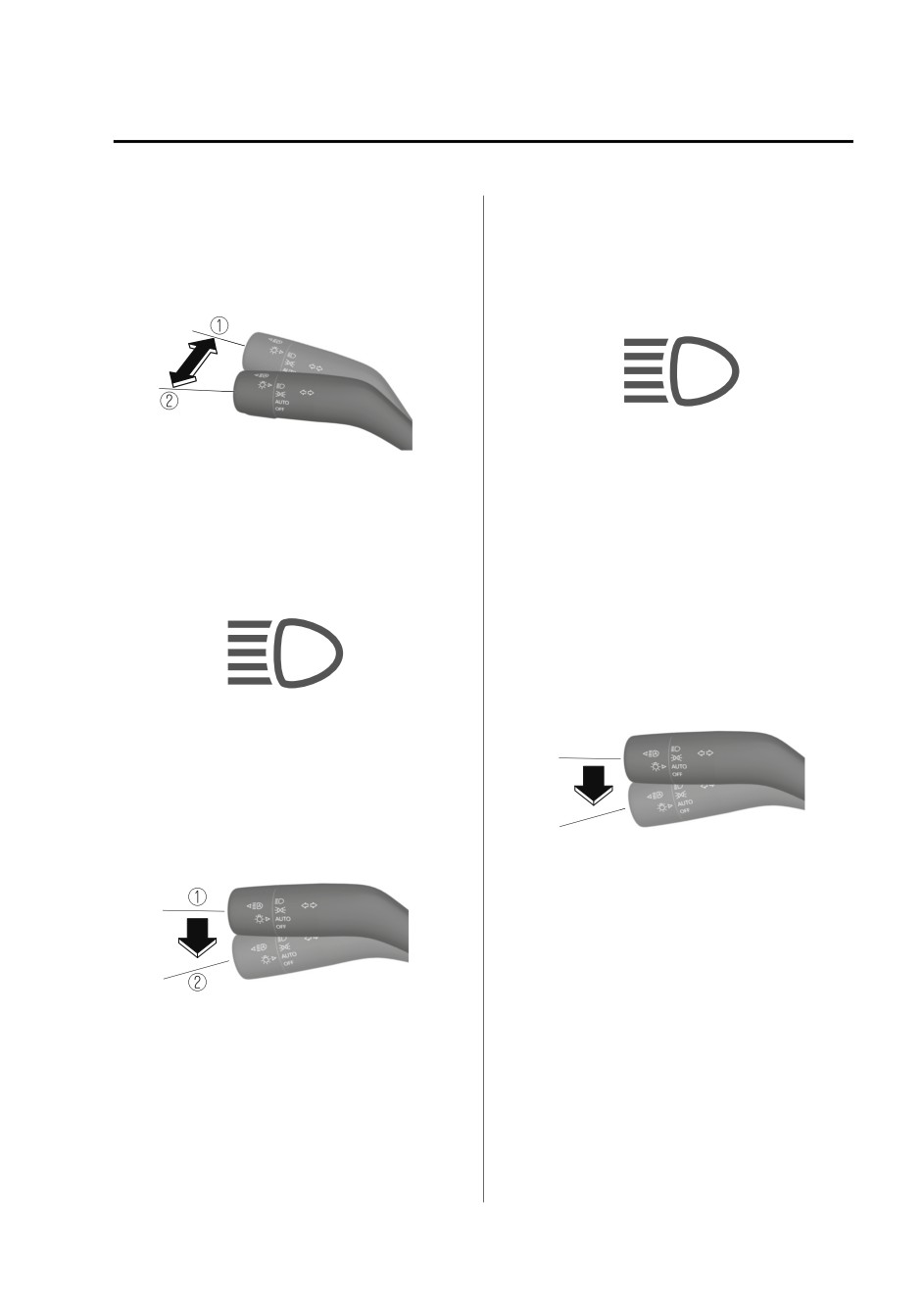

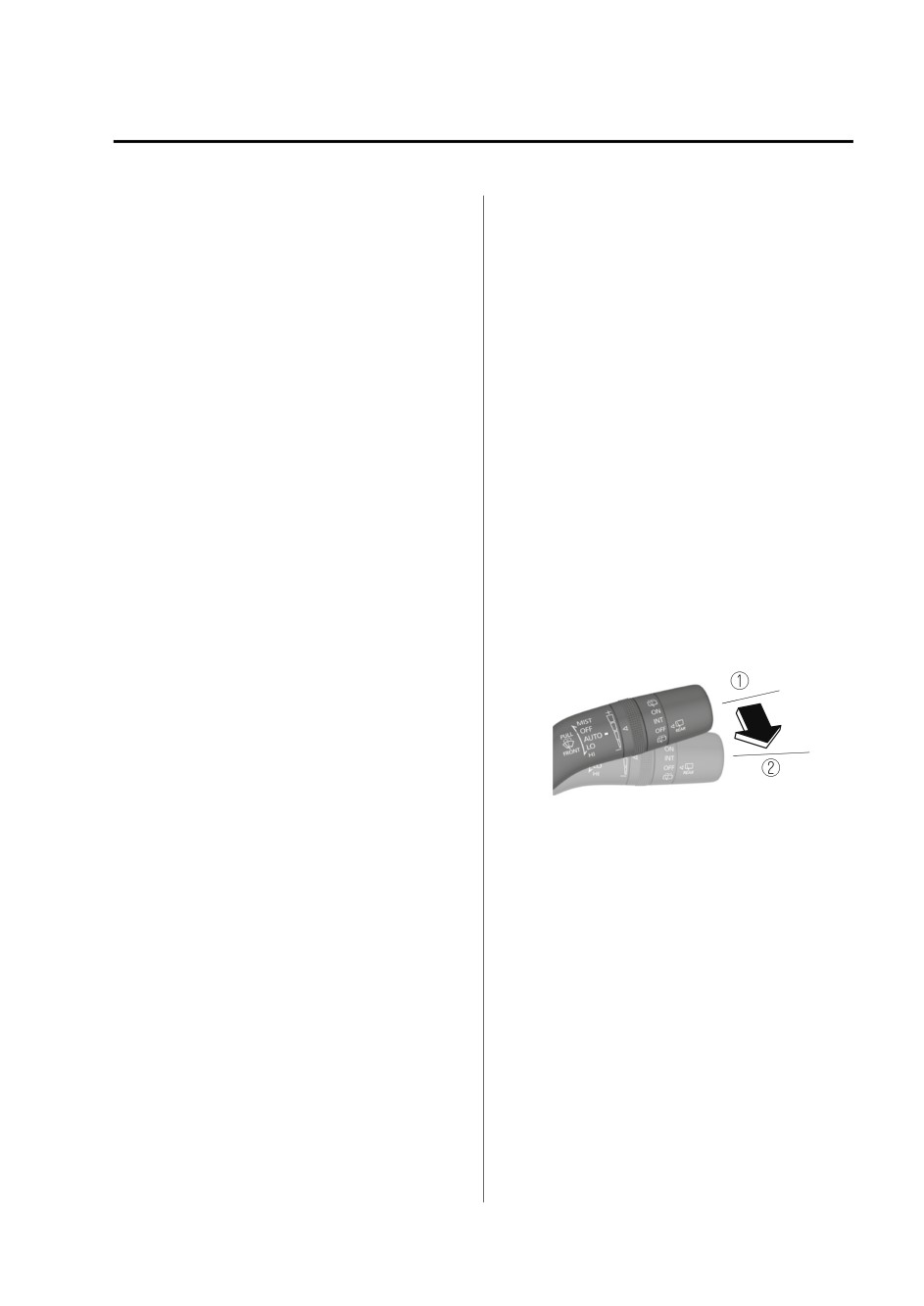

Headlight High-Low Beam
The headlight high-beam indicator
light in the instrument cluster
The headlights switch between high
illuminates simultaneously. The lever
and low beams by moving the lever
will return to the normal position when
forward or backward.
released.
Coming Home Light
1. High beam
The coming home light turns on the
2. Low beam
headlights (low beams) when the lever
is operated.
When the headlight high-beams are
on, the headlight high-beam indicator
To turn on the lights
light is turned on.
When the lever is pulled with the
ignition switched to ACC or OFF, the
low beam headlights turn on.
The headlights turn off after a certain
period of time has elapsed after all of
the doors are closed.
Flashing the Headlights
When the ignition switch is switched
ON, and regardless of the headlight
position, the headlights switch to high
beams while the lever is being pulled.
NOTE
The time until the headlights turn off
after all of the doors are closed can
be changed.
Refer to the Settings section in the
Mazda Connect Owner's Manual.
1. OFF
If no operations are done for 3
2. Headlight flashing
minutes after the lever is pulled, the
headlights turn off.
The headlights turn off if the lever is
pulled again while the headlights are
illuminated.
4-47
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

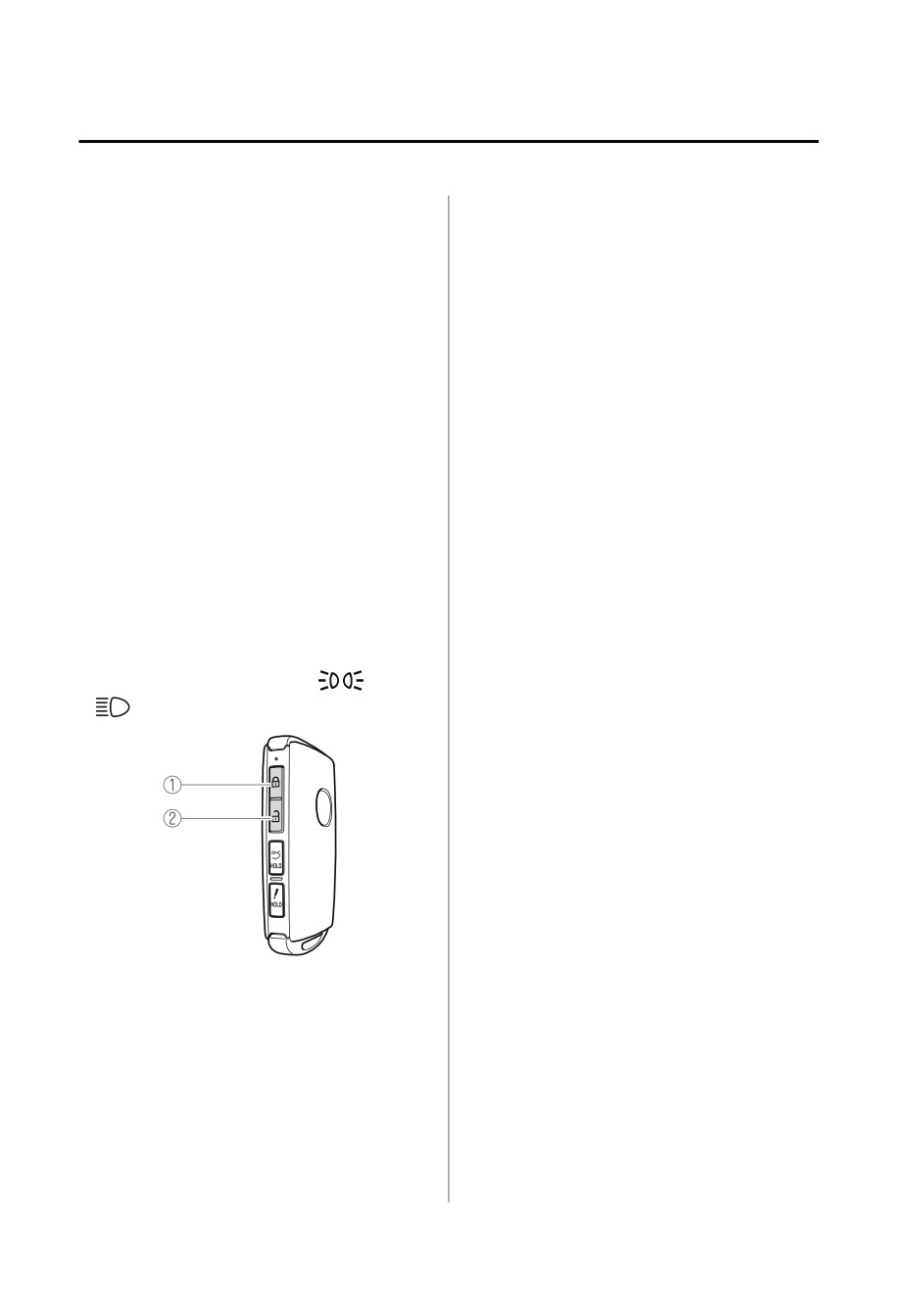

Leaving Home Light
NOTE
The leaving home light turns on the
Operation of the leaving home light
lights when the transmitter unlock
can be turned on or off.
button is pressed while away from the
Refer to the Settings section in the
vehicle.
Mazda Connect Owner's Manual.
The following lights turn on when the
When the transmitter lock button is
leaving home light is operated.
pressed and the vehicle receives the
Low beams, Parking lights, Taillights,
transmitter signal, the headlights turn
License plate lights.
off.
When the headlight switch is turned
To turn on the lights
to the OFF position, the headlights
When the ignition switch and the
turn off.
headlight switch are in the following
Headlight Leveling
conditions, the headlights will
illuminate when the transmitter unlock
The number of passengers and weight
button is pressed and the vehicle
of cargo in the luggage compartment
receives the transmitter signal. The
change the angle of the headlights.
headlights turn off after a certain
period of time has elapsed (30
Auto type
seconds).
The angle of the headlights will be
Ignition switch: off
automatically adjusted when turning
Headlight switch: AUTO,
, or
on the headlights.
A system malfunction or operation
conditions are indicated by a warning.
Refer to Exterior Light Warning
Indication/Warning Light on page
7-29.
1. Lock button
2. Unlock button
4-48
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
Manual type
Turn and Lane-Change
When adjusting the illumination angle
Signals
of the headlights, refer to the Settings
section in the Mazda Connect

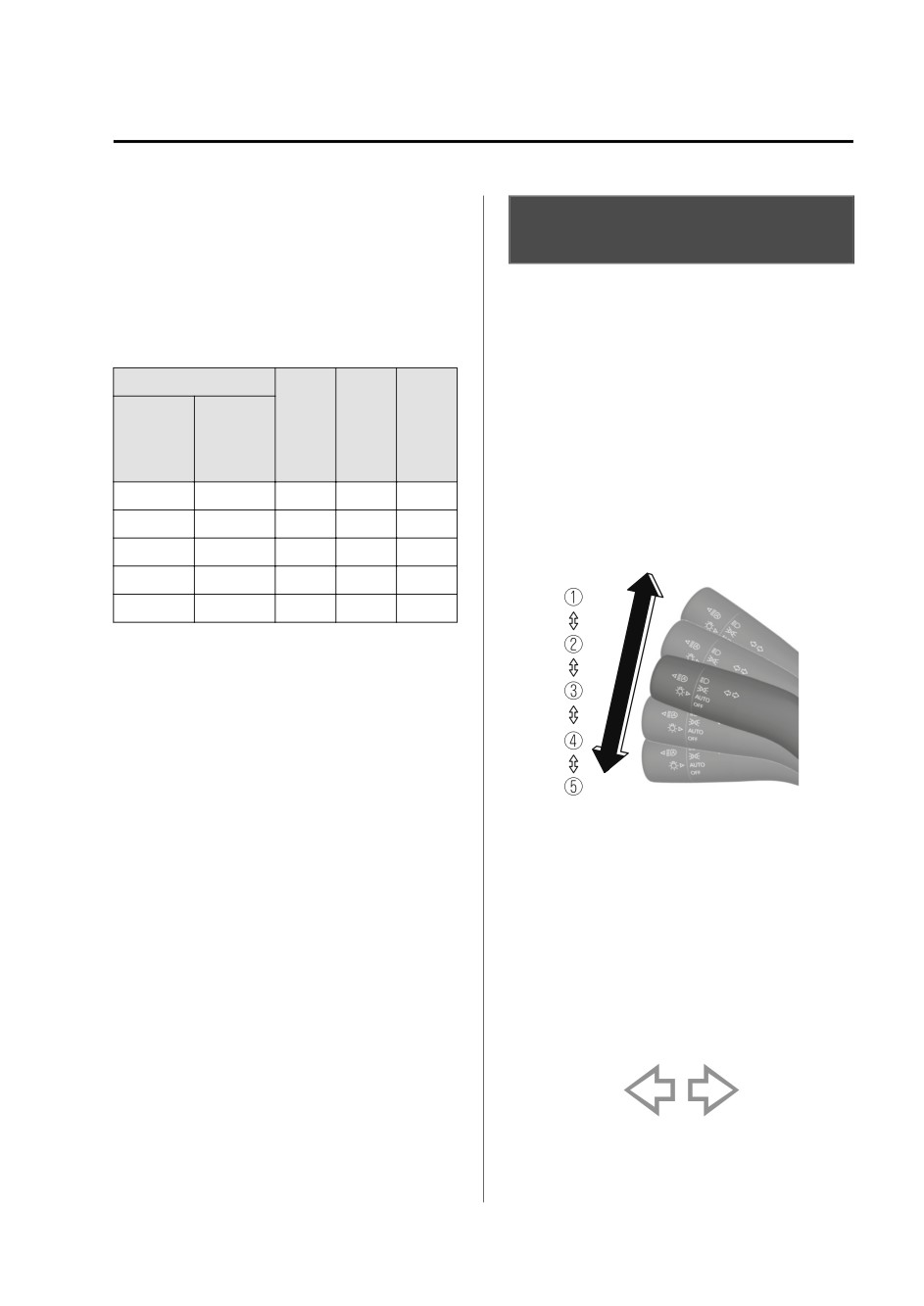

Turn and Lane-Change Signals
Owner's Manual.
Select the proper headlight angle from
The ignition must be switched ON to
the following chart.
use the turn and lane-change signals.
Front seat
Illumi-
Turn Signals
nation
Rear
Move the signal lever down (for a left
Load
angle
Driver
Passenger
seat
turn) or up (for a right turn) to the stop
(num-
position. The signal will self-cancel
ber)
after the turn is completed.
×
0
If the indicator light continues to flash
×
×
0
after a turn, manually return the lever
×
×
×
1
to its original position.
×
×
×
×
2
×
×
3.5
×: Yes
: No
Daytime Running Lights
Some countries require moving
vehicles to have their lights on
(daytime running lights) during the
daytime.
1. Right turn
The daytime running lights turn on
2. Right lane change
automatically.
3. OFF
4. Left lane change
NOTE
5. Left turn
(Except Canada)
The daytime running lights can be
The turn signal indicators in the
deactivated.
instrument cluster flash according to
Refer to the Settings section in the
the operation of the turn signal lever to
Mazda Connect Owner's Manual.
show which signal is working.
4-49
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
NOTE
Windshield Wipers and
There may be a problem with the
Washer
turn signal lights if they do not flash
but remain turned on, or they flash
Windshield Wipers and Washer
abnormally. Have your vehicle
inspected by an Authorized Mazda
The ignition must be switched ON to
Dealer.
use the wipers.
A personalized function is available
to change the turn indicator sound
WARNING
volume.
Refer to the Settings section in the
Use only windshield washer fluid or
Mazda Connect Owner's Manual.
plain water in the reservoir:
Using radiator antifreeze as washer
Lane-Change Signals
fluid is dangerous. If sprayed on the
Move the lever halfway toward the
windshield, it will dirty the windshield,
direction of the lane changeuntil the
affect your visibility, and could result in
an accident.
indicator flashes and hold it there. It
will return to the off position when
released.
Only use windshield washer fluid
mixed with anti-freeze protection in
Three-Flash Turn Signal
freezing weather conditions:
Using windshield washer fluid without
After releasing the turn signal lever
anti-freeze protection in freezing
from the halfway point, the turn signal
weather conditions is dangerous as it
indicator flashes 3 times. The
could freeze on the windshield and
operation can be canceled by moving
block your vision which could cause an
the lever in the direction opposite to
accident. In addition, make sure the
which it was operated.
windshield is sufficiently warmed using
NOTE
the defroster before spraying the
The three-flash turn signal function can
washer fluid.
be switched to on/off using the
personalization function.
CAUTION
Refer to the Settings section in the
Mazda Connect Owner's Manual.
¾ When the wipers are not used during
freezing temperatures or for a long
time, the wiper rubber may adhere
to the glass. If the wipers are
operated while adhered to the glass,
it could damage the wiper rubber
and motor.
¾ If the wipers are operated while the
glass is dry, the glass could be
scratched and the wiper rubber
damaged. When the glass is dry,
spray washer fluid before operating
the wipers.
4-50
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
¾ If the amount of washer fluid spray is
Switch Posi-
Wiper operation
insufficient, do not use the washer
tion
switch. If the washer switch
Operation while pulling up lev-
continues to be operated with no
MIST
er
washer fluid being sprayed, it could
OFF
Stop
lead to pump damage.
INT
Intermittent
NOTE
LO
Low speed
If the windshield wipers are operated
HI
High speed
under cold weather conditions or
during snowfall, they could stop due to
Variable-speed intermittent wipers
accumulated snow on the windshield.
If the windshield wipers stop due to
Set the lever to the intermittent
accumulated snow on the windshield,
position and choose the interval timing
park the vehicle in a safe place, turn
by rotating the switch.
the wiper switch off, and then remove
Rotate the switch upward (FAST
the accumulated snow. If the wiper
direction) to shorten the interval time
switch is turned to another position
of the wiper operation, and rotate the
other than OFF, the wipers will
switch downward (SLOW direction) to
lengthen it.
operate. If the wipers do not operate
even though the wiper switch is turned
to a position other than OFF, consult
an Authorized Mazda Dealer as soon
as possible.

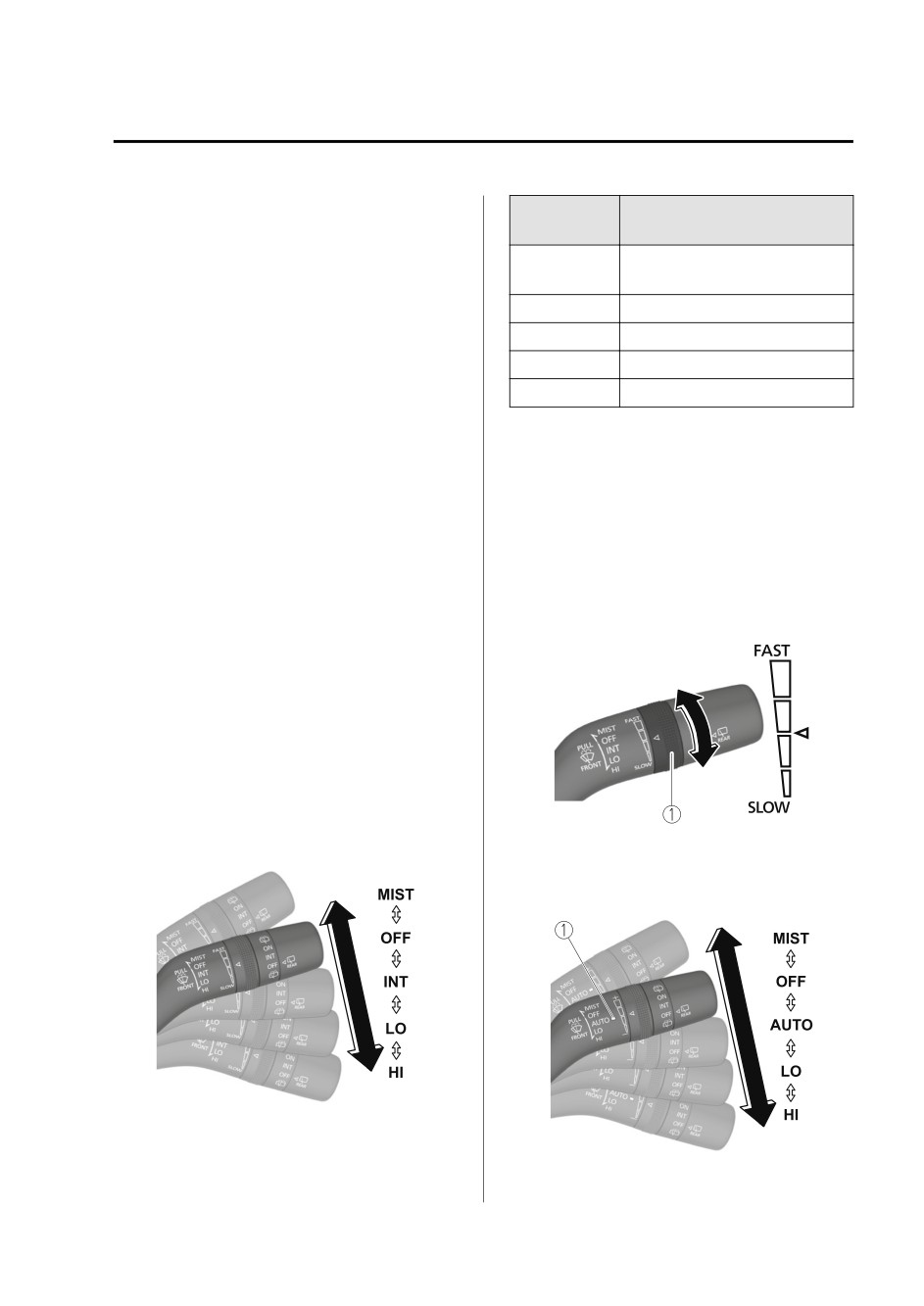

Windshield Wipers
Turn the wipers on by pressing the
lever up or down.
With intermittent wiper
1. Switch
With auto-wiper control
1. Indicator light
4-51
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
Switch Posi-
Wiper operation
CAUTION
tion
¾ Do not shade the rain sensor by
Operation while pulling up lev-
MIST
adhering a sticker or a label on the
er
windshield. Otherwise the rain
OFF
Stop
sensor will not operate correctly.
AUTO*1
Auto control
LO
Low speed
HI
High speed
*1
When the wiper lever is switched to the
AUTO position, the indicator light turns on.
Auto-wiper control*
When the wiper lever is in the AUTO
position, the rain sensor senses the
¾ When the ignition is switched ON
amount of rainfall on the windshield
and the wiper lever is in the AUTO
and turns the wipers on or off
position, the windshield wipers may
automatically (offintermittentlow
operate automatically in the
speedhigh speed).
following cases:

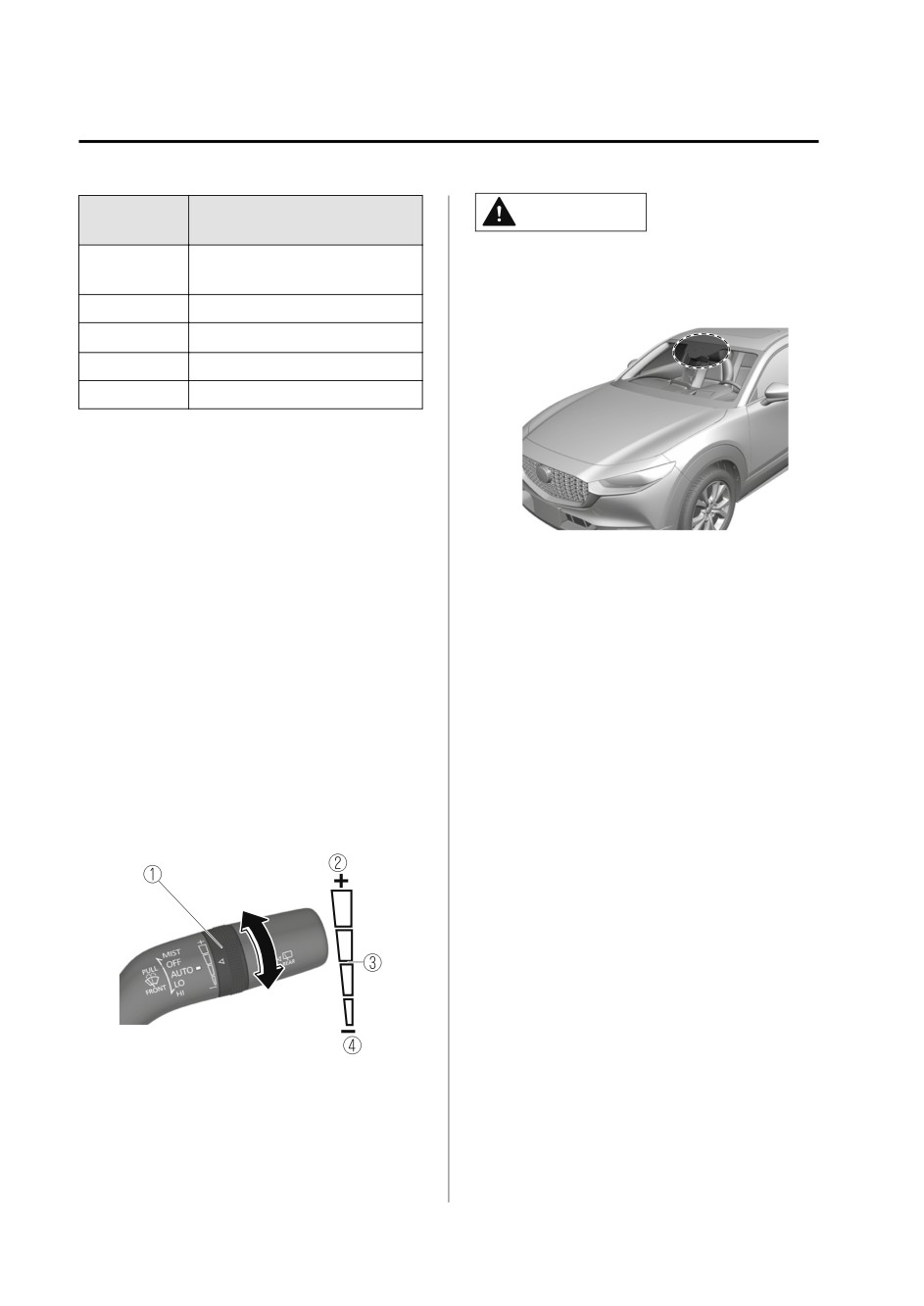

The sensitivity of the rain sensor can be
¾ The area of the windshield above
adjusted by turning the switch on the
the rain sensor is touched or wiped
wiper lever.
with a cloth.
From the center position (normal),
¾ The windshield or the rain sensor
rotate the switch upward (+ direction)
area in the cabin is hit.
for higher sensitivity (faster response)
or rotate it downward (- direction) for
When the ignition is switched ON
and the wiper lever is in the AUTO
less sensitivity (slower response).
position, do not touch the
windshield or the windshield wipers
Otherwise, the windshield wipers
will operate automatically which
could catch your fingers or damage
the windshield wipers.
When removing ice or snow, or
cleaning the windshield, always
make sure the wiper lever is in the
OFF position.
1. Switch
2. Higher sensitivity
3. Center position
4. Less sensitivity
4-52
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
NOTE
If the headlight switch and the
windshield wiper switch are in
Switching the auto-wiper lever from
AUTO, and the wipers are operated
the OFF to the AUTO position while
at low or high speed by the auto
driving activates the windshield
wiper control for several seconds,
wipers once, after which they
bad weather conditions are
operate according to the rainfall
determined and the headlights may
amount.
be turned on.
The auto-wiper control may not
The auto-wiper control functions can
operate when the rain sensor
be turned off.
temperature is about 10 °C (14 °F)
Refer to the Settings section in the
or lower, or about 85 °C (185 °F) or
Mazda Connect Owner's Manual.
higher.
If the windshield is coated with
Windshield Washer
water repellent, the rain sensor may
Pull the wiper lever toward you to
not be able to sense the amount of
spray washer fluid and operate the
rainfall correctly and the auto-wiper
windshield wipers several times. The
control may not operate properly.
washer fluid is sprayed only while the
If dirt or foreign matter (such as ice
windshield wipers move out of their
or matter containing salt water)
stowed positions to the point where
adheres to the windshield above the
they start reversing back.
rain sensor, or if the windshield is
iced, it could cause the wipers to
move automatically. However, if the
wipers cannot remove this ice, dirt or
foreign matter, the auto-wiper
control will stop operation. In this
case, set the wiper lever to the low
speed position or high speed
1. OFF
position for manual operation, or
remove the ice, dirt or foreign matter
2. Washer
by hand to restore the auto-wiper
NOTE
operation.
If the auto-wiper lever is left in the
If the windshield washer is turned on
AUTO position, the wipers could
when the windshield wipers are not
operate automatically from the effect
operating, the windshield wipers
of strong light sources,
operate a few times.
electromagnetic waves, or infrared
If you pull the wiper lever while the
light because the rain sensor uses an
windshield wipers are reversing back
optical sensor. It is recommended
to their stowed positions, the next
that the auto-wiper lever be
time the washer fluid is sprayed is
switched to the OFF position other
during the next cycle.
than when driving the vehicle under
If the washer does not work, inspect
rainy conditions.
the fluid level (page 6-21). If the fluid
level is normal, consult an Authorized
Mazda Dealer.
4-53
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

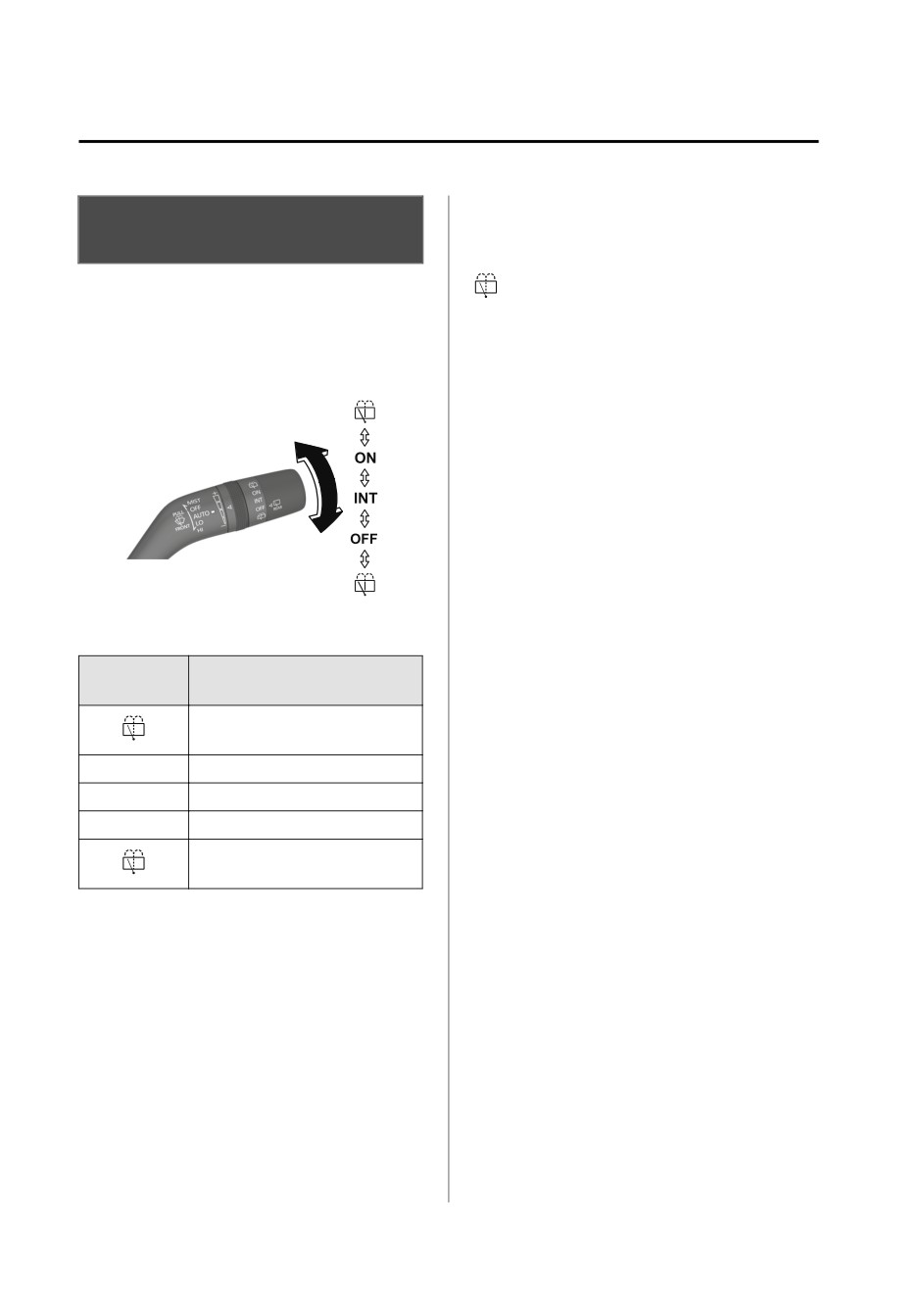

Rear Window Washer
Rear Window Wiper and
To spray washer fluid, turn the rear
Washer
wiper/washer switch to either of the
Rear Window Wiper and Washer
position. After the switch is
released, the washer will stop.
The ignition must be switched ON to
use the wiper.
NOTE
While the windshield washers are
Rear Window Wiper
operating (from the time the wiper
lever is pulled until the washer fluid
stops spraying), the rear window
washer does not spray washer fluid
even if you operate the switch.
If the washer does not work, inspect
the fluid level (page 6-21). If the fluid
level is normal and the washer still
does not work, consult an Authorized
Mazda Dealer.
Turn the wiper on by turning the rear
wiper/washer switch.
Switch Posi-
Wiper operation
tion
Spray washer fluid and operate
the rear wiper
ON
Normal
INT
Intermittent
OFF
Stop
Spray washer fluid and operate
the rear wiper
4-54
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls
NOTE

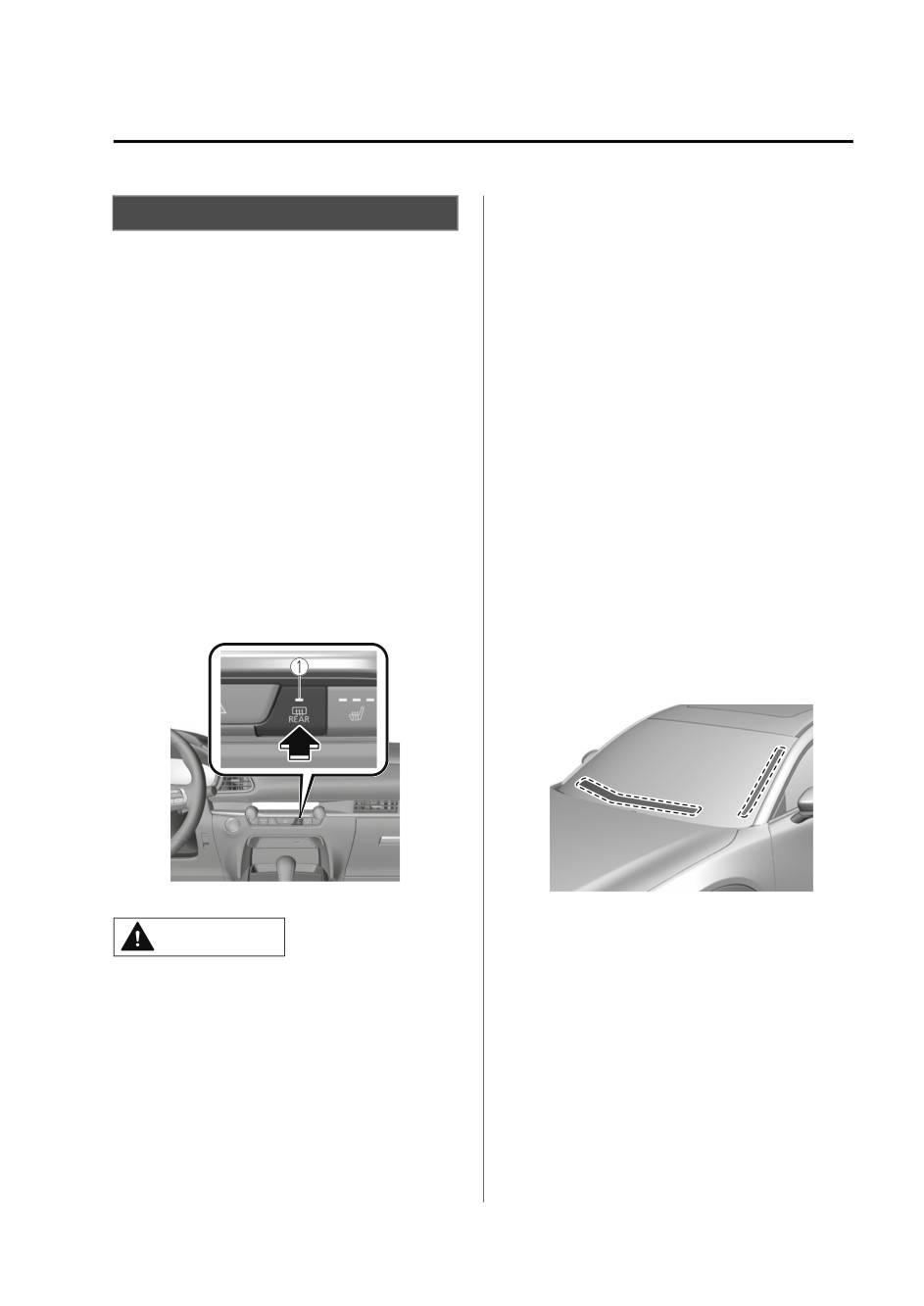

Rear Window Defogger
This defogger is not designed for
Rear Window Defogger
melting snow. If there is an
accumulation of snow on the rear
The rear window defogger clears fog
window, remove it before using the
from the rear window.
defogger.
The rear window defogger operation
The ignition must be switched ON to
time can be changed from 15
use the defogger.
minutes to continuous operation.
When the operation time has been
Press the switch to turn on the rear
switched to continuous operation,
window defogger. The rear window
by pressing the switch, the rear
defogger operates for about 15
window defogger will continue to
minutes and then turns off
operate until the ignition is switched
automatically.
OFF.
The indicator light illuminates when
Refer to the Settings section in the
the defogger is operating.
Mazda Connect Owner's Manual.
To turn off the rear window defogger
Windshield Wiper De-icer*
before the 15 minutes has elapsed,
press the switch again.
The thermal filaments at the following
positions heat up and facilitate the
removal of snow accumulated on the
windshield.
1. Indicator light
CAUTION
¾ Do not use sharp instruments or
window cleaners with abrasives to
clean the inside of the rear window
surface. They may damage the
defogger grid inside the window.
*Some models.
4-55
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

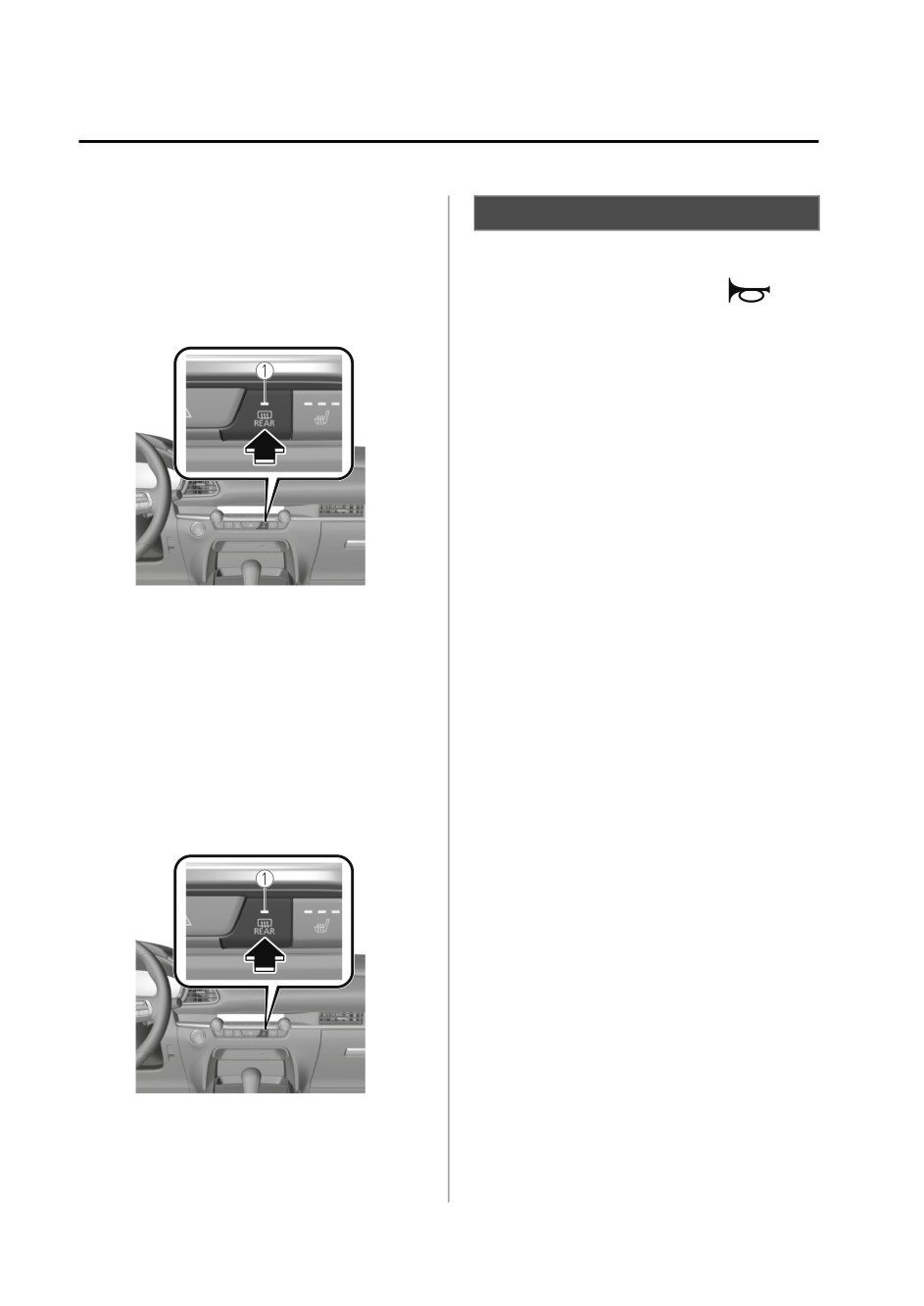

The windshield wiper de-icer operates
Horn
in conjunction with the rear window
defogger.
Horn
To turn on the windshield wiper
de-icer, switch the ignition ON and
To sound the horn, press the
press the rear window defogger switch
mark on the steering wheel.
(page 4-55).
1. Indicator light
Mirror Defogger*
The mirror defoggers defrost the
outside mirrors.
The mirror defoggers operate in
conjunction with the rear window
defogger.
To turn on the mirror defoggers, switch
the ignition ON and press the rear
window defogger switch (page 4-55).
1. Indicator light
4-56
*Some models.
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09
When Driving
Switches and Controls

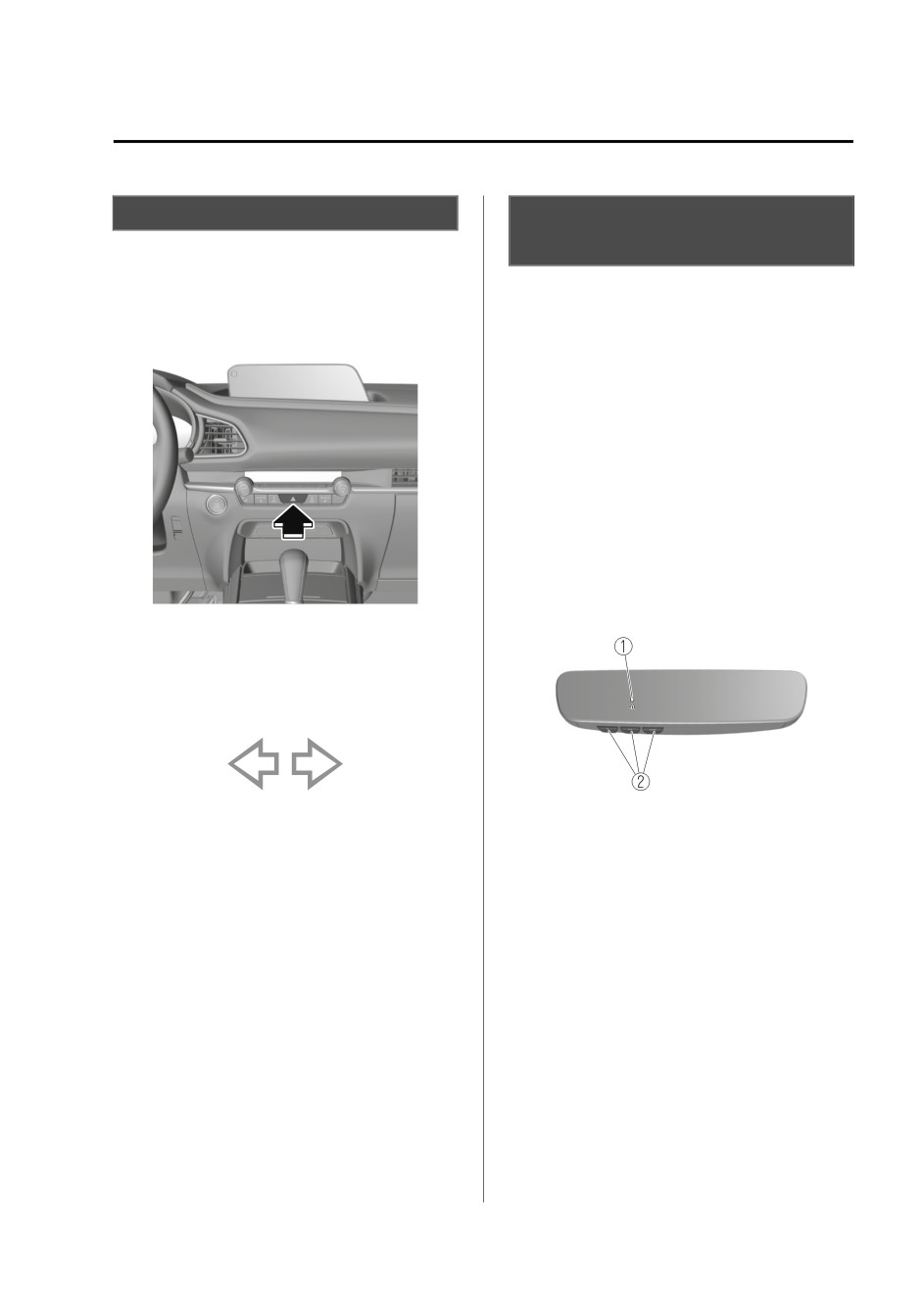

Hazard Warning Flasher
HomeLink Wireless
Hazard Warning Flasher
Control System*
The hazard warning lights should
HomeLink Wireless Control
always be used when you stop on or
System
near a roadway in an emergency.
NOTE
HomeLink and HomeLink house are
registered trademarks of Gentex
Corporation.
The HomeLink system replaces up to 3
hand-held transmitters with a single
built-in component in the
auto-dimming mirror. Pressing the
HomeLink button on the
auto-dimming mirror activates garage
doors, gates and other devices
surrounding your home.
The hazard warning lights warn other
drivers that your vehicle is a traffic
hazard and that they must take
extreme caution when near it.
1. Indicator light
Depress the hazard warning flasher
2. HomeLink button
and all the turn signals will flash. The
hazard warning indicator lights in the
instrument cluster flash simultaneously.
NOTE
The turn signals do not work when
the hazard warning lights are on.
Check local regulations about the
use of hazard warning lights while
the vehicle is being towed to verify
that it is not in violation of the law.
*Some models.
4-57
CX-30_8JP5-EA-20K_Edition1_new
2020-7-22 15:50:09















Content      ..     4      5      6      7     ..
