▼ Operating Tips for OGG

OGG is the audio compression format for
Xiph. Org Foundation.
Audio data can be created and stored at a
higher compression ratio than MP3.
This unit plays files with the extension
(.ogg) as OGG files.

CAUTION

Do not use an audio file extension on files
other than audio files. In addition, do not
change the audio file extension. Otherwise,
the unit will not recognize the file correctly
resulting in noise or a malfunction.

•

OGG files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.

•

The file extension may not be provided
depending on the computer operating
system, version, software, or settings. In
this case, add the file extension “.ogg”
to the end of the file name, and then
write it to the memory.

▼ Operating Tips for USB device

This unit plays audio files as follows:

Extension

Playback with this unit

.mp3

MP3

.wma

WMA

.aac

AAC

.m4a

.wav

WAV

.ogg

OGG

CAUTION

NOTE

•

Playback may not be possible depending
on the type and condition of the USB
flash memory even if the audio file
complies with the standard.

•

A copyright protected WMA/AAC file
cannot be played in this unit.

•

(Type B)
If a file name in the USB memory is too
long, it could cause operation problems
such as not being able to playback the
song.
(Recommended: Within 80 characters)

•

The order of the music data stored in the
device may differ from the playback
order.

•

To prevent loss or damage of stored
data, we recommend that you always
back up your data.

Interior Features

Appendix

5-124

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

•

If a device exceeds the maximum
electric current value of 1,000 mA, it
may not operate or recharge when
connected.

•

Do not pull out the USB device while in
the USB mode (only pull it out while in
FM/AM radio mode).

•

The device will not operate if the data is
password protected.

MP3/WMA/AAC/OGG files written under
specifications other than the indicated
specification may not play normally or
files/folder names may not display
correctly.

1 Type B

▼ Operating Tips for iPod

This unit supports playback of music files
recorded to an iPod.

∗ iPod is a trademark of Apple Inc.,

registered in the U.S. and other
countries.

The iPod may not be compatible
depending on the model or OS version. In
this case, an error message is displayed.

CAUTION

Remove the iPod when it is not in use.

Because the iPod is not designed to
withstand excessive changes in
temperature inside the cabin, it could be
damaged or the battery may deteriorate
due to the excessive temperature or
humidity inside the cabin if it is left in the
vehicle.

If data in the iPod is lost while it is

connected to the unit, Mazda cannot
guarantee recovery of any lost data.

If the iPod battery is deteriorated, the

iPod may not recharge and playback
may not be possible when it is connected
to the unit.

For details on using the iPod, refer to the

iPod instruction manual.

When connecting the iPod to a USB port,

all commands are made from the audio
unit. iPod control is not possible.

NOTE
The audio unit cannot display images or
videos stored in an iPod.

Interior Features

Appendix

5-125

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

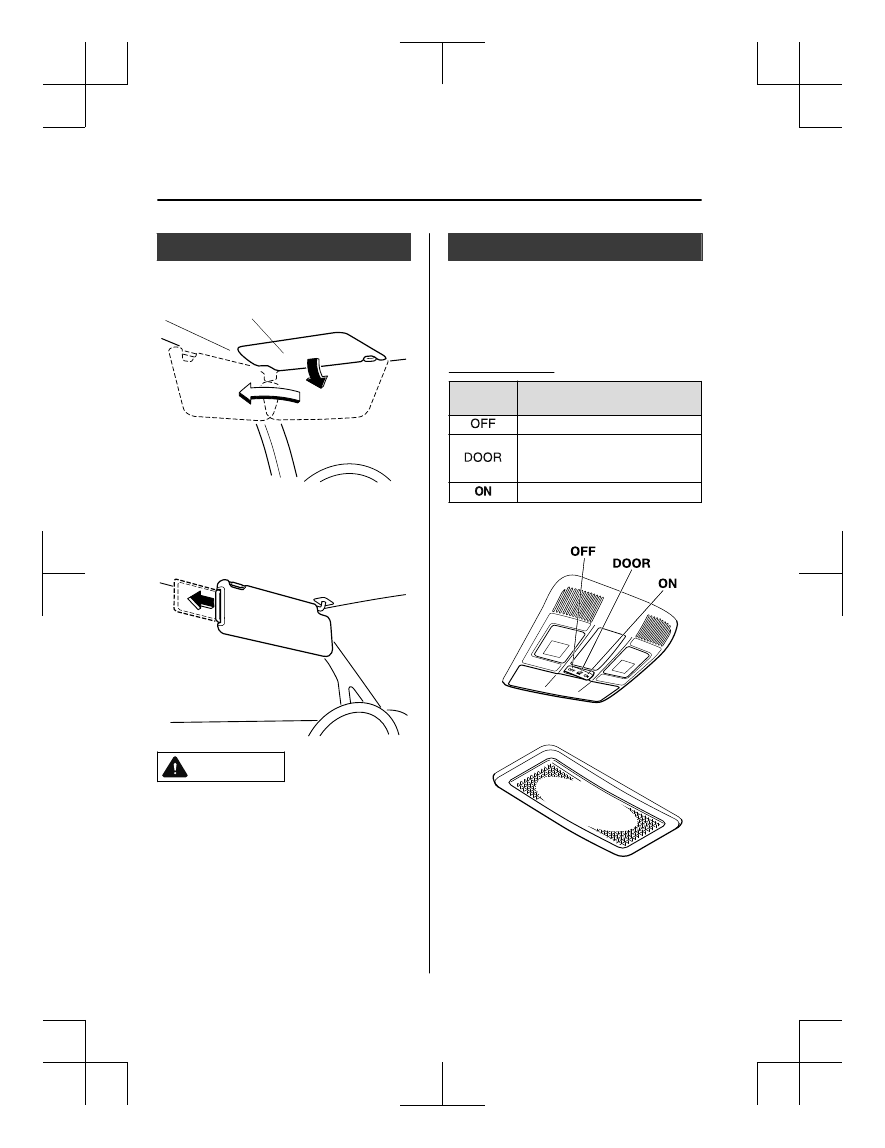

Sunvisors

When you need a sunvisor, lower it for use
in front or swing it to the side.

Sunvisor

▼ Side Extension Sunvisors

The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.

CAUTION

When moving the sunvisor, retract the visor
extender to its original position. Otherwise,
the visor extender could hit the rearview
mirror.

▼ Vanity Mirrors

To use the vanity mirror, lower the
sunvisor.

Interior Lights

NOTE
Do not leave the lights on for long periods
while the engine is turned off. Otherwise,
the battery power could be depleted.

Overhead Lights

Switch Posi-

tion

Overhead Lights

Light off

•

Light is on when any door is open

•

Light is on or off when the illumi-
nated entry system is on

Light on

Front

Rear

NOTE
The rear overhead light also turn on and
off when the front overhead light switch is
operated.

Interior Features

Interior Equipment

5-126

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

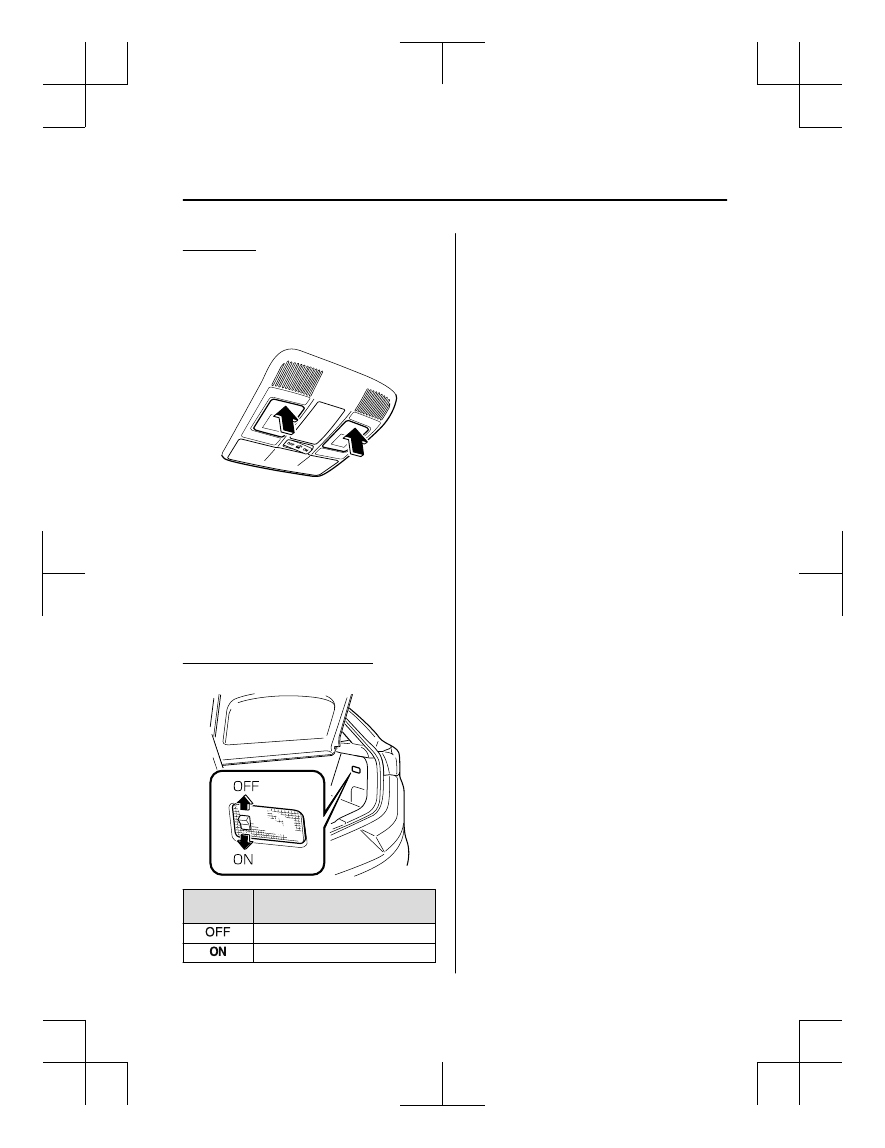

Map Lights

When the overhead light switch is in the
door or off position, press the lens to
illuminate the map lights, and then press
the lens again to turn them off.

NOTE
The map lights will not turn off even if the
lens is pressed in the following cases:

•

The overhead light switch is in the ON
position.

•

The overhead light switch is in the door
position with the door open.

•

The illuminated entry system is on.

Luggage Compartment Lights

Switch Posi-

tion

Luggage Compartment Light

Light off
Light on when the liftgate is open

▼ Illuminated Entry System

The overhead lights turn on when any of
the following operations is done with the
overhead light switch in the DOOR
position.

•

The driver's door is unlocked with the
ignition is switched OFF.

•

The ignition is switched OFF with all
doors closed.

NOTE

•

The illumination time differs depending
on the operation.

•

Battery saver
If an interior light is left on with the
ignition switched OFF, the light is
turned off automatically after about 30
minutes to prevent battery depletion.

•

The operation of the illuminated entry
system can be changed.
Refer to Personalization Features on
page 9-9.

Interior Features

5-127

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

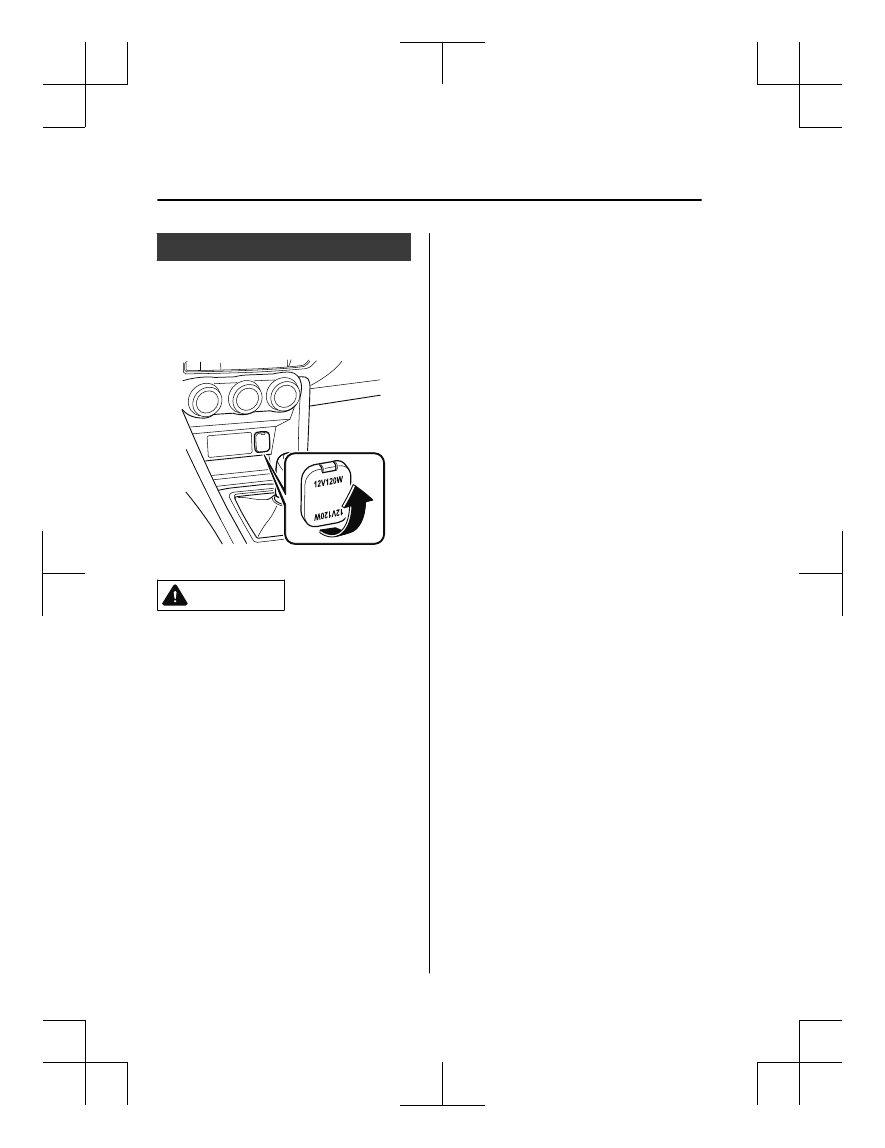

Accessory Socket

Only use genuine Mazda accessories or
the equivalent requiring no greater than
120 W (DC 12 V, 10 A).
The ignition must be switched to ACC or
ON.

CAUTION

To prevent accessory socket damage or

electrical failure, pay attention to the
following:

Do not use accessories that require

more than 120 W (DC 12 V, 10 A).

Do not use accessories that are not

genuine Mazda accessories or the
equivalent.

Close the cover when the accessory

socket is not in use to prevent foreign
objects and liquids from getting into
the accessory socket.

Correctly insert the plug into the

accessory socket.

Do not insert the cigarette lighter into

the accessory socket.

Noise may occur on the audio playback

depending on the device connected to
the accessory socket.

Depending on the device connected to

the accessory socket, the vehicle's
electrical system may be affected, which
could cause the warning light to
illuminate. Disconnect the connected
device and make sure that the problem is
resolved. If the problem is resolved,
disconnect the device from the socket
and switch the ignition off. If the problem
is not resolved, consult an Authorized
Mazda Dealer.

NOTE
To prevent discharging of the battery, do
not use the socket for long periods with the
engine off or idling.

Interior Features

Interior Equipment

5-128

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Cup Holder

WARNING

Never use a cup holder to hold hot liquids
while the vehicle is moving:
Using a cup holder to hold hot liquids while
the vehicle is moving is dangerous. If the
contents spill, you could be scalded.

▼ Front

There are two cup holders.

Front

Rear

How to use the cup holder

Front

Press the button on the divider. The flap
pops up to hold the drink cup in place
firmly.

Rear

Pull up the armrest and press the button on
the divider. The flap pops up to hold the
drink cup in place firmly.

Flaps

Buttons

NOTE
(Rear)

•

If the divider was removed, return it to
its original position.
Refer to Center Console on page 5-132.

•

The base plate lowers at the same time
the flap pops up. Use it to hold small
drink cups. When placing tall bottles
such as PET drink bottles, retract the
flap and the base plate.

To retract the front/rear flaps and rear
base plate

Front

To retract the flap, press down the flap.

Interior Features

5-129

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

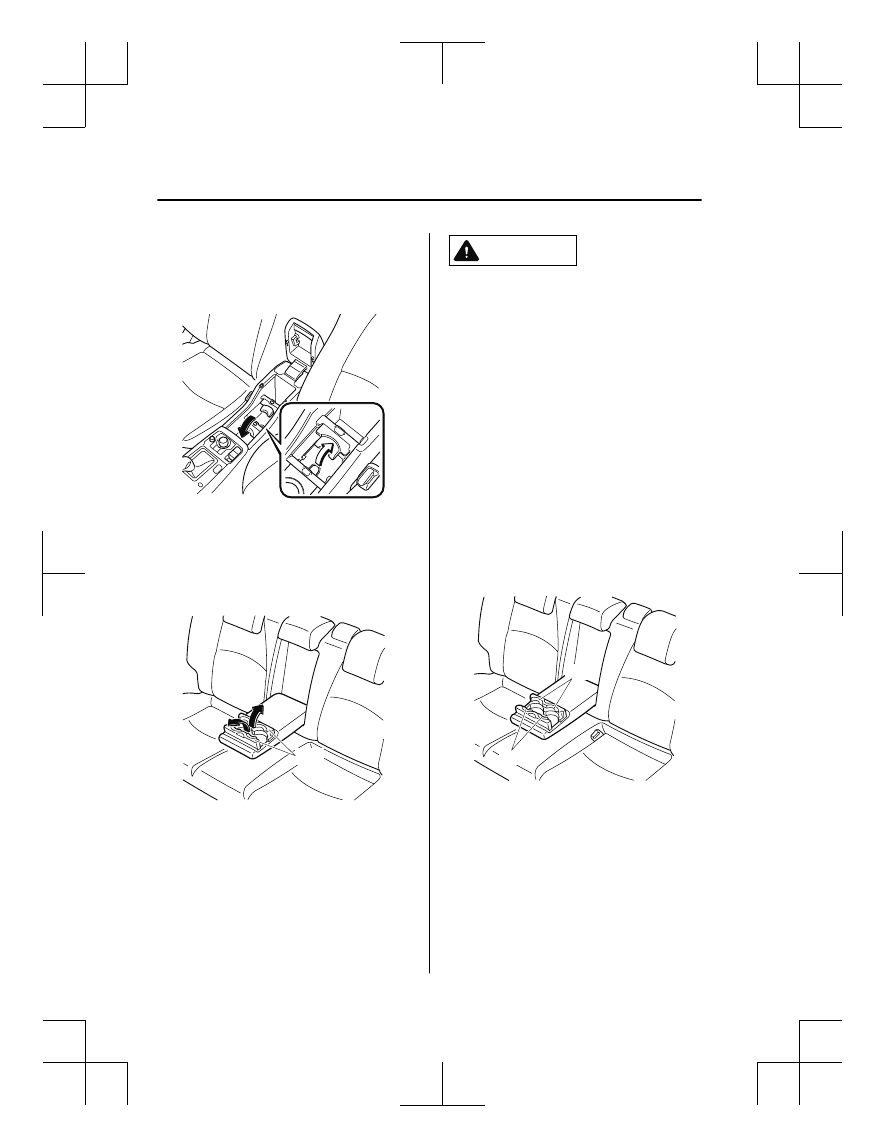

Rear

To retract the base plate, insert a finger
into the notch of the base plate and pull it
up.

▼ Rear

The rear cup holder is on the rear center
armrest.
To use the rear seat cup holders, pull open
the lids.

Lids

CAUTION

Be careful not to pinch your hand or

finger when closing the cover. Otherwise,
you could pinch and injure your fingers
or hand.

When putting a PET bottle or a tall drink

cup in the cup holder, make sure it is held
securely. Depending on the height and
shape of the drink cup or bottle, it may
not remain held in the cup holder while
you are driving the vehicle.

Do not close the lid or store the armrest

with small items left in the cup holder.
Otherwise, the items could be damaged.

NOTE
If it is difficult to remove a PET bottle
from the cup holder, press the flap with
your fingers to make it easier to pull out.

Flaps

Interior Features

Interior Equipment

5-130

*Some models.

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

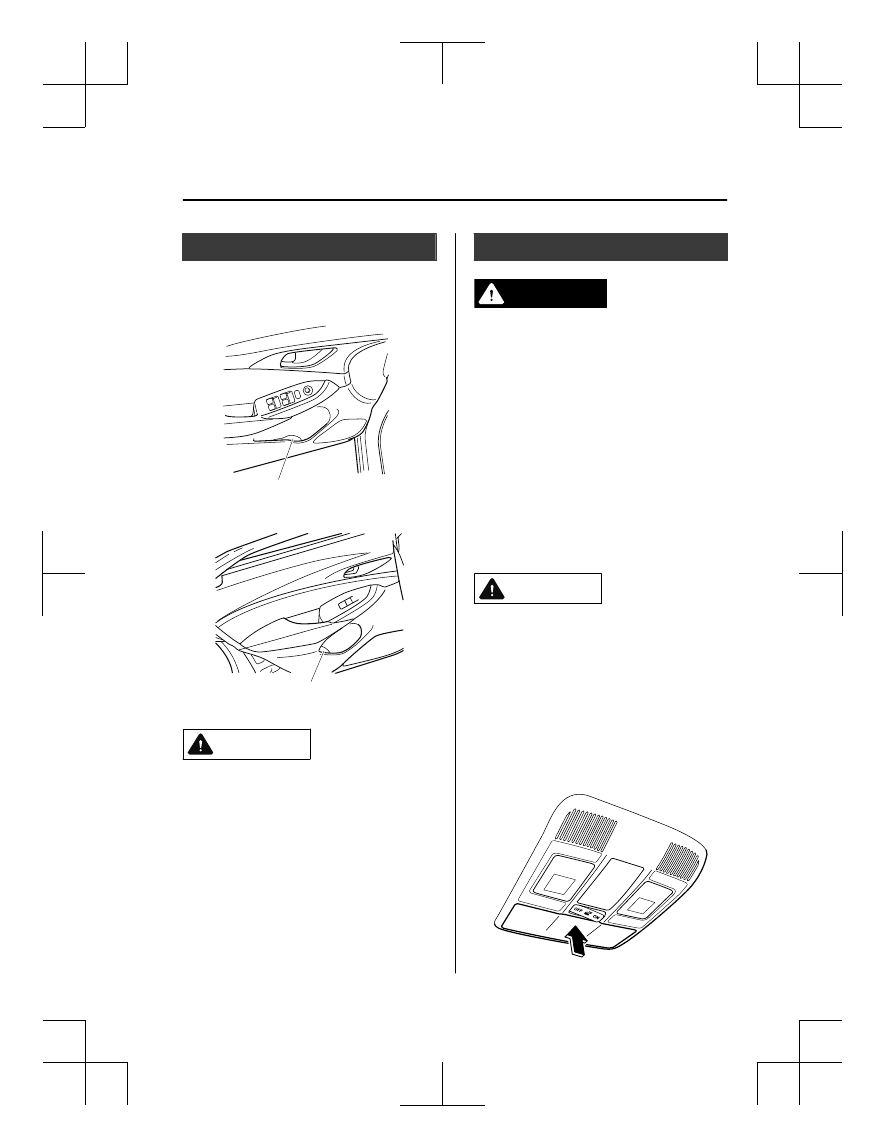

Bottle Holder

Bottle holders are on the inside of the
doors.
Front

Bottle holder

Rear

Bottle holder

CAUTION

Do not use the bottle holders for containers
without caps. The contents may spill when
the door is opened or closed.

Storage Compartments

WARNING

Keep storage boxes closed when driving:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop, keep
the storage boxes closed when driving.

Do not put articles in storage spaces with
no lid:
Putting articles in storage spaces with no
lid is dangerous as they could be thrown
around the cabin if the vehicle is suddenly
accelerated and cause injury depending on
how the article is stored.

CAUTION

Do not leave lighters or eyeglasses in the
storage boxes while parked under the sun.
A lighter could explode or the plastic
material in eyeglasses could deform and
crack from high temperature.

▼ Overhead Console

This console box is designed to store
eyeglasses or other accessories.
Push and release to open.

Interior Features

*Some models.

5-131

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

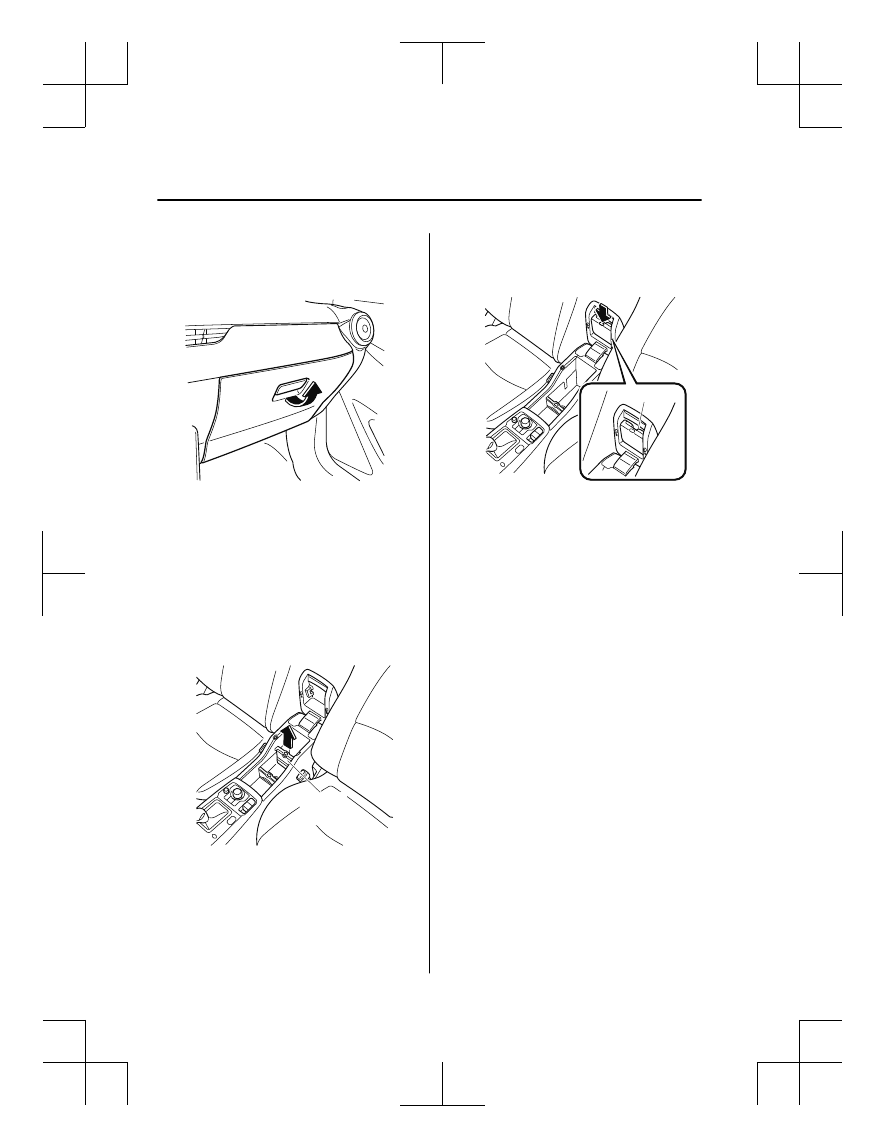

▼ Glove Compartment

To open the glove compartment, pull the
latch toward you.

To close the glove compartment, firmly
press in the center of the glove
compartment lid.

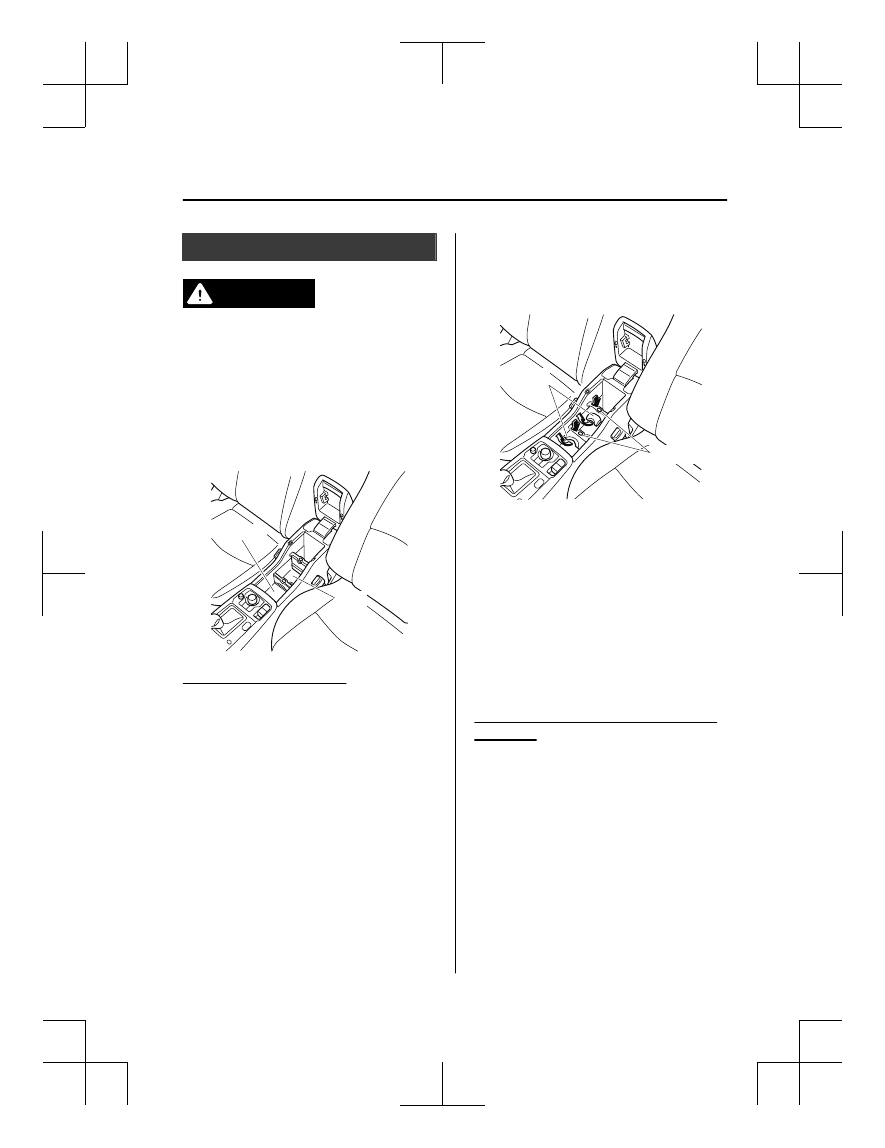

▼ Center Console

The rear divider can be removed and
stored.
Removing the divider provides a console
box with a wider space.
1. Pull out the divider.

Divider

(rear)

2. Insert the divider into the armrest from

the top with the flap side of the divider
facing the underside of the armrest,
and press it in until a click sound is
heard.

NOTE
To use the divider, install it in the
reverse order of removal.

Flap side

Interior Features

Interior Equipment

5-132

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

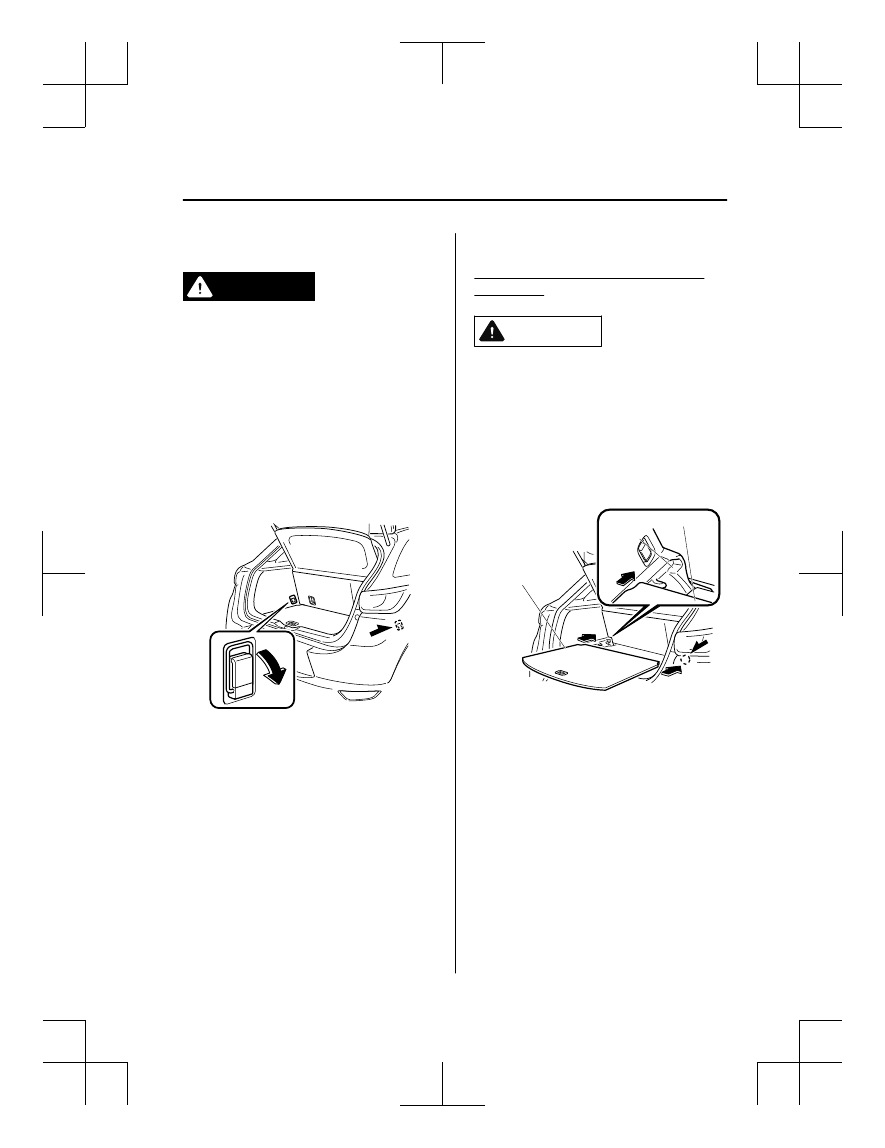

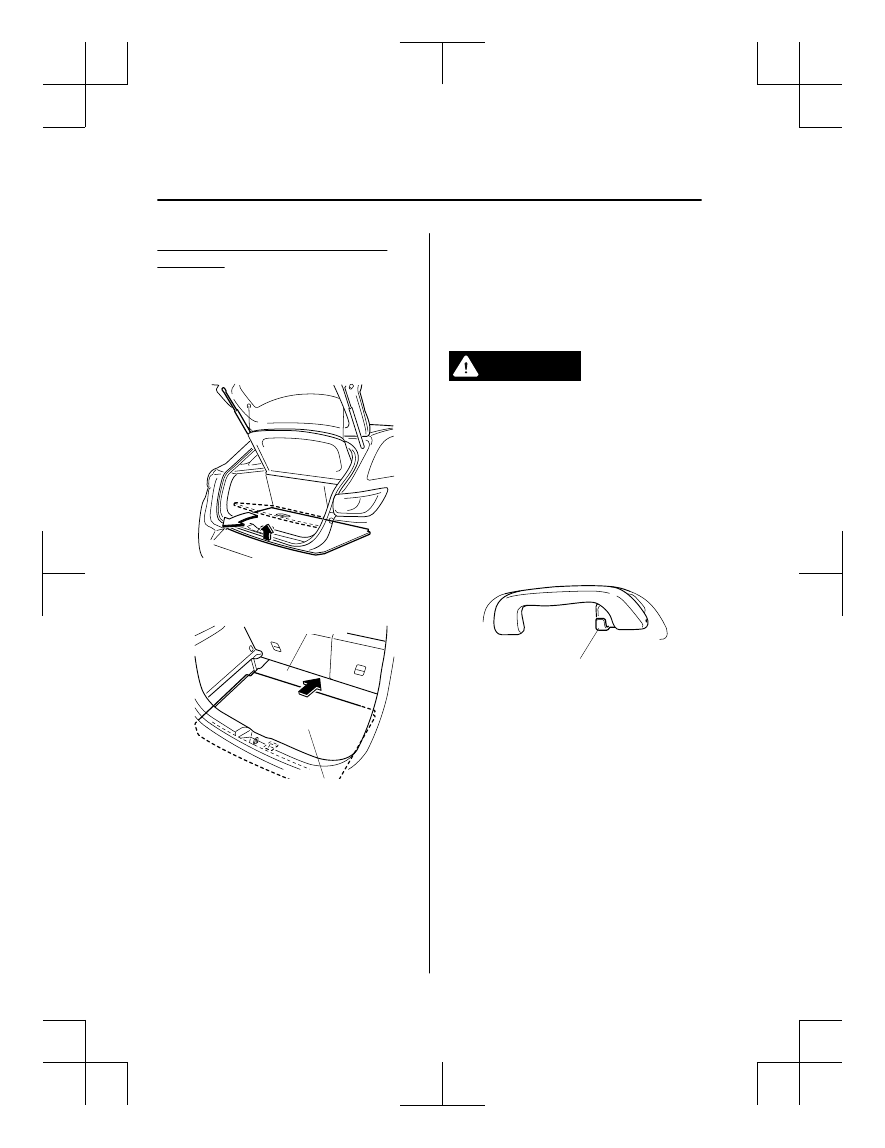

▼ Cargo Securing Loops

WARNING

Make sure luggage and cargo is secured
before driving:
Not securing cargo while driving is
dangerous as it could move or be crushed
during sudden braking or a collision and
cause injury.

Use the loops in the luggage compartment
to secure cargo with a rope or net. The
tensile strength of the loops is 196 N (20
kgf, 44 lbf). Do not apply excessive force
to the loops as it will damage them.

▼ Luggage Board

When using the luggage board in the
upper level

CAUTION

Make sure the luggage board is securely
inserted into the grooves. Otherwise, the
luggage board may detach while the
vehicle is being driven or during sudden
braking resulting in injury or damage to
the luggage board.

Insert the luggage board into the left and
right grooves.

Groove

Luggage board

Interior Features

*Some models.

5-133

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

When using the luggage board in the
lower level

By placing the luggage board on top of the
luggage mat, more space is available for
placing taller items.
1. Lift up the luggage board and pull it

outward.

2. Place the luggage board on top of the

luggage mat.

Luggage mat

Luggage board

NOTE
When using the luggage board on the
lower level, make sure that it is placed
horizontally.
The front part of the luggage board folds
up on vehicles equipped with the
sub-woofer.

The luggage board can be placed
horizontally by sliding it towards the
vehicle front until the front part of the
luggage board folds up.

▼ Rear Coat Hooks

WARNING

Never hang heavy or sharp objects on the
assist grips and coat hooks:
Hanging heavy or sharp-ended objects
such as a coat hanger from the assist grips
or coat hooks is dangerous as they can fly
off and hit an occupant in the cabin if a
curtain air bag was to deploy, which could
result in serious injury or death.

Always hang clothes on the coat hooks
and the assist grips without hangers.

Coat hook

Interior Features

Interior Equipment

5-134

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Maintenance and Care

How to keep your Mazda in top condition.

Essential Information........................6-2

Introduction.................................. 6-2

Scheduled Maintenance.................... 6-4

Scheduled Maintenance (U.S.A.,
Canada, and Puerto Rico)............. 6-4
Scheduled Maintenance
(Mexico)..................................... 6-10
Maintenance Monitor................. 6-15

Owner Maintenance........................6-17

Owner Maintenance
Precautions................................. 6-17
Hood........................................... 6-19
Engine Compartment
Overview.................................... 6-21
Engine Oil...................................6-22
Engine Coolant........................... 6-25
Brake/Clutch Fluid..................... 6-27
Window Washer Fluid................ 6-27
Body Lubrication........................6-28
Wiper Blades.............................. 6-29
Battery........................................ 6-32
Key Battery Replacement...........6-34
Tires............................................ 6-36
Light Bulbs................................. 6-41
Fuses........................................... 6-48

Appearance Care.............................6-54

Exterior Care.............................. 6-54
Interior Care................................6-60

6-1

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Introduction

Be careful not to hurt yourself when inspecting your vehicle, replacing a tire, or doing some
kind of maintenance such as car washing. In particular, wear thick work gloves such as
cotton gloves when touching areas that are difficult to see while inspecting or working on
your vehicle. Doing inspections or procedures with your bare hands could cause injury.

If you are unsure about any procedure this manual describes, we strongly urge you to have a
reliable and qualified service shop perform the work, preferably an Authorized Mazda
Dealer.

Factory-trained Mazda technicians and genuine Mazda parts are best for your vehicle.
Without this expertise and the parts that have been designed and made especially for your
Mazda, inadequate, incomplete, and insufficient servicing may result in problems. This
could lead to vehicle damage or an accident and injuries.

For expert advice and quality service, consult an Authorized Mazda Dealer.

To continue warranty eligibility and to protect your investment, it is your responsibility to
properly maintain your vehicle according to factory recommended schedules outlined in this
manual. As part of this you must keep your maintenance records, receipts, repair orders and
any other documents as evidence this maintenance was performed. You must present these
documents, should any warranty coverage disagreement occur. Failure to do so can result in
your warranty being voided either in whole or in part.

This evidence may consist of the following:

•

The Mazda Scheduled Maintenance Record, refer to the Warranty Booklet, must be
completely filled out showing mileage, repair order number, date for each service, and
signed by a qualified automotive service technician who service vehicles.

•

Original copies of repair orders or other receipts that include the mileage and date the
vehicle was serviced. Each receipt should be signed by a qualified automotive service
technician.

•

For self maintenance, a statement that you completed the maintenance yourself,
displaying mileage and the date the work was performed. Also, receipts for the
replacement parts (fluid, filters, etc.) indicating the date and mileage must accompany this
statement.

Maintenance and Care

Essential Information

6-2

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

NOTE

If you elect to perform maintenance yourself or have your vehicle serviced at a location

other than an Authorized Mazda Dealer, Mazda requires that all fluids, parts and materials

must meet Mazda standards for durability and performance as described in this manual.

Claims against the warranty resulting from lack of maintenance, as opposed to defective
materials or authorized Mazda workmanship, will not be honored.

Any auto repair shop using parts equivalent to your Mazda's original equipment may
perform maintenance. But we recommend that it always be done by an Authorized
Mazda Dealer using genuine Mazda parts.
Selecting “Maintenance Monitor” enables the system to notify you of your vehicle's
approaching inspection/servicing period (page 6-15).

The malfunction diagnosis connector is designed exclusively for connecting the specially
designed device to perform on-board diagnosis.
Do not connect any devices other than the specially designed malfunction diagnosis devices
for servicing. If any device other than the malfunction diagnosis device is connected, it may
affect the vehicle's electrical devices or lead to damage such as battery depletion.

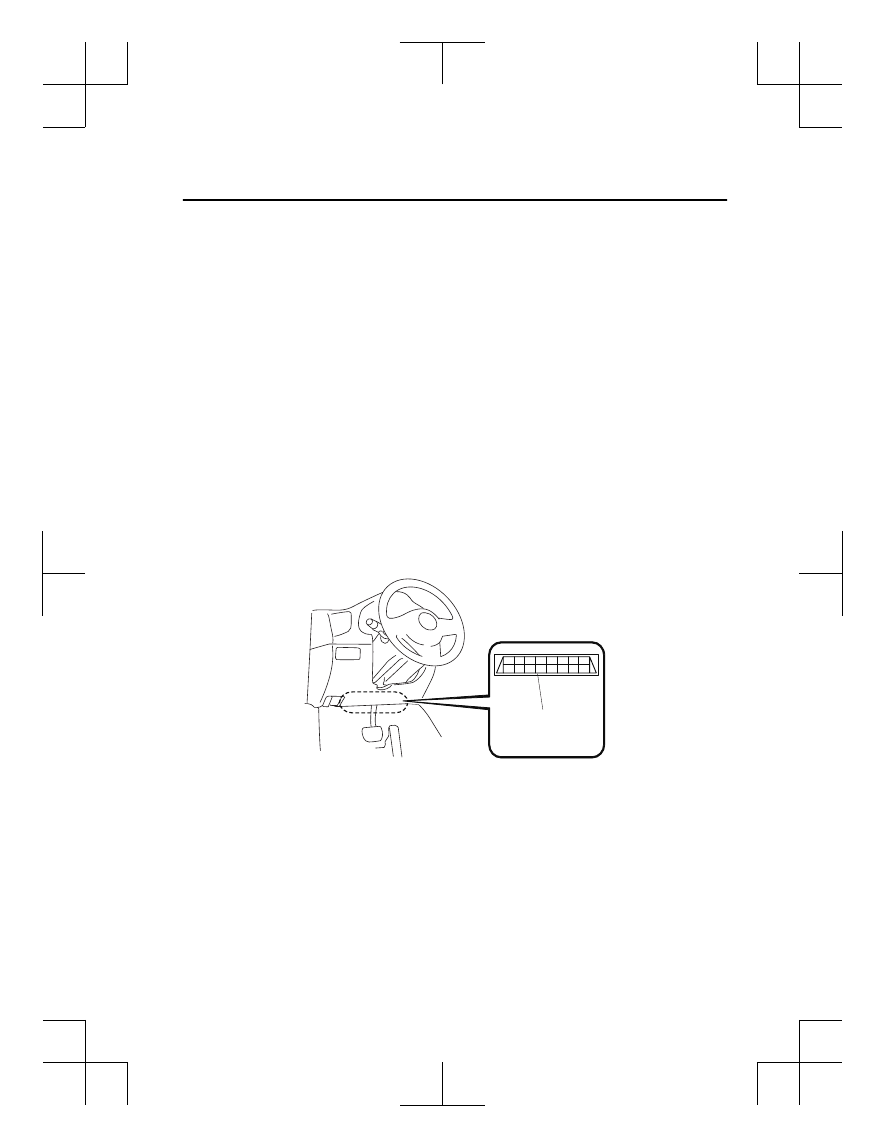

Malfunction
diagnosis
connector

Maintenance and Care

Essential Information

6-3

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Scheduled Maintenance (U.S.A., Canada, and Puerto

Rico)

Follow Schedule 1 if the vehicle is operated mainly where none of the following conditions
(severe driving conditions)apply.

•

Repeated short-distance driving

•

Driving in dusty conditions

•

Driving with extended use of brakes

•

Driving in areas where salt or other corrosive materials are used

•

Driving on rough or muddy roads

•

Extended periods of idling or low-speed operation

•

Driving for long periods in cold temperatures or extremely humid climates

•

Driving in extremely hot conditions

•

Driving in mountainous conditions continually

If any do apply, follow Schedule 2. (Canada residents follow Schedule 2.)
Vehicles using Engine Oil Flexible Maintenance
Engine Oil Flexible Maintenance is selected by default for U.S.A. and Puerto Rico
residents.
If any following conditions do apply, follow Schedule 2 with engine oil fixed maintenance.

•

Extended periods of idling or low-speed operation such as police car, taxi or driving
school car

•

Driving in dusty conditions

The vehicle calculates the remaining oil life based on engine operating conditions. The
vehicle lets you know when an oil change is due by illuminating the wrench indicator light
in the instrument cluster. Change the oil as soon as possible within the next 1,000 km (600
mile) or 15 days. Refer to Maintenance Monitor on page 6-15 for the details.

NOTE

•

Please ensure that the Flexible Oil Maintenance Setting is reset after each Oil and Filter
replacement.

•

For maintenance guidelines beyond the miles/months listed, follow the maintenance
intervals provided in the Scheduled Maintenance Tables.

Maintenance and Care

Scheduled Maintenance

6-4

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

▼ Schedule 1

U.S.A. and Puerto Rico residents - Engine oil flexible maintenance interval

Use when the maintenance monitor for “Oil Change” is set to “Flexible”. For details,
see maintenance monitor. (page 6-15)

Maintenance Interval

Number of months or kilometers (miles), whichever comes first.

Months

×1000 km

×1000 miles

7.5

22.5

37.5

52.5

Drive belts

Engine oil & filter

Replace when wrench indicator light is ON. (Max interval:12

months or 12,000 km (7,500 miles))

Engine coolant

Replace at first 192,000 km (120,000 miles) or 10 years; after

that, every 96,000 km (60,000 miles) or 5 years.

Air filter

Fuel lines and hoses

Hoses and tubes for emission

Spark plugs

Replace every 120,000 km (75,000 miles).

Brake lines, hoses and connections

Disc brakes

Tire (Rotation)

Rotate every 12,000 km (7,500 miles).

Steering operation and linkages

Front and rear suspension, ball joints and wheel
bearing axial play

Rear differential oil

*4*5

Transfer oil

Driveshaft dust boots

Bolts and nuts on chassis and body

Exhaust system and heat shields

Emergency flat tire repair kit (if installed)

Inspect annually.

Cabin air filter

Chart symbols:

I: Inspect: Inspect and clean, repair, adjust, fill up, or replace if necessary.
R: Replace
L: Lubricate
C: Clean
T: Tighten
D: Drain

Maintenance and Care

Scheduled Maintenance

6-5

CX-3_8GR7-EA-18B_Edition1

2017-12-20 16:18:14

Mazda CX-3 (2019 year). Instruction - part 26
